Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in

MANETs with a Simulator

Alexandre Cormier

, Franc¸ois Gagnon

, Babak Esfandiari

and Thomas Kunz

Department of Systems and Computer Engineering, Carleton University, Ottawa, Canada

Cybersecurity Research Lab, C

egep Sainte-Foy, Qu

ebec, Canada

Keywords:

P2P, SIP, MANET, Security, Attacks, Simulation Experiments.

Abstract:

Mobile Ad hoc NETworks (MANETs) are comprised of mobile devices communicating with each other over

multi-hop wireless links. Because they do not require any ﬁxed infrastructure, these networks are appropriate

for communication in military operations, for example. The Session Initiation Protocol (SIP) is a standard for

session establishment in Voice over IP context, notably, but is not adapted to MANETs and peer-to-peer (P2P)

networks. Though solutions have been proposed, their security properties are not addressed in depth. We thus

analyze the different threats affecting a military MANET used for P2PSIP, propose a security solution, based

in large part on cryptographic challenges, to counter the identiﬁed threats and present some simulation-based

experiment results for our proposed solution.

1 INTRODUCTION

Peer-To-Peer (P2P) networks are used in many dif-

ferent contexts and for many different reasons. For

instance, P2P is interesting for ﬁle sharing systems

(Androutsellis-Theotokis, 2002) since it provides en-

hanced robustness compared to the traditional client-

server mode (where the server becomes a single point

of failure). In other contexts, using P2P allows to pre-

vent giving too much trust to a single controlling en-

tity (the server); instead, putting a small amount of

trust in many other peers (Wendlandt et al., 2008).

The security aspects of P2P systems have been

studied in the literature (e.g., (Urdaneta et al., 2011)

and (Levine et al., 2006)). However, security studies

and solutions are usually general to P2P and not spe-

ciﬁc to the various contexts (e.g., who are the peers)

and applications (e.g., ﬁle sharing) for which a P2P

system will be deployed. We believe that consider-

ing both the context and the application underlying

the P2P system is important when building a threat

model to consider which security solutions to adopt.

In this paper, we present our work toward securing

a P2P network used for a Voice over IP (VoIP) appli-

cation (with SIP

) in the context of military missions

relying on Mobile Ad hoc NETworks (MANETs)

(Giordano et al., 2002). The contributions of this pa-

Session Initiation Protocol

per are:

• Presenting a threat model for the speciﬁc situation

of P2P SIP over MANETs.

• Proposing the ﬁrst layers of a defense mechanism

to protect the network.

• Providing experimental results in OverSim

, a

P2P simulation environment built on top of OM-

NeT++

The rest of the paper is structured as follows. First,

Section 2 provides some background information re-

garding P2P, SIP and MANET. Then, Section 3 dis-

cusses related work from the literature. Sections 4

and 5 respectively present the threat model and the

defense mechanisms for our context (P2P for VoIP in

a military MANET). Section 6 then presents security-

related experiments performed in a network simula-

tor. Finally, Section 7 concludes with a discussion

regarding the lessons learned and pointers towards fu-

ture work.

2 BACKGROUND

This section provides a short background on the key

elements used throughout this paper: MANET, SIP,

http://www.oversim.org (Baumgart et al., 2007)

https://omnetpp.org/ (Varga and Hornig, 2008)

Cormier, A., Gagnon, F., Esfandiari, B. and Kunz, T.

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator.

DOI: 10.5220/0006478300430054

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 1: DCNET, pages 43-54

ISBN: 978-989-758-256-1

and P2P.

2.1 Mobile Ad Hoc Networks

MANETs (Giordano et al., 2002), being

infrastructure-less wireless networks, do not re-

quire any kind of central administration. Every node

in such a network acts both as an end device and

as a router. When a node wants to send a packet to

another one that is not within communication range,

the packet will follow a multi-hop path and will be

routed wirelessly through intermediate nodes until it

reaches its destination.

This kind of network thus allows for constantly-

changing topology, and nodes can be devices carried

by people or vehicles. This makes MANETs ideal for

a number of scenarios, such as emergency response

and, more speciﬁcally for this paper, military net-

works. Soldiers and military vehicles can carry mo-

bile devices and form a network to communicate even

in the most hostile of environments.

2.2 Session Initiation Protocol

SIP (Rosenberg et al., 2002) is a protocol standard-

ized by the IETF that, as the name indicates, is used

to initiate a session between two users’ devices, which

are identiﬁed by an ID (SIP URI) similar to an email

address (sip:alice@example.com). A key part of the

protocol is thus a registrar,

a la DNS, to map SIP

URIs to a contact address, which is the current net-

work location (IP address) where the SIP client can

be reached. A SIP URI mapping to a contact address

in such a way is called an Address-of-Record (AOR).

SIP is based on a client-server architecture. The

role of the registrar is assumed by a number of SIP

servers, that are generally managed by larger orga-

nizations or Internet service providers. When a SIP

client needs to establish a connection with another

one, it contacts its SIP server which, using DNS, will

locate the recipient’s SIP server, which knows the sta-

tus and location of the recipient itself.

2.3 P2P

Because SIP is based on a client-server architecture, it

is not appropriate for use in MANETs. A solution to

this is to use a P2P overlay network such as a dis-

tributed hash table (DHT) to store and retrieve the

registrations associated with SIP URIs. Such an ap-

proach was standardized by the IETF as the RELOAD

protocol (Jennings et al., 2014).

A P2P (Schollmeier, 2001) network is a dis-

tributed network in which participants share a part of

their hardware resources to provide, together, a cer-

tain service and content. Peers are accessible to one

another directly, eliminating the need for central in-

termediary entities to pass through. In the case of a

pure P2P network, any node can come and go without

affecting the overall service, meaning that no central

entity is needed at all to offer the service. The fact

that no central entity is needed and that nodes can

leave and rejoin at will makes P2P an ideal choice

for MANETs.

One way to structure a P2P network is to use a dis-

tributed hash table (DHT). A DHT stores (key, value)

pairs and peers can easily and efﬁciently retrieve the

value associated with a given key. The way this works

is by having keys and node identiﬁers be values in the

same identiﬁer space. This is often achieved by using

a hash of the node’s IP address as its ID. The same

hashing function is then used to calculate keys from a

meaningful name related to their values. The value as-

sociated with key k is stored on the node whose iden-

tiﬁer is closest to k, for some deﬁnition of closeness.

3 RELATED WORK

A few solutions have been proposed to address the

implementation of SIP over MANETs. TacMAN

(Li and Lamont, 2005) and an approach identiﬁed

as “Loosely Coupled” (LCA) by (Banerjee et al.,

2004) do so by replacing the central registrars with lo-

cal storage and broadcast lookups. AdSIP (Yahiaoui

et al., 2012), MANETSip (Fudickar et al., 2009) and

another approach identiﬁed as “Tightly Coupled” by

(Banerjee et al., 2005), on the other hand, select

a subset of the network’s peers to act as registrars,

more akin to the standard, centralized version of SIP.

Finally, two unnamed proposals (Wongsaardsakul,

2010; O’Driscoll et al., 2007) and SIPHoc (Stuedi

et al., 2007) implement a DHT to replace registrars.

This last approach was also proposed in early P2PSIP

literature, is used in the standardized RELOAD pro-

tocol (Jennings et al., 2014) and is also used for the

purposes of this paper.

However, these solutions do not, for the most part,

focus on security. RELOAD does have a three-level

security model, based on a central certiﬁcate author-

ity (CA). Connections between nodes use TLS or

an equivalent protocol, all messages are signed, and

stored objects are signed as well by the creating node.

Other proposed solutions for securing P2PSIP in-

clude P2PNS (Baumgart, 2008) and unnamed pro-

posals by (Bryan et al., 2008) and (Seedorf, 2006).

Both P2PNS and (Bryan et al., 2008) use public-key

cryptography to sign overlay messages. Additionally,

DCNET 2017 - 8th International Conference on Data Communication Networking

the former signs registration messages while the lat-

ter signs the registrations themselves. Also, neither

relies on a central CA but rather make it harder for an

attacker to get a valid key pair using a rate limiting

mechanism (crypto-puzzles in the case of P2PNS).

(Seedorf, 2006) proposes the use of self-certifying

SIP URIs to protect the integrity of registrations. This

is achieved by using a hash of a node’s self-generated

public key as the user part of its SIP URI and signing

its registrations with the corresponding private key.

In short, most security solutions for P2PSIP make

little assumptions about the context in which the net-

work will be used. For example, they do not assume

that a central entity can manage the network, which

is possible in our context. This means they are not

tailored to the context under focus for this paper (de-

scribed in Section 4.1), and thus they often lack some

security properties that we consider important like re-

sistance to DHT poisoning.

4 THREAT MODEL

Before discussing the threat model per se, we provide

a description of the context underlying our P2P sys-

tem and then discuss the security objectives that are

important in that context.

4.1 Context

This paper considers a P2P network built over a mil-

itary MANET used to run SIP (to initiate VoIP ses-

sions). In such a setting, the P2P layer will be used

to store and retrieve the mapping between a SIP URI

(the id of the user we want to contact) and his current

contact address (the IP address where to locate this

user). This mapping will be stored in a distributed

hash table (DHT), common in P2P systems. The fo-

cus of our work is to protect this DHT.

Furthermore, we are making the following as-

sumptions/observations regarding the context in

which P2P will be used:

• The P2P network is “Private”. Or more accu-

rately, it is owned/operated/controlled by a given

entity. Indeed, being a military network, random

users should not be part of the core network unless

they are part of the military team. This is differ-

ent from the usual P2P context which are usually

designed to be as open as possible.

• The application level IDs (SIP URI) can be au-

thorized by the central authority when a node

is granted access to the network (we assume

this is done ofﬂine, before the military deploy-

ment). Thus, there is no need to worry about

ID generation and potential collisions. Those

IDs will be something human readable (e.g., ﬁrst-

Name.LastNameNumber).

• The DHT acts as a DNS-like service. The role of

the DHT is to store the mapping [AOR → contact

address]. In that sense, it acts as a service that

allows users to resolve a SIP URI and update their

own record.

• The DHT will be dynamic, which is not

something usually considered for DHT security.

MANETs provide mobility which means that

nodes will join and leave the network causing re-

addressing to occur.

• The DHT does not need to be fully persistent.

Once a user y leaves the network, it is not mean-

ingful to keep the entry mapping y to its network

address up-to-date.

• For simplicity reasons, we assume that each de-

vice (each P2P node) is associated with a single

user. This is reasonable for personal devices (e.g.,

smartphone-like gear) but would not be for larger

devices (e.g., vehicles).

4.2 Security Properties

Several security objectives can be deﬁned for P2P sys-

tems:

• Data integrity (security): the content delivered by

DHT in the underlying P2P network has not been

tampered with.

• Service availability (resilience): whenever two

available (and reachable) nodes want to commu-

nicate together, they should be able to do so.

• Conﬁdentiality: Information extracted from the

DHT should not be exposed to intermediary nodes

(only the querying node should access the con-

tent).

• Anonymity: when a node queries the DHT, the

node providing the information should not be able

to trace back where the query originated from.

Data integrity (security) and service availability

(resilience) are the primary security objectives in our

context. Conﬁdentiality and anonymity are not con-

sidered in this paper, but they have been studied in

the P2P literature (e.g., Tarzan (Freedman and Mor-

ris, 2002), MorphMix (Rennhard and Plattner, 2002),

and Octopus (Wang and Borisov, 2012) for Conﬁden-

tiality and (Fonville, 2010) for Anonymity).

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator

4.3 Attacker

We consider malicious nodes to have the following

capabilities:

• They can collaborate together to achieve their

goal.

• They can communicate together via a dedicated

channel to coordinate their attack.

• They control one legitimate device with one valid

SIP URI and the associated certiﬁcate. This al-

lows them to impersonate this ID, but should not

allow them to impersonate others.

The objectives of the malicious nodes are twofold.

On the one hand, they aim to manipulate the DHT

service in order to fool honest nodes regarding the lo-

cation of their peers. On the other hand, failing to

compromise the content of the DHT, they will try to

deny DHT service to legitimate nodes. We focus on

DHT-level attacks, also known as storage-retrieval at-

tacks.

To achieve their objectives, they can rely on vari-

ous attacks. Below, Section 4.3.2 describes some pos-

sible storage-retrieval attack scenarios. Other attacks,

although not directly compromising the DHT, could

help mount a storage-retrieval attack. In Section 4.3.3

we brieﬂy discuss two types of impersonation attacks

that may be used for such a purpose and are widely

discussed in the P2P literature.

4.3.1 Notation

The following notation is used throughout this paper:

• Q and R stand for legitimate nodes.

• x and y stand for legitimate users.

• Q and x are used to denote an entity querying the

DHT.

• R and y are used to denote an entity to communi-

cate with.

• M stands for a malicious node (and user).

• S stands for a generic node (and user).

• A stands for a contact address.

4.3.2 Storage-Retrieval Attacks

This section presents attack scenarios relevant to the

storage-retrieval operation in a DHT. In a VoIP con-

text, the DHT is used to store/retrieve a mapping be-

tween the SIP URI of a user and the address at which

that user can be reached in the network.

In this section, we often refer to attacks available

in OverSim since this is the environment used for the

experiments in Section 6.

For the attack scenarios, assume node Q queries

the DHT to get the location of user y. There is a

node (or multiple if storage is redundant) which is re-

sponsible for storing the mapping for y, we call this

node P(y). The query from Q must be routed to P(y)

through the underlying P2P network.

Routing-based Attacks. A simple routing attack

consists of dropping requests seeking the next hop

to reach P(y). This attack can take place whenever

a malicious node happens to be on the request path

and poses resilience issues. This attack is called Drop

Find Node Attack in OverSim. A similar attack in

OverSim is the Drop Route Message Attack. It is also

a simple attack that only consists of dropping packets.

The difference resides in the type of message that is

dropped: the Drop Route Message Attack applies to

messages sent using key-based routing.

A more sophisticated version of a routing attack

is for an intermediate node to provide a wrong an-

swer (as to which node should be the next hop toward

P(y)) sending the querier on a false trail. The goal is

to end up fooling the querier by providing a false (and

malicious) node as P(y). This then sets up the table

for a Query-Based attack (see below). This is imple-

mented as two attacks scenarios in OverSim: Invalid

Nodes Attack and Is Sibling Attack. The former is

rather superﬁcial as the answer (next hop) is just ran-

domly generated (a malicious, legitimate, or nonex-

istent node), while the latter will indicate that P(y)

is the malicious node itself (which can later mount a

query-based attack).

Query-based Attacks. The easiest query attack is

for a malicious node posing as P(y) to refuse to serve

the data by not replying to the query: a Denial of Ser-

vice (DoS) attack.

A more interesting scenario is for a malicious P(y)

node to answer a query with bogus data. If the querier

is unable to detect the attack, the data integrity will be

compromised leading to potentially serious problems.

If the querier detects the attack, a DoS is likely to oc-

cur unless strong mechanisms are implemented to re-

cover from such a situation. This scenario is called

Invalid Data Attack in OverSim, where a malicious

node would answer with random data which would

not be adequate in a DNS-like DHT.

Because the attack scenarios implemented in

OverSim are general and not speciﬁc to P2PSIP, we

implemented our own attack scenario reﬁning the In-

valid Data Attack, we call it Resolve to Self Attack. In

this new scenario, a malicious node M which happens

to be responsible for storing y’s information (i.e., M

DCNET 2017 - 8th International Conference on Data Communication Networking

is also P(y)) will answer that y is located at M instead

of answering random data.

Resource Exhaustion Attack. RELOAD (Jennings

et al., 2014), an RFC for P2PSIP with security con-

siderations, mentions a type of resource exhaustion

attack where a node is asked to store an abnormally

large amount of data by malicious nodes. As a conse-

quence, the attacked node might be unable to store le-

gitimate data for which it should be responsible, lead-

ing to resilience problems.

DHT Poisoning Attack. In a P2PSIP application

where the DHT acts as a naming service (mapping

each SIP URI to a contact address), poisoning attacks

become a real threat. In this attack, a malicious node

inserts/overwrites data in the DHT instead of focus-

ing on attacking the query mechanism. Hence, when

Q queries the DHT, a legitimate P(y) will unknow-

ingly serve wrong data after being poisoned by a ma-

licious node. Unless strong security mechanisms are

in place to validate updates to the DHT, poisoning at-

tacks would be problematic as they are quite easy to

perform (compared to query-based attacks).

Replay Attack. If the address of a peer changes

over time, then a replay attack becomes possible: an

attacker currently located at address A could reuse an

old DHT entry saying SIP URI of node y is located at

A (y was located at A in the past) to fool a querier into

thinking y is still at A while a malicious node is there.

Even tough not as powerful as a poisoning attack, a

replay attack is difﬁcult to counter.

4.3.3 Impersonation Attacks

Sybil Attack. The Sybil attack (Douceur, 2002)

comes from the inherent openness of P2P systems

and consists of one malicious peer being able to act

as multiple different logical nodes in the system (i.e.,

controlling multiple IDs in the DHT). By itself, this

kind of attack does not compromise the resilience nor

the integrity of the network. However, the ability for

a malicious entity to easily control a large number of

nodes greatly enhances its ability to perform attacks.

For instance, if an entity can setup several malicious

nodes in a network, its chances of disrupting the net-

work through a DoS attack are vastly superior than if

it controls a single one.

Eclipse Attack. An extreme case of the Sybil attack

is the Eclipse attack (Ismail et al., 2015) where a ma-

licious entity controls all the nodes “surrounding” its

target. Hence, every query from the target peer passes

through a malicious node which can then manipulate

the data as it sees ﬁt since the target has a compro-

mised view of the logical network.

5 SECURING DHT FOR P2PSIP

We propose a multilayer approach to securing a DHT.

The proposed approach is centered around an ofﬂine

public key infrastructure (PKI). We start by tackling

the data integrity problem and then work toward in-

creasing resilience.

5.1 Data Integrity

The main security objective is to prevent manipula-

tion of the DHT; that is, for P2PSIP, malicious nodes

(possibly colluding together) should not be able to

convince node Q that user y is located at node R when

this is not the case. When malicious nodes try fool-

ing Q in such a way, Q should be able to detect the

problem and abort the attempt to communicate with

y. Q should be able to detect this before sending any

meaningful data to R.

We identify two attack vectors for malicious nodes

to try and fool Q:

• At query time. When Q queries the DHT, mali-

cious nodes will attempt to redirect the query to

a malicious node M (the goal is to let Q believe

that the node responsible for handling its query is

one of the malicious nodes). Then, M can answer

the query from Q with false information. This is

a combination of Routing-based and Query-based

attacks mentioned in Section 4.3.2.

• At insertion time. Before Q even queries the

DHT, a malicious node could insert a mapping

in the DHT (possibly overwriting the previous le-

gitimate entry) with bogus information. This is

the DHT poisoning attack discussed in Section

4.3.2. This attack is particularly important when-

ever the DHT acts as a registrar (like it is the case

of P2PSIP) as poisoning the DHT is much simpler

and efﬁcient then building attacks at query time.

5.1.1 End-User Validation

In our speciﬁc context (P2PSIP), where the DHT

stores the mapping between a user ID and the node

where that user is located, the easiest way to prevent

impersonation is to allow the querier to validate the

result of its DHT query by challenging the returned

node to prove it is indeed occupied by the right user.

So if Q wants to know where y is, it asks the DHT

and gets a node R. Now Q will challenge R and ask

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator

for a proof that user y is indeed at R. This can be done

with an ofﬂine PKI in the following way.

5.1.2 Details

We use an ofﬂine CA to give, to each node, a root

certiﬁcate (rootCert with public key only) and a user

certiﬁcate (userCert with private key). userCert is is-

sued for the SIP URI (user) associated to the node and

is signed by rootCert. This is not a major overhead

as each device will have to be prepared for missions

beforehand anyway and we have a central authority

owning the P2P network.

So now, a node R can prove its real identity by us-

ing the private key associated with its userCert to sign

a challenge. The challenge protocol should be such

that the answer will not be re-playable nor transfer-

able.

Back to our above example, Q will issue a chal-

lenge to R asking to sign a random value with y’s

public key. The random value makes past answers

non re-playable. So, only a node with access to y’s

private key can answer the challenge correctly. Once

the answer from the challenge comes back to Q, Q can

validate it using y’s public key which should be sent

in a certiﬁcate alongside the answer. Q will ﬁrst vali-

date the certiﬁcate (it should be for y and be properly

signed by rootCert).

To avoid a malicious node M posing as y to simply

transfer the challenge to the real node hosting y and

forwarding y’s answer back to Q, the response should

be speciﬁc to y’s location. For instance, Q will send

a random number Rand as the challenge for y to node

R. The answer should be < Rand, y, R > signed with

y’s private key.

If the node R successfully passes the challenge, Q

can go along with the communication. If the node R is

malicious, it can’t answer the challenge. As a result,

Q stops its communication attempts with y.

The PKI provides good security trough end-user

validation. But, the network needs to be more resilient

to DoS because it is currently easy for a malicious

node to DoS the system (making sure a communica-

tion fails because of invalid challenge-response).

5.2 Resilience

The approach discussed above, end-user validation

with a PKI, will solve the data integrity problem.

However, the system will not be very resilient (DHT

poisoning will easily lead to DoS). Resilience can be

increased with a three-step approach. Note that 100%

resilience is unattainable because if an attacker con-

trols a “strategic” part of the P2P network (enough

nodes or the right nodes), he can generate DoS below

the DHT (e.g., at the network level).

5.2.1 Step 1 - Preventing DHT Poisoning

To prevent malicious nodes from inserting false en-

tries in the DHT, nodes are required to sign their in-

sertion requests, and nodes responsible for storing the

information are required to validate signatures before

storing the information. So, whenever node y wants to

store/update its address A in the DHT, it will sign the

new mapping with its private key. The node respon-

sible for storing that information, P(y), will validate

that any insertion for the SIP URI of y are properly

signed by y’s private key.

This signature validation upon storing in the DHT

will prevent poisoning attacks. And since the end-

user validation presented in Section 5.1.1 above turns

retrieval attacks into DoS attacks, the attacker is left

with less attack surface. However, a replay attack is

still possible.

5.2.2 Step 2 - Limiting Replay Attacks

In a replay attack, a malicious node reuses an old

DHT entry that should not be valid anymore to fool

honest nodes. Assume user y was previously at ad-

dress A and has stored this in the DHT at some point.

Now, assume y is at another address and a malicious

node M is able to obtain address A. M could now in-

ject the old information saying that y is at A in the

DHT. This will lead to a DoS (not a data integrity

problem) since legitimate nodes will challenge y at

A and M (located at A) will not be able to resolve the

challenge. Still, this allows for easy DoS under the

right conditions.

To limit replay attacks, information stored in the

DHT should be timestamped. Then either those en-

tries older than the most recent one or those expired

(for some given threshold) are not valid. The problem

with the ﬁrst approach is the need of a relative point of

view (the most recent one is needed to make sure all

the old ones are considered invalid). The second ap-

proach on the other hand, requires some form of clock

synchronization for various nodes. It also requires

that legitimate nodes periodically update their info,

even if it did not change, before it expires. Moreover,

the second approach is not entirely local: one entry

that is not expired might still be invalid if a newer en-

try exists. Nevertheless, the second approach is kept

as it is more ﬂexible.

At insertion time, P(y) will reject insertion re-

quests that are older than the currently stored entry,

to prevent replay-based DHT poisoning.

DCNET 2017 - 8th International Conference on Data Communication Networking

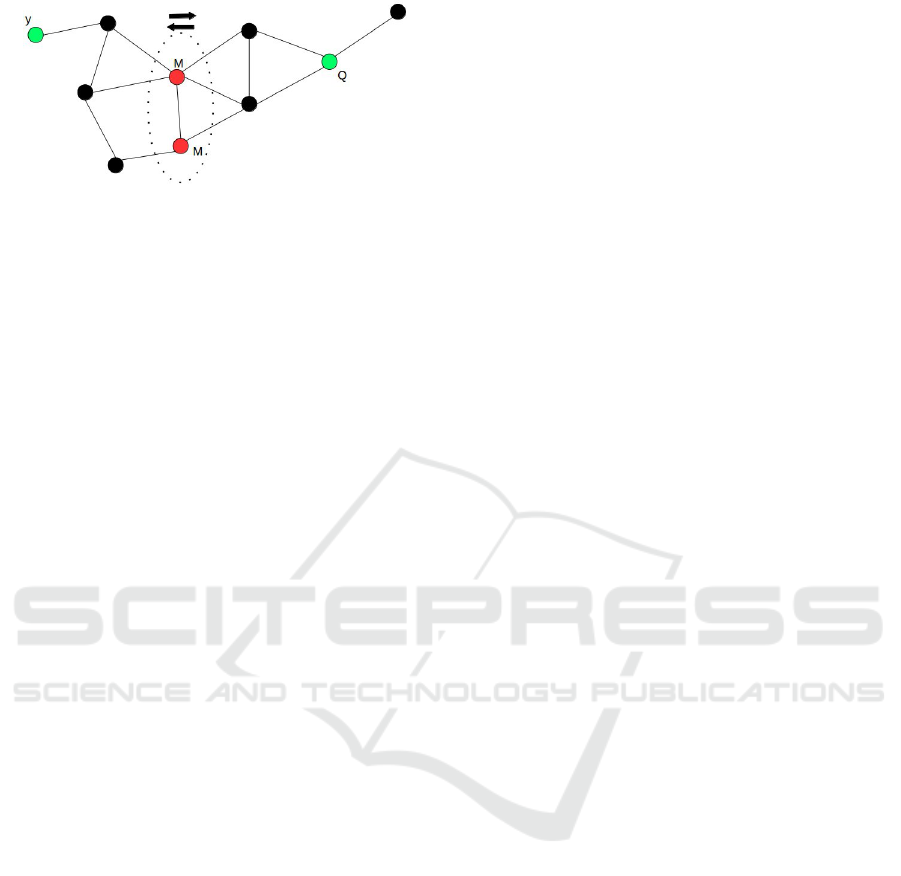

Figure 1: Limiting the attack surface with Store Everywhere

- Retrieve Locally.

Replay attacks are hard to completely circumvent,

especially in a decentralized context. But, since the

end-user validation will prevent replay attacks from

compromising data integrity and instead turn them

into resilience problems (DoS), limiting those attacks

to corner cases will make them highly unattractive.

5.2.3 Step 3 - Adding Redundancy

Now that DHT entries are timestamped to limit re-

play attacks, it is possible to further limit the oppor-

tunities of replay attacks by adding redundancy in the

storage-retrieval procedure. Indeed, the more nodes

are responsible for y’s entry in the DHT, the harder it

becomes for a malicious node to reuse an old entry.

To do so, a malicious node has to prevent all the le-

gitimate nodes responsible for y from answering the

initial query. Just one legitimate answer is enough to

prevent a replay attack, indeed, if the querier receives

multiple answers, only the most recent one will be

considered valid.

To illustrate the effectiveness of redundancy, let’s

consider an extreme case where the information is

stored everywhere and retrieved locally. In this con-

text, an attack is successful if the malicious node is

able to push an old entry into the DHT (which every

node stores locally) and prevent any newer entry from

reaching the targeted node (the eventual “querier” Q).

However, to prevent the new entry from reaching Q,

the attacker must eclipse Q from y (y is assumed to

broadcast his entry info). To achieve this, the attacker

must control every path from y to Q. The gain for the

attack is only a denial of service because the attacker

will fail end-user validation anyway. Figure 1 illus-

trates such a possible scenario. However, it is possi-

ble for the malicious node (M) to achieve the same

DoS without manipulating the DHT entries because it

controls the trafﬁc ﬂow between Q and y.

6 EXPERIMENTS

We describe our experiments in 6.1, show the results

obtained from these experiments in Section 6.2 and

discuss them in Section 6.3.

6.1 Methodology

As previously mentioned, we implemented simula-

tions in OMNeT++ using the OverSim framework.

The simulated network has 25 nodes placed in such

a way that, if they are all honest and cooperate, any

node can reach any other node. Nodes are static and

form a Chord DHT (Stoica et al., 2001) over an OLSR

network (Clausen and Jacquet, 2003).

Upon joining the DHT, nodes try registering their

AOR in the DHT with the P2PSIP service and keep

trying until they succeed. After 100 seconds of sim-

ulation time, nodes that have successfully registered

start issuing random resolve requests for SIP URIs

that have also been successfully registered. They do

so periodically, every 30 seconds.

The defense mechanism against attacks on data in-

tegrity described in Section 5.1 has been implemented

with a simulated PKI. The Resolve to Self Attack, de-

scribed in Section 4.3.2, has also been implemented

in order to test the effectiveness of the PKI.

We simulated 600 seconds per simulation and

each scenario was run 20 times in order to account

for randomness and get representative results.

6.2 Results

This section shows the results of our simulations eval-

uating the effect of different attacks on the ability of

nodes to join the DHT and, most importantly, the suc-

cess rate of resolve calls. They all show these statis-

tics for different proportions of malicious nodes, rang-

ing from none to half of the nodes, as indicated on the

horizontal axis. The margin of error displayed on all

graphs is for 95% conﬁdence intervals.

Graphs for the resolve call statistics show four

relevant statistics. A solid green line indicates the

percentage of resolve requests that were successful

with the defense mechanism in place, meaning that

a response was received, it was determined with the

cryptographic challenge that it was valid and commu-

nication could be established with the correct node.

An orange line shows the percentage of resolve calls

that yielded a valid response in the sense that it was

in the correct format (i.e. an IP address), but the

cryptographic challenge determined that the response

had been tampered with and the correct node could

not be reached at the received address. A dashed

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator

green line (sometimes over the solid green line), com-

bine both of these last statistics to show the percent-

age of requests that would have been considered suc-

cessful had there not been a defense mechanism in

place, including connections established with mali-

cious nodes. Finally, the red line indicates the per-

centage of requests that failed to yield a valid re-

sponse, because of a network error or wrongly for-

matted data (i.e. not an IP address) for example.

Section 6.2.1 shows results for attacks that are in-

cluded in OverSim, and for which the simulated PKI

that we have implemented is not expected to make a

difference — because they are DoS attacks

or are de-

tectable without the PKI

. Section 6.2.2 shows results

for the attack scenario that we have implemented, the

Resolve to Self Attack, as well as a combination of this

one with the Is Sibling Attack, which is expected to be

more powerful. These last two scenarios are expected

to demonstrate the effectiveness of the PKI.

6.2.1 Attacks in OverSim

These attacks are part of the OverSim framework and

reside at the overlay layer, meaning they do not have

knowledge nor account for the P2PSIP context. They

are thus either DoS attacks or data integrity attacks

that are easily detectable by the P2PSIP application,

effectively turning them into DoS attacks. The de-

fense mechanism that we have implemented for data

integrity is not expected to show any improvement in

results in this context.

Drop Find Node Attack. Figures 2 and 3 show the

effect of the Drop Find Node Attack on the ability of

peers to join the DHT and on the success rate of re-

solve calls, respectively. We notice that the number

of nodes able to join the DHT and the resolve success

rate both drop as the number of malicious nodes in-

crease, because more nodes drop messages intended

to locate nodes. Our defense mechanism does not

have any impact as this is a DoS attack.

Invalid Data Attack. This attack does not affect

nodes joining the DHT, but it does, of course, af-

fect resolve calls. The success rate drops as the num-

ber of malicious nodes increases, as shown in Fig-

ure 4, as more resolves result in invalid data being re-

ceived. Cryptographic challenges are not needed be-

cause having data in the wrong format is enough to

Drop Find Node Attack, Invalid Nodes Attack and Is

Sibling Attack, when performed by themselves.

Invalid Data Attack, because a random value is re-

turned and an IP address is expected.

0 0.1 0.2 0.3 0.4

0.5

Probability of any node to be malicious

Number of Peers

Figure 2: Drop Find Node Attack — Peers that Successfully

Join the DHT.

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 3: Drop Find Node Attack — Resolve Calls Statis-

tics.

detect attacks. This shows that generic attack scenar-

ios are not always sufﬁcient.

Invalid Nodes Attack. This attack affects both

nodes trying to join the DHT and resolve attempts, as

shown in Figures 5 and 6. Nodes have more trouble

joining the DHT in the presence of more malicious

nodes and the success rate of resolve calls drop in

the same cirumstances as a result of malicious nodes

sending queriers on false trails. This is a DoS attack,

so cryptographic challenges are of no help.

Is Sibling Attack. Resolve success rate drops in the

presence of an attacker performing an Is Sibling At-

tack, as shown in Figure 7. This is because, in this

scenario, resolve calls are ultimately replied to by the

ﬁrst malicious node reached when trying to ﬁnd the

node responsible for the desired AOR, whether it is

DCNET 2017 - 8th International Conference on Data Communication Networking

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 4: Invalid Data Attack — Resolve Calls Statistics.

0 0.1 0.2 0.3 0.4

0.5

Probability of any node to be malicious

Number of Peers

Figure 5: Invalid Nodes Attack — Peers that Successfully

Join the DHT.

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 6: Invalid Nodes Attack — Resolve Calls Statistics.

responsible for the queried data or not. The ability of

nodes to join the DHT is unaffected, however, as this

attack speciﬁcally targets DHT-level GET operations,

used for resolves. Cryptographic challenges have no

impact as resolves are either answered truthfully or

not at all.

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 7: Is Sibling Attack — Resolve Calls Statistics.

6.2.2 Attacks Demonstrating the Effectiveness of

the PKI

The following attacks target data integrity, with

knowledge of the P2PSIP application, thus making

them effective and impossible to detect without some

security mechanism in place. The cryptographic chal-

lenge mechanism that we have implemented is ex-

pected to prove useful in this context.

Resolve to Self Attack. This attack does not affect

nodes joining the DHT, but it does affect resolve calls,

as they are the target of the attack. It is also unde-

tectable without a security mechanism in place, as

shown in Figure 8, because responses are valid IP ad-

dress of a (malicious) node in the network.

Resolve to Self and Is Sibling Attacks Combined.

This attack has the same kind of impact as the Re-

solve to Self Attack alone, only the Is Sibling Attack

worsens the situation. When trying to ﬁnd the node

responsible for the queried AOR, the ﬁrst malicious

node reached will resolve the call to itself. This is

shown in Figure 9.

6.3 Discussion

As expected, the simulation of attacks presented in

Section 6.2.1 had the effect of denying service to hon-

est nodes. The Drop Find Node Attack and Invalid

Nodes Attack both prevented some peers from join-

ing the DHT by preventing them from locating peers

that had already joined. All of these attacks made the

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 8: Resolve to Self Attack — Resolve Calls Statistics.

0 0.1 0.2 0.3 0.4

0.5

100

Probability of any node to be malicious

Percentage of total resolve calls [%]

Failed resolves Failed challenges

Successful challenges Successul w/o challenge

Figure 9: Is Sibling and Resolve to Self Attack — Resolve

Calls Statistics.

success rate of resolve requests drop as the number of

malicious nodes increased. This is either because they

prevented the requests from reaching the node respon-

sible for the queried data (Drop Find Node Attack, In-

valid Nodes Attack and Is Sibling Attack) or because

malicious nodes did tamper with the data they were

responsible for (Invalid Data Attack), but in a way

that is easily detected by the P2PSIP application —

i.e. by replying to requests with data that is not a con-

tact address.

Results for the attack scenario that we have im-

plemented ourselves, the Resolve to Self Attack, are

also as we expected them to be. With any node in

the network having probability Pr of being malicious

and performing this attack, any resolve request should

succeed with a little more than probability Pr (ac-

counting for the case where a malicious node is re-

sponsible for its own AOR and replies with the cor-

rect address when resolving it). Figure 8 shows that

our results generally follow that rule. This ﬁgure

also shows the effectiveness and usefulness of the de-

fense mechanism presented in Section 5.1 to protect

data integrity. All the failed challenges shown would

have been considered successful resolves without this

mechanism, meaning the node performing the request

would have initiated communication with the mali-

cious node that responded. Instead, these failed chal-

lenge only mean that the SIP URI could not be re-

solved, effectively turning the attack into a DoS.

Also expected was the fact that combining the Is

Sibling Attack with the Resolve to Self Attack would

amplify the negative effect on resolve success rate. By

comparing orange lines in Figures 8 and 9, we can

see that with our simulation parameters (i.e. 25 nodes

with probability of being malicious from 0.1 to 0.5),

the addition of the Is Sibling Attack roughly doubled

the attack rate. This is explained by the fact that, in

this scenario, all resolve requests going through a ma-

licious node, while trying to ﬁnd a path to the node

responsible for the queried AOR, will be replied to by

this node with its own address, rather than just the re-

quests it is actually responsible for. Again, the crypto-

graphic challenge mechanism proved useful by turn-

ing these data integrity attacks into DoS attacks.

7 CONCLUSION

Security in P2P networks has already been studied.

However, proposed solutions are usually very generic

and do not address challenges speciﬁc to a given

context and application. By focusing on the threat

model for VoIP applications (through SIP) in military

MANETs, we were able to identify threats that are not

usually part of the P2P security literature such as DHT

poisoning and replay attacks. When experimenting in

the OverSim P2P simulator, we quickly found that ex-

isting attack scenarios are too generic to be applicable

in a speciﬁc context. Hence, we conclude that efforts

regarding the security of speciﬁc P2P systems is im-

portant and should be further explored.

In this paper, we detailed the threat model affect-

ing our military MANET used for P2PSIP. We then

presented a security solution both to protect data in-

tegrity and make the network more resilient to DoS

attacks. We simulated the data integrity protection

mechanism, based on a cryptographic challenge, in

OverSim and showed its effectiveness and importance

through experimentation.

As future work, we plan to implement the re-

silience part of our security solution. For instance,

we will work on having signed and timestamped in-

sertion requests and using storage redundancy. We

will also integrate other meaningful attack scenarios

DCNET 2017 - 8th International Conference on Data Communication Networking

(e.g., DHT poisoning and replay attacks). Further-

more, we will include node mobility in the experiment

to provide a simulation more representative of the ac-

tual context. Finally, performing experimental com-

parison between our solution and existing ones would

provide a clearer picture regarding the differences and

their impacts.

ACKNOWLEDGEMENT

Research was sponsored by the Army Research Lab-

oratory/US Army RDECOM-Americas and was ac-

complished under Cooperative Agreement Number

W911NF-16-1-0345. The views and conclusions con-

tained in this document are those of the authors and

should not be interpreted as representing the ofﬁcial

policies, either expressed or implied, of the Army Re-

search Laboratory/US Army RDECOM-Americas or

the U.S. Government. The U.S. Government is au-

thorized to reproduce and distribute reprints for Gov-

ernment purposes notwithstanding any copyright no-

tation herein.

REFERENCES

Androutsellis-Theotokis, S. (2002). A survey of peer-to-

peer ﬁle sharing technologies. White paper - athens

university of economics and business.

Banerjee, N., Acharya, A., and Das, S. K. (2004). Peer-

to-peer SIP-based services over wireless ad hoc net-

works. In BROADWIM: Broadband Wireless Multi-

media Workshop.

Banerjee, N., Acharya, A., and Das, S. K. (2005). Enabling

SIP-based session setup in ad hoc networks. In Pro-

ceedings of INFOCOM.

Baumgart, I. (2008). P2pns: A secure distributed name ser-

vice for p2psip. In Pervasive Computing and Com-

munications, 2008. PerCom 2008. Sixth Annual IEEE

International Conference on, pages 480–485. IEEE.

Baumgart, I., Heep, B., and Krause, S. (2007). OverSim:

A ﬂexible overlay network simulation framework. In

Proceedings of 10th IEEE Global Internet Symposium

(GI ’07) in conjunction with IEEE INFOCOM 2007,

Anchorage, AK, USA, pages 79–84.

Bryan, D. A., Lowekamp, B. B., and Zangrilli, M. (2008).

The design of a versatile, secure p2psip communica-

tions architecture for the public internet. In Parallel

and Distributed Processing, 2008. IPDPS 2008. IEEE

International Symposium on, pages 1–8. IEEE.

Clausen, T. and Jacquet, P. (2003). Optimized link state

routing protocol (olsr). RFC 3626.

Douceur, J. R. (2002). The sybil attack. In Peer-to-Peer

Systems, First International Workshop, IPTPS 2002,

Cambridge, MA, USA, March 7-8, 2002, Revised Pa-

pers, pages 251–260.

Fonville, M. (2010). Conﬁdential peer-to-peer ﬁle-sharing

using social-network sites. In 13th Twente Student

Conference on IT, Jun, volume 21, page 10.

Freedman, M. J. and Morris, R. (2002). Tarzan: a peer-to-

peer anonymizing network layer. In Proceedings of

the 9th ACM Conference on Computer and Commu-

nications Security, CCS 2002, Washington, DC, USA,

November 18-22, 2002, pages 193–206.

Fudickar, S., Rebensburg, K., and Schnor, B. (2009).

MANETSip - a dependable SIP overlay network for

MANET including presentity service. In Network-

ing and Services, 2009. ICNS ’09. Fifth International

Conference on, pages 314–319.

Giordano, S. et al. (2002). Mobile ad hoc networks.

Handbook of wireless networks and mobile comput-

ing, pages 325–346.

Ismail, H., Germanus, D., and Suri, N. (2015). Detecting

and mitigating P2P eclipse attacks. In 21st IEEE Inter-

national Conference on Parallel and Distributed Sys-

tems, ICPADS 2015, Melbourne, Australia, December

14-17, 2015, pages 224–231.

Jennings, C., Lowekamp, B., Rescorla, E., S.Baset, and

Schulzrinne, H. (2014). REsource LOcation And Dis-

covery (RELOAD) Base Protocol. RFC 6940.

Levine, B. N., Shields, C., and Margolin, N. B. (2006). A

survey of solutions to the sybil attack. Technical Re-

port - University of Massachusetts Amherst.

Li, L. and Lamont, L. (2005). Support real-time interactive

session applications over a tactical mobile ad hoc net-

work. In Military Communications Conference, 2005.

MILCOM 2005. IEEE, pages 2910–2916. IEEE.

O’Driscoll, A., Rea, S., and Pesch, D. (2007). Hierarchi-

cal clustering as an approach for supporting P2P SIP

sessions in ubiquitous environments. In 9th IFIP In-

ternational Conference on Mobile Wireless Communi-

cations Networks, MWCN 2007, Cork, Ireland, 19-21

September, 2007, pages 76–80. IEEE.

Rennhard, M. and Plattner, B. (2002). Introducing mor-

phmix: peer-to-peer based anonymous internet usage

with collusion detection. In Proceedings of the 2002

ACM Workshop on Privacy in the Electronic Society,

WPES 2002, Washington, DC, USA, November 21,

2002, pages 91–102.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). Sip: session initiation protocol. RFC 3261.

Schollmeier, R. (2001). A deﬁnition of peer-to-peer net-

working for the classiﬁcation of peer-to-peer architec-

tures and applications. In Peer-to-Peer Computing,

2001. Proceedings. First International Conference on,

pages 101–102. IEEE.

Seedorf, J. (2006). Using cryptographically generated sip-

uris to protect the integrity of content in p2p-sip. In

Third Annual VoIP Security Workshop.

Stoica, I., Morris, R., Karger, D., Kaashoek, M. F.,

and Balakrishnan, H. (2001). Chord: A scalable

peer-to-peer lookup service for internet applications.

ACM SIGCOMM Computer Communication Review,

31(4):149–160.

Stuedi, P., Bihr, M., Remund, A., and Alonso, G. (2007).

SIPHoc: Efﬁcient SIP middleware for ad hoc net-

Toward Testing Security Attacks and Defense Mechanisms for P2PSIP in MANETs with a Simulator

works. In Cerqueira, R. and Campbell, R. H., editors,

Middleware 2007, ACM/IFIP/USENIX 8th Interna-

tional Middleware Conference, Newport Beach, CA,

USA, November 26-30, 2007, Proceedings, volume

4834 of Lecture Notes in Computer Science, pages

60–79. Springer.

Urdaneta, G., Pierre, G., and van Steen, M. (2011). A sur-

vey of DHT security techniques. ACM Comput. Surv.,

43(2):8:1–8:49.

Varga, A. and Hornig, R. (2008). An overview of the om-

net++ simulation environment. In Proceedings of the

1st international conference on Simulation tools and

techniques for communications, networks and sys-

tems & workshops, page 60. ICST (Institute for Com-

puter Sciences, Social-Informatics and Telecommuni-

cations Engineering).

Wang, Q. and Borisov, N. (2012). Octopus: A secure

and anonymous dht lookup. In Distributed Comput-

ing Systems (ICDCS), 2012 IEEE 32nd International

Conference on, pages 325–334. IEEE.

Wendlandt, D., Andersen, D. G., and Perrig, A. (2008).

Perspectives: improving ssh-style host authentica-

tion with multi-path probing. In 2008 USENIX Annual

Technical Conference, Boston, MA, USA, June 22-27,

2008. Proceedings, pages 321–334.

Wongsaardsakul, T. (2010). P2P SIP over mobile ad hoc

networks. PhD thesis, Evry, Institut national des

ecommunications.

Yahiaoui, S., Belhoul, Y., Nouali-Taboudjemat, N., and

Kheddouci, H. (2012). AdSIP: Decentralized SIP for

mobile ad hoc networks. In Advanced Information

Networking and Applications Workshops (WAINA),

2012 26th International Conference on, pages 490–

495.

DCNET 2017 - 8th International Conference on Data Communication Networking
