A Fuzzy Logic Approach to Improve Phone Segmentation

A Case Study of the Dutch Language

Victor Milewski

, Aysenur Bilgin

and Tufan Kumbasar

Institute for Logic, Language and Computation, University of Amsterdam, Science Park 107, Amsterdam, The Netherlands

Control and Automation Engineering Department, Istanbul Technical University, Istanbul, Turkey

Keywords:

Fuzzy Logic Systems, Phone Segmentation, IFA Corpus, Automatic Speech Recognition.

Abstract:

Phone segmentation is an essential task for Automatic Speech Recognition (ASR) systems, which still lack

in performance when compared to the ability of humans’ speech recognition. In this paper, we propose novel

Fuzzy Logic (FL) based approaches for the prediction of phone durations using linguistic features. To the

best of our knowledge, this is the ﬁrst development and deployment of FL based approaches in the area of

phone segmentation. In this study, we perform a case study on the Dutch IFA corpus, which consists of

50000 words. Different experiments are conducted on tuned FL Systems (FLSs) and Neural Networks (NNs).

The experimental results show that FLSs are more efﬁcient in phone duration prediction in comparison to

their Neural Network counterparts. Furthermore, we observe that differentiating between the vowels and the

consonants improves the performance of predictions, which can facilitate enhanced ASR systems. The FLS

with the differentiation between vowels and consonants had an average Mean Average Precision Error of

43.3396% on a k=3 fold. We believe that this ﬁrst attempt of the employment of FL based approaches will be

an important step for a wider deployment of FL in the area of ASR systems.

1 INTRODUCTION

Speech is naturally the most basic and efﬁcient way

of communication between human beings. In order to

mimic this form of communication and interact with

computers via speech, Automatic Speech Recognition

(ASR) systems have been under development for over

ﬁve decades (Yu and Deng, 2014). With the recent ad-

vancements in the ﬁeld, ASR systems have been en-

tering our daily lives through commercialised systems

that offer voice activation for intelligent personal as-

sistants. Examples of such systems are Google Assis-

tant

, Apple’s Siri

, Microsoft’s Cortana

and Ama-

zon’s Alexa

. Despite the impressive embarking of

ASR systems in real life, these systems still suffer

from signiﬁcant performance gaps when compared

to human speech recognition, and therefore are re-

strained from being widely accepted in real-world sit-

uations (Garg and Sharma, 2016).

The primary goal of an ASR system is to automat-

ically transcribe the speech from an audio fragment

https://assistant.google.com/

http://www.apple.com/uk/ios/siri/

https://www.microsoft.com/en/mobile/experiences/cortana/

https://developer.amazon.com/alexa-voice-service

(Jurafsky and Martin, 2014). Typical architecture of

ASR systems has four main components: signal pro-

cessing and feature extraction, acoustic model, lan-

guage model and hypothesis search (Yu and Deng,

2014). Essential to the successful behaviour of

ASR systems is training the system on large speech

databases. These databases need to be annotated with

the words and phones. For several databases, the

annotation is constructed manually (Garofolo et al.,

1993; Son et al., 2001). However, manual segmenta-

tion is not only a very time consuming and expensive

task but also exposed to inconsistencies as multiple

people working on the task may use different styles

of annotation. Therefore, there is a need for automatic

phone segmentation that will facilitate annotating the

data to be used in the training of ASR systems. A

challenge of the automatic phone segmentation, how-

ever, is that phone transitions are not very clear and

may differ extensively according to a number of fac-

tors (Yu and Deng, 2014). These factors include,

for example, different speech rates and different pro-

nunciations of various speakers, environment noise as

well as connected utterances of separate words and

phones. A successful ASR system must take into ac-

count these factors, which may be referred to be the

Milewski V., Bilgin A. and Kumbasar T.

A Fuzzy Logic Approach to Improve Phone Segmentation - A Case Study of the Dutch Language.

DOI: 10.5220/0006499800640072

In Proceedings of the 9th International Joint Conference on Computational Intelligence (IJCCI 2017), pages 64-72

ISBN: 978-989-758-274-5

major causes of uncertainty.

In this paper, we use Fuzzy Logic (FL), which is a

powerful tool to handle real-world uncertainties, and

present pioneering FL based approaches to improve

the phone segmentations in ASR systems. Speciﬁ-

cally, this study focuses on building upon the feature

extraction component in ASR systems using FL and

investigates the impact of phone durations, which in-

herently bear uncertainty due to the aforementioned

factors. Predicting the actual durations of the phones

can be used to enhance the quality of the annotations

by improving the boundaries of the annotated phones,

and hence facilitate advanced ASR systems. In this

context, we propose two methods for constructing

FL based systems that will improve the phone seg-

mentations by using phone durations. For evaluation

purposes, the efﬁciency of the developed FL based

methods are compared to their Neural Network (NN)

counterparts on the Dutch language data set. The FL

system (FLS) is ﬁtted to the data using the adaptive-

network-based fuzzy inference system (ANFIS) tool-

box (Jang et al., 1991)(Jang, 1993) of MATLAB

. To

the best of our knowledge, this is a pioneering system

that uses the distinct features of vowels and conso-

nants (non-vowels) in combination with ANFIS.

The rest of the paper is organised as follows: Sec-

tion 2 presents an overview of the previous work on

phone segmentation. In Section 3, the Dutch dataset

is presented. The proposed FL based approaches are

presented in Section 4. The experiments and results

are discussed in Section 5. Finally, Section 6 presents

the conclusions and future work.

2 PREVIOUS WORK

The most widely used technique for phone segmen-

tation is the Hidden Markov Models (HMMs) with

embedded training (Jurafsky and Martin, 2014). An

HMM is a chain of states, where each transition de-

ﬁnes a probability of going from one state to the next.

In an ASR system, the states represent phones, and

a chain represents a word in the language (Rabiner,

1989; Yu and Deng, 2014). With the use of HMMs,

the waveform can be aligned to the states by sampling

it into frames where each frame is matched to the most

corresponding phone. A disadvantage of this method

is that the frames are of ﬁxed size. However, the dura-

tion of the annotated phones may require being longer

or shorter and therefore, the phone boundaries using

ﬁxed frames are not very accurate (Zi, 2009). In or-

der to tackle this shortcoming, the predicted durations

https://nl.mathworks.com/products/matlab.html

can be utilised as an additional probability measure in

HMMs that will facilitate determining the likelihood

of the phones in a more accurate and robust way.

Due to the potential improvements allowed by

utilising phone durations, various studies have been

conducted in different languages. In a recent work,

which focussed on speaker recognition, Igras et al.

(Igras et al., 2014) investigated the use of phone dura-

tions in the Polish language. Their ﬁndings suggested

that the average durations of the phones are charac-

teristic for speakers, and that phone durations can be

applied on speech recognition and synthesis. In a

later study, Igras and Ziolko (Igras and Zi

ołko, 2016)

showed that phone durations are useful for sentence

boundary detection in the spoken Polish language.

Phone duration modelling has been shown to be im-

portant for speech synthesis also in the Lithuanian

language by Kasparaitis et al. (Kasparaitis and Be-

niu

e, 2016). Another study conducted by Goubanova

et al. (Goubanova and King, 2008) used linguis-

tic factors for predicting phone durations. Consider-

ing different features for vowels and consonants, they

trained Bayesian Networks for the English language.

One of the areas FL has often been used

in, is speech based emotion recognition (Lee

and Narayanan, 2003)(Grimm and Kroschel,

2005)(Giripunje and Bawane, 2007). In order to

achieve emotion recognition a lot of speech features

are used, with some of them similar to the features

used in the current study (which are described in

Section 4.1). Although for a different goal, these

studies show that features like the formants are well

suited for the use in speech based predictive FLSs.

However, FL has not been widely applied in the

prediction of phone durations although it is a pow-

erful tool to deal with real-world uncertainties. Zi-

olko (Zi

ołko, 2015) used FL for evaluating the seg-

mented phones based on their durations in the Polish

language. Unlike Ziolko (Zi

ołko, 2015), we use FL

for predicting phone durations in this study.

As a case study, we use Dutch language, which

has nine types of phones: short vowels, long vowels,

diphthongs, schwa, plosives, fricatives, nasals, liq-

uids, and glides (Pols, 1983). The vowels in the Dutch

language have been shown to be easily recognised by

using the ﬁrst and second formant from the audio sig-

nal (Pols et al., 1973). This classiﬁcation is visualised

in Figure 1, which displays a potential clustering pat-

tern for this data. We present the details of the Dutch

dataset in the following section.

Figure 1: The logarithm of the ﬁrst two formants for the 12

vowels in Dutch language (Pols et al., 1973).

3 DUTCH LANGUAGE

DATABASE

In order to show the efﬁciency of the proposed FL

based methods, we will use the data provided by the

IFA Spoken Language Corpus v1.0 (Son et al., 2001).

This is a free (GPL) database of hand-segmented

Dutch speech

and is distributed by The Dutch Lan-

guage Organization (Nederlandse Taalunie)

. The

Ducth Language was chosen, since it is well known

by the authors, which made it easier to understand cer-

tain features and duration occurrences in the speech.

The IFA corpus has been used in research on Artic-

ulatory Features (Ten Bosch et al., 2006), Prosodic

Features (Schuller et al., 2008), diphthong analysis

(Jacobi et al., 2005), conversation detection (Harma

and Pham, 2009) and more. The IFA corpus consists

of a total of 50000 words spoken by eight different

speakers where four are male, and the other four are

female. The ages of the speakers range between 20

and 70.

In this case study, each of the spoken phones in the

IFA corpus is represented as a data structure

com-

posed of the duration of the phone and several dis-

tinct features, which are presented in Section 4. Af-

ter pre-processing

the dataset, which leads to a total

http://www.fon.hum.uva.nl/IFA-

SpokenLanguageCorpora/IFAcorpus/

http://taalunie.org/

We will refer to this data structure as data point in the rest

of the paper and in the ﬁgures.

The IFA corpus comes in ﬁles formatted for the program

Praat. This textgrid format was transformed to a mlf for-

mat which has on one line the start time of a phone, the

end time of a phone, which phone was uttered, and if it is

the ﬁrst phone of a word, which word begins at this time.

of 175184 phones, the data is split into three subsets

for training, validation, and testing to be used by the

ﬁrst approach (see Section 4.2). Each of the subsets

uses 70%, 15%, and 15% of the entire data, respec-

tively. Splitting the data is carried out randomly by

using a random generator with a ﬁxed random seed.

Due to the random generation of the subsets, an unfair

separation can be created which might give skewed

results in the experiments. Therefore, we employ a

k-fold cross-validation strategy, where k=3, and per-

form three different splits using the same percentages.

For the second approach (see Section 4.3), the data

is ﬁrst separated into the vowels and the consonants

(non-vowels). This results in two datasets: a dataset

consisting of 110012 consonants (non-vowels) and

a dataset consisting of 65172 vowels. These two

datasets are also further split into k=3 folds for train-

ing, validation, and testing using the same random

seed and the same percentages as stated above.

4 FL APPROACHES FOR PHONE

SEGMENTATION

FL, which was introduced by Zadeh in 1965 (Zadeh,

1965), is referred to be an extension to classical

crisp logic. The building blocks of FL, which are

fuzzy sets, are characterized by a membership func-

tion (MF). The MF associates each point in the uni-

verse of discourse with a real number in the interval

[0,1], which is called a membership degree. The ob-

jective of a FLS, as depicted in Figure 2, is to map the

inputs to the outputs by the help of fuzzy reasoning

that is encoded in the rules. The generic rule struc-

ture of a FLS composed of N rules (n = 1, . . . , N) is

formalised as follows (Mendel, 2001):

:IF x

is X

and . . . and x

is X

THEN y is Y

(1)

where X

(i = 1, . . . , I) are the antecedent MFs and Y

are the consequent MFs. A complete rule base incor-

porates all the combinations of the antecedents, which

are the variables used in the system design. In the

proposed FLSs, we use product implication and the

weighted average defuzziﬁcation method.

In this study, we used ANFIS toolbox of MAT-

LAB to employ the following techniques in the con-

struction of a rule base: Grid Partitioning (GP) (Jang,

1993), Subtractive Clustering (SC) (Chiu, 1996), and

Fuzzy C-Means (FCM) Clustering (Bezdek et al.,

1984). For the system using the GP approach, a com-

plete rule base needs to be generated. On the other

hand, the system using FCM clustering generates one

rule for a given number of clusters. And, the system

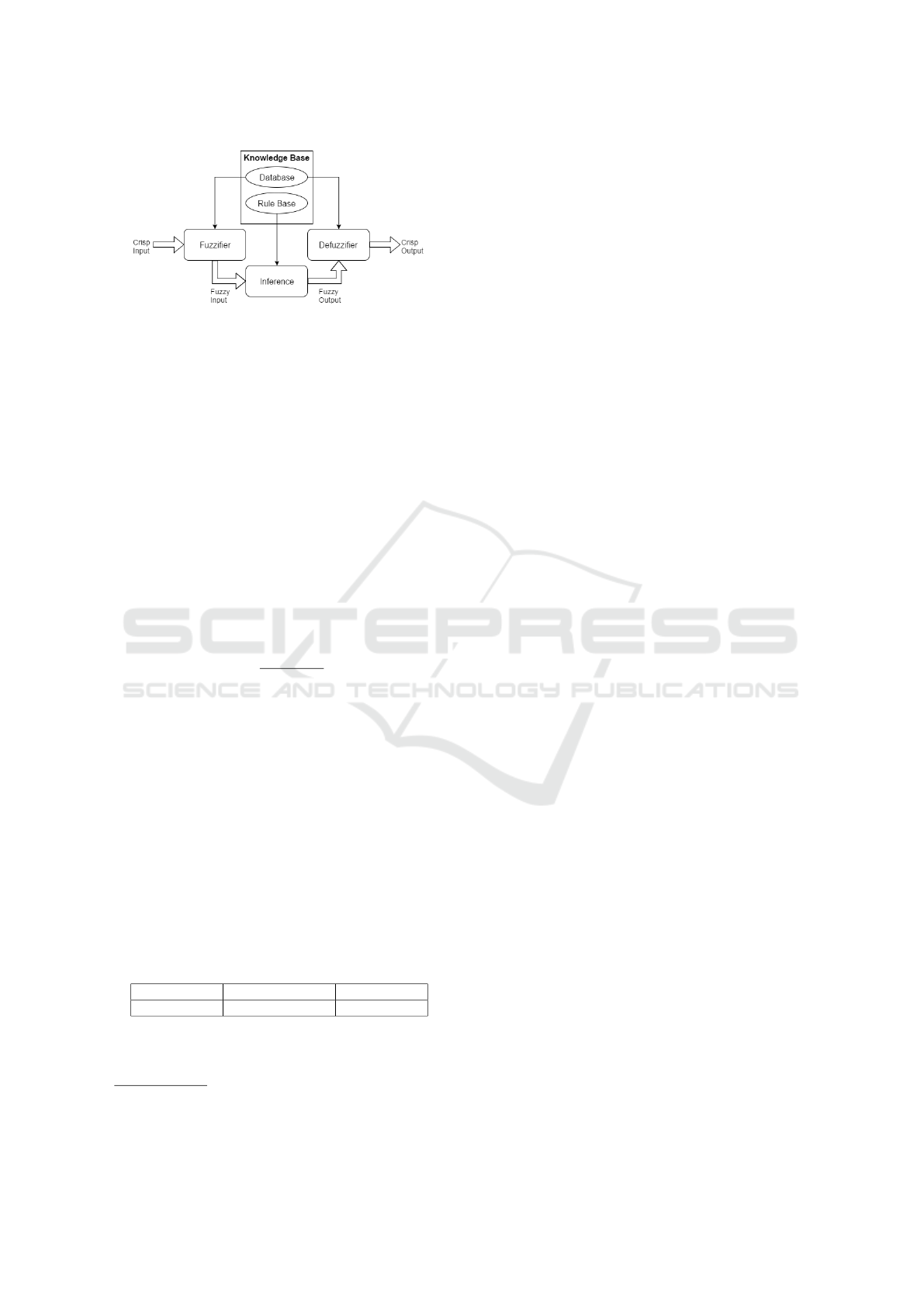

Figure 2: Schematic overview of a FLS.

using SC decides on the number of clusters (equal to

the number of rules) depending on the data and a de-

ﬁned radii. The radii speciﬁes how important each

of the variables is

. The ANFIS toolbox generates

Sugeno type Inference Systems

. During the infer-

ence of the FLS, the ﬁrst step is to determine the ﬁr-

ing strength for each of the rules. Each of the an-

tecedents (IF part of the rule) has a membership de-

gree, and with the combination method, the strength

for the rule is determined. For combining the an-

tecedents in a rule to calculate the ﬁring strength, the

product method is used. The ﬁring strength of the rule

is applied to the consequent (THEN part of the rule).

The consequents of all the ﬁred rules are combined

to calculate a crisp output with the following equa-

tion(Mendel, 2001):

z =

∑

n=1

∑

n=1

(2)

where z is the defuzziﬁed output, y

is the output for

rule n, and w

is the ﬁring strength of rule n.

In this study, we propose two FL based systems

that utilise distinct sets of features, some of which

are introduced for the ﬁrst time in the literature. The

features are discussed in Section 4.1. The ﬁrst FLS,

referred to as S-FLS is explained in further detail in

Section 4.2. The second system, referred to as P-FLS,

consists of two FL based subsystems that are designed

separately for vowels and consonants (non-vowels).

P-FLS is presented in Section 4.3.

4.1 Feature Sets

Table 1: The distinct feature sets employed by the FLSs.

Feature Set 1 Feature Set 2 Feature Set 3

, f

We compiled three different feature sets to be used

by the FLSs. It should be noted that the formants

https://nl.mathworks.com/help/fuzzy/genﬁs2.html

https://nl.mathworks.com/help/fuzzy/anﬁs.html

are used for recognizing vowels in the literature, how-

ever, we introduce a novel use for the formants where

we exploit them for phone duration prediction. An

overview of the feature sets is given in Table 1. The

descriptions of the features are as follows:

: In the Dutch language, all phones can be cat-

egorised into nine types (Pols, 1983). In this

study, we use 6 phone types as follows: vow-

els, diphthongs, vowel-likes, plosives, frica-

tives, and nasals. Feature f

is a constant for

the phone type that takes on the integer val-

ues {0,1,2,3,4,5}, with each value representing

a particular phone type.

: This feature represents the location of the phone

in the word. Its value is normalised to the unit

interval [0,1].

: This feature represents the location of the word

in the sentence (for the phone that is being ut-

tered). Its value is normalised to the unit inter-

val [0,1].

: This feature is the speech rate, which represents

how fast the speaker is talking. Its value is nor-

malised to the unit interval [0,1]. The under-

lying idea is that the number of words spoken

per second has an impact on the duration of the

phones. For example, if more words per sec-

ond are spoken, the durations of the phones will

decrease accordingly.

: Similar to feature f

. However, the phone type

vowel is excluded, which results in ﬁve classes

that are used.

: The logarithm of the ﬁrst formant from the time

fragment the vowel is in.

: The logarithm of the second formant from the

time fragment the vowel is in.

The features f

, f

, and f

were also employed by

Pols et al. (Pols et al., 1996). However, we introduce

the use of the features f

, f

and f

for the ﬁrst time

in the literature.

4.2 S-FLS: The Simple FLS

The ﬁrst proposed system, namely the Simple FLS(S-

FLS), is built on the assumption that all phones within

a single category behave the same. An overview of

this system is depicted in Figure 3. S-FLS employs

the default conﬁguration wich uses the GP technique

for the construction of the rule base and has a linear

output MF. Furthermore, S-FLS makes use of Feature

Set 1 in Table 1.

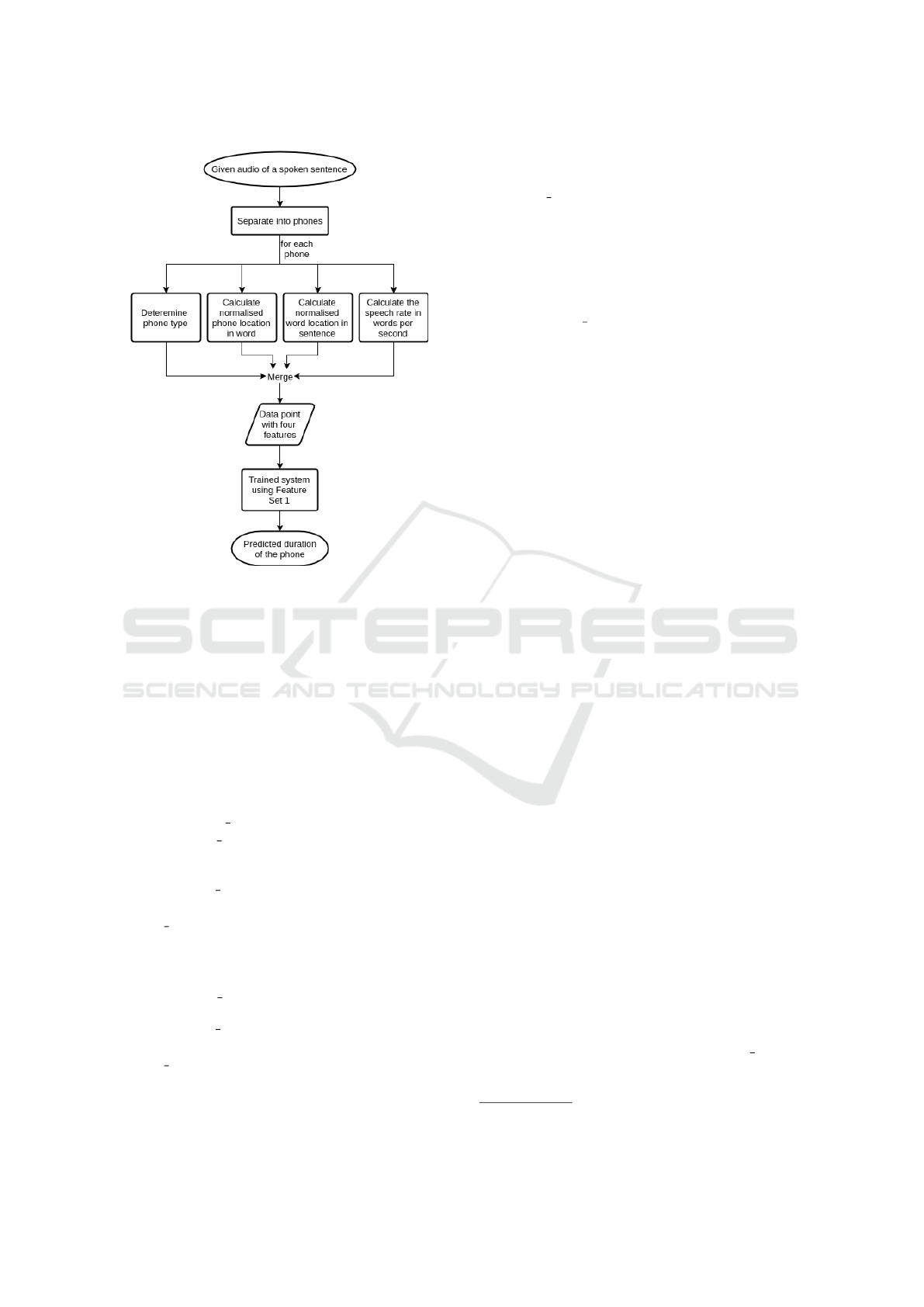

Figure 3: Overview of phone duration prediction in S-FLS.

4.3 P-FLS: The Parallel Structured FLS

The assumption employed for S-FLS, which states

that all phones within a single phone type behave sim-

ilarly, works reasonably well for a couple of types.

However, the vowels are used more often in the Dutch

language, and they can show different behaviour in

comparison with the other types of phones. There-

fore, in order to handle such uncertainties, we pro-

pose a hierarchical FLS that is composed of two

sub-FLSs; one for representing the consonants (non-

vowels) (SubFLS C) and one for representing the

vowels (SubFLS V), separately. The overview of the

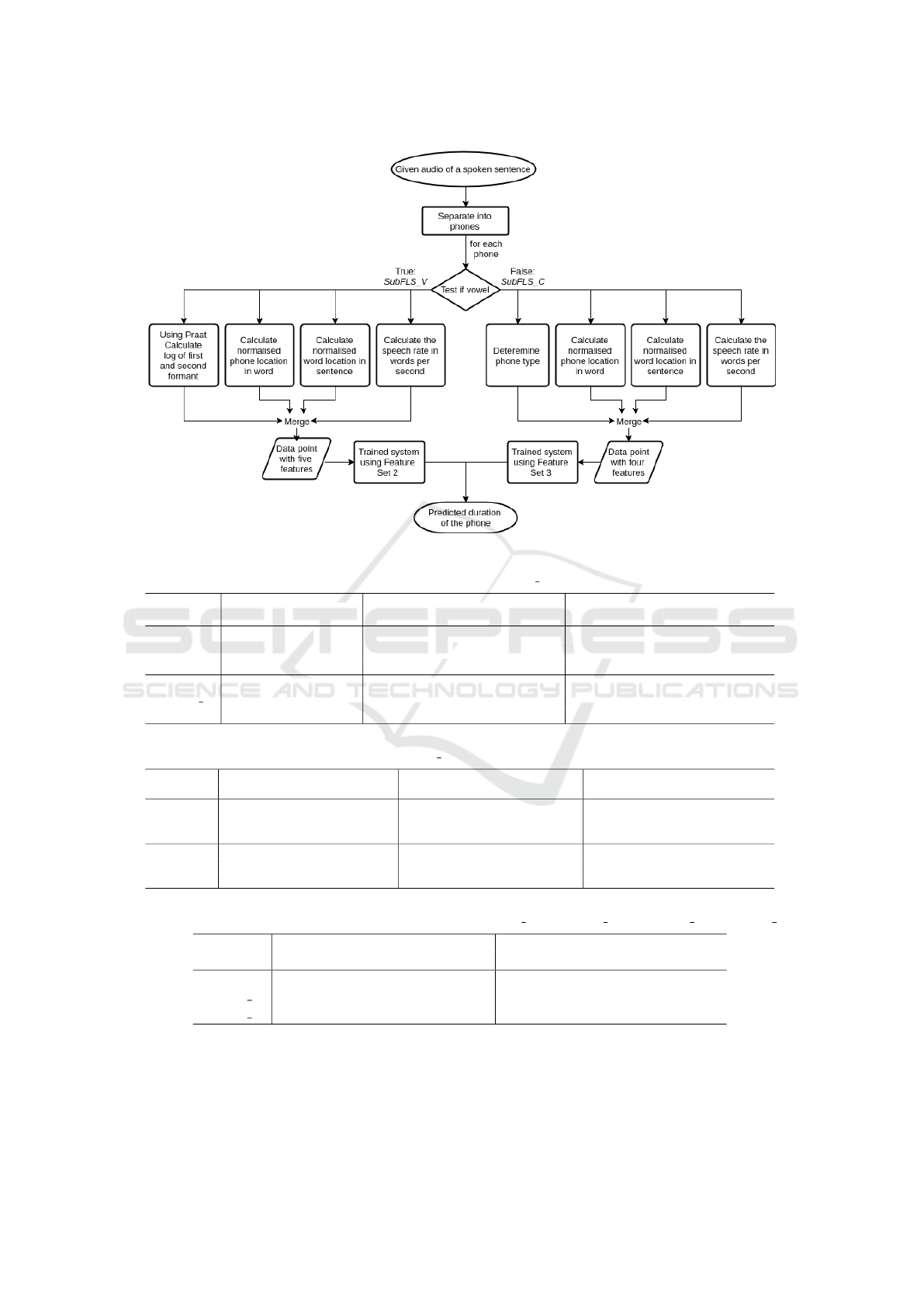

Parallel FLS(P-FLS) is given in Figure 4.

4.3.1 SubFLS C

SubFLS C, which is trained on consonants (non-

vowels), makes use of Feature Set 3 in Table 1. Sim-

ilar to S-FLS, default conﬁguration that employs the

GP technique is used for the construction of the rule

base for SubFLS C.

4.3.2 SubFLS V

SubFLS V, which is trained on vowels only, employs

Feature Set 2 in Table 1. In this feature set, the phone

type feature ( f

) is replaced with two new features. As

mentioned in Section 2, using the ﬁrst two formants

(see Figure 1), the vowels can be recognised with suf-

ﬁciently high accuracy (Pols et al., 1973). Therefore,

in SubFLS V, we use features f

and f

, as inputs

for the purpose that the system can learn vowel spe-

ciﬁc characteristics with respect to the phone dura-

tion. It can be observed from Figure 1 that recognis-

ing the vowels using the ﬁrst two formants require a

clustering approach. Hence, we employ SC and FCM

clustering techniques for the construction of the rule

base for SubFLS V.

5 EXPERIMENTS, RESULTS &

DISCUSSION

This section presents the experiments and results,

which were obtained using a personal computer with

an Intel Core i7 3630QM processor, running Win 10

64-bit and MATLAB R2016b. ANFIS was set to train

for ten epochs with an initial step size of 0.01, a step

size decrease rate of 0.9 and it was optimized on the

Root Mean Squared Error (RMSE). The FLS after the

epoch with the lowest validation RMSE was used for

evaluating the performance.

We begin by presenting the results of the tun-

ing processes of S-FLS and P-FLS in Section 5.1.

We then continue our discussions with further ex-

periments that compare the FL approaches to their

Neural Network (NN) counterparts. The Neural Net-

work Toolbox

from MATLAB was used. The

NNs all have a single hidden layer of ten nodes, they

were initialised with all ones and were trained for

100 epochs using the Levenberg-Marquardt algorithm

(Mor

e, 1978). Again, the NN after the epoch with the

lowest validation error was used as optimal trained

network.

We analyse and compare the performances of the

developed approaches by deﬁning the error value as

the difference between the predicted phone duration

and the actual phone duration. In speciﬁc, we use the

performance measures RMSE, and the Mean Average

Percentage Error (MAPE) to make a fair comparison.

It should be noted that the presented performance val-

ues in this section are the averages of the k=3 folds.

5.1 The Design of FLSs

In the design of each FLS for phone segmentation,

there are several parameters that require tuning. For

both FLSs that use GP (S-FLS and SubFLS C within

P-FLS), the number of membership functions (MFs),

as well as the type of MFs, need to be determined. It

https://nl.mathworks.com/products/neural-network.html

should be noted that the phone type features ( f

and

) do not need to be tuned, as the values are constants

and represented using singleton fuzzy sets. Initially,

we conducted experiments using two Gaussian MFs

and two Triangular MFs for each of the features f

, and f

. We then increased the number of MFs

to observe the performance changes. The results for

tuning experiments are displayed in Table 2 for both

S-FLS and SubFLS C.

By comparing the results from the training set

with the results from the test set, it can be observed

from Table 2 that these values are close to each other.

This ensures that the FLSs are not over-ﬁtting. It can

also be deduced that increasing the number of MFs

reduces both RMSE and MAPE results, and there-

fore has a positive impact on the performance. Fur-

thermore, we examined the effect of changing the

type of MFs from Gaussian to Triangular. Since the

change causes a negligible difference in performance,

we decided to continue with Gaussian MFs. Finally,

we opted for three Gaussian MFs per feature ( f

, f

and f

) for both S-FLS and SubFLS C. Even though

the errors may be further decreased by increasing the

number of MFs per feature, we have decided not to

increase the number of MFs as our aim is to provide

a proof of concept in this paper.

In the design of SubFLS V within P-FLS, the

number of clusters needs to be determined. Although

there are twelve vowels in the Dutch language, there

are only nine clusters as shown in Figure 1. There-

fore, in FCM clustering approach, we employed nine

and twelve clusters to ﬁnd the optimal number of clus-

ters. Furthermore, the number of clusters has been in-

creased to thirty-six clusters to increase the number of

rules. In SC method, we used three different settings

for the radii values. The ﬁrst setting is conﬁgured to

use the same radii value of 0.5 for all the features.

However, considering the fact that the formants play

an important role in recognition of the vowels, we de-

creased the radii values to 0.2 for both formant fea-

tures and used 0.5 for the rest of the features. In order

to identify the trends in the performance, we increased

the number of clusters, and the radii values were de-

creased to 0.1 for the formant features and to 0.2 for

the rest of the features. The results are presented in

Table 3.

Regarding the comparison between SC and FCM

clustering techniques, Table 3 shows that SC method

outperforms FCM clustering. It should be noted that

a one to one comparison cannot be made, since both

systems are not tuned with the same number of clus-

ters. A logical reason for SC outperforming FCM is

the rapidly increasing of the number of clusters with

decreasing radii values. However, FCM demonstrates

similar increase in performance when the number of

clusters is increased. In the future, a better compari-

son with an equal number of clusters should be made.

5.2 Comparison between FLSs and

Neural Network

We have compared the performance of the FLSs,

which are designed to predict phone durations, with

their NN counterparts. The systems are named as S-

NN, SubNN C and SubNN V for the counterparts of

S-FLS, SubFLS C and SubFLS V, respectively. For

the NN systems, the same features and settings as

described in Section 4 were used. For each of the

three counterpart NN systems, a single layer neural

network was created with ten nodes. We have opted

for a single hidden layer to maintain a fair comparison

in the complexity of the NN systems and the FLSs.

The results of the counterpart NN systems are demon-

strated in Table 4.

A quick comparison of the RMSE and MAPE re-

sults presented in Table 2 - Table 4 demonstrates that

the FLSs outperform their NN counterparts. Further-

more, we performed paired t-test with 95% conﬁ-

dence interval to determine whether the improvement

in error measures between the FLSs and their NN

counterparts are statistically signiﬁcant. For the sta-

tistical tests, we used both the absolute errors (AE)

(i.e. the absolute difference between the prediction

errors of FLS and counterpart NN) and the MAPE re-

sults for all the k=3 folds from the training, validation,

and test runs. The results are demonstrated in Table

Most of the results presented in Table 5 show that

FLSs have, according to the paired t-test, signiﬁcant

improvements over their NN counterparts as the p-

values are lower than 0.05. However, in the AE

row for Feature Set 3, it can be observed that there

is no signiﬁcant difference between SubFLS V and

SubNN V. This is due to the fact that it is quite difﬁ-

cult to predict the phone durations for the vowels. As

shown in the Table 3 and Table 4, SubFLS V records

the lowest results.

In order to demonstrate the robustness of the per-

formances of both approaches using FL and NN, we

performed another paired t-test with 95% conﬁdence

interval between the predicted and the actual phone

durations. We took the AE between the predicted

and the actual values of phone durations for both ap-

proaches individually. The results are presented in Ta-

ble 6.

As can be observed from Table 6, the differences

in the actual and predicted phone durations are not

signiﬁcant (p > 0.05). In other words, the predictions

Figure 4: Overview of phone duration prediction in P-FLS.

Table 2: Tuning of the MF parameters for S-FLS and SubFLS C, which employs the GP method.

MF settings RMSE MAPE

System Number Type Training Validation Test Training Validation Test

2 Gaussian 0.0500 0.0467 0.0463 47.1785 46.9859 46.5857

S-FLS 2 Triangular 0.0499 0.0467 0.0462 46.9898 46.7845 46.4768

3 Gaussian 0.0491 0.0461 0.0456 45.9654 45.9271 45.6425

2 Gaussian 0.0407 0.0368 0.0447 41.3006 41.6663 41.2696

SubFLS C 2 Triangular 0.0406 0.0367 0.0446 41.1766 41.5156 41.0681

3 Gaussian 0.0399 0.0362 0.0441 40.3368 40.8010 40.4366

Table 3: Tuning of the clustering parameters for SubFLS V within P-FLS, which employs SC or FCM clustering methods.

Clustering Radii Number of RMSE MAPE

Algorithm f

, f

Clusters Training Validation Test Training Validation Test

Fuzzy

C-Means

9 0.0565 0.0576 0.0592 51.1408 51.3355 51.0067

12 0.0561 0.0573 0.0586 50.1382 50.5860 50.0325

36 0.0550 0.0564 0.0580 48.8078 49.4466 49.1826

Subtractive

Clustering

0.5 0.5 6 0.0587 0.0597 0.0610 55,1802 55,7577 54,9291

0.2 0.5 11 0.0566 0.0577 0.0591 50.2379 50.2936 50.4446

0.1 0.2 258 0.0525 0.0557 0.0574 46.0806 47.9864 48.2402

Table 4: Results of counterpart NN systems, S-NN for S-FLS, SubNN C for SubFLS C, and SubNN V for SubFLS V.

RMSE MAPE

System Training Validation Test Training Validation Test

S-NN 0.0498 0.0464 0.0460 46.9563 46.7046 46.4153

SubNN C 0.0406 0.0367 0.0446 40.9604 41.3023 40.9007

SubNN V 0.0578 0.0564 0.0578 48.2689 48.4094 48.3892

for the phone durations given by both the FL and NN

approaches are close enough to the real-world values.

This means that the proposed FLSs can predict phone

durations quite accurately.

Table 7: Comparison results of S-FLS and P-FLS where the results from SubFLS C and SubFLS V are merged for P-FLS.

RMSE MAPE

Training Validation Test Training Validation Test

S-FLS 0.0491 0.0461 0.0456 45.9654 45.9271 45.6425

P-FLS 0.0450 0.0445 0.0497 42.4736 43.4741 43.3396

Table 5: Results of the paired t-test between the FLSs and

their NN counterparts for the AE and MAPE (p-values are

shown in parentheses).

Feature Set 1 Feature Set 2 Feature Set 3

signiﬁcant

(1.3183e-21)

signiﬁcant

(1.0331e-04)

not signiﬁcant

(0.1278)

MAPE

signiﬁcant

(4.5072e-07)

signiﬁcant

(2.2122e-07)

signiﬁcant

(0.0258)

Table 6: Results of the paired t-test between the actual and

the predicted phone durations for both the FLSs and their

NN counterparts (p-values are shown in parentheses).

FLS NN

Feature Set 1

not signiﬁcant

(0.4812)

not signiﬁcant

(0.4246)

Feature Set 2

not signiﬁcant

(0.9956)

not signiﬁcant

(0.9719)

Feature Set 3

not signiﬁcant

(0.7928)

not signiﬁcant

(0.4427)

5.3 Comparison between S-FLS and

P-FLS

In this subsection, we present the results of the com-

parison performed between the simple approach (S-

FLS) and the parallel structured approach (P-FLS).

To reiterate, S-FLS is trained on the entire dataset

whereas P-FLS, composed of two subsystems, is

trained on separate vowels and consonants dataset.

Therefore, the errors from both subsystems of P-FLS

(i.e., SubFLS V and SubFLS C) are merged into a sin-

gle set of errors for each of k=3 folds and the corre-

sponding training, validation, and test set. RMSE and

MAPE results for S-FLS and P-FLS are reported in

Table 7. It can be observed that in all of the results

except the RMSE obtained from the test set, P-FLS

outperforms S-FLS. We performed statistical tests in

order to determine whether the difference in these re-

sults are signiﬁcant. While using a paired t-test for

MAPE, we used a two-sampled t-test for the AE due

to the separation of the system and a potentially dif-

ferent order of errors recorded. The results for these

t-tests are shown in Table 8.

As can be observed from Table 8, the differences

are indeed signiﬁcant, according to the paired t-test.

For the MAPE, P-FLS is signiﬁcantly better than S-

FLS as also shown in Table 7. Since S-FLS performed

Table 8: Results of the paired t-test between the MAPE

scores and the two-sampled t-test of the AE for S-FLS and

P-FLS.

Signiﬁcant P-value Conﬁdence Interval

MAPE Yes 0.0057 (1.1409, 4.3576)

AE Yes 0.0180 (0.0005, 0.0018)

better on the RMSE results obtained from the test set,

we also checked the consistency of the results by ex-

amining the conﬁdence intervals, which are reported

in Table 8. If both values are above or below zero,

then the two systems are determined to be signiﬁ-

cantly different. As all the values for the conﬁdence

interval of AE in Table 8 are above zero, it can be con-

cluded that, overall, the P-FLS is signiﬁcantly better

than the S-FLS.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we proposed two FL based approaches

that predict phone durations for improving phone seg-

mentation. We have shown that the proposed FLSs

can accurately predict phone durations, which inher-

ently bear real-world uncertainties. We presented the

results of our tuning and comparison experiments and

inferred that the FLSs outperform their NN counter-

parts in predicting phone durations considering the

Dutch IFA corpus. Furthermore, we observed that us-

ing a parallel structured approach, which differenti-

ates between the vowels and the consonants, for de-

signing the FLS improves the performance of phone

duration predictions. We also conﬁrmed that the dif-

ferences in the comparison experiments are statisti-

cally signiﬁcant.

As part of future work, the systems need to be fur-

ther optimised. For the FLSs, this involves that Type-

2 FL can be employed to better handle the real-world

uncertainties and improve the performance. For the

NN counterparts, more layers and nodes per layer can

be added to obtain a deep NN matching the state of the

art. Furthermore, the proposed systems require to be

compared against the state of the art baseline systems

like the results from HMMs. Finally, the FLSs should

be able to handle multiple languages, which means

experiments on i.e. the TIMIT corpus (Garofolo et al.,

1993). In the case where all these experiments result

in high accuracy phone duration prediction, the de-

veloped system can be applied and tested in an ASR

system and employed in a real-world application for

phone segmentation. We believe that this ﬁrst imple-

mentation of FL based approaches for phone segmen-

tation will be an important step for a wider deploy-

ment and development of FL approaches in the re-

search area of ASR.

ACKNOWLEDGEMENT

This work is partially supported by the Marie Curie

Initial Training Network (ITN) ESSENCE, grant

agreement no. 607062.

REFERENCES

Bezdek, J. C., Ehrlich, R., and Full, W. (1984). Fcm: The

fuzzy c-means clustering algorithm. Computers &

Geosciences, 10(2):191–203.

Chiu, S. (1996). Method and software for extracting fuzzy

classiﬁcation rules by subtractive clustering. In Fuzzy

Information Processing Society, 1996. NAFIPS., 1996

Biennial Conference of the North American, pages

461–465. IEEE.

Garg, A. and Sharma, P. (2016). Survey on acoustic mod-

eling and feature extraction for speech recognition.

In Computing for Sustainable Global Development

(INDIACom), 2016 3rd International Conference on,

pages 2291–2295. IEEE.

Garofolo, J. S., Lamel, L. F., Fisher, W. M., Fiscus, J. G.,

and Pallett, D. S. (1993). Darpa timit acoustic-

phonetic continous speech corpus cd-rom. nist speech

disc 1-1.1. NASA STI/Recon Technical Report N, 93.

Giripunje, S. and Bawane, N. (2007). Anﬁs based emo-

tions recognision in speech. In Knowledge-based In-

telligent Information and Engineering Systems, pages

77–84. Springer.

Goubanova, O. and King, S. (2008). Bayesian networks

for phone duration prediction. Speech communication,

50(4):301–311.

Grimm, M. and Kroschel, K. (2005). Rule-based emotion

classiﬁcation using acoustic features. In in Proc. Int.

Conf. on Telemedicine and Multimedia Communica-

tion. Citeseer.

Harma, A. and Pham, K. (2009). Conversation detection in

ambient telephony. In Acoustics, Speech and Signal

Processing, 2009. ICASSP 2009. IEEE International

Conference on, pages 4641–4644. IEEE.

Igras, M. and Zi

ołko, B. (2016). Detection of sentence

boundaries in polish based on acoustic cues. Archives

of Acoustics, 41(2):233–243.

Igras, M., Ziolko, B., and Ziolko, M. (2014). Is

phoneme length and phoneme energy useful in auto-

matic speaker recognition? In Paciﬁc Voice Confer-

ence (PVC), 2014 XXII Annual, pages 1–5. IEEE.

Jacobi, I., Pols, L. C., Stroop, J., et al. (2005). Polder dutch:

Aspects of the/ei/-lowering in standard dutch. In In-

terspeech, number 6, pages 2877–2880. ISCA.

Jang, J.-S. (1993). Anﬁs: adaptive-network-based fuzzy in-

ference system. IEEE transactions on systems, man,

and cybernetics, 23(3):665–685.

Jang, J.-S. R. et al. (1991). Fuzzy modeling using general-

ized neural networks and kalman ﬁlter algorithm. In

AAAI, volume 91, pages 762–767.

Jurafsky, D. and Martin, J. H. (2014). Speech and language

processing. Pearson.

Kasparaitis, P. and Beniu

e, M. (2016). Automatic parame-

ters estimation of the d. klatt phoneme duration model.

Informatica, 27(3):573–586.

Lee, C. M. and Narayanan, S. (2003). Emotion recognition

using a data-driven fuzzy inference system. In Eighth

European Conference on Speech Communication and

Technology.

Mendel, J. M. (2001). Uncertain rule-based fuzzy logic sys-

tems: introduction and new directions. Prentice Hall

PTR Upper Saddle River.

Mor

e, J. J. (1978). The levenberg-marquardt algorithm: im-

plementation and theory. In Numerical analysis, pages

105–116. Springer.

Pols, L. C. (1983). Three-mode principal component anal-

ysis of confusion matrices, based on the identiﬁcation

of dutch consonants, under various conditions of noise

and reverberation. Speech Communication, 2(4):275–

293.

Pols, L. C., Tromp, H. R., and Plomp, R. (1973). Fre-

quency analysis of dutch vowels from 50 male speak-

ers. The journal of the Acoustical Society of America,

53(4):1093–1101.

Pols, L. C., Wang, X., and ten Bosch, L. F. (1996). Mod-

elling of phone duration (using the timit database) and

its potential beneﬁt for asr. Speech Communication,

19(2):161–176.

Rabiner, L. R. (1989). A tutorial on hidden markov models

and selected applications in speech recognition. Pro-

ceedings of the IEEE, 77(2):257–286.

Schuller, B. W., Zhang, X., and Rigoll, G. (2008). Prosodic

and spectral features within segment-based acoustic

modeling. In INTERSPEECH, pages 2370–2373.

Son, R. J. v., Binnenpoorte, D., Heuvel, H. v. d., Pols, L. C.,

et al. (2001). The ifa corpus: a phonemically seg-

mented dutch” open source” speech database.

Ten Bosch, L., Baayen, R. H., and Ernestus, M. (2006). On

speech variation and word type differentiation by ar-

ticulatory feature representations. In INTERSPEECH.

Yu, D. and Deng, L. (2014). Automatic speech recognition:

A deep learning approach. Springer.

Zadeh, L. A. (1965). Fuzzy sets. Information and control,

8(3):338–353.

Zi, B. (2009). Speech recognition of highly inﬂective lan-

guages.

ołko, B. (2015). Fuzzy precision and recall measures for

audio signals segmentation. Fuzzy Sets and Systems,

279:101–111.
