ETL4Social-Data: Modeling Approach for Topic Hierarchy

Afef Walha

, Faiza Ghozzi

1,2

and Faïez Gargouri

1,2

MIRACL Laboratory, Sfax, Tunisia

Institute of Computer Science and Multimedia, University of Sfax, Tunisia

Keywords: ETL, Social Data Warehouse, BPMN, Modeling, Topic Detection.

Abstract: Transforming social media data into meaningful and useful information to enable more effective decision-

making is nowadays a hot topic for Social Business Intelligence (SBI) systems. Integrating such data into

Social Data Warehouse (SDW) is in charge of ETL (Extraction, Transformation and Loading) which are the

typical processes recognized as a complex combination of operations and technologies that consumes a

significant portion of the DW development efforts. These processes become more complex when we

consider the unstructured social sources. For that, we propose an ETL4Social modeling approach that

designs ETL processes suitable to social data characteristics. This approach offers specific models to social

ETL operations that help ETL designer to integrate data. A key role in the analysis of textual data is also

played by topics, meant as specific concepts of interest within a subject area. In this paper, we mainly insist

on emerging topic discovering models from textual media clips. The proposed models are instantiated

through Twitter case study. ETL4Social is considered a standard-based modeling approach using Business

Process Modeling and Notation (BPMN). ETL Operations models are validated based on ETL4Social meta-

model, which is an extension of BPMN meta-model.

1 INTRODUCTION

User generated Content (UGC) are created by users

of a system or service and made available publicly

on that system. UGC most often appears as

supplements to online platforms, such as social

media websites, and may include such content types

as blog posts, wikis, videos, or comments.

Companies and institutions worldwide anticipate

gaining valuable insights from obtaining access to

such data and hope to improve their marketing,

customer services and public relations with the help

of the acquired knowledge. To this point, social

media content has given birth to a novel area of data

analysis, namely social media analysis.

Social media users publish their thoughts,

activities, and interests in the form of text streams to

share them with others in a social network. In this

context, most analysis research has primarily

focused on sentiment analysis and topic extraction

from the text streams. Textual UGC is unstructured

or semi-structured, noisy and informal. Thus, it

needs a semantic enrichment in order to identify as

much features as possible. The social media dataset

can be enriched and extended in many ways offering

a whole new set of analytical aspects to business

analysts.

SDW modeling is giving more attention to the

UGC which became a key interest for business

owners. The enormous amount of valuable textual

clips must be integrated in Decision Support

Systems (DSS) which have to be adapted to this type

of content. One of the studied issues for this purpose

is the topic discovery from a text stream since the

topics play a crucial role in user search, friend

recommendation, and contextual advertisement. The

topic hierarchy is not similar to traditional

hierarchies regarding their schemata and instances,

which are fluid.

Recently, the emergence of opinion analysis and

topic detection of social data has generated much

interest in DSS research community. Researchers

take care of social data characteristics and propose

semantic analysis solutions. These proposals suggest

transformation methods to integrate social data in

SDW. Furthermore, it is recognized that data

transformation is the key role of ETL processes

which is a very time-consuming step, it takes about

80% of the total time of the decision-making

implementation due to its difficulty and complexity.

Walha A., Ghozzi F. and Gargouri F.

ETL4Social-Data: Modeling Approach for Topic Hierarchy.

DOI: 10.5220/0006588901070118

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KEOD 2017), pages 107-118

ISBN: 978-989-758-272-1

Despite that, researchers did not propose a modeling

of ETL processes covering social data.

The design and the implementation of an ETL

process usually involve the development of very

complex tasks imposing high levels of interaction

with a vast majority of the components of DW

system. Our study is motivated by the fact that the

existing ETL modeling approaches didn’t cover

social activities. This step is complex because Social

ETL (S-ETL) modeling is not limited to standard

operations (e.g. location detection, time detection),

but it integrates semantic processing operations (e.g.

topic discovering, sentiment analysis). The difficulty

with semantic operations is caused by the

dynamicity of social sources and SDW schemas. We

propose for that a conceptual modeling approach,

called ETL4Social which deals with the complexity

of ETL processes in social environment. The main

objective of this paper is the design of S-ETL

operations including extraction, transformation and

loading processes. ETL4Social is considered a

standard-based approach because conceptual

modeling is based on ETL4Social meta-model

which extends BPMN meta-model. The proposed

models are instantiated on Twitter social case study

to be validated.

The remainder of this paper is organized as

follows. Section 2 reviews some related works

concerning conceptual ETL modeling approaches

and social data integration approaches. Section 3

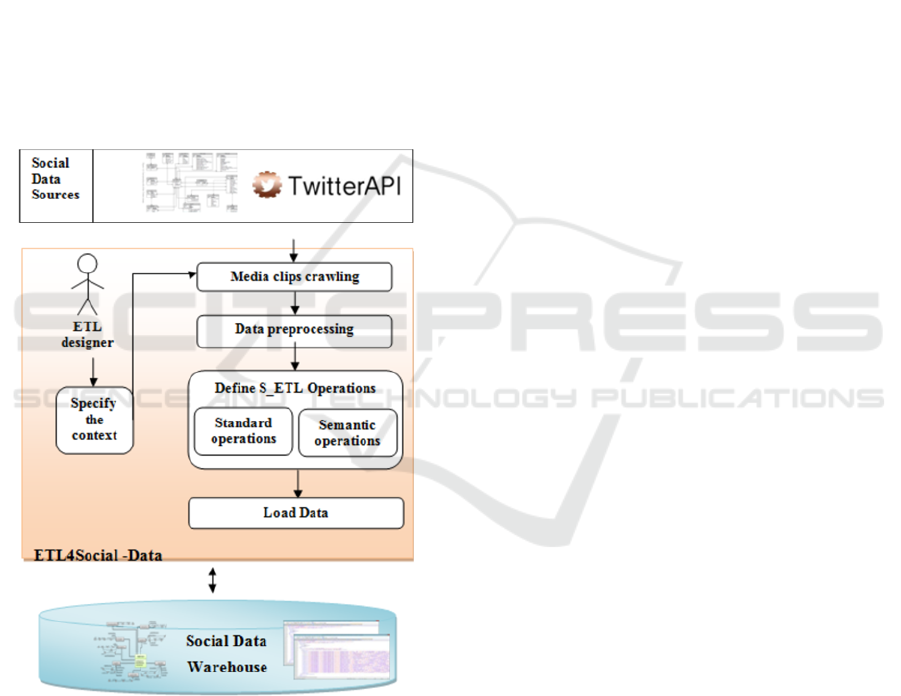

summarises our proposed modeling approach which

describes Extraction, Transformation and Loading

processes specific to social data. Section 4 details

the ETL4Social operation models, which are

validated through examples correspondent to Twitter

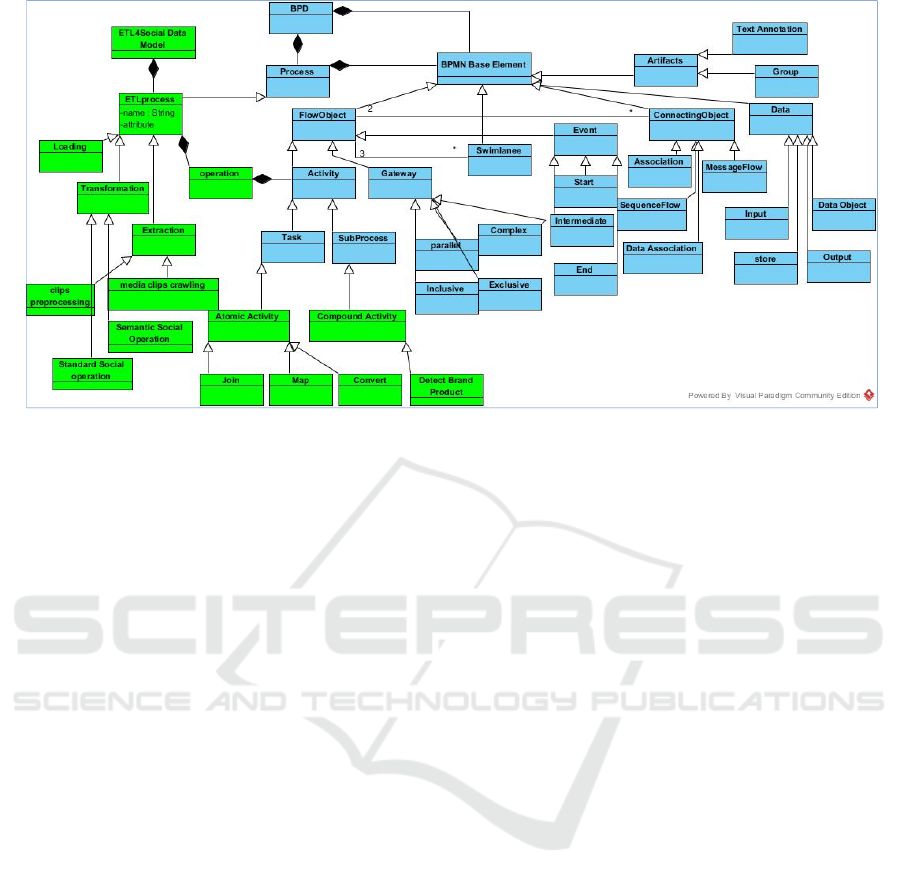

social data. Section 5 presents the meta-model in

which we are based to design social operation

models. Finally, Section 6 gives a conclusion and

some future research perspectives.

2 RELATED WORKS

Our work focuses on the design of social ETL

processes and the issues that arise when semantic

analysis of social data is adopted for ETL4Social

modeling. To this end, this section presents a review

of recent studies dealing with the conceptual

modeling of ETL processes and the integration of

social data in SDW.

2.1 Conceptual Modeling of ETL

Processes

One of the earliest researches on the ETL field was

conducted by (Vassiliadis et al., 2002). The authors

proposed a modeling approach based on a non-

standard graphical formalism. The special notation

devoted to ETL modeling reduces enormously

ambiguities for the designer manipulating the

graphical symbols. It provides customizable and

extensible mechanism so that the designer can enrich

it with his particular patterns. Recently, (Petrovic et

al., 2016) proposed Domain Specific Languages

(DSLs) defining concepts for different aspects

including data and control. The activities in ETL

process represent the actual data operations (i.e., the

data flow), while the control flow represents the

execution order of these activities. The aim of DSLs

is to provide only a minimal set of domain-specific

concepts, with clear and precise semantics, along

with a set of strict rules controlling their usage and

the way in which they can be composed.

Unfortunately, efforts are required to assimilate the

non-standard concepts and their graphical symbols.

ETL conceptual modeling approaches have been

also proposed based on the Unified Modeling

Language (UML). (Trujillo and Luján-Mora, 2003)

approach extends the class diagram by new UML

profiles to allow modeling of ETL operations. Still,

(Trujillo and Luján-Mora, 2003) represents multiple

important aspects, such as ETL constraints, filters,

and data mapping, as UML notes where no

restriction on their content is imposed. Despite the

advantage of this approach to offer a decomposition

of complex ETL to simple processes, the ETL

modeling using class diagram cannot represent

control flows or temporal restrictions, etc. In

response to this limit, (Muñoz et al., 2008) propose a

dynamic modeling based on UML activity diagram,

which offer a dynamic aspect considering the

execution order of control flows and temporal

constraints. This approach proposes a decomposition

of ETL processes into simple activities (e.g.

aggregation, filter, conversion, etc.). An activity is

characterized by input and output pin(s), a set of

actions and parameters. Using activity diagram

offers a visual modeling of complex processes and

provides interoperabilities with others schemas.

(Muñoz et al., 2010) prove the efficiency of activity

diagram in representing dynamic aspects of ETL

processes through a set of validation experiments.

To this end, (Mallek et al., 2014) adopt the ETL

design approach proposed in (Muñoz et al., 2008) to

deal with web data. The proposed models are

extended to be suitable to data available on the web

including web logs, web sites and clickstreams, etc.

We notice that the mentioned approaches using

activity diagram have the following advantages:

standard-based, adaptation/extension of UML for

ETL modeling, top-down modeling process. In fact,

an ETL process is represented as UML packages

which enable the ETL process decomposition into

different logical units.

Considering an ETL process as a particular type

of business process, (El Akkaoui and Zimányi,

2009) and (Wilkinson et al., 2010) have adopted the

standard Business Process Model and Notation

(BPMN). From the various BPMN symbols, the

authors have proposed a customization that allows

selecting a subset of graphical constructs (e.g., ETL

palette) for designing ETL processes. For the

implementation purpose, the authors have proposed

a mapping process from BPMN to Business Process

Execution Language (BPEL) which enables the

execution of the ETL process. These works were

followed by (El Akkaoui et al., 2012), which

propose a modeling framework based on a meta-

model in the Model Driven Development (MDD)

architecture.

For the modeling of ETL process, BPMN

notation seems to be a good choice since it can cover

a deficit of communication that often occurs

between the design and implementation of business

process. The ETL modeling solutions based on

BPMN standard are rich enough to cover all ETL

steps. Otherwise, they are not suitable for social data

environments.

2.2 Data Integration in Social Data

Warehouse

In the context of SBI, the category of UGC that most

significantly contributes to the decision-making

process in the broadest variety of application

domains is the one coming in the form of textual

clips. Clips can either be messages posted on social

media (such as twitter, facebook, blogs, and forums).

Digging information useful for decision-makers

from textual UGC requires first crawling the web to

extract the clips related to a subject area, then

enriching them in order to emerge opinion

information from the raw text. This issue has

motivated many researchers to propose semantic

enrichment solutions of textual UGC in order to be

ready for decision analysis. Recent approaches

propose frameworks that transform social network

data into meaningful and useful information to

enable more effective decision-making. They

incorporate these data into the existing MD

structures.

The majority of approaches establish mappings

between incorporate data and their sources. A recent

approach to integrating BI with sentiment data was

proposed by (García-Moya et al., 2013) where a

corporate DW is enriched with sentiment data from

opinion posts. As a result, sentiment and business

data can be jointly analyzed by means of OLAP

tools. (Berlanga et al., 2015) propose an open and

dynamic framework, where data can be linked to

external sources on demand. They propose a novel

semantic data infrastructure for capturing and

publishing sentiment data to enable SBI. It also

performs automatic extraction of sentiment data

from posts, and their linkage to the infrastructure. As

a result, decision makers will be able to incorporate

opinion related dimensions in their analysis.

Incorporating social opinion data in SDW

modeling require a specific definition and modeling

of Extraction, Transformation and Loading

processes. Modeling such processes is a hot topic for

many researchers that proposed a novel approaches

for transforming the social data to SDW. (Rehman et

al., 2013) describe the process of transforming the

original stream into a set of related multidimensional

cubes and demonstrate how the resulting data

warehouse can be used for solving a variety of

analytical tasks. This approach presents the

implementation level based on multi-layered system

architecture that focuses on the critical stage of

transforming the original stream into a structured

multidimensional dataset consisting of measures and

dimensions. They also elaborated on various options

of enriching the dataset and its structure by means of

derivation, data mining, linking to additional sources

or using external APIs for detecting new features.

(Walha et al., 2016) define a lexicon opinion

analysis approach that extracts informal texts

expressed in the twitter social network, cleans them

and then analyzes them in order to derive their

sentiment polarity which is a dimension in SDW.

This approach proposed a text mining algorithm,

called POLSentiment, based on lexical resources to

firstly extract opinion words and emoticons from the

textual UGC and then analyse it to assign a polarity.

A key role in the analysis of textual UGC is also

played by topics, meant as specific concepts of

interest within a subject area. Several studies

attempted to discover user’s topics of interests from

a text stream since the topics play a crucial role in

user search, friend recommendation, and contextual

advertisement. (Shin et al., 2014) study a problem of

detecting the topics of long-term steady interests to a

user from a text stream, considering its dynamic and

social characteristics, and propose a graph-based

topic extraction model. In this model, a topic is

represented by a term in a social text stream, and

refer to the term representing a long-term persistent

topic of interest as a PT (persistently topical) term.

PT term is useful in user search, friend suggestion,

tag recommendation, and contextual advertisement

in microblogging services. The proposed model

discovers the PT terms by utilizing the information

of topically or socially similar streams based on a

graph-based ranking model.

Users are interested in knowing people opinions

regarding a specific topic. But, an analysis over the

reputation of a single topic is not sufficient to get a

clear idea about the global mood. Thus, decision

makers need to aggregate different topics according

to several criteria for performing efficient analysis.

Obviously, topics became a dimension in a Social BI

multidimensional cube. In order to enable the

aggregation of topics belonging to different levels, a

topic hierarchy should be defined. However, this

topic hierarchy is not similar to regular hierarchies

in terms of their irregularity, dynamicity as well as

the existing semantic relationships between topics.

Hence, creating this topic hierarchy is a challenging

task for the ETL team. (Gallinucci et al., 2013)

stated that a topic hierarchy can be approached in the

form of an ontology that should follow a well-

defined structure, which contains a complete list of

topics, their relationships, as well as their

corresponding levels. For instance, the topic

“Apple” is referring the level “Brand”. In

(Gallinucci et al, 2013), authors are focused on topic

hierarchies and their effective modeling.

We notice that the above-mentioned approaches

are high expressive to model topic hierarchies based

on same specific requirements: heterogeneity and

dynamicity of topic classification. Despites these

advantages, ETL activities that describe the

execution order of topic detection processes from

text stream to topic hierarchy attributes are not

modeled. This paper addresses this issue and

proposes a conceptual modeling of ETL operations

that focus on topic hierarchy building.

ETL modeling approaches above-reviewed in

section 2.1 provide very interesting models.

Otherwise, they are not adapted to social data

characteristics. The objective of ETL4Social data

modeling approach is to extend the proposed models

by semantic enrichment specific to textual social

data sources. In this work, we focus on ETL

modeling of the dynamic topic hierarchy.

3 ETL4Social-Data MODELING

APPROACH

Social data are unstructured and heterogeneous in

comparison with business data sources. Due to these

data characteristics, existing ETL operations cannot

be used by ETL designers to map social sources into

SDW. This problem requires the redefinition of

Extraction, Transformation and Loading processes.

ETL4Social modeling approach reply to this need

through social operations design.

3.1 Overview of ETL4Social Modeling

Approach

ETL4Social modeling helps ETL designers to

correctly use the adequate social operations

resolving the problem of complexity related to social

data. This complexity is due to the integration of

unstructured, informal and heterogeneous opinion

data extracted from social network sources (e.g.

twitter).

The asset of ETL4Social-Data is the definition

and modeling of extraction, transformation and

social operations applied on SDS in order to be

loaded into the SDW. Figure 1 shows an overview

of the proposed approach. It is organized in four

main processes: media clips crawling, data

preprocessing, social ETL (S-ETL) operations

modeling and data loading.

Social networks hold a huge volume of data

about many topics of interests related to diverse

contexts of study. To keep only valuable information

replying to a specific study context, the data

crawling step is realized by crawling services based

on a set of keywords describing the ETL designer

requirements. During this step, useless media clips

data such as very short or non-English text clips

should to be also discarded before their storing in the

Data Staging Area (DSA).

In traditional ETL processes, the extraction step

is followed by transformation of data sources to DW

elements. In social environment, media clips are a

user generated content (exp. tweet text) that may be

informal and unstructured. So, the crawling of media

clips must be followed by a preprocessing step that

defines a set of cleaning operations specific to social

data. Among these operations, some are standard,

which are approved by many research communities,

and others are specific to semantic analysis

objectives. For example, cleaning operations before

topic detection differ from those defined before

sentiment polarity detection. At this point,

preprocessed media clips data stored in the DSA are

ready to the next step: Transformation.

The transformation process is realized through

the execution of a set of operations. This process is

defined by transformation rules that map data

sources to SDW. Existing ETL approaches designed

standard transformation operations which are not

adapted to social data characteristics and not deal

with semantic analysis aspect. In ETL4Social, two

types of social operations are proposed: (1) standard

and (2) semantic. In type (1), only data stored in

DSA are used to determine SDW elements.

Otherwise, type (2) uses other external resources

(e.g. domain ontology) to semantically enrich data

sources in order to be transformed into target data

(e.g. topic detection, semantic polarity).

The final process of our approach is the loading

of data into SDW. It consists on data verification

steps before its insertion in the SDW.

Figure 1: Overview of ETL4Social Modeling Approach.

The literature indicates that the BPMN standard

is well adapted to model ETL activities. Also, it

allows covering a deficit of communication that

often occurs between the design and implementation

of business processes. We choose this standard to

design social extraction, transformation and loading

operations as business processes.

3.2 Definition of DWB Schema from

Social Sources: Case of Twitter

In the literature, many approaches are interested to

decision analysis of twitter social data and they

propose many multidimensional views of twitter

SDW schema. These schemas were designed based

on the Twitter Data Warehouse schema presented in

(Rehman et al., 2013). In this schema, TweetFact

and UserFact are defined as facts according the

dimensions Time, Date, Tweet, and User.

A tweet object is known as the basic atomic

building block of all things in Twitter. Tweet is also

known as a “status update”. In fact, it is a message

which may include texts, links, photos, or videos,

that may be embedded, replied to, liked, or deleted.

Thus, a tweet may be a rich source of information

through which users express their feelings and

opinions on every topic of interest. A tweet object

stores several data fields that can be assigned

directly or by semantic enrichment as fact/measures,

dimensions or dimensional hierarchies. We think on

extending the described twitter DW schema by

semantic analysis elements. This enrichment

integrates semantic attributes specific to new

analytical aspects including sentiment analysis,

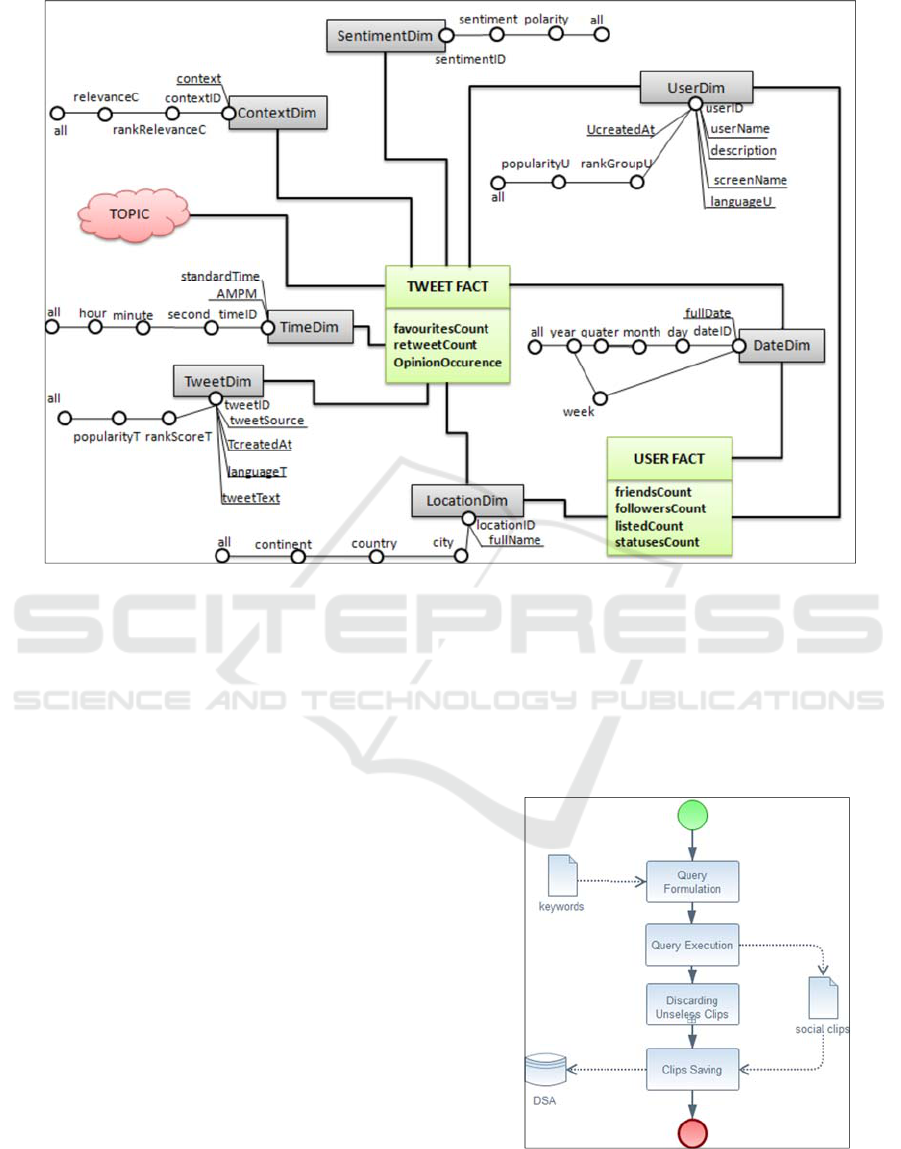

study context and topics of interest. Figure 2 shows

the resulted semantic twitter SDW schema, in which

SentimentDim, ContextDim and TopicDim are

defined as semantic dimensions attached to the

analysis subject TweetFact. SentimentDim

attributes contains information about tweet

sentiment (e.g. high positive, positive, low positive)

and its polarity, i.e. positive, negative or neutral.

ContextDim attributes are related to the context of

study and its relevance. As shown in our proposed

semantic twitter SDW schema, TopicDim is

different from other dimensions. It is presented

without attributes because it has dynamic hierarchy

structures that can be designed according to the

study context specified by ETL designer (Gallinucci

et al., 2013).

Semantic dimension attributes are derived by the

execution of ETL operations on the textual social

data source. Due to the unstructured and informal

texts available in social networks, their extraction,

transformation and loading into SDW attributes is a

complex task. Our objective is to define social ETL

operations. In this paper, we insist mainly on those

specific to topic dimension attributes and

hierarchies. This work is an extension of our

previous work (Walha et al., 2016), which describes

a lexicon approach that determines sentiment

Figure 2: Multidimensional schema for Twitter SDW.

dimension attributes. ETL4Social operations will be

detailed in the next section.

4 ETL4Social-Data OPERATIONS

MODELING

ETL4Social-Data handles the modeling of ETL

operations applied on SDS in order to be loaded into

the SDW. These operations deals with data crawling

from social sources (e.g. twitter). Data crawling is

realized according to the analysis context (e.g.

internet technology), which is specified by ETL

designer. Data sources are then cleaned by means of

preprocessing tasks. To be adapted to SDW, a set of

standard and semantic ETL operations are applied

on data. Finally, they are loaded into the SDW.

4.1 Extract Media Clips Data

This process aims to crawl the web for media clips

extraction according to the analysis domain

specified by ETL designer. Based on keywords

related to the study context, a set of queries are then

formulated and sent to web crawlers, whose goal is

to retrieve media clips in the scope of the subject

area. As response to these queries, we obtain a huge

number of media clips. Otherwise, these data may

include a set of useless media clips, which will be

discarded before its storing in the DSA. Figure 3

summarizes media clips crawling operation tasks:

query formulation, query execution, discarding

useless clips and saving.

Figure 3: BPMN Model of Media Clips Crawling

Operation.

Example: Twitter Statuses Crawling is the Media

Clips Crawling operation for twitter. Twitter

Streaming API is a social crawler used to search for

ETL designer queries, a list of statuses that could

store information about user, his friends and

followers, tweets published by a user, geo-location

and date information, etc. The crawling results may

store useless information. At this level, we offer to

ETL designer tasks that allow him to discard useless

statuses. Useless Data Removing activity is

presented in figure 3 by a BPMN subprocess

element. Figure 4 depicts some tasks including

discard retweet statuses or those having very short or

non-English text. The semi-structured statuses are

then transformed into a structured form and then

stored in the DSA.

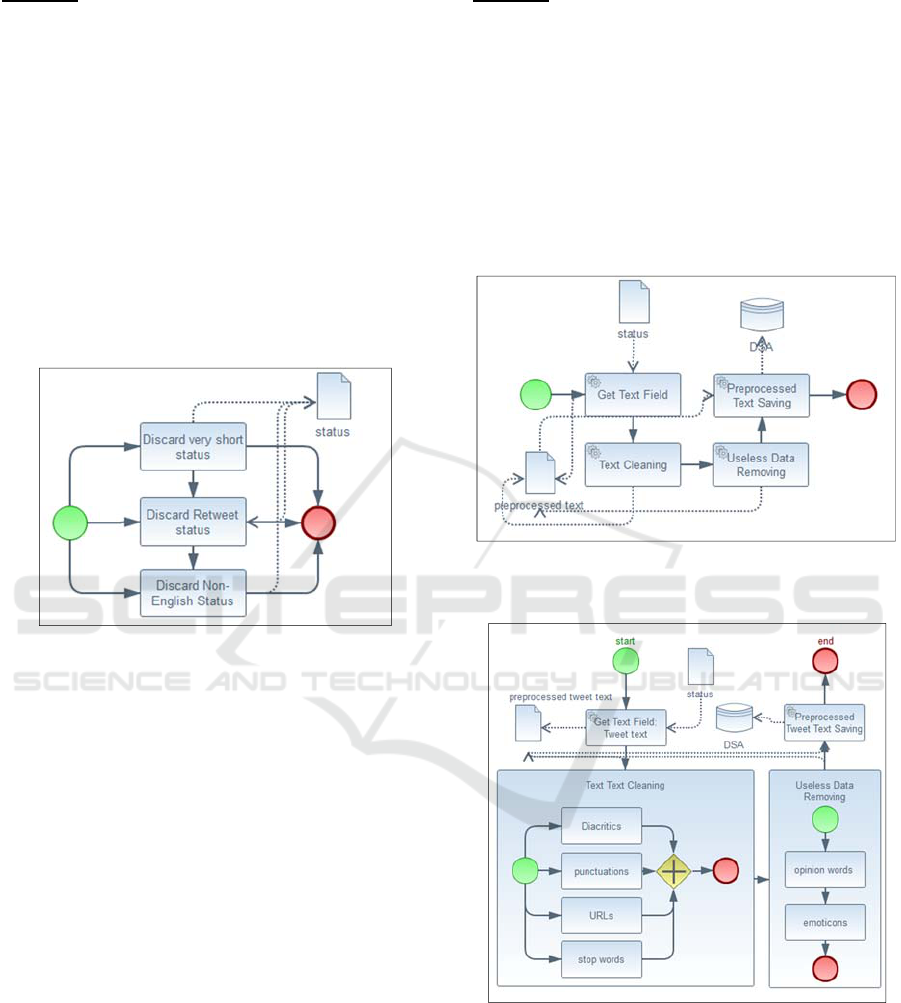

Figure 4: BPMN Expanded Subprocess for Discarding

Uselss Statuses Activity.

4.2 Preprocessing of Media Clips Data

Detection valuable semantic information from

unstructured and informal text requires its cleaning.

Preprocessing is a crucial step before performing

any standard or semantic processing.

According to the literature, the majority of

preprocessing techniques applied on formal text

insist mainly on cleaning tasks, i.e. remove diacritics

(e.g. accents, unknown characters), URLs, and

punctuations and stops words, etc. Otherwise, UGC

available on social data is informal and may contain

other information that may later cause problems in

semantic detection process. For preprocessing

operation of social data clips, the existing cleaning

techniques are insufficient and should be extended

by other tasks according to ETL modeling

objectives. Media Clips Preprocessing operation is

then summarized by the following tasks: Get text

field, clean text, remove useless data and save

preprocessed text. Figure 5 depicts the generic

BPMN model specific to this operation.

Example: Tweet Preprocessing Operation before

Topic Detection. In order to transform a tweet text

into topics in the SDW, we apply the well-known

existing cleaning techniques on the tweet text

followed by the removing of opinion words, their

modifiers and emoticons, which are useless for topic

detection. Figure 6 illustrates the tweet text

preprocessing tasks before topic analysis process.

The preprocessing steps of textual media clips

provide structured information enriched by semantic

data. The following section details transformation

operations in order to reach SDW elements.

Figure 5: BPMN Model for Media Clips Preprocessing

Operation.

Figure 6: BPMN Model for Tweet Preprocessing

Operation before Topic Detection.

4.3 ETL4Social Data Transformation

Processes

Transforming data from their social sources to the

correspondent DWB elements is a complex task.

This complexity increases when we think about

transforming social text, considering their dynamic

and informal characteristics into semantic

dimensions. In this section, we detail the definition

and modeling of data transformation operations

specific to ETL4Social modeling. Operations are

distinguished into standard and semantic operations.

Standard means applying atomic or composite

transformation rules on data sources to be associated

to SDW. For this transformation type, input data are

sufficient to determine the target elements.

Otherwise, semantic operations are determined by

using external resources including domain ontology,

and lexical dictionary, which ensure the semantic

enrichment of SDS in order to handle SDW opinion

elements, such as sentiment polarity and topics.

4.3.1 Standard Operations

The objective of standard operation is to map data

sources fields to SDW elements. We propose a

definition and modeling of standard operations

specific to social data.

Social Standard Transformation operation

aims to associate each stored status fields into the

correspondent SDW attribute(s) without the use of

external resources. It starts by getting input field(s)

and output attribute(s), which are already defined in

the correspondence table (CT), ensures the mapping

of data sources to the target attributes based on a set

of transformation rules and finally it inserts data in

the DSA. These steps are shown in figure 7 as the

succession of the following activities: get input

field(s), get output attribute(s), field-attribute

mapping and data insertion.

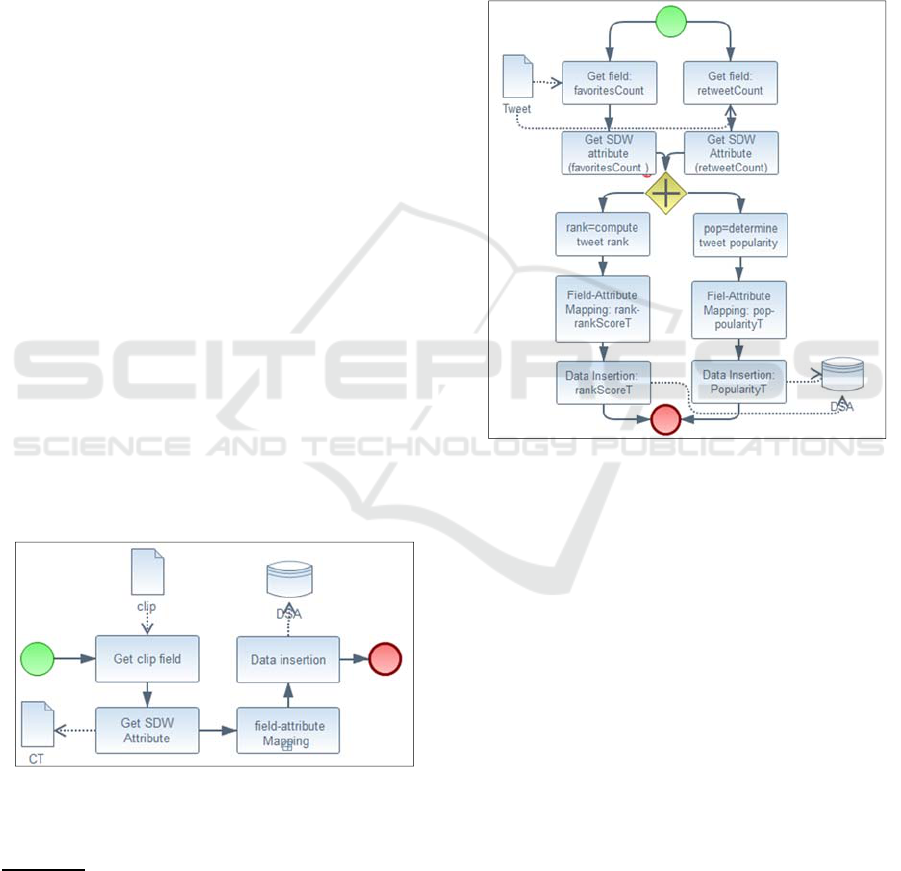

Figure 7: BPMN model for Social Standard

Transformation Operation.

Example: Determine Tweet Popularity is a social

standard transformation operation. It is applied on

tweet text field (source) to determine the values of

TweetDim attributes: rankScoreT and

popularityT. These attributes are absent in the

source table (tweet). To detect their values, we

define a set of tasks applied on tweet text. Figure 8

details the execution order of these tasks. The value

of rank is then calculated based on favoriteCount,

and retweetsCount values following the score

formula (1). According to the resulted score, the

popularity (pop) is derived based on a set of criteria

defined in (Rehman et al., 2013). rank and pop are

respectively associated to rankScoreT and

popularityT attributes of the dimension tweetDim.

rankScore= RetweetCount∗80+FavoriteCount∗20

(1)

Figure 8: BPMN Model for DetermineTweetPopularity

Operation.

4.3.2 Semantic Operations

Textual clips available in social data sources are

unstructured in comparison to structured fields in

business data sources, but it can provide valuable

semantic opinion information. In twitter SDW

(figure 2), we have three semantic dimensions:

ContextDim, TopicDim and SentimentDim. These

dimensions data are determined from tweet text,

after applying semantic transformation operations.

Semantic_Social_Mapping is a transformation

operation that occurs when we want to associate

semantic data derived from input text to semantic

dimensions attributes. These data are determined by

querying external resources, like domain ontologies,

dictionaries, etc. Semantic_Social_Mapping is

modeled by the following activities (presented in

figure 9):

 Get input text

 Get dimension attributes

 Semantic enrichment: clips enrichment is

realized through asking external resources, which

detect semantic information of the input text.

 Semantic social mapping: applying

transformation rules that determine the instances

of dimension attributes.

 Data insertion: associate the obtained data to the

correspondent attributes

In this paper, we propose to define and model the

main Semantic Social Mapping operations of the

dimension TopicDim, which is a dynamic

dimension (as described in section 3.2) in

comparison to other semantic dimensions. Indeed,

many possible hierarchies may be defined in

topicDim. The absence of this dimension attributes

in twitter SDW schema is justified by their variation

from one study context to another one. For example,

in a commercial context, attributes may be company,

product, type product, category product, etc. In

politic context, none of those attributes mean

anything. In this case, a topic may be people or

political event, etc.

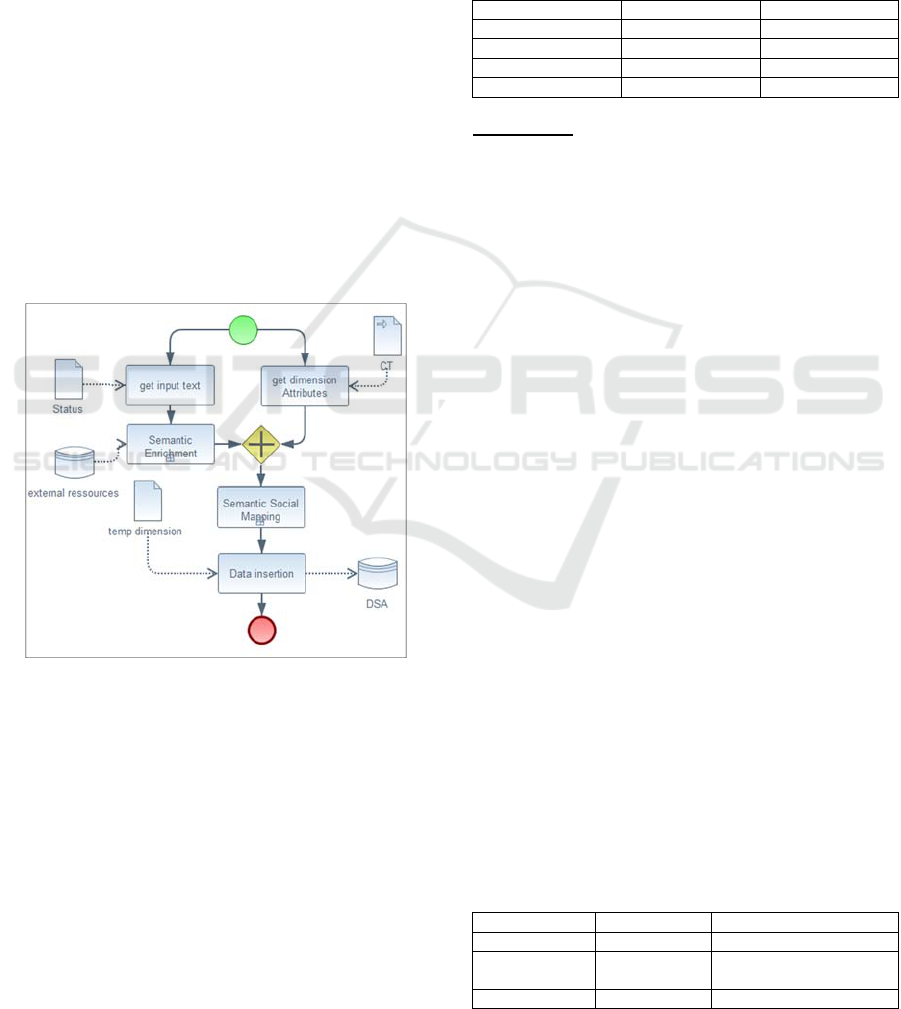

Figure 9: BPMN Model of Semantic Social Mapping

operation.

Topic Semantic Social Mapping starts by

entities detection. After studying the existing

platforms, we choose Thomson Reuters Open Calais

service (Calais, 2016), which is sophisticated to

automatically analyze and tags input text to pinpoint

relevant data contained within the text, including

products, people, companies, political events, city

and country. Topic detection is followed by entities

data transformation in order to be affected to

topicDim attributes, which are based on a Topic

Correspondence Table (TCT). Its role is to associate

each entities field to its correspondent attribute in

the SDW. Table 1 is TCT example that enumerates

some detected entities specific to the context

“internet technology” and their correspondent

elements in topicDim.

In the following, we will detail

Semantic_Social_Mapping transformation

operations for two examples of Topic hierarchies:

Product_Brand and Product_Category.

Table 1: TCT example for “internet_technology” context.

Entity Field SDW Attribute Example

productName Produc

“iphone 5”

productType Type “Electronics”

companyName Brand “Apple”

operatingSystem Operating system “Paris”

Example 1: Topic Semantic_Social_Mapping for

the hierarchy “Product_Brand”.

According to the hierarchy definition proposed in

(Gallinucci et al., 2013), Product_Brand hierarchy is

defined as follows:

 Hierarchy Name: Product_Brand

 Levels={Product, Brand} with Product>Brand

 Relation(Product, Brand, hasBrand)

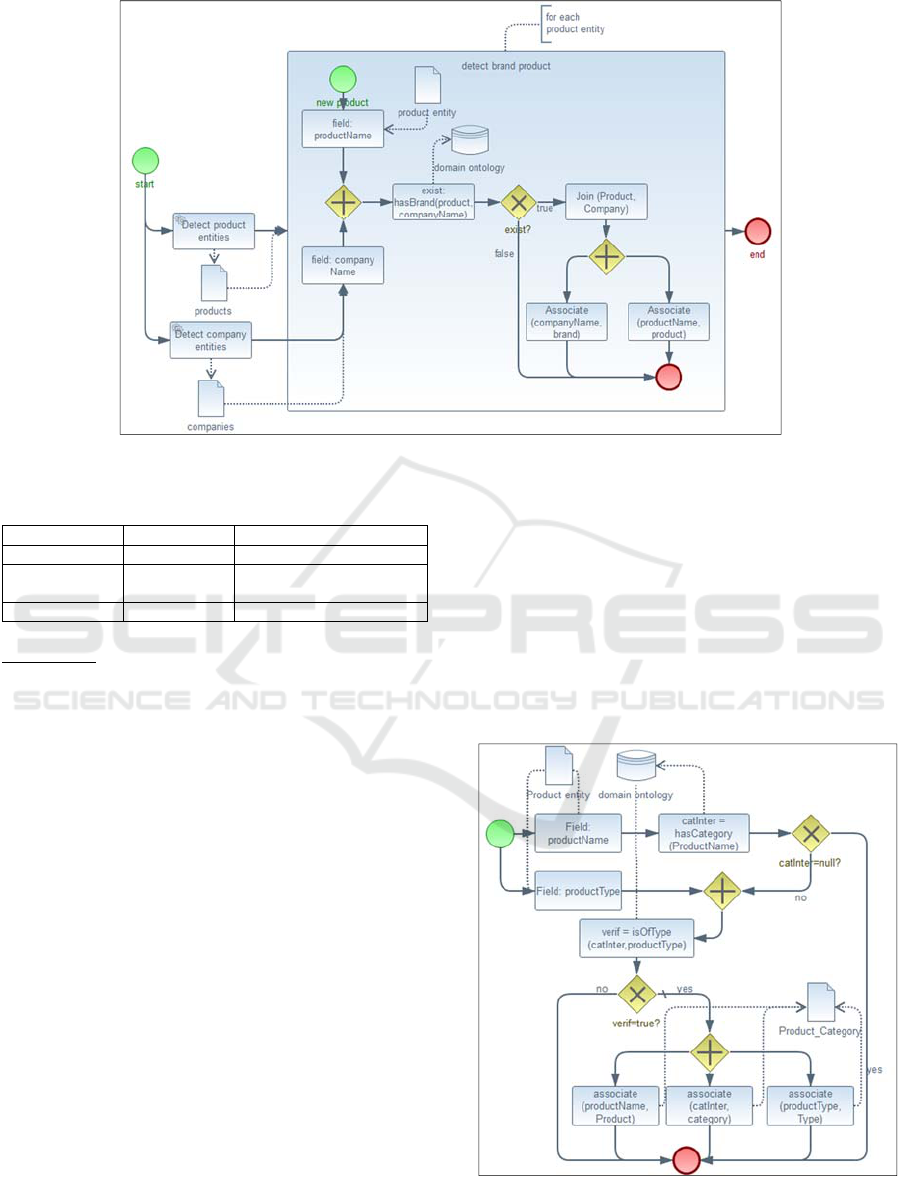

BPMN model specific to Topic

Semantic_Social_Mapping (figure 10) illustrates

the execution order of tasks specific to the hierarchy

Product_Brand. The first step is to determine from

TCT the entity fields correspondent to

Product_Brand attributes, i.e., product and brand.

According to these fields, a query is then

formulated. OpenCalais service executes this query

and returns a list of entities. Tables 2 and 3

respectively enumerate entities examples specific to

“product” and “company” types for the study sub-

context “smartphone”. The next step consists on

realizing the mapping between entity fields and

hierarchy attributes. For Product_Brand hierarchy,

the principle is to search for each product type its

correspondent company name, by querying DBpedia

ontology. Yet, if the relation “hasBrand” exists

between productName and companyName instances,

the join between the two entities product and

company is recommended. Finally, the next step is

the mapping between entity fields and

Product_Brand hierarchy attributes. ProductName

and companyName are respectively mapped to the

attributes Product and Brand.

Table 2: Examples of entities of type product.

EntityName EntityType ProductType

iphone 5 Produc

Electronics

samsung

galaxy J7

Product Electronics

nokia 3 Produc

Electronics

Figure 10: BPMN model for Semantic Social Mapping for Product_Brand.

Table 3: Examples of entities of type company.

EntityName EntityType FullName

apple Company apple Inc.

samsung Company

samsung electronics

CO.LTD

otorola Company motorola solutions, Inc.

Example 2: Topic Semantic Social Mapping for

the hierarchy “Product_Category”. The

Product_category hierarchy is defined as follows:

 Hierarchy Name: Product_category

 Levels={Product, Category, Type} with

Product>Category, Category>Type.

 Relation{R1, R2}:

R1{(Product, Category), hasCategory}

R2{(Category, Type), isOfType}

The goal of Semantic Social Mapping of

Product_category is to associate data detected from

tweet text to Product_category attributes. The

BPMN model proposed for this operation is

illustrated in figure 11. As in the example 1, it starts

by detecting product entities. Table 2 mentions

instances of products. As input, a product is

characterized by its name and its type. For the

Product_category, a product is characterized by

three parameter levels, i.e., product, Category and

Type. Table 4 mentions some instances of the

product_category hierarchy table.

Semantic_Social_Mapping for the

Product_category aims to realize the mapping

between instances mentioned in table 2 (source) and

those of table 4 (target). By way of comparison

between contents of the two tables, it may be noted

that Category information is absent in the first one.

This information may be stored in a domain

ontology and accessible by applying the relation R1,

i.e., hasCategory, to the productName. The resulted

value is associated to the parameter InterCat. Then,

R2, i.e. isOfType, is then verified between InterCat

and ProductType. In case of existence, the mappings

between productName and product, InterCat and

Category, productType and Type are then permitted.

Figure 11: BPMN Modeling of Semantic Social Mapping

for Product_category.

Table 4: Example of Product_category hierarchy table.

Product Category Type

iphone 5 smartphone electronics

ipad tablet_compute

electronics

samsung galaxy J7 smartphone electronics

oto 5 smartphone electronics

5 ETL4Social OPERATIONS

META MODELING

ETL4Social data is a set of Extraction,

Transformation and Loading processes applied on

social data to reach SDW. A process is composed of

data operations. In the previous sections,

ETL4Social operations are modelled by BPMN

diagrams. Figure 12 depicts the meta-model for ETL

processes, which extends BPMN 2.0 meta-model. A

BPMN diagram is designed by BPMN base elements

that are classified into Flow objects, Connecting

objects, Swimlane and Artifacts (BPMN, 2011).

ETL4Social operations are modelled by

succession of activities started by a start event and

finalized by end event. Activities are categorized

into atomic and compound. An atomic activity (e.g.

map, convert, join, etc.) are presented as task in

BPMN diagram. Otherwise, a compound activity

(e.g. Discarding Useless Clips defined in figure 3) is

illustrates by a sub-process, which is an Activity that

encapsulates a Process that is in turn modeled by

Activities, Gateways, Events, and Sequence

Flows. In ETL4Social operations models, activities

are inter-related through sequence flows. A

Sequence Flow is used to show the order in which

activities will be performed in a process. Many

sequence flows may be related to an activity. The

gateway is then used to control the divergence and

convergence of sequence flows in an operation

process. Thus, it may determine branching, forking,

merging, and joining of paths. Gateway internal

markers indicate the type of behaviour control,

including parallel, exclusive, inclusive, based-event,

and complex gateways. During the execution of an

ETL4Social operation activity, events are something

that may happen during. These Events affect the

flow of the model and usually have a cause (trigger)

or an impact (result). There are three of events: start,

beginning and end.

In ETL4Social operation, processes often require

data in order to be executed. In addition they may

produce data during or as a result of execution. Data

requirements are captured as Data Inputs and Data

Outputs. In addition to these two types, Data may

be data object or data store. Data Objects are the

primary construct for modeling data within the

process flow. Data Store (e.g. domain ontology)

provides a mechanism for activities to retrieve or

update stored information that will persist beyond

the scope of the process. Data are associated to

activities through Data association elements, which

are connecting objects. Another type of connecting

object is association that links information and

artefacts with BPMN graphical elements.

6 CONCLUSION AND

PERSPECTIVES

In this work, we are interested to model ETL

operations specific to social environment in which

social data are unstructured and informal. This

approach offers to ETL designer the opportunity to

easily integrate social data into SDW.

ETL modeling is based on the explicit

knowledge stored in the design step. The

ETL4Social data processes modeling as detailed in

this paper greatly minimize the complexity and the

time allocated to the implementation of extraction,

transformation and loading of social operations.

As compared to existing methods which integrate

social data in SDW, the power of ETL4Social

approach is demonstrated by the proposed generic

models that illustrate a succession of operations

related to extraction, transformation and loading of

text stream to be integrated in semantic dimensions

including topic dimension, sentiment and context

dimensions.

Taking into account the complexity of ETL

processes, the various aspects of ETL processes

(control flow, data flow) should be modeled

separately. We aim to handle ETL4Social processes

as a combination of control and data processes,

where control processes manage the coarse-grained

groups of tasks and/or sub-processes, and data

processes operate at finer granularity, detailing how

input data are transformed and output data are

produced.

ETL4Social-Data handles the modeling of ETL

operations applied on social data sources in order to

be loaded into the SDW having static elements. Yet,

a SDW schema may contain dimensions having

dynamic and fluid structures such as the topic

dimension presented in the twitter case study. In the

near future, we aim to propose an ETL4Social-

schema that ensures the conceptual modeling of ETL

operations dealing with SDW schema

transformation.

Figure 12: Class Diagram of ETL4Social Operations Meta-Model.

REFERENCES

Berlanga, R., García-Moya, L., Nebot, V., Aramburu,

M.J., Sanz, I., Llidó, D.M., 2015. SLOD-BI: an open

data infrastructure for enabling social business

intelligence. In International Journal on Data

Warehousing and Data Mining.

BPMN, Business Process Modeling and Notation,

http://www.omg.org/spec/BPMN/2.0, January 2011.

Calais, Thomson Reuters Open Calais, User Guide, Mars

2016.

El Akkaoui, Z., Zimányi, E., 2009. Defining ETL

worfklows using BPMN and BPEL. In DOLAP’09,

ACM Twelfth International Workshop on Data

Warehousing and OLAP.

El Akkaoui, Z., Mazon, J.N., Vaisman, A., Zimanyi, E.,

2012. BPMN-based conceptual modeling of ETL

processes. In DaWaK’12, 14th International

Conference on Data Warehousing and Knowledge

Discovery. Information technology.

Gallinucci, E., Golfarelli, M., Rizzi, S., 2013. Meta-Stars:

Multidimensional Modeling for Social Business

Intelligence. In DOLAP’13, sixteenth international

workshop on Data warehousing and OLAP.

García-Moya, L., Kudama, S., Aramburu, M.J., Berlanga,

R., 2013. Storing and analysing voice of the market

data in the corporate data warehouse. In Information

Systems Frontiers.

Jovanovic, P., Romero, O., Simitsis, A., Abell´o, A., 2012.

Requirement-driven creation and deployment of

multidimensional and ETL designs. In ER’12

Workshops. 31st International Conference on

Conceptual Modeling.

Mallek, H., Walha, A., Ghozzi, F., Gargouri, F., 2014.

ETL-web process modeling. In ASD’14, Advances on

Decisional Systems Conference.

Muñoz, L., Mazón, J.N., Pardillo, J., Trujillo, J., 2008.

Modeling etl processes of data warehouses with uml

activity diagrams. In On the Move to Meaningful

Internet Systems: OTM 2008, Lecture Notes in

Computer Science, Springer.

Muñoz, L., Mazón, J.N., Trujillo, J., 2010. A family of

experiments to validate measures for uml activity

diagrams of etl processes in data warehouses. In

Information & Software Technology.

Petrovic, M., Vuckovic, M., Turajlic, N., Babarogic´, S.,

Anicic´, N., Marjanovic´, Z., 2016. Automating ETL

processes using the domain-specific modeling

approach. In ISBM’16, Information Systems and e-

Business Management.

Rehman, N., U., Weiler, A., Scholl, M.H, 2013. OLAPing

Social Media: The case of Twitter. In ASONAM’13,

IEEE/ACM International Conference on Advances in

Social Networks Analysis and Mining.

Shin, Y., Ryo, C., Park, J., 2014. Automatic extraction of

persistent topics from social text streams. In WWW’14,

23rd International World Wide Web Conference.

Trujillo, J., Luján-Mora, S., 2003. A UML Based

Approach For Modeling ETL Processes in Data

Warehouses. In ER’03, 22nd International Conference

on Conceptual Modeling, pages.

Vassiliadis, P., Simitsis, A., Skiadopoulos, S., 2002.

Conceptual modeling for etl processes. In CIKM’02,

5th ACM international workshop on Data

Warehousing and OLAP.

Walha, A., Ghozzi, F., Gargouri, F., 2016. A Lexicon

approach to multidimensional analysis of tweets

opinion. In AICCSA’16, 13th ACS/IEEE International

Conference on Computer Systems and Applications.

Wilkinson, K., Simitsis, A., Castellanos, M., Dayal, U.,

2010. Leveraging business process models for etl

design. In ER’10 WorkShop, 29st International

Conference on Conceptual Modeling.
