Selective Covariance-based Human Localization, Classification and
Tracking in Video Streams from Multiple Cameras
A. R. Taranyan, V. V. Devyatkov and A. N. Alfimtsev
Bauman Moscow State Technical University, Moscow, Russian Federation
Keywords: Pattern Recognition, Computer Vision, Human Tracking, Covariance Matrix, Covariance Region
Descriptor, Selective Localization.
Abstract: In this paper a novel selective covariance-based method for human localization, classification and tracking
in video streams from multiple cameras is proposed. Such methods are crucial for security and surveillance
systems, smart environments and robots. The method is called selective covariance-based because before
classifying the object using covariance descriptors (in this case the classes are the different people being
tracked) we extract (selection) specific regions, which are definitive for the class of objects we deal with
(people). In our case, the region being extracted is the human head and shoulders. In the paper new feature
functions for covariance region descriptors are developed and compared to basic feature functions, and a
mask, filtering out the most of the background information from region of interest, is proposed and
evaluated. The use of the proposed feature functions and mask significantly improved the human
classification performance (from 75% when using basic feature functions to 94.6% accuracy with the
proposed method) while keeping computational complexity moderate.
1 INTRODUCTION
Reliable real-time tracking of moving objects using
multiple cameras, wherein each camera has
relatively small field of view, is a challenging task
that becomes particularly difficult to solve when
traced object speed increases or such object
temporarily disappears. It has a wide range of
applications, including security and surveillance
systems (Watada, 2008), smart environments,
robotics (Bellotto, 2009) and human-computer
interaction (Devyatkov, 2011). Before taking on task
definition of this paper and its comparative analysis
against existing researches, we are going to
introduce a number of terms.
An image formed by a digital video camera at a
given time t will be called a frame. A frame captured
at the moment t will be denoted as
. A video stream
will stand for a frame sequence
,

, ... ,

. Let
us denote a single pixel of a frame
as
.
Entries

,

 and

 will denote
R, G and B components of the pixel

accordingly.
A subset of pixels of a frame
, containing an
object to be identified (for example a person’s face),
will be called the region of interest (ROI). The
region of interest of a frame
will be denoted as
.
A set of pixels of a frame, which does not belong to
the region of interest will be called background.
Localization of an object is the process of
determining the location of the region of interest
containing this object in the frame at a given time t.
Tracking of the object is a process of sequential
localization of


ROIs containing
the object being tracked in


frames.
Classification of ROI is an implicit partitioning
of a set of all these regions into subsets called
classes (In our case, the classes are the people being
tracked). Classification requires a class descriptor,
which at first is calculated based on certain features
of the chosen object that belongs to the class; and
later the descriptor is used for classification as a
model to which a descriptor calculated under the
same features and procedure (a sample) is compared.
A variety of methods has been dedicated to the
classification of ROIs, which mainly differ from
each other by the types of the descriptors used. All
these methods are usually divided into two large
groups.
The methods of the first group, when forming the
descriptor, use key point extraction, extraction of
Taranyan, A., Devyatkov, V. and Alfimtsev, A.
Selective Covariance-based Human Localization, Classification and Tracking in Video Streams from Multiple Cameras.
DOI: 10.5220/0006538100810088
In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 3: BIOINFORMATICS, pages 81-88
ISBN: 978-989-758-280-6
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
81
specific features of the object that describe its
geometrical singularities in the best possible way
(angles, arcs, lines, contour shapes etc.). Among the
methods of this group, we can distinguish the use of
SIFT descriptors (Lowe, 2004; Fazli, 2009) that are
based on extraction of turn and scale invariant
characteristics; the “shapecontext” method
(Belongie, 2002); finding of typical parts
(particularly human body parts) (Ioffe, 2001),
silhouettes (Elzein, 2003) etc. A substantial
drawback of these methods is the need of high
resolution of the objects being classified, while the
method developed in this paper can function
effectively even with video streams having
comparatively low resolution.
The descriptors of the second group, to classify
the ROI, use low-level features (gradients, colours,
intensities, positions, etc.) calculated over the whole
ROI. The most common descriptors of this group are
histograms (Liu, 2014; Comaniciu, 2003) and
covariance matrices (Tuzel, 2006; Wu, 2009a;
Hassen, 2015).
A disadvantage of histograms as descriptors, at
least in known researches, is the dropping of spatial
information, which makes impossible to distinguish
objects of similar colours but with different shape.
The covariance matrix, unlike histograms, generally
can be constructed for any number of both colour
and spatial features, while keeping calculation
complexity moderate. This descriptor is quite
popular nowadays, and has a wide range of
applications. For example, Ergezer (2016) used the
covariance matrix as a descriptor of person’s path to
solve a problem of anomalous human behaviour
detection, and Sanin (2013) applied it for action and
gesture recognition. Owing to the mentioned
advantages, in this paper the covariance matrix is
chosen as a descriptor for the developed method of
human localization, classification and tracking by
several cameras.
It should be noted that our method, without any
preliminary training, should be able to track the
same person from multiple cameras and in multiple
locations, under various angles, with various
backgrounds. As opposed to object tracking from a
single camera, there is a significant limitation for
application of the methods based on the assumption
that the object being tracked has nearby coordinates
in the subsequent frames of the video stream (Elzein,
2003). While, in case of tracking from a single
camera, existing methods show quite good results, in
our case application of such methods is possible
only for each particular video stream separately.
2 ALGORITHM OF
COVARIANCE-BASED
TRACKING FROM MULTIPLE
CAMERAS
The proposed method is based on the application of
the Viola-Jones classifier for localization of all
regions of the peoples’ head and shoulders and
further matching (classification) of the localized
regions to the people that had been detected before
via the covariance descriptor. The head and
shoulders region has been chosen as a rather
informative for people classification, but,
meanwhile, a region, that is rarely occluded by other
objects.

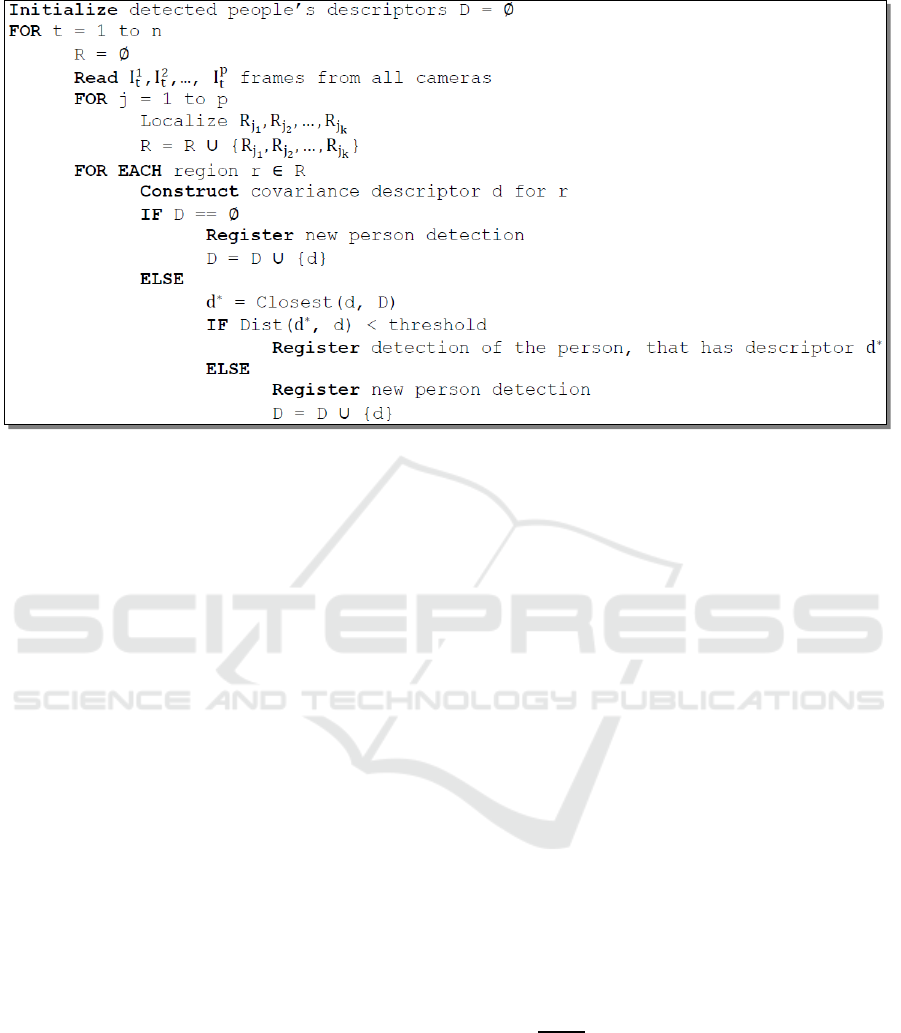

The main algorithm’s pseudocode is presented in
Fig. 1. At each moment of time we read frames from
all the cameras, localize head and shoulders regions
on that frames, then construct covariance matrices
for the localized regions. Every localized head and
shoulders region can either be a new person, who
hasn’t been detected yet, or a new occurrence of
previously detected person. Thus, we compare that
person’s covariance descriptor with the descriptors
of all of the previously detected people (D) and find
the closest one (d*). If it is close enough to the new
descriptor, we register a new occurrence of a person,
who corresponds to the descriptor d*. Otherwise, we
register a new person detection, and add its
covariance descriptor to the set D.
In the proposed method, two modules can be
distinguished: the module of localization of the head
and shoulders regions, and the module of
classification (hereinafter referred to as the
classifier). Essentially, the classifier is the complex
of the chosen method of descriptor construction and
the descriptor matching method.
We shall consider the key stages of the proposed
algorithm of covariance-based tracking from
multiple cameras and discuss in detail the proposed
classifier.
2.1 Localization of the Head and
Shoulders Regions
Localization of the head and shoulders regions
(ROIs) at a given time t is carried out for each video
stream separately; then, the detected regions are
joint in a common set of regions
,
which is the very result of this stage. Localization of
the ROIs in each particular video stream is
performed in two stages. At the first stage static
regions of the frame are being discarded by means of
BIOINFORMATICS 2018 - 9th International Conference on Bioinformatics Models, Methods and Algorithms
82
the background subtraction algorithm based on the
Gaussian distribution mixture (Zivkovic, 2004);
after that the head and shoulders regions are
localized at the remaining frame regions using the
Viola-Jones algorithm (Viola, 2004). The Viola-
Jones algorithm has been chosen due to its high
performance and good precision; thereby it is one of
the most widely used algorithms when considering
object localization tasks.
Application of the background subtraction allows
to increase the localization quality due to the
reduction of the number of false-positive detections
in the static frame regions (where there are no
people or people have already been localized when
entering the frame), as well as, in some scenarios,
increasing the localization speed by scanning only
the part of the frame by the classifier.
2.2 Classifier. Construction of
Covariance Descriptors
In this paper the covariance matrix (CM) described
by Tuzel (2006) is proposed to be used as a ROI
descriptor. The covariance matrix, as previously
noted, allows fusing the interconnections of different
features of the ROI, among which the main ones are
certainly the colour and spatial information. The
diagonal entries of the covariance matrix represent
the variance of each feature and the non-diagonal
entries represent the correlations.

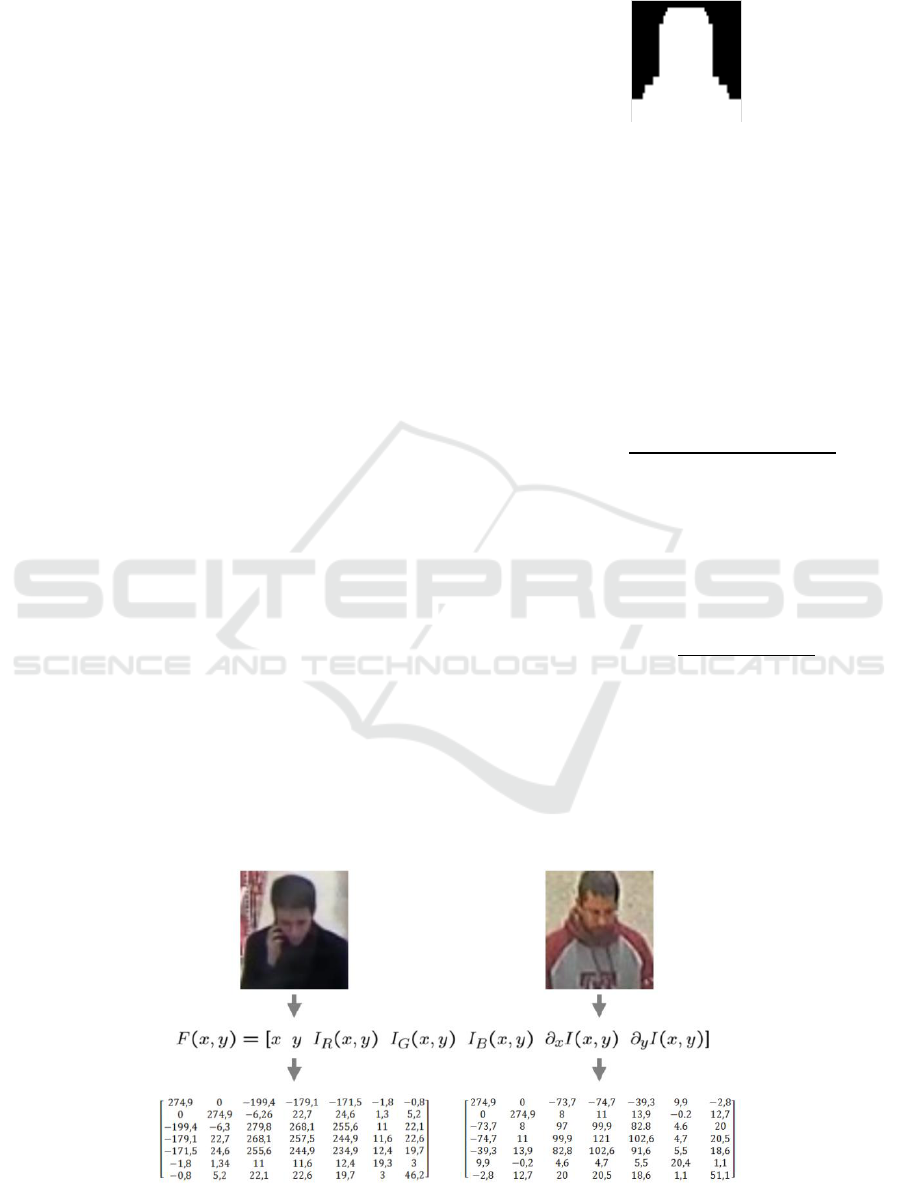

The CM for the region of interest R is
constructed in the following way:
1. For each pixel
 a feature vector
F(
)
of dimension d is calculated via predefined
feature function F:R
, that contains the
information on the pixel and, perhaps, on certain
region around the current pixel. The function
may look like as follows:










(1)
Where x, y are the coordinates of the pixel,



are the values of the
components R, G and B of the pixel with
coordinates (x, y),

are the first
derivatives of the intensity at the point (x, y) in
horizontal and vertical directions accordingly.
2. For the resulting set
of feature vectors of the
region a mean vector

is calculated, and
the covariance matrix of dimension d x d is
constructed:
  

 



 


(2)
where n is the number of pixels in the region R.
The complexity of the covariance matrix
construction is O(
), where n is the number of
pixels in the image (in our case 6055), and d is the
number of components in the selected feature
function.
Figure 1: The pseudocode of the algorithm of covariance-based tracking from multiple cameras.
Selective Covariance-based Human Localization, Classification and Tracking in Video Streams from Multiple Cameras
83
Another important advantage of using the
covariance matrices as descriptors is that they are
low-dimensional compared to other descriptors.
Covariance matrix has only 
  different
values, whereas if we represent the same region via
joint feature histogram we will need m * d elements,
where m is the number of histogram bins for each
feature.
Fig. 2 demonstrates the covariance matrices
constructed for two different images using the
feature function (1).
It is obvious that the key aspect in the process of
construction of a covariance matrix is the selection
of the feature function F. The section 2.4 of this
paper is dedicated to the problem of selection of the
function F.
The proposed descriptor can be enhanced by
analyzing the significance of specific pixels of the
region of interest when constructing the covariance
matrix. Since the rectangular region that is detected
by the Viola-Jones algorithm when finding the head
and shoulders of a person, contains quite large
regions essentially being a background, it makes
sense to construct a covariance matrix only for the
pixels belonging to the head and shoulders region of
the person.
For this purpose, a binary mask M with the size
of 6055 pixels has been calculated semi-
automatically on the training set by means of the
developed greedy algorithm; the zeroes in this mask
(black pixels) denote pixels which are not
representative when constructing a descriptor, and
the figures of one (white pixels) are the pixels which
should be used when constructing a covariance
matrix (fig. 3).
Thus, we suggest constructing the covariance
matrix
of the region of interest R based on
feature vectors only of the pixels that correspond to
the figure of one in the mask M.
Figure 3: The mask of an image.
2.3 Classifier. Descriptor Matching
To determine the “similarity” of descriptors of two
ROIs, the metric for covariance matrices has to be
determined. In this paper the efficiency of using of
the Euclidian measure

and the measure

,
based on the generalized eigenvalues for the
covariance matrices being compared (Tuzel, 2006),
has been analysed.

for the covariance matrixes

is
calculated in the following way:

 

 



(3)
Calculation of the metric

has the
complexity O(
).
The metric

is calculated in the following
way:



where 



are non-zero generalized
eigenvalues for the matrices
and
, calculated
for the equation

Figure 2: Covariance matrices for two images.
BIOINFORMATICS 2018 - 9th International Conference on Bioinformatics Models, Methods and Algorithms
84
It should be noted that non-negativity of the
generalized eigenvalues 



follows
from the fact of covariance matrices being
positive-semidefinite matrices.
Calculation of the metric

has a
complexity of O(
), conditioned by the
calculation of generalized eigenvalues.
2.4 Classifier. Selection of the Feature
Function
Since the representativeness of a covariance matrix
is directly determined by the selection of a feature
function F(x, y), a detailed comparison of the
efficiency of using of previously proposed feature
functions has been carried out, as well as new
feature functions have been developed and tested.
As a matter of convenience, the elements of
the vector being defined by the feature function
F(x, y) have been divided in two subsets:










(6)
where 


represent the information
on the colour, and


represent the
spatial information, with   
For the colour component A two trivial schemes
have been considered that represent the information
on the colour of the pixel in RGB and HSV models:






(7)





]
(8)
However, testing of these schemes showed that
they don’t perform good enough, and to increase the
informativeness of the data on the colour features of
the ROI being encoded, a scheme

based
on histograms has been developed. To construct the
feature vectors of this scheme, the ROI is divided
into a grid with 5 rows and 5 columns. Then, for
each cell of this grid, for each of the components R,
G and B, fuzzy histograms are constructed with N
bins, after which the feature vectors themselves are
constructed:
















where 





are the
values of i-th bins of the R, G and B histograms of
the grid cell, that contains the pixel (x, y).
The idea behind the suggested

scheme
is to encode much more detailed colour information
on the ROI, than the basic

and

schemes
do. Furthermore, this scheme allows encoding the
correlation between the cell of the grid and its
colour.
Note that the feature vectors for pixels,
belonging to the same cell, share the same histogram
data, while having their own



values.

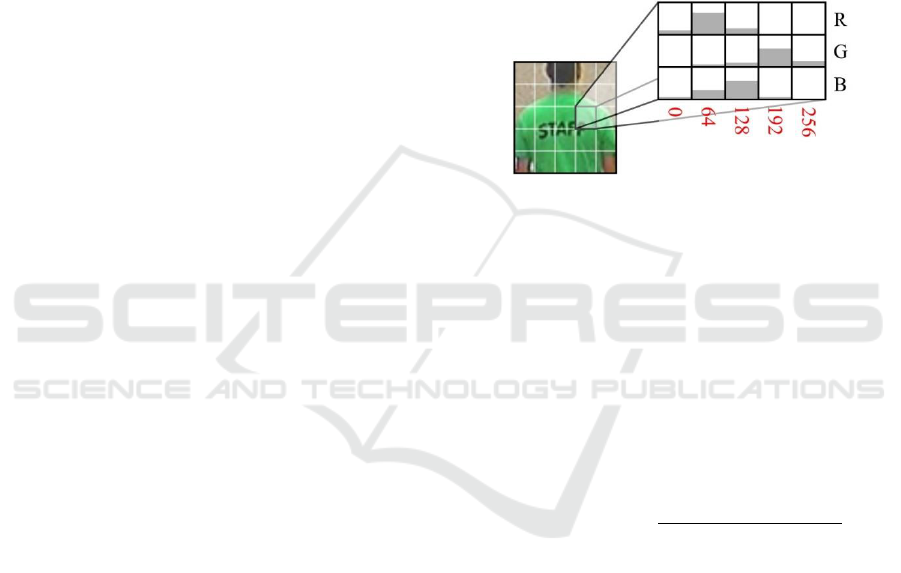

Figure 4: The histograms for one of the cells of the ROI
for the feature vector

.
Fig. 4 demonstrates the histograms for one of the
cells of the ROI (representing the head and the
shoulders of a person wearing green outdoor clothes)
constructed for the feature vector

.
The

,


schemes have been
considered as a spatial element B of the feature
function F, and a new scheme

has been
proposed.
The value of the vector

for the pixel
represents the distance of this pixel from the center
of the ROI:


 
   
(10)
where

are the coordinates x and y of the
center of ROI.
The scheme

encodes the information on
the coordinates x and y:


(11)
The scheme

, in addition to the coordinates
x and y, also encodes the information on the first
derivatives of intensity of the pixels of the ROI at
the point (x, y) along the axes x and y:






(12)
The developed scheme

is intended to
encode the correlation between the ROI colour
information on the ROI area.
Selective Covariance-based Human Localization, Classification and Tracking in Video Streams from Multiple Cameras
85
For this purpose, the ROI is divided into a grid
with 5 rows and 5 columns, and the

scheme is defined in the following way:


 
  














(13)
where

= 1 if the pixel (x, y) belongs to the i-
th row, and

= 0 otherwise; and, in the same
manner,

= 1 if the pixel (x, y) belongs to the
j-th column, and

= 0 if it does not.
Thus, combining the reviewed colour and spatial
schemes, 16 feature functions have been formed for
the covariance descriptor of the ROI.
As previously noted, to construct a classifier, a
descriptor for the ROI and a descriptor matching
method have to be chosen. In this paper the
construction of a covariance descriptor has been
described in detail, a mask has been proposed, and
16 various feature functions for the covariance
descriptor have been developed.
Besides, 2 different metrics for covariance
descriptors have been reviewed. By combining
feature functions, application or non-application of
the mask, as well as the metric used, we will have 64
various classifiers for classification of the head and
shoulders regions. The following section contains
the experimental comparison of these classifiers,
based on which the most efficient classifier for the
current problem has been chosen.
3 EXPERIMENTAL RESULTS
To test the developed method of human
classification based on the images of the head and
the shoulders, a test dataset has been formed
containing 413 images of the head and the shoulders
of 93 different people (hereinafter referred to as 93
classes) (Taranyan, 2017). This dataset was created
on the basis of video tapings obtained by the
authors, the PETS 2006 dataset of people images, as
well as images from the Internet. The reason we’ve
extended the PETS dataset was to make it more
challenging for example, we have added people
images, whose clothes have similar colours, but
different patterns. Fig. 5 demonstrates test images of
4 different people.
Figure 5: Examples of 4 different classes of the dataset.
The elements of all 93 classes were compared to
each other inside the classes, thereafter all possible
pairs of classes were considered, and comparison of
the elements among the classes of these pairs was
carried out.
The quality of each classifier was measured by
selecting a value of the threshold, for which the
balanced classification rate (BCR) of that classifier
is maximal. BCR is defined as the average of true
positive rate and true negative rate. This maximal
BCR of the classifier is hereinafter referred to as the
quality of the classifier.
At first, we have compared the performance of
the classifier with the feature function


using

metric, using the proposed mask, and
without using it. The results showed a significant
increase in classification quality when using the
proposed mask the quality of the classifier with the
mask was 81.8%, and the quality of the classifier
without the mask was 75.0%. All the following tests
were carried out using the proposed mask.
Then, we have compared the efficiency of using
the metrics

and

. The metric

, while
being the faster one, also showed a better
classification quality (87.5% compared to the 81.8%
shown by

). Thus, all the following tests were
carried out using the metric


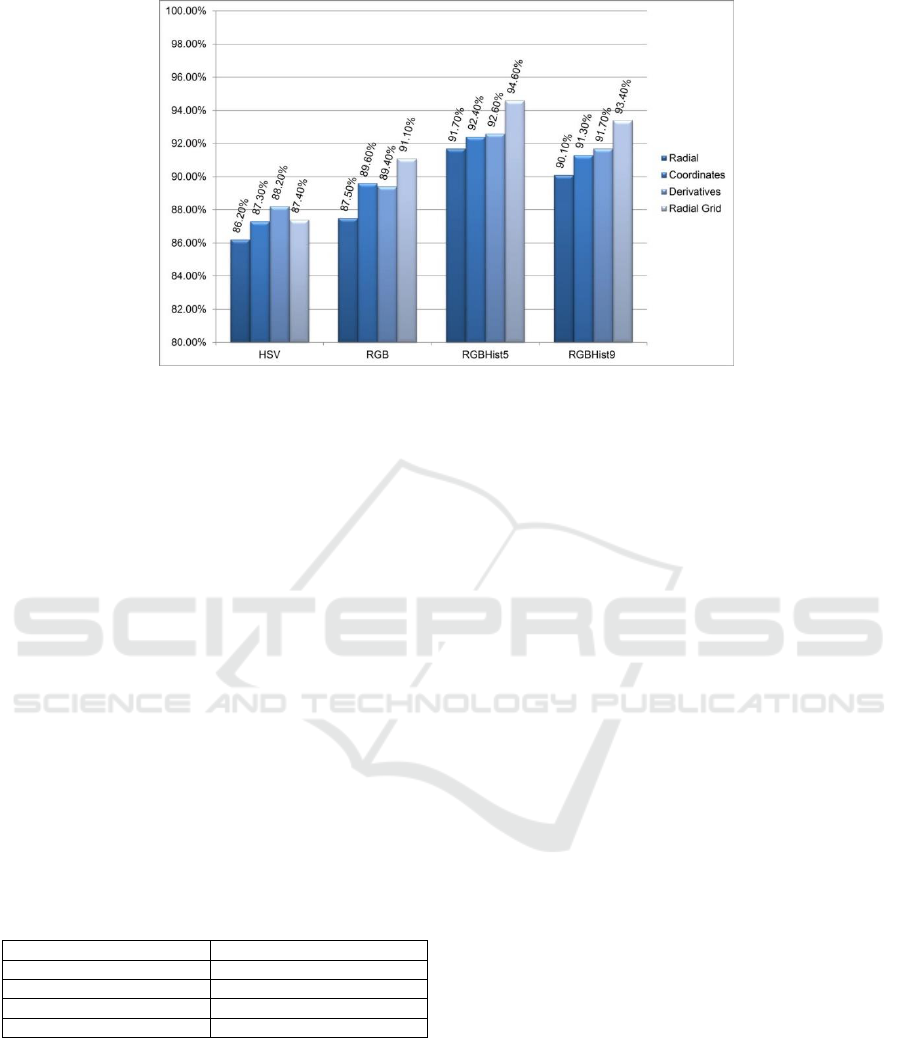

Fig. 6 shows the results of comparison of the 16
classifiers based on feature functions that represent
all the possible combinations of four colour schemes
A and four spatial schemes B. On the figure the
classifiers are grouped by the colour scheme A.
BIOINFORMATICS 2018 - 9th International Conference on Bioinformatics Models, Methods and Algorithms
86
As we can see, the overall performance of the
feature functions based on

and

colour schemes is significantly better, then the
performance of the feature functions based on

and

.
Among the feature functions based on

and

, the best result was achieved using the
proposed feature function


, that
showed the classification quality of 94.6%. It should
be noted that the results showed that it is
unreasonable to increase the dimension over 5 in the

scheme.
The results of the feature function comparison
have shown, that the proposed feature function
allowed creating a strong classifier, that not only can
distinguish persons wearing clothes of different
colours, but also differentiates persons wearing
clothes of similar colours but having different
patterns.
Table 1: Performance speed of classifiers for feature
functions being reviewed (milliseconds per comparison).
Classifier
Performance speed
HsvDerivatives
1.5 ms/comp
RgbRadialGrid
1.4 ms/comp
RgbHist5RadialGrid
4.1 ms/comp
RgbHist9RadialGrid
8 ms/comp
In the Table 1 the comparison of the performance
speeds of the classifiers is presented (benchmarked
on Intel Core i5-6500 running at 3.2GHz). The
classifier based on


, although
not being the fastest one, still shows a decent speed,
allowing to perform up to 250 ROI pair comparisons
per second, where each comparison includes
covariance matrices construction for each ROI of the
pair and the comparison of the covariance matrices.
Based on the classification quality and the
performance speed, we think that the classifier,
based on the


scheme and
Euclidean metric, is optimal for human head and
shoulders region classification. The complexity of
this classifier is O(
) for covariance matrix
construction and O(
) for covariance matrix
comparison, where n is the number of pixels in ROI,
and m is the number of features in the


feature function.
4 CONCLUSIONS
In the paper the task of human tracking, localization
and classification in video streams from multiple
cameras has been reviewed. Solution of this task is
crucial for development of video surveillance and
security systems, smart environments, robots and
systems with human-computer interaction. We have
proposed a method of human localization,
classification and tracking in video streams from
multiple cameras, which incorporates a selective
mask and is based on covariance descriptors. The
proposed method increased the human classification
efficiency from 75% to 94.6%, which is a quite good
result taking into account the complexity of the used
dataset. The key feature of the proposed method is
the possibility to classify people based on the
covariance descriptor omitting the training stage.
We have proposed and evaluated two novel ideas
for feature function selection for covariance
matrices:
Splitting the ROI into grid, construction of
histograms for grid cells and assignment of the
Figure 6: Comparison of quality of the classification for the feature functions being reviewed.
Selective Covariance-based Human Localization, Classification and Tracking in Video Streams from Multiple Cameras
87
same histogram information to feature vectors of
the pixels from the same cell.
Encoding in covariance matrix the correlation
between ROI cell colour information and the
position of the cell in the grid.
In the process of development of the method
presented in this paper, we tested a mask allowing
getting rid of a large part of the pixels of the ROI
which are background, selected the metric for
covariance descriptors that is most appropriate for
this task, reviewed common feature functions,
developed new ones and carried out a detailed
experimental analysis of their efficiency.
The method can be further improved by
incorporating a frame-to-frame prediction (particle
filter, for example) for each particular video stream
separately, and by using adaptive descriptors, which
encode information on multiple occurrences of the
person, and are being updated during the person
tracking.
ACKNOWLEDGEMENTS
This work was supported by the Ministry of
Education and Science of the Russian Federation R
& D State project №2.5048.2017/8.9.
REFERENCES
Bellotto, N., & Hu, H. (2009). Multisensor-based human
detection and tracking for mobile service robots. IEEE
Transactions on Systems, Man, and Cybernetics, Part
B (Cybernetics), 39(1), 167-181.
Belongie, S., Malik, J., & Puzicha, J. (2002). Shape
matching and object recognition using shape contexts.
IEEE transactions on pattern analysis and machine
intelligence, 24(4), 509-522.
Comaniciu, D., Ramesh, V., & Meer, P. (2003). Kernel-
based object tracking. IEEE Transactions on pattern
analysis and machine intelligence, 25(5), 564-577.
Devyatkov, V., & Alfimtsev, A. (2011). Human-computer
interaction in games using computer vision techniques.
In Business, Technological, and Social Dimensions of
Computer Games: Multidisciplinary Developments
(pp. 146-167). IGI Global.
Elzein, H., Lakshmanan, S., & Watta, P. (2003, June). A
motion and shape-based pedestrian detection
algorithm. In Intelligent Vehicles Symposium, 2003.
Proceedings. IEEE (pp. 500-504). IEEE.
Ergezer, H., & Leblebicioğlu, K. (2016, October).
Anomaly Detection and Activity Perception Using
Covariance Descriptor for Trajectories. In European
Conference on Computer Vision (pp. 728-742).
Springer International Publishing.
Fazli, S., Pour, H. M., & Bouzari, H. (2009, December).
Particle filter based object tracking with sift and color
feature. In Machine Vision, 2009. ICMV'09. Second
International Conference on (pp. 89-93). IEEE.
Hassen, Y. H., Ouni, T., Ayedi, W., & Jallouli, M. (2015,
January). Mono-camera person tracking based on
template matching and covariance descriptor. In
Computer Vision and Image Analysis Applications
(ICCVIA), 2015 International Conference on (pp. 1-4).
IEEE.
Ioffe, S., & Forsyth, D. A. (2001). Probabilistic methods
for finding people. International Journal of Computer
Vision, 43(1), 45-68.
Liu, H., Wang, L., & Sun, F. (2014). Mean-Shift Tracking
Using Fuzzy Coding Histogram. International Journal
of Fuzzy Systems, 16(4).
Lowe, D. G. (2004). Distinctive image features from
scale-invariant keypoints. International journal of
computer vision, 60(2), 91-110.
Sanin, A., Sanderson, C., Harandi, M. T., & Lovell, B. C.
(2013, January). Spatio-temporal covariance
descriptors for action and gesture recognition. In
Applications of Computer Vision (WACV), 2013 IEEE
Workshop on (pp. 103-110). IEEE.
Taranyan, A. (2017). Human Tracking Dataset. Available
at: https://github.com/Taranyan/HumanTracking-
DataSet [Accessed 20 May 2017].
Tuzel, O., Porikli, F., & Meer, P. (2006). Region
covariance: A fast descriptor for detection and
classification. Computer VisionECCV 2006, 589-600.
Viola, P., & Jones, M. J. (2004). Robust real-time face
detection. International journal of computer vision,
57(2), 137-154.
Watada, J., & Musaand, Z. B. (2008, August). Tracking
human motions for security system. In SICE Annual
Conference, 2008 (pp. 3344-3349). IEEE.
Wu, Y., Cheng, J., Wang, J., & Lu, H. (2009, September).
Real-time visual tracking via incremental covariance
tensor learning. In Computer Vision, 2009 IEEE 12th
International Conference on (pp. 1631-1638). IEEE.
Zivkovic, Z. (2004, August). Improved adaptive Gaussian
mixture model for background subtraction. In Pattern
Recognition, 2004. ICPR 2004. Proceedings of the
17th International Conference on (Vol. 2, pp. 28-31).
IEEE.
BIOINFORMATICS 2018 - 9th International Conference on Bioinformatics Models, Methods and Algorithms
88
