The Discriminative Generalized Hough Transform as a Proposal

Generator for a Deep Network in Automatic Pedestrian Localization

Eric Gabriel

1,2

, Hauke Schramm

1,2

and Carsten Meyer

1,2

Institute of Applied Computer Science, Kiel University of Applied Sciences, Kiel, Germany

Department of Computer Science, Kiel University (CAU), Kiel, Germany

Keywords:

Object Detection, Pedestrian Detection, Hough Transform, Proposal Generation, Patch Classiﬁcation,

Convolutional Neural Network.

Abstract:

Pedestrian detection is one of the most essential and still challenging tasks in computer vision. Among traditi-

onal feature- or model-based techniques (e.g., histograms of oriented gradients, deformable part models etc.),

deep convolutional networks have recently been applied and signiﬁcantly advanced the state-of-the-art. While

earlier versions (e.g., Fast-RCNN) rely on an explicit proposal generation step, this has been integrated into

the deep network pipeline in recent approaches. It is, however, not fully clear if this yields the most efﬁcient

way to handle large ranges of object variability (e.g., object size), especially if the amount of training data

covering the variability range is limited. We propose an efﬁcient pedestrian detection framework consisting

of a proposal generation step based on the Discriminative Generalized Hough Transform and a rejection step

based on a deep convolutional network. With a few hundred proposals per (2D) image, our framework achie-

ves state-of-the-art performance compared to traditional approaches on several investigated databases. In this

work, we analyze in detail the impact of different components of our framework.

1 INTRODUCTION

Pedestrian detection gained a lot of attention and yet

remains an important and challenging task in com-

puter vision (Benenson et al., 2014; Dollar et al.,

2012). Traditionally, feature- or model-based techni-

ques (e.g., Viola-Jones (Viola et al., 2005), histo-

grams of oriented gradients (HOG) (Dalal and Triggs,

2005) and deformable part models (DPM) (Felzensz-

walb et al., 2008) or Roerei (Benenson et al., 2013),

respectively) have been employed. There also ex-

ist Random Forest-based approaches such as (Marin

et al., 2013). Since the success of deep convolutional

networks (CNN) in image classiﬁcation tasks (Kriz-

hevsky et al., 2012; Zeiler and Fergus, 2014; Simo-

nyan and Zisserman, 2015), such networks have also

been applied to object detection in general (Ren and

others., 2015; Redmon et al., 2016a; Wei et al., 2016)

and pedestrian detection in particular (e.g., (Angelova

et al., 2015)). First attempts involved a proposal ge-

neration mechanism (Girshick et al., 2014; Girshick,

2015), where in the ﬁrst step regions of interest have

been extracted, e.g., based on low-level hierarchical

segmentations (Arbelaez et al., 2014) or several fe-

ature types using a bag-of-visual-words approach as

in (Uijlings et al., 2012). Recent approaches aim at

integrating the proposal generation step into the deep

network (Ren and others., 2015). (Lenc and Vedaldi,

2015) even show that a separate proposal generation

step is not necessary and a plain CNN can accomplish

the complete object detection task. However, it is

known that CNNs usually need signiﬁcant amounts of

training data, which have to cover the expected object

variability. Thus, one can argue that proposal genera-

tion may still be a useful component either to handle

a larger range of object variability or to increase ef-

ﬁciency or both. Besides, (groups of) small objects

still remain a problem for CNNs (Lenc and Vedaldi,

2015; Redmon et al., 2016a), which might be over-

come with accurate region proposals. Thus, we pro-

pose an object detection framework which relies on a

proposal generation step based on the Discriminative

Generalized Hough Transform (DGHT) generating a

number of quite accurate proposals, which are then

accepted or rejected based on a deep network. In a

previous manuscript, we have shown the general fe-

asibility of such a framework (Gabriel et al., 2017).

The contributions of the present paper are:

• We propose an efﬁcient model scaling approach

to handle variable object sizes, replacing the often

Gabriel, E., Schramm, H. and Meyer, C.

The Discriminative Generalized Hough Transform as a Proposal Generator for a Deep Network in Automatic Pedestrian Localization.

DOI: 10.5220/0006542401690176

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theor y and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

169-176

ISBN: 978-989-758-290-5

169

used image scaling approach. The image scaling

approach requires a separate feature extraction for

each scale as applied in (Gabriel et al., 2017).

• We analyze the contribution of an additional pro-

posal rejection operating in the Hough space, the

so-called shape consistency measure (SCM), and

demonstrate its role in reducing the number of ge-

nerated proposals.

• We investigate the role of the edge detector for

the DGHT, i.e., comparing a sophisticated Struc-

tured Edge Detector (Dollar and Zitnick, 2015) to

Canny edge detection.

• We address the impact of the amount of training

data for the DGHT pedestrian model on the de-

tection performance.

Overall, we demonstrate that the advantage of the

DGHT-based proposal generation is the relatively low

number of misses (false negatives) at a moderate num-

ber of generated candidates (a few hundred per 2D

image) along with the efﬁciency of a Hough-based

approach. We achieve state-of-the-art performance on

several databases compared to traditional approaches.

2 METHODS

In this Section, we provide a general algorithmic over-

view of our approach. Since the DGHT – as well

as other Hough-based approaches – operates on edge

images, the ﬁrst step is an efﬁcient edge detection. In

this work, we compare the effect of two edge detec-

tors (Canny versus Structured Edge Detection) on the

performance of our pedestrian detection pipeline.

2.1 Canny Edge Detection

A well-known, general and robust approach for edge

detection in digital images was introduced in (Canny,

1986). The values of the ﬁrst derivatives in horizontal

and vertical direction are obtained by applying the So-

bel operator to the smoothed input image I : Ω → R.

Using these values, the gradient magnitude and the

edge direction can be calculated. The resulting edges

are thinned using non-maximum suppression (NMS).

Subsequently, the remaining edge pixels are classiﬁed

using a high and a low threshold. Edges above the

high threshold are kept, edges below the low thres-

hold are discarded. Edges between the low and the

high threshold are only kept if there is an edge pixel

within the respective 8-connected neighborhood. See

Fig. 1 (b) for an example edge image I

: Ω → {0,1}.

2.2 Structured Edge Detection (SED)

A more sophisticated, yet still real-time edge de-

tection framework incorporating information of the

objects of interest has been proposed by (Dollar and

Zitnick, 2015). Here, a Random Forest (Breiman,

2001) maps patches of the input image I to output

edge image patches using pixel-lookups and pairwise-

difference features of 13 (3 color, 2 magnitude and

8 orientation) channels. While testing, densely sam-

pled, overlapping image patches are fed into the trai-

ned detector. The edge patch outputs which refer to

the same pixel are locally averaged. The resulting in-

tensity value can be seen as a conﬁdence measure for

the current pixel belonging to an edge. Subsequently,

a NMS can be applied in order to sharpen the edges

and reduce diffusion. For further details see (Dollar

and Zitnick, 2015). An example of an edge image

: Ω → [0,1] is shown in Fig. 1 (c).

2.3 Discriminative Generalized Hough

Transform

The Generalized Hough Transform (GHT) (Ballard,

1981) is well-known as a general model-based appro-

ach for object localization. It is based on a shape mo-

del M = {m

| j = 1,... ,M} consisting of M model

points m

. Each m

is represented by its coordinates

in a local coordinate system with respect to some

chosen reference point (e.g., object center of gravity),

and its direction ϕ

: M = {(x

,ϕ

)| j = 1, .. ., M} ⊂

× [0, 2π[. In most cases, the direction ϕ

of a mo-

del point m

is deﬁned as the expected gradient of the

object (edge) at location m

in the local coordinate sy-

stem. Using the shape model M , the GHT transforms

an edge image I

(Sect. 2.2) – where for each point

e ∈ I

the edge gradient direction γ(e) is computed

(in the original image) – into a parameter space H

called Hough space, by a voting procedure. Speciﬁ-

cally, if the actual edge gradient γ(e) for an edge pixel

e matches the expected gradient ϕ

of model point j

(up to some tolerance ∆φ), a vote I

(e) is generated in

a Hough cell c ∈ Ω matching the position c = e − x

of the object’s reference point in the global coordinate

system (up to a quantization factor ρ = 2):

(c,I

) =

∑

(e,γ(e))∈I











(e), if c = b(e − x

)/ρc

and |γ(e) − ϕ

| < ∆φ

0, otherwise.

(1)

The contributions of all model points are then sum-

med to generate the Hough space (see Eq. 2 with λ

= 1). The Discriminative GHT (DGHT) (Ruppertsho-

fen, 2013) extends the GHT by assigning individual

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

170

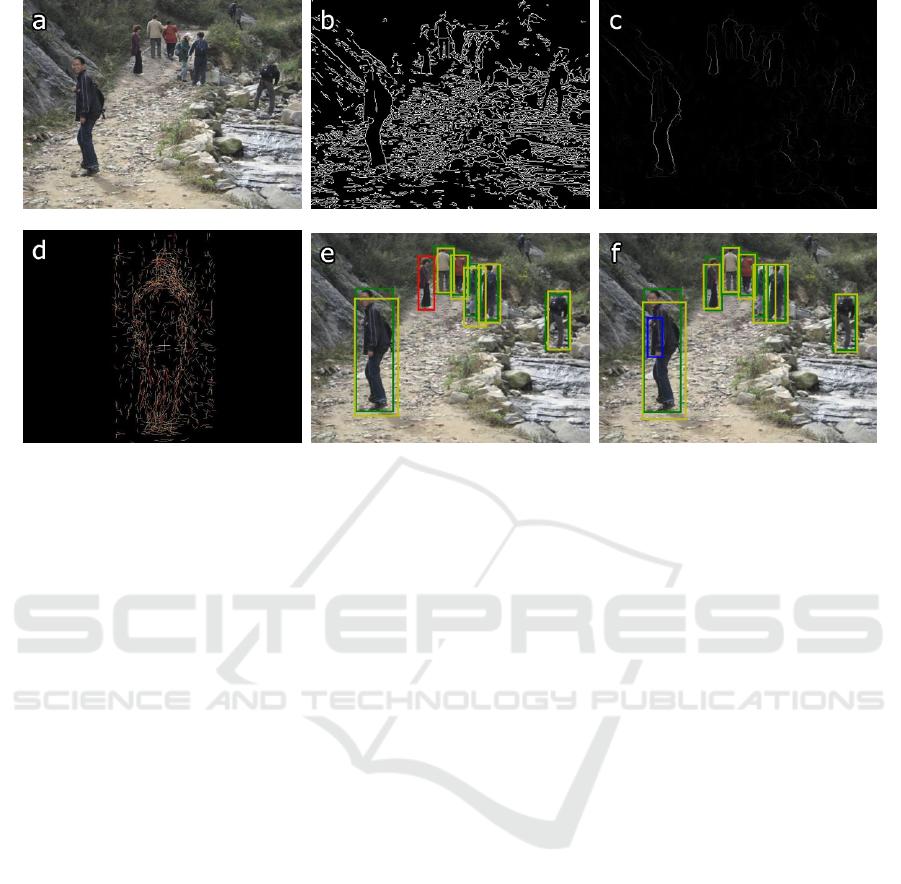

Figure 1: (a) input image (b) Canny edges (c) Structured edges (d) DGHT model (e) Canny results (f) Structured edges results;

green: ground truth, yellow: detection, blue: false positive, red: false negative.

model point weights λ

∈ R:

(c,I

) =

∑

j∈M

(c,I

) (2)

For ensuring good localization quality, the model

should yield a large number of votes at true object

locations and only a small number of votes at locati-

ons of confusable objects. The DGHT achieves this

by an iterative, discriminative training procedure star-

ting with an initial model of superimposed annotated

edge images at the reference point. In each iteration,

the model point weights λ

are optimized using a Mi-

nimum Classiﬁcation Error (MCE) approach and, af-

terwards, the model is extended by target structures

from training images which still have a high locali-

zation error. To reduce model size, all model points

with a low (absolute) weight are eliminated. This pro-

cedure is repeated until all training images are used or

have a low localization error. Thus, the training pro-

cess allows to automatically generate the model set

M . Further details on this technique can be found in

(Ruppertshofen, 2013).

Image Scaling: Traditionally, image scaling has

been proposed to handle object size variability in new

test images (Dollar et al., 2010). Here, an image py-

ramid is deﬁned by a ﬁxed set of scaling factors to

cover the expected object size range. The edge ima-

ges have to be recomputed for each scaling factor.

Then, the DGHT model M is (independently) app-

lied to each scaled edge image, thus generating a set

of Hough spaces (one for each scaling factor).

Model Scaling: In this work, we suggest an al-

ternative approach to handle the variability of object

sizes by adopting the template pyramid as in (Dol-

lar et al., 2010; Ohn-Bar and Trivedi, 2015) to our

DGHT framework. Central idea is to handle object

variability by applying a set of transformations (co-

vering the expected object variability) to the DGHT

model M . Since we focus on different object sizes,

we use a set of simple scaling operations applied to

the set of model points m

, i.e., to the (local) coor-

dinates x

. For simplicity, we use the same scaling

factor for both the x- and the y-axis. In this model

scaling scheme, the edge image has to be computed

only once. Afterwards, the model pyramid is applied

(in parallel) to the single input edge image, again ge-

nerating a set of Hough spaces (one for each model

scale). A limitation of this approach is that at very

small or large scales model points could intersect or

get too coarse which might lead to mislocalizations.

Finally, in each resulting Hough space H local

maxima C = {

} are identiﬁed using a NMS with

a minimum distance of 1/3 of the respective model

width. An ordered list C = (

,. .. ,

) of most proba-

ble object positions

is derived, which are then used

as proposals in our object detection pipeline.

2.4 Rejection of Proposals

2.4.1 Shape Consistency Measure (SCM)

Using the iterative training procedure described in

Sect. 2.3, a DGHT model may cover medium object

The Discriminative Generalized Hough Transform as a Proposal Generator for a Deep Network in Automatic Pedestrian Localization

171

variability

by containing model points that represent

the most important modes of variation observed in the

training data. Due to the independent voting proce-

dure (see Eq. 2), a Hough cell might get a large num-

ber of votes from different variability modes which

may lead to a mislocalization.

To this end, (Hahmann et al., 2015) suggested to

analyze the model point pattern voting for a particu-

lar Hough cell

. More speciﬁcally, a Random Forest

(Breiman, 2001) is applied to classify the voting mo-

del point pattern into a class “regular shape” σ

(re-

presenting e.g., a frontal or a side view of a person)

and a class “irregular shape” σ

To train the Random Forest Classiﬁer, the DGHT

is applied to each training image. Afterwards, the

class labels σ

and σ

are assigned to the individual

Hough cells of the training images: Cells with a loca-

lization error < ε

are labeled as class σ

while those

with an error > ε

are assigned to class σ

For a test edge image I

, a DGHT model is ap-

plied to generate a Hough space H. For each lo-

cal maximum

in H, the Random Forest Classi-

ﬁer is used to calculate the probability p

(σ

) that

the set of model points voting for

has a regular

shape. The obtained probability is used as an additi-

onal weighting factor for the Hough space votes, i.e.,

) = H(

) · p

(σ

). The local maxima in

H are now sorted according to decreasing S(

) to

provide an ordered list C = (

,. .. ,

) of most pro-

bable object positions

2.4.2 Deep Convolutional Neural Networks

In this work, we use a deep CNN to individually

accept or reject each proposal

out of the list C

generated by the DGHT or DGHT+SCM. Speciﬁ-

cally, each candidate position

∈ C is transferred

from Hough space to image space (scaled when using

image scaling). Then, a bounding box corresponding

to the mean object size is centered around that posi-

tion. Note that in case of model scaling, the mean

object size (and thus the bounding box) is scaled in

the same way as the model. The image patch corre-

sponding to the bounding box is rescaled to a ﬁxed

input size. The patch pixel intensities of all three co-

lor channels are normalized to [0,1], and then used as

input to a deep CNN. The output of the CNN is a soft-

max layer with 2 classes, pedestrian and background.

We use the probability p

(pedestrian) for the pede-

strian class, generated for the image patch correspon-

ding to Hough cell

, for candidate rejection. With an

The DGHT model is generated from a restricted object

size range (see Sect. 3.2); the training data, however, con-

tains other modes of variation (e.g., frontal / side views).

appropriate rejection threshold θ, any candidate

rejected if p

(pedestrian) < θ. The remaining candi-

dates are grouped using the mutual overlap. A NMS

using p

(pedestrian) is then applied to each group.

3 EXPERIMENTAL SETUP

3.1 Databases

IAIR-CarPed. We perform most experiments on the

IAIR-CarPed (Wu et al., 2012) database, because it

has a reasonable amount of independent 2D images

and additionally offers difﬁculty labels (e.g., occlu-

sion, low contrast) for each annotation. As suggested

in (Wu et al., 2012), we train on a random 50%-split

of the available pedestrian images, i.e., in total 1046

images containing 2341 pedestrians with an object

height range from 45 to 383px (mean height: 160px).

The remaining 1046 images (2367 pedestrians with a

similar object height range and mean height) are used

for evaluation. Training and test corpus each contain

all types of difﬁculties.

INRIA Person. We also evaluate our approach

on the well-known INRIA Person database (Dalal and

Triggs, 2005). The test set contains 288 images which

contain 561 annotated persons with a height range

from 100 - 788px (mean height: 299px).

TUD Pedestrians. Moreover, we report error ra-

tes on the TUD Pedestrians data set (Andriluka et al.,

2008). The test set consists of 250 images containing

311 annotated pedestrians with a height range from

71 to 366px (mean height: 213px).

3.2 Experimental Setup and System

Parameters

We detect pedestrians in a 2D RGB image as follows

(see also Fig. 2):

Edge Detection: As input images for training

and testing, we use the output of either the Canny or

the Structured Edge Detector (see Sect.2.1 and 2.2).

We train the latter speciﬁcally for pedestrians on the

PennFudan database (Wang et al., 2007). Compared

to Canny edge detection, the Structured Edge Detec-

tor suppresses most of the background edges and thus

signiﬁcantly reduces background variability (Gabriel

et al., 2016) (see Fig. 1).

DGHT Model and SCM Training: For both

image and model scaling, we train a DGHT pede-

strian model comprising a limited amount of size va-

riability. Speciﬁcally, we allow a size range of 144 -

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

172

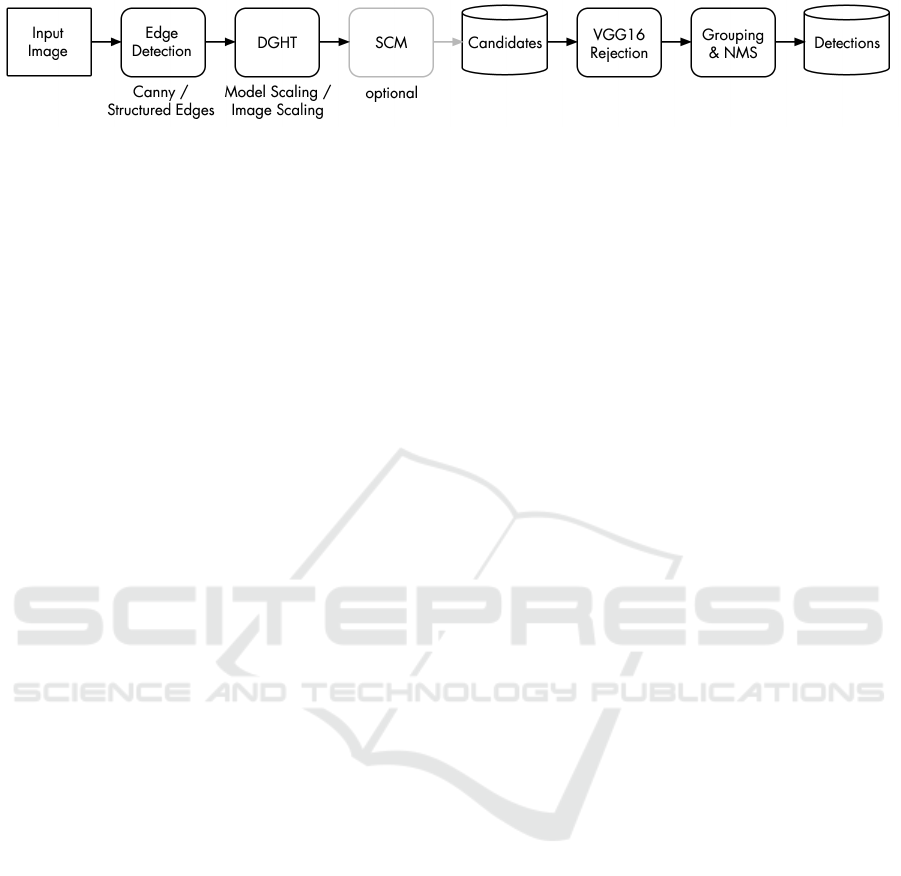

Figure 2: Components of the detection pipeline.

176px (mean object height ±10%). All training ima-

ges with pedestrians not in this size range are scaled

to a person size selected randomly from the allowed

range (uniform distribution), separately for each pe-

destrian in an image. To train our DGHT shape mo-

del (see Sect. 2.3), we only use those training images

containing “simple” pedestrians (IAIR difﬁculty type

“S”, 1406 pedestrians / 775 images). With the trained

DGHT model, we additionally train the SCM on the

full IAIR training set comprising all difﬁculty types

and all pedestrians scaled to the range 144–176px as

described above (see also Sect. 2.4.1). We set ε

for

class σ

to 5 and ε

for class σ

to 15 Hough cells.

Proposal Generation: To handle the large range

of object sizes contained in the test images, we either

use model or image scaling as described in Sect. 2.3.

When using image scaling, we scale each test image

by the following heuristic set of 10 scaling factors

such that each pedestrian should roughly ﬁt into the

expected object range (mean object height ±10%):

50%, 62.5%, 75%, 100%, 150%, 200%, 225%,

250%, 275%, 300%.

The trained DGHT model is applied indepen-

dently to each scaled image, i.e., a set of Hough spa-

ces is generated (one for each scaling factor).

When using model scaling, we partition the ob-

ject range into 10 adjacent, non-overlapping intervals

such that their range corresponds to 2 · 10% of their

center: 37%, 45%, 55%, 67%, 82%, 100%, 122%,

149%, 182%, 222%

The scaled models are independently applied to

the edge image of each input image, thus again ge-

nerating a set of Hough spaces (one for each model

scaling factor). Note that in contrast to image scaling,

the edge image is only computed once.

Optionally, each Hough space of either model or

image scaling is then weighted by the SCM (Sect.

2.4.1). Finally, local maxima C = {

} are identi-

ﬁed using a NMS with a minimum distance of 1/3

of the model width. To reduce the amount of candi-

dates, we discard those candidates

with S(

) <

maxS(I

) · 0.2, when having applied the SCM, or

) < maxH(I

) · 0.2 otherwise.

CNN Rejection: Any candidate position

transferred to image space (scaled in case of image

scaling) yielding a location and a bounding box cor-

responding to the mean model size (scaled in case of

model scaling) centered around the corresponding po-

sition in image space. A deep CNN is then used to re-

ject

if p

(pedestrian) < θ (see Sect. 2.4.2). We use

the standard Keras VGG16 model, which is initialized

on ImageNet. We ﬁne-tune this model on our IAIR

training corpus, using the annotated pedestrian boun-

ding boxes scaled to (64 ×64 ×3) as positive samples

and the same candidates as for class σ

in the SCM

training as negative samples, i.e., high scoring peaks

with a minimum error of 15 Hough cells. For ﬁne-

tuning we use the Adam optimizer (Kingma and Ba,

2015) with categorical cross-entropy loss, a learning

rate η of 0.001, which is reduced on plateaus, and an

input dimension of (64 × 64 × 3).

Combining Scales and Post-processing: Subse-

quent to the rejection step, the remaining candidate

bounding boxes are greedily grouped based on the

mutual overlap (set to 30%) and ﬁnally a NMS is ap-

plied to each group using p

(pedestrian) as criterion

in order to avoid double detections.

3.3 Comparison to State-of-the-art

Approaches

We compare our approach against several state-of-

the-art algorithms. For our IAIR-CarPed test corpus,

we compare against the latest DPM release (DPMv5)

(Girshick et al., 2013) trained on PASCAL, the pre-

trained YOLOv1 (Redmon et al., 2016a) full model

as well as the pre-trained YOLOv2 (Redmon et al.,

2016b) full model (both pre-trained on ImageNet and

ﬁne-tuned on PASCAL), as the latter is currently the

best performing algorithm on PASCAL VOC. Add-

titionally, we used the pre-trained YOLOv1 full mo-

del and ﬁne-tuned it on our IAIR-CarPed training set.

The details of these state-of-the-art approaches can be

found in the respective references. For the other da-

tabases, we use the benchmark results from (Caltech,

2017) and (Yao et al., 2014), respectively.

3.4 Evaluation Metrics

As suggested by (Dollar et al., 2012) for single

frame evaluation, we compute Detection Error Tra-

deoff (DET) curves plotting the miss rate against the

The Discriminative Generalized Hough Transform as a Proposal Generator for a Deep Network in Automatic Pedestrian Localization

173

Table 1: Performance comparison (miss rates at 0.3 FPPI) of different conﬁgurations of our DGHT+VGG16 pipeline on the

IAIR-CarPed test corpus: Canny or Structured Edge Detection (SED), model or image scaling, with/without SCM. We also

show results for the DPMv5 and YOLOv1/2 detections. Note, however, that the training data used for the other algorithms

differ as indicated. S: Simple, D1: Occlusion, D2: Low Contrast, D3: Infrequent Shape.

Approach Setup S D1 D2 D3 All

DGHT+VGG16 Model Scaling, Canny 0.29 0.40 0.48 0.48 0.36

DGHT+VGG16 Model Scaling, Canny, SCM 0.20 0.36 0.44 0.45 0.29

DGHT+VGG16 Model Scaling, SED 0.13 0.27 0.43 0.33 0.23

DGHT+VGG16 Model Scaling, SED, SCM 0.12 0.30 0.47 0.33 0.23

DGHT+VGG16 Image Scaling, Canny 0.16 0.37 0.41 0.36 0.26

DGHT+VGG16 Image Scaling, Canny, SCM 0.14 0.37 0.42 0.31 0.25

DGHT+VGG16 Image Scaling, SED 0.12 0.31 0.46 0.25 0.22

DGHT+VGG16 Image Scaling, SED, SCM 0.11 0.35 0.44 0.26 0.23

DPMv5 (Girshick et al., 2013) Pre-trained on PASCAL 0.20 0.40 0.51 0.48 0.32

YOLOv1 (Redmon et al., 2016a) Pre-trained on ImageNet/PASCAL 0.42 0.51 0.89 0.50 0.53

YOLOv1 (Redmon et al., 2016a) Fine-tuned on Im.Net/PASC./IAIR 0.06 0.19 0.24 0.20 0.14

YOLOv2 (Redmon et al., 2016b) Pre-trained on ImageNet/PASCAL 0.15 0.30 0.36 0.24 0.23

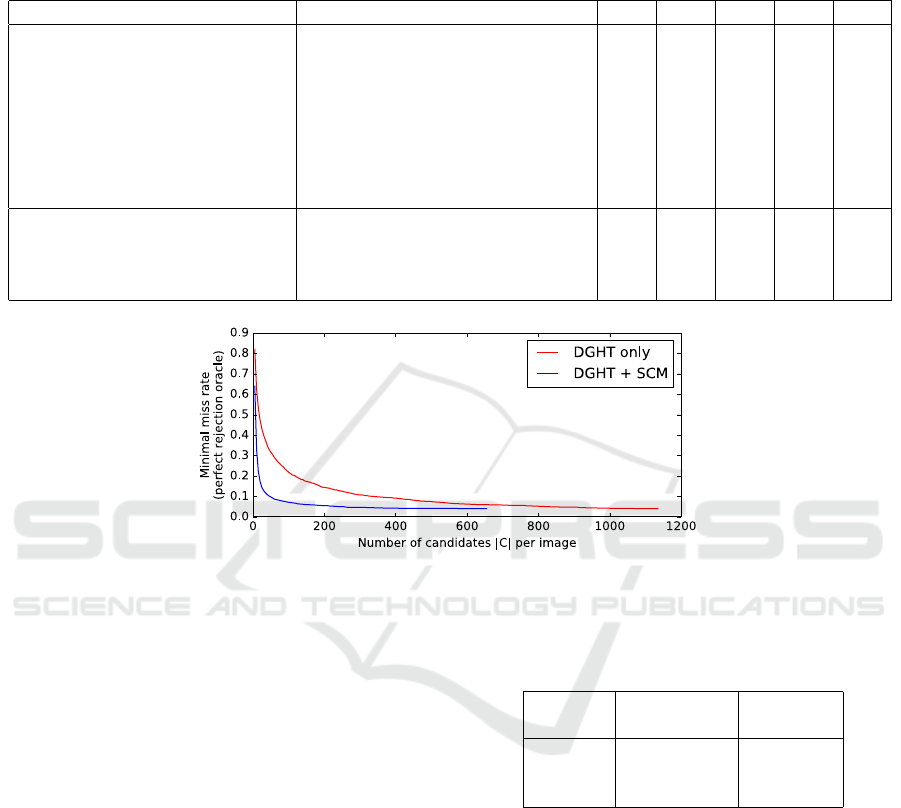

Figure 3: Minimal miss rate on the IAIR test corpus based on an ordered list C of proposals provided by the DGHT /

DGHT+SCM, as function of the length |C| of the list (image scaling, SED).

false positives per image (FPPI) on a log-log scale by

modifying the rejection threshold θ. For comparison,

the miss rates at 0.3 FPPI are shown as this is the

highest miss rate achieved by our approach (all other

false positive candidates are rejected by the VGG16

classiﬁer). For the TUD Pedestrians database, we use

the recall at equal error rate (EER), as other groups

have frequently used this measure. For measuring

the candidate quality, we use the Average Best Over-

lap (ABO) score from (Uijlings et al., 2012). Here,

the best overlap between each ground truth annota-

tion and the candidate list C is computed and averaged

over all annotations in all test images.

4 RESULTS

In this section, we analyze in detail the inﬂuence

of different components of our detection pipeline

(“DGHT + VGG16”), namely Canny versus structu-

red edge detection (Sect. 2.1 and 2.2), image versus

model scaling to handle object size variability (Sect.

2.3) and including the SCM (in addition to the deep

Table 2: Detection results (IAIR test corpus) using fracti-

ons of the IAIR training corpus for DGHT/VGG16. Setup:

image scaling, SED and SCM.

Training Miss Rate at Minimal

Data 0.3 FPPI Miss Rate

100% 0.23 0.04

50% 0.23 0.02

25% 0.26 0.02

network) as rejection mechanism or not (Sect. 2.4.1).

The detection results (miss rate at 0.3 FPPI) for all

different conﬁgurations are shown in Tab. 1, toget-

her with results for other state-of-the-art algorithms.

All conﬁgurations of our algorithm outperform previ-

ously published results (Wu et al., 2012). Using struc-

tured edge detection, the different DGHT + VGG16

conﬁgurations (i.e., including the SCM or not, model

versus image scaling) perform similarly. With Canny

edge detection, miss rates are larger, especially with

model scaling. On the other hand, model scaling is

more efﬁcient (40% less voting time, only one edge

image) and performs well with structured edges. Note

that the DGHT is not yet implemented on a GPU for

parallel processing. However, due to the independent

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

174

Table 3: Recall at EER on TUD Pedestrians without retraining.Setup 1: image scaling, SED, SCM; Setup 2: model scaling,

SED, no SCM.

Approach Training Data Recall at EER

Setup 1 IAIR 0.88

Setup 2 IAIR 0.85

PartISM (Andriluka et al., 2008) TUD/INRIA 0.84

HoughForests (Gall and Lempitsky, 2009) TUD/INRIA 0.87

Yao et al. (Yao et al., 2014) TUD/INRIA 0.92

Table 4: Miss Rate at 1 FPPI on INRIA Person without retraining. Setup 1: image scaling, SED, SCM; Setup 2: model

scaling, SED, no SCM.

Approach Training Data Miss Rate

Setup 1 IAIR 0.14

Setup 2 IAIR 0.15

ICF (Dollar et al., ) INRIA 0.14

Yao (Yao et al., 2014) INRIA 0.12

FPDW (Dollar et al., 2010) INRIA 0.09

VeryFast (Benenson et al., 2012) INRIA 0.07

Spat.Pool. (Paisitkriangkrai et al., 2014) INRIA/Caltech 0.04

voting of model points, the DGHT (especially using

model scaling) exhibits a high potential for paralleli-

zation. In future, we plan to analyze the runtime of

the different components.

Assuming a perfect rejection oracle – which se-

lects for each ground truth annotation the best mat-

ching candidate out of the list C generated by either

the DGHT or the DGHT+SCM and rejects all other

candidates – we also quantify the minimal miss rates

in case of perfect proposal rejection. For all inves-

tigated setups, the minimal miss rate is in the range

of 0.03 - 0.05 showing that there is still potential for

improvement of the VGG16 rejection. In particular,

we analyze the minimal miss rate as a function of the

number |C| of proposals per image with and without

the SCM (Fig. 3). With the SCM, the number of pro-

posals per image (controlled by the threshold θ) can

be signiﬁcantly smaller than without the SCM at no

performance loss, since the SCM effectively removes

many wrong proposals from the list. This also holds

for the other DGHT conﬁgurations.

An advantage of the DGHT is the relatively low

amount of training material needed (as compared to

deep networks). To demonstrate this, we reduce the

amount of training data by randomly selecting 25%

and 50% from our IAIR training corpus and use this

restricted set to train the DGHT, the SCM and to ﬁne-

tune the VGG16 classiﬁer; the detection results on the

IAIR test corpus (using image scaling, SED and inclu-

ding the SCM) are shown in Tab. 2.

Tab. 3 and 4 show the evaluation results of our

pedestrian detection pipeline (trained on IAIR) on

the TUD Pedestrians and INRIA Person test sets, re-

spectively, using image scaling, structured edges and

the SCM vs. model scaling and Canny edges without

the SCM. Note that in these experiments no com-

ponent of our system has been retrained on the re-

spective database. When using the SCM for candi-

date reduction, we obtain minimal miss rates of 0.01

(75.8% ABO) at 55 candidates per image and 0.01

(76.8% ABO) at 102 candidates per image on TUD

Pedestrians and INRIA Person, respectively. Thus,

our approach has less candidates than Selective Se-

arch (Uijlings et al., 2012) (2,000 - 10,000 candida-

tes) or the region proposals of Faster R-CNN (Ren

and others., 2015) (300+ candidates). In future work,

we plan to compare against Faster R-CNN.

In ﬁrst experiments on a car detection task (trai-

ning on UIUC (single scale) training corpus, test on

UIUC multi-scale test corpus (Agarwal et al., 2004))

we obtained a miss rate of 0.03 (0.06) at 0.5 FPPI

at 16 (58) average candidates per image for image

scaling with SCM (model scaling without SCM), re-

spectively, using structured edge detection. This is

a ﬁrst indication that our detection pipeline can be

successfully applied to other object categories as well.

5 CONCLUSIONS

In this work, we investigated a pedestrian detection

framework based on proposal generation using the

Discriminative Generalized Hough Transform, follo-

wed by a proposal rejection step (in image space) ba-

sed on a deep convolutional neural network. In par-

ticular, we suggested an efﬁcient approach to handle

object size variability, namely scaling of the DGHT

The Discriminative Generalized Hough Transform as a Proposal Generator for a Deep Network in Automatic Pedestrian Localization

175

model. Using Structured Edge Detection as input to

the DGHT, this model scaling approach showed si-

milar performance to traditional image scaling at re-

duced runtime, even on different pedestrian databa-

ses (TUD Pedestrians, INRIA) than used in training

(IAIR). We also showed that an additional proposal

rejection step operating in the Hough space, the shape

consistency measure (SCM), can be used to signiﬁ-

cantly reduce the number of proposals per image wit-

hout performance loss. Our framework generates be-

tween 50 and 350 proposals per image, depending on

the database, which is much less than current propo-

sal generation approaches. Furthermore, when using

only 25% of the (IAIR) training images (352 pedestri-

ans) for DGHT and SCM training, we obtained only

a moderate degradation in detection accuracy. Cur-

rently, we do not perform any bounding box reﬁne-

ment which would further improve the detection accu-

racy. Still, our detection results compare well to other

state-of-the-art approaches (taking into account diffe-

rent training sets). First results in a car detection task

suggest that our detection framework can be success-

fully applied to other object detection tasks as well.

Thus, our framework could be useful especially for

detecting speciﬁc object categories with limited avai-

lable training material.

REFERENCES

Agarwal, S. et al. (2004). Learning to detect objects in ima-

ges via a sparse, part-based representation. In PAMI.

Andriluka, M. et al. (2008). People-Tracking-by-Detection

and People-Detection-by-Tracking. In CVPR.

Angelova, A. et al. (2015). Real-Time Pedestrian Detection

with Deep Network Cascades. In BMVC.

Arbelaez, P. et al. (2014). Multiscale Combinatorial Grou-

ping. In CVPR.

Ballard, D. (1981). Generalizing the Hough Transform to

Detect Arbitrary Shapes. In Pattern Recognition.

Benenson, R. et al. (2012). Pedestrian Detection at 100 FPS.

In CVPR.

Benenson, R. et al. (2013). Seeking the Strongest Rigid

Detector. In CVPR.

Benenson, R. et al. (2014). Ten Years of Pedestrian De-

tection, What Have We Learned? In ECCV.

Breiman, L. (2001). Random Forests. In Machine Learning.

Caltech (2017). Caltech Pedestrian Detection Bench-

mark. http://www.vision.caltech.edu/Image

Datasets/

CaltechPedestrians. [Online; accessed 28-July-2017].

Canny, J. (1986). A Computational Approach to Edge De-

tection. In PAMI.

Dalal, N. and Triggs, B. (2005). Histograms of Oriented

Gradients for Human Detection. In CVPR.

Dollar, P. et al. Integral channel features.

Dollar, P. et al. (2010). The Fastest Pedestrian Detector in

the West. In BMVC.

Dollar, P. et al. (2012). Pedestrian Detection: An Evaluation

of the State of the Art. In PAMI.

Dollar, P. and Zitnick, C. (2015). Fast Edge Detection Using

Structured Forests. In PAMI.

Felzenszwalb, P. et al. (2008). A Discriminatively Trained,

Multiscale, Deformable Part Model. In CVPR.

Gabriel, E. et al. (2016). Structured Edge Detection for Im-

proved Object Localization Using the Discriminative

Generalized Hough Transform. In VISAPP.

Gabriel, E. et al. (2017). Analysis of the Discriminative Ge-

neralized Hough Transform for Pedestrian Detection.

In ICIAP.

Gall, J. and Lempitsky, V. (2009). Class-speciﬁc Hough

Forests for Object Detection. In CVPR.

Girshick, R. (2015). Fast R-CNN. In ICCV.

Girshick, R. et al. (2013). Discriminatively Trained Defor-

mable Part Models.

Girshick, R. et al. (2014). Rich Feature Hierarchies for

Accurate Object Detection and Semantic Segmenta-

tion. In CVPR.

Hahmann, F. et al. (2015). A Shape Consistency Measure

for Improving the GHT. In VISAPP.

Kingma, D. and Ba, J. (2015). Adam: A Method for Stoch.

Optimization. In ICLR.

Krizhevsky, A. et al. (2012). ImageNet Classiﬁcation with

Deep CNNs. In NIPS.

Lenc, K. and Vedaldi, A. (2015). R-cnn minus r. In BMVC.

Marin, J. et al. (2013). Random Forests of Local Experts

for Pededestrian Detection. In ICCV.

Ohn-Bar, E. and Trivedi, M. (2015). Looking outside of the

Box: Object Detection and Localization with Multi-

scale Patterns. In arXiv:1505.03597.

Paisitkriangkrai, S. et al. (2014). Strengthening the Effecti-

veness of Pedestrian Detection. In ECCV.

Redmon, J. et al. (2016a). YOLO: Uniﬁed, Real-time Ob-

ject Detection. In CVPR.

Redmon, J. et al. (2016b). YOLO9000: Better, Faster,

Stronger. In arXiv:1612.08242.

Ren, S. and others. (2015). Faster R-CNN: Towards Real-

Time Object Detection with RPNs. In NIPS.

Ruppertshofen, H. (2013). Automatic Modeling of Anato-

mical Variability for Object Localization in Medical

Images. In BoD–Books on Demand.

Simonyan, K. and Zisserman, A. (2015). Very Deep Con-

vNets for Large-Scale Image Recognition. In ICLR.

Uijlings, J. et al. (2012). Selective Search for Object Re-

cognition. In IJCV.

Viola, P. et al. (2005). Det. Pedestrians Using Patterns of

Motion and Appearance. In IJCV.

Wang, L. et al. (2007). Object Detection Combining Recog-

nition and Segmentation. In ACCV.

Wei, L. et al. (2016). SSD: Single Shot Multibox Detector.

In ECCV.

Wu, Y. et al. (2012). Iair-carped: A psychophys. annotated

dataset with ﬁne-grained and layered semantic labels

for object recognition. In Pattern Recognition Letters.

Yao, C. et al. (2014). Human Detection Using Learned Part

Alphabet and Pose Dictionary. In ECCV.

Zeiler, M. and Fergus, R. (2014). Visualizing and Under-

standing ConvNets. In ECCV.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

176
