Evaluating Method Design Options for Action Classiﬁcation

based on Bags of Visual Words

Victoria Manousaki

1,2

, Konstantinos Papoutsakis

1,2

and Antonis Argyros

1,2

Computer Science Department, University of Crete, Greece

Institute of Computer Science, FORTH, Greece

Keywords:

Action Classiﬁcation, K Nearest Neighbours, Support Vector Machines, Radial Basis Function Neural

Network, Bag of Visual Words, Motion Boundary Histograms.

Abstract:

The Bags of Visual Words (BoVWs) framework has been applied successfully to several computer vision tasks.

In this work we are particularly interested on its application to the problem of action recognition/classiﬁcation.

The key design decisions for a method that follows the BoVWs framework are (a) the visual features to be

employed, (b) the size of the codebook to be used for representing a certain action and (c) the classiﬁer applied

to the developed representation to solve the classiﬁcation task. We perform several experiments to investigate

a variety of options regarding all the aforementioned design parameters. We also propose a new feature type

and we suggest a method that determines automatically the size of the codebook. The experimental results

show that our proposals produce results that are competitive to the outcomes of state of the art methods.

1 INTRODUCTION

In recent years, human motion analysis and action re-

cognition have attracted a lot of attention due to the

signiﬁcance of their solution in domains such as as-

sisted living, surveillance, human-computer/robot in-

teraction (Moeslund et al., 2006), etc. Despite several

breakthroughs, human action recognition remains a

challenging problem that is unsolved in its generality.

In this work, we are interested in action classiﬁ-

cation based on motion capture/skeletal data and we

rely on the Bags of Visual Words (BoVWs) method

that has been a quite successful framework for sol-

ving this problem. As it is illustrated in Fig. 1, we

follow a framework consisting of three main steps:

(a) feature extraction, (b) representation/encoding ba-

sed on a BoVWs codebook and (c) classiﬁcation of

the resulting action representations. In this study, our

goal is to provide an experimental evaluation of vari-

ous options regarding the selection of the components

of this framework that, when instantiated, give rise to

a speciﬁc recognition method.

In that direction, the contributions of this work

are many-fold. First, we investigate the performance

of three existing types of features. We also propose

a new feature for representing human pose data that

is inspired by the work on Motion Boundary Histo-

grams (MBH) (Wang et al., 2013). The use of the

proposed feature is shown to produce results that are

competitive to the state of the art. We also investigate

three different classiﬁcation methods (K-NNs, SVMs,

RBFNNs). We also investigate the size of the code-

book used to represent actions, which is a major de-

sign issue in BoVWs-based methods. To achieve this,

We perform an empirical, almost exhaustive study to

determine the best codebook size for each feature type

and classiﬁer. All previous works deﬁne a speciﬁc

codebook size without providing details on how this

has been decided. Given these individual results, we

explore methods that determine automatically the co-

debook size. This investigation shows that Afﬁnity

Propagation (Frey and Dueck, 2007), an unsupervised

clustering technique that determines automatically the

number of clusters in a dataset, can be used effecti-

vely as a replacement of the k-Means algorithm which

is used in most of the BoVWs-based recognition met-

hods. All the experiments have been carried out on the

standard, extensive and ground truth-annotated Ber-

keley MHAD dataset (Oﬂi et al., 2013).

2 RELATED WORK

Action classiﬁcation is a research topic in computer

vision that has been investigated extensively (Poppe,

Manousaki, V., Papoutsakis, K. and Argyros, A.

Evaluating Method Design Options for Action Classiﬁcation based on Bags of Visual Words.

DOI: 10.5220/0006544201850192

In Proceedings of the 13th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theor y and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

185-192

ISBN: 978-989-758-290-5

185

3D Joint Angles

3D Euler Angles

3D Pairwise

Joint Distances

MBH

KNN

SVM

RBFNN

Action

Classification

Feature extraction Feature encoding

Action classifiers

BoVWs

Input

action video

Figure 1: Illustration of the employed action recognition pipeline and the options that were considered for each of the stages.

2010). Most notable challenges concern the large

number of actions categories, the large variability in

action execution style among different people, as well

as the ambiguity in the interpretation of actions that

have similar appearance but different meaning de-

pending on the action execution context. We review

methods that follow the conventional pipeline that in-

volves hand-crafted feature extraction, feature repre-

sentation/encoding and classiﬁcation as well as deep-

learning based methods that perform automatic fea-

ture extraction for action classiﬁcation.

The approaches for action classiﬁcation can be ca-

tegorized based on whether they employ features ex-

tracted from video or from skeletal data (Weinland

et al., 2011). In this work, we are interested in using

3D skeletal data of human motion extracted from mo-

tion capture systems or pose estimation methods. The

class of such methods can be subdivided into met-

hods that use joint-based or dynamics-based descrip-

tors (Presti and Cascia, 2016). Joint-based representa-

tions may comprise of spatial, geometric, or key-pose

based descriptors. Spatial descriptors (e.g., (Niebles

and Fei-Fei, 2007; Zhu et al., 2013)) compute the

pairwise distances of 3D joints. Geometric descrip-

tors rely on the geometric relations of body parts as

in (M

uller et al., 2005). Key-pose based descriptors

represent an action based on a codebook of key po-

ses (Baysal et al., 2010). Dynamics-based descrip-

tors treat motion data as 3D trajectories of joints and

model the dynamics of such time series (Gowayyed

et al., 2013). In this work, we propose such a descrip-

tor based on the idea of Motion Boundary Histograms

(MBH) (Wang et al., 2013) to represent the evolution

of the 3D angles of body joints during the execution

of an action.

In a next step, the extracted features need to be

encoded before being fed into a classiﬁcation met-

hod. For this task, Bag-of-Visual-Words (BoVWs)

is one of the most widely-used techniques. Several

works adopt this encoding (e.g., (De Campos et al.,

2011)) which is presented in detail in (Peng et al.,

2016). BoVWs have been used with both video (Nie-

bles and Fei-Fei, 2007) and skeletal data (Chaaraoui

et al., 2013; Han et al., 2017; Oﬂi et al., 2013).

Regarding classiﬁcation algorithms, K-Nearest-

Neighbors (K-NN) is one of the most widely used and

simple non-parametric classiﬁcation methods (Efros

et al., 2003). Besides K-NN, Support Vector Machi-

nes (SVMs) is a popular, supervised method for vi-

deo classiﬁcation. Human actions can be detected in

videos by using a linear SVM on shape and appea-

rance features (Niebles and Fei-Fei, 2007). Schuldt

et al. (Schuldt et al., 2004) proposed that local space-

time features can be used to recognize complex mo-

tion patterns like human actions using SVM classi-

ﬁcation. In (Scovanner et al., 2007), a scheme re-

lying on 3D SIFT descriptors extracted from video

data, BoVWs encoding and SVM classiﬁcation is pro-

posed for action recognition. Laptev et al. (Laptev

et al., 2008) used local space-time features, space-

time pyramids and multichannel non-linear SVMs for

accurate video classiﬁcation. In (Evangelidis et al.,

2014), a linear SVM is used to classify local ske-

leton descriptors that encode the relative position of

joint quadruples producing view-invariant skeletal fe-

atures. As another example, the work in (Vemulapalli

and Chellapa, 2016) combines rolling maps based on

3D skeletal data and SVM classiﬁcation for recogni-

zing human actions.

The availability of large video databases and the

leap progress made in learning methods and architec-

tures for neural networks over the last decade has led

to an explosion of relevant methods for action clas-

siﬁcation. Another type of neural nets is the Deep

Belief Neural Networks that are used to automati-

cally built high level representations of human motion

data (Foggia et al., 2014). Other important methods

employing deep neural networks and skeletal data for

the action classiﬁcation refer to hierarchical recurrent

neural networks (HRNNs) used in (Du et al., 2015b)

and convolutional neural network (CNNs) (Du et al.,

2015a; Karpathy et al., 2014). Moreover, the work

in (Tao and Vidal, 2015) introduces a type of skele-

tal features called Moving Poselets that are used for

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

186

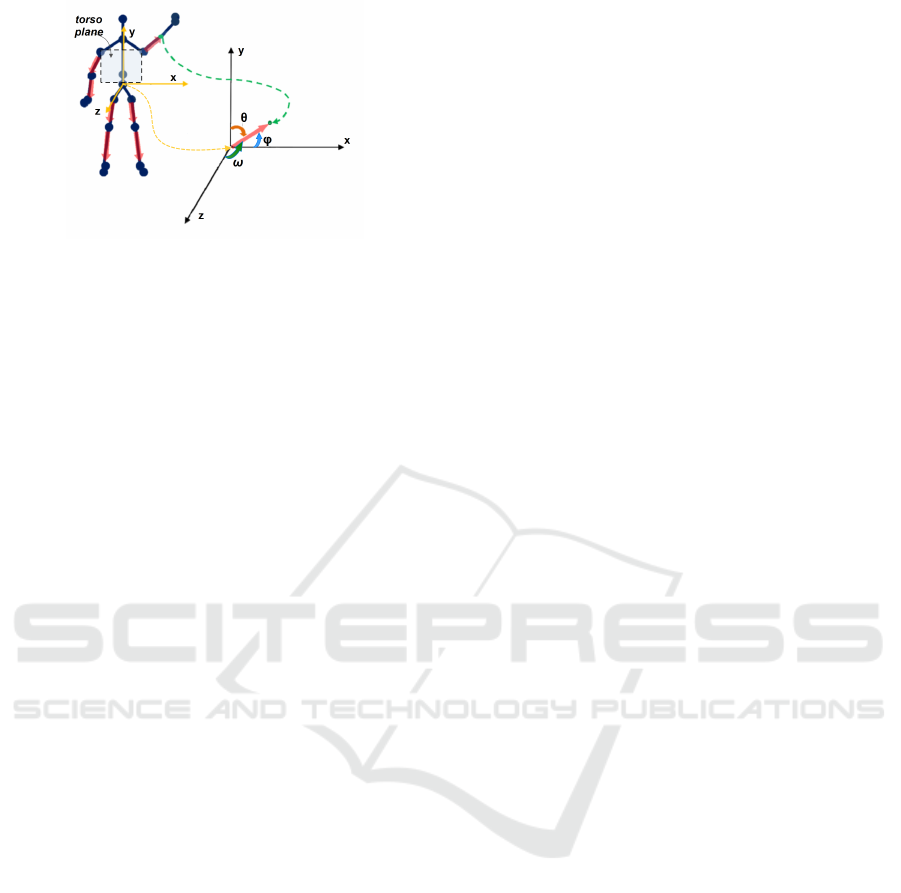

Figure 2: The employed human body model of the 3D joint

angles feature. Each body part (red arrows on the skeletal

model) is represented by a 3D vector (pink arrow) and its

3 angles (φ, θ, ω) w.r.t. a body centered reference frame (in

yellow). (Image originally taken and modiﬁed from (Theo-

dorakopoulos et al., 2014)).

action classiﬁcation based on a novel two layer CNN-

like classiﬁer.

The following methods are the most relevant to

our work. In (Vantigodi and Babu, 2013), skele-

tal data from the MHAD dataset were employed to

extract features based on the 3D joint angles of the

body with respect to a ﬁxed point on the skeleton al-

ong with the temporal variance of the skeletal joints.

The temporal information is embedded for improving

the discrimination of similar actions. For classiﬁ-

cation an SVM classiﬁer is used. In a subsequent

work (Vantigodi and Radhakrishnan, 2014), a new

method is introduced using the same type of featu-

res but employing a BoWs encoding of features and a

meta-cognitive RBFNN as classiﬁer. A Projection-

Based Learning algorithm is used to estimate the

optimal network output parameters. Chaudhry et

al. (Chaudhry et al., 2013) proposed a novel, hier-

archical scheme of bio-inspired dynamic 3D skeletal

features. They extend neural static shape encoding

features to represent human actions by using a set of

Linear Dynamical Systems (LDS), each one modeling

the dynamics of a level in their hierarchical structure

of features. For the classiﬁcation part, they use Sim-

pleMKL to learn a set of optimal weights and train

a full kernel SVM classiﬁer using a weighted kernel

in a supervised manner. The proposed scheme achie-

ves remarkable results in three well-known datasets,

including the Berkeley MHAD dataset. Finally, Kap-

souras et al. (Kapsouras and Nikolaidis, 2014) use the

joints orientation angles and the forward differences

of these angles in different temporal scales as featu-

res for action classiﬁcation. BoVWs encoding is then

used to feed the KNN and SVM classiﬁers.

3 ACTION RECOGNITION

Figure 1 illustrates the action recognition pipeline we

employ, which comprises of (a) selecting features, (b)

encoding them with BoVWs, and (c) classifying the

resulting representations. In total, we consider four

different types of skeletal features. Three of them

already appear in the literature (3D joint angles, 3D

Euler angles, 3D pair-wise joint distances). We also

propose a new type of feature that is inspired by Mo-

tion Boundary Histograms. Each of them is combined

with the BoVWs encoding and three different classi-

ﬁers (K-Nearest Neighbor, SVM, RBFNN).

3.1 Feature Extraction

Several representations of skeletal data have been pro-

posed in the literature (Kovar and Gleicher, 2004;

Moeslund et al., 2006). Given such representati-

ons, human actions can be represented as multi-

dimensional time-series.

3D Joint Angles: We employ a variant of the repre-

sentation proposed in (Rius et al., 2009), also em-

ployed in (Papoutsakis et al., 2017) (see Fig. 2(a)).

According to this, a human pose is represented as a 30

+ 30 + 4 = 64D vector. The ﬁrst 30 dimensions encode

angles of selected body parts with respect to a body-

centered coordinate system. The next 30 dimensions

encode the same angles in a camera-centered coordi-

nate system. The representation is augmented with

the 4 angles between the fore- and the back-arms as

well as the angles between the upper- and lower legs.

3D Euler Angles: We use the raw 3D Euler angles

for 16 3D joints of the human skeleton. These joints

are the endpoints of the body parts involved in the

representation of 3D joint angles. Thus, we end up

with a 16 × 3 = 48D vector representing each frame.

3D Pair-wise Joint Distances: We consider a set of

Euclidean distances of pairs of body joints. In or-

der to be invariant to the somatometrics of the sub-

jects, the computed distances are normalized by the

height of each subject. We take into account the follo-

wing pairs of joints: body center-ground center, body

center-left wrist, body center-left ankle, body center-

right wrist, body center-right ankle, left wrist-left

ankle, right wrist-right ankle, left wrist-right wrist,

left ankle-right ankle, left shoulder-left wrist, right

shoulder-right wrist.

3.1.1 MBH on the Evolution of 3D Angles

We propose the use of a variant of the Motion Boun-

dary Histograms (MBH) representation introduced by

Dalal et al. (Dalal et al., 2006). Originally, MBH was

used to represent human motion based on 2D optical

Evaluating Method Design Options for Action Classiﬁcation based on Bags of Visual Words

187

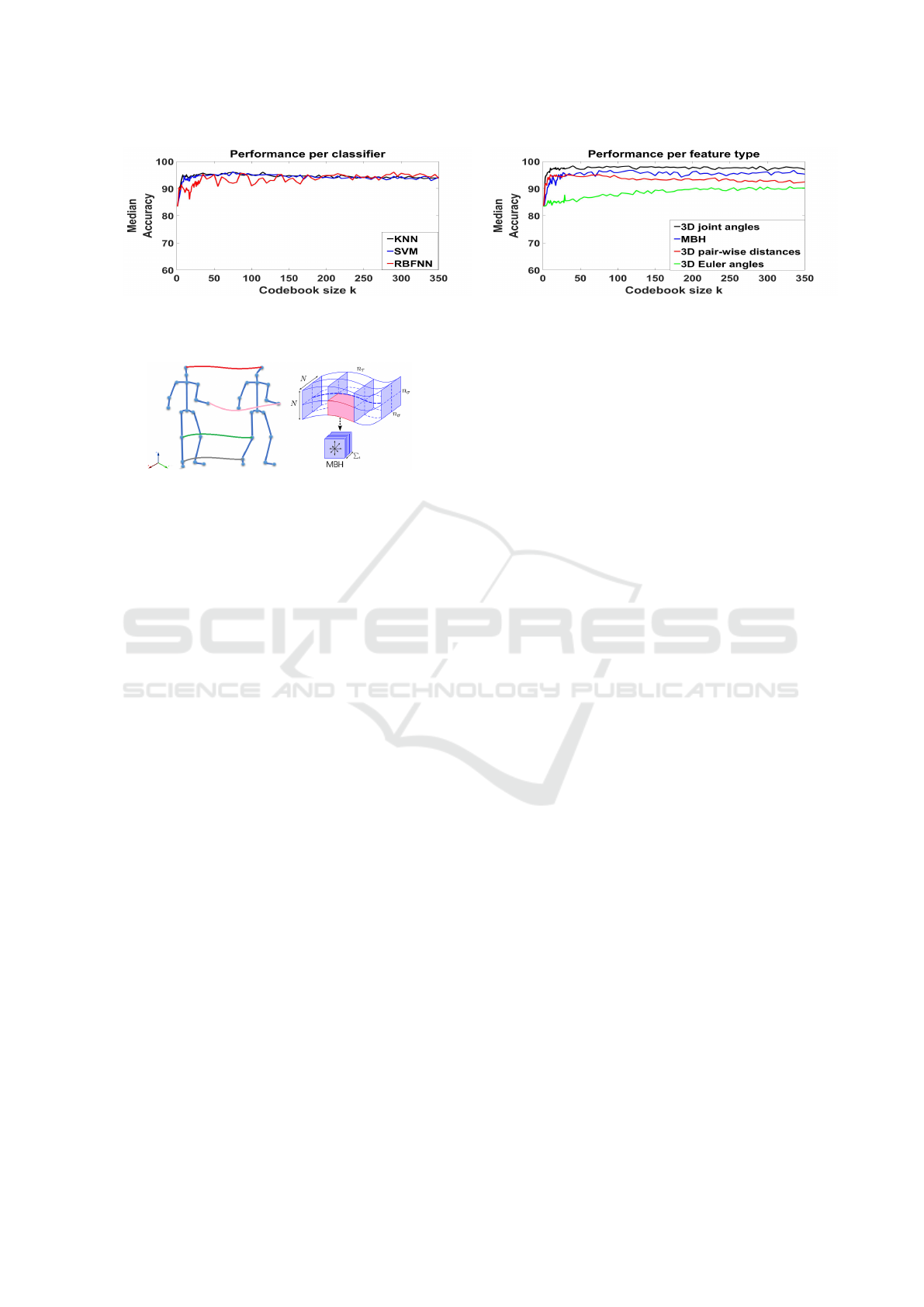

Figure 3: Illustration of median action recognition accuracy as a function of the codebook size k. (a) Scores per classiﬁer over

all feature types. (b) Scores achieved per type of features over all classiﬁers.

Figure 4: Left: 3D trajectories for a subset of body joints

during the execution of an action. Right: The MBH tra-

jectory descriptor (Wang et al., 2013) based on 2D motion

information. We extend this in 3D to encode the spatio-

temporal dynamics of each body joint.

ﬂow and spatio-temporal interest points. We extended

this idea in 3D by building an MBH of the evolution

of the 3D angles of the skeletal body joints during the

execution of an action as seen in Fig. 4. We use the

3D joint angles representation described earlier and

compute their temporal evolution on each of the X, Y

and Z dimensions, individually. We differentiate the

obtained quantities once more in each dimension, as

described also in (Dalal et al., 2006). We then cal-

culate the magnitude and orientation of the projection

of these vectors on the XY , Y Z and ZX planes. Orien-

tations are quantized into histograms using the mag-

nitude as the weight of each vote. A histogram of 8

orientation bins is computed separately per plane. Fi-

nally, the three histograms are concatenated to get a

single feature vector per sequence.

3.2 Feature Encoding

We investigate the Bag-of-Visual-Words (BoVWs)

encoding for each type of features of Sec. 3.1 to build

a visual vocabulary (codebook) using k-Means. The

BoVWs encoding assigns each feature vector (frame)

to its nearest cluster center. An action is then repre-

sented as the normalized histogram of all codewords

over all the frames of an action sequence. We run

k-Means 5 times and keep the cluster centers of the

run that gave rise to the best performance. Also, we

investigate techniques that automate the selection of

the codebook size.

3.3 Action Classiﬁcation

For the action classiﬁcation step we employ three dif-

ferent popular classiﬁers. The ﬁrst is K-NN, a classiﬁ-

cation method mostly employed when there is little or

no prior knowledge regarding the distribution of the

training data. Each feature point in N-dimensional

space is classiﬁed based on the majority of class-

related votes of its K nearest neighbours, using the

distance. In our case we use K = 1.

Support Vector Machines (SVM) is a supervised

classiﬁer, widely used for action classiﬁcation. SVM

is a kernel-based, margin classiﬁer that separates the

data into categories using a hyperplane. The optimal

hyperplane is the one that maximizes the margin bet-

ween the categories (Schuldt et al., 2004).

As a third classiﬁer, we employ a Radial Basis

Function Neural Network (RBFNN), a multi-layer,

feed-forward artiﬁcial neural network that uses radial

basis activation functions. The output of the network

is a linear combination of radial basis functions of the

inputs that is dependent on the neuron parameters.

4 EXPERIMENTS AND RESULTS

We use the Berkeley Multi-modal Human Action Da-

tabase (MHAD) (Oﬂi et al., 2013). This consists of

660 motion sequences of 11 actions, each performed 5

times (repetitions) by each of 12 subjects. From these

12 subjects, 7 are male and 5 are female. All are in

the age range of 23 − 30 years, except for one elderly

subject. The action categories represented in the da-

tabase are: jumping in place, jumping jacks, bending,

punching, waving two hands, waving right hand, clap-

ping throwing a ball, sit down and stand up, sit down,

and stand up. The subjects perform the actions with

different styles and speeds.

The database provides video sequences of RGB

and depth frames. It also includes motion capture

data containing the 3D positions of 43 LED markers,

which have been processed to obtain 3D skeletal data

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

188

Table 1: Top performing combinations of features, classi-

ﬁers and codebook sizes.

Feature Codebook Classiﬁer Accuracy

Type size k (%)

Joint ang. 40 KNN 98.51

Joint ang. 75 SVM 99.12

Joint ang. 245 RBFNN 98.51

Euler ang. 345 KNN 91.40

Euler ang. 330 SVM 90.69

Euler ang. 125 RBFNN 89.42

Distances 9 KNN 96.42

Distances 50 SVM 95.59

Distances 75 RBFNN 95.48

MBH 115 KNN 98.07

MBH 75 SVM 97.25

MBH 20 RBFNN 98.07

of 30 joints that are represented by 3D Euler angles.

We use the motion capture data of all actions and re-

petitions of the ﬁrst 6 subjects as training samples,

and those of the last 6 subjects for testing.

4.1 Parameter Settings

The parameters for the SVM and RBFNN classiﬁers

have been chosen using 6-fold cross validation on the

training data (ﬁrst 6 subjects of the MHAD dataset, all

repetitions). For the experiments regarding the SVM

classiﬁer, we used the one-versus-all multi-class ap-

proach. For the selection of the appropriate kernel (li-

near or RBF) we conducted a set of experiments for

the selection of the best parameters for each one of

the kernels. Then, we compared them by using the

same training and test sets and chose the one with the

best performance. The SVM classiﬁer uses a linear

kernel for the 3D Euler Angles with the cost C para-

meter equal to 8. For the other types of features, an

RBF kernel has been employed. More speciﬁcally, for

the 3D pair-wise distances and the MBH features the

RBF kernel is used with parameters C = 8 and γ = 1.

For the 3D angles, C and γ were set equal to 8 and 2,

respectively. For the RBFNN classiﬁer several values

of the spread parameter have been evaluated. The op-

timal values for the 3D angles, 3D Euler angles, 3D

pair-wise Distances and MBH features was set equal

to 0.4, 0.5, 12 and 0.21, respectively.

4.2 Evaluating BoVWs Codebook Sizes

An important decision in BoVWs-based classiﬁcation

is the size k of the optimal visual vocabulary. In most

of the related works, k is decided empirically. Co-

dewords are estimated by employing the k-Means al-

gorithm with k equal to the selected codebook size.

In this work we aim at investigating the impact of k

depending on the features and the classiﬁers. Additi-

onally, we investigate whether it is possible to identify

k automatically and in a way that guarantees satisfac-

tory classiﬁcation results, regardless of the employed

features and/or classiﬁcation methods.

Empirical Investigation of Codebook Sizes: We

executed an experiment that considered a wide range

of codebook sizes k. More speciﬁcally, we tested va-

lues for k in the range 1 to 30 with step 1 and in the

range 30 to 350 with step 5. Codebooks were then

determined by running k-Means. We then measured

the performance of the 1-NN action classiﬁcation for

all different choices of k.

An overview on the obtained scores for this series

of experiments is illustrated in Fig. 3. The two graphs

present the median accuracy performance (a) per clas-

siﬁer and (b) per feature type with respect to the code-

book size k. Median accuracy per classiﬁer is calcula-

ted as the median of the classiﬁcation scores of every

classiﬁer over all feature types. Median accuracy per

feature type is set as the median of the classiﬁcation

scores of every feature type over all the classiﬁers.

Overall, the 1-NN and SVM classiﬁers outperform

RBFNN up to k = 200. For k > 200, RBFNN achie-

ves a slightly higher performance in terms of median

accuracy. For the per feature type performance, the

3D angle-based skeletal representation outperforms

all other types of features. The proposed MBH repre-

sentation achieves the next highest performance for

all codebook sizes.

As it can be veriﬁed in Fig. 3, a fairly small value

of k = 30 brings action classiﬁcation accuracy above

94%. A notable exception is case of the 3D Euler

angles-based features, whose performance tends to

stabilize the overall median accuracy for K > 250.

Table 1 shows the top performing combinations

of features, codebook sizes and classiﬁers, out of the

exhaustive list of combinations that were evaluated.

We note that each feature-classiﬁer combination uses

its individually-optimized BoVWs codebook size. It

can be veriﬁed that the performance of each classiﬁer

is maximized for a different codebook size.

Automatic Estimation of Codebook Sizes: We in-

vestigated techniques that estimate automatically the

codebook size k of the BovWs framework. Based on

the training data of the MHAD dataset (see Sec. 4.1),

we assessed the following techniques: Sparse Mo-

deling Representative Selection (SMRS) (Elhamifar

et al., 2012), Afﬁnity Propagation (AP) (Frey and

Dueck, 2007), Elbow, Gap (Tibshirani et al., 2001),

Calinski-Harabasz (Cali

nski and Harabasz, 1974) and

Davies-Bouldin (Davies and Bouldin, 1979). We em-

Evaluating Method Design Options for Action Classiﬁcation based on Bags of Visual Words

189

Figure 5: Automatic selection of codebook size k based on various methods, for all four feature types. Each ﬁgure plots the

median accuracy among the three classiﬁcation methods, as a function of the codebook size.

Table 2: Automatic selection of codebook sizes k per feature type. We also report the best k as computed based on the

exhaustive search as well as the value of k (threshold) above which the median accuracy remains almost constant.

Features Elbow Calinski Davies Gap AP SMRS Best k Threshold k

3D angles 11 6 8 29 64 14 75 30

MBH 17 2 350 82 56 11 20 20

3D Euler angles 28 320 290 350 340 12 345 250

3D Pair-wise distances 17 2 3 295 134 10 9 [9-100]

ployed these criteria and methods for each feature

type and got suggested codebook sizes k. Those va-

lues are illustrated in Fig. 5 by projecting them to

the median accuracy performance graphs per type of

feature in order to also compare them qualitatively

with the codebook size that was chosen based on the

exhaustive search. The obtained results are also lis-

ted in Table 2, in comparison with the best codebook

size identiﬁed based on the exhaustive search. Over-

all, Afﬁnity Propagation (AP) best approximates the

number of centers resulting from the exhaustive se-

arch for the majority of feature types. AP is an unsu-

pervised clustering method that determines automati-

cally the number of data clusters. Thus, it could be

used as an alternative to k-Means.

Table 3 summarizes the achieved accuracy per fea-

ture type for every criterion. The classiﬁer that achie-

ved the corresponding accuracy is also indicated. This

experiment is based on the cluster centers that have re-

sulted from each corresponding criterion. We observe

that the accuracy achieved using the automated cri-

teria is comparable to the one achieved with k -means.

Thus, when the suggested number of clusters from the

criteria falls near or above the suggested threshold the

resulting accuracy is near optimal.

4.3 Action Classiﬁcation Performance

Choosing the Best Feature Type: In order to assess

the performance of the types of features presented in

this work, we compute the median accuracy for the

classiﬁcation scores of every feature type for all three

classiﬁcation methods. As shown in Fig. 3(b), the 3D

joint angle-based and the MBH representations are

preferable compared to the 3D Euler angles and 3D

pairwise joint distances.

Choosing the Best Classiﬁer: The median accuracy

for every classiﬁer over all feature types is illustrated

in Fig. 3(a). In general, KNN and SVM provide a sta-

ble behavior in all experiments and for the combinati-

ons of features that have been carried out. RBFNN is

quite unstable for different values of k.

Comparison to the State of the Art: We compare

the best performing action recognition method in our

framework with existing methods and summarize the

results in Table 4. We employ all repetitions of acti-

ons performed by the ﬁrst 6 subjects of the dataset for

training and those of the rest 6 subjects for testing.

All other evaluated methods use 7 subjects for trai-

ning and 5 subjects for testing or use leave-one-out

cross-validation on the set of all subjects.

The method in (Oﬂi et al., 2013) has an accu-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

190

Table 3: Accuracy values per feature type for all the criteria

based on their codebook sets. We also report the best accu-

racy value that we achieved using the k-means algorithm.

Feature Type Criterion Classiﬁer Accuracy %

3D joint angles Elbow RBFNN 98.13

3D joint angles Calinski SVM 96.14

3D joint angles Davies RBFNN 96.42

3D joint angles Gap RBFNN 97.02

3D joint angles AP KNN 98.20

3D joint angles SMRS RBFNN 96.75

3D joint angles Best k SVM 99.12

3D Euler angles Elbow KNN 86.63

3D Euler angles Calinski SVM 90.66

3D Euler angles Davies RBFNN 89.72

3D Euler angles Gap SVM 90.85

3D Euler angles AP SVM 90.95

3D Euler angles SMRS KNN 89.31

3D Euler angles Best k KNN 91.40

Pair-wise distances Elbow KNN 95.98

Pair-wise distances Calinski RBFNN 85.95

Pair-wise distances Davies SVM 89.26

Pair-wise distances Gap KNN 92.12

Pair-wise distances AP RBFNN 93.58

Pair-wise distances SMRS SVM 93.44

Pair-wise distances Best k KNN 96.42

MBH Elbow SVM 94.05

MBH Calinski KNN 83.75

MBH Davies RBFNN 94.99

MBH Gap RBFNN 95.26

MBH AP RBFNN 96.35

MBH SMRS KNN 92.89

MBH Best k RBFNN 98.07

racy of 79.93%. This is improved in a subsequent

work (Oﬂi et al., 2014) to 94.91% by using a more

elaborate human pose representation of the most in-

formative joints (SMIJ). The method in (Vantigodi

and Babu, 2013) achieved 96.06% using temporal

information and an SVM classiﬁer. Temporal in-

formation helps in disambiguating actions that in-

volve the same poses in different order (e.g., sit

down and stand up). In a relevant work (Vantigodi

and Radhakrishnan, 2014), temporal information with

an RBFNN classiﬁer improves accuracy to 97.58%.

Kapsouras et al. (Kapsouras and Nikolaidis, 2014)

achieved 98.18% without considering temporal in-

formation. Chaudhry et al. (Chaudhry et al., 2013)

achieve 100% accuracy by using bio-inspired 3D ske-

letal features. Other methods that achieve 100% accu-

racy on the MHAD dataset are based on deep neu-

ral networks such as H-RNNs (Du et al., 2015b) and

CNNs (Du et al., 2015a; Tao and Vidal, 2015).

Table 4: Comparative evaluation of existing action classiﬁ-

cation methods on the MHAD dataset.

Method Accuracy

(Foggia et al., 2014) 85.8

(Oﬂi et al., 2014) 94.91

(Vantigodi and Radhakrishnan, 2014) 97.58

(Kapsouras and Nikolaidis, 2014) 98.18

Proposed 99.12

(Chaudhry et al., 2013) 100

(Du et al., 2015b) 100

(Du et al., 2015a) 100

(Tao and Vidal, 2015) 100

5 SUMMARY

We investigated several design options for using Bags

of Visual Words (BoVWs) for action classiﬁcation ba-

sed on 3D motion capture data. We experimented

with three existing human pose representations and

we proposed a fourth one that is inspired by Motion

Boundary Histograms. We considered three classi-

ﬁcation methods (K-NNs, SVMs, RBFNNs) and a

broad range of codebook sizes. Additionally, we in-

vestigated the effectiveness of several techniques that

can be used to automate the selection of the codebook

size. The obtained results suggest that Afﬁnity Propa-

gation can be used as an alternative to the widely used

k-Means. Then, we evaluated all possible combina-

tions with respect to their classiﬁcation accuracy on

the Berkeley MHAD dataset and compared the best

performing action classiﬁcation technique to existing

methods. The investigation has shown that the pro-

posed approach achieves competitive action classiﬁ-

cation results.

ACKNOWLEDGMENTS

This work was partially supported by the EU H2020

projects Co4Robots and ACANTO.

REFERENCES

Baysal, S., Kurt, M. C., and Duygulu, P. (2010). Recogni-

zing human actions using key poses. In ICPR.

Cali

nski, T. and Harabasz, J. (1974). A dendrite method for

cluster analysis. Communications in Statistics-theory

and Methods.

Chaaraoui, A., Padilla-Lopez, J., and Fl

orez-Revuelta, F.

(2013). Fusion of skeletal and silhouette-based featu-

res for human action recognition with rgb-d devices.

In ICCVW.

Evaluating Method Design Options for Action Classiﬁcation based on Bags of Visual Words

191

Chaudhry, R., Oﬂi, F., Kurillo, G., Bajcsy, R., and Vidal, R.

(2013). Bio-inspired dynamic 3d discriminative skele-

tal features for human action recognition. In CVPRW.

Dalal, N., Triggs, B., and Schmid, C. (2006). Human de-

tection using oriented histograms of ﬂow and appea-

rance. In ECCV.

Davies, D. L. and Bouldin, D. W. (1979). A cluster separa-

tion measure. PAMI.

De Campos, T., Barnard, M., Mikolajczyk, K., Kittler, J.,

Yan, F., Christmas, W., and Windridge, D. (2011).

An evaluation of bags-of-words and spatio-temporal

shapes for action recognition. In WACV.

Du, Y., Fu, Y., and Wang, L. (2015a). Skeleton based

action recognition with convolutional neural network.

In ACPR.

Du, Y., Wang, W., and Wang, L. (2015b). Hierarchical re-

current neural network for skeleton based action re-

cognition. In CVPR.

Efros, A. A., Berg, A. C., Mori, G., Malik, J., et al. (2003).

Recognizing action at a distance. In ICCV.

Elhamifar, E., Sapiro, G., and Vidal, R. (2012). See all by

looking at a few: Sparse modeling for ﬁnding repre-

sentative objects. In CVPR.

Evangelidis, G., Singh, G., and Horaud, R. (2014). Skeletal

quads: Human action recognition using joint quadru-

ples. In ICPR.

Foggia, P., Saggese, A., Strisciuglio, N., and Vento, M.

(2014). Exploiting the deep learning paradigm for re-

cognizing human actions. In AVSS.

Frey, B. J. and Dueck, D. (2007). Clustering by passing

messages between data points. American Association

for the Advancement of Science.

Gavrila, D. (1999). The visual analysis of human mo-

vement. CVIU.

Gowayyed, M. A., Torki, M., Hussein, M. E., and El-

Saban, M. (2013). Histogram of oriented displace-

ments (hod): Describing trajectories of human joints

for action recognition. In IJCAI.

Han, F., Reily, B., Hoff, W., and Zhang, H. (2017). Space-

time representation of people based on 3d skeletal

data: A review. CVIU.

Huang, B., Tian, G., and Zhou, F. (2012). Human typical

action recognition using gray scale image of silhouette

sequence. Computers & Electrical Engineering.

Kapsouras, I. and Nikolaidis, N. (2014). Action recognition

on motion capture data using a dynemes and forward

differences representation. Journal of Visual Commu-

nication and Image Representation.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Sukthan-

kar, R., and Fei-Fei, L. (2014). Large-scale video

classiﬁcation with convolutional neural networks. In

CVPR.

Kovar, L. and Gleicher, M. (2004). Automated extraction

and parameterization of motions in large data sets. In

ACM SIGGRAPH.

Laptev, I., Marszalek, M., Schmid, C., and Rozenfeld, B.

(2008). Learning realistic human actions from mo-

vies. In CVPR.

Moeslund, T. B., Hilton, A., and Kr

uger, V. (2006). A sur-

vey of advances in vision-based human motion cap-

ture and analysis. CVIU.

uller, M., R

oder, T., and Clausen, M. (2005). Efﬁcient

content-based retrieval of motion capture data. In

ACM Trans. on Graphics.

Niebles, J. C. and Fei-Fei, L. (2007). A hierarchical model

of shape and appearance for human action classiﬁca-

tion. In CVPR.

Oﬂi, F., Chaudhry, R., Kurillo, G., Vidal, R., and Bajcsy, R.

(2013). Berkeley mhad: A comprehensive multimodal

human action database. In WACV.

Oﬂi, F., Chaudhry, R., Kurillo, G., Vidal, R., and Baj-

csy, R. (2014). Sequence of the most informative

joints (smij): A new representation for human skeletal

action recognition. Journal of Visual Communication

and Image Representation.

Papoutsakis, K., Panagiotakis, C., and Argyros, A. A.

(2017). Temporal action co-segmentation in 3d mo-

tion capture data and videos. In CVPR.

Peng, X., Wang, L., Wang, X., and Qiao, Y. (2016). Bag of

visual words and fusion methods for action recogni-

tion: Comprehensive study and good practice. CVIU.

Poppe, R. (2010). A survey on vision-based human action

recognition. Image and Vision Computing.

Presti, L. L. and Cascia, M. L. (2016). 3d skeleton-based

human action classiﬁcation: A survey. Pattern Recog-

nition.

Rius, I., Gonz

alez, J., Varona, J., and Roca, F. X. (2009).

Action-speciﬁc motion prior for efﬁcient bayesian 3d

human body tracking. Pattern Recognition.

Schuldt, C., Laptev, I., and Caputo, B. (2004). Recognizing

human actions: A local svm approach. In ICPR. IEEE.

Scovanner, P., Ali, S., and Shah, M. (2007). A 3-

dimensional sift descriptor and its application to

action recognition. In Proc. ACM Int. Conference on

Multimedia.

Tao, L. and Vidal, R. (2015). Moving poselets: A discrimi-

native and interpretable skeletal motion representation

for action recognition. In ICCVW.

Theodorakopoulos, I., Kastaniotis, D., Economou, G., and

Fotopoulos, S. (2014). Pose-based human action re-

cognition via sparse representation in dissimilarity

space. Journal of Visual Communication and Image

Representation.

Tibshirani, R., Walther, G., and Hastie, T. (2001). Estima-

ting the number of clusters in a data set via the gap

statistic. Journal of the Royal Statistical Society: Se-

ries B.

Vantigodi, S. and Babu, R. V. (2013). Real-time hu-

man action recognition from motion capture data. In

NCVPRIPG.

Vantigodi, S. and Radhakrishnan, V. B. (2014). Action

recognition from motion capture data using meta-

cognitive rbf network classiﬁer. In ISSNIP.

Vemulapalli, R. and Chellapa, R. (2016). Rolling rotations

for recognizing human actions from 3d skeletal data.

In CVPR.

Vijay, P. K., Suhas, N. N., Chandrashekhar, C. S., and Dha-

nanjay, D. K. (2012). Recent developments in sign

language recognition: A review. Int. J. Adv. Comput.

Eng. Commun. Technol.

Wang, H., Kl

aser, A., Schmid, C., and Liu, C.-L. (2013).

Dense trajectories and motion boundary descriptors

for action recognition. IJCV.

Weinland, D., Ronfard, R., and Boyer, E. (2011). A sur-

vey of vision-based methods for action representation,

segmentation and recognition. CVIU.

Zhu, Y., Chen, W., and Guo, G. (2013). Fusing spatiotem-

poral features and joints for 3d action recognition. In

CVPRW.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

192
