Introduction of a Bayesian Network Builder Algorithm
Personalized Infectious Disease Risk Prediction
Retno Aulia Vinarti and Lucy Hederman
School of Computer Science and Statistics, Trinity College Dublin, The University of Dublin, Ireland
Keywords: Ontology, Knowledge-Base, Bayesian Network, Risk Prediction, Infectious Disease Risk.
Abstract: We introduce an algorithm for auto-generating a Bayesian Network (BN) structure from a knowledge-base
represented as an ontology with rules. The ontology and rules represent the assumptions of infectious disease
risk in the epidemiology domain. The resulting BN will be the computational model for an infectious disease
risk prediction service. The BN structure consists of one child node, to represent the chosen infectious disease,
with multiple parent nodes to represent the contexts which affect infection risk. Thus, this BN generation
algorithm is constrained to a relatively simple structure. The algorithm generates a BN using the API of BN
modeler software, Netica-J. We evaluate two aspects of the generated BN: the network structure and the
conditional probability tables (CPTs). The validation result shows that the algorithm generates an isomorphic
BN compared with the ontology and the CPTs are populated with consistent ratios from epidemiological rules.
Furthermore, the generated BN has resulted in a personalized infectious disease risk prediction based on the
personal attributes and their environments.
1 INTRODUCTION
Risk prediction is an estimation of the chance of a
person having an adverse event. Infectious disease
risk prediction is considered as adverse event in this
article since it is a major cause of deaths worldwide
(Aiello, et al., 2016). Conventionally, infectious
disease risk prediction deals with whether a new
infectious disease outbreak is likely to happen (1),
how fast an infection is likely to spread and the
specific location affected (2), and how likely it is that
certain measures will change the course of an
epidemic if certain measures are taken (3). The
system, for which this paper develops the algorithm,
takes a different approach by calculating a personal
risk of getting infected based on certain personal and
environmental attributes (Rev2, 2017). Adding
person properties to the prediction model allows it to
account for human susceptibility to certain diseases,
which differs from person to person (Shirai, et al.,
2004) (Shirai, et al., 2002).
Besides personalization, environment also plays
an important part in determining infection risk. The
environment is represented by the user location and
climate, including weather and season. Both
environment and climate have been proven to have
specific roles in boosting or limiting certain
pathogens (Fisman, 2008) (Monath & Vasconcelos,
2015) (WHO, 2003) (Wu, et al., 2016) (Yi, et al.,
2014). For example, children below five years old or
male adolescents or soldiers who live in Indonesia or
any countries between 30
o
N and 30
o
S are at twice the
risk for Tuberculosis in summertime than others
(Wertheim, et al., 2012). These predictors (person,
location, weather and season) will be represented as
knowledge to predict infectious disease risk in a
person at a place and time.
As epidemiological knowledge develops, more
predictors may need to be taken into consideration in
order to improve accuracy of prediction. In the
previous example, to predict Tuberculosis risk, the
person predictors, demographic risk factors (e.g. age,
occupation and gender), are included in an initial risk
prediction model. While Tuberculosis risk is now
well understood, knowledge of newer predictor,
behavioural risk factor (e.g. habit), is discovered.
Therefore, an infectious disease risk prediction
system that can be renewed to take account of new
diseases, new predictors and new data is required.
Knowledge about infectious disease predictors is
available from authorized health agencies (e.g. WHO,
CDC) in the Atlas of Human Infectious Diseases
(AHID) and epidemiological journals in declarative
form. Ontologies are used to represent this knowledge
Vinarti, R. and Hederman, L.
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction.
DOI: 10.5220/0006573301150126
In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 5: HEALTHINF, pages 115-126
ISBN: 978-989-758-281-3
Copyright © 2018 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
115
(Ruttenberg, et al., 2016) (Third, 2014). Meanwhile,
the predicted risk values need to be presented in
numerical form. So, both ontology and rules need to
be converted into a quantitative model that calculates
the risk prediction.
In this paper, we implement knowledge-driven
model generation which focuses on Bayesian
Networks (BN) as the generated model. We start by
building a knowledge-base that becomes the main
source of BN generation, Infectious Disease Risk
Ontology (IDR), by accumulating the declarative
knowledge manually. The IDR consists of general
infectious disease risk knowledge structure and
epidemiological rules. We introduce and validate an
algorithm that allows the automatic generation of a
BN, including populating the Conditional Probability
Tables (CPTs), directly from the knowledge-base.
The structure of the paper is as follows. Section 2
discusses related work. Section 3 presents the main
components of the Infectious Disease Risk Prediction
service including the BN generation algorithm.
Section 4 describes the evaluation of the generated
BN. Section 5 presents the evaluation results. Section
6 discusses the limitations and the advantages of
using this algorithm to generate a BN. Section 7
summarizes the contributions of the current work and
outlines future plans.
2 RELATED WORK
Knowledge-driven model generation has several
advantages in the context of continuously growing
knowledge rather than the former approach, data-
driven model generation. The knowledge-driven
system facilitates experts to contribute their best
knowledge without ruling out data and the given
contexts (Baumeister & Striffler, 2015). The
knowledge-driven modelling approach relies mainly
on the given domain knowledge (Fan, et al., 2015).
Domain knowledge for this research (i.e. infectious
disease risk) is available from various knowledge
sources and structures. Although some basic
knowledge structure is provided by BioPortal in
Ontology form (e.g. Epidemiology Ontology EPO,
Infectious Disease Ontology IDO and ClinicAl Risk
factoRs, Evidence and observables CARRE)
(Ruttenberg, et al., 2016) (Third, 2014), a significant
body of relevant knowledge is gathered from the
Atlas of Human Infectious Diseases in declarative
form (Wertheim, et al., 2012).
Some quantitative models, in the public health risk
prediction domain, allow this knowledge
incorporation, such as Rule-based prediction model,
Logistic Regression, Fuzzy Cognitive Map and
Bayesian Networks (BN) (Lopman, et al., 2009)
(Blake, et al., 2016) (Jiang, et al., 2014) (Semakula,
et al., 2016) (Onisko, et al., 2001) (Jombart, et al.,
2014) (Austin & Onisko, 2015) (Douali, et al., 2014)
(Kunjunninair, 2012). BNs are able to incorporate
personal factors as nodes and connect to other nodes
without difficulties (e.g. data training, model fitting).
Also, BNs have been used in both personalization and
risk prediction research (Gao, et al., 2010).
Our previous work looked out at whether BNs that
built from declarative knowledge gathered from
AHID, CDC, and WHO fact sheets had a promising
risk prediction result (Vinarti & Hederman, 2017).
The paper predicted risk prediction result in Anthrax
disease compared with real patient data records. The
Anthrax BN was built manually, neither learnt from
historical datasets nor generated automatically by a
specific mechanism which this paper now presents.
Rule1: The type of neighbourhood someone
lives in influences whether their house will
be burglarized.
IF: Neighbourhood(x): {bad, average, good}
THEN: Burglary(x): {true, false}
Matrix: (6 entries)
Rule2: Both a burglary and an earthquake can
cause someone’s alarm to go off.
IF: Burglary(x): {true, false} AND
EarthQuake: {tremor, moderate, severe}
THEN: Alarm(x): {true, false}
Matrix: (12 entries)
Rule2: An earthquake is often reported on the
radio.
IF: EarthQuake: {tremor, moderate, severe}
THEN: Radio: {true, false}
Matrix: (6 entries)
......
Figure 1: Probability Logic Knowledge-base.(Haddawy,
1994).
Generating a Bayesian Network from a probabilistic
knowledge-base was pioneered by Peter Haddawy
(Haddawy, 1994). He used Horn clauses to form a
probabilistic knowledge-base (Figure 1). The
knowledge-base used rules to define predictors, and
matrix to define conditional probability tables. By
using these clauses, he generated an isomorphic
Bayesian Network automatically. Whereas Haddawy
used random values in order to generate the BN, this
article seeks to populate these tables with appropriate
conditional probability values.
HEALTHINF 2018 - 11th International Conference on Health Informatics
116
3 THE PERSONALIZED
INFECTIOUS DISEASE RISK
PREDICTION
The infectious disease risk prediction web service is
designed to serve client applications which advise
users when and how to protect themselves from
infections. The service computes a person’s risk of
being infected by a specified disease today (or this
week or season depending on the disease), given their
demographic details and location. The service uses
geocodes to find weather, season and location
features (e.g. swamp, forest, river). For example, a 3-
year old female located at (40.440625, -79.995886) is
looking for their risk of Anthrax on the day
(04/07/2017, 07:55:45).
This section explains the components of the
service that are needed for predicting infectious
disease risk: (1) an ontology and rules that describes
the main elements of infectious disease risk to
represent the relationships between risk predictors
and a disease; (2) a main engine to predict the risk, a
quantitative prediction model (BN), which represents
the newest knowledge for each infectious disease; (3)
packages that support the BN to predict accurately
(weather, location APIs, health surveillance APIs and
simple functions to accommodate inputs/outputs).
The service will contain multiple independent BNs,
one per infection.
When epidemiologists find new knowledge or
new predictors about infectious disease risk, new
objects will be added to the ontology and rules, and
the BN model needs to be renewed. The renew
process makes use of the algorithm proposed in this
article to auto-generate the BN so that the prediction
model is isomorphic with the knowledge-base that
stores newest information. In this system, the
generated BN is isomorphic if all individuals and sub-
classes in the IDR Ontology have been transformed.
The individuals become the states and their sub-
classes become their nodes in the BN.
At runtime, the Live APIs tier collects current
contexts of the environment based on user’s location
and sends the retrieved values to the Context
Collector in the Logic tier. The BN model, also in the
Logic tier, takes the person’s demographics and
values from the Context Collector as inputs (i.e.
beliefs). Thereafter, the BN uses the CPT to yield the
risk prediction which is passed to the client through

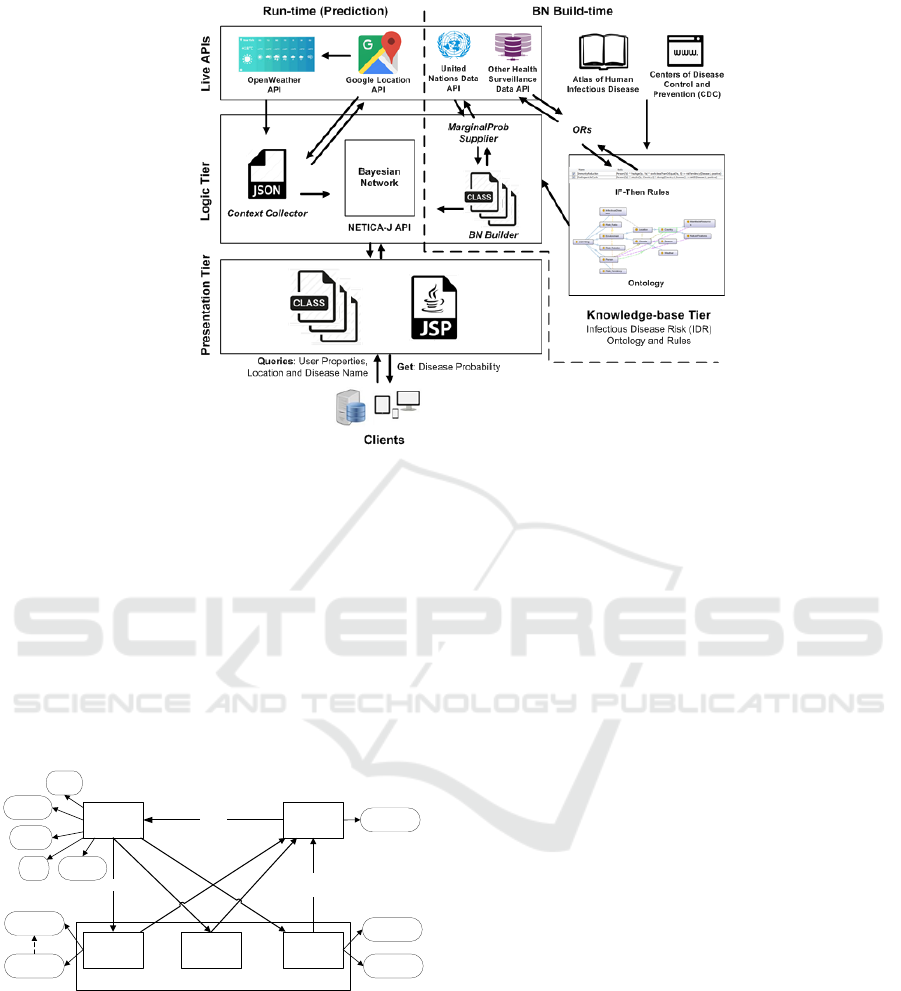

the Presentation layer. In Figure 2, the separation
between runtime (left-side) and BN build time (right-
side) is illustrated by a dashed line.
The BN used at runtime is initially generated, and
further rebuilt every time there is something new
added to the knowledge-base (ontology and rules). In
order to generate a BN, nodes and states need to be
extracted from the ontology. Also, the child node’s
CPT needs to be populated by computing numerical
values from the rules. This is the main role of the BN
Builder package. For parent nodes, marginal
probability data is retrieved from sources such as the
United Nations (UN) Data API by MarginalProb
Supplier. Then, they are loaded to form parent nodes’
CPTs.
3.1 Structure of the Knowledge Base
and the Generated Bayesian
Network
An ontology is used to represent the relationship
between predictors and infectious disease risk.
Existing ontologies related to this subject and some
declarative knowledge sources have been studied and
reused to create the Infectious Disease Risk (IDR)
ontology (Figure 3). The main classes (e.g. Person,
Infectious Disease, Environment) are denoted by
rectangles. Sub-classes represent the risk factors of an
infectious disease for each class (e.g. age, gender in a
person); they are denoted by ellipses. Individuals are
the instances of the sub-classes (e.g. female and male
in gender).
Some individuals are different for each disease,
for example, age in Tuberculosis will have different
categorization with age in Anthrax. But, some other
individuals are same (e.g. female and male as
instances of gender). The individuals are not
illustrated in Figure 3. The IDR ontology is used to
support epidemiological rules in Semantic Web Rule
Language (SWRL). The SWRL rules refer to the IDR
classes, sub-classes and individuals.
Rules are used to define statements about the
factors of a person, and their environment, that affect
whether they get infected by a disease. These rules are
manually encoded from declarative knowledge
sources: Atlas of Human Infectious Disease (AHID),
Centres of Disease Control and Prevention (CDC).
They are written in SWRL form by a knowledge
engineer using numerical inputs (x1, x2, y, z in Table
1) from Health Surveillance Reports and journals
related to epidemiology of infectious diseases.
The common composition of rules is antecedent
(A), consequent (B) and denoted as (A B). The
antecedent covers the predictors and the consequent
covers the disease. CARRE project and its related
publications introduce the clinical risk model to
describe a disease risk in a person (Third, 2014). They
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction
117
Figure 2: The Infectious Disease Risk Prediction Service Architecture.
involved risk quantification as risk ratio (i.e. Odds
Ratio OR or Relative Risk RR) for each risk
factor. Therefore, for the algorithm introduced in this
research, each antecedent load personal attribute(s) as
risk factor (e.g. vegan, farmers, or adult in Table 1).
Whereas its consequent has two components: the
disease name and the numerical value that shows the
significance of the risk factor to the infectious disease
risk. The numerical value is either an OR/RR or a
prevalence rate or zero (in the case of pathogen
dormancy).
Person
Infectious
Diseases
Location Climate
risk of
live in
pathogen
lifecycle
prevalence
Environment
Age
Gender
Disease
Name
Season
Weather
Existing
Illness
Features
Country
Occupation
Geocodes
live around
access date
Habit

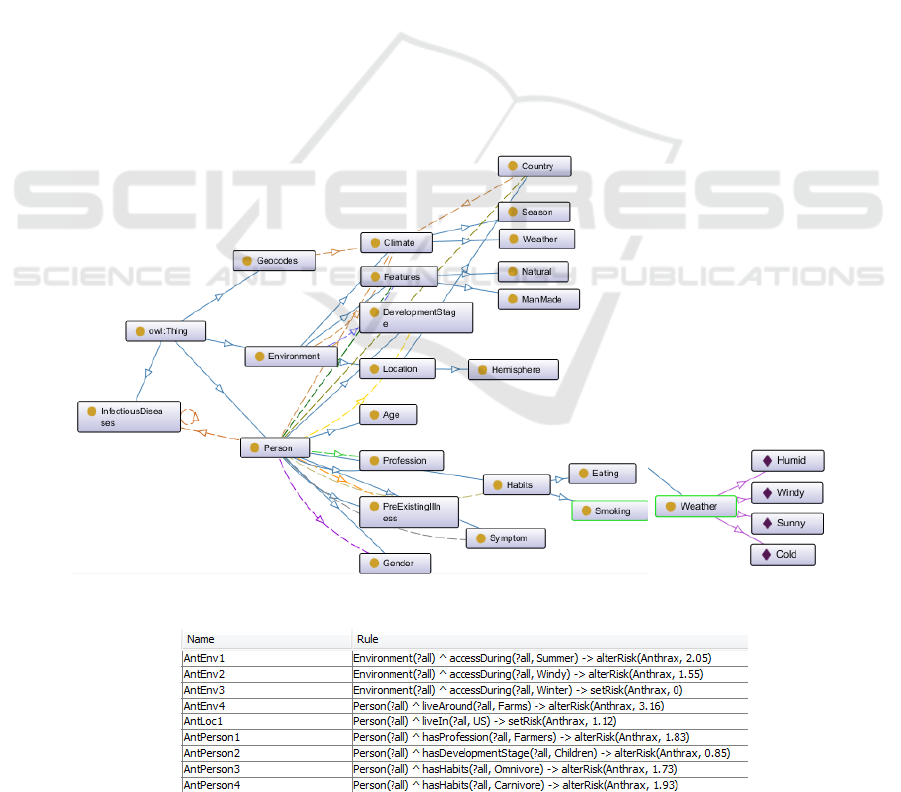

Figure 3: The Generic Infectious Disease Risk Ontology
(IDR).
For Anthrax, these numerical values are expressed in
%K units (K=0.001), which show the risk of a disease
per 100,000 population in a particular location. Other
diseases may use different units. These values will be
inputted by the epidemiologist by identifying them
from the declarative knowledge sources. Later, the
CPT will be populated from these values by following
several procedures and computations. The
computation is embedded in the BN generation
algorithm.
There are three types of rule for representing
infectious disease risk: the first, stores OR values for
each state, the second type stores prevalence or
incidence rate for each disease, and the third type
describes the pathogen availability in specific
conditions (e.g. location, weather, season). The key
difference between OR and prevalence-type rules is
the predicate at the consequent part. An OR-type rule
has alterRisk while the prevalence-type rule has
setRisk predicate (bold letters in Table 1). Therefore,
one disease ontology has multiple OR-type rules and
at least one prevalence-type rule.
In this version of algorithm, the pathogen-type
rule uses the same predicate as prevalence-type rule
(setRisk), but the numerical value of the pathogen-
type rule is zero. This follows the assumption that the
pathogen is always considered as active unless there
is a declaration of inactivity (dormancy).
The numerical values which are stored in the rules
bring important epidemiological parameters to
populate the child node’s CPT. Meanwhile, these
rules depend on the ontology structure (classes, sub-
classes and individuals). So, both ontology and
SWRL rules inside the knowledge-base tier need to
be transformed carefully into a prediction model
(Bayesian Network).
HEALTHINF 2018 - 11th International Conference on Health Informatics
118
Table 1: Sample SWRL Rule Encoding for Anthrax Risk.
Simplified Declarative Knowledge
Rules
Rule Type
Anthrax prevalence in the US is 12 per 100,000
population per year.
Person(?all) ^ liveIn(?all, US) ->
setRisk(Anthrax, 1.12)
Prevalence
An analysis of seven studies estimated a pooled
odds ratio for Anthrax risk in non-vegan
compared with vegan is doubled.
Person(?all) ^ hasHabits(?all, vegan) ->
alterRisk(Anthrax,x1)
Person(?all) ^ hasHabits(?all, carnivore) ->
alterRisk(Anthrax,x2)
OR
Farmers are at the highest risk.
Person(?all) ^ hasOccupation(?all, farmers) ->
alterRisk(Anthrax,y)
OR
Children are at less risk of Anthrax compared to
Adult or Elderly
Person(?all) ^ hasDevelopmentStage(?all,
Children) -> alterRisk(Anthrax,z)
OR
Anthrax pathogens are dormant during winter.
Person(?all) ^ accessDuring(?all, Winter) ->
setRisk(Anthrax,0)
Pathogen
3.2 The BN Builder Package
A basic BN consists of parent and child nodes. In this
system, the predictors become parent nodes and the
disease whose risk is being predicted becomes the
child node. Each node contains a CPT which consists
of states and probabilities. Parent nodes’ CPTs need
marginal probability values (e.g. the probability of a
person being a child). These values are loaded from
UN Data API. The child node’s CPT stores all
parent’s states combinations and their conditional
probabilities (e.g. the probability of a female child
getting Anthrax).
The BN Builder package aims to generate code to
call Netica-J built-in functions that generate an
isomorphic BN from the knowledge-base. The BN
Builder has two tasks: (1) create the network
structure, and (2) fill in the parent and child nodes’
CPTs. To fulfil these objectives, two algorithms are
introduced in this article: Network Construction and
CPT Population algorithm. The Network
Construction algorithm is used to create the BN
structure while the CPT Population algorithm is used
to transform rules into child node’s CPT. Both
algorithms use intermediate representations (Table 2
and Table 3 in the next sub-section).
It is also useful for the algorithm to have a
specification of impossible combinations of parent
nodes’ states as done by (Das, 2004). For example,
(e.g. pregnant male, male pregnant). By having
this, some unnecessary work can be reduced in the
later stage (CPT Population).
Software for managing the knowledge-base,
Protégé, is used to create the IDR and write the
SWRL rules. In general, there are two ways of using
an ontology in the context of knowledge-driven
model generation: exporting it to RDF representation
and using XML technology to query the RDF, or
directly by querying the knowledge-base using
SPARQL. This research uses XPath to retrieve items
in the knowledge-base then store them into
intermediate representations.
3.2.1 Intermediate Representation of
Network Structure and Rules
The creation of a network structure needs some
information needed to create a BN structure. The
information is obtained from the knowledge-base
representation, RDF (Figure 4). XPath queries are
then used to select the items by locating their paths in
the RDF.

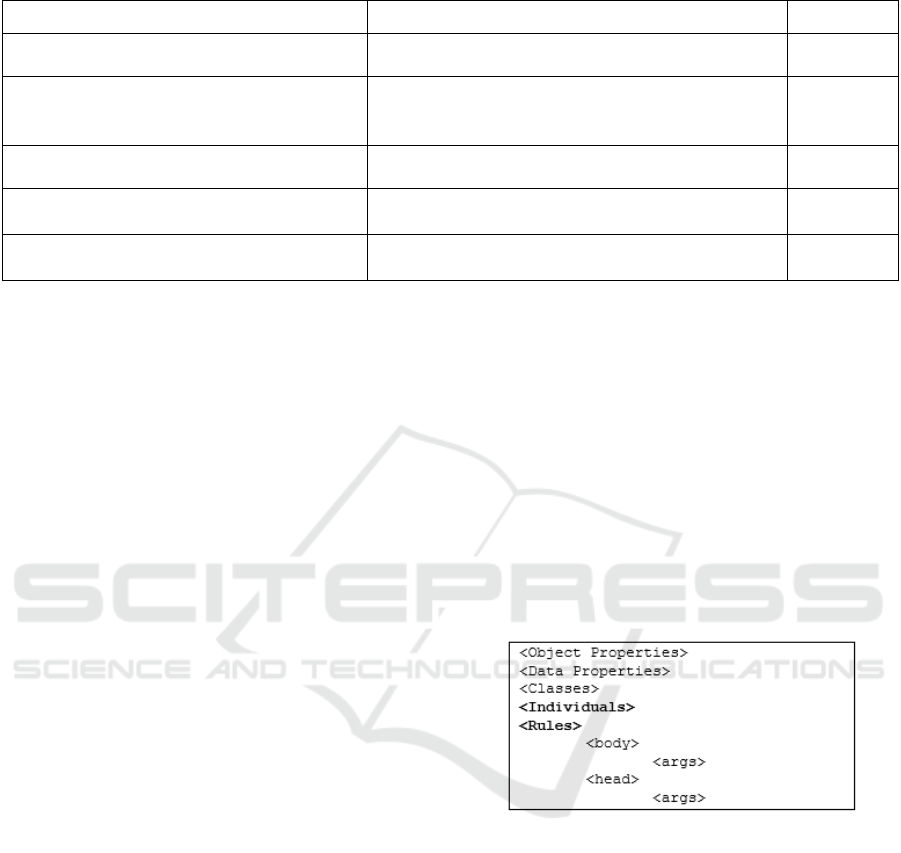

Figure 4: RDF Structure.
The bold tags show the sections needed to build a BN.
The information about nodes and states to construct a
BN are stored in <Individuals> tags, while resources
about OR, prevalence and other information needed
to populate child node’s CPT are stored in <Rules>
tags. An example of a line in <Individuals>
expressing a state named female belonging to a node
named gender is given below.
IDR:Female rdf:type owl:NamedIndividual ,
IDR:Gender .
XPath queries are used to obtain all nodes and states
from the <Individuals> tags (given below). The
results of these queries are then stored in the
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction
119
intermediate representation in a fixed order as
presented in Table 2.
nodesQuery = "/rdf:RDF/owl:NamedIndividual/
rdf:type/@rdf:resource";
statesQuery = "/rdf:RDF/owl:NamedIndividual/
@rdf:about";
Table 2: Sample Content of the Nodes and States.
Order
Nodes
States
1
Age
Child
Adult
Elderly
2
Gender
Female
Male
3
Occupation
Farmers
Soldiers
For the rules, the intermediate representation uses
five components: name, disease, attribute value,
predicate and the numerical value (Table 3). Since our
rules each only refer to one attribute, this
representation is sufficient.
Table 3: Sample of the Rule Components.
name
attribute
value
predi
cate
num.
values
AntLoc1
US
set
1.12
AntEnv3
Winter
set
0
AntPrson2
Children
alter
0.85
Table 3 shows examples of Prevalence, Pathogen and
OR-type rules, respectively. Each numerical value
represents OR, prevalence rate or pathogen dormancy
depending on the rule type. To fill Table 3, antecedent
and consequent of a rule is identified by swrl:body
and swrl:head tags, respectively. The queries are
given below Table 3.
ruleName = "/rdf:RDF/rdf:Description/
rdfs:label";
ruleDisease = "/rdf:RDF/rdf:Description/
swrl:head/.//swrl:argument1/@rdf:resource";
ruleAtt = "/rdf:RDF/rdf:Description/
swrl:body/.//swrl:argument2/@rdf:resource";
rulePredicate = "/rdf:RDF/rdf:Description/
swrl:head/.//swrl:propertyPredicate/@rdf:res
ource";
ruleNum = "/rdf:RDF/rdf:Description/
swrl:head/.//swrl:argument2";
These intermediate representations are used to
construct the Network and populate the child node’s
CPT as explained in the following sub-sections.
3.2.2 Constructing the Network
A BN structure consists of nodes and states. Referring
to the Table 2 as example, age, gender, occupation,
and Anthrax are nodes, while the items on the right-
side column are their states. These details are
obtained from the intermediate representation (Table
2). For the disease prediction BN, the predictors (age,
gender, occupation) form the parent nodes, and the
disease (e.g. Anthrax) is the child node.
In order to construct the network, the BN Builder
closely follows the Netica-J procedure in Pseudocode
1 (Norsys, 1995-2017). The bold items represent the
automation this paper presents.
Pseudocode 1: Network Construction
1. Create and set the Netica environment
2. Declaration and assignment of a child
node
3. Declaration of parent nodes
4. Loading resources from intermediate
representations
5. foreach node do
a. Assign each parent node using three
input parameters: node name,
stateString (result from Statenames
Concatenation), Netica environment
b. Construct the marginal probability
of each parent node using two input
parameters: node name, MarginalProb
array (result from MarginalProb
Concatenation)
c. Save the order of parent node into
nodequeue
d. Connect parent with child node
6. Construct the conditional probability
of the child node using nodequeue.
7. Write the network into Netica readable
file (.dne file)
The automation of Pseudocode 1 begins with parent
node assignment (line 3 and 5). The Netica-J built-in
function to assign a node is given as follows:
Node temporary = new Node (String nodename,
String statenames, net);
The declaration of a temporary node starts in line 3
and it is initialized with null value. In line 5a, the
temporary node will be assigned with real nodes and
states taken from the intermediate representation. The
assignment of this node is called for as many nodes
as found in the Table 2.
Pseudocode 2: Statenames Concatenation
1. Create a stateString
2. foreach state in a parent node do
a. Append the the state name to
stateString, followed by a comma.
3. end
HEALTHINF 2018 - 11th International Conference on Health Informatics
120
Pseudocode 3: MarginalProb Concatenation
1. Create a MarginalProb array
2. foreach state in a parent node do
a. Append the MarginalProb array with
related marginal probability.
3. end
Marginal probabilities, for example the ratio of Male
to Female in a specific region, are provided by the
MarginalProb Supplier package (see Figure 2).
Information to fill MarginalProb is usually found in
UN Data API. In Netica, the assignment of the
marginal probability to a node uses a statement:
parentNode.setCPTable(MarginalProb[]);
However, if no marginal probability data is provided,
Netica-J, by default, assigns equal fractions based on
number of states in the node. For instance, the default
MarginalProb of a two-state node is <0.5, 0.5>.
Once the nodes and their states are defined, the
order of parent nodes must be saved (line 5c) before
connecting the parents with child node (line 5d). The
order will be used by CPT Population algorithm. Line
6 in Pseudocode 1 handles the CPT population for the
child node. The details are explained in the next sub-
section.
3.2.3 Populating the CPT
The child node’s CPT is calculated from the
numerical parameters in the intermediate
representation of rule (Table 3). This involves first,
generating all combinations of the relevant states and
then computing the conditional probability for each
combination. See Figure 9 for sample extract of the
CPT for Anthrax in Netica.
To illustrate, the needed state combinations are
presented in Figure 5. The number of combinations is
𝑠
𝑖
𝑛
𝑖=1
where s
i
is number of states in node i, and n is
number of nodes.
Age, Gender, Occupation
Children, Male, Farmers
Children, Male, Soldiers
Children, Female, Farmers
Children, Female, Soldiers
Adult, Male, Farmers
...
Figure 5: Sample of the StateCombination.
To calculate a conditional probability (condProb), for
a state combination, we apply Pseudocode 4 using the
intermediate representation for rules as in Table 3.
The algorithm can distinguish rule types as follows:
pathogen-type rules are those where the predicate is
setRisk and the value is 0; prevalence-type rules are
those whose predicate is setRisk and the value is
non-zero; OR-type rules are those with predicate
alterRisk. Then, the numerical values of each rule
type are used in different part in the process of
populating the CPT.
The algorithm checks for conditions that result in
zero disease risk (line 2 in Pseudocode 4): either there
is matching a pathogen-type rule attribute or there is
an impossible combination. By filtering these
conditions upfront, only combinations that need
calculation of conditional probabilities is left.
After the prevalence rate is obtained and set as the
condProb (line 3a), for each OR-type rule, if the
attribute value is contained in the state combination,
the rule is considered “a match”. For example, each
of Adult’, Male’, Farmers’ in the Children,
Male, Farmerscombinations, only Farmers is
considered as match” with AntPerson1 rule. Then,
the conditional probability is calculated by
multiplying the ORs of the matched rule by the
existing condProb (line 4a).
Pseudocode 4: CondProb Calculation
1. Initialize condProb to 1
2. IF there is a matching pathogen-type
rule attribute or IF the combination is
impossible
a. Set the condProb to 0
3. ELSE IF there is a matching prevalence-
type rule attribute,
a. Set the condProb to that value
(Prevalence)
4. ELSE for each matching OR-type rule
attribute
a. condProb = condProb * OR
5. end
4 EVALUATIONS
The algorithm’s main functions are converting the
IDR into an isomorphic BN, and populating its CPT
based on the inputted OR and prevalence values.
Therefore, the evaluation of the algorithm’s
correctness will consider the BN result and the child
node’s CPT values.
The BN generation algorithm described above
was tested on two diseases along with their risk
factors as predictors: Anthrax and Tuberculosis. The
Anthrax BN has 13 parent nodes, 36 states in total,
and 248,832 state combinations, of which only
96,768 combinations are possible. The Tuberculosis
has 12 parent nodes, 34 states in total and 138,240
state combinations, and all are possible combinations.
An OntoGraf, a common layout for organizing an
ontology structure in Protégé, is used to present the
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction
121
created IDR (Figure 6). The class and subclasses are
marked with circle symbol, while, individuals are
symbolized by diamonds. The example of Weather’s
individuals (Humid, Windy, Sunny, Cold) are given
in the right-hand side of Figure 6. The solid and
dashed lines represent direct and indirect relationship
in a class, respectively.
In Figure 7, SWRL rules for Anthrax are
presented. For OR-type rules, the numerical values
less than one show a decreased risk (AntPerson2), and
those of more than one show an increased risk of the
disease (AntEnv1). These rules use the alterRisk
predicate. Meanwhile, the setRisk rules can have
two options: zero and non-zero.
For AntEnv3, the zero value means the pathogen
is inactive, thus, it represents a pathogen-type rule.
The non-zero values mean prevalence or incidence
rates of the disease in the certain location (e.g.
AntLoc1), thus, it represents prevalence-type rules.

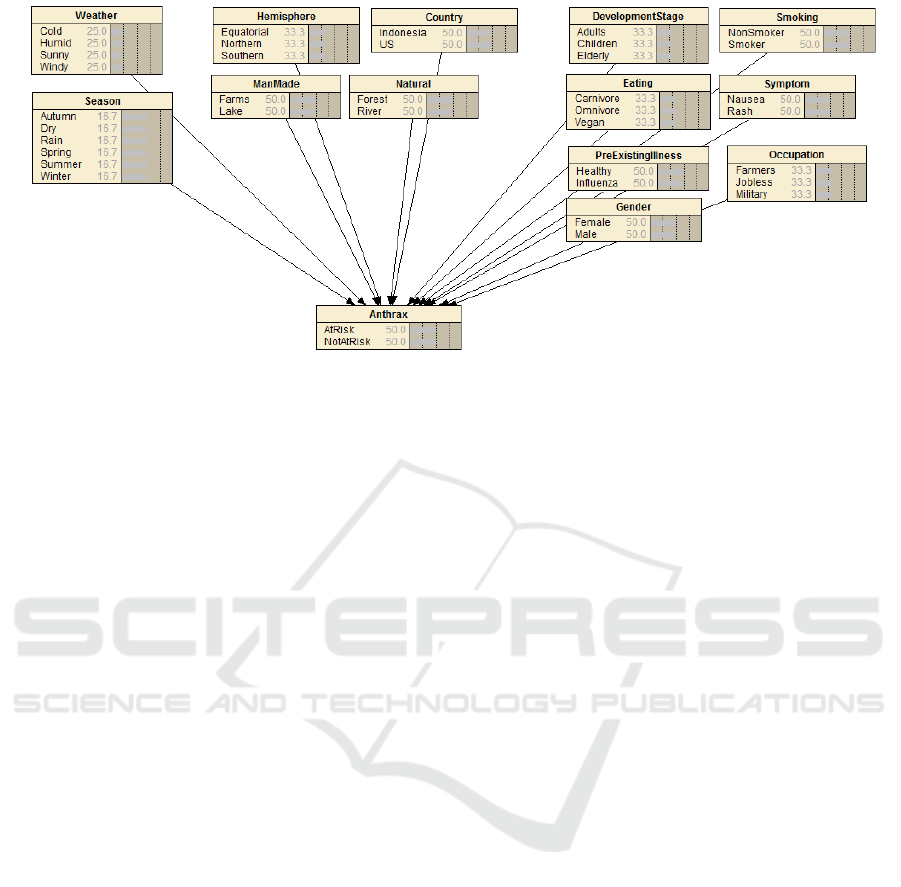

Figure 8 shows the generated BN for Anthrax; the
number of states per node varies and all states are
successfully added to its node. Also, the parent nodes
are all connected to the child node, as expected from
the algorithm. The marginal probabilities for all
parent nodes are set to default. This happens because
for this test we did not provide exact values for the
marginal probabilities but let the program use the
default uniform distribution setting.

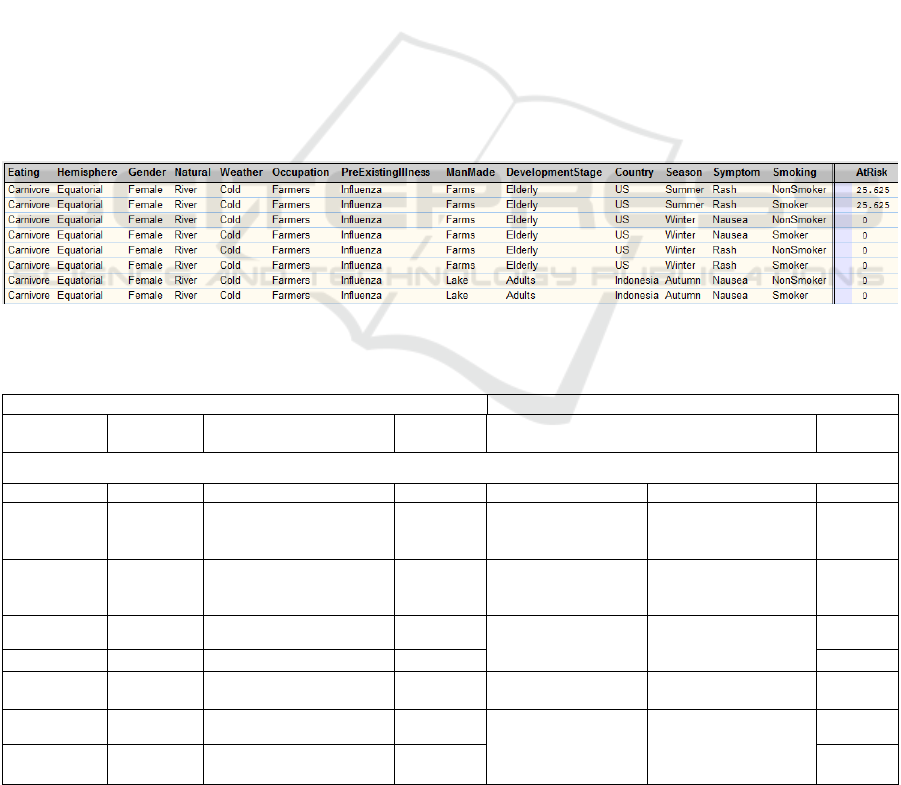

Figure 9 shows a small extract of the generated CPT
for the child node. It consists of state combinations
(left-side of the table) which are generated by
StateCombination Generation and a conditional
probability value for each child node’s state (i.e.
AtRisk) (right-side of the table) which are calculated
by CondProb Calculation.
The last two rows in Figure 9 shows that a
function to check impossible permutations is working
for <<Indonesia> <Autumn>> they have AtRisk
values of 0. The middle four rows show that the
pathogen-type rule works properly on all state
combinations that contain “Winter” they have
AtRisk values of 0.
A computer with specification Intel Core i3 CPU
1.7GHz with 4GB of memory was used to generate
the BNs and populate the CPTs. It took 17 to 19
minutes approximately. The generation of state
combinations accounts for most of the time.
Figure 6: OntoGraf of the IDR.
Figure 7: SWRL rules for Anthrax used to populate CPT.
HEALTHINF 2018 - 11th International Conference on Health Informatics
122
Figure 8: The generated isomorphic BN.
5 EVALUATION RESULTS
Results of the validation will be justified by the
correctness of the algorithm. The algorithm is correct
when it generates an isomorphic BN and populates
the CPT as given odds ratios.
5.1 Evaluation on the Generated BN
Not all classes or sub-classes in the IDR will be
transformed into nodes in the BN; only classes that
have at least one individual are converted. To
compare the generated BN with the IDR, a
mechanism to retrieve all the individuals with their
corresponding classes and sub-classes directly from
the Protégé is needed. A SPARQL query is used in
the Protégé environment to execute the required
mechanism.
SELECT *
WHERE {?individual rdf:type ?type .
OPTIONAL {?type rdfs:subClassOf ?class}}
ORDER BY ?type
Thereafter, the results of this query were compared
with the generated BN (Figure 8). It can be seen from
Fig. 6 that all sub-classes are transformed into nodes
and all individuals are transformed into states.
Furthermore, the node-state arrangements in the BN
follow exactly the sub-classes and individuals’
arrangements in the ontology. Other cases have been
checked, for example, having empty sub-classes or
non-referenced data or object properties in the IDR.
Those conditions have no impact on the generated
BN. Thus, it has been shown that the generated BN is
isomorphic with the IDR.
5.2 Evaluation of the Populated CPT
To show that the algorithm correctly represents the
SWRL rules presented in Figure 7 in the child node’s
CPT, an evaluation of the CPT is carried out.
The numerical values stored in the SWRL rules
reveal the behaviour (e.g. inclination or declination)
of the disease risk. The CPT population algorithm
makes use of these numerical values to produce the
conditional probabilities. Thus, all rules are taken as
inputs and the related conditional probabilities are
taken as outputs of this evaluation.
Then, the correctness of the CPT population
algorithm is analysed by observing the outputs in two
aspects: (1) the behaviour of the conditional
probabilities has a consistent ratio with the given
numerical values in the rules, and (2) the generated
probabilities have different values for different
personal and environmental conditions.
Table 4 shows validation for all Anthrax rules
shown in Figure 7. Two countries are involved in this
evaluation: US and Indonesia. All results for
correspondent country are given for each OR-type
and pathogen-type rules. The aggregated ratio for
each state is given in the Result column. Then, to
observe the ratio of prevalence between two
countries, all ratios for OR-type rules are aggregated
and placed on the Ratio column (e.g. 1.12043 for the
AntLoc1 rule). From this process, the algorithm
populates the child node’s CPT automatically from
the SWRL rules as presented in Figure 7. Also, they
produce the comparable ratios with the given
numerical values in the SWRL rules.
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction
123
Furthermore, the resulting conditional
probabilities show that these conditions result in
different prediction results as stated on the rules.
(a) different personal attributes (e.g. Age,
Gender) which are taken as different person
(b) the same person living in a country during
different season (e.g. Winter, Spring)
(c) or the same person moving to different
location features (e.g. Lake, Farms) within a
country
Thus, we see that the populated CPT yield a
personalized infectious disease risk prediction based
on the personal and environmental attributes.
6 DISCUSSION
The algorithm describes about a mechanism to
convert a knowledge-base (ontology and rules)
representing an infectious disease to a risk prediction
model (BN and its CPT). Since this paper introduces
a BN generation algorithm, the comparative
evaluation is of the functional requirements of the
standard BNs. The requirements are generating BN
structure (1), and populating the CPT (2). However,
the algorithm makes some assumptions which lead to
some limitations that are discussed in this section.
States in a node are assumed to be unique and
discrete. Some possibilities that makes a node
become non-unique are (1) continuous states, and (2)
non-unique individual names across classes. Netica-
BN allows continuous numerical forms as states but
later any continuous nodes taking part in an equation
must first have been discretized (Norsys, 1995-2017).
However, no need for continuous nodes for modelling
infectious disease risk prediction. In addition,
continuous numerical forms of predictor rarely use a
BN as the prediction model. A Logistic Regression or
Bayesian Logistic Regression is more suitable for this
kind of forms (Koop, et al., 2013).
Rules in the IDR are assumed to have one attribute
per rule. For most diseases, the OR usually represents
one risk factor (e.g. male) which is independent of the
disease risk. However, other diseases may have two
or more risk factors for one OR (e.g. male, adult) or
dependent risk factors. This condition is not equal
with multiplying OR for male and adult. The current
version of the algorithm cannot handle more than one
attribute in one rule.
Figure 9: Extract of the child node’s CPT.
Table 4: Evaluation of generated model.
DESIGN
RESULT
Rule Names
Type of
attribute
Numerical Values given on
the Rules
Rule Type
Generated conditional probability values
Ratio
Context: People living in the US and Indonesia during rainy season seek for Anthrax risk disease
AntLoc1
Country
US = 1.12, Indonesia = 1
Prevalence
US
Indonesia
1.12043
AntPerson1
Personal
Farmers = 1.83 x Military or
Jobless
OR
Farmers = 0.06476
Military = 0.03539
Jobless = 0.03539
Farmers = 0.05782
Military = 0.03159
Jobless = 0.03159
1.83005
AntPerson2
Personal
Children = 0.85 x Adult or
Elderly
OR
Adult = 0.03539
Children = 0.03008
Elderly = 0.03539
Adult = 0.03159
Children = 0.02686
Elderly = 0.03159
0.85005
AntPerson3
Personal
Omnivore = 1.73 x Vegan
OR
Vegan = 0.03539
Omnivore = 0.06128
Carnivore = 0.06831
Vegan = 0.03159
Omnivore = 0.05466
Carnivore = 0.06098
1.7309
AntPerson4
Personal
Carnivore = 1.93 x Vegan
OR
1.93025
AntEnv4
Feature of
Location
Farms = 3.16 x Lake
OR
Farms = 0.03539
Lake = 0.0112
Farms = 0.03159
Lake = 0.00999
3.16095
AntEnv1
Season
Summer = 2.05
OR
Winter = 0,
Spring = 0.03539
Summer = 0.0725
Autumn = 0.03539
Rain = 0.03159
Dry = 0.03159
2.0486
AntEnv3
Climate
Winter = 0
Pathogen
-
HEALTHINF 2018 - 11th International Conference on Health Informatics
124
Another limitation of this algorithm is on handling
non-unique individual names. For example, an
individual none belong to vaccinated and symptoms
sub-classes. For now, if this situation happens, the
knowledge engineer should concatenate the names
with attribute values (e.g. notVaccinated).
The underlying assumption of the generated BN
is no intermediate nodes between parent and child
nodes, and all predictors are assumed to be
independent of each other. Most interdisciplinary
research takes this assumption to simplify the
network and prediction model (Fenton, et al., 2016).
The current system only allows for pathogen to be
active and inactive (set risk to 0). A support for more
complex pathogen model (Kilianski, et al., 2015)
(Huang, et al., 2012) would be beneficial.
Finally, for the requirements to predict a
personalized infectious disease risk, some critical
features are already facilitated in initial version in this
paper. Further development related to detailed
specification can be accommodated without
significant changes to either the knowledge-base or
the generation algorithm.
7 CONCLUSIONS AND FUTURE
WORKS
This paper has described an algorithm for generating
a Bayesian Network from the declarative infectious
disease knowledge stored in an Ontology and SWRL
rules. This algorithm allows additions or
modifications to the ontology and will generate an
isomorphic Bayesian Network and populate its child
node’s CPT automatically. However, the algorithm is
a preliminary result with several limitations.
This paper uses the IDR, an Infectious Disease
Risk Ontology and SWRL rules, as main reference of
BN generation. This IDR will have numerous
individuals for each disease as the knowledge
becomes available in the future. Three types of rules
have been introduced in this paper: OR, prevalence,
pathogen-type rules. In this algorithm version, the
pathogen availability is considered as always active,
unless there is a declaration of pathogen inactivity.
Another progressing work is ready to be published in
a separated article.
The algorithm introduced in this paper only
covers one possible source of OR and prevalence
values explicitly provided by experts within rules.
There is another source that is possible to access:
WHO data sources in UN Data or Health Surveillance
API. By opting in these sources, there will be an
automated process that aims to put the numerical
values in the rule. This leads to some possibilities that
are not covered by this algorithm for now, such as
contradicting the established rules. A procedure to
manage the rules might be a substantial improvement
in the future.
Some other further works be (1) modifying the
intermediate representation and the XPath queries for
accommodating more than one dependent attribute in
one rule, (2) observing relevant time period for
predicting various infectious disease risks; this will
impact on the conditional probabilities given to a
client and thus will slightly modify the CPT
Population algorithm.
To sum up, from the evaluation section, it can be
concluded that the Network Creation algorithm has
successfully generated an isomorphic BN from the
Ontology structure. In addition, the CPT Population
algorithm has auto-populated the child node’s CPT
and the ratio of the conditional probability results are
consistent with the inputted OR. Furthermore, the BN
Builder package has resulted in a personalized
infectious disease risk prediction based on the
personal attributes and their environments.
ACKNOWLEDGEMENTS
The research for this paper is financially supported by
Islamic Development Bank (IDB) through Merit
Scholarship Programme for High Technology.
REFERENCES
Aiello, A. E., Simanek, A. M., Eisenberg, M. C. & Walsh,
A. R., 2016. Design and methods of a social network
isolation study for reducing respiratory infection
transmission. Vol. 15.
Aliferis, C. F., Tsamardinos, I., Statnikov, A. R. & Brown,
L. E., 2005. A Causal Probabilistic Network Learning
Toolkit for Biomedical Discovery. Las Vegas, Nevada,
Mathematics and Engineering Techniques in Medicine
and Biological Sciences.
Austin, R. M. & Onisko, A., 2015. Increased cervical
cancer risk associated with extended screening intervals
after negative human papillomavirus test results 1(1).
Baumeister, J. & Striffler, A., 2015. Knowledge-driven
systems for episodic decision support. Knowledge-
based systems, Volume 88, pp. 45-56.
Blake, I. M., Chenoweth, P., Okayasu, H., 2016. Detection
of poliomyelitis outbreaks to support polio eradication.
Emerging Infectious Diseases, 22(3), pp. 449-456.
Introduction of a Bayesian Network Builder Algorithm - Personalized Infectious Disease Risk Prediction
125
Chang, T. S., Gangnon, R. E., Page, D., 2015. Sparse
modeling of spatial environments associated with
asthma. Volume 53.
Das, B., 2004. Generating Conditional Probabilities for
Bayesian Networks: Easing the Knowledge Acquisition
Problem. CoRR, pp. 1-24.
Douali, N. et al., 2014. Comparison between case-based
fuzzy cognitive maps and bayesian networks. 113(1).
Fan, X.-R.et al., 2015. A knowledge-and-data-driven
modeling approach for simulating plant growth: A case
study on tomato growth. Ecological Modelling, Vol
312, pp. 363-373.
Fenton, N., Neil, M. & Lagnado, D., 2016. How to model
mutually exclusive events based on independent causal
pathways in Bayesian network models. Volume 113.
Fisman, D. N., 2008. Seasonality of viral infections:
Mechanisms and unknowns. American Journal of
Preventive Medicine, 18(10), pp. 946-954.
Gao, M., Liu, K. & Wu, Z., 2010. Personalisation in web
computing and informatics. Information Systems
Frontiers, 12(5), pp. 607-629.
Giabbanelli, P. J., Torsney-Weir, T. & Mago, V. K., 2012.
A fuzzy cognitive map of the psychosocial
determinants of obesity. 12(12).
Haddawy, P., 1994. Generating Bayesian Networks from
Probability Logic Knowledge Bases. Seattle, Morgan
Kaufmann Publishers Inc. San Francisco, CA, USA.
Huang, Z., Das, A., Qiu, Y., 2012. The vector-borne disease
airline import. risk (VBD-AIR) tool. Vol. 11.
Jiang, Q., Zhou, J. T., Jiang, Z. B. & Xu, B., 2014.
Identifying risk factors of avian infectious diseases at
household level in Poyang Lake region, China.
Preventive Veterinary Medicine, 116(2), pp. 151-160.
Jombart, T., Aanensen, D. M., Baguelin, M., 2014. A
platform for disease outbreak using the R. Vol. 7.
Kahn Jr., C. E., Roberts, L. M., Shaffer, K. A. & Haddawy,
P., 1997. Construction of a BN for mammographic
diagnosis of breast cancer. Computers in Biology and
Medicine, 27(1), pp. 19-29.
Kilianski, A., Carcel, P., Yao, S. & Roth, P., 2015.
Pathosphere.org: pathogen detection and
characterization through a web-based. BMC
Bioinformatics, 416(16), pp. 1-12.
Koop, G. et al., 2013. Risk factors for subclinical
intramammary infection in dairy goats in two
longitudinal field studies evaluated by Bayesian logistic
regression. 108(4).
Kunjunninair, A. P., 2012. Clinical decision support
system: risk level prediction of heart disease using
weighted fuzzy rules and decision tree rules. Central
European Journal of Computer Science, 2(1).
Laskey, K. B. & Mahoney, S. M., 2000. Network
Engineering for Agile Belief Network Models. IEEE
Transactions on Knowledge and Data Engineering,
12(4), pp. 487-499.
Lopman, B., Armstrong, B., Atchison, C., 2009. Host,
weather and virological factors drive norovirus epid.
PLoS One, 4(8).
Monath, T. P. & Vasconcelos, P. F. C., 2015. Yellow fever.
Journal of Clin. Viro., Volume 64, pp. 160-173.
Ngo, L. & Haddawy, P., 1995. Probabilistic logic
programming and Bayesian networks. Lecture Notes in
Computer Science, Volume 1023, pp. 286-300.
Norsys, 1995-2017. https://www.norsys.com/netica-
j/examples/SimulateCases.html.
Onisko, A., Lucas, P. & Druzdzel, M. J., 2001. Comparison
of Rule-Based and Bayesian Network Approaches in
Medical Diagnostic Systems. Portugal.
Rev2, 2017. HealthInformatics Conference: Reviewer
comment #2. Unknown: Primoris.
Ruttenberg, A. et al., 2016. Infectious Disease Ontology.
http://purl.obolibrary.org/obo/ido.owl.
Semakula, H. M., Song, G., Achuu, S. P., 2016. A Bayesian
belief network modelling of household factors
influencing the risk of malaria. Vol 75.
Shirai, O., Tsuda, T. & Kitagawa, S., 2002. Alcohol
stimulates mosquito. Journal of the American Mosquito
Control Association, 18(2), pp. 91-96.
Shirai, Y., Funada, H. & Seki, T., 2004. Landing preference
of Aedes albopictus on human skin among ABO blood
groups, secretors or nonsecretors. Journal of Medical
Entomology, 41(4), pp. 796-799.
Third, A., 2014. BioPortal: CARRE Risk Factor Ontology.
https://bioportal.bioontology.org/ontologies/CARRE.
Vinarti, R. A. & Hederman, L. M., 2017. Personalization
of Infectious Disease Risk Prediction Towards
automatic generation of a Bayesian Network.
Thessaloniki, Greece.
Wertheim, H. F. L., Horby, P. & Woodall, J. P., 2012. Atlas
of Human Infectious Diseases. Oxford: Wiley-
Blackwell.
WHO, 2003. Climate Change and Human Health - Risks
and Responses Summary, Geneva: WHO.
Wu, X. et al., 2016. Impact of climate change on human
infectious diseases. Vol. 86.
Yi, H., Devkota, B. R. & Yu, J.-s., 2014. Effects of global
warming on mosquitoes &amp; mosquito-borne
diseases and the new strategies for mosquito control.
Entomological Research, 44(6), pp. 215-235.
HEALTHINF 2018 - 11th International Conference on Health Informatics
126
