Disruption Recovery within Agent Organisations in Distributed Systems

Asia Al-karkhi and Maria Fasli

School of Computer Science and Electronic Engineering, Essex University,

Wivenhoe Park, Colchester CO4 3SQ, U.K.

Keywords:

Disruption, Multi-agent System, Organisation, Head, Henchman Recovery Protocol, Service Provider.

Abstract:

One of the challenging problems in distributed systems is dealing with agent failure. In this paper, we present

an approach for task recovery in a distributed system where the agents self-organise themselves in organisa-

tions in order to execute tasks more efﬁciently. However, within this setting, unpredictable events can happen

and agents can fail leading to task failure and weaker overall system performance. We present the Hench-

man recovery protocol which enables the agents within an organisation to maintain task execution and recover

tasks in the event of agent failure. We show how the protocol helps to maintain the efﬁciency of the cre-

ated organisations through a series of experiments in a simulated distributed task execution system which has

been implemented in Repast Simphony. The experimental results demonstrate the robustness of the proposed

solution in a number of settings.

1 INTRODUCTION

In distributed systems, it is very often the case that

agents may not be able to carry out tasks because it

may be busy or not active, hence delegation is one

of the available options. Commonly, no agent can be

designed with full knowledge about other agents in

the vicinity of a network of agents. In complex agent

systems, agents may form groups, coalitions or organ-

isations under certain conditions in order to improve

the execution of tasks or the utilisation of resources or

improve the agent connections, (Corkill et al., 2015;

Horling and Lesser, 2004; Dignum, 2009).

This work is mainly targeting data centres in the

cloud to supply a more efﬁcient service level to the

customers’ requests by providing both a theoretical

framework and a simulated model. In our proposed

environment we will recruit a multi-agent to encap-

sulate heterogeneous types of resources to simulate

data centres that can be accessed on demand by many

customers for any amount of time. Therefore, all the

explanation in this paper is to demonstrate how the

agents recruitment process will be carried out. Fur-

thermore, to simulate the customer side, we have cre-

ated a customer agent that asks for services by send-

ing customers’ tasks requests to the agents network

using web connections.

However, one of the main challenges in open and dis-

tributed systems is the occurrence of unpredictable

events which can affect the individual agent perfor-

mance and in consequence the overall system perfor-

mance. For instance, agents can fail and this may

mean that any action(s) or task(s) that an agent has

taken on would also fail to be executed. Agent fail-

ure within an organisation also creates problems as

agents will fail to execute tasks and other agents may

still be delegating tasks to them if they are unaware

that they are no longer in operation. Hence, appro-

priate mechanisms are needed to handle agent failure

within organisations so that their functionality and ef-

fectiveness can be maintained.

The main emphasis of this paper is on devising mech-

anisms that can be utilized in the context of organisa-

tions within distributed systems that would make the

organisation of autonomous agents more efﬁcient in

handling failures and hence maintain their efﬁciency

and effectiveness. The speciﬁc scenario that we are

exploring is based on a scaled free network (Barabsi

and Bonabeau, 2003) which is a common network

topology, often found in social networks, and infras-

tructure networks (e.g. electricity grids, communica-

tion networks and the Internet. In the implemented

network model, the agents may decide to create or-

ganisations to improve the number of executed tasks

and increase their utility and make better utilisation

of their resources. Hence, we show that the agent or-

ganisations can be more resilient to unexpected dis-

ruption that could affect the system performance. We

Al-karkhi, A. and Fasli, M.

Disruption Recovery within Agent Organisations in Distributed Systems.

DOI: 10.5220/0006574203710378

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 371-378

ISBN: 978-989-758-275-2

371

present a protocol for recovering from agent failure,

called “Henchman Recovery Protocol (HRP)”, whose

task is to maintain the functionality of the created or-

ganisations.

The rest of the paper is organised as follows. Section

2 discusses the related work in the literature. Sec-

tion 3 presents the system scenario which includes

descriptions of the organisations, Members and cus-

tomer agent with task message formats. Section 4

presents the HRP, and also introduces the protocol

that is used by each Henchman inside the created or-

ganisation to monitor the Head. Sections 5 presents

the experimental work. Finally, the paper ends in sec-

tion 6 with the conclusion and proposals for future

work.

2 RELATED WORK

The main aim for designing peer to peer networks is

to apply fair and sensible allocation of the spare re-

sources using different resource allocation methods.

However, the existence of disruption and other obsta-

cles that are sometimes associated with data transmis-

sion such as machine being ofﬂine or high progression

incited by user activities, may lead to minimise the

correct utilisation of the available resources (Botev

et al., 2015).

In grid distributed systems, wireless networks and

cloud computing, failure events such as improper sys-

tem service or physical failure is still under research.

Hence, this work is overlapped with grid networks

and cloud data centres due to the great similarity be-

tween these systems in term of concepts and hetero-

geneous types of resources as have been explained in

(Foster et al., 2008).

Researchers (Tesauro et al., 2004) have emphasized

that distributed systems should provide self-healing,

self-conﬁguration and self-protection. In their pro-

posed solution, they provided a software solution

called “Unity” that managed a data centre using an

autonomous multi-agent system. They have used

the agents to self-heal and self-organise the com-

putational resources by creating 17 clusters of self-

management agents in the data centre, so many cus-

tomers can access the resources at the same time.

Their work has been implemented only on a small

size data centre and to extend their work for indus-

try purposes, a bigger size of data centre is essential.

In our created models the agent’s network can create

a second layer (organisations) depending on the size

of the available network. (Gutierrez-Garcia and Sim,

2010), also focus on employing agents to improve the

service level in clouds. They have suggested cus-

tomer agents, broker agents, service provider agents

and resource agents. These agents are using self-

organisation technique to provide composition ser-

vices from the cloud to the customers and support

achieving a service level agreement. However, in their

work, agents have been implemented without deci-

sion making capability, while in our work, adding

such capability to the agents has enhanced the service

level provided to the customers.

Multi-agent systems have been borrowing recovery

protocols from other domains. For example, client

server, world wide web, peer to peer network and mo-

bile ad-hoc network. Disruption can happen when the

resources are limited with limited access to certain

type of resources or when there is a more likely in-

direct access to the resources.

Rollback recovery protocols have been recruited in

different distributed environments, as in (Elnozahy

et al., 2002). The authors have presented a survey to

distinguish between different types of rollback recov-

ery protocols and compared their performance. The

ﬁrst one is the checkpoint based protocol, which is

based on choosing a checkpoint to restore the system

to that point. The second one is the log based proto-

col, which is a combination between the checkpoint

protocol and log in information protocol. These pro-

tocols deal with nodes in a network as groups of pro-

cesses that communicate between each other. These

interactive processes are accessing a storage appli-

ance periodically to save recovery information which

could have at least a checkpoint state for those pro-

cesses during passing messages to each other. They

could then be used when they would return to active

after processing the disruption. However, the pro-

cesses could be working on old information after re-

turning to their original state, something which might

be no longer required by the system.

(Miyashita et al., 2015a; Miyashita et al., 2015b) have

claimed their work is to solve resource conﬂict. We

observe that their work is based on the Team For-

mation (T F) game to create teamwork as a solution.

Their system will not produce teams unless the sys-

tem is very busy or there is a demand to create them.

However, the TF game is not able to work with a large

numbers of agents, i.e. a large network. Hence, they

have not indicated the maximum network size and the

number of created organisations. A team formaliza-

tion process depends only on the reciprocal agents,

i.e. agents which have previous knowledge about

each other during the network construction time. In

our work, the experimental work shows the maximum

number of agents could be 5000. In addition, the busy

agents are making use of other non-busy agents in the

organisation creation process to execute more tasks.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

372

3 MODEL SCENARIO

The system consists of a set of agents

{

, a

, ..., a

}

; these agents will enter the

environment one after another. The number of con-

nections between the agents will be created within

a speciﬁc limit X, i.e. each agent should maintain

its connections to be no more than the value of X

to avoid creating a centralized network which is

quite similar to the scale free network (Barabsi and

Bonabeau, 2003). The network is then constructed by

exchanging messages between the agents, these mes-

sages consist of (Agent

, Resources

in f ormation) to

be sent over each connection. An agent’s connections

are not ﬁxed; later on, the agents will change their

connections for better performance and utilisation.

Consequently, the created network is a heterogeneous

environment, i.e. agents have different types of

resources to accomplish as many types of tasks

as possible. During the connection process, each

agent will share its contact details with its randomly

selected neighbour (s), So that each agent will have

known contacts in its contact list.

In addition, to simulate the semantic type of resources

which already exists in the internet, the resources

have been represented as a vector of integer values,

where agent resources are AR =< r 1, r 2, r 3 >,

r i=(0 −4). To this end we have explained the created

network of agents.

Within the simulation model there is a customer

agent which is an entity that is in charge of sending

customers’ tasks to the network of agents. Each

customer will send tasks to the network through each

cycle of the simulation time. The tasks will be sent

as a message called customer message CM which

contains the following parameters: CM ={CID, T ID,

RV , T T L, RA, T D}, where:

• CID: The Customer ID is a unique identiﬁer

which is used to identify customers and en-

able communication between them and service

providers regarding the status of tasks (in task

queue, executed, or failed).

• T ID: Task ID is a unique identiﬁcation number

given to each task, where each customer can send

a different number of tasks in each cycle.

• RV : Resource Vector represents a sequence of

simulated resources, RV = < r1, r2, r3 >, which

may be different from task to task.

• T T L: Time to Live is number of hops for the cus-

tomer message to traverse through the network of

agents.

• RA: Required Accuracy represents the required

accuracy for matching the customer resources

with the agent’s resources. Its accuracy values be-

tween (0 − 12) are pre-agreed between the cus-

tomer and the agents.

• T D: The Task Deadline represents the deadline

by which the customer would expect to have the

result of the task execution back.

When the customer agent sends a customer task to an

agent in the network, this task will only be accepted

and executed by the receiving agent in the network if

it meets certain conditions that are checked by each

agent. The ﬁrst such condition is a matching process

between the customer resource vector and the receiv-

ing agent resources using the well-known Manhattan

Distance. The resulting matching value should be met

with the task required accuracy, which is a speciﬁc

value between (0 − 12).

For example, if a customer RV is <0, 0, 0> with a RA

equal to 6, and the recipient agent RV is <2, 2, 2>,

then when applying the Manhattan Distance equation,

the match has then occurred. The second condition

checked is the T T L, if T T L = 0, the task will be con-

sidered failed, otherwise, if T T L > 0 the receiving

agent will check the T D of the task; if it is sufﬁcient

then it will be executed, but if its not sufﬁcient (ei-

ther because the received agent is currently executing

a task or its queue of tasks has number of tasks) the

agent will then delegate the task to a neighbour agent

in the network. Hence, if an agent cannot satisfy at

least one of the conditions mentioned above, the task

will be either failed or delegated to another agent in

the network and so on.

In this network environment, the agents can fail (con-

trolled by a probability) to simulate the situation when

agents can be ofﬂine and are unable to accept mes-

sages and execute tasks for a period of time. The po-

tential of an agent failing is controlled by a probability

based on a uniform distribution to simulate real-life

network failure occurrences. When a customer agent

sends tasks to the network, a feedback from the re-

ceiving agent should be issued in return that must be

one of the following possibilities:

• “Task has been executed”: If an agent has ac-

cepted the task.

• “Task in AT Q”: If the receiving agent is able to

execute the task but is currently executing another

task and the deadline of the new task is within the

time consideration of the receiving agent, then it

will be added to the agent Accepted Task Queue

AT Q.

• “Task has been failed”: If any one of the condi-

tions has not been met, the T D and T T L =0.

Disruption Recovery within Agent Organisations in Distributed Systems

373

3.1 Organisation Creation Process

In a network of agents, an agent is called Busy if it

accepts a task and is currently Busy executing it for a

period of time. We have deﬁned another status called

“Busy agent and AT Q > K” which means an agent

that is currently Busy, it has just received another task

from the customer and its ATQ contains K number

of accepted tasks, K 6 W , where W is the maximum

size of AT Q. An agent with these conditions is one

that can start the organisation creation process and by

default it is the Head of the organisation. The newly

created organisations emerge based on the gossip al-

gorithm, (Serugendo et al., 2011).

In earlier work that is presented in (Al-karkhi and

Fasli, 2017), we have used a gossip algorithm where

the Head is sending a multicast message to randomly

selected neighbours asking the agents to join its or-

ganisation and be its service providers.

But here in Algorithm 1, we have introduced a better

usage based on the gossip algorithm where the Head

sends the multicast message to all directly connected

neighbours to create the organisation. in both works,

the decision of accepting to join or not, depends on

the status of the agents of being busy or less busy at

that time. The less busy agents are the most likely

ones which would accept to join the organisation in

order to improve their resources utilisation. An “ac-

cept to join” message will be sent to the Head with

its contact details. If the Head’s message encounters

a busy agent, that agent will only convey the message

to other agents in the network. The size of an organi-

sation may vary based on the status of the agents that

receiving the Head’s message. The Head’s message

will continue to be transmitted over the network until

it returns back to the Head or it’s T T L has expired.

To this end, the system has added a virtual layer “an

organisation” over the network of agents. We believe

that the creation of organisations will lead to better

utilisation of the system resources.

The grid and cloud computing are focusing on provid-

ing a powerful range of resource sharing in their dis-

tributed environment. But, it has been found that in an

organisation that is part of a grid computing system, a

computational node can be underutilised and not meet

its full power. i.e it can be only utilised or be busy less

than 5% of the time (Haider and Nazir, 2016). We are

aiming to increase the agent’s resources utilisation by

allowing an agent to join more than one organisation.

This lets us execute more tasks and makes the system

more resistant to the failure. For example, if a Mem-

ber agent receives a task and cannot execute it, then it

will send the task initially to the Head of the ﬁrst or-

ganisation that the agent had joined (since it can join

more than one organisation). The Head will send the

task to its Members if one of them can not accept the

task, the Head can send the task to another Member

that can satisfy the required resources and accuracies

and so on for all other joined organisations. If the

task cannot be executed inside any joined organisa-

tions, then the Member will work as if there is no

organisation i.e the task will be delegated to one of

the Member’s neighbours with the TTL and deadline

constraints.

However, there is still a number of constraints on the

resulting self-organised system and on the resulting

task execution values such as the existing network

size, the number of tasks being issued in each cy-

cle and the simulation running time. So, in our work

we have invented a mechanism named the HRP as an

added solution for the creation process of agent organ-

isations. The ﬁrst part of this protocol has been im-

plemented during runtime of the gossip algorithm by

calling “BeMyHenchman” which will be described in

section 4.1 in this paper. The second part is explained

in section 4.2.

Algorithm 1 : Gossip Protocol.

Select an agent a

while true do

cycle i

.TransmitTo ([N] targets (agents)), [N] is the

local membership contact list of agent a

if [N] are non-Busy agents then

.Infect (gossip message)

They have the option to join or not to the cre-

ated organisation.

call “BeMyHenchman” to select an agent to

be Henchman.

else

The Busy agents will be used only to transmit

the message to their peers.

end if

cycle i=cycle i+1

The receiving agent in the last period broadcasts

the gossip message to its peers.

end while

3.2 Model Description

This section presents the description for the second

layer (organisations) above the existing agent’s net-

work.

Every created organisation in the system has the fol-

lowing format:Org= {Org

, Org



, ..., a



, HM,

Z},where:Org

: a unique identiﬁer for each created

organisation. Org

: is the name of the Head for an or-

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

374

ganisation.



, ......, a



: the Members in the organi-

sation at a speciﬁc time. HM: is the Henchman name,

the Head’s follower in each created organisation. Z: is

the maximum number of accepted Members to join in

each organisation which is a setting parameter for all

the organisations but the number of Member joined in

each organisation may vary from one organisation to

another as mentioned in section 3.1.

3.3 Model Implementation

The following are the principles for the implemented

model.

• a

is an agent that can join f number of organisa-

tions as a maximum but it can decide to join only

a random number g of f , where g 6 f .

• The role an agent a

in an organisation (Org) is a

service provider, where: Org 6=

0 and 1 6i6j.

• The roles for a

within an organisation Org can be

{Head, Service Provider, Henchman}.

• A Head in each organisation is responsible for for-

warding the message to its Members bearing the

customers task message. The function of a Head

in an organisation is to coordinate the work in its

organisation. The Head may also act as Service

Provider to maximise its resources utilisation.

4 HENCHMAN RECOVERY

PROTOCOL (HRP)

After implementing the organisation’s model in the

previous section, we have seen that the number of ex-

ecuted tasks has been increased, and we have demon-

strated that with different network sizes in the de-

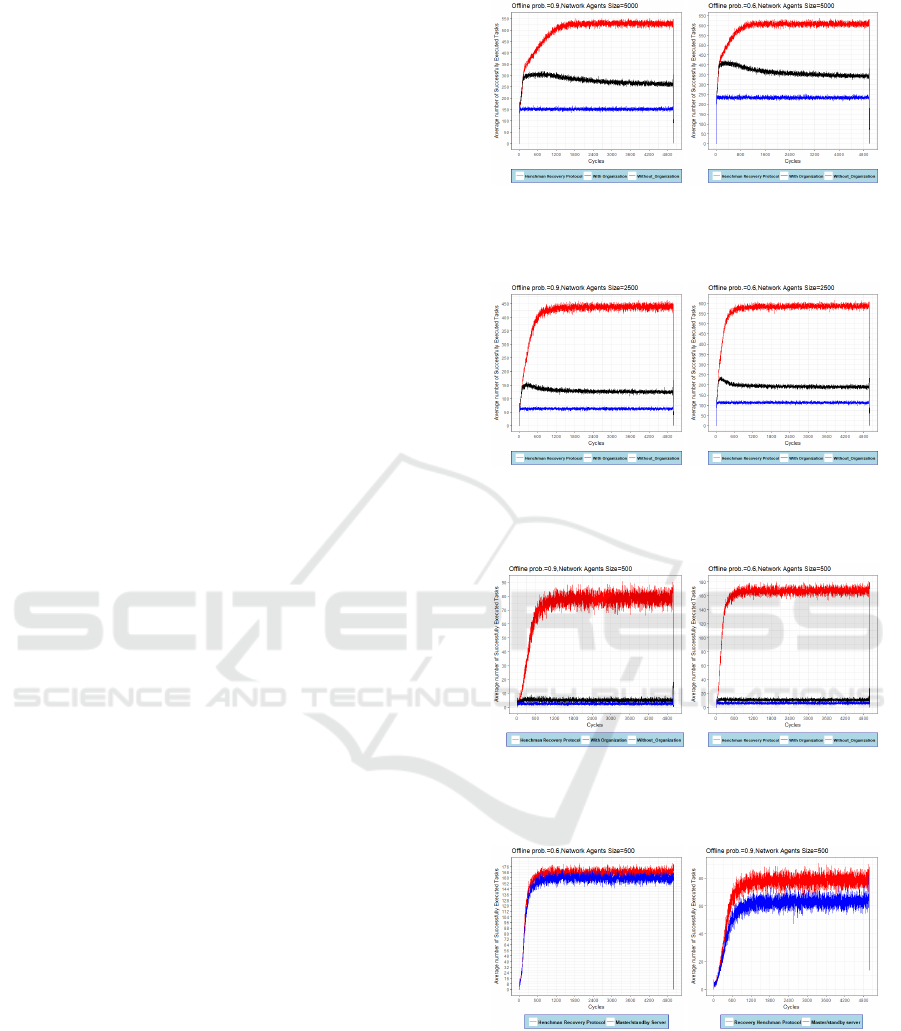

picted Figures in section 5 below. The black line in

the ﬁgures indicates the organisation’s model perfor-

mance. However, the environment is dynamic, so that

we need more powerful management to be imposed

on the structure of the organisations to provide an ef-

ﬁcient service to the customers, mainly to detect the

Head failing.

Our method focuses on providing the Head of each

organisation with a follower called Henchman.

The Head is the one which is responsible for dis-

tributing the tasks to its Members in the organisa-

tion, so that when the Head has failed, the Hench-

man will act as a substitute to the failed Head provid-

ing self-organised capability to the system to maintain

the functionality of the created organisation. Since

the customer is sending tasks to the network, there is

a risk from sending the tasks to a failed Head, and

here the Henchman’s role in the recovery protocol is

to prevent losing the tasks.

4.1 Henchman Recruitment

The Head agent sends a message to the ﬁrst agent

, where 1 6i6j that joins its organisation asking

whether it can be its Henchman (HM) and sends

the same message to other agents that join subse-

quently until it assigns a Henchman for its organisa-

tion. The Head has the responsibility to synchronize

its database (DB) with the Henchman which contains

the contact details of the Members of the organisa-

tion, and also for every newly joined agent. This

means that the Henchman DB will always be identical

with the Head’s database. When the Head is ofﬂine,

the Henchman will immediately replace that Head to

maintain the functionality of the organisation.

The Henchman is a Member as well as it is responsi-

ble for checking the availability of the Head by send-

ing a heartbeat message “are you alive” to the Head

in random cycles. This will be explained in more

detail in the Algorithm 2 called the “Heartbeat”. If

the Henchman does not receive any acknowledgement

back from the Head, the Henchman will declare to all

other Members and the customer agent that the Head

has failed and the new Head is the Henchman in order

to redirect the trafﬁc to itself instead. When the Head

recovers, i.e. the Henchman receives “I’m alive” mes-

sages again from the Head, the Henchman will in-

stantly inform the organisation Members as well as

the customer that the Head is now alive and the or-

ganisation should be back to its normal condition.

However, there is a small chance that the disruption

may effect both the Head and its Henchman at the

same time. In this case if the customer agent sends

tasks during that time, tasks will be considered failed,

until the Head and/or the Henchman return(s) back to

active after being ofﬂine for a random number of cy-

cles.

4.2 Henchman Heartbeat Algorithm

After assigning the desired Henchman, in Algorithm

2, the Henchman will check the availability of the

Head after a random number of cycles. At this point

the task messages received by the Head are auto-

matically seen by the Henchman in order to keep

the Henchman continuously updated about the cus-

tomer’s CIDs.

Disruption Recovery within Agent Organisations in Distributed Systems

375

Algorithm 2 : Henchman Heartbeat Algorithm

while (true) do

Henchman.SendMessage (Head, “Are you

Alive.”)

Head.SendMessage (“I’m Alive”, Henchman)

if (Henchman.Receive (Head, “no message”)

then

Henchman.SendMessage(Customer, Mem-

bers) // To redirect them to the Henchman.

else

The Head is online again, redirect everything

back to the Head

Henchman.SendMessage (Customer, “Head is

alive”)

Henchman.SendMessage (Members, “Head is

alive”)

in case they would like to send tasks or receive

tasks to/from the Head.

end if

keeps on checking the Head in random cycles

cycle i=cycle i+Random(1, N)

end while

5 EXPERIMENTAL WORK

The network has been implemented in Repast Sim-

phony which is an Agent Based Modeling (ABM)

simulator using Java programming (Macal and North,

2014). Table1 shows the setting parameters which

have been used to set up the experiments, where (ND

= Normal Distribution, (T and M) are given values of

the mean and the standard deviation, H = Head, HM

= Henchman, SP = ServiceProvider).

Table 1: Henchman Recovery Protocol.

Agents Tasks Prob.ofﬂine(1) Prob.ofﬂine(2) Ofﬂine cycles

5000 ND*T+M H=0.9, HM=0.6 H=0.6, HM=0.2 H(2-5), HM+SP=(10-11)

2500 ND*T+M H=0.9, HM=0.6 H=0.6, HM=0.2 H(2-5), HM+SP=(10-11)

500 ND*T+M H=0.9, HM=0.6 H=0.6, HM=0.2 H(2-5), HM+SP=(10-11)

The three models (HRP, With organisation and With-

out organisation) as shown in the ﬁgures below, have

been run for 5000 simulation cycles with the setting

parameters shown in Table 1. The simulation has

been run for 5000 cycles to produce the result for the

model with HRP and network size=5000 agents, and

re-executed for 10 times with the setting parameter re-

vealed in Table 1, and the same process has been ap-

plied for the other two models. The experiments have

shown the operation of all the three models to differ-

ent network size (5000, 2500, 500) and with different

ofﬂine probability values (0.9, 0.6) for each network

size. These experiments measure the effect of the sim-

ulated models on the system performance using Equa-

tion 1. The equation has been used to calculate the

average number of successfully executed tasks during

the simulation cycles (ANSET), the absolute value is

the Manhattan Distance, used to produce the value of

the matching process between the requested resources

issued by the customer for each task and the matched

resources from the agents for all the tasks which are

executed successfully.

ANSET =

∑

i=1

j=2

∑

j=0



− AR



(1)

Where:

R: number of runs = 10.

: the requested resources vector for the task j.

: the matched agent resources that performs task

j successfully.

j = 0 to 2 : the index of the tuple that represent the

requested resource vector.

The Figures below will demonstrate the differences

in the average number of successfully executed tasks

within cycles for the models (HRP, With organisation

and Without organisation) for different network sizes.

With network size of 5000 agents, Our tests revealed

that the HRP in comparing with other two models

has positively executed higher percentage of tasks

with different ofﬂine probability values (0.9, 0.6), as

shown in Figures 1a and 1b. Also similar results have

been achieved with network size of 2500 agents, Fig-

ures 2a,2b. The same performance from the HRP has

also achieved with network size of 500 agents in com-

parison with the other two models. However, with

network size of 500 it was very difﬁcult for the agents

in both (With organisation and Without organisation)

models to cope with the failing probability with the

high number of tasks issued from the customers in

each cycle, as shown in Figures 3a and 3b.

The most noteworthy output in the depicted Figures

is from the HRP. Clearly, the Henchman has added

advantages when it has been recruited in each organ-

isation due to its integrated roles: temporary Head,

follower, and a Member. In addition, the fact that the

existence of heterogeneous Members in the organisa-

tions can operate in conjunction with the HRP to cope

with organisation utilisation when some Members be-

ing ofﬂine. This demonstrates the idea that generating

heterogeneous organisations structure and imposing

roles for the agents in the system will improve the

system performance as more tasks can be recovered.

Moreover, in the models (the HRP and With organi-

sation) even if no Members were able to execute the

task, a task still have the chance to be executed by

delegating it to one of the neighbour agents. So that,

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

376

With organisation model shows in between perfor-

mance and that implies even with the existence of the

organisations, the model is still prone to loose tasks

due to the high number of tasks issued from the cus-

tomer agent and the probability of agent failing. How-

ever, With organisation model, the system shows bet-

ter performance than the system Without organisation

for all presented network sizes and ofﬂine probabili-

ties. This is because the Without organisation model

has no organisation and depends only on task dele-

gation if the receiving agent cannot accept the given

tasks. Hence, this is not an adequate solution due to

presence of agent failure.

To compare and evaluate our work against other work

in the literature, mainly the work that deals with fault

tolerance in the networks, the master/standby server

(MAS/SBS) has been investigated (Chen, 2007). Ini-

tially, for the conﬁguration and setting purposes, both

of the servers should be available from the begin-

ning of the network creation process, and the con-

nection link should be initiated by the MAS to send

acknowledgement messages to the SBS showing its

availability. Therefore, to create that scenario in our

work, in each organisation we have speciﬁed the Head

to act as MAS called Master Head (MAH) and also

speciﬁed another agent in the organisation to act as a

SBS called Standby Head (SBH). The SBH will only

respond to the customer messages when the MAH

of the organisation is down. In our work, it is the

Henchman’s responsibility to send the heartbeat mes-

sages to the Head to check its availability. In ad-

dition, the organisation structure (Head, Henchman,

Members) with its roles leads to achievement of self-

organised groups that can overcome the failure issue

as explained in subsection 3.1 above, unlike with the

MAS/SBS method where the SBS can only switch

to active mode when the MAS has failed. This ex-

periment has been implemented with the same set-

ting parameters for the same task distribution that has

been presented in Table 1. However, the network

size has been tested with 500 agents as a testbed to

verify our system, Figures 4 a and 4 b with differ-

ent ofﬂine probabilities (0.9, 0.6). Our system has

demonstrated on average a better performance in each

cycle compared to the MAS/SB server. This is be-

cause, in our scenario, the Henchman has a role in the

self-organisation process where it acts as a Member

that can receive and execute tasks as well as a fol-

lower to the Head of the organisation. In contrast in

the MAS/SBS approach, the SBS is only a backup

server and only turned to active mode when the MAS

is failed.

(a) (b)

Figure 1: Average Number of Successfully Executed Tasks

for 5000 agents and ofﬂine probability 0.9 and 0.6.

(a) (b)

Figure 2: Average Number of Successfully Executed Tasks

for 2500 agents and ofﬂine probability 0.9 and 0.6.

(a) (b)

Figure 3: Average Number of Successfully Executed Tasks

for 500 agents and ofﬂine probability 0.9 and 0.6.

(a) (b)

Figure 4: Comparison Between Henchman Recovery Pro-

tocol and The Master/standby Server, probability 0.6 and

0.9.

6 CONCLUSION

This paper has provided a framework for proposed

data centres, mainly focusing on how to recruit agents

Disruption Recovery within Agent Organisations in Distributed Systems

377

as part of the process of creating organisations. We

highlighted the importance of solving the disruption

problem using a self-organised multi-agent system as

well as providing a solution in which the organisa-

tions of agents emerge depending on how busy agents

get and this requires no central control. We have man-

aged to demonstrate the HRP as a remedy for the

disruption problem. It is employed during the self-

organisation process when the Head of each organisa-

tion decides to have one of its Members as a Hench-

man. The purpose of the Henchman agent is to main-

tain the functionality of the organisation and its ef-

fectiveness in case of agent failure. A heartbeat al-

gorithm has been used by each Henchmen to watch

each organisation’s Head. Experimental work has

demonstrated the HRP as a reliable solution for a self-

organised system. Our future work is to extend our

system and implement one of the leadership compe-

tition protocol between the Head and the Henchman.

And we can employ another Henchman inside the or-

ganization to maintain the organisation functionality

in case the Head and the Henchman are both being

ofﬂine.

REFERENCES

Al-karkhi, A. and Fasli, M. (2017). Deploying self-

organisation to improve task execution in a multi-

agent systems.

Barabsi, A.-L. and Bonabeau, E. (2003). Scale-free net-

works. Scientiﬁc American, 288(5):50–59.

Botev, J., Rothkugel, S., and Klein, J. (2015). Socio-

inspired design approaches for self-adaptive and self-

organizing collaborative systems. In Self-Adaptive

and Self-Organizing Systems Workshops (SASOW),

2015 IEEE International Conference on, pages 19–24.

IEEE.

Chen, C.-W. (2007). Dual redundant server system for

transmitting packets via linking line and method

thereof.

Corkill, D. D., Garant, D., and Lesser, V. R. (2015). Ex-

ploring the effectiveness of agent organizations. In

International Workshop on Coordination, Organiza-

tions, Institutions, and Norms in Agent Systems, pages

78–97. Springer.

Dignum, V. (2009). The role of organization in agent sys-

tems. Handbook of Research on Multi-Agent Systems:

Semantics and Dynamics of Organizational Models,

pages 1–16.

Elnozahy, E. N., Alvisi, L., Wang, Y.-M., and Johnson,

D. B. (2002). A survey of rollback-recovery proto-

cols in message-passing systems. ACM Computing

Surveys (CSUR), 34(3):375–408.

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud

computing and grid computing 360-degree compared.

In Grid Computing Environments Workshop, 2008.

GCE’08, pages 1–10. Ieee.

Gutierrez-Garcia, J. O. and Sim, K.-M. (2010). Self-

organizing agents for service composition in cloud

computing. In Cloud Computing Technology and Sci-

ence (CloudCom), 2010 IEEE Second International

Conference on, pages 59–66. IEEE.

Haider, S. and Nazir, B. (2016). Fault tolerance in com-

putational grids: perspectives, challenges, and issues.

SpringerPlus, 5(1):1991.

Horling, B. and Lesser, V. (2004). A survey of multi-agent

organizational paradigms. The Knowledge Engineer-

ing Review, 19(4):281–316.

Macal, C. and North, M. (2014). Introductory tutorial:

Agent-based modeling and simulation. In Proceed-

ings of the 2014 Winter Simulation Conference, pages

6–20. IEEE Press.

Miyashita, Y., Hayano, M., and Sugawara, T. (2015a). For-

mation of association structures based on reciprocity

and their performance in allocation problems. In Inter-

national Workshop on Coordination, Organizations,

Institutions, and Norms in Agent Systems, pages 262–

281. Springer.

Miyashita, Y., Hayano, M., and Sugawara, T. (2015b). Self-

organizational reciprocal agents for conﬂict avoidance

in allocation problems. In Self-Adaptive and Self-

Organizing Systems (SASO), 2015 IEEE 9th Interna-

tional Conference on, pages 150–155. IEEE.

Serugendo, G. D. M., Gleizes, M.-P., and Karageorgos, A.

(2011). Self-organising software: From natural to ar-

tiﬁcial adaptation. Springer Science & Business Me-

dia.

Tesauro, G., Chess, D. M., Walsh, W. E., Das, R., Se-

gal, A., Whalley, I., Kephart, J. O., and White, S. R.

(2004). A multi-agent systems approach to autonomic

computing. In Proceedings of the Third International

Joint Conference on Autonomous Agents and Multia-

gent Systems-Volume 1, pages 464–471. IEEE Com-

puter Society.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

378
