Utilising the Tor Network for IoT Addressing and Connectivity

Felix W. Baumann

1,2

, Ulrich Odefey

, Sebastian Hudert

Michael Falkenthal

and Uwe Breitenb

ucher

TWT GmbH Science & Innovation, Ernsthaldenstr. 17, D-70565 Stuttgart, Germany

Institute of Computer-aided Product Development Systems, University of Stuttgart, Universit

atsstr. 38,

D-70569 Stuttgart, Germany

Institute of Architecture of Application Systems, University of Stuttgart, Universit

atsstr. 38, D-70569 Stuttgart, Germany

Keywords:

Tor Network, IoT Connectivity, Internet of Things, Addressing.

Abstract:

For Internet of Things (IoT) devices and cyber-physical systems (CPS), it is required to connect them securely

and reliably to some form of cloud environment or computing entity for control, management and utilisation.

The Internet is a suitable, standardized, and proven means for the connection of IoT devices in various sce-

narios. Connection over the Internet utilises existing protocols, standards, technologies and avoids investment

in new, specialised concepts. Thereby, this connection requires a transparent addressing schema which is

commonly TCP/IP, using domain names and IP addresses. However, in industrial, commercial and private

networks, the addressability and connectability/connectivity is often limited by ﬁrewalls, proxies and router

conﬁgurations utilising NAT. Thus, the present network conﬁgurations hinder the establishment of connec-

tions between IoT devices across different locations. Therefore, the method for connecting IoT devices in a

client-server conﬁguration proposed herein utilises the Tor (previously: The onion router/routing) network for

addressing of and secured communication to IoT and CPS devices. It is an overlay protocol that was designed

to allow for robust and anonymous communication. The beneﬁt of this approach is to enable addressability

and connectivity of IoT devices in ﬁrewalled and potentially unknown and changing network environments,

thus allowing for IoT devices to be used reliably behind ﬁrewalls as long as outgoing communication is not

blocked.

1 INTRODUCTION

In scenarios where IoT (Internet of Things) systems

are to be deployed, it is essential to address these

devices reliably even if they are located behind cor-

porate or other ﬁrewalls. The reliable addressing

across various network scenarios for IoT devices is

the key problem to solve. Furthermore, connectiv-

ity to and of such devices can be problematic due to

restrictive network settings. This work is motivated

by the SePiA.Pro project (Deutsches Forschungszen-

trum f

ur K

unstliche Intelligenz et al., ; Pfeil et al.,

2016; Falkenthal et al., 2017), which provides such

a scenario. In this project, industrial machinery is

equipped with sensors to form cyber-physical sys-

tems (CPS) and enhanced with so called smart ser-

vices, i. e., services operating on data generated by

these CPS in a cloud-like manner (Falkenthal et al.,

2016a). A special component in these smart services

is a so called DataHub, which facilitates uniﬁed and

secure access to and usage of various data sources and

targets within smart service and industrial environ-

ments. These DataHubs have to be addressable and

stackable within networks and over network bound-

aries for cross and inter-company access. Address-

ing and communication with these CPS devices is fa-

cilitated with the proposed mechanism, relying on a

client-server architecture, operating on the Tor net-

work (McCoy et al., 2008; Jansen et al., 2012). The

solution provided here solves the issue of addressing

and connecting CPS/IoT devices via a client-server

system relying on the Tor network, it is motivated

by a scenario of the SePiA.Pro project and described

through its implementation in code. For an introduc-

tion to the nature and structure of the Tor network,

section 3 is provided. The proposed mechanism is

implemented utilising a BASH (Free Software Foun-

dation, Inc., ) script for the client part, intended to be

executed on a micro computing platform, in this case

a Raspberry Pi 2 (Raspberry Pi Foundation, ). The

server part is implemented as a RESTful (Represen-

Baumann, F., Odefey, U., Hudert, S., Falkenthal, M. and Breitenbücher, U.

Utilising the Tor Network for IoT Addressing and Connectivity.

DOI: 10.5220/0006591500270034

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 27-34

ISBN: 978-989-758-295-0

tational state transfer) API (Application programming

interface) using the LoopBack library.

The remainder of this paper is structured as fol-

lows: This implementation is described in section 4,

with the architecture discussed in Sec. 4.1 and the im-

plementation details in Sec. 4.2. The implementation

in and relationship with the SePiA.Pro project, in par-

ticular its

DataHub component is presented in Sec. 5. The

DataHub component of the SePiA.Pro project is de-

scribed in Baumann et al. (Baumann et al., 2017) and

Falkenthal et al. (Falkenthal et al., 2017). This com-

ponent controls, limits, manages, and facilitates the

access and usage of data sources and targets in Indus-

try 4.0 scenarios. This work concludes with a sum-

mary in Sec. 6.

2 RELATED WORK

Guth et al. (Guth et al., 2016) investigated several

state-of-the-art IoT platforms and deduced a gen-

eral and technology-agnostic IoT reference architec-

ture. The presented approach in their work can be

used to implement the abstractly described connec-

tions of their reference architecture between devices,

gateways, IoT integration middlewares, and applica-

tions. While their analysis considers many present

state-of-the-art protocols for connecting IoT devices

to middleware systems and applications, the approach

to overcome the ever-present difﬁculty of addressing

and connecting IoT devices as presented in this work

extends their list of investigated protocols.

Reinfurt et al. (Reinfurt et al., 2016; Reinfurt

et al., 2017) capture the conceptual essence of dif-

ferent ﬁelds of IoT research into patterns. Thereby,

they provide proven nuggets of advice about the de-

sign and characteristics of IoT systems. Our approach

provides concrete solution implementations (Falken-

thal et al., 2014) concerning different abstract solu-

tion principles which are described, e. g., by the pat-

terns Device Gateway, Remote Device Management

and their various different patterns for IoT devices.

Previous work by Baumann et al. (Baumann

et al., 2016c; Baumann et al., 2016a; Baumann

et al., 2016b) provides architectural compositions

and implementations of distributed control systems

for the use case of 3D printing in remote environ-

ments. These systems are based on uniﬁed control of

3D printing devices and associated adaptors via Inter-

net based protocols. Prior works focus primarily on

the server and communication components of these

systems.

3 FUNDAMENTALS OF THE Tor

NETWORK

The Tor network was developed around the mid 1990s

and released in 2002, as an overlay protocol to allow

safe, encrypted, and anonymous usage of the Internet

and its services, such as web browsing, email, chat

and ﬁle-sharing (Chaabane et al., 2010). Originally

the name was used as an acronym, the onion router

or routing, indicating the underlying design princi-

ple: onion routing (Haraty and Zantout, 2014). This

routing principle is based on the nesting of data pack-

ages within each other that are partially unpacked by

stations along the communication path to recover the

encrypted package destined for the next hop or des-

tination. The stations along the way are called Tor

relays, more speciﬁcally middle relays, bridges (pri-

vate relays not generally known to the public) and

exit or end relays. Based on these nodes the Inter-

net trafﬁc is routed over several relays to its ﬁnal

destination in a way that the party on the other end

of the connection can’t trace the trafﬁc back to the

source. This principle ensures the anonymity of par-

ticipants in the Tor network, which has reportedly

been employed by journalists, law enforcement agen-

cies but also for drug trafﬁcking, the distribution of

illegal content over the Internet and other illicit dig-

ital actions. Today the Tor network consists of sev-

eral thousand relays (2017-07-20: 6914 relays with

12.3

GByte

bandwidth

), several hundreds of which

are exit nodes (2017-07-20: 794 exit nodes), the re-

lays connect a given request to its ﬁnal destination in

the Internet. The number of daily users was around 4

million (Dredge, 2013) in 2013. Tor uses a data struc-

ture that can potentially be identiﬁed and ﬁltered by

ﬁrewalls, but also provides means to obfuscate its traf-

ﬁc to avoid detection and disruption (The Tor Project,

Furthermore, Tor allows the consumption of so

called Hidden Services, which are only exposed and

reachable within the Tor network and only by the

users who connect their systems to the Tor network

using a client software. These services are identi-

ﬁed by a .onion address, a 16 alpha-semi-numeric

character of 80 bit length. This domain was declared

a special use domain in 2015 by the IETF (Willis,

2015).

The main drawback of the Tor network is perfor-

mance. The principle of onion routing with all its

relaying steps and the cryptographic operations in-

volved slow down the experienced network speed.

On the other hand, although Tor network ensures

Tor Network Status http://torstatus.blutmagie.de

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

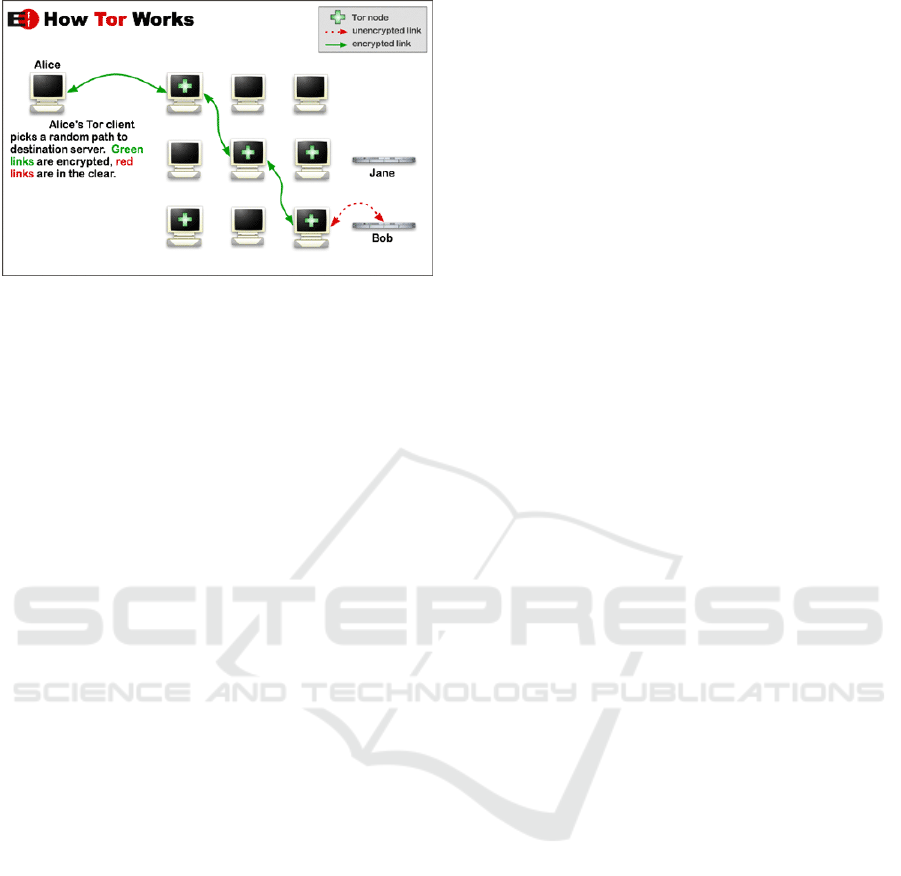

Figure 1: Working Principle of the Tor Network; Fig-

ure source: https://commons.wikimedia.org/wiki/File:Tor-

onion-network.png; author: Electronic Frontier Foundation

(EFF); licence: CC BY 3.0 US.

anonymity for Internet connections to a high degree,

it is not a perfect system (Dingledine, 2011). There

have been several successful attacks (mostly from law

enforcement agencies while investigating for crimi-

nal activities) on the Tor browser, the most vulner-

able part on the Tor system. The mere usage of an

anonymity software can make participants move into

the focus of law enforcement agencies.

So what value does Tor bring to our work? Tor

provides the technological basis for static address-

ing within an overlay and some sense of ﬁrewall ag-

nostic communication layer. Furthermore, it facili-

tates an additional layer of security, i. e., encryption,

between the communicating parties, i. e., the server

and the client. A requirement for the applicability

of this method is that the client system, the CPS or

IoT device, must be able to establish outgoing con-

nections through the ﬁrewall to the Internet. The sys-

tem is designed to be mostly uni-directional, polling

or requesting data from the server, thus, the commu-

nication is coming from the client behind the ﬁre-

wall, mimicking ordinary user behaviour such as web

surﬁng, which is likely to be allowed by the net-

work conﬁguration. The Tor network is actively re-

searched (Ren and Wu, 2010) and developed, thus,

making it more likely that drawbacks and ﬂaws in the

system getting ﬁxed within reasonable time.

4 Tor-BASED ADDRESSING AND

COMMUNICATION FOR IoT

DEVICES

The system is composed of two parts, with the client

component deployed to and operated on a micro-

computing system, such as a Raspberry Pi 2, and the

server component operating on another system, e. g.,

in the cloud. The server component is implemented

as a RESTful API using LoopBack (StrongLoop, )

for NodeJS (Node.js Foundation, ). The server ex-

poses and offers its functionality over HTTP (Hyper-

text transfer protocol) and is described in detail in the

publications referred as (Baumann et al., 2016c; Bau-

mann et al., 2016a; Baumann et al., 2016b). Only the

necessary basic concepts of the server component are

described herein. The conceptual and architectural

composition of the system is described in the follow-

ing section (4.1). A third component, the DeploySup-

port is implemented to facilitate the deployment and

installation of the system and described in Sec. 4.2.

The system has security as a key design principle with

the utilisation of separated execution environments on

the micro computing system, cryptographic signing

and securing of data during transport and using se-

cured data channels. The server component creates

a Tor hidden service to which it binds its RESTful

HTTP API for connection. A Tor hidden service, is a

service within the Tor network, that provides a certain

functionality within the network by a local service,

ordinarily offered over the Internet, such as a HTTP

server, a website or a chat service.

The micro computing platform on which this sys-

tem (the client) is deployed, is a Raspberry Pi 2. In

this ﬁgure, the system is connected to an Ethernet ca-

ble (red cable) and with USB (black cable) to an exter-

nal device, a 3D printer. Furthermore, the platform is

connected with a USB serial connection to a host sys-

tem for debugging purposes. In operation, this USB

serial connection cable is removed.

To further allow control of the platform, besides

the client-server model described in the following, a

SSH server is utilised on the client. On the ﬁrst startup

of the system, passwords for the user and administra-

tor are generated randomly. These passwords are sup-

plied to the server in encrypted form, along with other

installation information.

4.1 System Architecture

Fig. 2 depicts an overview of the implemented sys-

tem. In this ﬁgure, the CPS consists of the 3D printer,

associated sensors, the micro computing system, i. e.,

the Raspberry Pi 2, and their digital representation

and controlling capability. The system depicted here

is communicating over the Tor network over the In-

ternet. In the ﬁgure, the red text ¡ENC¿ is supposed

to indicate an encrypted and secured channel through

the Internet. The central server component is de-

ployed to a system reachable over the Internet, e. g.,

a cloud-based hosting system. The Tor network pro-

vides addressability based on cryptographic hashes,

Utilising the Tor Network for IoT Addressing and Connectivity

as indicated by the text Tor Address in the ﬁgure.

These hashes are unique and identify components.

The client is periodically polling the server for in-

formation and instructions to be executed on the mi-

cro computing system. All communication is initi-

ated by the client and targeted outwards of the net-

work. The server provides work instructions as work

instruction packages in a queue, which is synchro-

nised with an information storage component to en-

sure the consistency of instructions. Conceptually,

the work instruction packages are self-contained com-

pressed packages, that are cryptographically signed

and encrypted. In these packages, the required in-

structions, software, and data can be included, thus,

enabling function shipping.

Fig. 3 depicts the composition and distribution of

the components of the system. The DeploySupport

component consists of BASH scripts, that facilitate in-

stallation and conﬁguration of the client system on the

micro computing system. These components are de-

scribed in the following at a high level.

The installer acquires an image of the latest Arch-

Linux OS distribution and prepare a storage medium

for use in the micro computing system with it. In our

case, this storage medium is an SD-card. Alterna-

tive deployment strategies and mechanisms, such as

Tosca4IoT (Ebner et al., 2017), can be used to deploy

the system onto the micro computing system. For fur-

ther iterations of this software, the extension and us-

age of alternative, automated and controlled, deploy-

ment strategies and mechanisms is intended.

4.2 Prototypical Implementation

Conceptually the client is created from one central,

continually running loop, which checks for internal

state, such as connectivity and utilisation, and per-

forms subsequent actions.

The initial action of the client, prior to entering

the control loop, hardens its execution environment to

make it more robust against attacks.

The following action of the client checks for the

required binaries and scripts in the respective paths

of the operating system. In case the required binaries

and scripts are unavailable, the execution of the client

is terminated. If all required software is present, then

the conﬁguration information is processed. Conﬁgu-

ration information is stored locally to enable consis-

tent utilisation over reboots and system interruptions.

The conﬁguration consists of information such as a

unique identiﬁer, the remote endpoints and encryption

components. The main loop of the client repeatedly

checks the following information in the speciﬁc order:

• Status of the client daemon itself; checking if the

client software is still running on the system and

if the watchdog is present. The client watchdog

is a component to prevent the client from hanging

and restarts the system in case of aborts or errors.

• Connectivity; checking the connectivity of the

system in general, i. e., checking if a network con-

nection is established, if name resolution can be

performed, if certain hosts on the Internet are

reachable and if the central server can be con-

nected with.

• Remaining disk space and space utilisation;

Checking if sufﬁcient disk space for the down-

loading of work instruction packages is available.

In case the disk space is low and insufﬁcient, fur-

ther execution, i. e., fetching of instructions, is

paused and this status is communicated with the

central server.

In case the periodic checks are completed sufﬁ-

ciently, the client polls the central server for work.

This polling for work queries a speciﬁc RESTful end-

point and the result of this poll is either the infor-

mation that currently no work is expected to be per-

formed or information on the number of work pack-

ages and logical location of the work packages. If the

client has work to perform, the information on the ex-

isting work packages is used to query for the work

packages on another speciﬁc RESTful endpoint. The

work package is then transferred over an encrypted

HTTP transport over Tor and stored locally. The work

package is decrypted, deﬂated and checked for in-

tegrity and correctness. In case the correctness and

integrity checks are sufﬁcient, the work package is

deployed into a jailed environment, for additional se-

curity, and executed. During the execution, the output

of the work package is acquired and, alongside, the

resulting information of the work package, stored for

historical and analytical purposes. This information

is submitted to the server with additional information.

The client execution environment then cleans the tem-

porary and execution folders to avoid space issues and

data leakages.

Independent of this main loop there is a secondary

loop executed periodically. This secondary loop ac-

quires status information on the host operating system

and the micro computing system in general and sub-

mits this information to the central server which can

be considered health data. This data includes infor-

mation on the system’s uptime, its CPU and memory

utilisation, the status of network adapters and mem-

ory devices. It is executed completely independent of

the main loop.

As depicted in Fig. 3, the Execution Engine is

part of the client package and executes the acquired

work packages locally. For the execution of the

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

Micro Computer

USB

Cloud

3D Printer

Server

Tor

(Client)

(Endpoint)

Tor

<ENC>

Tor Address

Figure 2: Overview Structure of Implemented System.

Figure 3: Component Structure of Implemented System.

work packages, a speciﬁc Linux jail environment us-

ing chroot is created and the execution is performed

therein. These separate and distinct environments

are utilised to avoid corruption of the system by ma-

licious or malformed work package content. The

initial creation of a prototypical jail environment is

performed by the Installer and the Conﬁgurator as

part of the DeploySupport component as depicted in

Fig. 3. The Log and Storage components on the

server and the client are implemented as ﬁle and di-

rectory based storage systems, to hold the histori-

cal execution output from the work packages and

the operation of the client and server itself. The

implementation of the client is a BASH script and

consists of approximately 1900 lines of code. The

code is available on GitHub and licensed as CC-BY.

See https://github.com/baumanfx/RaspberryPi Client

for more details on the client software. In the follow-

ing pseudo code, the structure of the client execution

is depicted:

harden();

statusHealthLoop & // The ampersand

indicating background/parallel

operation

checkBinaries();

if ( binaryMissing ) { abort(); }

readConfig();

if ( noConfigFound ) { createNewConfig();

}

while ( true ) { // main loop

checkClient();

if ( clientProblem || watchdogFailed )

{

solveProblem(); // e.g. restart

watchdog or client

}

checkConnectivity();

if ( noConnectivity ) {

continue; // skip execution of loop

and start anew

}

checkDiskSpace();

queryServerForWorkpackage();

if ( workpackageAvailable &&

diskSpaceAvailable ) {

downloadWorkpackage();

unzipWorkpackage();

checkIntegrityOfWorkpackage();

Utilising the Tor Network for IoT Addressing and Connectivity

deployWorkpackageToJail();

executeWorkpackage();

aquireLogAndStatus();

submitWorkpackageInformationToServer();

cleanUp();

} } }

The server component is adapted from an-

other project, a cloud-based 3D printer control sys-

tem (Baumann et al., 2016c; Baumann et al., 2016a;

Baumann et al., 2016b), which was designed to dis-

tribute work packages to micro computing platforms

that directly controlled attached 3D printers. The

adaption for the SePiA.Pro project is that the work

packages now contain execution instructions for the

acquisition of sensor data from CPS and control and

management instructions for the control of industrial

machinery over standardized protocols, e. g., OPC UA

(Open Platform Communications Uniﬁed Architec-

ture (Leitner and Mahnke, 2006; TC 65/SC 65E,

2015)).

Furthermore, the components for the installation

and conﬁguration of the system are available on the

same repository. The components for the central

server component are published separately and have

been described in previous publications.

Further supplementary material include service

deﬁnition scripts for the systemd system on ArchLinux

OS, exemplary udev rule ﬁles for the uniﬁed access of

a 3D printer and webcams to the system.

5 INTEGRATION TO DataHub

The problem to be solved with this work is moti-

vated by the research project SePiA.Pro (Deutsches

Forschungszentrum f

ur K

unstliche Intelligenz et al., )

which aims to integrate industrial machinery to smart

services. In this project, the addressability and con-

nectivity of the machines or their CPS representation

is a problem that is solvable via the proposed client-

server system. The project aims to solve challenges

in Industry 4.0. CPS in Industry 4.0 settings de-

mand a seamless integration of a potentially huge set

of data sources, potentially across geographic (such

as production plants) or even organisational bound-

aries (for example when optimizing a whole sup-

ply chain) for large scale data-analysis to support

concepts such as predictive maintenance. A data

integration solution, explicitly addressing such sce-

narios is currently developed within the SePiA.Pro

research project (Deutsches Forschungszentrum f

unstliche Intelligenz et al., ).

The DataHub in this project is a component that

builds upon a modular architecture for integrating var-

ious data sources into one overarching hierarchical

meta model. Each data source (e. g., sensor or even

enterprise database) thus ”exposes” only a projection

of the overall meta model. By employing such a

meta-model integration approach, we can deﬁne and

enforce aggregation, access control, and data redun-

dancy together with master/slave deﬁnition and syn-

chronisation topics in a central manner, simply at the

DataHub node. Designing the DataHub nodes self-

referencable and equipping them with automated pol-

icy enforcement functionality (Baumann et al., 2017)

allows us to create hierarchical systems of data inte-

gration nodes, covering intra as well as secure inter

company data analytics.

System architectures as depicted in this paper in-

tegrate perfectly into such a system of integrated data

analytics. Sensors and other CPS devices can be ad-

dressed in a stable manner, which becomes even more

of a necessity and at the same time a technical prob-

lem in cross-company scenarios. Also the stable con-

nectivity across company boundaries and thus ﬁre-

walls or NAT (network address translation) conﬁgu-

rations is also essential for the depicted setting.

The DataHub and its integration in the SePiA.Pro

project and the connection to this proposed system is

depicted in Fig. 4. In this ﬁgure, the different con-

nection mechanisms from industrial machinery to the

DataHub component are depicted by three different

exemplary machines of which two are connected us-

ing the proposed client-server model over the Tor net-

work. The ﬁgure depicts components (Trust Center,

Smart DataHub, IoT/CPS, Models, Data, Machines)

and information ﬂows (Meta Data, Operating Data,

etc.) between the components. The Trust Center

component in this ﬁgure is an authoritative instance

that controls, deﬁnes, and manages access and us-

age rights on all further components and acquires the

relevant models and data from stakeholders. The bi-

directional access to the industrial machines is indi-

cated by the dual-arrows. Data that is acquired and

processed includes machine and environmental meta

data, operating data, and the associated instructions

for the machines and sensors.

6 CONCLUSION & FUTURE

WORK

In this publication, a method to address CPS or IoT

devices based on the Tor network was proposed and

described. The description was performed in a high-

level manner based on the architecture and through

an example. The code for this client-server system

is published on a public repository and available for

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

Confidential

Seite 7

Machine Manufacturer

Trust Center

Machine A

Manufacturer A

Operating Data

(Energy Consumption,

Error Codes, Outage, …)

Meta Data

(Position, Environment, …)

Smart DataHub

Business Intelligence

Selection Criteria

Operating Data

Internet of Things/CPS

Monitoring Smart Device

Machine B

Manufacturer

Machine A

Manufacturer

Models

Data

TorTor

Control/Management Instructions

Figure 4: Smart DataHub Component and Relationship to Project and Proposed Client-Server Model.

study and application. The addressing of the client

and communication with the server, as described, re-

lies on the systems capability to make outbound con-

nections through a ﬁrewall. The system presented

here enables the usage of remote systems behind ﬁre-

walls and in potentially unknown networking envi-

ronments. The system is motivated by the SePiA.Pro

project and its central component, the DataHub.

In future work we plan to automate the provision-

ing and management of whole IoT integration sce-

narios including IoT devices and middleware, such as

presented in this work, but also data processing com-

ponents, such as analytics platforms as demonstrated

by Falkenthal et al. (Falkenthal et al., 2016b).

REFERENCES

Baumann, F. W., Eichhoff, J., and Roller, D. (2016a).

Collaborative Cloud Printing Service, pages 77–85.

Springer International Publishing.

Baumann, F. W., Falkenthal, M., Breitenb

ucher, U.,

unert, G., and Hudert, S. (2017). Industrial Data

Sharing with Data Access Policy. In Proceedings of

the 14

International Conference on Cooperative De-

sign, Visualization and Engineering. In Press.

Baumann, F. W., Kopp, O., and Roller, D. (2016b). Ab-

stract API for 3D Printing Hardware and Software Re-

sources. International Journal of Advanced Manufac-

turing Technology, pages 1–17.

Baumann, F. W., Kopp, O., and Roller, D. (2016c). Univer-

sal API for 3D Printers. In Mayr, H. C. and Pinzger,

M., editors, INFORMATIK 2016. Lecture Notes in

Informatics (LNI), volume P-259, pages 1611–1622.

Gesellschaft f

ur Informatik.

Chaabane, A., Manils, P., and Kaafar, M. A. (2010). Dig-

ging into Anonymous Trafﬁc: A Deep Analysis of the

Tor Anonymizing Network. In 2010 Fourth Interna-

tional Conference on Network and System Security,

pages 167–174.

Deutsches Forschungszentrum f

ur K

unstliche Intelligenz,

Universit

at Stuttgart – Institut f

ur Architektur von An-

wendungssystemen, TWT GmbH Science & Innova-

tion, Daimler AG, and TRUMPF Werkzeugmaschinen

GmbH & Co. KG. SePiA.Pro – Service Plattform f

die intelligente Anlagenoptimierung in der Produk-

tion. Last accessed on 13

July 2017.

Dingledine, R. (2011). Tor and Circumvention: Lessons

Learned, pages 485–486. Springer Berlin Heidelberg,

Berlin, Heidelberg.

Dredge, S. (2013). What is Tor? A beginner’s guide to the

privacy tool. The Guardian.

Ebner, T., Meissler, M., and Steiler, F. (2017). TOSCA4IoT.

Falkenthal, M., Barzen, J., Breitenb

ucher, U., Fehling, C.,

and Leymann, F. (2014). From pattern languages to

solution implementations. In Proceedings of the 6

International Conferences on Pervasive Patterns and

Applications, pages 12–21. Xpert Publishing Services.

Falkenthal, M., Baumann, F. W., Gr

unert, G., Hudert, S.,

Leymann, F., and Zimmermann, M. (2017). Re-

quirements and Enforcement Points for Policies in In-

dustrial Data Sharing Scenarios. In Proceedings of

the 11

Symposium and Summer School On Service-

Oriented Computing. In Press.

Falkenthal, M., Breitenb

ucher, U., Christ, M., Endres, C.,

Kempa-Liehr, A. W., Leymann, F., and Zimmermann,

M. (2016a). Towards Function and Data Shipping

in Manufacturing Environments : How Cloud Tech-

nologies leverage the 4

Industrial Revolution. In

Proceedings of the 10

Advanced Summer School on

Service Oriented Computing, pages 16–25. IBM Re-

search Division.

Falkenthal, M., Breitenb

ucher, U., K

epes, K., Leymann, F.,

Zimmermann, M., Christ, M., Neuffer, J., Braun, N.,

and Kempa-Liehr, A. W. (2016b). Opentosca for the

industrial revolution: Automating the provisioning

of analytics tools based on apache ﬂink. In Proceed-

ings of the 6

International Conference on the Inter-

net of Things, IoT’16, pages 179–180. ACM.

Utilising the Tor Network for IoT Addressing and Connectivity

Free Software Foundation, Inc. GNU Bash. Last accessed

on 17

July 2017.

Guth, J., Breitenb

ucher, U., Falkenthal, M., Leymann, F.,

and Reinfurt, L. (2016). Comparison of iot platform

architectures: A ﬁeld study based on a reference ar-

chitecture. In 2016 Cloudiﬁcation of the Internet of

Things. Xpert Publishing Services.

Haraty, R. A. and Zantout, B. (2014). The TOR data com-

munication system. Journal of Communications and

Networks, 16(4):415–420.

Jansen, R., Bauer, K., Hopper, N., and Dingledine, R.

(2012). Methodically Modeling the Tor Network. In

Proceedings of the 5

USENIX Conference on Cyber

Security Experimentation and Test, CSET’12, pages

1–9, Berkeley, CA, USA. USENIX Association.

Leitner, S.-H. and Mahnke, W. (2006). OPC UA -

Service-oriented Architecture for Industrial Applica-

tions. Softwaretechnik-Trends, 26.

McCoy, D., Bauer, K., Grunwald, D., Kohno, T., and Sicker,

D. (2008). Shining Light in Dark Places: Understand-

ing the Tor Network, pages 63–76. Springer Berlin

Heidelberg, Berlin, Heidelberg.

Node.js Foundation. Node.js. Last accessed on 13

July

2017.

Pfeil, M., Odefey, U., Ritter, Y., Schuermann, M., and

aßler, V. (2016). Smart services - the smart imple-

mentation of Industry 4.0. In NAFEMS Seminar Sim-

ulation von Composites – Bereit f

ur Industrie 4.0?

Raspberry Pi Foundation. Raspberry Pi - Teach, Learn, and

Make with Raspberry Pi. Last accessed on 13

July

2017.

Reinfurt, L., Breitenb

ucher, U., Falkenthal, M., Leymann,

F., and Riegg, A. (2016). Internet of things patterns.

In Proceedings of the 21

European Conference on

Pattern Languages of Programs. ACM.

Reinfurt, L., Breitenb

ucher, U., Falkenthal, M., Leymann,

F., and Riegg, A. (2017). Internet of things patterns for

devices. In Ninth international Conferences on Perva-

sive Patterns and Applications, pages 117–126. Xpert

Publishing Services.

Ren, J. and Wu, J. (2010). Survey on anonymous commu-

nications in computer networks. Computer Communi-

cations, 33(4):420–431.

StrongLoop. The Node.js API Framework. Last accessed

on 17

July 2017.

TC 65/SC 65E (2015). IEC 62541-100:2015 OPC Uniﬁed

Architecture - Part 100: Device Interface. IEC 62541-

100, International Electrotechnical Commission.

The Tor Project. Tor: Pluggable Transports. Last accessed

on 17

July 2017.

Willis, N. (2015). Tor’s .onion domain approved by IET-

F/IANA. Last accessed on 17

July 2017.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science
