Open Set Logo Detection and Retrieval

Andras T

uzk

, Christian Herrmann

1,2

, Daniel Manger

and J

urgen Beyerer

1,2

Fraunhofer IOSB, Karlsruhe, Germany

Karlsruhe Institute of Technology KIT, Vision and Fusion Lab, Karlsruhe, Germany

Keywords:

Logo Detection, Logo Retrieval, Logo Dataset, Trademark Retrieval, Open Set Retrieval, Deep Learning.

Abstract:

Current logo retrieval research focuses on closed set scenarios. We argue that the logo domain is too large

for this strategy and requires an open set approach. To foster research in this direction, a large-scale logo

dataset, called Logos in the Wild, is collected and released to the public. A typical open set logo retrieval

application is, for example, assessing the effectiveness of advertisement in sports event broadcasts. Given

a query sample in shape of a logo image, the task is to ﬁnd all further occurrences of this logo in a set of

images or videos. Currently, common logo retrieval approaches are unsuitable for this task because of their

closed world assumption. Thus, an open set logo retrieval method is proposed in this work which allows

searching for previously unseen logos by a single query sample. A two stage concept with separate logo

detection and comparison is proposed where both modules are based on task speciﬁc Convolutional Neural

Networks (CNNs). If trained with the Logos in the Wild data, signiﬁcant performance improvements are

observed, especially compared with state-of-the-art closed set approaches.

1 INTRODUCTION

Automated search for logos is a desirable task in vi-

sual image analysis. A key application is the effecti-

veness measurement of advertisements. Being able

to ﬁnd all logos in images that match a query, for

example, a logo of a speciﬁc company, allows to as-

sess the visual frequency and prominence of logos in

TV broadcasts. Typically, these broadcasts are sports

events where sponsorship and advertisement is very

common. This requires a ﬂexible system where the

query can be easily deﬁned and switched according

to the current task. Especially, also previously unseen

logos should be found even if only one query sample

is available. This requirement excludes basically all

current logo retrieval approaches because they make

a closed world assumption in which all searched logos

are known beforehand. Instead, this paper focuses on

open set logo retrieval where only one sample image

of a logo is available.

Consequently, a novel processing strategy for logo

retrieval based on a logo detector and a feature extrac-

tor is proposed as illustrated in ﬁgure 1. Similar stra-

tegies are known from other open set retrieval tasks,

such as face or person retrieval (B

auml et al., 2010;

Herrmann and Beyerer, 2015). Both, the detector and

the extractor are task speciﬁc CNNs. For detection,

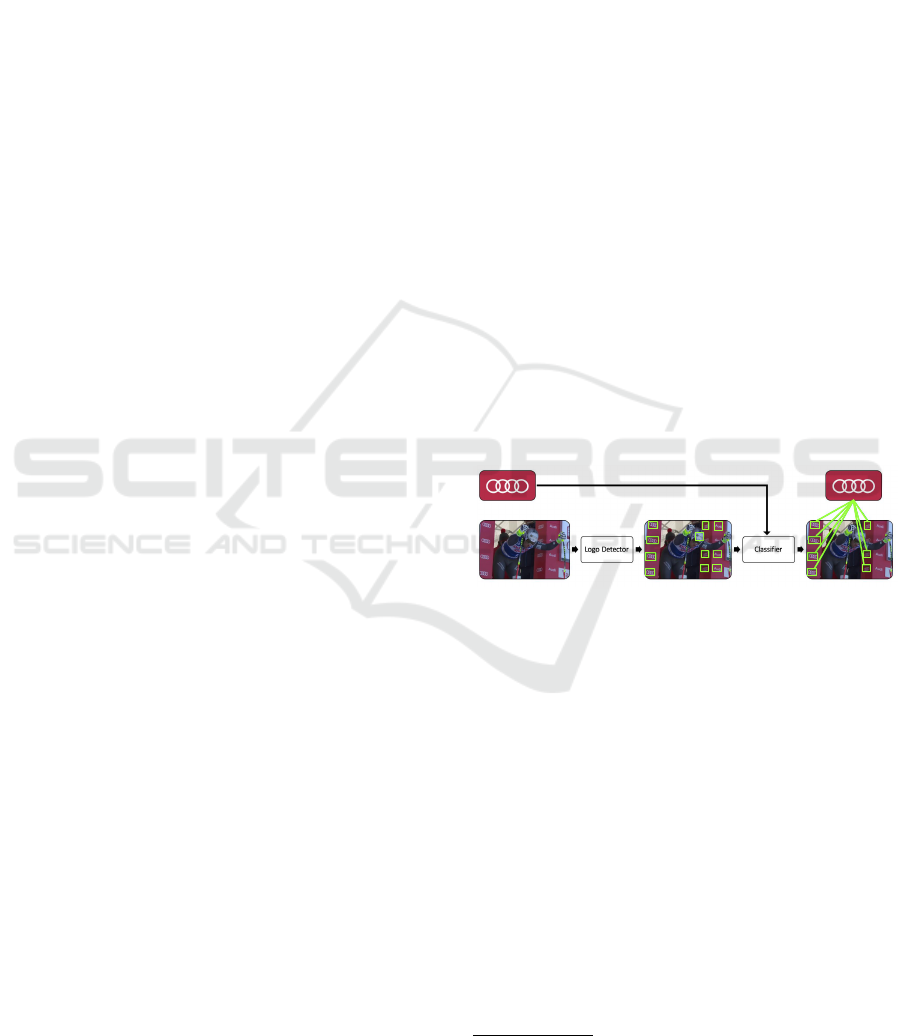

Figure 1: Proposed logo retrieval strategy.

the Faster R-CNN framework (Ren et al., 2015) is

employed and the extractor is derived from classiﬁca-

tion networks for the ImageNet challenge (Deng et al.,

2009).

The necessity for open set logo retrieval becomes

obvious when considering the diversity and amount of

existing logos and brands

. The METU trademark da-

taset (Tursun et al., 2017) contains, for example, over

half a million different brands. Given this number,

a closed set approach where all different brands are

pre-trained within the retrieval system is clearly inap-

propriate. This is why our proposed feature extractor

generates a discriminative logo descriptor, which ge-

neralizes to unseen logos, instead of a mere classiﬁ-

cation between previously known brands. The well-

known high discriminative capabilities of CNNs al-

low to construct such a feature extractor.

The term brand is used in this work as synonym for a

single logo class. Thus, a brand might also refer to a product

or company name if an according logo exists.

284

Tüzkö, A., Herrmann, C., Manger, D. and Beyerer, J.

Open Set Logo Detection and Retrieval.

DOI: 10.5220/0006614602840292

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

284-292

ISBN: 978-989-758-290-5

One challenge for training a general purpose logo

detector lies in appropriate training data. Many logo

or trademark datasets (Eakins et al., 1998; Hoi et al.,

2015; Tursun et al., 2017) only contain the original

logo graphic but no in-the-wild occurrences of these

logos which are required for the target application.

The need for annotated logo bounding boxes in the

images limits the number of suitable available data-

sets. Existing logo datasets (Joly and Buisson, 2009;

Kalantidis et al., 2011; Romberg et al., 2011; Letes-

sier et al., 2012; Bianco et al., 2015; Su et al., 2016;

Bianco et al., 2017) with available bounding boxes

are often restricted to a very small number of brands

and mostly high quality images. Especially, occlusi-

ons, blur and variations within a logo type are only

partially covered. To address these shortcomings, we

collect the novel Logos in the Wild dataset and make

it publicly available

The contributions of this work are threefold:

• A novel open set logo detector which can detect

previously unseen logos.

• An open set logo retrieval system which needs

only a single logo image as query.

• The introduction of a novel large-scale in-the-wild

logo dataset.

2 RELATED WORK

Current logo retrieval strategies are generally solving

a closed set detection and classiﬁcation problem. Eg-

gert et.al. (Eggert et al., 2015) utilized CNNs to ex-

tract features from logos and determined their brand

by classiﬁcation with a set of Support Vector Machi-

nes (SVMs). Fast R-CNN (Girshick, 2015) was used

for the ﬁrst time to retrieve logos from images by Ian-

dola et al. (Iandola et al., 2015) and achieved superior

results on the FlickrLogos-32 dataset (Romberg et al.,

2011). Furthermore, R-CNN, Fast R-CNN and Faster

R-CNN were used in (Bao et al., 2016; Oliveira et al.,

2016; Qi et al., 2017). As closed set methods, all of

them use the same brands both for training and for

validation.

2.1 Open Set Retrieval

Retrieval scenarios in other domains are basically

always considered open set, i.e., samples from the

currently searched class have never been seen be-

fore. This is the case for general purpose image

retrieval (Sivic and Zisserman, 2003), tattoo retrie-

val (Manger, 2012) or for person retrieval in image or

http://s.fhg.de/logos-in-the-wild

video data where face or appearance-based methods

are common (B

auml et al., 2010; Weber et al., 2011;

Herrmann and Beyerer, 2015). The reason is that

these in-the-wild scenarios offer usually a too large

and impossible to capture variety of object classes. In

case of persons, a class would be a person identity

resulting in a cardinality of billions. Consequently,

methods are designed and trained on a limited set of

classes and have to generalize to previously unseen

classes. We argue that this approach is also requi-

red for logo retrieval because of the vast amount of

existing brands and according logos which cannot be

captured in advance. Typically, approaches targeting

open set scenarios consist of an object detector and a

feature extractor (Zheng et al., 2016). The detector

localizes the objects of interest and the feature extrac-

tor creates a discriminative descriptor regarding the

target classes which can than be compared to query

samples.

2.2 Object Detector Frameworks

Early detectors applied hand-crafted features, such as

Haar-like features, combined with a classiﬁer to de-

tect objects in images (Viola and Jones, 2004). No-

wadays, deep learning methods surpass the traditional

methods by a signiﬁcant margin. In addition, they al-

low a certain level of object classiﬁcation within the

detector which is mostly used to simultaneously de-

tect different object categories, such as persons and

cars (Sermanet et al., 2013). The YOLO detector

(Redmon et al., 2015) introduces an end-to-end net-

work for object detection and classiﬁcation based on

bounding box regressors for object localization. This

concept is similarly applied by the Single Shot Multi-

Box Detector (SSD) (Liu et al., 2016). The work on

Faster Region-Based Convolutional Neural Network

(R-CNN) (Ren et al., 2015) introduces a Region Pro-

posal Network (RPN) to detect object candidates in

the feature maps and classiﬁes the candidate regions

by a fully connected network. Improvements of the

Faster R-CNN are the Region-based Fully Convoluti-

onal Network (R-FCN) (Dai et al., 2016), which redu-

ces inference time by an end-to-end fully convolutio-

nal network, and the Mask R-CNN (He et al., 2017),

adding a classiﬁcation mask for instance segmenta-

tion.

2.3 CNN-based Classiﬁcation

AlexNet (Krizhevsky et al., 2012) was the ﬁrst neu-

ral network after the conquest of SVMs, achieving

impressive performance on image content classiﬁ-

cation and winning the ImageNet challenge (Deng

Open Set Logo Detection and Retrieval

285

closed set open set

Detection +

Classification

(e.g. Yolo, SSD,

Faster R-CNN)

Comparison

(e.g. VGG, ResNet,

DenseNet)

Detection

(e.g. Yolo, SSD,

Faster R-CNN)

input

query

training data

(bounding boxes)

training data

(bounding boxes + label)

training data

(cropped logos + label)

logo

bmw

match

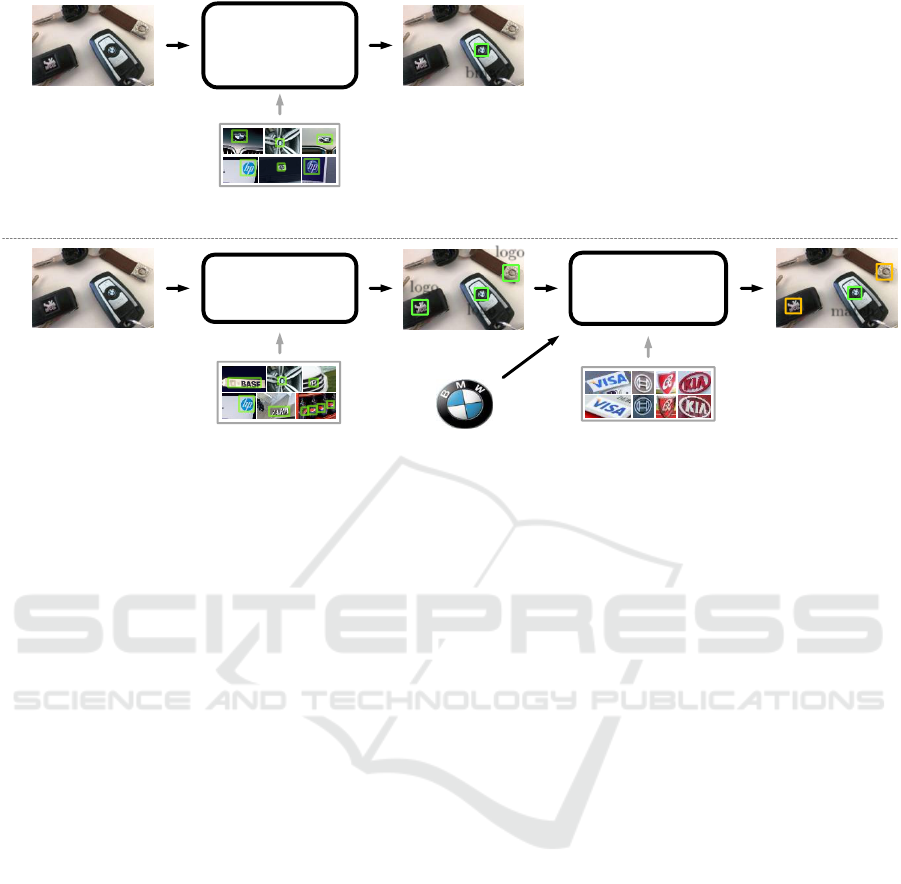

Figure 2: Comparison of closed and open set logo retrieval strategy.

et al., 2009). It consists of ﬁve convolutional layers,

each followed by a max-pooling, which counted as a

very deep network at the time. VGG (Simonyan and

Zisserman, 2015) follows the general architecture of

AlexNet with an increased number of convolutional

layers achieving better performance. The inception

architecture (Szegedy et al., 2015) proposed a multi-

path network module for better multi-scale addres-

sing, but was shortly after superseded by the Residual

Networks (ResNet) (He et al., 2015; He et al., 2016).

They increase network depth heavily up to 1000 lay-

ers in the most extreme conﬁgurations by additional

skip connections which bypass two convolutional lay-

ers. The recent DenseNet (Huang et al., 2016a) builds

on a ResNet-like architecture and introduces “dense

units”. The output of these units is connected with

every subsequent dense unit’s input by concatenation.

This results in a much denser network than a conven-

tional feed-forward network.

3 LOGO DETECTION

The current state-of-the-art approaches for scene re-

trieval create a global feature of the input image.

This is achieved by either inferring from the complete

image or by searching for key regions and then ex-

tracting features from the located regions, which are

ﬁnally fused into a global feature (Torii et al., 2015;

Arandjelovic et al., 2016; Kalantidis et al., 2016). For

logo retrieval, extraction of a global feature is coun-

terproductive because it lacks discriminative power to

retrieve small objects. Additionally, global features

usually include no information about the size and lo-

cation of the objects which is also an important factor

for logo retrieval applications.

Therefore, we choose a two-stage approach con-

sisting of logo detection and logo classiﬁcation as ﬁ-

gure 2 illustrates for the open set case. First, the logos

have to be detected in the input image. Since cur-

rently almost only Faster R-CNNs (Ren et al., 2015)

are used in the context of logo retrieval, we follow this

choice for better comparability and because it offers a

straightforward baseline method. Other state-of-the-

art detector options, such as SSD (Liu et al., 2016) or

YOLO (Redmon and Farhadi, 2016), potentially offer

a faster detection at the cost of detection performance

(Huang et al., 2016b).

Detection networks trained for the currently com-

mon closed set assumption are unsuitable to detect lo-

gos in an open set manner. By considering the out-

put brand probability distribution, no derivation about

occurrences of other brands are possible. Therefore,

the task raises the need for a generic logo detector,

which is able to detect all logo brands in general.

Baseline

Faster R-CNN consists of two stages, the ﬁrst being

an RPN to detect object candidates in the feature maps

and the second being classiﬁers for the candidate re-

gions. While the second stage sharply classiﬁes the

trained brands, the RPN will generate candidates that

vaguely resemble any of the brands which is the case

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

286

Table 1: Publicly available in-the-wild logo datasets in comparison with the novel Logos in the Wild dataset.

dataset brands logo images RoIs

public

BelgaLogos (Joly and Buisson, 2009; Letessier et al., 2012) 37 1,321 2,697

FlickrBelgaLogos (Letessier et al., 2012) 37 2,697 2,697

Flickr Logos 27 (Kalantidis et al., 2011) 27 810 1,261

FlickrLogos-32 (Romberg et al., 2011) 32 2,240 3,404

Logos-32plus (Bianco et al., 2015; Bianco et al., 2017) 32 7,830 12,300

TopLogo10 (Su et al., 2016) 10 700 863

combined 80 (union) 15,598 23,222

new

Logos in the Wild 871 11,054 32,850

for many other logos. Thus, it provides an indicator

whether a region of the image is a logo or not. The

trained RPN and the underlying feature extractor net-

work are isolated and employed as a baseline open set

logo detector.

Brand Agnostic

The RPN strategy is by no means optimal because it

obviously has a bias towards the pre-trained brands

and also generates a certain amount of false positives.

Therefore, another option to detect logos is suggested

which we call the brand agnostic Faster R-CNN. It is

trained with only two classes: background and logo.

We argue that this solution which merges all brands

into a single class yields better performance than the

RPN detector because of two reasons. First, in the se-

cond stage, fully connected layers preceding the out-

put layer serve as strong classiﬁers which are able to

eliminate false positives. Second, these layers also

serve as stronger bounding box regressors improving

the localization precision of the logos.

4 LOGO COMPARISON

After logos are detected, the correspondences to the

query sample have to be searched. For logo retrie-

val, features are extracted from the detected logos for

comparison with the query sample. Then, the logo

feature vector for the query image and the ones for

the database are collected and normalized. Pair-wise

comparison is then performed by cosine similarity.

In order to retrieve as many logos from the images

as possible, the detector has to operate at a high recall.

However, for difﬁcult tasks, such as open set logo de-

tection, high recall values induce a certain amount of

false positive detections. The feature extraction step

thus has to be robust and tolerant to these false positi-

ves.

Donahue et al. suggested that CNNs can produce

excellent descriptors of an input image even in the

absence of ﬁne-tuning to the speciﬁc domain of the

image (Donahue et al., 2015). This motivates to apply

a network pre-trained on a very large dataset as fea-

ture extractor. Namely, several state-of-the-art CNNs

trained on the ImageNet dataset (Deng et al., 2009)

are explored for this task. To adjust the network to

the logo domain and the false positive removal, the

networks are ﬁne-tuned on logo detections. The ﬁnal

network layer is extracted as logo feature in all cases.

Altogether, the proposed logo retrieval system

consists of a class agnostic logo detector and a feature

extractor network. This setup is advantageous for the

quality of the extracted logo features because the ex-

tractor network has only to focus on a speciﬁc region.

This is an improvement compared to including both

logo detection and comparison in the regular Faster R-

CNN framework which lacks generalization to unseen

classes. We argue that the specialization in the regu-

lar Faster R-CNN to the limited number of speciﬁc

brands in the training set does not cover the complex-

ity and breadth of the logo domain. This is why a

separate and more elaborate feature extractor is pro-

posed.

5 LOGO DATASET

To train the proposed logo detector and feature ex-

tractor, a novel logo dataset is collected to supplement

publicly available logo datasets. A comparison to ot-

her public in-the-wild datasets with annotated boun-

ding boxes is given in table 1. The goal is an in-the-

wild logo dataset with images including logos instead

of the raw original logo graphics. In addition, ima-

ges where the logo represents only a minor part of

the image are preferred. See ﬁgure 3 for a few ex-

amples of the collected data. Following the general

suggestions from (Bansal et al., 2017), we target for

a dataset containing signiﬁcantly more brands instead

of collecting additional image samples for the already

Open Set Logo Detection and Retrieval

287

Figure 3: Examples from the collected Logos in the Wild dataset.

tchibo

starbucks-

symbol

starbucks-

symbol

starbucks-text

six

Figure 4: Annotations differentiate between textual and

graphical logos.

covered brands. This is the exact opposite strategy

than performed by the Logos-32plus dataset. Starting

with a list of well-known brands and companies, an

image web search is performed. Because most ot-

her web collected logo datasets mainly rely on Flickr,

we opt for Google image search to broaden the dom-

ain. Brand or company names are searched directly or

in combination with a predeﬁned set of search terms,

e.g., ‘advertisement’, ‘building’, ‘poster’ or ‘store’.

For each search result, the ﬁrst N images are do-

wnloaded, where N is determined by a quick ma-

nual inspection to avoid collecting too many irrele-

vant images. After removing duplicates, this results

in 4 to 608 images per searched brand. These ima-

ges are then one-by-one manually annotated with logo

bounding boxes or sorted out if unsuitable. Images

are considered unsuitable if they contain no logos or

fail the in-the-wild requirement, which is the case for

the original raw logo graphics. Taken pictures of such

logos and advertisement posters on the other hand are

desired to be in the dataset. Annotations distinguish

between textual and graphical logos as well as diffe-

rent logos from one company as exemplary indicated

in ﬁgure 4. Altogether, the current version of the data-

set, contains 871 brands with 32,850 annotated boun-

ding boxes. 238 brands occur at least 10 times. An

image may contain several logos with the maximum

being 118 logos in one image. The full distributions

are shown in ﬁgures 5 and 6.

The collected Logos in the Wild dataset exceeds

the size of all related logo datasets as shown in ta-

ble 1. Even the union of all related logo datasets con-

tains signiﬁcantly less brands and RoIs which makes

Logos in the Wild a valuable large-scale dataset. As

the annotation is still an ongoing process, different da-

taset revisions will be tagged by version numbers for

future reference. Note that the numbers in table 1 are

the current state (v2.0) whereas detector and feature

extractor training used a slightly earlier version with

numbers given in table 2 (v1.0) because of the requi-

red time for training and evaluation.

6 EXPERIMENTS

The proposed method is evaluated on the test set ben-

chmark of the public FlickrLogos-32 dataset inclu-

ding the distractors. Additional application speciﬁc

experiments are performed on an internal dataset of

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

288

100

1000

0 200 400 600 800

RoIs per brand

brand

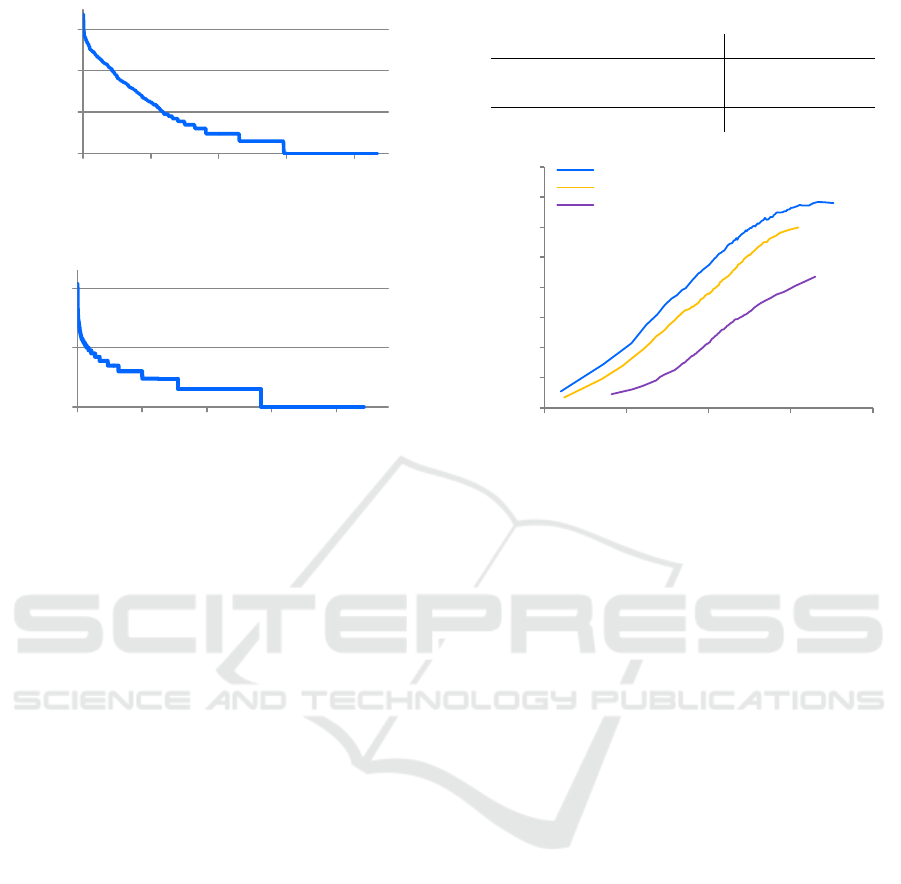

Figure 5: Distribution of number of RoIs per brand.

100

0 2500 5000 7500 10000

RoIs per image


Figure 6: Distribution of number of RoIs per image.

sports event TV broadcasts. The training set con-

sists of two parts. The union of all public logo da-

tasets as listed in table 1 and the novel Logos in the

Wild (LitW) dataset. For a proper separation of train

and test data, all brands present in the FlickrLogos-32

test set are removed from the public and LitW data.

Ten percent of the remaining images are set aside for

network validation in each case. This results in the

ﬁnal training and test set sizes listed in table 2.

In the ﬁrst step, the detector stage alone is asses-

sed. Then, the combination of detection and com-

parison for logo retrieval is evaluated. Detection

and matching performance is measured by the Free-

Response Receiver Operating Characteristic (FROC)

curve (Miller, 1969) which denotes the detection or

detection and identiﬁcation rate versus the number of

false detections. In all cases, the CNNs are trained

until convergence. Due to the diversity of applied net-

works and differing dataset sizes, training settings are

numerous and optimized in each case with the vali-

dation data. Convergence occurs after 200 to 8,000

training iterations with a varying batch-size of 1 for

the Faster R-CNN detector, 7 for the DenseNet161,

18 for the ResNet101 and 32 for the VGG16 training

due to GPU memory limitation.

6.1 Detection

As indicated in section 3, the baseline is the state-of-

the-art closed set logo retrieval method from (Su et al.,

2016) which is trained on the public data and naively

adapted to open set detection by using the RPN scores

Table 2: Train and test set statistics.

phase data brands RoIs

train

public 47 3,113

public+LitW v1.0 632 18,960

test FlickrLogos-32 test 32 1,602

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.01 0.1 1 10 100

detection rate

average false detections per image

brand agnostic, public+LitW

brand agnostic, public

baseline, public

Figure 7: Detection FROC curves for the FlickrLogos-32

test set.

as detections The proposed brand agnostic logo detec-

tor is ﬁrst trained on the same public data for compa-

rison. All Faster R-CNN detectors are based on the

VGG16 network. The results in ﬁgure 7 indicate that

the proposed brand agnostic strategy is superior by a

signiﬁcant margin.

Further improvement is achieved by combining

the public training data with the novel logo data. Ad-

ding LitW as additional training data improves the de-

tection results with its large variety of additional trai-

ning brands. This conﬁrms ﬁndings from other dom-

ains, such as face analysis, where wider training da-

tasets are preferred over deeper ones (Bansal et al.,

2017). This means it is better to train on additional

different brands than on additional samples per brand.

As direction for future dataset collection, this sugge-

sts to focus on additional brands.

6.2 Retrieval

For the retrieval experiments, the Faster R-CNN ba-

sed state-of-the-art closed set logo retrieval method

from the previous section serves again as baseline.

Now the full network is applied and the logo class

probabilities of the second stage are interpreted as

feature vector which is then used to match previ-

ously unseen logos. For the proposed open set stra-

tegy, the best logo detection network from the previ-

ous section is used in all cases. Detected logos are

described by the feature extraction network outputs

where three different state-of-the-art classiﬁcation ar-

Open Set Logo Detection and Retrieval

289

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.001 0.01 0.1 1 10

detection identification rate

average false alarms per image

ResNet101, public+LitW

ResNet101, public

VGG16, public+LitW

VGG16, public

baseline, public

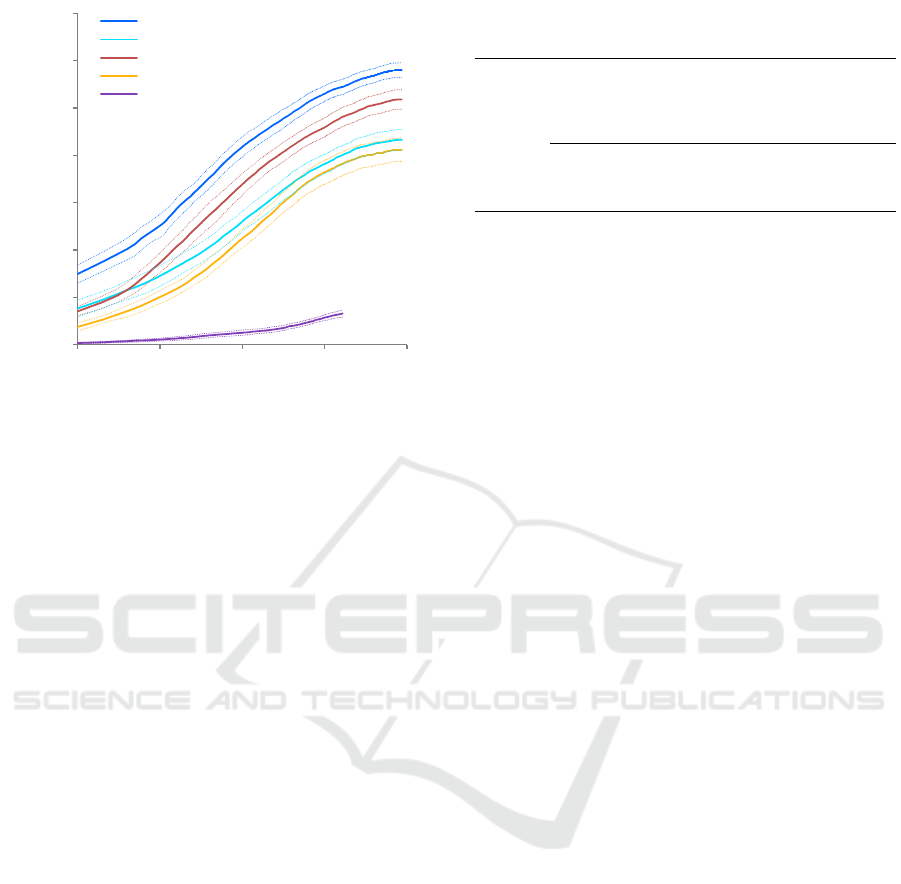

Figure 8: Detection+Classiﬁcation FROC curves for the

FlickrLogos-32 test set. Including dashed indicators for one

standard deviation. DenseNet results are omitted for clarity,

refer to table 3 for full results.

chitectures, namely VGG16 (Simonyan and Zisser-

man, 2015), ResNet101 (He et al., 2015) and Dense-

Net161 (Huang et al., 2016a), serve as base networks.

All networks are pretrained on ImageNet and after-

wards ﬁne-tuned either on the public logo train set or

the combination of the public and the LitW train data.

FlickrLogos-32

In ten iterations, each of the ten FlickrLogos-32 train

samples for each brand serves as query sample. This

allows to assess the statistical signiﬁcance of results

similar to a 10-fold-cross-validation strategy. Figure 8

shows the FROC results for the trained networks in-

cluding indicators for the standard deviation of the

measurements. The detection identiﬁcation rate de-

notes the amount of ground truth logos which are

correctly detected and are assigned the correct brand.

While the baseline method is only able to ﬁnd a minor

amount of the logos, our best performing approach is

able to correctly retrieve 25 percent of the logos if to-

lerating only one false alarm every 100 images. As

expected, the more recent network architectures pro-

vide better results. Also, including the LitW data in

the training yields a signiﬁcant boost in performance.

Speciﬁcally, the larger training dataset has a larger

impact on the performance than a better network ar-

chitecture.

Table 3 compares our open set results with clo-

sed set results from the literature in terms of the mean

average precision (map).

We achieve more than half of the closed set per-

Table 3: FlickrLogos-32 test set retrieval results.

setting method map

open set

baseline, public (Su et al., 2016) 0.036

VGG16, public 0.286

ResNet101, public 0.327

DenseNet161, public 0.368

VGG16, public+LitW 0.382

ResNet101, public+LitW 0.464

DenseNet161, public+LitW 0.448

closed set

BD-FRCN-M (Oliveira et al., 2016) 0.735

DeepLogo (Iandola et al., 2015) 0.744

Faster-RCNN (Su et al., 2016) 0.811

Fast-M (Bao et al., 2016) 0.842

formance in terms of map with only one sample for

a brand at test time instead of dozens or hundreds of

brand samples at training time. Having only a sin-

gle sample is a signiﬁcant harder retrieval task on

FlickrLogos-32 than closed set retrieval because logo

variations within a brand are uncovered by this single

sample. The test set includes such logo variations to a

certain extent which requires excellent generalization

capabilities if only one query sample is available.

In addition, our approach is not limited to the 32

FlickrLogos brands but generalizes with a similar per-

formance to further brands. In contrast, the closed set

approaches hardly generalize as is shown by the ba-

seline open set method which is based on the second

best closed set approach. The only difference is the

training on out-of-test brands for the open set task.

SportsLogos

In addition to public data, target domain speciﬁc ex-

periments are performed on TV broadcasts of sports

events. In total, this non-public test set includes

298 annotated frames with 2,348 logos of 40 brands.

In comparison to public logo datasets, the logos are

usually signiﬁcantly smaller and cover only a tiny

fraction of the image area as illustrated in ﬁgure 9.

Besides perimeter advertising, logos on clothing or

equipment of the athletes and TV station or program

overlays are the most occurring logo types. Over-

all, the results in this application scenario are slightly

worse than in the FlickrLogos-32 benchmark with a

drop in map from 0.464 to 0.354 for the best perfor-

ming method, as indicated in ﬁgure 10. The baseline

approach takes the largest performance hit showing

that closed set approaches not only generalize badly

to unseen logos but also to novel domains. In contrast,

the proposed open set strategy shows a relatively sta-

ble cross-domain performance. Training with LitW

data again improves the results signiﬁcantly.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

290

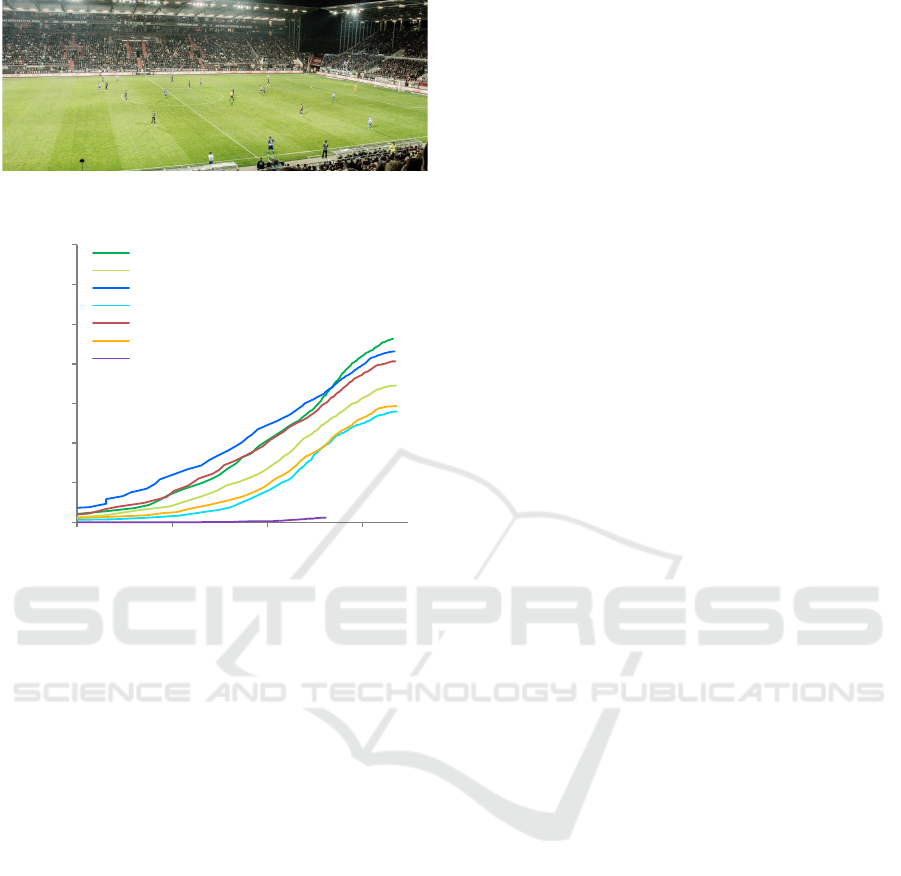

Figure 9: Example football scene with small logos in the

perimeter advertising.

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.01 0.1 1 10

detection identification rate

average false alarms per image

DenseNet161, public+LitW (0.326)

DenseNet161, public (0.256)

ResNet101, public+LitW (0.354)

ResNet101, public (0.195)

VGG16, public+LitW (0.238)

VGG16, public (0.184)

baseline, public (0.001)

Figure 10: Detection+Classiﬁcation FROC curves for the

SportsLogos test set, map is given in brackets.

7 CONCLUSIONS

The limits of closed set logo retrieval approaches mo-

tivate the proposed open set approach. By this, gene-

ralization to unseen logos and novel domains is im-

proved signiﬁcantly in comparison to a naive exten-

sion of closed set approaches to open set conﬁgurati-

ons. Due to the large logo variety, open set logo retrie-

val is still a challenging task where trained methods

beneﬁt signiﬁcantly from larger datasets. The lack

of sufﬁcient data is addressed by introduction of the

large-scale Logos in the Wild dataset. Despite being

bigger than all other in-the-wild logo datasets com-

bined, dataset sizes should probably be scaled even

further in the future. Adding the Logos in the Wild

data in the training improves the mean average preci-

sion from 0.368 to 0.464 for open set logo retrieval on

FlickrLogos-32.

REFERENCES

Arandjelovic, R., Gronat, P., Torii, A., Pajdla, T., and Si-

vic, J. (2016). NetVLAD: CNN architecture for we-

akly supervised place recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 5297–5307.

Bansal, A., Castillo, C., Ranjan, R., and Chellappa, R.

(2017). The Do’s and Don’ts for CNN-based Face

Veriﬁcation. arXiv preprint arXiv:1705.07426.

Bao, Y., Li, H., Fan, X., Liu, R., and Jia, Q. (2016). Region-

based CNN for Logo Detection. In International Con-

ference on Internet Multimedia Computing and Ser-

vice, ICIMCS’16, pages 319–322, New York, NY,

USA. ACM.

auml, M., Bernardin, K., Fischer, M., Ekenel, H., and

Stiefelhagen, R. (2010). Multi-pose face recognition

for person retrieval in camera networks. In Internatio-

nal Conference on Advanced Video and Signal-Based

Surveillance. IEEE.

Bianco, S., Buzzelli, M., Mazzini, D., and Schettini, R.

(2015). Logo recognition using cnn features. In In-

ternational Conference on Image Analysis and Pro-

cessing, pages 438–448. Springer.

Bianco, S., Buzzelli, M., Mazzini, D., and Schettini, R.

(2017). Deep learning for logo recognition. Neuro-

computing, 245:23–30.

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-FCN: Ob-

ject Detection via Region-based Fully Convolutional

Networks. arXiv preprint arXiv:1605.06409.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In Conference on Computer Vision

and Pattern Recognition, pages 248–255. IEEE.

Donahue, J., Anne Hendricks, L., Guadarrama, S., Rohr-

bach, M., Venugopalan, S., Saenko, K., and Darrell, T.

(2015). Long-term recurrent convolutional networks

for visual recognition and description. In Conference

on Computer Vision and Pattern Recognition, pages

2625–2634. IEEE.

Eakins, J. P., Boardman, J. M., and Graham, M. E. (1998).

Similarity retrieval of trademark images. IEEE multi-

media, 5(2):53–63.

Eggert, C., Winschel, A., and Lienhart, R. (2015). On

the Beneﬁt of Synthetic Data for Company Logo De-

tection. In ACM Multimedia Conference, MM ’15,

pages 1283–1286, New York, NY, USA. ACM.

Girshick, R. (2015). Fast R-CNN. In International Confe-

rence on Computer Vision.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask R-CNN. arXiv preprint arXiv:1703.06870.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep Resi-

dual Learning for Image Recognition. arXiv preprint

arXiv:1512.03385.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Identity

mappings in deep residual networks. arXiv preprint

arXiv:1603.05027.

Herrmann, C. and Beyerer, J. (2015). Face Retrieval on

Large-Scale Video Data. In Canadian Conference on

Computer and Robot Vision, pages 192–199. IEEE.

Hoi, S. C. H., Wu, X., Liu, H., Wu, Y., Wang, H., Xue,

H., and Wu, Q. (2015). LOGO-Net: Large-scale

Deep Logo Detection and Brand Recognition with

Deep Region-based Convolutional Networks. CoRR,

abs/1511.02462.

Open Set Logo Detection and Retrieval

291

Huang, G., Liu, Z., and Weinberger, K. Q. (2016a). Den-

sely Connected Convolutional Networks. CoRR,

abs/1608.06993.

Huang, J., Rathod, V., Sun, C., Zhu, M., Korattikara, A.,

Fathi, A., Fischer, I., Wojna, Z., Song, Y., Guadar-

rama, S., et al. (2016b). Speed/accuracy trade-offs for

modern convolutional object detectors. arXiv preprint

arXiv:1611.10012.

Iandola, F. N., Shen, A., Gao, P., and Keutzer, K. (2015).

DeepLogo: Hitting Logo Recognition with the Deep

Neural Network Hammer. CoRR, abs/1510.02131.

Joly, A. and Buisson, O. (2009). Logo retrieval with a con-

trario visual query expansion. In ACM Multimedia

Conference, pages 581–584.

Kalantidis, Y., Mellina, C., and Osindero, S. (2016). Cross-

dimensional weighting for aggregated deep convoluti-

onal features. In European Conference on Computer

Vision, pages 685–701. Springer.

Kalantidis, Y., Pueyo, L., Trevisiol, M., van Zwol, R.,

and Avrithis, Y. (2011). Scalable Triangulation-based

Logo Recognition. In ACM International Conference

on Multimedia Retrieval, Trento, Italy.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

ImageNet Classiﬁcation with Deep Convolutional

Neural Networks. In Pereira, F., Burges, C. J. C., Bot-

tou, L., and Weinberger, K. Q., editors, Advances in

Neural Information Processing Systems, pages 1097–

1105. Curran Associates, Inc.

Letessier, P., Buisson, O., and Joly, A. (2012). Scalable

mining of small visual objects. In ACM Multimedia

Conference, pages 599–608. ACM.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu,

C.-Y., and Berg, A. C. (2016). SSD: Single shot mul-

tibox detector. In European Conference on Computer

Vision, pages 21–37. Springer.

Manger, D. (2012). Large-scale tattoo image retrieval. In

Canadian Conference on Computer and Robot Vision,

pages 454–459. IEEE.

Miller, H. (1969). The FROC Curve: a Representation of

the Observer’s Performance for the Method of Free

Response. The Journal of the Acoustical Society of

America, 46(6(2)):1473–1476.

Oliveira, G., Fraz

ao, X., Pimentel, A., and Ribeiro, B.

(2016). Automatic Graphic Logo Detection via

Fast Region-based Convolutional Networks. CoRR,

abs/1604.06083.

Qi, C., Shi, C., Wang, C., and Xiao, B. (2017). Logo Re-

trieval Using Logo Proposals and Adaptive Weighted

Pooling. IEEE Signal Processing Letters, 24(4):442–

445.

Redmon, J., Divvala, S. K., Girshick, R. B., and Farhadi,

A. (2015). You Only Look Once: Uniﬁed, Real-Time

Object Detection. CoRR, abs/1506.02640.

Redmon, J. and Farhadi, A. (2016). YOLO9000: better,

faster, stronger. arXiv preprint arXiv:1612.08242.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster R-

CNN: Towards real-time object detection with region

proposal networks. In Advances in Neural Informa-

tion Processing Systems, pages 91–99.

Romberg, S., Pueyo, L. G., Lienhart, R., and van Zwol,

R. (2011). Scalable Logo Recognition in Real-world

Images. In ACM International Conference on Mul-

timedia Retrieval, ICMR ’11, pages 25:1–25:8, New

York, NY, USA. ACM.

Sermanet, P., Eigen, D., Zhang, X., Mathieu, M., Fergus,

R., and LeCun, Y. (2013). OverFeat: Integrated Re-

cognition, Localization and Detection using Convolu-

tional Networks. CoRR, abs/1312.6229.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

In International Conference on Learning Representa-

tions.

Sivic, J. and Zisserman, A. (2003). Video Google: A text

retrieval approach to object matching in videos. In

International Conference on Computer Vision, pages

1470–1477. IEEE.

Su, H., Zhu, X., and Gong, S. (2016). Deep Learning Logo

Detection with Data Expansion by Synthesising Con-

text. CoRR, abs/1612.09322.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S., Angue-

lov, D., Erhan, D., Vanhoucke, V., and Rabinovich, A.

(2015). Going deeper with convolutions. In Confe-

rence on Computer Vision and Pattern Recognition,

pages 1–9. IEEE.

Torii, A., Arandjelovic, R., Sivic, J., Okutomi, M., and Pa-

jdla, T. (2015). 24/7 place recognition by view synthe-

sis. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 1808–

1817.

Tursun, O., Aker, C., and Kalkan, S. (2017). A Large-scale

Dataset and Benchmark for Similar Trademark Retrie-

val. arXiv preprint arXiv:1701.05766.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International Journal of Computer Vision,

57(2):137–154.

Weber, M., B

auml, M., and Stiefelhagen, R. (2011).

Part-based clothing segmentation for person retrie-

val. In Advanced Video and Signal-Based Surveil-

lance (AVSS), 2011 8th IEEE International Confe-

rence on, pages 361–366. IEEE.

Zheng, L., Zhang, H., Sun, S., Chandraker, M., and Tian, Q.

(2016). Person Re-identiﬁcation in the Wild. CoRR,

abs/1604.02531.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

292
