Automatic Generation of an Operation Procedure Presentation

System Reusing User’s Input Data

Shimon Nakamura

, Hajime Iwata

, Junko Shirogane

and Yoshiaki Fukazawa

Department of Computer Science and Engineering, Waseda University,

3-4-1 Okubo, Shinjuku-ku, Tokyo, 169-8555, Japan

Department of Network and Communication, Kanagawa Institute of Technology, 1030 Shimoogino,

Atsugi-shi, Kanagawa, 243-0292, Japan

Department of Communication, Tokyo Woman's Christian University, 2-6-1 Zenfukuji,

Suginami-ku, Tokyo, 167-8585, Japan

Keywords: Operation Support, Input Reuse, Operation Procedure, Ontology, Activity Diagram.

Abstract: Users use software applications to achieve a goal. Occasionally they make mistakes in the operation path

due to the complexity of large-scale applications, which requires them to back track to the appropriate

operation step and reenter previously input data. This is burdensome for users. Herein a method is proposed

to generate an operation support system that reuses previously input data in an inappropriate operation path

as much as possible by navigating users to the appropriate operation path. Specifically, our method has an

input reuse function for copying previously input data to similar input items as well as an operation

procedure presentation function to highlight the operation procedure from the current step to the goal. Our

integrated operation support can minimize users’ rework. To generate our system, developers must create an

ontology, including concepts of label names of input items, correspondence between input items and label

names, an activity diagram of the target application, and the operation procedure. Our system uses this

information to compute the similarity of label names between input items, copy input data for similar input

items, and present operation procedures to users.

1 INTRODUCTION

Diverse software applications and web services are

important in business and everyday life. Some of

these applications are complicated and large-scale.

Their complexity often requires users to complete

many tasks to achieve the intended purpose, which

may cause users to make mistakes in the operation

path. When a mistake is made, a user must retrace

his or her steps and then proceed down the

appropriate path. The data input in the inappropriate

path must be sometimes manually reentered in the

appropriate operation path.

Operation support systems have been developed

to aid users to the appropriate operation path.

Examples include online help or instruction manuals.

However, many support systems present instructions

from the beginning to the end (Shneiderman et al.,

2013; Iwata et al., 2010). In this case, inappropriate

and appropriate paths may have common input items.

Existing operation support systems do not consider

this fact. Hence, users must reenter data when a

mistake occurs.

Inputting common data is a usability issue. Some

studies aim to reduce user’s effort by reusing data

(Constantine and Lockwood, 1999) and minimizing

number of actions (Seffah et al., 2006). Thus, it is

desirable to reuse data input in an inappropriate path

in the appropriate path automatically.

We propose a method to generate an operation

support system that reuse a user’s input data in an

inappropriate operation path as much as possible by

navigating a user to the appropriate operation path.

Specifically, our system has two functions: an input

reuse function to reuse previously input data for

other input items whose labels are similar to those of

the previously input data and a presentation

operation procedure function to highlight the

procedure from the current operation step to the

appropriate operation step.

These two functions reduce a user’s operation

burden by limiting the amount of data that has to be

reentered. The input reuse function employs a user’s

previously input data in an inappropriate operation

124

Nakamura, S., Iwata, H., Shirogane, J. and Fukazawa, Y.

Automatic Generation of an Operation Procedure Presentation System Reusing User’s Input Data.

DOI: 10.5220/0006628001240131

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 2: HUCAPP, pages

124-131

ISBN: 978-989-758-288-2

step, while the presentation operation procedure

function demonstrates how to return to an

appropriate operation path.

This paper is composed of eight sections. Section

2 describes related works. Section 3 highlights the

contributions of this research. Section 4 overviews

the functions of the proposed operation support

system. Section 5 details the procedures to generate

the operation support system. Section 6 evaluates the

proposed system. Section 7 provides a discussion,

and Section 8 summarizes this study.

2 RELATED WORK

Numerous types of operation support systems have

been proposed for user operation assistance. Below

we describe related work.

Some studies on input prediction provide

automatic complements based on the user’s input

situation (James and Reischel, 2001). Input

prediction is not performed without inputting

characters. Our proposed operation support system

uses similarilities between input items to

automatically reuse appropriate input items. Thus, a

user does not have to reenter data.

Some systems research focuses on active support

by sensing user’s mistakes and inefficient operations

(Breuker et al., 1987). However, users are unlikely

to accept an active operation support system because

it is possible that users receive undesired support

(Shneiderman et al., 2013). Users tend to prefer

control of the user’s side rather than control of the

system side (Shneiderman et al., 2013). In our

proposed operation support system, a user initiates

the support system. Consequently, undesired support

does not occur.

In addition, Parmit et al. has proposed a help

system called LemonAid (Chilana et al., 2013). This

is integrated into the target application. A user

selects the interface element of the application, and

gets related question and answer. All questions and

answers are from actual users. The provided help

information depends on the users. Hence, in

applications with limited users, it is highly probable

that the amount of help information is small. Since

our proposed operation support system covers all the

functions available in the target application, the help

information supports all areas.

3 CONTRIBUTIONS

Our system’s contributions are described below.

3.1 Input Reuse

If a user proceeds from an inappropriate operation

path to an appropriate operation path, the input data

in the inappropriate path should be reused in the

appropriate path. In our system, previously input

data can be reused for other input items with similar

label names. Additionally, a user can set the degree

of reuse for the input data. The degree indicates the

similarity level of label names of the input items. In

response to the degree, accurate reuse or wide reuse

is possible.

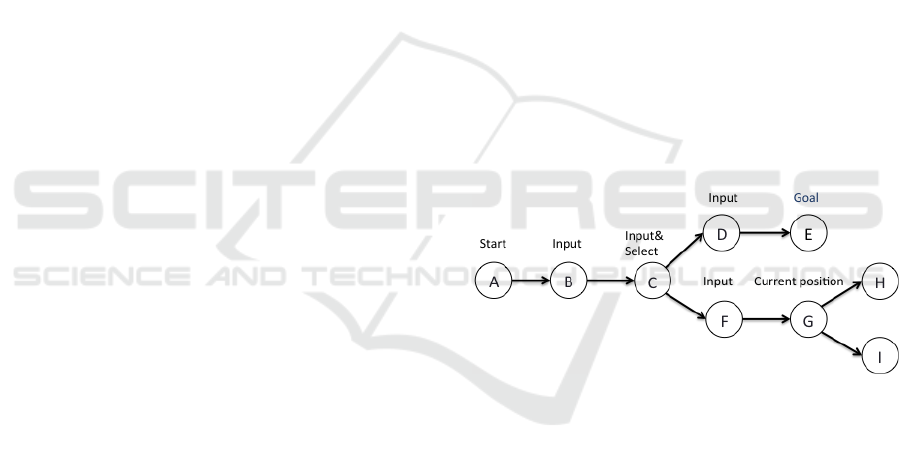

Fig. 1 shows an example of a window transition

in an application. Nodes represent windows and

edges represent window switching. WindowA is the

first window of this application (the application is

initiated from this window). In WindowB, a user

inputs some data and the operation path is branched

into WindowD and F by the selection in WindowC.

Consider the case where a user’s goal is the

operation path to WindowE, and the current step is

WindowG. In addition, some of input items in

WindowF are common to WindowD. In this case,

the input data in WindowF are reused for the

common input items in WindowD. Due to this, a

user’s input operation in WindowF can be reduced.

Figure 1: Window transitions of an application.

3.2 Instructions Considering User’s

Context

Many conventional operation support systems only

present instructions from the beginning to the end of

a function. When both inappropriate and appropriate

operation paths contain common input items,

existing operation support systems do not consider

these common items. Consequently, a user must

reenter the input item in the appropriate operation

path. Our proposed method guides a user from the

current step to the originally intended operation step.

In this way, proceeding back to the intended

operation, a user does not have to repeat operations

that are part of the target function.

Considering the example in Fig. 1, the common

parts of the path from WindowA to the goal

Automatic Generation of an Operation Procedure Presentation System Reusing User’s Input Data

125

(WindowE) and the path from WindowA to current

position (WindowG) (flow of the window

transitions) are WindowA, WindowB, and

WindowC. Thus, when a user starts from WindowA,

again, the inputs in WindowB and WindowC are

discarded. To achieve goal (WindowE), the same

inputs must be reentered in WindowB or WindowC.

Returning the procedure from current position

(WindowG) to branch point (WindowC) to realize

goal (WindowE), the data does not need to be

reentered in WindowB.

3.3 Learning Effect

Our operation support system can produce a learning

effect when a user make mistake. Thus, the next user

operation should be smoother. Our operation support

system provides instructions to return to the previous

steps. Thus, a user can confirm why a mistake

occurred. In a conventional operation support, a user

may not understand why a mistake was made

because the instructions always start at the

beginning. Humans can learn a lot by failing (Sitkin,

1992). Our operation support system realizes support

to learn from failure.

4 FUNCTIONS OF THE

OPERATION SUPPORT

SYSTEM

4.1 Usage of the Operation Support

System

This section describes a user’s view and internal

processes of both the input reuse function and the

operation procedure presentation function in the

present system.

4.1.1 Example

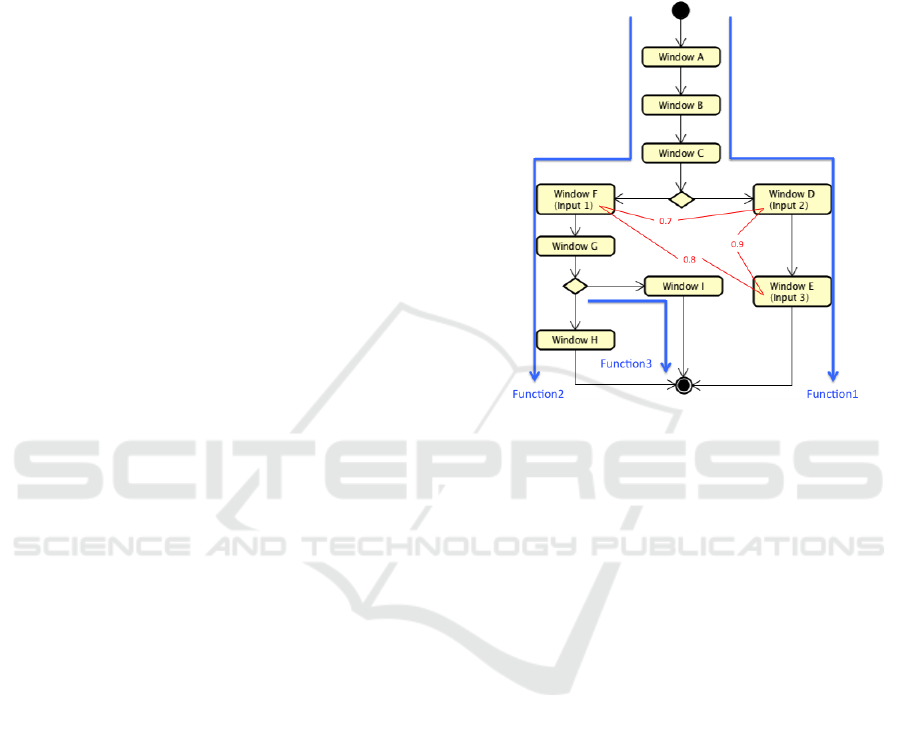

Fig. 2 shows the window transitions of the fictional

application in Fig. 1 using an activity diagram. The

activities are all window displays. The example here

uses the same situation described in Section 3.1,

where the current step is WindowG, but the goal is

WindowE. In this application, three functions are

prepared. The flows of these functions are blue

arrows.

In this example, a user is in the middle of the

procedure for Function 2 or 3, but desires to execute

Function 1. The red value shows the degree of

coincidence among the input items prepared for each

function application. The degree of coincidence is

obtained by calculating the similarity between

ontological concepts. The calculation of the

similarity is described in Section 4.2.2. It is assumed

that input item 1 is in WindowF, input item 2 is in

WindowD, and input item 3 is in WindowE.

Figure 2: Activity diagram of the application, flows of the

three functions (blue arrows), and the degree of

coincidence between each input item (red values).

4.1.2 Usage of the Input Reuse Function

Initiating the application also starts the operation

support system. A user must specify the threshold

value to determine whether to reuse the input data.

The threshold value, which ranges from 0 to 1,

represents the similarity between label names.

Because the meaning of each input item is

transmitted to a user by the label name, the input

item is associated with the label name. As a result,

the similarity of each label name is the similarity of

the corresponding input item. The closer the

threshold value is to 1, the higher the similarity of

the reusable input data. However, the range where

reuse is performed becomes narrower. On the

contrary, the closer the threshold value is to 0, input

data with a low similarity is reused. However, the

range of reuse is wide. When a user transitions to a

window that includes an input item with a label

name similar to input data entered by a user in a

previous path and a user has specified the threshold

value, reuse of a similar input is automatically

performed based on the threshold value.

As an example, consider the case in Section

4.1.1. For a user to use Function 1, it is necessary to

return to WindowC, proceed to WindowE, and to

HUCAPP 2018 - International Conference on Human Computer Interaction Theory and Applications

126

enter input items 2 and 3 in the respective windows.

Since input item 1 is already entered on WindowF, it

is possible to reuse input items 2 and 3. Table 1

shows the value of each input item when the

threshold value is set to 0.6 or 0.8.

Table 1: Results when the threshold is 0.6 or 0.8.

Input data

(threshold is 0.6)

Input data

(threshold is 0.8)

Input item1

Inputted before using

input reuse

Inputted before using

input reuse

Input item2

Data of input item1 is

reused

Input reuse doe’s not

occur

Input item3

Data of input item2 is

reused

Data of input item2 is

reused

4.1.3 Usage of the Operation Procedure

Presentation Function

When a user wants to know the operation procedure

to achieve user’s goal, he or she accesses the

operation support system, which is simultaneously

activated with the application. The operation support

system presents the function list available for a

given application. Furthermore, searching in the

operation support system can narrow the goals to

those related to keywords. When a user selects a

function from the function list, instructions from the

current step to the goal of the function (information

on how to use the function) are presented. These

instructions are given as a bulleted list. The

operations are performed in order beginning from

the top. Each bullet shows operations in a window.

4.2 Mechanism of the Input Reuse

This section details the internal process of the input

reuse function. The input reuse function realizes

reuse of a user’s previously input data for the input

items of other windows. Therefore, the following

processes are required to realize input reuse:

(1) Retain input data

(2) Reuse input data

4.2.1 Retain Input Data

When saving the input data, the operation support

system associates input data with a label name. The

association mechanism requires that the developer

associate input items with label names. This process

is discussed in Section 5.2.

As an example, suppose that there is an input

item “Last Name” and a user enters and commits

“Nakamura”. The input reuse function retains the

label name “Last Name” and the value “Nakamura”

as a set like “Last Name = Nakamura”. When a user

commits, the input data is probably most correct.

Hence, our proposed method saves the input data

when a user commits the input data.

4.2.2 Reuse Input Data

The input reuse function reuses the previously input

data for appropriate input items in other windows.

After a window transition, to judge whether the

input data can be reused, ontology with basic

concepts of labels for each input item is used. A

basic concept is one determined only by its own

properties and is independent of other concepts.

After a window transition, how similar the label

names of the input items included in the transition

destination window to the stored input data is

evaluated. If the degree of similarity exceeds the

threshold set by a user, the input data can be reused

automatically.

4.3 Mechanism of the Operation

Procedure Presentation

The proposed operation procedure presentation

function represents the procedure from a user’s

current step in a target application to a user’s goal.

Therefore, the operation procedure presentation

function involves the following steps:

(1) Derive paths from the start to all goals

(2) Monitor the current step and retain the previous

path

4.3.1 Derive Paths from the Start to Goals

When the operation support system is initiated (i.e.,

the application is activated), the paths from the start

to all goals is initially derived based on the data

obtained by analyzing the activity diagram. After

deriving all paths, the operation support system

retains the path information. The activity diagram in

Fig. 2 indicates that there are the paths of functions.

4.3.2 Calculate the Path from the Current

Step to the Goal

Our system monitors the current step and the

window transition history. When our system senses

a newly active window for each window transition,

our system updates the current step and transition

history. Based on them, the operation support system

calculates the common path between the history of

the window transitions and the path from start to the

goal of the function selected. When confirming

Automatic Generation of an Operation Procedure Presentation System Reusing User’s Input Data

127

common paths, the following two patterns are

conceivable:

(1) The current step exists in the path from the start

to a user’s goal.

If the current step exists in the path from the start to

the goal, the current path is a part of the appropriate

path. Therefore, the path presented to a user is the

part of the appropriate path, which does not contain

common parts. If the desired function is Function 2

in Fig. 2 and the current step is WindowG, the path

presented to user is from WindowG

(2) The current step does not exist in the path from

the start to the goal.

If the current step does not exist in the path from the

start to the goal, a branch is created from the last

window in the common path between the two paths.

Therefore, the path from the current step to the goal

is a combination of a back path from the current step

to the branch step and the path from the branch step

to the goal. Our system presents this connected path.

When the intended function is Function 1 in Fig. 2,

the path presented to user is one combined back path

to WindowC and path from WindowC to Window E.

5 GENERATION PROCEDURE

In this section, we describe the generation procedure

of our system. There are five steps:

(1) Create the ontology

(2) Associate input items with label names

(3) Describe the activity diagram

(4) Analyze the activity diagram

(5) Add the function name and instructions

The source programs to realize our system are

generated based on these steps. Also, our system is

implemented for web applications that work on the

client side with HTML and JavaScript and can

handle Java on the server side. We calculate the

similarity using the ontology editor of Hozo (Hozo-

Ontology Editor). However, if the ontology data can

be handled and the similarity between the input

items can be calculated, and if associating a label

name with a text field is possible, the programming

language and environment of the target application

are not limited.

5.1 Create the Ontology

As mentioned above, we use an ontology in the

input reuse function. Developers must create the

ontologies beforehand. When creating an ontology,

it is necessary to include all basic concepts with the

label names of the input items. Setting the data type

of each input item allows the similarity between

input items to be calculated more accurately. If

relationships can be made between input items, they

should be related.

5.2 Associate Input Items with Label

Names

As described in Section 4.2.1, for the input reuse

function to retain the value entered in the original

input item associated with the label name, the

developer must create a correspondence between

them beforehand. Because we assume that our

system is incorporated into the target application, it

is necessary to make correspondences within the

source program of the target application so that the

input reuse function of our system can understand

them programmatically. In addition, it is necessary

that the label name in this correspondence is the

same as the label name of the basic concept used in

the ontology. Through the unique data attribute of

HTML, the input items are associated with label

names in our system.

5.3 Create the Activity Diagram

The operation procedure presentation function

analyzes the activity diagram to obtain information

about the window transition of the target application.

In addition to the basic components of the activity

diagram, window object names, which are the names

declared in the source programs of the application,

are additionally described in the activity diagram.

This additional description allows the activity added

by window name to be regarded as an activity of the

window display. Hence, the activity diagram can be

treated as a window transition diagram.

Associating the window object name with the

activity in the activity diagram indicates that the

associated activity is a window display activity.

Additionally, the associated window object name

serves as an identifier of the activity. As a method of

association, an asterisk “*” is added to the original

description of the associated activity, such as “*

Start_Window *”.

5.4 Analyze the Activity Diagram

Based on the activity diagram, the information

necessary to automatically generate the code of the

operation support system is extracted. The following

information can be extracted.

 Window object name

HUCAPP 2018 - International Conference on Human Computer Interaction Theory and Applications

128

The window object name is described by

surrounding it with “*” for the corresponding

activity. Therefore, the original description and the

window object name can be extracted separately.

 Path information

By narrowing to only the activity with the associated

window object name, the activity diagram can be

treated as a window transition diagram. From this

activity diagram, all paths of the application are

derived by a depth-first search.

5.5 Add the Function Name and

Instruction

Our system requires the function names and contents

of the instructions to be used. Therefore, all the path

information obtained by analyzing the activity

diagram is presented to the developer. Then the

developer creates the following descriptions.

 Function Name

For all the path information obtained in the analysis

in Section 5.4, the developer must describe the

purpose of each path. This written description is

used as a list of functions displayed when a user uses

our system.

 Instructions

Further, the developer describes the operation

procedure to be performed in each window in order

to trace the path. The contents described here are

used as instructions to be displayed when a user uses

our system.

After describing these, operation support system is

generated.

6 EVALUATION

In the evaluation, we adopt open-source software of

an expense report submission system. This system is

web-based software to create expense reports and

has many input items. To use this system,

administrator and general user roles were provided.

Administrators could audit the expense reports, add

user’s information, etc. General users could create

expense reports. This system was implemented by

several types of programming languages, such as

html, jsp, javascript, java, etc, and had 929 files and

166803 lines of code, totally.

6.1 Participants

8 (male) students were recruited from a local

university to participate in the evaluation. All

subjects were computer science majors, and their

average age was 22.6 (21 to 24). Although the

subjects were familiar with operating a personal

computer, they were unfamiliar with the expense

report submission system used in the evaluation. The

subjects were divided into two groups. In Group A

(4 students), the first task was performed using the

proposed operation support system. Then the same

task was performed using the operation manual

attached to the expense report submission system.

Group B (4 students) used the opposite task flow as

Group A.

6.2 Procedure and Apparatus

Both groups were given overviews of the operation

support system and the expense report submission

system prior to performing the tasks. When

completing the tasks using the operation support

system, we also explained the threshold (0 to 1) for

input reuse, and asked the subjects to enter the

thresholds before performing the tasks. Because the

subjects were unfamiliar with the expense report

submission system, they were asked to assume the

context, such as a part-time manager, and to perform

tasks that require less business knowledge. The task

flow was to log in as the administrator of the

expense report submission system where

departments, users, and email addresses (so that the

image of the receipt can be sent via e-mail) can be

added. After completing the second task, the

participants answered the questionnaire. The

question items of the questionnaire were as follows:

Q1. Is the operation procedure presented properly?

Q2. Which is more useful, the conventional

operation support or the operation support that

presents procedures from the current step?

Q3. What is the reason for your answer in Q2?

Q4. In what situations do you think that support for

presentation operation procedures is useful?

Q5. Is reuse necessary for each input field?

Q6. Is appropriate data reused?

Q7. Is setting the threshold appropriate?

Q8. Are the reuse items appropriate?

Q9. What input items did you want to reuse?

Q10. Is input items inappropriately reused?

Q11. Do you have additional comments?

For Q1, Q5 to Q7, we adopted a five-point Likert-

scale, where 1 equals “Strongly disagree” and 5

equals “Strongly agree”. Q2 also adopted a five-

point Likert-scale, where 1 equals “Strongly think

conventional operation support” and 5 equals

“Strongly think operation support system by

Automatic Generation of an Operation Procedure Presentation System Reusing User’s Input Data

129

Table 2: The relationship between the threshold set by the subjects and the input reuse.

Threshold

Number of

inputs

Number of

reuses

Number of inappropriate

reuses

Number of appropriate

reuses

Number of times that reuse

does not occur

0.2

0.3

0.4

0.5

0.6

0.7

presentation of operation procedure from the current

step”. Other questions were free response.

The instructions presented in the operation

procedure presentation function of the operation

support system were described in English and

include contents that equivalent to the operation

manual provided in the target application to prevent

significant differences due to the language and

content.

The evaluation experiment was conducted using

Apple’s Macbook Air (Mac OS 10.12.3) and a

Firefox browser (54.0.1).

6.3 Results

Each subject completed the questionnaire after the

experiment. Fig. 3 shows the results for Q5–Q7,

which focus on input reuse. The x-axis is the

threshold value selected by each user. A threshold

value of 0.2 provided the lowest results for Q5–Q7.

For Q6, the highest result was obtained when the

threshold value was 0.3 and 0.4. For Q7, a threshold

value of 0.4 and 0.7 gave the highest result.

Table 2 shows the relationship between the

threshold set by the subjects and the input reuse. The

number of input items differed between subjects

because the input items of the tasks included

unnecessary input items. According to Table 2, as

the threshold value became higher, both the number

of reused input items and the number of

inappropriate reuses decreased. On the other hand,

as the threshold value became lower, the overall

reuse and the number of appropriate reuses

decreased. However, the number of desired reuses

that did not occur tended to increase.

According to the results of Q1 and Q2, operation

support from the current step was more useful than

the conventional operation support.

Some subjects did not refer to the operation

support. They answered that they were neutral

between the proposed and conventional support

systems.

Figure 3: Results of Q5 to Q7 regarding input reuse.

7 DISSCUSION

Based on the evaluation results in Section 6, this

section discusses operation support by presentation

of operation procedures and input reuse.

When the threshold value is 0.6, the results of Q6

and Q7 are low (Fig. 3). Although the threshold

value is subjective, it is necessary to examine criteria

of threshold in order to prevent inappropriate reuse

because it may induce stress in users.

Although the same threshold value and the same

number of reuses are used, the number of

inappropriate reuse items and the appropriate

number of reuse items differ by subject (Table 2).

This is because the appropriateness of reuse may

depend on the context. In this evaluation, some

subjects used the reused data, while others deleted

the reused data and entered different data. These

results demonstrate that it is necessary to verify the

reuse according to the context. In this evaluation,

reuse was forcibly performed without consideration

of the user’s context. In the future, a method to

automatically sense the user’s context or one that

allows users to set the context of the operation

support system will be studied.

As the threshold value rises, the number of items

that the subjects wished to reuse also increases. This

is because the similarity between the ontology

concepts created in this evaluation is generally low.

HUCAPP 2018 - International Conference on Human Computer Interaction Theory and Applications

130

Thus, the threshold value is set higher than the

similarity, and reuse is not performed. In this

evaluation, only data types were set in some

concepts. If the setting threshold is low, reuse may

occur between input items with the same data type

although they are not similar. To measure the

similarity more precisely, it is necessary to define

the concept more strictly within the ontology.

With respect to operation support by presentation

of operation procedure, negative results were not

reported. However, none of the subjects indicated

that the presentation of the operation procedure is

appropriate or more useful than the conventional

one. This is because the window transition hierarchy

of the target application in this evaluation is wide

and shallow. Hence, it seems that the support by

presenting the operation procedure is not perceived

as very useful. One comment indicated that it would

be more useful for a more complicated procedure.

In addition, 75% subjects in Group A and 50%

subjects in Group B performed the first task again,

because they couldn’t understand what data should

be input. Instructions by our system were similar to

the manual of the application. Thus, this did not

always mean that our system was more effective

than the manual. Not only operation procedures but

meanings of input items could be difficult for users,

so supporting users to understand the meanings of

input items should be considered.

Meanwhile, some tasks generally can’t be

cancelled, such as file saving and printing. In this

experiment, the task was data registration and could

not be cancelled just by return operations. In these

cases, it is necessary to present completion of

operations (impossible return operations) or how to

cancel the operations.

Thus, although there were some issues that

should be considered, we confirmed that our system

could supported user operations effectively.

8 CONCLUSIONS

Herein we propose automatic generation of an

operation procedure presentation system that reuses

user’s previously input data. The proposed operation

support system contains operation support that

presents the procedure from the current step to the

end step of the intended function, and reuses the

previously input data entered in an inappropriate

operation path by a user in the appropriate operation

path. The input reuse function of this system is

generated by creating an ontology and associating a

label name and an input item. The operation

procedure presentation function is generated based

on the activity diagram describing additional

information. Future tasks of this research include:

 Improving our system

 Reconsidering target applications for evaluation

REFERENCES

Breuker, J., Winkels, R., and Sandberg, J. 1987. Coaching

strategies for help systems: EUROHELP. Proceedings

of the 4th Annual ESPRIT Conference.

Chilana, P.K., Ko, A.J., Wobbrock, J.O., and Grossman,

T. 2013. A multi-site field study of crowdsourced

contextual help: usage and perspectives of end users

and software teams. Proceedings of Human Factors in

Computing Systems, ACM.

Constantine L., and Lockwood L. 1999. Software for Use:

A Practical Guide to the Models and Methods of

Usage-Centered Design. Boston: Addison-Wesley

Professional.

Expense Submital System, https://sourceforge.net/

projects/expense-ss/ (accessed on 12 September,

2017).

Hozo-Ontology Editor, http://www.hozo.jp/hozo/

(accessed on 12 September, 2017).

Iwata, H., Fukazawa, Y., and Shirogane, J. 2010.

Generation of an operation learning support system by

log analysis. Proceedings of 2nd International

Conference on Software Engineering and Data

Mining. IEEE.

James, C. L., and Reischel, K. M. 2001. Text input for

mobile devices: comparing model prediction to actual

performance. Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems. ACM.

Kaiya, H., and Sekii, M. 2006. Using Domain Ontology as

Domain Knowledge for Requirements Elicitation.

Proceedings of the 14

IEEE International

Conference on Requirements Engineering. IEEE.

Seffah, A., Donyaee, M., Kline, R.B., and Padda, H.K.

2006. Usability measurement and metrics: A

consolidated model. Software Quality Journal. 14(2),

pp. 159-178.

Shneiderman,B., Plaisant,C., Cohen,M., and Jacobs,S.,

2013. Designing the User Interface: Strategies for

Effective Human-Computer Interaction. Pearson.

Sitkin,S.B. 1992. Learning Through Failuer: The Strategy

Of Small Losses. Research in organizational behavior,

14, pp. 231-266.

Automatic Generation of an Operation Procedure Presentation System Reusing User’s Input Data

131
