Does Vision Work Well Enough for Industry?

Frederik Hagelskjær, Anders Glent Buch and Norbert Kr

uger

Maersk Mc-Kinney Moller Institute, University of Southern Denmark, Odense, Denmark

Keywords:

Pose Estimation, Industrial Vision, Setup Time, Usability.

Abstract:

A multitude of pose estimation algorithms has been developed in the last decades and many proprietary com-

puter vision packages exist which can simplify the setup process. Despite this, pose estimation still lacks the

ease of use that robots have attained in the industry. The statement ”vision does not work” is still not un-

common in the industry, even from integrators. This points to difﬁculties in setting up solutions in industrial

applications. In this paper, we analyze and investigate the current usage of pose estimation algorithms. A

questionnaire was sent out to both university and industry. From this survey, it is clear that the actual setup

time of pose estimation solutions is on average between 1–2 weeks, which poses a severe hindrance for the

application of pose estimation algorithms. Finally, steps required for facilitating the use of pose estimation

systems are discussed that can reduce complexities and thus the setup times in industrial applications.

1 INTRODUCTION

Using vision for pose estimation could signiﬁcantly

increase the possible use cases for robotics, since

expensive positioning systems such as bowl feeders

could be avoided. However, at the moment, setting up

a pose estimation system is very complicated and any

re-conﬁguration is a task almost equal in scale. That is

one reason why ”blind” robot systems are quite com-

mon in industry, while vision based solutions are sel-

dom seen. Even from integrators statements such as

”vision does not work” are still common in industry.

The ﬂexibility of a robot arm provides a tool

which can be reconﬁgured to different tasks using lit-

tle programming. This ﬂexibility has enabled a mas-

sive growth of robotics in industry, while there are

still many complexities involved in the setup of a vi-

sion based robotic system (Kr

uger et al., 2014). Thus,

while the number of robots in production is increas-

ing, SMEs (Small- and Medium-sized Enterprises)

have a much lower percentage of robots than large

companies (Sørensen et al., 2015), as they often pro-

duce in much smaller quantities.

The current decade has seen the introduction of

several robotic arms with simple setups; an example

is the Universal Robot. A task can quickly be setup

using 6D poses, given from either the controller or

by kinesthetic guidance. With this manipulator, one

can quickly generate repetitive movements, enabling

automation of tasks for small productions. The limit

of these ”blind” robot solutions is that the object poses

need to be deterministic.

Several methods and software packages are cur-

rently available for doing pose estimation. However,

for the integration of pose estimation into robot sys-

tems, many obstacles still exist.

High Requirements for Performance: The system

should be able to quickly detect the object, allowing

the production to continue at acceptable speed.

Demand for Robustness: Depending on the robot

setup, the number of acceptable mis-detections can be

as low as zero.

Inﬂexible Setups: A complete setup is often made to

perform for a single task. Any change in the task con-

ﬁguration will often demand an entirely new solution.

Long Development Time: Overcoming the previ-

ously mentioned obstacles will often result in exten-

sive testing before the system is working in an accept-

able way.

Expensive System: Having an expert working on the

setup and a long development time will make the sys-

tem expensive.

Using a questionnaire, (see Fig 1), we have ana-

lyzed and examined the current situation of the ap-

plication of pose estimation in academia and indus-

try. We received 23 responses of which 11 were from

people working in the industry (see Fig 2). In the fol-

lowing plots, we split the answers into industry and

academia, respectively plotted as red and blue.

Our questionnaire sheds light on the actual situa-

198

Hagelskjær, F., Buch, A. and Krüger, N.

Does Vision Work Well Enough for Industry?.

DOI: 10.5220/0006645301980205

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

198-205

ISBN: 978-989-758-290-5

• What is your current employment?

• For how many years have you been using com-

puter vision?

• How long time does it normally take you to

setup and complete a pose estimation task?

• How many vision tasks using pose estimation

have you solved in the last year?

• What software have you used for pose estima-

tion the last year?

• How much time do you as a vision expert use

on the physical aspect (light, camera lens, etc.)

vs. software (algorithm, tuning, etc.), when do-

ing pose estimation?

• How often is your vision system a part of a

robotics setup?

• How often do you use a CAD model in your

pose estimation?

Figure 1: List containing all the questions sent out in the

questionnaire. The possible answers were provided as a

range of multiple choice selections.

tion of the application of pose estimation algorithms

in academia and industry. The following overall state-

ments can be derived from the outcome of the ques-

tionnaire:

• More than 50% of pose estimation algorithms are

applied in the context of a robotic system. Hence

it is important to see pose estimation in this con-

text.

• Although using currently available proprietary

pose estimation software allows for applying a

concrete algorithm within few hours, the average

time used for making the system applicable for a

task is still between 1–2 weeks in industry and 2-4

weeks in academia.

• Most time is spent on adapting a given software

to a task and not for deciding about external fac-

tors such as sensors, light sources and the actual

placement of this equipment.

• Developers often use more than one software

package, indicating that it is far from being clear

what algorithms to choose for a given task.

These insights make it clear that—in addition to

improving the precision and accuracy of algorithms—

an important additional task is to facilitate the actual

use of available pose estimation algorithms. After

having reported on the results of the questionnaire in

section 3, we give pointers to issues that should be ad-

dressed in pose estimation research in that context in

section 4 and 5.

2 STATE OF ART

There has been a signiﬁcant development in methods

for pose estimation which can solve many complex

tasks using both 2D and 3D, sensors (see, e.g. (Miksik

and Mikolajczyk, 2012) and (Guo et al., 2014)).

This section gives an overview of the current state

of the art, both in terms of algorithms as well as vision

systems applied in industry.

2.1 2D Methods

With a standard RGB or mono camera, the input data

is a 2D matrix of light intensity. Even though the data

is without any 3D information, there exist methods

which can return 6D poses. Two primary methods ex-

ist for handling such 2D data, i.e. template matching

(Lewis, 1995) and feature matching (Gossow et al.,

2012), respectively global and local approaches.

Template Matching (Global Approaches): In tem-

plate matching, a model of the object that we wish to

detect is used to match patches of the image. Meth-

ods to avoid instabilities connected to illumination

changes, use edges instead of the intensity image

(Lewis, 1995). By utilizing the orientation of the

edges, (Hinterstoisser et al., 2012) newer additions

have been able to enhance the robustness. How-

ever, template matching is not robust to occlusions

or other aspects that hinder edge detection. Despite

these problems, template matching is a widely used

method which under the proper circumstances can be

extremely accurate.

Feature Matching (Local Approaches): To avoid

the drop in performance as a result of occlusion and

background clutter small patches are matched withe

the image as opposed to the full object. The proce-

dure is to detect interest points, calculate descriptors

at each interest point and then try to match the de-

scriptors to ﬁnd a transformation.

An early method which employed this with great

success is SIFT (Lowe, 2004). Using the difference

of Gaussian operator to detect interest points and a

histogram of gradients as the descriptor, the method

creates candidate matches. After evaluating the qual-

ity of the matches, usually using RANSAC (Fischler

and Bolles, 1981), a transformation is found.

Using the same approach, several alterations have

been made to this algorithm, eg. (Bay et al., 2008),

(Alahi et al., 2012) and (Rublee et al., 2011). Using

feature matching, it is possible to acquire real-time

pose estimation of objects (Collet et al., 2011). One

limitation of feature matching is that it requires some

texture on the object to be detected.

Does Vision Work Well Enough for Industry?

199

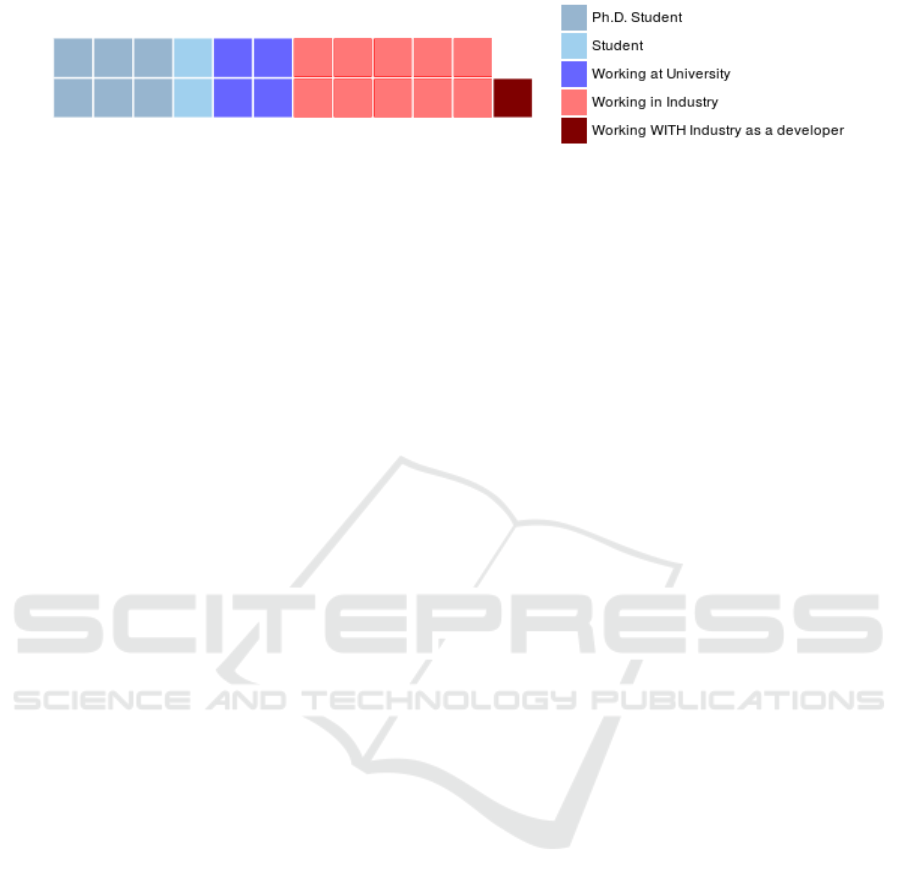

Figure 2: Employment of those who answered the questionnaire. The answer ”Working WITH Industry as a developer” was

provided by a participant.

2.2 3D Methods

With the introduction of cheap 3D sensors like the

Kinect (Zhang, 2012), along with increased process-

ing power enabling fast stereo processing, a huge in

increase in the availability of 3D algorithms has in-

creased greatly in the last two decades. As in the 2D

case there exist many different global and local meth-

ods.

Global Methods: As in the case of 2D, there

are methods for matching the full model in 3D. The

method in (Mian et al., 2006) uses tensors of differ-

ent views of the object, compared with tensors of the

scene. Another global approach employed in the pro-

prietary software Halcon is called PPF (Drost et al.,

2010). Here point pair features are matched globally

to represent the model as opposed to local methods.

Local Methods: With an overwhelming amount of

different methods (Guo et al., 2014), feature matching

is the most widely investigated approach for pose esti-

mation in 3D data. In these methods, instead of using

2D features, the local 3D space at interest points is

represented. One of the early methods is the Spin Im-

age feature (Johnson and Hebert, 1998), which use a

histogram of signed and radial distances for neigh-

boring normal vectors as the descriptor. As in the

case of 2D methods, there have been several different

descriptors using various local 3D information, e.g.

SHOT (Tombari et al., 2010) and FPFH (Rusu et al.,

2009). Finally, there also exist many different match-

ing schemes for these descriptors (Guo et al., 2014).

2D and 3D methods can also be combined using both

color and depth information. C-SHOT (Tombari et al.,

2011) is an example of a simple combination. Us-

ing the SHOT algorithm (Tombari et al., 2010), a his-

togram of the RGB intensities around the point are

added to the descriptor increasing performance. The

large variety of available pose estimation algorithms

requires making application-speciﬁc choices, which

is far from being trivial. This is one of the complex-

ities in setting up pose estimation systems that leads

to long setup times for vision solutions in practical

applications, as it will become evident from our ques-

tionnaire.

2.3 Learning-based Methods

Methods based on training have had much success

in the last years for object classiﬁcation (Krizhevsky

et al., 2012). Several machine learning approaches

have been shown to work well in the context of pose

estimation, e.g., Random Forest (Lai et al., 2011) and

Neural Networks (Gupta et al., 2015). These methods

use labeled training samples to learn correct parame-

ters for classifying data. This gives the advantage that

if the correct hyper-parameters are provided, they can

be trained by non-professionals. By using robust pa-

rameters, more conventional vision methods can also

utilize learning based approaches for a more simple

setup (Leibe et al., 2008). The input to these models

can be both 2D and 3D data and they can be combined

with other methods to improve performance.

The output of thee applications ranges from a

classiﬁcation of images (Krizhevsky et al., 2012), to

pixel-vise (Girshick et al., 2014) detection and ﬁnally

an actual 6D pose (Rad and Lepetit, 2017). Thus a

realm of possible solutions is beginning to emerge us-

ing machine learning.

2.4 Software Packages for Pose

Estimation

There exist many proprietary software packages and

open source solutions to ease the development of pose

estimation. From ﬁgure 3 it is seen that a lot these

packages are used in both industry and university. We

will here list some of these packages and give a short

description of the frameworks. The proprietary pack-

ages are listed with an ”(*)”.

Halcon (*): Halcon (MvTec, b) is a library which

includes different kinds of 2D and 3D based pose es-

timation methods. Examples are template matching

in 2D images, and many different 3D matching meth-

ods.

Matlab Computer Vision Toolbox (*): The com-

puter vision toolbox (Matlab, 2016) in Matlab has a

template matching method and a number of different

feature matching algorithms as well as training based

methods.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

200

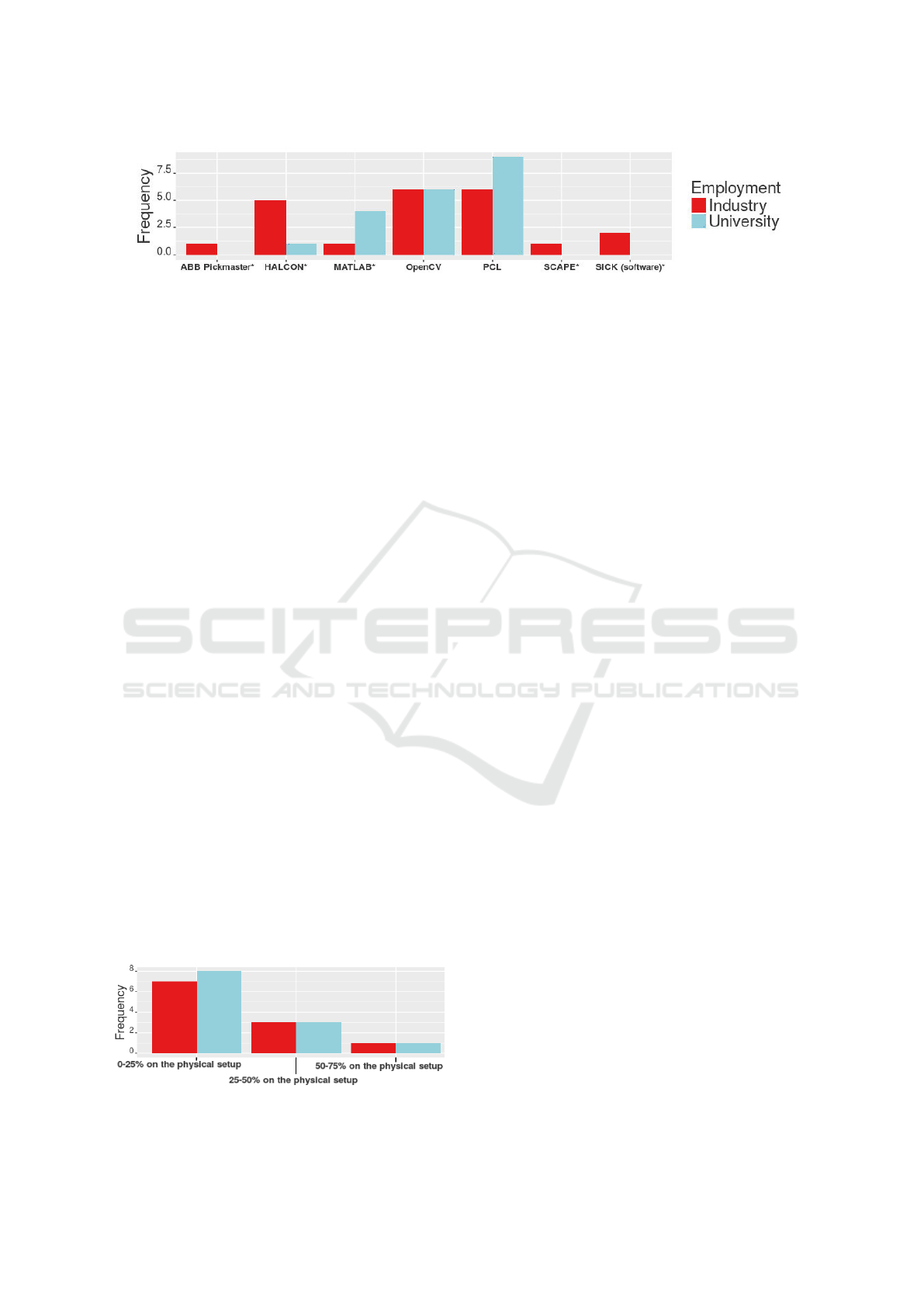

Figure 3: What software have you used in the last year? Proprietary software is marked with ” *”.

Vidi (*): Vidi (Cognex, ) provides the ability to cre-

ate matching systems based on deep learning meth-

ods.

Adaptive Vision (*): This is a suite to perform sim-

ple detection based on template matching (Adaptive-

Vision, ).

OpenCV: OpenCV (Itseez, 2015) is a vision library

for 2D methods. This library has an overwhelming

amount of different methods, but to use the library,

usually a lot of implementation is necessary.

Point Cloud Library: PCL (Rusu and Cousins,

2011) is an open source library for 3D algorithms im-

plemented in C++. Many methods are available, but

as in the case of OpenCV, much coding is required to

implement these methods properly.

3 SETTING UP A POSE

ESTIMATION SYSTEM

The creation of a pose estimation system usually re-

quires many decisions and reiterations before the sys-

tem has a sufﬁcient performance. Fig. 5 illustrate the

usual workﬂow, from an initial problem into a work-

ing solution. We will use this workﬂow to present the

main results in our investigations.

The very ﬁrst step is to analyze the situation and

determine the success criteria, Fig. 5(A). From this,

constraints can be deﬁned and the actual setup can

begin, Fig. 5(B). In Fig. 5(C), a sensor system needs

to be selected; the sensor establishes both the limi-

tation of workspace and possible algorithms. Then,

an algorithm is required to do the actual pose estima-

tion (Fig. 5D) and the parameters can be set (Fig. 5E).

Figure 4: How much time do you spend on physical setup

vs software?

The whole setup is then tested (Fig. 5F), and adjusted

for several iterations until it performs successfully

(Fig. 5G). Depending on the scale of the error, one

often goes back multiple stages while trying to adjust

the system. We will now elaborate these phases and

relate them to the answers in the survey.

Initial Analysis; Fig. 5(B): Pose estimation per-

formed on a dataset often focuses on getting the best

performance in terms of number of correctly recog-

nized poses, whereas a robotics setup often has par-

ticular requirements (such as processing speed, pre-

cision as well as setup time). In Fig. 6 we see that

most pose estimation tasks in industry have an actual

robotics setup, where such requirements need to be

speciﬁed.

This will also help to restrict the task, for exam-

ple, if only one object needs to be detected or some

errors can be accepted. Restrictions and requirements

for pose estimation are often quite different between

robotic setups. Thus an analysis of each situation will

make the creation of a pose estimation task much sim-

pler.

Constraints; Fig. 5(B): A user of the pose estimation

algorithm may exploit known constraints to the sys-

tem, which will make the detection more feasible. For

example, an object rarely appears in completely ran-

dom 6D poses. Usually, there are constraints in the

workspace of where objects can appear, which could

increase the speed and reliability of the pose estima-

tion considerably. The object could also be bound to

a particular plane, (e.g. a table, the ﬂoor) or some

distinct orientations (e.g. stable poses due to grav-

ity), which could increase the precision signiﬁcantly.

This knowledge is of course taken into account when

deciding upon the sensor positioning, but usually the

available software packages that we are aware of ig-

nore such constraints in the actual pose estimation

step. Some 2D algorithms have distance as part of

their parameters, whereas many 3D algorithms sel-

dom take additional constraints into account.

Hardware Selection; Fig. 5(C): There exist many

different sensors, which are able to provide intensity

and color images and various kinds of depth informa-

tion. Many combinations exist, each with different

coverage, precision, resolution, etc.

Does Vision Work Well Enough for Industry?

201

Figure 5: Visualization of the integrators pipeline to create a working pose estimation setup. A number of reiterations are

performed.

These are external parameters which set the basis

for the following setup. Any constraint established by

the hardware inﬂuences the rest of the system. Thus

it is possible that these parameters need adjustment

during development. However from our questionnaire

(see Fig. 4) we can see that this is a task which takes

much less time than choosing and ﬁne tuning the al-

gorithms of the software. The usual way seems to be

to make a qualitative choice and then work hard on

ﬁnding a software solution afterwards. However, if

tuning the software solution does not lead to a satis-

fying solution, the decision that the whole physical

setup might be changed might be required at some

point.

Software Selection; Fig. 5(D): As seen in section 2,

there exists an overwhelming amount of different al-

gorithms for pose estimation. Many of these can also

be combined. There exists both open source algo-

rithms and many kinds of proprietary software. Using

knowledge and experience, the user can get a start-

ing point for choosing speciﬁc algorithms, but there

are no actual guidelines when deciding which algo-

rithm best ﬁts any particular situation. The setup time

is often much shorter using proprietary software, but

the drawback is a lack of control and ﬂexibility, as

the proprietary systems set the structure for develop-

ment. However, depending on the knowledge level

of the user, this lack of ﬂexibility is not necessarily a

drawback.

The survey shows that a mix of open source and

proprietary methods are used in both industry and

academia, as seen in Fig. 3. The patented HALCON

is used mostly in industry, whereas Matlab is often

used in academia. It can also be observed that the two

open source solutions are used in both industry and

academia. Additionally, our data reveal that 13 out of

Figure 6: How often is your vision system a part of a

robotics setup.

23 parties use more than one type of software.

Selection of Appropriate Parameters; Fig. 5(E):

The methods discussed in Section 2 are seldom used

directly out of the box. There exist many parameters

to select, and the correct conﬁguration can be crucial

for the algorithm to work. These parameters can both

be constraints of the algorithms search space, but can

also be settings unique to the algorithm.

For example with the SIFT (Lowe, 2004) al-

gorithm, crucial parameters are the number of oc-

taves and the sigma value. It requires quite some

knowledge about these parameters to judge what set-

tings are required. Another example is the method

”ﬁnd shape model 3d” (MvTec, a, Page 155) from

HALCON. Even though HALCON simpliﬁes the in-

stallation procedure by reducing the number of possi-

ble parameters, one still needs to determine the possi-

ble poses and adjust the remaining parameters. These

parameters are ”MinScore” and ”Greediness” which

can be used to adjust between accuracy and process-

ing speed. Although these parameters seem more

straightforward and intuitive than in the case of SIFT,

they still require adjustment to ensure good results.

Optimization; Fig. 5(F and G): When one has gone

through the steps in Fig. 5(A, B, C, D, and E), the

system can be evaluated. For that, the success criteria

of the setup needs to be deﬁned.

A simple success criterion is that the system

should be able to correctly recognize all instances of

an object at high precision in real time. However,

in cases with complicated workspaces, this is rarely

possible. Objects could be blocking each other, unfa-

vorable lighting conditions, random clutter and noise

could make detection almost impossible. Fortunately

though, there are cases where a perfect detection of

every object is not required. For some applications

only 95% precision may be sufﬁcient, or one only

needs to detect one instance at a time from a set of

instances. These are all factors that determine if the

system is usable.

When all the steps have been completed, and the

system has been tested, it rarely performs as desired.

Testing on actual data often reveals a need to adjust

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

202

Figure 7: Time spent to complete a pose estimation task.

parameters. This can either be physical constraints

that need adjustment or that the algorithm does not

perform well enough and needs correction.

Depending on the severity of the error, the devel-

oper might need to go back further and further in the

process. Small errors can be corrected by adjusting

parameters Fig. 5(E), whereas larger errors could re-

sult in the need for a new algorithm, Fig. 5(D). One

could even end up realizing that the sensor system is

not able to solve the problem, Fig. 5(C), or maybe the

problem needs to be redeﬁned, Fig. 5(B).

4 REQUIREMENTS FOR A

DIRECT USE IN SMES

As seen in the previous section, the user needs to

take a lot of decisions when setting up a pose estima-

tion system. For all of these choices, there are addi-

tional parameters and adjustments, making the design

process cumbersome. Implementing these algorithms

takes time, testing takes time and making changes

takes time.

Fig. 7 is a visualization of the time spent on a pose

estimation task. The median time spent on a task is

1–2 weeks for people employed at industry and 2–4

weeks in academia. This indicates a very long break-

even time, which is a signiﬁcant obstacle for SMEs to

apply vision solutions. There is thus a clear need to

bring down this development time.

To decrease the setup time of pose estimation al-

gorithms a higher level of usability is required. Sev-

eral aspects deﬁne the complexity of a solution: in-

tegration, algorithms, and setup. By these complexi-

ties, the usability of different software packages can

be segmented into different levels. A representation

of usability levels is shown in Fig. 8. An example

could be HALCON, although widely applied, it is at

best usable by integrators but not by any person with-

out a solid engineering education. This is because

functions need to be implemented and their param-

eters need adjustment, which presupposes a basic un-

derstanding of the underlying algorithms. To further

facilitate and increase the application of pose estima-

tion in industry (and in particular SMEs), it would be

necessary to decrease the complexity and the average

time used for setting up pose estimation systems.

We will now look into the obstacles and required

means for a system, where an industry user with some

basic education can set up a pose estimation.

Integration: When creating the system, the software

should allow for guidance in the many possible sensor

choices and placements, and should, of course, inte-

grate with the hardware easily. This could be achieved

by simulating the sensor itself and the sensor setup

and optimizing. First steps in this direction are done

in, e.g., (Jørgensen et al., 2017).

Likewise, there should be a simple integration of

the found poses to the robot control system. This

will not only save initial setup time but also allow for

much easier testing of the system.

Algorithms: There are several ways the application

of the algorithm can be facilitated: First, the system

would need algorithms to automatically adapt its in-

ternal parameters to solve the task at hand robustly.

Second, the selection of parameters should be as sim-

ple as possible. A condensation of the parameters

could simplify this to ﬁne tuning between different

aspects, e.g., speed vs. recall. Another approach is to

combine descriptors to cover a larger range of prob-

lems and avoid the need to test every situation (Buch

et al., 2016). Third, there exist good examples of us-

ing simulation using either traditional vision methods

(Jørgensen et al., 2017) or neural networks (Rad and

Lepetit, 2017).

Figure 8: Four scales of usability for implementations of

pose estimation system. The top one being the simplest to

implement for the user.

Does Vision Work Well Enough for Industry?

203

Installation Procedure: With knowledge of the dif-

ferent parts of the system, a program would be able

to guide the user through an installation. The user

should select various aspects of the pose estimation

in an intuitive way, potentially selecting on the screen

where the object is to be detected, whether a detec-

tion is correct and so forth. The system should also be

ﬂexible enough to allow for easily adapting to small

changes in objects variants instead of starting the pro-

cess from scratch each time. Ideally, a database would

store already found solutions intelligently and would

match an existing task to earlier found solutions. This

gives a good starting point for a given problem.

5 CONCLUSION

We have shown an analysis of the current situation

of the applications of pose estimation in industry and

academia. Our results show that the average setup

time for pose estimation systems in the industry is 1–

2 weeks, and 2–3 weeks in academia. Despite many

improvements, there still exist many obstacles before

pose estimation can be installed with a reasonable

setup time. This currently limits the application of

vision systems to large production sizes.

The results indicate that in addition to the algo-

rithmic problems of pose estimation, the actual imple-

mentation of the system is still a challenge. In section

4, we proposed a scaling of the usability of vision al-

gorithms. These levels indicate how much time and

expertise it takes to set up a pose estimation system.

At the top level, the system can be quickly set up by a

non-expert, which is currently not possible.

To achieve this level of usability, the parameters of

vision algorithms needs to be condensed, both to re-

duce the number of parameters, but also to make them

more intuitive. There is also a need for a more efﬁ-

cient framework for setting up pose estimation sys-

tems, guiding the user through the complete setup

from image acquisition to the ﬁnal position. Here

the simulation of sensors and systems before setting

up costly hardware solutions could play an important

role.

This paper shows that when evaluating the quality

of pose estimation systems, the aspect of setup time

might be an important criterion besides the percentage

of recognized objects and the pose accuracy.

ACKNOWLEDGEMENTS

This work has been supported by the H2020 project

ReconCell (H2020-FoF-680431).

REFERENCES

Adaptive-Vision. Adaptive vision. https://www.adaptive-

vision.com/en/. Accessed: 2017-08-17.

Alahi, A., Ortiz, R., and Vandergheynst, P. (2012). Freak:

Fast retina keypoint. In Computer Vision and Pat-

tern Recognition (CVPR), 2012 IEEE Conference on,

pages 510–517. Ieee.

Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).

Speeded-up robust features (surf). Computer vision

and image understanding, 110(3):346–359.

Buch, A. G., Petersen, H. G., and Kr

uger, N. (2016). Lo-

cal shape feature fusion for improved matching, pose

estimation and 3d object recognition. SpringerPlus,

5(1):297.

Cognex. Cognex vidi suite. http://www.cognex.

com/products/deep-learning/dl-

software/?id=19178&langtype=1033. Accessed:

2017-09-15.

Collet, A., Martinez, M., and Srinivasa, S. S. (2011). The

moped framework: Object recognition and pose esti-

mation for manipulation. The International Journal of

Robotics Research, 30(10):1284–1306.

Drost, B., Ulrich, M., Navab, N., and Ilic, S. (2010). Model

globally, match locally: Efﬁcient and robust 3d object

recognition. In Computer Vision and Pattern Recogni-

tion (CVPR), 2010 IEEE Conference on, pages 998–

1005. Ieee.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: a paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Communications of the ACM, 24(6):381–395.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detec-

tion and semantic segmentation. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 580–587.

Gossow, D., Weikersdorfer, D., and Beetz, M. (2012).

Distinctive texture features from perspective-invariant

keypoints. In Pattern Recognition (ICPR), 2012

21st International Conference on, pages 2764–2767.

IEEE.

Guo, Y., Bennamoun, M., Sohel, F., Lu, M., and Wan,

J. (2014). 3d object recognition in cluttered scenes

with local surface features: A survey. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

36(11):2270–2287.

Gupta, S., Arbel

aez, P., Girshick, R., and Malik, J. (2015).

Aligning 3d models to rgb-d images of cluttered

scenes. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

4731–4740.

Hinterstoisser, S., Cagniart, C., Ilic, S., Sturm, P., Navab,

N., Fua, P., and Lepetit, V. (2012). Gradient response

maps for real-time detection of textureless objects.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 34(5):876–888.

Itseez (2015). Open source computer vision library.

https://github.com/itseez/opencv.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

204

Johnson, A. E. and Hebert, M. (1998). Surface matching

for object recognition in complex three-dimensional

scenes. Image and Vision Computing, 16(9):635–651.

Jørgensen, T. B., Iversen, T. M., Lindvig, A. P., Schlette,

C., Kraft, D., Savarimuthu, T. R., Roßmann, J., and

uger, N. (2017). Simulation-based optimization of

a pose estimation system with application to detection

of partially ﬁlled trays. submitted to iros Vancouver

september 24-28, 2017.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

uger, N., Ude, A., Petersen, H. G., Nemec, B., Ellek-

ilde, L.-P., Savarimuthu, T. R., Rytz, J. A., Fischer,

K., Buch, A. G., Kraft, D., et al. (2014). Technologies

for the fast set-up of automated assembly processes.

KI-K

unstliche Intelligenz, 28(4):305–313.

Lai, K., Bo, L., Ren, X., and Fox, D. (2011). A scalable

tree-based approach for joint object and pose recogni-

tion. In AAAI.

Leibe, B., Leonardis, A., and Schiele, B. (2008). Robust ob-

ject detection with interleaved categorization and seg-

mentation. International journal of computer vision,

77(1-3):259–289.

Lewis, J. P. (1995). Fast template matching. In Vision inter-

face, volume 95, pages 15–19.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Matlab (2016). Matlab and computer vision toolbox release

2016b.

Mian, A. S., Bennamoun, M., and Owens, R. (2006).

Three-dimensional model-based object recognition

and segmentation in cluttered scenes. IEEE trans-

actions on pattern analysis and machine intelligence,

28(10):1584–1601.

Miksik, O. and Mikolajczyk, K. (2012). Evaluation of local

detectors and descriptors for fast feature matching. In

Pattern Recognition (ICPR), 2012 21st International

Conference on, pages 2681–2684. IEEE.

MvTec. Halcon solution guide. http://download.mvtec.

com/halcon-12.0-solution-guide-iii-c-3d-vision.pdf.

Accessed: 2017-06-10.

MvTec. Mvtec. http://www.mvtec.com. Accessed: 2017-

08-16.

Rad, M. and Lepetit, V. (2017). Bb8: A scalable, accurate,

robust to partial occlusion method for predicting the

3d poses of challenging objects without using depth.

arXiv preprint arXiv:1703.10896.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). Orb: an efﬁcient alternative to sift or surf.

In Computer Vision (ICCV), 2011 IEEE International

Conference on, pages 2564–2571. IEEE.

Rusu, R. B., Blodow, N., and Beetz, M. (2009). Fast

point feature histograms (fpfh) for 3d registration. In

Robotics and Automation, 2009. ICRA’09. IEEE In-

ternational Conference on, pages 3212–3217. IEEE.

Rusu, R. B. and Cousins, S. (2011). 3D is here: Point Cloud

Library (PCL). In IEEE International Conference on

Robotics and Automation (ICRA), Shanghai, China.

Sørensen, S. Y., Østergaard, S. M. F., and Pedersen, C.

(2015). Robotter i global kamp.

Tombari, F., Salti, S., and Di Stefano, L. (2010). Unique

signatures of histograms for local surface description.

In European Conference on Computer Vision, pages

356–369. Springer.

Tombari, F., Salti, S., and Di Stefano, L. (2011). A com-

bined texture-shape descriptor for enhanced 3d fea-

ture matching. In Image Processing (ICIP), 2011 18th

IEEE International Conference on, pages 809–812.

IEEE.

Zhang, Z. (2012). Microsoft kinect sensor and its effect.

IEEE multimedia, 19(2):4–10.

Does Vision Work Well Enough for Industry?

205
