Enhanced Address Search with Spelling Variants

Konstantin Clemens

Technische Universit

at Berlin, Service-centric Networking, Germany

Keywords:

Geocoding, Postal Address Search, Spelling Variant, Spelling Error, Document Search.

Abstract:

The process of resolving names of spatial entities like postal addresses or administrative areas into their where-

abouts is called geocoding. It is an error-prone process for multiple reasons: Names of postal address elements

like cities, streets, or districts are often reused for historical reasons; structures of postal addresses are only

coherent within countries or regions - around the globe addresses are not structured in a canonical way; human

users might not adhere even to locally common format for specifying addresses; also, humans often introduce

spelling mistakes when referring to a location.

In this paper, a log of address searches from human users is used to model user behavior with regards to spel-

ling mistakes. This model is used to generate spelling variants of address tokens which are indexed in addition

to the proper spelling. Experiments show that augmenting the index of a geocoder with spelling variants is

a valuable approach to handling queries with misspelled tokens. It enables the system to serve more such

queries correctly as compared to a geocoding system supporting edit distances: While this way the recall of

such a system is improved, its precision remains on par at the same time.

1 INTRODUCTION

Nowadays digital maps and digital processing of lo-

cation information are popularly used. Besides va-

rious applications for automated processing of loca-

tion data, like (Can et al., 2005), (Sengar et al., 2007),

(Borkar et al., 2000), or (Srihari, 1993), users rely on

computers to navigate through an unknown area or to

store, retrieve, and display location information. Wit-

hal, internally, computers reference locations through

a coordinate system such as WGS84 latitude and lon-

gitude coordinates (National Imagery and Mapping

Agency, 2004). Human users, on the other hand, re-

fer to locations by addresses or common names. The

process of mapping such names or addresses to their

location on a coordinate system is called geocoding.

There are two aspects to this error-prone process

(Fitzke and Atkinson, 2006), (Ge et al., 2005), (Gold-

berg et al., 2007), (Drummond, 1995): First, the geo-

coding system needs to parse the user query and de-

rive the query intent, i.e., the system needs to under-

stand which address entity the query refers to. Then,

the system needs to look up the coordinates of the en-

tity the query was referring to and return it as a result.

Already the ﬁrst step is a non-trivial task, especially

when considering the human factor: Some address

elements are often misspelled or abbreviated by users

in a non-standard way. Also, while postal addresses

seem structured and like they adhere to a well-deﬁned

format, (Clemens, 2013) shows that each format only

holds within a speciﬁc region. Considering addresses

from all over the world, address formats often con-

tradict to each other, so that there is no pattern that all

queries would ﬁt in. In addition to that, like with spel-

ling errors, human users may not adhere to a format,

leaving names of address elements out or specifying

them in an unexpected order. Such incomplete or mis-

sorted queries are often ambiguous, as the same na-

mes are reused for different and often times unrelated

address elements. Various algorithms are employed to

mitigate these issues. Even with the best algorithms

at hand, however, a geocoding service can only be as

good as the data it builds upon, as understanding the

query intent is not leading to a good geocoding result

if, e.g., there is no data to return.

Many on-line geocoding services like those of-

fered by Google (Google, 2017), Yandex (Yandex,

2017), Yahoo! (Yahoo!, 2017), HERE (HERE,

2017), or OpenStreetMap (OpenStreetMap Founda-

tion, 2017b) are easily accessible by the end user.

Because most of these systems are proprietary solu-

tions, they neither reveal the data nor the algorithms

used. This makes it hard to compare distinct aspects

of such services. An exception to that is OpenStreet-

Map: The crowd-sourced data is publicly available

for everyone. Open-source projects like Nominatim

Clemens, K.

Enhanced Address Search with Spelling Variants.

DOI: 10.5220/0006646100280035

In Proceedings of the 4th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2018), pages 28-35

ISBN: 978-989-758-294-3

(OpenStreetMap Foundation, 2017a) provide geoco-

ding services on top of that. In this paper, data from

OpenStreetMap is used to create a geocoding service

that is capable of deriving the user intent from a query,

even if it contains spelling errors or is stated in a non-

standard format. Nominatim - the reference geoco-

der for OpenStreetMap data - is used as one of the

baselines to compare with. Thereby, the recall of a

geocoding system is the ratio of successful responses

containing the result queried for, while as the preci-

sion describes the ratio of responses not containing

different and therefore wrong results. For ambigu-

ous queries most geocoding systems return respon-

ses with multiple results. Obviously, at most one re-

sult can be the one queried for, while all other results

can only be wrong. Therefore, such responses can be

regarded as either successfully served and increasing

the recall, or as failures reducing precision. Because

this paper aims at increasing the recall by reducing

the ambiguity of queries, each response with more

than one result is counted as non-successful, affecting

the precision metric of the respective geocoder nega-

tively.

In this paper a novel approach is suggested to in-

crease the recall of a geocoder. The idea is to make

the system capable of supporting speciﬁc, most com-

monly made spelling errors. Usually, this is achie-

ved by allowing edit distances between tokens of the

query and the address. That, however, inherently in-

creases the ambiguity of queries and leads to a lower

precision of the system: More responses contain re-

sults that queries did not refer to. The suggested ap-

proach aims to avoid that by only allowing speciﬁc

spelling variants that are made often, while avoiding

spelling variants that are not made at all - edit distan-

ces lack this differentiation.

For that, from a log of real user queries the most

common spelling mistakes users make are derived.

These spelling variants are indexed in addition to the

correctly spelled address tokens. Variants of geoco-

ding systems created this way are evaluated with re-

gard to their precision and recall metrics, and com-

pared to a similar system supporting edit distances,

as well as Nominatim. In (Clemens, 2015a) and

(Clemens, 2015b), similar measurements have shown

that TF/IDF (Salton and Yang, 1973) (Salton et al.,

1975) or BM25f (Robertson et al., 2004) based docu-

ment search engines like Elasticsearch (Elastic, 2017)

handle incomplete or shufﬂed queries much better

than Nominatim. This paper is a continuation of that

work. It adds to both the indexing mechanism pro-

posed in (Clemens, 2015a) and (Clemens, 2015b) as

well as the way the system performance is measured.

Work on comparing geocoding services has been

undertaken in, e.g., (Yang et al., 2004), (Davis

and Fonseca, 2007), (Roongpiboonsopit and Karimi,

2010), or (Duncan et al., 2011). Mostly, such works

focus on the recall aspect of a geocoder: Only how

often a system can ﬁnd the right result is compared.

Also, other evaluations of geocoding systems treat

every system as a black box. Thus, a system can be

algorithmically strong, but perform poorly in a mea-

surement because it is lacking data. Vice versa, a sy-

stem can look better than others just because of great

data coverage, despite being algorithmically poor. In

this paper, the algorithmic aspect is evaluated in iso-

lation, as all systems are set up with the same data.

Also, a different way of measuring the geocoders per-

formance is proposed: Based on real user queries a

statistical model is created which is used to generate

erroneous, user-like queries out of any given valid ad-

dress. This approach allows to measure a system on a

much greater number of addresses.

Another approach to the geocoding problem is to

ﬁnd an address schema that is easy to use and stan-

dardized in a non-contradicting way. While current

schemata of postal addresses are maintained by the

UPU (Universal Postal Union, 2017), approaches like

(what3words, 2017), (Coetzee et al., 2008), (Mayrho-

fer and Spanring, 2010), (Fang et al., 2010), or (geo

poet, 2017) are suggesting standardized or entirely al-

ternative address schemata. (Clemens, 2016) shows

that such address schemata are beneﬁcial in some sce-

narios, though they are far from being adopted into

everyday use.

In the next section, the steps to set up such geoco-

ding systems are described. Afterwards, in Section 3

the undertaken measurements are described in detail.

Next, in Section 4, the observed results are discus-

sed and interpreted. Finally, in the last section, the

conclusions are summarized and further work is dis-

cussed.

2 SETTING UP A GEOCODER

The experiment is conducted on the OpenStreetMap

data set for Europe. This data set is not collected

with a speciﬁc application in mind. For many use ca-

ses, it needs to be preprocessed from its raw format

before it can be consumed. As in (Clemens, 2015a)

and (Clemens, 2015b), the process for preprocessing

OpenStreetMap data built into Nominatim has been

used. Though a long-lasting task, reusing this pro-

cess ensures all systems are set up with exactly the

same data, thereby enabling the comparability of the

algorithmic part of those systems. Thus, ﬁrst, Nomi-

Enhanced Address Search with Spelling Variants

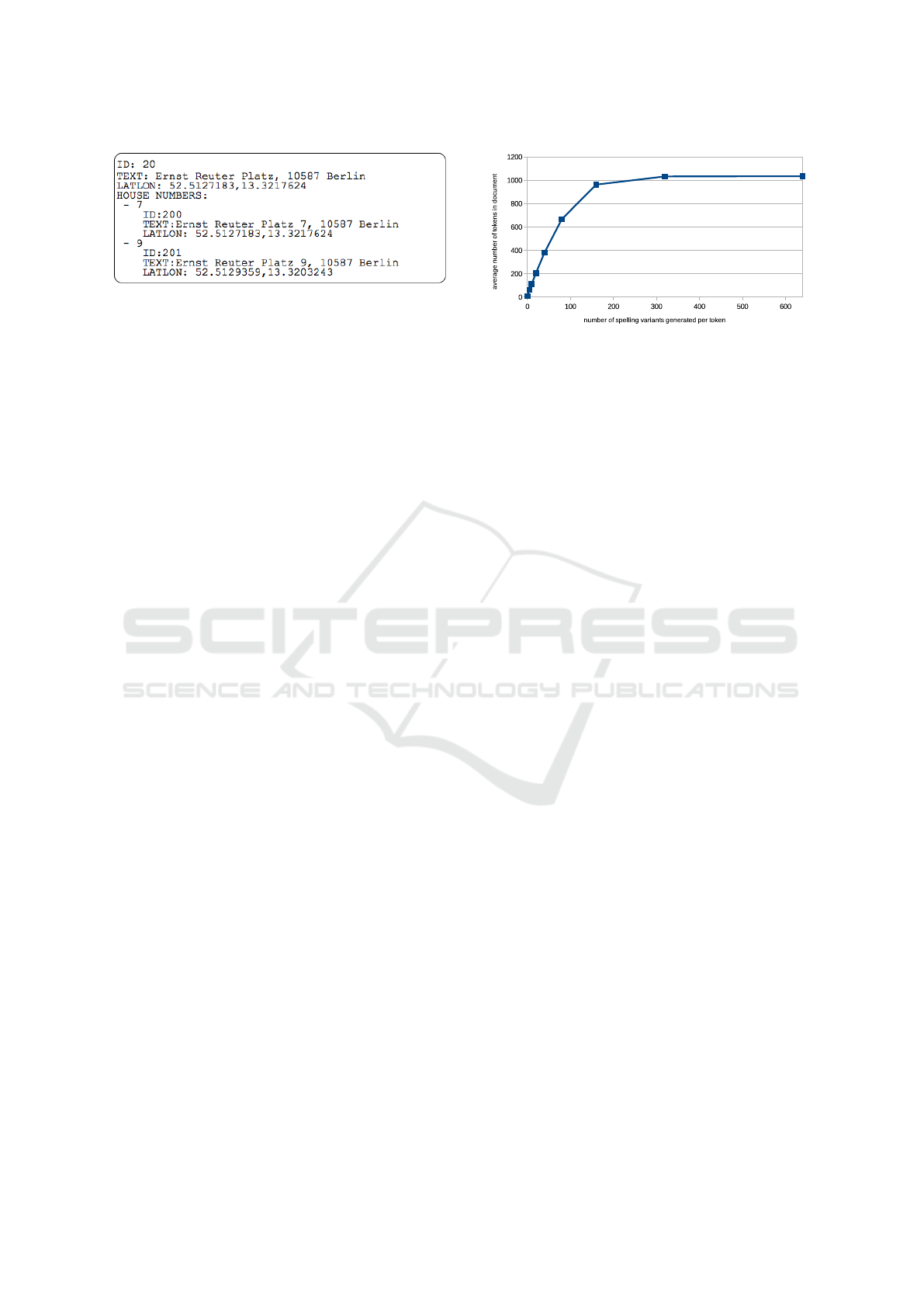

Figure 1: Example of a document indexed in the geocoding

system.

natim has been set up with OpenStreetMap data for

Europe as the baseline geocoding system. Internally

Nominatim uses a PostGIS (PostGIS, 2017) enabled

PostgreSQL (PostgreSQL, 2017) database. After the

preprocessing, this database contains assembled ad-

dresses along with their parent-child relationships: A

house number level address is the child of a street le-

vel address, which in turn is the child of a district level

address, etc. This database is used to extract address

documents that are indexed in Elasticsearch, as deﬁ-

ned in (Clemens, 2015a) and (Clemens, 2015b). Note

that in this paper, the geocoding of only house number

level addresses is evaluated. Therefore, though Open-

StreetMap data also contains points of interests with

house number level addresses, only their addresses

but not their names have been indexed. Similarly, no

parent level address elements, such as streets, postal

code areas, cities, or districts have been indexed into

Elasticsearch. All house number addresses with the

same parent have been consolidated into one single

document. Every house number have thereby been

used as a key to specify the respective house number

level address. Figure 1 shows an example document

containing two house numbers 7 and 9, along with

their WGS84 latitude and longitude coordinates and

spelled-out addresses. The TEXT ﬁeld of the docu-

ment is the only one indexed; the TEXT ﬁelds map-

ped by the house numbers are only used to assemble

a human-readable result.

Because Elasticsearch retrieves full documents,

and because the indexed documents contain multiple

house number addresses, a thin layer around Elasti-

csearch is needed to make sure only results with house

numbers speciﬁed in queries are returned. That is

a non-trivial task, as given a query, it is not known

upfront which of the tokens is specifying the house

number. Therefore, this layer has been implemen-

ted as follows: First, the query is split into tokens.

Next, one token is assumed to be the house number; a

query for documents is executed containing all the ot-

her tokens. This is repeated for each token, trying out

every token as a house number. Because each time

only one token is picked to specify the house number,

this approach fails to support house numbers that are

Figure 2: Average number of tokens per document for vari-

ous amounts of spelling variants.

speciﬁed in multiple tokens. Nevertheless, it is good

enough for the vast majority of cases. For every result

document returned by Elasticsearch the house num-

ber map is checked. If the token assumed to be the

house number happens to be a key in that map, the

value of that map is considered a match and the house

number address is added to the result set. Finally, the

result set is returned. As edit distances are speciﬁed in

the query to Elasticsearch, this layer allows enabling

edit distances easily: A parameter passed to the layer

is forwarded to Elasticsearch, which then also returns

documents with fuzzily matching tokens. Also note,

that as house numbers are used as keys in the do-

cuments, neither edit distances nor spelling variants

are supported on house numbers. That, however, is

a natural limitation: If a query speciﬁes a different

house number than the one intended, especially if it

is a house number that exists in the data, there is no

way for a geocoding system to still match to the right

house number value.

Having the baseline systems Nominatim and Elas-

ticsearch supporting edit distances set up, the next

step is to create a similar system that indexes spel-

ling variants. For that, the spelling variants to be

indexed need to be deﬁned ﬁrst. HERE Technolo-

gies, the company behind the HERE geocoding sy-

stem (HERE, 2017), provided logs of real user que-

ries issued against the various consumer offerings of

the company, like their website or the applications for

Symbian, Windows Phone, Android and iOS mobile

phones. The log contained data from a whole year

and included queries users have issued along with re-

sults users chose to click on. For this paper, a user

click is considered the selection criterion of a result,

linking input queries to their intent, i.e. the addresses

users were querying for. Given such query and result

pairs, ﬁrst both were tokenized and the Levenshtein

distance (Levenshtein, 1966) from every query token

to every result token was computed. With edit dis-

tances at hand, the Hungarian method (Kuhn, 1955)

was used to align every query token to a result token.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

From these computations, several observations were

extracted:

1. Some query tokens are superﬂuous as they do not

match (close enough) to any result token. Such

tokens are ignored.

2. As the result is a fully qualiﬁed address, result to-

kens have an address element type, such as city,

street, house number, or country. Thus, for each

query, the query format, i.e., which address ele-

ments were spelled out in what order, is known.

3. Some query tokens matched to result tokens are

misspelled. Thus, for each spelling variant of a to-

ken, the speciﬁc spelling mistake made is known.

For this paper, the following classes of spelling

variants were considered:

• inserts: Characters are appended after a tailing

character, prepended before a leading charac-

ter, or inserted between two characters, e.g., s

is often inserted between the characters s and e,

as apparently the double-s in sse sounds like a

correct spelling for many users.

• deletes: Characters are removed after a charac-

ter that is left as the tailing one, before a cha-

racter that is left as the leading one, or between

two characters that are left next to each other,

e.g., oa between the characters r and d are of-

ten deleted, as users often abbreviate road as

rd.

• replacements: One character is replaced by a

different character, e.g., ß is often replaced by

an s in user queries so that Straße becomes

Strase instead.

• swaps: Two consecutive characters are swap-

ped with each other, e.g., ie is often times swap-

ped into ei, as, to users, both sounds may seem

similar.

Thus from each query and result pair, the query

format used as well as the set of spelling variations

can be deduced. Doing so for all queries while coun-

ting the occurrences of each query format and each

spelling variation results in a statistical model capa-

ble of two things: For a given token the model can

determine the possible spelling variations, each with

their observed count or relative probability. Also, out

of a set of available address elements, the model can

select and order elements such that the resulting choi-

ces correspond to formats human users use, each with

their observed count or relative probability too. Be-

cause the spelling mistakes made as well as the query

formats used are Pareto distributed (Arnold, 2015),

the model contained a long tail of mistakes and for-

mats used only very few times. To reduce the noise,

the model was cleansed by stripping off the 25% of all

observations from the long tail of rare spelling mista-

kes and query formats. In addition to that, all query

formats that did not contain a house number were re-

moved too, as the goal was to generate queries for

addresses with house numbers. Because the log used

is, unfortunately, proprietary, neither the log nor the

trained model can be released with this publication.

However, having a similar log of queries from anot-

her source enables the creation of a similar model.

Having the user model at hand, the spelling va-

riants for indexing were derived as follows: Given a

document to be indexed, its TEXT ﬁeld was tokenized

ﬁrst. Next, for each token N most common spelling

variants were fetched from the model and appended to

the ﬁeld. Thus, the ﬁeld contained both the properly

spelled tokens as well as N spelling variants for each

token. Every house number level address from No-

minatim was extracted from the database, augmented

with spelling variants and indexed in Elasticsearch.

For N the values 5, 10, 20, 40, 80, 160, 320, and 640

were chosen. Note that given a model, especially for

short tokens, the number of applicable spelling vari-

ations is limited. In most extreme cases for a given

token no spelling variant can be derived from the mo-

del at all. Figure 2 shows the resulting token counts

of the TEXT ﬁeld for every N. There is only a minor

increase between indexing 320 and 640 spelling vari-

ants, as with 320 spelling variants almost all observed

variants have already been generated.

An interesting aspect of the described approach

is that, besides lowercasing, no normalization me-

chanisms have been exploited. While users often

choose to abbreviate common tokens like street ty-

pes, or avoid choosing the proper diacritics, the idea is

that the model would observe common replacements

of Avenue with Av., or Straße with Strasse and ge-

nerate according spelling variants for indexing. Like

with the index without spelling variants, house num-

bers are not modiﬁed in any way here.

In total, three geocoding systems were set up with

exactly the same address data indexed: Nominatim

as the reference geocoder for OpenStreetMap data,

Elasticsearch with documents containing aggregated

house numbers and a layer to support edit distan-

ces, and Elasticsearch with indexed spelling variants.

While the edit distance was speciﬁed at query time by

specifying a parameter to the layer wrapping Elasti-

csearch, for the various numbers of indexed spelling

variants distinct Elasticsearch indices have been set

up. As the same layer has been used for all Elasti-

csearch based indices, the setup supported the possi-

bility to query an index with spelling variants indexed

while allowing an edit distance at the same time, the-

Enhanced Address Search with Spelling Variants

reby evaluating the effect of the combination of the

two approaches.

3 MEASURING THE

PERFORMANCE

To evaluate the geocoding systems for precision - the

ratio of responses not containing results not queried

for, and recall - the ratio of responses containing only

the right result, 50000 addresses have been sampled

from the data used in these systems. Using the ge-

nerative user model, for each address a query format

has been chosen so that the distribution of the query

formats corresponded to the observed distribution of

the query formats preferred by users. Next, for each

query one to ﬁve query tokens have been chosen to be

replaced with a spelling variant. Again, spelling vari-

ants picked were distributed in the same way the spel-

ling variants of human users were distributed. Thus

common query formats, and frequent spelling mista-

kes were often present in the test set, while rare query

formats and rare spelling variants were selected ra-

rely. This way six query sets with 50000 queries each

have been generated. One contained all tokens in their

original form, while the others had between one and

ﬁve query tokens replaced with a spelling variant re-

spectively. Note that not always a query had the de-

sired number of spelling variants: The token to be re-

placed with a spelling variant was chosen at random.

For some tokens, as discussed, no spelling variant

can be generated by the model. These tokens were

left unchanged, making the query contain fewer spel-

ling variants than anticipated. Also, sometimes the

house number token was chosen to be replaced. Gi-

ven the set up of the documents in the indices, where

house numbers are used as keys in a map, such que-

ries had no chance of being served properly. This,

however, does not pollute measurement results, as it

equally applies to all systems evaluated. Because ge-

nerated queries and indexed addresses originate from

the same Nominatim database, both share the same

unique identiﬁer. Therefore, inspecting the result set

of a response for the result a query has been generated

from is a simple task.

Each test set was issued against indices with 5, 10,

20, 40, 80, 160, 320, and 640 indexed spelling vari-

ants, against the index with no spelling variants that

allowed edit distances of 1 and 2, and against the two

baselines: An index with neither spelling variants in-

dexed nor edit distances allowed, as well as Nomina-

tim. Additionally, each query set was issued against

the combination of the two approaches: Indices with

spelling variants indexed were queried so that edit dis-

tances were allowed. For every query set, respon-

ses were categorized into three classes: (i) Respon-

ses that yielded no result, (ii) responses that yielded

only the correct result the query was generated from,

and (iii) responses containing at least one wrong re-

sult that - as the query was not generated from that

- was not the query intent. As the classes cover all

possible cases and do not overlap, it is sufﬁcient to

consider two of the three metrics: While the ratio of

cases in (ii) exactly is the recall of a geocoding sy-

stem, the ratio of responses with wrong results in (iii)

allows computing precision with ease.

The fact is that knowing the distributions of spel-

ling variants, it is possible to calculate how many re-

sponses will include the expected result without any

measurement: The portion of spelling variants in-

dexed is exactly the portion of spelling variants in

queries that an index will be able to serve. There is,

however, no simple way to calculate the precision, as

it heavily depends on the data and how ambiguous

queries with spelling variants become. This, in turn,

makes it impossible to compute the recall as it is de-

ﬁned for this experiment. These measurements allow

observing the development of both metrics while the

number of indexed spelling variants or the number of

supported edit distances are increased.

4 RESULTS

Figure 3 shows an overview of the recall and inver-

sed precision of some select systems tested. The blue

chart denotes the performance of Nominatim, while

the green chart denotes the performance of Elasticse-

arch with neither spelling variants indexed nor edit

distances allowed. On the left-hand side, for recall,

Nominatim performs slightly better for queries with

no or one spelling mistake. That is most likely due

to the normalization mechanisms that are built into

Nominatim, but missing in Elasticsearch: Likely, a

chunk of commonly made spelling variants can be

handled through normalization. For no spelling mis-

take, both charts show higher recall compared to the

red and yellow charts plotting the recall of the index

with 320 spelling variants per token indexed, and the

recall of enabling the edit distance of one, respecti-

vely. These two systems gain a slightly lower re-

call, due to their slightly lower precision visible on

the right-hand side. As discussed, more queries be-

come ambiguous when spelling variants are indexed,

or edit distances allowed, leading to more responses

containing results that the respective query was not

generated from. As expected, the more spelling va-

riants there are present in queries, the more recall

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

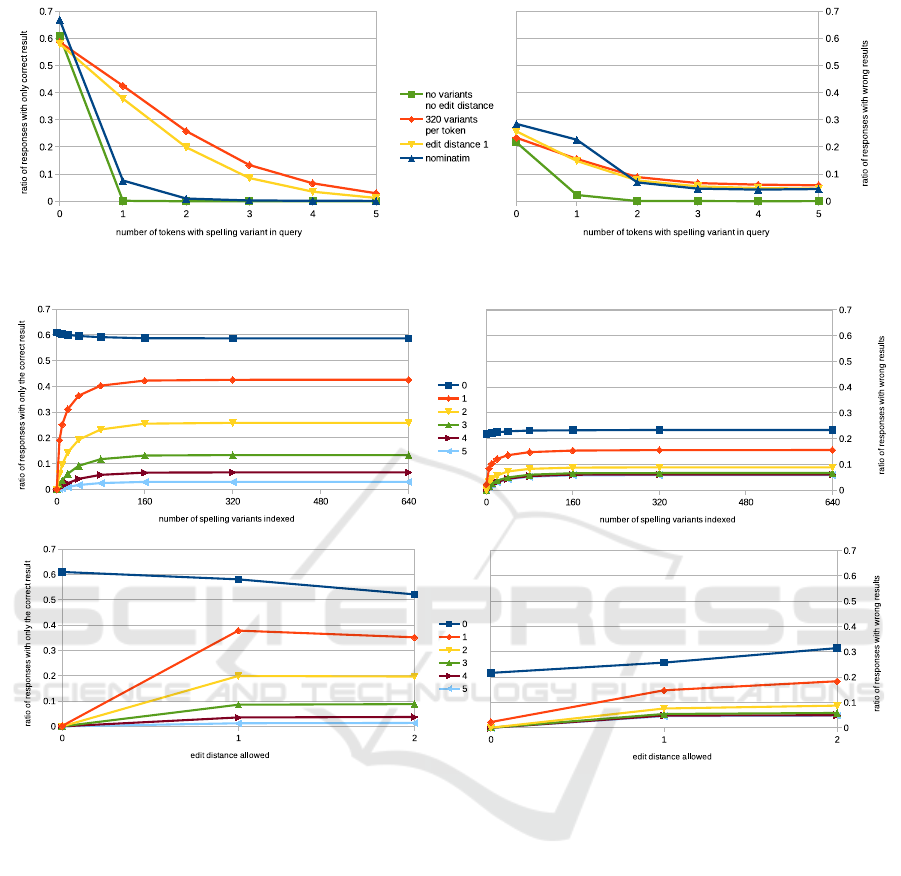

Figure 3: Recall (left, more is better) and inversed precision (right, less is better) of select systems.

Figure 4: Detailed overview on the performance of indexing spelling variants and allowing edit distance.

drops. Without exception, the index with 320 spel-

ling variants per token indexed outperforms the index

allowing an edit distance of one. For zero or one spel-

ling variant Nominatim has the lowest precision, re-

turning most of the responses with results the query

did not query for, while, as expected, the most strict

system with neither spelling variants index nor edit

distances allowed performs the best. The other two

systems - one allowing an edit distance of one, the

other indexing 320 spelling variants for each token -

perform very similarly. Thereby, for no spelling vari-

ants the system allowing an edit distance of one per-

forms slightly worse, while for any number of spel-

ling variants in the queries, it performs slightly better.

However, the margin of difference between the two

systems with regards to precision is minor, compared

to the margin of difference for the same two systems

for recall. Generally, both the ratio of replies with the

correct result as well as the ratio of replies containing

wrong results drop more, the more spelling variants

are present in the query. That is due to the number of

replies with no result growing, as neither system can

process queries containing too many spelling mista-

kes.

The detailed experiment results are denoted in Fi-

gure 4. Each line in the charts represents the deve-

lopment of recall or inversed precision on a speciﬁc

test set. The legend speciﬁes the allowed number of

spelling errors in the queries of a test set. The top

two charts show the recall and the inversed precision

of the six test sets depending on how many spelling

variants per token were indexed. Unsurprisingly, the

more spelling errors a query contains, the less respon-

ses with only correct results are retrieved. At the

same time, however, the ratios of responses contai-

ning wrong results decrease. Thus, the more errors a

Enhanced Address Search with Spelling Variants

user makes, the less results are discovered by the sy-

stem overall. This behavior is also observable on the

bottom two charts showing the performance on the six

test sets depending on what edit distance was allowed.

Interestingly, increasing the allowed edit distance to

be greater than one does not improve the recall on

any test set. At the same point, it worsens the pre-

cision, as with an allowed edit distance of two more

candidates ﬁt to the queries, resulting in more respon-

ses containing wrong results. That symptom is not

observable when indexing spelling variants. As dis-

cussed, indexing 640 spelling variants for every token

of the document almost maxed out the total number

of tokens generated. The observation is that for every

test set indexing more spelling variants leads to a clear

improvement of recall. This pattern is also observable

when enabling an edit distance of one, though to a les-

ser extent. Overall, on every test set, both the recall of

the index containing spelling variants is greater com-

pared to the index allowing edit distances, while their

precision is of similar size. The blue chart showing

the test set containing zero spelling variants visuali-

zes the impact of allowing edit distances or indexing

spelling variants on the left-hand side best: Indexing

spelling variants or allowing an edit distance both re-

duce the recall by a similar degree, though the recall

of the geocoder indexing 640 spelling variants is slig-

htly greater compared to enabling an edit distance of

one.

Table 1: Conﬁgurations yielding best recall.

variants in query 0 1 2 3 4 5

variants indexed 0 640 320 160 320 640

edit distance 0 0 0 1 1 1

only correct result 61% 43% 26% 13% 6% 3%

also wrong result 21% 16% 9% 7% 7% 6%

In Table 1 the combinations of indexed spelling

variants and allowed edit distances that led to best re-

sults with regards to recall for the various test sets

are listed. Interestingly, the number of spelling va-

riants in the index varies between 160 and 640. That

is an artifact of the random generation of queries. The

numbers also show that for one or two spelling errors

in queries, allowing edit distances on top of indexed

spelling variants does not lead to any improvement of

recall. Only if three or more query tokens are misspel-

led, a combination of indexed spelling variants and

edit distance are yielding a better performance.

5 CONCLUSION

As already observed in previous papers, here too,

Nominatim does not handle spelling mistakes well.

Using a statistical model to derive and index common

spelling variants, however, has proven to be a viable

approach to serve queries with spelling errors.

Compared to allowing edit distances, it yields

more responses containing only the right result, while

only marginally increasing the number of respon-

ses with wrong results. Interestingly, this approach

implicitly incorporates any standardization logic that

would be of help: Exactly those abbreviations or mis-

spelled diacritics are indexed as spelling variants that

are commonly made. The experiment also suggests to

index all possible spelling variants a cleansed model

can generate: No number of indexed spelling variants

smaller than that turned out to be the optimum beyond

which performance of the index would degrade. Also,

while indexed spelling variants outperform edit dis-

tances on all query sets, a combination of the two

showed slightly better results for queries with many

typos.

Going forward, it is worth investigating how spel-

ling variants can be indexed without obtaining a sta-

tistical user model ﬁrst. In this paper user clicks were

used to learn how often and which typos are made.

Users, however, can only click on results they receive.

Thus, a query token may be spelled so signiﬁcantly

different, that the system will not present the proper

result to the user. Even if that spelling variant would

be common, without a result to click on, no model

could learn that spelling variant so that it can be in-

dexed. Further, the set of supported spelling variants

might be deﬁned more precisely. The model could le-

arn more circumstances of an edit, like, e.g., four or

more characters that surround an observed edit, as op-

posed to two characters only. Pursuing this idea to its

full extent, a model could learn speciﬁc spelling va-

riants for speciﬁc tokens instead of edits that can be

applied in different scenarios, though doing so would

probably require to utilize normalization mechanisms

independent of the model. Another interesting study

would be to measure how much such a model degra-

des over time. Assuming that user behavior changes,

it is likely that the kind of spelling errors common

at one point in time will no longer be common some

time later. Thus, if a geocoder only relies on indexed

spelling variants, its performance would be reduced

over time.

REFERENCES

Arnold, B. C. (2015). Pareto distribution. Wiley Online

Library.

Borkar, V., Deshmukh, K., and Sarawagi, S. (2000). Auto-

matically extracting structure from free text addresses.

IEEE Data Engineering Bulletin, 23(4):27–32.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

Can, L., Qian, Z., Xiaofeng, M., and Wenyin, L. (2005).

Postal address detection from web documents. In In-

ternational Workshop on Challenges in Web Informa-

tion Retrieval and Integration, 2005. (WIRI’05), pages

40–45. IEEE.

Clemens, K. (2013). Automated processing of postal ad-

dresses. In GEOProcessing 2013: The Fifth Internati-

onal Conference on Advanced Geograhic Information

Systems, Applications, and Services, pages 155–160.

Clemens, K. (2015a). Geocoding with openstreetmap

data. GEOProcessing 2015: The Seventh Internati-

onal Conference on Advanced Geograhic Information

Systems, Applications, and Services, page 10.

Clemens, K. (2015b). Qualitative Comparison of Geoco-

ding Systems using OpenStreetMap Data. Internatio-

nal Journal on Advances in Software, 8(3 & 4):377.

Clemens, K. (2016). Comparative evaluation of alternative

addressing schemes. GEOProcessing 2016: The Eig-

hth International Conference on Advanced Geograhic

Information Systems, Applications, and Services, page

118.

Coetzee, S., Cooper, A., Lind, M., Wells, M., Yurman, S.,

Wells, E., Grifﬁths, N., and Nicholson, M. (2008). To-

wards an international address standard. 10th Interna-

tional Conference for Spatial Data Infrastructure.

Davis, C. and Fonseca, F. (2007). Assessing the certainty of

locations produced by an address geocoding system.

Geoinformatica, 11(1):103–129.

Drummond, W. (1995). Address matching: Gis technology

for mapping human activity patterns. Journal of the

American Planning Association, 61(2):240–251.

Duncan, D. T., Castro, M. C., Blossom, J. C., Bennett,

G. G., and Gortmaker, S. L. (2011). Evaluation of the

positional difference between two common geocoding

methods. Geospatial Health, 5(2):265–273.

Elastic (2017). Elasticsearch. https://www.elastic.co/

products/elasticsearch.

Fang, L., Yu, Z., and Zhao, X. (2010). The design of a

uniﬁed addressing schema and the matching mode of

china. In Geoscience and Remote Sensing Symposium

(IGARSS), 2010. IEEE.

Fitzke, J. and Atkinson, R. (2006). Ogc best practices do-

cument: Gazetteer service-application proﬁle of the

web feature service implementation speciﬁcation-0.9.

3. Open Geospatial Consortium.

Ge, X. et al. (2005). Address geocoding.

geo poet (2017). http://geo-poet.appspot.com/.

Goldberg, D., Wilson, J., and Knoblock, C. (2007). From

Text to Geographic Coordinates: The Current State of

Geocoding. URISA Journal, 19(1):33–46.

Google (2017). Geocoding API. https://developers.

google.com/maps/documentation/geocoding/.

HERE (2017). Geocoder API Developer’s Guide. https://

developer.here.com/rest-apis/documentation/geocoder/.

Kuhn, H. W. (1955). The hungarian method for the assig-

nment problem. Naval research logistics quarterly,

2(1-2):83–97.

Levenshtein, V. I. (1966). Binary codes capable of cor-

recting deletions, insertions, and reversals. In Soviet

physics doklady, volume 10, pages 707–710.

Mayrhofer, A. and Spanring, C. (2010). A uniform resource

identiﬁer for geographic locations (’geo’uri). Techni-

cal report, RFC 5870, June.

National Imagery and Mapping Agency (2004). Depart-

ment of Defense, World Geodetic System 1984, Its

Deﬁnition and Relationships with Local Geodetic Sy-

stems. In Technical Report 8350.2 Third Edition.

OpenStreetMap Foundation (2017a). Nomatim. http://

nominatim.openstreetmap.org.

OpenStreetMap Foundation (2017b). OpenStreetMap.

http://wiki.openstreetmap.org.

PostGIS (2017). http://postgis.net/.

PostgreSQL (2017). http://www.postgresql.org/.

Robertson, S., Zaragoza, H., and Taylor, M. (2004). Sim-

ple BM25 extension to multiple weighted ﬁelds. In

Proceedings of the thirteenth ACM international con-

ference on Information and knowledge management,

pages 42–49. ACM.

Roongpiboonsopit, D. and Karimi, H. A. (2010). Compara-

tive evaluation and analysis of online geocoding servi-

ces. International Journal of Geographical Informa-

tion Science, 24(7):1081–1100.

Salton, G. and Yang, C.-S. (1973). On the speciﬁcation of

term values in automatic indexing. Journal of docu-

mentation, 29(4):351–372.

Salton, G., Yang, C.-S., and Yu, C. T. (1975). A theory

of term importance in automatic text analysis. Jour-

nal of the American society for Information Science,

26(1):33–44.

Sengar, V., Joshi, T., Joy, J., Prakash, S., and Toyama, K.

(2007). Robust location search from text queries. In

Proceedings of the 15th annual ACM international

symposium on Advances in geographic information

systems, page 24. ACM.

Srihari, S. (1993). Recognition of handwritten and

machine-printed text for postal address interpretation.

Pattern recognition letters, 14(4):291–302.

Universal Postal Union (2017). http://www.upu.int.

what3words (2017). what3words. https://map.

what3words.com/.

Yahoo! (2017). BOSS Geo Services. https://developer.

yahoo.com/boss/geo/.

Yandex (2017). Yandex.Maps API Geocoder. https://tech.

yandex.com/maps/geocoder/.

Yang, D.-H., Bilaver, L. M., Hayes, O., and Goerge, R.

(2004). Improving geocoding practices: evaluation

of geocoding tools. Journal of medical systems,

28(4):361–370.

Enhanced Address Search with Spelling Variants
