Decoy Systems with Low Energy Bluetooth Communication
Aaron Hunter and Ken Wong
BC Institute of Technology, Burnaby, Canada
Keywords:
Decoy Systems, Intrusion Detection and Response, Low Energy Bluetooth.
Abstract:
We propose an architecture for a decoy system that uses low energy Bluetooth devices for communication.
We argue that these devices can be effective not only due to low power consumption, but also because an
attacker can not detect the signal from a distance. As such, information sent from the decoy system to a
monitoring system is unlikely to be noticed by an attacker. We describe a physical system that we have
developed for testing and experimentation with this approach. The results so far are promising both in terms
of the effectiveness of monitoring, and also with respect to the hidden communication. Moreover, while the
decoy system is high-interaction, it does not lead to any system interruption on the main system. Our system
is novel in that it is developed from scratch, using low-cost hardware in a manner that accurately captures
the way communication would happen in a real system. We discuss the advantages and limitations of our
framework, and discuss possible approaches to establishing formal proofs of security for this kind of physical
system.
1 INTRODUCTION
Preventing break-ins and limiting the damage done
by an attacker is a key problem for security profes-
sionals. While it would be preferable to completely
block unauthorized access to systems, it is generally
accepted that this is not a realistic goal. As such, a
variety of decoy systems have been proposed to fool
an attacker into entry for the purpose of information
gathering. In order for these systems to be effective,
they need to do two things. First, they need to closely
resemble a real system. Second, they must be able to
log and communicate the behaviour of the would-be
attacker in a manner that can not be detected. In this
paper, we argue that one effective way to design such
systems is through the use of Bluetooth Low Energy
(BLE) devices.
This is a preliminary paper in which we argue
that BLE devices can be an important component of
a decoy system. This paper makes several contribu-
tions to research on decoy systems. First, we describe
the physical simulation that we have developed using
BLE devices for system monitoring and show that it
functions effectively. This demonstrates not only the
value offered by BLE devices for monitoring, but it
also provides a template for the development of low-
cost simulations of physical systems. The notion of
’undetectability’ of a BLE signal leads to a discus-
sion of proofs of knowledge; we suggest that formal
methods can be used to provide proofs of security of
our system, under the assumption that the BLE signal
can not be detected.
2 MOTIVATION
Many different techniques are used in practice to pre-
vent break-ins. Standard preventative measures in-
clude the use of firewalls, along with cryptographic
methods to protect important data. But it is well
known that firewalls are often mismanaged (Khan and
Gupta, 2013) and they are vulnerable to port-scanning
techniques (Kaur and Gurjot, 2014; Ahanger, 2014).
An intruder that gets past a firewall can often do a
great deal of damage, and they can even gain access
to protected data through vulnerabilities in crypto-
graphic software (Lazar et al., 2013). Due to the lim-
itations of purely preventative measures, the develop-
ment of decoy systems has been established as another
form of protection from attackers.
The simplest form of decoy system is a honeypot,
which is just a fake system that contains data resem-
bling a real system(Padda et al., 2016). The idea is to
lure a would-be attacker into the honeypot and keep
them busy looking at information while tracking their
behaviour. One problem with this approach is that at-
tackers can often detect when a system is fake. As
such, it is more effective to develop a real system that
404
Hunter, A. and Wong, K.
Decoy Systems with Low Energy Bluetooth Communication.
DOI: 10.5220/0006646604040409
In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 404-409
ISBN: 978-989-758-282-0
Copyright © 2018 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
has all of the expected functionality, but simply does
not connect to real data or devices. The case for this
approach is presented in (Rowe and Rrushi, 2016) for
industrial control systems, but the basic idea applies
broadly to any system designed to lure and fool at-
tackers.
The second problem with a simple honeypot is
that it must communicate with a monitoring system,
but this communication can be detected by an at-
tacker. The simplest solution is to implement a sys-
tem with minimal communication, a so-called ‘low-
interaction’ honeypot. However, it is well-known that
such systems have limited use because they do not
track the actions of the attacker sufficiently (Ruther-
ford and White, 2016). In fact, if the system is not
monitored adequately, a honeypot can actually in-
crease the risk of theft of data from the real system
(Brown and Andel, 2016).
We are left then with the following problem. We
need a decoy system that communicates extensively
with the real system, but is not detectable to an at-
tacker. One idea is to avoid hard-wired connections
with the real system by using wireless (Bluetooth)
communication with the decoy (Fawaz et al., 2016).
In principle, this should allow high-interaction with
less risk of detection. There are two problems. First,
Bluetooth is expensive in terms of energy use; this is a
problem if the system is running for weeks or months
at a time. The second problem is that a Bluetooth sig-
nal is reasonably strong, and it can be detected by an
attacker with suitable hardware for monitoring wire-
less communication.
Both of the problems with Bluetooth communca-
tion can, in principle, be solved by using BLE de-
vices. These devices use much less energy than tra-
ditional Bluetooth, which allows them to be powered
continuously for months or years; this makes it pos-
sible to place the devices in locations where Wifi ac-
cess points would be difficult to power (Kriz et al.,
2016). Moreover, it is known that the low-energy sig-
nal can not be detected at a distance (Gogic et al.,
2016). But there are challenges in designing such a
system. The physical limitation is that the decoy sys-
tem needs to be within about 10 meters of the mon-
itoring system. But even at a short distance, there
are questions around the feasibility of communicat-
ing enough data quickly for monitoring using BLE
devices, because the communication rate for BLEs is
much slower than traditional Bluetooth. Moreover, in
order to guarantee privacy, we still require a crypto-
graphic handshake (Michalevsky et al., 2016).
Based on the situation outlined in this section, it
seems that BLE devices offer a promising solution to
developing effective, high-interaction decoy systems.
But we need to test this idea in a practical system ar-
chitecture in order to show that these advantages can
actually be obtained in a physical demonstration set-
ting. That is the main motivation for this paper.
3 THE PROPOSED
INFRASTRUCTURE
3.1 Hardware
We set up a physical simulation using three Raspberry
PI devices acting as servers. We used Raspberry PI
version 3, as it was a low-cost option capable of run-
ning a variety of operating systems. For this simula-
tion, we used Kali Linux.
The Decoy: One of the devices represents the de-
coy system. It will contain data, and monitor the
activities of those that connect to it.
The Attacker: A second device represents the at-
tacker. This is on the same physical network as
the decoy system.
The Actual System: This device is on a different
network, and it represents the ’real’ system that is
being protected.
Each Linux server was configured with an internal
firewall and user authentication privileges. The actual
system was secured further with closed ports.
An Arduino electronic hardware device is used as
an interpreter for communication between the servers;
it is the key to align the BLE devices such that they
can communicate with each other on each server. This
interpreter was added to facilate data transfer, due
to difficulties encountered with BLE stand-alone de-
vices.
The interpreter device acts like the master con-
troller that can control each of the Raspberry PI elec-
tronic boards. Each Raspberry PI electronic board
acts like a peripheral or slave device. As such, the Ar-
duino device activates and deactivates the BLEs when
communication is required. The network design is
shown in Figure 1. As noted in the previous section,
since we are using BLEs, we need the devices to be
relatively close; in testing we required less than 10
meters between devices.
3.2 System Details
We wrote several applications to detect the presence
of an attack, and report activity to the monitoring sys-
tem through the BLE devices. All monitoring appli-
cations are written in Python. The basic activities of
the main monitoring application are the following:
Decoy Systems with Low Energy Bluetooth Communication
405

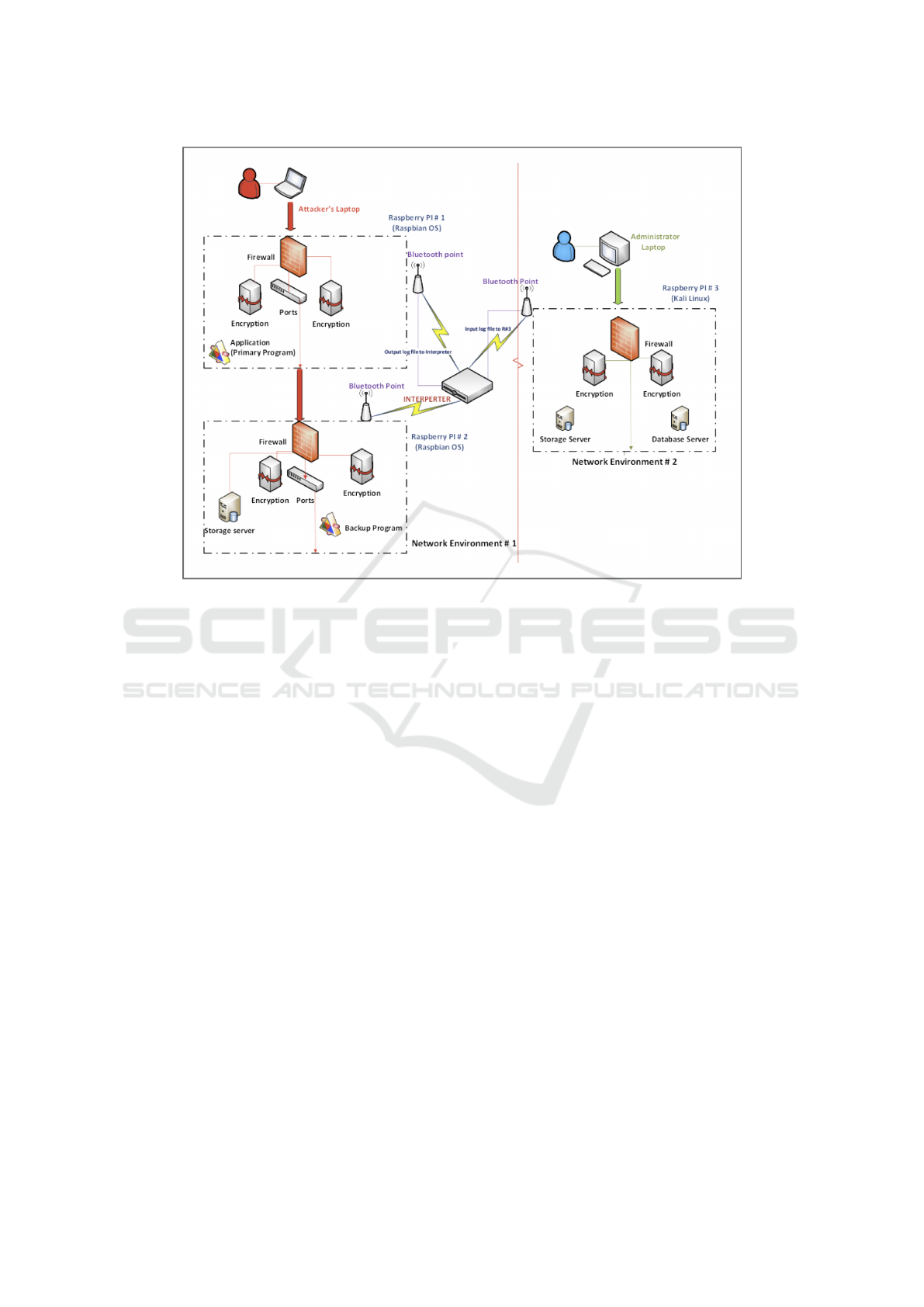

Figure 1: Network Configuration.
1. Login detection: Every login to the decoy ma-
chine is detected, and considered an attack.
2. Information collection: The user ID, passwords
attempted, and session ID are collected.
3. Information transmission: The log file is sent to
a program that communicates with the BLE de-
vices.
All of these tasks are duplicated in the system,
through two copies of the main monitoring program.
This is a fail safe mechanism, in case the attacker
identifies and disables the program running on the de-
coy system.
In addition to the main monitoring application,
several other programs handle related tasks. These
include scanning for BLE transmissions, establish-
ing a communication channel, and receiving trans-
mitted log files. The BLEs communicate with each
other through these applications, relying on the in-
terpreter to activate teh BLE devices and permit the
transmission of data. When the Interpreter is discon-
nected, all communication between the servers stops.
In this way, it secures the communication that is flow-
ing through from the decoy system to the main sys-
tem.
This methodology allows us to limit the attackers
opportunity to compromise a system. It also allows
us to investigate and gather precise information about
the attackers position. There are limits to the method-
ology with respect to protecting the system. The
method of installing two application programs can be
interrupted and removed by the attackers. However,
it would be difficult to remove both of the application
programs at once, especially as they are installed on
two separate servers and the backup application pro-
gram will not be active until the primary application
program fails. As noted previously, the BLEs provide
a better solution than Classical Bluetooth devices be-
cause the range makes it harder for an attacker to de-
tect the communication.

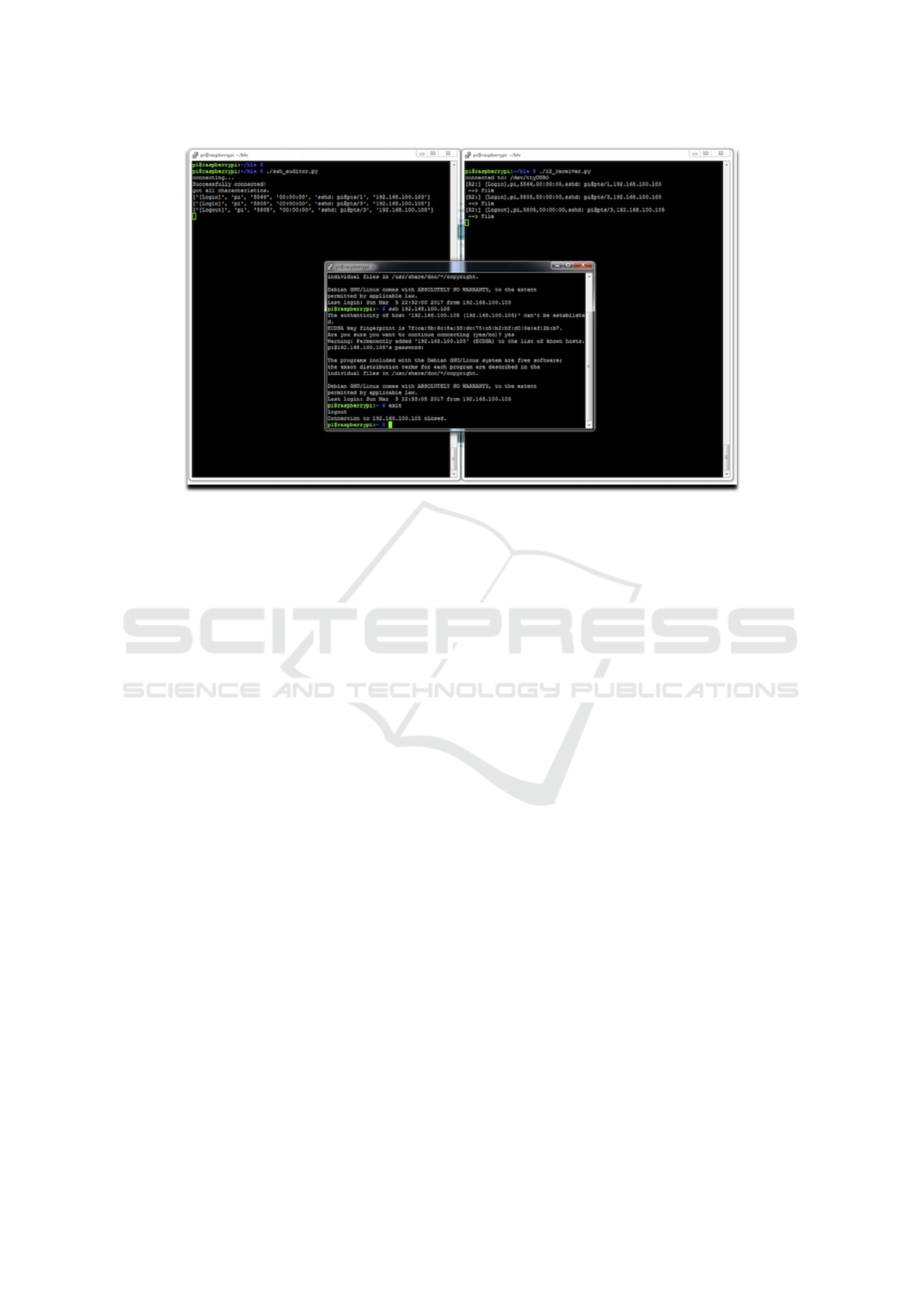

Testing of the system is performed as in Figure 2,
with remote login on all devices simultaneously. This
allows us to simulate attacker activity, and view the
results of monitoring in real time.
4 RESULTS
4.1 Testing
There are several kinds of result that can be discussed
from the development of this system. One entirely
practical result is the fact that we were actually able
to produce a working demonstration that uses BLEs
for communication. This is worth emphasizing as a
ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
406
Figure 2: Remote Login.
result, because the physical configuration of the sys-
tem was actually a technical challenge. In order to
get it to work, we had to experiment with a variety
of computing devices, a variety of BLE solutions, and
a variety of physical configurations for the network.
The result was a working system that includes the key
features required for testing.
Once the system was setup, all three servers ran
and communicated effectively. We were able to sim-
ulate attacks on the decoy system in which the at-
tacker’s activity was successfully logged, and the ac-
tual monitoring system successfully received the log
file containing the attacker’s IP address, session ID
and password. Since the monitoring system is only
connected to the decoy through the BLE interpreter,
we can verify that the BLE communication was ef-
fective when the decoy system was within 10 meters
of the monitoring system. However, when we moved
the decoy system further than 10 meters from the BLE
transmitter, then the log files were no longer trans-
mitted successfully. We did not do detailed testing to
find the exact distance required, as this is not signif-
icant for our purposes. But our testing did indicate
that successful monitoring was dependent on proxim-
ity; when the devices were close enough, then the data
was tranmitted successfully on every attempt.
4.2 Implications
We successfully built a system that will detect an at-
tack, trace the attack and give an alert if there is an
attack by using BLE devices to data transfer between
servers. The results here show that the developed ap-
plication can monitor and gather information about
the attacker. However, one feature of the system that
we were not truly able to verify is the undetectability
of the BLE communication between the decoy and the
main server. As noted, we were able to verify the lim-
ited range of communication; but this is not exactly
the same as verifying undetectability. We know that
the signal is weak, and it can not be directly detected
physically at a distance. However, we need to con-
sider other possibilities:
The attacker may have access to a close physical
sensor.
The attacker may have some non-physical means
to detect the communication.
The first point here is straightforward to address. In
practical settings, we would physically prevent an at-
tacker from having access within 10 meters of our
system. The second point is harder. We can not state
conclusively that the communication is undetectable,
only that it is physically undetectable from a distance.
We admit the possibility that an attacker could ‘fig-
ure out’ that communication is occuring, or that an
attacker could have inside information.
We remark that the methodology here uses very
low-cost hardware to simulate a physical system. The
Raspberry PI devices running Linux offered a realistic
simulation of real servers, and the BLE devices com-
municating through an Arduino board allowed us to
use low-energy Bluetooth in the same way it would
be used on a real system. Hence, while the actual data
involved is very simple, our system accurately sim-
ulates the BLE-aspect of system monitoring that we
Decoy Systems with Low Energy Bluetooth Communication
407
set out to study. Therefore, we suggest that the ba-
sic approach here can be seen as a model for low-cost
prototyping of physical systems, particularly in a re-
search or education environment.
5 DISCUSSION
5.1 Theoretical Verification
To this point, we have essentially established two
things. First, we have shown that it is possible to
set up a physical network that tracks an attacker’s be-
haviour while reporting this behaviour through a BLE
device. Second, we have reason to believe that the
BLE communication will not be detected by an at-
tacker, because the signal is so weak that it can not be
detected outside very close physical proximity. How-
ever, we really have not established in a precise sense
exactly what this means. To be more precise, we have
not provided any proof of correctness or any guaran-
tee that the system will work.
What we are actually interested in creating is a
system where we have knowledge that the attacker
does not. In particular, we would like the attacker to
be ignorant with respect to several things:
1. The attacker should not know that the system they
are viewing is fake.
2. The attacker should not know that we know what
they are doing.
3. The attacker should also be unaware of the fact
that their actions are being sent to a real system.
Of these points, the first two are standard features of
any honeypot-like scenario. The key point that dis-
tinguishes our work here is the third one. We are in-
terested in having some sort of guarantee that the at-
tacker will not know what is happening. We have a
physical reason to believe communication will not be
detected, but we would like to work towards proofs of
security for this kind of system. In this section, we
briefly provide some theoretical grounds for the anal-
ysis and verification of the network architecture that
we have introduced.
5.2 Logical Modelling
There is a long history of using logics to model
knowledge and belief. The basic premise of much of
this work is that the state of the world can be captured
by an assignment of values to propositional variables.
As such, we start with a set F of propositional vari-
ables, and we define a state to be any assignment of
true/false values to these variables. A state represents
one possible configuration of the world. We can con-
struct formulas from F by using the normal symbols
(and), (or), and ¬ (not). We do not go further into
the logic here, and refer the reader to a standard book
such as (Enderton, 2001) for more details.
We also assume a set A of agents. The knowledge
of each agent is defined through something called a
Kripke structure, which associates with each agent a
relation r
A
on the set of states. Informally, if r
A
(s, t),
then the agent A can not tell the difference between
the states s and t. If the actual state of the world is s,
we can therefore define the beliefs of A to be the set of
states t such that r
a
(s, t). Typically, we have restric-
tions on r
A
; for knowledge it is normally assumed to
be an equivalence relation. We refer the reader to (Fa-
gin et al., 2003) for a complete introduction to reason-
ing about knowledge in a multi-agent setting. There
are many variations of this approach in the literature.
We are not interested in producing a detailed log-
ical formulation of knowledge in this paper; it is suf-
ficient to note that such a formalization is possible.
Hence, the following can all be formally stated, where
A stands for an attacker and S stands for a security ad-
ministrator:
¬Knows
A
( f ake)
¬Knows
A
(Knows
S
(action))
¬Knows
A
(sent(sys(action)))
Logics of knowledge in the tradition of BAN logic
(Burrows et al., 1990) can be used to formalize the
meaning of these statements. There are existing tools
for using such formalizations to formally prove the
security of systems (Cremers, 2008; Hunter et al.,
2013).
The question is then: What use are logics of
knowledge for the system currently under discussion?
The fact is that our practical demonstration does not
allow us to conclude anything about the knowledge
of the attacker. We know that the attacker performs
certain actions, and we communicate these actions
through a channel that we assert is hidden. We have
strong reason to believe that this communication is
undetectable, based on the physical properties of the
signal. But we really can not be precise about exactly
what this allows us to conclude in terms of guarantees
of system security.
By formalizing the communication in a logic of
action, we can be precise about the initial knowledge
of the attacker and the system administrator. We can
also be precise about the actions the system performs,
and whether or not they are visible to the attacker.
This allows us to track the knowledge of the attacker
accurately. At the same time, it allows us to go back
ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
408
and reconsider, if it turns out that the attacker had
some reason to know about the log files transfer. A
clever attacker could actually deceive the system by
performing actions that they want logged.
In any event, this formalization would allow us to
state formal properties about the system, and then for-
mally prove them under flexible assumptions about
the attackers behaviour. This formal analysis will take
our system from a practical demonstration to a prov-
ably secure architecture. We leave this formal aspect
for future work.
6 CONCLUSION
The paper describes an approach to setting up a de-
coy system where the actions of an attacker are logged
and transmitted to a monitoring system using BLE de-
vices. The results showed that this could be done ef-
fectively, provided that the decoy system is in close
physical proximity to the monitoring system. Sig-
nificantly, the signal used to communicate could not
be detected at a distannce beyond 10 meters. This is
an advantage for physical systems, as it means an at-
tacker is less likely to know that they are being mon-
itored. While we acknowledge that an attacker might
be able to use non-physical means to determine they
are being monitored, the physical undetectability of
our signal does make it less likely that our decoy sys-
tem will be discovered. In the discussion, we briefly
discussed how notions of undetectability and igno-
rance may be formalized to provide proofs of security
at a theoretical level.
Based on the results of the present research, future
work will enlist stronger filters such as adding addi-
tional authentication keys between each of the BLE
devices that can strengthen security in the system. For
instance, setting up an authentication key combina-
tion code that is required to be validated before en-
tering the BLE master controller , which is between
the Raspberry PI Linux servers. Not only will this
strengthen the security of the system, but it will also
prevent the attacker from being able to control the Ar-
duino electronic board, which is the master Bluetooth
key controller. Once the attacker compromise the Ar-
duino electronic board, they can have full accessibil-
ity to control the Bluetooth Low Energy devices and
that will allow the attacker to control the main system
too.
REFERENCES
Ahanger, T. A. (2014). Port scan a security concern. Inter-
national Journal of Engineering and Innovation Tech-
nology, 3(10):241–246.
Brown, A. and Andel, T. (2016). What’s in your honeypot?
In Proceedings of the 11th International Conference
on Cyber Warfare and Security, pages 370–377.
Burrows, M., Abadi, M., and Needham, R. (1990). A logic
of authentication. ACM Transactions on Computer
Systems, 8(1):18–36.
Cremers, C. (2008). The Scyther Tool: Verification, falsifi-
cation, and analysis of security protocols. In Com-
puter Aided Verification, 20th International Confer-
ence, pages 1–30.
Enderton, H. (2001). A mathematical introduction to logic.
Harcourt/Academic Press, 2nd ed edition.
Fagin, R., Halpern, J., Moses, Y., and Vardi, M. (2003).
Reasoning About Knowledge. MIT Press.
Fawaz, K., Kim, K., and Shin, K. (2016). Protecting pri-
vacy of BLE device users. In Proceedings of the 25th
USENIX Security Symposium, pages 1205–1221.
Gogic, A., Mujcic, A., Ibric, S., and Suljanovic, N. (2016).
Performance analysis of bluetooth low energy mesh
routing algorithms in case of distaster prediction.
World Academy of Science, Engineering and Technol-
ogy, 10(6):1–7.
Hunter, A., Delgrande, J., and McBride, R. (2013). Protocol
verification in a theory of action. In Proceedings of the
Canadian Conference on AI, pages 52–63.
Kaur, R. and Gurjot, S. (2014). Analysing port scanning
tools and security techniques. International Journal
of Electrical Electronics and Computer Science Engi-
neering, 1(5):58–64.
Khan, S. and Gupta, R. (2013). Future aspects of firewall in
internet security. IEC International Journal of Tech-
nology and Management, 1(1):30–36.
Kriz, P., Maly, F., and Kozel, T. (2016). Improving indoor
localization using bluetooth low energy beacons. Mo-
bile Information Systems, 62:1–11.
Lazar, D., Chen, H., Wang, X., and Zeldovich, N. (2013).
Why does cryptographic software fail? A case study
and open problems. In Proceedings of the 5th Asia-
Pacific Workshop on Systems, pages 1–7.
Michalevsky, Y., Nath, S., and Liu, J. (2016). Mash-
able: Mobile application of secret handshakes over
bluetooth. In Proceedings of the ACM Annual Inter-
national Conference on Mobile Computing and Net-
working, pages 1–14.
Padda, S., Gupta, S., Apoorva, G., Lofty, S., and Kaur, A.
(2016). Honeypot: A security tool in intrusion detec-
tion. International Journal of Advanced Engineering,
Management and Science, 2(5):311–316.
Rowe, N. and Rrushi, J. (2016). Introduction to Cyber De-
ception. Springer, 1st ed edition.
Rutherford, J. and White, G. (2016). Using as improved cy-
bersecurity kill chain to develop an improved honey
community. IEEE Computer Society, pages 2624–
2632.
Decoy Systems with Low Energy Bluetooth Communication
409
