Multi-Agent-Based Generation of Explanations for Retrieval Results

Within a Case-Based Support Framework for Architectural Design

Viktor Ayzenshtadt

, Christian Espinoza-Stapelfeld

, Christoph Langenhan

and Klaus-Dieter Althoff

1,2

University of Hildesheim, Institute of Computer Science, Samelsonplatz 1, 31141 Hildesheim, Germany

German Research Center for Artiﬁcial Intelligence (DFKI), Trippstadter Strasse 122, 67663 Kaiserslautern, Germany

Faculty of Architecture, Technical University of Munich, Arcisstrasse 21, 80333 Munich, Germany

Keywords:

Multi-Agent Systems, Case-Based Agents, Explanations, Architectural Design Support.

Abstract:

In this paper, we describe the general structure and evaluation of a multi-agent based system module that was

conceptualized to explain, and therefore, enrich the search results of the retrieval process within a distributed

case-based framework for support of early conceptual design phase in architecture. This explanation module

is implemented as an essential part of the framework and uses case-based agents, explanation ontology, and

explanation patterns as its underlying foundational components. The module’s main goal is to provide the user

with additional information about the search results to make the framework’s behavior during the retrieval

stage more transparent and traceable. System’s justiﬁcation for displaying of results plays an important role

as well, and is also included in the explanations. We evaluated the explanation generation process with a

ground-truth set of explanations and a case-based validation process to ensure the suitability of the generated

explanation expressions for displaying in user interfaces connected to the framework. The results of the

evaluation conﬁrmed our expectation and showed the general validity of the explanations.

1 INTRODUCTION

Computer-aided architectural design (CAAD) is a re-

search domain where one of its main tasks is to uti-

lize knowledge-intensive data about building designs

to support the early phases of architectural design

conceptualization. Case-based reasoning (CBR) is a

widely-used approach that can make use of such data

to provide designs similar to the currently created one.

Those similar designs are aimed to inform an architect

about possible similar semantic and relational struc-

tures of the prior designs found in a database (case

base), or show how the problem at hand was solved

in a different context. Other important objective of si-

milar designs (ﬂoor plans) is to provide the architect

with inspirational space to explore the designs that

can be helpful during the current project.

Many case-based design (CBD) approaches were

developed to utilize the methods of CAAD and CBR

to provide a tool for the support of the architectu-

ral conceptual design phase. MetisCBR (Ayzenshtadt

et al., 2016a) is one of such approaches that was cre-

ated as part of the basic research project Metis that

was aimed to combine the research areas of CAAD,

CBR, and multi-agent systems (MAS). MetisCBR

uses case-based agents and CBR-based retrieval met-

hods to ﬁnd possibly helpful similar architectural de-

signs that correspond to the criteria entered by the

user. These criteria are based on a paradigm of se-

mantic ﬁngerprint, that hierarchically represents meta

data and structural properties of a ﬂoor plan.

However, not only the information about the re-

trieved similar designs themselves is important for

speeding up and qualitative improvement of the ar-

chitectural design process. In many cases, users, in

our case: architects, want to have additional informa-

tion about the results: e.g., how exactly the system

achieved the given results, why exactly the results can

be helpful, or what are the structural differences of

query and result. That is, the users want the system to

be explanation-aware in order to provide explanations

for the returned search results.

In this paper, we present the recently developed

explanation module of MetisCBR, where case-based

agents work with explanation patterns to generate ex-

planations for the results returned during the retrieval

process. After the generation, the explanations are va-

lidated by a case-based comparison with an expert-

Ayzenshtadt, V., Espinoza-Stapelfeld, C., Langenhan, C. and Althoff, K-D.

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design.

DOI: 10.5220/0006650201030114

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 1, pages 103-114

ISBN: 978-989-758-275-2

103

proven set of ground-truth explanations saved in a

special case base of explanations.

This paper is structured as follows: ﬁrst, the inter-

nal MetisCBR-related work as well as external work

related to the purposes of the framework, and expla-

nations in CBR will be brieﬂy presented. In the next

section, we describe MetisCBR more in detail, in-

cluding its underlying foundations for CBR-based re-

trieval and internal communication of agents. Next,

we in detail present the explanation module (Explai-

ner), including the general functionality, the charac-

terization and functionality of the agents, description

of explanation patterns and their use and modiﬁcation

for the Explainer, and the underlying communication

pattern and its ontology. After that, the validation-

based evaluation of the generated explanations is pre-

sented. The conclusion section summarizes the pre-

sented work and gives a brief overview of the future

development of MetisCBR and the explanation appro-

ach.

2 RELATED WORK

In this section, we present work related to the purpo-

ses of MetisCBR, dividing it in external and internal

related work, as well as a short overview of work that

has been made so far in the domain of CBR-based ex-

planations.

2.1 Internal Related Work

During the basic research project Metis (KSD Re-

search Group, 2015) that aimed at combination of

MAS, CBR, and CAAD for architectural design sup-

port purposes, we developed a number of approa-

ches to reach this research goal. MetisCBR is one

of these developed approaches; a web-based ﬂoor

plan editor Metis WebUI (Bayer et al., 2015) that

can communicate with retrieval approaches, a retrie-

val coordination middleware KSD Coordinator (Roith

et al., 2016) that can query a number of (subgraph

matching-based) design retrieval engines, an android

app, and a touch-table-based application are other

examples. A comprehensive framework that unites

some of these techniques has been constructed as well

and presented in detail in (Sabri et al., 2017). Theo-

retical foundations developed during the project are

the semantic ﬁngerprint (see also Section 3.2) and

the speciﬁcation of the architectural graph description

language AGraphML (Langenhan, 2015).

2.2 External Related Work

A number of CBR-based approaches was introduced

in the past for the conceptual phase of the architec-

tural design process. In (Heylighen and Neucker-

mans, 2001) and (Richter et al., 2007), the correspon-

ding authors provide surveys of these approaches. In

(Richter, 2011), a comprehensive research into CBR

in architecture/CAAD was conducted to provide a

view on present, past, and future of combination of

these research areas. In (Richter, 2013) a summary of

this work is available that includes an overview of the

current problems of CBR in architecture.

Notable approaches are FABEL (Voss, 1997),

PRECEDENTS (Oxman and Oxman, 1993), SEED

(Flemming, 1994), DIM (Lai, 2005), or VAT (Visual

Architectural Topology, a semantic representation ap-

proach) (Lin, 2013). An approach that is most likely

closely related to the purpose of this paper is Case-

Book (Inanc, 2000), where a similarity explanation

report is mentioned as one of the system’s functio-

nalities. However, not much informaion is provided

about its mode of operation or evaluation.

The most notable approach from the research area

of multi-agent systems is (Anumba et al., 2007).

In this comprehensive work, examples and technical

foundations of use of MAS in construction and archi-

tecture domains are examined.

2.3 Explanations in Case-based

Reasoning

Explainability of case-based systems is one of the

questions of the CBR research ﬁeld that has gai-

ned much attention during the last decades, produ-

cing a number of theoretical foundations and techni-

cal terms. Aamodt, one of the founders of the CBR’s

4R cycle (Retrieve, Reuse, Revise, Retain), was one

of the ﬁrst authors to examine explanations for CBR

systems in (Aamodt, 1993). Roth-Berghofer descri-

bed foundational issues of explanations in CBR in

(Roth-Berghofer, 2004). Later, an explanation-aware

plugin myEACBR for the CBR prototypes framework

myCBR (Bach and Althoff, 2012) was developed in

(Lillehaug, 2011). Finally, in (Cassens and Kofod-

Petersen, 2007), application of explanation patterns to

CBR-based systems or intelligent systems in general

was examined.

We consider this previous work a valuable con-

tribution to the CBR research area and explanation-

aware systems. Our goal, therefore, was to take the

above described research as a basis and adapt it for

our speciﬁc purpose, the distributed case-based sup-

port for the architectural conceptualization phase.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

104

More speciﬁcally, the pattern approach described

in (Cassens and Kofod-Petersen, 2007) was conside-

red very similar to semantic ﬁngerprint of architecture

(see Section 3.2) used by MetisCBR for retrieval, as

semantic ﬁngerprints can be considered retrieval pat-

terns as well, which is documented in (Sabri et al.,

2017). This led us to adaptation of the explanation

patterns from (Cassens and Kofod-Petersen, 2007) for

our explanation module. That is, our aim in this case

was to achieve a sufﬁcient degree of consistency be-

tween the system modules, using an established met-

hod and workﬂow for new agents. However, some

modiﬁcations during the application process of expla-

nation patterns were required, especially for detection

of patterns, as tasks of retrieval and explanation differ

in their nature (see Sections 4.2.1 and 4.2.2).

3 MetisCBR

MetisCBR is a multi-agent system that makes use of

case-based agents and CBR-based retrieval to ﬁnd

possibly helpful previous solutions during the early

phases of architectural conceptual design. The frame-

work’s main aim is to efﬁciently improve the design

process in its early stages by providing the architects

with a tool that can ﬁnd designs suitable for impro-

vement of the project at hand. The detailed descrip-

tions of the framework’s system architecture and the

domain model were already provided in (Ayzenshtadt

et al., 2015) and (Ayzenshtadt et al., 2016a). The

framework has been subject of different comparative

performance and qualitative evaluations with partici-

pation of other search methods, examples are (Ay-

zenshtadt et al., 2016b) and (Sabri et al., 2017).

The decision to design MetisCBR as a multi-agent

based software has a number of important reasons.

First, a system with agents that can communicate with

each other by means of applying a common language

and ontology allows us to unify the overall commu-

nication of the system modules. This is relevant, as

the queries and results of architectural designs used

by the system use a strict speciﬁcation for their con-

struction and thus can be converted to an ontological

object for application in multi-agent frameworks. Se-

cond, some system components require to be able to

conduct a number of parallel operations, that should

not always be executed permanently, but, for example,

periodically. Agents design in many multi-agent fra-

meworks allows for execution of behaviors of diffe-

rent types concurrently – this fact was also important

for our choice of the system design paradigm. Third, a

requirement for each retrieval system within the Me-

tis project was to implement a coordination compo-

nent that is able to select a proper retrieval method or

strategy for the current query. Coordination of system

processes has a long tradition in the research ﬁeld of

multi-agent systems, therefore, this fact played an es-

sential role in our decision as well. As described in

(Ayzenshtadt et al., 2015), we apply adapted methods

of coordination provided in (Nwana et al., 1996).

Further in this section, we provide a brief descrip-

tion of the general functionality of MetisCBR, and

the underlying concepts of semantic search patterns

(semantic ﬁngerprints) and communications patterns.

Both of the pattern types are relevant for the purpose

of this paper.

3.1 General Functionality

The general functionality of MetisCBR is based

around the so-called retrieval containers that work

concurrently on resolving of search requests. In every

container, a number of CBR retrieval agents, that re-

trieve the case base of ﬂoor plans in order to ﬁnd si-

milarly structured designs according to the selected

retrieval strateg, and a Manager, that controls the re-

trieval agents and manages the resolving of the cur-

rent query, are available. The search request itself

can consist of different sub-requests, where each of

these sub-requests represents a semantic ﬁngerprint

(see Section 3.2) selected by the user (in this case,

a retrieval container is created for each sub-request,

the particular results of the containers are then amal-

gamated into a common result). On the higher level

of the system’s hierarchy, the Coordinator agent go-

verns the system’s processes, e.g., it selects the pro-

per retrieval strategy for the current search request (or

a sub-request) and assigns it to the corresponding re-

trieval container. The Coordination Team is a group

of Coordinator’s helper agents that consists of agents

for speciﬁc tasks, such as result collection from the

active retrieval containers. The agents communicate

by means of applying the speciﬁc communication pat-

terns that allow for standardization and uniﬁcation of

processes within the system (see Section 3.3). The

general system structure with inclusion of the expla-

nation component is depicted in Figure 1.

3.2 Semantic Fingerprint

Semantic ﬁngerprint of architecture (Langenhan and

Petzold, 2010) provides a description paradigm for

representation of architectural designs in CAAD sy-

stems. The concept of semantic ﬁngerprint is aimed

at enrichment of the BIM (Building Information Mo-

deling) objects with semantic and topological infor-

mation contained in graphs derived from a ﬂoor plan.

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design

105

Web UI

CBR domain model

(myCBR API)

Neo4j

Search Request

Case

Bases

Coordinator +

coordination team

CBR agent 1

CBR agent 2

CBR agent 3

Room µ

Edge µ

Maintainer agent

GraphML agent

Imported

Cases

(Floor Plans)

Floorplan µ

Gateway

CBR manager

More retrieval containers ...

Retrieval container

Results

Explanation Deliverer

Explanation Creator

Case Base

of Expl.

Explainer

Expl.

Generation

Expl. Patterns

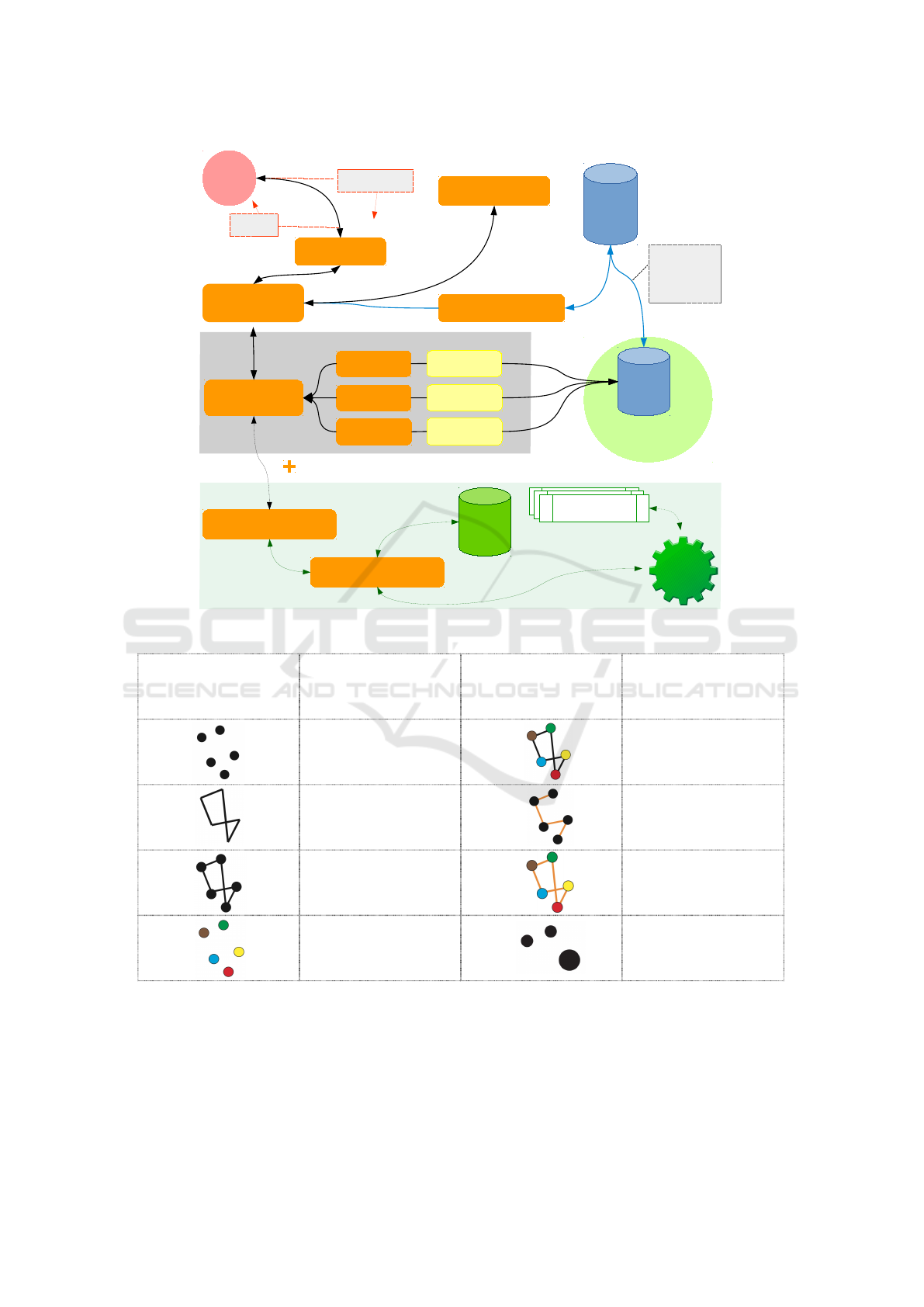

Figure 1: General structure of MetisCBR (with explanation module, the Explainer, included).

Fingerprint Name / Specics Fingerprint Name / Specics

FP1 Room Count

No connections between

rooms and no labels specied

FP5 Adjacency

Rooms information is

complete, no edge labels

FP2 Relation Count

No room information

specied

FP6 Accessibility

Edge information is complete,

no room labels

FP3 Room Graph

Anonymous representation

(no labels) of rooms & edges

FP7 Full Graph

All information about rooms

and edges available

FP4 Room Types

No room connections, only

room labels are specied

FP8 Natural Light

Light condition attributes

Figure 2: Semantic ﬁngerprints currently implemented in MetisCBR.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

106

Therefore, each ﬁngerprint is a graph or a subgraph

that can contain certain semantic and/or topological

information about the structure, e.g., room geometry,

of an architectural design. Semantic ﬁngerprint fol-

lows an index-based hierarchical structure with Levels

that are divided in Units which contain certain Zones

with a number of Rooms. For retrieval purposes, se-

mantic ﬁngerprints can be used as search patterns. In

this way, they are implemented in MetisCBR, and can

be speciﬁed by the user during the retrieval session. A

list of ﬁngerprints (FPs) currently in use in MetisCBR

is shown in Figure 2.

3.3 Communication Patterns

The communication patterns of MetisCBR are the in-

ternal communication workﬂows that the agents make

use of during execution of their tasks in order to col-

laborate with each other. The communication pat-

terns were previously discussed in (Ayzenshtadt et al.,

2016c), in this section, similarly to the general struc-

ture of MetisCBR and semantic ﬁngerprint, we give

only a brief description of the concept.

A communication pattern is a directed graph for

one of the system workﬂows, e.g., retrieval, where

nodes represent the agents involved in this workﬂow,

and edges represent steps or actions that are prede-

ﬁned and either assigned by an agent of managing

type, such as Coordinator or Manager, or requested

by agents of another type. For each pattern, a sub-

set of the system’s communication ontology is used

to ensure the standardized communication among the

agents. The ontology, and thus a subset as well, con-

sists of three layers: object: abstract concepts of

query and result, data: concrete architectural data

from query or result, action: an action that should be

executed with this data. Therefore, the pattern steps

are named after the ontology concept (action class)

that holds information about this type of action. In

Figure 3, the communication pattern ‘retrieval’ is de-

picted for demonstration of a pattern structure.

4 EXPLANATION MODULE

(EXPLAINER)

Users of (decision) support systems are likely to in-

crease their satisfaction with the system if the system

is able to produce and present reasonable traces of its

behavior. Therefore, our motivation behind the deve-

lopment of the explanation component is to give our

user group, the architects, a sufﬁcient amount of in-

sights into how the system achieved the results contai-

ned in the ﬁnal result list. In this section, we in detail

present the foundations of the explanation module Ex-

plainer: agents, explanation patterns, communication

pattern, and construction and validation of explana-

tion expressions.

4.1 Explainer Agents

As depicted in Figure 1, the general structure of the

Explainer employs two agents that are responsible for

construction, validation and transfer of explanations:

the Explanation Deliverer and the Explanation Crea-

tor.

4.1.1 Explanation Deliverer

The Deliverer agent of the explanation module is re-

sponsible for receiving of explanation requests from

the managers of the active retrieval containers and

sending back the corresponding explained results to

these managers. After receiving an explanation re-

quest, that at ﬁrst consists of the query that has to be

explained, the Deliverer saves this query in a speci-

ﬁc explanation schedule and waits for retrieval results

to be completed. When the resolving of the query is

ﬁnished by the corresponding retrieval container, the

manager of this container sends the results to the De-

liverer. The Deliverer then retrieves the query from

the schedule, constructs an object that consists of the

query and the corresponding result set, a so-called

query-result object, and sends it to the other agent of

the explanation module, the Explanation Creator. Af-

ter receiving the explained results from the Creator,

the Deliverer forwards them to the corresponding ma-

nager who in turn sends them to the Result Collector

agent of the Coordination Team (previously mentio-

ned in Section 3, see more about Result Collector’s

role in 4.1.3).

4.1.2 Explanation Creator

The Explanation Creator agent is responsible for the

creation/construction of explanations for the result set

of a query. After receiving the query-result object

from the Deliverer, the Creator tries to generate an ex-

planation for each result in the result set of this object,

based on the semantic ﬁngerprint of the query. The

explanation is then added to the corresponding result

in the result set. At this point, the query-result object

contains the explained results and is sent back to the

Deliverer. The Creator’s mode of operation during the

actual explanation generation process consists of two

subsequent phases:

1. Detection of explanation patterns (see Section

4.2.1) and creation of explanation texts with pre-

deﬁned expressions (see Section 4.2.1)

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design

107

GraphML

CBR

Manager

Coord.

Sub-

Coord.

CBR

Retrieval

CBR

Manager

Coord.

Parse

Forward

Gateway

Solve

Sub-

Coord.

Query

Result

Queries

Timeout

Sub-Pattern

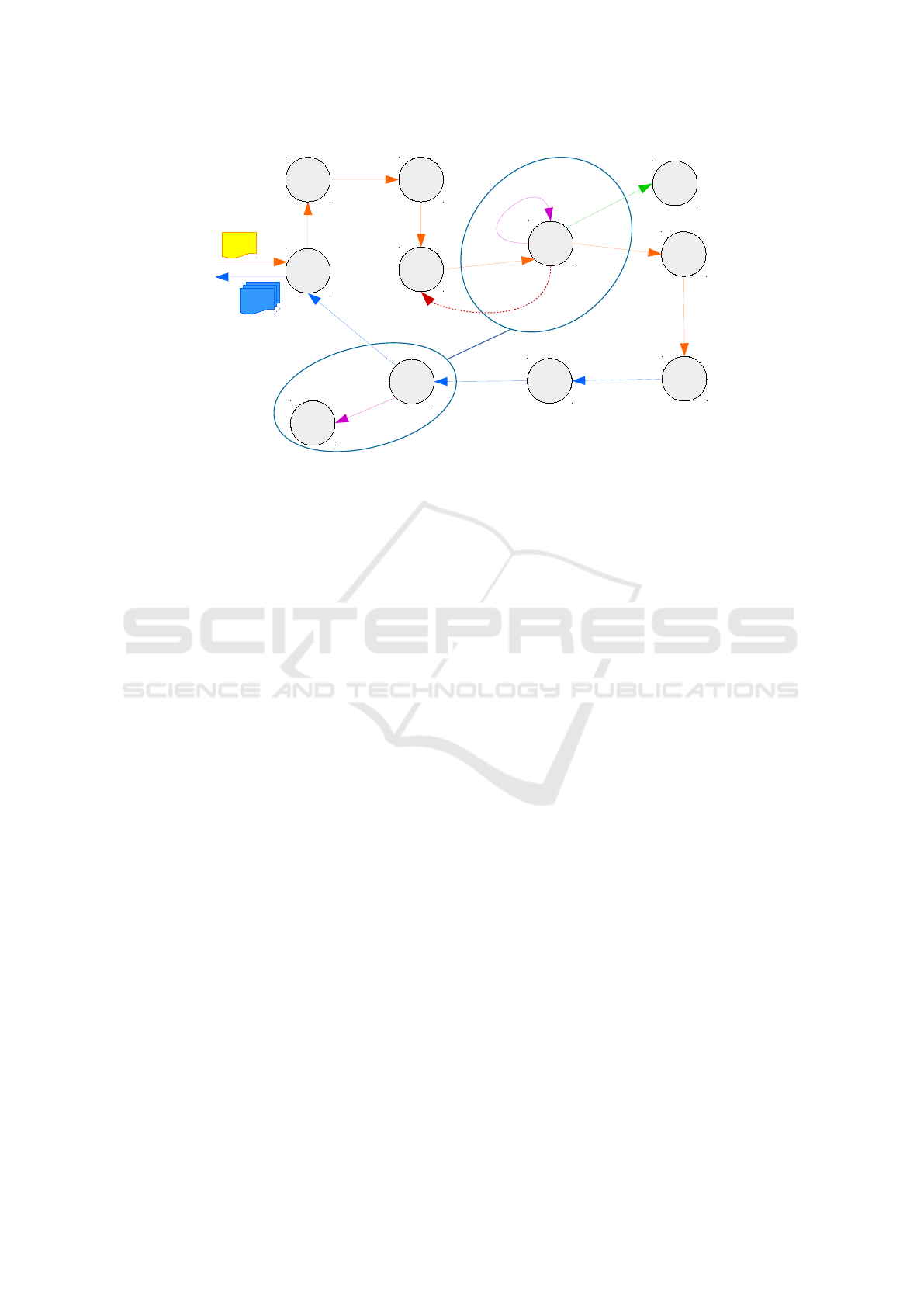

Figure 3: The communication pattern ‘retrieval’ (including the sub-pattern for retention of the currently entered query).

2. Case-based validation of explanations (see

Section 4.3)

4.1.3 Other Agents

A special role in the explanation process is assigned

to the Result Collector agent, despite the fact that

this agent does not belong to the explanation module

agents. The Result Collector receives the set of ex-

plained results for each ﬁngerprint (i.e., sub-request)

of the query and, while amalgamating the ﬁngerprint

results (i.e., computing the common similarity value

for the complete result), it selects the most valid ex-

planation (see Section 4.3) among all available expla-

nations and adds it to the result information in the ﬁ-

nal result set that is then presented to the user.

Another important role is played by the Manager

agent of a retrieval container, who is, among its ot-

her functions, the communication interface between

the Explainer and the Result Collector. However, the

Manager does not apply any modiﬁcations to the re-

sult data (where the explanations are included).

4.2 Explanation Patterns

Explanation patterns for case-based reasoning appli-

cations and approaches is a concept developed in

(Cassens and Kofod-Petersen, 2007). In the narro-

wer sense, the explanation patterns are also known

as Explanation Problem Frames and extend the ori-

ginal concept of problem frames presented by Jack-

son in (Jackson, 1999). Taking the Jackson’s problem

frames as a basis for description of problems in soft-

ware engineering, the explanation problem frames for

intelligent systems were contructed in (Cassens and

Kofod-Petersen, 2007) and speciﬁed a number of spe-

cial patterns that serve as foundation for creation or

generation of explanations in such systems.

Following the structure proposed by Jackson, the

explanation problem frames consist of a computation

unit machine, representation of a real-world domain,

and the reference to the requirements for a problem

that has to be solved. All three components of a pro-

blem frame should be connected with each other in

order to provide a common foundation for creation

of an explanation. In (Cassens and Kofod-Petersen,

2007), a number of explanation problem frames were

identiﬁed for CBR-based systems, that are aimed at

achieving, inter alia, the following, expert systems-

inspired, explanation goals:

• Justiﬁcation – Explanation of why the given ans-

wer or solution is good at this point of wor-

king/interacting with the system. The goals is

to make the user conﬁdent with the system’s

decision-making by reasonably justifying the ans-

wer as suitable and helpful for the current situa-

tion, question, or query.

• Transparency – Explanation of how the system

found the given answer or solution. The goal is to

give the user some insight into how the system’s

reasoning works, that is, make the decision-

making processes of the system more transparent.

• Relevance – Explanation of why the question that

the system is asking is relevant in the current si-

tuation. For example, if an insufﬁcient amount of

properties or attributes of the failure was provided

by the user to ﬁnd a proper solution, the system

may ask for further reﬁnement of the problem des-

cription, thus ask the user for more relevant data.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

108

However, the system should be able to provide a

reasonable explanation of why this reﬁnement is

relevant, i.e., in this example, why the data provi-

ded by the user is insufﬁcient.

4.2.1 Modiﬁcation for MetisCBR

In a recent work in (Espinoza, 2017), the general con-

cept of explanation patterns was extended for use in

MetisCBR’s results explanation module. For this pur-

pose, the explanation patterns described in Section

4.2.1 were modiﬁed to work with the underlying con-

cepts of MetisCBR, such as semantic ﬁngerprint and

the domain model of the case base of architectural

designs. Based on the machine/domain/requirement

structure of the problem frames, the explanation

patterns were adapted for the domain of semantic

ﬁngerprint-based CBR-retrieval of architectural de-

signs, taking the ﬁngerprint context (more precisely,

constraint) as its basis.

The explanation patterns for MetisCBR were con-

ceptualized w.r.t explanation goals, previously des-

cribed in 4.2.1. That is, three explanation patterns

were created to extend MetisCBR with the explaina-

bility function. For each pattern, the ﬁngerprint con-

straint serves as a basis for the problem frame struc-

ture, it is then integrated with justiﬁcation, transpa-

rency, and relevance frames. In Figure 4 the integra-

tion of patterns for justiﬁcation and transparency is

shown: a new machine Fingerprint has been added to

the previously existing Justiﬁcation and Transparency

to allow for connection of these original patterns to

the main properties (meta data, rooms, edges) of the

ﬁngerprint- and CBR-based retrieval of ﬂoor plans.

4.2.2 Detection of Patterns

The explanation patterns were implemented in Metis-

CBR in the way, that the system (more precisely, the

Explanation Creator agent) tries to detect if a pattern

is available for the current query and the current re-

sult. Only if the pattern is available, the Creator will

add the corresponding explanation expression to the

explanation text string of the result.

The detection conditions are saved in a special

heuristic ruleset and are different for each pattern and

ﬁngerprint. That is, it depends on complexity and type

of the ﬁngerprint (FP) if the pattern can be detected.

Below, some examples are provided to demonstrate

heuristics of rules of pattern detection:

• FP 1, 2, 4, 8: The pattern ‘Transparency’ is

detected if 2/3 properties from {Room Count,

Edge Count, Room Types} could be detected in

the meta data of the query ﬂoor plan.

Fingerprint

machine

Floor plan

meta data

Room

Edge

Justication

machine

Information

display

Specic case

knowledge

Reasoning

trace

Justication

explanation

Transparency

explanation

Transparency

machine

Display

Fingerprint-

based

explanation

Figure 4: Modiﬁcation of explanation patterns for Metis-

CBR. Enclosed in blue are the original problem frames from

(Cassens and Kofod-Petersen, 2007). C stands for the goal

of explanation, X denotes the system knowledge. The In-

formation Display goal is mandatory for connection to the

user interface.

• FP 1, 2, 4, 8: The pattern ‘Justiﬁcation’ is

detected if the similarity grade of the result ﬂoor

plan is better than unsimilar.

• FP 6: The pattern ‘Transparency’ is detected if

all properties from {Room Count, Edge Count,

Edge Types} could be detected in the meta data

of the query ﬂoor plan.

• FP 7: The pattern ‘Justiﬁcation’ is detected

if the similarity grade of the result ﬂoor

plan is better than unsimilar and all pro-

perties from {Room Count, Edge Count, Room

Types, Edge Types} could be detected in the

meta data of the query ﬂoor plan.

As seen in the examples provided above, the simi-

larity grade plays an important role in the detection

of the explanation patterns. This similarity grade de-

pends on the similarity value of the result ﬂoor plan

and is classiﬁed as follows: as very similar we clas-

sify the result if its similarity Sim ≥ 0.75, similar if

0.75 > Sim ≥ 0.5, sufﬁciently similar if 0.5 > Sim ≥

0.25, and unsimilar if Sim < 0.25.

4.2.3 Construction of Explanations

The actual explanation is a combination of explana-

tion expressions as text strings, where for each of the

patterns for each of the ﬁngerprints and for each of

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design

109

the similarity grades a short and long (full) version

of an expression exist. An explanation text is then

a concatenation of particular expressions, it is possi-

ble to combine both short and full versions of an ex-

pression, however, either short or full version of the

same category (similarity grade, ﬁngerprint, or pat-

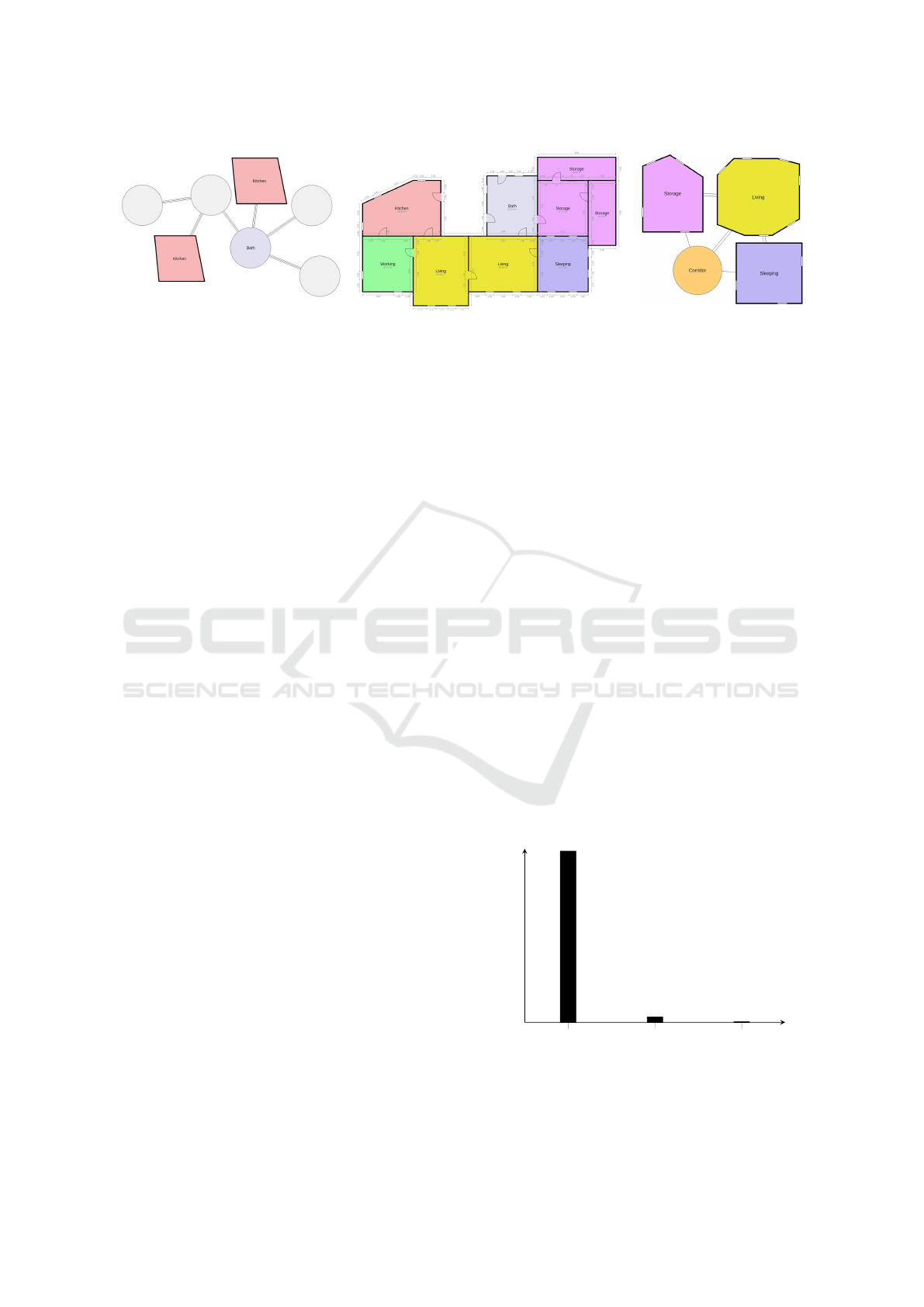

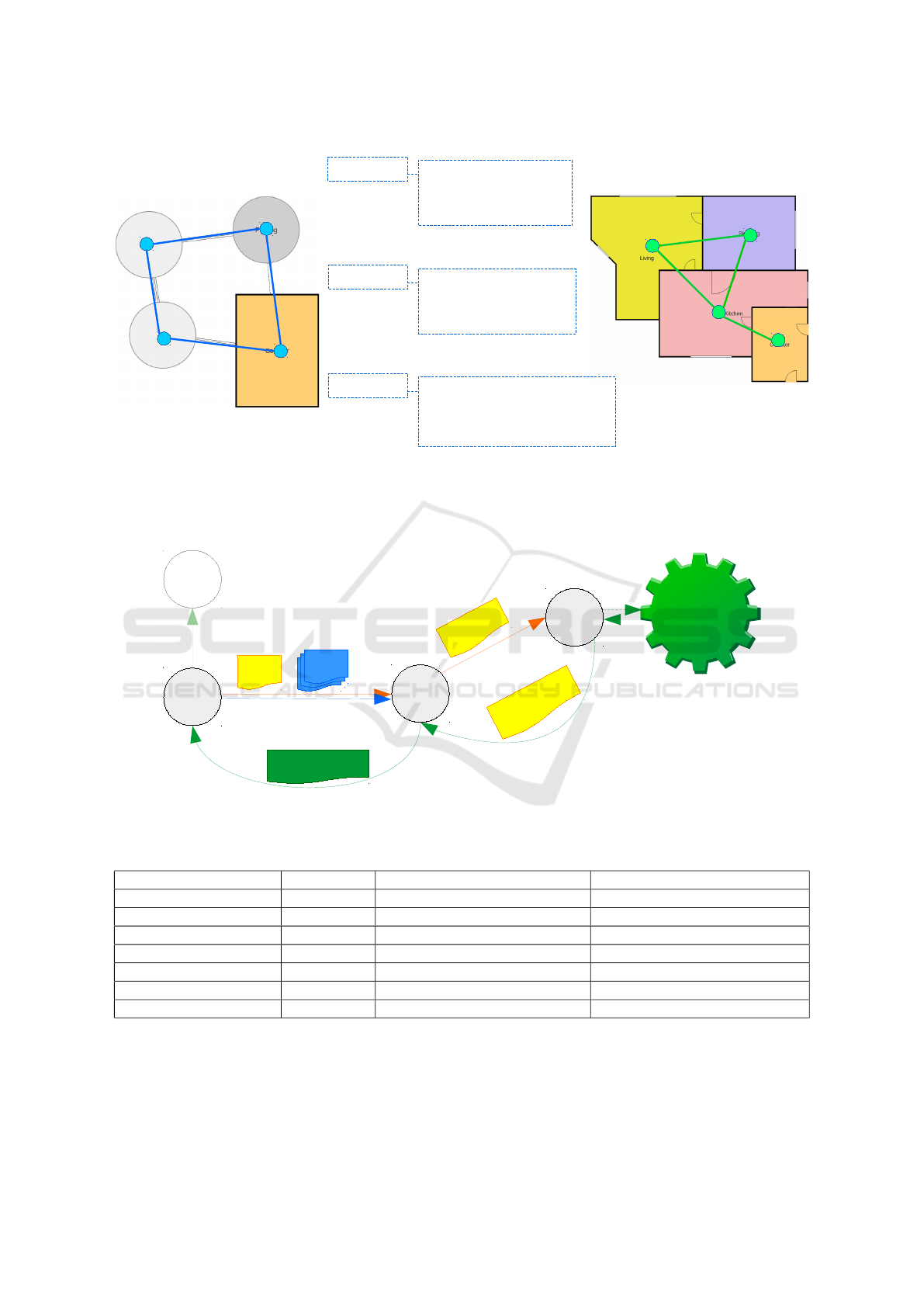

tern) should be used. In Figure 5, examples of the

explanation texts are shown for an exemplary query

and the corresponding result.

All text strings for full explanations were provided

by an expert from the architectural design domain to

ensure the suitability and understandability of expla-

nations for the representatives of this domain.

4.3 Validation of Explanations

The aim of validation of explanations is to prove if the

generated explanation corresponds to the architectural

understanding and technical term requirements. We

consider the validation an important step of the pro-

cess, as it helps to increase the possibility of returning

of more usergroup-friendly explanation expressions.

To validate an explanation we decided to apply a

case-based validation approach. That is, an explana-

tion is validated against a ground-truth set of expla-

nations saved in a case base of explanations. Each

explanation in this set consists of a number of attribu-

tes (see Table 1), most of those attributes are used for

comparison with their counterparts from the genera-

ted explanations. The unused attributes are used for

information purposes.

After the attribute-wise comparison, where for

each relevant attribute a similarity value is computed,

these attribute similarity values are amalgamated with

a weighted sum (see (1)) to produce a validation simi-

larity value v, that shows how similar the query expla-

nation is to the currently compared ground-truth ex-

planation. The weight values for the attribute simila-

rities used in this weighted sum depend on the number

of detected explanation patterns. For example, if two

patterns were detected, the weight value ω

for text si-

milarity t is 0.2, the weight ω

for a pattern similarity

p is 0.4 (if only one pattern was detected: 0.3/0.7 ac-

cordingly). This dynamic distribution of weights was

applied in order to avoid penalization of results where

not all of the patterns could be detected, but a highly

valid explanation can be expected anyway. That is,

we are interested in results with most reasonable ex-

planations possible.

The highest validation similarity that indicates the

most similar explanation from the set of all validated

similarity values V then becomes an explanation simi-

larity of the query similarity, i.e., the currently gene-

rated explanation. The generated explanation is valid

if its explanation similarity exceeds a threshold value,

e.g., 0.5.

v = ω

t + ω

∑

i=1

, v ∈ V

(1)

4.4 Explainer Communication and

Ontology

To exchange information among each other, the

agents of the Explainer make use of the communica-

tion patterns described in 3.3. That is, they follow the

workﬂow communication steps deﬁned in the pattern.

For the Explainer, a speciﬁc communication pattern

‘explainer’ was created that underlies all communi-

cation processes within the explanation module. Si-

milarly to the ‘retrieval’ pattern shown in Figure 3,

where Query and Result objects hold the concrete in-

formation about the ﬂoor plans from the correspon-

ding query and result, the ‘explainer’ pattern contains

the Explain object that contains information about

data that should be enriched with explanations. In this

case, this is the previously mentioned query-result ob-

ject that includes query and result data before, and is

enhanced with explanation expressions for each result

after the explanation generation process. The commu-

nication pattern ‘explainer’ is shown in Figure 6.

The ‘explainer’ communication pattern relies on

the explainer ontology that contains all possible con-

cepts that can occur during collaboration between

both agents of the Explainer (Deliverer and Creator)

and agents of the retrieval module (Manager, Result

Collector). A special concept is Explanation, that

consists of data for explanation validation as descri-

bed in Section 4.3. All ontological concepts are re-

presented as objects in FIPA-SL content language.

5 EVALUATION

To evaluate the current functionality of the Explainer,

we decided to conduct a comprehensive case-based

validation of generated explanations by means of que-

rying MetisCBR with a number of different queries.

The process of case-based validation of an explana-

tion is described in Section 4.3. In this section, we

ﬁrst give a brief description of the setting of the expe-

riment, followed by the results achieved during the

evaluation. To our knowledge, no comparable ex-

planation tool in current architectural design support

software exists at the moment, i.e., this is the ﬁrst eva-

luation of a system module of such kind. Our general

expectation was, that the Explainer can produce a suf-

ﬁcient number of queries that are valid for inclusion

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

110











 

Justification

Pattern text (full)

Transparency

Pattern text

(short)

!

!

"#!

$% 

Justification

Pattern text (full)

Transparency

Pattern text

(short)

&'(

)



'

)* 

Relevance

Pattern text (full)

Transparency

Pattern text

(short)



Figure 5: An examle of constructed explanations between an exemplary qurey and the corresponsing result. Bubbles denote

rooms without speciﬁc functionality and/or geometry. C denotes the CORRIDOR room type, others are LIVING, SLEEPING,

PARKING, and KITCHEN. Fingerprints (FPs) are described in Figure 2.

Expl.

Creator

Expl.

Deliverer

Query

Result

Manager

Explain

Query

Explained results

Forward

Result

Collect.

Generation of

explanations

Figure 6: The communication pattern ‘explainer’(the order of actions is represented clockwise, starting at Manager).

Table 1: Attributes of the Explanation concept in the case base of explanations.

Attribute Type Description Similarity Function

id string Internal Explanation ID not in use

Case string Reference to the case (result) not in use

Query string Reference to the query not in use

Text string Text of the explanation Levenshtein distance-based sim.

PatternJustification boolean Justiﬁcation pattern available? boolean comparison

PatternRelevance boolean Relevance pattern available? boolean comparison

PatternTransparency boolean Transparency pattern available? boolean comparison

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design

111

L SL

Figure 7: Examples of evaluation queries. Bubbles denote rooms without speciﬁc functionality and/or geometry. C denotes

the CORRIDOR room type, others are WORKING, LIVING, STORAGE, SLEEPING, BATH, PARKING, and KITCHEN.

into the ﬁnal result set, thus for showing them to the

user group of the framework.

5.1 Setting

We performed the evaluation on a set of 225 retrieva-

ble architectural designs (ﬂoor plans) saved as cases

in the case base of MetisCBR’s retrieval component.

The maximum complexity of a ﬂoor plan was 368,

i.e., the maximum value of count c ∈ C

∪C

, where

is the set of all room count values and C

is the set

of all edge counts. To provide a ground-truth set for

the evaluation, a case base of 15 explanations (with

case structure as described in Section 5) was crea-

ted. This ground-truth set then became a validation

base for the explanations generated during the expe-

riment. Each explanation case in this base was manu-

ally examined to be a valid explanation itself – in this

case, this means it has been checked for the technical

validity of the combination query/result/similarity va-

lue/explanation. It has also been checked that the dif-

ferences between the ﬁngerprints and corresponding

explanations are sufﬁcient to provide the system with

space for validation comparison, i.e., the FPs were se-

lected in the way that they do not appear too often

and the corresponding explanation expressions were

all from different similarity grades.

As queries, 30 ﬂoor plans of different complex-

ity and abstraction level were used. These ﬂoor plans

were created with one of MetisCBR’s ﬂoor plan edi-

tors, the Metis WebUI. In Figure 7, some examples of

the query ﬂoor plans are shown. On average, 2 FPs

were used per query, making 59 sub-requests in total.

The FPs were selected in the similar way as in the ex-

planations ground-truth set, i.e., they were prevented

from appearing too often.

5.2 Results

The results revealed that our expectation about the ge-

neral suitability of the explanation module has been

met. With a total number of 67875 constructed ex-

planations, we built a sufﬁcient basis for evaluation

of the Explainer’s current capabilities. From this total

explanation count, 57575 (84.825%) were valid and

10300 (15.175%) were invalid, this conﬁrmed our as-

sumption that the case-based validation is a reasona-

ble method to validate such an explanation. Regard-

less of relatively high threshold value of 0.5 for vali-

dity rating, the system could produce a high amount

of valid explanations that can be shown to the user. In

the following sections, some detailed characteristics

and ﬁndings from the experiment are presented.

5.2.1 Detected Patterns

The number of the explanation patterns detected for

the retrieval results varied highly between the parti-

cular patterns. Relevance was detected in 1710 cases,

whereas Transparency in all 67875 cases, and Justiﬁ-

cation in 50850 cases. However, these are expectable

values, considering the fact that the system does not

always require additional information from its user,

i.e., does not provide questions to the user.

In Figure 9, the distribution of combinations of

patterns is shown. Here, the expected high value for

Justiﬁcation/Transparency and low numbers of com-

binations with Relevance can also be seen.

JT JTR TR

49,290

1,560

150

Pattern Combinations

Amount of Combinations

Figure 8: The distribution of explanation pattern combinati-

ons detected in the results. J, T, and R stand for Justiﬁcation,

Transparency, and Relevance respectively.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

112

5.2.2 Similarity Distribution

As established for the experiments in our work, we

show how the similarity grades (see Section 4.3) were

distributed among the retrieval results (Figure 10), ba-

sed on total count of 4525 results. Firstly, however,

we show the difference between average validation

similarity and average results similarity (Figure 9).

Avg Expl. Sim. Avg Result Sim.

0.2

0.4

0.6

0.8

0.78

0.44

Average Sim. Values

Sim. Scale

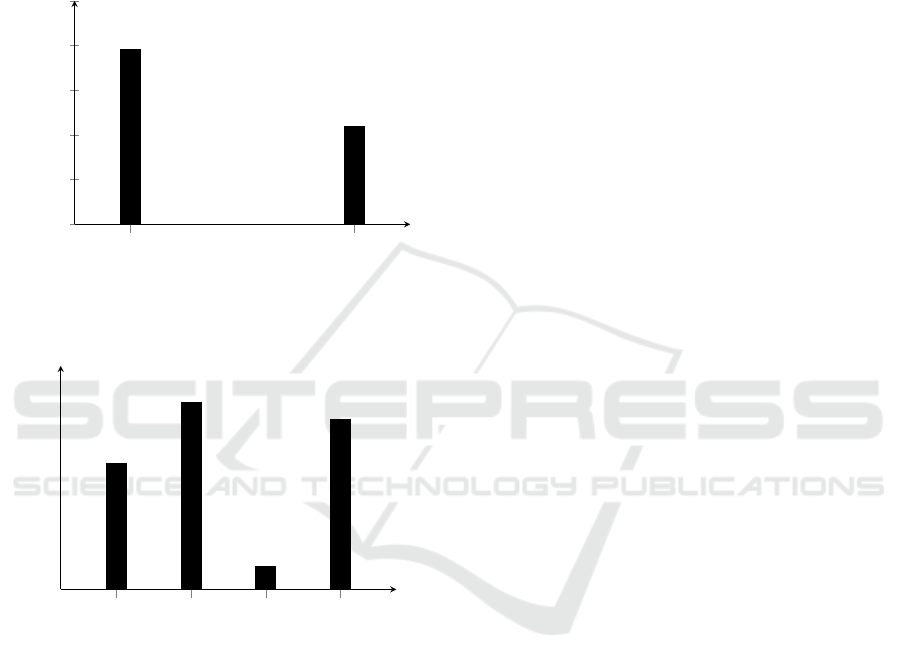

Figure 9: The average similarity values for results and ex-

planations.

Unsim. Suff. sim. Sim. Very sim.

1,126

1,675

202

1,522

Similarity Grades

Results count

Figure 10: The distribution of results counts among the si-

milarity grades.

6 CONCLUSION

In this work, we presented the structure and main

components of the explanation module (the Explai-

ner) for retrieval results of MetisCBR for case-based

search of similar architectural designs. The module

employs two agents, communication pattern and on-

tology, as well as explanation patterns that build the

theoretical base for creation of explanation expressi-

ons.

The generated explanations are validated with a

case-based validation by comparison with ground-

truth explanations saved in a case base of explana-

tions. The validation-based evaluation of generated

explanations showed their general suitability for pre-

sentation to the user group as part of information in

the retrieval results.

Our future work on the Explainer will be con-

centrated on its further development with a goal to

built more ﬁne-grained explanation patterns and de-

tection rulesets, that will be based not only on seman-

tic ﬁngerprints but on the attributes of rooms, relati-

ons, and the meta data of the design graph. To eva-

luate these patterns, a comprehensive study with par-

ticipation of architectural domain representative will

be conducted.

REFERENCES

Aamodt, A. (1993). Explanation-driven case-based reaso-

ning. In European Workshop on Case-Based Reaso-

ning, pages 274–288. Springer.

Anumba, C., Ren, Z., and Ugwu, O. (2007). Agents and

multi-agent systems in construction. Routledge.

Ayzenshtadt, V., Langenhan, C., Bukhari, S. S., Althoff,

K.-D., Petzold, F., and Dengel, A. (2015). Dis-

tributed domain model for the case-based retrieval

of architectural building designs. In Petridis, M.,

Roth-Berghofer, T., and Wiratunga, N., editors, Pro-

ceedings of the 20th UK Workshop on Case-Based

Reasoning. UK Workshop on Case-Based Reasoning

(UKCBR-2015), located at SGAI International Con-

ference on Artiﬁcial Intelligence, December 15-17,

Cambridge, United Kingdom. School of Computing,

Engineering and Mathematics, University of Brigh-

ton, UK.

Ayzenshtadt, V., Langenhan, C., Bukhari, S. S., Althoff, K.-

D., Petzold, F., and Dengel, A. (2016a). Thinking with

containers: A multi-agent retrieval approach for the

case-based semantic search of architectural designs.

In Filipe, J. and van den Herik, J., editors, 8th Inter-

national Conference on Agents and Artiﬁcial Intelli-

gence (ICAART-2016), February 24-26, Rome, Italy.

SCITEPRESS.

Ayzenshtadt, V., Langenhan, C., Roith, J., Bukhari, S. S.,

Althoff, K.-D., Petzold, F., and Dengel, A. (2016b).

Comparative evaluation of rule-based and case-based

retrieval coordination for search of architectural buil-

ding designs. In Goel, A., Roth-Berghofer, T., and

Diaz-Agudo, B., editors, Case-based Reasoning in

Research and Development. 24th International Con-

ference on Case Based Reasoning (ICCBR-2016), Oc-

tober 31 - November 2, Atlanta, Georgia, USA. Sprin-

ger, Berlin, Heidelberg.

Ayzenshtadt, V., Mikyas, A., Althoff, K.-D., Bukhari, S. S.,

and Dengel, A. (2016c). Ontology-based communi-

cation architecture within a distributed case-based re-

trieval system for architectural designs. In Mueller,

E., Krestel, R., and Radtke, G., editors, LWDA 2016

Multi-Agent-Based Generation of Explanations for Retrieval Results Within a Case-Based Support Framework for Architectural Design

113

- Lernen, Wissen, Daten, Analysen - Workshop Pro-

ceedings. GI-Workshop-Tage ”Lernen, Wissen, Daten,

Analysen” (LWDA-2016), September 12-14, Potsdam,

Germany. Hasso-Plattner-Institut.

Bach, K. and Althoff, K.-D. (2012). Developing case-based

reasoning applications using myCBR 3. In Case-

Based Reasoning Research and Development, pages

17–31. Springer.

Bayer, J., Bukhari, S., Dengel, A., Langenhan, C., Alt-

hoff, K.-D., Petzold, F., and Eichenberger-Liwicki,

M. (2015). Migrating the classical pen-and-paper ba-

sed conceptual sketching of architecture plans towards

computer tools - prototype design and evaluation. 11th

IAPR International Workshop on Graphics Recogni-

tion - GREC’15, Nancy, France.

Cassens, J. and Kofod-Petersen, A. (2007). Designing ex-

planation aware systems: The quest for explanation

patterns. In ExaCt, pages 20–27.

Espinoza, C. (2017). Analysis of Identiﬁcation of Explana-

tion Patterns for an Explanation Module for Support

of Design Phase in Architectural Domain. Project re-

port. University of Hildesheim.

Flemming, U. (1994). Case-based design in the SEED sy-

stem. Automation in Construction, 3(2):123–133.

Heylighen, A. and Neuckermans, H. (2001). A case base of

case-based design tools for architecture. Computer-

Aided Design, 33(14):1111–1122.

Inanc, B. S. (2000). Casebook. An information retrieval

system for housing ﬂoor plans. In the Proceedings

of 5th Conference on Computer Aided Architectural

Design Research (CAADRIA), pages 389–398.

Jackson, M. (1999). Problem analysis using small problem

frames. South African Computer Journal, pages 47–

60.

KSD Research Group (2015). KSD - Forschungsprojekte -

metis. http://ksd.ai.ar.tum.de/?page_id=140

Last visited: 19.11.2017.

Lai, I.-C. (2005). Dynamic idea maps: a framework for lin-

king ideas with cases during brainstorming. Interna-

tional journal of architectural computing, 3(4):429–

447.

Langenhan, C. (2015). A federated information system for

the support of topological bim-based approaches. Fo-

rum Bauinformatik Aachen.

Langenhan, C. and Petzold, F. (2010). The ﬁngerprint

of architecture-sketch-based design methods for re-

searching building layouts through the semantic ﬁn-

gerprinting of ﬂoor plans. International electronic

scientiﬁc-educational journal: Architecture and Mo-

dern Information Technologies, 4:13.

Lillehaug, M. B. (2011). Explanation-aware case-based re-

asoning. Master’s thesis, Institutt for datateknikk og

informasjonsvitenskap.

Lin, C.-J. (2013). Visual architectural topology. In Open

Systems: Proceedings of the 18th International Con-

ference on Computer-Aided Architectural Design Re-

search in Asia, pages 3–12.

Nwana, H. S., Lee, L. C., and Jennings, N. R. (1996). Coor-

dination in software agent systems. British Telecom

Technical Journal, 14(4):79–88.

Oxman, R. and Oxman, R. (1993). Precedents: Memory

structure in design case libraries. In CAAD Futures,

volume 93, pages 273–287.

Richter, K. (2011). Augmenting Designers’ Memory: Case-

based Reasoning in Architecture. Logos-Verlag.

Richter, K. (2013). What a shame-why good ideas can’t

make it in architecture: A contemporary approach to-

wards the case-based reasoning paradigm in architec-

ture. In FLAIRS Conference.

Richter, K., Heylighen, A., and Donath, D. (2007). Looking

back to the future-an updated case base of case-based

design tools for architecture. Knowledge Modelling-

eCAADe.

Roith, J., Langenhan, C., and Petzold, F. (2016). Supporting

the building design process with graph-based methods

using centrally coordinated federated databases. In

16th International Conference on Computing in Civil

and Building Engineering.

Roth-Berghofer, T. R. (2004). Explanations and case-based

reasoning: Foundational issues. Advances in case-

based reasoning, pages 195–209.

Sabri, Q. U., Bayer, J., Ayzenshtadt, V., Bukhari, S. S., Alt-

hoff, K.-D., and Dengel, A. (2017). Semantic pattern-

based retrieval of architectural ﬂoor plans with case-

based and graph-based searching techniques and their

evaluation and visualization. In ICPRAM, pages 50–

60.

Voss, A. (1997). Case design specialists in FABEL. Issues

and Applications of Case-based Reasoning in Design,

pages 301–335.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

114
