Coordinating Vertical Elasticity of both Containers and Virtual Machines

Yahya Al-Dhuraibi

1,2

, Faiez Zalila

, Nabil Djarallah

and Philippe Merle

Inria / University of Lille, France

Scalair Company, France

Keywords:

Cloud Computing, Container, Docker, Vertical Elasticity.

Abstract:

Elasticity is a key feature in cloud computing as it enables the automatic and timely provisioning and depro-

visioning of computing resources. To achieve elasticity, clouds rely on virtualization techniques including

Virtual Machines (VMs) and containers. While many studies address the vertical elasticity of VMs and other

few works handle vertical elasticity of containers, no work manages the coordination between these two ver-

tical elasticities. In this paper, we present the ﬁrst approach to coordinate vertical elasticity of both VMs

and containers. We propose an auto-scaling technique that allows containerized applications to adjust their

resources at both container and VM levels. This work has been evaluated and validated using the RUBiS

benchmark application. The results show that our approach reacts quickly and improves application perfor-

mance. Our coordinated elastic controller outperforms container vertical elasticity controller by 18.34% and

VM vertical elasticity controller by 70%. It also outperforms container horizontal elasticity by 39.6%.

1 INTRODUCTION

Cloud computing is an attractive paradigm to many

application domains in industry and academia. An

enormous number of applications are deployed on

cloud infrastructures. The workload of cloud appli-

cations usually varies drastically over time. There-

fore, maintaining sufﬁcient resources to meet peak

requirements can be costly, and will increase the ap-

plication provider’s functional cost. Conversely, if

providers cut the costs by maintaining only a mini-

mum computing resources, there will not be sufﬁcient

resources to meet peak requirements and cause bad

performance, violating Quality of Service (QoS) and

Service Level Agreement (SLA) constraints. Cloud

elasticity takes an important role to handle such ob-

stacle. Cloud elasticity is a unique feature of cloud

environments, which allows to provision/deprovision

or reconﬁgure cloud resources, i.e., Virtual Machines

(VMs) and containers (Al-Dhuraibi et al., 2017b).

Cloud elasticity can be accomplished by horizontal

or vertical scaling. Horizontal elasticity consists in

adding or removing instances of computing resources

associated to an application (Coutinho et al., 2015).

Vertical elasticity consists in increasing or decreasing

characteristics of computing resources, such as CPU,

memory, etc. (Lakew et al., 2014).

VMs and containers are the main computing re-

source units in cloud computing. VMs are the tradi-

tional core virtualization construct of clouds. Con-

tainers are a new competitor, yet complementary vir-

tualization technology to VMs. In this paper, we use

Docker containers. Docker

, a recent container tech-

nology, is a system-level virtualization solution that

allows packaging an application with all of its de-

pendencies into standardized units for software de-

ployment. While VMs are ultimately the medium to

provision PaaS and application components at the in-

frastructure layer, containers appear as a more suit-

able technology for application packaging and man-

agement in PaaS clouds (Pahl, 2015). Containers

can run on VMs or on bare OS. Running contain-

ers or different containerized applications in VM or

cluster of VMs is an emerging architecture used by

the cloud providers such as AWS EC2 Container Ser-

vice (ECS), Google Cloud Platform, MS Containers,

Rackspace, etc. The VMs are run by the hypervisors

on the host. Our work manages resources for such ar-

chitecture. Therefore, this paper addresses the combi-

nation of vertical elasticity of containers and vertical

elasticity of VMs.

Many works (Baruchi and Midorikawa,

2011), (Dawoud et al., 2012), (Farokhi et al.,

2015) handle the vertical elasticity of VMs, other

works (Monsalve et al., 2015), (Paraiso et al., 2016)

manage the resources of containers. However, no

http://docker.io

322

Al-Dhuraibi, Y., Zalila, F., Djarallah, N. and Merle, P.

Coordinating Vertical Elasticity of both Containers and Virtual Machines.

DOI: 10.5220/0006652403220329

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 322-329

ISBN: 978-989-758-295-0

attention was given to the coordination of both

elasticities. In addition, these works do not take in

consideration that the added resources to the VM are

not detected by Docker daemons. We propose the

ﬁrst system powering the coordination between VM

and container vertical elasticity. In this paper, we

propose a controller coordinating container vertical

elasticity with the hosting VM vertical elasticity. This

approach autonomously adjusts container resources

according to workload demand. Subsequently,

we control VM resources if the hosted containers

require more resources. Docker daemon does not

automatically detect the “on-the-ﬂy” or hot added

resources at the VM level unless it is reinstalled or its

dedicated cgroups modiﬁcation. Our system enables

Docker daemons to detect the added resources to

the hosting VM, therefore, containers can make

use of these resources. In addition to the scientiﬁc

aspects listed in the below items, we have added this

technical contribution. Our approach is evaluated by

conducting experiments on the benchmarking appli-

cation RUBiS (Cecchet et al., 2002). RUBiS is an

implementation of an auction site similar to eBay, it

is widely used in clouds to evaluate J2EE application

servers performance and scalability. The results show

that our approach improves application performance.

It outperforms container vertical elasticity controller

by 18.34% and VM vertical elasticity controller

by 70%, it also outperforms container horizontal

elasticity by 39.6%. The main contributions of this

paper are:

1. An autonomous vertical elasticity system for both

Docker containers and the hosting VMs. It allows

to add/remove resources (i.e., CPU cores, mem-

ory) according to the workload demand.

2. We show that our combination of vertical elas-

ticity of both VMs and containers is better than

the vertical elasticity of VM only or the verti-

cal elasticity of containers only, i.e., V

cont

⊕V

cont

, where (.) and (⊕) are the symbols for

the logical AND and XOR operators, respectively.

denotes the vertical elasticity of VMs while

cont

denotes the vertical elasticity of containers.

3. We show that our combination of vertical elastic-

ity of both VMs and containers is better than the

horizontal elasticity of containers, i.e., V

cont

, where H

cont

denotes the horizontal elastic-

ity of containers.

The rest of this paper is organized as follows. Sec-

tion 2 discusses the motivation towards this work.

Section 3 describes the design and function of our co-

ordinating vertical elasticity controller system. Sec-

tion 4 presents the evaluation of our solution. In

Section 5 we discuss some related works. Section 6

presents conclusion and future work.

2 MOTIVATION

There is a large amount of research on cloud elastic-

ity, however, most of them are based on VMs. Some

works highlight elasticity of containers and they are

discussed in Section 6. With the varying application

workload demand, container(s) on the host continues

to scale up/down resources, thanks to our Docker

controller which manages container resource allo-

cation. The problem is that when containers have

already allocated all resources from the host machine,

the containerized application performance will be

degraded. Therefore, to handle such obstacle and to

add more resources, one of the following mechanisms

should be used: horizontal elasticity, migration, or

reconﬁguration of the host machine (i.e., vertical

elasticity). We experiment these mechanisms and

show that the vertical elasticity is better when it is

possible in terms of performance and conﬁgurations.

Horizontal Elasticity: Since horizontal elastic-

ity consists in replicating the application on different

machines, some applications such as vSphere and

DataCore require additional licenses for each replica.

These licenses could be very expensive. Besides,

horizontal elasticity requires additional components

such as load balancers and their reconﬁguration.

The initialization of an instance takes also a time

during the boot process to be functional. These

requirements are not needed for the vertical elasticity.

In (Dawoud et al., 2012), they have mathematically

and experimentally proved that the vertical elasticity

is better than the horizontal elasticity. To verify this

fact, they have used queuing theory (Sztrik, 2012).

Although horizontal elasticity has many advantages

including redundancy, being able to scale to almost

any scale, and allowing load balancing over multiple

physical machines, it requires additional components

and reconﬁguration. (Appuswamy et al., 2013)

proves that vertical elasticity outperforms horizontal

scaling in terms of performance, power, cost, and

server density in the world of analytics, mainly in

Hadoop MapReduc. In addition, horizontal elasticity

is not a good choice for the stateful applications that

require sticky sessions. Finally, coordinated vertical

scaling is desired when there is enough capacity of

the physical servers, horizontal scalability may still

be needed, since vertical scalability is ultimately

limited by the capacity of resources.

Coordinating Vertical Elasticity of both Containers and Virtual Machines

323

Migration: the other choice to have more resources

is to migrate the container to another machine with

more resources. To experiment this mechanism,

we implement live migration technique for Docker

containers. CRIU (Checkpoint/Restore, 2017) is

used to achieve the procedure and migrate contain-

ers lively (Al-Dhuraibi et al., 2017a). CRIU is a

Linux functionality that allows to checkpoint/restore

processes, e.g., Docker containers. CRIU has the

ability to save the state of a running process so that

it can later resume its execution from the time of

the checkpoint. We take many pre-dumps of the

container while it is running, then a ﬁnal dump for

the memory page changes after the last pre-dump

is taken (this time the Docker container freezes).

While an efﬁcient mechanism is used to transfer

Docker containers, there is still downtime due to

the migration when the container process is frozen.

Table 1 shows migration down time for two small

size applications (nginx, httpd). Network trafﬁc

overhead is not considered. Container migration is

also risky for stateful applications such RTPM media

applications to lose sessions.

Table 1: Migration Performance Indicators.

App. Image

size

(MB)

Pre-

dump

time

(s)

Dump

time

(s)

Restore

time

(s)

Migr.

total

time

(s)

Migr.

down-

time

(s)

nginx 181.5 0.0202 0.2077 3.505 3.734 0.547

httpd 193.3 0.0807 0.196 3.19 3.467 1.712

We tend to vertically adjust the cloud infrastruc-

tures, thus we use coordinated vertical elasticity be-

tween the containers and their host machine. Using

such mechanism, elasticity actions are coordinated

and performed quickly.

3 ELASTIC CONTROLLER

3.1 General Design

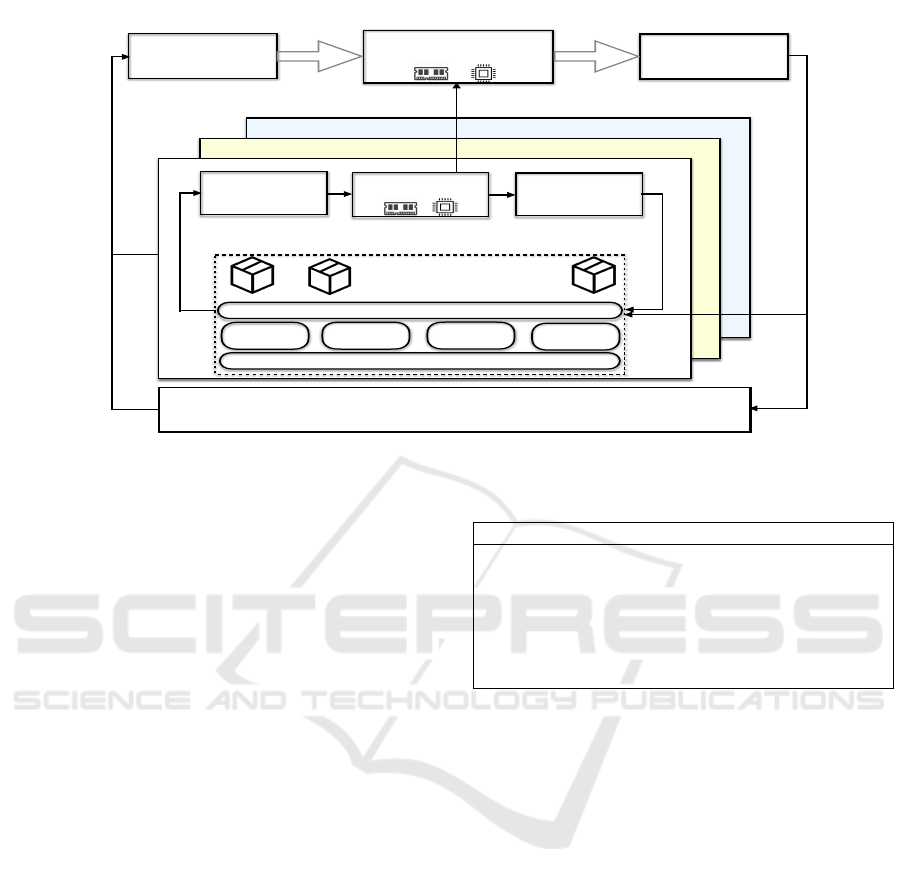

Our system adheres to the control loop principles of

the IBM’s MAPE-K reference model (IBM, 2006).

The control part of MAPE- K consists of many

phases: Monitor, Analyze, Plan, and Execute. The

managed components in this context are the infras-

tructure units KVM VMs and Docker containers, the

containerized applications as well. We design elas-

tic controllers to automatically adjust resources to the

varying workload without violating QoS by growing

or shrinking the amount of resources quickly on de-

mand for both containers and their VMs. Figure 1

shows the general architecture of our controllers. The

architecture design includes an elastic controller for

Docker containers and another one for the hosting

machine. The aim for the second controller is to

allocate/de-allocate resources if containers residing

on a virtual host machine require more/less resources

than the amount of resources offered by that VM.

3.2 Components of the System

3.2.1 Monitoring Component

The monitoring component of Docker controller col-

lects periodically current resource utilization and ac-

quisition of every container on the host. The collected

data can be (i) the resource utilization metrics such as

CPU or memory current usage or (ii) the acquired re-

sources such as memory size or CPU cores. This in-

formation is collected from the Docker daemon via its

RESTful API and from the container cgroups ﬁlesys-

tem directly. Our container controller monitors these

cgroups each 4 seconds on an interval of 16 seconds,

then the average values are reported. This monitoring

data will be used in the reactive model in the elas-

tic Docker controller to make elastic actions. Sim-

ilarly, the host machine resource utilization and the

amount of acquired resources are monitored period-

ically as shown in Table 2. The elasticity VM con-

troller will use this data to provision/de-provision re-

sources on the host machine. The values shown in Ta-

ble 2 (thresholds, increase/decrease limits) are chosen

following (Al-Dhuraibi et al., 2017a), (Dawoud et al.,

2012), (Baresi et al., 2016) which are based on real-

world best practices. We have noticed that the CPU

and memory utilization values are sometimes ﬂuctuat-

ing rapidly, which could be due to the nature of work-

load. Therefore, to avoid these oscillations, we mea-

sure CPU and memory utilization periodically on an

interval of 16 seconds (as shown in Table 2), then we

take the average values as the current utilization.

3.2.2 Docker Controller

Docker relies on cgroups to combine processes run-

ning in a container. Cgroups allow to manage the

resources of a container such as CPU, memory, and

network. Cgroups not only track and manage groups

of processes but also expose metrics about CPU,

memory, etc. Cgroups are exposed through pseudo-

ﬁlesystems. In these ﬁles, Docker resources can be

conﬁgured to have hard or soft limits. When soft limit

is conﬁgured, the container can use all resources on

the host machine. However, there are other parame-

ters that can be controlled here such as CPU shares

that determine a relative proportional weight that the

container can access the CPU. Hard limits are set to

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

324

VM1

VM2

VMn

container-1 container-2 container-n

Container VE

Controller

Docker Engine

Cgroups

Memory

limits

Memory

current usage

CPU

vCores

CPU time

(period, quota)

- - - - - - - - - - - -

Hypervisor

VM Monitor VM Execute

VM VE

Controller

Container

Monitor

Container

Execute

Figure 1: Coordinated elastic controllers between VMs and containers.

give the container a speciﬁed amount of resources,

Docker vertical elasticity controller can change these

hard limits dynamically according to the workload.

The CPU access can be scheduled either by using

Completely Fair Scheduler (CFS) or by using Real-

Time Scheduler (RTS) (Red Hat, Inc., ). In CFS, CPU

time is divided proportionately between Docker con-

tainers. On the other hand, RTS provides a way to

specify hard limits on Docker containers or what is re-

ferred to as ceiling enforcement. Docker controller is

integrated with RTS in order to make it elastic. When

limits on Docker containers are set, the elasticity con-

troller scales up or down resources according to de-

mand. Once there is no limits set, it is hard to predict

how much CPU time a Docker container will be al-

lowed to utilize. In addition, as indicated, Docker can

use all resources on the host machine by default, there

is no control how much resources will be used, and

the customer may not afford to pay the cost of such

resources. The elastic controller of Docker containers

adjusts memory and CPU vcores according to the ap-

plication workload. This controller modiﬁes directly

the cgroup ﬁlesystems of the container to execute the

elastic action (scaling up/down). The average CPU or

memory usage values are calculated over ﬁxed inter-

val of time and compared against upper/lower thresh-

olds (70% / 90%) as shown in Table 2.

When the thresholds are hit and the logical condi-

tions are met, the controller increases or decreases the

resources with values shown in Table 2. For example,

if the average memory utilization for the last 16 sec-

onds is greater than the upper threshold (90%), then

increase the memory size by 256MB, and wait 10 sec-

Table 2: System control parameters.

Parameters Docker containers VMs

Upper threshold 90% 90%

Lower threshold 70% 70%

Period 4 sec 1 min

Interval 16 sec 1 min

Breath-up/down 10/20 sec 20/40 sec

CPU adaptation 1 vCPU 1 vCPU

Memory adaptation -128/+256 -256/+512

onds (breath up duration) before effectuating another

scaling action.

In Table 2, we notice that memory adaptation val-

ues (increase and decrease ratios) are different. The

controller decreases memory size by a small amount

in the scaling down process because the applica-

tions are sensitive to the memory resource, and this

could lead to interrupt the functionality of the appli-

cation. In addition, after each scaling decision, the

controller waits a speciﬁc period of time (breath du-

ration). Breath duration is a period of time left to

give the system a chance to reach a stable state af-

ter each scaling decision. As shown in Table 2, we

set two breath durations, breath-up and breath-down.

Breath-up/down is the time to wait after each scal-

ing up/down decision, respectively. We choose small

values for breath-up/down durations because the ap-

plication adapts quickly to the container change .

Breath-up is smaller than breath-down to allow the

system to scale-up rapidly to cope with burst work-

load. Breath-down is larger than breath-up duration

in order to avoid uncertain scaling down action. Our

elastic Docker controller manages all the containers

Coordinating Vertical Elasticity of both Containers and Virtual Machines

325

residing on the virtual machine taking into consider-

ation the available resources on that machine and the

already allocated resources to the containers.

3.2.3 VM Controller

If containers allocate all resources on their hosting

VM, they could reach an overload point of 100%.

At that time the overload could cause errors in the

workload execution since there is no free resources to

provision. Therefore, our VM controller should in-

tervene before such situation takes place. Likewise

Docker containers, the hosting VM is monitored con-

stantly and capacity is increased or decreased in re-

lation to the VM reconﬁguration policy involved in

our VM controller. The VM controller performs ver-

tical elasticity actions based on rules and real-time

data captured by the monitoring system. As shown

in Table 2, the monitoring component monitors the

VM resource usage on an interval of one minute. It

uses psutil library to get the resource metrics. The

controller analyzes these collected data using its re-

active model, it triggers its scaling decisions to in-

crease or decrease VM resources, at the same time, it

allows Docker engine to detect the new resources by

updating cgroups of that Docker daemon. The values

to increase/decrease memory, vCPUs are +512MB/-

256MB, +1/-1, respectively.

3.3 Interactions Between Components

As shown in Figure 1, the VM controller can trig-

ger elastic actions based on two cases: (i) when the

VM resources utilization reaches certain thresholds,

(ii) when it receives a demand from the Docker con-

troller to increase or decrease resources. Here, the

VM controller can increase resources without receiv-

ing a demand from the Docker controller if we sup-

pose that there are other processes running on the

VM alongside with containers. When the VM con-

troller adds more vCPUs to the VM, the Docker en-

gine does not detect these resources whether it uses

hard or soft limits. Therefore, upon each scaling de-

cision, the VM controller compares the resources on

the VM and Docker engine, it then identiﬁes the ids of

the newly added vCPUs, then it updates the cgroups

of Docker engine. Now, Docker engine can allocate

these resources to containers. The coordination be-

tween the controllers is our major concern, we take

the below scenario to illustrate a case of such coor-

dination. Suppose that a VM has 3 vCPUs and three

containers are deployed where hard limits are set and

each container has 1 vCPU. If the ﬁrst container us-

age is 100%, and the other two containers are idle (1

vCPU is 100%, 2 vCPUs are idle), the VM controller

will try to decrease the vCPUs, but if it decreases the

vCPUs, this will lead to destroy the container whose

vCPU is withdrawn. Therefore, the coordination will

prevent the VM controller to scale down, and the

Docker controller will demand the VM controller to

allocate more resources in order to give the ﬁrst con-

tainer more resources.

4 VALIDATION

4.1 Experimental Setup

We evaluated our work using RUBiS (OW2, 2008),

a well-known Internet application that has been

modeled after the internet auction website eBay. Our

deployment of RUBiS uses two tiers: application

tier, a scalable pool of JBoss application servers that

run Java Servlets, and a MySQL database to store

users and their transactions. We performed all our

experiments on Scalair

infrastructure. Scalair is

a private cloud provider company. We developed

the experiments using the following technologies:

(a) KVM version 1.5.3-105.el7 2.7 (x86 64), libvirt

version 1.2.17, virt-manager 1.2.1, the number of

VMs used and their characteristics will be described

in the speciﬁc experiment subsections because we

have used different conﬁgurations based on the

objective of the experiment. (b) VMWare VCenter

version 6.0. (c) Docker engine version 17.04.0-ce.

(d) Kubernetes v1.5.2 (Brewer, 2015), the Kubernetes

cluster consists of 3 machines. (e) ab (Apache HTTP

server benchmarking tool) version 2.3 to generate

workloads. The hardware speciﬁcations consist of 4

powerful servers: 2 HP ProLiant DL380 G7 and 2

HP Proliant XL170r Gen9. The experiments answer

the following research questions (RQ):

• RQ#1: how can containers automatically use the

hot added resources to their hosting VM?

• RQ#2: what is the efﬁciency of performing scal-

ing decisions made by our coordinated controller?

• RQ#3: is our coordinated vertical elasticity of

both VMs and containers better than vertical elas-

ticity of VM only or vertical elasticity of contain-

ers only (i.e., V

cont

> V

⊕V

cont

• RQ#4: is our coordinated vertical elasticity of

both VMs and containers better than horizontal

elasticity of containers (i.e., V

cont

> H

cont

https://www.scalair.fr

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

326

4.2 Evaluation Results

We describe each experiment and analyze the results

in response to the RQs.

RQ#1. In this experiment, we conﬁgure two VMs,

each with Ubuntu Server 16.04.2 LTS. Initially, VM1

has 2 vCPUs with 2GB of RAM. We deploy RU-

BiS application inside two containers on VM1. The

ab benchmark is installed on VM2, then we gener-

ate a workload to the RUBiS application (i.e., 600K

requests, concurrency rate 200). The workload’ re-

quests query RUBiS database to retrieve lists of prod-

ucts, categories, items, etc of the auction website.

The difference between workloads is the intensity and

concurrency levels. We let the default policy for

Docker containers which allow them to use all the

available resources. The VM controller is enabled,

we register the response time when the workload re-

quests are ﬁnished, it was 588.846 seconds. In the

second case, we run the same workload, however in

this case, we enabled our coordinating controller and

we set limits to Docker containers that will be recon-

ﬁgured by the container controller to accommodate

the charge and the response time was 487.4 seconds

when the workload is ﬁnished. Based on these results,

we conclude the following ﬁndings:

• The response time is high in the ﬁrst case because

Docker engine does not detect the added resources

at the VM level. VM controller has added one

vCPU to the VM (the total of CPUs moves to 3 on

VM1), however, the two containers used only two

CPUs, the third vCPU is idle because containers

do not detect automatically the added resources.

• In the second case, the response time becomes

smaller, thanks to our coordinated controller

which allows containers to demand more re-

sources and subsequently update the Docker en-

gine with the added resources.

• The combined controller augments performance

by 20.8% in this experiment. However if the

workload increases, the coordinated controller

will accommodate resources in contrary to the

ﬁrst case where the containers can not use more

that the initially allocated 2 vCPUs.

RQ#2. In this evaluation, we measure the execu-

tion time of elastic actions. Elastic action is the pro-

cess of adding or removing resources (CPU or mem-

ory) to a container, a KVM VM, or a VMware VM.

We repeat the experiment eleven times for each re-

source (CPU or memory) on each target (i.e., con-

tainer, KVM VM, VMware VM), and each time the

action consists of 15 scaling up or down actions. Dur-

ing the experiments, the resources experience dif-

ferent stress workloads. We execute elastic actions

and we measure the time they take to resize the re-

source, and then the median and variance is calcu-

lated. We take these measures to illustrate the ef-

ﬁciency of our approach to execute auto-scaling ac-

tions and to show the differences between the differ-

ent virtualization units and technologies. We compute

the average execution time, median time, and vari-

ance for Containers, KVM and VMware VM respet-

cively: (0.010s,0.009s, 0.000004), (3.29, 3.02s, 2.97)

and (47.58, 44.14s, 45.44).

Based on the these values, we conclude:

• The average execution time is close to median

time which indicates that the execution of the elas-

tic actions are stable.

• The elastic actions performed in containers are

faster than resizing KVM VM or VMware VM.

There is no comparison between containers adap-

tation and hypervisors, the containers adapt more

quickly to the reconﬁguration changes while it

takes more time to execute scaling actions against

hypervisors. The VMware hypervisor manged by

VCenter takes more time. High workloads lead to

slow execution of elastic actions, particularly in

VMware, i.e., why the variance is high.

RQ#3. This experiment provides a comparison

among vertical elasticity of containers (V

cont

), ver-

tical elasticity of VMs (V

), and our proposed ap-

proach, coordinating elasticity of both containers and

VM (V

cont

), in terms of performance, i.e., the ex-

ecution time of workloads and mean response time of

concurrent requests. We run three scenarios in this

experiment, each scenario has its speciﬁc conﬁgura-

tion. Five workloads drive each scenario. The exper-

iment runs on 4 VMs: VM1, VM2, VM3, and VM4.

VM4 used to generate the ab benchmark. In the ﬁrst

scenario (scenario

), RUBiS application is deployed

on two containers in VM1 which has 3vCPUs, 2GB

of RAM, initially, each Docker container has 1vCPU

and 512MB of RAM. We enabled the elastic con-

tainer controller (which will allow to use the resources

available on the hosting VM) and it is named Elas-

ticDocker controller. We measure the total execution

time and the mean response time of concurrent re-

quests for each workload as shown in Figure 2. In

scenario

, we deploy RUBiS application on one VM

(VM2) and its database in another VM (VM3). The

VMs have 1 vCPU and 1GB of RAM each. We en-

abled the vertical VM controller to adjust resources

according to workload demand and then register the

total execution time and the mean response time of

concurrent requests for each workload as shown in

Figure 2. In scenario

, we use the same conﬁgura-

tion as in scenario

, except that we enabled our coor-

dinating controller which controls elasticity of con-

Coordinating Vertical Elasticity of both Containers and Virtual Machines

327

#!!"

$!!!"

$#!!"

%!!!"

%#!!"

&!!!"

'()*+(,-$"

'()*+(,-%"

'()*+(,-&"

'()*+(,-."

'()*+(,-#"

/0/123(4"35/"678"

9(()-:4,;/-"1(4;)(++/)" <+,731"=(1*/)" >?"1(4;)(++/)"

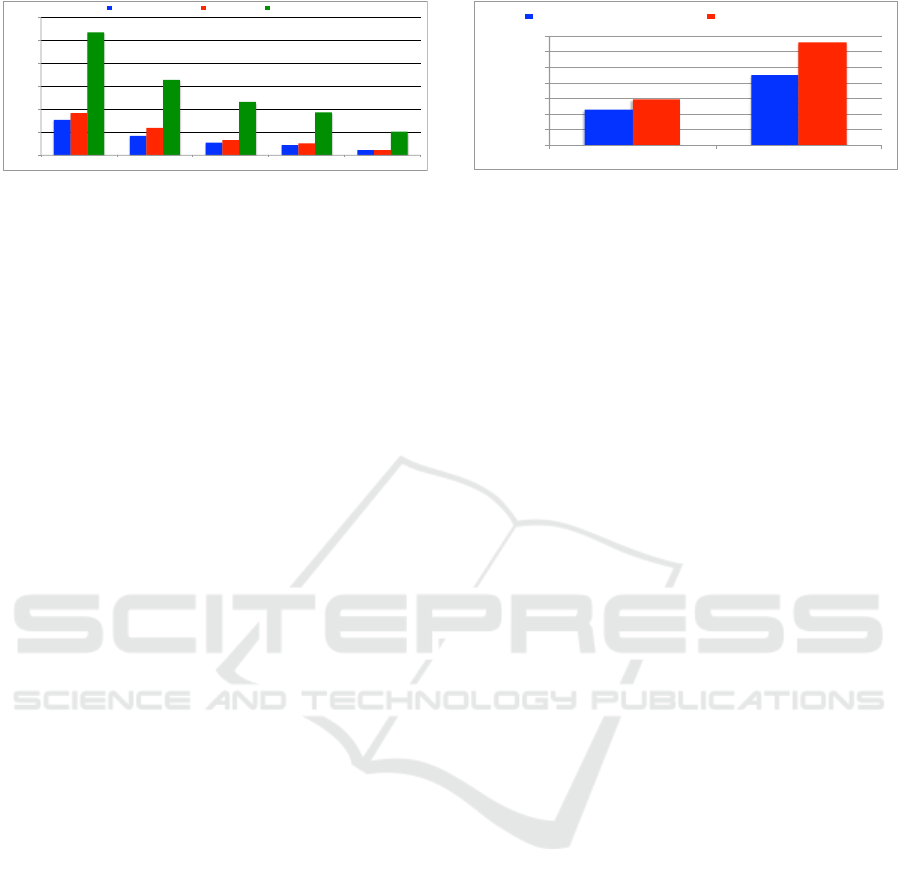

Figure 2: Workloads execution time.

tainers on the VM, and if there are no enough re-

sources, it will add resources to the VM level. In

Figure 2, the red color represents scenario

, the green

color represents scenario

and the blue color repre-

sents scenario

. Based on the analysis of this experi-

ment, we concluded the following ﬁndings:

• In scenario

, the average total execution time,

and the mean response time across concurrent re-

quests for the ﬁve workloads is 443,7 seconds and

0,91 ms, respectively. Similarly, the average total

execution time for the ﬁve workloads in scenario

and scenario

is 1383,4 seconds and 362,1 sec-

onds, and the mean response time across concur-

rent requests is 3,1 ms and 0,76 ms, respectively.

• The combined vertical elasticity (scenario

)

outperforms the container vertical elasticity

(scenario

) by 18.34% and the VM vertical elas-

ticity (scenario

) by more than 70%. However, if

more workloads are being added to the scenario

it will not handle them because the available re-

sources will be consumed and performance will

be degraded. This demonstrates that the equation

cont

> V

⊕V

cont

is true.

RQ#4. The aim of this experiment is to provide a

comparison between horizontal elasticity of contain-

ers and our coordinating vertical elasticity of VMs

and containers. We use Kubernetes horizontal elastic-

ity. Kubernetes is an open-source system for automat-

ing deployment, scaling, and management of con-

tainerized applications. To achieve the experiment,

we use Kubernetes version v1.5.2. Our deployment

of RUBiS on Kubernetes uses three tiers: a load-

balancer (we use Kubernetes service to perform this

role), a scalable pool of JBoss application servers, and

a MySQL database. Kubernetes platform is deployed

on 3 nodes running CentOS Linux 7.2. RUBiS is de-

ployed in two containers, in addition to a load bal-

ancer. Then, we set the Kubernetes Horizontal Pod

Autoscaling (HPA) to scale RUBiS containers based

on rule-based thresholds. We use the same thresholds

used in scenario

in the previous section (in RQ#3).

We generate two workloads to both our coordinated

controller and Kubernetes cluster. The total execution

time across all concurrent requests are measured for

each workload as shown in Figure 3. According to

#!"

$!!"

$#!"

%!!"

%#!"

&!!"

&#!"

'()*+(,-$" '()*+(,-%"

./.012(3"24."567"

8(()-93,:.-"0(3:)(++.)" ;1<.)3.:.6".+,6209:="

Figure 3: workloads total execution time.

these results, we conclude the following ﬁndings:

• The total execution time for the workloads is

340,66 seconds when our elastic controller is

used, while it is 475,558 seconds when Kuber-

netes HPA is used. The execution time is longer

when Kubernetes is used due to the slow Kuber-

netes integrated monitoring system (Heapster).

• Our combined vertical elasticity outperforms the

horizontal elasticity by 39.6% according to the re-

sults of this experiment.

• This proves the equation V

cont

> H

cont

is true.

5 RELATED WORK

We present works related to elasticity particularly

the vertical elasticity of both VMs and containers.

For the VM vertical elasticity, there are some works

which focus on CPU resizing, e.g, (Lakew et al.,

2014) and (Dawoud et al., 2012), while others con-

centrate on memory resizing, e.g., (Baruchi and Mi-

dorikawa, 2011) as well as combination of both such

as the work of (Farokhi et al., 2015). (Monsalve

et al., 2015) proposed an approach that controls CPU

shares of a container, this approach uses CFS schedul-

ing mode. Nowadays, Docker can use all the CPU

shares if there is no concurrency by other containers.

(Paraiso et al., 2016) proposed a tool to ensure the de-

ployability and the management of Docker contain-

ers. It allows synchronization between the designed

containers and those deployed. In addition, it allows

to manually decrease and increase the size of con-

tainer resources. (Baresi et al., 2016) proposed hor-

izontal and vertical autoscaling technique based on a

discrete-time feedback controller for VMs and con-

tainers. This novel framework allows resizing the

container in high capacity VM, however, it does not

control VM in response to container workload. It

triggers containers to scale out horizontally to cope

with workload demand. In addition, the application

requirements and metadata must be precisely deﬁned

to enable the system to work. It also adds overhead

by inserting agents for each container and VM. (Al-

Dhuraibi et al., 2017a) describe an approach that man-

ages container vertical elasticity, and when there is no

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

328

more resources on the host, they invoke live migra-

tion. Kubernetes and Docker Swarm are orchestra-

tion tools that permit container horizontal elasticity.

They allow also to set limit on containers during their

initial creation. The related works either trigger hor-

izontal elasticity or migration to another high capac-

ity machines. Our proposed approach supports auto-

matic vertical elasticity of both containers and VMs,

at the same time, container controller invokes VM

controller to trigger scaling actions if there is no more

resources on the hosting machine. Our work is the

ﬁrst one that explores the coordination between verti-

cal elasticity of containers and VMs.

6 CONCLUSION

This paper proposes a novel coordinated vertical elas-

ticity controller for both VMs and containers. It al-

lows ﬁne-grained adaptation and coordination of re-

sources for both containers and their hosting VMs.

Experiments demonstrate that: (i) our coordinated

vertical elasticity is better than the vertical elasticity

of VMs by 70% or the vertical elasticity of contain-

ers by 18.34%, (ii) our combined vertical elasticity of

VMs and containers is better than the horizontal elas-

ticity of containers by 39.6%. In addition, the con-

troller performs elastic actions efﬁciently. We plan

to experiment this approach with different classes of

applications such as RTMP to verify if same results

will be obtained with the predeﬁned thresholds. Our

future work also comprises the integration of a proac-

tive approach to anticipate future workloads and re-

acts in advance. Furthermore, we plan to address hy-

brid elasticity or what we called diagonal elasticity:

integrating both horizontal and vertical elasticity.

ACKNOWLEDGEMENTS

This work is supported by Scalair company (scalair.fr)

and OCCIware (www.occiware.org) research project.

REFERENCES

Al-Dhuraibi, Y., Paraiso, F., Djarallah, N., and Merle, P.

(2017a). Autonomic Vertical Elasticity of Docker

Containers with ElasticDocker. In 10th IEEE Inter-

national Conference on Cloud Computing (CLOUD),

Hawaii, US. To appear.

Al-Dhuraibi, Y., Paraiso, F., Djarallah, N., and Merle, P.

(2017b). Elasticity in Cloud Computing: State of the

Art and Research Challenges. IEEE Transactions on

Services Computing, PP(99):1–1.

Appuswamy, R., Gkantsidis, C., Narayanan, D., Hodson,

O., and Rowstron, A. (2013). Scale-up vs Scale-out

for Hadoop: Time to Rethink? In Proceedings of the

4th Annual Symposium on Cloud Computing, SOCC

’13, pages 20:1–20:13, New York, NY, USA. ACM.

Baresi, L., Guinea, S., Leva, A., and Quattrocchi, G.

(2016). A Discrete-time Feedback Controller for Con-

tainerized Cloud Applications. In Proceedings of the

2016 24th ACM SIGSOFT International Symposium

on Foundations of Software Engineering, FSE 2016,

pages 217–228, New York, NY, USA. ACM.

Baruchi, A. and Midorikawa, E. T. (2011). A Survey Anal-

ysis of Memory Elasticity Techniques. In Proc. of

the 2010 Conf. on Parallel Processing, Euro-Par 2010,

pages 681–688, Berlin, Heidelberg. Springer-Verlag.

Brewer, E. A. (2015). Kubernetes and the Path to Cloud Na-

tive. In Proc. of the Sixth ACM Sym. on Cloud Comp.,

SoCC ’15, pages 167–167, New York, USA. ACM.

Cecchet, E., Marguerite, J., and Zwaenepoel, W. (2002).

Performance and Scalability of EJB Applications.

SIGPLAN Not., 37(11):246–261.

Checkpoint/Restore (2017). Website https://criu.org/Check

point/Restore.

Coutinho, E. F., de Carvalho Sousa, F. R., Rego, P. A. L.,

Gomes, D. G., and de Souza, J. N. (2015). Elasticity

in Cloud Computing: a Survey. Annals of Telecommu-

nications, pages 1–21.

Dawoud, W., Takouna, I., and Meinel, C. (2012). Elastic

virtual machine for ﬁne-grained cloud resource provi-

sioning. In Global Trends in Computing and Commu-

nication Systems, pages 11–25. Springer.

Farokhi, S., Lakew, E. B., Klein, C., Brandic, I., and Elm-

roth, E. (2015). Coordinating CPU and Memory

Elasticity Controllers to Meet Service Response Time

Constraints. In 2015 International Conf. on Cloud and

Autonomic Computing (ICCAC), pages 69–80.

IBM (2006). An Architectural Blueprint for Autonomic

Computing. IBM White Paper.

Lakew, E. B., Klein, C., Hernandez-Rodriguez, F., and Elm-

roth, E. (2014). Towards Faster Response Time Mod-

els for Vertical Elasticity. In Proceedings of the 2014

IEEE/ACM 7th Int. Conf. on Utility and Cloud Com-

puting, UCC ’14, pages 560–565, Washington, USA.

Monsalve, J., Landwehr, A., and Taufer, M. (2015). Dy-

namic CPU Resource Allocation in Containerized

Cloud Environments. In 2015 IEEE International

Conference on Cluster Computing, pages 535–536.

OW2 (2008). RUBiS: Rice University Bidding System.

http://rubis.ow2.org [Accessed: Whenever].

Pahl, C. (2015). Containerization and the PaaS Cloud. IEEE

Cloud Computing, 2(3):24–31.

Paraiso, F., Challita, S., Al-Dhuraibi, Y., and Merle, P.

(2016). Model-Driven Management of Docker Con-

tainers. In 9th IEEE Int. Conf. on Cloud Computing

(CLOUD), pages 718–725, San Franc., United States.

Red Hat, Inc. Managing system resources on Red Hat En-

terprise Linux. .

Sztrik, J. (2012). Basic queueing theory. Univ. of Debrecen,

Fac. of Informatics, 193.

Coordinating Vertical Elasticity of both Containers and Virtual Machines

329
