Tool-assisted Game Scenario Representation Through Flow Charts

Maria-Eleni Paschali

, Nikolaos Bafatakis

, Apostolos Ampatzoglou

Alexander Chatzigeorgiou

and Ioannis Stamelos

Department of Informatics, Aristotle University of Thessaloniki, Thessaloniki, Greece

Department of Applied Informatics, University of Macedonia, Thessaloniki, Greece

Keywords: Game Development, Game Scenarios, Flow Charts, Case Study.

Abstract: Game development is one of the fastest-growing industries in IT. In order for a game to be successful, the

game should engage the player through a solid and interesting scenario, which does not only describe the

state of the game, but also outlines the main characters and their interactions. By considering the increasing

complexity of game scenarios, we seek for existing methods for scenario representation approaches, and

based on the most popular one, we provide tool support for assisting the game design process. To evaluate

the usefulness of the developed tool, we have performed a case study with the aim to assess the usability of

the tool. The results of the case study suggested that after some interaction with end-users the tool has

reached a highly usable state that to some extent guarantees its applicability in practice.

1 INTRODUCTION

During the last decades, games have become an

integral part of young people lives. This observation

establishes them not only as a very strong and prof-

itable industry, but also as a significant field of re-

search (Ampatzoglou A. and Stamelos I., 2010). As

the interest of researchers around game development

grows, it becomes clearer that game development is

nowadays far away from being treated as a soft-skill

topic (or a more artistic one), but holds a strong

software engineering part. However, we note that

game engineering poses different challenges com-

pared to traditional software engineering, especially

with respect to requirements elicitation and specifi-

cation. In particular, games’ success cannot be guar-

anteed by just deploying a functional version, but it

should also be safeguarded that the game is enter-

taining as well, since user satisfaction / enjoyment

are major success factors (Callele D. et al., 2006).

Therefore, an interesting research direction aims at

finding the factors that lead to user satisfaction.

To this end, Ham and Lee (Ham H and Lee Y.,

2006), and Paschali et al. (Paschali M. et al, 2014),

explored the importance of seven high-level charac-

teristics (namely Scenario, Graphics, Speed, Sound,

Control, Characters, and Community) as parameters

of users’ satisfaction. Based on the results of the

most recent study Scenario, Character Solidness and

Sound have proven to be the most important factors

that influence user satisfaction (Paschali M. et al,

2014). Nevertheless, since characters are usually

described as part of scenarios, we assume that an

interesting scenario is a prominent factor in game

design.

Additionally, by considering that game scenarios

contain quite complex and dynamic structures (i.e.,

different possible endings based on gamers’ input),

there is a need to find an appropriate way to handle

the required complexity of scenarios and easily de-

pict game dynamics in game design documents.

Most of the traditional requirements specification

methods that provide textual descriptions of re-

quirements (e.g., use cases, user stories, etc.) do not

seem to suffice, since the end-results might be too

lengthy and inconsistent. Thus, the goal of this paper

is two-fold: (a) to review the literature for identify-

ing methods for scenario representation, and (b)

based on the most popular method, we intent to

provide tool support for assisting the game design

process and evaluate the usability of the tool.

The rest of the paper is organized as follows: in

Section 2, we present scenario representation ap-

proaches, and in Section 3, the tool that we have

developed for supporting the selected approach. We

note that since Section 2 provides a solid literature

review, we do not include a separate related work

section, due to space limitations. Next, in Section 4,

Paschali, M., Bafatakis, N., Ampatzoglou, A., Chatzigeorgiou, A. and Stamelos, I.

Tool-assisted Game Scenario Representation Through Flow Charts.

DOI: 10.5220/0006681402230232

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 223-232

ISBN: 978-989-758-300-1

223

we describe the case study design that has been used

for its validation, whereas in Section 5 we provide

an overview of results, which are discussed in Sec-

tion 6. Finally, in Sections 7 and 8 we present threats

to validity and conclude the paper, respectively.

2 SCENARIO REPRESENTATION

APPROACHES

In literature, one can identify several techniques for

effectively representing stories (e.g., books, movies,

etc.) for over a hundred years. However, regarding

games, representation approaches have only recently

attracted the attention of researchers. Specifically,

based on the findings of a non-systematic literature

review, we have identified seven approaches for

scenarios representation (see Table 1).

Table 1: Scenario Representation Approaches.

Name Count Advantages Disadvantages

Character

Model

Description of

characters

Poor description

of scenes

Narrative

Structure

Description of

the background

and the outline

of overall story

Poor description

of the transitional

scenes. Informal

model

Flow Chart 10

Suitable for the

flow of the

story, event

causality, condi-

tion

Poor description

of characters

Use Case

UML

diagram

Story Beats

and Boards

Show how the

game will

appear to the

layer per scene

in a similar way

with the one

used in films

and television

Loss of the interac

tion between the

scenario and

layers. Concentra

tion on artistic

interpretations of

scenes and loss of

story’s continuity

and event causality

Petri Net 7

Rich description

of quest / event,

interactive

scenario

Complex repre-

sentation

Poor description

of characters

We note that since the results presented in Table 1,

have not been obtained through a systematic litera-

ture review, our goal is not to claim which are the

most frequent scenario representation approaches,

but only to provide a coarse-grain estimation. Next,

a brief description of these approaches and their

known uses for research purposes is provided.

A Character Model (referenced in

(

Fairclough

C., 2005

), (

Rolfe B. et al, 2010

)

) is a diagrammatic

representation of the characters that are involved in a

story / scene, along with their interactions, as de-

scribed by Rolfe et al. (Rolfe B. et al, 2010). For

example, in

(

Rolfe B. et al, 2010) the authors de-

scribe a scene from the Medal of Honor game, with

the following character model (see Figure 1). The

notations of the diagram are the characters of the

game (stickmen – e.g., Allied Soldier), their interac-

tions (continuous lines – e.g., the Player is fighting

with Opponent Axis Soldiers), and their high-level

goals (though bubbles – e.g., the goal of the Civil-

ians is to be liberated and receive support by allies).

Figure 1: Character Model - Medal of Honor (33).

When describing a scenario by using a Narra-

tive Structure (referenced in (Csikszentmihalyi M.,

1998), (Fairclough C., 2005), (Freytag G., 1863),

(Gobel S. et al, 2005), and (Rolfe B. et al, 2010)),

the story is divided into five parts: Exposition, Ris-

ing Action, Climax, Falling Action, and Conclusion.

When using narrative structure game designers re-

port their scenarios on plot diagrams, as for example

the one presented in Figure 2 for the well-known tale

of the Three Little Pigs.

Figure 2: Narrative Structure - Three Little Pigs

The narrative structure has been retrieved online.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

224

Flow Charts (referenced in (Hill R. et al, 2001),

(Kistler F. et al., 2011), (Koenitz H. and Chen K.,

2012), (Lewinski J.S, 1999), (Marne B. et al., 2013),

(Medler B. and Magerko B., 2006), (Robertson M.,

2007), (Rouse R., 2000), (Ruda I. et al., 2009),

(Ryan M., 2001), and (Verbrugge C., 2003)) may

often be included as part of the game design docu-

ment, similarly to those of traditional software engi-

neering. Flow charts are diagrams that represent an

algorithm, workflow or process, showing the steps

as boxes, and their sequence of execution by con-

necting them with arrows. In game development,

flowcharts are used to track (Rouse R., 2000): (a)

players’ navigation of out-of-game menu options

(e.g., starts a new game or loads a saved one), and

(b) areas the players progress to and from in the

game, particularly in level-based games. Beyond

these most obvious applications, flowcharts can be

quite useful for visually representing the results of

any decision players may take during a game (Rouse

R., 2000). In some games genres (e.g., MMOG -

Massively Multiplayer On-Line Games) interactivity

is a distinguishing feature and an attraction for gam-

ers, since participants can change the state of affairs

with their actions. In such games, due to the dynam-

ic flow of events, gameplay can be resembled to the

execution of an algorithm, where elementary actions

are defined by game rules, rendering the flowchart a

fitting means for their representation (Rouse R.,

2000). Additionally, narrative flow graphs, i.e., a

simple description format, can lead to story specifi-

cation, without representation gaps (Verbrugge C.,

2003).

Use Cases (UCs) and Use Case Diagrams (ref-

erenced in (Kendra C. et al., 2014), (Longstreet C.S.,

2012), and (Taylor M. et al., 2007)) are part of the

Unified Modeling Language (UML) (Booch G. et

al., 1999) and aim at specifying software require-

ments. In game engineering, use case specifications

and use case diagrams are used to demonstrate the

connection between scenes / actions. Taylor et al.

(Taylor M. et al., 2007) suggest that detailed use-

case diagrams, enriched with some aspects of deci-

sion trees, could be useful for professionals involved

in computer game development (e.g., story, level,

and character designers, 3-D modelers, artists, ani-

mators, and musicians). Specifically, they describe a

game-flow design approach that can be used in order

to model the individual levels of a computer game.

In a similar line of thought, Longstreet et al. (Long-

street C.S., 2012) present how tailored UML models

(i.e., UML diagrams and UC specifications) with

additional features from story boarding techniques

(see below) could model serious educational games.

Finally, Kendra et al. (Kendra C. et al., 2014)

demonstrated how game requirements engineering

(RE) processes can be enhanced by standard nota-

tions, tools, and techniques. Specifically, they pro-

pose a three step model-based approach: (a) creation

of an informal model of the game requirements

(narrative captured like a storyboard – see below),

(b) transformation of the narrative into a semi-

formal model, and (c) transformation of the semi-

formal model into a tailored UML use case model.

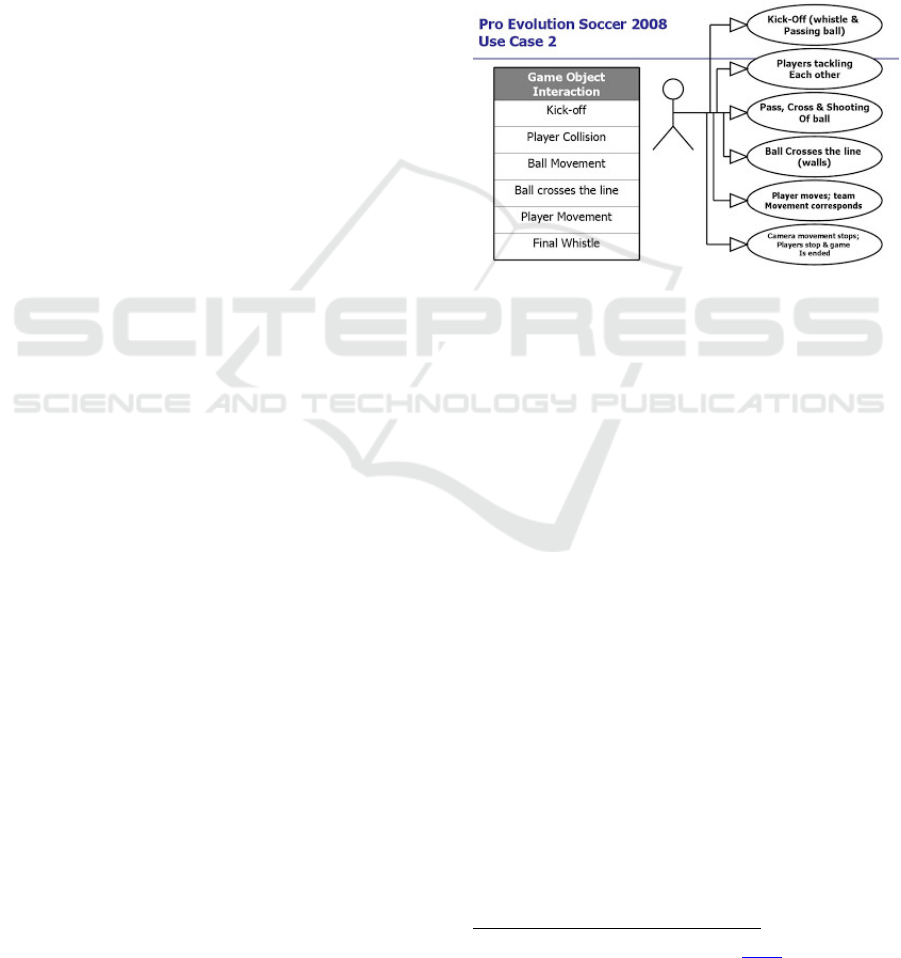

As an example we present a UC diagram from Pro

Evolution Soccer, in Figure 3.

Figure 3: UC Model - Pro Evolution Soccer

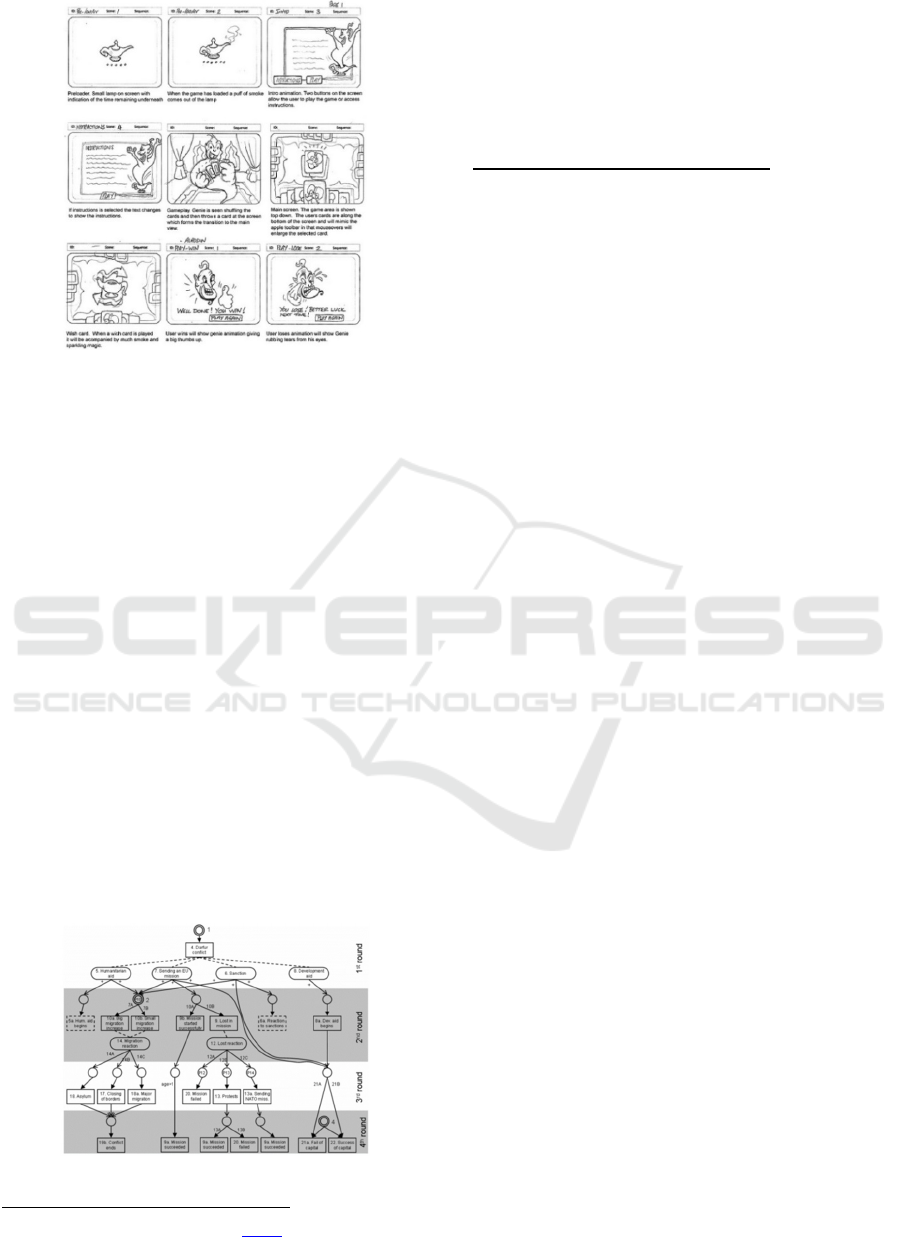

Story Boards (or Beats) (referenced in (Bethke

E., 2003), (Henno J., 2009), (Rouse R., 2000), (Ruda

I., et al., 2009), (Skorupski J., 2009), and (Truong K.

et al., 2006) represent how each game scene will

appear to the player, in a way similar with the one

used in films and television. Usually, they describe

the location and the objects through an action/event

table. Regarding story beats, Henno (Henno J.,

2009), presents an event-driven, object-oriented-like

high level specification for computer games. This

level of abstraction that such specifications use,

allows the description of games, without details on

programming languages or used game engines. An

example of a story board is presented in Figure 4.

Concerning story boards, Rousse (Rouse R., 2000)

suggests that this approach is the easiest way of

depicting cut-scenes (i.e., non-interactive kinematics

so as to offer information to the gamer), sketches or

mock-ups (e.g., informing the players that the game

is about to start—probably while loading).

The use case model has been retrieved online

Tool-assisted Game Scenario Representation Through Flow Charts

225

Figure 4: Storyboard - Aladdin for Disney

Using Petri Nets (referenced in (Araujo M. and

Roque L., 2009), (Brom C. and Abonyi A., 2006),

(Brom C. et al., 2007), (Brom C. et al., 2010), (De

Oliveira G.W. et al., 2011), (El-Sattar H., 2012), and

(Peterson J., 1977)), the game designers can describe

how each quest or event is organized, by using the

following notations: place/states (circles), transitions

(rectangles), tokens and transition functions (ar-

rows). One of the most distinctive characteristic of

Petri Nets, as a formal way to specify requirements,

is that they enable the specification of asynchronous

systems, where actions can take place in parallel,

something which is obviously of major importance

for game requirements engineering. For example,

Araújo et al. (Araujo M. AND Roque L., 2009)

suggest that Petri Nets outbalance other modeling

languages, because of the simplicity of their graph-

ical notation, which however is not a barrier for

modeling complex game systems. The strengths and

weaknesses of Petri Nets in virtual storytelling have

already been discussed by Brom et al. (Brom C. et

al., 2007). An example is presented in Figure 5.

Figure 5: Petri Net - Europe 2045 (7).

The storyboard has been retrieved online

3 SCENARIO REPRESENTATION

Based on the above, we selected to provide a method

(accompanied by a tool) for scenarios design, based

on flow charts, narrative structure, and character

models.

Proposed Representation Approach. To tailor flow

charts for designing game scenarios, we propose the

use of some additional notations that are useful for

the desired representation. Under this tailored repre-

sentation, the story will be divided into three parts

(Exposition, Rising Action, Climax, and Endings),

as dictated by the narrative structure. The notations

used for the tailored flow charts are:

• Rectangles/Actions represent sequences of ac-

tions or events during which the player is pas-

sive. These sequences are used to set up the next

situation or show the consequences of successful

(or unsuccessful) completion of previous tasks.

• Choice/Fork represent a “ free play area ”

inside the story, i.e., choice. The players can take

control and make choices which will impact on

the unfolding of the story or on the players. In

addition to that, as a choice we classify any ac-

tion of the player that can alter the flow of

events. For example, solving a puzzle or winning

a battle, can lead to unlocking a completely new

path in the game flow, which would not be re-

vealed to the player, if he/she would not be able

to solve the puzzle or if he/she had lost the battle.

• Filled rectangles/Goals are used to show the

goals in the story.

• Ovals/Ends denote the endings and starts of the

story. The possible different endings of the story

are denoted with white for “happy ending”,

and black for “bad ending”, whereas the start

of the story is denoted with a grey oval. In the

special case of games with only one type of end-

ing (e.g., the game finishes and the player is pro-

vided with a score, so as to compare it with other

players), this end is denoted as a “happy end”.

For games that do not have an obvious ending,

e.g., SIMS, there is no denoted ending.

• Arrows are used to show the direction of the

flow in the story.

• Swimlanes denote the different parts of the story

(Exposition, Rising Action, and Climax).

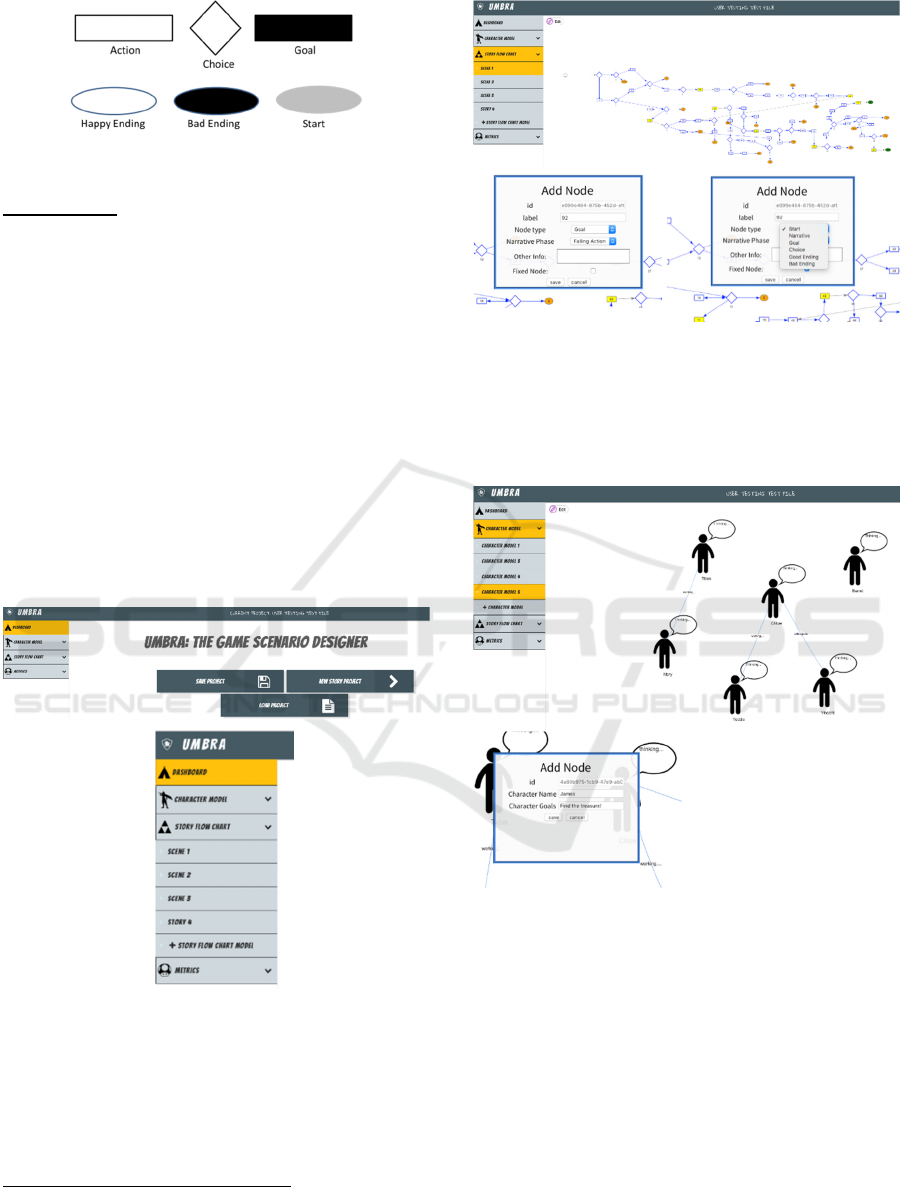

A sample legend for the above notations is provided

in Figure 6.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

226

Figure 6: Sample Notations for Flow Charts.

Tool Support. To assist the popularization of the

proposed approach, we have built an online

Open

Source Software (OSS) tool that provides an inte-

grated environment for "Game Scenario" design. In

particular through the tool, the designer can create a

project that includes one or more flow charts related

to the story of the game and one or more character

models that correspond to the interactions of actors

in the scenes. The developed tool reuses components

of two other existing OSS projects, namely: Vis.js

and Chart.js. The source code of the tool is available

in GitHub

. The main functional requirements of the

tool have can be summarized as follows (accompa-

nied by screenshots).

Generic Functionalities: Create Game Scenario

(Project), Create Flow Chart, Create Character Mod-

el, Save / Load Project.

Figure 7: Generic Functionalities.

Design Functionalities on Flow Charts: Add Nar-

rative Nodes, Edit Nodes, Add Edge Between

Nodes, Edit Edges, Overview of Node Details (Ex-

pand / Collapse).

http://nikompaf.webpages.auth.gr/main.php

https://github.com/nickbaf/Umbra-GameScenario-Designer

Figure 8: Designing Flow Charts.

Design Functionalities of Character Models: Add

New Character, Edit Character, Add Character In-

teraction Edge, Overview of Node Details (Expand /

Collapse).

Figure 9: Designing Flow Charts.

4 CASE STUDY DESIGN

In this section we present the case study design. The

study has been designed and reported according to

the template suggested by Runeson et al. (Runeson

P. and Host M., 2009). The high-level goal of this

case study is to improve and evaluate the usability of

the developed tool. To achieve this goal we have

performed two rounds of empirical evaluation, be-

tween which we performed maintenance activities.

We organized the two rounds as follows: the case

study was conducted once for 10 participants and

Tool-assisted Game Scenario Representation Through Flow Charts

227

then based on the feedback taken from the think

aloud results we implemented changes to the tool.

Next, we repeated the case study with 10 different

participants. However, the reporting will be made

only for the last version of the tool.

4.1 Research Objectives & Questions

The main objective of the empirical evaluation in

terms of the Goal-Question-Metric (GQM) approach

(Basili V. et al, 1994) is formulated as follows: ana-

lyze the developed tool for the purpose of evalua-

tion, with respect to its usability from the point of

view of game designers. According to ISO 9241-11,

usability can be decomposed to three sub-

characteristics: effectiveness, efficiency, and satis-

faction (Frokjaer E. et al, 2000). Based on the above,

we derived three research questions (RQ):

: What is the effectiveness of the tool?

Effectiveness is a measure of how accurately the

users can perform a set of tasks. In order to answer

this research question, we will provide the subjects a

set of tasks to be accomplished, and we will assess

their success with qualitative and quantitative analy-

sis (see Section 4.3).

: What is the efficiency of the tool?

The efficiency quality attribute measures the timely

behavior of users when performing several tasks.

The same research setting as RQ

will be used, in

which a well-known approach for assessing the task

duration will be used (see Section 4.3).

: What is the level of satisfaction that the users

get from using the tool?

User satisfaction is related to the evaluation of the

overall experience of the user. A questionnaire based

approach will be used for this assessment using estab-

lished data collection methods (see Section 4.3).

4.2 Case and Task Selection

This study is a holistic case study, in which for every

case (subject / usability tester) we record one unit of

analysis. Each subject has been asked to complete a

list of tasks, for which the evaluation and data col-

lection has taken place.

Case Selection: According to Charters (Charters E.,

2003), a usability test with five users that test the

system (by using the think-aloud method (Charters

E., 2003)) can identify up to 2/3 of existing usability

issues. Therefore, in order to identify an ever larger

portion of usability issues, we performed the two

rounds of usability testing with 10 different subjects

as evaluators (in each round), so as to avoid bias,

and familiarity with the system. Through such a set

of evaluators, we expect to find a minimum of 95%

of system errors with a probability of 98% (Turner

C.W., 2006). The sample we chose mainly come

from higher education, i.e. undergraduate, postgrad-

uate students and PhD candidates with a level of

knowledge in using software applications, and inter-

est in game design.

Task Selection: The tasks that the users have been

asked to complete are divided into two main catego-

ries: (a) observation tasks in which the user is invit-

ed to recognize a situation or answer questions about

the program (e.g., see T3, T4 from the list below),

and (b) action tasks, which the user is called to de-

sign-edit on the program. (e.g., see T1-T2). First, the

usability testers will be provided with some pre-

defined stories

. The tasks that have been used in the

usability testing are based on these stories are:

T1. Load the file with the name "archive"

T2. Open the history flow chart named "Stage 1"

T3. Add a new "bad ending" node.

T4. What are the features of the node labeled "30"?

T5. Connect with an edge the node that you built

before to the node with the number 30.

T6. Edit the node labeled "12" to be part of the

"Rising Action".

T7. Edit the figure so that the node labeled "5" is

connected only to the node labeled "9".

T8. Delete the node that has been out of use by the

preceding action.

T9. How many choices does the story have?

T10. Delete the Story Flow Diagram "Stage 3"

T11. Create a new character named "Red".

T12. Add an edge between "Vincent" and Barret"

T13. Delete the "Teddie" character and then the tab.

T14. Delete the Character Model

4.3 Data Collection

To measure effectiveness we observed users, while

dealing with the assigned tasks, without first having

been instructed on how to use the program. During

the observation sessions, users should think aloud to

implement the think-aloud protocol that is wide-

spread in software testing (Charters E., 2003). In

order to measure efficiency we ask users to perform

the tasks presented in Section 4.2. Efficiency has

been measured with the use of Keystroke Level

Model (KLM) (11). Additionally, to assess efficien-

cy we also used the data from the think-aloud data

collection process, so as to record their actions and

https://www.dropbox.com/s/7vdq5hwgep6b6fn/Stories.zip?dl=0

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

228

the causes of their wrong choices. Finally, to assess

user satisfaction a standard usability questionnaire

has been distributed to the participants. The ques-

tionnaire, namely System Usability Scale — SUS

(Brooke J., 1996) that gives a comprehensive picture

of subjective usability assessment.

4.4 Data Analysis

During the execution of tasks the observer notes,

which have been executed correctly and which not.

Based on this, the overall effectiveness is calculated

as the percentage of correctly executed tasks. An

average is used to aggregate from the single subject

to the sample. Apart from quantifying each quality

criterion, a major aspect of this evaluation is the

provision of feedback to the development tool.

Therefore, by analyzing the transcripts of each ses-

sion the identified problems have been divided into

the following categories:

• Layout problems, the user fails to locate a partic-

ular item on the program’s screen,

• Operating problems, the user is unable to under-

stand the function of an element in the program,

• Understanding problem, the user fails to under-

stand the data presented by the program.

To quantify efficiency, the observer has recorded

the movements of the tester according to KLM and

calculated the expected completion time for each

task according to the model. Following the case

study, the times will be compared to the ones that

are actually achieved by the testers. Thus, regarding

efficiency, both the completion time of the work

according to the KLM model, the errors made and

the success or not of work will be used. Similarly to

before, aggregation will be performed by using the

average function.

With respect to user satisfaction, based on the

System Usability Scale questionnaire, we sum up the

adjusted result of each response. We note that in

SUS, some questions have a negative phrasing and

others a positive one. Thus, we follow the prescribed

way of handling and grading the answers. Since the

SUS results range from 0 to 100 and the optimum

satisfaction is achieved with scores higher than 90

(9), we set a goal of average satisfaction > 90%.

5 RESULTS

Effectiveness (RQ

). In Table 2 we present the com-

pletion rates for each Task (T1-T14), regarding RQ

First, we note that tasks T1, T2, T3, T6, T8, and T9

were completed by all participants. We note that

between the 1

and the 2

round of usability testing,

the task completion rate improved by approximately

5%, suggesting that the improvement performed

between rounds were successful. By comparing the

task completion rates that aimed at flow charts and

character modelling, we can observe that the design

of a character model was less effective, compared to

designing the flow of the story (i.e., tasks T10-T14

had a lower completion rate, compared to tasks T1-

T9). Nevertheless, the most difficult task proved to

be T4 (i.e., reading the properties of nodes in flow

charts), that still needs to be improved by the devel-

opers of the proposed tool.

Table 2: Task Completion Rates per Task.

Task

Completion

Rate

Task

Completion

Rate

T1 100% T8 100%

T2 100% T9 100%

T3 100% T10 70%

T4 30% T11 80%

T5 90% T12 80%

T6 100% T13 90%

T7 100% T14 100%

When focusing on specific participants, and differ-

ences between their efficiency, we observed a mean

completion rate of approximately 89% (min value:

78.6%, max value: 92.9%—achieved by 5 partici-

pants, and std. dev.: 5.01%). Thus, we can observe a

satisfactory uniformity of task completion rates

among different practitioners.

Efficiency (RQ

). To access the efficiency of the

tool, we selected a subset of the 14 tasks presented

in Section 4.2 (i.e., T5, T7, T8, and T10 – T14).

Table 3 refers to RQ

and shows the average time

Table 3: Task Completion Time per Task.

Task

Required Time

Usability

Testers Expert KLM

T5 4.47 1.60 5.30

T7 2.31 0.50 1.30

T8 1.51 0.90 2.40

T10 1.37 0.70 2.40

T11 4.03 0.50 1.40

T12 3.01 0.90 3.85

T13 1.91 0.40 2.65

T14 1.30 0.80 2.40

Tool-assisted Game Scenario Representation Through Flow Charts

229

that users need to complete each of the aforemen-

tioned tasks, the time that an expert (the core devel-

oper of the tool) needed to complete the task, and the

average required time according to KLM.

The usability testers needed 316% more time

compared to the expert user to complete the tasks,

reaching a total time of 19.9 seconds compared to

the 6.3 seconds required by the skilled user. By

comparing the usability testers to the average time

required based on KLM, we can observe that the

usability testers performed better than expected

(approximately 10%), suggesting that the tool can be

efficiently used by non-trained users. Thus, the

learning curve of the tool is quite steep, since even

inexperienced users can perform as average ones —

see Figure 10. Similarly to RQ

, the usability testers

have found more time consuming to complete the

task related to character modelling, compared to

flow modelling. In particular, on the one hand re-

garding flow modelling, the usability testers were

faster than the average KLM user by 15% and slow-

er than the expert user by 260%. On the other hand,

regarding character modelling, usability testers were

2% faster than the KLM estimation, and 390% slow-

er than the expert. Nevertheless, we note that the

expert user was 30% faster in character modelling

activities compared to flow modelling. This observa-

tion suggests that when familiarizing with the tool,

character modelling activities are more efficient, but

have a smoother learning curve (since novices find

them more difficult).

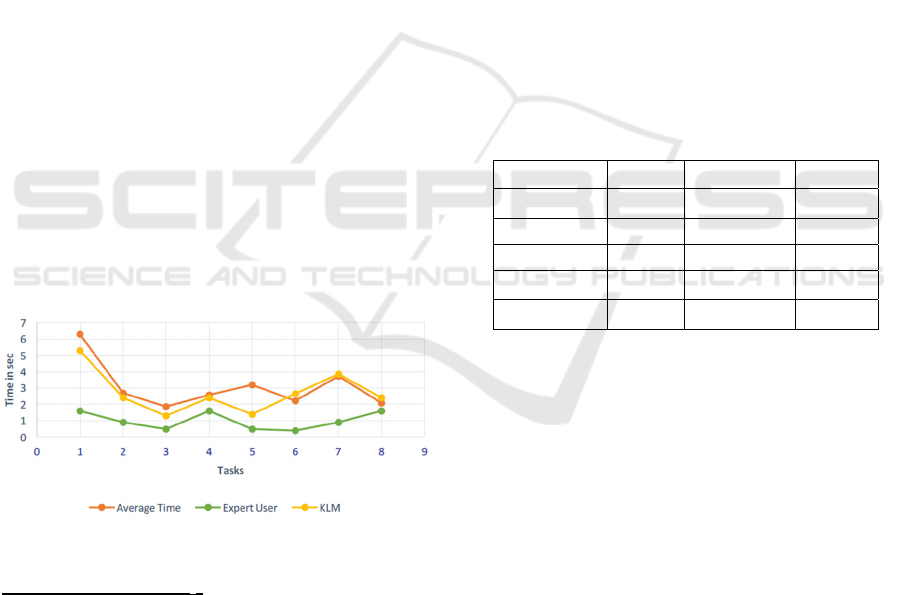

Figure 10: Task Efficiency among Groups.

User Satisfaction (RQ

). On the completion of the

tasks presented in Section 4.2, the usability testers

were asked to fill in a user satisfaction questionnaire

(namely System Usability Scale—SUS). The results

on the SUS questionnaire are presented in Table 4.

We note that for RQ

, the specifics of the tool (e.g.,

character vs. flow modeling) cannot be discussed

since the SUS instrument treats the system as a

whole, without discriminating between different use

cases.

Based on the results presented in Table 4, we ob-

served a mean user satisfaction of approximately

89.75% (min value: 77.5%, max value: 97.5%, and

std. dev.: 8.55%). Additionally, we can observe that

the participants can be easily separated into two

groups: (a) those with very high satisfaction (i.e.,

SUS >90%)—7 participants, and (b) those which

were less satisfied—3 participants. As a way to

explore the reason for those that are dissatisfied, we

explored the existence of a relationship between

SUS and task completion rate. The results suggest

that the completion rate for each user and the rate of

satisfaction from the system according to SUS ques-

tionnaire. Thus, a direct link between the tasks'

completion rate and the users' satisfaction can be

observed. The user who successfully completes the

tasks feels more comfortable with the behavior of

the system, since he/she does not doubt on the

knowledge that he/she possesses on the system and

how to use it. Therefore, we believe that if in future

versions of the system we manage to further increase

its effectiveness, the user satisfaction will be in-

creased as well.

Table 4: User Satisfaction per Usability Tester.

Participant

SUS Participant SUS

P1 77,50 P6 97,50

P2 92,50 P7 97,50

P3 92,50 P8 97,50

P4 72,50 P9 95,00

P5 92,50 P10 82,50

6 DISCUSSION

The results of our case study (i.e., a usability testing

procedure with game enthusiasts) suggest that the

tool that we have developed for representing scenar-

ios is usable and therefore is ready for evaluation by

experts (i.e., professional game designers). Howev-

er, the results pointed out some weak aspects of the

tool that need to be considered for refactoring before

we proceed to the next stage. A uniform conclusion

that we got by comparing the modelling of charac-

ters to modelling the flow of the games, is that char-

acter modelling needs further improvement, both in

terms of effectiveness of tasks and completion time.

These results can be considered quite intuitive in the

sense that a flow chart is an established representa-

tion in traditional software engineering, and there-

fore designers feel more comfortable against it,

compared to the completely new notations offered

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

230

by the character model. An additional interesting

observation is that all three usability sub-

characteristics that we have examined (i.e., effec-

tiveness, efficiency, and user satisfaction) appear to

be interconnected, in the sense that users that fail a

task are dissatisfied with the tools and that also,

users that are not time effective are dissatisfied as

well. Based on this observation, we can assume that

user satisfaction will improve if we manage to de-

crease task completion time and failure rates.

Based on the aforementioned discussion, we plan to

prompt professional game engineers to use our tool

and evaluate, not only its usability, but also its fit-

ness in the current processes of game development

firms. Also, as part of future work, we plan to inves-

tigate the benefits that game development companies

get by integrating into their process tool-support for

scenario representation. Although we acknowledge

that these research questions are very important, we

consider the evaluation of usability as a prerequisite

for their unbiased answer in an industrial context.

Nevertheless, even at this stage we can claim that

the tool is fitted for representing scenarios, since the

task completion rates are adequate and game devel-

opment enthusiasts that participated in the case study

are satisfied with the level of assist that it provides.

7 THREATS TO VALIDITY

The results of the usability testing are subject to

external validity threats since the study has been

performed with 10 participants and a particular sub-

set of tasks. However, these threats are mitigated

because according to the literature even five users

can reveal the majority of usability issues. Concern-

ing the coverage of the tool’s functionality, the se-

lected tasks exercise representative use cases of a

scenario representation tool and thus we believe that

effectiveness, efficiency and user satisfaction have

been adequately assessed. Another typical threat to

construct validity for this kind of studies is the ten-

dency of participants to be positive about an approach

that offers automation to tasks. However, the think

aloud protocol for the study of the first research ques-

tion revealed that the usability testers have been neu-

tral and identified weaknesses of the tool.

8 CONCLUSIONS

The success of any computer game depends largely

on its scenario since these fictional narratives or

diagrammatic representations can be effectively used

to discuss and picture the interaction between users

and the system. After reviewing existing scenario

representation approaches we propose a scenario

representation approach accompanied by an online

tool, based on flow charts, narrative structure, and

character models. The effectiveness, efficiency and

user satisfaction have been evaluated by a case study

involving 10 participants. The results of the study

suggested that the tool enables users to achieve their

intended goal with high completion rates, is relative-

ly easy to master and is perceived as highly usable

by most users. However, it has also identified weak-

nesses regarding the support for character modelling

which needs to be further improved both in terms of

effectiveness of tasks and completion time.

ACKNOWLEDGMENT

This work was financially supported by the action

"Strengthening Human Resources Research Poten-

tial via Doctorate Research" of the Operational Pro-

gram "Human Resources Development Program,

Education and Lifelong Learning, 2014-2020", im-

plemented from State Scholarship Foundation (IKY)

and co-financed by the European Social Fund and

the Greek public (National Strategic Reference

Framework (NSRF) 2014 – 2020).

REFERENCES

A. Ampatzoglou and I. Stamelos, “Software Engineering

Research for Computer Games: A systematic Re-

view”, Information and Software Technology, Else-

vier, 52 (9), pp. 888-901, September 2010.

M. Araújo and L. Roque, “Modeling Games with Petri

Nets”, Digital Games Research Association Confer-

ence, London, UK, September 2009.

V.Basili, G. Caldiera and D. Rombach, “The Goal Ques-

tion Metric Approach”, Encyclopedia of Software En-

gineering. Wiley & Sons, 528-532, 1994.

E. Bethke, “Game Development and Production”, Word-

ware Game Developer's Library, 2003.

G. Booch, J. Rumbaugh, and I. Jacobson, “The Unified

Modelling Language User Guide”, 1999.

C. Brom, A. Abonyi, “Petri-Nets for Game Plot”, AISB

Artificial Intelligence and Simulation Behaviour Con-

vention”, Bristol, vol. 3, pp. 6–13, 2006.

C. Brom, V. Sisler and T. Holan,. “Story Manager in

'Europe 2045' Uses Petri Nets”. International Confer-

ence on Virtual Storytelling, pages 38-50, 2007.

C. Brom, T. Holan, D. Balas, A.Abonyi, V. Sisler, G. Leo,

“Petri nets for representing story plots in serious

game”. AISB Journal 2, vol. 1, 2010.

Tool-assisted Game Scenario Representation Through Flow Charts

231

J. Brooke, “SUS - A quick and dirty usability scale,”

Usability Eval. Ind., vol. 189, pp. 4–7, 1996.

D. Callele, E. Neufeld, K. Schneider, Emotional require-

ments in video games, in: Proceedings of the Interna-

tional Conference on Requirements Engineering

(RE’06), IEEE Computer Society, Minneapolis, MN,

USA, 11–15 September 2006.

Card, S. K, Moran, T. P., Allen, N., "The keystroke-level mo-

del for user performance time with interactive systems",

Communications of the ACM, 23 (7): 396–410, 1980.

Charters, E., “The Use of Think-aloud Methods in Quali-

tative Research An Introduction to Think-aloud Meth-

ods”, Brock, 12 (2), pp.68-82, 2003

M. Csikszentmihalyi, “Finding flow: The psychology of

engagement with everyday life”, asicBooks, ISBN 0-

465-02411-4, 1998.

G.W De Oliveira, S. Julia, S. Passos, "Game modeling

using WorkFlow nets," 2011 IEEE International Con-

ference on Systems, Man, and Cybernetics

(SMC), pp.838-843, 2011

H. El-Sattar, “A Novel Narrative Intelligence Structure for

Interactive Drama in Computer Games Workflow”, In-

telligent Computer Graphics, 2012

C. Fairclough, “Story Games and the OPIATE System”,

thesis Trinity College, 2005.

G. Freytag, “Freytag’s technique of the drama: An exposi-

tion of dramatic composition and art”, Scott, For-

esman and Company, Chicago, USA, 1863.

E. Frokjaer, M. Hertzum and K.Hornbaek “Measuring

Usability: Are Effectiveness, Efficiency, and Satisfac-

tion Really Correlated?”, Chi, vol 2, 2000

S. Göbel, F. Becker and A. Felix, “INSCAPE: Story

models for Interactive Storytelling and Edutainment

Applications”, 3

International Conference, France,

November 30 - December 2. 2005

H. Ham and Y. Lee, “An Empirical Study for Quantitative

Evaluation of Game Satisfaction”, 2006 International

Conference on Hybrid Information Technology, ACM,

pp. 724-729, November 2006.

J. Henno, “Towards Intelligent Engineering and Infor-

mation Technology”, Springer Berlin Heidelberg,

243, pp 307-322, 2009

R. Hill, J. Gratch, W. L. Johnson, C. Kyriakakis, C. La-

Bore, R. Lindheim, S. Marsella, D. Miraglia, B.

Moore, J. Morie, J. Rickel, M. Thiébaux, L. Tuch, R.

Whitney, J. Douglas, and W. Swartout.” Toward the

holodeck: integrating graphics, sound, character and

story”, 5

Int. Conference on Autonomous

Agents (AGENTS '01), ACM, pp. 409-416, 2001.

C. Kendra, Nasr E. and C.S Longstreet, “Towards Model-

Driven Requirements Engineering for Serious Educa-

tional Games: Informal, Semi-formal, and Formal

Models”, 20

Int. Working Conference, Essen, Ger-

man. Proceedings pp 17-22, 2014

F. Kistler, D. Sollfrank, N. Bee and E. André. “Full Body

Gestures Enhancing a Game Book for Interactive Sto-

ry Telling”, Fourth International Conference on Inter-

active Digital Storytelling, ICIDS 2011, Vancouver,

Canada, November 28 – 1 December, 2011, Proceed-

ings pp 207-218, 2011.

H. Koenitz and K. Chen, “Genres, Structures and Strate-

gies in Interactive Digital Narratives – Analyzing a

Body of Works Created in ASAPS”, 5

International

Conference, ICIDS, San Sebastián, Spain, November

12-15, pp 84-95, 2012.

J.S Lewinski, “Developer's Guide to Computer Game

Design”, Wordware Publishing Inc., Plano, TX, USA,

1999. 32.

C. S Longstreet, “Towards model-driven game engineer-

ing for serious educational games: Tailored use cases

for game requirements”, 17

Int. Conference on Com-

puter Games, IEEE, pp 208-212, 2012.

B. Marne, T. Carron, J.M Labat,, and M. Schottman,

"MoPPLiq: A Model for Pedagogical Adaptation of

Serious Game Scenarios", 13

International Confer-

ence Advanced Learning Technologies (ICALT),

IEEE, pp. 291-293, 2013

B. Medler and B. Magerko, “A Tool for Authoring Event Dri-

ven Interactive Drama”, In Third International Confer-

ence, TIDSE 2006, pp 139-150, December 4-6, 2006 39.

M. E. Paschali, A. Ampatzoglou, A. Chatzigeorgiou, and

I. Stamelos, “Non-functional requirements that influ-

ence gaming experience: A survey on gamers satisfac-

tion factors”, 18

Academic MindTREK Conference,

ACM, 4 – 6 November 2014, Finland.

J. Peterson, “Petri Nets”. ACM, Comput. Surv. 9, vol. 3,

pp.223-252, September 1977.

M. Robertson, “Visual Scenario Representation in the

Context of a Tool for Interactive Storytelling”, Inter-

national Conference on Virtual Storytelling, pp. 3-12,

Saint-Malo, France, Springer, 2007.

B. Rolfe, C. Jones and H. Wallace, “Designing dramatic

play: story and game structure. 24th BCS Interaction

Specialist Group Conference (BCS '10).” British

Computer Society, Swinton, UK, 2010.

R. Rouse, “Game Design Theory and Practice (2

ed.)”,

Wordware Publishing Inc., 44, 2000.

I. Ruda, J.Fodor, J. Kacprzyk, “High-Level Specification

of Games”, Springer, pp 307-322, 2009,

P. Runeson and M. Host, “Guidelines for conducting and

reporting case study research in software engineering,”

Empir. Softw. Eng., pp. 131–164, 2009.

M. Ryan, “Narrative as Virtual Reality: Immersion and

Interactivity in Literature and Electronic Media”, In

John Hopkins University Press, 2001

J. Skorupski, “Storyboard authoring of plan-based interac-

tive dramas”. 4

International Conference on Founda-

tions of Digital Games (FDG '09). ACM, New York,

NY, USA, 349-351, 2009.

M. Taylor, M. Baskett, G. Hughes and S. Wade, “Using

soft systems methodology for computer games de-

sign”, Systems Research and Behavioral Science, 24,

3, pp. 359—368, 2007.

C. W. Turner, J. R. Lewis, and J. Nielsen, “Determining

usability test sample size,” Int. Encycl. Ergon. Hum.

Factors, 2

Ed. pp. 3084–3088, 2006

K. Truong, G. Hayes, and G. Abowd. “Storyboarding: an

empirical determination of best practices and effective

guidelines”. In Proceedings of the 6th Conference on

Designing Interactive systems (DIS '06). ACM, New

York, NY, USA, pp 12-21, 2006.

C. Verbrugge, “A Structure for Modern Computer Narra-

tives”, Springer Berlin Heidelberg, 2003

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

232
