Elihu: A Project to Model-Driven Development with Naked Objects and

Domain-Driven Design

Samuel Alves Soares

and Mariela In

es Cort

Federal Institute of Education, Science and Technology of Cear

a, Tau

a, Cear

a, Brazil

State University of Cear

a, Fortaleza, Cear

a, Brazil

Keywords:

Model Driven Development, Naked Objects, Domain Driven Design, Domain Patterns, Design Patterns.

Abstract:

The model-driven development is a approach to creating software through well-deﬁned models containing the

information needed to generate the application. However, the software modeling in this approach requires

the deﬁnition of application infrastructure artifacts in the model, such as user interface technologies and

data persistence scheme, in order to transform modeling in ﬁnal application. This makes the modeling

complex, difﬁcult to understand and maintain since new artifacts need to be added, failing to keep the focus

on application business domain. To resolve this problem, we propose the Elihu project, a solution based on

Naked Objects Pattern, Domain-Driven Design and software design patterns where the developer models just

business objects and their characteristics related to the application domain. The full application is generated

based on these software patterns and a Naked Objects Pattern framework is responsible for the application

infrastructure code and the display of objects to users. The proposed solution beneﬁts the creation of less

complex models, that support evolution and modiﬁcation of requirements along the development and the

generation of full applications without manual intervention in the generated code.

1 INTRODUCTION

The focus on the problem domain is pointed

out as the ideal approach to the development of

computer systems (Pawson, 2004). Thus, throughout

its evolution, Software Engineering has sought to

abstract the computing infrastructure of the developer

(Hailpern and Tarr, 2006).

In order to achieve this goal, in Model-Driven

Development (MDD) models are used as primary

artifacts in the development of systems (Brambilla

et al., 2012; Mohagheghi and Aagedal, 2007). In

this approach, the system implementation is carried

out from high-level models (Hailpern and Tarr,

2006; Mohagheghi and Aagedal, 2007) through

transformation mechanisms (Brambilla et al., 2012).

However, even in the MDD approach, only

application domain modeling is not enough for the

development of a complete application. Infrastructure

aspects such as user interface (UI) technologies and

persistence are also required (Hailpern and Tarr,

2006; Pawson, 2004). Thus, in addition to the

application domain, new platform-speciﬁc artifacts

need to be considered, making modeling more

complex and less intelligible (Hailpern and Tarr,

2006). On the other hand, the ambiguous nature of

models and information redundancy along different

views of the same object make it difﬁcult to maintain

and make it difﬁcult to adopt the MDD in the industry

(Haan, 2008; Hailpern and Tarr, 2006; Whittle et al.,

2013).

In order to solve these problems, complementary

approaches in association with MDD are required

(Whittle et al., 2013). In the context of object-

oriented development, the Naked Objects Pattern

(NOP) (Pawson, 2004) solves this problem by

promoting the software development from the

application domain objects. Research shows that

NOP in association with the Domain-Driven Design

(DDD) approach (Evans, 2003) is helpful to create

robust systems (Haywood, 2009; Laufer, 2008).

In this scenario, the MDD project Elihu, based on

NOP, DDD and software patterns has been developed.

The adoption of patterns promotes the construction

of models that are less complex, more intelligible,

and therefore easier to maintain. From the tool

the complete application, including the infrastructure

aspects of the application, can be generated and

executed without the need for manual interventions.

272

Alves Soares, S. and Cortés, M.

Elihu: A Project to Model-Driven Development with Naked Objects and Domain-Driven Design.

DOI: 10.5220/0006702602720279

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 272-279

ISBN: 978-989-758-298-1

2 THEORETICAL REFERENTIAL

2.1 Model-Driven Development

Model driven development represents a set of

approaches, and methodology for software

development using models as primary artifacts

and transforming models into source code (Hailpern

and Tarr, 2006; Mohagheghi and Aagedal, 2007).

The ultimate objective of MDD is the automated

development. Thus, models created must be

sufﬁcient to be executed or required minimal human

intervention to transform it into executable code.

To achieve this objective, the approach requires

not only the modeling of the application domain

and deﬁnition of business constraints, but also

about infrastructure aspects, such as UI, persistence,

and security technologies (Hailpern and Tarr, 2006;

Soares et al., 2016). This makes the modeling

more complex since platform-speciﬁc artifacts need

to be added, taking the development focus of

the application domain (Hailpern and Tarr, 2006).

In addition, redundancy of information entails

consistency and synchronization problems along the

artifacts after changes. Finally, difﬁculties to test

through MDD tools hinder the use of MDD in the

industry (Haan, 2008; Hailpern and Tarr, 2006).

Frequently the developers are taken to maintain only

the code, leaving the outdated model (Haan, 2008).

2.2 Naked Objects Pattern

The Naked Objects Pattern (NOP) (Pawson, 2004) is

an architectural pattern that emphasizes the creation

of domain objects with behavioral completeness in

order to avoid spreading the business logic over

several objects, avoiding the need for many layers.

According to NOP, the UI must fully reﬂect

domain objects, including all their operations

(Pawson and Matthews, 2001). All the infrastructure

mechanism required to objects presentation and

persistency must be provided by a framework (such

as Apache Isis

, Entities

, and Naked Objects

Framework (NOF)

) (Pawson, 2004). The software

developer focuses the development of the domain

classes to construct the application domain model and

the application is executed from the domain objects.

Thus, the model can be quickly validated by the

end user, promoting high reliability in the modeling

(Brand

ao, 2013).

Apache Isis - https://isis.apache.org/

Entities - entitiesframework.blogspot.com.br

NOF - http://nakedobjects.net/

In this way, its adoption in the context of MDD

is promising (Soares et al., 2015), since the beneﬁts

of NOP directly contribute to mitigate the difﬁculties

raised in development in MDD (Soares et al., 2016).

2.3 Domain-Driven Design and Domain

Patterns

DDD (Evans, 2003) is a software development

approach that deﬁnes a set of principles, techniques

and patterns focused in the creation of the domain

model. The Domain Model deﬁnes relationships

and responsibilities of the objects that belong to

the application domain, regardless the infrastructure

aspects. In this way, the model is less sensitive to

changes and closer to the experts domain.

The DDD patterns are named Domain Patterns

and aims to identify the responsibility of each domain

objects in the application and its characteristics in

order to create the Domain Model (Evans, 2003;

Nilsson, 2006). Domain Patterns are also termed

building blocks, since are used to identify the element

in the contruction of the application. The main

Domain Patterns are: Entity - an object that maintains

continuity, it has a identity, and it has a well-deﬁned

life cycle; Value Object - an object used to describe

other objects and it has no identity concept; Service -

a class that provides services to objects and without

keeping a state; Aggregate - it represents related

Entities and Value Objects that are treated as a unit;

Repository - a mechanism to querying of persistent

objects abstracting the database.

There are studies that show the usefulness of

DDD approach with NOP in the creation of robust

systems (Brand

ao, 2013; Haywood, 2009; Laufer,

2008). In this context, the MDD application

development requires the construction of a Domain

Model indicating the Domain Patterns associated with

the classes of the application. Finally, the code is

generated for execution by a NOP framework (Soares

et al., 2016).

2.4 Design Patterns

Design Patterns are reusable solutions to recurring

problems in the object-oriented software design

(Gamma et al., 1995). These patterns allow the

creation of a common communication language of

solutions used in different projects.

Design patterns can be used together with Domain

Patterns to reﬁne the domain model (Nilsson, 2006)

and it assist the identiﬁcation of the responsibility of

each class in the application, in order to facilitate

Elihu: A Project to Model-Driven Development with Naked Objects and Domain-Driven Design

273

the model of understanding and generation of the

appropriated code (Brand

ao, 2013; Nilsson, 2006).

2.5 UI Conceptual Patterns

Despite the possibility of taking the whole application

just creating domain objects, the NOP can generate

only one UI (Pawson, 2004). Patterns of UI, called

UI Conceptual Patterns (Molina et al., 2002b), can be

used to specify UI for platform-independent devices.

Through these patterns the developer can customize

the view of the objects to the user via multiple visions

without having to deal directly with UI infrastructure

code.

The UI Conceptual patterns are categorized into

four types, namely Presentation Patterns (Molina

et al., 2002a): Service Presentation, Instance

Presentation, Population Presentation and Master-

Details Presentation.

3 RELATED WORKS

There are modeling tools and projects that proposes

MDD of object-oriented systems focused in the

application domain and its business logic.

In general, modeling tools workin association

with a modeling language such as UML

. Many of

these allow for the creation of platform-independent

models and subsequent generation of code in an

object-oriented programming language. Examples

of tools with these characteristics are: ArgoUML

Enterprise Architect (EA)

, and Modelio

. However

little or no support is provides for the generation of

infrastructure code, being necessary the modeling of

required classes or manual implementation by the

developer.

Some of these tools support the creation

of templates to the automatic generation of

infrastructure code. However, future changes

in the generated code must be made manually,

compromising the synchronization between the

model and the application code.

Thus, the lack of tools to support the modeling

of the domain and infrastructure aspects, attempting

to the relationships between the diagrams in an

integrated way turn the MDD develoment complex

(Alford, 2013).

Other projects aimed at MDD seek to support

the transformations of models (Brambilla et al.,

UML - http://www.uml.org/

ArgoUML - http://argouml.tigris.org/

EA - http://www.sparxsystems.com.au/products/ea/

Modelio - https://www.modelio.org/index.php

2012). With these projects it is possible to automate

the generation of application artifacts, including the

infrastructure aspects. Examples of these projects are

AndroMDA

, Jamda

, and openMDX

In this case, the utilization of UML models

requires the identiﬁcation of the elements through

stereotypes, so that the corresponding business

classes and infrastructure are created. Through

plugins they can generate even the whole system.

However, after the ﬁrst generation of the application,

changes through the model require manual

synchronization by the developer in order to

avoid the overwriting of previously altered parts.

Also, changes in the infrastructure generated to

meet UI customization and to adjust the behavior

of the application must be maked manually. Since

applications are typically based on the layered

architecture, redundant code between layers is

generated, thus, modiﬁcations in the business logic

entails changes all application layers (Pawson, 2004).

4 THE MDD PROJECT Elihu

Elihu

is an MDD project developed through a set of

plugins on the Eclipse platform

and it is dedicated

to the development of enterprise applications. Elihu

project is based on the concepts and patterns of DDD,

NOP, and software design patterns to create models

that contain all application functionality on domain

objects, abstracting the application infrastructure

aspects from the developer. The generation of UI of

objects, persistence, security, among other aspects, is

under the responsibility of the NOP.

There is a favorable perspective for the application

development using MDD and NOP (Pawson, 2004).

An appropriate MDD tool that works directly with

NOP and DDD can circumvent the complexity in

MDD (Soares et al., 2015) by creating simpler and

more complete templates so that they can be modiﬁed

as new requirements need to be implemented.

The development in Elihu occurs with the creation

of the Domain Model from elements that represent

the DDD Domain Patterns and design patterns.

Domain Patterns represent the building blocks of the

application (Evans, 2003) and they are associated

with design patterns to enable the representation of

all features, operations, and views of domain objects

(Nilsson, 2006). After modeling the domain objects,

AndroMDA.org - http://andromda.sourceforge.net/

Jamda Project - http://jamda.sourceforge.net/

openMDX - www.openmdx.org/

Elihu - http://elihu.webnode.com/

Eclipse - https://eclipse.org

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

274

the Elihu automatically generates the application that

can be executed with the help of the NOP framework

adopted. The NOP framework allows the application

to run without requiring manual implementation of

the application infrastructure.

4.1 Elihu’s Metamodel Analysis

Elihu’s metamodel is presented in Figure 1. Each

element of the metamodel describes a Domain Pattern

or Design Pattern that composes the Domain Model,

its characteristics and the relationship.

The metamodel deﬁnes the DomainModel

metaclass to represent the application model.

Elements that can be added in the model are

associated with this metaclass. Domain Patterns are

deﬁned by the Aggregate, Entity, ValueObject, and

Service metaclasses. These are used to represent

the application classes (Soares et al., 2016).

Relationships between model elements are deﬁned by

the Association metaclass. Associations to a Service

has been deﬁned by the Dependency metaclass.

The Classiﬁer metaclass deﬁnes the common

characteristics to the Entity and ValueObject

metaclasses. Classiﬁers have properties, and

operations. The Aggregate metaclass deﬁnes a set of

Entities and Value Objects that behave as a logical

unit and it has a Entity as root. The Service metaclass

deﬁnes an element that only has operations.

The Property metaclass deﬁnes the characteristics

of each property and represents the state of a

Classiﬁer object.

The Operation metaclass is a generalization of the

Function and Method metaclasses. Function refers

to the operation of a class that is not associated with

a particular instance. Method refers to the operation

used exclusively through a class instance (an object)

and it can change the state of that object. Operation

can have input parameters, deﬁned in the Parameter

metaclass. Also, the Algorithm metaclass has been

deﬁned so that it is possible to implement the behavior

of an operation in different ways, be they in a textual

way, through behavioral diagrams, and others.

Figure 1 also shows the relationship of the

Entity, ValueObject and Aggregate metaclasses with

metaclasses representing software patterns. The main

patterns and their metaclasses are:

• Business ID (Nilsson, 2006) - deﬁnition of the

properties that are business keys of Entity;

• Coarse-Grained Lock (Fowler et al., 2003) - it

informs a Entity have concurrency control;

• Encapsulate Collection (Fowler et al., 2003) -

it deﬁnes the way a collection in Aggregate is

accessed;

• Identity Field (Fowler et al., 2003) - it deﬁnes how

Entity is identiﬁed in the application database;

• Presentations Pattern (Molina et al., 2002a) -

setting the UI of a class. These metaclasses have

attributes corresponding to the Naked Objects

View Language (NOVL)

properties (Brand

et al., 2012).

• Speciﬁcation (Evans, 2003) - deﬁnition of queries

based on domain concepts, reused several times

through a name;

• State (Gamma et al., 1995) - representation of the

states of an object during its life cycle.

Based on this metamodel, the concrete

syntax of Elihu is deﬁned. The metaclass

attributes of the Elihu metamodel are detailed at

http://elihu.webnode.com/doc/.

4.2 Elihu Concrete Syntax

Concrete syntax is the graphic or textual

representation of the metamodel’s elements used by

the developer to model the application (Brambilla

et al., 2012). This section presents the graphical

representation deﬁned in Elihu for the metaclasses of

the metamodel presented in Section 4.1.

The main elements used in the construction of the

Domain Model are Domain Patterns (Figure 2). The

blank area in Figure 2 represents the Domain Model.

Elements arranged to the right are placed in the blank

area, constituting the application domain model. For

the identiﬁcation of the elements in the model the

concept of color distinction (Coad et al., 1999) is

used. Figure 3 shows the graphical representation of

Entity. Entity is represented by the blue color and the

ValueObject by the gray color. These elements have

compartments for class name information, properties,

operations, and to inform the patterns that the class

uses.

Figure 4 shows the graphical representation of

Service. It is represented by the orange color and it

has compartments to inform the name of the class and

to add the operations. Only Function elements are

accepted as operations.

Figure 5 shows how Aggregate is represented. It

must be superimposed on the Entity representing the

root of the aggregation. When this is done, a yellow

rectangle is added to the edge of the Entity diagram.

All elements of Aggregate are identiﬁed by the yellow

color on the left side of the diagram and their original

color is kept on the right side to identify their type.

NOVL - layout description language for the Naked

Objects Pattern, platform independent.

Elihu: A Project to Model-Driven Development with Naked Objects and Domain-Driven Design

275

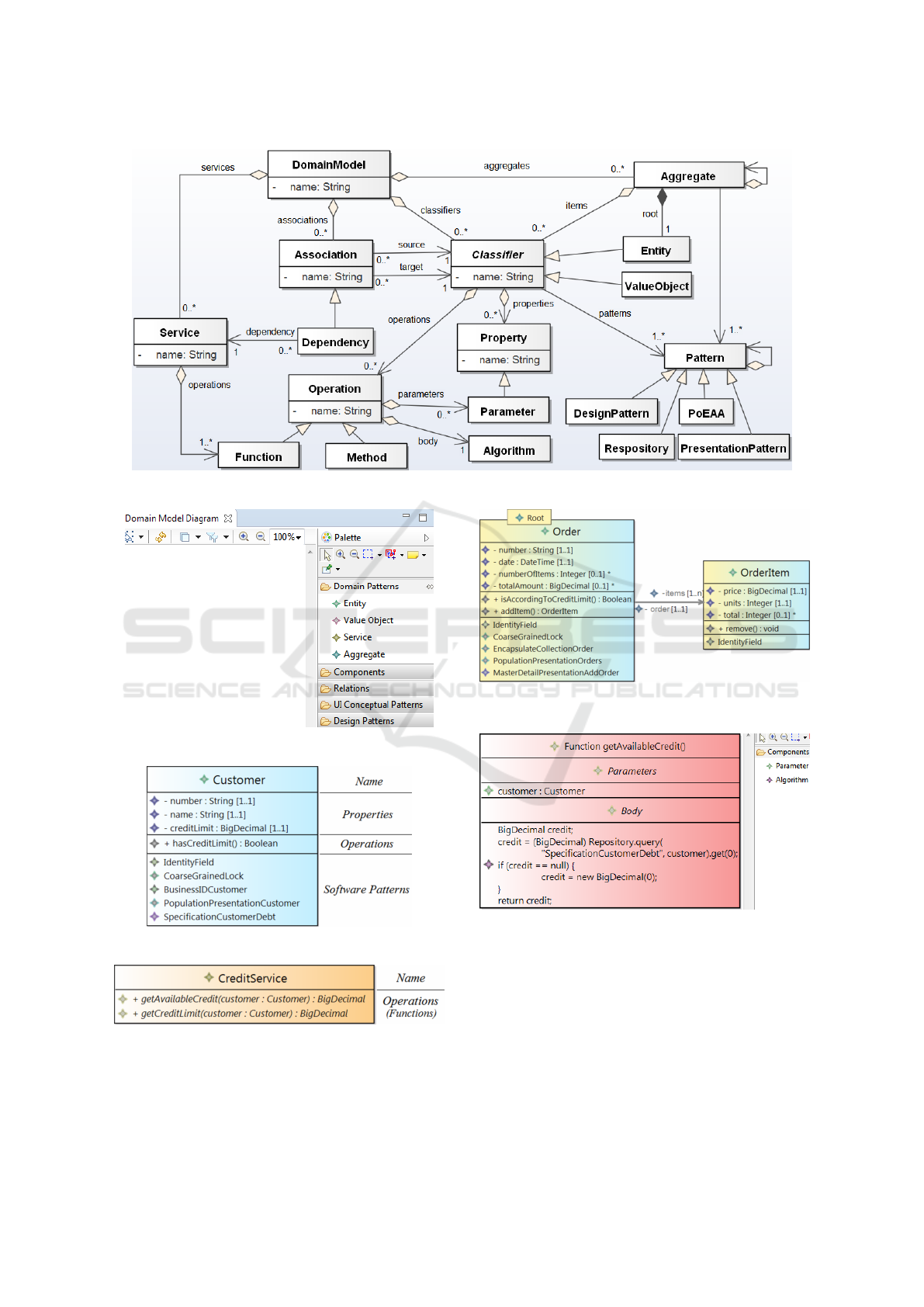

Figure 1: Elihu’s Metamodel.

Figure 2: Elihu’s modeling elements.

Figure 3: Graphical representation of Entity.

Figure 4: Graphical representation of Service.

Figure 5 also shows the graphical representation

of an association between Classiﬁers elements.

When a Property or a Operation is inserted

Figure 5: Graphical representation of Aggregate and its

items.

Figure 6: Diagram for setting parameters and body of

Operation.

into a Classiﬁer, corresponding attributes can be

conﬁgured. In the case of entering an operation,

Method or Function, a new diagram can be opened,

as shown in Figure 6. Operation diagram allows the

conﬁguration of the operation name, the addition of

the parameters and the inclusion of the Algorithm

element to implement the operation body.

Elements that represent software design patterns

are added into the fourth compartment of the Entity

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

276

and Value Object diagrams. In Elihu’s modeling

tool, group of these patterns are available in several

sections identiﬁed by the name of the catalog to which

they belong. Elements grouped in the UI Conceptual

Patterns section are responsible for deﬁning the UI

of the objects in which they are inserted. When you

double-click on Presentation, a new diagram opens as

shown in Figure 7. This diagram has compartments

that represent the structure of a UI (Brand

ao, 2013)

so that the object’s user interfaces are deﬁned through

the NOVL textual notation (Brand

ao et al., 2012).

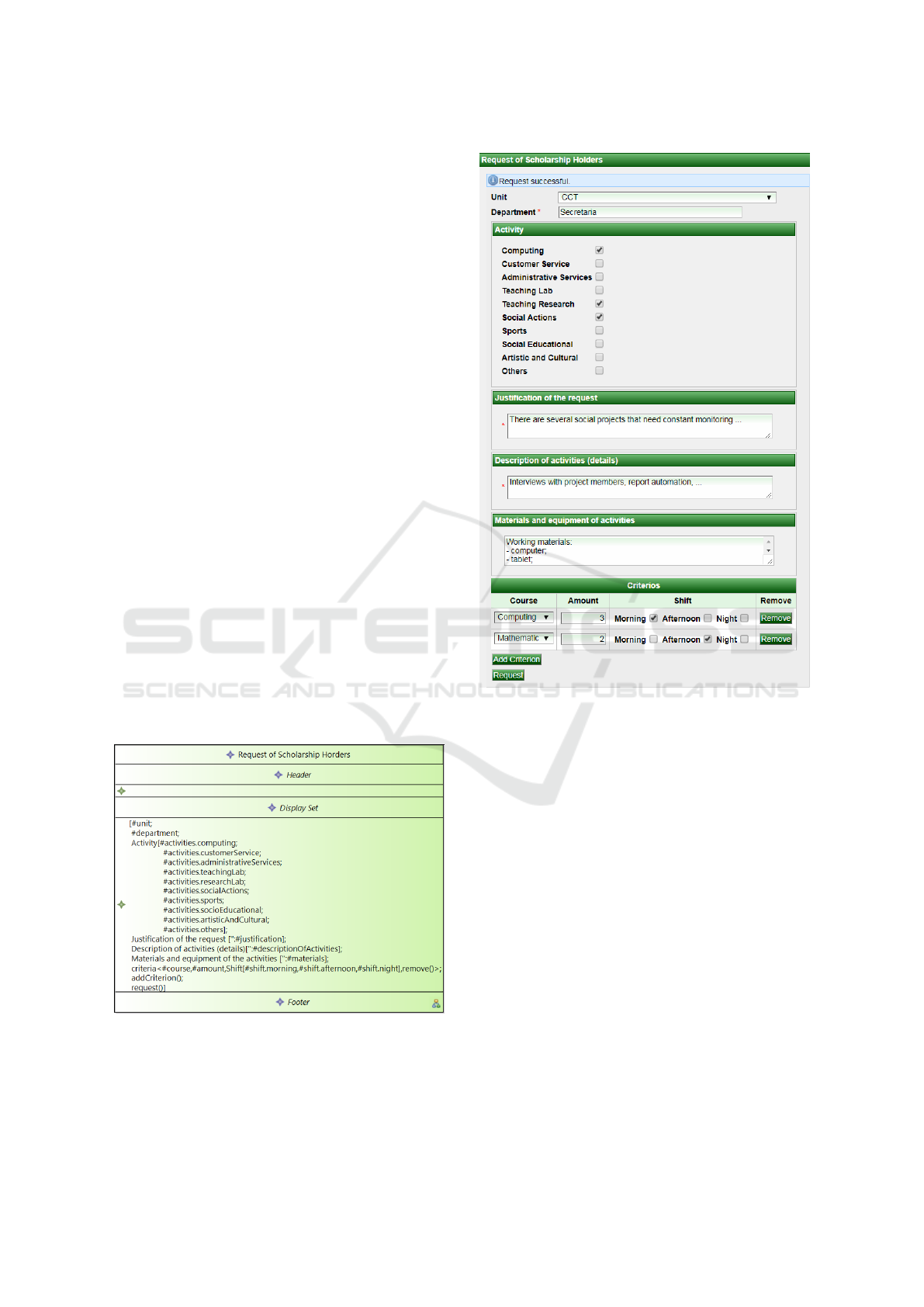

Figure 7: Diagram for setting of Presentation.

When creating a model that can be executed,

the code generation of the application can be made

according to the characteristics of each pattern used.

The generation of code occurs from the reading of

the ﬁle that represents the Domain Model, extension

.elihu. Elihu has templates for the generation of code

speciﬁed according to the NOP framework used.

Soon after the complete generation of code,

without manual intervention, the application can be

executed. At this point, the NOP-based framework

identiﬁes the domain objects and it presents them to

the user (Pawson, 2004) without the need for changes

to the application code.

5 CASE STUDY

This section presents a case study of an real

application. The case study refers to a module

of the Scholarship Management System in use at

the State University of Cear

a (UECE), available

at http://bolsas.uece.br/. This module deals with

applications for scholarships for university extension

activities. Its main features are:

• Request of Scholarship Holders - employees can

request scholarship holders for their work unit

to carry out administrative, and other activities.

Criteria for selection are given as course, etc.;

• Deﬁnition of Scholarships - after the request,

the administrator deﬁnes which scholarships are

offered and the number of vacancies;

• Student Registration and Selection - after

publication of the vacancies, students can apply

to compete for scholarships. Registration is done

by completing a form. The analysis of the records

is carried out, students are selected for interviews

and the ﬁnal classiﬁcation is made;

• Allocation of Scholarship Holders - students

classiﬁed based on the reported criteria are

allocated in the units of origin of the request.

Figure 8 shows the modeling of the

Request of Scholarship Holders. The

RequestOfScholarshipHolder and Criterion Entities

have been created to record the request data by the

employees. The RequestOfScholarshipHolder Entity

contains the properties of the identiﬁcation of the

request and the justiﬁcations.

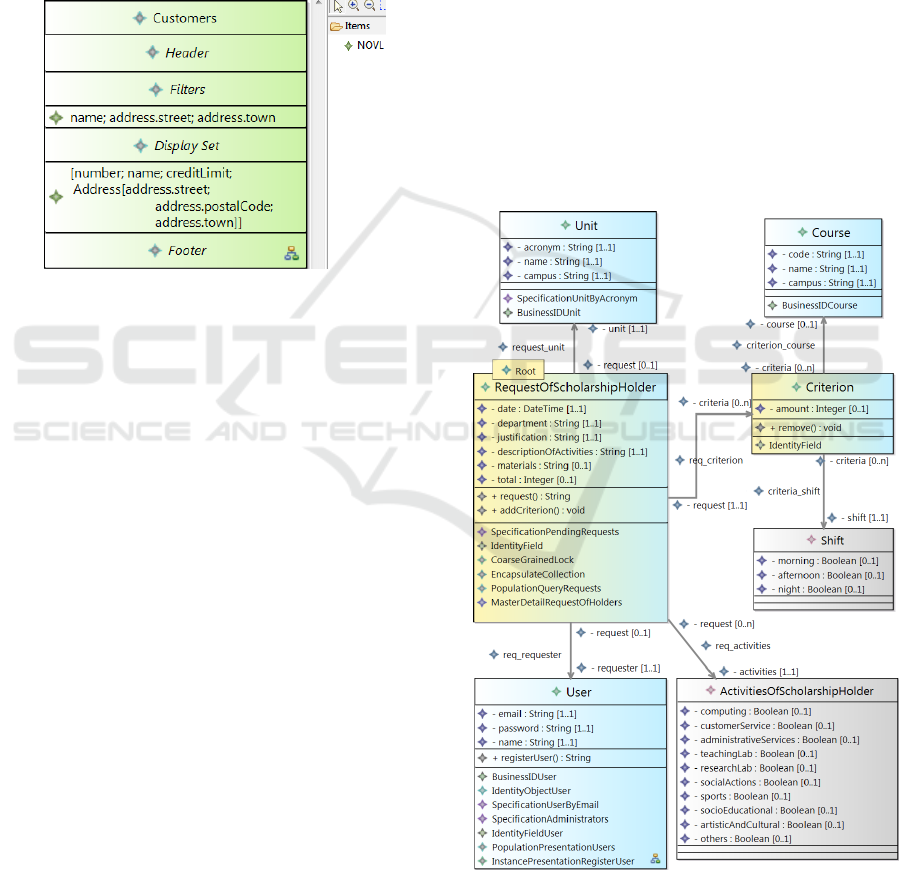

Figure 8: Modeling of classes related to Request of

Scholarship Holders.

The ActivitiesOfScholarshipHolder Value Object

has been created with Boolean data type properties.

Elihu: A Project to Model-Driven Development with Naked Objects and Domain-Driven Design

277

These properties refer to the types of activities

to be performed. The Criterion Entity refers to

the deﬁnition of the criteria for the selection of

scholarship holders. This criterion contains the

number of scholarships requested for a given shift and

the indication of the course of the student. The Shift

Value Object has been created with the properties

morning, afternoon and night to set the required

workshift.

The Criterion Entity is bound to the life cycle

of RequestOfScholarshipHolder. They form an

Aggregate where RequestOfScholarshipHolder is the

root. Thus, the Encapsulate Collection pattern has

been added to the root, the effect of which was

to automatically add the addCriterion method in

RequestOfScholarshipHolder and the remove method

(renamed to remover) in Criterion. The Coarse

Grained Lock pattern has also been added in

RequestOfScholarshipHolder for concurrency control

and the developer has created the request method to

validate and register the request.

Considering the requests are made to the units

of the UECE, Unit Entity has been created.

RequestOfScholarshipHolder has an association with

a Unit. The Course Entity has been created due to

the need for information from the UECE courses in

Criterion. Criterion has an association for a Course.

Finally, the Presentations of the Aggregate have

been created. The MasterDetailRequestOfHolders

Presentation (Figure 9) is used by the employees

to make the requests of scholarship holders and the

PopulationQueryRequests Presentation is used by the

administrators to query the requests.

Figure 9: Presentation for Requests of Scholarship Holders.

From the described model the application code

can be generated and executed without manual

modiﬁcation of the source code. Thus, you can

make the necessary tests, validations and adjustments

Figure 10: Presentation for Requests of Scholarship

Holders after application running.

with the users of the application. Figure 10

shows MasterDetailRequestOfHolders Presentation

after running the application.

After validating the implementation of this

requirement, one can follow the development of

Domain Model with the next requirements. This same

procedure is performed after the implementation

of each requirement, allowing the incremental

development.

The complete modeling of the application

as well as the generated code are available at

http://elihu.webnode.com/exemplos/.

6 CONCLUSION AND FUTURE

WORK

In the context of MDD, application infrastructure

aspects need to be taken into account in modeling

the software in order to create complete models that

can be used to generate functional software. As a

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

278

result, the developer starts to focus on application

infrastructure issues, taking their focus from the

application domain, and the models become more

complex.

In this paper we present the MDD project Elihu,

which includes the use of Domain Patterns, software

design patterns and NOP for the modeling and

generation of the application in order to abstract the

computational infrastructure and allow the focus on

the domain of the problem.

The development of Elihu has involved the

construction of the metamodel from the deﬁnition of

the metaclasses that represent the Domain Patterns

and design patterns. Next, a concrete notation has

been created for the elements of the metamodel and

templates for generating code based on the NOP

framework.

To demonstrate the use of Elihu and validate

suitability, a case study based on an real application

has been developed. With each requirement

implemented, the application code has been generated

and executed to perform the necessary validations

with the users of the system. It was possible to

verify the proposed approach supports the generation

of complete domain models, with system behavior,

and understanding the objective of each class in the

system due to the use of patterns. The developer does

not need to change the infrastructure code. If new

changes to the application are required, the domain

model can be modiﬁed without requiring manual

changes to the code.

As future works can be cited: add support for

textual modeling languages, such as Xtext

, to

implement class operations in order to guarantee

independence of programming languages; add

behavioral diagrams to deﬁne the behavior of objects;

allow the deﬁnition of new patterns as modeling

elements by the developer; implementation of code

generation templates for NOP frameworks from

different technology platforms; comparative study

between development through Elihu and development

through NOP frameworks.

REFERENCES

Alford, R. (2013). An evaluation of model driven

architecture (mda) tools. Mestrado, University of

North Carolina Wilmington, Wilmington, NC.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice. Morgan &

Claypool Publishers.

Brand

ao, M. (2013). Entities: Um framework java baseado

em naked objects para desenvolvimento de aplicac¸

oes

Xtext - https://eclipse.org/Xtext/

web atrav

es da abordagem domain-driven design.

Mestrado, Universidade Estadual do Cear

a, Fortaleza.

Brand

ao, M., Cort

es, M., and Gonc¸alves,

E. (2012). Naked

objects view language. InfoBrasil.

Coad, P., Luca, J. d., and Lefebvre, E. (1999). Java

modeling in color with UML: Enterprise Components

and Process. Prentice Hall.

Evans, E. (2003). Domain-Driven Design: tackling

complexity in the heart of software. Addison Wesley,

Boston.

Fowler, M., Rice, D., Foemmel, M., Hieatt, E., Mee, R., and

Stafford, R. (2003). Patterns of enterprise application

architecture. Addison-Wesley Professional, Boston.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software. Addison Wesley, Indianapolis.

Haan, J. D. (2008). 8 reasons why model-driven approaches

(will) fail. InfoQ.

Hailpern, B. and Tarr, P. (2006). Model-driven

development: The good, the bad, and the ugly. IBM

systems journal, 45(3):451–461.

Haywood, D. (2009). Domain-driven design using naked

objects. Pragmatic Bookshelf.

Laufer, K. (2008). A stroll through domain-driven

development with naked objects. Computing in

Science and Engineering, 10(3):76–83.

Mohagheghi, P. and Aagedal, J. (2007). Evaluating quality

in model-driven engineering. In Proceedings of

the International Workshop on Modeling in Software

Engineering, MISE ’07, pages 6–, Washington, DC,

USA. IEEE Computer Society.

Molina, P. J., Meli

a, S., and Pastor, O. (2002a). Just-ui: A

user interface speciﬁcation model. In Computer-Aided

Design of User Interfaces III, pages 63–74. Springer.

Molina, P. J., Meli

a, S., and Pastor, O. (2002b). User

interface conceptual patterns. In Interactive Systems:

Design, Speciﬁcation, and Veriﬁcation, pages 159–

172. Springer.

Nilsson, J. (2006). Applying Domain-Driven Design and

patterns - with examples in C# and .NET. Addison

Wesley Professional.

Pawson, R. (2004). Naked Objects. Doutorado, Trinity

College, Dublin.

Pawson, R. and Matthews, R. (2001). Naked objects:

A technique for designing more expressive systems.

SIGPLAN Notices, 36(12):61–67.

Soares, S. A., Brand

ao, M., Cort

es, M. I., and Freire, E.

S. S. (2015). Dribbling complexity in model driven

development using naked objects, domain driven

design, and software design patterns. In Computing

Conference (CLEI), 2015 Latin American, pages 1–

11. IEEE.

Soares, S. A., Cort

es, M. I., and Brand

ao, M. G.

(2016). Dealing with the complexity of model driven

development with naked objects and domain-driven

design. In Proceedings of the 18th International

Conference on Enterprise Information Systems, pages

528–535.

Whittle, J., Hutchinson, J., Rounceﬁeld, M., Burden,

H., and Heldal, R. (2013). Industrial adoption of

model-driven engineering: are the tools really the

problem? In Model-Driven Engineering Languages

and Systems, pages 1–17. Springer.

Elihu: A Project to Model-Driven Development with Naked Objects and Domain-Driven Design

279
