An Information System for Bus Travelling and Performance Evaluation

Leandro Ricardo

, Susana Sargento

1,2

and Il

ıdio C. Oliveira

1,3

Departamento de Eletr

onica, Telecomunicac¸

oes e Inform

atica, Universidade de Aveiro,

Campus Universit

ario de Santiago, Aveiro, Portugal

Instituto de Telecomunicac¸

oes, Campus Universit

ario de Santiago, Aveiro, Portugal

Instituto de Engenharia Electr

onica e Inform

atica de Aveiro, Campus Universit

ario de Santiago, Aveiro, Portugal

Keywords:

Vehicular Networks, Long-Term Time Estimation, Prediction, Machine Learning.

Abstract:

A wide vehicular network has a huge potential to collect city-data, specially with respect to city mobility, one

of the top concerns of the municipalities. In this work, we propose the use of the mobility data generated by

the movement of the connected buses to deliver a new set of tools to support both the bus passengers and bus

ﬂeet operator use cases. Considering the bus passengers, it is possible to build smart schedules, which deliver

an estimated time of arrival based on the city dynamics along time, and that can be accessed directly in the

smartphone. Considering the bus ﬂeet operator, it is possible to characterize the behaviour of buses and bus

lines. Using the GPS trace of buses and map-matching algorithm, we are able to discover the line each bus

is assigned to. Estimated times of arrival and predictions are implemented recurring to time estimations and

predictions, using both data mining and machine learning approaches. Proof-of-concept applications were

implemented to demonstrate the real-life applicability, including a mobile app for the citizens, and a web

dashboard for the ﬂeet operator.

1 INTRODUCTION

In last several years, much has been told about smart

cities. A smart city is a city which tries to bring

the best out from the cooperation between people and

policies through the use of Information and Commu-

nication Technologies, that connects and empowers

both (Monzon, 2015).

Much like human communities, Smart cities can

be sensed, analyzed and served. Sensing is possi-

ble using a wide sensor network, that can be either

ﬁxed, when it is located, for instance, in buildings or

dynamic, as happens with sensors of vehicular net-

works. These sensors are generating a big amount of

data everyday and that same data can be used for ana-

lyzing the city dynamics. The internet of the ”moving

things” is happening right now in Porto, a Smart City

which deploys a world-level pilot project implement-

ing a Vehicular Ad-hoc Network connecting buses,

garbage trucks and taxis, and delivering free internet

access to bus passengers, enhancing their commuting

experience.

Considering the Smart Transportation topic, im-

proving the mobility is possible by studying those

bus lines ﬂows in terms of their completion and de-

lay. Also, considering passengers, com muting expe-

rience can be enhanced by providing time estimations

(or predictions) concerning the arrival times in such

a way that passengers can use this information any-

where, for instance, in their smartphones, for moving

with agility through the city.

Regarding this, our study proposes a generic so-

lution to build arrival time estimations and predic-

tions from the data resulting from the movement of

the wondering nodes of the vehicular network. For

being able to perform arrival time estimations and

predictions, a map-matching algorithm has been pro-

posed for identifying which bus line is being com-

pleted by a given bus.

Three ensemble machine learning methods have

been tested and compared. Finally, a set of services

and proof-of-concept applications were done with the

goal of showing the practical utility of the system for

bus passengers and bus ﬂeet managers as a decision

support system.

This article starts by presenting studies which

serve as basis of our work. Then, we present the pro-

posed architecture for solving our problem and each

one of its core components. The results of our study

are discussed for a matter of self-evaluation of this

work and ﬁnally, some conclusions are withdrawn.

Ricardo, L., Sargento, S. and C. Oliveira, I.

An Information System for Bus Travelling and Performance Evaluation.

DOI: 10.5220/0006707903950402

In Proceedings of the 4th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2018), pages 395-402

ISBN: 978-989-758-293-6

395

2 RELATED WORK

The study driven by (As and Mine, 2016) starts de-

fends that the most valuable resources which can be

given to the bus passengers is the estimated time of

arrival, an argument that is supported by the obser-

vation that, if bus passengers know “their departure

time and arrival time at the destination” they can ”re-

duce their waiting time at the bus stop”.

Under the same topic, (Uno et al., 2009) argument

that the fast progress of the information technology

are leading to new insights about trafﬁc phenomena

that can be solved. Also, they refer that the identiﬁca-

tion of particles moving through the city is one of the

key areas of application on the trafﬁc and transporta-

tion study areas. This work focuses on presenting a

methodology for using GPS data with the aim of turn-

ing it meaningful to transportation analysis. It sum-

marizes also methodologies and transformation tech-

niques that can be applied to the GPS data. The ﬁnal

aim of this study is to propose an approach for eval-

uating the bus lines quality of service, from the point

of view of the travel time stability and reliability.

Regarding time estimation and prediction, the re-

view written by (Mori et al., 2015) presents the state

of the art of this topic, going even further by explain-

ing the main deﬁnitions and how the advanced trav-

eller information systems work.

Finally, in terms of methods for long term travel

time prediction, the study conducted by (Mendes-

Moreira et al., 2012) highlights the importance of this

prediction and how it can be an important measure

for public transportation companies. They also make

a comparison of three non-parametric popular regres-

sion methods, namely, Support Vector Machine, Ran-

dom Forests and Projection Pursuit Regression using

the data from the same public transportation company

of our study. As remarking conclusions, Random For-

est is elected as the best method and it is advised to

use ensemble learning methods for improving the ac-

curacy of the predictions.

This work borrows some important ideas from the

study in (Uno et al., 2009), such as how to separate the

pipeline (like map-matching, data reduction, data pro-

cessing and data reporting) and the important func-

tionalities on each of the stages.

The related work also shows that some studies are

very different in nature, like the study conducted (As

and Mine, 2016), where the granularity of the avail-

able data is larger (1 second) and the information of

the route, number of bus stops, travel direction and

bus performance history is present as probe data used

for the study.

3 PROPOSED SYSTEM AND

ARCHITECTURE

The proposed system architecture, represented in the

ﬁgure 1, includes several modules and data sources to

support the processing pipeline.

From the bottom of the diagram to the top, please

ﬁnd the description of each element:

• vanetV3 and the STCP Website are the main

raw data sources. vanetV 3 contains the location

information of each bus every 15 seconds, gath-

ered through the vehicular network, and the STCP

website contains the information on bus lines and

schedule.

• The Extraction Scripts transform the raw data,

existing on the website, in a set of well-known

and well structured ﬁles containing all the context

information such as the bus lines, bus stops, etc.

• The Matching Unit consists in a Python program

which conforms the log position data with the bus

network data.

• The Matches Database is responsible for holding

the Matching Unit results (bus line identiﬁcation,

matched bus stops, etc).

• The Estimation Database helps to gather perfor-

mance metrics from bus delays.

• The Synchronization Script performs the syn-

chronization between the Matches Database and

the Estimation Database.

• The Bus Network Information Database holds

information about the bus carrier such as line, bus

stops and their relationship.

• Bus Network Information API delivers informa-

tion about the bus carrier infrastructure (the lines,

stops, the relation between them).

• Matches API delivers information about the

matches, data which is stored in the Matches

Database.

• Estimation API delivers only one endpoint for

gathering the estimated times of arrival given a

stop, a line and a date, data which is stored in the

estimation database.

• Prediction API delivers an endpoint for making

predictions, using the prediction module.

• The Line Performance Dashboard is a dash-

board for the bus carrier manager to consult the

performance of the carrier’s lines. It is a decision

support dashboard because it provides hints about

the health of the bus transportation system.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

396

External Data Sources

Data Exctracting and Preparation

APIs

Applications

vanetV3 STCP Website

Extraction Scripts

Matching Unit

Synchronization

Script

Matches

Database

Estimation

Database

Bus Network

Information Database

Matches API

Line Performance

Dashboard

Bus Passenger

Application

Estimation API Prediction API Bus Network

Information API

Figure 1: Architecture components and the data ﬂow.

• The Bus Passenger Application is a mobile ap-

plication meant to provide the estimated times of

arrival for a given line and bus stop to the bus pas-

sengers (the carrier’s end-users).

The following subsections explain in further detail

the core components this solution.

3.1 Matching Algorithm Design

3.1.1 Overview

With the purpose of matching a set of GPS locations

of a given bus with the bus line (set of bus stops) that it

is performing, a map-matching algorithm is proposed.

Notice that the bus assigned to each bus line is inde-

pendent from the previous line performed in the same

and in different days, and the only information avail-

able is the mobility of the bus.

The algorithm comprises two steps:

• The bus line start detection;

• The greedy search for validation of the candidate

as a solution.

These two steps are explained in further detail on

the next two subsections.

3.1.2 Bus Line Start Detection Algorithm

On each iteration of the algorithm, it is applied a

heuristic, which consists on detecting the bus line

starting on that given position.

To do that, for each of the GPS positions, bus stops

are detected using a ﬁxed-size radius that is calcu-

lated using the Vincenty Formulae (see (T. Vincenty,

1975)), and then, for each of the bus stops it is veriﬁed

if they are the ﬁrst bus stop of any of the bus lines.

The algorithm 1 implements the mechanism for

detecting bus lines starts.

3.1.3 Bus line Completion Greedy Search

Algorithm

After ﬁnding a bus line starting, the second step is to

analyze whether or not the candidate is truly a solu-

tion.

The ﬁgure 2 presents the steps for validating a can-

didate bus line as solution. First, it is presented a sam-

An Information System for Bus Travelling and Performance Evaluation

397

Input: QueryTool: an object for making spatial

queries

Input: Records: a set of records from a given node,

in a given day

Output: start pro f ile: a list of the line start

detections for each one of the records

1 start

pro file ←

2 foreach record ∈ Records do

3 record position ←

record.extractLatitudeLongitude()

4 nearest stops ←

QueryTool.getNearestBusStops(record position)

5 lines o f the record ←

6 foreach bus stop ∈ nearest stops do

7 line o f bus stop ←

QueryTool.getLinesStartingWith(bus stop)

8 lines o f the record.append(lines o f bus stop)

9 start pro f ile.append(lines o f the record)

Algorithm 1: Detect Line Starts Algorithm.

1 2

Figure 2: Steps for validating a candidate bus line as solu-

tion.

ple of GPS positions, represented as blue dots. Then,

it is presented two bus lines starting at the current GPS

position being iterated by the algorithm. Then, the

two remaining steps are implemented by the greedy

search algorithm for validation of the bus line. On the

third subﬁgure, in order to test if the candidate bus

line is a solution, it is loaded and ﬁnally, tested, stop

by stop, using a detection radius (marked in green).

The algorithm 2 implements the mechanism pre-

sented in the fourth subﬁgure of the ﬁgure 2.

As input, it takes four elements: a QueryTool

object for making spatial queries, the position log

database records to be matched, the set of starting

lines for each one of the records, and ﬁnally, the base

1 i ← 0;

2 solutions ←

3 while i <Records.length() do

4 if StartingLines.index(i) is not empty then

5 foreach candidate ∈ StartingLines.index(i) do

6 j = i;

7 line stops ←

QueryTool.getStopsFromLine(candidate);

8 f irst stop ← line stops.getFirstElement();

9 line stops.setElement(0, None);

10 last stop ← line stops.getLastElement();

11 matches ←

12 indexes ←

13 solution f ound ← False;

14 target order ← 1;

15 ttl ← BaseTTL;

16 while ttl >= 0 do

17 if j >= Records.length() then

18 return solutions

19 ttl ← ttl − 1;

20 current position ←

Records.index(j).getLatitudeLongitude();

21 nearest bus stops ←

QueryTool.getNearestBusStop(current position);

22 foreach nearest bus stop ∈ nearest bus stops do

23 if nearest bus stop ∈ line stops and

nearest bus stop /∈ matches then

24 stop order ←

line stops.index(nearest bus stop);

25 if stop order ∈

[target order,target order + 5] then

26 matches.append(nearest bus stop);

27 indexes.append( j);

28 target order ← stop order + 1;

29 ttl ← BaseTTL;

30 completeness ←

(matches.size()+ 1)/line stops.size();

31 if last stop ∈ matches and completeness >= 0.8

then

32 matches.insert(0, ﬁrst stop);

33 matches.insert(0, i);

34 solution ← initializeMap();

35 solution.map(’line’, candidate);

36 solution.map(’stops’, matches);

37 solution.map(’indexes’, indexes);

38 solution.map(’completeness’, completeness);

39 solutions.append(solution);

40 i ← j;

41 solution

ound ← True;

42 j ← j + 1;

43 if solution f ound is True then

44 break;

45 i ← i + 1

Algorithm 2: Greedy search for validation of the

candidate as a solution.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

398

TTL, later explained.

Input: QueryTool: an object for making spatial

queries

Input: Records: a set of records from a given node,

in a given day

Input: StartingLines: a start proﬁle of the the

records, output from the procedure

implementing the heuristic

detect line starts

Input: BaseTTL: the timeout for ﬁnding a next bus

stop (the default is 15 minutes)

Output: solutions: a list of matches

Iterating over all the sucessive GPS positions of a

bus, the algorithm veriﬁes if there are bus lines start-

ing at the current GPS position. The variable i tracks

the overall progress.

The method’s input provides StartingLines, a list

of bus lines starting at the current GPS position. Thus,

we must test if any of them is locally a solution by

simulating the bus course (line 5).

Before starting the simulation, a context is ini-

tialized. For tracking the current progress of the

simulation, j is set. Then, the stops of the current

line are loaded and the remaining context is built:

matches holds the detected bus stops for the can-

didate line, indexes locate the bus stop appearance

in time and solution found controls the simula-

tion, interrupting it when a solution is found. Finally,

target order represents the order of the next bus

stop that the algorithm will try to detect (line 6 to 14).

The initial target order is one.

The algorithm comprises also a time-to-live

(or simply TTL). Therefore, it is able to give up on the

current simulation if it is unable to ﬁnd the target bus

stop in a certain amount of time (15 minutes, based

on empirical evidences). When ttl reaches zero, an-

other candidate is tested.

The simulation itself starts at the line 16. The

current GPS position is extracted out of the record

(database element), and the nearest bus stops are re-

trieved (lines 20-21). For each of the bus stops, it is

veriﬁed if they belong to the line and if they are not

already matched. If they are not matched, the bus stop

order is extracted and it is made a veriﬁcation for as-

serting that the bus stop is expected in a near future.

If the order of the detected bus stop ﬁts this crite-

ria, both matches, indexes and the target order

are updated. The variable ttl is set to its default

(lines 24-29).

After all the bus stops ﬁnish the evaluation, the

completeness rate is computed. If the last stop was

detected and the completeness is larger than 80%, the

solution is saved into a data structure and added to the

solutions. The lines 32 and 33 handle the detection of

the ﬁrst stop, which is the ﬁrst to be detected but the

last to be tracked. This is also implied as technique for

detecting circular lines since, if the completeness met-

ric is targeted and the last stop is detected, only one

bus stop will be missed (the ﬁrst, regarding the ini-

tial target order). The iteration variable i is updated,

making the main control cycle ignore the analysis of

all the intermediate records which are covered by the

found solution (lines 32-41).

3.2 Estimating Arrival Times

After the system being capable of identifying which

bus line has a bus completed, it is possible to use the

data from the source database to build statistics about

the bus line arrival times. Unlike most of the litera-

ture which makes use of times between stops to cal-

culate time estimations, our study uses passing times

because they require less computation power and also

because the data granularity is very low (15 seconds).

The process of estimating arrival times consists in

the following steps:

1. Choosing a bus line and a bus stop.

2. Finding a reference time (for instance, a times-

tamp chosen by the user or a timestamp gathered

from a ﬁxed time table of the carrier).

3. Then, over all the found matches in a period of

time (for instance, one month), ﬁnd the matches

that ﬁt the previous captured timestamp in a given

reference window (for instance, 5 minutes around

the reference time).

4. Obtain those corresponding timestamps.

5. Compute the average or the median of the gath-

ered timestamps.

3.3 Predicting Arrival Times with

Machine Learning

The goal of the prediction module is to deliver pre-

dictions of bus arrival times at each bus stop of a bus

line. Thus, this module can be integrated in a service

that can be accessed by bus passengers, in real-time.

Using machine learning is a natural approach for

implementing this module. This is a supervised learn-

ing task because training values are provided as sam-

ples (the timestamps). Since the target value is not a

class but rather a continuous value (a ﬂoat expressing

a time in the form of UNIX epoch), the type of ma-

chine learning algorithms that need to be tested are

regressions.

The three tested algorithms are the following:

An Information System for Bus Travelling and Performance Evaluation

399

• Random Forrest Regressor

• Gradient Boosting Regressor

• Bagging Regressor (using Decision Trees or

Support Vector Regression)

These machine learning algorithms are ensem-

ble methods, as recommended by ((Mendes-Moreira

et al., 2012)), in order to obtain a better accuracy.

The objective of using three different algorithms is

to ﬁnd which one of them performs better. The predic-

tion module is implented using the Python language

and the framework scikit-learn.

3.4 Overall Integration

3.4.1 APIs

The information generated by the matching algorithm

is stored into a database. Also, the estimation mecha-

nism is implemented in the database level.

Since the application does not interact directly

with the databases, an abstraction level is provided

through the provision of a set of REST APIs. They

are implemented using the Python language and

connexion

, which provides a mean for present-

ing the API documentation automatically from a

swagger

YAML

speciﬁcation ﬁle.

3.4.2 Applications

Two main applications have been developed as an ef-

fort to illustrate the outputs of the system architecture.

One is a bus line performance dashboard, meant for a

bus carrier manager and the other is a mobile applica-

tion for bus passengers.

Illustrations of these applications are shown in the

ﬁgures 3 and 4.

Random Forrest Regressor on scikit-learn docu-

mentation (http://scikit-learn.org/stable/modules/generated/

sklearn.ensemble.

RandomForestRegressor.html)

Gradient Boosting Regressor on scikit-learn

documentation (http://scikit-learn.org/stable/modules/

generated/ sklearn.

ensemble.GradientBoostingRegressor.html#examples-

using-sklearn-ensemble-gradientboostingregressor)

Bagging Regressor on scikit-learn documentation

(http://scikit-learn.org/stable/modules/generated/sklearn.

ensemble.BaggingRegressor.html)

Connexion, a Swagger/OpenAPI First framework for

Python on top of Flask with automatic endpoint validation

& OAuth2 support (https://github.com/zalando/connexion)

Swagger, The world’s most popular API tooling

(https://swagger.io/)

YAML Ain’t Markup Language (http://yaml.org/)

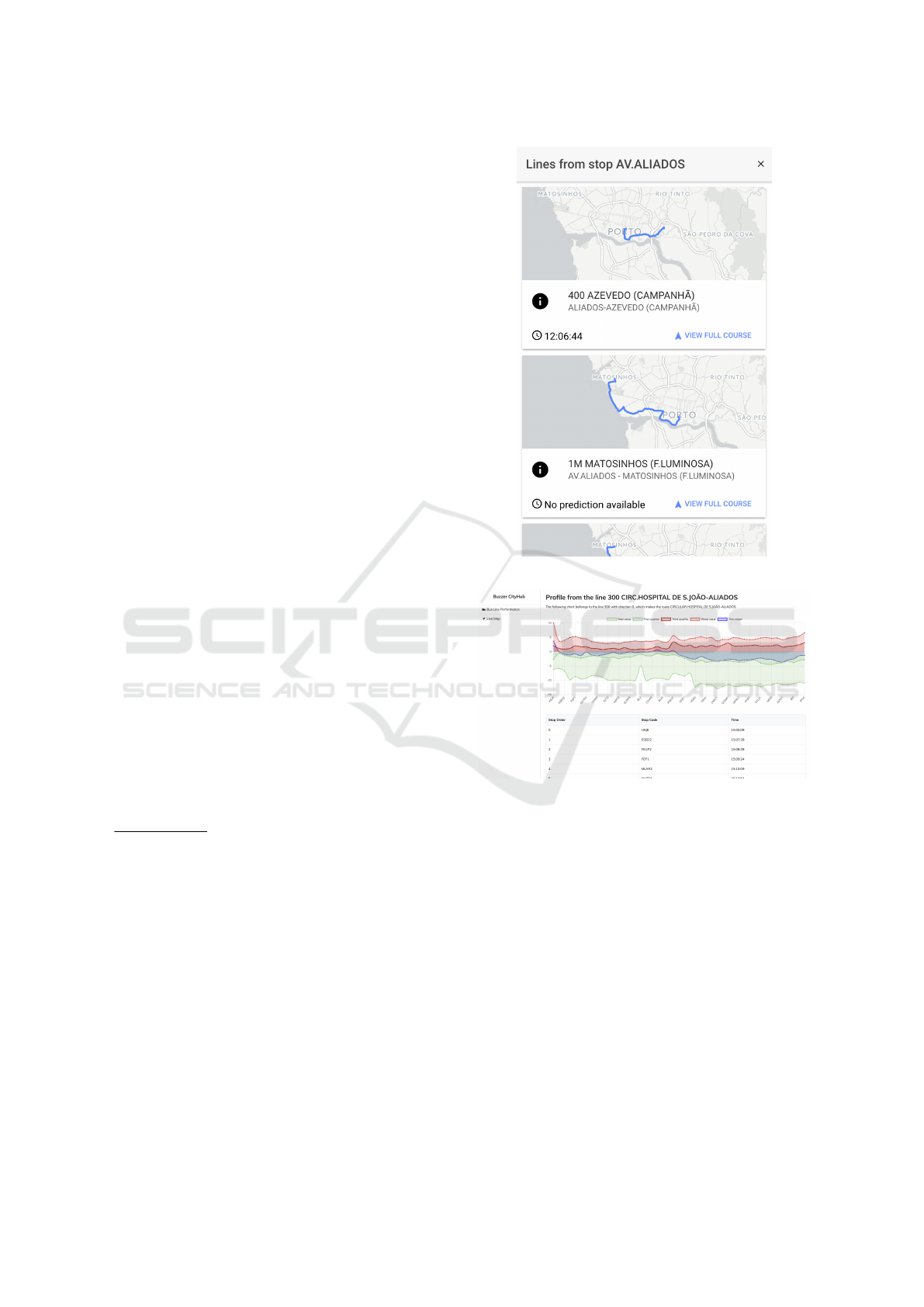

Figure 3: Estimated Times of Arrival for a given bus stop.

Figure 4: Decision Support Dashboard showing a delay

plot.

4 RESULTS

4.1 Map-matching Results

A natural question, at this stage, is how many bus

lines were matched in the period of this study (since

the start of January until the end of March). Below,

we present some numbers:

• Number of SQL Records Processed: 94 328

959.

• Average Processing Time (Depends on the

Dataset): 35h14m per month.

• Number of Detected Bus Lines: 268 702, total-

ing 2985 bus lines completions per day.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

400

• Number of Detected Bus Stops: 9 460 737, to-

talling 105 119 bus stops detection per day.

• Average of the Completion Rate: 97.199(89) %.

The three months of captures result in more than

94 million SQL records with the location of the

buses. With this technique, 268 thousand matches

were found, adding value to vanetV3.

The average completion rate, despite of not being

a totally reliable metric, shows that in the average, the

overall bus lines detected have 97.2% of its bus stops

detected, being a strong indicator that the algorithm

works mostly well.

4.2 Time Estimation Results

The delay plot of a bus line is presented on the Line

Performance Dashboard. The delay plot helps us on

understanding how a bus line usually behaves during

the bus course completion as well as on understand-

ing if the bus line completion usually completes uni-

formly or if it varies locally (next to a bus stop or a

set of bus stops). Also, the delay plot provides a mean

for studying the behavioral differences in terms of de-

lay of a given bus line on rush and non-rush hour pe-

riods while enabling long-term time estimations (for

instance, in 3 months).

Five values are presented: the current match (in

blue) represents the current bus line completion that

is being compared, the inner red line represents the

value of the third quartile (75%) and the inner green

represents the ﬁrst quartile (25%). These metrics are

represented towards the median value (second quar-

tile, with value 50%), deﬁned as zero. The outer

values sample the edges of the distribution. Values

higher than zero are said to be late in relation to the

distribution.

Regarding these characteristics, we have chosen

some of the bus lines of STCP that seem to reveal

trafﬁc patterns or mobility problems. For instance,

the bus line 204 - HOSPITAL DE SAO JO

AO reveals

very well the trafﬁc and delay patterns. It comprises

some popular points of interest, such as Faculdade de

Engenharia da Universidade do Porto, Escola Supe-

rior de Educac¸

ao and Hospital de S

ao Jo

ao.

Having such destinations, it is a line that is worth

studying because of its impact on student , teachers

and other faculty members mobility.

Below, we present a delay plot of the bus line 204

- HOSPITAL DE SAO JO

AO at February 20, using the

period from January 20th until February 20th of 2017

as reference. The delay plot refers to the period be-

tween 07:57 until 09:02 a.m, during the rush hour.

The x-axis represents the bus stop codes and the y-axis

represents the time in minutes.

Figure 5: Line 204 Hospital de S. Jo

ao from 07:57:50 until

09:02:20.

4.3 Machine Learning Results

For evaluating the model with newly found hyper-

parameters, regression metrics needed to be calcu-

lated. The machine learning framework’s API pro-

vides ﬁve regression metrics: the Explained Variance

Score (EVS), Mean Absolute Error (MAE), Mean

Squared Error (MSE), Mean Squared Logarithmic Er-

ror (MSLE), Mean Squared logarithmic error and Me-

dian Absolute Error (Median AE), Determination Co-

efﬁcient (R

The table 1 presents these metrics comparison.

More information about their meaning can be con-

sulted on Scikit-Learn Documentation

about the re-

gression metrics.

Table 1: Resulting Evaluation Metrics.

Bagging

(Decision Tree

Estimator)

Bagging

(Support Vector

Regressor)

Gradient

Boosting

Random

Forrest

EVS 0.982 0.975 0.985 0.984

MAE 179.999 133.562 183.049 183.319

MSE 38972.588 22614.798 39265.194 39925.414

MSLE 1.309e-05 7.682e-6 1.320e-05 1.342e-05

MAE 201.664 130.909 206.808 206.723

0.899 0.941 0.898 0.897

Overall, using the bagging algorithm with SVR as

base estimator is better choice because:

• The determination coefﬁcient R

is higher,

meaning that it is likely that this model is better

on predicting accurately;

• The mean square error, mean square logarith-

mic error, and the median absolute errors are

almost half lower than the counterpart models;

• The model is more general: when plotting the so-

lution, the generated regression is mathematically

simpler than the counterparts;

Therefore, the model chosen for being used in the

Prediction API is Bagging with SVR as base estima-

tor.

An important note is that the median errors

(mean absolute errors) are approximately 130 sec-

onds, meaning that predicted passing times may have

Regression Metrics (http://scikit-learn.org/stable/

modules/classes.html#regression-metrics)

An Information System for Bus Travelling and Performance Evaluation

401

an error in the order of 2 minutes and 10 seconds. This

is subject to change, depending on the data variance,

something that needs to be studied in more depth, in

the future.

5 CONCLUSIONS

This paper proposed an approach to generate mean-

ingful information for bus passengers, municipalities

and transportation companies.

The match algorithm is a generic solution, de-

pending on few data to deliver a matching solution.

With it, it is possible to guess what bus line is a bus

traversing, not only in Porto, but also in other places,

if the vehicular network exist and also information re-

garding bus carrier network is provided.

Then, the arrival time estimation delivers founda-

tions for using as recommendation for bus passenger

or, for delivering reports and decision support systems

for the bus ﬂeet operators.

Also prediction is introduced, exploring ensemble

learning as a measure for improving the accuracy of

the literature studied methods. The estimators per-

form in a similar way but the best performing one is

bagging, using support vector regressor as base es-

timator, due to being more general and providing a

lower error.

Finally, the applications for bus passengers and

bus ﬂeet operators are a proof of the utility provided

by this whole architecture. Future work will provide

real assessment of these applications.

ACKNOWLEDGEMENTS

This work was supported by the CMU-Portugal Pro-

gram through S2MovingCity: Sensing and Serving a

Moving City under Grant CMUPERI/TIC/0010/2014.

REFERENCES

As, M. and Mine, T. (2016). Empirical Study of Travel Time

Variability Using Bus Probe Data. In 2016 IEEE Inter-

national Conference on Agents (ICA), pages 146–149.

IEEE.

Mendes-Moreira, J., Jorge, A. M., De Sousa, J. F., and

Soares, C. (2012). Comparing state-of-the-art regres-

sion methods for long term travel time prediction. In-

telligent Data Analysis, 16(3):427–449.

Monzon, A. (2015). Smart Cities and Green ICT Systems

(SMARTGREENS), 2015 International Conference

on. Smart Cities and Green ICT Systems (SMART-

GREENS), 2015 International Conference on, pages

1–11.

Mori, U., Mendiburu, A.,

Alvarez, M., and Lozano, J. A.

(2015). A review of travel time estimation and fore-

casting for Advanced Traveller Information Systems.

Transportmetrica A: Transport Science, 11(2):119–

157.

T. Vincenty (1975). Direct and Inverse solutions of

geodesics on the ellipsoid with application of nested

equations. Survey Review, XXII(176).

Uno, N., Kurauchi, F., Tamura, H., and Iida, Y. (2009). Us-

ing Bus Probe Data for Analysis of Travel Time Vari-

ability. Journal of Intelligent Transportation Systems,

13(1):2–15.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

402
