IoT Privacy in 5G Networks

Emanuele Catania and Aurelio La Corte

Department of Electric, Electronic and Computer Science Engineering,

Università degli Studi di Catania,

viale A. Doria 6, 95121 Catania, Italy

Keywords: Internet of Things, Ultra-Dense Networks, Privacy, Security, 5G.

Abstract: In the Internet of Things (IoT), objects, equipped with sensing, processing, storage and decision-making

capabilities, actively interact with one another and with humans. Even if they have been conceived and

programmed to make all their activities in security, several factors, such as weak implementations of

communication protocols, metadata information exchange, and architectural flaws, could jeopardize security

and privacy. Moreover, due to its complexity and attitude to change rapidly, and to the ultra-densification

trend of the current communication infrastructure, new threats to the privacy might arise. After a brief

introduction to IoT privacy issues, we describe how the evolution of the current wireless communication

infrastructure toward the 5G generation network might undermine the privacy in the IoT. Then we propose a

methodology of analysis, which looks at privacy threats from different perspectives and at various levels of

abstraction.

1 INTRODUCTION

By definition, the Internet of Things is a composition

of physical entities capable of sensing, computing and

acting in response to the information they can acquire

and manage (Sfar, et al., 2017). Thanks to this

paradigm, “people and things can be connected

anytime, anyplace, with anything and anyone, ideally

using any path/network and any service” (Kende,

2014).

Mobility, scalability, interoperability and

resource constraints characterize the million

interconnected both wireless and wired devices of

which the IoT is composed (Porambage, et al., 2016).

Ubiquity is one of the key features that the

communication infrastructure underlying the IoT

should have. Undoubtedly, cellular networks, due to

their diffusion, enable IoT implementation, also

ensuring stable transmissions and acceptable delays.

However, such networks have not been conceived to

support machine-to-machine (M2M) communication

(which are characterized by intermittent behavior and

small-sized data packets). Furthermore, it has been

foreseen that in the near future almost all data traffic

supported by communication networks will be

produced by smart devices (CISCO, 2016). Using

only cellular network might not be sufficient to

satisfy the M2M requirements, since during

transmission, machine-type communications might

easily exceed their uplink capacity.

In order to foster performance improvements of

the current communication infrastructure, given also

the prominent IoT diffusion trend, cellular networks

will be cooperating with other wireless network

technologies (e.g. WLAN, relay-assisted and device-

to-device communications, wireless personal area

networks, LTE-U). Ultra-dense networks (UDNs),

namely hierarchical networks in which the density of

access nodes is at least a magnitude greater than the

density of users, will meet future communication

requirements, providing a very high connectivity and

data rate.

1.1 Motivation

Although the benefits that it may produce, the IoT

may cause severe security implications. Inability or

unwillingness of devices owner to update and fix

devices’ security flaws, limited capability of devices,

and the lack of, or incompatibility among

communication standards makes hard addressing the

security challenges in the IoT (Mannilthodi &

Kannimoola, 2017). Leakage of sensitive information

is one of the most serious threats to the privacy. The

Catania, E. and La Corte, A.

IoT Privacy in 5G Networks.

DOI: 10.5220/0006710501230131

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 123-131

ISBN: 978-989-758-296-7

123

most spread devices in the IoT cannot implement

strong security and cryptographic functions since

they are equipped with computationally and resource

limited micro-controllers (Malina, et al., 2016). For

this reason, a growing body of literature has evaluated

and proposed lightweight encryption algorithms and

privacy-by-design methodologies.

Since it is an evolving, heterogeneous, and wide

technological environment, it could be very hard

guaranteeing the privacy to the whole IoT. A method

for identifying privacy weaknesses fitting well to the

complex IoT it would be desirable. Furthermore, new

security challenges should be considered given the

paradigmatic revolution that will overwhelm current

communication networks soon.

1.2 Contribution

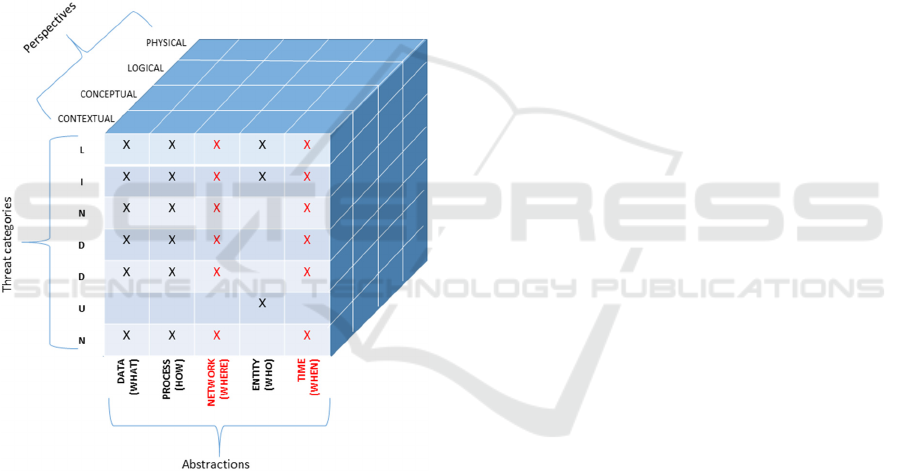

Figure 1: Privacy assessment and discovery methodology.

The present study has offered a framework for the

exploration of privacy issues for the IoT. It introduces

a methodology of analysis aiming at disclosing

privacy weaknesses that might affect the IoT eco-

system from different viewpoints. In particular, it is

inspired by the popular Zachman framework and the

LINDDUN framework. Among all the abstractions,

the “Network” and the “Time” (see Figure 1) enrich

the sets of observed information with respect to the

LINDDUN framework.

We show how the proposed privacy threat

analysis framework operates at different level of

abstraction, thus highlighting privacy weaknesses

from various perspectives. We describe an

application example of our methodology to the IoT,

starting from the most abstract level, namely the

“Contextual” perspective. As to avoid being long-

winded, we did not carry out a thorough analysis, thus

deepening also the “Physical” viewpoint, but we

stopped to the “Logical” is.

1.3 Paper Organization

Section 2 outlines the related works and describe the

effect on the IoT privacy of communication

infrastructure densification. Section 3 presents the

proposed privacy assessment methodology. An

example of application of the methodology on the IoT

in ultra-dense cellular networks is presented in

Section 4. Then, in the final section, the conclusion.

2 LITERATURE REVIEW

Wireless radio channels are widely used in M2M

communications. Because of their limited resources,

provide these devices with powerful, also

computationally expensive, security capabilities are

often infeasible. This makes M2M communications

extremely vulnerable. Furthermore, attacks against

information privacy become more effective as the

underlying communication infrastructure is an ultra-

dense network (Chen, et al., 2017). In this section, we

introduce some background on IoT privacy and

analyze the effect of the huge deployment of limited-

resource devices in UDNs.

2.1 Privacy in the IoT

Because of design tradeoffs in term of cost,

complexity, and energy required for fulfilling their

operation, many devices in the IoT are usually

resource-limited. To cope with unauthorized access,

data theft, and eavesdropping, devices should

be provided with authentication, authorization

mechanisms, and data preservation capabilities,

ensuring freshness, authenticity, confidentiality, and

integrity of information. Privacy (i.e. unlinkability,

data secrecy, and anonymity) has to be accurately

preserved since personal and sensitive information

could be stolen and abused by an adversary.

Encryption is fundamental to provide sensitive data

with a basic level of privacy. Indeed, it prevents that

transmitted data can be intercepted and read by

passive adversaries. Nevertheless, encrypting the

information might mean make use of computationally

expensive cryptographic primitives (e.g. pairing-

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

124

based cryptography), which could not be executed by

every IoT device. In order to identify suitable

cryptographic approaches to the IoT, Malina et al.

(Malina, et al., 2016) measured the performance of

the most used primitives (such as RSA, secure

hashing algorithms and AES) on some of the most

common micro-controllers (ARM, MSP430f X)

equipping IoT devices. They found that while

hashing and symmetric ciphering operations take few

milliseconds and can also run on very limited

microcontrollers, stronger approaches, such as RSA

asymmetric signing (by a 2048-bit private key), can

cause delays into hundreds of milliseconds, which are

intolerable in real-time IoT applications. Processing

of complex operations could be left to the cloud or to

communication gateways, resulting in the reduction

of both devices energy consumption and computation

delays (Shariatmadari, et al., 2015). However, this

method requires trustful gateways and secure

communication among parties. A viable technique to

protect entities (both devices and users) from being

traced is hiding their real identity by means of

pseudonyms. Anyway, as also suggested in (Bailey,

2012) and in (Shaik, et al., 2015), when attackers

eavesdrop data packet within a sufficiently wide time

window of observation, they might disclose real

victims’ identifier. As described later in this paper,

when connected to an LTE network, IoT devices can

decode messages broadcasted by the network to

locate a specific subscriber. Such messages contain

only temporary identifiers, but a passive adversary

could be able to exploit decoded information to

retrieve associations among temporary unique

identifiers. Furthermore, colluding IoT users

positioned in proximity of the occasionally visited

locations by the IoT target (i.e. the victim), even

though protected by a pseudonym, might reveal to the

attacker the target’s real identity and its private

activities (Zhou, et al., 2017).

Here we argue that although the utilization of

protection approaches in design and implementation

stages, privacy objectives in the IoT could not be

achieved because of its complexity. Then, a

comprehensive understanding of motivations behind

privacy weaknesses and resulting identification of

appropriate mitigation actions in response to them

requires an organic methodology capable of

analyzing the wide and diverse IoT from distinct

perspectives.

2.2 UDN and IoT Privacy

UDNs can effectively cope with the future networks

data requirements, also provide energy and spectrum

efficiency. Composed of heterogeneous nodes with

different radio access technologies (e.g. LTE, Wi-

Max, IEEE 802.15.x), transmit powers, and coverage

area, UDNs are characterized by a multi-tier

architecture. In detail, high-power nodes and low-

power nodes, with large and small radio coverage, are

placed respectively in macro-cell tiers and in small-

cell tiers. Cellular communication infrastructure, if

from one hand make it possible offer ubiquitous

connectivity to the most devices, from the other hand

is inefficient for transmitting small, infrequent data as

required by M2M communications. Moreover,

cellular network communications could make it

possible to track entities involved in information

exchange processes (Bailey, 2012), thus affecting

their location privacy.

Spatial distribution of low-power nodes might

influence the whole network security, as asserted in

(Chen, et al., 2017). Specifically the probability of

positive secrecy rate, that is the capacity deviation of

the operating channel from the eavesdropper channel,

increases as the density of low-power nodes growths

(until a critical point, after which is not observed any

enhancement in term if secrecy performance).

Moreover, the higher the density of entities involved

in communication processes, the higher is the risk of

information eavesdropping (Yang, et al., 2015).

Undeniably, while moving within a UDN, entities are

likely to be subject to more handover processes than

in the existing networks, making it possible for

untrusted subjects to take part in the just mentioned

processes. Albeit finding trusted security

organizations responsible for credential distribution

could solve the abovementioned problem (Swetina, et

al., 2014), undesired network delays due to a large

number of involved devices, in addition to high costs,

make their adoption infeasible in practice. In

consideration of this, physical layer security seems to

be best suited for the 5G network with respect to

cryptographic security. Indeed, the former approach,

in addition to having high scalability, does not require

complex operations to be fulfilled (differently than

the cryptographic). Even computationally powerful

adversaries, in fact, cannot compromise the network

security (Yang, et al., 2015).

Despite scientific community has raised many

concerns about UDN security and IoT security, no

one to the best of our knowledge has studied the effect

of network densification on the privacy of the IoT.

IoT Privacy in 5G Networks

125

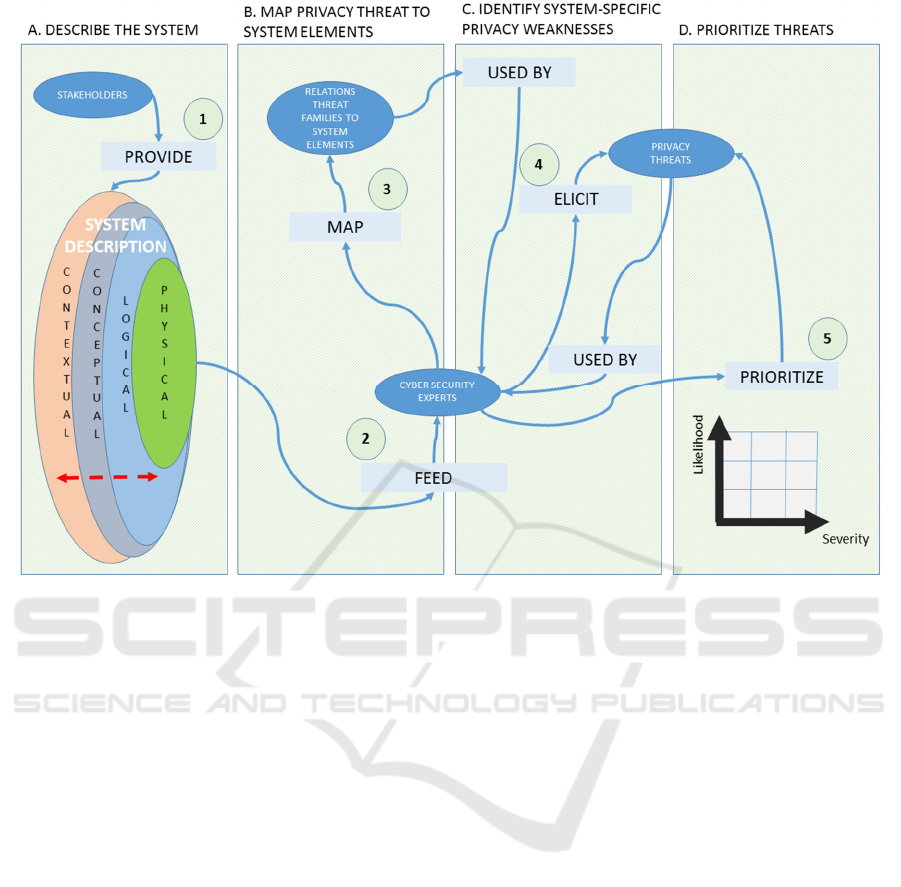

Figure 2: In this figure, we describe the proposed privacy threat modelling. We identified four main steps, namely “describe

the system”, “map privacy threats to system elements”, “identify system-specific weaknesses”, and “prioritize threats”.

Ellipses and rectangles represent respectively the entities involved and the actions they perform when interacting with each

other in the privacy threats identification process.

3 METHODOLOGY

To tackle the problem of privacy in IoT, we propose

an assessment methodology which combines the

popular Zachman framework (ZF) (Zachman, 1987)

with the LINDDUN framework (Wuyts, 2015). The

proposed approach aims at providing a tool for

acquiring awareness about, and then react to, privacy

weaknesses that might affect the system from both

microscopic and macroscopic perspectives.

LINDDUN is mainly a methodological approach,

which uses data flow diagrams to list entities,

processes, data flows, and data stores. Then, by mean

of further successive steps, it maps, elicits and

prioritizes threats, guiding towards the identification

of mitigation strategies and privacy enhancing

technologies. The ZF allows logically organizing and

classifying artifacts involved in the design and

development of information systems. Different

perspectives match with different aspects of the

system, allowing decomposing the verification of

privacy properties in small, though sometimes

interdependent, modules. Privacy assessment on IoT

applications is a large complex task that requires a

systematic verification approach on both software

and hardware. We remark that the LINDUNN

framework is not aimed at the IoT domain. In addition

to entities, data (flows) and data processes,

knowledge on physical location in which event

happens (e.g. authentications, data exchange)

together with time information, might help to better

understand motivations behind privacy issues and

identify more suited privacy enhancing solutions.

Here we give some explanation about the

“Perspective” dimensions of our proposal.

− Contextual (i.e., what the system should

do): refers to the description of

information, processes, locations,

involved entities, events, and

motivations. It gives an overall, also

non-detailed, view of purposes, extents,

and relationships among elements of the

IoT eco-system or its subsystems.

− Conceptual (i.e., how the system should

operate): less abstract and more

descriptive with respect to the former

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

126

perspective, gives an overview of

models, semantic relationships, and

processes

− Logical: indicates processing structure,

how applications are architected, rules

and information models.

− Physical: the most concrete as compared

to the aforementioned perspectives, aims

at analyzing the IoT from technical

points of view (technology constrained

models) providing information on

physical quantities and parameters.

Each perspective aims at identifying privacy

threats by analyzing the system from different

viewpoints and may be ground for investigations into

the threats causes. Disclosed threats on one

perspective, can be reported and investigated from

other perspectives. This implies that also threats can

be described according to more viewpoints.

Moreover, information, processes, locations, entities,

and event (see Table 1) can be related to each other.

Table 1: In this table contextual and conceptual information are retrieved using a taxonomy on the IoT (Yaqoob, et al., 2017)

and a smartphone data taxonomy (Mylonas, et al., 2012).

# Data Processes Network/Location Entities Time/Events

Contextual

(What)

 Measured and

elaborated data

 Communication

and acquisition

of information

 Requiring for

and feeding a

service

 Buildings

 Public areas

 Private areas

 Wired network

 Wireless

networks

 Things

 Synchronous

and

asynchronous

events

Conceptual

(How)

 Messages

(content,

metadata)

 Connection

(re)configuration

 Electronic

addresses (of

entities)

 Services

 Searching

(entities,

services, etc.)

 Notification

 Decentralized

data processing,

auditing and

information

sharing

 Realtime

messaging

 Connection

management and

control

 Wireless

communication

systems and

infrastructures

(e.g., LTE –

LTE/A –

LTE/U, IEEE

802.11 x, IEEE

802.15 x,

WiMax, ZigBee,

etc.)

 Ethernet (real-

time Ethernet,

EtherCAT),

PLC, MoCA

 Smartphones

 Vehicles

 Laptops

 Sensors

 Access Points

 Users

 Smart home

systems

 Smart healthcare

systems

 Intelligent

building systems

 Smart meters

 Etc.

 Decentralized

communication

 Event

notification



Real-time-

analysis

 Peer-to-peer

communication

 Decentralized

auditing

 Decentralized

file sharing

Logical

(LTE only)

 GUTI

 MSISDN

 RRC Message

Body

 RRC keys

 Resource

configuration

 Report

(measurement

and link failure)

 S-TMSI

 IMSI

 RRC connection

establishment

 RRC connection

release

 Broadcast of

system

information

 RRC connection

reestablishment

(NB-IoT only)

 Radio link

establishment

 RRC key sharing

 Paging

 TA

 eNB Location

 Device Location

 MME

 HHS

 eNB

 Relay

 Device’s LTE

network

Interface

 Mobility

Management

Entity

 Home Subscriber

Server

 Paging

Triggering

 Initial security

activation



Establishment of

signal radio

bearer

 Establishment of

data radio bearer

 Handover

 Configuration of

lower protocol

layers

IoT Privacy in 5G Networks

127

For example, connection (re)configuration

information may be related to the connection

management and control processes. Privacy threats

can be grouped into seven families, that is linkability,

identifiability, non-repudiation, detectability,

distinguishability, unawareness (of information

content), and non-compliance to policy.

For the sake of completeness, we report the

definition of threat categories, as indicated in (Wuyts,

2015). Linkability occurs when two entities can be

related to each other. Identifiability refers to a

capability of an adversary to infer the identity of an

entity. Non-repudiation stands for the inability of a

subject to demonstrate that he/she could not carry out

a specific action. Detectability implies that it possible

detect whether an entity exists or not. Disclosure of

information happens when protected individuals

information can be accessed by unauthorized entities.

Unawareness is related to unconsciousness about

supplied information to the system. To conclude, non-

compliance refers to the inability of the system to be

compliant with regulations, policies, and agreements

with users.

4 PRIVACY THREAT ANALYSIS

Most of the IoT applications require both data and

communications security, in addition to ubiquitous

connectivity. In order to be compliant with the

proposed methodology, abstractions (see Figure 1)

should be listed and analyzed from every perspective.

As to provide an example of a use of the proposed

method, in this paper privacy analyses covered only

three of the four perspectives (omitting the Physical

one).

4.1 Contextual and Conceptual

Perspectives

Contextual perspective allows observing and tackling

the privacy problem from a very non-concrete point

of view. A high-level architectural representation of

systems, in addition of delimiting the boundaries of

analysis, might allow identifying the critical elements

involved in communication processes. In Figure 3, we

provide an example of system representation from

this perspective. Vehicles, smartphones, laptops,

smart homes and their appliances, access points, and

users are some example of interconnected entities

within the network. Access points to communication

networks may be deployed in public or in private

areas. Privacy specifications might depend on

application fields and on protection objectives.

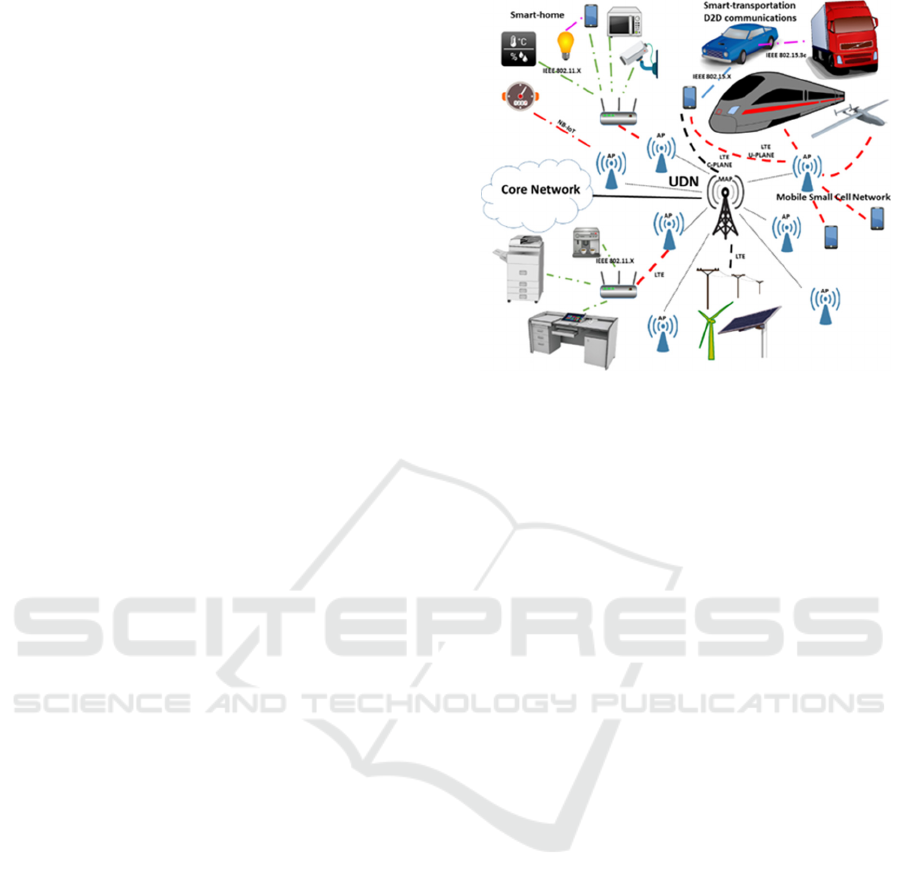

Figure 3: Communication technologies in the IoT.

For example, in smart home systems, privacy

objectives could be concealing presence or absence of

persons, consumption habits, and appliances installed

inside houses. In pay-as-you-drive insurance, black-

box car insurance, and car-sharing services, because

of routes and driver’s guide style monitoring, users

could be exposed to linkability, identifiabiliy and

disclosure of information threats (to give just some

examples). For the listed cases, avoiding fine-grained

information communication (also via secure media)

might reduce the risk of private information

disclosure. When a device communicate sensed data

to a remote service (see Table 1), linkability,

identifiability, detectability, and disclosure of

information threats might violate the system. Issues

might derive from devices settings and from

identifiability of remote services to which they

connect. Problems might become more serious when

the aforementioned settings and service are set by the

manufacturers and cannot be altered by end users. As

an instance, it could be possible, through traffic

analysis, identifying installed smart appliances within

a home. Hence, adversaries, by exploiting known

vulnerabilities of them, could steal or infer private

users’ information.

The just discussed problems may be reported to

the more specific conceptual perspective. Both wired

and wireless communications can be considered,

though we only deepen the latter because more

exposed to eavesdropping. The communication

infrastructure taken into consideration is multi-tier,

ultra-dense and heterogeneous. Several wireless

communication technologies and protocols can be

analyzed, such as IEEE 802.11x, IEEE 802.15.x,

WiMax, ZigBee, and LTE/LTE-A/LTE-U.

Attackers, to launch an attack against users’ privacy,

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

128

Table 2: In this table, we report the definitions of some entities, protocols, and procedures involved during the UE-to-Core

network communications (LTE).

# Symbol Description

Paging

Refers to the process in which the mobility management entity (MME) needs to locate an UE in a

particular area and to deliver network services, such as incoming calls.

Radio Resource

Control

(RRC)

Includes a set of functions to manage connectivity between UE and eNB, that is broadcasted

information (sent by eNBs over a broadcast channel) and UE measurement reports or radio link

failure (RLF) sent by UEs

Access Stratum (AS)

Is a functional layer within LTE protocol stack, responsible for radio resource management and

data transportation over the wireless channel

Access Stratum

Security Context

The purpose of AS security context is to delive

RRC messages between an UE and an access

point (eNB) through the control plane, and IP packets through the user plane using AS security

keys.

Radio Link Failure

report

(RLF)

It allow detecting connection failures caused by intra-LTE mobility and intersyste

handovers

between LTE, GSM, and 3G networks.

Measurement report

It includes throughput measurements, latency, reference signal received power (RSRP), received

signal strength indicator (RSSI), as well as information about dropped calls and, sometimes,

latitude and longitude.

could exploit weaknesses and known vulnerabilities

in wireless technologies and in devices’ interfaces to

wireless networks. For instance, in LTE networks the

subscribers' unique identifier is masked by using

pseudonyms. Since during paging processes (as

described in the next section) such information can be

broadcasted in clear text, adversaries can link

subscriber identity to a specific geographical area. In

order to protect them from being identified, such

associations should neither be publicly available nor

it should be possible infer any correlation among

them. Even if generally useful for protecting security

and privacy of information, as the cellular network

evolves toward the ultra-dense paradigm, current

cryptographic approaches (as described before, in

Section 2.2) might not be still suitable to satisfy

protection requirements or could not be implemented

due to devices’ limited characteristics. Cryptographic

operations should be lightened, leading, however, to

a reduction of effectiveness protection. Indeed,

simplifying current cryptographic techniques might

allow even non-powerful adversaries to succeed in

breaking cryptography.

4.2 Logical Perspective

The Logical is further specialized and require more

effort to be analyzed with respect to the previous

viewpoints. For this reason, in this paper, only LTE

communications are considered. Exploiting LTE

network as a part of the IoT communication

infrastructure, besides of producing economic

benefits and providing pervasive connectivity, also

offers security of communications since it integrates

various authentication and encryption algorithms

(e.g., EPS AKA, SNOW 3G, MILENAGE). As

asserted in (Shariatmadari, et al., 2015), some

security arrangements to the IoT might include

embedding a SIM card into devices. Anyway, but

despite this, devices’ security and privacy might be at

risk. Indeed this means sending signal measurements

to a central unit (i.e. a server), thus making them

radio-frequency finger-printable. In this section, we

provide some background about LTE

communications. Let us briefly introduce the concept

of access stratum (AS) security. The AS security keys

are generated every time a new radio link is

established (that is when a mobile device moves from

IDLE state to CONNECTED state). When the AS

security setup is completed, the mobile device (UE)

and the eNodeB (eNB) share an RRC integrity key,

an RRC encryption key, and a user plane encryption

key. In order to locate an UE and serve him/her with

network services, the network can trigger Paging

Messages (see Table 2 for further details). The

Mobility Management Entity (MME) generates a

paging message and forwards it to several eNBs

within a tracking area (TA). Thus, all eNBs within

the paged TA broadcast a radio resource control

(RRC) paging message to locate the UE (3GPP,

2016). Paging messages contain identities of UEs

such as serving temporary mobile subscriber

identities (S-TMSI(s)). S-TMSI is a temporary

identifier and it is part of a global unique temporary

identifier (GUTI). When it is in the IDLE state, the

UE decodes RRC paging messages and searches for

its IMSI in it. If its IMSI matches, it initiates a new

Attach procedure to receive a GUTI. RRC messages

IoT Privacy in 5G Networks

129

also indicate UEs which information it should be

returned in response (either Measurement report or

RLF report). Narrowband IoT (NB-IoT) functionality

is specified in the LTE technical specifications

(3GPP, 2016). In (Ratasuk, et al., 2016) authors

describe two optimizations introduced for small data

transmission, namely the RRC connection

suspend/resume procedure and data transmission

using control plane signaling. As reported by NB-IoT

specifications (3GPP, 2017) M2M communications

are not provided with measurements reporting and

handover management. Until serving eNB does not

release the connection or a link failure happens, UEs

stay in the connected mode. When the connection is

interrupted, they go to the idle state and then trigger

RRC connection reestablishment procedure. Paging

processes, if triggered when users are in IDLE state,

could allow relating IMSIs and GUTIs to TAs (Kune,

et al., 2012) (3GPP, 2017). In fact, in its first phase,

RRC paging lacks encryption protection (Shaik, et al.,

2015). Moreover, correlations among TAs and eNBs

can be disclosed.

In summary, our work has presented a

methodology of analysis for identifying privacy

threats in the IoT with a view to 5G networks

implementation. The paradigm shift of wireless

networks toward the 5G evolution will result in

employment of ultra-dense networks as to provide,

among all benefits, high data rate and low

communication latencies. Anyway, this network

transformation may seriously undermine, to some

extent, the privacy of devices and users. The proposed

methodology extends and the LINDDUN

frameworks by introducing temporal and location

information to the threats identification process.

Moreover, taking a cue from the popular Zachman

framework, it also addresses the privacy weaknesses

identification by investigating the entangled IoT from

four different points of view, namely contextual,

conceptual, logical, and physical.

The current paper lacks a comparative evaluation

and validation. Anyway, we planned to provide these

enhancements in the future.

5 CONCLUSION

We have presented a privacy assessment

methodology, which aims at discovering privacy

threats in the IoT through a systematic approach. Our

technique extends the LINDUNN framework by

introducing temporal and location information to the

threats identification processes. Moreover, it draws

on from the Zachman framework, thus observing

privacy issues from various viewpoints.

An application example of our methodology has

been discussed. However, in order to be brief, it has

not been conducted a thorough investigation. We

foresee to provide supplementary information in

future works. Further studies, which consider

different IoT architectures, will need to be

undertaken. Although our approach has been thought

to a specific case of the IoT, hopefully, it could be

also applied to other technological systems in which

privacy is critical. The prospect of being able to do

deliver secure and privacy-preserving services in

many contexts, serves as a continuous stimulus for

future research.

REFERENCES

3GPP, 2016. Evolved Universal Terrestrial Radio Access

(E-UTRA) and Evolved Universal Terrestrial Radio

Access Network (E-UTRAN); Overall description.

Issue TS 36.300.

3GPP, 2017. Evolved Universal Terrestrial Radio Access

(E-UTRA); Radio Resource Control (RRC); Protocol

specification. s.l.:s.n.

Bailey, D. A., 2012. Moving 2 mishap: M2M’s impact on

privacy and safety. IEEE Security Privacy, 10(1), pp.

84-87.

Chen, S. et al., 2017. Machine-to-Machine Communica-

tions in Ultra-Dense Networks-A Survey. IEEE

Communications Surveys & Tutorials.

CISCO, 2016. Cisco Visual Networking Index: Global

Mobile Data Traffic Forecast Update, 2015--2020

White Paper. Cisco Public Information.

Kende, M., 2014. Internet society global internet report

2014. Internet Society, 15 July.

Kune, D. F., Koelndorfer, J., Hopper, N. & Kim, Y., 2012.

Location leaks on the GSM Air Interface. s.l., s.n.

Malina, L., Hajny, J., Fujdiak, R. & Hosek, J., 2016. On

perspective of security and privacy-preserving

solutions in the internet of things. Computer Networks,

Volume 102, pp. 83 - 95.

Mannilthodi, N. & Kannimoola, J. M., 2017. Secure IoT:

An Improbable Reality. s.l., SciTePress, pp. 338-343.

Mylonas, A. et al., 2012. Smartphone forensics: A proactive

investigation scheme for evidence acquisition. s.l.,

Springer.

Porambage, P. et al., 2016. The Quest for Privacy in the

Internet of Things. IEEE Cloud Computing, 3(2), pp.

36-45.

Ratasuk, R. et al., 2016. Overview of narrowband IoT in

LTE Rel-13. 2016 IEEE Conference on Standards for

Communications and Networking (CSCN), pp. 1-7.

Sfar, A. R., Natalizio, E., Challal, Y. & Chtourou, Z., 2017.

A Roadmap for Security Challenges in Internet of

Things. Digital Communications and Networks.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

130

Shaik, A. a. B. R., Asokan, N., Niemi, V. & Seifert, J.-P.,

2015. Practical attacks against privacy and availability

in 4G/LTE mobile communication systems. arXiv

preprint arXiv:1510.07563.

Shariatmadari, H. et al., 2015. Machine-type

communications: current status and future perspectives

toward 5G systems. IEEE Communications Magazine,

53(9), pp. 10-17.

Swetina, J. et al., 2014. Toward a standardized common

M2M service layer platform: Introduction to oneM2M.

IEEE Wireless Communications, 21(3), pp. 20-26.

Wuyts, K., 2015. Privacy Threats in Software

Architectures. s.l.:Ph.D. dissertation, KU Leuven.

Yang, N. et al., 2015. Safeguarding 5G wireless

communication networks using physical layer security.

IEEE Communications Magazine, 53(4), pp. 20-27.

Yaqoob, I. et al., 2017. Internet of Things Architecture:

Recent Advances, Taxonomy, Requirements, and Open

Challenges. IEEE Wireless Communications, 24(3), pp.

10-16.

Zachman, J. A., 1987. A framework for information

systems architecture. IBM systems journal, 26(3), pp.

276--292.

Zhou, J., Cao, Z., Dong, X. & Vasilakos, A. V., 2017.

Security and Privacy for Cloud-Based IoT: Challenges.

IEEE Communications Magazine, 55(1), pp. 26-33.

IoT Privacy in 5G Networks

131
