Deep Light Source Estimation for Mixed Reality

Bruno Augusto Dorta Marques

, Rafael Rego Drumond

, Cristina Nader Vasconcelos

and Esteban Clua

Universidade Federal Fluminense, Instituto de Computac¸

ao, Niter

oi, Brazil

Universit

at Hildesheim, Institut f

ur Informatik, Hildesheim, Germany

Keywords:

Mixed Reality, Deep Learning, Light Source Estimation.

Abstract:

Mixed reality is the union of virtual and real elements in a single scene. In this composition, of real and virtual

elements, perceptual discrepancies in the illumination of objects may occur. We call these discrepancies the

illumination mismatch problem. Recovering the lighting information from a real scene is a difﬁcult task.

Usually, such task requires prior knowledge of the scene, such as the scene geometry and special measuring

equipment. We present a deep learning based technique that estimates point light source position from a single

color image. The estimated light source position is used to create a composite image containing both the

real and virtual environments. The proposed technique allows the ﬁnal composite image to have consistent

illumination between the real and virtual worlds, effectively reducing the effects of the illumination mismatch

in Mixed Reality applications.

1 INTRODUCTION

Recent advances on virtual reality platforms are al-

lowing new paradigms of interaction to emerge. In

particular, Head Mounted Displays (HMDs) have

been developed by the industry to interface with video

games and interactive simulations. The HMDs are

responsible for increasing visual immersion and pro-

vide better user experience in the simulated environ-

ment.

However, the interaction between a user and sim-

ulated environment still relies on controllers or other

unnatural hand devices such as the PlayStation Move,

HTC Vive Controller, and Oculus Touch. These de-

vices can break the user’s immersion by not allow-

ing a natural movement of the user’s hands, e.g. the

user is constrained to a limited range of movements

and gestures due to the necessity of holding the con-

troller in hand. To overcome this challenge less in-

trusive alternatives have been offered. These alterna-

tive devices seek to register the user’s movements by

a combination of sensors, such as accelerometers and

gyroscopes, or by tracking devices such as RGB-D

cameras that are able to detect body or hands move-

ments (Kinect, Leap Motion) (Marin et al., 2014; Han

et al., 2013; Zhang, 2012). However, the user is still

represented in the virtual environment as an avatar,

usually portrayed by a character that does not resem-

ble the real user appearance. Furthermore, the user

movements are usually exchanged for pre-made an-

imation sequences that signiﬁcantly differ from the

user’s movement. These problems can severely break

the user immersion and impact the user experience in

Augmented and Virtual Reality.

An alternative to the usage of avatars is to in-

sert real footages of the user in the simulated envi-

ronment. This approach solves the appearance and

movement problem but introduces a new challenge,

the lighting condition between the simulated envi-

ronment and the user’s real world conditions should

match. When the lighting conditions differ, the result-

ing montage would introduce visual artifacts where

the real footage is located and it becomes obvious to

the user that his or her footages were inserted in an

artiﬁcially created environment, we call this the illu-

mination mismatch problem.

In this paper, we present a novel method to over-

come the illumination mismatch problem. The Deep

Illumination Estimation for Pervasive Systems is a

method to estimate the illumination of the user’s en-

vironment from a set of possible lighting conﬁgura-

tions. Our method provides, for the virtual environ-

ment, high-level information of the lighting condi-

tions in the user environment. This information can be

used by the interactive simulation to adapt the light-

ing conditions in the virtual environment. Our method

has the advantage of using only a single camera at-

tached, or built, in the HMD device.

Marques, B., Drumond, R., Vasconcelos, C. and Clua, E.

Deep Light Source Estimation for Mixed Reality.

DOI: 10.5220/0006724303030311

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 1: GRAPP, pages

303-311

ISBN: 978-989-758-287-5

303

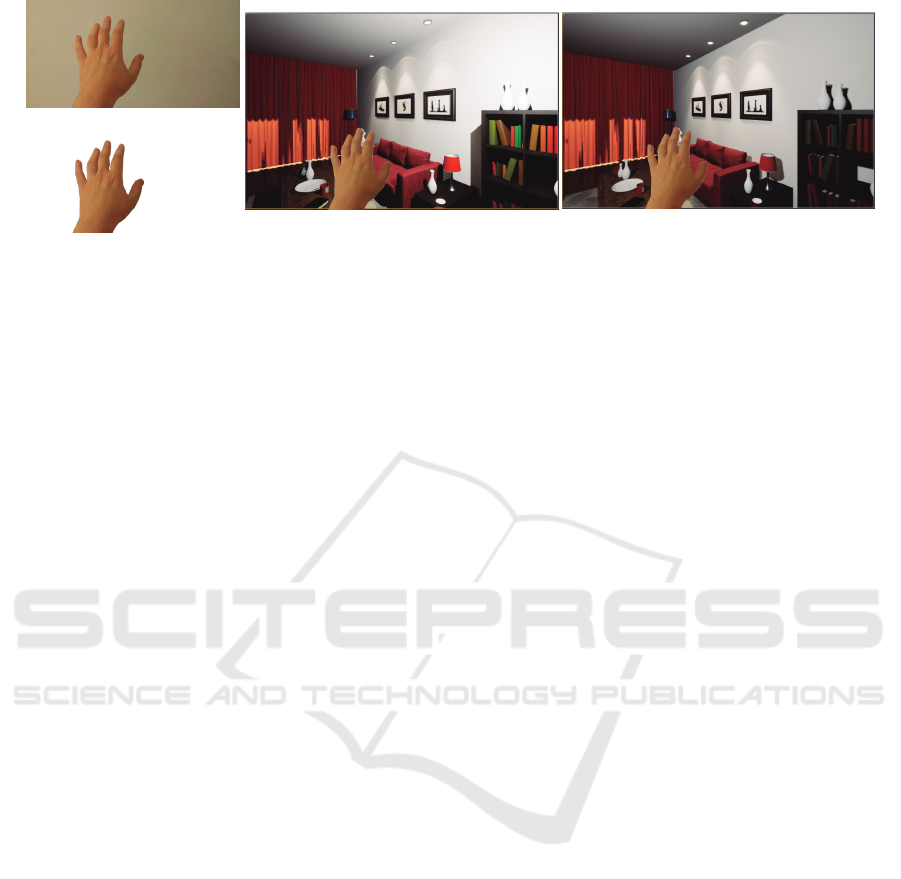

Figure 1: Top left: Input RGB image capturing real world illumination conditions. Bottom left: segmented hand image.

Middle: overlay montage (real hand in a virtual scene). Right: resulting montage with adjusted light.

The hypothesis investigated in this work is

whether the dominant light source position of a scene

can be recovered from images of hands from the ﬁrst-

person point of view.

To archive this goal, we train a Convolution Neu-

ral Network (CNN) to classify the input RGB image

to the corresponding lighting condition.

CNNs are used successfully for a wide range of

problems involving classiﬁcation, detection and seg-

mentation of images. Recent CNN applications to

solve such problems use images of different natures,

including medical (Esteva et al., 2017; Kamnitsas

et al., 2017), natural (He et al., 2016; Xie et al., 2016),

synthetic images (Liu et al., 2016; Rajpura et al.,

2017). It is not known to the authors any work that

makes use of CNN for the recognition of illumination

in an indoor scene.

To this task, we need a large data-set with anno-

tated images for different scene illuminations. Since

there is no such data-set available and acquire such

dataset requires signiﬁcant time effort, we created a

synthetic data-set. We performed experiments to test

if the CNN is capable of learning the lighting condi-

tion of acquired real images based on our synthetic

data-set.

In Virtual Reality and Augmented Reality, the en-

vironment is seen from the users perspective. This

ﬁrst-person point of view implies that the most visi-

ble parts of the user’s body are his or her hands. Thus,

we focus on the hands of the user to retrieve the light-

ing information of the environment. We also consider

that most of VR applications are used in an indoor

environment, thus our method must work under this

conditions.

The main contribution of this paper is the light

source position estimation for the mixed reality that

is capable of estimating illumination properties from

a single RGB camera located in the HMD device. The

method does not require any special hardware and

can be implemented in any commercial HMD device.

Furthermore, The system is used to generate a com-

position containing the user’s hands and the virtual

environment under the correct illumination.

This article is organized as follows: In Section 2

we describe the work related to the task of lighting

recognition in real environments. In section 3 we give

general aspects of the method and the application in

augmented reality. The Sections 4 and 5 we detail

the dataset construction and network architecture, re-

spectively. In section 6 we detail the experiments and

results found. The ﬁnal conclusions of the paper are

found in Section 7.

2 RELATED WORKS

Illumination estimation is important for different

tasks, including image editing and scene reconstruc-

tion. Many aspects of lighting can be recovered in-

cluding the visible spectrum of light, illuminating in-

tensity, and position of light sources.

Different techniques for illumination estimation

have been proposed based on probes and other in-

trusive objects (Calian et al., 2013), (Knecht et al.,

2012), (Debevec et al., 2012), (Debevec, 2005) that

must be inserted in the scene.

Calian et al. (Calian et al., 2013) created a 3D

printed shading probe device that directly captures the

shading of a scene. Positioning the device in the real

scene, it was possible to achieve high-performance

shading of virtual objects in the AR context.

Knecht et al. (Knecht et al., 2012) presented

a rendering method for mixed reality systems that

combines Instant Radiosity and Differential render-

ing. The environment light sources are approximated

from the image of a ﬁsheye lens camera that captures

the surrounding illumination. Their method also re-

quires the real scene geometry reconstruction, that is

accomplished with the use of an RGB-D camera. Fur-

thermore, a tracking device is required to estimate the

pose of the camera.

Other methods require special equipment and

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

304

time-consuming processes, such as a ﬁsheye lens and

HDR camera setup to generate an environment map

of the real environment (Pessoa et al., 2012).

These invasive methods hinder user immersion

and can not be applied in all augmented reality sce-

narios. Our work does not rely on any intrusive device

or previous setup step.

Similar to the purpose of our work, Boom et al.

(Boom et al., 2015) proposed a method to estimate

the light source position with an RGB-D camera. The

method estimates a single light source position based

on the geometry of the scene. They calculate the nor-

mals of the scene and perform a segmentation that

ﬁnds regions with similar albedo in the original RGB

image. They search for the light position that gives

the best-reconstructed image by minimizing the dis-

tance between the reconstructed and real scene image.

(Jiddi et al., 2016) addressed the problem for multiple

point light sources based on the specular reﬂections in

the scene. They also considered as input an RGB-D

data provided by a sensor.

In the context of Mixed Reality Applications,

(Mandl et al., 2017) estimates the illumination of the

real ambient using physical objects on the scene as

light probes. It is necessary to acquire the geometry of

the light probe objects beforehand. The lighting is es-

timated by a 5 layers Convolutional Neural Network.

They train multiple CNN’s for each camera pose, re-

sulting in plenty of trained CNN’s. They use two dif-

ferent strategies, based on the camera pose, to select

which CNN to be used in real time, interpolation and

nearest neighbors selection. The CNN output a fourth

order Spherical Harmonic constants that are used to

create a Radiance Map of the scene. This radiance

map is used to illuminate the virtual objects.

In our work, we train a single CNN to estimate

lighting, this leads to advantages over (Mandl et al.,

2017) work. Our CNN trains faster and we do not

have to select which CNN to be used at run-time. The

multiple CNN’s in (Mandl et al., 2017) learns illumi-

nation using a single object as a light probe. For every

new light probe, multiple CNN’s must be trained. We

have a single CNN that need to be trained only once

and work in any application where the user’s hands

are visible.

Several methods have been developed for the

illumination estimation of outdoor scenes (Hold-

Geoffroy et al., 2016), (Lalonde et al., 2012),

(Lalonde et al., 2010). These methods seek to esti-

mate the parameters of a sky lighting model ( Ho

sek-

Wilkie (Hosek and Wilkie, 2012) model) that ﬁts the

environment illumination. Most of the methods infer

parameters from shadow and shading cues, with the

exception of the method described by (Hold-Geoffroy

et al., 2016), that made use of a CNN to infer these

parameters. Since these methods are focused on an

outdoor lighting model it is not viable for indoor en-

vironments. The most common environment for play-

ing games and virtual simulations are indoor environ-

ments. Thus, our work is focused on this kind of en-

vironment.

3 OVERVIEW

In the usual AR and VR setups, users are moving

through the environment wearing an HMD device and

interacting with their hands. Most of the time the

user’s hands and forearms are visible in the image

captured by the built-in camera of the HMD device.

In our scenario, we aim to produce a montage where

those images containing the hands are inserted into

the virtual environment. Our method is independent

of the observed portion and may contain all or part of

the user’s hand, as well as the user’s forearm.

Figure 2 shows the typical pipeline of our method.

The system receives an image of the real environment,

containing all or part of the user’s hands. Since the

CNN has been trained to classify an image containing

only the user’s hands, it is necessary to segment the

image, isolating the user’s hands in the image. This

segmentation process is the second step of our algo-

rithm, as seen in Figure 2. The segmented image is

then supplied to a CNN, where classiﬁcation occurs

in one of the classes of illumination. This informa-

tion is then provided to the Game Engine. The Game

Engine adjusts lighting by changing the position of

the main light source in the virtual environment.

The main light source of a scene can vary, it is

determined by the scene designer of the simulation.

The main light source for an indoor room can be rep-

resented by a single point light source. On the other

hand. the main light source for an outdoor room can

be accounted by a directional light representing the

sun.

The last step is to create a montage using the seg-

mented image and rendered virtual environment with

the adjusted lighting setting. The montage can be cre-

ated by overlapping the user’s hands image with the

virtual environment image. The HMD’s camera is lo-

cated approximately in the same position as the vir-

tual camera on the simulated environment thus the

user’s hands share the same screen position. This

pipeline must be run for each frame of the capturing

camera.

Figure 3 represent the usual VR / AR setup, the

objects that are, most of the time, in the camera’s vis-

ible area are the user’s hands and forearm. For the

Deep Light Source Estimation for Mixed Reality

305

Game Engine

Hands

segmentation

Image of the real

environment

CNN classification

Virtual environment

lighting adjustment

Hands montage

Segmented image

Illumination class

Input image

Camera feed

Figure 2: Lighting Estimation System Overview: typical usage: The input of the system is an RGB image containing one or

two hands. The image is segmented to extract only the skin portion of the image (User’s hands and forearms). A CNN esti-

mates the 3D position of the main light source. The position is available to the Game Engine to adjust the virtual environment

illumination.

indoor environment, a point light is used to indicate

the main light source.

Light Source

Visible Area

Figure 3: Usual VR and AR Setup. We consider the visible

area as a view frustum with a horizontal ﬁeld of view of 110

degrees and vertical ﬁeld of view of 100 degrees.

With the goal of representing the mostly common

environment for running mixed reality games and ap-

plications, we train a CNN to predict illumination

conditions from a single indoor image containing a

human hand. We use low dynamic range image ob-

tained from a camera positioned in the HMD device.

The camera captures the user hands illuminated by

the real scene. We suppose that the scene appearance

can be estimated from this image. The image is seg-

mented to remove the background image and feed to

a CNN that output a description of the lighting con-

dition of the scene. This information can be used

by the simulated environment to adapt the scene to

the lighting condition and create a realistic montage

of the simulated scene containing the virtual environ-

ment and the real user hands.

The description of the scene illumination contains

a position of the dominant point light source. This

3D position is located on the surface of a sphere that

was used in the creation of the database. To validate

our approach, we overlay the segmented hand image

in the virtual environment render where the dominant

light source is indicated by the scene illumination de-

scription. A typical usage for the Lighting Estimation

System is shown in the Figure 2, the process should

be executed in real time, for every frame.

4 DATASET

To train the CNN it is necessary to use a dataset com-

posed of images containing arms from a ﬁrst-person

viewpoint labeled with lighting conditions. Unfortu-

nately, it is not known to the authors of this article that

such dataset exists.

In order to have a labeled dataset, we constructed

a synthetic dataset tailored for the light-estimation

problem on Mixed Reality. The data-set consists of

images containing human hands illuminated by dif-

ferent light sources. We rendered a pair of 3D mod-

eled hands inserted in a black background. The hands

consist of animated skeletal meshes performing one

of the seven animations: Grab, Idle, Jump, Punch,

Push, Sprint, Throw. There is a total of six hand mod-

els that were based on two different meshes (taking

account female and male geometry) and six materials

(used to simulate different skin colors).

The scene setup is illustrated in Figure 4. The

hand is positioned in front of the camera with an off-

set distance of 50 cm. A single point light is used to

simulate the light source. We initially positioned the

light source in front of the camera with a distance of

200 cm. The 3D hands and the camera stay stationary.

The point light source is movable.

To generate distinct lighting conditions, we need

to change the position of the point light source. Since

we are aiming to generate discretized lighting condi-

tions representing the actual conditions of lighting in

the user’s environment, we sample evenly distributed

points on the surface of a unit sphere. To accomplish

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

306

Figure 4: Scene Setup.

Algorithm 1: Lattice distribution algorithm.

1: procedure DISTRIBUTION(n)  n is the number

of samples

2: o f f set ← 2.0/n

3: increment ← (3.0 −

√

5.0) ∗π

4: for i = 0 →n do

5: pointList.create()  Create an empty list

6: y ← ((i ∗o f f set) −1.0) + (o f f set/2.0)

7: r ←

1 −y

8: phi ← ((i + 1) mod n) ∗increment

9: x = cos(phi) ∗r

10: z = sin(phi) ∗r

11: pointList.add(x,y, z)

12: end for

13: return pointList

14: end procedure

this goal, we choose the Fibonacci lattice distribution

(Gonz

alez, 2010), (Marques et al., 2013) to generate n

approximately evenly distributed points in a spherical

region. These points represent the position of a valid

point light of our dataset.

We also included a scenario with no direct inci-

dent light, where only an ambient light was used in

the renderer. We used a screen-space subsurface scat-

tering shader (Jimenez and Gutierrez, 2010) to realis-

tically simulate the skin material.

All the images were processed by applying a mo-

tion blur to simulate the frames captured by the live

camera in the real scene, the direction and amount of

blurring are calculated according to the movement of

the arms.

We also checked if at least one hand is visible in

the ﬁnal image; if no hand is visible, then we discard

that image from the dataset. Later, we applied a cen-

tered crop in the images of the data-set for the purpose

of keeping the aspect ratio of the images in the CNN

training process. The resulting images are 512 pixels

wide and 256 pixels tall. Example images can be seen

in Figure 6.

Figure 5: Light Distribution. The light sources are evenly

distributed on the surface of a sphere.

Figure 6: Example images in the synthetic hand’s illumi-

nation data-set. An image in this data-set contains a ﬁrst-

person view hands illuminated by a speciﬁc lighting setting.

We have created four variations of the dataset. The

difference between them is the number of lighting set-

tings: 5, 25, 50 and 100 light source position settings.

The possible positions of the light source are uni-

formly distributed over the surface of the sphere us-

ing the Fibonacci Lattice distribution. The Fibonacci

Lattice algorithm to generate n points is listed in Al-

gorithm 1.

The synthetic hand’s dataset, network model, and

trained weights are publicly available at [Omitted due

to blind review].

5 RESIDUAL NETWORK

Our method relies on image classiﬁcation of lighting

conditions by the observation of human hands. Deep

Convolution Neural Networks represent the state of

Deep Light Source Estimation for Mixed Reality

307

the art methodology in several tasks related to visual

content analysis, and the topology known as Resid-

ual Convolution Neural Network (ResNet) is the lead-

ing method among the existent CNNs in several chal-

lenges. Thus, our methodology is constructed by

training a ResNet.

Residual networks are constructed based on the

deep residual learning framework. Its network is con-

structed by replicating a basic building block (shown

in Figure 7), that contains a set of convolution, nonlin-

ear layers and a shortcut connection that skips one or

more layers. The shortcut connections ease the train-

ing process and enable the usage of deeper networks

without the degradation of the accuracy. The short-

cut connection connects the input and the output of a

building block.

In our work, we also use a bottleneck architecture

to decrease the computational effort for the training

process. The bottleneck convolution layer reduces the

dimensionality of the input and recovers the original

dimensions in the output. This is performed by two

1x1 convolution layers placed in the building block,

the bottleneck layers are shown in Figure 7.

Convolution

1 x 1

+ Relu

Convolution

1 x 1

256

+ Relu

Convolution

3 x 3

+ Relu

Building Block

256

Shortcut Connection

Figure 7: Basic Building Block for ResNet Network.

In our system, we use a 50-layer Residual Net-

work. The construction of the network follows the

same design rules as Resnet (He et al., 2016) archi-

tectures. Table 1 depicts the overall architecture of

our residual network for each layer. The convolution

layers have a kernel size of 3x3 pixels, with the ex-

ception of the ﬁrst convolution layer. To create the

50 layer network, we repeat the building blocks based

on the VGG and ResNet network (He et al., 2016; Si-

monyan and Zisserman, 2014). The repeat column of

table 1 shows the number of repetitions for each build-

ing block. The blocks are created sequentially, the

output of a previous block is connected to the input

of the next one through a Non-Linear function called

rectiﬁed linear units (ReLu). The ReLu Layer applies

a simple non-linear function f (x) = max(x, 0) for ev-

ery output in the previous layer.

6 EXPERIMENTS AND RESULTS

In order to measure the accuracy of the proposed

method, we evaluated the performance of the CNN

at predicting the main light position on the synthetic

images dataset, so that the exact position of the light

sources could be controlled. The model is trained

on four variations of the Lighting Estimation Dataset,

altering the discretization of the space considered as

possible outputs of the network.

The ﬁrst discretization has 5 lighting settings vari-

ation have 2943 training images and 1133 validation

images. The ﬁnal result is obtained on 451 test im-

ages. The second discretization has 25 lighting set-

tings variation have 13496 training images, 5194 val-

idation images, and 2071 test images. The third dis-

cretization considered has 50 lighting settings vari-

ation have 26676, 10269, 4099 images for training,

validation and test respectively. Finally, the last dis-

cretization considered 100 lighting settings variation

have 54471, 20965 and 8363 images for training, val-

idation, and test. We evaluate top 1 accuracy.

Our CNN models were trained starting from pre-

trained weights obtained by training the same topol-

ogy but for object classiﬁcation in the ImageNet

dataset (Deng et al., 2009) and Microsoft Coco (Lin

et al., 2014). Such set of weights is public available

(He et al., 2016). This is a well-known technique,

named ﬁne-tuning, adopted in order to reduce over-

ﬁtting when the available dataset is small so that the

network layers beneﬁt from training in a larger one.

For the 100 lighting settings variation, our net-

work learned 27,657,316 parameters and took a pro-

cessing time of about 10 hours.

The network variation for 50, 25 and 5 light-

ing settings learned 25.609.266, 24.585.241 and

23.541.231 parameters and took a processing time

of 5:01, 3:42, and 00:19 hours, respectively, for the

training process in the GPU.

All of the tests were performed in a machine with

the following speciﬁcation: I7 4790 @ 3.6Ghz. 24

GB Ram. Nvidia Geforce Titan X.

The input of the network is of the same size as the

images on the data-set, thus having a size of 512 x

256 pixels.

The inference time for a single image is about 0.15

seconds, executed on the CPU.

The CNN output a probability distribution over

the 5/25/50/100 possible classes (lighting settings) for

each prediction. The top-1 accuracy is the accuracy

considering only the CNN output class with higher

probability.

The accuracy results can be seen on Table 2. In-

creasing the number of lighting settings implies a

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

308

Table 1: Network Architecture.

Block Kernel Size Stride Pad Output Repeat

Convolution 1

7 x 7 Convolution

3 x 3 Max Pooling

64 1

Convolution 2

1 x 1 Convolution

3 x 3 Convolution

1 x 1 Convolution

256

Convolution 3

1 x 1 Convolution

3 x 3 Convolution

1 x 1 Convolution

128

512

Convolution 4

1 x 1 Convolution

3 x 3 Convolution

1 x 1 Convolution

256

1024

Convolution 5

1 x 1 Convolution

3 x 3 Convolution

1 x 1 Convolution

512

2048

Average Pooling 7 x 7 Avg. Pooling 1 0 2048 1

Fully Connected + Softmax

Fully Connected layer + Soft Max

- - 50 1

Table 2: CNN Accuracy for lighting estimation.

Lighting settings Top-1 accuracy

Training Time

(hours)

5 93.87 % 00:19

25 83.15 % 03:42

50 82.73 % 05:01

100 81.51 % 10:16

Figure 8: On the left the input images. In between montage

image without lighting adjustment. On the right montage

image with lighting adjustment.

harder problem, thus decreasing the accuracy of our

model. For the 100 lighting settings dataset, we still

accomplish a top 1 accuracy of 81.51%.

As we increase the number of lighting settings, the

difference between the estimated position decreases,

leading to more subtle differences in the ﬁnal image,

as can be seen in Figure 9. While there is a big differ-

ence between the classiﬁcation with 5 and 25 lighting

settings, the classiﬁcation with 50 and 100 lighting

settings generates subtle differences that are hard to

be identiﬁed by the user.

To further evaluate the quality of our system, we

performed a test with the full pipeline in Figure 8.

The input images are displayed on the left side of the

ﬁgure. The input image is a human hand in an arbi-

trary position. The input image has been processed

in order to remove all content that does not belong

to the user’s hands. In the middle column of image

8 we show the environment in a random lighting set-

ting. on the right column, we show the ﬁnal assembly

where the environment has its adjusted lighting con-

ﬁguration and the overlap of the input image with the

virtual environment. These results were obtained us-

ing the trained network for 100 lighting classes.

7 CONCLUSION

We presented a point light source position estimation

system for mixed reality which is able to estimate the

light source position of a 3D scene. Different from

previous works, our system uses only a low dynamic

range camera and do not requires any additional hard-

ware or user intervention. The system is suitable for

mixed, virtual and augmented reality applications and

operates at interactive rates. We evaluate the perfor-

mance of our novel system on different user scenarios.

As future works, the proposed methodology can

be extended to retrieve descriptors of the illumination

chrominance and intensity, as well other illumination

parameters that can affect the illumination perception

realism.

Deep Light Source Estimation for Mixed Reality

309

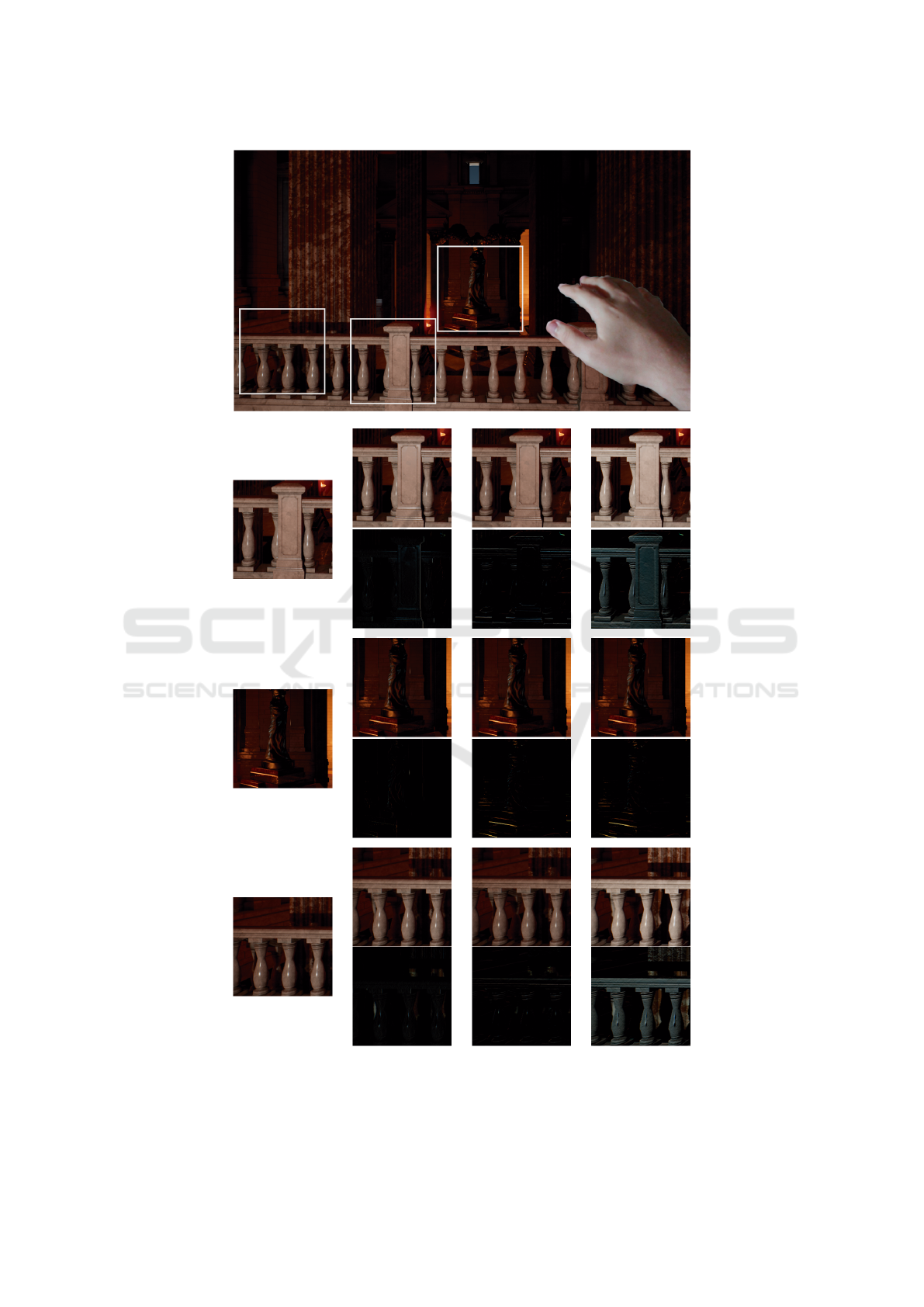

Figure 9: CNN Lighting estimation with a different number of lighting settings. The top image is the scene illuminated by the

100 lightings settings CNN estimation. From left to right: 100 lighting settings, 50 lighting settings, 25 lighting settings and

5 lighting settings. Each column shows the color image and the difference image between the corresponding lighting setting

and the 100 lighting settings image.

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

310

ACKNOWLEDGEMENTS

The authors thank Coordenac¸

ao de Aperfeic¸oamento

de Pessoal de N

ıvel Superior (CAPES) for the ﬁnan-

cial support of this work and Nvidia for providing

GPUs.

REFERENCES

Boom, B. J., Orts-Escolano, S., Ning, X. X., McDonagh,

S., Sandilands, P., and Fisher, R. B. (2015). Interac-

tive light source position estimation for augmented re-

ality with an rgb-d camera. Computer Animation and

Virtual Worlds.

Calian, D. A., Mitchell, K., Nowrouzezahrai, D., and Kautz,

J. (2013). The shading probe: Fast appearance acqui-

sition for mobile ar. In SIGGRAPH Asia 2013 Techni-

cal Briefs, page 20. ACM.

Debevec, P. (2005). Image-based lighting. In ACM SIG-

GRAPH 2005 Courses, page 3. ACM.

Debevec, P., Graham, P., Busch, J., and Bolas, M. (2012).

A single-shot light probe. In ACM SIGGRAPH 2012

Talks, page 10. ACM.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,

L. (2009). Imagenet: A large-scale hierarchical image

database. In Computer Vision and Pattern Recogni-

tion, 2009. CVPR 2009. IEEE Conference on, pages

248–255. IEEE.

Esteva, A., Kuprel, B., Novoa, R. A., Ko, J., Swetter, S. M.,

Blau, H. M., and Thrun, S. (2017). Dermatologist-

level classiﬁcation of skin cancer with deep neural net-

works. Nature, 542(7639):115–118.

Gonz

alez,

A. (2010). Measurement of areas on a sphere

using ﬁbonacci and latitude–longitude lattices. Math-

ematical Geosciences, 42(1):49–64.

Han, J., Shao, L., Xu, D., and Shotton, J. (2013). Enhanced

computer vision with microsoft kinect sensor: A re-

view. IEEE transactions on cybernetics, 43(5):1318–

1334.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hold-Geoffroy, Y., Sunkavalli, K., Hadap, S., Gambaretto,

E., and Lalonde, J.-F. (2016). Deep outdoor illumina-

tion estimation. arXiv preprint arXiv:1611.06403.

Hosek, L. and Wilkie, A. (2012). An analytic model for

full spectral sky-dome radiance. ACM Transactions

on Graphics (TOG), 31(4):95.

Jiddi, S., Robert, P., and Marchand, E. (2016). Reﬂectance

and illumination estimation for realistic augmenta-

tions of real scenes. In IEEE Int. Symp. on Mixed and

Augmented Reality, ISMAR’16 (poster session).

Jimenez, J. and Gutierrez, D. (2010). GPU Pro: Advanced

Rendering Techniques, chapter Screen-Space Subsur-

face Scattering, pages 335–351. AK Peters Ltd.

Kamnitsas, K., Ledig, C., Newcombe, V. F., Simpson,

J. P., Kane, A. D., Menon, D. K., Rueckert, D., and

Glocker, B. (2017). Efﬁcient multi-scale 3d cnn with

fully connected crf for accurate brain lesion segmen-

tation. Medical image analysis, 36:61–78.

Knecht, M., Traxler, C., Mattausch, O., and Wimmer, M.

(2012). Reciprocal shading for mixed reality. Com-

puters & Graphics, 36(7):846–856.

Lalonde, J.-F., Efros, A. A., and Narasimhan, S. G. (2012).

Estimating the natural illumination conditions from a

single outdoor image. International Journal of Com-

puter Vision, 98(2):123–145.

Lalonde, J.-F., Narasimhan, S. G., and Efros, A. A. (2010).

What do the sun and the sky tell us about the camera?

International Journal of Computer Vision, 88(1):24–

51.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Doll

ar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean conference on computer vision, pages 740–755.

Springer.

Liu, X., Liang, W., Wang, Y., Li, S., and Pei, M. (2016). 3d

head pose estimation with convolutional neural net-

work trained on synthetic images. In Image Process-

ing (ICIP), 2016 IEEE International Conference on,

pages 1289–1293. IEEE.

Mandl, D., Yi, K. M., Mohr, P., Roth, P., Fua, P., Lep-

etit, V., Schmalstieg, D., and Kalkofen, D. (2017).

Learning lightprobes for mixed reality illumination.

In 16th IEEE International Symposium on Mixed and

Augmented Reality (ISMAR), number EPFL-CONF-

229470.

Marin, G., Dominio, F., and Zanuttigh, P. (2014). Hand ges-

ture recognition with leap motion and kinect devices.

In Image Processing (ICIP), 2014 IEEE International

Conference on, pages 1565–1569. IEEE.

Marques, R., Bouville, C., Ribardi

ere, M., Santos, L. P.,

and Bouatouch, K. (2013). Spherical ﬁbonacci point

sets for illumination integrals. In Computer Graph-

ics Forum, volume 32, pages 134–143. Wiley Online

Library.

Pessoa, S. A., Moura, G. d. S., Lima, J. P. S. d. M., Te-

ichrieb, V., and Kelner, J. (2012). Rpr-sors: Real-time

photorealistic rendering of synthetic objects into real

scenes. Computers & Graphics, 36(2):50–69.

Rajpura, P. S., Hegde, R. S., and Bojinov, H. (2017). Object

detection using deep cnns trained on synthetic images.

arXiv preprint arXiv:1706.06782.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2016).

Aggregated residual transformations for deep neural

networks. arXiv preprint arXiv:1611.05431.

Zhang, Z. (2012). Microsoft kinect sensor and its effect.

IEEE multimedia, 19(2):4–10.

Deep Light Source Estimation for Mixed Reality

311
