Social Relation Trait Discovery from Visual LifeLog Data

with Facial Multi-Attribute Framework

Tung Duy Dinh

1,2

, Hieu Dinh Nguyen

and Minh-Triet Tran

1,2

Faculty of Information Technology, University of Science – VNU-HCM, Vietnam

Software Engineering Department, University of Science – VNU-HCM, Vietnam

Keywords:

Social Relation Trait, Visual LifeLog Data, Facial Multi-Attribute Framework.

Abstract:

Social relation deﬁnes the status of interactions among individuals or groups. Although people’s happiness

is signiﬁcantly affected by the quality of social relationships, there are few studies focusing on this aspect.

This motivates us to propose a method to discover potential social relation traits, the interpersonal feelings

between two people, from visual lifelog data to improve the status of our relationships. We propose Facial

Multi-Attribute Framework (FMAF), a ﬂexible network that can embed different sets of multiple pre-trained

Facial Single-Attribute Networks to capture various facial features such as head pose, expression, age, and

gender for social trait evaluation. We adopt the architecture of Inception-Resnet-V2 to each single attribute

component to utilize the ﬂexibility of Inception model and avoid the degradation problem with the residual

module. We use a Siamese network with two FMAFs to evaluate social relation traits for two main persons in

an image. Our experiment on the social relation trait dataset by Zhangpeng Zhang et.al shows that our method

achieves the accuracy of 77.30%, which is 4.10% higher than the state-of-the-art result (73.20%). We also

develop a prototype system integrated into Facebook to analyse and visualize the chronological changes in

social traits between a user with friends in daily lives via uploaded photos and video clips.

1 INTRODUCTION

Within our daily activities, there is a large amount

of information that can be collected for analysis to

provide valuable ﬁndings to assist individuals(Gurrin,

2016), and to help us to better understand ourselves,

our lives, and interpersonal relationships(Gurrin et al.,

2014). For example, visual instance search (Salvador

et al., 2016) can be used to ﬁnd lost items or to ver-

ify certain events in daily recorded video from body

worn cameras or smart glasses. Lifelog also provides

materials for reminiscence of memorable moments,

emotions, or locations (Nguyen et al., 2016) for so-

cial applications and interaction(Zhou et al., 2013).

Lifelog data can be recorded by different modal-

ities, at different levels of details, and for various

purposes(Gurrin et al., 2014). Visual data, such as

photos and video clips, is one of the most important

lifelog data sources with high availability. Photos can

be taken and shared to social channels by an individ-

ual or his or her friends; video clips can be recorded

from smartphones, body worn or surveillance cam-

eras. Thus, in this paper, we analyse visual lifelog

data to provide meaningful insightful person discov-

ery: Social relation traits (Zhang et al., 2015).

Everyday, we interact with many people, build-

ing various social relationships, e.g. friends, business

partners, lovers, etc. It is important to study the qual-

ity of those social relationships which have great in-

ﬂuence on people’s happiness and success.

This motivates our work to evaluate the social relation

traits, the interpersonal feelings between two main

people in a photo or a video clip captured from daily

activities.

When considering two people hugging each other,

our goal is not to predict their relationships, such as

lovers or friends, but to determine the traits of their

social relation, such as attached, assured, warm, trust-

ing. Since there are many photo albums on various

online image repositories such as Facebook, Flickr,

Google Photos, our work can be used to help people

with a better understanding of social traits from those

abundant and scattered online visual data.

Although there exist many methods to analyse

each independent facial attribute, such as head pose,

facial expression, age, or gender, there are only few

focusing on the combination of multiple facial at-

tributes. In this paper, our key idea is that social

Dinh, T., Nguyen, D-H. and Tran, M-T.

Social Relation Trait Discovery from Visual LifeLog Data with Facial Multi-Attribute Framework.

DOI: 10.5220/0006749206650674

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 665-674

ISBN: 978-989-758-276-9

665

relation traits of two people can be evaluated from

an appropriate set of single facial attributes of these

two people. However, the suitable set of single fa-

cial attributes should be selected adaptive to different

contexts, geographical regions, and cultures. For ex-

ample, age prediction should be specialized for Asian

people and Westerners. Therefore, we propose Fa-

cial Multi-Attribute Framework (FMAF), a general

network model in which we can plug-in multiple pre-

trained Facial Single-Attribute Networks.

Our proposed method is the generalization of the

network proposed by Z. Zhang et. al. (Zhang et al.,

2015) for social relation trait evaluation. We inherit

the Siamese structure of the latter but replace its ﬁxed

internal structure using conventional DCNs with two

FMAFs to utilize a dynamic set of pre-trained facial

single attribute components in each FMAF. We use

Inception-Resnet-V2 structure to train various single

attribute components, such as age prediction, pose es-

timation, gender classiﬁcation, or expression recog-

nition. Specialized single facial attribute components

can be created for speciﬁc purposes, such as age clas-

siﬁcation for Asian or Westerner people, or expres-

sion evaluation in different cultures.

By deﬁning FMAF as a framework to integrate

with different sets of facial single attribute compo-

nents, we can analyse the heterogeneous contribution

of each attribute in social trait evaluation in various

cultures, contexts, and applications. Furthermore, due

to the ﬂexibility nature of this model, the contribution

as well as the performance of each attribute could be

further analyzed and utilized in future studies upon

this broad subject. Moreover, additional attributes can

be easily integrated into FMAF as an augmentation to

boost the overall performance of the system.

We train four Facial Single-Attribute Networks to

extract features for four facial attributes: head pose,

facial expression, age, and gender from three datasets

AFLW(Koestinger et al., 2011), Kaggle(Kaggle,

2017), and IMDB-WIKI(Rothe et al., 2016). Then we

evaluate FMAF with different combinations of these

four attributes on the social relation trait dataset by

Zhangpeng Zhang et al. at ICCV 2015(Zhang et al.,

2015). Our result on this dataset reaches 77.30%,

which improves 4.10% from the published results in

Zhangpeng Zhang et al. at ICCV 2015.

Using FAMF and our repository of pre-trained Fa-

cial Single Attribute Networks, we implement a pro-

totype system integrated into Facebook to analyse

the social relation traits of people in still images and

video clips. We also create a diagram to visualize the

progress of chronological changes in social relation

traits of a user with others.

The remainder of this paper is organized as fol-

lows. Section 2 discusses backgrounds and related

works. Then, our proposed method is presented in

Section 3, including Facial Multi-Attribute Frame-

work in Section 3.1 and Social Relation Trait Predic-

tion Network in Section 3.2. Section 4 discusses re-

sults and data analysis as well as interpretation. We

also brieﬂy introduce the application for social rela-

tion trait analysis in Facebook in Section 5. Conclu-

sion and future work are presented in Section 6.

2 BACKGROUND AND RELATED

WORK

2.1 Lifelog Data and Applications

Lifelogging allows people to digitally record ”a to-

tality of an individual’s experiences” (Dodge and

Kitchin, 2007). Lifelog data can be passively col-

lected during people’s daily activities by various kinds

of devices, including both wearable and environmen-

tal sensors(Gurrin et al., 2014). A lifelog may simple

be a collection of photos or video clips shared by a

user or his/her friends to a social network, or can be

a huge data collected by inertial sensors from activity

trackers or daily heart rates from smart watches.

Visual data is one of the most imporant types of

lifelog data. It includes both photos and video clips

recorded by individuals, stored personally or shared

to online social channels. From a large collection

of photos or video clips, taken by regular or body

worn cameras, we can retrieve relevant shots/frames

containing a certain item of interest using visual in-

stance search (Salvador et al., 2016) or semantic

query(Nguyen et al., 2017). Visual lifelog from so-

cial networks can be used for reminiscence in social

applications, such as NowAndThen, a system that uti-

lizes visual content similarity to assist reminiscence

in sharing photos on social networks (Nguyen et al.,

2016). In this paper, we continue the trend to exploit

visual data in lifelogs for reﬂection on interpersonal

relationship discovery.

2.2 Social Relation Traits

Many studies on social relation from visual data

have been proposed, such as social group discov-

ery(Ding and Yilmaz, 2010), social interacting class

detection (Fathi et al., 2012), social role inference

(Lan et al., 2012), and social relation traits evalua-

tion(Zhang et al., 2015).

It is sophisticated to deﬁne social relation traits.

In this paper, we consider social relation traits as the

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

666

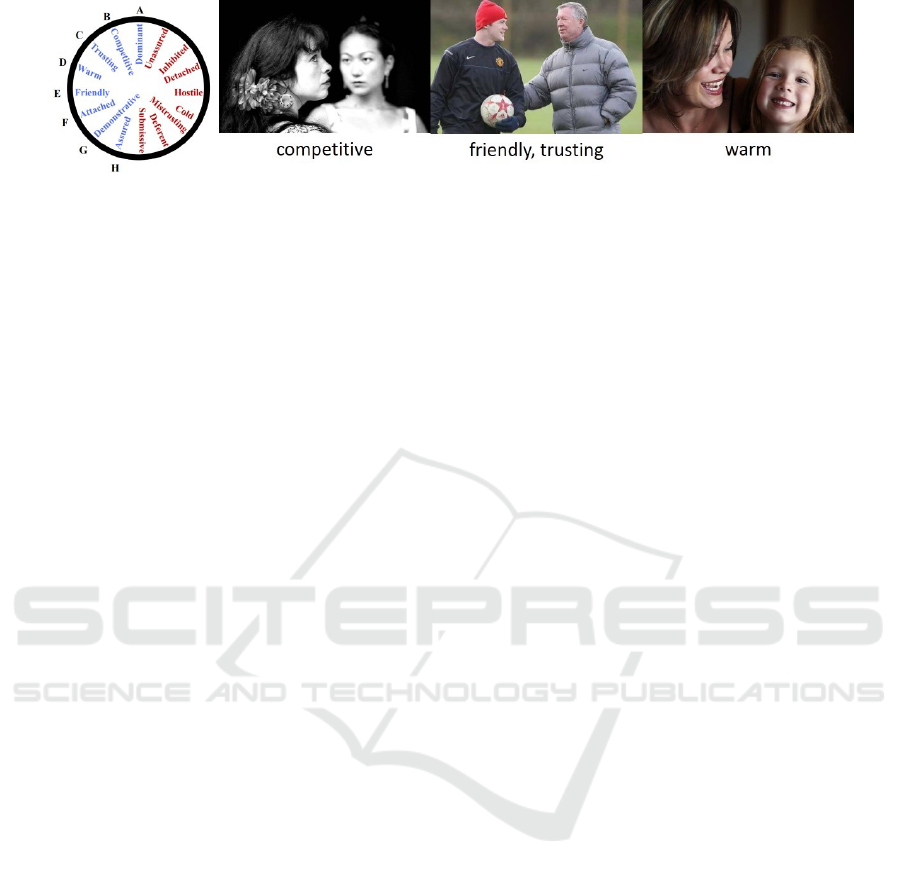

Figure 1: The 1982 Interpersonal Circle (Kiesler, 1983) and some examples from dataset in (Zhang et al., 2015).

interpersonal feelings between two people in a par-

ticular context. Similar to (Zhang et al., 2015), we

also adopt the deﬁnition of social relation traits from

the interpersonal circle proposed by Kiesler (Kiesler,

1983), where interpersonal relations are divided into

16 parts as shown in Figure 1.

Since each part has its complement, we can

group these 16 parts into 8 binary relation traits: (1)

Dominant-Submissive, (2) Competitive-Deferent, (3)

Trusting-Mistrusting, (4) Warm-Cold, (5) Friendly-

Hostile, (6) Attached-Detached, (7) Demonstrative-

Inhibited, and (8) Assured-Unassured. For simplicity,

we use the name of the ﬁrst trait in each group to rep-

resent that group. As illustrated in Figure 1 (right),

these trait groups are non-exclusive so some of them

can co-occur in an image.

The idea to employ multi facial attributes of a pair

of persons in a photo to evaluate their social relation

traits is ﬁrst proposed by Z. Zhang et.al. (Zhang et al.,

2015). Their work differs from previous studies as it

is not based on single person but utilize attributes of

both persons in a photo. Besides, while most of ear-

lier works mainly exploit facial expressions(Valstar

et al., 2011; Bettadapura, 2012; Lopes et al., 2016),

Z. Zhang et.al. take advantages of multiple facial at-

tributes, including expression, age, and gender.

Inspired by the work of Z.Zhang et.a., we also use

multi-attributes from two main persons in a photo to

evaluate their social relation traits. However, we make

a generalization of their method by allowing a ﬂexi-

ble set of single facial attributes to be plugged into

the network. Thus, different facial attribute sets can

be used to adapt to new contexts, cultures, and appli-

cations. Besides, we do not use spatial information

(Zhang et al., 2015) but exploit only facial attributes

for social relation trait evaluation.

2.3 Face Recognition and Attribute

Processing

There are many learning models that can be used to

recognize faces and extract facial attributes. Some

architecture uses end-to-end learning for the task us-

ing a convolutional neural network (CNN) like VGG

(Parkhi et al., 2015) while the other learns a mapping

from face images to a compact Euclidean space where

distances directly correspond to a measure of face

similarity (Schroff et al., 2015). CenterLose, which

is a novel auxiliary supervision signal, is also consid-

ered to raise the performance of image classiﬁcation

and face recognition (Wen et al., 2016)

In this work, we utilize the structure of Inception-

Resnet-V2 because it can overcome the problems of

ﬁxed size of ﬁlers and ﬁxed number of layers as in

DCN or VGGFace (Parkhi et al., 2015)

3 PROPOSE METHOD FOR

SOCIAL RELATION TRAIT

EVALUATION

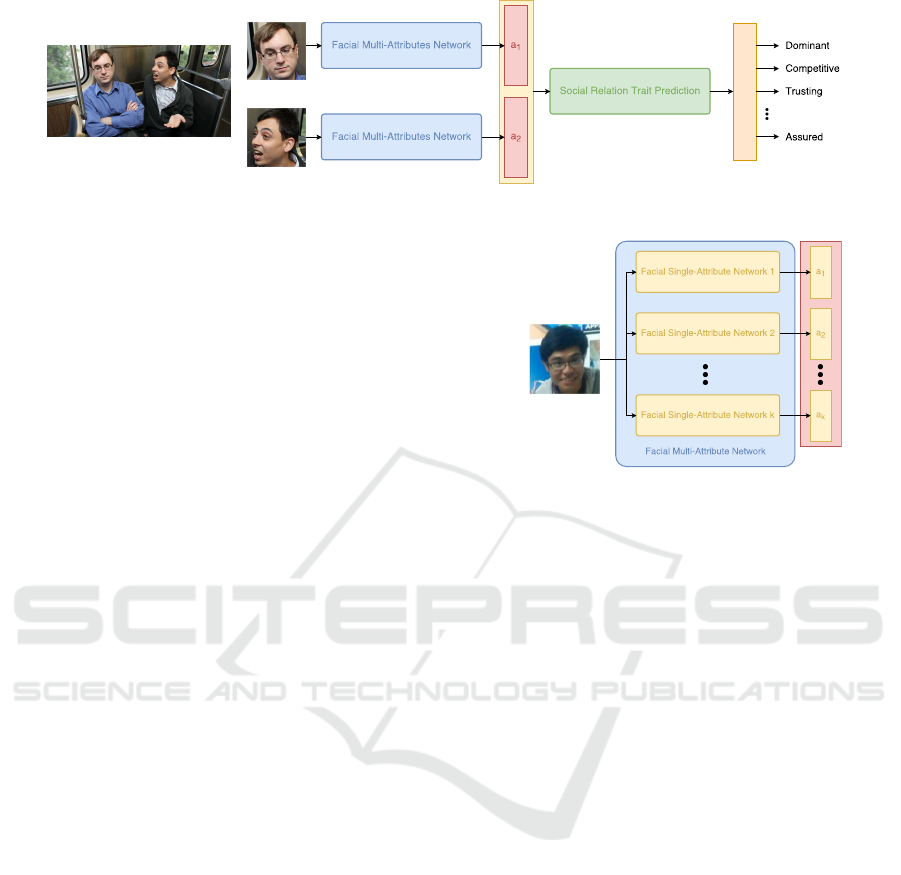

Figure 2 illustrates the process overview of our sys-

tem based on Siamese network architecture. This net-

work inherits the idea of Z.Zhang et.al (Zhang et al.,

2015) to use a Siamese network to extract facial fea-

tures for two main persons, then predict their social

relation traits. However, we replace the ﬁxed net-

work (DCN) with our proposed ﬂexible Facial Multi-

Attribute Framework to evaluate different sets of fa-

cial single attributes. Furthermore, as we aim to eval-

uate the effectiveness of FMAFs in social relation trait

prediction, we do not use spatial information of the

two faces as in (Zhang et al., 2015).

Our social relation trait prediction model, follow-

ing Siamese network, consists of two parts:

• Two identical Facial Multi-Attribute Frameworks:

to extract multi facial features from the two main

persons in an image. The construction of a Facial

Multi-Attribute Framework (FMAF) is presented

in Section3.1. FMAF can be used as a container of

multiple Facial Single-Attribute Networks, each

of which extracts a speciﬁc facial feature from an

input face. The output vector of FMAF is the con-

catenation of output feature vectors from its Facial

Single-Attribute components.

• Social Relation Trait Prediction: to predict social

relation traits from two facial multi-attribute fea-

Social Relation Trait Discovery from Visual LifeLog Data with Facial Multi-Attribute Framework

667

Figure 2: Propose Method.

tures of the two persons extracted from the input

image (Section 3.2) . In our method, as we aim to

evaluate the performance of facial attribute only,

we do not use spatial information of faces as in

(Zhang et al., 2015).

3.1 Facial Multi-Attribute Framework

Social relation traits can be determined from analyz-

ing various facial attributes in visual contents. How-

ever, extracting and evaluating distinct properties im-

mensely depends on speciﬁc situations. This mo-

tivates the authors to propose a generic approach

for dynamically extracting numerous attributes to an-

alyze their effectiveness (Section 3.1.2) instead of

reusing conventional ﬁxed deep networks for individ-

ual property evaluation from previous studies. Fur-

thermore, each attribute extraction instance operates

independently and can be easily embedded to a con-

tainer network so that we can evaluate the accuracy

of all facial attributes in the whole network to form a

network bank with single forwarding operation (Sec-

tion 3.1.1). For implementation, this particular ap-

proach utilizes the architecture of Inception-Resnet-

V2 since its capability of overcoming problems re-

garding ﬁxed size of ﬁlers as well as ﬁxed number of

layers (Szegedy et al., 2016) (section 3.1.3).

3.1.1 Facial Multi-Attribute Framework

The purpose of this network is to get facial attribute

information. As mentioned above, we decompose

the facial attributes into several types, e.g. pose,

expression, etc., so that we can train the network

for each of these types as a lightweight component

independently. Hence, the architecture of our Fa-

cial Multi-Attribute Framework is built from multiple

sub-networks called Facial Single-Attribute Network

(see Section section 3.1.2).

Figure 3 illustrates how the model is deployed.

The number of sub-networks is the number of at-

tribute types we focus on. Each sub-network has the

same structure based on Inception-Resnet-v2 archi-

tecture and runs independently with each other. An

Figure 3: Facial Multi-Attribute Framework.

image is passed through all sub-networks, and each

sub-network extracts the corresponding feature vec-

tor of its facial attribute information. For instance,

pose attribute network extracts the pose information,

while expression attribute network returns the expres-

sion information of the face. After that, we concate-

nate all the output vectors together. Let k be the num-

ber of attribute types we use in the network, the length

of the output vector is 1536 × k. This is all informa-

tion about the face which we use as material in Sec-

tion 3.2.

3.1.2 Facial Single-Attribute Network

The authors use Inception-Resnet-v2 architecture as a

base main network to extract the facial single attribute

information. The more speciﬁc about Inception-

Resnet-v2 is introduced in section 3.1.3. Our study

uses the “Dropout” layer whose output vector has the

length of 1536. This vector is also the output vec-

tor of the Facial Single-Attribute Network. Figure 4

illustrates 2 different processes: (1) training and (2)

feature extraction.

In the training process, the model is fed with a

299 × 299 color image which is deﬁned in RGB for-

mat. The network is trained from scratch, which

means that every layer in the model is re-calculated

following the number of classes that the attribute type

is classiﬁed. For example, the Pose Attribute has three

classes (left, front, right) while the Expression has

seven classes (angry, disgust, fear, happy, sad, sur-

prise and neutral). We train the system in several steps

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

668

Figure 4: Facial Single-Attribute Network.

with multiple images. The number of steps we use

when training is dependent on the facial attribute type

(pose, expression, etc.). When the result seems ac-

ceptable, we extract the model weights so that they

could be applied to the “using” process.

In the “using” process, the input size is still 299 ×

299. We bind the weights in training process to the

model to get the information. A face passing through

sub-network will transfer into a sub-vector of values

corresponding to its facial attribute type. The output

vector, as we have mentioned above, is extracted with

the length of 1536.

Furthermore, since there are approximately 20 at-

tributes to be considered, teaching the machine to

learning all of them simultaneously is not very efﬁ-

cient due to the complexity of the computation, the

authors propose distributing this task into smaller

ones. In other words, being able to create portable

smaller version of the network by decomposing the

overall work is quite beneﬁcial for various lightweight

component addition in the future. Furthermore, the

ability of adapting to various specialized datasets due

to the compact nature is another reason why this ap-

proach is chosen. Furthermore, only a few datasets

containing enough properties or sufﬁcient annotation,

for example the AFLW dataset focuses on gender and

pose while Kaggle only contains facial expressions,

therefore it can be easily concluded that decomposing

the tasks for speciﬁc purposes is much more efﬁcient

than generating the general result.

In addition, it is also feasible to evaluate the con-

tribution to the overall accuracy of each group of at-

tributes. Moreover, the contribution of each proper-

ties mainly depends on the type of the input data,

therefore, the sensibility between a group of attributes

and a speciﬁc category of data can be determined so

that depending on the result, we could efﬁciently add

the suitable type of input when classifying a desired

properties.

3.1.3 Inception-ResNet-v2

There are many CNNs have been developed with a

purpose that to increase the accuracy of the image

recognition performance. In particularly, the authors

focus on relatively low computational cost while still

keep the good performance in accuracy. We have ex-

periment many architecture to consider which one is

satisﬁed our expectation. Thus, we choose Inception-

ResNet-v2 architecture, whose main idea is to replace

the ﬁlter concatenation stage of Inception architecture

with residual connections, due to its outstanding per-

formance.

Figure 5: Schema for Inception-ResNet-v2 network.

Figure 5 just illustrates the components in

Inception-ResNet-v2 network in the simple way. The

main idea relating to the concept of shortcut connec-

tions which is skipping single or multiple layers. Par-

ticularly, the outcomes of the identity mapping com-

putation are added to the outputs of the stacked lay-

ers. Stem is the input part of Inception-ResNet-v2

network. Inception-resnet is the residual inception

block the replace the pure inception block in Incep-

tion network. There three types of block called A,

B, and C whose number of repetition in the network

is 5, 10, and 5, respectively. Reduction is reduction

module with various number of ﬁlters.

3.2 Social Relation Trait Prediction

Network

With the architecture proposed in Section 3.1.1, we

can modify and choose the set of pre-trained attributes

with the same generic approach. This method in-

cludes single forward operation which saves both time

Social Relation Trait Discovery from Visual LifeLog Data with Facial Multi-Attribute Framework

669

and effort signiﬁcantly. Furthermore, the results from

our experiments show that the accuracy of only fa-

cial expression (75.90%) has proven to be superior

than that of the full model with spatial cue (73.20%)

proposed by Zhangpeng Zhang et al. (Szegedy et al.,

2016).

From the image of two faces, the authors crop out

two faces. Then, each face is fed through the Facial

Multi-Attributes Network. For each face, the Facial

Multi-Attributes Network returns the corresponding

vector, ~v

,~v

, consisting the information of the face.

Next, the two vectors conducted from two faces are

concatenated together to become new vector ~v with

the length of 2 × |~v

|. The concatenated vector is an

input of a simple linear regression model to predict

corresponding relation traits of the image.

The linear regression model has a formula:

~g =~v ×W +

ε (1)

The weight matrix, W , projects the concatenated

feature vectors to a space of shared representation,

which is utilized to predict a set of relation traits,

~g = {g

}

i=1

∈ {0, 1}. The weight matrix is initial-

ized with zeros. During the training process, additive

error random variable is distributed following a stan-

dard logistic distribution,

ε ∼ Logistic(0,1).

4 EXPERIMENT

4.1 Dataset

This section presents our method of training our own

pre-trained model that can be used to recognize dif-

ferent facial attributes. Particularly, in order to extract

head poses, facial expressions, gender, and age, the

authors utilize data from three public datasets, includ-

ing AFLW, Kaggle and WIKI.

4.1.1 Pose Attribute Extraction

AFLW is an abbreviation of Annotated Facial Land-

marks in the Wild (Koestinger et al., 2011), which

provides a large-scale collection of annotated face im-

ages gathered from Flickr, exhibiting a large variety

in appearance such as pose, and ethnicity. AFLW

also supply general imaging and environmental con-

ditions.

The total size of dataset is 25,000 faces with dif-

ferent images size. However, this paper only focuses

on human head poses. Because the dataset does not

have any training or testing set so the authors take

out 10% of images as testing set and the remaining

as training set.

Figure 6: AFLW Dataset Sample (Koestinger et al., 2011).

4.1.2 Face Expression Extraction

This dataset originates from a Kaggle contest: “Chal-

lenges in Representation Learning: Facial Expression

Recognition Challenge” (Kaggle, 2017). For conve-

nience, the authors call it “Kaggle” in the whole pa-

per. The dataset is designed for a facial expression

classiﬁcation problem whose purpose is strongly rele-

vant that of our paper. In addition, the faces have been

automatically registered so that the faces are evenly

spread in each image.

Figure 7: Kaggle Dataset Sample.

The data consists of pixel gray-scale images of

faces. Each image is labeled with a single expres-

sion that is belonged to seven categories: (1) angry,

(2) disgust, (3) fear, (4) happy, (5) sad, (6) surprise,

and (7) neutral. The training set consists of 28,709

examples while the size of the testing set is 7178. An

example of the Kaggle dataset is shown in Figure 7

4.1.3 Gender & Age Extraction

This dataset originates from “Deep Expectation of

Apparent Age From a single image” research (Rothe

et al., 2016). The data set is built for predicting age

from human face which play an important role in our

research. The authors use only WIKI dataset which

consists of 62328 images. An instance of this dataset

is shown in Figure 8.

We classify the dataset into ten categories which

is number from “under 10” (U10) to “under 100”

(U100) group. Since the dataset does not have any

training or testing set, we take out 10% of images as

testing set and the remaining is training set.

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

670

Figure 8: WIKI Dataset Sample.

4.1.4 Social Relation Trait Classiﬁcation

Social Relation Dataset is a database designed for

detecting social relations from a pair of faces. The

dataset contains 8306 images of two faces chosen

from web and movies. Each image is labeled with

faces’ bounding boxes and their pairwise relation.

Five performing arts students label the relations in-

dependently so each label has ﬁve annotations.

In addition, due to that deﬁnition, each image

can be labeled with multiple relation traits. Since

some relation meanings are not clearly separated from

each other, most images in dataset are collected from

movies which annotators can base on the context to

label more correctly. The truth value of relation is set

to true if more than three annotations are consistent.

Otherwise, its truth value is set to false. The dataset

is divided into training and testing partitions of 7459

and 847 images, respectively.

4.2 Facial Multi-Attribute Framework

Experiment

4.2.1 Fine-tuning Pre-trained Model

The authors obtain the pre-trained Inception-Resnet-

V2 model from TensorFlow homepage. The down-

loaded ﬁle is a model checkpoint that has been trained

internally at Google. As we have mentioned above,

Inception-Resnet-V2 model requires an input image

size of 299 × 299.

When ﬁne-tuning a model, we need to be care-

ful about restoring checkpoint weights. In particular,

when we ﬁne-tuning a model on a new task with a

different number of output labels, we are not able to

restore the ﬁnal Logits (Dropout) layer. When ﬁne-

tuning on a classiﬁcation task using a different num-

ber of classes from the trained model, the new model

will have a ﬁnal “Logits” layer whose dimensions dif-

fer from the original pre-trained model from Google.

4.2.2 Pre-training Full Model

As the authors introduce in section 3, Inception-

Resnet-V2 model consists of multiple layers, which

requires a considerable effort and rather long time to

exploit all the advantages for achieving the best pos-

sible results. Furthermore, in order to train the whole

network efﬁciently, we have to conﬁgure some impor-

tant parameters that effect on our results: (1) batch

size, (2) learning rate, and (3) learning rate decay

type. Before going deeper, we need to understand

the meanings of these parameters. Batch size is the

number of samples in each batch (or called “train-

ing step”). Learning rate is a value determines how

quickly the weights are adjusted. Learning rate decay

type is to specify how the learning rate is decayed.

For example, learning rate decay type is set to “expo-

nential” means that the learning rate is updated based

on exponential function. The default value for batch

size, learning rate, and learning rate decay type is 16,

0.01, and “exponential”, respectively.

In order to evaluate the best value for each param-

eter, the authors suggest the following scenario. The

parameter we want to test is called “key” parameter.

In this case, only the “key” parameter is changed, the

other parameter is assigned to default value and each

test is trained for 1000 steps.

First, we start with the batch size parameter. When

using the default value, our testing machine is not able

to build up a model because of the limited VRAM.

Thus, we have to reduce batch size value from 16 to 8

for the machine to work properly. Table 1 shows the

detail information of batch size test. Since batch size

16 is beyond our reach, we conduct an evaluation of

two additional batch size 4 and 8. It is observed that

even though the number of samples are halved from

8 to 4, the time required does not have the similar

behavior, which the amount of total time needed for

batch size 8 is approximately 1.76 times the amount

of time for batch size 4. Because of the limitation of

batch size, in two remaining test, the value of batch

size is set to 8.

200 400 600 800 1000

Accuracy (%)

Step

0.01 0.001 0.0001

Figure 9: Test Result on Learning Rate Parameter with

AFLW Dataset.

Next, the learning rate in Inception-Resnet-V2

model is set to 0.01 as default value. With this value,

the accuracy does not increase smoothly. After testing

with multiple values, the authors decide to take the

number is 0.0001. Figure 9 and Figure 10 show the

batch accuracy for each 200 steps to visualize how the

Social Relation Trait Discovery from Visual LifeLog Data with Facial Multi-Attribute Framework

671

Table 1: Test Result on Batch Size.

Batch size

Pose Expression Age

Accuracy Time Accuracy Time Accuracy Time

16 (default) disable disable disable disable disable disable

8 36.60 828 17.35 819 35.51 823

4 30.27 469 15.33 471 29.67 472

200 400 600 800 1000

Accuracy (%)

Step

0.01 0.001 0.0001

Figure 10: Test Result on Learning Rate Parameter with

Kaggle Dataset.

learning rate changes. Observed from the test results

on both datasets, higher learning rate tends to become

unstable. In other words, the trend when learning

rate is set to 0.01, represented by the blue lines, does

not pose a stable increment. Same conclusion can be

made on the learning rate of 0.001, represented by the

red lines. The unpredictability of the two mentioned

learning rates discourages the authors from training

the model with such rate as the network goes deeper.

On the contrary, when learning rate is set to 0.0001,

the increasing trend is quite steady with the best out-

come in both datasets. In addition, stable outcome is

quite beneﬁcial for concatenation step.

The learning rate decay type has 3 different types:

(1) ﬁxed – the learning rate does not change over time,

(2) exponent – the learning rate change follow expo-

nent function, and (3) polynomial – the learning rate

change follow polynomial function. Exponent func-

tion is the best solution to control the change of learn-

ing rate, so that the result is converged.

Therefore, our parameter values in the paper are:

• Batch size: 8

• Learning rate: 0.0001

• Learning rate decay type: Exponent

4.3 Social Relation Trait Experiment

The model uses different test scenarios to evaluate the

effectiveness of each attribute type. We conduct four

different test cases: (1) model using only Pose At-

tribute , (2) model using only Expression Attribute,

(3) model using only Age Attribute, and (4) model

using all the aforementioned attributes.

Table 2 presents the accuracies achieved by our

network as well the comparison between our results

and those approximated from the chart of DCN model

published by the Zhanpeng Zhang et al. in ICCV

2015(Zhang et al., 2015) on the same testing datasets.

It can be observed that our pre-trained models for

each attribute outperform their model in most of the

relation traits as well as in average cases.

On average results, pre-training with head pose is

the least accurate approach since the amount of in-

formation extracted from such attribute is quite lim-

ited and insufﬁcient as most of the time people facing

each other or looking at the same direction are usu-

ally friends or closely related. On the other hand, pre-

trained model with facial expression or age or gender

is more efﬁcient as social relations are proven to be

largely revealed by facial expressions along with age

and gender.

While the accuracies achieved with pose, expres-

sion, and gender attributes independently only dif-

ferentiate by a small percentage, the contribution of

each property or a group of them towards a particu-

lar relation trait is clearly shown. In other words, age

and expression attributes are most accurate when pre-

dicting “competitive”, “warm”, and “assured” while

gender and age attributes possess the highest contri-

bution when classifying “dominant”, “trusting”, and

“friendly”.

Furthermore, our results also show superiority

regarding predicting sophisticated attributes such as

“dominant” and “assured” compared with those of the

previous study as recognizing such relation traits has

been proven to be quite problematic, especially the

classiﬁcation of “dominant” with the improvement

in terms of accuracy of approximately 20% (from

60.00% to 79.82%).

The overall accuracy of 77.30% shows the efﬁ-

ciency of our facial multi-attributes network. In ad-

dition, our model also suggests the feasibility of im-

proving the performance even more with the addition

of supplementary attribute.

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

672

Table 2: Social Relation Trait Accuracy.

Dominant

Competitive

Trusting

Warm

Friendly

Attached

Demonstrative

Assured

Average

Pose

Proposed Method 74.70 72.58 73.59 72.60 78.60 66.18 65.96 79.02 72.90

Z. Zhang et al. 57.50 72.50 67.50 70.00 72.50 67.50 62.50 65.00 67.30

Expression

Proposed Method 76.81 75.51 76.42 75.68 82.52 68.68 68.38 82.83 75.90

Z. Zhang et al. 60.00 75.00 72.50 75.00 75.00 72.50 67.50 67.50 70.60

Age

Proposed Method 78.92 76.54 77.74 76.38 83.70 68.90 68.65 84.07 76.90

Z. Zhang et al. 57.50 72.50 70.00 70.00 72.50 67.50 65.00 60.00 66.80

Gender

Proposed Method 77.97 75.38 76.58 75.19 82.62 67.87 67.67 83.14 75.80

Z. Zhang et al. 60.00 72.50 67.50 70.00 70.00 65.00 60.00 62.50 66.10

All

Proposed Method 79.82 76.83 77.96 76.27 84.83 68.60 68.52 85.70 77.30

Z. Zhang et al. 60.00 77.50 72.50 75.00 77.50 72.50 70.00 72.50 72.50

5 SOCIAL RELATION TRAITS

ANALYSIS ON ONLINE VISUAL

CONTENTS

Figure 11: Social Relation Trait predicted sample images in

Zhang’s dataset.

Figure 11 represents the qualitative results of some

images in the Zhang’s dataset (Zhang et al., 2015).

On the right side of the ﬁgure, 3 polar graphs repre-

sent the corresponding prediction for each image. In

the ﬁrst image, the context is that one man scream to

the other so we can easily recognize the ”dominant”

trait is most representative. The value in the graph

show the same result as we expect. There is a couple

in the second image where most of positive traits

can be seen clearly. The prediction also shares the

Figure 12: Social Relation Trait predicted image from Face-

book.

same idea with through these positive traits are nearly

1. The context in last image is close to the middle

one, but the man knitting his brown make the image

less positive comparing to the one above.

Figure 12 illustrates the result of some random

sample photos that we collected on Facebook. The

ﬁrst and last image are used to check-in places on

Facebook where both of them seems neutral. Hence,

the graphs are more rounded. In the second image,

two people are in an open talk with relax smile. Thus,

Social Relation Trait Discovery from Visual LifeLog Data with Facial Multi-Attribute Framework

673

the values of dominant and competitive are nealy 0.

The third image, however, are taken in one compe-

tition so the expression of two students is quite seri-

ous. As a result, the value of competitive is the highest

comparing to the others.

6 CONCLUSION

In this study, the authors show that applying our fa-

cial multi-attribute network can overcome the difﬁ-

culties of predicting social relation traits from visual

contents. Previous work, which mainly focuses on the

conventional deep neural networks, only capable of

producing generic results of all the relevant attributes

without any evaluation upon the contribution of each

attributes or groups of them to the overall perfor-

mance. Our model has proven its availability towards

different adjustments and feasible application to other

lightweight systems that aim to speciﬁc purposes or

specialized datasets. We will explore some feasible

applications including background music recommen-

dation for video based and photo collection clustering

and visualization based on social traits.

REFERENCES

Bettadapura, V. (2012). Face expression recognition and

analysis: The state of the art. Computer Vision and

Pattern Recognition.

Ding, L. and Yilmaz, A. (2010). Learning Relations among

Movie Characters: A Social Network Perspective,

pages 410–423. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Dodge, M. and Kitchin, R. (2007). outlines of a world com-

ing into existence: Pervasive computing and the ethics

of forgetting. Environment and Planning B: Planning

and Design, 34(3):431–445.

Fathi, A., Hodgins, J. K., and Rehg, J. M. (2012). Social

interactions: A ﬁrst-person perspective. In 2012 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1226–1233.

Gurrin, C. (2016). A guide to creating and managing lifel-

ogs. In ACM MM 2016 Tutorial, November 15, 2016,

Amsterdam.

Gurrin, C., Smeaton, A. F., and Doherty, A. R. (2014).

Lifelogging: Personal big data. Foundations and

Trends in Information Retrieval, 8(1):1–125.

Kaggle (2017). Challenges in representation learning facial

expression recognition challenge.

Kiesler, D. J. (1983). The 1982 Interpersonal Circle: A

taxonomy for complementarity in human transactions.

Psychological Review.

Koestinger, M., Wohlhart, P., Roth, P. M., and Bischof, H.

(2011). Annotated facial landmarks in the wild: A

large-scale, real-world database for facial landmark

localization. In Proc. First IEEE International Work-

shop on Benchmarking Facial Image Analysis Tech-

nologies.

Lan, T., Sigal, L., and Mori, G. (2012). Social roles in hi-

erarchical models for human activity recognition. In

2012 IEEE Conference on Computer Vision and Pat-

tern Recognition, pages 1354–1361.

Lopes, T., de Aguiar, E., Souza, A. F. D., and Oliveira-

Santos, T. (2016). Facial expression recognition with

convolutional neural networks: Coping with few data

and the training sample order. Pattern Recognition.

Nguyen, V., Le, K., Tran, M., and Fjeld, M. (2016).

NowAndThen: a social network-based photo recom-

mendation tool supporting reminiscence. In Proceed-

ings of the 15th International Conference on Mobile

and Ubiquitous Multimedia, Rovaniemi, Finland, De-

cember 12-15, 2016, pages 159–168.

Nguyen, V., Ngo, T. D., Le, D., Tran, M., Duong, D. A.,

and Satoh, S. (2017). Semantic extraction and object

proposal for video search. In MultiMedia Modeling

- 23rd International Conference, MMM 2017, Reyk-

javik, Iceland, January 4-6, 2017, Proceedings, Part

II, pages 475–479.

Parkhi, O. M., Vedaldi, A., and Zisserman, A. (2015). Deep

face recognition. In British Machine Vision Confer-

ence.

Rothe, R., Timofte, R., and Gool, L. V. (2016). Deep ex-

pectation of real and apparent age from a single im-

age without facial landmarks. International Journal

of Computer Vision (IJCV).

Salvador, A., i Nieto, X. G., Marqus, F., and Satoh, S.

(2016). Faster R-CNN features for instance search. In

2016 IEEE Conference on Computer Vision and Pat-

tern Recognition Workshops (CVPRW), pages 394–

401.

Schroff, F., Kalenichenko, D., and Philbin, J. (2015).

Facenet: A uniﬁed embedding for face recognition

and clustering. In The IEEE Conference on Computer

Vision and Pattern Recognition (CVPR).

Szegedy, C., Ioffe, S., and Vanhoucke, V. (2016). Inception-

v4, inception-resnet and the impact of residual con-

nections on learning. Computer Vision and Pattern

Recognition.

Valstar, M. F., Jiang, B., and Mehu, M. (2011). The ﬁrst

facial expression recognition and analysis challenge.

Automatic Face & Gesture Recognition and Work-

shops (FG 2011).

Wen, Y., Zhang, K., Li, Z., and Qiao, Y. (2016). A Discrim-

inative Feature Learning Approach for Deep Face

Recognition, pages 499–515. Springer International

Publishing, Cham.

Zhang, Z., Luo, P., Loy, C. C., and Tang, X. (2015). Learn-

ing social relation traits from face images. 2015 IEEE

International Conference on Computer Vision.

Zhou, L. M., Gurrin, C., Yang, C., and Qiu, Z. (2013). From

lifelog to diary: a timeline view for memory reminis-

cence. In Irish HCI conference 2013, Ireland, Dun-

dalk.

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

674
