An Extended Hybrid Anomaly Detection System for Automotive

Electronic Control Units Communicating via Ethernet

Efﬁcient and Effective Analysis using a Speciﬁcation- and Machine Learning-based

Approach

Daniel Grimm

, Marc Weber

and Eric Sax

Institute for Information Processing Technologies, Karlsruhe Institute of Technology, Karlsruhe, Germany

Vector Informatik GmbH, Stuttgart, Germany

Keywords:

Intrusion Detection System, Anomaly Detection, Machine Learning, Automotive, Ethernet, Feature Selection.

Abstract:

Due to the increasing number of functions fulﬁlled by ECUs in a vehicle, there is a need for new networking

technologies offering more bandwidth than e.g. Controller Area Network. Automotive Ethernet is one of the

most promising candidates and already used in modern cars. However, currently there is the open issue of

detecting and preventing cyber attacks via this well known networking technology. In this paper we present

the extension of our hybrid anomaly detection system for ECUs to improve the security and safety of vehicles

using Automotive Ethernet. The system combines speciﬁcation- and machine learning-based anomaly detec-

tion methods. The features, necessary for the machine learning part, are selected to enable the detection of

anomalies in real-time and with respect to the automotive speciﬁc communication scheme. Finally, the detec-

tion performance and the applicability of different machine learning algorithms is evaluated in a simulation

environment based on synthetic and well deﬁned anomalies.

1 INTRODUCTION

The evolution of vehicles is clearly drawn. Elec-

tronic control units (ECUs) have to realize an in-

creasing number of functions. Currently, the more

than 2000 functions of a modern car are realized with

10.000.000 lines of code running on more than 70

ECUs (Broy, 2006). Driving will be automated by

the use of diverse technologies such as laser scanners,

radar, cameras and ultrasonic sensors. The growth of

functions and sensors lead to a massive increase of

produced data that has to be transmitted between the

different ECUs. Currently, Controller Area Network

(CAN) is the predominant communication system for

in-vehicle networks. Because CAN only provides a

data rate of up to 1 Mbit/s other technologies have

to be used in future. Ethernet, which is well-known

from information technology, offers high bandwidth

at low costs and great ﬂexibility. For the in-vehicle

use case a special physical layer, called 100BASE-

T1 (IEEE Std 802.3bw-2015), was speciﬁed offering

100 Mbit/s full-duplex communication over a single

unshielded twisted pair cable. The speciﬁcation for

the next generation, which offers 1 Gbit/s, is already

ready (IEEE Std 802.3bp-2016) and there are ﬁrst

projects based on this technology. In future, a fur-

ther increase of the provided bandwidth is expected,

as the next standardizations are in the focus of inter-

est already (IEEE-P802.3ch). Besides the increase of

communication between ECUs, future vehicles will

communicate with their environment through differ-

ent wireless interfaces like WiFi or Bluetooth. Hence,

vehicles are no longer a closed system but are ex-

posed to (remote) cyber attacks. As ECUs are able

to control the whole behavior of a vehicle, including

steering, braking and acceleration, such attacks on the

electrical and electronic system of a vehicle can have

fatal effects. One possibility to improve the security

of ECUs is the use of intrusion detection (IDS) or in-

trusion prevention systems (IPS) (Hoppe et al., 2009;

Kleberger et al., 2011; Larson et al., 2008).

On this account, we presented a hybrid IDS com-

bining speciﬁcation-based detection mechanisms and

machine learning algorithms to recognize irregulari-

ties in automotive CAN communication (Weber et al.,

2018). Checking for irregularities instead of pre-

deﬁned attack patterns enables the detection of attacks

unknown during IDS development time. However, as

CAN is not the only in-vehicle networking technol-

ogy, the introduced hybrid anomaly detection system

462

Grimm, D., Weber, M. and Sax, E.

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet.

DOI: 10.5220/0006779204620473

In Proceedings of the 4th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2018), pages 462-473

ISBN: 978-989-758-293-6

has to be extended to support other communication

channels as well. Considering the increasing impor-

tance of Automotive Ethernet, we decided to include

this in-vehicle networking technology in our research

as a next step.

An irregularity in automotive communication sys-

tems can occur in different ways. One possibility is

an irregular payload of messages, e.g. a signal value

which is outside its speciﬁed minimum and maxi-

mum. Other potential irregularities concern the over-

all communication behavior of ECUs. Independent

of the contained application data, a message can be

irregular if, for example, the sending ECU is not al-

lowed to transmit data to a given receiver. A second

example for a behavior-related irregularity is a mes-

sage that contains data of unknown protocols. The ex-

isting hybrid IDS for CAN is capable to recognize ir-

regularities in communication signals. These mecha-

nisms can be applied on Automotive Ethernet as well.

For that reason, this paper focuses on the detection of

behavior-related irregularities in Automotive Ethernet

communication. The transported application data of

exchanged messages can be analyzed further with the

existing solution, independent of the used communi-

cation system.

The remaining paper is structured as follows: Sec-

tion 2 introduces the term anomaly and its different

types, followed by the discussion of related work in

section 3. Afterwards, the extended hybrid anomaly

detection system is presented in section 4 outlining

its basic building blocks. Since machine learning is

applied, section 5 gives an overview about the se-

lected algorithms which are used to detect anomalies

in Ethernet-based communication. Their implemen-

tation is discussed in section 6 together with the other

extensions realized in context of the anomaly detec-

tion system. Section 7 presents ﬁrst evaluation results

based on a simulation before section 8 concludes the

paper with a summary and a proposal for future re-

search.

2 IRREGULARITIES AND

ANOMALIES

Irregular behavior is an undesirable deviation of the

expected characteristics. In literature, this is referred

to as anomaly or outlier in addition to other denota-

tions. One deﬁnition that is frequently cited is given

by D.M. Hawkins (Hawkins, 1980):

”An outlier is an observation that deviates so

much from other observations as to arouse

suspicion that it was generated by a different

mechanism.”

Chandola et al. (2009) subdivided anomalies into

three groups, which is helpful to develop a method for

recognition of irregular behavior. The simplest form

of an anomaly is the point anomaly, deﬁned by Chan-

dola et al. as follows (Chandola et al., 2009):

”If an individual data instance can be consid-

ered as anomalous with respect to the rest of

data, then the instance is termed as a point

anomaly.”

If e.g. an Ethernet network trafﬁc log - also called

trace - is the complete data set, a single recorded Eth-

ernet message is one data instance. If that single mes-

sage can be classiﬁed as anomaly without considering

other data instances, e.g. because it contains the in-

formation that the destination address is unknown, it

is a point anomaly. In contrast to the point anomaly,

a contextual anomaly can only be classiﬁed as such,

if additional contextual information is taken into ac-

count (Chandola et al., 2009). A destination address

of a known ECU sent from an also known source ad-

dress is not a point anomaly since it is realistic in the

ﬁrst place. However, if the message has to be sent

only as an answer to a preceding request message and

this request is absent, it can be declared as a contex-

tual anomaly. The last type is the collective anomaly,

referring to a sequence of data instances, which to-

gether form an anomaly (Chandola et al., 2009). This

would be the case if two or more consecutive Ether-

net messages indicate anomalous communication be-

havior, such as an increasing frequency of a speciﬁc

message.

3 RELATED WORK

Most of the research concerning irregular in-vehicle

communication was carried out on the detection of

anomalies in CAN messages. For example, Marchetti

et al. (2016) presented a method based on the Shan-

non entropy of the payload data. If the entropy of the

payload data is outside of some pre-deﬁned bound-

aries, a CAN message is considered anomalous. Tay-

lor et al. (2015) compared different methods to detect

inserted packets on the CAN bus, based on the occur-

rence frequency of different messages. A One-Class

Support Vector Machine (OCSVM) and a statistical

test were used for that purpose. In contrast, there are

no known publications concerning anomaly detection

in Automotive Ethernet communication.

Outside the automotive domain numerous meth-

ods have been published to address network IDS for

communication based on the Internet Protocol (IP),

which is mostly used on top of Ethernet networks.

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

463

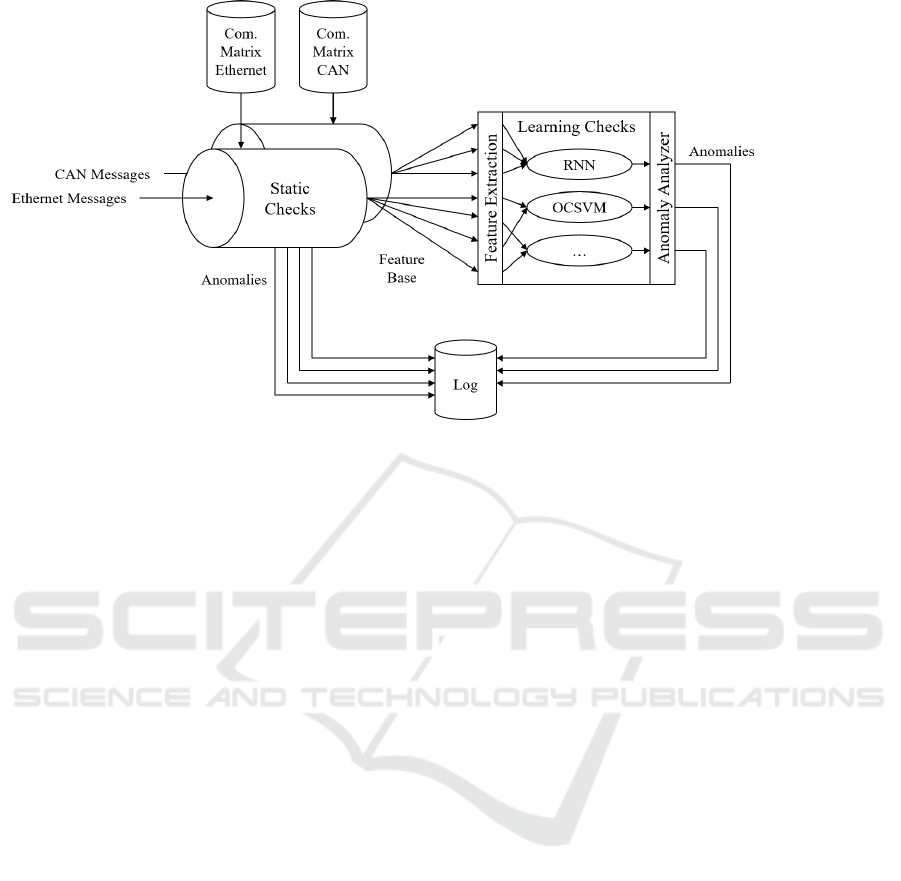

Figure 1: Block diagram of the extended hybrid anomaly detection system for CAN and Ethernet.

Chandola et al. (2009), Ahmed et al. (2016) and Ag-

garwal (2017) provide a detailed overview of the state

of the art detection techniques, which include ma-

chine learning algorithms as well as statistical meth-

ods besides others. However, because of the different

nature of the examined data the selection of applicable

methods has to be conducted with care. In addition,

one focus of an anomaly detection system for ECUs

has to be the capability to perform online analysis,

whereas most of the work concerning network IDS is

based on ofﬂine analysis.

4 EXTENDED HYBRID

ANOMALY DETECTION

SYSTEM

In the following section an overview about the ex-

tended hybrid anomaly detection system for CAN and

Ethernet is given. The main contribution of this work

is the development of the parts necessary to extend

our existing system to realize anomaly detection for

Ethernet. These are the speciﬁc blocks static checks,

feature base and feature extraction as well as the

learning checks which are suited for the evaluation of

Ethernet-based communication. The aforementioned

terms are introduced below to give an outline of the

overall function. Details on the developed blocks are

presented further in sections 5 and 6.

The basic idea of the proposed system is to use

speciﬁcation-based anomaly detection and machine

learning algorithms sequentially within the embedded

software of an ECU. Figure 1 depicts the principle

building blocks of the two-stage system. As this is an

extension to the existing system described in previous

research (Weber et al., 2018), Figure 1 is also based

on the existing graphics.

Due to resource constraints on ECUs, machine

learning should only be used if necessary. There-

fore, speciﬁcation-based techniques are used in the

ﬁrst stage as much as possible, re-using the knowl-

edge provided by vehicle manufactures in terms of the

communication matrix. This stage is further referred

to as static checks. Static checks are very well suited

to detect point anomalies. In addition, simple collec-

tive anomalies can be detected efﬁciently using static

checks, as long as they can be derived from the com-

munication matrix. When a message, either via CAN

or Ethernet, is sent or received by an ECU, the corre-

sponding static checks evaluate the protocol headers

and the signals, contained in the payload section.

In the second stage of the system, learning checks

extend the detection possibilities, especially for ad-

vanced contextual and collective anomalies by using

machine learning. To apply the corresponding algo-

rithms, at ﬁrst relevant information has to be extracted

from messages. The static checks forward selected

information like protocol header ﬁelds to the learn-

ing checks, depicted in Figure 1 as feature base. The

feature extraction block, pre-processes the informa-

tion and generates features, which represent the input

data for the following algorithms. Pre-processing can

contain multiple aspects, like building time series and

normalization.

Since the investigated input data differs between

network technologies and anomalous behavior can be

reﬂected in various speciﬁc properties, miscellaneous

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

464

machine learning algorithms are applicable. There-

fore, the proposed system allows using a variety of

algorithms, working on the same features. Figure

1 shows two examples: Replicator Neural Networks

(RNN) (Hawkins et al., 2002) and One-Class Sup-

port Vector Machines (OCSVM) (Sch

olkopf et al.,

2001). Each algorithm produces as output either

a binary value (’normal’/’anomaly’) or a so-called

anomaly score, which represents the probability of

an anomaly. These produced outputs are evaluated

within the anomaly analyzer block, which e.g. checks

an anomaly score for a deﬁned threshold value be-

fore it securely stores the anomaly in a log. The de-

sign of the learning checks also allows for ensemble-

based methods, as proposed in recent research e.g. by

Andreas Theissler (Theissler, 2017). In an ensemble,

multiple algorithms run in parallel, checking for the

same anomalies and each of them producing its own

output. In such a setup, the anomaly analyzer per-

forms a voting between the different outputs and ﬁ-

nally decides whether an anomaly is logged or not.

This kind of post-processing is not necessary for static

checks, since they do not work with probabilities.

Therefore, they directly log the detected anomalies

together with the corresponding boundary conditions

(e.g. which Ethernet message caused the anomaly) to

enable an improved post-evaluation.

5 INVESTIGATED MACHINE

LEARNING ALGORITHMS

Ethernet is the networking technology which will

dominate the development of in-vehicle communica-

tion systems in future. Since e.g. autonomous driv-

ing is requiring higher data rates for the communi-

cation between ECUs, also safety-relevant data will

be transmitted via Ethernet and not only via CAN or

FlexRay. For that reason, Ethernet messages have to

be analysed with respect to the allowed behavior. As

outlined above, for example the destination address

of a message can create a point anomaly. However,

all possible and allowed destination addresses for a

given sending ECU can be speciﬁed in the commu-

nication matrix. Hence, some of the possible anoma-

lies concerning Automotive Ethernet communication

can be detected with static checks. The development

of these static checks is discussed in detail in section

6.1. On the other hand, only parts of the communi-

cation behavior is speciﬁed, since it is not possible

or it would be too much effort to determine dynamic

properties of the communication such as the order of

messages beforehand. Though, anomalous communi-

cation behavior can also affect characteristics that are

not speciﬁed. Resulting mostly in collective or con-

textual anomalies, this misbehavior can be detected

with learning checks.

In a ﬁrst step, algorithms have to be selected,

which are suited to be applied in the proposed sys-

tem as learning checks for anomaly detection in Eth-

ernet communication. For this use case, potentially a

lot of different methods can be used. Classiﬁcation-

based techniques use supervised learning and require

the availability of so-called labeled data. In this case,

training data instances are marked to belong to one

deﬁned class. Considering anomaly detection, there

are the two classes normal and anomaly. With this

pre-knowledge a classiﬁer is learned, which is able to

distinguish normal from anomalous data instances.

In contrast, clustering-based techniques use un-

supervised learning and do not require labeled data.

They group data instances and thereby try to ﬁnd the

classes normal and anomaly automatically. However,

most of these algorithms require many data instances

to be available during runtime in order to perform the

grouping task.

Since the proposed anomaly detection system

shall be implemented on an embedded ECU, consid-

ering the required resources is important. Computing

power on an embedded device is limited, compared

to ofﬁce computers or server systems. Following this

constraint, the computational complexity of an algo-

rithm must be low when executed on the ECU to de-

tect anomalies. On the other hand, the training of the

algorithm may be computational complex as long as

it can be performed ofﬂine, like on a back-end infras-

tructure. Afterwards, the trained algorithm has to be

transferred to the ECU, e.g. in terms of updating a pa-

rameter set. Not only the computing power is limited

on an ECU but also the available memory. This means

that applied machine learning algorithms must not re-

quire much read-only memory (ROM) and, even more

important, not much random access memory (RAM).

Due to these constraints, clustering-based techniques

are excluded from the decision process of ﬁnding an

appropriate algorithm. There are unsupervised algo-

rithms like Lightweight On-line Detector of Anoma-

lies which also have a comparable low computational

complexity and reduced memory consumption. The

investigation whether one of these algorithms is also

suited for detecting anomalies in Ethernet-based com-

munication on ECUs has to be investigated in future

research.

Another point concerning the selection of proper

machine learning algorithms is the false alarm rate.

Any identiﬁed anomaly has to be reported and should

be further analyzed e.g. by a human in a Security

Information and Event-Management (SIEM) center

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

465

which causes a lot of additional effort. In future,

if countermeasures may be applied within the ve-

hicle itself, false alarms could cause serious effects

like unintended and unnecessary emergency braking.

Thus, false alarms have to be avoided as far as any-

how possible. As mentioned above, the remaining

classiﬁcation-based techniques require labeled data.

However, to obtain labeled data for anomalies in Au-

tomotive Ethernet communication in a large scale is

difﬁcult or even impossible because of the data col-

lection and labeling effort. Also, training with anoma-

lous data would result in a classiﬁer, which is proba-

bly only able to detect known anomalies. This contra-

dicts the idea of anomaly detection, which tries to ﬁnd

any kind of deviation from normal behavior. There-

fore, algorithms are used, which only require the pres-

ence of normal data instances during the training to

perform a so-called one-class classiﬁcation.

From the plenty of possible methods to use as

learning check for Ethernet-based communication,

which are described in literature (Chandola et al.,

2009; Ahmed et al., 2016; Aggarwal, 2017), three are

selected for further evaluation. These are the Maha-

lanobis Distance, the Principal Component Analysis

and the One-Class Support Vector Machine. For each

selected algorithm details on its working principle are

given below.

5.1 Mahalanobis Distance

The basic assumption of the Mahalanobis Distance

(Mahalanobis, 1936) is that the data originates from

a multivariate gaussian distribution. Thereby the nor-

mal class, represented through the training data, is

modeled by the use of one gaussian function. The

learning process refers to the estimation of the under-

lying distribution, including the calculation of mean~µ

and covariance matrix C of the training data. To de-

ﬁne an anomaly score, the Mahalanobis Distance of a

new data instance~x to the mean of the training data is

calculated, which is given by equation 1.

Mahal(~x,~µ,C

) =



(~x −~µ)

−1

(~x −~µ)



(1)

Data instances with a larger distance to the mean

are more likely to be generated by another distribu-

tion than the training data and hence, can be classiﬁed

as anomalies. To use the Mahalanobis Distance as

anomaly detection method, a threshold

Mahal

has to

be deﬁned so that data instances with a larger or equal

distance than the threshold are considered anomalous.

One big advantage of this method is the ease of

use. Except for the speciﬁed threshold, there are no

parameters which have to be deﬁned.

5.2 Principal Component Analysis

With a Principal Component Analysis (PCA) it is pos-

sible to determine dependencies and correlations be-

tween dimensions of a feature space represented as

the random variables X

to X

. PCA describes the

feature space using the principal components as new

dimensions, which are a linear combination of the

d original dimensions. It is used often to reduce

the dimensionality of a given data set. Through an

eigenvalue analysis of the covariance or the correla-

tion matrix, the principal components are calculated

as the eigenvectors e

to e

. They are uncorrelated

and ordered by their variance. The total variance in

the new principal component space is the same as in

the original space, where the variance of the new di-

mensions is given by the eigenvalues λ

to λ

with

≥ λ

≥ ··· ≥ λ

Shyu et al. (2003) describe how PCA can be used

to detect outliers and anomalies in an efﬁcient way.

The basic idea is that anomalous data is represented

worse than normal data instances through the princi-

pal components. A higher deviation from the model

of the training data, represented by the principal com-

ponents and the corresponding eigenvalues, thus in-

dicates anomalous data. They select the p principal

components e

to e

with the highest variances and

q with the lowest variances, given by e

d−q+1

to e

to get two sub-spaces of lower dimensionality. For

any new data instance ~x the distance to the mean~µ of

the training data is calculated in these two sub-spaces

and weighted by the associated eigenvalues to obtain

an anomaly score. For the p selected principal com-

ponents, this is formally depicted by equation 2.

PCA

(~x) =

∑

i=1



·~z



(2)

The vector ~z = (z

,. . .,z

) is given by scal-

ing of the new data instance according to equation 3,

where µ

and σ

are the sample mean, respectively the

sample variance of the variable X

− µ

(3)

Considering the q principal components with low-

est variance, the distance is calculated accordingly.

Hence, the training process estimates the covari-

ance or correlation matrix C, sample mean and vari-

ance of the training data, followed by the solution

of the eigenvalue problem (C − λI) ·~e = 0 to obtain

the d principal components and eigenvalues. As sug-

gested by Shyu et al. the correlation matrix is used

instead of the covariance matrix for the calculation of

the principal components since this has the advantage

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

466

of weighting all features equally. That is especially

important if the features are measured on very differ-

ent scales, which cannot be excluded.

5.3 One-Class Support Vector Machine

The One-Class Support Vector Machine (OCSVM)

was introduced by Sch

olkopf et al. (2001). It is a

modiﬁcation of the well-known Support Vector Ma-

chine (SVM) described by Vapnik (1995). A SVM

mathematically separates a set of training data x

,i =

1. . .N containing data instances of two classes y ∈

{

−1,1

}

by a linear hyperplane. This classiﬁer is cal-

culated so that the smallest distance of a data instance

to the hyperplane is maximized. This smallest dis-

tance ρ is denoted as margin. The learning process

results in the support vectors (SVs), which are a par-

ticular subset of the training data depicting the hy-

perplane. Depending on the position of a new data

instance x

in the feature space with respect to the

hyperplane it can be classiﬁed resulting in the class

∈

{

−1,1

}

. Because a linear hyperplane is not suf-

ﬁcient to split non-linear distributed classes, usually a

kernel function φ(~x) is used. The function performs

an implicit mapping to the feature space of the ker-

nel function (kernel-space). Thus, the data instances

are separated in a feature space of higher dimension,

where a linear hyperplane is sufﬁcient to separate the

two classes.

Instead of being trained with data instances of two

classes, an OCSVM is trained with data instances of

one class only. Therefore, the algorithm is trained as

SVM that separates the training data from the origin

in the kernel-space to obtain a decision boundary. In

the original feature space, this boundary encloses the

training data and classiﬁes between the areas of high

and low data instance density, representing normal

and anomalous data. To attain an anomaly score for

a new data instance x

, its position with respect to the

decision boundary is determined. A data instance in-

side the boundary, which is hence normal, has a neg-

ative distance, whereas a data instance outside has a

positive distance to the boundary. The learning pro-

cess refers to the convex quadratic optimization prob-

lem, shown in equation 4, with the hyperplane ~w and

margin ρ using N training data instances.

min

w∈F,

ε∈ℜ

,ρ∈ℜ

k~wk

− ρ +

νN

∑

i=1

(4)

The variable

ε depicts some small violations of the

decision boundary to obtain a smoother classiﬁcation,

so that equation 5 holds true for the hyperplane.

~w ·~x

≥ ρ − ε

, ∀

,i = 1.. . N (5)

The parameter ν is affecting the number of train-

ing data instances becoming support vectors. As the

support vectors form the classiﬁer, ν has to be cho-

sen carefully to obtain a decision boundary that pro-

vides a sufﬁcient generalization ability. To solve the

constrained problem given by equations 4 and 5, La-

grange multipliers α

are introduced resulting in the

dual problem of equation 6 for which the constraints

in equation 7 hold true.

min

∑

i, j=1

·~x

(6)

0 ≤ α

≤

νN

and

∑

i=1

= 1 (7)

Inserting the kernel function φ(~x) for ~x, speciﬁed

by its cross-product K(~x

,~x

) = φ(~x

)φ(~x

), this results

in equation 8.

min

∑

i, j=1

K(~x

,~x

) (8)

Kernel functions are for example polynomial or

sigmoid functions, though the gaussian kernel or ra-

dial basis function (RBF-kernel) is the most popular

given by equation 9.

K(~x

,~x

) = exp



−

k~x

−~x

2 · σ



(9)

For the following evaluations, the RBF-kernel is

used. Therefore, a suitable value for σ has to be

found. Conducting the learning process by minimiz-

ing equation 8 the margin ρ and the N α

s are ob-

tained. All~x

for which α

is not equal to zero become

support vectors. The anomaly score can be calculated

according to equation 10. In contrast to the original

formulation of Sch

olkopf et al. (2001) the minus sign

is introduced to ensure that a higher anomaly score is

indicating a more anomalous data instance ~x

f (~x

) = −

∑

i=1

· K(~x

,~x

) − ρ

(10)

An important point when using an OCSVM for

anomaly detection is the selection of proper values

for the parameters ν and σ. In literature, there exist

different ideas how to choose these parameters. They

focus mostly on high detection rates, ignoring possi-

ble higher false alarm rates. But as outlined above,

low false alarm rates are indispensable in automotive

context and thus another method for the parameter se-

lection is used. By a grid search with k-fold cross-

validation and a stepwise reﬁnement of the parameter

range an appropriate value for σ is found, whereas ν is

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

467

set beforehand. As optimization criterion for the grid

search the minimum mean validation error across all

folds is used in order to receive a good generalization

ability at low false alarm rates.

6 ANOMALY DETECTION

SYSTEM FOR

ETHERNET-BASED

COMMUNICATION

This section provides a detailed view on the design

of the basic anomaly detection system elements con-

cerning Ethernet-based communication. At ﬁrst, the

static checks are outlined in subsection 6.1. In accor-

dance with the processing sequence of messages, sub-

section 6.2 introduces the extracted features used by

the following learning checks. Finally, subsection 6.3

discusses the conﬁguration of the presented machine

learning algorithms with respect to the developed sys-

tem.

6.1 Static Checks

For the implementation of static checks a slim model

of the underlying system speciﬁcation (communica-

tion matrix) is beneﬁcial. Normally, vehicle manu-

facturers specify the desired communication on their

in-vehicle Ethernet networks in a standardized man-

ner. One example for such a semi-formal speciﬁca-

tion is the AUTomotive Open System ARchitecture

(AUTOSAR) System Description, which is a Exten-

sible Markup Language (XML)-based format. It is

difﬁcult to use such ﬁles directly to check messages

against violations of the speciﬁcation since these ﬁles

are usually very large and of complex structure. Thus,

another model was developed being able to represent

the normal Ethernet communication in a slim form

based on a Uniﬁed Modeling Language (UML) class

diagram. The basic idea of the model is to concentrate

all parameters given by speciﬁcation and which can

represent a restriction of allowed Ethernet messages

within a network. To allow for efﬁcient anomaly

detection it is used as a whitelist model containing

only the allowed message parameter values. Because

of the whitelist approach implicitly every parameter

value that is not included in the model is prohibited.

For example, it could be speciﬁed that an ECU is al-

lowed to send data with one speciﬁc source IP ad-

dress. In that case, the allowed parameter value is

only this single address, whereas every other address

is forbidden to use.

As anomaly detection is conducted on a spe-

ciﬁc ECU, the system is conﬁgured especially for it.

Therefore, the model describes the communication of

the selected ECU with its partners. Since the root el-

ement holds the parameters relating to the Ethernet

protocol, one instance of the model represents one

communication path in the network. In other words,

the allowed communication between the selected and

one other ECU is modeled. Hence, if there exists

communication with e.g. six other ECUs, six differ-

ent instances of the model are necessary to include all

information for the static checks. During normal op-

eration of the anomaly detection system any received

and sent Ethernet message is compared to all model

instances. If any model is matching to the message re-

garding all deﬁned parameters such as addresses and

packet length, the message is considered normal. Oth-

erwise, if no model instance matches, the message is

an anomaly.

6.2 Feature Selection

One very important but mostly ignored challenge is

the selection of proper features for the following ma-

chine learning algorithms. Suitable features contain

all information necessary to distinguish between nor-

mal and anomalous data instances. Considering only

the payload data of messages in automotive com-

munication, the initial feature selection corresponds

to the extraction of single signals from the payload,

which can be done based on the communication ma-

trix. Physical signals like the speed of the vehicle can

be interpreted as elements of a time series. Hence, the

time series itself and further derived features form the

dimensions of the input data. On the other hand, the

deﬁnition of features, which model the overall behav-

ior of a communication, is more challenging and has

to be conducted with care. Evaluations of network

IDS are frequently based on the KDD Cup Dataset

(Stolfo, 1999), which contains data instances as 35-

dimensional feature vectors. Unfortunately, the fea-

tures are designated to be evaluated ofﬂine and are

speciﬁc for Internet applications as http or email.

Therefore, they are not applicable for real-time

anomaly detection in automotive networks and it is

necessary to deﬁne speciﬁc adequate features for in-

vehicle Ethernet.

As the anomaly detection system is executed on

one speciﬁc ECU, the features must be deﬁned ac-

cordingly. For that purpose the concept of global and

local features is introduced. A categorization into

these domains allows for a better analysis of anoma-

lous communication behavior. On the one hand, an

anomaly can inﬂuence a speciﬁc connection between

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

468

Table 1: Selected features to describe Automotive Ethernet communication.

Layer Scope

Global Local

MAC num. of communicating MAC addresses mean packet length in bytes

mean packet length in bytes mean time interval between packets

data rate in bytes per second received bytes per second

mean time interval between packets sent bytes per second

entropy of local MAC addresses packet length of each packet

entropy of remote MAC addresses time interval since last packet

IP entropy of local IP addresses mean packet length in bytes

entropy of remote IP addresses mean time interval between packets

num. of communicating IP addresses received bytes per second

entropy of the VLAN-ID sent bytes per second

num. of VLANs on which is communicated packet length of each packet

time interval since last packet

UDP/TCP entropy of local ports mean packet length in bytes

entropy of remote ports mean time interval between packets

num. of used local ports received bytes per second

num. of used remote ports sent bytes per second

packet length of each packet

time interval since last packet

additionally for TCP communication:

% URG, PUSH, RST, SYN, FIN packets

TCP window size

two ECUs, for example a higher frequency of mes-

sages, which is therefore a local anomaly on this sin-

gle connection. On the other hand, anomalous be-

havior can inﬂuence all connections of an ECU, for

example if this ECU is sending no messages at all.

Thus, this anomaly has a global effect. Considering

these two different domains, local and global features

can be deﬁned accordingly, describing either one or

all connections of an ECU. Another possible catego-

rization is based on the used communication proto-

cols on top of Ethernet like IP, UDP (User Datagram

Protocol) and TCP (Transmission Control Protocol).

Features can be deﬁned describing the behavior with

respect to one speciﬁc communication protocol.

Having a look at the KDD Cup features and other

recent research (Lakhina et al., 2005; Lazarevic et al.,

2003; Mantere et al., 2012) there are some basic com-

munication properties represented in all used feature

sets. These are the temporal behavior such as latency

and connection duration, packet sizes, ﬂow direction

and the number of communication partners. On the

basis of the discussed feature categorization and the

main properties which are frequently used in other re-

search, the features in table 1 are deﬁned and used

within the anomaly detection system. As depicted in

Table 1, the entropy of different variables is used as

feature.

H = −

∑

i=1

log(p

) (11)

The entropy is calculated according to equation

11, where p

= P(X = x

) denotes the probability of

variable X having the value x

∈ {x

,. . .,x

}. It is a

measure of distribution, because higher entropy val-

ues indicate a variable that is more likely to be uni-

form distributed. Since e.g. the probability of an ad-

dress occurring at a certain frequency is not given be-

forehand, it has to be estimated online. For that rea-

son, a sequence of occurred variable values has to be

recorded. Using a recording window of length M the

probability of every recorded value can be calculated.

Alongside, the mean calculation is also based on the

last M variable values. For this work, M is set to 15.

6.3 Learning Checks

After the deﬁnition of proper features to describe in-

vehicle Ethernet communication, learning checks can

be applied on them. Following the feature catego-

rization, it is necessary to use more than one learn-

ing check to analyze the communication. Not all fea-

tures are valid for every message. For example, the

local features describing one speciﬁc communication

path on MAC layer are not valid for messages of other

paths. Thus, a particular learning check is necessary

for every communication path on every layer. In addi-

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

469

tion, the global features can be analyzed with respect

to one layer only, or across layers. Therefore, one

learning check is applied on the global features of one

layer and one on the MAC-IP, MAC-IP-UDP/TCP

and IP-UDP/TCP global features, respectively.

One important aspect concerning the use of the

PCA-based method for anomaly detection is the se-

lection of the parameters p and q. Following Shyu et

al., the principal components that account for more

than 50 percent of the total variance are used as

the p components, and the ones with eigenvalues

smaller than 0.2 as the q components. Regarding the

OCSVM, the parameters ν and σ are chosen before

the training process as outlined above. Based on our

research results ν was set to 0.01. This value yields

the lowest false positive rates during the examina-

tion of the evaluation data set used below in section

7. Other possibilities to optimize ν and σ, such as

choosing both values based on the grid search with

k-fold cross validation process or the DFN method

suggested by Xiao et al. (2014), caused more false

alarms. Thus, they were not investigated further.

The training process is carried out by a special

program using recorded Ethernet messages. These

messages are passed as input to the anomaly detec-

tion system. Using the static checks, the base features

of every message are extracted and forwarded to the

feature extraction block. Inside of this block, further

calculations are conducted to generate the feature val-

ues for training, such as the calculation of entropies.

The learning checks used in this work buffer all input

feature values as they are batch learning algorithms.

After the processing of all messages by the anomaly

detection system, the actual training process can be

executed. For all learning checks the maximum value

of the anomaly score, generated during validation, is

used as threshold for the detection of anomalies dur-

ing runtime.

7 EVALUATION

The evaluation of the proposed system is performed

using a simulated environment. Ethernet communi-

cation is generated with the tool CANoe from Vector

Informatik. Several simulated ECUs exchange mes-

sages providing a behavior close to a real in-vehicle

Ethernet network. For simplicity reasons, the static

checks are not generated directly from the communi-

cation matrix but built on basis of the observed mes-

sages during the training process. Hence, every mes-

sage which would arouse an anomaly within the static

checks is used to extend the whitelist model so that all

training messages are considered normal by means of

the static checks.

For the training process, 50.000 Ethernet mes-

sages were collected, which are intended for the se-

lected ECU. Thus, the messages are either sent or re-

ceived from it. The evaluation data set consists of

100.000 messages and is modiﬁed in several ways to

generate synthetic anomalous behavior.

• Replaying previously sent normal packets: Some

packets are randomly selected and replayed once,

ﬁve or 20 times. The replayed packets are in-

serted starting 0.1 ms after the original one and

with a period of 1 ms, if applicable. This attack

can be used to gain information about the behav-

ior of ECUs as the answers can be recorded.

• Modiﬁcation of the message timestamps: The

original timestamp of randomly selected mes-

sages is modiﬁed by adding a gaussian noise with

a mean of zero and a variance of 1 ms or 10 ms.

This shall simulate messages sent too early or too

late, which could be caused by either a malfunc-

tion or an ECU that was taken over by an intruder.

Additionally, a trace of 220 s duration containing a

third type of anomalous behavior is evaluated, using

the modiﬁcation of message cycle intervals: A part of

the simulated Ethernet trafﬁc is sent in a cyclic man-

ner with deﬁned intervals. The modiﬁcation of the

cycle intervals can be used to create anomalous be-

havior as the corresponding messages are sent more

often or rarely if the cycle time is modiﬁed with re-

spect to the training data. Six different modiﬁcations

were taken into account.

The following evaluation of the selected algo-

rithms is based on their true positive (TP) and false

positive (FP) rate. A normal message that is classi-

ﬁed as anomaly is a false positive, whereas an anoma-

lous message which is classiﬁed as anomaly indicates

a true positive detection. In other words, anomalies

represent the positive, normal data the negative class.

As the anomaly detection system works in an online

manner, every processed message will be classiﬁed as

normal or anomaly. Since the features used to observe

Ethernet communication include calculations based

on a certain time interval, one anomalous message

can inﬂuence the classiﬁcation result for a complete

interval. Hence, not only the anomalous message it-

self will be classiﬁed as anomaly but possibly also

the following ones. On this account, it is allowed to

detect an anomaly within a time interval of two sec-

onds after its occurrence. Within this interval, mul-

tiple messages classiﬁed as anomalies will result in

only one true positive. Outside the detection interval,

every message classiﬁed as anomalous is a false pos-

itive.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

470

Results of Static Check. First of all, it has to be

noted that the static checks do not have to be eval-

uated with synthetic anomalies. As a concept that

is not based on machine learning it is predetermined

how the static checks will react on every message.

Thus, it is not necessary to examine which messages

are detected as anomalies. Because the static checks

for Ethernet are performed on basis of a whitelist, ev-

ery message that is not covered by the model will be

classiﬁed as an anomaly. The comparison of a new

message against the model can be implemented efﬁ-

ciently in terms of memory consumption and comput-

ing power by using a series of classical if...then state-

ments. In summary it is an effective and efﬁcient way

to check Ethernet communication against the speciﬁ-

cation.

Results of Learning Checks. Since the perfor-

mance of machine learning-based methods is not

known in advance, the detection of anomalies by

learning checks has to be analyzed in detail. The re-

sults of the evaluation with different synthetic anoma-

lies are depicted in Tables 2, 3 and 4. Examining the

replay scenario shows that it is easier for all investi-

gated methods to detect ﬁve or 20 inserted messages

than just one additional message. All investigated al-

gorithms detect a noticeable higher amount of anoma-

lies with an increasing n, where n is the number of

replayed messages, see the true positive rates in Ta-

ble 2. However, the OCSVM is capable of detecting

more anomalies than the other methods independent

of the number of replayed messages, whereas the Ma-

halanobis Distance recognizes least.

As depicted in Table 3, it seems to be a more difﬁ-

cult task to detect messages with an anomalous times-

tamp. The detection rates are below the results in

the replay scenario, see Table 2. Another interesting

fact is that a higher variance σ

of the added gaus-

sian noise is not necessarily leading to higher detec-

tion rates. For the Mahalanobis Distance, the number

of detected anomalies is even lower with σ

= 10 ms.

The PCA-based method is the best option for this type

of anomaly in terms of true positives, but at the cost of

a slightly higher false positive rate than the OCSVM.

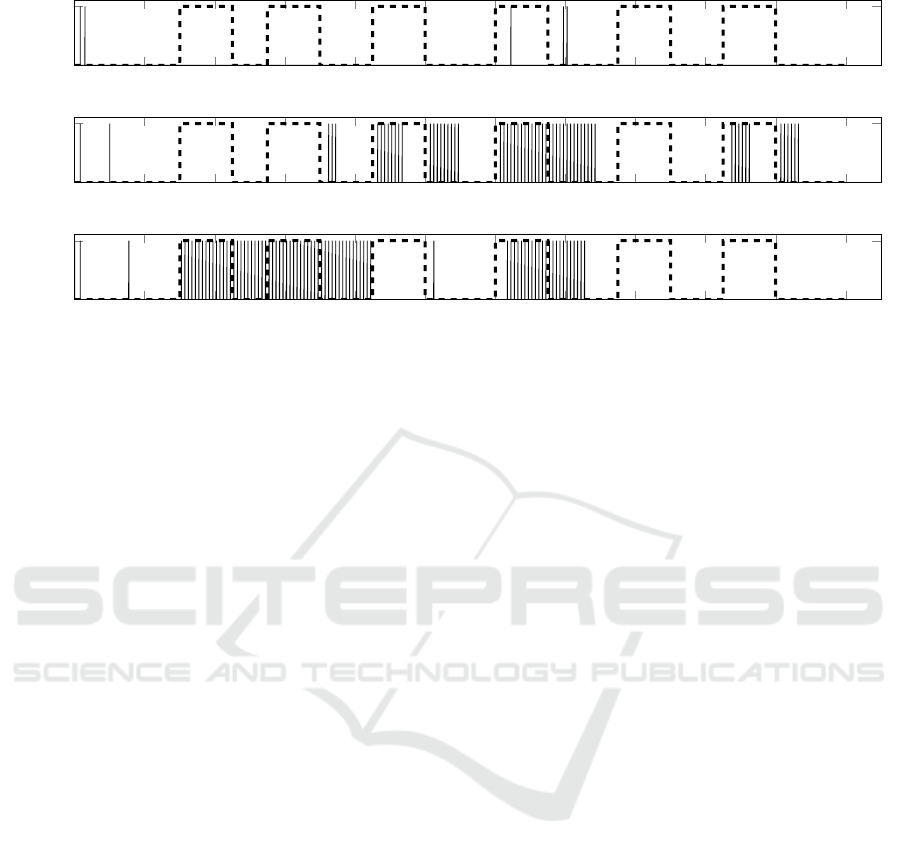

Concerning the last type of synthetic anomalies the

results are depicted in Table 4 and in ﬁgure 2. The

dashed lines in ﬁgure 2 indicate the actual class of the

analyzed messages, whereas the solid lines show the

classiﬁcation results of the particular learning check.

The Mahalanobis Distance identiﬁes only one out of

six inserted anomalies and thus provides the worst

detection performance. It is possible to detect three

anomalies by PCA, whereas the OCSVM detects only

two. Therefore, the PCA-based detection yields the

Table 2: Detection- and false alarm rates in the scenario of

replaying n normal messages.

Mahalanobis PCA OCSVM

n = 1

FP-Rate 0.0019 0.0026 0.0026

TP-Rate 0.2750 0.3250 0.7250

n = 5

FP-Rate 0.0015 0.0021 0.0019

TP-Rate 0.4872 0.7179 0.7692

n = 20

FP-Rate 0.0018 0.0024 0.0022

TP-Rate 0.9750 0.9750 1.0000

Table 3: Detection- and false alarm rates in the scenario of

adding gaussian noise with variance σ

to message times-

tamps.

Mahalanobis PCA OCSVM

= 1 ms

FP-Rate 0.0021 0.0028 0.0023

TP-Rate 0.1212 0.3030 0.2121

= 10 ms

FP-Rate 0.0016 0.0022 0.0017

TP-Rate 0.0909 0.3030 0.2424

Table 4: Detected anomalies in the scenario of modiﬁed

message cycle intervals.

Anomalous

time interval

Mahalanobis PCA OCSVM

30 s - 45 s

7 7 X

55 s - 70 s

7 (X) (X)

85 s - 100 s

7 X 7

120 s - 135 s

X X X

155 s - 170 s

7 7 7

185 s - 200 s

7 X 7

best results in this scenario. PCA classiﬁes some mes-

sages directly after the second detection interval as

anomaly, which can be interpreted as reaction to the

second anomaly. Besides, the OCSVM was able to

detect the second anomaly. But since the OCSVM is-

sues alarms in the time interval between ﬁrst and sec-

ond anomaly, it is not possible to distinguish between

them. Thus, the detection of the second anomaly in

the time interval of 55 to 70 s is denoted in parenthe-

ses in Table 4 for both the PCA and the OCSVM. It

should be noted that the used features contain infor-

mation calculated by a sliding window approach, such

as the mean time interval between packets. Thereby,

after returning to normal message cycle times and

hence normal communication behavior, there is still

the possibility to detect anomalies. This can be one

explanation for the OCSVM characteristic of issuing

false positives between ﬁrst and second as well as sec-

ond and third anomaly.

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

471

0 20 40

80 100 120 140

160

180 200 220

Anomaly

Mahalanobis Distance

0 20 40

80 100 120 140

160

180 200 220

Anomaly

PCA

0 20 40

80 100 120 140

160

180 200 220

Time in seconds [s]

Anomaly

OCSVM

Figure 2: Evaluation of modiﬁed message cycle intervals.

8 CONCLUSION AND FUTURE

WORK

This paper extended our existing hybrid anomaly de-

tection system for ECUs (Weber et al., 2018) by the

support for Ethernet-based communication. The sys-

tem is designed for in-vehicle ECUs but it can be

adapted to other application domains. Speciﬁcation-

based detection is implemented by the so-called static

checks and used in the ﬁrst stage of the system. In

contrast to IT systems, there is usually a semi-formal

network and data speciﬁcation available for in-vehicle

networks, which is used to implement an effective and

efﬁcient anomaly detection. A simpliﬁed model was

created enabling a slim deﬁnition of normal Ethernet

communication. It is applied within the static checks

as a communication whitelist similar to the speciﬁca-

tion of a ﬁrewall. Every message which is not con-

form to the whitelist model is considered anomalous.

The overall behavior of the Ethernet-based com-

munication, like the number of messages in a cer-

tain time interval, is usually not speciﬁed and there-

fore not represented in the model. Thus, machine

learning methods are used in the second stage of the

hybrid anomaly detection system capable to extract

the normal behavior from training data. The paper

at hand evaluated the performance of the statistical

methods Mahalanobis Distance and Principal Compo-

nent Analysis as well as the classical machine learn-

ing method One-Class Support Vector Machine. Be-

fore applying these algorithms, an appropriate feature

set was deﬁned focussing on a good description of in-

vehicle Ethernet communication and enabling online

detection of anomalies. First results based on the eval-

uation of different synthetic anomalies are promising.

Especially the PCA-based method showed good de-

tection rates at few false alarms combined with low

expenses related to memory consumption and com-

puting power. Therefore, this technique is an inter-

esting candidate for future research. Apart from that,

the Mahalanobis method did not detect a considerable

number of anomalies. The OCSVM should be con-

sidered in future as well, because it detected different

types of anomalies than the PCA. This indicates that

it might be beneﬁcial to use a variety of different al-

gorithms to detect a large portion of possible anoma-

lies. For that reason, it could be interesting to evaluate

more methods in future such as neural network based

approaches. Another recent candidate for investiga-

tion in future, LODA, is strongly related to the PCA

and was introduced by Pevn

y (2016).

One major point for future research is the deﬁned

set of features used to model the Ethernet-based com-

munication. As outlined above, with this feature set it

is possible to detect different types of anomalies with

various methods. However, the exact inﬂuence of the

individual features on the detection performance was

not investigated yet. An analysis on a reduced fea-

ture set to minimize the required resources or on an

extended feature set to improve the detection perfor-

mance could be conducted.

The evaluation was performed on the basis of syn-

thesized communication within a simulation environ-

ment on an ofﬁce computer. Hence, further research

includes the test of the system with real communica-

tion data and the implementation of the system on a

real ECU with strict resource limitations and real-time

requirements.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

472

REFERENCES

Aggarwal, C. C. (2017). Outlier Analysis. Springer Inter-

national Publishing.

Ahmed, M., Mahmood, A. N., and Hu, J. (2016). A survey

of network anomaly detection techniques. Journal of

Network and Computer Applications, 60:19–31.

Broy, M. (2006). Challenges in automotive software en-

gineering. In Proceedings of the 28th International

Conference on Software Engineering, ICSE ’06, pages

33–42, New York, NY, USA. ACM.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM computing sur-

veys (CSUR), 41(3):15.

Hawkins, D. M. (1980). Identiﬁcation of outliers, vol-

ume 11. Springer.

Hawkins, S., He, H., Williams, G., and Baxter, R. (2002).

Outlier detection using replicator neural networks. In

DaWaK, volume 2454, pages 170–180. Springer.

Hoppe, T., Kiltz, S., and Dittmann, J. (2009). Applying in-

trusion detection to automotive IT-early insights and

remaining challenges. Journal of Information Assur-

ance and Security (JIAS), 4:226–235.

IEEE-P802.3ch (2017). IEEE 802.3 Multi-

Gig Automotive Ethernet PHY Task Force.

http://www.ieee802.org/3/ch/index.html. Accessed:

2017-11-28.

IEEE Std 802.3bp-2016 (2016). IEEE Standard for Ether-

net Amendment 4: Physical Layer Speciﬁcations and

Management Parameters for 1 Gb/s Operation over a

Single Twisted-Pair Copper Cable.

IEEE Std 802.3bw-2015 (2015). IEEE Standard for Ether-

net Amendment 1: Physical Layer Speciﬁcations and

Management Parameters for 100 Mb/s Operation over

a Single Balanced Twisted Pair Cable (100BASE-T1).

Kleberger, P., Olovsson, T., and Jonsson, E. (2011). Se-

curity aspects of the in-vehicle network in the con-

nected car. In 2011 IEEE Intelligent Vehicles Sympo-

sium (IV), pages 528–533.

Lakhina, A., Crovella, M., and Diot, C. (2005). Mining

anomalies using trafﬁc feature distributions. In ACM

SIGCOMM Computer Communication Review, vol-

ume 35, pages 217–228. ACM.

Larson, U. E., Nilsson, D. K., and Jonsson, E. (2008). An

approach to speciﬁcation-based attack detection for

in-vehicle networks. In IEEE Intelligent Vehicles Sym-

posium, Proceedings, pages 220–225.

Lazarevic, A., Ertoz, L., Kumar, V., Ozgur, A., and Sri-

vastava, J. (2003). A comparative study of anomaly

detection schemes in network intrusion detection. In

Proceedings of the 2003 SIAM International Confer-

ence on Data Mining, pages 25–36. SIAM.

Mahalanobis, P. C. (1936). On the generalised distance in

statistics. Proceedings of the National Institute of Sci-

ences of India, 1936, pages 49–55.

Mantere, M., Uusitalo, I., Sailio, M., and Noponen, S.

(2012). Challenges of machine learning based mon-

itoring for industrial control system networks. In

2012 26th International Conference on Advanced In-

formation Networking and Applications Workshops

(WAINA), pages 968–972. IEEE.

Marchetti, M., Stabili, D., Guido, A., and Colajanni, M.

(2016). Evaluation of anomaly detection for in-

vehicle networks through information-theoretic algo-

rithms. In 2016 IEEE 2nd International Forum on

Research and Technologies for Society and Indus-

try Leveraging a better tomorrow (RTSI), pages 1–6.

IEEE.

Pevn

y, T. (2016). Loda: Lightweight on-line detector of

anomalies. Machine Learning, 102(2):275–304.

Sch

olkopf, B., Platt, J. C., Shawe-Taylor, J., Smola, A. J.,

and Williamson, R. C. (2001). Estimating the support

of a high-dimensional distribution. Neural computa-

tion, 13(7):1443–1471.

Shyu, M.-l., Chen, S.-c., Sarinnapakorn, K., and Chang, L.

(2003). A novel anomaly detection scheme based on

principal component classiﬁer. In Proceedings of the

IEEE Foundations and New Directions of Data Min-

ing Workshop, in conjunction with the Third IEEE In-

ternational Conference on Data Mining (ICDM03).

Citeseer.

Stolfo, S. J. (1999). KDD cup 1999 dataset. UCI KDD

repository. http://kdd.ics.uci.edu.

Taylor, A., Japkowicz, N., and Leblanc, S. (2015).

Frequency-based anomaly detection for the automo-

tive can bus. In 2015 World Congress on Indus-

trial Control Systems Security (WCICSS), pages 45–

49. IEEE.

Theissler, A. (2017). Detecting known and unknown faults

in automotive systems using ensemble-based anomaly

detection. Knowledge-Based Systems, 123:163–173.

Vapnik, V. N. (1995). The Nature of Statistical Learning

Theory. Springer, 8(6):187.

Weber, M., Klug, S., Sax, E., Maas, J., and Zimmer,

B. (2018). Embedded Hybrid Anomaly Detection

for Automotive CAN Communication. To be pub-

lished in: Embedded Real Time Software and Systems

(ERTS

) 2018.

Xiao, Y., Wang, H., Zhang, L., and Xu, W. (2014). Two

methods of selecting Gaussian kernel parameters for

one-class SVM and their application to fault detection.

Knowledge-Based Systems, 59:75–84.

An Extended Hybrid Anomaly Detection System for Automotive Electronic Control Units Communicating via Ethernet

473
