A Taxonomy Model for Single sign-on Oriented towards Cloud

Computing

Glauber C. Batista

, Maur

ıcio A. Pillon

, Guilherme P. Koslovski

, Charles C. Miers

Marcos A. Simpl

ıcio Jr.

and Nelson M. Gonzalez

Santa Catarina State University (UDESC), Joinville, Brazil

University of S

ao Paulo (USP), S

ao Paulo, Brazil

IBM Watson Research Center, Yorktown Heights, U.S.A.

mjunior@larc.usp.br, nmimura@us.ibm.com

Keywords:

Cloud Computing, Single Sign-On, Taxonomy.

Abstract:

Clouds can be seen as a natural evolution of the Internet, allowing the utilization of computing capabilities

maintained by third parties for optimizing resource usage. There are several elements that compose the cloud

infrastructure and its services, and all of them must operate harmoniously. In particular, to allow the creation

and deployment of services resilient to internal and external threats, the observance of security aspects is

essential. This includes the deployment of authentication and authorization mechanisms to control the access

to resources allocated on-demand, a strong requirement for any cloud-based solution. With this issue in mind,

several providers have recently started using some form of Single Sign-On (SSO) mechanism to simplify

the process of handling credentials inside the cloud. In this work, aiming to provide a structured overview

of the wide variety of mechanisms that can be employed with this purpose, we propose a classiﬁcation of

SSO systems for cloud services, which can be used as a model for comparing current and future designing

instances of such mechanisms. In addition, to validate the usefulness of the proposed taxonomy, we provide a

classiﬁcation of existing cloud-oriented SSO solutions.

1 INTRODUCTION

Cloud computing is a model that supports ubiquitous,

convenient, on-demand access to a shared pool of

conﬁgurable resources that can be rapidly provisioned

and released with minimal effort (Mell and Grance,

2011). As such, clouds can be seen as the natural evo-

lution of the Internet, allowing the utilization of com-

puting capabilities maintained by third parties in an

optimized manner, potentially reducing costs (Velte

et al., 2009). In order to provide a suitable service,

the multiple elements that compose the cloud infra-

structure must operate harmoniously. In particular, to

allow the creation and deployment of services resi-

lient to internal and external threats, the observance

of security aspects is essential. This includes the de-

ployment of authentication and authorization mecha-

nisms to control the access to resources allocated on-

demand, a key requirement for any cloud-based solu-

tion (Tavizi et al., 2012).

Whereas authentication is widely deployed in se-

veral cloud systems, each independent cloud services

may end up adopting its own authentication mecha-

nism. For example, it is not uncommon for cloud ser-

vices to perform some basic authentication using an

identity (e.g., a username) and a secret (e.g., a pas-

sword), which is straightforward to deploy and use.

However, such uncoordinated authentication appro-

ach usually harms the usability of these systems, at

the same time that it hinders any possibility of inte-

grating different services. Even worse, the lack of in-

tegration is also likely to impair the system’s security

itself, since users who are forced to remember several

pieces of information to access different services are

often compelled to set the same secret for most (if not

all) of them. In addition, from the services’ stand-

point each authentication operation corresponds to a

separate process, requiring the allocation of additio-

nal system resources and increasing the possibility of

information leakage (You and Zhu, 2012).

Aiming to avoid such issues, many existing cloud

services have adopted some form of SSO mecha-

nism (Chadwick et al., 2013; Sette and Ferraz, 2014).

The core characteristic of SSO solutions is to provide

Batista, G., Pillon, M., Koslovski, G., Miers, C., Simplício Jr., M. and Gonzalez, N.

A Taxonomy Model for Single Sign-on Oriented towards Cloud Computing.

DOI: 10.5220/0006784205730581

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 573-581

ISBN: 978-989-758-295-0

573

a unique, system-wide identiﬁer to each user. Several

SSO-enabled services can then rely on this identiﬁer,

providing pervasive authentication and authorization

for its users (Urue

na et al., 2014). The interest in

such approach can be veriﬁed by the fact that SSO

mechanisms have become prevalent across numerous

services, especially among major providers such as

Google (Google, 2017), Facebook (Facebook, 2017),

and Microsoft (Microsoft, 2006).

Despite the comprehensive reach of SSO mecha-

nisms for cloud services, the literature still lacks a

clear organization or a taxonomy to classify these me-

chanisms, thus allowing clear comparisons between

them. Indeed, even though standardization initiati-

ves have been proposed for authenticating users to-

ward cloud solutions (Ates et al., 2011; Hamlen et al.,

2011), these efforts do not take into account the inte-

gration of SSO with services inside the cloud. Outside

the cloud context, Clercq (Clercq, 2002) analyzed

current SSO architectures, classifying them as sim-

ple and complex approaches, based on the description

of the protocols used for each scenario. Pashalidis

and Mitchell (2003) proposed a taxonomy for existing

SSO solutions, organizing them in pseudo-SSO and

true SSO systems, depending on whether the authen-

tication process is performed directly with each ser-

vice or centralized in an SSO entity, respectively (Pas-

halidis and Mitchell, 2003). Bhargav-Spantzel et al.

(2006) proposed a taxonomy for user-centric SSO

systems, focusing on credentials and their relations-

hips (Bhargav-Spantzel et al., 2006). Albeit inte-

resting, the ﬁrst two works are quite high level, so

very distinct solutions may end up under the same

category, making the taxonomy less useful for ﬁne-

grained comparisons. In contrast, the latter is too fo-

cused on one particular type of system to be conside-

red comprehensive, so it often fails to provide speci-

ﬁc categories for complex environments where users

have low control over their own identities, which is

the case of the cloud (Ates et al., 2011).

Aiming to address this gap, in this paper we

propose a classiﬁcation of SSO systems suitable for

cloud services, to be used as a model for current and

future implementations of such systems. In addition,

we provide a classiﬁcation of existing SSO soluti-

ons which can be considered cloud-oriented, exempli-

fying the usefulness of the proposed taxonomy when

compared with existing SSO categorizations. The rest

of this paper is organized as follows. Section 2 gi-

ves an overview of SSO systems. Section 3 brieﬂy

discusses the studied taxonomies that are related to

this work (albeit not focused on cloud computing).

Section 4 provides a comparison between the existing

taxonomies, discussing their limitations. Section 5

describes the proposed taxonomy and applies it in the

classiﬁcation of existing authentication solutions.

2 SINGLE SIGN-ON: OVERVIEW

The concept of authentication is based on the correct

association of a subject to an identity (Bishop, 2004).

In other words, via the authentication process, a sub-

ject claims to be the rightful owner of an identity, pro-

viding credentials that prove such ownership, and the

system then veriﬁes whether or not this claim is valid.

This process can be carried out using several diffe-

rent types of credentials, such as something that the

subject knows (e.g., a password), possesses (e.g., a

smart card), is (e.g., static biometrics), does (e.g., dy-

namic biometrics), and/or some other veriﬁable pro-

perty (e.g., the subject’s location) (Bishop, 2004). For

a higher security level, these credentials can be com-

bined, leading to a multi-factor authentication mecha-

nism. In this context, an SSO is an authentication me-

chanism that provides a unique identiﬁer for a sub-

ject, whether it is a user or a (virtual) machine, so it

can be authenticated on several services, potentially

in a transparent manner. To provide this service, SSO

mechanisms assume basically the existence of three

elements:

• Identity Provider (IdP): the authentication server

responsible for issuing digital identities in a secure

manner, whenever necessary;

• Service Provider (SP): the application that requi-

res the authentication of subjects (e.g., users or ma-

chines) before providing the service; and

• Subject: the end-user/application that accesses the

service after being authenticated with the IdP’s aid.

Figure 1 illustrates the basic architecture of SSO

solutions and the interactions among these entities.

The SSO-based authentication process starts with the

subject accessing the SP and indicating which IdP

should be used for authentication. The authentication

agent embedded into the subject’s application then

obtains the credentials from the IdP (2), where the

subject’s credentials are stored. This IdP then execu-

tes the authentication process toward the SP, granting

access to the services the subject is authorized to use

(3). From the SP’s standpoint, there is little difference

between this process and a traditional authentication:

as long as the SP supports the SSO mechanism, it still

gains access to some information that represents the

subject’s credentials, the main difference being that

in this case the entity providing these credentials is

the IdP rather than the subject (Volchkov, 2001).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

574

Figure 1: SSO system. Based on (Volchkov, 2001).

The authentication performed in this manner is

said to be centralized in an IdP (Urue

na et al., 2014;

Sette and Ferraz, 2014), since a single authentication

toward this entity grants access to several computing

resources and applications in a distributed environ-

ment. In other words, after the IdP veriﬁes that the

user’s claim over an identity is valid, the IdP itself

can act on the subject’s behalf whenever an authen-

tication is required. In systems that adopt passwords

as part of its authentication mechanism, for instance,

a user does not need to remember several passwords

for different services, nor ignore security best practi-

ces advising against password reuse on multiple sites:

a single password, intended for the IdP, is all that is

needed. The IdP can then protect those passwords

accordingly, such as using some password hashing

scheme (Andrade et al., 2016) for thwarting dictio-

nary attacks in case the database is stolen, as well

as captchas and/or throttling mechanisms for avoiding

online password cracking attempts (Zhu et al., 2014).

The IdP may also consider the user’s password as a

“master secret”, using it to derive cryptographic keys

for encrypting the database, providing further pro-

tection against database breaches. Similarly, in sys-

tems that rely on biometrics, the IdP is the only entity

that collects and stores the user’s biometric informa-

tion, reducing the risk of its exposure and subsequent

attacks (Galbally et al., 2012). Whenever the creden-

tials need to be updated, this can be done directly with

the IdP, which then becomes responsible for synchro-

nizing this change toward all services.

Combined, these elements create an Identity Me-

tasystem, i.e., an interoperable architecture of digi-

tal identities. This metasystem allows subjects to

manage several digital identities using different un-

derlying technologies, possibly from different imple-

mentations and providers (Hamlen et al., 2011). In-

deed, SSO solutions have constantly evolved over

time and currently rely on different mechanisms for

synchronization and credential storage. Examples in-

clude the use of certiﬁcates (e.g., X.509), tokens (e.g.,

Kerberos), and attribute exchange mechanisms (e.g.,

OpenID).

3 EXISTING TAXONOMIES

Historically, different SSO protocols have been pro-

posed, often targeted at different systems and requi-

rements. This has led to several taxonomies, created

to classify these protocols for speciﬁc contexts. Even

though these taxonomies do not focus speciﬁcally on

cloud computing, they provide a good overview of

SSO solutions. For this reason, they are analyzed in

this section.

3.1 Pashalidis and Mitchell

The taxonomy presented in (Pashalidis and Mitchell,

2003) is somewhat classical, being adopted for the

classiﬁcation of several SSO systems (Tiwari and

Joshi, 2009; Clercq, 2002; Linden and Vilpola, 2005).

It separates SSO systems in two main categories:

• Pseudo-SSO systems use an SSO component to

manage the authentication credentials for each SP.

The user authenticates against this component,

which is responsible for conveying the operation to

the different SPs. The relationship between iden-

tity and SP is n : 1 – each identity is related to a

single SP and the user can have multiple identities

for a single SP.

• True SSO systems use an Authentication Service

Provider (ASP), a role that is usually played by the

IdP, to establish a relationship with each SP. This

relationship requires some sort of trust level that

is supported by a contractual agreement (Pashali-

dis and Mitchell, 2003). The authentication pro-

cess occurs exclusively between users and the ASP,

and SPs are then notiﬁed about the result via au-

thentication assertions. These assertions contain

the user’s identity and the authentication state at

the SP. The relationship between identities and SPs

can then be n : m – the user may have multiple iden-

tities in each SP, but may also prefer to use a same

identity in different SPs.

Both pseudo-SSO and true SSO systems can ope-

rate in local mode or in proxy-based mode, leading to

the four categories presented in Table 1.

3.2 Clercq

(Clercq, 2002) classiﬁes SSO architectures as simple

or complex, which are illustrated in Figure 2.

Simple SSO architectures use a single authentica-

tion authority with a same set of credentials for the

user. Some examples include IBM Tivoli and Mi-

crosoft RADIUS. Having a single authority does not

mean necessarily that there is only one authentication

A Taxonomy Model for Single Sign-on Oriented towards Cloud Computing

575

Table 1: SSO taxonomy by (Pashalidis and Mitchell, 2003).

Local Proxy

Pseudo-

SSO

Local Pseudo-SSO: The

pseudo-SSO component

resides in the user’s machine,

acting as a repository of

credentials and scripts for

authenticating the user. The

user starts the authentication

process toward the compo-

nent and then the process is

conveyed to the SPs.

Proxy Pseudo-SSO: The

pseudo-SSO component

resides in an external proxy

server, which must be trusted

by the user for storing its

credentials and authentica-

tion scripts. Authentication

is started by the user and

redirected to the proxy, which

executes the authentication

process.

True

SSO

Local True SSO: User

authenticates toward locally

managed ASP, which then

sends authentication asserti-

ons to the SPs. There must an

adequate trust level between

the local ASP and the SPs,

as well as a proper security

infrastructure in place.

Proxy True SSO: The ASP

resides in an external server

that operates as a broker be-

tween users and SPs, issuing

assertions regarding the au-

thentication. The ASP must

be trusted, otherwise it could

easily impersonate a user by

sending an assertion to a SP.

Figure 2: Clercq Architecture (Clercq, 2002).

server and one credential database available, though.

In fact, for improved performance and scalability, a

single authentication authority might consist of mul-

tiple authentication servers and several replicated cre-

dential databases (Clercq, 2002).

Complex SSO architectures involve multiple au-

thentication authorities with one or many sets of cre-

dentials for each user, which allows them to cover dis-

tinct administrative domains implemented in different

platforms (potentially managed by multiple organiza-

tions). They are further divided in two subclasses: sy-

stems that use a single set of credentials and systems

that employ multiple sets. The former usually rely on

two types of credentials:

• Token-based: Users are authenticated toward the

authentication authority and receive a token, which

can be used in subsequent authentications toward

services from the same domain or to prove the

user’s identity toward a secondary authority (like

in Kerberos (MIT, 2015));

• PKI-based: Rely on a Public Key Infrastructure

(PKI), which means that the user ﬁrst registers in a

trusted Certiﬁcation Authority (CA) or in a Regis-

tration Authority (RA). During the authentication

process, the user is identiﬁed via a set of creden-

tials, leading to the generation of an asymmetric

pair of cryptographic keys. The possession of the

public key certiﬁcate together with the correspon-

ding private key allows the user to generate sig-

ned tokens for authentication (e.g., in a challenge-

response protocol).

Architectures with multiple sets of credentials, on

their turn, can be subdivided in basically three types:

• Credential Synchronization: The users’ credenti-

als are synchronized among several applications, so

they all see the same set of credentials (e.g., a same

password). Usually, the credentials are stored in a

single database that is accessed by those applicati-

ons. As a result, when the credentials are updated,

the synchronization between services occurs in a

seamless manner.

• Client-side Secure Caching: Users are able to lo-

cally store service credentials, which are usually

protected by a master password.

• Server-side Secure Caching: Users store credenti-

als in a remote server, which becomes the primary

database of credentials. This database maps pri-

mary and secondary credentials of the user, such

as a master password and a service-speciﬁc pass-

word, respectively; the latter can then be stored by

the corresponding services, which constitute secon-

dary authentication domains.

It is interesting to notice that, even though

Clercq’s taxonomy for SSO solutions includes more

classes than (Pashalidis and Mitchell, 2003), they ac-

tually use similar concepts in their classiﬁcation. For

example, Clercq’s client and server-side credential

storage classes are analogous to the pseudo-SSO and

true SSO based on proxies from Pashalidis and Mit-

chell’s taxonomy.

3.3 Bhargav-Spantzel Taxonomy

The taxonomy by Barghav-Spantzel et al. (2006)

addresses the SSO solution from the user’s stand-

point (Bhargav-Spantzel et al., 2006). For this rea-

son, it is currently well-accepted for classifying SSO

systems in the context user-centered identity manage-

ment solutions (Han et al., 2010; Suriadi et al., 2009;

Zhang and Chen, 2010; Zhang and Chen, 2011). Ba-

sically, the taxonomy proposes a classiﬁcation ba-

sed on two main paradigms: relationship-focused and

credential-focused, discussed in what follows.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

576

3.3.1 Relationship-focused

A relationship-focused SSO system manages only

the relationship among IdP, SP, and user. For each

transaction, the user queries an IdP with which it

is registered and dynamically obtains information.

Relationship-focused systems use short-lived tokens,

valid only during a limited set of transactions. The

pros and cons of this type of system are as follows:

• Pros:

– Short-lived tokens limit the risk and potential da-

mage in case they are stolen or intercepted;

– As long as the IdP is online, it can keep the authen-

tication information up-to-date;

– In general, they are lightweight systems and do not

required a robust user-side client application; and

– They only require an effective asymmetric crypto-

graphic solution.

• Cons:

– The need of having an always-online IdP turns it

into a Single Point of Failure (SPF);

– As the IdP is always involved in the transactions,

the user activities can be monitored, so the IdP

needs to be fully trusted; and

– If there is a lot of token transitivity, the risk of im-

personation issues grows. A token is considered

transitive if the component that receives the token

can somehow use it to impersonate its owner (e.g.,

if the authentication mechanism assumes the bearer

of the token is its rightful owner for any authen-

tication context). Several existing SSO systems

include mechanisms to prevent this issue; for ex-

ample, SAML (OASIS, 2015) and Liberty (Liberty

Alliance, 2015) explicitly deﬁne who is the entity

to which the token is intended, so any attempt to

forward the received token to a third party would

lead to its rejection as the token’s recipient infor-

mation would not match that of the third party.

3.3.2 Credential-focused

A credential-focused system is characterized by the

fact that it directly manages the credentials. This in-

cludes, for instance, a client application that stores the

user’s long-term tokens in a local database: in this

case, the user can reuse the credentials issues by the

IdP for multiple transactions, even without contacting

the IdP once again. To be practical, such systems

must use long-lived credentials (e.g., X.509 certiﬁca-

tes (Cooper, 2008)), as otherwise the locally stored

credentials would become quickly useless. Some pros

and cons of credential-focused solutions are:

• Pros:

– By deﬁnition, the IdP is ofﬂine during the transacti-

ons. Hence, it is unable to trace the users’ activities

and, if it goes ofﬂine, the authentication system’s

availability is not critically affected (except, obvi-

ously, that new tokens cannot be issued).

– The tokens generated from the long-term creden-

tials are necessarily not transitive, as otherwise

the users would be vulnerable to impersonation at-

tacks. Such non-transitivity is ensured by mecha-

nisms such as challenge-response protocols invol-

ving nonces, so a token generated for a certain con-

text cannot be reused in a different context.

• Cons:

– Credential theft or undesired sharing could lead to

severe risk and damage to the system. Hence, it is

fundamental to avoid any sort of credential sharing

in such systems.

– Credential loss requires a mechanism to revoke it.

If a credential is revoked, the user cannot access

any service associated to it until a new valid cre-

dential is issued.

– Credential-focused systems usually lead to a hig-

her workload on the client application, thus requi-

ring more robust client applications (and client-side

computational resources).

3.3.3 Limitations

Even though Bhargav-Spantzel’s taxonomy model le-

ads to a quite succinct and comprehensive abstraction

for SSO mechanisms, the fact that it focus on user-

centered systems make it less useful for analyzing

identity-centered architectures. In other words, this

taxonomy is interesting to evaluate SSO systems in

which the users can have multiple identities to log

on several services, potentially using different iden-

tity providers, as it is the common case of the Internet.

However, it does not cover well solutions that rely on

a locally centralized identity provider, in which it is

important to ensure that each entity is identiﬁed une-

quivocally for administrative purposes; this is the case

of corporate or federated systems, and also of many

cloud environments.

A Taxonomy Model for Single Sign-on Oriented towards Cloud Computing

577

4 COMPARISON AND

EVALUATION OF EXISTING

TAXONOMIES

A ﬁrst aspect that must be considered in a comparison

among the three presented taxonomies refers to its co-

verage of the user-centered and/or identity-centered

paradigms. Namely, while the taxonomy by Bhargav-

Spantzel et al. exclusively focuses on user-centered

solutions, the other two taxonomies address the whole

SSO spectrum.

Another interesting aspect refers to the core met-

hod or categories employed in the construction of

the proposed taxonomies for SSO solutions. Pasha-

lidis and Mitchell’s taxonomy classiﬁes the systems

mainly in terms of locality, distinguishing pseudo-

SSO and true SSO systems (local or remote). Clercq

architecture, in turn, uses complexity as the primary

metric for classifying SSO systems, and then consi-

der the amount of credential information handled by

them (single set or multiple set of credentials). Fi-

nally, the Bhargav-Spantzel taxonomy focuses on the

interactions between users and the IdP, distinguishing

systems where the interactions are strong and the to-

kens are short-lived (relationship-focused) from those

with less frequent interactions and long-lived tokens

(credential-focused).

Even though it is not possible to deﬁne which

taxonomy is best suited for all scenarios, the analysis

of the literature shows that the taxonomy by Pasha-

lidis e Mitchell is the most comprehensive and well-

accepted. Therefore, it is reasonable to use it as a

reference for deﬁning more detailed sub-classes. In-

deed, the relationship between (Pashalidis and Mit-

chell, 2003) and (Clercq, 2002) architectures has alre-

ady been described in (Linden and Vilpola, 2005): as

illustrated in Table 2, Pashalidis and Mitchell’s taxo-

nomy (in the rows and columns) can be approximately

mapped to the classes deﬁned in Clercq’s taxonomy

(in the table’s internal cells). The main limitation of

this mapping is that, even though credential synchro-

nization is accounted for in (Pashalidis and Mitchell,

2003) original article, there is not a speciﬁc category

for it in their taxonomy.

Table 2: Comparison between Pashalidis and Mitchell’s

taxonomy and the taxonomy by Clercq. Adapted from (Lin-

den and Vilpola, 2005).

Local SSO systems Proxy-based SSO systems

Pseudo-SSO Sys-

tems

Secure client-side credential

caching

Secure server-side credential

caching

True SSO Systems PKI-based SSO systems Token-based SSO systems

The relationship between the taxonomy by

(Bhargav-Spantzel et al., 2006) and the other two

taxonomies hereby described is illustrated in Fi-

gure 3. Figure 3 shows that the credential-focused

and relationship-focused systems can be seen as sub-

types of the PKI-based and token-based systems, re-

spectively. Therefore, Pashalidis and Mitchell’s taxo-

nomy (and, consequently, Clercq’s) can be seen as

more comprehensive, including categories for the

classiﬁcation of speciﬁc systems as those covered by

(Bhargav-Spantzel et al., 2006).

Figure 3: Relationship among the taxonomies hereby inves-

tigated.

Whereas a generic taxonomy allows several sys-

tems to be classiﬁed under its structure, the lack of

more ﬁne-grained classes available in more speciﬁc

taxonomies may reduce their usefulness when a de-

tailed analysis and comparison is necessary. After all,

systems with quite different properties end up in the

same (high-level) category, the comparison between

them will not rely on the taxonomy itself, but in de-

tails not covered by it. On the other hand, a user-

centered taxonomy approach as the one proposed by

Bhargav-Spantzel et al. does not necessarily cover

well SSO systems that are not user-centered themsel-

ves. In the speciﬁc case of cloud systems, this may

hinder the classiﬁcation and comparison of different

authentication models, since they must be able to ad-

dress (Hamlen et al., 2011):

• Several trust relationships;

• Several access control policies, based on roles and

attributes;

• The provisioning of services in real time;

• Authorization services; and

• Audit and accountability services.

In addition, one particularity of the identity mana-

gement in cloud systems is that in such environments

the identity of users is fragmented in silos, and usu-

ally is not entirely on the user’s control (Ates et al.,

2011). Such speciﬁcity motivates the creation of a

cloud-oriented SSO taxonomy that allows the identi-

ﬁcation of authentication systems that conciliate those

properties (e.g., by returning the control of the sy-

stem’s identities to the users).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

578

5 PROPOSED TAXONOMY

The proposed taxonomy is based on the one presented

by Pashalidis and Mitchell (Pashalidis and Mitchell,

2003), but adopts a hierarchical approach instead of a

horizontal one to account for particularities of cloud

systems. As a result, this approach remains concise

in its initial levels, but in its deeper levels allows a

more detailed classiﬁcation of SSO systems even wit-

hout focusing on a particular (e.g., user-centered) sce-

nario. Similarly to the work proposed in (Pashalidis

and Mitchell, 2003), it is possible to use the proposed

taxonomy as a starting point for further more detailed

analysis of cloud SSO systems. The resulting hierar-

chical structure is illustrated in Figure 4, which shows

the following categories:

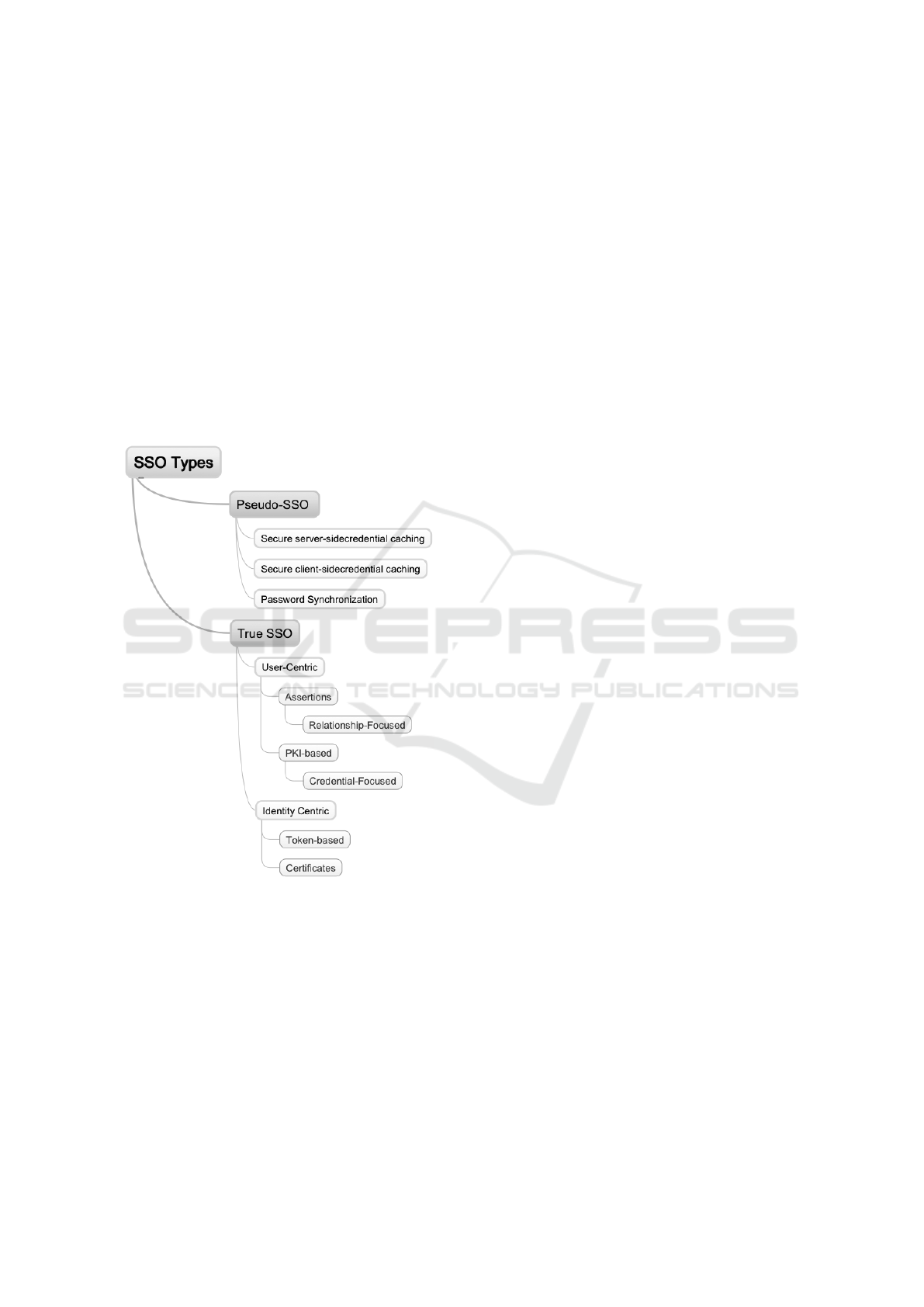

Figure 4: Proposed taxonomy model for Single Sign-On

oriented towards cloud computing.

• Pseudo-SSO: Pseudo-SSO systems can be clas-

siﬁed as: local, proxy-based, or synchronization-

based. As noted in Section 4, this explicit in-

clusion of synchronization-based systems avoids

the need of classifying them as local or proxy-

based, conciliating the taxonomies by Pashalidis

and Mitchell, and Clercq.

– Password synchronization: Systems based on

password synchronization between the servi-

ces. They are typically represented by systems

that use a master database for such synchroni-

zation, thus implementing transparent and se-

amless integration between any other credential

databases.

– Secure client-side credential caching: Systems

that allow local management of credentials.

Credentials are stored in a local database via

a master password or other authentication me-

chanism (e.g., biometrics).

– Secure server-side credential caching: Systems

that allow remote storage and management of

credentials. These credentials are replicated

and secured by a trusted remote server, inclu-

ding secondary credentials used to authenticate

other service domains.

• True SSO: True SSO systems are organized in

local and proxy-based. The proposed taxonomy

explicitly divides these categories, but the analy-

sis of currently existing solutions shows that PKI-

based systems end up being local, while systems

based on tokens are proxy-based.

– User-centric: Systems that are focused on the

user instead of the SPs. In this model, the user

may choose the IdP that will be responsible to

process the authentication request. User-centric

systems are based on assertions about the user,

which are used for the communication between

the IdPs and SPs, or employ PKI for that

purpose. Systems that are based on assertions

are typically relationship-focused, while those

based on PKI are usually credential-focused.

– Identity-centric: Systems focused on the user’s

identity in the SP. These systems are also cal-

led “centralized authentication solutions”, as in

those cases the users are limited to authenticate

against a particular IdP.

5.1 Classifying Cloud-oriented SSO

Solutions

Aiming to illustrate the usefulness of the proposed

taxonomy, it is interesting to discuss how it addres-

ses the classiﬁcation of SSO systems used in cloud

computing environments. First, we note that user-

centered solutions such as OpenID (OpenID, 2015)

and SAML (OASIS, 2015) are widely adopted and

supported by cloud services, both in private clouds

such as OpenStack (Openstack, 2017) and in public

ones such as Amazon Web Services (AWS) (Amazon,

2015). In this context, as in Bhargav-Spantzel et al.’s

taxonomy, it is possible to distinguish user-centered

mechanisms that are relationship-focused from those

A Taxonomy Model for Single Sign-on Oriented towards Cloud Computing

579

that are credential-focused.

The taxonomy also allows the characterization of

SSO systems in different speciﬁcity levels, depending

on the how much detail is necessary. For example,

in a high level, Kerberos and OpenID are both true

proxy-based SSO systems. However, under a ﬁner-

grained perspective, Kerberos can also be classiﬁed

as identity-centered, using tokens for the communica-

tion between the system’s elements. In contrast, Ope-

nID is a user-centered proxy-based true SSO system,

using assertions (typically conveyed via tokens) for

this communication. Hence, even though both Ker-

beros and OpenID rely on tokens and centralize the

authentication process on an SSO entity, the appro-

aches adopted by them can be clearly distinguished

using the proposed taxonomy.

Whereas the proposed taxonomy aims to be quite

comprehensive, we emphasize that it might not re-

main as complete with the development of new sys-

tems. Nevertheless, as long as novel approaches can

still be classiﬁed in the high-level categories cove-

red, it can be extended to accommodate such soluti-

ons in its hierarchy. In addition, some SSO solutions

combine different mechanisms for the same domain,

leading to a more complex system that does not ﬁt

directly into a single category of the proposed taxo-

nomy. For example, OpenStack running its Identity

API version 3 (Openstack, 2015) is able to use both

OpenID and Kerberos.

Table 3: Classiﬁcation of existing SSO solutions using the

proposed taxonomy.

Solution Main category Subcategories

Azure Active Directory (Mi-

crosoft, 2015a)

Pseudo-SSO Credential synchronization

CardSpace (Microsoft, 2006) Pseudo-SSO Secure client-side credential caching

Entrust Cloud PKI (Entrust,

2015)

Pseudo-SSO Secure server-side credential caching

Facebook Login (Facebook,

2017)

True SSO User-centric; Assertions;

Relationship-focused

FIDO (FIDO, 2015) Pseudo-SSO Secure client-side credential caching

Kerberos-based (MIT, 2015) True SSO Identity-centric; Tokens

Liberty Alliance (Liberty Alli-

ance, 2015)

True SSO User-centric; Assertions;

Relationship-focused

Microsoft Passport (Micro-

soft, 2015b)

True SSO User-centric

OpenID (OpenID, 2015) True SSO User-centric; Assertions;

Relationship-focused

SAML (OASIS, 2015) True SSO User-centric; Assertions;

Relationship-focused

Shibboleth (Shibboleth, ) True SSO User-centric; Assertions;

Relationship-focused

X.509 (Cooper, 2008) True SSO User-centric; PKI-based; Credential-

focused

Consequently, since the resulting authentication

system is based on two distinct models, it can only

be placed on a higher level category, e.g., being clas-

siﬁed generically as a proxy-based true SSO system.

For a more complete view of the authentication

ecosystem in the cloud environment, Table 3 shows

the classiﬁcation of several SSO systems using the

proposed taxonomy.

In this table, SSO systems are classiﬁed ﬁrst using

a coarse-grained level, and then into the ﬁne-grained

level of the proposed taxonomy. Several SSO systems

used in cloud computing services and solutions are

covered, even when they were developed for particu-

lar contexts. Therefore, its ﬁne-grained levels should

aid in the comparison of distinct solutions to ﬁnd the

most suitable to a particular cloud service and context.

Compared to the other taxonomies investigated in

this paper, the one hereby proposed allows a more

precise classiﬁcation of SSO systems, since it is the

result of combining generic architectures with more

speciﬁc ones.

6 CONSIDERATIONS & FUTURE

WORK

SSO solutions have been widely adopted throughout

the years, in especial to solve the complex problem

of credentials management. In addition, SSO mecha-

nisms have also contributed for identity management

among several services, enabling authentication in a

more user-friendly manner. This characteristic is of

particular interest in cloud environments, in which the

development of new services leads to a constant need

of integrating different systems.

Aiming to facilitate the comparison among SSO

mechanisms that can be employed in the cloud sce-

nario, this article presents a taxonomy for existing

solutions, conciliating categories from different taxo-

nomies available in the literature. More speciﬁcally,

the proposed taxonomy builds upon the work in (Pas-

halidis and Mitchell, 2003), taking advantage of its

generality and extending it with ﬁner-grained catego-

ries, in special those from the taxonomies proposed

in (Bhargav-Spantzel et al., 2006; Clercq, 2002). As

a result, it allows a clearer analysis and evaluation of

several characteristics of the target SSO solutions, as

well as a comparison with alternative approaches for

identifying the best suited for a speciﬁc scenario.

One important characteristic of the proposed taxo-

nomy is the extensibility applied to base categories

provided in (Pashalidis and Mitchell, 2003), which

should allow it to cover new solutions as they are cre-

ated and implemented. To further explore this capabi-

lity, as future works we plan to investigate other SSO

solutions that might lead to an enhanced taxonomy,

with even ﬁner-grained categories.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

580

ACKNOWLEDGEMENTS

The authors would like to thank the support of the

LabP2D (Laboratory of Parallel and Distributed

Processing) / UDESC (Santa Catarina State Uni-

versity), providing its facilities and resources to the

accomplishment of this research.

This work was in part supported by the Brazilian Na-

tional Council for Scientiﬁc and Technological Deve-

lopment (CNPq) under grant 301198/2017-9.

REFERENCES

Amazon (2015). Amazon web services.

Andrade, E., Jr, M. S., Barreto, P., and Santos, P. (2016).

Lyra2: Efﬁcient password hashing with high security

against time-memory trade-offs. IEEE Transactions

on Computers, 65(10):3096–3108.

Ates, M., Ravet, S., Ahmat, A., and Fayolle, J. (2011). An

identity-centric internet: Identity in the cloud, iden-

tity as a service and other delights. In 6th Int. Conf.

on Availability, Reliability and Security (ARES), pages

555–560.

Bhargav-Spantzel, A., Camenisch, J., Gross, T., and Som-

mer, D. (2006). User centricity: A taxonomy and open

issues. In Proc. of the 2nd ACM Workshop on Digi-

tal Identity Management, DIM ’06, pages 1–10, New

York, NY, USA. ACM.

Bishop, M. (2004). Introduction to Computer Security.

Addison-Wesley Professional, 1st edition.

Chadwick, D. W., Siu, K., Lee, C., Fouillat, Y., and Ger-

monville, D. (2013). Adding federated identity ma-

nagement to OpenStack. Journal of Grid Computing,

12(1):3–27.

Clercq, J. D. (2002). Single sign-on architectures. In

Proc. of the Int. Conf. on Infrastructure Security (In-

fraSec’02), pages 40–58, London, UK, UK. Springer-

Verlag.

Cooper, D. (2008). Internet X.509 public key infrastructure

certiﬁcate and certiﬁcate revocation list (CRL) proﬁle.

Entrust (2015). Entrust.

Facebook (2017). Facebook login.

FIDO (2015). FIDO Alliance.

Galbally, J., Ross, A., Gomez-Barrero, M., Fierrez, J., and

Ortega-Garcia, J. (2012). From the Iriscode to the

iris: A new vulnerability of iris recognition systems.

Technical report, Black Hat USA. Available: https://

media.blackhat.com/bh-us-12/Brieﬁngs/Galbally/

BH US 12 Galbally Iris Reconstruction WP.pdf.

Google (2017). Google identity platform.

Hamlen, K., Liu, P., Kantarcioglu, M., Thuraisingham, B.,

and Yu, T. (2011). Identity management for cloud

computing: Developments and directions. In Proc. of

the 7th Annual Workshop on Cyber Security and In-

formation Intelligence Research, CSIIRW ’11, pages

32:1–32:1, New York, NY, USA. ACM.

Han, J., Mu, Y., Susilo, W., and Yan, J. (2010). A gene-

ric construction of dynamic single sign-on with strong

security. In Security and Privacy in Communication

Networks, pages 181–198. Springer.

Liberty Alliance (2015). Liberty Alliance project.

Linden, M. and Vilpola, I. (2005). An empirical study on

the usability of logout in a single sign-on system. In

Information Security Practice and Experience, num-

ber 3439 in LNCS, pages 243–254. Springer Berlin

Heidelberg. DOI: 10.1007/978-3-540-31979-5 21.

Mell, P. and Grance, T. (2011). The NIST deﬁnition of

cloud computing.

Microsoft (2006). Introducing Windows CardSpace.

Microsoft (2015a). Azure active directory.

Microsoft (2015b). Microsoft passport.

MIT (2015). Kerberos: The network authentication proto-

col.

OASIS (2015). Saml xml.

OpenID (2015). Openid.

Openstack (2015). Identity API v3.

Openstack (2017). Openstack – open source software for

creating private and public clouds.

Pashalidis, A. and Mitchell, C. (2003). A taxonomy of sin-

gle sign-on systems. In Information security and pri-

vacy, pages 249–264. Springer.

Sette, I. and Ferraz, C. (2014). Integrating cloud platforms

to identity federations. In 2014 Brazilian Sympo-

sium on Computer Networks and Distributed Systems

(SBRC), pages 310–318.

Shibboleth. Shibboleth.

Suriadi, S., Foo, E., and Jøsang, A. (2009). A user-centric

federated single sign-on system. Journal of Network

and Computer Applications, 32(2):388–401.

Tavizi, T., Shajari, M., and Dodangeh, P. (2012). A usage

control based architecture for cloud environments. In

26th International Parallel and Distributed Proces-

sing Symposium Workshops PhD Forum, pages 1534–

1539. IEEE.

Tiwari, P. B. and Joshi, S. R. (2009). Single sign-on with

one time password. In 1st Asian Himalayas Int. Conf.

on Internet, pages 1–4. IEEE.

Urue

na, M., Mu

noz, A., and Larrabeiti, D. (2014). Analy-

sis of privacy vulnerabilities in single sign-on mecha-

nisms for multimedia websites. Multimedia Tools and

Applications, 68(1):159–176.

Velte, T., Velte, A., and Elsenpeter, R. (2009). Cloud com-

puting, a practical approach. McGraw-Hill, Inc.

Volchkov, A. (2001). Revisiting single sign-on: a pragmatic

approach in a new context. IT Professional, 3(1):39–

45.

You, X. and Zhu, Y. (2012). Research and design of web

single sign-on scheme. In IEEE Symposium on Robo-

tics and Applications (ISRA), pages 383–386.

Zhang, Y. and Chen, J.-L. (2010). Universal identity ma-

nagement model based on anonymous credentials.

In 2010 IEEE International Conference on Services

Computing, pages 305–312. IEEE.

Zhang, Y. and Chen, J.-L. (2011). A delegation solution

for universal identity management in SOA. Services

Computing, IEEE Transactions on, 4(1):70–81.

Zhu, B. B., Yan, J., Bao, G., Yang, M., and Xu, N. (2014).

Captcha as graphical passwords: A new security pri-

mitive based on hard AI problems. IEEE Transactions

on Information Forensics and Security, 9(6):891–904.

A Taxonomy Model for Single Sign-on Oriented towards Cloud Computing

581
