Handling Tenant-Speciﬁc Non-Functional Requirements through a

Generic SLA

Khadija Aouzal

, Hatim Haﬁddi

1,2

and Mohamed Dahchour

INPT, Rabat, Morocco

ENSIAS, Rabat, Morocco

Keywords:

SaaS, Non-Functional Variability, SPLE, MDE, QoS Characteristics, SLA.

Abstract:

In a multi-tenant architecture of a Software as a Service (SaaS) application, one single instance is shared among

different tenants. However, this architectural style supports only the commonalities among tenants and does

not cope with the variations and the speciﬁc context of each tenant. These variations concern either functional

or non-functional properties. In this paper, we deal with non-functional variability in SaaS services in order

to support the different quality levels that a service may have. For that purpose, we propose an approach

that considers Service Level Agreements (SLAs) as Families in terms of Software Product Line Engineering.

We deﬁne two metamodels: NFVariability metamodel and VariableSLA metamodel. The ﬁrst one models

and captures variability in quality attributes of services. The second one models a dynamic and variable

SLA. Model-to-model transformations are performed to transform Feature Model (NFVariability metamodel

instance) to Generic SLA (VariableSLA instance) in order to dynamically deal with the tenant-speciﬁc non-

functional requirements.

1 INTRODUCTION

Software as a service (SaaS) is a software delivery

model, which represents the capability offered to the

customer to use, on an on-demand and a pay-as-you-

go bases, the provider's application hosted on a cloud

infrastructure (Mell and Grance, 2011).

SaaS applications are mainly hosted based on

multi-tenancy, in order to maximize the advantages of

economy of scale (Bezemer and Zaidman, 2010). In

a multi-tenant architecture, one single instance of the

application is shared among different tenants, which

enables cost efﬁciency and easy maintenance for the

providers. However, this architectural style, based

on one-size-ﬁts-all approach, supports only the com-

monalities among the tenants and does not cope with

the variations and the speciﬁc context of each tenant.

These variations are introduced at two main and ma-

jor levels: at the level of functionality in terms of e.g.

variant business logics, service compositions, etc; and

at the level of quality attributes in terms of e.g. per-

formance, availability, security, etc. This variability is

driven by several aspects such as law regulations, na-

ture of processed data, tenant-speciﬁc requirements,

etc. Therefore, variability is an inherent aspect that

characterizes a given service and which crosscuts all

the layers of a SaaS application: Presentation, Busi-

ness, Service and Data layers. Due to these rea-

sons, the tenants need to have services tailored to

their particular needs, especially when it comes to

non-functional requirements in a multi-tenant envi-

ronment. Our focus is on non-functional variability

at the level of the service layer.

Variability management is a core concept of Soft-

ware Product Lines Engineering (SPLE) (Pohl et al.,

2005). This paradigm enables high reusability of soft-

ware artefacts by building product families or lines

and then deriving the ﬁnal product tailored to speciﬁc

contexts or users. A product family contains members

that share a set of commonalities and that have vari-

abilities which characterize each one of them. These

commonalities, variabilities and the relationships be-

tween them are usually modeled using Feature Model

(FM) (Batory, 2005) or Orthogonal Variability Model

(OVM) (Pohl et al., 2005) which are structured as hi-

erarchical trees. In the Feature Model, both common-

alities and variabilities are identiﬁed, respectively, as

mandatory and optional features. However, in the Or-

thogonal Variability Model, only the variabilities are

modeled exploiting, from SPLE, the concepts of vari-

ation point and variant which refer to a variable item

and to the instantiation of this variable item, respec-

Aouzal, K., Haﬁddi, H. and Dahchour, M.

Handling Tenant-Speciﬁc Non-Functional Requirements through a Generic SLA.

DOI: 10.5220/0006791403830391

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 383-391

ISBN: 978-989-758-300-1

383

tively. In the proposed approach, we use the bases

and concepts of Feature Model to express and repre-

sent variability in Non-Functional Properties of SaaS

services.

Since quality level of services is speciﬁed through

the Service Level Agreement (SLA) contract, this

paper proposes an approach that considers SLAs as

Families in terms of Software Product Line Engi-

neering. We introduce variability in SLA through

the notion of Generic SLA, a document that encom-

passes the terms of all contracting tenants. We deﬁne

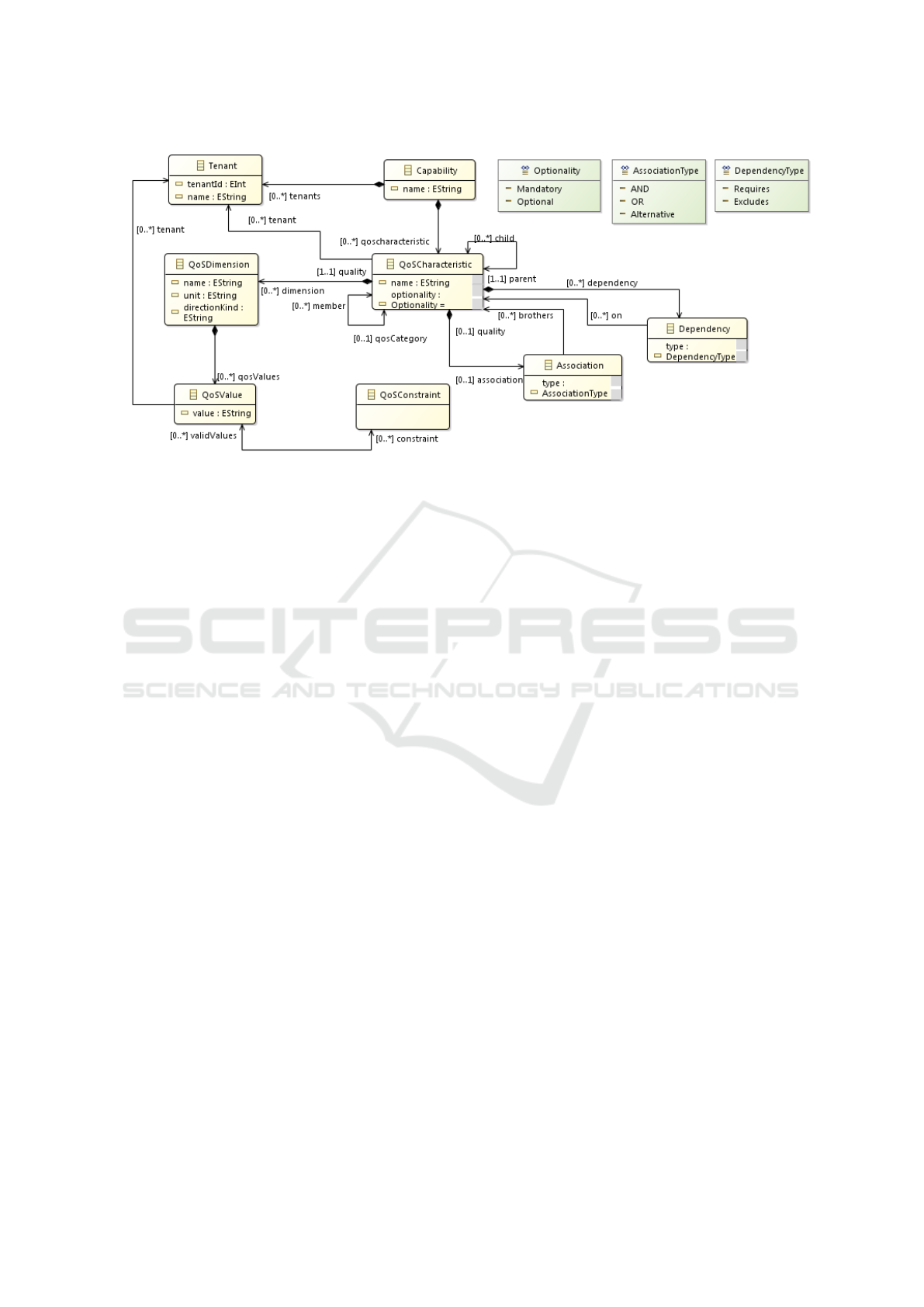

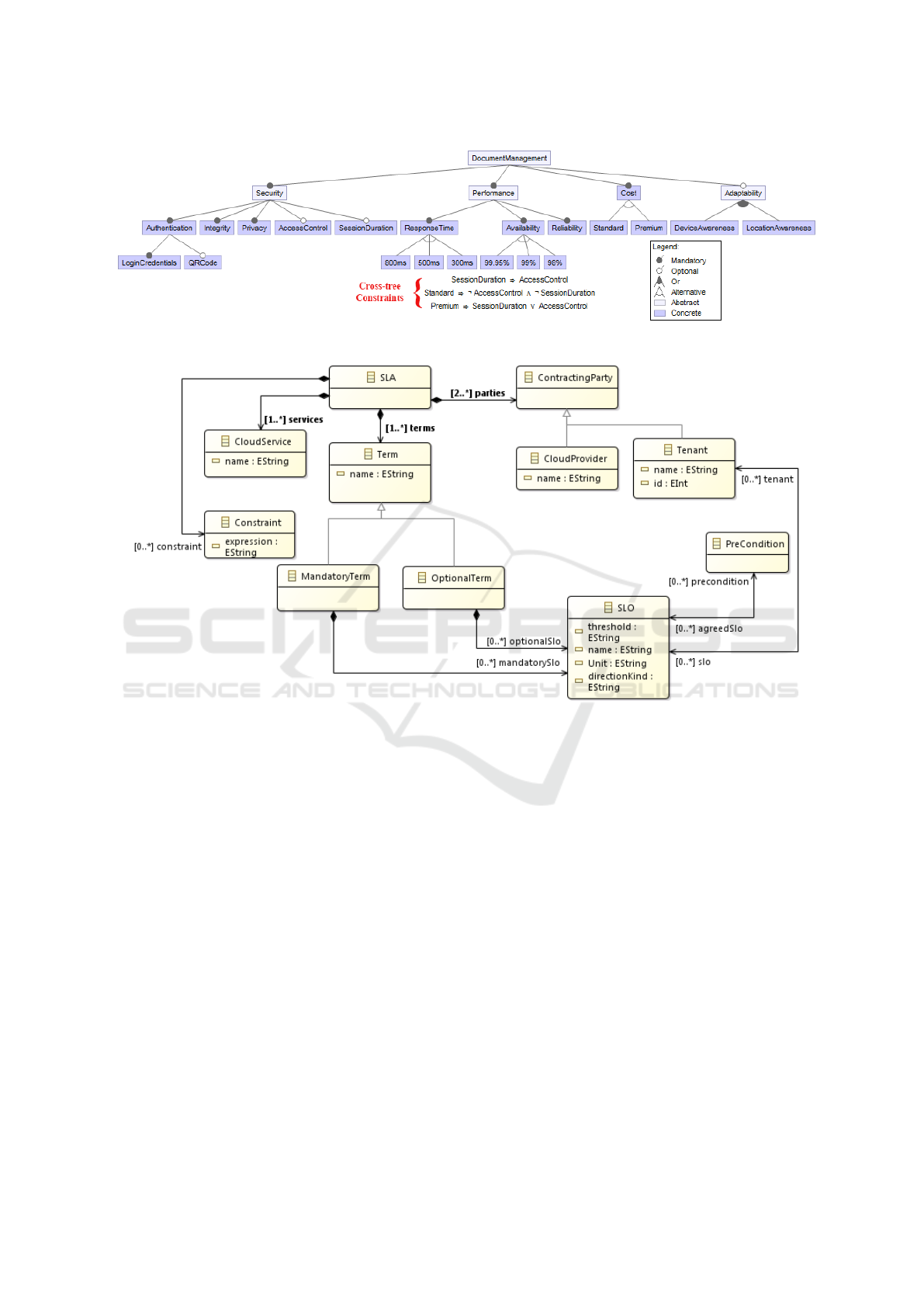

two metamodels: NFVariability metamodel and Vari-

ableSLA metamodel. The ﬁrst one, which is based

on the QoS Metamodel of QoS&FT proﬁle (OMG,

2008), models and captures variability in quality at-

tributes of services. The second one models a dy-

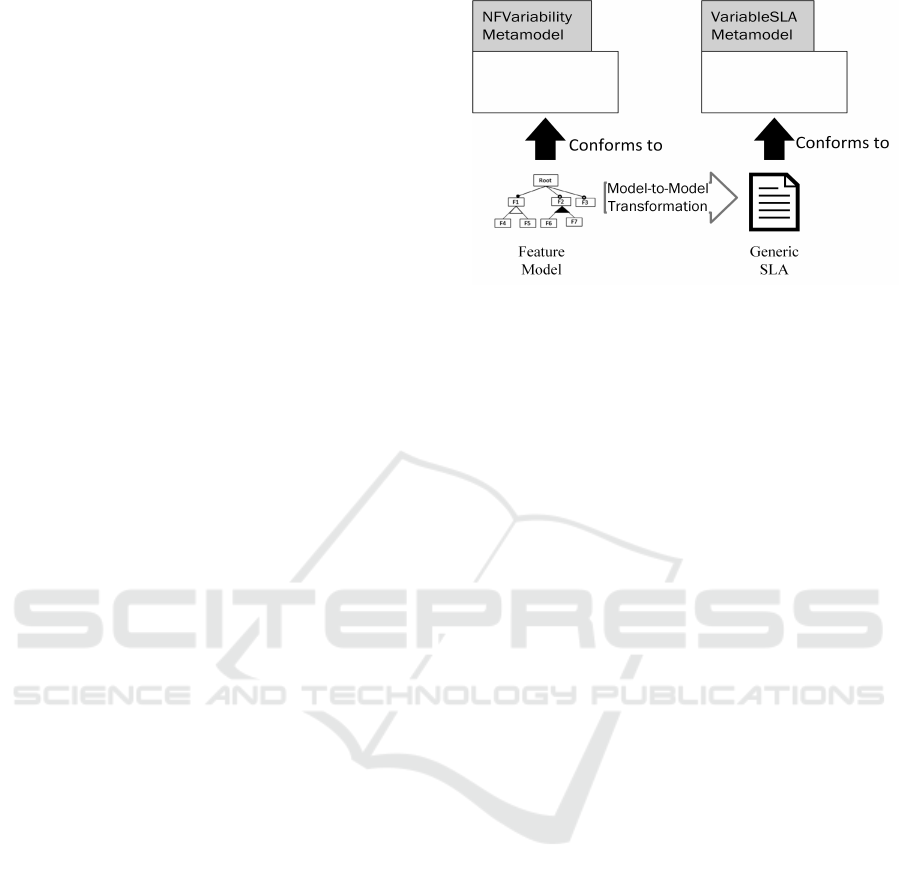

namic and variable SLA. Model-to-model transfor-

mations are performed to transform Feature Model

(NFVariability metamodel instance) to Generic SLA

(VariableSLA instance).

The remainder of the paper is structured as fol-

lows. Section 2 gives generalities about SLA and QoS

Framework Metamodel of QoS&FT standard. Sec-

tion 3 presents related works. Section 4 presents the

problem statement. Section 5 describes the proposed

metamodels and the process for generating Generic

SLA. Section 6 concludes the paper and gives future

work for our on-going research.

2 BACKGROUND

2.1 Service Level Agreement

Service Level Agreement (SLA) is a contract es-

tablished between service provider and service con-

sumer. It aims to clearly deﬁne and monitor the

service and its quality requirements. Generally, its

clauses cover: the involved parties which are, in most

cases, the service provider and the service consumer;

the terms agreed upon after negotiation; and penal-

ties against the service provider in case of SLA vio-

lations. Several languages have been proposed to de-

ﬁne SLAs, namely: WS-Agreement (Andrieux et al.,

2006), WSLA (Keller and Ludwig, 2003), SLAC

(Uriarte et al., 2014) and CSLA (Serrano et al., 2016).

The two former languages are used to specify SLAs in

Web Services, as for the two latter ones, they are used

for Cloud services. In this paper, we introduce a novel

concept and structure of SLA, Generic SLA, which

supports variability of quality attributes across multi-

ple tenants. This concept goes in line with SPLE prin-

ciples, as it considers commonalities and variabilities

of quality attributes, and forms a family of tenant-

speciﬁc SLAs derived from the Generic SLA.

2.2 QoS Metamodel of QoS&FT Proﬁle

The QoS&FT proﬁle comprises two metamodel

frameworks: QoS Metamodel and Fault Tolerance

Metamodel (OMG, 2008). In our approach, we are

interested in QoS Metamodel as it models quality

characteristics in software systems. This QoS frame-

work metamodel comprises three packages which

represent three metamodels: QoSCharcteristics meta-

model, QoSConstraints metamodel and QoSLevels

metamodel. The QoSCharacteristics metamodel con-

sists of modeling quantiﬁable quality characteristics

of services and their dimension of quantiﬁcation. The

QoSConstraints metamodel introduces concepts of

constraints over service qualities, QoS offered, QoS

required and QoS contract. As for QoSLevels meta-

model, it deﬁnes levels of qualities that depend on dif-

ferent execution modes of the system modeled.

3 RELATED WORKS

Variability management has been subject of many re-

searches in different domains. Recently, the interest

was on extrapolating these works to the area of Cloud

Computing. Therefore, many researches are con-

ducted in order to build Cloud applications tailored

to customers'requirements, however the emphasis was

on functional requirements (Aouzal et al., 2015).

In (Fehling et al., 2011), the authors introduced a

framework that enables customization and provision-

ing of ﬂexible cloud applications. It provides a self-

service portal to end-users in order to conﬁgure the

application according to their needs. This framework,

however, does not support multi-tenancy and non-

functional variability. In (Abu-Matar et al., 2014),

the authors model variability in Cloud services us-

ing SPL techniques, multi-view modeling and MDE

approaches. The proposed framework is constituted

of a set of meta-views and views that describe cloud

services in their requirements and architecture as-

pects. Considering users’ preferences changes as the

main driver of adaptation, the approach presented in

(Garc

ıa-Gal

an et al., 2014; Garc

ıa-gal

an et al., 2016)

relies on the activities of MAPE (Monitoring, Analy-

sis, Provisioning and Execution) loop to adapt shared

multi-tenant services in a user-centric manner in or-

der to maximize users'satisfaction. In order to ensure

dynamic adaptation and conﬁguration of multi-tenant

SaaS applications, a feature middleware is designed

(Gey et al., 2014) as a runtime artifact. In (Landuyt

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

384

et al., 2015), the authors presented, through the notion

of service lines, a middleware that supports variabil-

ity in multi-tenant SaaS applications, with a focus on

the operational aspects. In (Tizzei et al., 2017) the au-

thors rely on SPLE and microservices to support both

reuse and independent evolution of multi-tenant SaaS

services.

However, the aforementioned works mostly focus

on adapting multi-tenant services according to ten-

ant functional needs, and they do not deal with non-

functional variability, its modeling and the dependen-

cies between quality attributes.

A systematic literature review conducted on vari-

ability in software systems (Galster et al., 2014) con-

cluded that the focus on variability in Quality At-

tributes is minor and the works were mostly interested

in speciﬁc Quality Attributes, such as: performance,

availability, security, etc. To cope with that, (Galster,

2015) gives research directions regarding variability

in Quality Attributes. In (Horcas et al., 2016; Horcas

et al., 2017), the authors rely on SPLE approach to

model Functional Quality Attributes (FQAs) in soft-

ware applications, and on Aspect Oriented Program-

ming to inject FQAs into the application. Contrary to

that work, our approach is generic and not limited to

FQAs.

To the best of our knowledge, no work has con-

sidered SLA as a product family, though several SLA

languages were proposed to specify and deﬁne Cloud

services quality such as (Boukadi et al., 2016; Serrano

et al., 2016; Uriarte et al., 2014; Tata et al., 2016; Mo-

hamed et al., 2017).

4 PROBLEM STATEMENT

4.1 Non-Functional Variability

Non-functional variability in service-based systems,

namely SaaS applications, is deﬁned in (Mahdavi-

Hezavehi et al., 2013) as the ability of a service to be

tailored to the different non-functional requirements

of tenants, thus offered with several levels of non-

functional properties. Non-functional variability is

classiﬁed in (Galster, 2015) into two categories, ac-

cording to the sources that trigger it and introduce the

variations: intentional variability and unintentional

variability. Intentional variability is directly tied to

the variations of non-functional requirements of ten-

ants. As for unintentional variability, it is introduced

due to variations in hardware resources, and due to the

interactions between functional properties and non-

functional ones and within non-functional properties

themselves.

Therefore, non-functional variability introduces

several challenges in building conﬁgurable and cus-

tomizable multi-tenant SaaS services; particularly, the

issue of modeling variability in non-functional re-

quirements and linking it with service quality level

speciﬁed in SLA.

4.2 Motivating Scenario

We illustrate the problem with a document manage-

ment application, which serves multiple tenants using

the SaaS model. This application automates the ac-

tivities of creation, management and storage of any

nature of documents: contracts, ﬁnancial documents,

etc. It gives tenants and end users control and visibil-

ity on modiﬁcations made to documents or contracts,

on their status during the process of review, negotia-

tion, approval or signature. All the activities made to

a document are kept synchronized between the par-

ties involved in those activities for that document to

ensure that data are real time and accurate.

Since the application is implemented following

the multi-tenancy architecture, i.e. a single applica-

tion instance serves multiple tenants, ensuring secu-

rity is a crucial need. Therefore, in terms of secu-

rity, the application requires, among others: 1) au-

thentication: the user must be authenticated to ac-

cess the application using either username and pass-

word credentials or QR code to use the application

in other devices; 2) data integrity and privacy: data

of a tenant must not be altered or modiﬁed by non-

authorized users, and must be kept private from other

tenants; 3) authorization and access control: autho-

rization and access rules must be deﬁned to restrict

the access to certain components and features of the

application to user roles that are allowed to; 4) and

session duration and time management: the access

might be restricted in duration according to the access

rules assigned to user roles. In addition to security,

the application must fulﬁll certain levels of other non-

functional properties such as response time, availabil-

ity and service adaptability according to the used de-

vice or/and the user location.

The application has to cater for variant levels of

non-functional properties that characterize each ten-

ant. For instance, consider three tenants that consist

of: Medical Insurance Provider, Healthcare Analyt-

ics Provider and a Research Laboratory. The Medi-

cal Insurance Provider uses the application to manage

his documents and contracts with existing and new

clients. Concerning security, he requires authentica-

tion, data integrity and privacy and user access con-

trols. He requires also an availability of 99.95%, a

response time not exceeding 500 ms, and the service

Handling Tenant-Speciﬁc Non-Functional Requirements through a Generic SLA

385

to be device and location-aware. As for the Health-

care Analytics Provider, he makes use of the appli-

cation as a central repository where he manages his

contracts with all his clients, and where he has visi-

bility on the status of contracts all along their cycle,

from negotiation to signature. His security require-

ments are the same as for the ﬁrst tenant. However, he

differs in availability and response time; he requires

99% and 300 ms, respectively; and he does not re-

quire device awareness. The third tenant automates

the process of research papers review through the ap-

plication. For this purpose, the research laboratory

requires authentication, privacy, user access controls

and session duration and time management; as well

as 98% and 800 ms of availability and response time,

respectively. But, he does not want the service to con-

sider adaptability.

Table 1 summarizes these requirements for the

three tenants.

5 GENERIC SLA GENERATION

PROCESS

5.1 Approach Overview

In order to have a SaaS service that meets non-

functional requirements of tenants, we believe that an

initial step for that purpose would be to model non-

functional variability in SaaS services. Therefore, our

approach combines MDE and SPLE principles. Fig-

ure 1 depicts the process for generating Generic SLA.

First, variations in non-functional requirements

are represented using Feature Models. These mod-

els are in accordance with NFVariability Metamodel.

This metamodel, intends to model non-functional

properties of SaaS services, their dependencies, and

their variable aspect, i.e. different levels of a QoS at-

tribute for the same service. Therefore, QoS charac-

teristics are represented, in this metamodel, as vari-

able features that can be either mandatory or op-

tional. After instantiation of this metamodel to Fea-

ture Model, model-to-model transformations are per-

formed in order to generate a Generic SLA. The

generic SLA is a global and dynamic SLA that con-

tains all the non-functional properties of all tenants,

.i.e. an SLA with variability represented at the level

of its terms and its Service Level Objectives (SLOs).

Figure 1: Generic SLA generation process.

It is in conformance with VariableSLA metamodel,

which represents variability in SLA.

5.2 NFVariability Metamodel

Figure 2 depicts the proposed metamodel that extends

the QoS Metamodel of QoS&FT proﬁle with variabil-

ity concepts.

In this metamodel, a capability represents the

SaaS service offered to tenants. Each capability can

be associated to multiple QoS characteristics. QoS

characteristics represent quantiﬁable non-functional

requirements, grouped into categories such as: perfor-

mance category to denote availability, response time,

reliability, etc; or security category to represent au-

thentication, authorization, access control, integrity,

etc. QoS characteristics are modeled as features that

may be either mandatory or optional. A mandatory

QoS attribute means it is selected for all the tenants.

An optional one may be selected for just the ten-

ants that required it. Variation Point and Variant in

QoS characteristics are represented, respectively, by

the references parent and child. QoS characteristics

that have the same feature parent, i.e. characteristics

that are brothers, can rely on each other through these

three operators: AND, OR and Alternative. This re-

lation is modeled by Association. An AND opera-

tor between two quality attributes means that those

AND-linked attributes may be selected in the derived

application, depending on their optionality. Two OR-

linked quality attributes mean that one or both of them

may be selected. The Alternative operator plays the

role of XOR, which means the presence of a qual-

ity attribute variant excludes the presence of another

Table 1: Non-functional requirements of different tenants.

Tenant

Security Performance Adaptability

Integrity, Privacy, Access Control Session Duration and Time Mngt

Authentication

Availability Response Time Device Awareness Location Awareness

Medical Insurance Provider + - + - 99.95% 500ms + +

Healthcare Analytics Provider + - + - 99% 300ms - +

Research Laboratory + + + + 98% 800ms - -

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

386

Figure 2: NFVariability Metamodel for modeling variability in quality attributes.

variant. The interdependencies between QoS charac-

teristics variants are modeled by Dependency using

two types: requires and excludes. QoSDimension de-

ﬁnes the different ways a QoS characteristic can be

quantiﬁed, e.g. for response time we can consider ex-

ecution time or network time or both (Boukadi et al.,

2016). A QoS dimension can have different values,

and each value can refer to multiple tenants. QoSCon-

straint models the constraints, e.g. constraints intro-

duced by the infrastructure, which limit the space of

valid values for a certain QoS dimension.

The following OCL constraints deﬁne some rules

that enhance the metamodel semantic:

1. Brothers deﬁnition:

Context QoSCharacteristic :: brothers :

Set(QoSCharacteristic)

derive : self.child -> union(self.child.

brothers)

2. An optional QoS characteristic cannot exclude a

mandatory one:

context QoSCharacteristic inv:

self.optionality = optional implies self.

association -> forAll(a | a.brothers.

optionality = mandatory) -> including (

self.association.type = Excludes) ->

isEmpty()

3. When a parent feature is mandatory, at least one

of its children should be mandatory:

context QoSCharacteristic inv:

self.parent.optionality = mandatory implies

select ( self.child.optionality =

mandatory) -> size() = 1

4. AND-linked features can be either mandatory or

optional

context Association inv:

self.type = AND implies ((self.quality.

optionality = mandatory or self.quality.

optionality = optional) and

(self.brothers.optionality= mandatory or

self.brothers.optionality=optional)

5. The alternative association is not allowed between

two manadatory variants as they both must exist in

the application:

context QoSCharacteristic inv:

self.association.type = Alternative implies

forAll(b | b.brothers.optionality <>

mandatory)

After domain analysis of an application and ex-

traction of its non-functional requirements, non-

functional variability is documented in accordance

to the NFVariability Metamodel. This variability is

modeled using Feature Models as illustrated in ﬁgure

3 for Document Management application. This fea-

ture model contains also some cross-tree constraints

that represent quality attributes interdependencies,

and they denote respectively: 1) Session Duration re-

quires Access Control; 2) Standard Cost excludes any

optional quality attribute, as this cost concerns only

basic and mandatory attributes; 3) Premium Cost re-

quires at least one optional feature.

5.3 VariableSLA Metamodel

The VariableSLA Metamodel is shown in ﬁgure 4.

It represents the contract SLA that supports variabil-

Handling Tenant-Speciﬁc Non-Functional Requirements through a Generic SLA

387

Figure 3: Feature Model for Document Management Service.

Figure 4: VariableSLA Metamodel for representing variability in SLA.

ity. It is structured into four main blocks: Contracting

Parties, Cloud Services, Terms and Constraints.

• Contracting Parties deﬁne the actors involved in

the contract: Cloud Provider and Tenant (Cloud

Consumer).

• Cloud Services represent the scope of services

covered by the agreement.

• Terms represent what was agreed upon during

SLA negotiation. They are divided into two cat-

egories: Mandatory Terms and Optional Terms.

Mandatory Terms specify the terms that are com-

mon to all tenants involved in the contract. As

for Optional Terms, they encompass the terms that

are speciﬁc to some tenants. Each term corre-

sponds to a quality attribute and is constituted of

one or more Service Level Objectives (SLOs) that

specify the quality level expected by the service.

Therefore, a mandatory term and an optional term

contain, respectively, mandatory SLOs and op-

tional SLOs. An SLO is expressed by means of

these attributes: name, threshold, unit and direc-

tionKind. DirectionKind deﬁnes the order relation

type; it is an enumeration of increasing, decreas-

ing and undeﬁned values (OMG, 2008). An in-

creasing direction means that a value higher than

the threshold is the required objective, and vice-

versa for the decreasing direction. The SLO is

constrained by one or more preconditions, which

has to be satisﬁed to ensure the requested quality

level.

• Constraints express the dependencies between the

different SLOs.

The aim of VariableSLA metamodel is to con-

struct Generic SLAs. Listing 1 represents an example

of Generic SLA for Document Management service.

Listing 1: Generic SLA for Document Management ser-

vice.

...

<parties xsi:type="variableSLA:CloudProvider

" name="CloudServiceProvider"/>

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

388

<parties xsi:type="variableSLA:Tenant" name

="MedicalInsuranceProvider" id="1"/>

<parties xsi:type="variableSLA:Tenant" name

="HealthcareAnalyticsProvider" id="2" />

<parties xsi:type="variableSLA:Tenant" name

="ResearchLaboratory" id="3"/>

<terms xsi:type="variableSLA:MandatoryTerm"

name="Authentication">

</terms>

...

<terms xsi:type="variableSLA:OptionalTerm"

name="Performance">

<optionalSlo threshold="99.95" tenant="

MedicalInsuranceProvider" name="uptime

" Unit="%" directionKind="increaisng

"/>

<optionalSlo threshold="99" tenant="

HealthcareAnalyticsProvider" Unit="%"

directionKind="increasing"/>

<optionalSlo threshold="98" tenant="

ResearchLaboratory" name="uptime" Unit

="%" directionKind="increasing"/>

</terms>

<terms xsi:type="variableSLA:OptionalTerm"

name="Response Time">

<optionalSlo threshold="500" tenant="

MedicalInsuranceProvider" name="

execution time" Unit="ms"

directionKind="decreasing"/>

<optionalSlo threshold="300" tenant="

HealthcareAnalyticsProvider" name="

execution time" Unit="ms"

directionKind="decreasing"/>

<optionalSlo threshold="800" tenant="

ResearchLaboratory" name="execution

time" Unit="ms" directionKind="

decreasing"/>

</terms>

<terms xsi:type="variableSLA:OptionalTerm"

name="Access Control"/>

<terms xsi:type="variableSLA:OptionalTerm"

name="Session Duration Management"/>

...

<constraint expression="Session Duration

Management requires Access Control "/>

</services>

</variableSLA:SLA>

5.4 NFVariability to VariableSLA

Transformation

In order to generate the Generic SLA correspond-

ing to our motivating scenario, we rely on model-

to-model transformations performed using ATL lan-

guage. Model-to-model transformations are based

on mapping rules between entities of NFVariability

metamodel, the source, and VariableSLA metamodel

entities, the target. Table 2 deﬁnes these mappings.

Table 2: NFVariability and Variable SLA mappings.

NFVariability Metamodel Entity VariableSLA Metamodel Entity

Capability CloudService

Tenant Tenant

QoSCharacteristic Term

QoSDimension SLO

Dependency Constraint

QoSConstraint PreCondition

The following VariableSLA elements: Tenant,

CloudService and Precondition are copies of their

corresponding elements of the NFVariability meta-

model. Listing 2 depicts the rule that copies the Ten-

ant source to the Tenant target.

Listing 2: Tenant2Tenant transformation rule.

rule Tenant2Tenant{

from

IN: NFVarMM!Tenant

OUT: VarSLAMM!Tenant(

id <- IN.tenantId,

name <- IN.name

)

}

The mapping QoSCharacteristic-Term needs to spec-

ify whether the instance of QoSCharacteristic is

mandatory or optional so as to generate instances

of MandatoryTerm and OptionalTerm. For that pur-

pose, we deﬁne two helpers isMandatory() and isOp-

tional(), mentioned in Listing 3.

Listing 3: isMandatory() and isOptional() helpers.

helper context NFVarMM!QoSCharacteristic def:

isMandatory(): Boolean =

if self.child.oclIsUndefined() then

if self.optionality= #mandatory

then true

else false

endif

else self.child.including(self) ->

forAll(q | q.optionality=#mandatory

)

endif;

helper context NFVarMM!QoSCharacteristic def:

isOptional(): Boolean =

if self.optionality = #optional then

true

else false

endif;

Listing 4 presents the transformation rules that

transform QoSCharacteristic to MandatoryTerm and

OptionalTerm using, respectively, the two aforemen-

tioned helpers.

Listing 4: QoSCharacteristic to Term transformation rules.

rule QoSCharacteristic2OptionalTerm{

Handling Tenant-Speciﬁc Non-Functional Requirements through a Generic SLA

389

from

IN: NFVarMM!QoSCharacteristic (IN.

isOptional())

OUT: VarSLAMM!OptionalTerm(

name <- IN.name

)

}

rule QoSCharacteristic2MandatoryTerm{

from

IN: NFVarMM!QoSCharacteristic(IN.

isMandatory())

OUT: VarSLAMM!MandatoryTerm(

name <- IN.name

)

}

When transforming QoSDimension to SLO, we

need to retrieve the threshold values from QoSValue

and get the tenants corresponding to those values.

Therefore, we deﬁne a Tuple type that gathers a qual-

ity value with the concerned tenants. Listing 5 de-

scribes this transformation.

Listing 5: QoSDimension to SLO transformation rule.

helper context NFVarMM!QoSDimension def:

getValues(): Set(NFVarMM!QoSValue) =

NFVarMM!QoSValue.allInstances()

->collect(v| v.value);

helper context NFVarMM!QoSValue def: getTenant

(value: String): Set(NFVarMM!QoSValue) =

NFVarMM!Tenant.allInstances()

->select(t | self.value=value);

helper context NFVarMM!QoSDimension def:

getTuple(value : String):

TupleType(v: NFVarMM!QoSValue, t:

NFVarMM!Tenant) =

Tuple{v = value,t=value.

getTenant()};

rule QoSDimension2SLO{

from

IN: NFVarMM!QoSDimension

OUT: VarSLAMM!SLO(

name <- IN.name,

Unit <- IN.unit,

directionKind <- IN.directionKind,

threshold <- IN.getValues(),

tenant <- IN.getValues().first().

getTuple().t

)

}

The SLA constraints are generated by construct-

ing its expressions from the Dependency relation that

may exist between instances of QoSCharacteristic,

see Listing 6.

Listing 6: Dependency to Constraint transformation rule.

rule Dependency2Constraint{

from

IN: NFVarMM!QoSCharacteristic

OUT:VarSLAMM!Constraint(

expression <- IN.name + IN.dependency.

type + IN.dependency.on

)

}

6 CONCLUSION

SaaS applications are generally built on a multi-tenant

architecture. This architecture leverages economies

of scale but introduces new challenges in adapta-

tion and variability management, especially when it

comes to non-functional requirements. In this pa-

per, we proposed an approach that considers Service

Level Agreements (SLAs) as Families or Lines. For

that, we introduced a novel concept: Generic SLA.

We deﬁned two metamodels: NFVariability meta-

model and VariableSLA metamodel, to model vari-

ability in non-functional requirements and in SLA, re-

spectively. These metamodels form the bases for per-

forming model-to-model transformations from Fea-

ture Model to Generic SLA.

Our approach is agile and enables reuse as high-

lighted through these scenarios that will be tackled in

our future work:

• As the Generic SLA forms a product line,

it factorizes the commonalities regarding non-

functional requirements of tenants, and it speciﬁes

the variations among them. This will be exploited

to derive tenant-speciﬁc SLAs by extracting non-

functional properties for a speciﬁc tenant.

• In order to cater for dynamic changes in con-

texts and non-functional requirements of tenants,

the SaaS service will be built under context-

awareness to detect any changes. If there are

any, those changes will be communicated to the

Generic SLA so as to incorporate them in the cor-

responding tenant-speciﬁc SLAs after instantia-

tion.

• In case of on-boarding new tenants or appearance

of new non-functional requirements of the exist-

ing tenants, the Feature Model will be updated to

include those new needs and a new Generic SLA

is generated.

We will also take into consideration the internal

variability, triggered by changes in the infrastructure

or cloud provider architectural decisions, so as to de-

ﬁne a monitoring process that checks the conformity

of the service to the tenant-speciﬁc SLAs.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

390

REFERENCES

Abu-Matar, M., Mizouni, R., and Alzahmi, S. (2014). To-

wards Software Product Lines Based Cloud Architec-

tures. 2014 IEEE International Conference on Cloud

Engineering.

Andrieux, A., CZajkowski, K., Dan, A., and Keahy, K.

(2006). Web Services Agreement Speciﬁcation (WS-

Agreement).

Aouzal, K., Haﬁddi, H., and Dahchour, M. (2015). An

Overview of Variability Management in Cloud Ser-

vices. Proceedings of the 2015 International Con-

ference on Cloud Technologies and Applications

(CloudTech).

Batory, D. (2005). Feature Models, Grammars, and Propo-

sitional Formulas. In Software Product Line Confer-

ence.

Bezemer, C.-P. and Zaidman, A. (2010). Multi-Tenant SaaS

Applications : Maintenance Dream or Nightmare ? In

Proceedings of the Joint ERCIM Workshop on Soft-

ware Evolution (EVOL) and International Workshop

on Principles of Software Evolution (IWPSE).

Boukadi, K., Grati, R., and Ben-Abdallah, H. (2016). To-

ward the automation of a QoS-driven SLA establish-

ment in the Cloud. Service Oriented Computing and

Applications.

Fehling, C., Leymann, F., Schumm, D., Konrad, R., and Mi-

etzner, R. (2011). Flexible process-based applications

in hybrid clouds. In Cloud Computing (CLOUD),

2011 IEEE International Conference on.

Galster, M. (2015). Architecting for Variability in Quality

Attributes of Software Systems. Proceedings of the

2015 European Conference on Software Architecture

Workshops.

Galster, M., Weyns, D., Tofan, D., Michalik, B., and Avge-

riou, P. (2014). Variability in Software Systems: A

Systematic Literature Review. Software Engineering,

IEEE Transactions on Software Engineering.

Garc

ıa-Gal

an, J., Pasquale, L., Trinidad, P., and Ruiz-

Cort

es, A. (2014). User-centric Adaptation of Multi-

tenant Services: Preference-based Analysis for Ser-

vice Reconﬁguration. Proceedings of the 9th Interna-

tional Symposium on Software Engineering for Adap-

tive and Self-Managing Systems.

Garc

ıa-gal

an, J., Pasquale, L., Trinidad, P., and Ruiz-

Cort

es, A. (2016). User-Centric Adaptation Analysis

of Multi-Tenant Services. ACM Transactions on Au-

tonomous and Adaptive Systems.

Gey, F., Van Landuyt, D., Walraven, S., and Joosen, W.

(2014). Feature Models at Run Time Feature Middle-

ware for Multi-tenant SaaS Applications. In Proceed-

ings of the 9th Workshop on Models@run.time co-

located with 17th International Conference on Model

Driven Engineering Languages and Systems MOD-

ELS, Valencia, Spain.

Horcas, J. M., Pinto, M., and Fuentes, L. (2016). An auto-

matic process for weaving functional quality attributes

using a software product line approach. Journal of

Systems and Software.

Horcas, J.-M., Pinto, M., and Fuentes, L. (2017). Green

Conﬁgurations of Functional Quality Attributes. Pro-

ceedings of the 21st International Systems and Soft-

ware Product Line Conference - Volume A on - SPLC

’17.

Keller, A. and Ludwig, H. (2003). The WSLA Framework :

Specifying and Monitoring Service Level Agreements

for Web Services.

Landuyt, D. V., Walraven, S., and Joosen, W. (2015). Vari-

ability Middleware for Multi-tenant SaaS Applica-

tions. Proceedings of the 19th International Systems

and Software Product Line Conference - SPLC ’15.

Mahdavi-Hezavehi, S., Galster, M., and Avgeriou, P.

(2013). Variability in quality attributes of service-

based software systems: A systematic literature re-

view. Information and Software Technology.

Mell, P. and Grance, T. (2011). The NIST Deﬁnition of

Cloud Computing Recommendations of the National

Institute of Standards and Technology.

Mohamed, M., Anya, O., Tata, S., Mandagere, N., Bara-

caldo, N., and Ludwig, H. (2017). rSLA: An Ap-

proach for Managing Service Level Agreements in

Cloud Environments. International Journal of Coop-

erative Information Systems.

OMG (2008). Proﬁle for Modeling Quality of Service and

Fault Tolerance Characteristics and Mechanisms.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Fundations, Princi-

ples and Techniques. SpringerVerlag, Berlin, DE.

Serrano, D., Bouchenak, S., Kouki, Y., De Oliveira, F. A.,

Ledoux, T., Lejeune, J., Sopena, J., Arantes, L., and

Sens, P. (2016). SLA guarantees for cloud services.

Future Generation Computer Systems.

Tata, S., Mohamed, M., Sakairi, T., Mandagere, N., Anya,

O., and Ludwiga, H. (2016). RSLA: A service level

agreement language for cloud services. IEEE Interna-

tional Conference on Cloud Computing, CLOUD.

Tizzei, L. P., Nery, M., Segura, V. C. V. B., and Cerqueira,

R. F. G. (2017). Using Microservices and Software

Product Line Engineering to Support Reuse of Evolv-

ing Multi-tenant SaaS. Proceedings of the 21st Inter-

national Systems and Software Product Line Confer-

ence - Volume A on - SPLC ’17.

Uriarte, R. B., Tiezzi, F., and Nicola, R. D. (2014).

SLAC: A Formal Service-Level-Agreement Language

for Cloud Computing. In 2014 IEEE/ACM 7th Inter-

national Conference on Utility and Cloud Computing

(UCC).

Handling Tenant-Speciﬁc Non-Functional Requirements through a Generic SLA

391
