Towards Model based Testing for Software Deﬁned Networks

Asma Berriri

, Jorge L

opez

, Natalia Kushik

, Nina Yevtushenko

2,3

and Djamal Zeghlache

SAMOVAR, CNRS, T

ecom SudParis, Universit

e Paris-Saclay, 9 rue Charles Fourier, 91000

Evry, France

Department of Information Technologies, Tomsk State University, 36 Lenin street, 634050 Tomsk, Russia

Ivannikov Institute for System Programming of the Russian Academy of Sciences,

25 Alexander Solzhenitsyn street, 109004, Moscow, Russia

Keywords:

Software Deﬁned Networks, Formal Methods, Testing, Equivalent Classes, Graph Enumeration.

Abstract:

Software Deﬁned Networks (SDNs) and corresponding platforms are expected to be widely used in future

generation networks and especially deployed and activated on-demand as agile networking control service

components. The correct functioning of SDN platforms must be assured, i.e., such platforms should be tho-

roughly tested before deployment. After thorough veriﬁcation of SDN controllers and switches, the composi-

tion of them still requires additional testing in order to guarantee the absence of critical faults. We propose a

model based testing technique for checking SDN platforms that relies on appropriate graph enumeration. In

particular, we deﬁne a fault model where the fault domain contains the wrongly and correctly implemented

paths allowed with respect to the underlying resource connectivity graph. We also establish the conditions

for deriving a complete test suite with respect to such fault model under black box and white box testing

assumptions.

1 INTRODUCTION

Software Deﬁned Networks (SDNs) enable logically

centralized control over network devices through a

controller that operates independently of the network

hardware, and can be viewed as the network’s ope-

rating system (Sezer et al., 2013). As a result, SDN

provides a ﬂexible controllability and programmabi-

lity by separating the control and data planes via in-

troducing an open interface between these planes.

The improvements in the control and management

of networks and networking services do not, however,

remove the need to address thoroughly the risk of mis-

conﬁgurations or software bugs that can lead to net-

work failures (Gill et al., 2011). Moreover, due to the

ﬂexibility provided by SDNs, it is essential to guaran-

tee the correct (re-)conﬁguration of the paths for net-

work ﬂows. To ensure functional correctness of SDNs

and reduce the risk of misconﬁgurations, programma-

ble devices and components in an SDN framework

must be continuously tested. However, even if each

component is well debugged in isolation their com-

position can still face interoperability issues. One of

the solutions to check the framework functionality in

this case is to deﬁne methods and techniques for tes-

ting the system as a whole. These methods would al-

low administrators to estimate the correctness of their

SDN solutions and validate them before deployment.

Hereafter, we focus on testing functional aspects of

SDN frameworks, i.e., in this paper, we do not consi-

der non-functional SDN issues, such as security, trust,

etc.

We note that a number of techniques for SDN ve-

riﬁcation and testing have already been developed. In

this paper, we focus on so called active testing when a

system under test (SUT) is stimulated by appropriate

inputs, i.e., test sequences / cases, and the conclusion

about its correctness is made based on observations of

its output responses. Formal veriﬁcation usually does

not require any stimulation of the SUT; it is mainly

reduced to the creation of a set of properties that are

iteratively checked at different phases of the software

development / life cycle. In the last decade, SDN veri-

ﬁcation techniques have been largely investigated and

thus, cover a big number of possibilities, starting from

the header space analysis of network packets and en-

ding with intricate and complicated model checking

problems that can be handled by SAT solving (Mai

et al., 2011) or deductive veriﬁcation and theorem

provers (Guha et al., 2013). These approaches differ

in the way the veriﬁcation is performed, namely off-

line and on-line (run-time) veriﬁcation can be consi-

dered.

440

Berriri, A., López, J., Kushik, N., Yevtushenko, N. and Zeghlache, D.

Towards Model based Testing for Software Deﬁned Networks.

DOI: 10.5220/0006805604400446

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 440-446

ISBN: 978-989-758-300-1

Existing testing approaches

for SDN infrastruc-

tures can be divided into three groups. The ﬁrst group

aims at creating ‘problematic’ situations for the net-

work or any SDN component. In this case, the in-

puts to be applied are special (unexpected or rarely

applied) requests; the test assessment is given depen-

ding on the ability of the controller (or the switch) to

process the request correctly or reject it (Scott et al.,

2015; Shalimov et al., 2013). The second group of

techniques concerns conformance testing when a for-

mal speciﬁcation of an SDN component is derived

(Yao et al., 2014; Zhang et al., 2016) and the test suite

is generated on the basis of this speciﬁcation. The

approaches of the last group represent a combination

of formal veriﬁcation and testing techniques, namely

model checking solutions are effectively utilized for

test suite derivation (see for example, (Canini et al.,

2011; Canini et al., 2012)).

We note however, that existing testing techniques

and particularly model based testing techniques have

been mostly applied to the SDN components, and not

to the entire SDN system (framework itself). This mo-

tivates us to provide novel formal solutions to com-

prehensively test the SDN system as a whole.

Consequently, we propose a model based testing

technique for checking SDN frameworks that relies

on appropriate graph enumeration. In particular, we

deﬁne a fault model where the fault domain contains

potential implementations of virtual paths requested

by a user. To guarantee the fault coverage, we prove

the conditions when under black box and white box

testing assumptions a complete test suite with respect

to such fault model can be derived.

The paper is structured as follows. Section 2 of

this paper presents the necessary background. Novel

formal SDN testing approaches based on the appro-

priate graph enumeration and preliminary experimen-

tal results are presented in Section 3. Section 4 con-

cludes the paper and describes future research chal-

lenges.

2 BACKGROUND

A fundamental characteristic of the SDN architecture

is the separation of the control plane from the forwar-

ding (data) plane (Opennetworking, 2012). A logi-

cally centralized control function maintains the state

of the network and provides instructions to the data

plane. The network devices in the data plane then

Apart from those, developed for ‘classical’ communi-

cation networks that can be also applied to SDN data planes

(see, for example (Zeng et al., 2012)).

forward data packets according to these control in-

structions, more speciﬁcally, forwarding and ﬁltering

rules (Sezer et al., 2013). A forwarding rule is confor-

med by three parts: a packet matching part, an action

part and a location / priority part. The matching part

describes the values which a received network packet

should have for a given rule to be applied. The action

part is simply the disposition of the matched network

packets; the location priority part controls the hierar-

chy of the rules using tables and priorities.

An SDN controller has a ‘global view’ of the

network and several packet forwarding devices are

controlled and conﬁgured remotely and dynamically

through interfaces using protocols such as the Open

Flow (OF) protocol (McKeown et al., 2008). SDN-

enabled switches contain one or more forwarding

(ﬂow) tables which are ultimately managed by a con-

troller or a cluster of them, logically representing a

single controller; SDN switches receive the forwar-

ding rules from controllers to steer network packets

in the data plane. An example of an SDN architec-

ture is depicted in Fig. 1. In particular, Fig. 1 presents

an example of a network topology consisting of two

controllers, four switches and four hosts. Each switch

is connected to a single host as well as to one of the

SDN controllers.

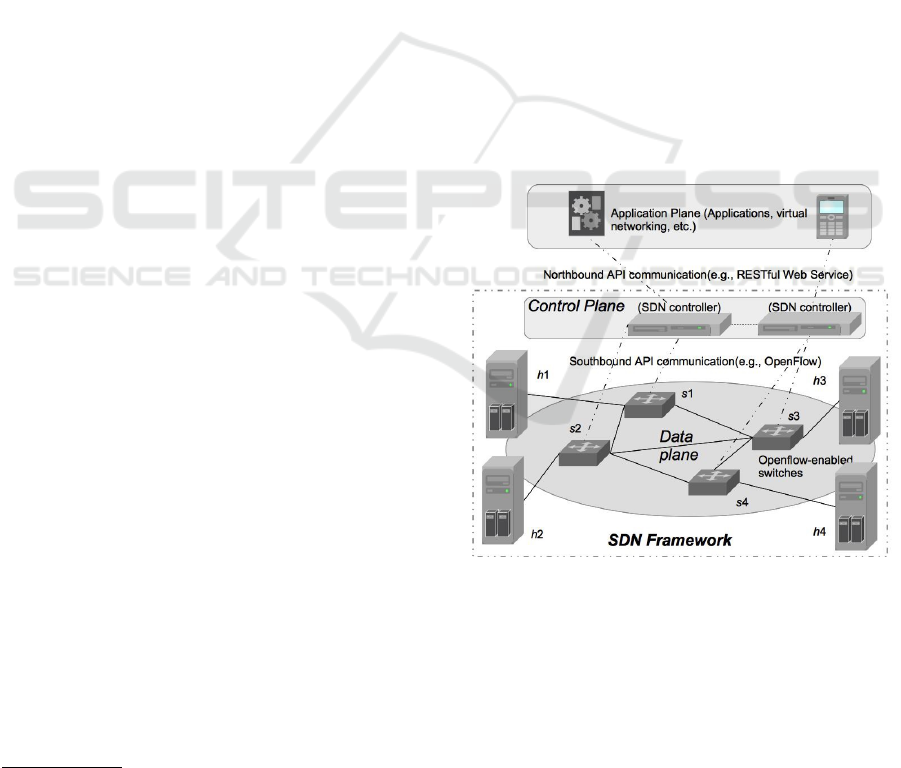

Figure 1: Example of an SDN architecture.

As mentioned before, in order to assure the qua-

lity of the SDN architectures, one of the possibilities

is to deﬁne methods and techniques for testing such

complex composite systems.

Hereafter, under testing techniques, we assume an

active testing mode where test cases or test sequences

are applied to a system under test, and the conclusion

about the correctness of the SUT is made based on ob-

servations of the output responses to the test sequen-

ces. In this case, the observed outputs are generated

Towards Model based Testing for Software Deﬁned Networks

441

upon applying a corresponding test sequence to the

system under test and (automatic) trafﬁc generation

allows to make necessary observations, such as cor-

rect or wrong conﬁgurations, correct or wrong ﬂow

tables, etc. The quality of a test suite is usually me-

asured by its fault coverage, i.e., the types and num-

ber of faults that can be detected with the test suite.

Model based testing techniques seek for test suites

with guaranteed fault coverage that can be stated as

(necessary and) sufﬁcient conditions for a test suite

completeness. Such conditions can be proven when a

corresponding fault model is introduced. In this pa-

per, a fault model is represented by a pair h@, FDi,

where @ is a conformance relation (between what is

requested and what is really implemented) and FD

is a set of potential implementations. Each correct

implementation I

∈ FD passes a complete test suite

while each faulty implementation I

∈ FD (with re-

spect to @) fails such a test suite.

3 MODEL BASED TESTING FOR

SDN ARCHITECTURES

3.1 Notations

In this paper, we refer to the data plane as the re-

source network connectivity topology (RNCT

), de-

picting the SDN elements in the resource network.

An RNCT is represented by an undirected (network

links are assumed to be bidirectional) and k-colored

graph G = (V, E, c), where the set V of nodes repre-

sents network devices (switches, hosts, etc.). Edges

of the graph (the set E) are unordered pairs (x, y),

x, y ∈ V, representing connections between two no-

des (links) in a network; and c is a coloring function

c : V 7→ N ∪ {0} such that given a node in the net-

work, a corresponding color is assigned to it as a

hashed integer. Note that the colors of adjacent no-

des can be the same, differently from the common

graph coloring functions. As an example, the pre-

viously depicted model can accurately represent the

data plane (RNCT) shown in Fig. 1 by the following

binary-colored graph: RNCT = (V, E, c), where:

V ={s

, s

, h

}

E =



, s

), (h

, s

), (h

, s

), (h

, s

), (s

, s

), (s

, s

), (s

, s

), (s

, s

)



c(v) =

(

1, i f v = s

∨ v = s

0, otherwise

Hosting infrastructures can be physical or virtualized.

Note that in the above example, ‘1’ represents a

switch color, and ‘0’ represents a host color, corre-

spondingly.

Issuing a forwarding rule to an SDN-enabled

switch creates a virtual link from and to other

node(-s) adjacent to the switch if the rule forwards

trafﬁc to a given port. For example, assume that

for switch s

shown in Fig. 1 h

is connected to

port 1 and s

is connected to port 2. The rule

“ table =0, priority =99, in port =1, dl dst =01:80:

c2 :00:00:00, actions =resubmit (,2) ” creates a

virtual link h

→ s

if the destination mac ad-

dress is 01:80:c2:00:00:00. Formally, the application

of a forwarding rule creates a virtual link a ∈ E

∗

as a

sequence of directed edges from the RNCT edges. In

this paper, we consider a virtual path (simply a path

throughout the paper) as a sequence of directed edges

whose head and tail nodes are hosts and all other

intermediary nodes are switches. The reason is that

for testing purposes, observing trafﬁc generated from

one host to another is how the resulting conﬁguration

is collected as an ‘output’. We assume the hosts in

the RNCT do not act as switches or relays of network

packets, furthermore, we assume switches do not act

as hosts in the RNCT. Even if at a physical level the

previous cases are possible, the RNCT model must

not consider such possibilities. The forwarding rules

used to control the trafﬁc in the RNCT construct a

virtual partial path or a set of those. Some examples

of the paths obtained from an RCNT (as depicted in

Fig. 1) are illustrated in Fig. 2. In this case, the RNCT

is a dense network with four switches. Each switch is

connected to a single host as well as to one controller.

We note that edges cannot be repeated in a path,

otherwise, inﬁnite loops can be potentially formed.

Furthermore, in this paper we consider also that

nodes cannot be repeated, studying this possibility

is left for future work. Validating the correctness of

RNCT

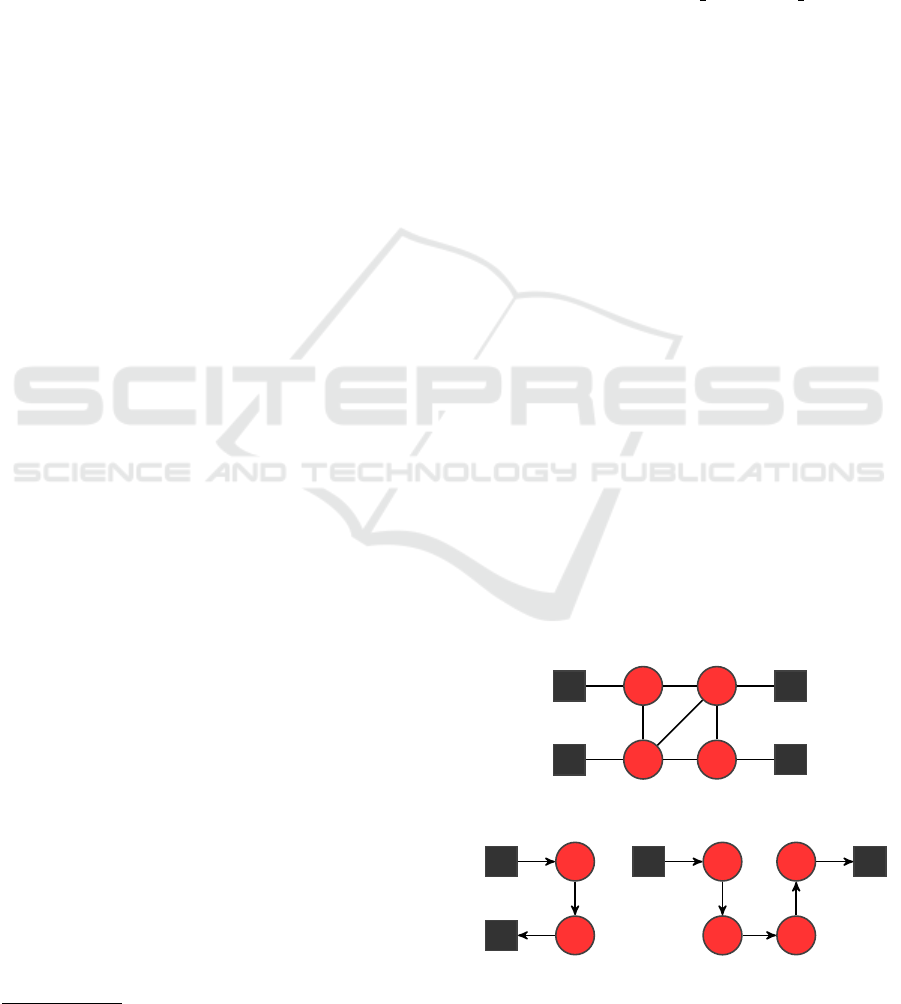

Figure 2: RNCT and examples of its paths.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

442

the requests is also out of the scope of this paper (the

interested reader can refer to (L

opez et al., 2017)).

3.2 Introducing an SDN Fault Model

Given the SDN infrastructure in Fig. 1, we propose

to test the SDN framework, including the controller(-

s), switches, and connections between them. Namely,

we propose to derive an application that is responsi-

ble for test generation and execution, i.e., a tester that

sends speciﬁc requests to the SDN controller asking

for different paths to be implemented in the RNCT.

The test generation architecture is illustrated in

Fig. 1, where the application layer is executing only

the tester. According to our assumptions, the inputs

that need to be generated by the orchestrator in order

to guarantee that the SDN infrastructure is functio-

ning properly are paths limited by the RNCT.

We assume that the SDN infrastructure is functio-

ning correctly when each requested path and only it is

created. As in fact, mostly connectivity issues are tes-

ted, similar to (El-Fakih et al., 2004), the fault model

has two items, i.e., the fault model is a pair h=, FDi

where the conformance relation is the equality. Anot-

her issue is about the fault domain FD of the fault

model. According to the path deﬁnition, the follo-

wing types of faults can be considered: a requested

edge can be directed to a wrong node, additional ed-

ges can appear as well as some edges can disappear.

Thus, a fault domain FD contains all possible paths

of the RNCT. A test case is a path of the RNCT and a

test suite is a ﬁnite set of paths. As usual, a test suite

is complete w.r.t. h=, FDi if any difference between

a requested and implemented path can be detected.

Checking the output reaction of the SDN infra-

structure can be performed through a network trafﬁc

initiation. As we try to check that the paths are im-

plemented correctly, we focus on speciﬁc trafﬁc ge-

neration. For generating trafﬁc, we propose to use

the ICMP echo request / echo reply packets through

the known ping utility

. The ICMP request / reply

is performed for each pair of hosts that correspond

to the head and tail nodes of the test cases. Later,

the passing trafﬁc is inspected at all node interfaces

via a simple network sniffer. The network trafﬁc of

all switches can be obtained in different ways, star-

ting from a simple Unix-like sniffer as the tcpdump

utility and ﬁnishing with non-software-based (phy-

sical / vendor) switches via protocols such as Net-

Flow (Claise, 2004) or sFlow (Phaal et al., 2001). As

an example, consider the requested path (h

, s

)(s

We however note the existence of different approaches

for automatic trafﬁc generation (see, for example (Zeng

et al., 2012; David et al., 2014; Fayaz et al., 2016)).

)(s

, s

)(s

, s

)(s

, h

) with respect to the RNCT in

Fig. 1. The corresponding trafﬁc generation (through

ICMP echo request) and the trafﬁc observation are de-

picted in Fig. 3. We depict the messages and a ti-

mestamp when the message was observed. Hereafter,

‘t1’ denotes the ﬁrst time instance after trafﬁc genera-

tion started. If the network ﬂow follows the requested

path, i.e., the expected output response is observed

during the trafﬁc generation, we consider that the test

case has passed. An example of trafﬁc generation and

observation is shown in Fig. 3.

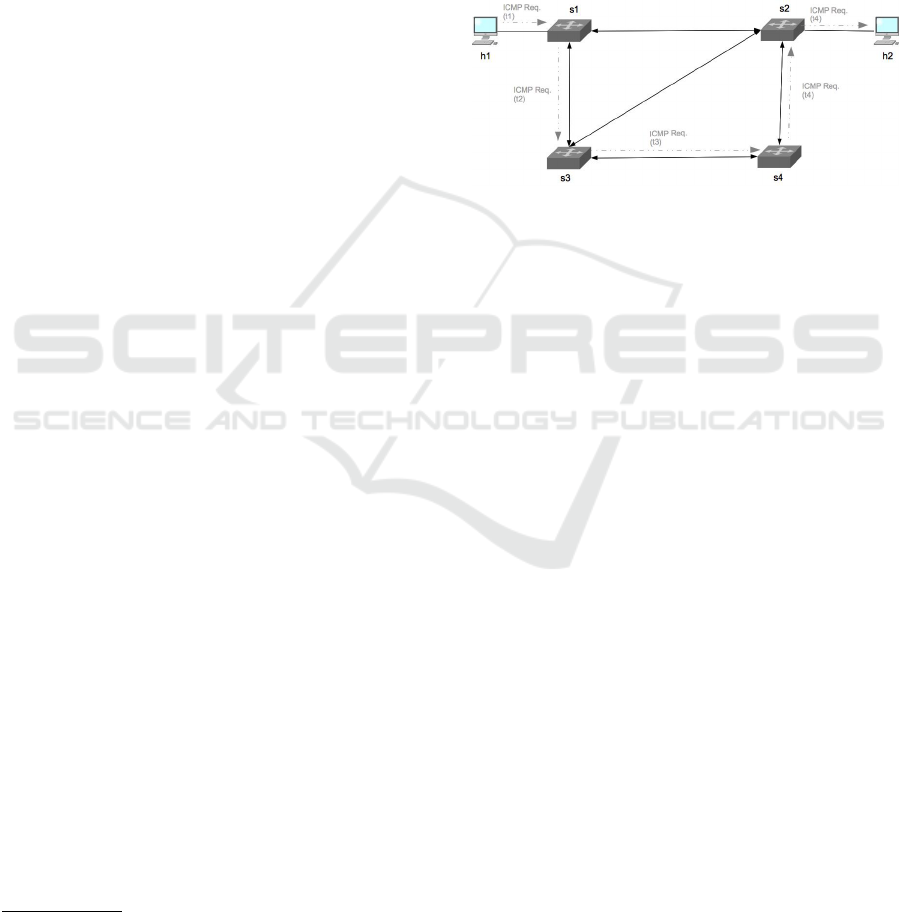

Figure 3: Trafﬁc generation and ﬂow observation.

After the fault model is set, usual testing approa-

ches can be used for deriving test suites with the gua-

ranteed fault coverage. Below, we discuss how black

and white test derivation approaches can be used for

this purpose.

3.3 Black Box Testing Approach

As the set of all paths of the RCNT is ﬁnite, the sim-

plest way to construct a complete test suite w.r.t. h=,

FDi is to consider the set of all such paths.

Proposition 1. The set of all RCNT paths is a com-

plete test suite w.r.t. h=, FDi.

In general, this test suite is rather long and we

propose an approach for reducing its length based

on equivalence classes. Indeed, if we assume that

each node processes inputs independently of the node

where they come from, two paths can be considered

(i, j)-equivalent if both paths have a directed edge

from node i to node j. That is either all the pac-

kets that should be directed from i to j are either

processed correctly, i.e., are sent from i to j, or are

processed wrongly, i.e., are sent anywhere except the

j-th node. In Fig. 2, paths P1 = (h

, s

)(s

, s

)(s

) and P2 = (h

, s

)(s

, s

)(s

, s

)(s

, s

)(s

, h

) are

considered to be equivalent w.r.t. the edge (h

, s

) as

well as w.r.t. the edge (s

, h

) .

Proposition 2. The set of paths that contains a path

of each (i, j)-equivalent class where (i, j) is an edge

in the RCNT, is a complete test suite w.r.t. the fault

model h=, FDi.

Towards Model based Testing for Software Deﬁned Networks

443

Indeed, a complete test suite has at least one re-

quest where a packet should be sent from node i to

node j. If the packet is processed correctly (accor-

ding to the monitoring results), then due to the testing

assumptions, we conclude that each packet directed

from node i to node j will be sent to the j-th node.

By direct inspection, one can assure that the num-

ber of all paths for the RNCT example in Fig. 2 equals

36. However, the proposed equivalence classes ap-

proach allows to reduce this test suite up to ten paths

only.

In order to cover all equivalence classes in an op-

timal way, an optimization problem should be stated

and solved. One option is to consider the Boolean

(weighted) matrix and solve the corresponding cove-

ring problem (Villa et al., 1997) for which many li-

braries and scalable software solutions are developed.

If the node processes a packet depending on where it

comes from then equivalence classes could be consi-

dered w.r.t. path subsequences of length l ≥ 2. Given

a sequence γ of RNCT edges of length l between node

i and node j, two paths are considered γ-equivalent if

they both contain γ. A test suite is complete if it has at

least one path of each equivalence class. A minimal

cover of a corresponding Boolean matrix can also be

used for optimal test generation.

3.4 White Box Testing Approach

In some cases, mainly for reducing testing complex-

ity, it may be desired not to generate test suites w.r.t.

all possible edges in the RNCT. The complexity can

be reduced if a set of critical edges that need to be

tested ﬁrst can be deﬁned; for example, critical ed-

ges that include critical services. For this reason, we

propose Algorithm 1 that generates a test suite with

guaranteed fault coverage w.r.t. a set of critical edges,

i.e., if a fault occurs at a given ‘critical’ edge, it is

detected. The algorithm is based on generating a test

case tc = (v

, v

). . . (v

, v

)(v

, v

j+1

). . . (v

n−1

, v

) that

traverses a critical edge (v

, v

) for all critical edges

. We consider in the fault domain, implementations

that can potentially contain three types of faults that

need to be detected, namely:

1. An edge is directed to a wrong node, i.e., from the

edge of interest (v

, v

) to (v

, v

) where j 6= j

2. An edge e = (v

, v

) is deleted.

3. A non-existing edge (v

, v

) is created for a critical

edge (v

, v

), where j 6= k.

As potential faults are enumerated explicitly, Al-

gorithm 1 returns the test suite under the white box

testing assumption. By construction, the following

proposition holds.

Input : RNCT = (V, E, c), a binary-colored

graph where hosts are “0” colored;

⊆ E, a set of critical edges

Output: A test suite T S

T S

←

foreach f = (v

, v

) ∈ E

1. Find (backtrack)

= (v

, v

). . . (v

, v

), the shortest

sequence of edges such that c(v

) = 0,

i.e., the shortest sequence that starts in a

host and ﬁnishes at the node v

. Note

that if c(v

) = 0 then p

= (v

, v

);

2. Find (forwardtrack)

= (v

, v

). . . (v

n−1

, v

), the shortest

sequence of edges such that c(v

) = 0,

i.e., the shortest sequence that ﬁnishes in

a host and starts at node v

. Note that if

c(v

) = 0 then p

= (v

, v

);

3. T S

← T S

∪ {p

};

return T S

Algorithm 1: White box Complete Test Suite Ge-

neration

Proposition 3. Algorithm 1 returns a complete test

suite w.r.t. the fault model h=, FDi where FD has

each path with a critical edge.

We note that Algorithm 1 is somehow a naive al-

gorithm. However, a test minimization can be per-

formed similar to black box testing approach, via sol-

ving a covering problem. In this case, a minimal set

of paths that cover all critical edges can be identiﬁed.

3.5 Preliminary Experimental Results

In order to simulate the resource infrastructure, i.e.,

to provide the RNCT, we utilized the well known Mi-

ninet (Mininet, 2013) simulator executed under an

Ubuntu 14.04 LTS virtual machine running on Virtu-

alBox Version 5.1.14 r112924 (Qt5.6.2) for Mac OS

X, with 2GB of RAM and 1 core of a 2.3 GHz In-

tel Core i5. Our preliminary experimental setup is

a network containing 4 switches running Open vS-

witch version 2.0.2 (also 4 hosts, and 9 links), as de-

picted in Fig. 1. We note that even if the experiments

were not performed at a large scale, the test derivation

techniques do not have high complexity and can thus

be applied to larger environments. Furthermore, to

prove the validity of our approach, real SDN control-

lers were utilized for the experiments, especially an

OpenDaylight (ODL) (Medved et al., 2014) Boron-

S3, and an Onos (Berde et al., 2014) 1.10.4 running

under a dedicated CentOS 7 virtual machine with 8

cores and 12GB of RAM.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

444

Considering Proposition 2, we derived a test suite

T S for (i, j)-equivalence classes, including each edge

(i, j) at least once. When the test suite was executed

against the SDN framework composed by the expe-

rimental setup and the ODL controller, all tests fai-

led. The test suite has been executed by requesting

the proper ﬂow instantiation via the ODL REST in-

terface. In fact, none of the requested paths of the test

suite were implemented. Nevertheless, the control-

ler gave positive replies (HTTP 201 - created) to the

creation of all individual ﬂow entries, and none were

installed in the Open vSwitches. Certainly, positively

replying to a request for ﬂow creation and not imple-

menting it is not considered to be a correct functio-

nality, independently of any potential misconﬁgurati-

ons. On the other hand, when the test suite was execu-

ted against the SDN framework with the experimental

setup using the Onos controller all tests successfully

passed.

T S is indeed a complete test suite with respect to

the presented fault model h=, FDi, and therefore, its

execution against an SDN platform (implementation)

provides a guarantee regarding the correct functioning

of that SDN platform, if the test suite passes it. No-

netheless, it is interesting to check the fault detection

effectiveness of each test sequence α in the test suite

T S (test sequence ‘power’). For this reason, we de-

liberately introduced a bug in the Onos controller to

provide positive replies to the creation of ﬂows which

are not installed on the devices. To obtain a faulty

implementation with the previously described bug, a

single statement was deleted from the Onos control-

ler’s source code

; particularly, the statement was

deleted in the FlowsWebResource.java ﬁle. As Onos

compiles with regression tests, a special compilation

process ignoring such tests was executed. Given the

modiﬁed code for the Onos controller, the fault co-

verage of each test sequence in the test suite was as-

sessed. As a result, all the test sequences failed when

being executed against the modiﬁed SDN platform,

i.e., each test case is ‘capable’ of detecting the intro-

duced bug by its own. Therefore, these preliminary

experiments also showcase the power of the obtained

test cases and motivate to consider the test minimiza-

tion in the future.

Although these experiments were not performed

for realistic SDN infrastructures, some conclusions

can be drawn. First, the SDN architecture composed

by the experimental setup together with the Onos con-

troller is guaranteed to be free of faults of the wrong

redirection, edge deletion and edge creation faults as

Statement deletion is often considered in mutation tes-

ting (Deng et al., 2013) when the test suite quality is esti-

mated.

considered in the fault domain. Moreover, the obtai-

ned test suite can detect other types of bugs (for exam-

ple, a single statement deletion) for which the relati-

onship with the errors listed above needs to be further

investigated. Second, the SDN architecture composed

by the experimental setup together with the ODL con-

troller seems not to be free of the bugs under conside-

ration. Note that even if the second conclusion may

be considered as trivial, the proposed approach can

be seen as a helpful mechanism to ‘certify’ the cor-

rect functionality of a given SDN infrastructure under

certain conditions and assumptions.

4 CONCLUSIONS

In this paper, we focused on testing techniques for

checking the functionality of SDN frameworks. As

the inputs of the SDN infrastructures are user-deﬁned

paths, we proposed a formal approach for effective

test generation for such non-trivial inputs, namely,

speciﬁc graph enumeration techniques have been dis-

cussed for testing an SDN framework.

To formally prove the fault coverage, we deﬁned

a fault model where the fault domain contains diffe-

rent implementations of the requested paths. We also

established the conditions when a complete test suite

with respect to such fault model can be derived.

As a future work we plan to investigate other fault

models, for example, we would like to check different

abstraction levels, i.e., to consider not a single path as

a test case but a set of those. Another direction for

future work is the test suite minimization for black

and white box testing assumptions, namely to choose

the minimal number of paths of interest so that the

test suite fault coverage is preserved. Finally, we plan

to perform experiments on a number of (distributed)

SDN architectures for estimating the effectiveness of

graph enumeration for detecting real bugs in the code

of switches / controllers.

ACKNOWLEDGEMENTS

The results in this work were partially funded

by the Celtic-Plus European project SENDATE,

ID C2015/3-1 and the Russian Science Foundation

(RSF), project # 16-49-03012.

The authors gratefully acknowledge senior rese-

archers Igor Burdonov and Alexander Kossatchev for

fruitful discussions.

Towards Model based Testing for Software Deﬁned Networks

445

REFERENCES

Berde, P., Gerola, M., Hart, J., Higuchi, Y., Kobayashi, M.,

Koide, T., Lantz, B., O’Connor, B., Radoslavov, P.,

Snow, W., et al. (2014). Onos: towards an open, dis-

tributed sdn os. In Proceedings of the third workshop

on Hot topics in software deﬁned networking, pages

1–6. ACM.

Canini, M., Kostic, D., Rexford, J., and Venzano, D. (2011).

Automating the testing of openﬂow applications. In

Proceedings of the 1st International Workshop on Ri-

gorous Protocol Engineering (WRiPE).

Canini, M., Venzano, D., Pere

ıni, P., Kosti

c, D., and Rex-

ford, J. (2012). A nice way to test openﬂow appli-

cations. In Proceedings of the 9th USENIX Sympo-

sium on Networked Systems Design and Implementa-

tion (NSDI), number EPFL-CONF-170618.

Claise, B. (2004). Cisco systems netﬂow services export

version 9.

David, L., Stefano, V., and Olivier, B. (2014). Towards

test-driven software deﬁned networking. In 2014

IEEE Network Operations and Management Sympo-

sium, pages 1–9.

Deng, L., Offutt, J., and Li, N. (2013). Empirical evalu-

ation of the statement deletion mutation operator. In

IEEE Sixth International Conference on Software Tes-

ting, Veriﬁcation and Validation (ICST), pages 84–93.

El-Fakih, K., Trenkaev, V., Spitsyna, N., and Yevtushenko,

N. (2004). FSM based interoperability testing met-

hods for multi stimuli model. In Testing of Communi-

cating Systems, 16th IFIP International Conference,

TestCom 2004, Oxford, UK, March 17-19, 2004, Pro-

ceedings, pages 60–75.

Fayaz, S. K., Yu, T., Tobioka, Y., Chaki, S., and Sekar, V.

(2016). BUZZ: testing context-dependent policies in

stateful networks. In 13th USENIX Symposium on

Networked Systems Design and Implementation, pa-

ges 275–289.

Gill, P., Jain, N., and Nagappan, N. (2011). Understanding

network failures in data centers: Measurement, ana-

lysis, and implications. In Proceedings of the ACM

SIGCOMM 2011 Conference, SIGCOMM ’11, pages

350–361, New York, NY, USA.

Guha, A., Reitblatt, M., and Foster, N. (2013). Machine-

veriﬁed network controllers. In ACM SIGPLAN Noti-

ces, volume 48, pages 483–494. ACM.

opez, J., Kushik, N., Yevtushenko, N., and Zeghlache., D.

(2017). Analyzing and validating virtual network re-

quests. In The 12th International Conference on Soft-

ware Technologies (ICSOFT), Madrid, Spain, pages

441–446.

Mai, H., Khurshid, A., Agarwal, R., Caesar, M., God-

frey, P. B., and King, S. T. (2011). Debugging the

data plane with anteater. In Proceedings of the ACM

SIGCOMM 2011 Conference, SIGCOMM ’11, pages

290–301, New York, NY, USA.

McKeown, N., Anderson, T., Balakrishnan, H., Parulkar,

G., Peterson, L., Rexford, J., Shenker, S., and Turner,

J. (2008). Openﬂow: enabling innovation in campus

networks. ACM SIGCOMM Computer Communica-

tion Review, 38(2):69–74.

Medved, J., Varga, R., Tkacik, A., and Gray, K. (2014).

Opendaylight: Towards a model-driven sdn controller

architecture. In Proceedings of the IEEE 15th Inter-

national Symposium on A World of Wireless, Mobile

and Multimedia Networks (WoWMoM), pages 1–6.

Mininet (2018). Mininet: An instant virtual network on

your laptop (or other pc)-mininet.

Opennetworking (2012). Software-deﬁned networking:

The new norm for networks. ONF White Paper.

Phaal, P., Panchen, S., and McKee, N. (2001). Inmon cor-

poration’s sﬂow: A method for monitoring trafﬁc in

switched and routed networks.

Scott, C., Wundsam, A., Raghavan, B., Panda, A., Or, A.,

Lai, J., Huang, E., Liu, Z., El-Hassany, A., Whit-

lock, S., et al. (2014). Troubleshooting blackbox

sdn control software with minimal causal sequences.

ACM SIGCOMM Computer Communication Review,

44(4):395–406.

Sezer, S., Scott-Hayward, S., Chouhan, P. K., Fraser, B.,

Lake, D., Finnegan, J., Viljoen, N., Miller, M., and

Rao, N. (2013). Are we ready for sdn? implementa-

tion challenges for software-deﬁned networks. IEEE

Communications Magazine, 51(7):36–43.

Shalimov, A., Zuikov, D., Zimarina, D., Pashkov, V., and

Smeliansky, R. (2013). Advanced study of sdn/open-

ﬂow controllers. In Proceedings of the 9th central &

eastern european software engineering conference in

russia. ACM.

Villa, T., Kam, T., Brayton, R. K., and Sangiovanni-

Vincentelli, A. L. (1997). Explicit and implicit algo-

rithms for binate covering problems. IEEE Trans. on

CAD of Integrated Circuits and Systems, 16(7):677–

691.

Yao, J., Wang, Z., Yin, X., Shiyz, X., and Wu, J. (2014).

Formal modeling and systematic black-box testing of

sdn data plane. In The IEEE 22nd International Con-

ference on Network Protocols (ICNP), pages 179–

190.

Zeng, H., Kazemian, P., Varghese, G., and McKeown, N.

(2012). Automatic test packet generation. In Procee-

dings of the 8th International Conference on Emer-

ging Networking Experiments and Technologies, pa-

ges 241–252.

Zhang, Z., Yuan, D., and Hu, H. (2016). Multi-layer mo-

deling of OpenFlow based on EFSM. In 4th Interna-

tional Conference on Machinery, Materials and Infor-

mation Technology Applications, pages 524–529.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

446
