Bio-backﬁll: A Scheduling Policy Enhancing the Performance of

Bioinformatics Workﬂows in Shared Clusters

Ferran Badosa

, Antonio Espinosa

, Gonzalo Vera

and Ana Ripoll

Computer Architecture and Operative Systems Department of Universitat Aut

onoma de Barcelona, Bellaterra, Spain

Center for Research in Agricultural Genomics, Bellaterra, Spain

Keywords:

Bioinformatics Workﬂows, Slowdown, Dependencies, Scheduling Policies, Backﬁll, Resource Management

Systems.

Abstract:

In this work we present the bio-backﬁll scheduler, a backﬁll scheduler for bioinformatics workﬂows appli-

cations running on shared, heterogeneous clusters. Backﬁll techniques advance low-priority jobs in cluster

queues, if doing so doesn’t delay higher-priority jobs. They improve the resource utilization and turnaround

achieved with classical policies such as First Come First Served, Longest Job First.. When attempting to

implement backﬁll techniques such as Firstﬁt or Bestﬁt on bioinformatics workﬂows, we have found several

issues. Backﬁll requires runtime predictions, which is particularly difﬁcult for bioinformatics applications.

Their performance varies substantially depending on input datasets and the values of its many conﬁguration

parameters. Furthermore, backﬁll approaches are mainly intended to schedule independent, rather than depen-

dent tasks as those forming workﬂows. Backﬁlled jobs are chosen upon its number of processors and length

runtime, but not by considering the amount of slowdown when the Degree of Multiprogramming of the nodes

is greater than 1. To tackle these issues, we developed the bio-backﬁll scheduler. Based on a predictor generat-

ing performance predictions of each job with multiple resources, and a resource-sharing model that minimizes

slowdown, we designed a scheduling algorithm capable of backﬁlling bioinformatics workﬂows applications.

Our experiments show that our proposal can improve average workﬂow turnaround by roughly 9% by and

resource utilization by almost 4%, compared to popular backﬁll strategies such as Firstﬁt or BestFit.

1 INTRODUCTION

Advancements in computing and biology have re-

duced the cost and time of genome sequencing by

80% over the past ten years (NHGRI, 2017). As a

consequence, the size of genomic databases, many

of which are available worldwide, has grown increas-

ingly. To analyze the ever-increasing volumes of ge-

nomic data, bioinformatics applications can be em-

ployed. Analysis allows for extraction of valuable in-

formation regarding subjects’ propensity to develop

certain deceases or response to drugs. Thanks to that

knowledge, individualized medical treatments can be

developed. Many kinds of bioinformatics applica-

tions exist, performing different tasks involved in

genome analysis, such as genome sequencing, align-

ment or annotation. Users of such applications, usu-

ally data analysts or biologists, may build bioinfor-

matics workﬂows by combining multiple applications

in a deﬁned structure. Aside from input and output

data, workﬂows also have intermediate data. That is,

output data generated by a precedent application (A)

which is in turn input data of another, posterior appli-

cation (B). Application B must wait until A terminates

in order to get the necessary data to start execution.

Unlike independent tasks, which are always in ready

status for execution, workﬂows applications may have

dependencies. Non-ready applications such as B may

be further deﬁned by specifying the remaining time

for its dependencies to be solved.

Bioinformatics applications are usually highly

resource-demanding. Clusters formed by hetero-

geneous nodes with multiple cores and multiple

sockets have become common platforms to execute

them, since they provide cost-effective access to vast

amounts of resources. Before submitting applications

to heterogeneous clusters, users must determine the

resources needed by their applications. This is a hard

task even when dealing with applications whose per-

formance barely changes from one execution to the

next.

When dealing with bioinformatics applications, a

148

Badosa, F., Espinosa, A., Vera, G. and Ripoll, A.

Bio-backﬁll: A Scheduling Policy Enhancing the Performance of Bioinformatics Workﬂows in Shared Clusters.

DOI: 10.5220/0006812901480156

In Proceedings of the 3rd International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2018), pages 148-156

ISBN: 978-989-758-297-4

higher degree of difﬁculty is faced. The resource

requirements and execution times of bioinformatics

workﬂows applications may vary substantially from

one execution to the next. Performance variation of

applications depends on two factors. First, the char-

acteristics of input data selected for analysis, such as:

the size of the input dataset ﬁle or ﬁles, the number

of sequences within, or its length. Second, the val-

ues of the multiple conﬁguration parameters each ap-

plication has, which must be declared by users. By

giving different values to these parameters, users may

conduct different kinds of analysis on the same input

datasets. Some analysis seek high-quality results, re-

quiring resource-demanding and long-lasting compu-

tations. Conversely, other analysis only target lower-

quality results, which are much easier and quicker to

obtain. The large amount of existing combinations

of data and parameters values, and the performance

variations they may cause on applications, makes it

additionally difﬁcult to determine the resources or ex-

ecution times of a single application.

For the present work, we considered bioinfor-

matics applications programmed in shared-memory

paradigms. Their execution is conducted by multi-

ple execution threads running in a single node at a

time. Shared-memory paradigms offer numerous ad-

vantages for bioinformatics applications. They sim-

plify users’ job submissions, requiring little or no pre-

vious knowledge of computing environments. More-

over, they allow threads to easily communicate by us-

ing the memory. Hence, through high-speed paths,

and requiring no external synchronization mecha-

nisms. Many bioinformatics applications are pro-

grammed in shared-memory paradigms.

One major category of bioinformatics applica-

tions is that of read mappers, which can be employed

to analyze reads sequences, that is, fragments of a

partially-sequenced genome. First though, the posi-

tion in the genome of the base pairs of each read se-

quence must be found. To do so, mappers compare

each sequence in the reads ﬁle against each sequence

of a fully-sequenced reference genome, which is used

as a template. These input ﬁles may amount up to

tens or hundreds of gigabytes and contain millions of

sequences each. Mappers, as many bioinformatics ap-

plications, are usually labeled as data-intensive. Map-

ping algorithms usually rely on large memory capaci-

ties in order to analyze such sizable genomic datasets.

Execution threads request a great number of mem-

ory accesses as mapping algorithms compare each

pair of reference-reads sequences. Handling these

amounts of requests has been a major concern of nu-

merous research articles (Waidyasooriya et al., 2014;

Xin et al., 2013), yet it still poses a major chal-

lenge. If the number of threads is increased, more

sequences are simultaneously compared, intensifying

the amount of memory requests. The large num-

ber of requested memory accesses may overwhelm

nodes’ bandwidth, leading to saturation and length-

ening latencies. As a result, Processing Units (PUs)

may remain idle or low utilized as they wait for re-

quested data. Due to that, some read mapping ap-

plications show limited scalability with a low num-

ber of PUs (Al-Ali et al., 2016; Kathiresan et al.,

2014). This phenomenon must be considered when

scheduling mappers to avoid compromising their per-

formance and that of the system. Popular mapping

or alignment applications are blast or BWA (Li and

Durbin, 2009), which employ mapping algorithms

such as Needleman-Wunsch (Needleman and Wun-

sch, 1970) or Burrows Wheeler Transform (Burrows

and Wheeler, 1994).

Mappers are mainly regarded as memory-bound

applications. However, depending on the data char-

acteristics and parameters values, that situation may

be reversed, causing mappers to become bounded by

other resources such as cpu.

Another category of bioinformatics applications is

that formed by phylogenies. They study the evolution

of genetically-related organisms by building a phy-

logeny three. Common methods to compute trees in-

clude maximum likelihood estimations or Bayesian

inferences. Examples of phylogenies are mrbayes

(Huelsenbeck and Ronquist, 2001) or phyml (Guin-

don and Gascuel, 2003). Unlike mappers, phyloge-

nies are generally bounded by the cpu.

Most clusters are shared among multiple work-

ﬂow applications, which compete for resources. The

availability of resources varies over time upon the ex-

ecution times and resource usage of running appli-

cations. Depending on resource availability, needs

and priorities, some jobs are granted access to certain

amounts of resources, whereas others have to wait.

In shared clusters, multiple jobs may share pro-

cessors of the same node. Thus, the Degree of Multi-

programming of the nodes (DP) may be greater than

one. Sharing resources may be beneﬁcial for overall

performance, decreasing waiting times and increas-

ing resource utilization. Nonetheless, competition for

same-node resources may cause jobs to slow down

their execution times (Figueira and Berman, 2001).

The slowdown extent depends on the resource usage

made by jobs sharing the same nodes. However, it

can be minimized if combinations of jobs are prop-

erly scheduled in the different nodes. That is, com-

bining for instance memory-bound applications with

cpu-bound applications.

Resource Management Systems (RMS) admin-

Bio-backﬁll: A Scheduling Policy Enhancing the Performance of Bioinformatics Workﬂows in Shared Clusters

149

ister resources. They monitor the queue of jobs

and system status, in order to schedule those re-

sources. RMS schedulers determine the priorities and

resources of jobs based on their own scheduling al-

gorithms. Scheduling algorithms can be divided into

time-sharing and space-sharing. Time sharing algo-

rithms divide processing time into to slots, and assign

them to pending jobs. Space-sharing algorithms are

the most common ones implemented in schedulers.

They allocate resources to jobs until execution ﬁn-

ishes, reducing overhead. Examples of space-sharing

algorithms are: FCFS (First Come First Serve), SJF

(Shortest Job First), LJF (Longest Job First) or EDF

(Earliest Deadline First).

When these policies are implemented on a queue

of jobs, scheduling gaps may be generated. That

may cause processors to remain idle over time, as

other jobs wait. To ﬁll the scheduling gaps, the

aforementioned policies can be combined with back-

ﬁll. Backﬁll increases the initial priorities of queued

jobs, and ﬁts them on idle processors, as long as do-

ing so doesn’t delay the expected start time of any

higher-priority jobs. Applying backﬁll enhances re-

source utilization and turnaround. Resources that

would otherwise remain idle are kept busy by back-

ﬁlled jobs. As previously mentioned, determining

the resources needed by a single bioinformatics ap-

plication is difﬁcult since they may vary substantially

depending on user-selected combination of data and

parameters values. When multiple workﬂows share

the same cluster, with variable resource availability

and job queues, such uncertainty may lead to naive

scheduling approaches being taken, i.e. over allo-

cation of resources. In those cases, longer waiting

times arise, whereas low utilization of resources is at-

tained. Resources may go wasted and users can see

their turnaround times extended.

Backﬁll techniques may be suitable to properly

schedule bioinformatics workﬂows applications and

improve overall system performance. Nonetheless,

we have found three major drawbacks when review-

ing current backﬁll techniques. First, backﬁll requires

execution time predictions to be provided, since the

start time of queued jobs depends on completion time

of previous jobs. Providing execution time predic-

tions of bioinformatics applications may be hard or

unfeasible, due to their variable performance, which

depends on parameters and data. The second draw-

back we found is that when current backﬁll tech-

niques advance jobs, they don’t consider the execu-

tion time slowdown caused by the different combina-

tions of applications, which can also have signiﬁcant

repercussions on the eventual turnaround times.

The third drawback is that backﬁll techniques

mainly designed for being applied on independent

tasks, and rarely feature within workﬂow scheduling

environments (Wu et al., 2015). Although recent ef-

forts have been made (Arabnejad et al., 2017) on the

matter, these fail to adapt to the particular variable-

resource needs of bioinformatics workﬂows applica-

tions.

To face these drawbacks, we present the bio-

backﬁll scheduler, a novel technique for scheduling

bioinformatics workﬂows applications in shared clus-

ters, considering their parameter values, data charac-

teristics, and dependencies. The bio-backﬁll sched-

uler is based on a pre-scheduling framework, re-

viewed in Section 3.1. The pre-scheduling frame-

work includes a historical database and a prediction

model, which automatically generates jobs’ perfor-

mance predictions with different resources. Thanks

to predictions, dependency times can also be calcu-

lated. The bio-backﬁll scheduler, reviewed in Section

3.2, includes a resource-sharing model that consid-

ers the slowdown spawned when the DP of the nodes

is greater than one. That is, determines which jobs

are most compatible for same-node execution so that

slowdown is minimized. In Section 4, we process

a series of bioinformatics workﬂows on a heteroge-

neous cluster with the bio-backﬁll scheduler, as well

as with other backﬁll policies. Experiments prove that

the proposed bio-backﬁll scheduler can improve the

average turnaround and resource utilization of bioin-

formatics workﬂows applications obtained with other

backﬁll approaches.

2 RELATED WORK

Among the main current backﬁll techniques applied

in clusters we can ﬁnd Firstﬁt backﬁll, Bestﬁt back-

ﬁll, Greedy backﬁll or Preemptive backﬁll. The ﬁrst

step in most common backﬁll techniques is similar.

The queue of jobs, which has already been scheduled

resources and set priorities with other policies (i.e.

FCFS, Shortest Job First, Longest Job First...), is ﬁl-

tered. The list of potential backﬁll candidates, formed

by those jobs ﬁtting in the current backﬁll window, is

extracted. The second step is different depending on

the backﬁll technique applied. Firstﬁt backﬁll consid-

ers all backﬁll candidates, and selects and starts the

ﬁrst one. Bestﬁt calculates the degree of ﬁt of each

job, based on different backﬁll metrics: the number

of processors, the execution time in seconds, or the

product of both. Next, starts the job with the best

ﬁt. Greedy backﬁll assesses the degree of ﬁt of each

combination of candidate jobs for backﬁlling, based

on the same metrics than Bestﬁt. All jobs in the best

COMPLEXIS 2018 - 3rd International Conference on Complexity, Future Information Systems and Risk

150

combinations are started. Finally, Preemptive backﬁll

jobs are given priorities, based on different parame-

ters: current running duration, number of processors

on which job runs.. Preemptive backﬁll then starts

the highest-priority candidate. All techniques iterate

over steps one and two, as long as there are remaining

backﬁll candidates and idle resources.

Backﬁll techniques advance jobs if the expected

start time of any higher-priority jobs is not delayed.

However, that constraint can be relaxed, and differ-

ent advancing criteria can be chosen, such as done by

conservative backﬁlling, aggressive or easy backﬁll-

ing, and slack backﬁlling. In conservative backﬁll-

ing, any job is given resource reservation as it arrives

in the queue. Backﬁll candidates can be then back-

ﬁlled if no higher-priority jobs see their expected start

time delayed. In easy backﬁlling, only the ﬁrst job

of the queue is given resource reservation. Backﬁll

candidates are then granted permission to advance as

long as they don’t delay the start of the ﬁrst, resource-

reserved job.

No clear criteria is deﬁned on which technique,

conservative or aggressive backﬁll, is better than the

other. Conservative backﬁlling allows less jobs to be

backﬁlled than aggressive backﬁlling. Since there are

more jobs whose starting time must be considered,

more constraints exist in order for other jobs to be

backﬁlled. Furthermore, in conservative backﬁlling

there may be multiple jobs with reserved resources,

and thus may become hard to ﬁt more backﬁlled jobs.

Conversely, in easy backﬁlling which there’s only one

job with reserved resources, and more jobs can be eas-

ily backﬁlled.

Easy or conservative backﬁlling may favor ear-

lier execution of jobs, depending on their character-

istics, such as length (duration) and width (number

of processors). Conservative backﬁlling reserves re-

sources for more jobs, spawning earlier execution of

short wide jobs. These jobs have smaller chances of

being backﬁlled since the more processors a jobs, the

more difﬁcult it is to ﬁt them into scheduling gaps.

With easy backﬁlling, short wide jobs might have to

wait until they get on top of the queue to get a reser-

vation of resources, increasing waiting times. Con-

versely, long narrow jobs may start earlier with easy

backﬁlling than with conservative backﬁlling. Due to

little processors being required, they can be relatively

easy be ﬁt into gaps. As for short narrow jobs and

long wide jobs, it is harder whether they may be ben-

eﬁted by easy or conservative backﬁlling. Generally,

they may equally as favored by initial reservation as

by backﬁlled reservation.

Slack backﬁll is based on conservative backﬁlling,

but it is more ﬂexible since allows certain delays of

jobs, called slacks (Talby and Feitelson, 1999). De-

pending on its priority, each job may be given a dif-

ferent slack, determining how long it may have to wait

before starting execution. Any job may be backﬁlled

if doing so doesn’t delay any other jobs by longer

than their slack. Results show that slack backﬁll re-

duces average waiting time by 15% compared with

easy backﬁll, under identical conditions (Bucur and

Epema, 2001).

Multiple-queue backﬁll (Lawson and Smirni,

2002) is based on aggressive backﬁll. Input jobs are

monitored, and according to the length of their exe-

cution time estimations, rearranged in different wait-

ing queues. The system is divided into variable par-

titions with equal amount of processors, and each

queue is assigned a partition. Nevertheless, if a job

of one partition remains idle, it can be used by jobs

in another partition. Consequently, the partition sizes

of the system are dynamic, and processors are ex-

changed among partitions based upon load. For multi-

ple queues, narrow jobs are executed earlier than wide

jobs. The main strength of multiple-queue policies is

that reduces the likelihood of short jobs getting de-

layed in the queue behind the long ones.

Although many backﬁll mechanisms exist, ones

favoring jobs by characteristics: length, width or

combination of both, after reviewing the literature,

we haven’t found any adapted to the particularities of

bioinformatics applications. Namely, those particular

characteristics upon which its width and length

depend on such great extent: input dataset and pa-

rameters values. Also, it is important to point out that

current backﬁll techniques don’t consider the amount

execution time slowdown spawned when multiple

applications share the same node. Hence, we propose

a new bio-backﬁll approach, described in Section 3,

which accounts for both factors. Furthermore, unlike

many backﬁll algorithms, the proposal is intended

for workﬂows. It includes accountability of tasks’

status, ready or non-ready, as well as the predicted

remaining time for tasks to become ready.

3 PROPOSAL: BIO-BACKFILL

SCHEDULER

In this work we present the bio-backﬁll scheduler,

a new backﬁlling approach for bioinformatics work-

ﬂows applications running in shared heterogeneous

clusters. The proposal, depicted in Figure 1, is formed

by a pre-scheduling framework (database and predic-

tor), and a bio-backﬁll scheduling algorithm. The

framework is reviewed in Section 3.1, whereas the

Bio-backﬁll: A Scheduling Policy Enhancing the Performance of Bioinformatics Workﬂows in Shared Clusters

151

bio-backﬁll scheduler, main scope of this work, is ex-

plained in Section 3.2.

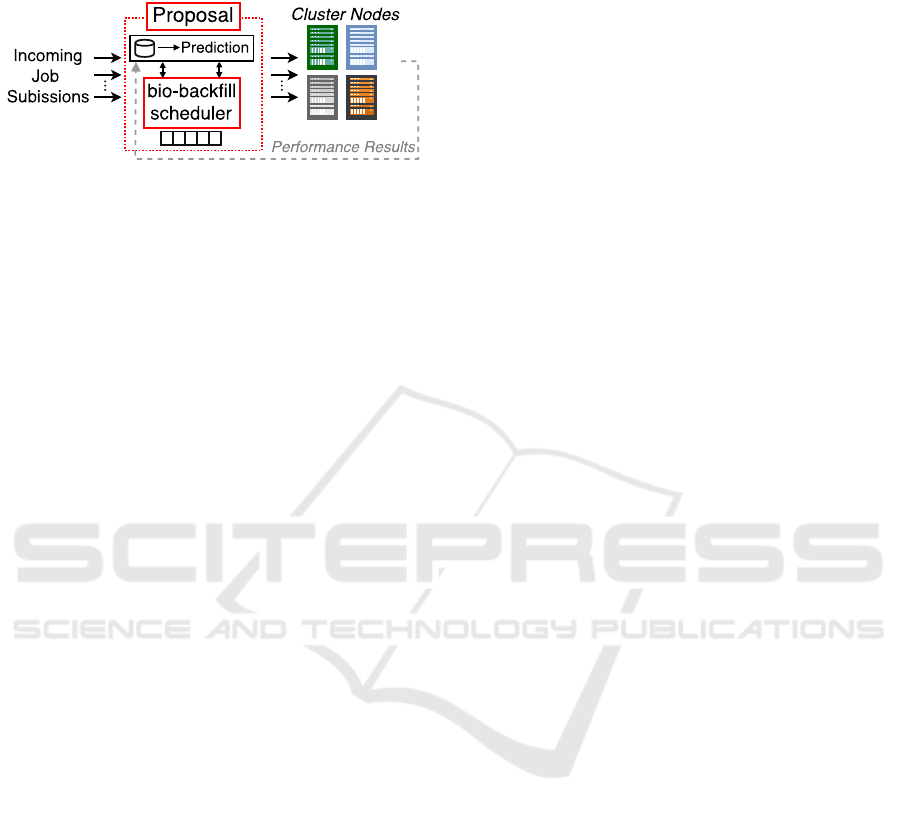

Figure 1: Proposed bio-backﬁll scheduler, including the

pre-scheduling framework, formed by a database and a pre-

dictor.

3.1 Pre-scheduling Framework:

Historical Database and Prediction

Model

The bio-backﬁll scheduler is based on a pre-

scheduling framework, mainly formed by a histori-

cal database and a multivariate regression predictor.

Since the main focus of this work is the bio-scheduler,

the pre-scheduling framework will be brieﬂy re-

viewed. The framework is based on earlier research

work (Badosa et al., 2017), which may be consulted

for further information.

To develop a predictor, the performance of jobs

executed in the cluster must be previously stored

and analyzed. Hence, we developed a methodol-

ogy to track the performance of each executed job.

Namely, we monitored resource metrics such as mem-

ory and CPU consumptions and usage patterns, as

well as turnaround. A variety of Linux tools were

used: /usr/bin/time, sar, pidstat, perf, vmstat.. At

jobs’ completion, performance information is stored

in the historical database. Equation 1 shows a sim-

pliﬁed representation of stored information for each

Job

= app, params, data.

Per f Job

= app, params, data, resources,time (1)

As previously mentioned, backﬁlling approaches

require users to provide accurate runtime predictions

at submission time. That may become challenging for

users of bioinformatics applications, due to its vari-

able performance, highly inﬂuenced by parameters

and data. One of the advantages of the bio-backﬁll

proposal is that relieves users of having to provide

time estimations. Instead, the Multivariate Regression

Predictor automatizes this process.

To build the Multivariate Regression Predictor,

database information was statistically analyzed. The

relevant predictor variables were determined with

the Pearson Correlation Coefﬁcients. To prevent

the model from becoming over-ﬁtted, quality metrics

such as Adjusted R

, were used. The accuracy of the

prediction, was assessed with the Mean Relative Error

metric. Once built, the predictor generates for each

submitted Job

, multiple performance predictions

with different combinations of resources, i.e., in each

node, with a range of PUs. With the multiple predic-

tions received per job, the bio-backﬁll scheduler can

determine which set of resources suit each jobs’ needs

under different scenarios of resource availability. Fur-

thermore, predictions with different resources allow

for the scheduler to calculate speedups and efﬁcien-

cies of each job. The threshold of PUs beyond which

jobs’ execution time doesn’t decrease (PU

MaxSpeed

or the execution time penalties when running with less

PUs: (T

Pen

=(PU

MaxSpeed

)-(PU

LowSpeed

), can be calcu-

lated. This way, the trade off between speed and efﬁ-

ciency of shared clusters can be properly dealt with.

Bioinformatics applications can be executed under

many combinations of parameters and data in the het-

erogeneous cluster. To generate reliable and accurate

predictions, large amounts of data, stemming from

numerous executions, should be gathered. The bio-

backﬁll proposal includes a feedback mechanism that

harnesses performance information of every job exe-

cuted by users in the cluster. Once a job ﬁnishes, new

performance information is added to the database.

Next, the difference between real and predicted re-

sults is calculated. This way, the prediction model can

be continuously updated with newly-obtained perfor-

mance results. The feedback is depicted in Figure 1,

with a dashed line.

3.2 Bio-backﬁll Scheduler

As previously discussed, low scalability shown by

some read mappers may cause a part of node re-

sources such as PUs to go wasted. Backﬁll algorithms

can allocate these PUs to other waiting jobs, increas-

ing resource utilization and reducing turnaround. De-

pending on their algorithms, schedulers ﬁlter a series

of backﬁll candidates, that is those jobs whom if ad-

vanced, won’t delay start time of high priority jobs. In

this section we review the scheduling algorithm that

we developed and included in the bio-backﬁll sched-

uler. A summarized pseudo-code version of the algo-

rithm is shown in Algorithm 1.

To select which of the backﬁll candidates is to

be chosen, several parameters can be accounted for,

such as candidates’ width (number of processors) or

length (predicted runtime). However, many back-

ﬁll techniques don’t consider the slowdowns on jobs’

makespans caused by the different potential combina-

tions of jobs to share the same nodes. That is, when

COMPLEXIS 2018 - 3rd International Conference on Complexity, Future Information Systems and Risk

152

the DP>1. In this work we calculate makespan slow-

down of Job sharing a node with a Load, as in Equa-

tion 2, in percentages.

Slowdown

Job,Load

|Mak.

Job,Excl

− Mak.

Job,Shared

Makespan

Job,Excl.

(2)

Jobs requesting similar node resources throughout

their executions will likely increase slowdown much

longer than combinations of jobs requesting different

resources. In turn, this will cause other, non-requested

resources to go wasted, reducing utilization and in-

creasing waiting times.

The scheduling algorithm backﬁlls candidates not

only upon its width or length, but also considering

the different slowdowns caused by each candidate

when simultaneously running with the nodes’ cur-

rent loads. Hence, the bio-backﬁll scheduling algo-

rithm is capable of minimizing the slowdown when

the DP>1. This feature further enhances performance

improvements achieved by current strategies, which

may schedule non-compatible jobs in the same nodes.

As mentioned in Section 3.1, the feedback mechanism

of the bio-backﬁll scheduler stores performance infor-

mation of each execution. Out of this information, the

amount of slowdown in shared mode can be obtained.

Unlike many backﬁll schedulers, intended for

scheduling independent tasks, the bio-backﬁll sched-

uler has been designed for scheduling bioinformat-

ics workﬂows applications. That is, tasks that aren’t

always ready but may have dependencies. Hence,

we considered the status of each workﬂow task:

Ready/NonReady, along with the predicted time for a

tasks’ dependencies to be solved WaitDep. WaitDep

will depend on the precedent tasks, their execution

times or own dependencies, and ongoing scheduling

policy. The execution times of precedent tasks can

be predicted thanks to the predictor included in the

pre-scheduling framework. From these predictions,

the waiting time for each tasks’ dependencies to be

solved, WaitDep, can be predicted too.

The algorithm is fed with four inputs, as can be

seen in the top of the pseudo-code. First, the List of

queued Jobs to schedule (LJobs), each with its pa-

rameters and data. Second, the List of Performance

Predictions of jobs, calculated in each node of the

cluster with a range of PUs. Third, the List of De-

pendency Status (LDep) of every job in LJobs, de-

termining whether each job in LJobs is either ready

or NonReady, and WaitDep times. Fourth, the List

of Slowdowns (LSlow) which states the slowdown

times caused when scheduling different combinations

of jobs in LJobs for same-node execution. With these

inputs, the algorithm is capable of determining the re-

sources and priorities of jobs so that average workﬂow

turnaround is minimized, and resource usage maxi-

mized. The algorithm generates a priority-sorted List

of scheduled jobs (LPrio).

In shared environments with variable avail-

ability, waiting jobs may not be able to run

with as much resources (MaxRes) as to maximize

speedup (PU

MaxSpeed

), but have to run with less

resources (AvailRes), lengthening execution times

(PU

LowSpeeds

). However, it may occur that in a near

future, a job ﬁnishes, releasing enough resources as

for the waiting job to run with PU

MaxSpeed

. In these

cases, the scheduler can opt between executing the job

at once with AvailRes, or waiting for MaxRes release

and execute the job with PU

MaxSpeed

. To minimize

turnaround, our scheduler compares both options and

proceeds with the fastest one. Sometimes, a queued

job which is not ready (but will be shortly), may be

much more compatible with a node’s current load

than ready jobs. In these cases it may be favorable for

overall performance to wait for that job to go ready,

and schedule it alongside the current load, instead of

scheduling at once the most compatible ready task.

In these cases, the algorithm compares the WaitDep

time of the highly-compatible shortly-ready task plus

the its slowdown, with the slowdown of the currently-

ready task. By comparing these two amounts of times,

the bio-backﬁll algorithm determines whether wait-

ing WaitDep compensates or not. Similarly, when

scheduling combinations of jobs in the same node, the

algorithm schedules the job with longest average pre-

dicted time with PU

MaxSpeed

, alongside the most com-

patible ready job. Also, it calculates the slowdowns of

the longest job alongside non-ready jobs. Then com-

pares the minimum slowdown of ready jobs (Slow

with the minimum sum of: WaitDep times plus slow-

downs of non ready jobs (Wait&Slow

NoRe

), in order

to decide whether it must wait.

4 EXPERIMENTS

In this section we test the bio-backﬁll scheduling pro-

posal, and compare it with other relevant backﬁll ap-

proaches in the literature. To do so, we simulate the

processing of a series of synthetic workﬂows on a

cluster partition, described below. Workﬂows are pro-

cessed 3 times, each with different backﬁll policy: the

proposed Bio-backﬁll scheduler, Firstﬁt, and Bestﬁt,

respectively. At the end, turnarounds and resource

utilizations obtained with the three policies are com-

pared and discussed. The layout of the experiments is

depicted in Figure 2.

Bio-backﬁll: A Scheduling Policy Enhancing the Performance of Bioinformatics Workﬂows in Shared Clusters

153

Algorithm 1: Scheduling pseudocode summary.

Inputs : LJobs: List of queued Jobs (Job

ID=1,..,q

=app,param,data)

LPred: List of Perf.Preds. for PUs in node, for job in LJobs

LDep: List of Dependency Status for job in LJobs

LSlow: List of Slowdowns, for job in LJobs

Output: LPrio: Priority-Sorted List of Jobs

1 while jobs in LJobs do

; // For each Job

, in different res.(node,PU)

2 Calculate Perf.Preds. (LPred); // times,speedups,effi.

3 Calculate Slowdowns (LSlow); // dif.combis of jobs

4 Calculate Job Dependencies (LDep); // Pred. WaitDep

5 MaxRes

= PUs for Max SpeedUp ; // for Job

6 LowRes

= Range PUs below MaxRes

; // t.penalties

7 Read Resource Status; // res avail, nodes’ load

8 if IdleNodes in cluster then

9 Job

LRe

= Longest Ready Job

10 Slow

= min Slow (Job

OthersRe

,Job

LRe

)

11 Wait&Slow

NoRe

=Slow(Job

OthersNoRe

,Job

LRe

)+WaitDep

12 SelectedJobs= Jobs with min (Slow

,WaitSlow

NoRe

) if

ResAvail(node) < MaxRes(SelectedJobs) then

13 SelecRes = PUs minimizing sum of LPred times

14 end

15 else

16 SelectRes = MaxRes for SelectedJobs

17 end

18 end

19 if LoadedNodes in cluster then

20 Slow

= MinSlow(Job

Load

,Job

ID.Re

)

21 Wait&Slow

NoRe

=min (Slow(Job

Load

,Job

ID.Re

)+WaitDep)

22 SelectedJobs = Jobs with min(Slow

; Wait&Slow

NoRe

)

23 if ResAvail(node) > MaxRes(SelectedJobs) then

24 SelecRes = MaxRes for SelectedJobs

25 end

26 else

27 Time

AvailRes

= PredTime Job

ID,AvailRes

28 Wait&Time

MaxRes

= Wait

MaxResFree

+ Time

MaxRes

29 SelectedRes=min(Time

AvailRes

,Wait&Time

MaxRes

)

30 end

31 end

32 end

33 return List of Jobs sorted by Priority (LPrio)

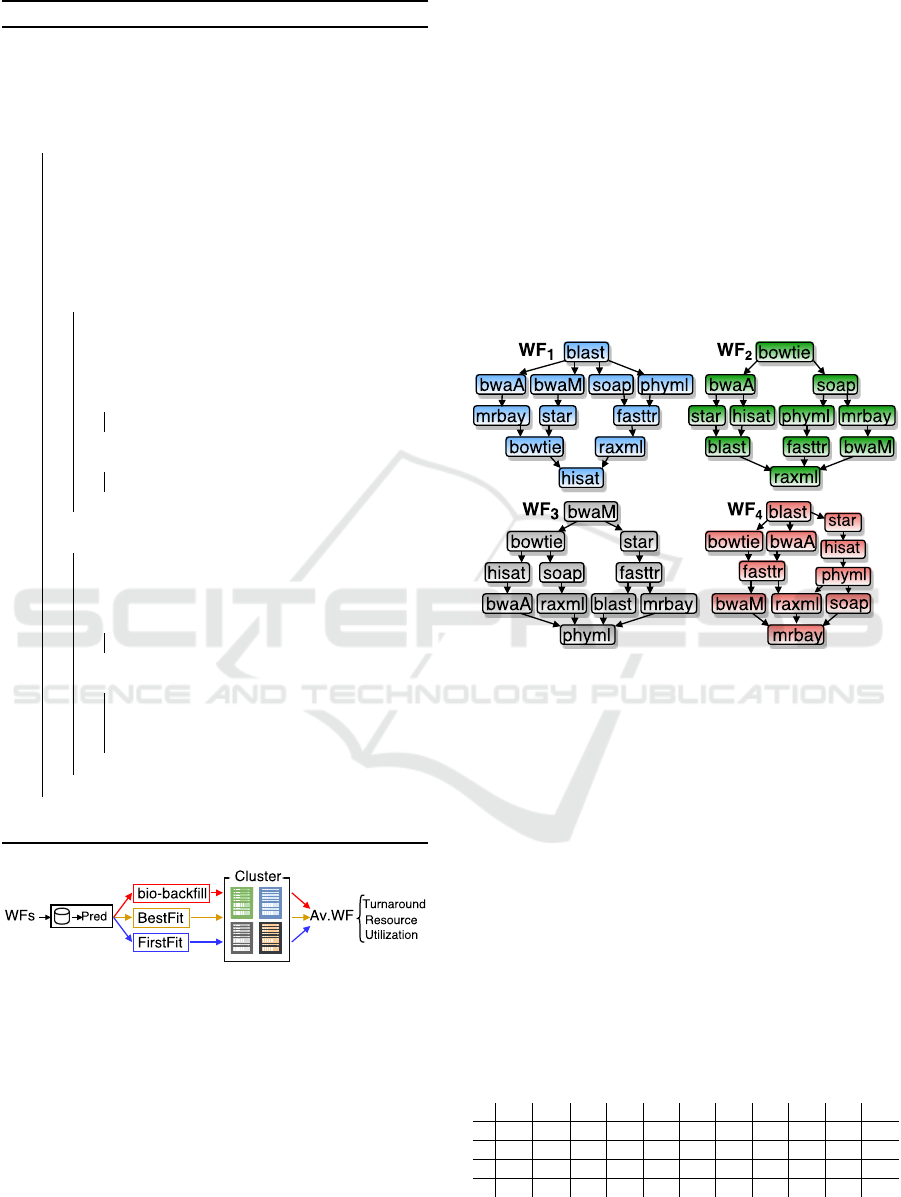

Figure 2: Assessing the performance of different backﬁll

policies, proposed Bio-backﬁll, Firstﬁt and Bestﬁt, on a set

of workﬂows.

4.1 Workload Deﬁnition and

Performance Data Generation

The ﬁrst step consisted in deﬁning a set of syn-

thetic workﬂows whose processing will be simu-

lated with the mentioned backﬁll policies. Work-

ﬂows applications have been chosen upon relevance

reported by benchmarks (Hatem et al., 2013; Lord

et al., 2015). Namely, we selected cpu-bound align-

ers and mappers: blast 2.6.0 (Altschul et al., 1990),

bwa-mem and bwa-aling 0.7.5a (Li and Durbin,

2009), bowtie 2.2.6 (Langmead, 2009), soap 2.21 (Li

et al., 2008), star 2.4.2a (Dobin et al., 2013), hisat

2.0.5 (Kim et al., 2015), and cpu-bound phyloge-

nies: phyml 2.4.5par (Guindon and Gascuel, 2003),

mrbayes 3.1.2h (Huelsenbeck and Ronquist, 2001),

raxml 8.2.9 (Stamatakis et al., 2004) and fasttree

2.1.3.c (Price et al., 2009).

We used the 11 selected applications to build 4

workﬂows of the same size and arranged in different

ways. The structures of each synthetic workﬂow is

depicted in Figure 3. For each workﬂow, the same

Figure 3: Structures and applications of the 4 workﬂows

employed for assessing the proposal.

applications have been given different data and pa-

rameters values. Consequently, identical applications

will have different performance in each of the 4 work-

ﬂows. Next, we analyzed the performance of work-

ﬂows applications by executing each application in-

dependently in the cluster partition that we have at our

disposal, formed by heterogeneous nodes: 1 AMD

IO-6376 (2.3GHz, 64PU, 128GB), 1 Intel Xeon E5-

4620 (2.2GHz, 64PU, 128GB) and 2 Intel Xeon E5-

2620 (2.1GHz, 24PU, 64GB).

Although each workﬂow application has been exe-

cuted with different resources (AllNodes, RangePUs),

for simplicity, only average times obtained in all clus-

ter nodes with PU

MaxSpeed

, are shown in Table 1.

Table 1: Average makespans of workﬂows applications with

MaxSpeed

, in seconds.

wf blast bwM bowt bwA hisat star soap phy mrba fastt raxm

4851 4136 3464 4391 2001 5527 5183 3719 3264 3262 3032

3760 4688 4866 4947 4145 4338 3779 3750 3890 3266 3686

4814 4547 4518 4099 4749 3359 4926 2368 3551 4554 3524

4525 5068 4871 4239 4136 4818 3445 3272 3510 4462 3309

COMPLEXIS 2018 - 3rd International Conference on Complexity, Future Information Systems and Risk

154

4.2 Proposal Assessment

The performance of the bio-backﬁll scheduling pol-

icy is tested, and compared with that of state-of-the-

art backﬁll policies: Bestﬁt and Firstﬁt. To do so,

we used WorkﬂowSim (Chen and E-Deelman, 2012),

an open-source tool to simulate workﬂows deﬁned

with XML ﬁles, which includes various scheduling

policies. Such tool has been employed to test pre-

vious workﬂow scheduling algorithms such as CPFL

(Acevedo et al., 2017). The size and speciﬁcations of

the simulated cluster resources have been adjusted as

shown in Table 2. They are identical to those of our

real cluster, in which we obtained Table 1 informa-

tion.

Table 2: Speciﬁcations of the simulated cluster.

Simulator Specs

Nodes p/Cluster 4

Processors p/Node 45

Processors Freq. 6000 MIPS

RAM p/Node 96 GB

Disk capacity p/Node 1 TB

Net latency 0.2 ms

Internal latency 0.05 ms

In all the cases, all workﬂows are simultaneously

submitted as batch jobs, and the turnaround starts be-

ing considered until its completion. Once workﬂows

are submitted, the 3 algorithms proceed differently.

Firstﬁt and Bestﬁt, backﬁll jobs following their re-

spective criteria regarding which other high-priority

jobs must not be delayed. When doing so, multiple

jobs share the same nodes (DP>1). However, the

compatibility among jobs’ that are to share the same

nodes is not considered as a parameter in order to se-

lect the backﬁll candidate, leading to higher resource

competition and larger slowdown times. Conversely,

the bio-backﬁll policy selects the candidate consider-

ing the nodes’ loads, minimizing the resulting slow-

down. The bio-backﬁll proposal also includes the

WaitDep parameter to select the backﬁll candidate.

WaitDep allows for the scheduler to wait for non-

ready jobs that are highly compatible with the current

load to become ready and backﬁll them, if doing so

generates less turnaround than backﬁlling other, non-

compatible yet-ready jobs. Results obtained after pro-

cessing the workﬂows with the 3 different backﬁll ap-

proaches are provided in Table 3.

Results of Table 3 show how the proposed Bio-

backﬁll scheduler, by including the slowdown (DP

>1) and near-future dependency resolution (Wait-

Dep) as parameters to choose which candidates are

backﬁlled, can achieve 10% workﬂow turnaround re-

duction compared to Firstﬁt, and 7,3% compared to

Table 3: Turnarounds in seconds obtained after processing

the workﬂows with different backﬁll policies. Average im-

provement of the bio-backﬁll versus Firstﬁt and Bestﬁt.

BioBackﬁll Firstﬁt Bestﬁt Av.Improv.

27899 29229 30248 6,19%

30584 32407 38864 3,33%

29211 33642 32232 11,31%

28388 33642 31895 13,37%

Av. 29020 32230 31060 8,55%

Bestﬁt. Hence, the proposal improves the turnaround

of both state-of-the art backﬁll policies, by 8,55%, on

average. Similarly, the resource utilizations carried

out by the synthetic workﬂows after being processed

with the three backﬁll techniques, are provided in Ta-

ble 4. As mentioned in Section 3.2, the bio-backﬁll

scheduler algorithm uses multiple performance pre-

dictions to calculate PU

MaxSpeed

or time penalties as-

sociated with PU

LowSpeed

, and can determine whether

to allocate AvailRes or MaxRes for better resource

utilization. With that functionality, the bio-backﬁll

scheduler enhances resource utilization by 4,6% and

1,6% compared to Firstﬁt and Bestﬁt respectively, av-

eraging 3,8%.

Table 4: Resource Utilization of the workﬂows with the 3

backﬁll policies. Average improvement of the bio-backﬁll

versus Firstﬁt and Bestﬁt.

BioBackﬁll Firsfﬁt Bestﬁt Av.Improv.

94,6% 68,8% 85,6% 22,5%

82,6% 69,5% 73% 16%

74,1% 96% 89% -20%

90,4% 88,9% 87% 2,6%

Av. 85,4% 80,8% 83,8% 3,8%

5 CONCLUSIONS

Current backﬁll policies improve turnaround and re-

source utilization of jobs sharing clusters, compared

to classical policies. However, they aren’t adapted for

scheduling bioinformatics workﬂows applications.

Hence, we developed the bio-backﬁll scheduler. The

scheduler includes a predictor that automatically gen-

erates performance predictions for each job with dif-

ferent resources, and the slowdowns when the DP>1.

We also developed a scheduling algorithm that back-

ﬁlls jobs, not only upon its width or length but also

by scheduling them for same-node execution so slow-

down is minimized. The algorithm includes the func-

tionality of looking ahead on the future, determining

in which cases it’s beneﬁcial for performance to wait

for: load-compatible queued jobs to become ready,

or resources to be released. Finally, we tested the bio-

backﬁll on a series of bioinformatics workﬂows. Sim-

Bio-backﬁll: A Scheduling Policy Enhancing the Performance of Bioinformatics Workﬂows in Shared Clusters

155

ulation results show the bio-backﬁll proposal can im-

prove average workﬂow turnaround by 8,6% and re-

source utilization by 3,8% compared to state-of-the-

art Firstﬁt and Bestﬁt backﬁll. Present experiments

show the promising performance improvements when

adapting backﬁll policies to the needs of bioinformat-

ics workﬂows applications, proving the viability of

the bio-backﬁll scheduler. To further develop and test

the proposal we are currently working on applying

it into larger environments, with a greater amount of

nodes, PUs, and workﬂows. Future steps also include

increasing the set of applications, as well as extending

comparisons to other backﬁll policies.

REFERENCES

Acevedo, C., Hern

andez, P., Espinosa, A., and M

endez,

V. (2017). A Critical Path File Location (CPFL) al-

gorithm for data-aware multiworkﬂow scheduling on

HPC clusters. In Future Generation Computer Sys-

tems. Elsevier.

Al-Ali, R., Kathiresan, N., Anbari, M. E., Schendel, E.,

and Zaid, T. (2016). Workﬂow optimization of per-

formance and quality of service for bioinformatics ap-

plication in high performance computing. In Journal

of Computational Science. Elsevier.

Altschul, S., Gish, W., Miller, W., Myers, E., and Lipman,

D. (1990). Basic Local Alignment Search Tool. In

Journal of molecular biology. Elsevier.

Arabnejad, V., Bubendorfer, K., and Ng, B. (2017). Dead-

line Constrained Scientiﬁc Workﬂow Scheduling on

Dynamically Provisioned Cloud Resources. In Future

Generation Computer Systems, special issue. Elsevier.

Badosa, F., Acevedo, C., Espinosa, A., Vera, G., and Ripoll,

A. (2017). A Resource Manager for Maximizing the

Performance of Bioinformatics Workﬂows in Shared

Clusters. In International Conference on Algorithms

and Architectures for Parallel Processing. Springer.

Bucur, A. and Epema, D. (2001). The inﬂuence of com-

munication on the performance of co-allocation. In

Job Scheduling Strategies for Parallel Processing.

Springer.

Burrows, M. and Wheeler, D. (1994). A block-sorting loss-

less data compression algorithm. Citeseer.

Chen, W. and E-Deelman (2012). Workﬂowsim: A toolkit

for simulating scientiﬁc workﬂows in distributed en-

vironments. In 8th International Conference on E-

Science. IEEE.

Dobin, A., Davis, C., Schlesinger, F., Drenkow, J., Zaleski,

C., Jha, S., Batut, P., Chaisson, M., and Gingeras, T.

(2013). STAR: ultrafast universal RNA-seq aligner.

In Bioinformatics. Oxford University Press.

Figueira, S. and Berman, F. (2001). A slowdown model

for applications executing on time-shared clusters of

workstations. In Transactions on Parallel and Dis-

tributed Systems. IEEE.

Guindon, S. and Gascuel, O. (2003). A simple, fast, and

accurate algorithm to estimate large phylogenies by

maximum likelihood. In Systematic biology. Society

of Systematic Zoology.

Hatem, A., Bozda

g, D., Toland, A., and C¸ ataly

urek, U.

(2013). Benchmarking short sequence mapping tools.

In BMC Bioinformatics. BioMed Central.

Huelsenbeck, J. and Ronquist, F. (2001). MRBAYES:

Bayesian inference of phylogenetic trees. In Bioin-

formatics. Oxford University Press.

Kathiresan, N., Temanni, M., and Al-Ali, R. (2014). Perfor-

mance improvement of BWA MEM algorithm using

data-parallel with concurrent parallelization.

Kim, D., Langmead, B., and Salzberg, S. (2015). HISAT:

a fast spliced aligner with low memory requirements.

In Nature methods. Nature Research.

Langmead, B. (2009). Ultrafast and memory-efﬁcient align-

ment of short DNA sequences to the human genome.

In Journal of Genome Biology.

Lawson, B. and Smirni, E. (2002). Multiple-queue back-

ﬁlling scheduling with priorities and reservations for

parallel systems. In ACM SIGMETRICS Performance

Evaluation Review. ACM.

Li, H. and Durbin, R. (2009). Fast and accurate short

read alignment with Burrows-Wheeler Transform. In

Bioinformatics. Oxford University Press.

Li, R., Li, Y., Kristiansen, K., and Wang, J. (2008). SOAP:

short oligonucleotide alignment program. In Bioinfor-

matics. Oxford University Press.

Lord, E., Diallo, A., and Makarenkov, V. (2015). Classi-

ﬁcation of bioinformatics workﬂows using weighted

versions of partitioning and hierarchical clustering al-

gorithms. In BMC Bioinformatics. BioMed Central.

Needleman, S. and Wunsch, C. (1970). A general method

applicable to the search for similarities in the amino

acid sequence of two proteins. In Journal of Molecu-

lar Biology. Elsevier.

NHGRI (2017). DNA Sequencing Costs: Data.

https://www.genome.gov/sequencingcostsdata/.

Price, M. N., Dehal, P. S., and Arkin, A. P. (2009). Fast-

Tree: computing large minimum evolution trees with

proﬁles instead of a distance matrix. In Molecular bi-

ology and evolution. Oxford University Press.

Stamatakis, A., Ludwig, T., and Meier, H. (2004). RAxML-

III: a fast program for maximum likelihood-based in-

ference of large phylogenetic trees. In Bioinformatics.

Oxford University Press.

Talby, D. and Feitelson, D. (1999). Supporting priorities

and improving utilization of the IBM SP scheduler us-

ing slack-based backﬁlling. In 13th International and

10th Symposium on Parallel and Distributed Process-

ing. IEEE.

Waidyasooriya, H., Hariyama, M., and Kameyama, M.

(2014). FPGA-accelerator for DNA sequence align-

ment based on an efﬁcient data-dependent memory ac-

cess scheme. In Proceedings of the 5th International

Symposium on Highly-Efﬁcient Accelerators and Re-

conﬁgurable Technologies.

Wu, F., Wu, Q., and Tan, Y. (2015). Workﬂow scheduling

in cloud: a survey. In The Journal of Supercomputing.

Springer.

Xin, H., Lee, D., Hormozdiari, F., Yedkar, S., Mutlu, O.,

and Alkan, C. (2013). Accelerating read mapping with

FastHASH. In BMC Genomics. BioMed Central.

COMPLEXIS 2018 - 3rd International Conference on Complexity, Future Information Systems and Risk

156
