Software Architectural Model Discovery from Execution Data

Cong Liu

, Boudewijn van Dongen

, Nour Assy

and Wil M.P. van der Aalst

2,1

Department of Mathematics and Computer Science, Eindhoven University of Technology,

600MB Eindhoven, The Netherlands

Department of Computer Science, RWTH Aachen University, 52056 Aachen, Germany

1 RESEARCH PROBLEM

Software systems form an integral part of the most

complex artifacts built by humans, and we have be-

come totally dependent on these complex software ar-

tifacts (van der Aalst, 2015). Communication, health-

care, education and government all rely on software

systems that take over more and more duties. Modern

enterprises continue to invest in the creation, main-

tenance and change of complex software systems.

However, numerous software projects still experience

signiﬁcant problems. Moreover, the complexity of

modern software containing millions of lines of codes

and thousands of dependencies among components is

extremely high (Rubin et al., 2014), (Liu et al., 2016),

(Liu et al., 2018c), (Liu et al., 2018d). This complex-

ity makes it difﬁcult to understand, maintain, evolve,

improve, and etc.

During the execution of software systems, many

crashes and exceptions may occur, and it is a real chal-

lenge to understand how a software system is behav-

ing. By exploiting the data recorded during the execu-

tion of software systems, one can discover behavioral

models to describe the actual execution of software.

The discovered behavioral models provide extensive

insights into the real usage of software, enable new

forms of model-based testing and improvements. Re-

playing execution data on such models helps to lo-

calize performance problems and architectural chal-

lenges.

To help understanding the runtime behavior of

a software system, we aim to discover an architec-

tural model from the execution data. An architectural

model typically structures a software system in terms

of components, interfaces and interactions. Generally

speaking, our research aims to answer the following

questions:

• How does the software system behave at run-

time?

– How many components are involved during the

execution of the software system and how they

really behave?

– How many interfaces does a component contain

and do they adhere to a typical (pre-deﬁned) be-

havioral contract?

– How do components interact with each other

during execution?

– What does the architectural model discovered

from the execution data look like?

• How is the quality of the architectural model that

we discovered from the execution data? Does it

conform to the reality (i.e., execution data)?

2 OUTLINE OF OBJECTIVES

To answer the research questions, our research aims

to target the following challenges:

• Challenge 1: propose automated approaches to

discover architectural model from software exe-

cution data.

– Challenge 1.1: propose a standardized format

for software execution data exchange.

– Challenge 1.2: propose effective approaches to

support the component identiﬁcation and be-

havioral model discovery.

– Challenge 1.3: propose effective approaches to

support the interface identiﬁcation and contract

model discovery.

– Challenge 1.4: propose effective approaches to

support the discovery of architectural models.

• Challenge 2: propose effective approaches to sup-

port conformance checking based on the discov-

ered architectural model and execution data.

• Challenge 3: evaluate and validate the applicabil-

ity and effectiveness of the previous approaches

using real-life software cases.

Liu, C., van Dongen, B., Assy, N. and van der Aalst, W.

Software Architectural Model Discovery from Execution Data.

In Doctoral Consortium (ENASE 2018), pages 3-10

3 STATE OF THE ART

In this section, we brieﬂy review the state-of-the-art

from the following three perspectives: (1) software

dynamic analysis; (2) software process mining; and

(3) software architecture reconstruction.

3.1 Software Dynamic Analysis

Software dynamic analysis is used to understand

the behavior of software by exploiting its execution

data. Several techniques and tools have been pre-

sented to extract information from running software.

Most existing approaches, such as (Lo et al., 2009)

and (Walkinshaw and Bogdanov, 2008), generate

automaton-based models using different variants of

the K-Tail algorithm which was ﬁrst deﬁned by Bier-

mann and Feldman (Biermann and Feldman, 1972).

However, these techniques cannot discover concur-

rency explicitly, resulting in a so-called state explo-

sion for complex models. Although automaton-based

models are popular in software analysis, there are sev-

eral other techniques to learn other types of models.

For example, some techniques visualize software ex-

ecution traces as sequence diagrams (McGavin et al.,

2006) and some of them are extended with loops

(Briand et al., 2006). Similar to automaton based

models, the (classic) sequence diagram-based mod-

els also lack concurrency description. Moreover, each

sequence diagram or automaton-based model only

describes the behavior of a single execution trace.

Given software execution data referring to thousands

of traces, these existing approaches will obtain an ex-

cessive number of behavioral models rather than a

compact model for the whole data. In addition, con-

sidering the hierarchical nature of software, the dis-

covered ﬂat sequence diagrams or ﬂat automation-

based models cannot accurately capture the real be-

havior in a meaningful way.

3.2 Software Process Mining

With the development of process mining (van der

Aalst, 2016) on the one hand, and the growing avail-

ability of software execution data on the other hand, a

new form of software analytics comes into reach, i.e.,

applying process mining techniques to analyze soft-

ware execution data. This inter-disciplinary research

area is called Software Process Mining (SPM) (Liu

et al., 2016), (Rubin et al., 2007), and aims to analyze

software execution data from a process-oriented per-

spective. One of the ﬁrst papers addressing SPM is

(van der Aalst et al., 2015). For the mining of soft-

ware systems, the recorded events explicitly refer to

parts of the system (components, services, etc.). Ref-

erences to system parts facilitate the generation of lo-

calized event logs. A generic process discovery ap-

proach is proposed based on such localized event logs.

Experimental results show that location information

indeed helps to improve the quality of the discovered

models.

Leemans and van der Aalst (Leemans and van der

Aalst, 2015) discover and analyze the operational pro-

cesses of software systems using process mining tech-

niques. They propose to discover ﬂat behavioral mod-

els using Inductive Miner (Leemans et al., 2013). By

taking full consideration of component-based archi-

tecture and hierarchical structure of a software sys-

tem, Liu et al. (Liu et al., 2016) propose to dis-

cover a hierarchical behavioral model for each com-

ponent. The discovered component model describes

the software behavior from the perspective of indi-

vidual component. However, this work neglects the

functions (interfaces) that each component provides

to other components as well as the interaction among

components.

3.3 Software Architecture

Reconstruction

Software architecture reconstruction aims to abstract,

identify, and present high-level views from low-level

data to help understanding software. The recovered

architectural views play a pivotal role in software un-

derstanding, reuse, evolution, maintenance, etc. (Gar-

lan, 2000), (St

ephane and Damien, 2009). Crnkovic

et al. (Ivica et al., 2011) discuss fundamental prin-

ciples of software architectural models and compare

a large number of existing architectural models, such

as Enterprise JavaBeans, Microsoft Component Ob-

ject Model and CORBA Component Model.

For software systems that are implemented by

object-oriented technology, a component is composed

of a set of classes and an interface is composed of a

set of methods. Various clustering-based techniques

are proposed to identify components based on dif-

ferent criteria such as coupling, cohesion and mod-

ularity. According to the required input, these ap-

proaches can be classiﬁed as development documents

based approaches (e.g., (Lee et al., 2001), (Kim and

Chang, 2004), (Chang et al., 2005), (Hashemine-

jad and Jalili, 2015)), source code based approaches

(e.g., (Washizaki and Fukazawa, 2005), (Kebir et al.,

2012a), (Kebir et al., 2012b), (Cui and Chae, 2011),

(Luo et al., 2004), (Chiricota et al., 2003), (Man-

coridis et al., 1999) ), and execution data based ap-

proaches (e.g., (Qin et al., 2009), (Allier et al., 2009),

(Allier et al., 2010)). A common drawback of many

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

Software Execution Data

Software Sytems

Component Configuration

& Behavioral Model

Component

Identification

Interface

Identification

Architecture

Discovery

Interface Description

& Contract Model

Architectural Model

Instrumentation

Conformance

· Components

· Interfaces

· Connector

behavior

Figure 1: Research Overview.

of these approaches is the lack of tool support which

hinders their applicability.

As for interface identiﬁcation, Simon et al. (Allier

et al., 2011) propose to identify interfaces by group-

ing methods of the same class, i.e., one interface for

each class if this class has methods that are used by

other components. Hence, this approach deﬁnes inter-

faces based on the internal structure of components.

Seriai et al. (Seriai et al., 2014) give an approach to

identify interfaces of a component by grouping meth-

ods that are called by another component. Methods

that are used by the same component(s) are grouped

as an interface. Hence, this approach leads to dif-

ferent components using a single interface regard-

less of the functions they need. With respect to ar-

chitectural model reconstruction, Simon et al. (Al-

lier et al., 2011) propose to discover an architectural

model from source code to help understand the be-

havior of a software system. The components are ex-

tracted as a set of classes and interfaces are identiﬁed

by grouping methods of same classes and the interac-

tions among components are represented by binding

interfaces in a static way. Differently, Seriai et al.

(Seriai et al., 2014) also presents an approach to dis-

cover architectural model from source code whereas

interfaces of a component are identiﬁed by grouping

methods that are called by the same component.

By taking execution data as input, Dragomir and

Lichter (Dragomir and Lichter, 2013) try to present an

architectural description by visualizing object-level

interactions based on sequence diagrams. However,

object-level information are too ﬁne-grained and not

understandable for large-scale software. In addition,

the interactions among components are also repre-

sented by simply binding interfaces in a static manner,

which neglects the behavioral aspects.

4 METHODOLOGY

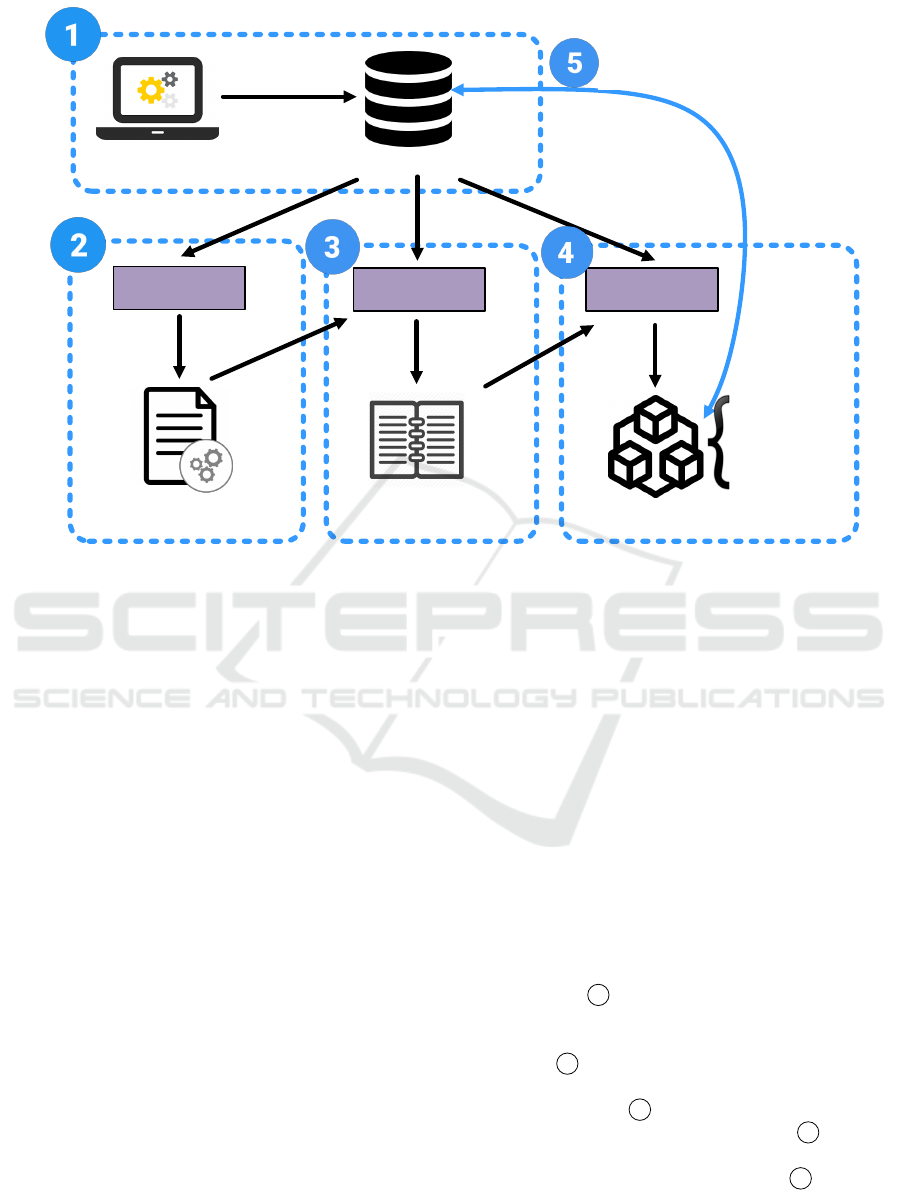

Figure 1 gives an overview of our methodology, based

on which we describe the approaches adopted in the

research. Generally speaking, we start from the in-

strumentation and standardization of software execu-

tion data (see 1 in Fig. 1). By taking the standard-

ized execution data as input, we identify components

and discover component behavioral models as shown

in Fig. 1 2 . Then, we identify interfaces and dis-

cover interface contract models for each component

as shown in Fig. 1 3 . Next, the architectural model

can be discovered as shown in Fig. 1 4 . Finally,

we evaluate the conformance between the architec-

tural model and the execution data (see 5 in Fig. 1).

Software Architectural Model Discovery from Execution Data

4.1 Standardization of Software

Execution Data

The input of our research is software execution data,

which can be obtained by instrumenting and monitor-

ing real software execution. The software execution

data consist of method calls. Normally, a method call

records software-speciﬁc information, including the

method name, the class name, the object that invokes

this method, the package name, the line number of

the method, the input parameter types and values of

the method, the start time (in nanosecond precision),

complete time (in nanosecond precision), the caller

method name, the caller class name, the caller object,

the caller package name and etc.

To the best of our knowledge, there is no standard-

ization of software execution data which supports re-

producibility and shareability of existing research re-

sults. The XES standard (Verbeek et al., 2011) de-

ﬁnes a grammar for a tag-based language whose aim

is to provide designers of information systems with

a uniﬁed and extensible methodology for capturing

systems behaviors by means of event logs and event

streams. It is supported by XES Working Group

. To

provide a uniﬁed format for software execution data

exchange, we introduce a standardized XES-based

extension, i.e., Software Event Extension.

The software extension deﬁnes the called class

name, the called package name, the line number of

the called method, the input parameter types and val-

ues of the called method, the caller method name, the

caller class name, the caller object, the caller package

name, and the timestamp for software events within

a log. For more detailed information, please refer to

(Leemans and Liu, 2017).

4.2 Component Identiﬁcation and

Behavioral Model Discovery

Generally speaking, the identiﬁcation of components

from software execution data is based on clustering

classes (Liu et al., 2018a). To understand the behav-

ior of each component, we propose to discover a be-

havioral model per component using process mining

techniques.

• Component Identiﬁcation.

– Step 1: Class Interaction Graph Construction.

Starting from the software execution data, we

propose to construct a class interaction graph

(CIG). In the CIG, each node represents a class

and each edge represents the calling relation

among the connected two classes.

http://www.win.tue.nl/ieeetfpm/doku.php

– Step 2: Component Identiﬁcation from Class

Interaction Graph. By taking the constructed

CIG as input, we partition it into a set of sub-

graphs using community detection algorithms

(e.g., Newman’s algorithm (Newman, 2006)).

Classes that are grouped in the same cluster nat-

urally form a component, known as component

conﬁguration.

– Step 3: Quality Evaluation of the Identiﬁed

Components. After identifying a set of com-

ponents, we want to evaluate the quality of the

identiﬁed components. Several quality metrics,

e.g., size, cohension, coupling, and modularity,

will be evaluated.

• Component Behavioral Model Discovery.

– Step 1: Component Instance Identiﬁcation.

Starting from the original software execution

data, we ﬁrst propose a novel approach to iden-

tify component instance. It serves as the ba-

sic case notion to generate a software event log

for each component. Here, a component in-

stance refers to one independent run of a soft-

ware component.

– Step 2: Hierarchical Software Event Log

Construction. Because a software (component)

usually has a hierarchical structure represented

as multi-level nested method calls, the discov-

ered behavioral model should depict this hier-

archy nature. For each component, we recur-

sively transform its event log to a hierarchical

one using calling relations among methods.

– Step 3: Component Behavioral Model Dis-

covery using Process Mining. For each com-

ponent, we discover a hierarchical behavioral

model from its corresponding hierarchial soft-

ware event log. Given the hierarchy of a

software event log, we only need to traverse

through different levels of the log and discover

a process model for each sub-log. Note that

we can use any existing process discovery ap-

proach (e.g., Inductive Miner (Leemans et al.,

2013)) in this step.

4.3 Interface Identiﬁcation and

Contract Model Discovery

Starting from the software execution data and com-

ponent conﬁguration, we propose to ﬁrst identify a

set of interfaces for each component by clustering its

methods (Liu et al., 2018b). Normally, when an in-

terface is used by a component, the execution of its

methods should follow a speciﬁc contract. This con-

tract deﬁnes the behavior of the interface by explic-

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

itly specifying in which order the methods should be

invoked. Therefore, for each identiﬁed interface, we

then discover a behavioral model to represent the ac-

tual behavior using process mining techniques.

• Component Interface Identiﬁcation.

– Step 1: Candidate Interface Identiﬁcation.

For each component, we identify a set of can-

didate interfaces by grouping methods with re-

spect to their caller methods. Note that identi-

ﬁed candidate interfaces may have duplication

problem, i.e., some methods may be included

in different interfaces.

– Step 2: Similar Interface Candidate Merge.

To solve the method duplication problem

among candidate interfaces within the same

component, we merge similar candidates in

a way such that the overlap of shared meth-

ods among interfaces is limited to a reasonable

range.

– Step 3: Quality Evaluation of the Identiﬁed

Interfaces. After identifying interfaces of each

component, we want to evaluate the functional

consistency of each interface.

• Interface Contract Model Discovery.

– Step 1: Interface Event Log Construction.

To enable the discovery of interface contract

model using process mining techniques, we ob-

tain the event log from the software execution

data for each identiﬁed interface.

– Step 2: Interface Contract Model Discovery

using Process Mining. For each interface, we

discover a contract model using existing pro-

cess mining techniques (e.g., Inductive Miner

(Leemans et al., 2013)).

4.4 Formal Speciﬁcation and Discovery

of Software Architectural Model

After identifying components and interfaces (as well

as their behavioral models), we then try to recover

the architectural model of software. The architec-

tural model is composed of components, interfaces

and interactions. A component can interact with other

components by interaction methods (or interfaces).

Each interaction is described by an interaction model

that contains a connector behavioral model (a process

model describing the behavior of the invoked inter-

faces) and the interface instance cardinality informa-

tion. It can be discovered by performing the following

steps:

• Interaction Method Identiﬁcation. An interac-

tion method is a method of an interface that can in-

voke methods (or interfaces) of other components.

It can be detected directly from the software exe-

cution data.

• Connector Behavioral Discovery. For each in-

teraction method, we ﬁrst generate its interaction

log where each event refers to an interface. A con-

nector behavioral model can be discovered from

this interaction log.

• Interface Instance Cardinality Identiﬁcation.

Interface instance cardinality information reveals

the instance level relationships between the inter-

action method and the invoked interfaces. The

cardinality information for each interface can be

obtained by investigating the number of inter-

face instances that is invoked by the interaction

method.

• Multi-view Architectural Models. Besides a de-

tailed architectural view with interface protocol

model, cardinality information and connector be-

havioral model, we provide multiple views to al-

low users navigate from ﬁned-grained architec-

tural models to coarse-grained ones.

4.5 Conformance Checking based

Architectural Model Quality

Evaluation

In this section, we propose to evaluate the quality of

the discovered architectural model with respect to the

execution data. Conformance checking based qual-

ity evaluation measures the ﬁtness of the architectural

model against the execution data. It involves the fol-

lowing steps:

• Mapping Execution Data to Architectural El-

ements. Given software execution data and an

architectural model, we ﬁrst create the mapping

from method calls in the execution data to ar-

chitectural elements (e.g., interface, interaction

model) in the architectural model.

• Compute Alignment between Software Exe-

cution Data and Architectural Model. Based

on the mapping, we compute the alignment be-

tween software execution data and the architec-

tural model.

• Measure the Fitness Between Software Execu-

tion Data and Architectural Model. Based on

the computed alignment between the software ex-

ecution data and an architectural model, we com-

pute the ﬁtness of the architectural model with re-

spect the execution data. It reveals how well the

architectural model ﬁts the execution data.

Software Architectural Model Discovery from Execution Data

Table 1: Stage of The Research.

Stage Period Description

Stage 1 2015-08 ∼ 2016-12

(1) Standardize software execution data; and

(2) Component identiﬁcation and behavioral model discovery.

Stage 2 2017-01 ∼ 2018-03

(1) Interface identiﬁcation and contract behavior discovery; and

(2) Formal speciﬁcation and discovery of architectural model.

Stage 3 2018-04 ∼ 2019-07

(1) Conformation checking based architectural model evaluation;

(2) Empirical evaluation using real-life software systems; and

(3) Finish the Ph.D thesis.

4.6 Empirical Evaluation using

Real-life Software Systems

Based on open-source software systems and their ex-

ecution data (e.g., JUnit 3.7

, JGraphx

, JHotdraw

we perform a comprehensive empirical evaluation of

all proposed approaches. In addition, we also plan to

contribute some real-life case studies where the feed-

back from stateholders are available. The evaluation

should involve the following aspects:

• For component identiﬁcation, we evaluate the co-

hesion and coupling metrics for different com-

munity detection or graph clustering algorithms (

e.g., (Qin et al., 2009), (Allier et al., 2009), (Allier

et al., 2010)).

• For interface identiﬁcation, we compare our ap-

proach with existing interface identiﬁcation ap-

proaches (e.g., (Allier et al., 2011) (Seriai et al.,

2014)).

• For architectural model discovery, we evaluate

our approach that combining different compo-

nent/interface identiﬁcation strategies. In addi-

tion, we also compare our discovered architec-

tural model with existing ones if possible (e.g.,

(Dragomir and Lichter, 2013)).

5 EXPECTED OUTCOME

This section describes in detail the expected outcome

of our research. It includes the following:

• An XES-based software extension to support the

standardization of software execution data.

• An extensible framework to support the identiﬁca-

tion of components from software execution data.

This framework should implement various com-

munity and clustering algorithms.

http://essere.disco.unimib.it/svn/DPB/JUnit%20v3.7/

https://github.com/jgraph/jgraphx

http://www.inf.fu-berlin.de/lehre/WS99/java/swing/JHotDraw5.1/

• A process mining based approach to discover hi-

erarchical behavioral models for each identiﬁed

component.

• An extensible framework to support the interface

identiﬁcation. This framework should implement

various of interface identiﬁcation strategies.

• A process mining based approach to discover con-

tract models for each identiﬁed interface.

• An effective approach to support the discovery of

multi-view architectural models from software ex-

ecution.

• An effective approach to support conformance

checking between the discovered architectural

model and software execution Data.

• A set of user-friendly software tools that support

the previous techniques.

6 STAGE OF THE RESEARCH

This research is fully supported by the NIRICT

3TU.BSR (Big Software on the Run) research project

This high-proﬁle project is a collaboration between 3

universities, 6 research groups. It starts from August

1, 2015 and runs four years until July, 2019. My role

in the project is mainly on creating more abstract rep-

resentations of the massive amounts of software event

data. We aim to develop techniques for generating

models and visualizations showing what is really go-

ing on in a software system or collection of systems.

Generally, we organize the whole research into three

stages, as shown in Table 4.4.

REFERENCES

Allier, S., Sadou, S., Sahraoui, H., and Fleurquin, R. (2011).

From object-oriented applications to component-

oriented applications via component-oriented archi-

tecture. In 9th Working IEEE/IFIP Conference

http://www.3tu-bsr.nl/doku.php?id=start

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

on Software Architecture (WICSA), pages 214–223.

IEEE.

Allier, S., Sahraoui, H., Sadou, S., and Vaucher, S.

(2010). Restructuring object-oriented applications

into component-oriented applications by using consis-

tency with execution traces. Component-Based Soft-

ware Engineering, pages 216–231.

Allier, S., Sahraoui, H. A., and Sadou, S. (2009). Identi-

fying components in object-oriented programs using

dynamic analysis and clustering. In Proceedings of

the 2009 Conference of the Center for Advanced Stud-

ies on Collaborative Research, pages 136–148. IBM

Corp.

Biermann, A. W. and Feldman, J. A. (1972). On the syn-

thesis of ﬁnite-state machines from samples of their

behavior. IEEE transactions on Computers, (6):592–

597.

Briand, L. C., Labiche, Y., and Leduc, J. (2006). Toward

the reverse engineering of uml sequence diagrams for

distributed java software. Software Engineering, IEEE

Transactions on, 32(9):642–663.

Chang, S. H., Han, M. J., and Kim, S. D. (2005). A

tool to automate component clustering and identiﬁ-

cation. In International Conference on Fundamental

Approaches to Software Engineering, pages 141–144.

Springer.

Chiricota, Y., Jourdan, F., and Melanc¸on, G. (2003). Soft-

ware components capture using graph clustering. In

Program Comprehension, 2003. 11th IEEE Interna-

tional Workshop on, pages 217–226. IEEE.

Cui, J. F. and Chae, H. S. (2011). Applying agglomerative

hierarchical clustering algorithms to component iden-

tiﬁcation for legacy systems. Information and Soft-

ware technology, 53(6):601–614.

Dragomir, A. and Lichter, H. (2013). Run-time monitoring

and real-time visualization of software architectures.

In Software Engineering Conference (APSEC), 2013

20th Asia-Paciﬁc, volume 1, pages 396–403. IEEE.

Garlan, D. (2000). Software architecture: a roadmap. In

Proceedings of the Conference on the Future of Soft-

ware Engineering, pages 91–101. ACM.

Hasheminejad, S. M. H. and Jalili, S. (2015). Ccic: Cluster-

ing analysis classes to identify software components.

Information and Software Technology, 57:329–351.

Ivica, C., Severine, S., Aneta, V., and Michel, C. (2011).

A classiﬁcation framework for software component

models. IEEE Transactions on Software Engineering,

37(5):593–615.

Kebir, S., Seriai, A.-D., Chaoui, A., and Chardigny, S.

(2012a). Comparing and combining genetic and clus-

tering algorithms for software component identiﬁca-

tion from object-oriented code. In Proceedings of the

Fifth International C* Conference on Computer Sci-

ence and Software Engineering, pages 1–8. ACM.

Kebir, S., Seriai, A.-D., Chardigny, S., and Chaoui, A.

(2012b). Quality-centric approach for software com-

ponent identiﬁcation from object-oriented code. In

Software Architecture (WICSA) and European Con-

ference on Software Architecture (ECSA), 2012 Joint

Working IEEE/IFIP Conference on, pages 181–190.

IEEE.

Kim, S. D. and Chang, S. H. (2004). A systematic method

to identify software components. In 11th Asia-Paciﬁc

Software Engineering Conference, 2004., pages 538–

545. IEEE.

Lee, J. K., Jung, S. J., Kim, S. D., Jang, W. H., and Ham,

D. H. (2001). Component identiﬁcation method with

coupling and cohesion. In Eighth Asia-Paciﬁc Soft-

ware Engineering Conference, 2001. APSEC 2001.,

pages 79–86. IEEE.

Leemans, M. and Liu, C. (2017). Xes software event exten-

sion. XES Working Group, pages 1–11.

Leemans, M. and van der Aalst, W. (2015). Process min-

ing in software systems: Discovering real-life busi-

ness transactions and process models from distributed

systems. In 18th International Conference on Model

Driven Engineering Languages and Systems, pages

44–53. IEEE.

Leemans, S. J., Fahland, D., and van der Aalst, W. (2013).

Discovering block-structured process models from

event logs-a constructive approach. In Application

and Theory of Petri Nets and Concurrency, pages

311–329. Springer.

Liu, C., van Dongen, B., Assy, N., and van der Aalst, W.

(2016). Component behavior discovery from software

execution data. In International Conference on Com-

putational Intelligence and Data Mining, pages 1–8.

IEEE.

Liu, C., van Dongen, B., Assy, N., and van der Aalst, W.

(2018a). Component identiﬁcation from software exe-

cution data: An approach based on newman’s spectral

algorithm. In International Conference on Program

Comprehension, pages 1–4, under review. ACM.

Liu, C., van Dongen, B., Assy, N., and van der Aalst,

W. (2018b). Component interface identiﬁcation and

behavioral model discovery from software execution

data. In International Conference on Program Com-

prehension, pages 1–10, under review. ACM.

Liu, C., van Dongen, B., Assy, N., and van der Aalst, W.

(2018c). A framework to support behavioral design

pattern detection from software execution data. In

13th International Conference on Evaluation of Novel

Approaches to Software Engineering, pages 1–12.

Liu, C., van Dongen, B., Assy, N., and van der Aalst, W.

(2018d). A general framework to detect behavioral

design patterns. In 40th International Conference on

Software Engineering, pages 1–2, accepted.

Lo, D., Mariani, L., and Pezz

e, M. (2009). Automatic steer-

ing of behavioral model inference. In Proceedings

of the the 7th joint meeting of the European software

engineering conference and the ACM SIGSOFT sym-

posium on The foundations of software engineering,

pages 345–354. ACM.

Luo, J., Jiang, R., Zhang, L., Mei, H., and Sun, J. (2004).

An experimental study of two graph analysis based

component capture methods for object-oriented sys-

tems. In Software Maintenance, 2004. Proceedings.

20th IEEE International Conference on, pages 390–

398. IEEE.

Software Architectural Model Discovery from Execution Data

Mancoridis, S., Mitchell, B. S., Chen, Y., and Gansner,

E. R. (1999). Bunch: A clustering tool for the recov-

ery and maintenance of software system structures.

In Software Maintenance, 1999.(ICSM’99) Proceed-

ings. IEEE International Conference on, pages 50–59.

IEEE.

McGavin, M., Wright, T., and Marshall, S. (2006). Vi-

sualisations of execution traces (vet): an interactive

plugin-based visualisation tool. In Proceedings of the

7th Australasian User interface conference-Volume

50, pages 153–160. Australian Computer Society, Inc.

Newman, M. E. (2006). Modularity and community struc-

ture in networks. Proceedings of the national academy

of sciences, 103(23):8577–8582.

Qin, S., Yin, B.-B., and Cai, K.-Y. (2009). Mining compo-

nents with software execution data. In International

Conference Software Engineering Research and Prac-

tice., pages 643–649. IEEE.

Rubin, V., G

unther, C., van der Aalst, W., Kindler, E., van

Dongen, B., and Sch

afer, W. (2007). Process mining

framework for software processes. In Software Pro-

cess Dynamics and Agility, pages 169–181. Springer.

Rubin, V., Lomazova, I., and van der Aalst, W. (2014).

Agile development with software process mining. In

Proceedings of the 2014 International Conference on

Software and System Process, pages 70–74. ACM.

Seriai, A., Sadou, S., Sahraoui, H., and Hamza, S. (2014).

Deriving component interfaces after a restructuring of

a legacy system. In Software Architecture (WICSA),

2014 IEEE/IFIP Conference on, pages 31–40. IEEE.

ephane, D. and Damien, P. (2009). Software architecture

reconstruction: A process-oriented taxonomy. IEEE

Transactions on Software Engineering, 35(4):573–

591.

van der Aalst, W. (2015). Big software on the run: in vivo

software analytics based on process mining (keynote).

In Proceedings of the 2015 International Conference

on Software and System Process, pages 1–5. ACM.

van der Aalst, W. (2016). Process Mining: Data Science in

Action. Springer.

van der Aalst, W., Kalenkova, A., Rubin, V., and Verbeek,

E. (2015). Process discovery using localized events.

In International Conference on Applications and The-

ory of Petri Nets and Concurrency, pages 287–308.

Springer.

Verbeek, H., Buijs, J. C., Van Dongen, B. F., and Van

Der Aalst, W. M. (2011). Xes, xesame, and prom

6. In Information Systems Evolution, pages 60–75.

Springer.

Walkinshaw, N. and Bogdanov, K. (2008). Inferring ﬁnite-

state models with temporal constraints. In Proceed-

ings of the 2008 23rd IEEE/ACM International Con-

ference on Automated Software Engineering, pages

248–257. IEEE Computer Society.

Washizaki, H. and Fukazawa, Y. (2005). A technique for

automatic component extraction from object-oriented

programs by refactoring. Science of Computer pro-

gramming, 56(1-2):99–116.

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering
