A Security Framework in Model-driven Software Production

Environments

Lenin Javier Serrano Gil

Centro de I+D en M

etodos de Producci

on de Software (PROS), Universitat Polit

ecnica de Val

encia,

Camino de Vera s/n, 46022 Valencia, Spain

Keywords:

Model Driven Security, Security Requirements, Software Production Process, Information Systems.

Abstract:

Too often the representation of software functionalities is made without facing security requirements rig-

orously. In this context, it is well-known that a set of security’s features are to be considered to identify and

protect the assets, as well as reduce threats over the business model. This work presents a conceptual-modeling

based method to include security concerns in a software production process from the earliest steps, facilitating

support and intended to extend model-driven approaches by including security in all the different phases of

development and design of information systems.

1 INTRODUCTION

The use of shared systems and infrastructures facil-

itates the information technology process more than

ever. However, it increases the probability of an agent

takes advantage of the system’s vulnerabilities. This

risk is present from the conception of the system soft-

ware until its end and can result in a detrimental im-

pact on model business (The International Organiza-

tion for Standardization, 2013a).

In general, the materialization of a threat could

arise as the steal of information, the capture of per-

sonal data of users, the theft of intellectual property,

the disclosure of a company’s trade secrets or dam-

age to the critical infrastructure of a country, as advo-

cated by Symantec in (Symantec, 2017). To further

illustrate, this report describes the loss of millions of

dollars. In short, it depicts an index of 9 attackers

detected in the second half of 2016 within their Hon-

eypots per hour, and to zero-day vulnerability attacks

against new products with 4,958 incidents in 2014,

followed by 4,066 in 2015 and 3,986 in 2016. Addi-

tionally, Symantec has reported an average of 76 per-

cent of websites detected with vulnerabilities in the

past three years, and 7 billion identities exposed by

the attacks in less than a decade. These data indi-

cate the continued activity of criminals, the existence

of systems with many security problems and the de-

ployment of vulnerable applications. Although the

number of attacks seems to decrease the occurrence

of these threats implies errors in the design phase or

into the development cycle itself, probably because

the security requirements have not been completed,

ignored or unknown (Lodderstedt, 2003).

In this context, the objective of this Ph.D. the-

sis is to develop a set of procedures to include secu-

rity concerns in the software production process under

the hood of Model-Driven Development (MDD). This

proposal follows the uniﬁed perspective of security

and the good practices, as conceptual modeling base.

To support it, we include the resilience (withstand or

recover from an attack) and the traceability (tracking)

over the Object-Oriented Method (OO-Method) (Pas-

tor and Molina, 2007), which is a well known MDD

method.

The order of the document is as follows: Section 2

presents the related work among MDD, model-driven

security and the development of knowledge into se-

curity standards. Section 3 explains the methodologi-

cal framework of our proposal. Section 4 depicts the

research methodology. Section 5 presents the conclu-

sions and suggestions for future work.

2 RELATED WORKS

The MDD framework for software development uses

a set of models to make transformations and to gen-

erate code in a speciﬁc technology (Felderer et al.,

2016). The Model-Driven Architecture (MDA) is a

case of MDD that follows the software life cycle. The

MDA integrates standards and speciﬁcations deﬁned

Serrano Gil, L.

A Security Framework in Model-driven Software Production Environments.

In Doctoral Consortium (ENASE 2018), pages 11-16

by the Object Management Group (OMG) (OMG,

2014).

There are commercial initiatives such as Inte-

granova Model Execution System (MES) (Integra-

nova Software Solutions, 2016), which uses the OO-

Method. This method is an MDD method that

has raised the MDA successfully. The OO-Method

uses formal speciﬁcations in the OASIS (Pastor and

Molina, 2007) language (open and active speciﬁca-

tion of information systems) to transform conceptual

models to the source code in the organizational do-

main. Although OO-Method gives us a specialized

and continuous approach to the development of soft-

ware (Pastor and Molina, 2007), it not considered se-

curity issues yet. In this sense, Model-Driven Secu-

rity approach can improve OO-Method.

The Model-Driven Security (MDS) is an MDD

approach that focuses on the development of secure

information systems. In turn, there are multiple ef-

forts based on UML proﬁles for MDS, designed to

handle different aspects of security, such as authen-

tication, integrity, conﬁdentiality, availability, and in

various contexts, such as web applications or con-

trol agents in software infrastructures. These include

the following SecureDWS, Secret, UMLSec, Se-

cureUML, SecureMDD, SecureSOA, AOMSec, Se-

cureWeb and Access Control (Nguyen et al., 2015).

Other security MDA frameworks have also been de-

veloped such as SEMDA (Guan et al., 2014), which

uses re-engineering, decomposition, abstraction and

reverse engineering techniques to obtain models that

improve the security of legacy systems. The interest-

ing thing about SEMDA is the use of an ontology as a

starting point to adopt standards and best practices in

existing systems.

The family of international security standards for

information management is those established by the

International Organization for Standardization (ISO)

and the International Electrotechnical Commission

(IEC). It provides a recognized support to the global

community as the start and the guide to protect the

assets of the organization. Although these stan-

dards have a wide scope in the management of an

organization the documents grouped in the set la-

beled “27000”are those relevant to this work. Thus,

the ISO/IEC 27000 has the deﬁnitions of security

concepts that promote the certiﬁcation actions most

used in companies(The International Organization for

Standardization, 2016).

For instance, the word “Asset”deﬁned by ISO/IEC

frames the meaning to describe things (physical or

virtual products such as information, software, hard-

ware, services, people or intangibles, and reputation)

that have signiﬁcant value to the organization and are

the target of Threat Agents. On the other hand, the

term “Stakeholder”surrounds the notion of someone

(individual, company or organization) that owns the

valuable assets (Neubauer et al., 2008).

These concepts give origin to the tuple (As-

set, Stakeholder) and the relationship between them.

They establish the security requirements the software

application must comply. Thus, they are also the plat-

form for the following standards or guides.

Therefore, ISO/IEC provides valuable informa-

tion to support an ontological analysis well founded,

since its content lies in a global agreement. It al-

lows the semantics development for a possible for-

mulation of Conceptual Models more accurate (Pastor

and Molina, 2007). They are also part of the ISO/IEC

27001 group of documents that guides the implemen-

tation of an Information Security Management Sys-

tem (ISMS) (The International Organization for Stan-

dardization, 2013a).

The ISO/IEC 27002 promotes a way to estab-

lish safety requirements (The International Organiza-

tion for Standardization, 2013b), as well as ISO/IEC

27003 that establishes the parameters for the ISMS

implementation (The International Organization for

Standardization, 2017). Moreover, ISO/IEC 27003 is

supported by a risk analysis. The ISO/IEC 27005 de-

scribes this kind of risk analysis that pushes the evalu-

ation and monitoring of risk management (The Inter-

national Organization for Standardization, 2011a).

Likewise, the ISO/IEC 27034 (1-7) is available

as a guide for the development of secure software

following the ISMS. It manages risks and miti-

gates threats in the Systems Development Life Cy-

cle (SDLC). The system different execution scenar-

ios have its security guaranteed by prescribing a set

of processes and controls in the SDLC (The Interna-

tional Organization for Standardization, 2011b). Be-

sides, ISO/IEC 27034 agree with the MDD archetype,

because it allows the efforts concentration in the early

stages of software development. Even from the gesta-

tion of information systems, this standard ensures the

efﬁciency. It makes valuable the use of conceptual

models to obtain an efﬁcient and standardized gener-

ation of software (Pastor and Molina, 2007).

Furthermore, we add to our proposal other per-

spectives works, and norms coexist. Among them

are: the Information Security Management Maturity

Model (ISM3) (Canal, 2006), the Standard of Good

Practice for Information Security (Protection et al.,

2016), the NIST SP 800-14 Principles and Practices

for Securing Information Technology Systems (Beck-

ers, 2015), technical standards as Open Web Appli-

cation Security Project (OWASP) (Commons, 2013),

the good practice frameworks as The Control Objec-

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

tives for Information and related Technology (CO-

BIT) (Beckers, 2015), the integration for risk manage-

ment as NIST SP 800-30 Risk Management Guide for

Information Technology Systems and Methodology

of Analysis and Management of Risks of Information

Systems (MAGERIT) (Amutio G

omez, 2012). With-

out leaving aside, the guidelines and procedures of

governmental organizations as the technical manuals

and bulletins from National Cryptographic Center of

Spain (Gobierno de Espa

na, 2017).

Finally, the Open Code Security Testing Method-

ology Manual (OSSTMM) – developed by the Insti-

tute of Security and Open Methodologies (ISECOM)

– regulates the software validation with respect to the

security. OSSTMM presents a simple implementation

plan using the scientiﬁc method to ﬁnd a security state

value that is closer to reality. The security state value

is used for validation of a generated information sys-

tem because the tests are oriented for compliance with

regulation (Herzog, 2016).

3 PROPOSED SOLUTION

APPROACH

In this research, we introduce a methodology for in-

clude the security concerns in a software produc-

tion process that compile and synthesize the elements

mentioned above. It aims to enrich the OO-Method

with a new perspective and artifacts of security for

software generation.

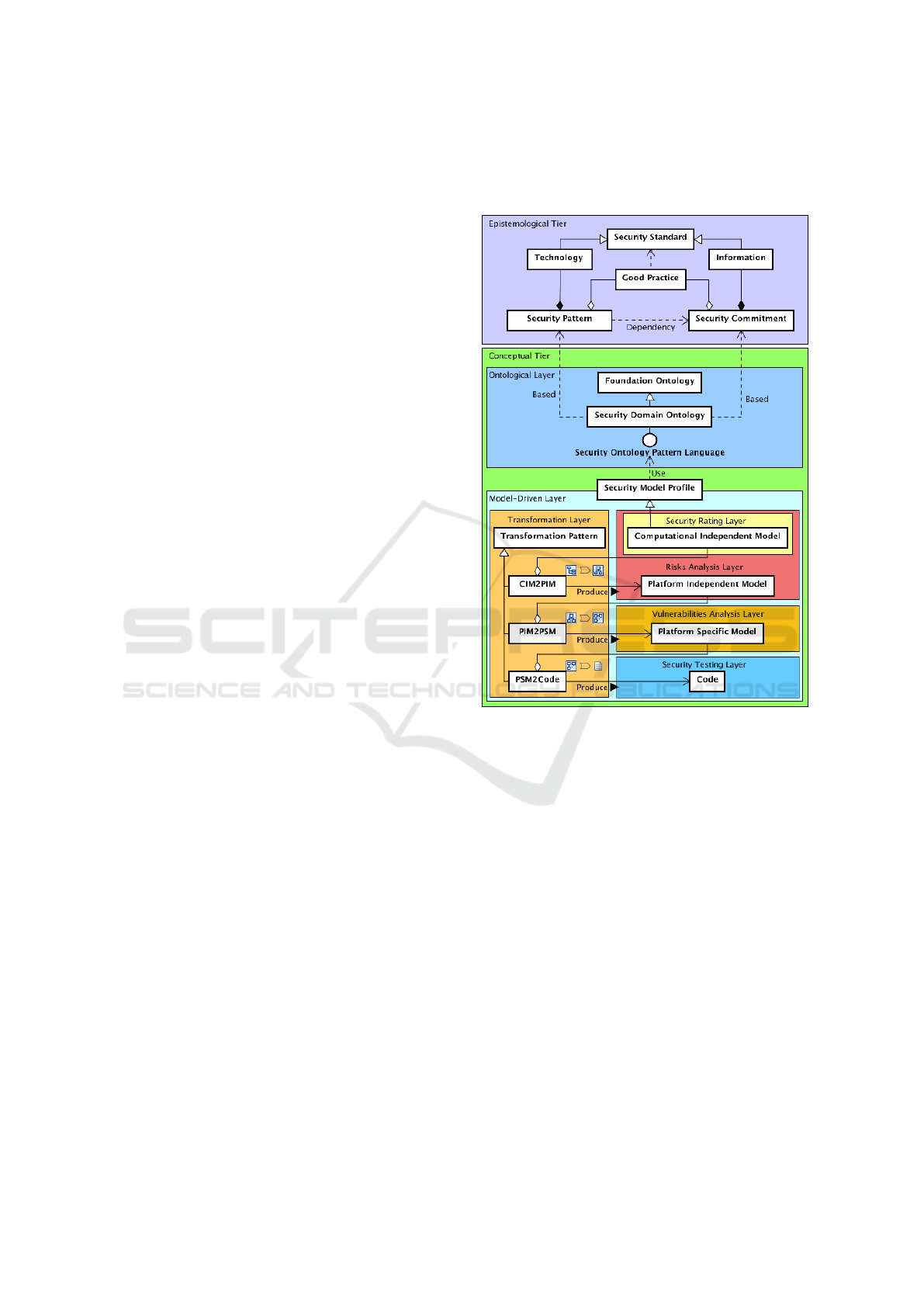

Thus, we proposed two tiers, as shown in Fig-

ure 1.The Epistemological Tier, which is the knowl-

edge of what is (Poli and Obrst, 2010), and the Con-

ceptual Tier, which represents the structural descrip-

tion (Molina et al., 2001).

The Stanford Encyclopedia of Philosophy (Stanford

Encyclopedia of Philosophy, 2005), “the epistemol-

ogy is the study of knowledge and justiﬁed belief”.

Thus, the epistemological tier represents knowledge

base of security that supports our work.

Based on this premise, the “Security Standard

(SeS)”represents international agreements, academic

and industrial efforts that are valid in the commu-

nity, e.g., ISO / IEC 27000, NIST SP 800-14, regu-

lations, laws, and any works in the security context.

This set of elements deﬁnes, concepts, controls, pro-

cedures, actions, principles, methods, terms, and lan-

guages, those bring together different approaches, vi-

sions, and strategies that are studied to ﬁnd a com-

mon base. From there, we derived the knowledge in

two perspectives to which we can link the terms Infor-

matics Security and Information Security. That is, the

entity Technology to represent all the group of gen-

eralized technical knowledge, and the entity Informa-

tion to generalized and clustering of the constraints,

regulations, standards or laws.

Figure 1: Methodological Framework.

The intention to generalize in two entities is due

to the need to express that the technological adjust-

ments are the Good Practices added to the techni-

cal elements, in speciﬁcations or patterns that depend

on the security agreements. The “Security Pattern

(SeP)”expressed the above in our model and a depen-

dency relationship with the “Security Commitment

(SeC)”as well an aggregation relationship of “Good

Practice (GP)”with both. In other words, the techni-

cal standards of security are dependent on Security

agreements and in them are represents order or pool-

ing. Also in this layer can be observed the relation of

dependence between the GP and the SeS, in the opin-

ion of this relationship, good practices are actions ver-

iﬁed empirically by the community considering the

guidelines or standards.

On the other hand, the “Conceptual Tier

(CT)”have a speciﬁcation of two layers, the “Onto-

logical Layer (OnL)”, and the “Model-driven Layer

(MdL)”. In detail, the design of OnL describes and

characterize in a domain ontology the security infor-

A Security Framework in Model-driven Software Production Environments

mation deﬁned at the top level as its entities, relations,

and properties. This ontology we were called the “Se-

curity Domain Ontology (SeDOn)”and is a general-

ization of a foundational ontology (Frasincar et al.,

2012). In this way can be categorized, organized and

codiﬁed the concepts of security to be formalized in

a language of patterns called “Security Ontology Pat-

tern Language (SeOnPL)”. SeOnPL is the base for

the composition of the conceptual models that allow

enriching the abstraction capacities and the integra-

tion of the security requirements in MDD to produce

secure applications.

Next, the MdL is guided by the MDA approach

and allows the implementation of software that can

generate source code with a minimum-security provi-

sion, since the higher layers manage the security re-

quirements, as shown in the model by inclusion of

entity “Security Proﬁle Model (SePM)”.

As proposed, the SeMP is the entity that con-

nects formalized security knowledge with an auto-

mated method to generate software guided by con-

ceptual models that use security-rich artifacts, and

they are each is associated with a risk, vulnerabil-

ity and penetration analysis. Consequently, it allows

the inclusion of measures and controls according to

the objectives of the organization within a common

conceptual scenario from the idea of the business to

the speciﬁcity of its platform through model-to-model

and model-to-text transformations. In the end, the

generated code is evaluated in a system instance us-

ing vulnerability identiﬁcation techniques, scanning

techniques, and ethical hacking to certify and obtain

software components with high levels of security.

Therefore, in the table 1 we can see related elements

in the proposed perspective with the current security

knowledge.

Table 1: Security Knowledge.

Epistemological Tier Subject

Security Knowledge ISO/IEC 27000, 27001, 27002

27003, 27032, 27034

NIST SP 800-14, ISM3

ITIL, COBIT, and OWASP

Conceptual Tier Subject

Ontological Layer UFO, OWL

Model-driven Layer SecureDWS, Secret,

UMLSec, SecureUML, SecureMDD,

SecureSOA, AOMSec, SecureWeb

and Access Control

Transformation Layer OASIS, OWASP

Security Rating Layer Security metrics ISM3

Risk Analysis Layer MAGERIT, NIST SP 800-30

Vulnerabilities Analysis Layer OWASP, OSSTMM

Security Testing Layer OWASP, OSSTMM

4 RESEARCH METHODOLOGY

We use a research methodology based on the engi-

neering cycle proposed by the Methodology of De-

sign Sciences (Wieringa, 2014) since this method es-

tablishes an analysis for the development of informa-

tion systems. We started with the premise of handling

artifacts to help the answer research questions in two

major engineering cycles.

The ﬁrst cycle, for the study of the good practices,

principles, foundations and available security meth-

ods promoted by the academic world and the orga-

nizations, and so acquire the necessary basis for the

creation of the epistemological tier (logical descrip-

tion).

With the second cycle, for the development of the

conceptual tier (structural description) based on the

speciﬁcation of a reference ontology with which can

make model proﬁles for use in the OO-Method pro-

cess to generate software less insecure. Next, the re-

search questions:

• What are the guidelines, conventions, rules, good

practices and primitives that should be used to en-

sure security in information systems?

• Which technical resources are available or should

be developed to ensure information systems?

• Which elements can guide the integration require-

ments of security systems development in MDD

production environments?

• What should be the software developer do to de-

sign conceptual models that include security re-

quirements? How validate that conceptual models

are correct to security requirements?

• Is there an MDD tool for the production of secure

software with traceability?

To follow this questions we are proposing:

• Identify epistemologically of current resources

of experience generated in the standards and the

Good Practices for the conception of a security

agreement.

• Classify the available technical resources to pro-

tect the integrity, availability, authenticity, conﬁ-

dentiality, and traceability in the information sys-

tems to create a catalog of security standards;

• Formalize the security domain concepts in an

ontology-based reference agreement and the spec-

iﬁed security technical catalog to obtain a com-

mon perspective of the security requirements in

the generation of applications;

• Represent the ontological security features in a

standards language to develop proﬁles that allow

the modeling of security requirements.

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

• Establish a methodology of risk analysis and se-

curity metrics to evaluate the security level of the

generated models.

Therefore, it is also necessary to develop a test

case in a computer tool that manages the framework

for the design and generation of code with which

we will can validate the security primitives based on

the proposed approach. For this, we have chosen to

improve the Object Oriented Methodology, since the

OO-Method has experience and has been validated to

deal with software development, but in it not consider

security concerns, establishing a need and an oppor-

tunity for improvement.

Next, the table 2 shows the resulting set of artifacts

which could be derived from the present investigation.

Table 2: Related Artifacts.

Epistemological Tier Artifacts

Security Knowledge SePs and SeC

Conceptual Tier Artifacts

Ontological Layer SeDOn and SeOnPL

Model-driven Layer SeMPs

Transformation Layer CIM2PIM, PIM2PSM

and PSM2code

Security Rating Layer Rating metric

Risk Analysis Layer Risk analysis metric

Vulnerabilities Analysis Layer Vulnerabilities analysis metric

Security Testing Layer Testing method

5 CONCLUSIONS

We depicted our proposal, which is a method to cover

the perspective of security requirements in software

development. We intend to use UFO to develop a ref-

erence ontology to represents a well-founded concep-

tualization of all these related concepts.

We also present the SeOPL on which the Security

Security Model Proﬁles must be developed. These

proﬁles and the SeOPL allow the building of applica-

tions with acceptable levels of security. And ﬁnally,

we intend to evolve OO-Method with this new fea-

tures as a proof-of-concept.

ACKNOWLEDGEMENTS

The author thanks, Professor Oscar Pastor L

opez

for its signiﬁcant support, academic guidance, and

motivation. Also the continuous assistance by the

Centro de I+D en M

etodos de Producci

on de Soft-

ware (PROS) group of the Universitat Polit

ecnica de

Val

encia Spain, and the Facultad de Ingenier

ıa de Sis-

temas e Inform

atica, Universidad Pontiﬁcia Bolivari-

ana - Seccional Bucaramanga,

Km 7 via Bucaramanga - Piedecuesta, Santander,

Colombia for his ﬁnancial support to enable the de-

velopment of this work.

REFERENCES

Amutio G

omez, M. A. (2012). Metodolog

ıa de An

alisis y

Gesti

on de Riesgos de los Sistemas de Informaci

on.

page 127.

Beckers, K. (2015). Pattern and security requirements:

Engineering-based establishment of security stan-

dards. Springer International Publishing, Cham.

Canal, V. A. (2006). Information Security Management Ma-

turity Model - ISM3.

Commons, C. (2013). OWASP Top 10 2013 Los Diez Ries-

gos M

as Cr

ıticos en Aplicaciones Web. page 22.

Felderer, M., B

uchler, M., Johns, M., Brucker, A. D., Breu,

R., and Pretschner, A. (2016). Security Testing: A

Survey. Advances in Computers, 101(March):1–51.

Frasincar, F., Houben, G. J., and Thiran, P. (2012). Ad-

vances in Conceptual Modeling. Lecture Notes in

Computer Science (including subseries Lecture Notes

in Artiﬁcial Intelligence and Lecture Notes in Bioin-

formatics), 7518(July):325–326.

Gobierno de Espa

na (2017). Centro Criptogr

aﬁco Nacional

Espa

na.

Guan, H., Wang, X., and Yang, H. (2014). A framework for

security driven software evolution. ICAC 2014 - Pro-

ceedings of the 20th International Conference on Au-

tomation and Computing: Future Automation, Com-

puting and Manufacturing, (201208210386):194–

199.

Herzog, P. (2016). OSSTMM: The Open Source Security

Testing Methodology Manual: v3. Isecom, page 213.

Integranova Software Solutions (2016). INTEGRANOVA

M.E.S. (Model Execution System).

Lodderstedt, T. (2003). Model driven security from {UML}

models to access control architectures. 15(1):156.

Molina, P. J., Pastor, O., Mart

ı, S., Fons, J. J., and Insfram,

E. (2001). Specifying Conceptual Interface Patterns

in an Object-Oriented Method with Automatic Code

Generation. Proceedings - 2nd International Work-

shop on User Interfaces to Data Intensive Systems,

UIDIS 2001, pages 72–79.

Neubauer, T., Ekelhart, A., and Fenz, S. (2008). Interac-

tive selection of ISO 27001 controls under multiple

objectives. In IFIP International Federation for In-

formation Processing, volume 278, pages 477–491.

Springer US, Boston, MA.

Nguyen, P. H., Kramer, M., Klein, J., and Traon, Y. L.

(2015). An extensive systematic review on the Model-

A Security Framework in Model-driven Software Production Environments

Driven Development of secure systems. Information

and Software Technology, 68:62–81.

OMG (2014). OMG MDA Guide rev. 2.0. OMG Document

ormsc, 2.0(June):1–15.

Pastor, O. and Molina, J. C. (2007). Model-driven architec-

ture in practice: A software production environment

based on conceptual modeling. Springer Berlin Hei-

delberg, Berlin, Heidelberg.

Poli, R. and Obrst, L. (2010). The Interplay Between Ontol-

ogy as Categorial Analysis and Ontology as Technol-

ogy, pages 1–26. Springer Netherlands, Dordrecht.

Protection, C. A., Systems, C., and Architecture, S. (2016).

The Standard of Good Practice for Information Secu-

rity 2016. 2016:1–3.

Stanford Encyclopedia of Philosophy (2005). Stanford En-

cyclopedia of Philosophy.

Symantec (2017). Internet Security Threat Report - ISTR.

Symantec [Online], 22(April):77.

The International Organization for Standardization (2011a).

ISO/IEC 27005:2011 Information technology Secu-

rity techniques Information security risk manage-

ment. ISO.org [Online], 2011:68.

The International Organization for Standardization (2011b).

ISO/IEC 27034-1:2011 Information technology Se-

curity techniques Application security. ISO.org [On-

line].

The International Organization for Standardization (2013a).

ISO/IEC 27001:2013 Information technology Secu-

rity techniques Information security management sys-

tems Requirements. ISO.org [Online], 2013:23.

The International Organization for Standardization (2013b).

ISO/IEC 27002:2013 Information technology – Secu-

rity techniques – Code of practice for information se-

curity controls. ISO.org [Online], 2013:80.

The International Organization for Standardization (2016).

ISO/IEC 27000:2016 Information technology Secu-

rity techniques Information security management sys-

tems Overview and vocabulary. ISO.org [Online],

2016:34.

The International Organization for Standardization (2017).

ISO/IEC 27003:2017 Information technology Secu-

rity techniques Information security management sys-

tems Guidance. ISO.org [Online], 2017:45.

Wieringa, R. (2014). Design science methodology.

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering
