From Theory to Practice: The Challenges of a DevOps Infrastructure

as Code Implementation

Clauirton Siebra

, Rosberg Lacerda

, Italo Cerqueira

, Jonysberg P. Quintino

, Fabiana Florentin

Fabio Q. B. da Silva

and Andre L. M. Santos

Informatics Center, Federal University of Paraiba, Joao Pessoa-PB, Brazil

CIn/Samsung Project, Centro de Informática, Universidade Federal de Pernambuco, Recife-PE, Brazil

SIDI/Samsung, Campinas-SP, Brazil

Centro de Informática, Universidade Federal de Pernambuco, Recife-PE, Brazil

Keywords: DevOps, Infrastructure as Code, Automation, Software Delivery Management.

Abstract: DevOps is a recent approach that intends to improve the collaboration between development and IT

operations teams, in order to establish a continuous and efficient deployment process. Previous studies show

that DevOps is based on dimensions, such as culture of collaboration, automation and monitoring. However,

few studies discuss the current frameworks that support such dimensions, so that there is a lack in

information that could assist development teams in deciding for the most adequate framework according to

their needs. This work aims at presenting a practical DevOps implementation and analysing how the process

of software delivery and infrastructure changes was automated. Our approach follows the principles of

infrastructure as code, where a configuration platform – PowerShell DSC – was used to automatically

define reliable environments for continuous software delivery. Then, we compare this approach with other

alternative such as Chef and Puppet tools, stressing the features, advantages and challenges of each strategy.

The lessons learned from this work are then used to create a more concrete set of practices that could assist

the transition from traditional approaches to an automation process of continuous software delivery.

1 INTRODUCTION

The lifecycle of an application involves teams that

usually work in distinct areas and have incompatible

goals. For example, while development team wants

agility; the operation team is more focused on

stability issues. In such domains, applications are

manually handed over between these teams with

minimal communication. Such separation between

entities, which are in fact dependent, translates into

an increased time to market and negatively impacts

the software quality, decreasing the actual value of

the product (Humble and Farley, 2010).

The fundamental conflict in the software process

environment is between developers, which have to

produce changes at a rapid pace; and IT Operators,

which have to maintain infrastructure configuration

and availability along these changes. The term

DevOps, which is a blend of the Developers and

Operations words, is a concept that assists to

facilitate these changes (Claps et al., 2015). It builds

a living bridge between development and operations

and gives them an opportunity to work and

collaborate effectively and seamlessly. According to

Loukides (2012), DevOps is a culture, movement or

practice that emphasizes the collaboration and

communication of both software developers and

other information-technology (IT) professionals

while automating the process of software delivery

and infrastructure changes. It aims at establishing a

culture and environment where building, testing,

and releasing software, can happen rapidly,

frequently, and more reliably.

Previous works on DevOps (Lwakatare et al.,

2015; Hosono, 2012) are mainly focused on propose

conceptual frameworks, which intend to create a

consensus to the own DevOps definition and their

features. Some elements such as culture of

collaboration, automation and monitoring; emerged

from these works and seem to be the basis for the

implementation of DevOps environments. However,

while DevOps is becoming very popular between

software practitioners; there is still a lack in

discussions on frameworks that support its

Siebra, C., Lacerda, R., Cerqueira, I., Quintino, J., Florentin, F., Silva, F. and Santos, A.

From Theory to Practice: The Challenges of a DevOps Infrastructure as Code Implementation.

DOI: 10.5220/0006826104270436

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 427-436

ISBN: 978-989-758-320-9

427

implementation and reports of real experiences that

could assist development teams in adopting the

DevOps principles (Erich et al., 2014; Dyck et al.,

2015).

The main focus of this work is on the automation

dimension, where the definition of practices related

to infrastructure as code creates the basis for an

automated process of continuous integration and

delivery. Handling infrastructure as code, the

following benefits can be obtained (Punjabi and

Bajaj, 2016):

 Code can be thoroughly tested to reproduce

infrastructure consistently at scale;

 Developers could be provided with a

simulated production environment, which

increases testability and reliability;

 Infrastructure code can be versioned;

 Infrastructure can be provisioned and

configured on demand;

 Proactive recovering from failures can be

carried out by continuous monitoring of the

environment for violations, which can trigger

automatic execution of scripts for rollback or

recovery.

Our approach follows the principles of

infrastructure as code, where a configuration

platform, PowerShell DSC (Desired State

Configuration) is used to automatically define

reliable environments for continuous software

delivery. The implementation of this strategy in our

organization has generated a set of lessons learned

which form the basis for the definition of a more

concrete set of practices, which can extend current

conceptual models and facilitate the transition from

theoretical aspects to pragmatic uses.

The remainder of this paper is structured as

follows: Section 2 summarizes the studies on the

automation dimension of DevOps, where the focus

is on the infrastructure as code aspects and their

implementations. Section 3 presents how DevOps

concepts were implemented in our organization and

the lessons learned from this experience. Section 4

consolidates the lessons learned in our experience in

a set of practices that show how to integrate our

infrastructure as code strategy to the development

process. Furthermore, other approaches for

infrastructure as code are analysed and compared

with our approach. Finally, Section V concludes this

work, stressing the challenges of DevOps

implementation and future works that we intend to

carry out.

2 STRUCTURE AS CODE

The creation of a DevOps environment is based on

principles such as culture of collaboration (Bang et

al., 2013; DeGrandis, 2011; Wettinger et al., 2014;

Tessem and Iden, 2008; Walls, 2013), measurement

of development efforts (Liu et al., 2014; Shang,

2015; Bruneo et al., 2014) and monitoring of system

health (Bang et al., 2013; Shang, 2015; Bruneo et

al., 2014). However, according to Ebert et al (2016),

the most important shift over the adoption of

DevOps is to treat infrastructure as code, since

infrastructure can be shared, tested, and version

controlled. Furthermore, development and

production could share a homogenous infrastructure,

reducing problems and bugs due to different

infrastructure configurations. This section discusses

the main ideas of this approach and resources that

support it.

2.1 Basic Concepts

Infrastructure as Code (IaC) is a DevOps principle

used to address problems regarding the manual

process of configuration management by means of

automatic provision and configuration of

infrastructural resources. In this way, the IaC

concept is used to describe the idea that almost all

actions performed to the infrastructure can be

automated. As any code, developers could create

automation logic for different tasks such as to

deploy, configure and upgrade computational

systems and infrastructures. Patterns to use the

infrastructure as code were proposed in (Duvall,

2011) and they can be summarized as:

 Automate Provisioning: automate the process

of configuring environments to include

networks, external services, and infrastructure;

 Behavior-Driven Monitoring: automate tests

to verify the behavior of the infrastructure;

 Immune System: deploy software one instance

at a time while conducting behavior-driven

monitoring. If an error is detected during the

incremental deployment, a Rollback Release

must be initiated to revert changes;

 Lockdown Environments: lock down shared

environments from unauthorized external and

internal usage, including operations staff. All

changes must be versioned and applied

through automation;

 Production-Like Environments: development

and production environments must be as

similar as possible.

ICSOFT 2018 - 13th International Conference on Software Technologies

428

These patterns show that DevOps pushes

automation from the development to the

infrastructure. Compared with manual infrastructure

provisioning, for example, configuration

management tools can reduce production

provisioning and configuration maintenance

complexity while enabling recreation of the

production system on the development machines. As

discussed in (Ebert et al., 2012), tools are a major

DevOps enabler and they are mandatory in

automating these and other patterns and tasks. In

fact, DevOps considers deliveries with short cycle

time. This feature comes from one of the Lean/Agile

principles, which stands for “Build incrementally

with fast integrated learning cycles”. Thus, such

strategy requires a high degree of automation, so that

it is fundamental the appropriate choice of tools .See

a list of tools in (Ebert et al., 2012).

2.2 Tools for Configuration

Management

Configuration management tools are the main

resources to implement IaC strategies. Such tools

aim at replacing error-prone shell scripts, which are

employed to manage the state of machines or

environments where development codes are going to

execute. Shell scripts are potentially complex to

maintain and evolve, since they are neither modular

nor reusable. Thus, the aim of approaches for

configuration management was to provide languages

to specify configuration properties without the

limitations (low modularity and reusability) of shell

scripts. Three examples of these languages, which

follow different implementation strategies, are:

 Puppet: domain specific language

implemented in a common programming

language (originally Ruby, but with newer

versions in C++ and Clojure);

 Chef: uses an existing language (Ruby) for

writing system configuration "recipes";

 CFEngine: domain specific language also

implemented in a common programming

language (C).

These languages are often declarative. This

means, they describe the desired state of the system

rather than a way to achieve it. There are other

languages such as Nix, which is a purely functional

programming language with specific properties for

configuration; and IBM Tivoli System Automation

for Multiplatforms. These languages have similar

features but may present particular purposes. The

IBM approach, for example, facilitates the automatic

switching of users, applications and data from one

database system to another in a cluster.

Puppet, Chef and CFEngine are the most popular

configuration management alternatives. Therefore, it

is important to understand some slight differences

among them (Younge et al., 2011). Chef and Puppet

are very similar since they are based on Ruby.

However, Chef seems to present less security

vulnerabilities than Puppet. Both languages are more

“Ops-friendly” due to its model-driven approach.

They also present a relatively small learning curve.

Differently, CFEngine is more “Dev-friendly” and

its learning curve is steep. However, as advantage,

CFEngine has a dramatically smaller memory

footprint, runs faster and has far fewer dependencies

since it was developed with C. For configuration

information, CFEngine uses its own declarative

language to create "promises," or policy statements.

Puppet, on the other hand, uses a Ruby Domain-

Specific Language (DSL) to create its manifests. So

those with some Ruby experience may find

themselves in more familiar territory with Puppet.

A comparison among these and several other

open-source configuration management approaches

can be seen in (O'Connor et al., 2017).

2.3 Frameworks

As applications need to be developed and tested in

production like environments, some organizations

are using strategies such as virtualization and more

recently containerization (Scheepers, 2015) to make

such environments portable. However, these

approaches are also hard to use when they are

manually maintained. This scenario motivated the

creation of frameworks for setup of more complex

development environments.

Two popular examples of frameworks are

Vagrant and Docker. Vagrant (Peacock, 2015) is a

management and support framework to

virtualization of development environments. Instead

of running all projects locally on a unique computer,

having to rearrange the different requirements and

dependencies of each project, this framework allows

to run each project in its own dedicated virtual

environment. Docker (Miell and Sayers, 2016) is a

container-based approach that provides

virtualization at the operating system level and uses

the host kernel to run multiple virtual environments.

A difference between these approaches is

associated with their performances. As discussed in

the previous paragraph, Docker relies on

containerization, while Vagrant utilizes

virtualization. In this latter approach, each virtual

From Theory to Practice: The Challenges of a DevOps Infrastructure as Code Implementation

429

machine runs its own entire operating system inside

a simulated hardware environment provided by

special programs. Thus, each virtual machine needs

a dedicated amount of static resources (CPU, RAM,

storage), generating an overhead of such resources.

Approaches based on containerization present a

higher performance since containers simply use

whatever resources it needs. This means, there is not

overhead of resources. Based on this discussion,

Docker is lighter than Vangrant. A deeper study in

such approaches show that both have advantages and

disadvantages, so that the final decision must be

based on the particular features of each project.

There is another important difference between

these approaches. Vagrant cannot create virtual

machines or containers without virtualization

platforms (Younge et al., 2011) such as VirtualBox,

VMware or Docker. Differently, Docker can work

without Vagrant. In order, the main advantage of

vagrant is that it provides an easy mechanism to

reproduce environments. These frameworks can also

be used together with configuration management

tools/languages to implement more powerful IaC

environments. Some examples are given in the next

section.

2.4 Tools in Practice

The previous section showed that there are several

options regarding frameworks and configuration

management tools to support the implementation of

the infrastructure as code principles. However, the

literature presents few contributions regarding their

practical use and the focus of this literature is on the

specification of extensions that could improve the

limitations of current tools rather than descriptions

of real case studies. The work of Hüttermann (2012),

for example, integrates Vagrant and Puppet and uses

them to create a topology for IaC consisting of

Vagrant and Puppet artefacts that are continuously

built and stored in a version control system. While

Vagrant allows the building of lightweight and

portable virtual environments, based on a simple

textual description; Puppet uses a declarative syntax

to describe the desired state of a target environment

and allows this description to be executed to create

that state on a target machine. Hummer et al (2013)

propose and evaluate a model-based testing

framework for IaC, where an abstracted system

model is used to derive state transition graphs. The

resulting graph is then used to derive test cases.

Their prototype extends the Chef IaC tool. However

the authors comment that their approach is general

and could be applied to other tools, such as Puppet.

The work of Artac et al (2017) discusses several

technologies involved in supporting IaC. Its main

focus is on the OASIS TOSCA, which is an

industrial practice language for automated

deployment of technology independent and multi-

cloud compliant applications.

In order, the majority of examples regarding IaC

are focused on Cloud environment and they are

related to specific features of such domain. For

example, Zhu et al (2014) report results from

experiments on reliability issues of cloud

infrastructure and trade-offs between using heavily-

baked and lightly-baked images. Their experiments

were based on Amazon Web Service (AWS)

OpsWorks APIs (Application Programming

Interfaces) and they also used the Chef configuration

management tool. Several other works regarding IaC

in the Cloud domain are discussed in the literature,

such as in (Bruneo et al., 2014; Scheuner et al.,

2014).

The work of Spinellis (2012) is another example

of study that discusses popular tools in the DevOps

domain, which include CFEngine, Puppet and Chef.

This work stresses the main function of such tools,

which is to automate a system’s configuration so

that users write rules expressing how an IT system is

to be configured and the tool will set up the system

accordingly. Wettinger et al (2014) also shows that

the DevOps community focuses on providing

pragmatic solutions for the automation of

application deployment. Then, the communities

affiliated with some of the DevOps tools, such as

Chef or Puppet, to provide artefacts to build

deployment plans for certain application tasks. Thus,

these two previous works (Spinellis, 2012;

Wettinger et al., 2014) confirm the trend to some

specific tools (Chef and Puppet) and their relation to

aspects of automation. Unfortunately, the scientific

literature does not discuss the use and evaluation of

such tools in a DevOps context, considering real

development cases. This is the major contribution of

our work, as detailed in the next sections.

3 DEVOPS IMPLEMENTATION:

A CASE STUDY

This section is divided into four parts. We first

describe the object of this case study, which is a real

application that we call Xsolution (pseudo name due

to commercial issues). Next we describe the original

strategy to deploy this application and the metrics

that characterize the problems of such strategy.

ICSOFT 2018 - 13th International Conference on Software Technologies

430

Then, we present the implementation of our

infrastructure as code approach, which is based on

the PowerShell DCS, and how this new strategy

significantly improved our deployment process.

Finally, we stress the advantages of this approach

when it is compared to other ways to implement

infrastructure as code solutions, such as Chef and

Puppet.

3.1 The Object of Study

Xsolution is a client-server solution that requires the

deployment of a server and mobile modules to

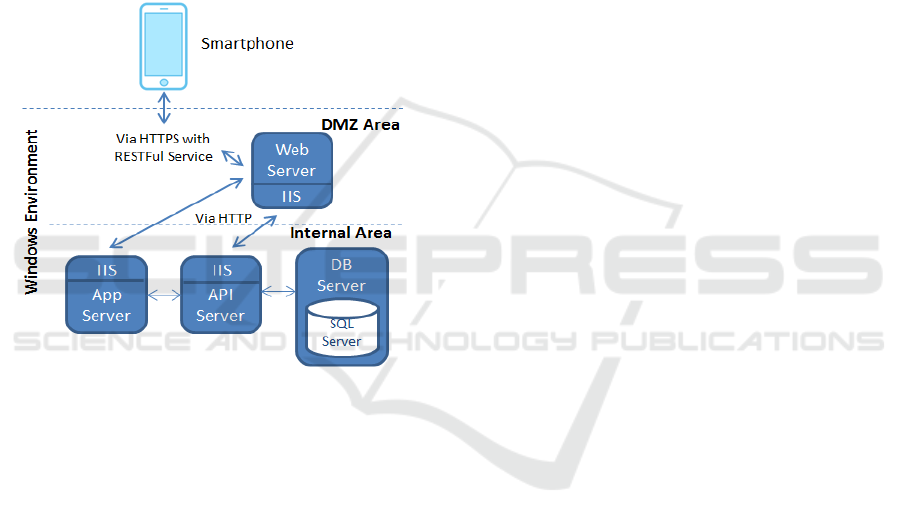

execute. The abstract architecture of this application

is illustrated in Figure 1.

Figure 1: High level architecture of Xsolution.

Each of the components in this figure (Smartphone,

Web server, Internet Information Service – IIS, App

Server, API Server, DB Server and SQL Server)

requires a specific configuration before the

deployment of the application. This configuration

used to be manually carried out by the IT team by

means of an internal home-made deployment guide

that describes all the process (step-by-step), as better

detailed in Section 3.2.

In order, to prepare the required resources that

will support Xsolution, or any other application with

this architecture (Figure 1), the next actions must be

carried out: (1) Installation of packages; (2)

Database installation; (3) Installation of Web

application requirements; (4) Installation of Web

application; (5) Configuration of the Admin Web

Applications; (6) Configuration of the log of errors;

and (7) Mobile Web site configuration. Each of

these actions has multiple steps and the traditional

approach to carry out this process is to follow guides

that describe these steps. This approach is described

in the next section.

3.2 Manual Deployment Process

The manual deployment of Xsolution and other

applications of our company, used to be manually

carried out by a group of IT collaborators. In this

strategy, each application had an associated

deployment guide, which describes all the details to

prepare the resources and environment to run this

application. The internal deployment guide of

Xsolution, for example, is a document with about 60

pages. It is important to understand how this manual

process used to be carried out, so that we could have

an idea about its complexity and the reasons it is a so

time-consuming and error-prone activity.

The first step in this manual process is the

installation of packages. Basically the idea is to

create the directory structure, which will contain the

admin front-end Web build files (related to user

interface configuration), admin back-end Web build

files, mobile android application, back-end mobile

build files, database structure creation scripts,

database initial seed script, and mobile user front-

end Web build files. The second step is the database

installation. Xsolution, for example, supports both

Active Directory users (through Windows

authentication) and SQL Server users (with custom

also configure the IIS (Internet Information Service)

to delegate the anonymous authentication

configuration to Xsolution. However the main aim of

this step is the creation of the database structure,

which involves several details. For example, the

structure must only be created in the first application

deployment and the database scripts depend on the

country where the application will be host. In fact

there are a significant number of details that must be

observed in this process. These details are descripted

in the guide, such as:

“if you update the database adding more values

for some Enumeration, you must perform the

Recycle of the Application Pools related to the

App Server and API Server. This is necessary

because the Enumerations present in this table

are cached in memory when the application

starts, rather than updated if changes were made

in the database.”

This type of conditional actions increases the

complexity of the configuration and they are usually

common source of errors since they are not part of

the normal configuration flow. The use of further

support tools, such as the SQL Server management

From Theory to Practice: The Challenges of a DevOps Infrastructure as Code Implementation

431

studio to support the database backup procedures, is

also described in the guide. In addition, there are

also issues when databases are updated. For

example:

“If you are upgrading the version of the

database, you must sequentially run all scripts of

the current version to the version you want. If

just a script is ignored, the next scripts after that

may not run correctly.”

The third step is the installation of the Web

application requirements. This step generally

involves the installation of several third party

resources, which act as the Front-end Admin Web,

Back-end Admin Web and Mobile User Web. For

example, the Xsolution requires the installation of

the next components: (1) Windows Server 2008 R2

Service Pack 1 or Windows Server 2016; (2) NET

Framework 4.5; (3) Internet Information Services

7.5 or 10; (4) ASP.NET; (5) Windows Management

Framework 3.0; and (6) IIS URL Rewrite 2.0

module. Each of these components also has their

own installation details, which must be observed by

the deployment team. For example, the IIS module

has its own manual (24 pages) with instructions

about the reverse proxy configuration using an IIS

server. One of the functions of the IIS is to capture

the application log. This task is customized and also

presents a set of configurations to properly work

according to the features of each Web application.

The version of components is another point to

observe. Xsolution, for example, allows the use of

Windows Server 2008 R2 Service Pack 1 or

Windows Server 2016. Depending on the choice,

particular details must be observed along the

configuration process. The configuration process

also has influence of local laws. For example, due to

the new national legislation for Internet (Law No.

12,965 - Internet Civil Landmark) (Tomasevicius

Filho, 2016), information about the user access to

the application needs to be stored for a period of six

months. The information required is the IP, the user

name, the date and time of login. Thus, the

components must be configured to maintain such

information.

The fourth step is the installation of the own

Web application, which involves the creation of the

application pool, the choice of Website locations and

the assignment of each site to a specific application

pool. In order, application pools are processing

groups based on specific administrative preferences

that isolate Website processes from other website

processes on the server, offering strong performance

and security benefits. Again, there are several details

in this configuration. For example, the Admin Front-

end Web and Admin Back-end Web applications

could be in the same application pool, but it is

strongly recommend that the Back-end Mobile

application stay in a separate application pool. Thus,

the configuration of two Web servers is required.

The fifth step is the configuration of the Admin

Web application. There are several technical details

in this step, which are related to authentication

options, configuration of mobile responses and

database access permissions. In fact, there are a

significant number of parameters (about 50) that

must be set and the deployment team must

understand these parameters and know the best way

to set them.

Finally, the sixth and seventh steps are

respectively related to the configuration of the error

log and mobile Website. Similarly to the other steps,

the guide brings several details and customization

options.

This description illustrates just part of the tasks

and details regarding the manual deployment

process. We can easily observe that this process is

prone to errors, since it is long and has several

details. Furthermore, it is hard to identify which

configuration was not properly performed when an

error occurs.

To demonstrate these problems and characterise

this process in terms of software engineering

metrics, we carried out a simple quantitative analysis

of this process using Xsolution as our object of

study. According to the schedule and documents

from the Xsolution project, the deployment stage of

each Xsolution release took about 16 hours in the

best case. This means, when the process was

performed without errors. Then, if we had 3 sprints

per month, a collaborator should be allocated to this

task over 6 days (8 hours/day) to each new version.

At each new sprint, all the guide items were

executed, starting from the first step; while the own

guide was also reviewed or updated along each

sprint. This ensures a current and future process free

of failures. If any error was identified, all the process

was again started from the initial configuration.

Thus, the final deployment could spend much more

than 16 hours.

3.3 Infrastructure as Code Deployment

The infrastructure as code to support the deployment

was implemented in our organization as a form to

avoid the limitations of the previous manual

approach (Section 3.2). Furthermore, this approach

allows that solutions can be deployed in any

ICSOFT 2018 - 13th International Conference on Software Technologies

432

environment without the expertise required by the

manual approach.

Our strategy is based on the PowerShell DSC

(Desired State Configuration), which is a script

language that enables the definition of a set of

deployment actions. Our experiments showed that

several of the previous deployment actions could be

automated with this language, such as: (1) install or

remove server roles and features; (2) manage

registry settings; (3) manage files and directories; (4)

start, stop, and manage processes and services; (5)

manage local groups and user accounts; (6) install

and manage packages such as .msi and .exe; (7)

manage environment variables; (8) fix a

configuration that has drifted away from the desired

state; and (8) discover the actual configuration state

on a given node. Furthermore, DSC is a platform

build into Windows, so that it is a natural choice to

development projects in such platform.

The use of PowerShell DSC involved three

phases in our experiments. In the first phase

(authoring phase), the DSC configuration was

created by means of the PowerShell Integrated

Scripting Environment (ISE), which is an authoring

tool for DSC configurations. These configurations

are translated to one or more MOF files, which

contain the necessary information for the

configuration of the nodes. MOF (Managed Object

Format) is a schema description language used for

specifying the interface of managed resources, such

as storage, networking, etc.). The MOF files are

basically made up of a series of class and instance

declarations, such as the next example (Figure 2):

Figure 2: MOF file example to a storage resource. Source:

[http://www.informit.com/articles/article.aspx?p=30482&s

eqNum=10].

Next example (Figure 3) shows part of a MOF

file used in the Xsolution deployment, which

accounts for the configuration of roles and service

roles during the installation of the Web application

requirements (step 3 discussed in Section 3.2). A

server role is a set of software programs that, when

installed and properly configured, allows a computer

to perform a specific function for multiple users or

other computers within a network. Role services are

software programs that provide the functionality of a

role. In the manual way, the deployment team must

access different configuration pages and check a set

of options indicated by the manual. The next code

automatically identifies the parameter to be

configured and apply the indicated configuration.

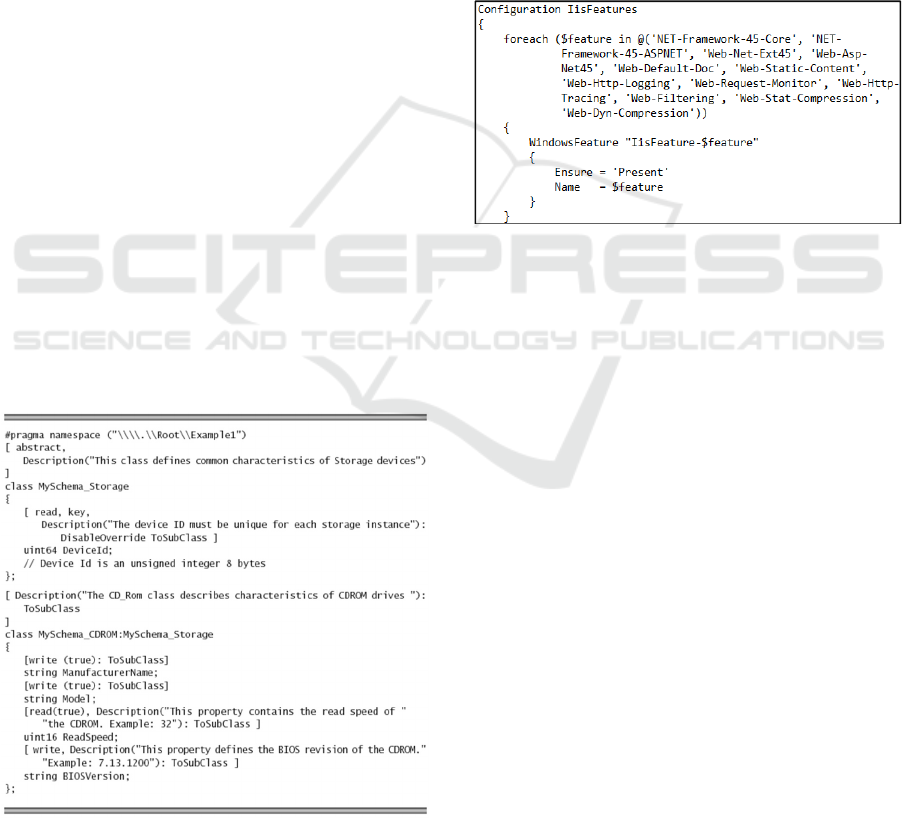

Figure 3: DSC script to configure the current state of a

role and its service roles.

This script is simple and powerful at the same

time since we do not need to indicate any path for

the system variables. The own DSC framework

already identifies such variables and set them. This

process is completely transparent to human

operators. However this configuration was simple

because the DSC framework has the

“WindowsFeature” as one of its 12 built-in

configuration resources. In order, a DSC resource is

a Windows PowerShell module, which contains both

the schema (the definition of the configurable

properties) and the implementation (the code that

does the actual work specified by a configuration)

for the resource. A DSC resource schema can be

defined in a MOF file, and the implementation is

performed by a script module. Other examples of

built-in resources that were used in our study are:

 DSC File Resource: provides a mechanism to

manage files and folders on the target node;

 DSC Package Resource: provides a

mechanism to install or uninstall packages,

such as Windows Installer and setup.exe

packages, on a target node;

 DSC Service Resource: provides a mechanism

to manage services on the target node.

From Theory to Practice: The Challenges of a DevOps Infrastructure as Code Implementation

433

Some of our required configurations were not

provided as a built-in resource. However, the DSC

framework supports the extension of such resources

by means of classes, which defines a schema and its

implementation. To evaluate this feature, we decided

to implement a resource to configure the dynamic

compression on mobile responses. Figure 4 shows

the initial part of this implementation.

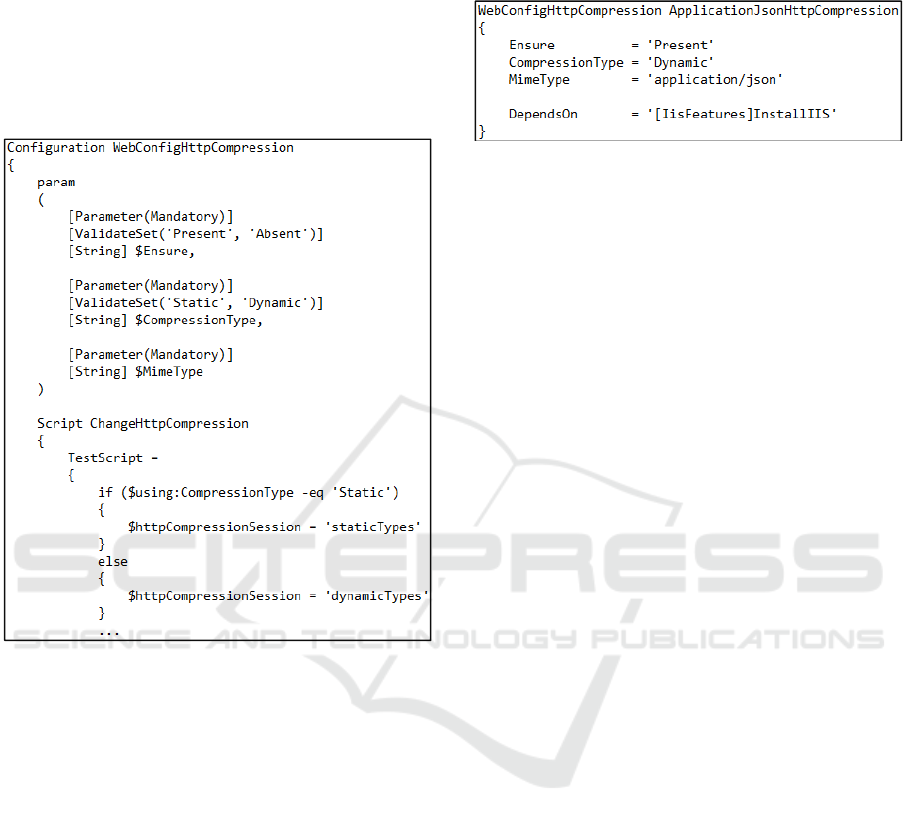

Figure 4: Part of the implementation for a customized

DSC resource to configure the http compression feature.

The first part of this resource (param) specifies

the resource schema, which defines the parameters

of the resource and its possible values. The second

part defines the resource script, which implements

the logic of the resource. After the resource creation,

it was used in several parts of the configuration

process by means of a simple resource call, such as

in Figure 5. Again, the script avoids the search for

the correct attributes in several configuration tabs

and ensures that the desirable values are in fact set in

the system.

The use of the infrastructure as code had a huge

impact in our deployment efficiency. The

deployment time for each release was decreased to

30 minutes. Thus, if we had 3 sprints per month, just

90 minutes will be spent in this process for each new

version. Furthermore, all the process is automatic, so

that it can be quickly executed from the beginning

and the deployment team abandoned both the use of

the guide (Section 3.2) and its update. Modifications

are now carried out in the own scripts and

maintained by version control programs.

Figure 5: Call of the WebConfig Http Compression

resource.

3.4 Comparison to Other Approaches

The question that we intend to answer here is “why

to use PowerShell DSC rather than other more

popular approaches such as Chef and Puppet?”.

PowerShell DSC comes with the Windows OS by

default, so that it is a good choice for managing

Windows environments. While PowerShell DSC is

able to directly access the Windows resources;

Puppet and Chef requires an extra layer to access

such resources. Chef, for example, started its support

for Microsoft Windows from 2011 when it released

the knife-windows plugin, which plays the role of

this additional layer. Furthermore, Ruby must also

be installed on Windows.

The use of Puppet is similar since it does not also

have direct access to the Windows resources.

Messages from Puppet users in specialised forums

corroborate this affirmation. For example, “We use

Puppet in Windows. It works, but feels like a second-

class platform” (www.reddit.com). This means, the

integration Puppet-Windows is not natural. Thus

additional tools, such as Chocolatey, are available to

facilitate this integration.

Even considering these tools, the deployment

team commonly needs to implement additional

recipes to improve this integration and access the

Windows resources. Thus, the use of PowerShell

DSC, considering the deployment to the Windows

Platform, tends to be an easier and faster process.

There are some works that discuss the mutual use

of Chef, or Puppet, and PowerShell DSC. The idea

is to take advantage of the best features of each

approach. The investigation of this hybrid strategy is

one of the subjects for our future investigations.

4 LESSONS LEARNED

Some lessons were learned along our experience

with DSC and some of them support previous finds

from the literature.

ICSOFT 2018 - 13th International Conference on Software Technologies

434

DSC enables IT teams in deploying several time

their configuration without risks of breaking the

infrastructure. Thus, DSC in fact supports the

DevOps principle of continuous deployment. We

observed two important DSC features that optimize

this process of continuous deployment:

 Only settings that do not match will be

modified when the configuration is applied.

The remainder configurations are skipped so

that we obtain a faster deployment time;

 The definition of the configuration data and

configuration logic are separated and well-

defined. This strategy supports the reuse of

configuration data for different resources,

nodes and configurations.

A useful DSC strategy is to record errors and

events in logs that can be viewed in the Event

Viewer application. This function was important

mainly at initial phases of the development, since the

composition of configuration scripts was challenging

for members of our team. Thus, the use of logs has

facilitated the identification and solving of issues.

DSC provides a declarative syntax to express

configurations for infrastructure and information

systems. This DSC feature accounts for creating a

transparent process, where the IT team do not

necessarily have to know how DSC will provide a

specific feature or software installation because the

declarative syntax is similar to an INI type

expression, specifying what should be present on the

node, as discussed in (O'Connor, 2017).

DSC has two modes of operation: push and pull.

The pull mode has its scalability as primary

advantage and it seems to be the most used DSC

mode. In fact, a single pull server can provide DSC

configurations to many connected nodes with the

additional benefit of specifying how often the LCM

(Local Configuration Manager) on each node should

check back with the pull server enforcing a

configuration. However, as our task is focused on

deployment, whose configuration is applied once for

a long period, the push mode was chosen since we

do not need periodic configuration checks.

Finally, we used the ability of DSC to create new

resources to configurations that are not provided as a

built-in resource. This process was straightforward

and the resultant resources could be reused in

several parts of the deployment script. Thus, this

feature was very useful to a complete automation of

our deployment process.

5 CONCLUSIONS

To the best of our knowledge, this work is the first

to provide an initial analysis on the use and

advantages of applying an infrastructure as code

strategy to deployment, based on the PowerShell

DSC. In fact, specialised forums and the software

engineering community comment this lack. We

could find comments such as “I've never seen

anyone with a robust production environment using

DSC exclusively yet, however there are plenty of

examples of Puppet/Chef environments”. Thus, this

paper is a first contribution in this direction.

Our analysis was based on a case study, which

used a real market application as object. The

quantitative analysis of the efficiency of the

approaches shows that the use of PowerShell DSC

offers the appropriate resources to the automation of

deployment process. However, our conclusions were

based on solutions that run on the Windows

platform. There are a few informal reports on the use

of PowerShell DSC in Linux. However we cannot

extend our conclusions to the Linux platform, since

the particularities of this environment may bring a

new set of challenges that must be analysed.

Our future researches intend to carry out a better

quantitative analysis since the infrastructure as code

is in fact being implemented in our organization.

Thus, several quantitative and qualitative data is

going to be generated regarding the real advantages

of this deployment approach.

REFERENCES

Artac, M., Borovssak, T., Di Nitto, E., Guerriero, M.,

Tamburri, D., 2017. DevOps: Introducing

Infrastructure-as-Code. Proceedigns of the 39th IEEE

International Conference on Software Engineering

Companion, pp. 497-498.

Bang, S. K., Chung, S., Choh, Y., Dupuis, M., 2013. A

grounded theory analysis of modern Web applications:

knowledge, skills, and abilities for DevOps.

Proceedings of the 2nd annual conference on

Research in information technology (RIIT '13). ACM,

New York, NY, USA, pp. 61-62.

Bruneo, D., Fritz, T., Keidar-Barner, S., Leitner, P.,

Longo, F., Marquezan, C., Metzger, A., Pohl, K.,

Puliafito, A., Raz, D., Roth, A., Salant, E., Segall, I.,

Villari, M., Wolfsthal, Y., Woods, C., 2014.

CloudWave: Where Adaptive Cloud Management

Meets DevOps. Proceedings of the IEEE Symposium

on Computers and Communications, pp.1–6. IEEE

Press, New York.

Claps, G. G., Svensson, R. B., Aurum, A., 2015. On the

Journey to Continuous Deployment: Technical and

From Theory to Practice: The Challenges of a DevOps Infrastructure as Code Implementation

435

Social Challenges Along the Way. Information and

Software Technology, 57(1):21-31.

DeGrandis, D., 2011. Devops: So you say you want a

revolution? Cutter Business Technology Journal, 24.8,

pp. 34-39.

Duvall, M. P., 2011. Continuous Delivery Patterns and

AntiPatterns in the Software LifeCycle.

Dyck, A., Penners, R., Lichter, H., 2015. Towards

Definitions for Release Engineering and

DevOps. Proceedings of the IEEE/ACM 3rd

International Workshop on Release Engineering.

Ebert, C., Gallardo, G., Hernantes, J., Serrano, N., 2016.

DevOps. IEEE Software, vol. 33, no. 3, pp. 94-100.

Erich, F., Amrit, C., Daneva, M., 2014. Report: Devops

literature review. University of Twente, Tech. Rep.

Hosono, S., 2012. A DevOps framework to shorten

delivery time for cloud applications. International

Journal of Computational Science and Engineering

7(4): 329–344.

Humble, J,. Farley, D., 2010. Continuous delivery:

reliable software releases through build, test, and

deployment automation, Addison-Wesley

Professional.

Hummer, W., Rosenberg, F., Oliveira, F., Eilam, T., 2013.

Testing Idempotence for Infrastructure as Code. Eyers,

D., Schwan, K (eds.) Middleware. pp. 368-388.

LNCS, vol. 8275, Springer Berlin Heidelberg.

Hüttermann, M., 2012. Infrastructure as Code. In:

DevOps for Developers. Apress, Berkeley, CA.

Jones, D., Siddaway, R., Hicks, J., 2013. PowerShell in

depth: An administrator's guide. Shelter Island, NY:

Manning Publications.

Liu, Y., Li, C., Liu, W., 2014. Integrated Solution for

Timely Delivery of Customer Change Requests: A

Case Study of Using DevOps Approach. International

Journal of U-& E-Service, Science & Technology, 7,

41–50, 2014.

Loukides, M., 2012. What is DevOps? Infrastructure as

Code, O´Reilly Media, 2012.

Lwakatare, L. E., Kuvaja, P., Oivo, M., 2015. Dimensions

of DevOps. Lassenius C., Dingsøyr T., Paasivaara M.

(eds) Agile Processes in Software Engineering and

Extreme Programming. Lecture Notes in Business

Information Processing, pp. 212-217.

Miell, I., Sayers, A. H., 2016. Docker in Practice.

Manning Publications Co.

O'Connor, R., Elger, P., Clarke, P., 2017. Continuous

software engineering – a microservices architecture

perspective. Journal of Software: Evolution and

Process, 29 (11).

Peacock, M., 2015. Creating Development Environments

with Vagrant. Packt Publishing Ltd.

Punjabi, R., Bajaj, R., 2016. User stories to user reality: A

DevOps approach for the cloud. IEEE International

Conference on Recent Trends in Electronics,

Information & Communication Technology (RTEICT),

Bangalore, pp. 658-662.

Scheuner, J., Leitner, P., Cito, J., Gall, H., 2014. Cloud

Work Bench--Infrastructure-as-Code Based Cloud

Benchmarking. Proceedings of the IEEE 6th

International Conference on Cloud Computing

Technology and Science (CloudCom), pp. 246-253.

Scheepers, M. J., 2014. Virtualization and containerization

of application infrastructure: A comparison.

Proceedings of the 21st Twente Student Conference on

IT, pp. 1-7.

Shang, W., 2012. Bridging the Divide between Software

Developers and Operators using Logs. Proceedings of

the 34th International Conference on Software

Engineering, pp. 1583–1586. IEEE Press, New York.

Spinellis, D., 2012. Don't install software by hand. IEEE

Software, 29(4), 86-87.

Tessem B., Iden, J., 2008. Cooperation between

developers and operations in software engineering

projects. Proceedings of the 2008 International

Workshop on Cooperative and Human Aspects of

Software Engineering, pp. 105-108.

Tomasevicius Filho, E., 2016. Marco Civil da Internet:

uma lei sem conteúdo normativo. Estudos

Avançados, 30(86): 269-285. (in Portuguese)

Walls. M., 2013. Building a DevOps Culture. Sebastopol,

CA: O'Reilly Media.

Wettinger, J., Andrikopoulos, V., Strauch, S., Leymann,

F., 2014. Characterizing and Evaluating Different

Deployment Approaches for Cloud Applications.

IEEE International Conference on Cloud Engineering,

pp. 205–214. IEEE Press, New York.

Wettinger, J., Breitenbücher, U., Leymann, F., 2014.

DevOpSlang – Bridging the Gap between

Development and Operations. Villari M.,

Zimmermann W., Lau KK. (eds) Service-Oriented and

Cloud Computing. ESOCC 2014. Lecture Notes in

Computer Science, vol 8745. Springer, Berlin,

Heidelberg.

Younge, A. J., Henschel, R., Brown, J. T., Von Laszewski,

G., Qiu J., Fox, G. C., 2011. Analysis of virtualization

technologies for high performance computing

environments. IEEE International Conference on

Cloud Computing, pp. 9-16.

Zhu, L., Xu, D., Xu, X., Tran, A. B., Weber, I., Bass, L.,

2014. Challenges in Practicing High Frequency

Releases in Cloud Environments. Proceedings of the

2nd International Workshop on Release Engineering,

pp. 21–24, Mountain View, USA.

ICSOFT 2018 - 13th International Conference on Software Technologies

436
