Cloudless Wide Area Friend-to-Friend Networking Middleware for

Smartphones

Jo Inge Arnes and Randi Karlsen

Department of Computer Science, UiT The Arctic University of Norway, Tromsø, Norway

Keywords:

Cloudless Peer-to-peer Mobile Communication, Friend-to-friend Networking, Unreachable IP Address.

Abstract:

Swirlwave is a middleware that enables peer-to-peer and distributed computing for Internet-connected de-

vices that lack publicly reachable Internet Protocol (IP) addresses, that can be expected to disconnect from

the network for periods of time, and that frequently change network locations. This is the typical case for

smartphones. The middleware ﬁts into the friend-to-friend subcategory of peer-to-peer systems, meaning that

the overlay network is built on top of already existing trust relationships among its users. It is independent of

clouds and application servers, it supports encryption for conﬁdentiality and authentication, and it aims to be

easily extensible for new applications. The solution described in this paper is implemented for smartphones

running the Android operating system, but its principles are not limited to this.

1 INTRODUCTION

Smartphones and their Internet features are used in a

wide range of areas in people’s lives. Examples are

online banking, keeping up with news, education, ca-

reer, looking up health information, sharing pictures

and videos, social networking, navigating in trafﬁc,

just to mention a few. In the U.S. 77 % use their phone

to share pictures, videos, or comments about events

happening in their community, and nearly one-in-

three smartphone owners frequently use their phone

for navigation (Smith, 2015).

The way a user accesses such services is generally

through apps supported by an online service, where

data is stored in the service provider’s data centers

or cloud services. This makes it possible to access

data from multiple devices, and share with others,

for example by sending a picture to friends through

Snapchat

. In this case, the picture is uploaded to

Snapchat’s servers, the recipient friends are notiﬁed

and can see the picture in their Snapchat app, which

downloads the picture from the Snapchat data center.

Smartphone apps that let users share and commu-

nicate with others over the Internet are commonly

supported by cloud services, where communication

passes through the cloud data centers. This can be a

source of privacy concerns. In addition to storing data

that the user uploads, many other types of data con-

https://www.snapchat.com

cerning the app are managed there. The provider of

the app usually gathers metadata about user activities,

such as whom they communicate with, when, where,

how often and about what.

The extensive use of cloud services also raises

concerns with respect to waste of computing re-

sources. Smartphones today have as much process-

ing power, memory, and storage capacity as a typical

desktop PC a decade ago. With the increasing popu-

larity of smartphones (Myers, 2016), it seems sensible

to explore ways to harness more of these hardware re-

sources.

An alternative to the cloud-based solutions is to

enable smartphones to communicate directly in a

peer-to-peer fashion over the Internet. However, this

is not a trivial solution, since smartphones usually

lack publicly reachable IP addresses and often change

networks, which makes it difﬁcult to keep track of the

devices’ addresses. Most smartphone apps of today,

therefore, depend on clouds or application servers

as middlemen to enable communication between de-

vices.

In this work, we describe a novel approach to

mobile peer-to-peer communication in wide area net-

works, which allows direct communication between

devices that frequently change networks and lack

public IP addresses. We introduce Swirlware, a mid-

dleware that enables wide area peer-to-peer commu-

nication for smartphones, without the need for clouds

or application servers for storing, processing, or shar-

Arnes, J. and Karlsen, R.

Cloudless Wide Area Friend-to-Friend Networking Middleware for Smartphones.

DOI: 10.5220/0006830102550264

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 1: DCNET, ICE-B, OPTICS, SIGMAP and WINSYS, pages 255-264

ISBN: 978-989-758-319-3

255

ing data. Our approach also supports incorporating

smartphones as nodes in a peer-to-peer or distributed

system, so that storage and processing capacities of

the smartphones can be utilized as part of a bigger

whole.

Experiments show that Swirlwave handles cloud-

less, mobile peer-to-peer communication well. It en-

ables smartphones to be directly reached and sup-

ports continued communication when devices move

between networks.

In the following, we ﬁrst compare Swirlwave to

related work. We then give an overview of the pro-

posed system, describing the architecture and under-

lying communication. Section 4 describes the Swirl-

wave middleware. Experiments and results are pre-

sented in Section 5, while the last sections present

discussions and conclusion.

2 RELATED WORK

The Swirlwave middleware provides a novel solution

to peer-to-peer mobile communication, where obsta-

cles, such as unreachable IP addresses, disconnec-

tions and frequently changing network locations, are

handled. We here describe how Swirlwave relates to

previous work on mobile communication.

Popescu et al. (Popescu et al., 2006) describe a

friend-to-friend (F2F) architecture, called Turtle, for

safe sharing of sensitive data. As Swirlwave, it builds

an overlay network from pre-existing trust relation-

ships. Turtle differs from Swirlwave by being a the-

oretical description of a ﬁle sharing network archi-

tecture, where search queries are ﬂooded through the

network. Swirlwave, on the other hand, is a mid-

dleware enabling friend-to-friend networking without

being tied to speciﬁc applications.

A variety of apps for using smartphones as servers

exist, for example, web servers for Android, but they

only work as part of a local area network. To connect,

clients must be on the same local area network as the

server. This is a serious restriction when using mo-

bile devices. Swirlwave enables smartphone server

apps to be available outside local area networks and

continue communicating with clients despite network

changes.

Orbot

allows smartphones to be reached outside

local area networks, but it has no mechanism for

changing addresses when the smartphone changes lo-

cation. This problem is solved in Swirlwave, which

handles address changes.

Thali

is a Microsoft sponsored experimental plat-

https://guardianproject.info/apps/orbot

http://thaliproject.org

form for building peer web. It is described as an open-

source software platform for creating apps that exploit

the power of personal devices and put people in con-

trol of their data. Thali planned to use the Tor Onion

Service protocol

(called hidden services at the time),

the same protocol as Swirlwave builds on, but aban-

doned the idea, since onion services were designed for

stationary services, not mobile ones.

It is clear from

the project’s homepage that Thali instead communi-

cates over Bluetooth Low Energy (BLE), Bluetooth,

and Wi-Fi direct, none of which are wide area com-

munications. In contrast to Thali, Swirlwave provides

functionality that enables the use of the Tor Onion

Service protocol on mobile devices, can thus support

wide area mobile communication.

3 MOBILE PEER-TO-PEER

COMMUNICATION WITHOUT

PUBLIC IP ADDRESS

This section describes the architecture for Swirlwave

and how it builds on Tor and the Tor Onion Service

protocol

. We also describe the problem of unreach-

able IP addresses.

3.1 Unreachable Addresses

Usually, when a personal computer is connected to the

Internet, other computers cannot directly contact it.

This is because of network address translation (NAT).

The computer can initiate contact with a server, but

it cannot act as a server itself. The same is true for

smartphones. The reason is that computers are not

directly connected to the Internet, but are part of a

local area network (LAN) that communicates with the

outside world through a router.

Devices on a LAN are assigned IP addresses that

are only valid inside the LAN. In the most common

conﬁguration, IPs are assigned by a DHCP-server. A

device is given an address when it connects to a LAN,

but this address can be different the next time the de-

vice connects to the same network.

When a computer connects to a server on the Inter-

net, the server will see the IP of the router. The server

sends its replies to the router, which performs network

address translation and routes the trafﬁc to the correct

computer (Comer, 2014). IPs of computers inside the

LAN are not reachable from the Internet. This is also

https://www.torproject.org/docs/onion-

services.html.en

http://thaliproject.org/ThaliAndTorHiddenServices

https://www.torproject.org

WINSYS 2018 - International Conference on Wireless Networks and Mobile Systems

256

the case for smartphones connected to the Internet via

local Wi-Fi or cellular data such as 4G.

3.2 Architecture

A system based on Swirlwave has a shared-nothing

architecture with independent and self-sufﬁcient

nodes that do not share memory or disk storage. The

nodes will generally run on separate physical devices,

most notably smartphones connected to the Internet

through Wi-Fi or cellular data. It is a peer-to-peer

system that does not rely on cloud computing or ap-

plication server middleboxes.

3.2.1 Friend-to-Friend Network

Swirlwave is based on friend-to-friend (F2F) net-

working (Bricklin, 2000), a category of unstruc-

tured, private peer-to-peer networking where peers

only connect directly to already known peers (friends)

(Rogers and Bhatti, 2007). Friendships are commuta-

tive, but not automatically transitive.

In Figure 1, peers A, B, and D are all friends and

can connect to each other. Peer C is only friends with

B, and cannot contact A and D directly. However, it is

possible to reach unknown, faraway peers indirectly.

Using a far-reaching query, A can ask B to relay the

query to its friends, which again could query friends,

and so on.

Figure 1: Friend-to-friend network.

Friend-to-friend networks are useful for dis-

tributed systems with a predeﬁned set of dedicated

nodes that should not be available to everyone. It can,

for example, be used for connecting a set of company-

owned smartphones or for setting up a social network

of friends to chat or share data.

3.2.2 Swirlwave Middleware

Swirlwave is designed as a middleware that facilitates

communication between applications on mobile de-

vices. It is located between the application and oper-

ating system (including transport layer services, such

as TCP/IP). The devices are connected to the Internet,

and trafﬁc is routed through the Tor overlay network.

All peers can be clients and servers at the same

time; they can expose several services for peers to

consume, and they can be clients to services published

by other peers. To contact a server, the client appli-

cation need not know the address of the server peer.

Neither does it need to know how to connect to the

underlying communication service Tor.

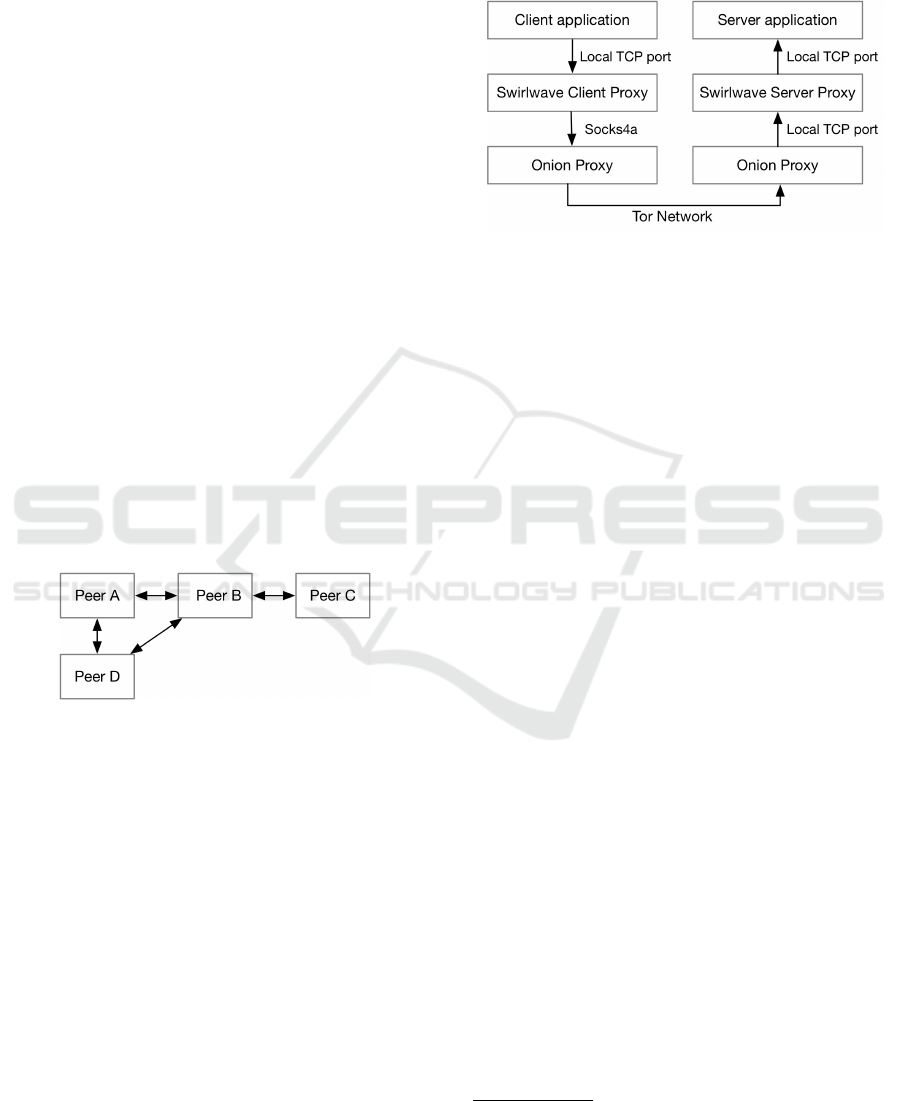

Figure 2: Proxying from client to server.

Applications built on top of Swirlwave communi-

cate over TCP and register as plug-ins with Swirlwave

along with their capabilities, such as properties of the

application. Swirlwave is designed so that existing

applications and libraries easily can make use of it.

This is achieved by creating two proxies, a client- and

a server-side proxy.

Figure 2 shows two peers, one acting as client, the

other as server. Any client application using TCP con-

nections can connect to the locally running Swirlwave

proxy, and the middleware will automatically route

the trafﬁc to the correct peer. The client proxy listens

to connections from local clients on a range of ports.

When a client application connects, the port number

is used to ﬁnd the correct peer and requested service.

The Swirlwave client proxy connects to the locally

running onion proxy through the SOCKS4a protocol

(Lee, 2012), which sends the trafﬁc through the Tor

network.

On the other end, a Swirlwave server proxy re-

ceives data from the onion proxy and directs the traf-

ﬁc via ordinary TCP to the correct service running

locally on the receiving peer.

3.3 Tor and Tor Onion Services

The main objective of Tor

is anonymity, not connec-

tivity. It is designed to conceal online trafﬁc from

surveillance and monitoring by relaying through sev-

eral nested proxies, compared to the layers of an

onion. Per February 2018 the network consisted of

over 6000 volunteer relays

Tor is a public overlay network where encrypted

trafﬁc is routed through at least three onion routers be-

fore reaching its destination. On each end of the net-

https://www.torproject.org

https://metrics.torproject.org

Cloudless Wide Area Friend-to-Friend Networking Middleware for Smartphones

257

work, there are onion proxies. The client-side onion

proxy has access to a directory of onion routers, and

when choosing the preferred onion routers, a circuit

is built. Each onion router in a circuit knows only its

predecessor and successor.

At the destination end of the circuit, an onion

proxy receives the trafﬁc and sends it to the destina-

tion server, which is just an ordinary server reachable

from the Internet. The server is not aware of the use

of Tor. The Tor network protects the privacy of the

client by hiding the client identity from the server.

If a server wants to hide its location, the Tor Onion

Service protocol can be used. In this protocol, an

onion proxy on the server side will register an onion

service in the Tor network. It then gets a special type

of address, called an onion address, which is valid in-

side the Tor network. Clients can reach the server via

Tor by using the onion address. The protocol thus

makes it possible for a client to reach a server without

letting the client know the server’s real location.

As a side effect of hiding the server’s location, the

server becomes available without a public IP-address.

We also note that the onion proxy that registers the

onion service, initiates a connection from the server

side to the Tor overlay network. This means that the

server can be behind a NAT, since NAT only pre-

vents connections from the Internet to the server, not

in the opposite direction (Comer, 2014). An unin-

tended consequence of the protocol is therefore that

onion services can be used to reach servers behind

NAT. This is useful for Swirlwave, and the reason for

building the Swirlwave communication on Tor.

The use of the Tor Onion Service protocol makes

it possible to reach smartphones outside local area

networks. However, Tor does not include any means

to announce new addresses to clients, so clients are

not able to connect anymore when a smartphone

changes location. Also, there is no protocol trans-

parency, so a client connecting to the smartphone

server app must understand the protocol used by Tor.

The Swirlwave system is designed to solve these

problems transparently as a middleware.

4 SWIRLWAVE

Swirlwave builds on the Tor Onion Service protocol,

not because of the anonymity provided by the pro-

tocol, but because of the onion addresses assigned to

participating devices. Thus, Swirlwave uses onion ad-

dresses to reach devices that are lacking publicly vis-

ible IP addresses. However, since the Tor Onion Ser-

vice protocol is not designed for mobile devices, but

rather devices that never change location, Swirlwave

adds functionality for locating devices and keeping

peers up to date with correct addresses. As anonymity

is not required in Swirlwave, as opposed to in Tor, au-

thentication of peers is also added to Swirlwave.

4.1 Contacts

Keeping track of peer addresses is a central feature of

Swirlwave. This is achieved without external direc-

tory services or single points of failure. Each peer in

Swirlwave keeps its own, locally stored, contact list

of the known peers. New contacts are added out-of-

band, for example through near-ﬁeld communication

(NFC) when friends meet face-to-face.

An entry in the contact list contains data that is

needed to communicate with that speciﬁc peer. It

also contains information about services offered by

the peer. An entry includes the peer ID, onion address,

services offered by the peer, phone number (used as

an alternative address in an SMS fallback protocol)

and its public-key. See Table 1 for the complete con-

tact list information.

To conduct meaningful communication, client and

server must use the same protocol. Swirlwave allows

applications to use whichever protocol that is suitable.

This ﬂexibility is possible by representing protocols

as universally unique identiﬁers (UUID) (Leach et al.,

2005). More generally, they are identiﬁers of con-

tracts or agreements that server and client must com-

ply to in order to properly communicate. Swirlwave

does not care about the details of this contract, but

simply uses the identiﬁer to match clients and servers.

For example, to send a message to a friend, a

user selects the friend from the Swirlwave contact list.

Based on protocol UUIDs registered for this friend,

Swirlwave presents a list of available communication

types. If the user has an application that can be used as

client, Swirlwave detects it by matching the identiﬁers

of the locally installed applications with the identiﬁer

of the friend’s messaging service.

4.2 Authentication and Conﬁdentiality

Each peer is equipped with its own key-pair

for public-key encryption (Goodrich and Tamassia,

2014). This is used for authentication purposes. It

is also used for ensuring conﬁdentiality, integrity, and

non-repudiation of data when communicating over

other channels. Tor Onion Service communication

is end-to-end encrypted, which provides communica-

tion conﬁdentiality.

The Tor protocol is designed for anonymity. Con-

sequently, the onion proxy on the server side will not

know the origin of incoming connections. In our ap-

WINSYS 2018 - International Conference on Wireless Networks and Mobile Systems

258

Table 1: Information in a contact list record.

Field name Description

Name A human-readable name of the friend

Peer ID An ID that is unique across all installations

Address The friend‘s onion-address

Address Version Each time a peer changes its address, it will increment the address version number.

Secondary Address The phone number used when sending SMS-messages to the peer

Public-key The public-key from the friend’s asymmetric keys

Online Status If the last attempt to reach the friend was unsuccessful, this status is set to ofﬂine, otherwise online

Last Contact Time The last time contact was made with the peer

Known Friends A list of peer IDs for mutual friends

Capabilities A list of capabilities supported by this friend. Such as available services and protocol UUIDs

Awaiting Answer A ﬂag indicating if an answer from the SMS fallback protocol is pending

proach, this anonymity hinders the identiﬁcation of

incoming requests from friends.

Swirlwave solves this by providing an authenti-

cation mechanism for validating the identity of in-

coming connections. This functionality is part of the

Swirlwave client and server proxies and is based on

public-key cryptography.

To establish a new connection, the client-side

proxy sends a system message encrypted with the

client’s private key. To validate the identity of the

sender, the server-side proxy decrypts the message

with the client’s public key. The connection request

is refused if the claimed identity of the client cannot

be authenticated.

4.3 Establishing Connections

To establish a connection, a request is sent from a

Swirlwave client proxy through the onion proxy. The

message header contains (among others) the friend’s

onion-address. If the onion proxy returns a positive

response code (0x5A) telling that it successfully con-

nected to the remote onion service, the client proxy

also receives a four-byte number. This number is later

returned to the server as part of the connection mes-

sage. If the server proxy accepts the connection (after

evaluating the connection message from the client) it

responds with a success code (0x10). The client proxy

then starts reading and writing bytes between the in-

coming socket from the application-layer client and

the outbound onion proxy socket. Figure 3 illustrates

this communication.

In the connection message, everything except the

client ID is encrypted with the client’s private-key.

The server proxy looks up the peer ID in the contact

list and rejects the connection if the peer is unknown.

If the ID is found in the contact list, the registered

public-key is used to decrypt the message. If the mes-

sage is successfully decrypted, and the returned num-

ber equals the one that was sent to the client, the client

is authenticated and the connection is accepted.

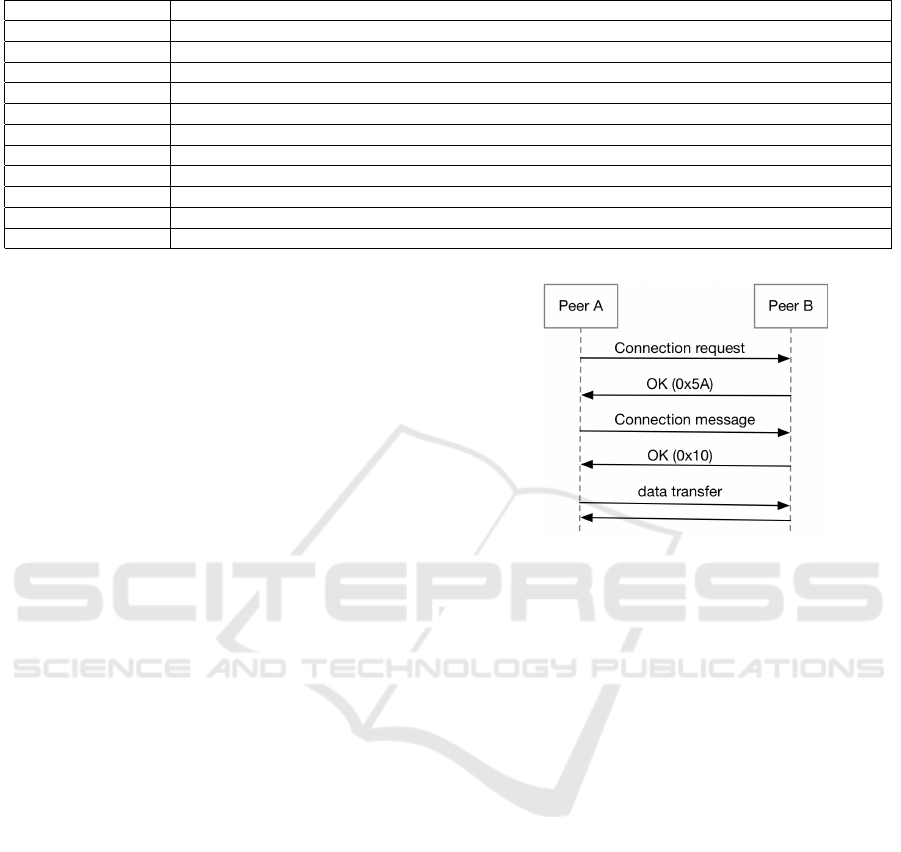

Figure 3: Establishing connection.

The connection message also speciﬁes if the

connection is for transmitting system messages or

application-layer data. For an application-layer con-

nection, the server proxy will use the identiﬁer in the

destination ﬁeld, to match a local service endpoint,

and set up a connection from the client to the ser-

vice. For a system message, the content of the mes-

sage ﬁeld will be dispatched to an internal module in

the Swirlwave middleware that handles system mes-

sages. See Table 2 for a complete list of information

included in the connection message.

If the onion proxy fails to connect to the remote

onion service, the client proxy marks the peer as be-

ing ofﬂine. It then starts the process of obtaining an

updated address to the peer, either by asking a mu-

tual friend, or using an SMS fallback protocol that

contacts the peer directly. The client proxy will not

try to establish new connections to the friend until an

updated address is obtained. The friend will then be

marked as online again.

4.4 Address Changes

When a smartphone moves from one network to an-

other, for instance from Wi-Fi to cellular data, its ac-

cess point is not the same as before. The IP address

will most likely be different, and the route to the de-

vice will most certainly be different.

Cloudless Wide Area Friend-to-Friend Networking Middleware for Smartphones

259

Table 2: Connection message information.

Field name Description

Sender ID The peer ID of the client

Random Number A random number initially generated and sent by the server proxy

Message Type Whether this is a system message or an application-layer connection

Destination An identiﬁer of a capability representing a service that the client wishes to consume.

This will only be set for application-layer connections.

System Message A system message that will be dispatched to a module that handles system messages.

This will only be set for system message types.

Address changes must be announced to friends.

A device that has been ofﬂine, or has changed its lo-

cation, will contact its friends as soon as it is online

again. The new address is passed with a version num-

ber. This version number is increased every time a

peer changes its address, and is used to determine the

newest address when comparing registered addresses

across peers.

If the peer has been ofﬂine for a while, it is not un-

likely that some of its friends have changed addresses.

The peer will not have received the updated address,

and will not be able to reach them. It must then ei-

ther contact a mutual friend to obtain a peer‘s new ad-

dress, or contact the peer directly using an SMS fall-

back protocol.

As an example, assume peer B, in Figure 4, has

changed address. It sends a system message (marked

1) with the new address to its three friends. Peer A

successfully receives the address and updates its con-

tact list, while the two other peers cannot be reached.

When C and D later tries to contact B, they discover

that it cannot be reached, and they will request an up-

dated address. Peer A is a mutual friend of D and B,

and D can therefore ask A for B’s address (marked

2a). Peer C, on the other hand, does not have any

other friends to ask. Instead, it uses an alternative

channel to ask B directly for its address (marked 2b).

As phone numbers represent stable addresses where

peers can always be reached, Swirlwave uses SMS as

the alternative channel.

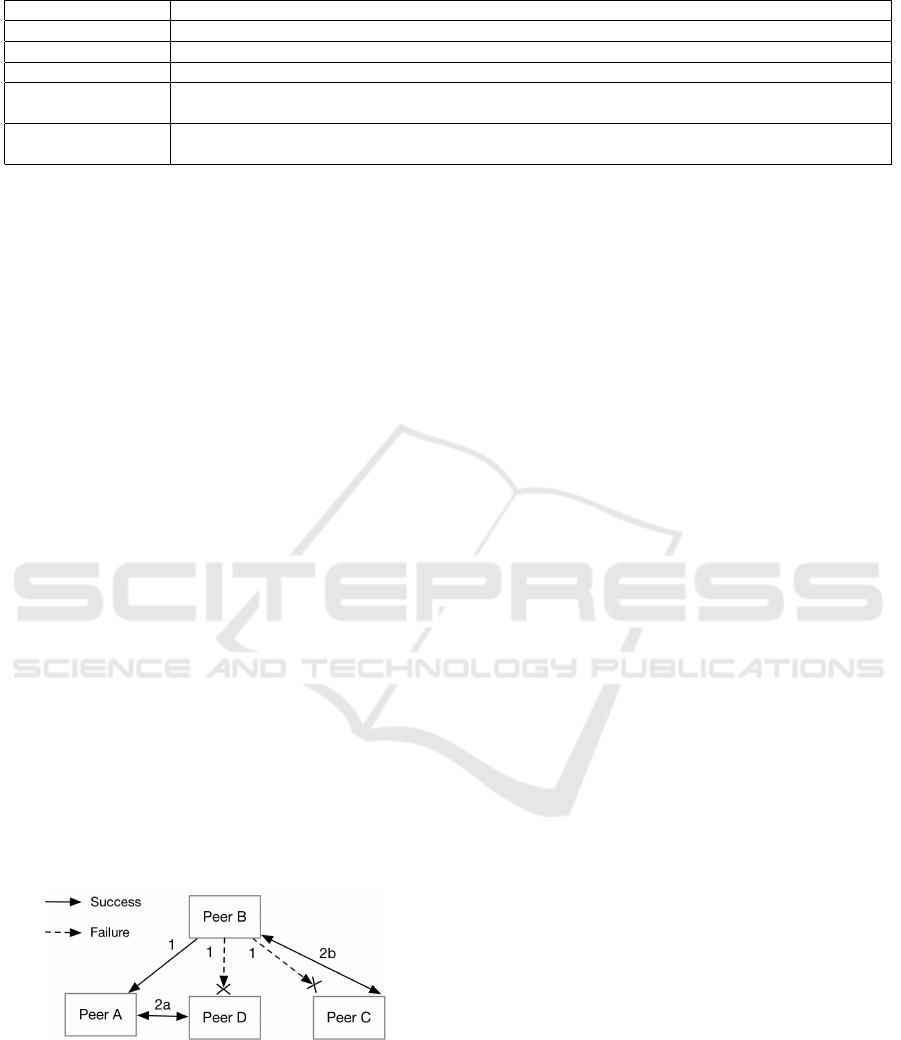

Figure 4: Peer B changes address.

Swirlwave uses onion-addresses that make it pos-

sible to connect to peers, even if their IP addresses are

unreachable from the Internet. Nevertheless, routing

is dependent on IP addresses under the hood, just as

everything else on the Internet. It is possible to reuse

an onion-address so that it resolves to a new access

point. However, there is no support in the Tor control

protocol for letting the client refresh the route to an

onion service.

The Swirlwave solution is to monitor network

changes on the device and register a new onion ser-

vice when the smartphone connects to a new net-

work. If a network and access point address is rec-

ognized from earlier, the onion service and onion-

address from last time is reused.

If a connection is broken while being used by an

application, Swirlwave does not try to reconnect au-

tomatically. In the current implementation of Swirl-

wave, it is the responsibility of the application to re-

connect and resume transfers. To support continuous

communication when devices change network, the

Swirlwave proxies can be improved so that the con-

nection is kept open between application-layer and

Swirlwave proxy-layer. This will allow peers to con-

tinue communication when the new address is avail-

able.

4.5 SMS Fallback Protocol

The SMS fallback protocol is used to request new

addresses from unresponsive peers. When the client

proxy of peer C discovers that it cannot connect to a

friend, B, and there are no other friends to ask for the

address, it will send a data SMS to B. In contrast to

an ordinary text SMS, a data SMS will not be visi-

ble to the user. Instead it will be received directly by

Swirlwave.

The fallback protocol starts by C sending B an

SMS, including C’s address and a secret one-time

code. This is encrypted with C’s private key. The one-

time code has several purposes; it enables duplicate

message detection, and it is a combined message-ID

and anti-forgery token sent back to C.

On the receiving side, B looks up C’s phone num-

ber in the contact list, to conﬁrm that the SMS is from

a friend. B decrypts the message and updates the con-

tact list with C’s address. If Swirlwave is running and

connected, C is answered immediately over the Inter-

net with B’s current address. Otherwise C will receive

the answer as soon as Swirlwave connects again.

WINSYS 2018 - International Conference on Wireless Networks and Mobile Systems

260

In the response, B sends its new address together

with the one-time code originally send by C . The

message is encrypted with B’s private key. When re-

ceived, C updates the contact list with B’s new ad-

dress.

5 EXPERIMENTS

We have conducted several experiments using the

Swirlwave middleware. Testing included both func-

tionality of the system and the ability to support lo-

cation transparent communication, and performance

measurements, for startup time, connection establish-

ment time, throughput, transmission time and latency.

This section describes our results.

5.1 Peer-to-Peer Communication

We have tested peer-to-peer communication using

Swirlwave for establishing connections to the net-

work, connecting to peers and transferring data. In

these experiments, we have in particular tested how

the system handles network changes and the ability to

stay connected despite location changes.

In one of the experiments, we use two smart-

phones, directly connected using Swirlwave. A web-

cam app was installed on one phone, and the Swirl-

wave connection enabled the user of the other phone

to receive live streaming from the web-cam in the

phone’s browser. Because of Swirlwave, this is pos-

sible while both phones are connected to 4G. We also

demonstrated that the phones can change network be-

tween 4G and Wi-Fi during streaming. In that case,

the phones will update each other’s addresses and the

streaming from the web-cam to the browser contin-

ues.

The address used by the browser, is a port on

localhost. Thus, from the browser’s point of view,

the web-cam seems to be on the same phone. How-

ever, Swirlwave keeps the current address to the peer

and routes the trafﬁc to the correct smartphone. This

means the browser can continue to use the localhost-

address and can be kept unaware of network changes.

This demonstrates location transparency and that we

can stream from anywhere, without being connected

to Wi-Fi.

5.2 Performance

When evaluating the performance of Swirlwave, we

compared with two alternative conﬁgurations; one

where Tor is used without Swirlwave, and another us-

ing a plain Internet connection.

We used two smartphones during the experiments;

a Huawei P9 Lite, used as client and connected to cel-

lular data (4G), and a Samsung Galaxy Note 4, used

as server and connected to Wi-Fi. Experiments that

collected measurements that are compared, were car-

ried out within a short time-frame.

Orbot, which is the ofﬁcial version of the Tor

onion routing service on Android, was used as to test

communication with Tor without Swirlwave. Orbot

enables smartphones to be reached outside local area

networks, but has no mechanism for changing ad-

dresses when a smartphone changes location.

To enable direct Internet connection between

smartphones, an Internet subscription with a static,

public IP address was used in the experiments. For

this environment, a wireless router was manually con-

ﬁgured to forward from a speciﬁc port to one of the

smartphones. This means that the server smartphone

could be contacted directly from the Internet. The

limitation of this approach, compared to Swirlwave,

is that the server smartphone cannot be reached if

it leaves the manually conﬁgured Wi-Fi. Also, the

smartphone cannot have the role as server when con-

nected to cellular data.

5.2.1 Starting Onion Proxy

This experiment measures how long it takes from the

onion proxy is started to the onion service is regis-

tered and ready for use. The difference between start-

ing a new onion service and reusing an existing one is

compared.

Table 3: Onion proxy start-up times.

Median 90

Percentile

Num.

Trials

New onion

service

18.080s 43.941s 10

Reused onion

service

8.401s 8.855s 10

The implementation of Swirlwave reuses an al-

ready registered onion service when reconnecting to

a previously seen network location. As seen in Table

3, there is a clear difference in onion proxy start-up

times between registering a new onion service and

reconnecting to one that is already registered (and

the registration process is avoided). Registering a

new onion service took about twice as long. Also,

the start-up time varied much more when registering

new onion services than for reusing. When compar-

ing the 90th percentiles, the start-up time for register-

ing a new onion service was approximately ﬁve times

slower than reusing.

Cloudless Wide Area Friend-to-Friend Networking Middleware for Smartphones

261

5.2.2 Establishing Connections

We here measure how long it takes to establish a con-

nection between client and server in the three different

cases:

• Connecting via Swirlwave. This includes the time

it takes to authenticate the client.

• Both client and server use Orbot.

• Connecting directly over the Internet.

Table 4: Times for establishing connection.

Median 95

Percentile

Num.

Trials

Connecting via

Swirlwave

1.829s 3.557s 100

Onion service

w/Orbot

1.384s 2.931s 100

Directly over

Internet

1.827s 3.597s 100

According to our experiments, the time it took

to establish connections is nearly identical for con-

necting via Swirlwave and directly via Internet. This

is a bit surprising, since the connections in case of

Swirlwave must be made through the Tor overlay net-

work. Additionally, the Swirlwave connection times

include authenticating the client. Connecting via Tor

using Orbot, which does not include any authentica-

tion, is faster than connecting directly via a plain In-

ternet connection. This may suggest that the differ-

ence between connecting via Tor and via the Internet

roughly equals the time Swirlwave uses to authenti-

cate the client.

5.2.3 Throughput

Throughput is the rate of successful data delivery over

a communication channel (Forouzan, 2013). Given

that a connection is established and the client authen-

ticated, we measure how long it takes from the client

starts reading the ﬁrst byte until 12.5MB has been

read. The rate is subsequently calculated.

Table 5: Throughput.

Median 95

Percentile

Num.

Trials

Swirlwave 2.510Mbps 1.380Mbps 74

Onion service

w/Orbot

1.950Mbps 0.910Mbps 100

Directly over

Internet

18.58Mbps 11.95Mbps 100

The throughput was lower when routing via Tor

than directly over the Internet. This was true for both

Swirlwave and Orbot. The throughput for Swirlwave

was in this case higher than Orbot. Transmitting di-

rectly over the Internet without Tor was 7.4 times

faster than Swirlwave, and 9.5 times faster than Or-

bot.

5.2.4 Transmission Time

Transmission time is the time it takes from the ﬁrst

bit till the last bit of a message is sent from a node.

Transmission time is depending on message size and

bandwidth (Forouzan, 2013), as shown in (1).

Transmission time = MessageSize / Bandwidth (1)

To estimate transmission time for our system, the me-

dian throughput is used in place of the bandwidth, and

the message size is set to 8 bits.

Table 6: Transmission times.

Transmission Time 1 Byte (8 bits)

Swirlwave 3.200 × 10

−6

s (3.200µs)

Onion Service

w/Orbot

4.103 × 10

−6

s (4.103µs)

Directly over

Internet

4.306 × 10

−7

s (0.4306µs)

The results show that transmission time for all

three alternatives are very low, with the Internet-

connection having the lowest result, followed by

Swirlwave and Orbot.

5.2.5 Latency

Network latency speciﬁes how long it takes for a bit

of data to travel across the network from one node to

another (Forouzan, 2013). Latency depends on sev-

eral components, as shown in (2).

Latency = Propagation Time + Transmission Time +

Queuing Time + Processing Time (2)

We ﬁrst measure round-trip time (RTT), which is the

time it takes from the client sends a byte until it re-

ceives a response byte from the server. This has the

advantage that start and end times can be measured at

the same smartphone. RTT is described in (3)

RTT = 2 × Latency + Processing Delay (3)

The extra processing delay represents the time from

the byte is read by the server until it sends a response

byte to the client.

We estimate latency based on the RTT measures,

using the simpliﬁed calculation in (4).

Latency = RTT / 2 (4)

Latencies were almost similar for Swirlwave and Or-

bot, at about three tenths of a second, while latency

WINSYS 2018 - International Conference on Wireless Networks and Mobile Systems

262

Table 7: Round-Trip Times.

Median 95

Percentile

Num.

Trials

Swirlwave 0.637s 0.816s 100

Onion service

w/Orbot

0.639s 1.554s 100

Directly over

Internet

0.106s 1.039s 100

Table 8: Latency.

RTT median Latency

Swirlwave 0.637s 0.3185s

Onion service

w/Orbot

0.639s 0.3195s

Directly over

Internet

0.106s 0.053s

when transmitting directly over the Internet were ap-

proximately six times less.

From Table 6 we have that transmission time is

very low, and thus negligible when considering la-

tency. Latency in Table 8 therefore depend on prop-

agation time, and the time used for processing and

queuing in the nodes.

6 DISCUSSIONS

To establish connections from the Internet to hosts be-

hind NAT, a technique, known as NAT Traversal (Hu,

2005), is needed for circumventing the problems as-

sociated with address translations and private IP ad-

dresses.

Before choosing Tor as a basis for Swirlwave, we

considered other approaches to NAT traversal, includ-

ing Virtual Private Network (VPN) (Comer, 2014),

UDP hole punching (Hu, 2005) and SSH

. These al-

ternatives had several drawbacks that made them un-

suitable for Swirlwave. Setting up VPN servers re-

quires public IPs and an amount of manual work for

conﬁguration and management. Also, for clients to

act as servents, they need reserved IP addresses or

some other mechanism for locating peers. UDP hole

punching only supports UDP communication, and

needs a server middlebox to establish peer-to-peer

communications, while SSH requires a server with a

public IP address.

Another choice we made, was using SMS as fall-

back protocol. Gossiping, hand-offs, and other tech-

niques (Tanenbaum and Steen, 2014) were consid-

ered, but they were all regarded more complicated,

less secure, less reliable, and they require the involve-

ment of more than two participants. We consider the

https://www.ssh.com/ssh

SMS fallback protocol to have several advantages.

SMS is available on all smartphones, the phone num-

ber is a stable address, it works when only two peers

exist, and the protocol does not require extra hard-

ware, servers or software.

The functionality and performance of Swirlwave

has been tested in several experiments. We ﬁnd that

Swirlwave handles peer-to-peer communication be-

tween smartphones well. Phones can act as both

client and servers, and Swirlwave enables continued

communication also when phones move between net-

works.

From the experiments, the most prominent down-

side with Swirlwave communication is the lower

throughput caused by the use of Tor. The extra round

trips and processing involved in authenticating the

client does not seem to affect the performance much.

Neither does the processing done by the Swirlwave

proxies. The experiments also show that establishing

a connection between peers takes time. It will there-

fore be beneﬁcial to keep connections open, instead

of closing when a session is ﬁnished.

The use of IP here, refers to IPv4 (Postel et al.,

1981), which is by far the most widespread IP version

as of today. However, with the use of the more re-

cent IPv6 (Deering, 1998), each device will be given

an address that is public, and NAT will no longer be

needed. An addition to this protocol, called mobile

IPv6, is designed to let devices keep their address

even when changing networks (Perkins et al., 2011).

In this scenario, Swirlwave would not need Tor for

connectivity, but would rather build on IPv6. How-

ever, the adoption of IPv6 is still low in most coun-

tries. Per February 2018, it is estimated to about

12.8% in the U.K., 16.8% in Norway and 40.4% in

the U.S.

Also, even with a full adoption of IPv6,

NAT may still be used for security reasons, since it

shields devices from direct access from the Internet.

We therefore believe that Swirlwave (or similar types

of middleware) will continue to be useful in the fu-

ture.

7 CONCLUSION

The goal of this work has been to design and imple-

ment an alternative to the traditional, cloud-centric

approach to smartphone communication. We have de-

scribed a novel approach to mobile friend-to-friend

communication in wide area networks, that allows di-

rect communication between devices that lack public

https://www.akamai.com/uk/en/about/our-

thinking/state-of-the-internet-report/state-of-the-internet-

ipv6-adoption-visualization.jsp

Cloudless Wide Area Friend-to-Friend Networking Middleware for Smartphones

263

IP addresses, and often disconnect or change network

locations. This functionality is implemented as a mid-

dleware, called Swirlwave, on which applications can

be built.

The system is friend-to-friend based, and only de-

vices that are explicitly registered as friends can com-

municate directly as peers. This makes it possible to

deﬁne smaller overlay networks of trusted devices.

Swirlwave is based on the Tor Onion Service pro-

tocol, which provides onion addresses for participat-

ing devices. Swirlwave extends the Tor service by

providing authentication of connection requests and

location transparency by handling network changes

and updates of addresses.

Testing shows that Swirlwave handles peer-to-

peer communication between smartphones well. It

provides an interface that makes it easy for vari-

ous applications to access the communication ser-

vice. Swirlwave also supports incorporation of new

devices, which makes it easy to expand a network.

REFERENCES

Bricklin, D. (2000). Friend-to-friend networks. http://www.

bricklin.com/f2f.htm.

Comer, D. (2014). Internetworking with TCP/IP. Pearson,

6th edition.

Deering, S. E. (1998). Internet protocol, version 6 (ipv6)

speciﬁcation.

Forouzan, B. (2013). Data communications and network-

ing. McGraw-Hill, New York, 5th edition.

Goodrich, M. and Tamassia, R. (2014). Introduction to com-

puter security. Pearson, 1st edition.

Hu, Z. (2005). Nat traversal techniques and peer-to-peer

applications.

Leach, P. J., Mealling, M., and Salz, R. (2005). A univer-

sally unique identiﬁer (uuid) urn namespace.

Lee, Y. (2012). Socks 4a: A simple extension to socks

4 protocol. https://www.openssh.com/txt/socks4a.pro

tocol.

Myers, J. (2016). World economic forum: 4 charts that ex-

plain the decline of the pc. https://www.weforum.org/

agenda/2016/04/4-charts-that-explain-the-decline-of-

the-pc/.

Perkins, C., Johnson, D., and Arkko, J. (2011). Mobility

support in ipv6. Technical report.

Popescu, B. C., Crispo, B., and Tanenbaum, A. S. (2006).

Safe and private data sharing with turtle: Friends

team-up and beat the system. In Christianson, B.,

Crispo, B., Malcolm, J. A., and Roe, M., editors, Se-

curity Protocols, pages 213–220, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Postel, J. et al. (1981). Rfc 791: Internet protocol.

Rogers, M. and Bhatti, S. (2007). How to disappear com-

pletely: A survey of private peer-to-peer networks.

RN, 7(13):1.

Smith, A. (2015). U.s. smartphone use in 2015.

http://www.pewinternet.org/2015/04/01/us-

smartphone-use-in-2015/.

Tanenbaum, A. and Steen, M. (2014). Distributed Systems,

Principles and Paradigms. Pearson, 2nd edition.

WINSYS 2018 - International Conference on Wireless Networks and Mobile Systems

264
