Side Channel Attacks over Encrypted TCP/IP Modbus Reveal

Functionality Leaks

Nikolaos Tsalis, George Stergiopoulos, Evangelos Bitsikas,

Dimitris Gritzalis and Theodore Apostolopoulos

Information Security & Critical Infrastructure Protection (INFOSEC) Laboratory,

Dept. of Informatics, Athens University of Economics and Business, Greece

Keywords: Modbus, Protocol, Side, Channel, Attack, Decision, Tree, Sequence, Unpadded, Cryptography, Scada, TCP.

Abstract: With HMI systems becoming increasingly connected with the internet, more and more critical infrastructures

are starting to query PLC/RTU units through the Web through MODBUS ports. Commands sent from such

interfaces are inevitably exposed to potential attacks even if encryption measures are in place. During the last

decade, side channels have been widely exploited, focusing mostly on information disclosure. In this paper,

we show that despite encryption, targeted side channel attacks on encrypted packets may lead to information

disclosure of functionality over encrypted TCP/IP running MODBUS RTU protocol. Specifically, we found

that any web interface that implements unpadded encryption with specific block cipher modes (e.g. CFB,

GCM, OFB and CTR modes) or most stream ciphers (e.g. RC4) to send MODBUS functions over TCP/IP is

subject to differential packet size attacks. A major cause for this attack is the very small number of potential

MODBUS commands and differences in packet sizes, which leads to distinctions in traffic. To support the

importance of these findings, we conducted research on Shodan looking for relevant devices with open

MODBUS ports over TCP/IP that utilize encrypted web traffic. The result was that a significant amount of

web interfaces communicate with MODBUS ports and many use unpadded ciphers and SSL with AES-GCM

or RC4. We also implemented a PoC on a simulated architecture to validate our attack models.

1 INTRODUCTION

Human-machine interfaces (HMIs) control devices

over SCADA networks and allow remote

administration of systems in various critical

infrastructures. During the last decade, HMI systems

are becoming increasingly connected with the

internet. Today, these interfaces are using the Web to

provide remote administration of systems not usually

located within a predefined control area. However,

unlike traditional isolated SCADA networks,

exposing the HMI to the internet and allowing for a

browser-server component structure, inevitably

exposes information transferred over the internet to

potential attacks. To mitigate such risks, deployed

systems sometimes utilize encryption over TCP/IP

when communicating MODBUS commands to

terminal units (Modbus TCP, 2006).

A quick check in shodan.io (Matherly, 2009)

reveals many open Modbus ports currently utilized

for multiple reasons, sometimes for controlling

industrial control systems (ICS) and respective

remote units. Some of these interfaces provide web

platforms to exchange protocol commands.

During the last decade, side channels have been

widely exploited, focusing mostly on information

disclosure (Comey, 2014). A side channel attack is an

attack that aims to retrieve secret information using

attributes and factors outside normal computation and

algorithmic attacks; such as timing information,

power analysis and electromagnetic leaks or

differential size analysis (McLaughlin et al., 2016).

Concerning side channel attacks on encrypted traffic,

previous research was successful in exploiting

characteristics in various cases like SSH (Song,

2001), VoIP (Wright et al., 2008), identifying web

pages through their loading sizes (Danezis, 2009)

(Sun et al., 2002) etc. Researchers in (Chen et al.,

2010) showed how to exploit fundamental

characteristics of web applications like stateful

communication, low entropy input and traffic

distinctions to leak information concerning sensitive

personal information of users.

Tsalis, N., Stergiopoulos, G., Bitsikas, E., Gritzalis, D. and Apostolopoulos, T.

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks.

DOI: 10.5220/0006832700530063

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 53-63

ISBN: 978-989-758-319-3

The Modbus protocol is a real-time industrial

communication protocol often used to connect super-

visory systems with remote terminal units and data

acquisition systems (NI, 2017) (Modbus TCP, 2006).

Its master/slave concept is simple without excessive

overhead. Since Modbus lacks of authentication and

encryption external security implementations, e.g.,

TCP/IP encryption, IPsec VPN are often used to

protect communication (Knapp and Langill, 2014).

1.1 Contribution

In this paper, we present similar findings on HMIs

that utilize TCP/IP encryption over MODBUS to con-

trol remote units in SCADA systems. In some modern

encryption algorithms, differential packet size analy-

sis attacks can reliably leak information about the

functionality of the SCADA system down to small

granularity levels, like leaking specific functionality/

task executions through detected sequences of MOD-

BUS commands. The contributions of this paper are

the following:

• Modbus command leaks and SCADA functionali-

ty extraction by exploiting packet sizes between

web HMIs and remote units. We present in detail

how analysis of requests and responses can exploit

packet sizes to leak information about the under-

lying functionality in web HMIs that implement

unpadded encryption with specific block cipher

modes (e.g. CFB, GCM, OFB and CTR modes) or

stream ciphers (e.g. RC4). We also show that HMI

like these are currently interact with MODBUS

ports over encrypted TCP/IP.

• Prediction Models for MODBUS commands and

ICS functionality. We model MODBUS functions

according to discriminatory characteristics and

develop two worst-case scenario prediction mo-

dels capable of extracting task/routine functiona-

lity in infrastructures according to sequences of

packets sent and received. Notice that presented

models assume worst-case scenarios: All probable

collisions between packet-sizes are taken for gran-

ted. In real life implementations, detection is even

better than the one presented in our generalized

models since industrial implementations use dif-

ferent number of registers/coils in functions.

• Analysis and attack mitigation solutions. We pre-

sent and analysis of potential solutions and imple-

mentations to avoid the presented attacks.

Section II of this paper presents related work on

the subject and compares it with our research and ex-

periments. Section III describes how we model

MODBUS functions used in SCADA systems into

mathematical formulas for discriminating them based

on classification of packet request and response sizes.

Section IV describes the prediction models (general

and specific) constructed by the aforementioned for-

mulas; the main contribution of our paper upon which

we based our implementation and tests. Section V

briefly presents an implementation executed to test

the prediction models while Section VI concludes and

proposes mitigation techniques.

2 RELATED WORK

Side Channels attacks can be broadly defined as at-

tacks on systems using information gathered from un-

intended output channels (Zhou and Feng, 2005).

Kocher’s paper back in 1996 was one of the first

publications to present that that non-constant

execution of encryption algorithms can leak

information about the keys (Comey, 2014).

2.1 Side Channel Attacks on Encrypted

Traffic

Packet timing and sizes are significant factors con-

tributing to the execution of a side-channel attack in

encrypted communications. It has been shown that a

network eavesdroppers may be able to break crypto-

graphic schemes or infer keystrokes in SSH (Song,

2001). Concerning side channel attacks on encrypted

traffic, other research was very successful in exploiting

characteristics in various cases like VoIP (Wright et al.,

2008), identifying web pages through their loading

sizes (Danezis, 2009) (Sun et al., 2002). Brumley-

Boneh (Beresford, 2011) illustrate a timing attack

against OpenSSL to extract the secret RSA keys.

Encrypted web communications share similar is-

sues. Research from Microsoft and Indiana's Univer-

sity (Chen et al., 2010) shows that attackers

fingerprinting web pages to collect sensitive

properties can be later used as prior knowledge for

side channel attacks on packet sizes not only to

identify visited web pages, but also to determine user

input data. Moreover, anonymity in encrypted

implementations, such as TOR, is questioned when

side-channel attacks are carried out, as presented in

(Acromag, 2005) and Danezis (Danezis, 2009) in

respective research papers.

Our work is motivated by these researches, but it

differs sufficiently. Even though, we share a common

techniques with the aforementioned papers, the appli-

cation of our attacks and the methods of fingerprint-

ing used are based on industrial systems and proto-

cols; specifically on MODBUS. In addition, our focus

SECRYPT 2018 - International Conference on Security and Cryptography

on the cryptographic schemes is slightly different,

which, once more, depends on the MODBUS proto-

col and its properties.

2.2 Side Channel Attacks on ICS

ICS systems are affected by similar threat vectors as

with normal IT systems. Software errors, bugs, mal-

ware and relevant cyber-attacks affect ICS systems

(Kaspersky, 2014). The Stuxnet (Langner, 2011)

event, Flame (Munro, 2012) and Idaho’s demonstra-

tion of a cyber-attack gaining control of physical

components of the electric grid, are such examples

(Meserve, 2007).

As stated in (McLaughlin et al., 2016), ICSs have

specific types of vulnerabilities, such as the use of

micro-based controllers, the adoption of communica-

tion standards and protocols and the complex

distributed network architecture. Moreover, types of

attacks on ICS are wide and they can be broken down

into specific layers, namely the process layer, the

network, the software, the firmware and the hardware

layer (McLaughlin et al., 2016).

Concerning network layer attacks in ICS, which is

the scope of this paper, vulnerabilities can manifest in

multiple ways; most of which are similar threat

vectors with traditional IT systems. A PLC protocol,

ISO -TSAP was found vulnerable to replay attacks

due to lack of proper session handling (Beresford,

2011). MODBUS implementation rarely use any

form of encryption. Instead, they deliver commands

through unencrypted channels. Some attempts to en-

crypt MODBUS traffic involve Modbus TCP/IP (also

Modbus-TCP), which is simply the Modbus RTU

protocol with a TCP interface that runs on Ethernet

(Acromag, 2005). These implementation involves en-

crypted TCP/IP traffic that transfers MODBUS com-

mands to SCADA systems. DCS and SCADA server

software is, also, often out of date or misconfigured

and hence can be exploited (Nan et al., 2012).

2.3 Non-padded Cryptographic

Schemes

Symmetric encryption utilizes padding for block

ciphers, since blocks need to be multiples of specific

block sizes. Examples range from older triple-DES up

to AES-CBC and relevant encryption schemes. There

are, however, modes that do not require padding due

to effectively using block ciphers as stream ciphers.

For instance, CFB, GCM, OFB and CTR modes, used

by AES, do not require any special measures to hand-

le messages whose lengths are not multiples of the

block size. These modes work by XOR-ing the

plaintext with the output of the block cipher. The last

partial block of plaintext is XOR-ed with the first few

bytes of the last keystream block, producing a final

ciphertext block that is the same size as the final

partial plaintext block. In addition, RC4 (which is still

widely used despite being reported as potentially

vulnerable under various attacks shares the same

qualities with the modes above, which means that the

size of the input is equal to the size of the output.

These characteristics make the above mentioned

schemes suitable (i) for applications that require

identical sizes in plaintext and encrypted data, and (ii)

for applications that transmit data in streaming form

where it is inconvenient to add padding bytes

(Stallings, 2016).

However, these attributes also jeopardize the se-

curity and the privacy of the encrypted communica-

tion. For example, RC4, an algorithm used extensive-

ly in web-based applications (Chen et al., 2010), can

cause a leakage based on the length of the encrypted

packets, considering it vulnerable to side-channel at-

tacks (Imperva, 2015).

2.4 Existing Web HMIs with

Encrypted TCP MODBUS Ports

To support our arguments regarding the significance

of leaking industrial functionality over encrypted

TCP/ IP MODBUS executions, we opted to search for

MODBUS protocol systems (Zhou and Feng, 2005)

that may utilize unpadded encryption between a web

interface (HMI) and relevant MODBUS ports.

Shodan is a search engine that lets users search

and identify devices and systems connected to the

internet (Matherly, 2009). Shodan collects data

mostly on web servers (HTTP/HTTPS-port 80, 8080,

443, 8443), as well as FTP (port 21), SSH (port 22),

Telnet (port 23), SNMP (port 161), SIP (port 5060),

RTSP (port 554). Using Shodan, we mapped ICS

devices that actually listen to the Modbus port 502 for

MODBUS commands. In addition, we were able to

identify and classify the type of encryption-schemes

used by these devices for protection of data sent to

them over the internet.

Extensive research showed some interesting

results: Out of hundreds detected, approximately 50%

of machines listening for MODBUS commands used

web interfaces requiring usernames and passwords

without encryption; listening on HTTP ports. 27%

used SSH with a mixed cipher suite including block

and stream ciphers, 16% used SSL/TLS encryption

and 7% used other encryption schemes such as VPN.

Moreover, most of the SSH's ciphers were AES-CBC,

RC4, AES-GCM, 3DES-CBC which are all unpadded

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks

versions (Brown, 2007). Also, SSL/TLS utilized

AES-GCM instead of AES-CBC in most cases also

unpadded. This information was gathered by

examining the connection properties and the required

certificates between provided interfaces, web ports

80/8080, and relevant MODBUS ports.

3 MODELING MODBUS

In this section we present an analysis of MODBUS

packet sizes in requests and their responses. A general

mathematical formula is calculated for use with

prediction models in the following Sections.

Worst Case Scenario. Notice that presented models

assume worst-case scenarios: All probable collisions

between packet-sizes are taken for granted. In real life

implementations, detection is even better than the

one presented in our generalized models since

industrial implementations use different number of

registers/coils in functions.

3.1 Modbus Functions

The Modbus protocol utilizes eight different kind of

functions. Functions are direct instructions to the

PLCs. Each function is a different set of instructions;

in deployed ICS, their execution frequencies and

payload properties depend on industrial production

policies (Modbus, 2017) (Modbus, F.A.Q., About the

Protocol, 2017).

Table 1: Modbus functions and codes.

FCODE FUNCTION

01 Read coil status

02 Read input status

03 Read holding registers

04 Read input registers

05 Write single coil

06 Write single register

15 Write multiple coils

16 Write multiple registers

3.2 Discriminating Functions by Sizes

Modbus uses the master/slave scheme. Each request

is accompanied by a response for each function.

The presented attacks need to capture both to analyse

the traffic properly.

The discrimination process starts by defining the

payload to analyse in requests and responses.

The payload must be the same for both types. So, we

begin by decapsulating the headers, the CRC and

the slave address, leaving only important information

for the main payload-PDU (Modbus, 2017).

This part consists of the function code and the data

field. The data field comprises the addresses of

the registers/inputs/coils, the actual data and other

instrumental fields. By default, MODBUS functions

form payload in a very specific way. Since payload

sizes differ, differential analysis on sequences

captured allows pattern detection due to low entropy.

Notice that Modbus TCP/IP does not use FCS like

Modbus RTU. TCP has the responsibility of

delivering the packets to the target unspoiled. This

means that checksum is generated at lower layers, not

the application layer (Modbus, 2006).

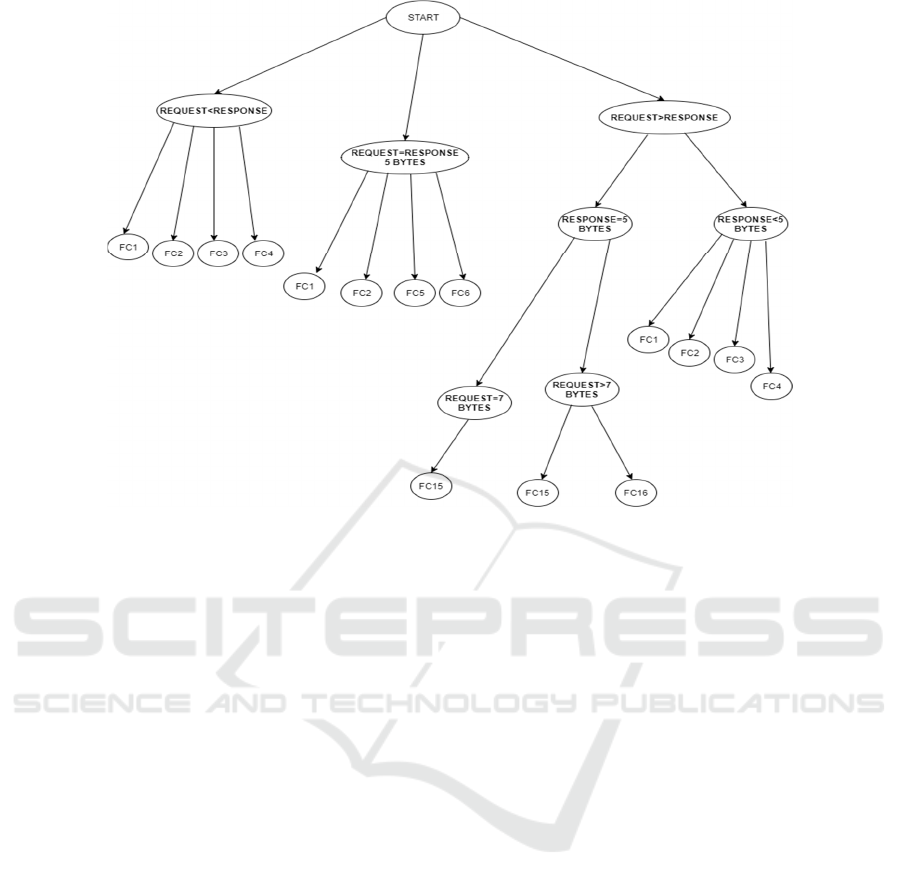

For each function we provide an analysis of its

payload. Each presented type will be used later on in

decision trees for traffic discrimination. We should

note here that variable x used to model function be-

low, represents the registers and, indirectly, the coils.

Input is always positive integer.

3.2.1 FC5 Write Single Coil and FC6 Write

Single Register

The payload of these functions has always the same

number of bytes. Every FC5 request has 5 bytes and

gets 5 bytes response. So, if we capture ρ = 5 bytes first

and then capture another γ = 5 bytes packet, there is

significant possibility that the function is either FC5 or

FC6. Modelling it into a mathematical function:

γ = ρ = 5 (1)

where S is the number of bytes of the request payload

and the response payload (since request – response

bytes = 0). In this case, γ = 5. The size of data and of

Generally, the fields are always constant values with

no added fields.

3.2.2 FC3 Read Holding Registers

The request payload always has a size of 5 bytes.

However, the response payload varies. The following

possibilities exist:

 request < response, for χ≥2

 request > response, for χ=1

where x is the number of registers.

SECRYPT 2018 - International Conference on Security and Cryptography

The size of data and number of registers affect the

size of the response. Modeling the response payload:

γ = 2 * χ + 2

(2)

χ = number of registers. Every request is 5 bytes with

y bytes response. +2 value represents the number of

bytes to follow; always 2 bytes.

3.2.3 FC2 Read Discrete Inputs

The request payload always has a size of 5 bytes.

However, the size of the response payload varies. The

following possible cases occur:

 request > response for 1-16 Inputs or for χ=1 and

χ=2

 request = response for 17-24 Inputs or for χ=3

 request < response for 25+ Inputs or for χ≥4

The mathematical representation of the response

payload is:

γ = (inputs / 8 bits) + 2 = χ + 2 (3)

where χ is the number of registers. We notice that this

function uses inputs instead of registers. Thus, this

mathematical model must be converted to use the sa-

me variables. Assuming that one register has 8 inputs,

the form of the mathematical function is γ = χ + 2.

Table 2 shows correlations between registers and in-

puts.

Table 2: Input - register correlations.

FCODE FUNCTION

1-8 inputs 1 register

9-16 inputs 2 registers

17-24 inputs 3 registers

25-32 inputs 4 registers

… …

Coils and inputs use roundup policies, so we have

to adhere to these rules. These roundup policies

cannot disrupt or stop the attacking process in any

way, due to the above extensive analysis (examples

will prove this statement later.) Notice also that every

request 5 bytes yields y bytes in response.

3.2.4 FC4 Read Input Registers

Once more, the request size is 5 bytes and the res-

ponse payload varies. So:

 request < response for χ≥2

 request > response for χ=1

The model is defined the same way like before, χ

is the number of registers. Every 5 bytes request

yields y bytes response as follows:

γ = 2 * χ + 2 (4)

3.2.5 FC1 Read Coil Status

The size of the request payload is 5 bytes. However,

the response payload has the following variations:

 request > response for 1-16 Coils or for χ=1 and

χ=2

 request = response for 17-24 Coils or for χ=3

 request < response for 25+ Coils or for χ≥4

We have to convert the mathematical formula,

since this function uses coils. Therefore:

γ = (num of coils / 8 bits) + 2 = χ + 2 (5)

χ is the number of registers. Considering that one

as before. Roundup policies apply to this function too.

Table 2 shows correlations in registers and coils:

Table 3: Coil - register correlations.

FCODE FUNCTION

1-8 coils 1 register

9-16 coils 2 registers

17-24 coils 3 registers

25-32 coils 4 registers

… …

3.2.6 FC15 Force Multiple Coils

In this case, unlike the others, the size of the response

payload is always 5 bytes and the size of the request

payload varies. The mathematical representation of

the payload is:

γ = (num of coils / 8 bits) + 6 = χ + 6 (6)

where χ is the number of registers. +6 represents the

fixed fields in the request packet. This mathematical

formula follows the conversion process, as it uses

coils instead of registers. In addition, it conforms to a

specific limitation:

min | FC15 | = min | coils / 8bits + 6 | = min |coils / 8

bits| + 6 = 1 + 6 = 7 bytes

The minimum value of the response size is 7

bytes. This has some interesting characteristics: The

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks

size of request is always bigger than the size of the

response. Thus, this function can be easily

distinguished from the functions that we have

described so far.

3.2.7 FC16 Preset Multiple Registers

Like FC15, the response size is 5 bytes and the re-

quest size varies. The mathematical model of the re-

quest payload is:

γ = 2 * χ + 6 (7)

where χ is again the number of registers. +6 repre-

sents the fixed fields in the request packet. This fun-

ction also conforms to a limitation:

min |FC16| = min |2 * χ + 6| = min| 2 * χ | + 6 = 2 + 6

= 8 bytes

The minimum value of the response size is 8 by-

tes, meaning, that:

1. size of request > size of response

2. This function can be easily distinguished from

functions FC1, FC2, FC3, FC4, FC5 and FC6.

This function can be distinguished from function

FC15 if only the request size is 7 bytes.

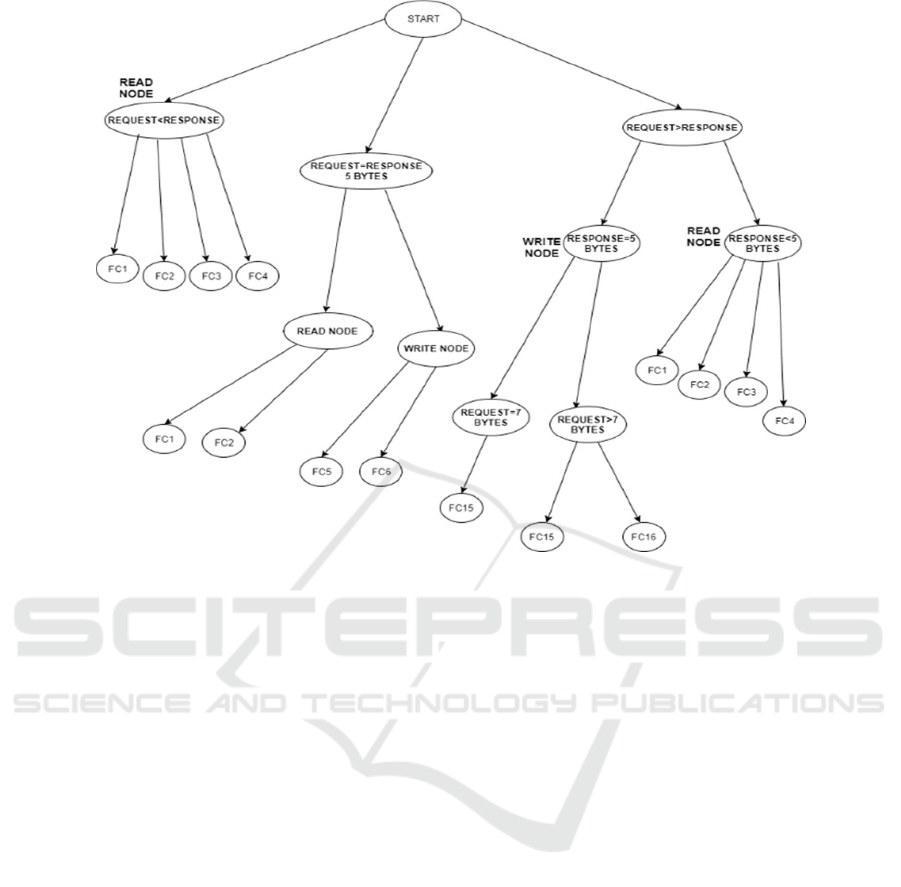

3.3 ICS Tasks as Functional Sequences

All eight functions can be distinguished and grouped

based on their utility. FC5 (write single coil) and FC6

(write single register) are grouped since they perform

a write procedure on a single element. FC3 (read

holding registers), FC2 (read discrete inputs), FC1

(read coil status) and FC4 (read input registers)

perform a read procedure. FC15 (force multiple coils)

and FC16 (preset multiple registers) perform a write

procedure one or more elements. A functionality or

even routine or task in ICS may consist of multiple

serial executions of sequences of Function Codes

(Modbus, 2017) (National Instruments, 2017).

To model functionality flows as sequences of

executed MODBUS functions, we introduce the term

Functional Sequences. A functional sequence is a

sequence of dependent FC functions for the purpose

of executing specific tasks or routines. It is a chain of

combined processes. An example is:

F.S.1 = FC3 read holding registers → FC6 write

single register

The functional sequence F.S.1 carries out a

procedure that reads a number of registers and then

writes one of them with a specific value. This

procedure may represent a routine designed for the

PLCs/RTUs. Notice that t is has to complete two steps

before it terminates successfully. A functional

sequence may have different functions and different

number of steps depending on the policies of the

industry. Therefore, the functional sequence takes the

following form:

Functional Sequence = Function 1 → … →

Function N

(8)

N is the number of steps. Notice that a functional

sequence may have one step; one function. This

complies, because this certain function cannot be

combined with any other function in any way.

If an attacker has knowledge of the

business/function flow of the logic ladder and

business logic, he can define a number of functional

sequences that are executed (Erickson, 2016).

Knowing that, we show that he is capable of

performing classification in each step and

continuously reduce the uncertainty of identifying

functions. This procedure is illustrated further in the

second example of this paper.

4 PREDICTION MODELS

We now use the aforementioned mathematical

representations to construct two prediction models.

Each model consists of a decision tree that utilizes

previous formulas and detected restrictions.

Worst-case Scenario. Notice that presented decision

trees assume the worst-case implementation scenario:

All probable collisions between packet-sizes are

taken for granted but, in present industrial

implementations, detection is leaking executed

functions may be significantly easier.

Implementations often use different number of

registers and coils in functions, leading to different

packet sizes in responses (e.g. (Acromag, 2005)

(Siemens, 2009). For example, generally FC1 and

FC2 read functions can have colliding response

packet sizes, since both sizes are calculated using

equation γ = (χ/8 bits) + 2.

It is important to state here that variable χ may diver-

sify in real-world (as shown in our PoC below). Mod-

bus implementations often utilize different number of

coils or registers (different χ), leading to different si-

zes and ultimately no collision.

SECRYPT 2018 - International Conference on Security and Cryptography

Figure 1: Decision Tree (no prior knowledge).

4.1 Decision Tree

The general decision tree uses every limitation and

condition presented in the previous section. Each path

is a different condition that leads to a subset of

functions. When the attacker sniffs both the encrypted

request packet and the response packet, he determines

the request and response by relying on the sequence

numbers in the headers. Then, he uses the tree to

determine the function or the subset of possible

functions. The general decision tree is built based on

worst-case scenarios: All FC functions whose packet

sizes may collide in real-world, are thought to collide.

At this point, attack scenarios have no prior

knowledge of ICS functionality. Each function (leaf) in

each subset (tree branch) has the same possibility of

occurrence. For example, the attacker starts the packet

sniffing, captures the first two packets and

decapsulates them. He determines that the size of the

encrypted request payload is 5 bytes and response is 8

bytes. He knows that the 5 bytes packet belongs to

request and the 8 bytes packet belongs to response,

because he can validate it using the sequence numbers

inside the packet header (for example, TCP header,

ESP header, etc.).

For example, if we capture two encrypted TCP

payloads with Modbus request and response

commands and determine that “request < response“ in

packet sizes, then FC1, FC2, FC3 and FC4 each have

25% possibility to be the ones executed (fig. 1). For

any potential execution in typical Modbus, the worst

case in this example is to have 4 out of 15 possible

instructions executed. Generally, in the best case we

achieve 100% successful execution leak (e.g. for FC15

and FC16). Still, these predictions can be improved.

In addition, the attacker can use the mathematical

formulas/representations from the chapter 2.2 in order

to determine the possible functions precisely:

 If it is FC1 then: y = x + 2 => 8 = x + 2 => x = 6

registers. But FC1 uses coils, so the conversion is

6*8 = 48 coils. Therefore, the instruction is: FC1

Read Coil Status with coils from 41 to 48.

 If it is FC2 then: y = x + 2 => 8 = x + 2 => x = 6

registers. But FC2 uses inputs, so the conversion

is 6*8 = 48 inputs. Thus, the instruction is: FC2

Read Discrete Inputs with inputs from 41 to 48.

 If it is FC3 then: y = 2*x + 2 => 8 = 2*x + 2 =>x

= 3 registers. Therefore, the instruction is: FC3

Read Holding Registers with 3 registers.

 If it is FC4 then: y = 2*x + 2 => 8 = 2*x + 2 => x

= 3 registers. Therefore, the instruction is: FC4

Read Input Registers with 3 registers.

4.2 Experimental Attack Scenarios

4.2.1 Packet Density

As in (Chen et al., 2010), we can utilize the term

Packet Density to show that it is possible to

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks

discriminate possibilities of detected encrypted

traffic. In our case, packets represent a single Modbus

function. The bytes used, are either the size of the

request payload or the size of the response payload

depending on the varying part of the function.

Packet Density = Nun of distinct packets/(max(bytes)

– min(bytes))

where NϵZ and Ν>0. In Modbus protocol however as

mentioned, there are collisions between some packet

sizes. So, we have to adhere to the following rules:

 Distinct packets must be ≥ 2

 Omit duplicate packets (preserve only 1 of them)

According in (Chen et al., 2010), we define

“density(℘) = |℘| / [max(℘)-min(℘)], as the average

number of packets for every possible packet size. If

the value of the packet density is below 1, then the

traffic can be easily distinguished” (Chen et al.,

2010). In our case, there are only 8 different functions

and sizes vary (Comey, 2014; Zhou and Feng, 2005)

with only one collision (FC05 and FC06), i.e., Packet

Density = 7 / (20 bytes – 4 bytes) = 0,43 < 1. Since

packet density is below 1 and this means that the

functions of the sample are distinguishable.

4.2.2 PoC Implementations

A PoC simulation was conducted to support these

scenarios. We built a client-server system in C++ that

simulated an HMI sending MODBUS RTU

commands over TCP/IP encrypted with RC4.

Simulations utilized the entire MODBUS protocol,

simulating DWORDS, coils and registers.

When unpadded encryption is used, results

support the predicted attack models and detection

rates. Detection rates are even better in industrial

appliances where FC1, FC2 and FC4 all have

different packet sizes. This can lead to full execution

leaks for sequences longer than three different FC

functions. Even in worse scenarios, collisions

detected between FC5 and FC6 and FC1 with FC3 (4

bytes) did not seem to directly affect information

leakage when multiple instructions were executed

sequentially.

4.2.3 Example Attack on Industrial

Implementation

In this scenario, we simulate an example attack on an

implementation using Function Codes. Notice that

this is just an example of how Function Codes can be

implemented in a way that avoids packet size

collisions. We will show that eavesdropping

encrypted TCP MODBUS commands can lead to full

execution leaks, even in the presence of collisions

(through statistical analysis).

All real-world ICS utilize at least 6 different se-

quences of instruction executions to support their

functionality and these mostly include two or three

different instructions executed per sequence). For this

worst-case scenario, we make some realistic assump-

tions:

 Similarly with Microsoft (Chen et al., 2010), we

allow the attacker to have some prior knowledge

about executions that are utilized in ICS

functionality (see Table 4), still without knowing

the full functionality implemented scenarios (i.e.

entire business logic and series of multiple

functional sequence executions that comprise a

full ICS functionality execution). Prior knowledge

of the business/ function flow or fingerprinted ICS

command executions for a time period can allow

the attacker to recreate the general decision tree

each time he observes a new payload size, thus

eliminating potential execution sequences until he

is certain of the sequence of executed MODBUS

functions.

 The attacker does not know how the functional se-

quences are lined up or their frequency of execu-

tion (knowledge of ICS functionality execution

for limited scenarios).

 The functional sequences execute a routine or a

task. This is a simple example, which illustrates

that our prediction models work even in cases with

little functionality and collisions present.

 The more the number of functional sequences, the

more diversity appears in the sample. This means

that the chances of a successful prediction are hig-

her.

 Knowing potential sequences of instruction exe-

cutions allow us to develop an extended decision

tree which further reduces chances of collisions

(see Fig. 2).

Table 4: Example Function Sequences from MODBUS

routines.

Functional

sequence

Step 1 Step 2 Step 3

F. Sequence 1 Read FC1 Write FC5 -

F. Sequence 2 Read FC1 Write FC15 -

F. Sequence 3 Read FC3 Write FC6 -

F. Sequence 4 Read FC3 Write FC16 -

F. Sequence 5 Read FC4 Read FC3 Write FC16

F. Sequence 6 Read FC2 - -

SECRYPT 2018 - International Conference on Security and Cryptography

Figure 2: Decision Tree (with observed prior knowledge of ICS).

Suppose one has observed executions of sequences in

Table 4 for a given short period of time. Frequencies

below show the number of times that each functional

sequence was executed during the observed period;

i.e. what commands were sent to a PLC to complete a

specific routine or task.

 F. sequence 1 executed 10 times

 F. sequence 2 executed 12 times

 F. sequence 3 executed 5 times

 F. sequence 4 executed 3 times

 F. sequence 5 executed 6 times

 F. sequence 6 executed 2 times

With this knowledge, an attacker can later either

fully disclose what is being executed, or use probabi-

listic models to enhance predictions in worst-case

scenarios where collisions occur.

Example Scenario. An attacker sniffs the first couple

of packets and decapsulates. Request payload is 5

bytes so is response.

Using the special decision tree and following the

path request = response and then the read node, he

deduces that possible functions are FC1, since in the

s7300 implementation FC1 and FC2 have different

payload sizes. Specifically, it is FC1 then: y = x + 2

=> 5 = x + 2 => x = 3 registers. Since FC1 uses coils,

FC1 has coils from 17 to 24.

Next couple of payloads that are sniffed have a

request payload of 7 bytes and a response payload of

5 bytes. Using the Decision Tree, he deduces that the

function that he is looking for is FC15 (request >

response and response = 7 bytes). For FC15: y = x +

6 => 7 = x + 6 => x = 1 register.

Since FC15 uses coils, so the conversion is 1*8 =

8 coils. Thus, the instruction is: FC15 Write Multiple

Coils with coils from 1 to 8. Notice that the 2

step

consists of both read and write functions. So, the

special decision tree cannot be used in this case,

because it is unclear which direction to take.

Worst case Scenario. Collisions exist between F.

Sequence 1 and 3, where both executed sequences of

commands can have the same payload sizes. In other

cases, an attacker is mostly able to leak executed

functionality (sequences of instructions) since

payload sizes differ. In reality, extended sequences of

executed functions almost always leak executed

functionality. Still, even in the presented worst case,

leaks can be achieved statistically.

 The attacker starts the packet sniffing, captures the

first couple of packets and decapsulates them. He

determines the following payloads: Request

payload is 5 bytes and response is 6 bytes. The

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks

decision tree path is the node:”request <

response”. Possible functions: FC1, FC2, FC3 and

FC4.

 At this stage, the likelihood of each instruction is

calculated as P(FC1)=57%, P(FC2)=5%, P(FC3)=

21% and P(FC4)=15,7%.

 Next, the attacker sniffs payloads: 5 bytes request

payload and 5 bytes response payload. Based on

the first step and the general decision tree,

possible instructions are either FC5 or FC6.

 In this case, the attacker prunes potential

functionality and deduces that either sequence

FC01-FC15 or FC3-FC6 has been executed.

Still, fingerprinting executions has turned up that

Sequence 1 is used for monitoring values and is

executed significantly more often than the second

one. If we calculate probabilities according to

fingerprinted executions of the systems logic:

 F. Sequence 1: P(FC1 | FC5) = 0.66 = 66%

 F. Sequence 3: P(FC3 | FC6) = 0.33 = 33%

Therefore, there is a statistical deviation of 33%

in favor of F. Sequence 1 being executed. In any other

scenario, full execution leakage is achieved. Tests

have shown that as sequences become longer, they

become more unique and collisions are minimized.

5 CONCLUSIONS

With appropriate measures the success of this type of

attacks can be reduced dramatically. The most

effective technique is the padding applied inside the

data field. There are two types of padding: (i) roundup

padding and/or (ii) random padding. Padding alters

the original size giving a uniformity in the packets of

the network, making any analysis of network traffic

relatively weak (Stallings, 2016).

i. In roundup padding, block ciphers (such as

AES) require blocks to have the size as the key

used before the process of encryption. This

means that blocks smaller than the length of

the key will follow the procedure of roundup

(Stallings, 2016).

ii. Random padding acts as a supplement to each

packet, filling it with random bytes until it

reaches a default size. The size may even be

the maximum size which can be sent in

Modbus protocol. In IPsec VPN and SSH,

random padding can be used. It is mainly

designed to hide possible leaks that may occur

from side channel attacks.

These two cases of padding may be used at the

same time as for example in the IPsec VPN, where

the roundup padding is always used by AES and the

random padding is an optional field (Kent, 2005).

Although it is true that padding can in many cases

be the main measure against these types of side

channel attacks, in practice it may create some

overhead on the network traffic. Also, depending on

implementation, integrity checks must run on all

industrial instructions, since consistency in execution

of functionality and performance is paramount.

Potential delays or malfunction will be considered as

a serious issue. It should be noted that padding may

consume even 1/3 of the network bandwidth without

fully subduing the information leaks (Chen et al.,

2010). Depending on implementation, this may or

may not be an issue in padding MODBUS

communications. In realistic scenarios, and in order

to protect the significant performance, low to

moderate level of padding aggressiveness should be

applied. However, this measure is not enough to

protect the data.

REFERENCES

Modbus, F.A.Q., About the Protocol, 2017. FAQ. Modbus

Organization inc. Viitattu.

Chen, S., Wang, R., Wang, X. and Zhang, K., 2010, May.

Side-channel leaks in web applications: A reality today,

a challenge tomorrow. In Security and Privacy (SP),

2010 IEEE Symposium on (pp. 191-206). IEEE.

Comey J., 2014. FBI: Protecting critical infrastructure and

the importance of partnerships. FBI.

McLaughlin, S., Konstantinou, C., Wang, X., Davi, L.,

Sadeghi, A.R., Maniatakos, M. and Karri, R., 2016. The

cybersecurity landscape in industrial control systems.

Proceedings of the IEEE, 104(5), pp.1039-1057.

NI, 2017. The Modbus Protocol In-Depth, 2017. National

Instruments (Online: accessed Mar 7 2017).

Knapp, E. D. and Langill, J. T., 2014. Industrial Network

Security: Securing critical infrastructure networks for

smart grid, SCADA, and other Industrial Control

Systems. Syngress.

Modbus, 2017. Simply Modbus: Modbus TCP/IP. (accessed

October 2017).

Modbus TCP, 2006. Modbus Messaging on TCP/IP

Implementation Guide v1.0b. Modbus Organization,

(accessed June 2017).

Erickson K., 2016. Controllers, Programmable Logic. An

Emphasis on design & application. Dogwood Vally

Press, LLC. Third edition.

Song, D., 2001. Timing analysis of keystrokes and SSH

timing attacks. In Proc. of 10th USENIX Security

Symposium, 2001. Usenix.

Kent S., IP, 2005. Encapsulating Security Payload (ESP).

RFC 4303. BBN Technologies.

SECRYPT 2018 - International Conference on Security and Cryptography

Stallings W., 2016. Cryptography and network security:

Principles and practices. Pearson.

Wright, C. V., Ballard, L., Coull, S. E., Monrose, F. and

Masson, G. M., 2008, May. Spot me if you can:

Uncovering spoken phrases in encrypted VoIP

conversations. In Security and Privacy, 2008. SP 2008.

IEEE Symposium on (pp. 35-49). IEEE.

Imperva, 2015. Attacking SSL when using RC4: Breaking

SSL with a 13-year-old RC4 weakness. Imperva USA.

Matherly, J., 2009. Shodan search engine. Available at

[Online]: https://www. shodan. io.

Brown, M., 2007. System Administration Toolkit: Set up

remote access in UNIX through OpenSSH. IBM,

published Feb, 13.

Danezis, G., 2009. Traffic Analysis of the HTTP Protocol

over TLS.

Sun, Q., Simon, D.R., Wang, Y.M., Russell, W.,

Padmanabhan, V.N. and Qiu, L., 2002. Statistical

identification of encrypted web browsing traffic.

In Security and Privacy, 2002. Proceedings. 2002 IEEE

Symposium on (pp. 19-30). IEEE.

Zhou, Y. and Feng, D., 2005. Side-Channel Attacks: Ten

Years After Its Publication and the Impacts on

Cryptographic Module Security Testing. IACR

Cryptology ePrint Archive, 2005, p.388.

Langner, R., 2011. Stuxnet: Dissecting a cyberwarfare

weapon. IEEE Security & Privacy, 9(3), pp.49-51.

Munro, K., 2012. Deconstructing flame: the limitations of

traditional defences. Computer Fraud & Security,

2012(10), pp.8-11.

Kaspersky, 2014. Cyperthreats to ICS systems. Available at

[Online]: http://media.kaspersky.com/en/business-

security/critical-infrastructure-protection/Cyber_A4_

Leaflet_eng_web.pdf .

Meserve, J., 2007. Mouse click could plunge city into

darkness, experts say. CNN. com, 27.

Beresford, D., 2011. Exploiting siemens simatic s7 plcs.

Black Hat USA, 16(2), pp.723-733.

Nan, C., Eusgeld, I. and Kröger, W., 2012, September.

Hidden vulnerabilities due to interdependencies

between two systems. In International Workshop on

Critical Information Infrastructures Security (pp. 252-

263). Springer, Berlin, Heidelberg.

Acromag, 2005. Introduction To Modbus TCP/IP, Acromag

Inc., USA. Available at [Online]: www.acromag.

com/pdf/intro_modbus_TCP_765a.pd.

Siemens, 2009. S7-300/S7-400 Loadable Driver for Point-

to-Point CP. Siemens Manual.

Side Channel Attacks over Encrypted TCP/IP Modbus Reveal Functionality Leaks
