An Intelligent Cloud Management Approach for the Workﬂow-cloud

Framework WFCF

Eric K

ubler and Mirjam Minor

Institute of Informatics, Goethe University, Robert-Mayer-Str.10, Frankfurt am Main, Germany

Keywords:

Cloud Management, Workﬂows, WFaaS, BPMN Tools, Automated Techniques.

Abstract:

Workﬂow as a service is a recent trend in cloud computing. The opportunity to execute a workﬂow in a cloud

is very attractive for business. There is, however, a lack of concepts for an integration of clouds and workﬂow

management systems. Today’s solutions are often not very effective in terms of resource usage. Further, they

are not ﬂexible enough to exchange the workﬂow management system, the cloud or multi-cloud environment.

In this work, we evaluate WFCF our connector based integration framework for workﬂow management tools

and clouds. WFCF uses intelligent methods to manage cloud resources with respect to monitoring information

from both, the workﬂow and the cloud system. We introduce the architecture of WFCF and test the prototypical

implementation. The evaluation is based on workﬂows from the music mastering domain.

1 INTRODUCTION

Cloud Computing is a ﬁeld that has grown over the

last few years. More and more companies use clouds

for their business. Cloud computing opens new ﬁelds

of business solutions. One of the new ﬁelds is work-

ﬂow as a Service (WFaaS) as introduced by (Wang

et al., 2014; Korambath et al., 2014). The Work-

ﬂow Management Coalition (Workﬂow Management

Coalition, 1999) deﬁnes a workﬂow as “the automa-

tion of a business process, in whole or part, during

which documents, information or tasks are passed

from one participant to another for action, according

to a set of procedural rules”. A task, also called ac-

tivity, is deﬁned as “a description of a piece of work

that forms one logical step within a process. An ac-

tivity may be a manual activity, which does not sup-

port computer automation, or a workﬂow (automated)

activity. A workﬂow activity requires human and/or

machine resources(s) to support process execution”

(Workﬂow Management Coalition, 1999). An exam-

ple for a workﬂow is the step-ba-step editing of raw

music ﬁles to improve the audio quality. An example

task within this workﬂow could be to add a fading ef-

fect at the end of the song, so that the music slowly

becomes quieter at the end. The basic idea of WFaaS

is to execute such tasks within the cloud. The im-

plementation of the example may use a web service

which receives the music ﬁle, manipulates the ﬁle and

returns it. The web service could be hosted on a PaaS

container or on an IaaS virtual machine (VM).

However, it is not an easy task to provide cloud

resources in a way that not more resources are

started than necessary (over-provisioning), but also

not less than necessary (under-provisioning). Over-

provisioning leads to additional costs and should be

avoided. On the other hand, under-provisioning may

slow down workﬂow execution since not enough re-

sources are provided. In the best case, this will frus-

trate the user, in the worst case it can lead to violations

of the Service Level Agreements (SLA), under which

the WFaaS is offered as a service to the costumer. A

SLA deﬁnes agreements between the provider and the

customer about different aspects of the quality of ser-

vice. Violations of a SLA may cause high costs and a

signiﬁcant loss of reputation for the provider (Shoaib

and Das, 2014). It is difﬁcult to determine how many

resources are required if the status of the currently

ongoing workﬂows is unknown. Thus, a solution

that monitors the ongoing workﬂows and manages the

cloud resources is required. A suitable management

strategy should consider both, cloud and workﬂows in

an integrated manner.

Several challenges arise for the integration of work-

ﬂows and clouds. To avoid the vendor lock-in prob-

lem, a solution should be capable of handling differ-

ent clouds. A WFaaS provider may decide to switch

the cloud provider to save costs or to include different

clouds for different services. The multi-cloud prob-

lem as described by (Ferry et al., 2013), means that

Kübler, E. and Minor, M.

An Intelligent Cloud Management Approach for the Workﬂow-cloud Framework WFCF.

DOI: 10.5220/0006843408410848

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 841-848

ISBN: 978-989-758-320-9

841

a user interacts with several different clouds, each

individually. Recently, each cloud has its own API

and standards, which complicates the situation for a

system that operates on multiple clouds. Further, a

WFaaS provider may intend to change the used work-

ﬂow management system for reasons of performance.

An alternative scenario is that a company aims to run

an integrated cloud and workﬂow solution but still has

its own workﬂow management tool and does not want

to substitute the legacy tool. In both cases, an inte-

gration of workﬂows and cloud should allow the ex-

change of the used workﬂow tool, without the need

for re-coding the core management system.

In our previous work (K

ubler and Minor, 2017),

we introduced the architecture of our Workﬂow

Cloud Framework (WFCF), a connector-based inte-

gration framework for workﬂow management tools

and clouds that aims to optimize the resource uti-

lization of cloud resources for workﬂows. In this

work, we have implemented a prototype of WFCF

and evaluate how long it takes from the registration

of a new workﬂow instance to the start of the required

resources. The remainder of the work is organized as

follows. In Section 2 we will discuss related work.

In Section 3, we explain the core concepts of WFCF

and the architecture. In Section 4, we will present our

experimental setup and the test results together with

a discussion of the results. In Section 5, we draw a

conclusion.

2 RELATED WORK

In this section, we introduce and brieﬂy discuss re-

lated work. The management of cloud resources is a

difﬁcult task, as mentioned above. There is several

work in the literature that addresses the problem of

resource provisioning in the cloud (Shoaib and Das,

2014; Pousty and Miller, 2014; Quiroz et al., 2009;

Bala and Chana, 2011; Rodriguez and Buyya, 2017).

These approaches have the problem that the provi-

sioning is either very static, does not make use of the

capabilities of a cloud, or that the approaches are not

implemented yet and therefore rather theoretically.

Another alternative could be case-based reasoning

(CBR). The idea of CBR is that similar problems have

similar solutions (Aamodt and Plaza, 1994). We dis-

cussed the feasibility of CBR for cloud management

in our work (K

ubler and Minor, 2016).

Other approaches aim at a deeper integration of

clouds and workﬂows (Wang et al., 2014; Korambath

et al., 2014; Liu et al., 2010). They deeply integrate

workﬂow and cloud technology, reducing the occur-

rence of over-provisioning and under-provisioning.

However, they strongly depend on the used cloud

and workﬂow management tools. Therefore, they are

very limited in their options to exchange either the

used cloud or workﬂow management tool or both.

This leads tho a high risk of vendor lock-in. A so-

lution for this problem should be a more ﬂexible inte-

gration of different workﬂow management tools and

clouds. This is the goal of WFCF.

Closely related to the concept of WFCF is the Cloud-

Socket project(clo, 2018). CloudSocket is a tool for

end users to design their workﬂows and deploy them

to the cloud. This is very similar to WFCF, but the

main focus of CloudSocket is the user aspect. The

main concern is that a user can design own workﬂows

and deploy them fast, while WFCF rather focuses on

the aspect of ﬂexible integration of different workﬂow

tools and clouds, to provide more freedom in chosing

the tools.

3 WFCF CONCEPTS AND

ARCHITECTURE

In this section, we will explain the basic concepts of

WFCF, followed by the overall architecture. First we

will introduce in short the model we use for the rep-

resentation of the cloud and the workﬂows. Then we

will explain the core concepts of WFCF, followed by

the architecture.

3.1 Placement Model

The ﬁrst step towards an optimal usage of resources is

a representation of the actually used cloud resources

and the active tasks, or the task that will be active

soon. We call this the placement model. This model

contains the started virtual machines (VMs) on the

IaaS layer, containers from the PaaS layer and de-

pendencies between them. We call this sub-model

the cloud model. The other part of the placement

model is the workﬂow model. This includes the cur-

rently ongoing tasks, but also the tasks that will be

started next. One beneﬁt of workﬂows is that the

shape of the workﬂow is known and deﬁned in the

workﬂow deﬁnition. Thus, it is possible to determine

a set of tasks that are potentially following the cur-

rently active tasks. If the workﬂow comprises only a

sequence of tasks, or only contains sections with par-

allel tasks, all tasks within the set of following tasks

will be executed for sure. If the workﬂow contains OR

or XOR sections, the set of following tasks may con-

tain tasks, that will not be executed next. The cloud

model also contains references to the workﬂow model

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

842

to determine the place (VM or container) where a par-

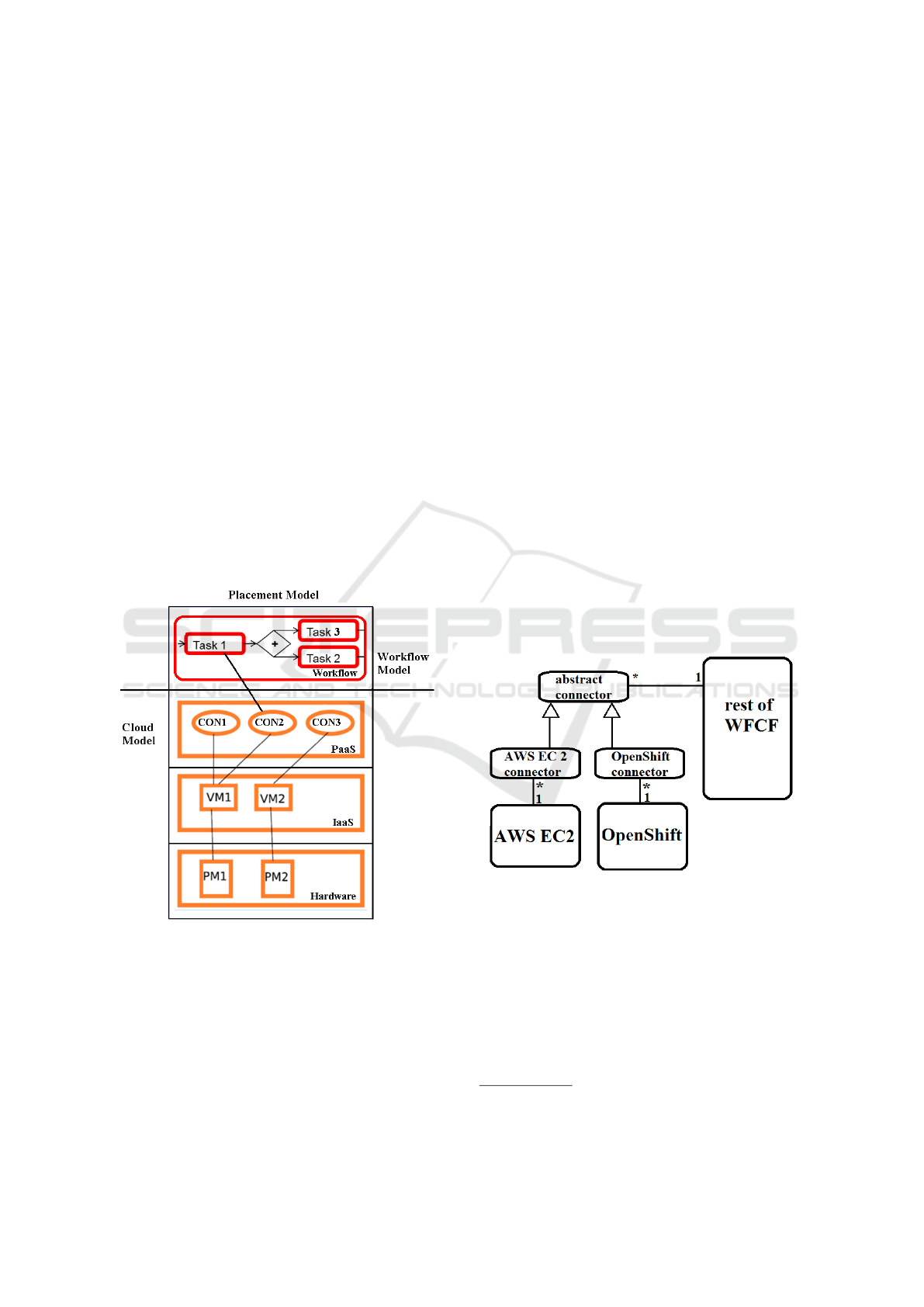

ticular task is executed. Figure 1 shows an illustra-

tion of a sample placement model. The entire ﬁg-

ure depicts the placement model. The lower part is

the cloud model and the upper part is the workﬂow

model. The sample cloud model includes several lay-

ers. The workﬂow model shows the currently active

tasks (task1 only) and which container executes the

task (con2). Task 2 and task 3 will be executed af-

ter task 1 has been ﬁnished. The plus symbol in the

gateway indicates that the gateway is a parallel split.

This means that both, task 2 and 3 will be executed for

sure. If this gateway was an XOR gateway, task 2 or

task 3 will be executed alternatively. At the moment,

we are satisﬁed by knowing all potenitally following

tasks. Future work will include research on heuris-

tic methods to determine in more detail which of the

tasks will be executed most likely. The ﬁgure does not

show the detailed information that is stored for each

element (tasks, VM, container ...). A VM for exam-

ple includes information about the available resources

like disk space, memory, number of cpu cores, the

used operating system and so on. It also includes the

usage of this resources in percentage.

Figure 1: Illustration of a sample placement model.

3.2 The Connector Concept of WFCF

The goal of WFCF is to allow the usage of different

clouds with different workﬂow management systems,

in a way, that it can be extended later on and as easily

as possible. An internal abstract representation that is

independent from the actually used provider is a ﬁrst

necessary step. This may lead to the lost of some spe-

cial ability of an actual cloud, but the abstract repre-

sentation will help to manage different clouds without

the need for adjustments within the model for each

new cloud. However, even with an abstract represen-

tation of the cloud infrastructure there is the need to

handle the actual systems. WFCF use the concept of

connectors to overcome the gap between the abstract

model and the actual system.

Figure 2 shows a simple example of the concept, with

OpenShift

and Amazon Web Service (AWS)

clouds in a UML like notation. The remaining com-

ponents of WFCF use abstract connectors to interact

with the multi-cloud. The connectors have methods

to provide WFCF with information about the resource

utilization (cpu usage, memory usage...), which kind

of cloud is connected (IaaS or PaaS) and the ability

to manage the clouds in an abstract way (start or stop

VMs or containers, change resources...). Which cloud

exactly is connected to WFCF, however, is not known

for most parts of WFCF. The concrete connectors (in

this example the OpenShift connector and the AWS

EC2 connector), inherit from the abstract connector

and implement the methods. We will explain later on,

which parts of the WFCF framework create and con-

ﬁgure the concrete connectors. We also use the same

concept for monitoring the workﬂow engine, with an

abstract workﬂow monitoring connector and concrete

connectors which implement the required methods.

Figure 2: Simple illustration of the connector concept.

3.3 The Architecture of WFCF

Having introduced the core concepts of WFCF, we

will now explain the architecture of WFCF. The

WFCF framework can be divided into three parts. The

monitoring part, the management part and the envi-

ronment part, including the cloud and the workﬂow

engine. Figure 3 shows an overview of the architec-

ture of WFCF and its most important components.

OpenShift: https://www.openshift.com

AWS: https://aws.amazon.com

An Intelligent Cloud Management Approach for the Workﬂow-cloud Framework WFCF

843

The monitoring aspect is managed by CWorkload.

This component monitors the cloud resources and the

workﬂow management tool. CWorkload uses the con-

nector concept as explained above. The main tasks of

CWorkload is to collect all necessary information and

build the placement model. This includes the resource

utilization and the tasks that are currently started or

will be possibly started next. In addition, CWorkload

also investigates the available workﬂow deﬁnitions. A

workﬂow deﬁnition contains all information about the

structure of the workﬂow. For example, the name of

the tasks and their order. There are several formats to

deﬁne a workﬂow deﬁnition. These could be, for ex-

ample, BPMN or acyclic directed graphs. We assume

that the workﬂow deﬁnition is either available as ﬁle

or within a database. Again, WFCF use a connec-

tor based concept to parse the information form the

workﬂow deﬁnition ﬁle, using an abstract parser with

concrete parser that implements the parsing methods,

depending on the used workﬂow deﬁnition notation.

Another task of CWorkload is the storage of execu-

tion information for tasks and the resource utiliza-

tion. This includes, for example, the duration of a

task. With this information, a task can be annotated

with several characteristics. The characteristics de-

scribe the prospective behavior of a task. For exam-

ple, the characteristic may describe whether the exe-

cution of the task usually needs more than 30 minutes

or whether it is very disc intensive. In our previous

works (K

ubler and Minor, 2016; K

ubler and Minor,

2017), we discuss our concept of tasks characteristics

in more depth.

The management component of WFCF contains four

parts: CProblem, CSimu, Solver and Conﬁgurator.

The placement model which is created from CWork-

load, will be investigated by CProblem. CProblem

has all constraints and SLA’s that are required. A con-

straint could be that if a task requires a web service

then at least one instance of this web service is avail-

able in the cloud. Another constraint could be that the

resource utilization of a VM is not higher than 90%.

The constraints and SLA’s have to be deﬁned by the

system administrator who manages WFCF. However,

some problems may be hard to detect with only the

placement model as reference. For example, to de-

cide if the start of some very resource intensive tasks

will lead to a SLA or constraint violation is not as

easy as to recognize whetehr a web service has not

yet been started. A simulation seems a proper way to

identify these kind of problems. Therefore, CProb-

lem interacts with CSimu. We are planning to use

CloudSim (clo, 2016) as the core of our simulation

part. CSimu will simulate the execution of the tasks

with the current cloud status and will show if this will

lead to a SLA violation. If a problem is found, for ex-

ample a missing web service, CProblem notiﬁes the

Solver. This component has the placement model and

receives from CProblem the problems with the place-

ment. The solver then searches for a feasible solution

that solves the problems that occurred. There are sev-

eral possible solutions, how the Solver can solve the

problems in the placement model. At the moment, we

use a simple rule based implementation of the Solver.

We will later on exchange it by a more intelligent

method. emphCase-based Reasoning (CBR) (Aamodt

and Plaza, 1994) could be such an intelligent alterna-

tive. The core idea is to retrieve similar situations and

their solutions from the past in order to reuse them for

the current situation. CBR has been considered for in-

telligent cloud management in the literature (Maurer

et al., 2013). We think that the CBR approach works

very well with the concept of the abstract represen-

tation of the environment. Future experiments will

show whether this is correct. Similar to CProblem,

the Solver has access to the simulation component to

simulate the solution and also to trigger CProblem to

check whether the solution has new Problems. If the

solution is feasible, the Conﬁgurator will reconﬁgure

the cloud. For instance, reconﬁguration may include

to start or stop VM’s or containers. The Conﬁgurator

is the only component in WFCF that knows the actu-

ally used clouds. The Conﬁgurator also has a list with

all available images for containers and VM’s and the

necessary parameters. These parameters are currently

saved as .txt ﬁles and are passed to a HashMap. This

allows in a very ﬂexible way to enter all parameters

for an image without the need for re-writing program-

code. For a more detailed discussion about the archi-

tecture of CWorkload, please take a look at our previ-

ous work (K

ubler and Minor, 2017).

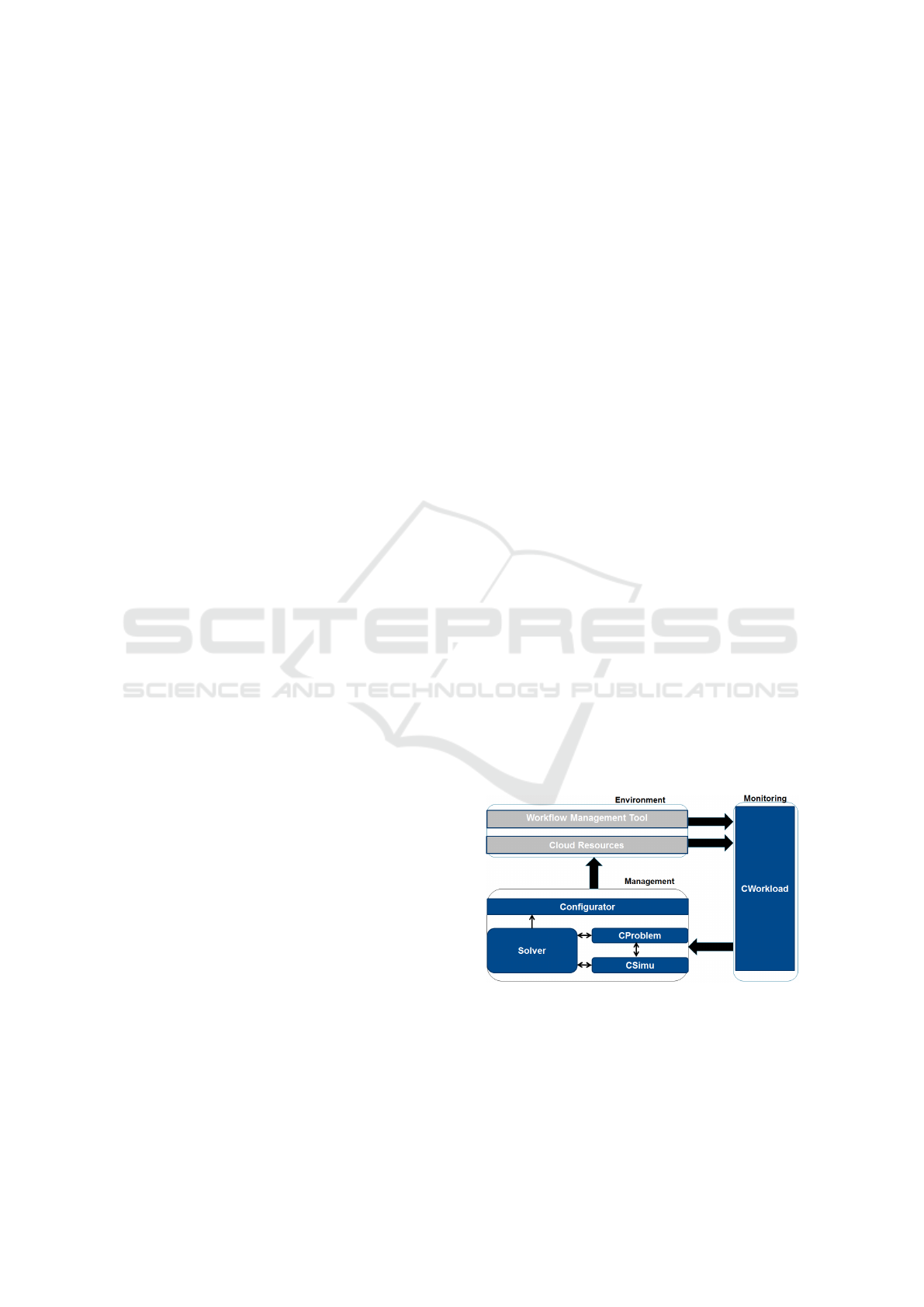

Figure 3: Overview of the architecture of WFCF.

4 EXPERIMENTAL SETUP

In this section, we present our evaluation. The goal

of the evaluation is to test if our implementation

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

844

of WFCF is capable to detect and monitor new in-

stances of workﬂows and handle the missing require-

ments correctly. We test WFCF with six workﬂows

and compare the results with a setup without WFCF

and dynamically started containers. The experimental

workﬂows are based on the music mastering domain.

A raw music ﬁle can not be used directly but must

post processed. This can include several steps, rang-

ing from normalizing the volume, change the sample

rate, the playback speed or adding effects like a fad-

ing effect at the end of the song.

Four our ﬁrst tests we used workﬂows with some ini-

tial tasks and a single processing step only. A sample

workﬂow is shown in Figure 4. The workﬂow starts

with the task ”Init Workﬂow Parameters” as an initial

task. In this task we deﬁne some parameters for ex-

ample the url of the web service, which kind of music

ﬁles we use (e.g. midi ﬁles) and so on. The next task,

”Generate random variable set” randomizes some pa-

rameters. For the normalize task we randomize the

value to which the volume of the song should be nor-

malized. In the following task, the ”Read data”’ task,

we load the ﬁle that will be processed. After that fol-

lows the actual ”normalize” task. This is the process-

ing task. The processing tasks use a web service that

is not hosted on the same machine as the workﬂow

engine. As said before, the task normalizes the vol-

ume. The last task, the ”write data” task, saves the

modiﬁed music ﬁle to the storage disk. During the

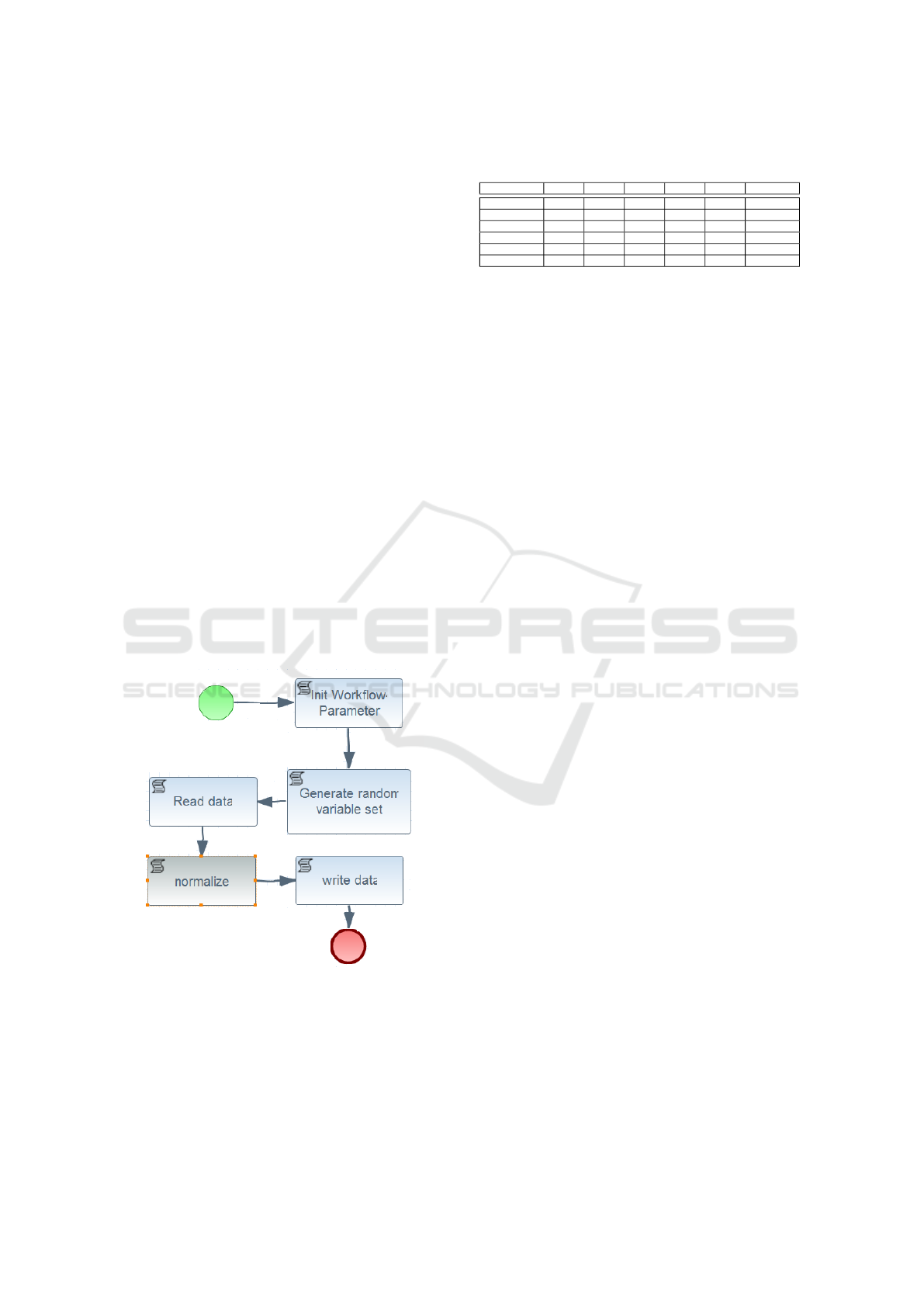

Figure 4: Example workﬂow with volume normalizing task.

experiment, we execute six different workﬂows. All

of them have the same structure as described above

but with different processing task. This includes the

following processing task:

Normalize: normalize the volume

Limiter: limit the signal of the song by an upper and

lower barrier

Table 1: Experiment 1 without WFCF and with pre-started

containers.

Name run 1 run 2 run 3 run 4 run 5 average

Limiter 33/34 17/18 17/18 17/18 17/18 20,2/21,2

Fading 19/20 17/18 19/20 17/18 17/18 17,8/18,8

Channels 13/14 12/13 12/13 13/14 12/13 12,4/13,4

Normalize 21/22 17/18 16/17 17/18 17/18 17,6/18,6

SampleRate 15/16 12/13 12/13 12/13 12/13 12,6/13,6

SampleSize 18/19 16/17 16/17 15/16 17/18 16,4/17,4

Channels: chose how many channels are used, for

example mono or stereo

Fading: add a fading effect to the end of the ﬁle

Sample Rate: determine the sample rate. If the sam-

ple rate is high, the song will be played faster.

Sample Size: determine the number of bits that are

used, for example 8bit or 16bit

All of the processing tasks are hosted as web ser-

vices within a docker container with a tomcat 9 as

web server and are managed by an OpenShift 3 pri-

vate cloud (ope, 2018). OpenShift was executed on a

PC with 4 x2GHz CPUs and 8GB RAM. None of the

containers had resource restrictions activated.

First, we tested what is the average run time of the

workﬂows. In preparation for this, all necessary web

services are pre-started on OpenShift. All tests were

conducted using the same music ﬁle with a size of

35kb. The workﬂows were executed by a jBPM 6

workﬂow engine (jbp, 2018).

During the tests, we executed every workﬂow ﬁve

times and measured the overall run time of the work-

ﬂow and the execution time of the processing task.

Table 1 shows the results. All results are described in

seconds. The ﬁrst value in every cell is the processing

time of the web service, i.e. how long it takes to build

the connection to the web service, transfer the mu-

sic ﬁle, process the music ﬁle, send the ﬁle back and

close the connection. The second value is the overall

time of the entire workﬂow. The latter includes the

parameter initialization and the loading and saving of

the ﬁle.

As we can see, the overall run time was in every

run, one second higher than the processing time. The

overhead could be expected, because the processing

task was not the only task that was executed. But

with always the same ﬁle to process it is not surpris-

ing that the effort was constant. The processing time

differs slightly from run to run. Even with the same

ﬁle to process, it took not always the same execution

time. A slight difference could be explained by the

network. However, if we take a look at run 1 for ev-

ery workﬂow, we can see it was always higher than

the following runs. We explain this effect by the used

web server. If a connection to a Apache web server is

recently established, following connections are done

faster than for the ﬁrst time.

An Intelligent Cloud Management Approach for the Workﬂow-cloud Framework WFCF

845

In order to test WFCF we repeated the experiment

with the only difference that the necessary web ser-

vices are not pre-started. Instead, WFCF monitors if

a new jBPM workﬂow instance is started. To do so,

its searches for new log ﬁles, created by jBPM and

determines which kind of workﬂow has been logged.

The structure of the six used workﬂows is similar,

however, it makes a difference which workﬂow ex-

actly is started because of the different web services

that are needed. WFCF scans the log ﬁle to deter-

mine which task is currently running. WFCF is able

to determine the requirements for these tasks (if there

are any), or whether the task after the currently active

task has any requirements. For our tests, the process-

ing tasks have the requirement for an individual web

service, based on the processing task. The normalize

task needs the normalize web service, the fading task

the web service for fading and so on. WFCF scans ev-

ery 5 seconds for a new log ﬁle. If a new ﬁle is found,

a monitoring connector checks every 5 seconds if a

new task is started. If a new task was detected, CProb-

lem checks if there is any unsolved requirement. In

our tests this will be the missing web services. The

solver then will solve the problem with a simple rule

based approach. It looks which web service is miss-

ing and adds a solution to the WFCF Conﬁgurator

which web service should be started. In contrast to the

Solver, the Conﬁgurator knows which cloud is used

and which container images are available. Each im-

age is tagged with information, including the avail-

able web services on the image. The Conﬁgurator ﬁ-

nally has for every image a conﬁg ﬁle that speciﬁes

information that is required for starting a container

in OpenShift3. This speciﬁcation could be extended

to further clouds than OpenShift in the future. The

results of our tests are depicted in Table 2. As pre-

viously, all results are provided in seconds. The ﬁrst

number in each cell is the time how long it takes for

WFCF to detect a new workﬂow instance. The sec-

ond number is the time how long it needs to deploy

the OpenShift container with the Apache server. The

third number is the time to process the request to the

web service, just like in the ﬁrst experiment. The last

number is the overall execution time of the workﬂow.

We can see that the minimum time and the maximum

time before a new workﬂow instance as noticed by

WFCF vary from one to ﬁve seconds. Since WFCF

searches for new log ﬁles all ﬁve seconds the result is

not surprising. The time it takes to deploy the Open-

Shift container also varies from web service to web

service, but also from run to run for the same web

service. This might be caused by small inaccuracies

in the time measurement (we only measured in sec-

onds, not in milliseconds). Another aspect is Open-

Table 2: Experiment 2 with WFCF and without started con-

tainers.

Name run 1 run 2 run 3

Limiter 5/11/28/44 5/11/26/42 5/12/28/46

Fading 5/12/26/44 3/10/26/40 5/10/25/42

Channels 2/16/21/39 3/16/22/41 5/15/21/43

Normalize 5/13/26/45 3/11/24/41 5/11/28/44

SampleRate 5/15/20/42 4/11/20/38 3/16/21/40

SampleSize 2/16/24/43 2/10/24/37 2/16/25/44

Name run 4 run 5 average

Limiter 5/11/26/42 3/11/26/41 4,6/11,2/26,8/43,0

Fading 4/11/28/43 3/11/26/41 4,0/10,8/26,2/42,0

Channels 3/16/21/41 3/15/27/37 3,2/15,6/21,2/40,8

Normalize 1/11/26/40 4/11/27/37 3,6/11,4/26,6/41,4

SampleRate 4/11/20/36 5/12/21/38 4,2/13,0/20,4/38,8

SampleSize 1/16/24/43 5/16/25/46 2,4/14,8/24,4/42,6

Shift. We observed that deploying a docker container

from OpenShift with the same conditions varies in

its duration. A very interesting aspect is the time

to process the request. We excepted that the time is

nearly the same as in the previous experiment. How-

ever, the time was always a bit longer. The reason for

this is partly based on the side-effect that an Apache

server builds a connection faster if a connection was

established recently. Since the containers are always

freshly started, this effect could not occur and, thus,

the time was increased. However, even with this ef-

fect in mind, the processing time is higher than ex-

cepted. The processing time for Normalize, for in-

stance, took in the worst case (the ﬁrst connection) 22

seconds. The average time for the second experiment

for Normalize was 26,4. We assume this additional

time comes from the fact that the container is freshly

started. Even if the Apache server is working it seems

that either OpenShift or the docker container needs

some additional time to work with full capacity, after

having started a new container. The overall run time

of the workﬂows is nearly the same time it takes to

detect the new workﬂow instance plus the deployment

time plus the request processing time. This result was

excepted. Compared to the overall run time of the

workﬂows in experiment one, the time to execute the

whole workﬂow is more than twice in average. How-

ever, if the processing time will be increased the ad-

ditional time of the detection and deploying will have

less impact in comparison.

The results indicate that WFCF may not be the

best choice in cases where the workload of the sys-

tem is very stable or does not change over time. If

for example a particular web service is needed all the

time, without break, is this not an optimal situation

for WFCF. Alternatively, if the time between two re-

quests to the web service is so small, that it is not

preferable to stop and restart a container or VM, the

overhead that WFCF generates is probably not appro-

priate. However, if a web service is not needed all

the time, the costs for running a, for example, EC2

instance is much higher, than just starting the service

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

846

if necessary. In this case, the additional time that is

consumed to start the container or VM is acceptable

if it reduces the overall costs. Another problem could

arise, if the timing of an request is critical. In this case

the additional time to start a container or VM could

be a problem. Therefore WFCF is an solution for sit-

uations where the resources and especially the costs

should be optimized without time critical operations.

5 CONCLUSION

In this paper, we introduce and test WFCF, a

connector-based integration framework for workﬂow

management tools and clouds. The behavior of the

prototype of WFCF is promising and provides ﬁrst

evidence that we can accomplish the goal of WFCF

to provide a way to integrate different workﬂow tools

and clouds. We introduce different concepts of WFCF

and describe their implementation. The connector

concept works well with OpenShift. We did not in-

clude a recent version of the Eucalyptus cloud (euc,

2018) in our current experiment. However, WFCF

works with an older version of the Eucalyptus cloud.

We will include further clouds in the near future. The

monitoring of the workﬂows works very well. WFCF

detects and monitors different workﬂows and identi-

ﬁes the status of the active instances. WFCF uses the

status information to start the required docker con-

tainers via OpenShift. The results of the experiments

show that WFCF requires some time to detect and

start a new web service. This latency could be a prob-

lem if the timing is important. In case the overall

workload of the system does not change much, the

overhead caused by WFCF could be a waste of time

and effort. In other cases, WFCF could reduce the

over provisioning and the costs for the owner. We will

conduct further experiments considering the volatil-

ity of the system’s workload in the future. There are

other aspects of WFCF we have not implemented yet.

Currently, the solver works with a simple rule based

approach. In our future work, we aim to exchange it

by a CBR approach. Another aspect is the simulation

of the solution. The simulation component is not in-

cluded yet. The analysis of the run time behavior of

tasks and the automated annotation with task charac-

teristics is also ongoing work. The experimental re-

sults highlight the feasibility of the tool-independent,

connector-based approach. The work makes a contri-

bution to automate the monitoring and management

of cloud workﬂows towards intelligent cloud manage-

ment in WFCF.

REFERENCES

The CLOUDS lab: Flagship projects - gridbus and cloud-

bus.

Cloudsocket project. https://site.cloudsocket.eu, 2018-04-

08.

Eucalyptus iaas cloud. https://github.com/ eucalyptus/ eu-

calyptus/ wiki, 2018-04-08.

jBPM. https://www.jbpm.org, 2018-04-08.

OpenShift. https://www.openshift.com/, 2018-04-08.

Aamodt, A. and Plaza, E. (1994). Case-based reasoning:

Foundational issues, methodological variations, and

system approaches. 7(1):39–59.

Bala, A. and Chana, I. (2011). A survey of various work-

ﬂow scheduling algorithms in cloud environment. In

2nd National Conference on Information and Commu-

nication Technology (NCICT), pages 26–30. sn.

Ferry, N., Rossini, A., Chauvel, F., Morin, B., and Solberg,

A. (2013). Towards model-driven provisioning, de-

ployment, monitoring, and adaptation of multi-cloud

systems. In Cloud Computing (CLOUD), 2013 IEEE

Sixth International Conference on, pages 887–894.

IEEE.

Korambath, P., Wang, J., Kumar, A., Hochstein, L., Schott,

B., Graybill, R., Baldea, M., and Davis, J. (2014). De-

ploying kepler workﬂows as services on a cloud in-

frastructure for smart manufacturing. 29:2254–2259.

ubler, E. and Minor, M. (2016). Towards a case-based rea-

soning approach for cloud provisioning. In CLOSER

2016 - Proceedings of the 6th International Con-

ference on Cloud Computing and Services Science,

Rome, Italy 23-25 April, 2016, volume 2, pages 290–

295. SciTePress.

ubler, E. and Minor, M. (2017). WFCF - a workﬂow cloud

framework. In Ferguson, D., Mu

noz, V. M., Cardoso,

J. S., Helfert, M., and Pahl, C., editors, CLOSER 2017

- Proceedings of the 7th International Conference on

Cloud Computing and Services Science, Porto, Portu-

gal, April 24-26, 2017, pages 518–523. SciTePress.

Liu, X., Yuan, D., Zhang, G., Chen, J., and Yang, Y. (2010).

SwinDeW-c: A peer-to-peer based cloud workﬂow

system. In Furht, B. and Escalante, A., editors, Hand-

book of Cloud Computing, pages 309–332. Springer

US.

Maurer, M., Brandic, I., and Sakellariou, R. (2013). Adap-

tive resource conﬁguration for cloud infrastructure

management. 29(2):472–487.

Pousty, S. and Miller, K. (2014). Getting Started with Open-

Shift. ”O’Reilly Media, Inc.”.

Quiroz, A., Kim, H., Parashar, M., Gnanasambandam, N.,

and Sharma, N. (2009). Towards autonomic workload

provisioning for enterprise grids and clouds. In Grid

Computing, 2009 10th IEEE/ACM International Con-

ference on, pages 50–57. IEEE.

Rodriguez, M. A. and Buyya, R. (2017). A taxonomy and

survey on scheduling algorithms for scientiﬁc work-

ﬂows in IaaS cloud computing environments: Work-

ﬂow scheduling algorithms for clouds. 29(8):e4041.

Shoaib, Y. and Das, O. (2014). Performance-oriented cloud

provisioning: Taxonomy and survey. abs/1411.5077.

An Intelligent Cloud Management Approach for the Workﬂow-cloud Framework WFCF

847

Wang, J., Korambath, P., Altintas, I., Davis, J., and Crawl,

D. (2014). Workﬂow as a service in the cloud: Archi-

tecture and scheduling algorithms. 29:546–556.

Workﬂow Management Coalition (1999). Workﬂow

management coalition glossary & terminology.

http://www.wfmc.org/resources 2016-12-15.

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

848
