Seamless Database Evolution for Cloud Applications

Aniket Mohapatra

1,3

, Kai Herrmann

, Hannes Voigt

, Simon L

uders

, Tsvetan Tsokov

and Wolfgang Lehner

Technische Universit

at Kaiserslautern, Germany

Technische Universit

at Dresden, Germany

SAP SE, Walldorf, Germany

SAP Labs Bulgaria EOOD, Soﬁa, Bulgaria

Keywords:

Database, Schema Evolution, Migration, Seamless Deployment.

Abstract:

We present DECA (Database Evolution in Cloud Applications), a framework that facilitates fast, robust, and

agile database evolution in cloud applications. Successful business requires to react to changing wishes and

requirements of customers instantly. In today’s realities, this often boils down to adding new features or

ﬁxing bugs in a software system. We focus on cloud application platforms that allow seamless development

and deployment of applications by operating both the old and the new version in parallel for the time of

development/deployment. This does not work if a common database is involved, since they cannot co-exist

in multiple versions. To overcome this limitation, we apply current advances in the ﬁeld of agile database

evolution. DECA equips developers with an intuitive Database Evolution Language to create a new co-existing

schema version for development and testing. Meanwhile, users can continuously use the old version. With

the click of a button, we migrate the database to the new version and move all the users without unpredictable

downtime and without the risk of corrupting our data. So, DECA speeds up the evolution of information

systems to the pace of modern business.

1 INTRODUCTION

Business success largely depends on the ability to

quickly adapt to the ever-changing needs and wis-

hes of customers. In our age of digitalization, almost

all businesses are permeated by IT systems and the

pace of evolving the software system determines the

pace of evolving and adapting the business. The soft-

ware technology community applies agile develop-

ment methods for easy and robust evolution of appli-

cations. Modern cloud application platforms facilitate

the seamless testing and deployment of new versions:

Both the old and the new version run in parallel for a

while, so developers can work with the new version

while users are still using the old one. Once the new

version is approved, users can be migrated with the

click of a button. This reduces the overall downtime

and the risk of faulty changes.

However, established platforms, such as Cloud

Foundry (www.cloudfoundry.org), explicitly exclude

database applications, since the database as single-

point-of-truth cannot co-exist both in the old and in

the new version at the same time. Whenever we

evolve the schema of the database, we have to evolve

all the currently existing data and all applications that

access the schema as well. Without platform support,

this has to be done manually by implementing a data

migration procedure, writing adapters for not yet up-

dated users, etc. This makes the database evolution

very time-consuming, expensive, and error-prone and

thereby a limiting factor for the fast and continuous

evolution of businesses.

Thanks to new research results on database evolu-

tion, this assumption is not necessarily true anymore.

There are tools and concepts that foster agile database

evolution and co-existing schema versions within one

database (Rahm and Bernstein, 2006). We recently

introduced INVERDA, a tool that allows developers

to easily create new schema versions by evolving ex-

isting ones with a simple descriptive language inter-

face. The new schema version then truly co-exists

with other previously created schema versions.

In this paper, we present DECA (Database Evo-

lution in Cloud Applications)—a framework that ap-

plies INVERDA for the deployment of database appli-

cations in cloud platforms. We tailor INVERDA to the

Mohapatra, A., Herrmann, K., Voigt, H., Lüders, S., Tsokov, T. and Lehner, W.

Seamless Database Evolution for Cloud Applications.

DOI: 10.5220/0006845101970207

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 197-207

ISBN: 978-989-758-318-6

197

speciﬁc requirements of cloud platforms and evaluate

its feasibility in this special but very important area.

Our contributions are:

• Architectural Blueprint for Database Evolu-

tion in Cloud Applications. We propose an ar-

chitecture to integrate seamless database evolu-

tion into existing tools. Applying results from

the literature, we guarantee that no data will

be corrupted during the evolution and migration.

(Section 3)

• Extensive Evaluation. We analyze the perfor-

mance characteristics to equip developers with a

guideline for the use of row- or column-stores and

we highlight the necessity of statement-wise trig-

gers to gain a signiﬁcant speed up. (Section 4)

In a word, DECA now facilitates agile and seamless

database evolution for cloud application platforms to

keep the pace with ever-changing business decisions.

Outline: In Section 2, we discuss modern cloud ap-

plication development and detail on current advances

in database evolution. In Section 3, we apply the ad-

vances in database evolution for agile cloud deploy-

ment: We present the design of DECA and show how

to integrate it in a common cloud platform with a

relational database. After an extensive evaluation in

Section 4, we conclude the work in Section 5.

2 RELATED WORK

Evolving applications as quickly and as robustly

as possible is an omnipresent challenge in soft-

ware development. To this end, cloud application

platforms such as Cloud Foundry implement Blue-

Green Deployment (https://docs.cloudfoundry.org/

devguide/deploy-apps/blue-green.html) to reduce the

risk and downtime during the continuous develop-

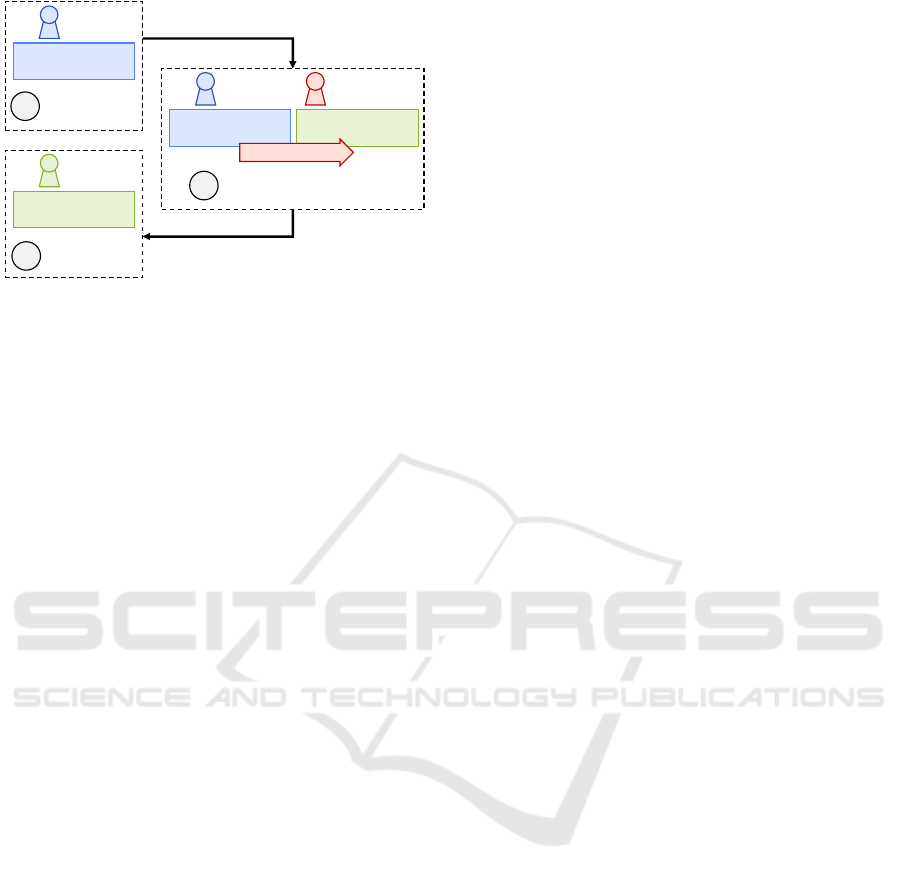

ment of cloud applications. Figure 1 shows the

general process. The currently running application

version (1) is called the blue version. While the

new/modiﬁed green version is developed, the blue re-

mains live and active (evolution phase). Once the

green version is ready, it is deployed and thoroughly

tested (2). Once the testing is done, we migrate all

users to the green version (migration phase). Now,

the requests are routed to the green version so that we

can take the old blue version ofﬂine (3). However, this

approach is not applicable for database application as

it will lead to data discrepancy between the green and

the blue database version.

To evolve existing applications in an easy, con-

trolled, and robust manner, modern agile software de-

velopment heavily relies on Refactorings (Ambler

and Lines, 2012; Fowler and Beck, 1999). Scott

Ambler (Ambler and Sadalage, 2006) adapts this

approach to the evolution of a production database

by proposing more than 100 Database Refactorings

ranging from simple renamings over changing con-

straints all the way to exchanging algorithms and re-

factoring single columns to lookup tables. One es-

sential characteristic of these refactorings is that most

of them couple the evolution of both the schema and

the data in consistent and easy-to-use operations. The

overall goal is to make database development just as

agile as software development by changing the game

from big upfront modeling to an incremental continu-

ous evolution of the database based on refactorings.

Database researchers pick up on this refactorings-

based principle and propose structured Database

Evolution Languages (DELs). DELs provide a set

of Schema Modiﬁcation Operations (SMOs) which

are refactorings on the database schema. SMOs cou-

ple the evolution of both the schema and the data with

intuitive and consistent evolution operations, e.g., par-

titioning or joining existing tables. SMOs are way

more compact than comparable SQL scripts (Curino

et al., 2013; Herrmann et al., 2017). Since manual

schema evolution is a heavy, error prone and expen-

sive operation, it is beneﬁcial to have operations like

SMOs which can do the required task in a clean and

consistent manner without the risk of corrupting data.

One of the most advanced SMO-based DELs, we are

aware of, is PRISM (Curino et al., 2009) that inclu-

des eleven SMOs that allow to describe most practi-

cal database evolution scenarios (Curino et al., 2008).

PRISM++, which extends PRISM, includes Integrity

Constraint Modiﬁcation Operations (ICMOs) that al-

low to create and drop both value and primary key and

foreign key constraints with the same charm and sim-

plicity as SMOs (Curino and Zaniolo, 2010; Curino

et al., 2013). Further, PRISM++ facilitates update

rewriting. This enables developers to automatically

adapt applications working on an old schema version

to correctly access the data of a new SMO-evolved

schema version.

BiDEL is a more recent extension of PRISM that

allows to create, drop, and rename both tables and

columns as well as splitting and merging tables both

vertically and horizontally. BiDEL is shown to be re-

lationally complete (Herrmann et al., 2015) and bi-

directional. The latter facilitates co-existing schema

version with a system called INVERDA (Herrmann

et al., 2017). INVERDA automatically makes mul-

tiple schema versions accessible in one database—

write operations in one version are immediately vi-

sible in all other schema versions as well. Further,

INVERDA guarantees data independence: No mat-

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

198

BLUE Version

Users

Initial situation

GREEN Version

Users

Final situation

BLUE Version

Users

Development and testing time

(both versions co-exist)

GREEN Version

Developers

Evolution phase

Migration phase

Evolution

Figure 1: Blue-green deployment of a cloud application.

ter which schema version is physically materialized,

every single schema version behaves like a regular

single-schema database. Since not all evolutions are

information-preserving, INVERDA manages auxili-

ary information to keep the otherwise lost informa-

tion. This functionality is exactly the missing piece of

the puzzle to implement blue-green deployment of da-

tabase applications. Our contribution is to show and

evaluate the feasibility of INVERDA’s approach for

the seamless evolution of cloud applications.

In comparison to manually evolving a database

with standard SQL, an SMO-based DEL is way ea-

sier to learn and to use. However, it still requires

a technical understanding of the database evolution

process. Therefore, the CRIUS project provides sim-

ple database evolution where non-technical users are

equipped with an intuitive graphical user interface to

easily extend a running database (Qian et al., 2010).

The database evolution is restricted to adding tables

and columns which at least allows to grow the data-

base with the application and prevents from common

mistakes. Another interesting compromise between

expressiveness and user-friendliness is model-driven

database evolution with MeDEA (Dom

ınguez et al.,

2008). MeDEA equips developers with an editor to

specify schema changes in an Entity-Relationship di-

agram and the respective changes are automatically

mapped to the underlying relational database model.

Integrating those approaches in our tool is promising

future work. We focus only on the recent literature

for database evolution here, but we point the inte-

rested reader to bibliographies from Roddick (Rod-

dick, 1992) and from Rahm et al. (Rahm and Bern-

stein, 2006).

Summary. There is plenty of related work for the

agile and seamless evolution of application code. Da-

tabase evolution is an emerging topic in research and

there are promising solutions that use SMO-based

DELs to make the database evolution faster and more

robust. To our best knowledge, there are no existing

solutions that apply those results for the seamless evo-

lution of database applications in cloud platforms.

3 DESIGN CONCEPTS

DECA adapts the principle of seamless evolution of

applications with blue-green deployment to the evolu-

tion of databases in cloud application platforms. Re-

cent advances in database evolution research allow to

easily create new schema versions; developers me-

rely write declarative and intuitive evolution scripts

with Database Evolution Languages (DELs), such as

PRISM++ or BiDEL (Curino et al., 2013; Herrmann

et al., 2017), consisting of Schema Modiﬁcation Ope-

rations (SMOs). INVERDA builds upon these langua-

ges and automatically generates co-existing schema

versions within the database—InVerDa veriﬁably en-

sures that no data is lost in any schema version by ma-

naging auxiliary information automatically without

any developer being involved (Herrmann et al., 2017).

We take this powerful result and use it to let the da-

tabase schema co-exist in both the old and the new

version during the evolution and migration of a cloud

application. The design concepts presented in this

section are generic so they can be adapted for all com-

mon database systems—we also highlight speciﬁc re-

quirements and nice-to-haves such as statement-wise

instead-of triggers.

DECA is a database evolution and migration tool

for cloud application platforms. We obtain two limi-

tations from the common blue-green deployment in

these platforms: First, DECA is single-branch, so we

evolve exactly one source schema version to one tar-

get schema version. Second, the evolution moves for-

ward only, i.e., after the migration, we do not support

the blue version anymore.

In the following, we describe the process of the

seamless database evolution with DECA in a cloud

platform in Section 3.1. Upon this, we detail the user

interfaces in Section 3.2 and present our system inte-

gration in Section 3.3.

3.1 The DECA Process

DECA generally adapts blue-green deployment from

cloud application platforms to database evolution and

has two phases: In the ﬁrst phase, the new green

schema version is already fully accessible but the data

remains physically in the original blue schema ver-

sion and all applications continue working on the old

blue version. Merely the developers and test users

can already access the new green schema version to

develop and evaluate new features, bug-ﬁxes, etc. In

Seamless Database Evolution for Cloud Applications

199

BLUE Access Schema

Name

Age

Salary

Max

40000

Ann

35000

Employees

Initial Data Schema

Name

Age

Salary

Max

40000

Ann

35000

Employees

BLUE Application Version

GREEN Access Schema

Name

Age

Salary

Grade

fk_dep

Max

40000

Ann

35000

Employees

Migrated

Data Schema

GREEN Application Version

ADD COLUMN Department TEXT AS ‘…‘ TO Employees;

ADD COLUMN Grade INT AS ‘…‘ TO Employees AS ;

DECOMPOSE Employees INTO

Employees (ID, Name, Salary, Grade),

Department (Department)

ON FK fk_dep

RENAME COLUMN Department IN Department TO Name;

Name

Sales

Service

Department

Name

Age

Salary

Grade

fk_dep

Max

40000

Ann

35000

Employees

Name

Sales

Service

Department

Development and testing time

Auxiliary Data Schema

Grade

Name

Sales

Service

Department

ID_1

ID_2

IDs

Users

Developers

and testers

GREEN_1 Schema

Name

Age

Salary

Grade

Employees

GREEN_2 Schema

Name

Age

Salary

Grade

Department

Employees

GREEN_3 Schema

Name

Age

Salary

Grade

fk_dep

Employees

Name

Department

Initial situation

Final situation

Access

schema

layer

Data

schema

layer

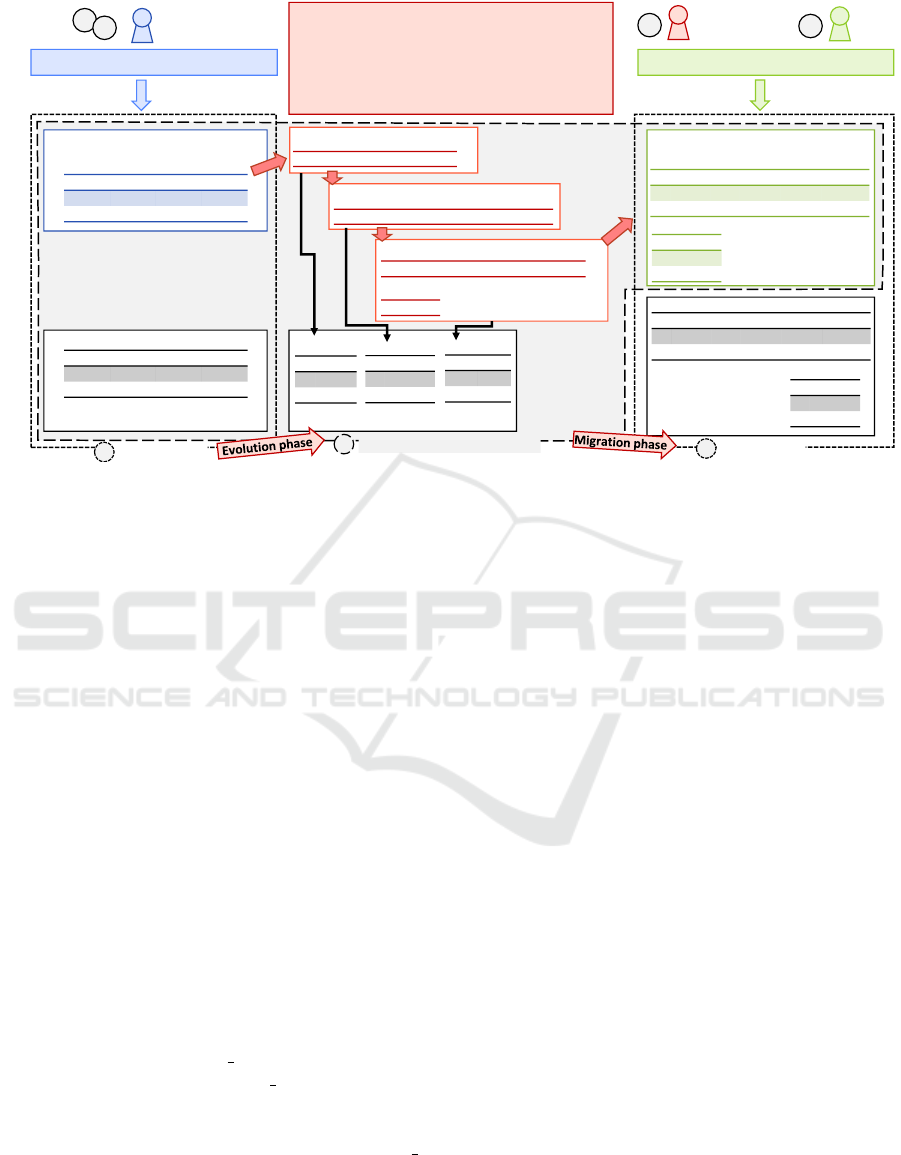

Figure 2: Blue-Green database evolution and migration process.

the second phase, the data is physically migrated to

the new green schema version. After completion, the

new green version can be accessed by all applications

and we take the old blue schema version ofﬂine.

Please consider an exemplary human resource

software as shown in Figure 2, which is deployed in a

cloud application platform such as Cloud Foundry. In

the initial situation (1), there is a simple table for the

employee details as shown in the blue access schema

on the left side of the ﬁgure. User applications access

this blue schema version on the upper access schema

layer just as any other regular database. The access

schemas are implemented with updatable views—the

data is persisted in tables in the data schema layer.

We will evolve and eventually migrate this database.

Evolution Phase. Developers evolve the application

and the database schema to create a new green ver-

sion by executing DEL-scripts. Assume new featu-

res require to add the two new columns “Department”

and “Grade”. Developers express this intended evolu-

tion merely by executing two ADD COLUMN SMOs

as shown in the upper middle of Figure 2. While the

ﬁrst ADD COLUMN SMO produces the intermedi-

ate schema version GREEN 1, the second ADD CO-

LUMN SMO results in GREEN 2. During testing,

the team decides to normalize the Employees table

and split away the Department column while crea-

ting a new foreign key—this results in the GREEN 3

schema version. For better readability, the team rena-

mes the Department column into Name to ﬁnally end

up in the GREEN access schema.

We are now in the state of development and tes-

ting (2), where both the blue and the green schema

version are fully accessible. Users can still use the

old version, while the developers and testers can use

the new version just as usual. DECA uses the code ge-

neration of INVERDA (Herrmann et al., 2017) to cre-

ate the green access schema with views—any write

operation on these views is executed by instead-of

triggers that propagate the write operation back to

the blue data schema. Since not all information can

be stored in the blue data schema, DECA automati-

cally manages auxiliary tables that keep all the other-

wise lost information. Both the blue and the green

schema version are now guaranteed to behave like re-

gular single-schema databases even though the data is

still stored only in the blue schema version.

Migration Phase. Till now, users did not notice any

change as they continuously used the blue version.

When the developers and testers conﬁrm that the new

green version works correctly, we enter the migration

phase by instructing DECA to change the physical

data schema to the green schema version. This is es-

sentially done with the click of a button. On the da-

tabase side, DECA creates tables in the data schema

according to the green schema version and populates

them with data by simply reading the data in the green

access schema. Afterwards, the data schema from the

blue version as well as the auxiliary data schema can

be cleared so that only the new green data schema re-

mains. The simultaneous migration of the application

is realized by common cloud application platforms

such as Cloud Foundry. After running the physical

migration we are in the ﬁnal state (3) and users use

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

200

R a b

1 1 3

2 2 4

PARTITION TABLE R INTO

S WITH 



, T WITH 



MERGE TABLE S (



), T (



) INTO R

CREATE TABLE R (a INT, b INT)

DROP TABLE R



RENAME TABLE R INTO S

RENAME COLUMN b IN R TO c

S a c

1 1 3

2 2 4

R a b

1 1 3

2 2 4

a b d

1 1 3 5

2 2 4 6

R a b

1 1 3

2 2 4

ADD COLUMN d AS f(a,b) TO R

DROP COLUMN d FROM R DEFAULT f(a,b)

DECOMPOSE TABLE R INTO S(a,b), T(b,c)

ON (PK|FK 



| )

[OUTER] JOIN TABLE R, S INTO T

ON (PK|FK 



| )

R a b

1 1 3

2 2 4

S a b

1 1 3

T a b

2 2 4

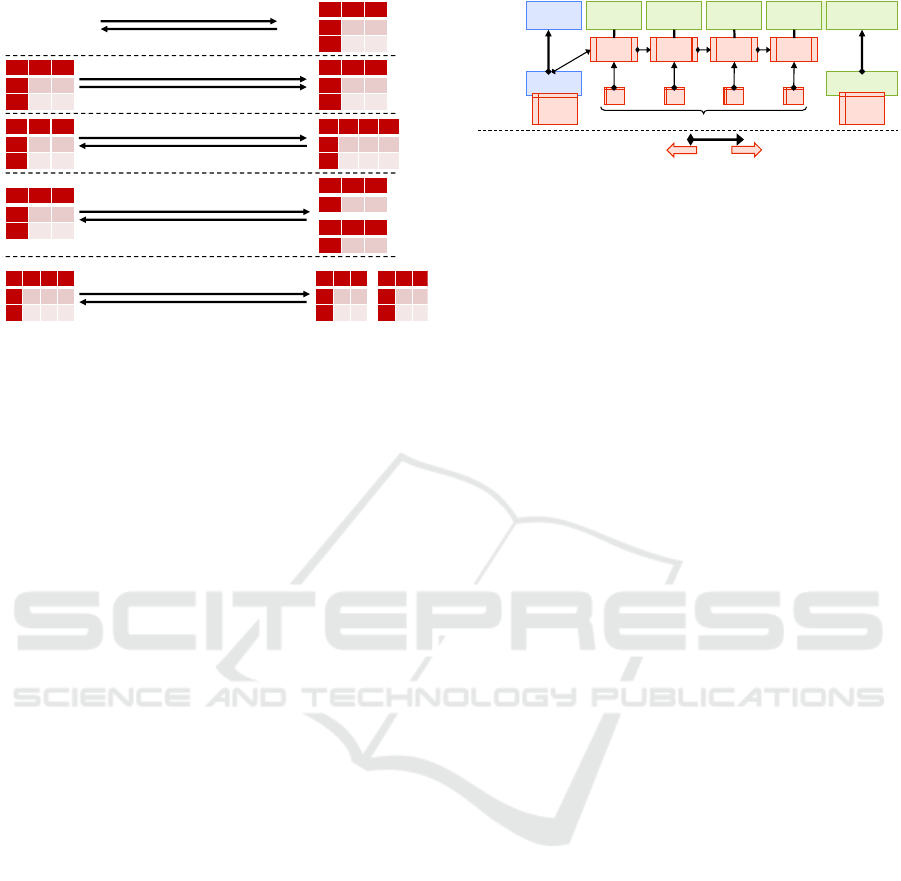

Figure 3: SMOs of DECA’s DEL.

the new green version now—the data access schema

is called GREEN(migrated) then. At this state, the de-

ployment cycle is ﬁnished and DECA is ready to start

the next evolution in the same way.

Currently, the migration phase causes limited

availability of the application for a short period of

time, since copying the data from the blue to the green

data schema locks the data tables. Hence, data cannot

be written but can be still read. To achieve a zero-

downtime migration, we need proper copy mecha-

nisms that migrate the data silently without blocking

the operations and keep the already migrated data in

sync. Further, the amount of data to migrate can be re-

duced by combining SMOs and in-place migrations.

These opportunities are left for future research.

Summary. We follow the blue-green deployment

process: While the blue production version remains

accessible, developers create a new green schema ver-

sion that co-exists and allows independent develop-

ment and testing. Finally, we migrate to the green

schema version and drop the blue version.

3.2 DECA’s Interfaces

Developers interact with DECA two times: once in

the evolution phase to create the new green schema

version and once to trigger the migration phase. In the

latter phase, data is copied from the blue data schema

to the green data schema—this process is fully au-

tomated and does not require any further interaction

on the developer’s side. During the evolution phase,

developers use the bidirectional SMO-based DECA-

DEL to describe the evolution of both the schema and

the data from the old blue to the new green version as

well as the propagation of write operations from the

new green back to the old blue version. The DECA-

DEL is equivalent to BiDEL (Herrmann et al., 2017).

auxiliary tables

BLUE GREEN_1 GREENGREEN_3GREEN_2

GREEN

(migrated)

Data

schema

Access

schema

BLUE

GREEN

tables

viewsviewsviewsviews

Legend: Write Read

(instead-of trigger on view) (view definition)

Figure 4: Generated views and triggers for example (Fig. 2).

Besides DECA-DEL’s relational completeness, this

guarantees that both the blue and the green schema

version behave like regular single-schema databases,

so we take this for granted.

The DECA-DEL is summarized in Figure 3. Ac-

cording to their counterparts in SQL-DDL, there are

SMOs to create, drop, and rename both tables and co-

lumns. Further, we can partition a table horizontally.

The partition criteria may overlap and must not neces-

sarily cover the whole relation. To ensure bidirectio-

nality the inverse SMO for merging two tables hori-

zontally also takes such partition criteria—this is re-

quired to propagate new records in the green schema

version back to the intended partition in the blue one.

Similarly, the last two SMOs allow to decompose or

join tables vertically. Either way, we need to specify

how records from the decomposed side are joined—

this may be according to the primary key, a speciﬁed

foreign key or any evaluable condition. Further, the

join can have inner or outer join semantics.

Summary. Developers have interfaces to trigger both

the evolution and the migration phase; for the evolu-

tion phase, DECA equips developers with a power-

ful SMO-based DEL to easily describe the evolution

from the blue to the green schema version.

3.3 System Integration

DECA is an independent component adjacent to a

DBMS. DECA is not a part of the DBMS but gene-

rates and deploys database artifacts that are then exe-

cuted in the database to evolve, test, and migrate it.

As can be seen in Figure 2, we separate the database

into an access schema layer and a data schema layer.

The access schema layer consist of one or two schema

versions which comprise of views and triggers and

the data schema layer consists of persistent data in

the form of tables. The application interacts with the

access schema instead of the data schema. This de-

coupling avoids directly modifying the data schema

and to achieve concurrently active access schemas.

Figure 4 shows the access schema and the data

schema for the example in Figure 2 with the generated

views and triggers. The green access schema version

is implemented with a sequence of views starting at

Seamless Database Evolution for Cloud Applications

201

the blue data schema. The views are made updatable

with instead-of triggers that propagate write operati-

ons also from the green to the blue schema version.

Since SMOs may add information capacity during the

evolution, we use auxiliary tables to prevent informa-

tion loss. Consider our example, where we add a new

column named Salary to the employees table. Since

this column does not exist in the blue version, we cre-

ate an auxiliary table which stores the data of the new

column. The view in the green schema version now

joins the blue data table and the auxiliary table. Write

operations on the green schema version are propaga-

ted by an instead-of trigger back to both the data table

and the auxiliary table.

For each view, we deﬁne three instead-of triggers,

i.e., for inserts, updates, and deletes. In most data-

base systems, these triggers are row-wise triggers by

default, i.e., they would execute one row at a time.

This causes a signiﬁcant propagation overhead when

multiple records are updated at a time. Unfortuna-

tely, many DBMSes do not support statement-wise

instead-of triggers. However, we show that it would

be worth it to implement statement-wise instead-of

triggers as they can signiﬁcantly speed up the pro-

pagation of write operations from the green access

schema to the blue data schema, as we evaluate in

Section 4. To explore the beneﬁts, we simulate their

behavior via stored procedures that take the argu-

ments of the write operation as parameters. Revisi-

ting our example from Figure 2, assume we want to

delete several employees because some departments

of the company got sold or we increase the salary of

all employees by 10%. When we execute such write

operations on the green schema version before the mi-

gration, triggers are used to propagate them from the

green access schema through the SMOs back to the

blue data schema. With row-wise triggers, this would

cause one trigger call on each intermediate version

for each single affected employee. A statement-wise

instead-of trigger could instead ﬁre one delete opera-

tion on the blue data schema as well as on each af-

fected auxiliary table. Since all these executions are

done on a bulk of records at a time, it is very fast com-

pared to the row-wise execution.

Summary. DECA generates the co-existing green

schema version with views and triggers upon the blue

data schema. Especially write operations of multiple

records beneﬁt from statement-wise triggers.

4 EVALUATION

DECA easily realizes complex evolutions and migra-

tions of the database in cloud applications. We shor-

ten the downtime and made the migration process

more predictable. A new green version co-exists with

the old blue version to allow extensive testing—when

the developers are sure that the new version works

correctly, we instruct DECA to physically migrate the

database with the click of a button. Developers spe-

cify the evolution as sequences of intuitive SMOs that

allow to generate the co-existing green schema ver-

sion without changing the data schema and without

restricting the availability of the blue schema version.

There is no hand-written data propagation between

schema version, hence we eliminate a common source

of failures. The same holds for the migration code,

which is completely generated from the SMO-based

evolution script. There is no hand-written code invol-

ved that could fail or delay the migration.

Beyond this functional contribution, we now pre-

sent an extensive evaluation of DECA. We analyze the

overhead caused by DECA to show that it is reasona-

ble. Further, we focus on the impact of row/column

stores and the use of row- or statement-wise triggers

to further reduce this overhead. In Section 4.1, we

evaluate our introductory example in detail. After-

wards, we zoom into the effect of single SMOs in

Section 4.2.

4.1 Exemplary Scenario

We evaluate the exemplary evolution and migration

from Figure 2 on Page 4 to analyze DECA’s beneﬁts.

Setup: We load the employees table with 150,000

sample records and evaluate both read and write ope-

rations on both the blue and the green schema ver-

sion as well as on the intermediate schema versions

as shown in Figure 4 to analyze the impact of the

evolution’s length on the performance overhead. In

Section 4.1.1, we measure the read/write performance

for batch sizes of 100 and 1000 records in both a row-

and a column-store with common row-wise triggers.

In Section 4.1.2, we evaluate statement-wise triggers

as a promising alternative that can signiﬁcantly speed

up the propagation of write operations between the

schema versions. Finally, we analyze the time for exe-

cuting the actual migration of the data schema from

blue to green in Section 4.1.3. All experiments are

conducted in the SAP HANA in-memory DBMS on

a Linux workstation with 2x6 Core Intel Xeon CPU

(3.5GHz) and 96GB main memory.

4.1.1 Propagation Overhead and Store Layout

The general expectation is that the propagation over-

head increases with a growing number of SMOs in

the evolution. To quantify this overhead, we compare

the use of DECA to not using it. An evolution done

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

202

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

= 0.43ms

= 0.55ms

1.25

1.28

1.4

7.44

30.23

1.04

2.18

2.25

7.64

26.15

0.49

0.58

0.7

0.49

1.02

0.44

0.65

0.76

0.85

0.96

1.04

0.76

Access schema

Propagation time factor

Row-store (100 records)

Row-store (1000 records)

Column-store (100 records)

Column-store (1000 records)

(a) Read operations.

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

= 80ms

= 695ms

0.99

1.06

1.75

3.75

4.21

1.08

1.13

1.68

4.23

4.48

1.11

1.51

2.13

5.84

6.05

1.1

1.26

1.51

2.22

6.14

6.48

1.29

Access schema

Propagation time factor

Row-store (100)

Row-store (1000)

Column-store (100)

Column-store (1000)

(b) Insert operations.

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

200

400

= 3ms

= 10ms

1.17

7.67

72.33

20.2

44.7

196

208.2

0.44

20.17

40.33

125

151.33

0.4

0.24

54.6

114.7

454.8

478.9

0.22

Access schema

Propagation time factor

Row-store (100)

Row-store (1000)

Column-store (100)

Column-store (1000)

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

200

400

= 4ms

= 8ms

10.5

42.25

46.25

1.15

22.5

50.63

203.63

222.75

0.15

10.25

22.5

98.5

0.15

46.13

103

384.75

453.88

0.2

Access schema

Propagation time factor

Row-store (100)

Row-store (1000)

Column-store (100)

Column-store (1000)

(d) Delete operations.

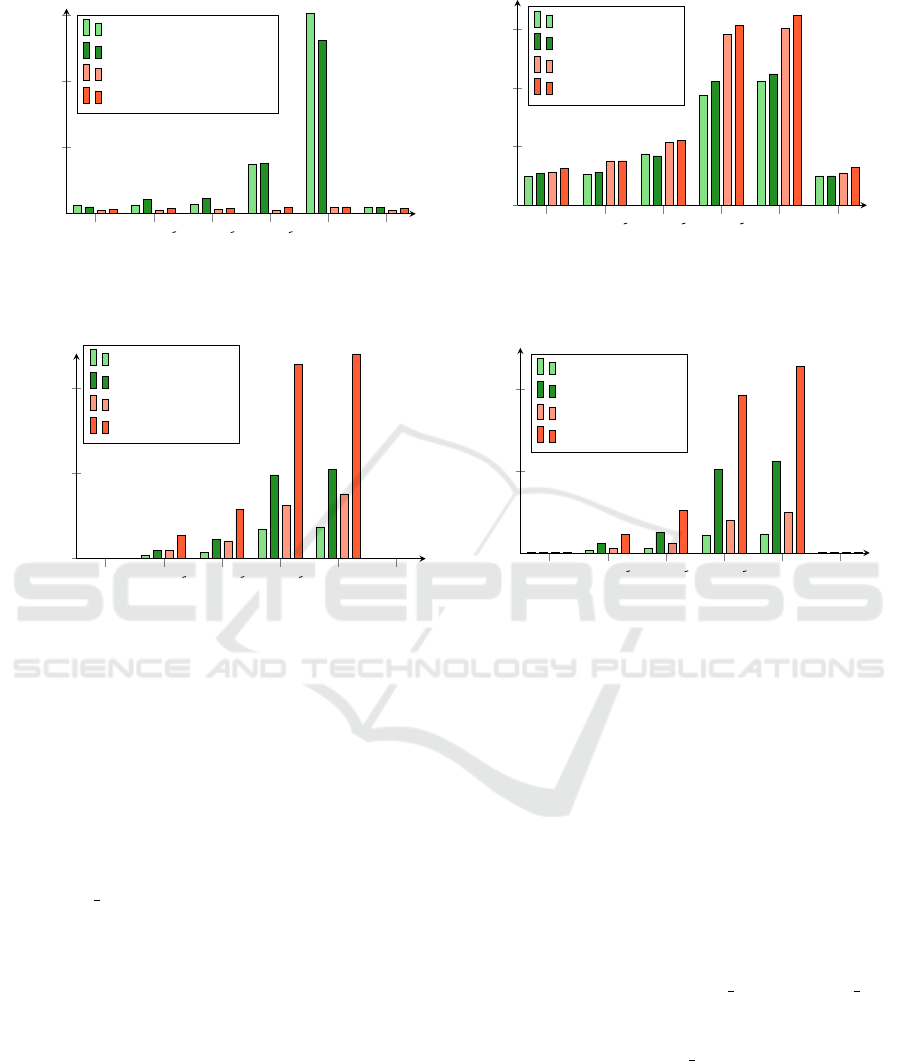

Figure 5: Comparing Row-store vs. column-store.

without DECA would require to manually implement

an evolution and migration program, e.g. in SQL,

which would ultimately result in GREEN(migrated).

Therefore, we consider the readings on the migrated

green schema version as the baseline for our mea-

surements. We represent all measurements as a fac-

tor of its respective baseline. For instance in Fi-

gure 5a we see that a SELECT with batch size 1000

on GREEN 2 in a row-store takes 2.25 the time of the

baseline, which is a SELECT with batch size 1000 on

GREEN(migrated) in a row-store. The batch size is

the number of rows selected, inserted, updated, or de-

leted by a single query. We use row-wise triggers for

these general experiments and will reduce the appa-

rently high overheads with statement-wise triggers in

the next section.

Figure 5a shows the propagation overhead for read

operation for both row- and column-stores. The main

observation is that the propagation overhead increases

from BLUE to GREEN for both batch sizes especially

in row-stores—in column-stores the effect is less do-

minant. As expected, the propagation time increases

with each SMO in the evolution.

Further, the time taken by a SELECT operation

in a column-store compared to row-stores is signiﬁ-

cantly smaller. We attribute this to the heavily read-

optimized storage structures in column-stores. For

many SMOs, the propagation logic joins auxiliary ta-

bles with the data tables, which works perfectly with

the query processing patterns of column-stores.

We conduct the same evaluation for insert ope-

rations and present the results in Figure 5b. Again,

the propagation overhead increases for both row- and

column-stores when moving from BLUE schema to

GREEN schema. The complex decomposition with

a foreign key between GREEN 2 and GREEN 3 re-

quires the generation of new surrogate key values

and causes a steep rise in the propagation over-

head. Between GREEN 3 and GREEN the rise

is not that high as we merely rename a column.

In GREEN(migrated), the data schema matches the

green access schema; hence, the propagation is no

longer required and the performance goes back to nor-

mal. Comparing row- and column-store, we now see

that row-stores perform better for insert operations: In

the worst case scenario, the propagation overhead for

Seamless Database Evolution for Cloud Applications

203

inserts in a column-store is around factor 6.5 while it

is only factor 4.5 for row-stores.

Figures 5c and 5d show the propagation overhead

for update and delete operations. Again, the propa-

gation time increases with each SMO in the evolution

and drops down again after the migration. In com-

parison to the GREEN(migrated) schema version, the

worst case propagation overheads for both row- and

column-stores are two orders of magnitude higher.

Further, the worst case for an update operation in a

column-store is roughly 2.3 times higher than in a

row-store. Similarly, it is around 2 times higher for

a delete operation.

Finally, a word on the effect of the number of re-

cords on the propagation overhead. For an insert ope-

ration, the propagation overhead grows roughly the

same for 100 and 1000 records; however, the base-

line value for 1000 record is already 8.6 times higher.

Whereas, a select operation generally causes a higher

overhead with growing batch sizes—since the query

execution is often below millisecond, there might be a

measuring error attached. The update and delete ope-

rations show roughly similar overhead growths for the

two batch sizes since both operations require to ﬁnd

the affected records before writing. While the blue

access schema allows deleting and updating the whole

batch with one single statement, the row-wise triggers

are ﬁred for every affected row in the green version.

Summary. As expected, the propagation overhead in-

creases with the number of SMOs in the evolution.

Further, column-stores facilitate signiﬁcantly faster

reading but row-stores allow faster writing. Hence,

the common advantages and disadvantages of row-

and column-stores also hold for the ﬁxed data access

patterns determined by the used SMOs.

4.1.2 Row-wise vs. Statement-wise Trigger

The propagation of write operations through sequen-

ces of SMOs is implemented with instead-of triggers.

We show that statement-wise triggers are more feasi-

ble than common row-wise triggers, since they cause

a signiﬁcantly smaller propagation overhead. Figu-

res 6a to 6c show the propagation overhead for insert,

update, and delete operations respectively. Again,

GREEN(migrated) is taken as the baseline. For in-

stance, in Figure 6a the duration of inserting 100 re-

cords at GREEN 3 with row-wise triggers is 3.73 ti-

mes higher than at GREEN(migrated).

Figure 6a shows the performance comparison of

row-wise vs. statement-wise triggers for insert ope-

rations. In both the cases, as we move along the

SMOs in the evolution, the propagation overhead in-

creases. The worst case propagation overhead for

statement-wise trigger for batch size of 1000 is 1.23

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

= 80ms

= 695ms

0.99

1.06

1.75

3.73

4.21

1.08

1.13

1.68

4.23

4.48

1.14

1.2

1.29

1.41

1.01

1.13

1.16

1.2

1.23

Propagation time factor

Row-wise (100)

Row-wise (1000)

Statement-wise (100)

Statement-wise (1000)

(a) Insert operations.

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

100

150

200

= 3ms

= 10ms

1.17

7.67

72.33

20.2

44.7

196

208.2

1.5

2.33

4.33

4.67

1.1

1.3

1.4

2.6

2.9

Propagation time factor

Row-wise (100)

Row-wise (1000)

Statement-wise (100)

Statement-wise (1000)

(b) Update operations.

BLUE

GREEN 1

GREEN 2

GREEN 3

GREEN

GREEN(migrated)

100

200

= 4ms

= 8ms

10.5

42.25

46.25

1.15

22.5

50.63

203.63

222.75

1.25

2.25

3.5

4.25

1.13

2.13

3.38

3.5

3.63

Propagation time factor

Row-wise (100)

Row-wise (1000)

Statement-wise (100)

Statement-wise (1000)

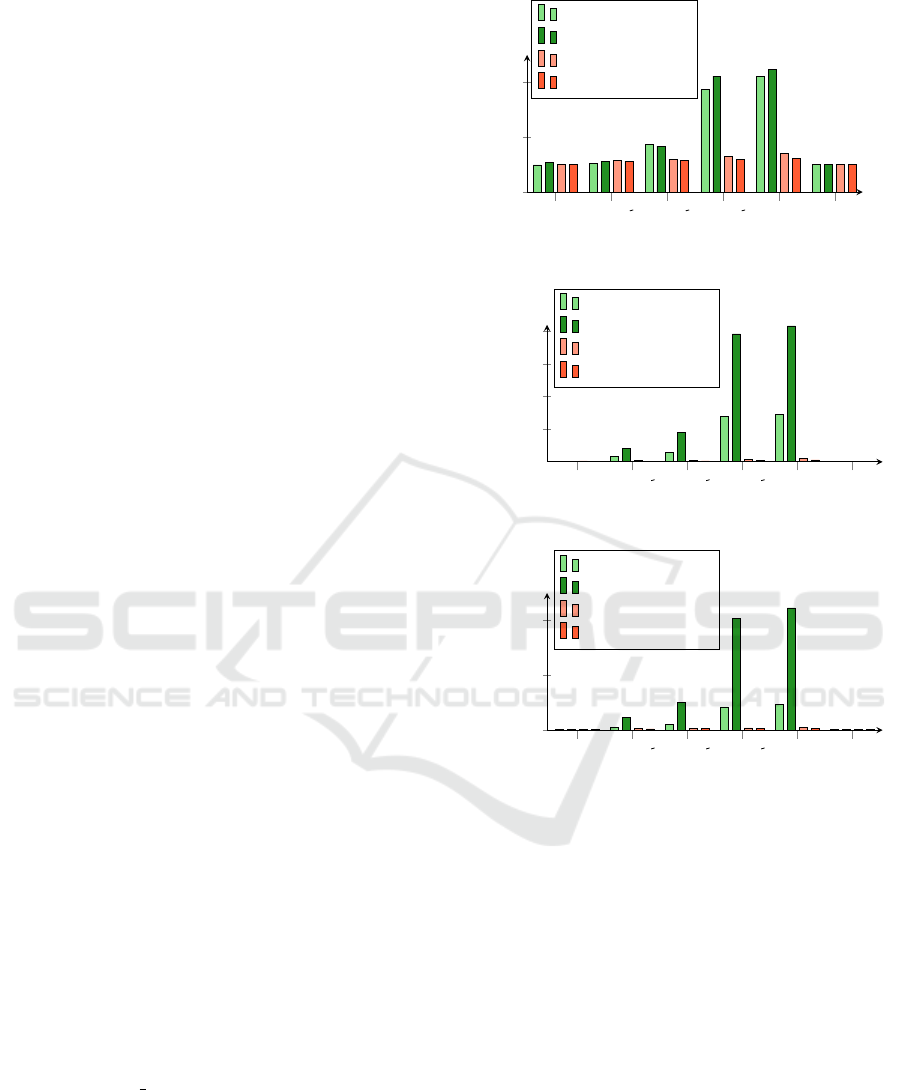

Figure 6: Comparing row-wise and statement-wise triggers.

times that of the baseline value. With row-wise trig-

ger, the propagation overhead is 4.28 times which is

still around 3.6 times higher than that of statement-

wise triggers. Hence, insert operations can greatly

beneﬁt from statement-wise instead-of triggers.

Figures 6b and 6c show the same measurements

for update and delete operations. Similarly, the up-

date and delete operations show an increasing pro-

pagation overhead when moving along the sequence

of SMOs. The worst case propagation overhead with

row-wise triggers is two orders of magnitude more

than the baseline value for both the update and the

delete operation. The propagation overhead for upda-

ting the GREEN schema version with batch size 1000

is 208 times the baseline values—doing the same with

statement-wise triggers is only a factor of 2.9, which

is roughly 69 times below row-wise triggers. Similar

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

204

150000 1000000 5000000 10000000

0.5

1.5

1.15 1.15

1.08

1.01

Number of records

Migration time factor

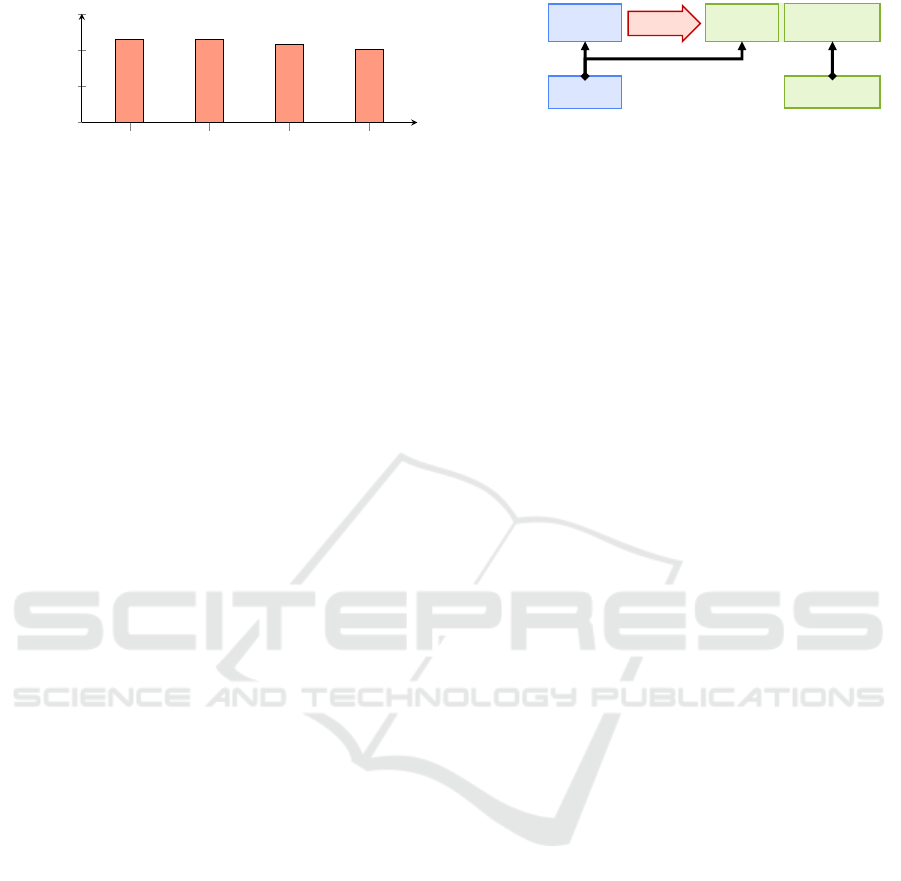

Figure 7: Migration Overhead via DECA.

behavior can be seen for the delete operation as well.

Summary. The comparison between a row-wise and

statement-wise trigger showed that the latter performs

signiﬁcantly better. Instead of propagating the write

operation for every single affected record with row-

wise triggers, we merely propagate different write sta-

tements that can affect multiple records. Hence, we

deem statement-wise instead-of-triggers as essential

to reduce the propagation overhead of write operati-

ons on the green version to an acceptable level.

4.1.3 Migration Overhead via DECA

After the developers and testers conﬁrm the new green

version, we use DECA to actually migrate the da-

tabase. At the same time, the cloud application

platform—Cloud Foundry for instance—moves all

users to the already deployed green version, so we

can turn off the former blue version. During the mi-

gration phase, there are many operations carried out

apart from the data migration. In order to understand

the actual impact of the database migration time, we

isolate the actual data migration. We compare the re-

sult to a simple table migration operation where the

same amount of data is copied from one table to anot-

her table with the same schema. We start our migra-

tion for 150,000 records and then move to 1,000,000

then 5,000,000 and ﬁnally to 10,000,000 records. For

each record set size, we run the migration ﬁve times,

exclude the highest and the lowest migration times,

and take the average of the rest.

Figure 7 shows the times taken for the migration

via DECA as a factor of the simple migration. For

DECA, we record a slightly higher migration time

because it needs to read the values via the sequence

of SMOs before writing them in the migrated data

schema. The migration time with DECA is close to

that of a na

ıve migration and it scales nicely with the

number of records. The more records the higher the

cost for the actual data movement and the smaller the

impact of the data access propagation for reading.

Summary. The migration time with DECA is mainly

determined by the actual transfer of the data—the

overhead introduced by the migration through the se-

quence of SMOs is negligibly small.

BLUE GREEN

GREEN

(migrated)

Data

schema

Access

schema

BLUE

GREEN

1 SMO

Figure 8: Scenario with a single SMO.

4.2 Single SMO Evolution

After the general evaluation of our exemplary scena-

rio, we now deep dive into the propagation overhead

of single SMOs and analyze them in isolation. The

knowledge about the different characteristics of the

different SMOs helps developers to design and plan

evolutions/migrations more profoundly.

Setup. We use a row-store with statement-wise trig-

gers. The general setup is shown in Figure 8. The

green version contains one or two simple tables that

are loaded with 150,000 sample records. We obtain

the green version by applying exactly one SMO at a

time. Again, we execute read and write operations

of 100 or 1000 records on the green schema version.

The baseline is the execution time with data being al-

ready migrated to the green data schema. Before the

migration, the operations take more time on the green

schema version, as they need to be propagated to the

blue data schema ﬁrst. The factor of this measured

time compared to the baseline is the overhead that is

actually caused by the respective SMO. The overhead

for read operations is in the range below milliseconds

and thereby subject to measuring errors; hence, we

focus on the write operations here. E.g., in Figure

9a, propagating an insert operation with 100 records

through the ADD COLUMN SMO from the green to

the blue schema version takes 1.1 times as long as

executing it directly on the migrated green schema.

Figure 9a shows the overhead of propagating an

insert operation through the different SMOs. In gene-

ral, the overhead caused by insert operations are very

small—usually below 10%. Merely, the SMOs that

involve writing to multiple tables show higher propa-

gation overhead. Assume we join two tables from the

blue schema to one table in the green schema. Whe-

never we insert data to the joint view in the green

schema version, we need to write to the two data ta-

bles. Similarly, the partitioning and the decompo-

sition on a foreign key involve auxiliary tables that

cause a noticeable overhead. Another interesting ob-

servation is that the relative overhead decreases when

we write more records. We use a statement-wise trig-

ger: the time for transforming the statement from

the green to the blue version are independent of the

number of records. Hence this overhead is negligible

small compared to writing more and more records.

Seamless Database Evolution for Cloud Applications

205

ADD COLUMN

DROP COLUMN

RENAME COLUMN

PARTITION

DECOMPOSE ON PK

DECOMPOSE ON FK

MERGE

JOIN ON PK

JOIN ON FK

0.5

1.5

1.1

1.07

1.01

1.1

1.47

1.06

1.51

1.65

1.06

1.02

1.11

1.06

1.1

1.08

1.15

1.11

Propagation time factor

100 records 1000 records

(a) Performance of single SMOs (insert)

ADD COLUMN

DROP COLUMN

RENAME COLUMN

PARTITION

DECOMPOSE ON PK

DECOMPOSE ON FK

MERGE

JOIN ON PK

JOIN ON FK

2.83

1.3

1.04

1.13

1.7

2.2

2.22

1.91

1.21

1.04

1.1

1.23

2.69

1.35

1.45

2.31

Propagation time factor

100 records 1000 records

(b) Performance of single SMOs (update)

ADD COLUMN

DROP COLUMN

RENAME COLUMN

PARTITION

DECOMPOSE ON PK

DECOMPOSE ON FK

MERGE

JOIN ON PK

JOIN ON FK

3.7

1.12

1.02

1.67

1.33

5.93

1.43

2.42

1.24

1.03

1.52

3.46

1.4

3.5

Propagation time factor

100 records 1000 records

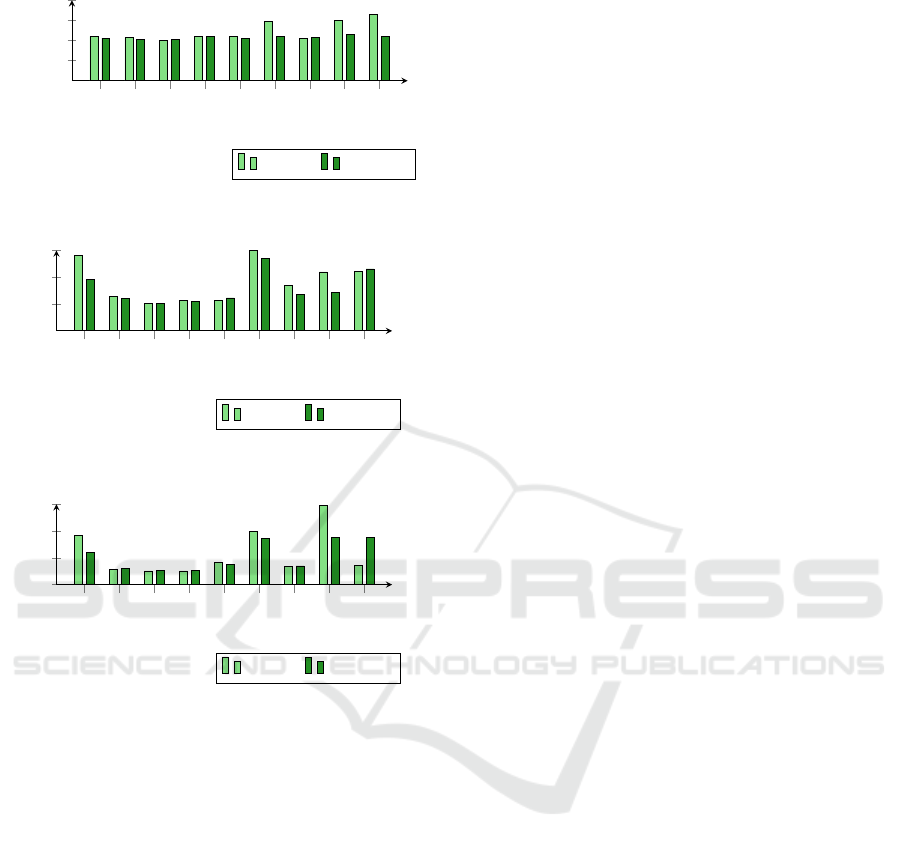

Figure 9: Write propagation through single SMOs.

Figures 9b and 9c show the same evaluation for

update and delete operations respectively. Again,

SMOs that involve multiple joins or write operations

on multiple tables have a higher propagation over-

head. For instance, propagating an update through

a DECOMPOSE ON FK SMO involves executing a

join and updating both data tables and auxiliary ta-

bles. As a result, it is 3 times slower than the baseline

for batches of 100 records. Further, e.g., the propa-

gation of a delete operation through a JOIN ON PK

involves deleting records from both the tables in the

blue data schema, which causes a 5.9 times higher

execution time for 100 records.

Summary. Generally, the overhead for propagating

write operations through single SMO is very small.

Merely SMOs that involve multiple joins or writing

to multiple tables, can cause higher overheads. These

insights help developers to better plan resources for

development, testing, and migrations.

5 CONCLUSION

Reacting to changing wishes and requirements of cu-

stomers as fast as possible is crucial for economic

success. The pace of implementing business decisi-

ons is often limited by evolving the company’s IT-

system accordingly. We can quickly evolve applica-

tions with agile refactoring-based software develop-

ment methods and deploy them seamlessly with blue-

green deployment in cloud application platforms. Ho-

wever, this does only work as long as no database is

involved, which is rarely the case. Evolving both the

database schema and the data without corrupting the

data is still an error-prone and expensive challenge—

not to mention co-existing schema versions for the

blue-green deployment.

Our goal was to make the database evolution in

cloud application platforms just as simple and ro-

bust as the evolution of the application code. There-

fore, we discussed current advances of agile database

evolution in the literature in Section 2. Researchers

adapt the refactoring-based evolution from applica-

tion code to databases by equipping developers with

SMO-based DELs. SMOs carry enough information

to evolve and migrate the database automatically and

to let schema versions co-exist in a database—writes

in one version are immediately visible in all other ver-

sions and each schema version is guaranteed to be-

have like a regular single-schema database.

This is exactly, what we needed to extend the

seamless blue-green deployment of cloud applicati-

ons to the database layer. In Section 3, we presen-

ted an architectural blueprint of our tool DECA. De-

velopers write SMO-scripts to easily create a new

green schema version that co-exists with the blue pro-

duction version. This allows intensive development

and testing without limiting the availability of the ap-

plication. After testing, developers migrate the data-

base with a click of button, hence DECA eliminates

the risk of faulty evolutions and corrupted data during

both the evolution and the migration of the database.

Finally, we presented an extensive evaluation of

DECA in Section 4. There is an overhead for pro-

pagating read/write operations from the green access

schema to the blue data schema. However, we have

shown that this overhead can be reduced to a mini-

mum by using a row-store database with statement-

wise instead-of triggers. Developers can safely use

DECA to evolve and migrate the database very

quickly without the risk of corrupting the data and

with a reasonable performance overhead. In sum, the

blue-green deployment of cloud applications inclu-

ding a database now facilitates fast and solid imple-

mentations of spontaneous business decisions.

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

206

REFERENCES

Ambler, S. W. and Lines, M. (2012). Disciplined Agile De-

livery: A Practitioner’s Guide to Agile Software Deli-

very in the Enterprise. IBM Press.

Ambler, S. W. and Sadalage, P. J. (2006). Refactoring

databases: Evolutionary database design, volume 4.

Addison-Wesley Signature.

Curino, C., Moon, H. J., Deutsch, A., and Zaniolo, C.

(2013). Automating the database schema evolution

process. The VLDB Journal, 22(1):73–98.

Curino, C., Moon, H. J., Ham, M., and Zaniolo, C. (2009).

The PRISM Workwench: Database Schema Evolution

without Tears. In International Conference on Data

Engineering (ICDE), pages 1523–1526. IEEE.

Curino, C., Tanca, L., Moon, H. J., and Zaniolo, C. (2008).

Schema evolution in wikipedia: toward a web infor-

mation system benchmark. In International Confe-

rence on Enterprise Information Systems (ICEIS), pa-

ges 323–332. Springer.

Curino, C. and Zaniolo, C. (2010). Update rewriting and

integrity constraint maintenance in a schema evolution

support system: PRISM++. Proceedings of the VLDB

Endowment (PVLDB), 4(2):117–128.

Dom

ınguez, E., Lloret, J., Rubio,

A. L., and Zapata, M. A.

(2008). MeDEA: A database evolution architecture

with traceability. Data and Knowledge Engineering

(DKE), 65(3):419–441.

Fowler, M. and Beck, K. (1999). Refactoring: improving

the design of existing code. Addison-Wesley.

Herrmann, K., Voigt, H., Behrend, A., and Lehner, W.

(2015). CoDEL – A Relationally Complete Language

for Database Evolution. In European Conference on

Advances in Databases and Information Systems (AD-

BIS), pages 63–76. Springer.

Herrmann, K., Voigt, H., Behrend, A., Rausch, J., and

Lehner, W. (2017). Living in Parallel Realities: Co-

Existing Schema Versions with a Bidirectional Da-

tabase Evolution Language. In International Con-

ference on Management Of Data (SIGMOD), pages

1101–1116. ACM.

Qian, L., LeFevre, K., and Jagadish, H. V. (2010). CRIUS:

user-friendly database design. Proceedings of the

VLDB Endowment (PVLDB), 4(2):81–92.

Rahm, E. and Bernstein, P. A. (2006). An online biblio-

graphy on schema evolution. ACM SIGMOD Record,

35(4):30–31.

Roddick, J. F. (1992). Schema Evolution in Database Sy-

stems – An Annotated Bibliography. ACM SIGMOD

record, 21(4):35–40.

Seamless Database Evolution for Cloud Applications

207
