The AVARE PATRON

A Holistic Privacy Approach for the Internet of Things

Christoph Stach

, Sascha Alpers

, Stefanie Betz

, Frank D

urr

, Andreas Fritsch

, Kai Mindermann

Saravana Murthy Palanisamy

, Gunther Schiefer

, Manuela Wagner

, Bernhard Mitschang

Andreas Oberweis

2,3

and Stefan Wagner

IPVS, University of Stuttgart, Universit

atsstraße 38, 70569 Stuttgart, Germany

FZI Forschungszentrum Informatik, Haid-und-Neu-Straße 10-14, 76131 Karlsruhe, Germany

AIFB, Karlsruhe Institute of Technology, Kaiserstraße 89, 76133 Karlsruhe, Germany

ISTE, University of Stuttgart, Universit

atsstraße 38, 70569 Stuttgart, Germany

ZAR, Karlsruhe Institute of Technology, Vincenz-Prießnitz-Straße 3, 76131 Karlsruhe, Germany

Keywords:

Privacy, IoT Apps, Smart Things, Stream Processing, Privacy Preferences Elicitation & Veriﬁcation.

Abstract:

Applications for the Internet of Things are becoming increasingly popular. Due to the large amount of available

context data, such applications can be used effectively in many domains. By interlinking these data and

analyzing them, it is possible to gather a lot of knowledge about a user. Therefore, these applications pose a

threat to privacy. In this paper, we illustrate this threat by looking at a real-world application scenario. Current

state of the art focuses on privacy mechanisms either for Smart Things or for big data processing systems.

However, our studies show that for a comprehensive privacy protection a holistic view on these applications

is required. Therefore, we describe how to combine two promising privacy approaches from both categories,

namely AVARE and PATRON. Evaluation results conﬁrm the thereby achieved synergy effects.

1 INTRODUCTION

Applications for the Internet of Things—or short IoT

Apps—are on the rise. This trend is due to the in-

creasing number of sensors that are built in everyday

objects with (indirect) connection to the Internet. So,

these objects are able to interconnect and exchange

data. Such devices are labeled as Smart Things. Since

we are surrounded by Smart Things in almost ev-

ery situation, there constantly arise novel application

ﬁelds for the IoT. Here, each Smart Thing captures

a different aspect of its context and commonly sends

this data to a central processing system. The central

system consolidates the data and has sufﬁcient com-

puting power to perform comprehensive analyses on

it. The data is stored for future unknown purposes

and gets enriched by data from further data sources.

As a result, knowledge can be gained from the avail-

able data, e. g., behavior patterns can be derived for

an individual user. This knowledge can be used to in-

crease the quality of service for each user from then

on.

GrowthEnabler predicts that the market for such

IoT Apps will grow by almost 300 % until 2020. Es-

pecially the Connected Health domain beneﬁts from

this trend (GrowthEnabler, 2017). However, as health

IoT Apps handle data which contains a lot of knowl-

edge about users, an effective privacy system is a key

issue for such apps. State of the art focuses on pro-

tecting sensitive data either on Smart Things or on

big data processing systems. Yet, there is no holis-

tic view on IoT Apps as a whole. That is, a privacy

system for the IoT has to operate on both the Smart

Things as well as the central processing system in or-

der to provide a comprehensive protection. There are

completely novel requirements towards such a privacy

system that exceed those for single Smart Things or

central processing systems by far (Dhillon and Back-

house, 2000). For instance, due to the complexity of

IoT Apps, users cannot comprehend what knowledge

can be gained from which data and what background

information about him or her is available.

For this reason, by introducing AVARE PATRON,

a holistic privacy approach which focuses on a simple

description of privacy preferences, we make the fol-

lowing contributions: (a) We introduce a real-world

application scenario from the Connected Health and

derive requirements towards an IoT privacy system.

372

Stach, C., Alpers, S., Betz, S., Dürr, F., Fritsch, A., Mindermann, K., Palanisamy, S., Schiefer, G., Wagner, M., Mitschang, B., Oberweis, A. and Wagner, S.

The AVARE PATRON - A Holistic Privacy Approach for the Internet of Things.

DOI: 10.5220/0006850303720379

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 372-379

ISBN: 978-989-758-319-3

Sensor

Layer

Edge

Layer

Big Data

Layer

Application

Layer

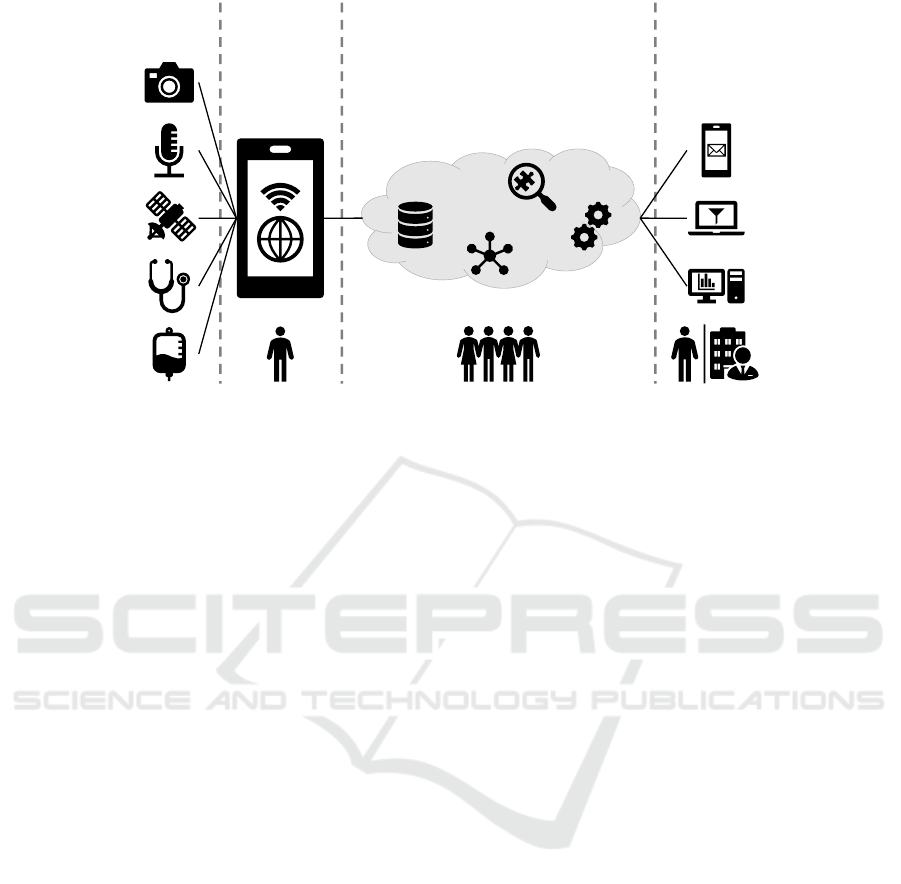

Figure 1: IoT App Layer Model.

(b) We introduce a holistic privacy approach for the

IoT called AVARE PATRON, a fusion of two promis-

ing privacy systems for Smart Things (AVARE) and

big data processing systems (PATRON). Both systems

achieve signiﬁcant synergy effects due to this tight in-

termeshing. (c) We show that AVARE PATRON is the

only privacy approach which meets all requirements

towards an IoT privacy system.

The remainder of this paper is as follows: In Sec-

tion 2, a real-world IoT App from the Connected

Health domain is introduced and privacy require-

ments are derived from it. Then, AVARE PATRON—

our approach towards a holistic privacy system for the

IoT—is introduced in Section 3. Section 4 discusses

AVARE PATRON in the context of related work. Fi-

nally, Section 5 concludes the paper.

2 APPLICATION SCENARIO

Before introducing a real-world application scenario,

we ﬁrst discuss the architecture of IoT Apps in gen-

eral. Figure 1 illustrates the components involved.

The Sensor Layer contains all components that are

able to capture context data. These components are

characterized by the fact that they have very little

computing power and can only capture a certain type

of data. As a result, they only provide unprocessed

raw data. They are also not designed to execute third-

party applications. Examples of Sensor Layer com-

ponents are cameras, microphones, or GPS receivers.

Special medical devices such as health monitors or

devices for the administration of medication are also

part of this layer. In order to (pre)process the cap-

tured data, these devices have to be connected to a

device with more computing power and connectivity

(e. g., a smartphone). This connection can be either

physical (e. g., the sensor is installed in a smartphone)

or wireless (e. g., via Bluetooth). This hub device is

usually strongly tied to a single user, i. e., all data con-

ﬂated on the device can be linked to this user. Un-

like sensors, devices in the Edge Layer are able to

store data. Their key feature is however the ability to

execute third-party applications. These applications

have access to remote servers, i. e., they can transfer

the collected data to the Big Data Layer in order to

perform comprehensive analyses. As a result, data

of many such hub devices, i. e., data of many users,

are gathered in the Big Data Layer. A user does not

know where his or her data is processed or stored. The

Big Data Layer persistently stores any incoming data.

This enables to process both, historical and real-time

data. These two data types can be combined for the

analyses. Data of different users can be cross-linked

as well. That way, data mining, machine learning,

and complex event processing techniques can be used

to recognize patterns and generate further knowledge.

The insights are prepared for presentations tailored to

different stakeholders. For example, users can be in-

formed about the occurrence of certain patterns, ir-

relevant information can be ﬁltered out, or the data

can be provided in a highly aggregated form. How

the data is presented is determined by the Application

Layer. The devices used here are highly heteroge-

neous and are not necessarily associated with the data

subject, i. e., these devices can belong to other users

or even companies.

After introducing the architecture of IoT Apps,

the application scenario below illustrates the advan-

tages of these apps. The scenario introduces an app

for children suffering from diabetes, as IoT Apps are

The AVARE PATRON - A Holistic Privacy Approach for the Internet of Things

373

particularly effective for the treatment of chronic dis-

eases (Kn

oll, 2012).

For this purpose, the children are equipped with a

Smart Bracelet and a smartphone. The Smart Bracelet

is able to detect certain activities (e. g., administer-

ing insulin) based on characteristic movement pat-

terns (Kwapisz et al., 2011). The smartphone deter-

mines the child’s mood via its microphone (Mehta

et al., 2012) and the taken bread units via its cam-

era (Almaghrabi et al., 2012). In addition, blood glu-

cose meters can be connected via Bluetooth in order

to access their readings. All measurement results are

automatically captured, labeled with a GPS location

and a time stamp, and entered into an electronic di-

abetes diary. Thereby the children do not have to

remember to write down their health data and the

records are more accurate.

The collected data is regularly sent to a hospital

cloud. Here the data of all patients are preprocessed

and made available to the attending physicians. This

facilitates their work, as they can quickly review the

data and focus on emergency cases. If necessary,

however, they also have access to the unprocessed

original data.

Additionally, this approach enables researchers

from various research areas to gather novel insights

due to the huge data collection. For instance, physi-

cians can derive correlations between treatment meth-

ods and disease progressions. Or urban planners

are able to identify places where the medical condi-

tion gets signiﬁcantly better and learn how to create

healthier cities (Kn

oll, 2012).

However, there are two further stakeholders for

this kind of data: the parents of the young patients

and their insurance companies. Parents can be in-

formed about an unhealthy lifestyle of their children

(e. g., if too many sweets are consumed) or be alerted

in case of a sugar shock including precise location in-

formation. Insurance companies can use the data to

determine whether expensive treatment methods are

actually required.

Due to the huge amount of sensitive data and the

large number of stakeholders who are interested in

this data, a wide variety of privacy concerns arise in

such a context. For instance, the children want to pre-

vent that their parents are able to check their current

location regularly and thus oversee them permanently.

However, if they deactivate the GPS entirely, the par-

ents cannot be informed of their whereabouts even in

case of an emergency. Moreover, this would signif-

icantly deteriorate the data quality. Correlations be-

tween particular locations and health conditions can

no longer be detected. This also applies to all other

sensors used in this scenario. That is, an applicable

privacy system cannot solely rely on ﬁltering out or

alternating data from certain sources.

Resulting Requirements.

Privacy systems for IoT Apps should be applied to

the Edge Layer or the Big Data Layer. In the Sensor

Layer, no third-party applications can be installed and

these devices lack sufﬁcient computing power. The

data subject has no control over the devices in the Ap-

plication Layer. In addition, a privacy system would

have little effect in this layer; private data has already

been fully analyzed and could have been shared with

any third-party by previous layers. Therefore, the fo-

cus of this work is on the Edge Layer and the Big Data

Layer.

Simple Conﬁguration. Most users of IoT Apps

are no IT experts. Therefore, the conﬁguration of

the privacy systems, i. e., the speciﬁcation of pri-

vacy preferences, has to be very simple. This is

crucial in such a complex environment, as users

cannot comprehend what knowledge can be de-

rived from which data. The user has to be able to

give a high level description of which information

should be concealed from which stakeholders.

Quality of Service Preservation. Besides pri-

vacy, the user is primarily interested in a high

quality of service. As shown in the applica-

tion scenario, all privacy issues could be solved

by sharing no information with any third-party.

But then the user would not beneﬁt from the IoT

App. Therefore, a privacy system has to apply

different concealing techniques to protect privacy

while still guaranteeing the highest possible ser-

vice quality.

Protection at Big Data Layer. Only at the Big

Data Layer all data used by an IoT App is avail-

able (i. e., data from all involved Smart Devices

as well as data from further sources). In addi-

tion to real-time data, the Big Data Layer also

has the necessary storage capacities to maintain a

long-term data history. New knowledge can be de-

rived by combining historical and real-time data.

Therefore, a privacy mechanism needs access to

all of this data to comply with the privacy prefer-

ences.

Protection at Edge Layer. As a user can no

longer technically control the use of personal data

after it has left the Edge Layer, it is necessary that

a part of the privacy mechanism is also executed

there. Since the amount of data involved in an

IoT App is very large, data protection at the Big

Data Layer takes a considerable amount of time.

To ensure near-real-time data processing despite

the privacy measures, the amount of data should

SECRYPT 2018 - International Conference on Security and Cryptography

374

be reduced at an early stage. For instance, a pa-

tient could prevent data from sensors that are not

required for the IoT App from being transferred

to the Big Data Layer. By restraining data at an

early stage, it can also be ensured that particularly

sensitive data never leaves the Smart Thing, i. e.,

the data subject’s control.

Tight Coupling. The privacy mechanism at the

Edge Layer and the one at the Big Data Layer

should work closely together for efﬁciency rea-

sons. The conﬁgurations of both mechanisms

have to be harmonized according to the user’s

privacy preferences. This includes not only co-

ordinating which mechanism protects what kind

of data, but also a shared memory, which stores

the existing knowledge on every component. It

should be kept in mind here that a lot of differ-

ent devices at the Edge Layer can be involved in a

single IoT App.

3 THE AVARE PATRON

To meet these requirements, we combine two promis-

ing privacy approaches, namely AVARE (Alpers et al.,

2017a) and PATRON (Stach et al., 2018). AVARE is a

privacy mechanism for Smart Things. With AVARE,

the user’s effort in specifying his or her privacy pref-

erences is reduced as s/he has to formulate these only

once at a central point. AVARE then distributes them

to all of his or her Edge Layer devices. Besides, le-

gal compliance is taken into account. Nevertheless,

the source-based permissions used in AVARE prevent

comprehensive analytics in the Big Data Layer. PA-

TRON takes care of the latter. It allows users to spec-

ify their privacy preferences in natural language. Do-

main experts are provided with tool support to semi-

automatically translate these descriptions into permis-

sions. For veriﬁcation, a control group deﬁnes alter-

native permissions. Via a data ﬂow comparison, the

quality of the two permission sets is evaluated to ver-

ify that the permissions fully correspond to the user’s

preferences. By combining the two approaches, syn-

ergy effects are achieved in the resulting holistic pri-

vacy system. The overall architecture is shown in Fig-

ure 2. The components are outlined hereafter.

3.1 Conﬁguration of the System

In addition to the existing four layers for IoT Apps,

we introduce two further layers: the Veriﬁcation

and Conﬁguration Layer and the Deployment Layer.

These layers are required for creating and managing

the privacy conﬁgurations.

The elicitation of privacy preferences has to be

very easy, especially in such a complex environ-

ment as IoT Apps. The user therefore formulates

his or her privacy preferences in near-natural lan-

guage towards the PATRON Veriﬁcation and Conﬁg-

uration Layer. Using a knowledge base, these prefer-

ences are translated into a system conﬁguration. The

knowledge base contains insights from domain ex-

perts (e. g., which data is required for which analysis

or what knowledge can be derived from which sensor

data). The translation can only be carried out semi-

automatically, since the preferences are expressed at

a high level (e. g., “Insurance company must not know

that I have eaten sweets!”). System theoretical tools

can support this process. Several conﬁgurations are

created, of which one is randomly selected as master

conﬁguration. The remaining conﬁgurations are kept

as test suites for veriﬁcation (see Section 3.3).

The master conﬁguration is sent to the Deploy-

ment Layer. If necessary, legal experts can assess the

conﬁgurations for their legal compliance at this point.

If the conﬁguration does not violate any applicable

law or norm, it is approved for deployment. For this,

it is split into two: an AVARE conﬁguration enforced

directly on the various devices at the Edge Layer and

a PATRON conﬁguration for the Big Data Layer.

3.2 Privacy at the Edge Layer

The privacy system AVARE is embedded in the Edge

Layer. This requires a dedicated instances of AVARE

per Smart Thing on the Edge Layer equipped with a

corresponding conﬁguration, depending on the sen-

sors available for the device.

So, the data can be prepared (i. e., thinned out) at

the Edge Layer. AVARE is able to ﬁlter data horizon-

tally or vertically (i. e., ﬁltering values or attributes)

blur data, and block data sources that are not required

by later analyses. Depending on the respective data

source, different concealing techniques are applied.

For instance, it is acceptable to reduce the accuracy of

location data (if this does not violate applicable law),

while medical data must not be altered as this could

have serious implications for a patient’s health.

Such privacy mechanisms work entirely source-

based, e. g., location data sharing can be prevented but

patterns consisting of data sequences from different

sources cannot be concealed. This could be achieved

with a permission model such as ACCESSORS, but

even then it is not possible to consider the data from

other Smart Things. However, this data is merged

in the Big Data Layer, whereby further patterns can

be revealed. To provide a comprehensive protection,

very restrictive rules are required at this layer. Yet,

that has a negative effect on subsequent processing

The AVARE PATRON - A Holistic Privacy Approach for the Internet of Things

375

Verification and

Configuration Layer

Knowledge

Base

Privacy

Preferences

Modeler Testers

Deployment Layer

Test

Suites

Configuration

Splitter

Sensor Layer

Application Layer

Big Data Layer

PATRON Access Control

Edge Layer

AVARE AVARE

Data Flow Verification

Users

Figure Legend:

• AVARE components

are shown in blue

• PATRON components

are shown in green

• Insecure components

are shown in red

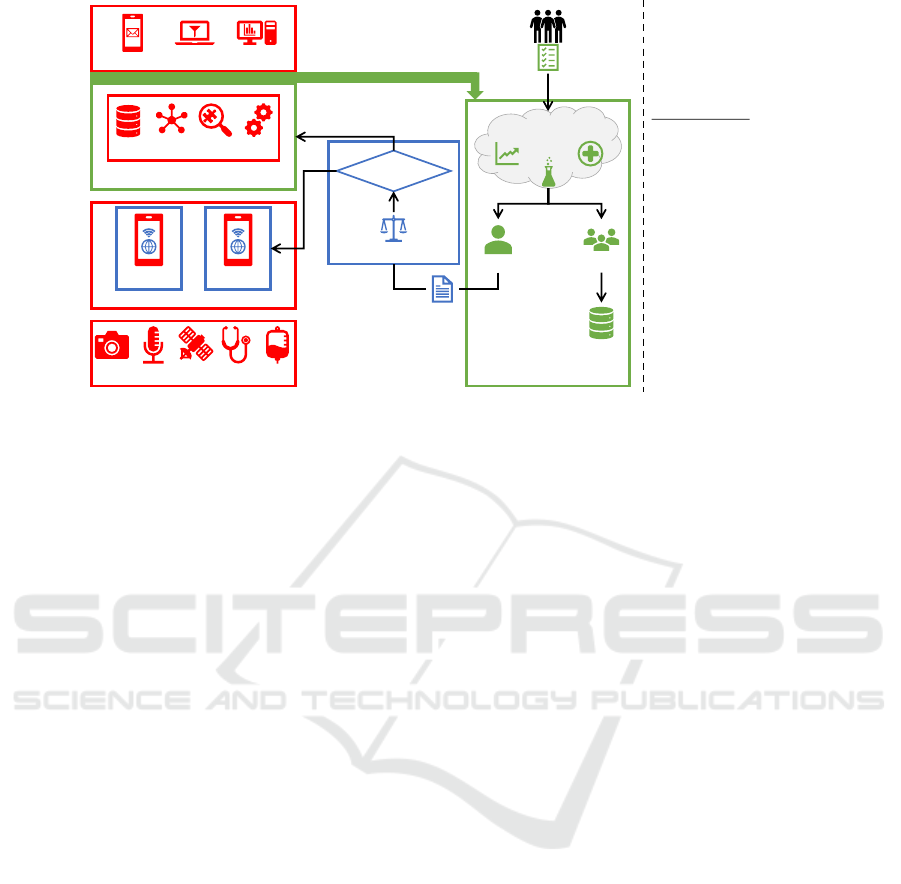

Figure 2: Overall Architecture of AVARE PATRON.

steps. The advantage of this procedure is that such

privacy operations require little computing effort and

by reducing the amount of data subsequent processing

steps are much faster. Moreover, users do not have to

rely on the fulﬁllment of their privacy preferences at

the Big Data Layer. This means that the modelers

have to trade off quality of service against processing

speed in the Big Data Layer.

Additionally, the connection to the Big Data Layer

can also be secured. Thereby devices in the Edge

Layer cannot send data to unauthorized third parties,

but to the processing back end, only. In addition,

the connection itself can be protected (e. g., via SSL).

This solves a major problem for PATRON, namely

how to ensure that Smart Things do not bypass the

PATRON Access Control and send their data directly

to the Big Data Layer.

3.3 Privacy at the Big Data Layer

The PATRON Access Control is wrapped around the

Big Data Layer. Therefore, it is able to control all in-

coming and outgoing data streams. That way, the PA-

TRON Access Control has a detailed overview of the

existing information available to the processing logic

in the Big Data Layer.

PATRON does not ﬁlter out certain attributes, but

it conceals private patterns. Such a pattern represents

a sequence of high-level events, e. g., the patient ate

sweets (Event

) and had to inject insulin as a result

(Event

). To accomplish this, various techniques can

be applied. For instance, the chronological sequence

of events can be swapped (whereby the correlation be-

tween eating sweets and taking insulin gets lost) or

certain events can be suppressed. On the one hand, the

modeler has to consider which technique has the least

inﬂuence on the quality of service. To this end, it is

considered how many false positives (e. g., sequence

Event

→ Event

is detected although it did not oc-

cur) and false negatives (e. g., an insulin intake is not

detected) occur due to the manipulation. Depending

on the speciﬁc use case, these parameters can also

be weighted (e. g., a false alarm is less crucial than

a non-identiﬁed emergency). On the other hand, the

manipulation must not be perceptible. For instance,

if an adversary knows that all n time units a certain

reading occurs, this event can neither be suppressed

nor swapped in the chronological order. As a result,

the computations in the PATRON Access Control be-

come complex and thus time-consuming. It is there-

fore important that the incoming data is pre-ﬁltered in

the Edge Layer by AVARE.

These concealing techniques are applied to both

historical data and real-time data. The outgoing

(privacy-friendly) data ﬂow is not only forwarded to

the Application Layer, but also sent to the Veriﬁcation

and Conﬁguration Layer. Here, the data is compared

with the result of a simulated run on which the test

cases are applied. The system assesses whether the

selected master conﬁguration complies with all pri-

vacy preferences, as well as whether the conﬁguration

is too restrictive, i. e., whether the quality of service

is impaired too much. The conﬁguration is then ad-

justed accordingly and the user gets feedback. This is

important to build conﬁdence in the privacy system.

4 DISCUSSION

AVARE and PATRON are promising privacy systems

in their respective application ﬁeld. However, the

SECRYPT 2018 - International Conference on Security and Cryptography

376

combination of these two systems provides a holis-

tic privacy protection for IoT Apps. In the follow-

ing, we discuss whether the two systems meet the re-

quirements towards a privacy system for IoT Apps

speciﬁed in Section 2 and which synergy effects are

achieved by our combined approach. As shown

in the application scenario, the elicitation of privacy

preferences has to be simple (R

). Related work of-

fer a variety of ways for the elicitation of privacy

preferences. ACCESSORS introduces a permission

model for Smart Things that allows users to describe

which information can be used for which purpose un-

der which context. It also enables to express what

information can be derived from which sensor (com-

binations) (Stach and Mitschang, 2018). However,

expert support is needed to identify these relation-

ships. There are extensions for TOSCA (TOSCA

is a standard for describing topology and orchestra-

tion of cloud applications) to specify privacy require-

ments (Breitenb

ucher et al., 2013). However, these

preferences can be speciﬁed only by the system ad-

ministrator and apply to all users. Yet, each user

might have individual privacy preferences which can-

not be considered in advance. In addition, system

administrators and users have to trust blindly that

these settings are actually implemented by the cloud

provider. STPA-Sec introduces a method to model

security requirements towards a software system.

Thereby, software architects are semi-automatically

supported to take these security constraints into ac-

count during implementation phase (Young and Leve-

son, 2014). STPA-Priv supports additionally model-

ing of privacy-relevant aspects (Shapiro, 2016). This

presupposes that the architect is willing to protect pri-

vate data—but a lot of business models are based on

the exploitation of this data. In addition, STPA-Priv

cannot apply any user-speciﬁc privacy preferences.

On the contrary, AVARE provides a user-friendly

GUI that allows users to conﬁgure the system. It

guides the user to create and manage a legally compli-

ant privacy proﬁle. This proﬁle is then transferred and

applied to all of his or her Smart Things. However, the

user is not made aware of any correlations between

the data sources used by an app and the knowledge

derivable from these data. PATRON therefore adopts

a different strategy. Since the user gives high-level de-

scriptions of his or her preferences, s/he is able to for-

mulate all of his or her requirements. As AVARE PA-

TRON adopts this strategy, our approach fully meets

Requirement R

The data protection measures must not unneces-

sarily affect the service quality of the IoT App (R

To the best of our knowledge, this issue is not covered

by related work. In AVARE, the user is responsible

for maintaining the quality of service. That is, if the

experienced quality of service is too low, the user has

to decide which privacy settings has to be changed

to improve the quality. PATRON always checks and

maximizes the quality of service automatically. This

is achieved by applying the most suitable concealing

techniques for each individual case. However, the

large number of possible techniques causes a process-

ing overhead. In AVARE PATRON, this is reduced

by aggregating or ﬁltering out unrequired data at the

Edge Layer. Thus, our approach is better than both of

the other two approaches as it fully meets Require-

ment R

Privacy protection at the Big Data Layer (R

) is

important in the IoT context. There are many pri-

vacy extensions for real-time data processing systems,

e. g., Borealis (Lindner and Meier, 2006). They pro-

vide an attribute-based protection, i. e., certain data

attributes are only visible to authorized processing

units. This procedure is overly restrictive as the

units either always have access to certain attributes

or never. Therefore, systems such as ACStream pro-

vide context-based access control (Cao et al., 2009).

Yet, they also operate at the level of attributes. He

et al. therefore propose to consider whole complex

events, i. e., sequential sequences of certain attribute

values. This way, certain events can be dropped in-

stead of all attributes. As a result, quality of service

is considerably improved (He et al., 2011). Wang et

al. study how to suppress certain events while maxi-

mizing service quality (Wang et al., 2013). However,

dropping of events achieves suboptimal results, as too

much information could be lost. To carry out accurate

but privacy-aware analyses, PrivApprox uses a differ-

ential privacy-based approach. That is, detailed data

from different users is analyzed, but the results con-

tain no information about an individual user (Quoc

et al., 2017). Yet, this technique is not suitable for

medical use cases, since it is crucial that examination

results can be linked to speciﬁc patients.

The Big Data Layer is fully out of AVARE’s scope

whereas PATRON fully meets this requirement. It

provides comprehensive privacy protection at the Big

Data Layer. Thus, AVARE PATRON also meets Re-

quirement R

Privacy protection at the Edge Layer (R

) is vi-

tal in the IoT context as well. There are basically

two different implementation strategies for privacy

mechanisms for Smart Things: On the one hand,

the apps can be manipulated. A monitoring com-

ponent is injected into the byte code of an app.

This monitor ensures that the app complies with the

user’s privacy preferences. AppGuard is a privacy

system which uses byte code injection. It enables

The AVARE PATRON - A Holistic Privacy Approach for the Internet of Things

377

users to add context-based constraints to permissions,

i. e., the permissions’ scope of validity gets restricted.

Furthermore, users are able to specify countermea-

sures if an app’s execution violates the permissions.

For instance, the app can be provided with aggre-

gated, anonymized, or randomized data (Backes et al.,

2014). Dr. Android & Mr. Hide addresses the prob-

lem that a lot of apps have access to too many pri-

vate data due to coarse-grained permission settings.

For this purpose, new ﬁne-granular permissions are

introduced. All of an app’s functions that require user

data are assigned to one of four protection classes.

For each category, generic anonymization and ﬁlter-

ing techniques are deﬁned allowing the user to restrict

data access (Jeon et al., 2012). Even more control is

provided by RetroSkeleton. Here, the user can spec-

ify function calls s/he considers to be privacy critical.

For each function call, s/he deﬁnes a code fragment

which should be executed instead (Davis and Chen,

2013). Yet, users are completely overburdened with

this task, e. g., as many approaches require a deeper

technical understanding. On the other hand, the oper-

ating system on the Smart Things can be manipulated,

i. e., the operating system monitors the apps. That

way, similar extensions as the ones described above

can be realized. For instance, Apex adds constraints

to permissions (e. g., to specify how often an app can

request the current location) (Nauman et al., 2010).

However, all of these approaches have three crucial

issues: a) As they map their permissions to sensors,

privacy management is far too restrictive. b) They

only work on single Smart Things and do not con-

sider distributed infrastructures. c) Many of these ap-

proaches violate applicable law, e. g., the manipula-

tion of byte code might violate copyright law (Alpers

et al., 2017b).

Privacy protection at the Edge Layer is fully re-

alized by AVARE. It provides various technical mea-

sures to protect the user’s personal data on the Smart

Things. This is ensured, e. g., by preventing unautho-

rized data access. PATRON does not consider privacy

protection at the Edge Layer. By integrating AVARE

in our approach, we also meet Requirement R

to-

tally.

A holistic view on the entire data processing of

an IoT App is highly recommended for a privacy sys-

tem (R

). As related work considers only the one or

the other, there is no such holistic view. AVARE PA-

TRON operates on both layers, as there is a tight cou-

pling between the privacy components at both layers.

On the one hand, the two protection mechanisms are

controlled by a common conﬁguration. This enables

a good coordination of concealing tasks. On the other

hand, this ensures that Smart Devices on the Edge

Layer forward their data to the PATRON Access Con-

trol, only. Thus, AVARE PATRON meets Require-

ment R

Lessons Learned.

Although AVARE and PATRON are highly effective

in their respective application ﬁeld, both lack a holis-

tic privacy protection for IoT Apps.

AVARE has drawbacks with respect to quality

of service. Since data protection is realized at data

source level, the restrictions can be overly strict. This

is a consequence of the fact that AVARE operates

solely on Edge Layer devices. As a result, AVARE

lacks the knowledge of how the data is processed in

the Big Data Layer and with which additional data

it is interlinked. As AVARE only has to deal with a

small amount of data, it can provide near-real-time

data processing.

That is the key problem of PATRON. The Big Data

Layer is where the data from all Smart Things is gath-

ered. As a result, PATRON has to deal with a lot of

data. As PATRON operates at pattern level, there are

many options for protecting private data. The selec-

tion and application of the best privacy mechanism

is therefore very time-consuming. However, this en-

sures that the user receives the best possible quality of

service.

Hence, only by combining the two approaches all

requirements towards a privacy system for IoT Apps

can be met. AVARE PATRON is not only the sum

of both approaches’ advantages, but it also eliminates

their shortcomings. In addition, the tight coupling en-

sures that adversaries are unable to gain access to sen-

sitive data. So, combining AVARE and PATRON is

the logical choice.

5 CONCLUSION

Due to the proliferation of sensors in everyday ob-

jects, IoT Apps are becoming increasingly popular.

Smart Things can be beneﬁcial in various domains

such as Smart Cities, Industrial IoT, and Connected

Health. However, this also raises new requirements

towards privacy mechanisms. While there is a large

number of privacy solutions for Smart Things or for

big data processing respectively, there is a lack of

holistic approaches. For this reason, this paper de-

scribes how to combine two promising individual so-

lutions, namely AVARE and PATRON. This com-

bined approach is called AVARE PATRON. Evalu-

ation results show that AVARE PATRON complies

with all requirements towards a privacy system for

IoT apps. AVARE PATRON not only possesses the

SECRYPT 2018 - International Conference on Security and Cryptography

378

individual advantages of its components, but also gen-

erates many synergies.

ACKNOWLEDGEMENTS

This paper is the result of a collaboration between the

research projects AVARE and PATRON, both com-

missioned and ﬁnanced by the Baden-W

urttemberg

Stiftung gGmbH.

REFERENCES

Almaghrabi, R., Villalobos, G., Pouladzadeh, P., and Shir-

mohammadi, S. (2012). A novel method for measur-

ing nutrition intake based on food image. In Proceed-

ings of the 2012 IEEE International Instrumentation

and Measurement Technology Conference, I2MTC

’12, pages 366–370.

Alpers, S., Oberweis, A., Pieper, M., Betz, S., Fritsch, A.,

Schiefer, G., and Wagner, M. (2017a). PRIVACY-

AVARE: An Approach to Manage and Distribute Pri-

vacy Settings. In Proceedings of the 2017 3

IEEE

International Conference on Computer and Commu-

nications, ICCC ’17, pages 1460–1468.

Alpers, S., Pieper, M., and Wagner, M. (2017b). Heraus-

forderungen bei der Entwicklung von Anwendungen

zum Selbstdatenschutz. In Informatik 2017: Digi-

tale Kulturen, Tagungsband der 47. Jahrestagung der

Gesellschaft f

ur Informatik e.V. (GI), 25.9-29.9.2017,

Chemnitz, volume 275 of LNI, pages 1061–1072. (in

German).

Backes, M., Gerling, S., Hammer, C., Maffei, M., and Styp-

Rekowsky, P. (2014). AppGuard — Fine-Grained

Policy Enforcement for Untrusted Android Applica-

tions. In Revised Selected Papers of the 8

Interna-

tional Workshop on Data Privacy Management and

Autonomous Spontaneous Security - Volume 8247,

pages 213–231.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wieland, M. (2013). Policy-Aware Provisioning of

Cloud Applications. In Proceedings of the Seventh

International Conference on Emerging Security In-

formation, Systems and Technologies, SECURWARE

’13, pages 86–95.

Cao, J., Carminati, B., Ferrari, E., and Tan, K.-L. (2009).

ACStream: Enforcing Access Control over Data

Streams. In Proceedings of the 2009 IEEE Interna-

tional Conference on Data Engineering, ICDE ’09,

pages 1495–1498.

Davis, B. and Chen, H. (2013). RetroSkeleton: Retroﬁtting

Android Apps. In Proceeding of the 11

Annual Inter-

national Conference on Mobile Systems, Applications,

and Services, MobiSys ’13, pages 181–192.

Dhillon, G. and Backhouse, J. (2000). Technical Opin-

ion: Information System Security Management in

the New Millennium. Communications of the ACM,

43(7):125–128.

GrowthEnabler (2017). Market Pulse Report, Internet of

Things (IoT). Report.

He, Y., Barman, S., Wang, D., and Naughton, J. F. (2011).

On the Complexity of Privacy-preserving Complex

Event Processing. In Proceedings of the Thirti-

eth ACM SIGMOD-SIGACT-SIGART Symposium on

Principles of Database Systems, PODS ’11, pages

165–174.

Jeon, J., Micinski, K. K., Vaughan, J. A., Fogel, A., Reddy,

N., Foster, J. S., and Millstein, T. (2012). Dr. Android

and Mr. Hide: Fine-grained Permissions in Android

Applications. In Proceedings of the Second ACM

Workshop on Security and Privacy in Smartphones

and Mobile Devices, SPSM ’12, pages 3–14.

oll, M. (2012). Urban Health Games. Collaborative,

Expressive & Reﬂective. PhD thesis, University of

Stuttgart.

Kwapisz, J. R., Weiss, G. M., and Moore, S. A. (2011). Ac-

tivity Recognition Using Cell Phone Accelerometers.

ACM SIGKDD Explorations Newsletter, 12(2):74–82.

Lindner, W. and Meier, J. (2006). Securing the Borealis

Data Stream Engine. In Proceedings of the 10

In-

ternational Database Engineering and Applications

Symposium, IDEAS ’06, pages 137–147.

Mehta, D. D., Za

nartu, M., Feng, S. W., Cheyne II, H. A.,

and Hillman, R. E. (2012). Mobile Voice Health Mon-

itoring Using a Wearable Accelerometer Sensor and a

Smartphone Platform. IEEE Transactions on Biomed-

ical Engineering, 59(11):3090–3096.

Nauman, M., Khan, S., and Zhang, X. (2010). Apex: Ex-

tending Android Permission Model and Enforcement

with User-deﬁned Runtime Constraints. In Proceed-

ings of the 5

ACM Symposium on Information, Com-

puter and Communications Security, ASIACCS ’10,

pages 328–332.

Quoc, D. L., Beck, M., Bhatotia, P., Chen, R., Fetzer,

C., and Strufe, T. (2017). PrivApprox: Privacy-

Preserving Stream Analytics. In Proceedings of the

2017 USENIX Annual Technical Conference, ATC

’17, pages 659–672.

Shapiro, S. S. (2016). Privacy Risk Analysis Based on Sys-

tem Control Structures: Adapting System-Theoretic

Process Analysis for Privacy Engineering. In Pro-

ceedings of the 2016 IEEE Security and Privacy Work-

shops, SPW ’16, pages 17–24.

Stach, C., D

urr, F., Mindermann, K., Palanisamy, S. M.,

and Wagner, S. (2018). How a Pattern-based Privacy

System Contributes to Improve Context Recognition.

In Proceedings of the 2018 IEEE International Con-

ference on Pervasive Computing and Communications

Workshops, CoMoRea ’18, pages 238–243.

Stach, C. and Mitschang, B. (2018). ACCESSORS: A Data-

Centric Permission Model for the Internet of Things.

In Proceedings of the 4

International Conference

on Information Systems Security and Privacy, ICISSP

’18, pages 30–40.

Wang, D., He, Y., Rundensteiner, E., and Naughton, J. F.

(2013). Utility-maximizing Event Stream Suppres-

sion. In Proceedings of the 2013 ACM SIGMOD In-

ternational Conference on Management of Data, SIG-

MOD ’13, pages 589–600.

Young, W. and Leveson, N. G. (2014). An Integrated Ap-

proach to Safety and Security Based on Systems The-

ory. Communications of the ACM, 57(2):31–35.

The AVARE PATRON - A Holistic Privacy Approach for the Internet of Things

379
