Internal Simulation for Autonomous Robot Exploration of Lava Tubes

ul Dom

ınguez, Sascha Arnold, Christoph Hertzberg and Arne B

ockmann

German Research Center for Artiﬁcial Intelligence – Robotics Innovation Center,

Robert-Hooke-Str. 1, 28359 Bremen, Germany

Keywords:

Autonomous Navigation, Robotics Simulation, Path Planning, SLAM, Exploration.

Abstract:

Space Exploration stands as one of the most challenging endeavors of our time. Extraterrestrial caves in

particular have been identiﬁed by the scientiﬁc community as of great interest. They could be suitable for

allocating astronaut planetary stations, but little is known about them. In this paper, we describe and analyze

robotic cave exploration using internal simulation and SLAM technologies and provide experimental results.

The experiments were performed in a lava tube selected due to its representativeness as space analog. Expen-

sive mission costs, communication constraints and navigational challenges in space missions demand highly

developed degrees of autonomy and safety on the robots. For this reason, our solution incorporates methods

for the validation of paths based on on-board, internal simulation. The methods provide the means to increase

the conﬁdence of successful executions by simulating using physics models the planned path. A highly realis-

tic model of the robot and an on-line generated model of the environment are required. Assuming the demands

of the space robotics scenario, all software runs on-board.

1 INTRODUCTION

Caves are an important cornerstone of human space

exploration (Wynne, 2016). They can provide a na-

tural shelter from radiation, extreme temperature cy-

cles and small meteoroids, allowing the deployment

of light-weight habitats and reducing the overall costs.

Caves might also provide access to water ice deposits

and protected underground environments that can re-

veal information about geological processes and po-

tential extraterrestrial life. Lava tubes have been iden-

tiﬁed in Moon and although they have not yet been

conﬁrmed in Mars, there is signiﬁcant evidence of

their existence (Daga et al., 2009). In fact, many

cave-like features have been identiﬁed on Mars and

on Moon in the recent years.

To reduce the risks and to ensure the suitability

of a cave for allocating astronauts or any other possi-

ble usage, robotic platforms can be used to generate

maps and analyze the state of the tubes. When going

underground, robotic systems must maintain a cons-

tant data-link to the surface, usually done by a wire

(Nesnas et al., 2012), or be able to explore the cave

autonomously. Although a wire link can be beneﬁ-

cial to reach the entrance, it will easily get entangled

and limits the exploration range in the tube. In this

paper we focus on the internal simulation as a key el-

ement that enables a robot equipped with a LiDAR to

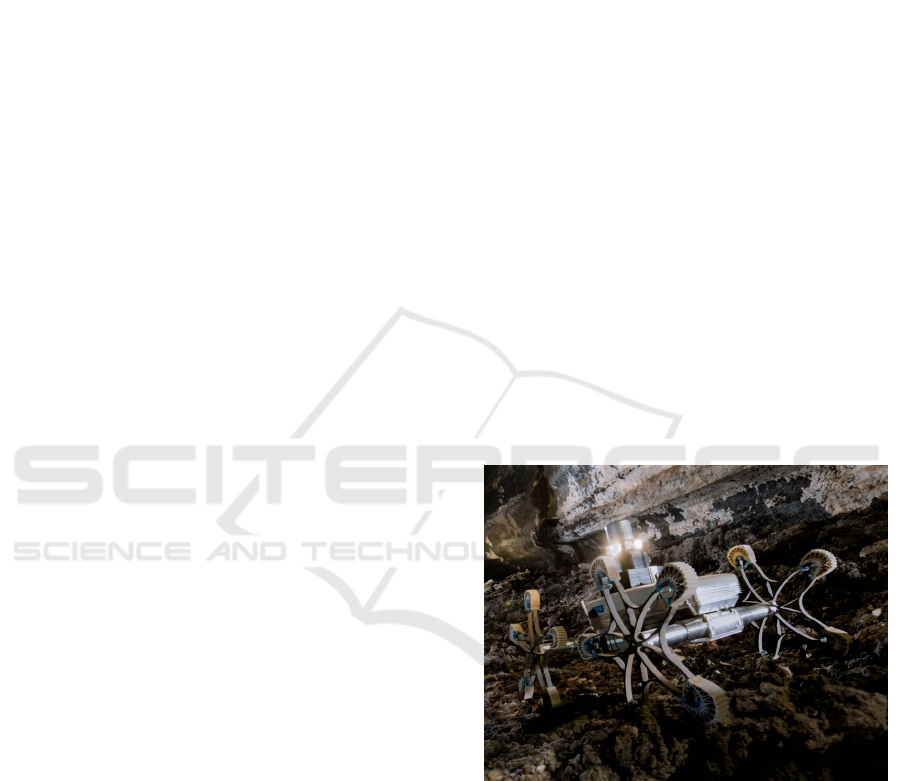

Figure 1: The Asguard V4 rover. A four leg-wheel hybrid

robot designed for difﬁcult outdoor environments, equipped

with an embedded quad core i7 CPU, a Velodyne LiDAR,

Xsens IMU and a 360 degree camera. Additionally the

rover can carry payloads of up to 5 kg (e.g. a spectroscope

or sampling drill) Image: Robbie Shone, ESA.

autonomous explore, map and ﬁnd it’s way back in a

cave.

For performing the experiments and to analyse

our software and hardware, we selected the lava tube

Cueva del Viento in Icod de los Vinos (Spain). Cueva

del Viento is the largest lava tube in Europe. It is lo-

cated at the volcanic island of Tenerife, an exceptional

location for planetary analog environments (Preston

144

Domínguez, R., Arnold, S., Hertzberg, C. and Böckmann, A.

Internal Simulation for Autonomous Robot Exploration of Lava Tubes.

DOI: 10.5220/0006860701440155

In Proceedings of the 15th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2018) - Volume 2, pages 144-155

ISBN: 978-989-758-321-6

et al., 2012). For the exploration mission, a 240 m

long section of the tube was selected which is pre-

served without any human modiﬁcation and where the

risks of collapse were very low. As platform for our

experiments we utilized the Asguard V4 rover shown

in Fig. 1.

The entrance to the cave is located in a cavity of

the ﬂoor, with a height of around 0.5 m and a width

of approximately 0.75 m. After the entrance through

the small opening, follows an inclined and muddy sur-

face. In a real mission, this ﬁrst section would have to

be traversed by the robot with the help of some rope

or cable. In a multi-robot mission this objective could

be achieved.

Nowadays, planetary robotic missions rely hea-

vily on the operations center at earth for navigation.

The paths that the robot executes are designed on

earth with human experts in the loop, based on the

data acquired in the previous days. This approach is

safe, but makes planetary exploration very slow. Fur-

thermore, in the case of long caves, like the one des-

cribed in the experimental part, communication with

earth for each path execution implies entering and

leaving the cave constantly. Thus, in order to explore

the cave in depth, an autonomous system which pro-

vides larger exploration ranges is preferable. The pro-

posed solution does not require human intervention

for the safe navigation and mapping of the cave.

One of the most important features of space

robotic systems is safety. In order to address this

issue, our solution incorporates an on-board simu-

lator. The internal simulator enables the system to

predict what the consequences of the potential path

plan executions would be. The concept is based on

ideas from the Simulation Cognition Theory (Hess-

low, 2012). (Marques and Holland, 2009) propose

a framework which includes the minimal require-

ments, components, a taxonomy of architectures and

examples of these. The internal simulator has been

previously identiﬁed as a useful approach for deci-

sion taking and path planning in space robotics in

(Roßmann et al., 2014; Dom

ınguez et al., 2015) and

for planning and navigation in indoor environments

(Rockel et al., 2014; Rockel et al., 2015; Chella and

Macaluso, 2009).

As opposed to other works, our internal simula-

tor runs on-board and uses a simulated environment

which was generated online by the rover from its col-

lected sensor data. To achieve this, our SLAM and

our Simulator have been designed to share and work

on the same environment representation using the li-

brary Envire (Hidalgo Carri

o et al., 2016).

Environment representation and navigation in

cave missions impose additional path planning and

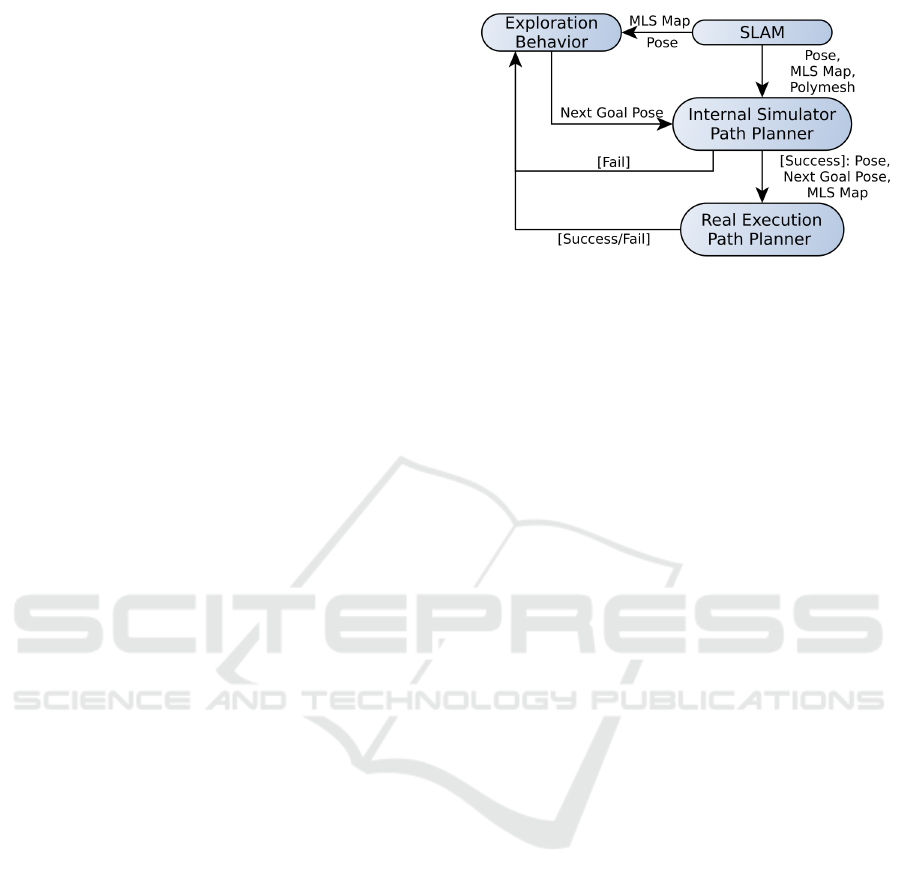

Figure 2: Approach for the Autonomous Cave Exploration:

Explorer chooses a goal pose in a travesable area close to

an unknown region. Internal Simulator executes the path

planning on-board. If the result is successful, the planning

in the real environment is executed. Feedback is given to

the Explorer.

mapping requirements with respect to other space

robotics cases. In particular, lava tubes can form 3

dimensional pathways which are not found in open

areas. At this point, traditional 2 dimensional grid-

based path planning algorithms become insufﬁcient.

Our environment representation, path planner and ex-

ploration components are able to represent, explore

and ﬁnd motion plans in such environments. This is

achieved by incorporating a third dimension on the

grid map and by building a bi-directional graph of

connected traversable areas from it.

The proposed SLAM, Path Planning, Exploration

and Internal Simulation methodology are presented in

Section 2. The result of its evaluation with experi-

mental cases is presented in Section 3. Conclusions

are presented in Section 4 along with the next research

goals.

2 METHODOLOGY

Our overall approach is shown in Fig. 2. The Ex-

ploration Behavior is in charge of selecting the next

target pose based on the known Multi-Level Sur-

face (MLS) map, the current pose and feedback from

the internal simulator regarding previously attempted

goal poses. SLAM is responsible for the localization

and for the construction and maintenance of the En-

vironment Representation in its different forms: MLS

Maps for planning and Polymeshes for internal sim-

ulation. The Internal Simulator replicates the path

planning components and its execution to identify

whether the traverse to a goal pose is feasible. Finally,

the Path Planner executes the motion plan in the real

environment if the result of the prediction is a success.

Although the Exploration Behavior is the direct-

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

145

ing component, it highly depends on the inputs from

the other modules. Thus, SLAM, Path Planning and

the Internal Simulator are explained ﬁrst.

2.1 SLAM

The SLAM solution used in this work is a graph

SLAM approach in which odometry, LiDAR and in-

clination based constraints are online modeled and

optimized. The state space consists of the robot poses,

each associated with a 360 degree LiDAR scan and a

bias state modeling the IMU to LiDAR rotation error.

The LiDAR has a vertical resolution of 1.25

◦

cover-

ing the range from −30

◦

to 10

◦

and a horizontal res-

olution of 0.18

◦

. In order to model the inclination

of the IMU and the relative transformations between

the LiDAR scans together, the pose of the IMU with

respect to the LiDAR needs to be calibrated. Model-

ing the bias allows to associate this calibration with

an uncertainty and therefore avoids that the optimiza-

tion becomes overconﬁdent. In case of a low accu-

racy calibration it also allows reﬁning the calibration

by starting with a higher uncertainty.

In order to perform the graph optimization in real-

time we reduce the amount of constraints by model-

ing only the result of the ICP algorithm based align-

ment between two LiDAR scans as a constraint. The

technique relies on the Generalized-ICP (GICP) from

(Segal et al., 2009). As odometry constraint we ap-

ply the wheel rotation rates and the orientation pro-

vided by the IMU to a skid-steer kinematics model of

the robot. Modeling the IMU based inclination con-

strains the error in roll and pitch and therefore reduces

the error in altitude.

Since we consider a 360 degree LiDAR scan with

an acquisition time of 0.1 seconds to be a static mea-

surement of the environment we have to convert the

single measurements into the same frame. We apply

interpolated odometry based transformations to each

of the 64K measurements in order to convert them

into the acquisition time of the ﬁrst measurement.

This allows us to deal with motion distortions inside

a full scan resulting from fast (particularly roll/pitch)

motion of the robot, due to the stiff and unstructured

surfaces usually found in lava tubes.

Each state x

∈ SE(3) is associated with a point

cloud measurement of the surrounding environment.

New states are added to the graph based on the change

in rotation and translation of the robot. The ICP based

measurement is deﬁned as

l,t, j

= C

−1

 ε

l,t

(1)

where C

is the transformation matrix of the state

∈ SE(3). ICP based constraints are added for each

state x

to the j states within the closest Euclidean

distance. ε

is a Gaussian random variable modeling

the ICP measurement noise with zero mean and a co-

variance Q

. The constraint of the ICP based edges is

modeled as

l,t, j

 C

−1

)

−1

l,t

l,t, j

 C

−1

) (2)

where z

l,t, j

∈ SE(3) is the result of point cloud align-

ment of the ICP algorithm. The  operator adds

a local perturbation ε ∈ R

to a manifold element

x ∈ SE(3): ε 7→ x  ε and  is the corresponding re-

verse operator  : SE(3) × SE(3) → R

. For more

mathematical details we refer the reader to (Hertzberg

et al., 2013).

The odometry measurement is deﬁned as

o,t

= C

−1

t−1

 ε

o,t

(3)

where ε

is a Gaussian random variable modeling the

odometry measurement noise with zero mean and a

covariance Q

. Odometry based constrains are only

added between successive states x

t−1

to x

. The con-

straint of the odometry based edges is modeled as

o,t

 C

−1

t−1

)

−1

o,t

 C

−1

t−1

) (4)

where z

o,t

∈ SE(3) is the measurement of the skid-

steer kinematics model from t − 1 to t.

The measurement of the inclination is deﬁned as

h,t

= R

−1

k  ε

h,t

(5)

where R

is the rotation matrix of the state x

, R

is the rotation matrix of the bias state b and

k is the

unit vector [0, 0, 1]

. The bias b ∈ SO(3) describes

the error in the IMU to LiDAR rotation. ε

is a Gaus-

sian random variable modeling the inclination mea-

surement noise with zero mean and a covariance Q

The constraint of the inclination edges is modeled as

h,t

 R

−1

h,t

 R

−1

k) (6)

where z

h,t

∈ S

is the measurement of inclination from

an IMU.

The graph optimization minimizes the squared

error of all constraints given all measurements

l,1:t

, z

o,1:t

, z

h,1:t

) to ﬁnd the best solution for the

states x

1:t

and b.

argmax

1:t

p(x

1:t

, b|z

l,1:t

, z

o,1:t

, z

h,1:t

) (7)

We use the g2o framework (K

ummerle et al., 2011)

as back-end in order to model and optimize the graph.

The result of the SLAM are the aligned poses of

the robot and their associated LiDAR scans. As a next

step the scans are projected into map formats in order

to fulﬁll the requirements of the planning and the in-

ternal simulation. The planning needs to distinguish

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

146

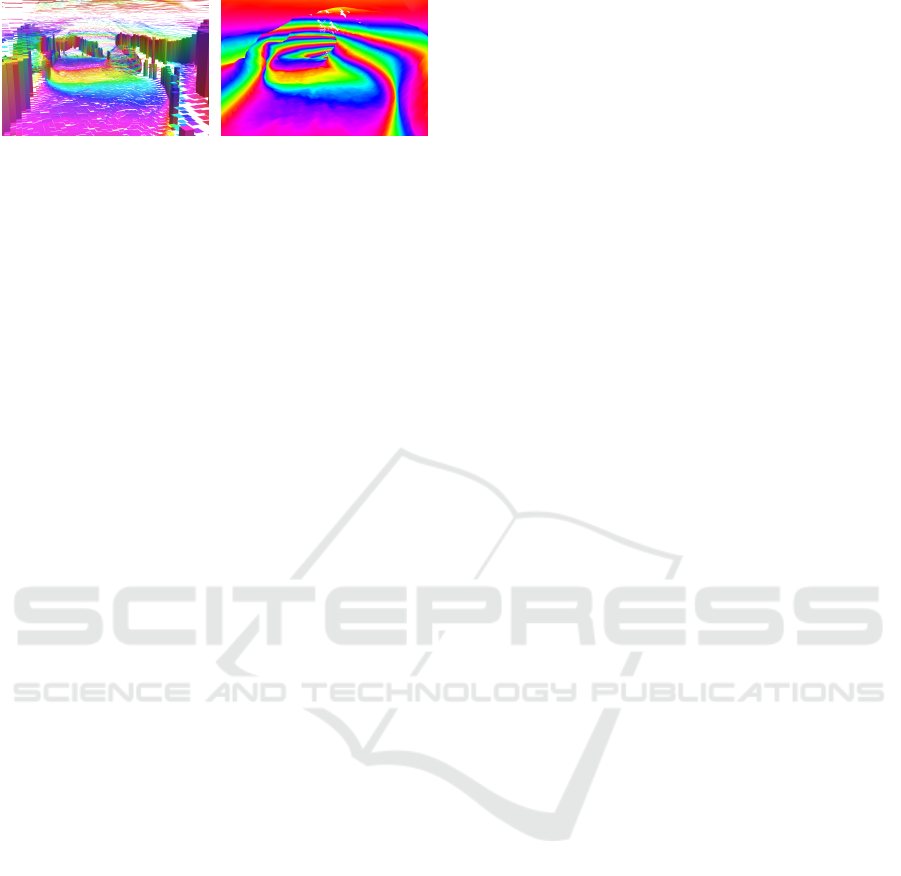

Figure 3: Left: Multi-Level Surface map of a section of the

cave with a cell size of 10 cm. Right: Polygon mesh of the

same scene. The color indicates the change in altitude, one

meter equals one color cycle.

between traversable and non-traversable regions, re-

quires fast access to the local height information and

the ability to represent multiple levels. While the in-

ternal simulation requires a very accurate representa-

tion of the surfaces.

Fig. 3 shows the two map types that are created on

request of the path planning and the internal simula-

tion. The planning uses a Multi-Level Surface (MLS)

(Triebel et al., 2006) map since it allows to represent

multiple levels while accurately encoding height in-

formation and uncertainty. It is a 2D grid managing a

list of entries providing height, occupancy and uncer-

tainty information for each cell.

In order to create an accurate representation of the

surface of the environment for the simulation we ex-

tract a polygon mesh from an intermediate map for-

mat. The intermediate map format is a voxel grid

holding the estimated truncated signed distance to the

closest surface and uncertainty in each cell. Modeling

truncated signed distance functions (TSDF) (Curless

and Levoy, 1996) with the goal of accurate surface re-

construction have been recently used especially in the

context of RBGD-camera based SLAM (Newcombe

et al., 2011). We show that it can also be applied suc-

cessfully on LiDAR based SLAM. Each measurement

is ray-traced on the line from the sensor origin to the

measurement in the range [−δ, +δ] around the mea-

surement (δ is the truncation parameter). The CPU

based ray tracing is implemented based on the work

from (Amanatides et al., 1987). In order to extract the

surface from the TSDF volume we use the Marching

Cubes algorithm (Lorensen and Cline, 1987).

The generation of those maps from the LiDAR

measurements is expensive and not real time capable,

therefore they are created on demand by the Internal

Simulator. Usually, after the robot has reached the

goal position and a new trajectory needs to be planned

and evaluated.

2.2 Path Planning

Caves are complex and unpredictable environments

that may contain multiple overlapping levels. We ap-

proach path planning in such environments by devel-

oping a robust algorithm able to cope with multiple

2D levels embedded in a 3D world. Our multi level

path planner assumes that the target scenario does not

incorporate dynamic obstacles. A reasonable assump-

tion in exploration of extraterrestrial caves.

Path planning in unstructured environments has

been thoroughly explored and several solutions have

been proposed, e. g., (Daily et al., 1988; Lacroix et al.,

2002; Howard and Kelly, 2007; Rekleitis et al., 2013).

However, those solution are in general limited to 2D

or 2.5D planning and are not suitable for multi path

level planning.

Multi level solutions have been proposed in

ummerle et al., 2009) and in (B. Rusu et al., 2009).

The solution of (K

ummerle et al., 2009) is probably

the closest to our implementation. Their solution is

also based on MLS maps and uses motion primitives.

However they employ a two-steps planning approach

where the ﬁrst step returns a coarse result that is im-

proved by a local planning step, whereas we imple-

mented a one-step solution that yields good results.

In order to plan efﬁciently, the MLS map pro-

vided by the SLAM is converted into a traversabil-

ity map (TravMap). Our TravMap encodes knowl-

edge about the local traversability using four different

patch types: traversable, obstacle, unknown and ex-

plorable.

A patch is marked traversable if enough support

exists in the region for the robot to stand on and there

are no obstacles that would hinder the robots traversal.

Thus to asses if a patch is traversable, ﬁrst a surface

analysis is performed and second an obstacle check.

In the surface analysis the overall slope of the sup-

port plane must not exceed a predeﬁned slope limit

and there must not exist steps within the plane that ex-

ceed the maximum step height of the robot. If these

two requirements are met, the patch is initially con-

sidered traversable and obstacle check is performed.

A 3D obstacle check is performed against the

MLS using a robot model-based bounding box which

ignores the orientation of the system. Thus, patches

where the robot won’t collide with obstacles when

standing in at least one orientation are marked as

traversable. This approach pursues to ﬁnd any pos-

sible path on the TravMap, by marking as obstacle

patches only those that are guaranteed to be non-

traversable in all robot orientations.

The obstacle check improves performance during

the posterior planning steps by performing and initial

prune of the search space. Nevertheless, during path

planning a more detailed obstacle check is done that

incorporates the orientation of the robot.

The local support plane is calculated using

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

147

RANSAC (Fischler and Bolles, 1981) plane ﬁtting.

Patches are marked as unknown in case insufﬁcient

data is available to ﬁnd such a plane (i. e., less than 5

inliers support the plane). Such places usually indi-

cate a lack of data in the map and are natural targets

for further exploration. However since critical knowl-

edge is missing in order to assess the traversability of

unknown patches, they cannot be the target of a plan-

ning process. Therefore, we select traversable patches

nearby and mark them explorable. The robot should

be able to attain more information of the environment

by driving onto these patches.

Generating the TravMap is a computationally ex-

pensive process that was not compatible with stop-

free navigation on our system. Thus, it is performed

as less as possible, i. e., only when the robot has

reached a goal position while waiting for the next tar-

get pose. Due to the static nature of the target envi-

ronment map re-generation of the TravMap is in our

case seldom needed.

(a) MLS map (b) Traversability map

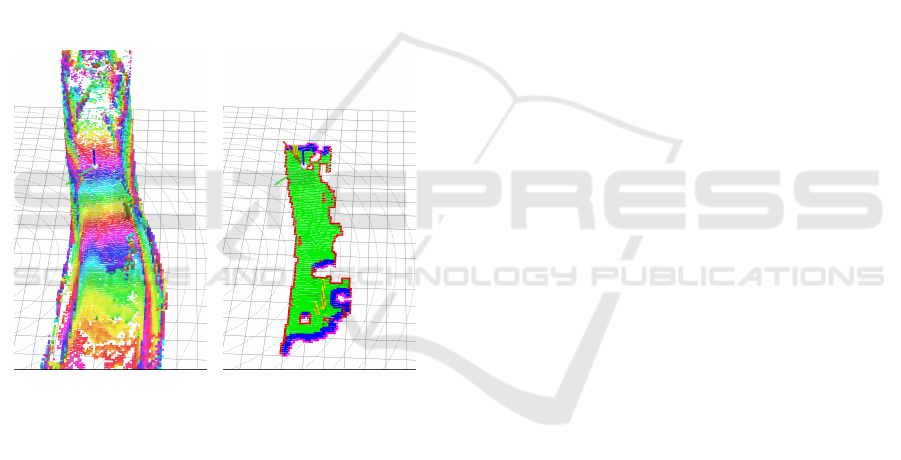

Figure 4: For exploration and path planning, the

Traversabilty Map (b) is generated from the Multi-Level

Surface map (a). The coordinates axis describe the current

pose of the robot, the background grid has a resolution of

1 m, the resolution of the MLS and the traversability map

are 0.1 m. In (b): Green cells represent traversable surfaces,

red ones obstacles, magenta are unknown and blue are ex-

plorable areas. Yellow arrows mark the target candidates

for the path planning.

An MLS map and the TravMap that was generated

from it are presented in Fig. 4. The map is created by

growing from the current robot position. Expansion

stops at patches marked as unknown or border, result-

ing in a 3D representation of all the places that the

robot can reach from its current position. Each patch

in the map is linked to its neighbors. Thus, it is equi-

valent to a double connected graph structure that can

be searched efﬁciently for traversable paths.

Path planning is done using SBPL (Cohen et al.,

2010; Likhachev et al., ) and the ARA* algorithm

(Likhachev et al., 2004). ARA* was chosen due to

it’s anytime characteristics. It can provide a subop-

timal solution quickly and reﬁne it until an optimal

solution is found.

In the TravMap, x and y are the coordinates of the

patch the robot is standing on and z is the patches

height. The state space is discretized and consists of

(x, y, z, θ) where x, y and θ are discretized while z re-

mains continuous.

To keep the number of possible state transitions

low, two-dimensional spline based motion primitives

are used to model the robot motions. For distance cal-

culation the primitives are projected onto the 3D sur-

face the robot is driving on. Because the primitives

are distorted when projected on a non-ﬂat surface, the

ﬁnal trajectory may contain motions that slightly de-

viate from the motion primitives.

The time it would take the robot to follow the

shortest path on the TravMap is used as heuristic. The

cost function consists of the actual time it would take

the robot to follow the selected motion primitive as

projected onto the 3D surface. Optionally, a term rep-

resenting the closeness to obstacles can be factored in

to favor trajectories that stay well clear of obstacles.

The robot’s forward, backward and turning speeds

can be conﬁgured separately and are used to calculate

the travel time.

While searching, only collision free motion prim-

itives are considered. To achieve this, a 3D bound-

ing box check against the MLS is computed for ev-

ery discretized pose that can occur on a given prim-

itive. These checks are the most CPU intensive part

of the path planning algorithm. Thus, the overall per-

formance depends largely on the number of motion

primitives that need to be checked at each step. How-

ever, the obstacle checks can be parallelized, i. e., for

a given state all possible successors can be found at

the same time as long as enough processing time is

available. For this reason, we are able to use a very

detailed set of motion primitives and yield good re-

sults without any further optimization.

2.3 Internal Simulator

The internal simulation has in this context the task of

predicting the probability of a path traverse execution

to be successful. Ideally, the accuracy of the predic-

tion is well known. This accuracy is dependent of

many factors: Some can be grouped into biases from

the simulation (e.g. wrong surface friction estimation,

errors in the robot model), others related to the path’s

complexity (e.g. length, curves, orientation changes)

and others due to a certain level of intrisic indetermin-

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

148

ism in the simulated and in the real execution.

The internal simulator incorporates running

clones of the components from which the results we

intend to validate and of the ones they depend on,

except for the sensor drivers. The sensor drivers

are replaced in this copy of the components network

by modules that produce analog data based on the

robotics physics engine, or in the case of the cameras,

by the graphical engine used to render it. In this case,

the cloned components are the path planning, the ex-

ecution layer and all subcomponents on which they

depend, except for the SLAM which is connected to

both the original components and their clones. Nev-

ertheless, the SLAM has a different role in the inter-

nal simulator: It provides the surfaces of the environ-

ment. The surfaces are required to compute physical

interactions with the robot model. SLAM is not used

for localization of the cloned components interacting

with the simulated environment and it does not main-

tain any environment representation based on simu-

lated sensor data.

The cloned components and their interactions take

place on the same Robotic Control Operating System

than the original components and on-board the sys-

tem. Thus, their interactions and resulting behavior

are highly similar. We consider this an important fea-

ture because delays in the communication layer be-

tween components can have consequences more difﬁ-

cult to predict outside the system itself.

The validation process of a goal position in the

internal simulation is the following: (1) The internal

simulation requests to the SLAM module a polygon

mesh. The mesh is generated from the aligned point

cloud that SLAM maintains and it has a resolution

of 5 cm. (2) With the mesh, the simulated environ-

ment, in which the physical model of the robot is also

placed according to its estimated pose, is updated. (3)

A TravMap is generated based on the MLS map of the

environment which is also provided by the SLAM. (4)

The path planning uses the TravMap to plan a path.

(5) The plan execution is simulated on-board. (6)

If the target is reached, the goal pose is considered

validated and the goal pose is passed to the executive

layer. Otherwise, feedback is provided to the Explo-

ration Module, so that another target pose is selected.

The internal simulation is complex and requires

high computational costs. Thus, it must be carefully

decided in which situations it should be used. Fur-

thermore, depending on the hardware available, its in-

tegration might be unfeasible or only possible after a

careful adaptation of the different process priorities.

In fact, this is the ﬁrst application know to the authors

where the robotics simulator runs on-board along with

the rest of the components. A requirement for scena-

rios where access to external computational resources

is not possible like the one targeted.

In order to minimize the computational costs and

increase the reliability of the approach, a new envi-

ronment representation library (Hidalgo Carri

o et al.,

2016) has been developed. The library lies both at the

core of SLAM and the Internal Simulation. Using the

same environment representation in both components

has at least two advantages: (1) It reduces the number

of dependencies of the software and (2) minimizes the

conversions between representation models. To the

best of the authors knowledge, this is the ﬁrst case

of a robotic setup in which the simulated scenes are

generated on-board based on the environment repre-

sentation that the system itself constructs, instead of

using pre-designed simulated scenes with little or no

change.

Another tool shared by different components is

the Flexible Collision Library from (Lee et al., 2017),

which is used in the collision check of the path plan-

ning and to determine the collisions between the robot

model and the simulated surfaces.

2.4 Exploration

Relying on the previously described components, the

following exploration behavior has been implemented

and tested: First, each explorable patch on the map is

evaluated based on its proximity to the current robot

pose, number of unexplored patches nearby and pro-

ximity to a speciﬁed target position.

A path is planned to the most promising patch. If

no path could be found or its simulation execution de-

termines a failure, the next candidates are analyzed

until a safe path is found.

Once a path has been found, the robot starts fol-

lowing the Trajectory and once the target position

is reached, the current MLS is updated and a new

TravMap map is generated. The process repeats until

the desired area has been explored or another criteria

(e. g., a time limit or low battery condition) is fulﬁlled,

at which point the robot returns to its starting pose.

The return is relevant for cave scenarios because the

system needs to recharge and establish communica-

tion after the exploration.

Terrain conditions inside the cave are unknown

and most likely complex. The robot might get stuck,

slip or skid at random locations. Thus the robot might

deviate from the planned trajectory while moving. To

avoid leaving the traversable map and running into

obstacles we continuously monitor the current robot

position and stop the motion if the robot is about to

leave the traversable part of the map. If this happens

the maps are updated and the exploration process re-

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

149

Figure 5: A map of the cave with some geo-referenced

points on it (crosses). These points were marked with ma-

genta spheres when taking the data logs in order to use them

as ground truth to estimate the accuracy of our localization

and mapping. Image: Courtesy of Geodata air S.A.

peats.

In certain situations, borders of the currently

explored map cannot be distinguished from actual

down-hill cliffs, e. g., if the LiDAR is not able to see

any surface after the cliff. This would result in the

exploration strategy repeatedly trying to explore al-

ready visited places. To avoid this, we implemented

a simple coverage map, which accumulates the areas

around the robot positions. Patches which are covered

by this map, will not be considered as candidates for

exploration.

3 RESULTS

In this section we summarize experiments performed

to test the different modules and its interactions in an

analog scenario to a Martian or Lunar lava tube. The

experiments were conducted with the Asguard V4

rover in a 240 meter long section of the Cueva del

Viento lava tube in November of 2017. The cove-

red section starts at the entrance Breveritas and goes

to the South. In Fig. 5 a cartographic representation

of the cave produced by a topographic company is

shown. It represents the different elevations and some

geo-referenced positions which were used as ground

truth.

The rover is equipped with a Xsens IMU, a Velo-

dyne HDL-32E LiDAR and two cameras with super

ﬁsh eye lenses. Each camera has a horizontal opening

angle of 220°, fully covering 360° around the rover.

3.1 Cave Mapping

In this section we show that the accuracy of the pose

graph of our SLAM solution is within a mean position

difference of 0.4 m to the ground truth.

In order to evaluate the accuracy of our SLAM

solution eleven globally referenced landmarks in the

240 m long subsection of the lava tube were used as

ground truth. Prior to our experiments those survey

markers (≈ 5 mm metal pins) had been located within

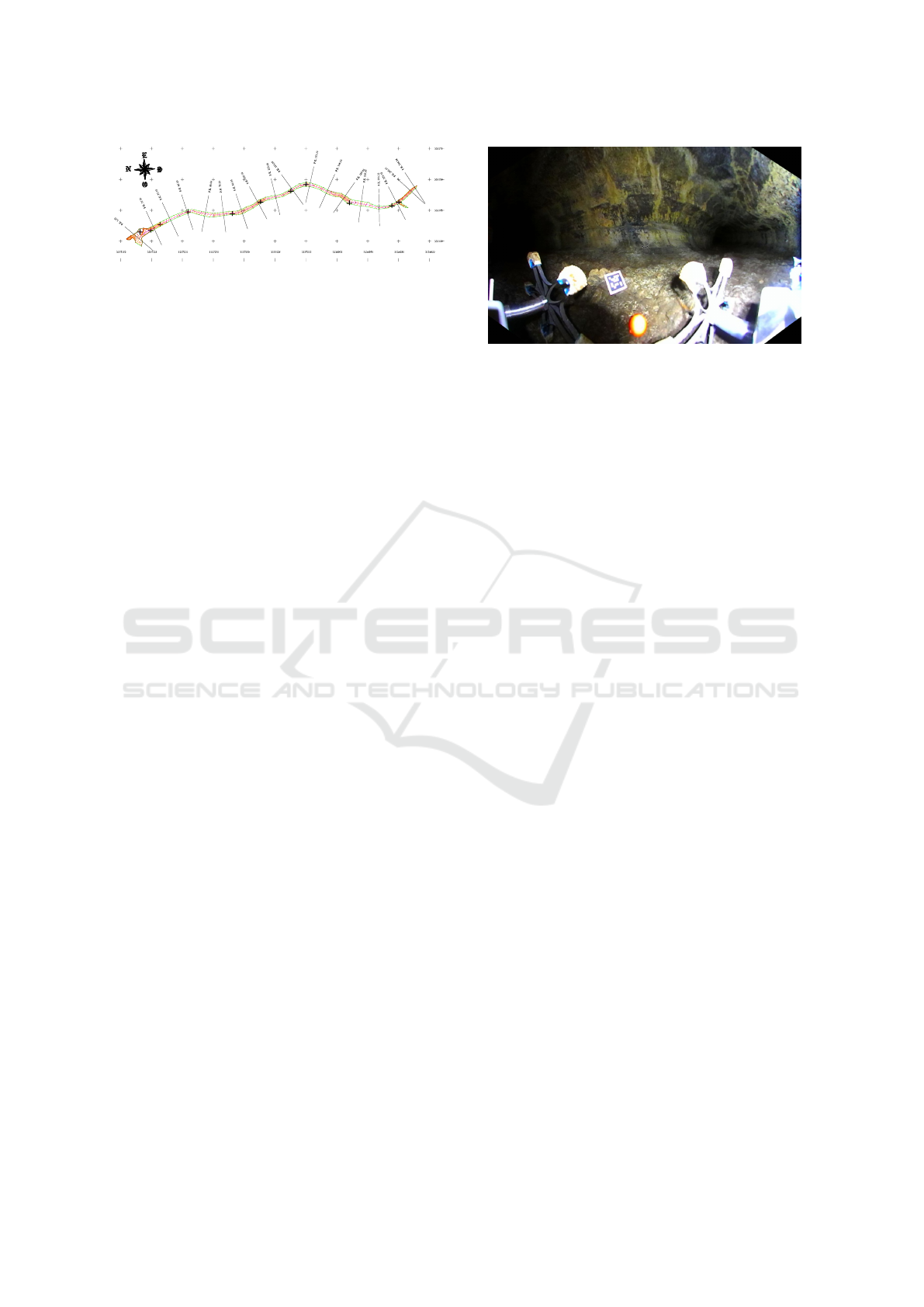

Figure 6: Shows an artiﬁcial landmark (magenta colored

sphere) placed on a position for which ground truth infor-

mation was available. The Apriltag in the background was

used to distinguish between different landmarks.

an independent geodetic survey. The ground truth po-

sitions are associated with an uncertainty of 0.05 m.

In order to later identify the landmarks in the cam-

era images, we placed magenta colored spheres with

a diameter of 8 cm on top of the survey markers. The

landmarks were not integrated in the SLAM to im-

prove the positioning or map construction, we only

compared the expected position of the landmarks in

the SLAM with their known ground truth positions.

The positions of the spheres in the camera images

were detected by applying a HSV (Hue, Saturation,

Value) based color segmentation followed by a cir-

cle Hough Transformation. Since the only source of

light inside of the cave were the lights of the rover, the

detection was prone to strongly changing light con-

ditions, reﬂections on the surface of the spheres and

outliers (Fig. 6). Therefore, especially the detected

size of the sphere in the image needed to be associ-

ated with a higher uncertainty.

For collecting this data set the rover was ﬁrst ma-

nually driven, from a starting point above one of the

landmarks, 240 m into the cave and then back to the

starting point. Fig. 7 shows the trajectory (blue line)

of the robot during the mission in North/East and

North/Altitude direction. The starting point is at the

origin of the local coordinate frame. The red crosses

show the known positions of the landmarks in the lo-

cal frame and the green crosses show their expected

positions in the SLAM.

Since the ground truth information is only avai-

lable when spheres are detected in the camera im-

ages, the difference to the ground truth can only be

observed for the corresponding robot poses at those

times. We assume that the error grows approximately

linear during the time between observing different

landmarks.

To compute the mean position difference we ap-

plied a bundle adjustment of the expected positions

of the landmarks to the ground truth. As a result the

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

150

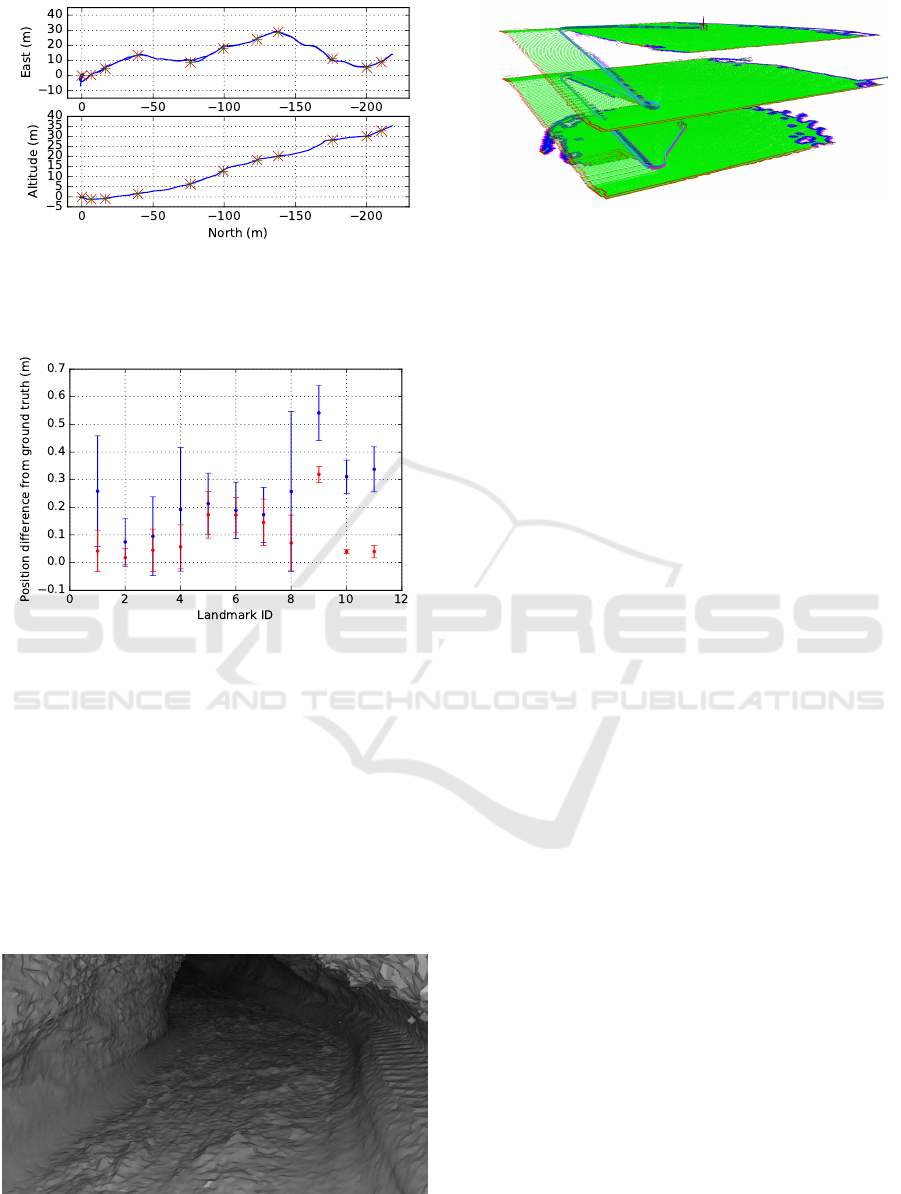

Figure 7: Top: North-East trajectory of the robot. Bottom:

North-Altitude trajectory of the robot. The red crosses show

the globally referenced landmarks used as ground truth and

the green crosses show the mean of their expected position.

Figure 8: Blue: Position difference from ground truth and

associated standard deviation for each landmark. Red: Dif-

ference in altitude from ground truth and associated stan-

dard deviation.

mean position difference to the ground truth is within

0.4 m over the whole trajectory. The mean difference

in altitude direction is within 0.17 m, due to modeling

the IMU based inclination constraints in the SLAM

(Eq. 6).

Fig. 8 shows the mean position difference to the

ground truth and associated standard deviation for

each single landmark. The landmarks are arranged

Figure 9: Polygon mesh of the cave, generated from a TSDF

voxel grid with a resolution of 5 cm. The cave diameter at

this section is approx. 4 m.

Figure 10: Path planning test in a simulated oversized park-

ing garage.

from ID 1 at the origin of the mission up to ID 11 at

the furthest area inside the cave. The diversity and

magnitude of deviations is due to the challenges in

the sphere detection. The amount of measurements to

compute the means and standard deviations variates

between 7 (ID 6) and 41 (ID 5, ID 11) with a mean of

24 observations per landmark. It can be seen that the

position difference is higher in the North/East direc-

tion since we are able to reduce the error in altitude

direction by modeling the inclination constraints.

Fig. 9 shows the polygon mesh generated from the

LiDAR measurements projected into a TSDF voxel

grid with a resolution of 5 cm.

3.2 Path Planning

We tested several simulated as well as real scenarios

to benchmark the path planner. All tests were done on

an Intel Core i7-6700 using all available cores. The

set of motion primitives used for all tests consists of

850 primitives. In order to reduce the friction of the

wheels and the chances of damage on the rough lava

tube surfaces, point turns where not included in the

motion primitives.

The multi level planning capability is ﬁrst shown

in a simulated parking garage as the accessible part

of the cave on Tenerife does not have multiple le-

vels. The TravMap of the garage consists of 128478

patches covering 1284.78 m

at a grid resolution of

0.1 m while the TravMap of the cave consists of

59083 patches covering 590.83 m

Planning of a trajectory from lowest to the high-

est level of the garage as seen in Fig. 10 took 80.39 s

of CPU time or 40.13 s of real time. Fig. 11 rep-

resents a standard case: planning of a trajectory of

43.48 m length in the cave. Planning took 426.78 s

of CPU time and 65.88 s of real time. A more com-

plex case is shown in Fig. 12. Here the impact of

lots of obstacles can be observed. Two trajectories

were computed, the optimal solution took 2276.87 s

of CPU time or 343.6 s of real time while a subop-

timal solution was found in 102.21 s of CPU time or

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

151

Figure 11: Planning a trajectory of 43.48m length in a cave.

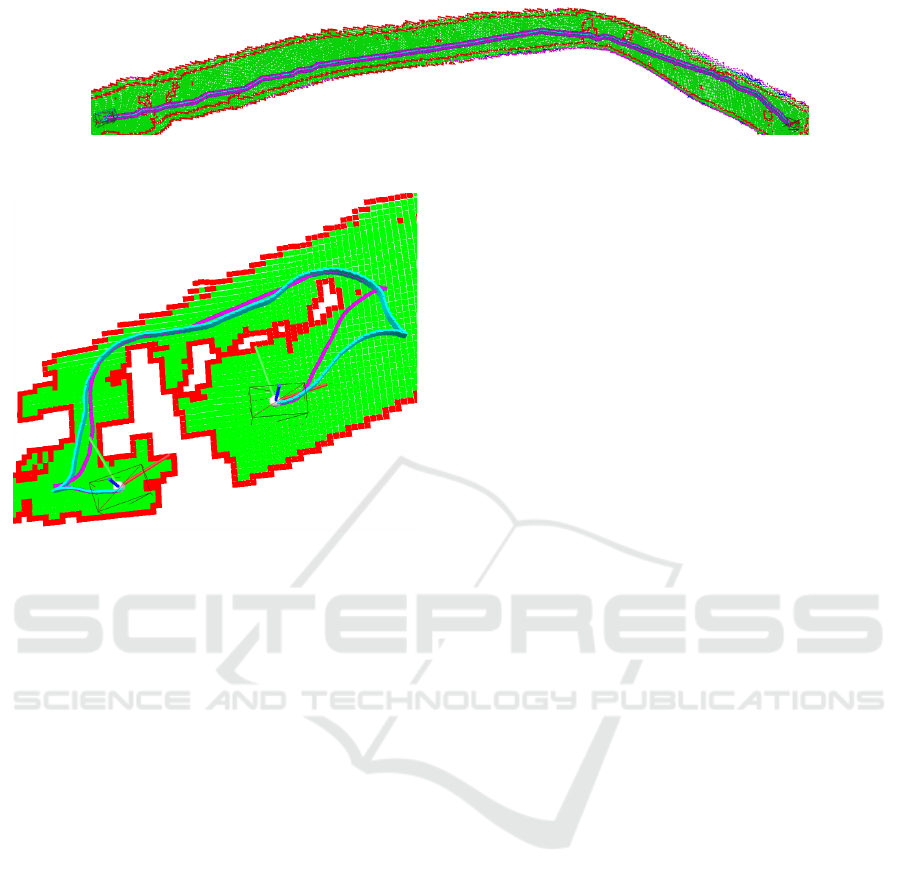

Figure 12: Path planning test in the cave with a lot of ob-

stacles. The cyan trajectory is optimal, the magenta trajec-

tory is a suboptimal solution. The wireframe boxes show

the robot’s bounding box. The coordinate systems show the

start and end pose of the robot.

27.365 s of real time. The trajectories are 12.12 m and

11.62 m long respectively. This case especially shows

the value of using the ARA* algorithm, which can be

parametrized whether to decide to wait for the opti-

mal path or just use a suboptimal one to get on with

the task as soon as possible.

3.3 Internal Simulation

Among all the navigation experiments performed in

the cave, we have selected one trajectory to analyze

the accuracy of the internal simulation. The initial and

target position of the robot and the traversed paths are

shown in Fig. 13, along with the correspondent visu-

alization of the generated simulation. The path has

two sections, the ﬁrst one is a straight trajectory and

the second a curve started after a direction change.

Our path planning has been conﬁgured to avoid point

turns in the rough surfaces of the lava tube. In other

surfaces, a point turn and a straight trajectory would

have been more efﬁcient.

We analyzed the distance between the most accu-

rate estimation of the position that was available for

the robot and the positions in the simulated execu-

tion. The poses from the simulation are directly pro-

vided by the physical engine. While the estimation

of the real poses of robot were obtained ofﬂine after

an expensive ICP-based pose graph relaxation on the

collected pointclouds.

In order to analyze how different the real path and

the simulated path are, a distance function is deﬁned.

The distance function must take into account the posi-

tions where the robot went as well as the time relative

to the beginning of the path traverse. We compare the

positions of the robot and the simulated robot at the

same time stamps relative to the time stamp when the

movement starts.

Fig. 14 shows the distances measured between

poses at same relative time stamps since the begin-

ning of the motion. The SLAM-based pose estima-

tion updates are less frequent than the simulation pose

updates. Thus, in order to apply the error estimation

function, ﬁrst a sub-sampling of the pose samples of

the simulation was done.

In Fig. 15 the error is shown with respect to time.

The average of the Root Mean Squared Error (RMSE)

between simulated and real poses was 0.419 m for this

path execution. During the ﬁrst section of the trajec-

tory execution, positions do not accumulate a large

error, but the error increases during the turn. Finally,

when both reach the end of the trajectory the error de-

creases again. One of the main causes of the error in

the second section of the trajectory is that the robot

reaches the goal position already at 14th second in

simulation while the real one takes 4 seconds more.

The delay in the real execution is caused by a lack of

accuracy in the surface friction model as well as in the

robot model (e.g. simulated motors).

Another insight that we found interesting when

analyzing the results is shown in Fig. 16. Due to

the lower frequency at which ICP can run on the sys-

tem with respect to the wheel odometry, errors in the

position estimation generated by the wheel odome-

try can be identiﬁed as spikes in the on-board pose

estimation. We have identiﬁed the possibility of cor-

recting online the pose estimation by using the poses

from the internal simulated path execution. Espe-

cially, if higher accuracy is achieved through better

parametrization and modeling of the simulation.

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

152

(a) Internally simulated trajectory execution

(b) Trajectory performed by the real robot

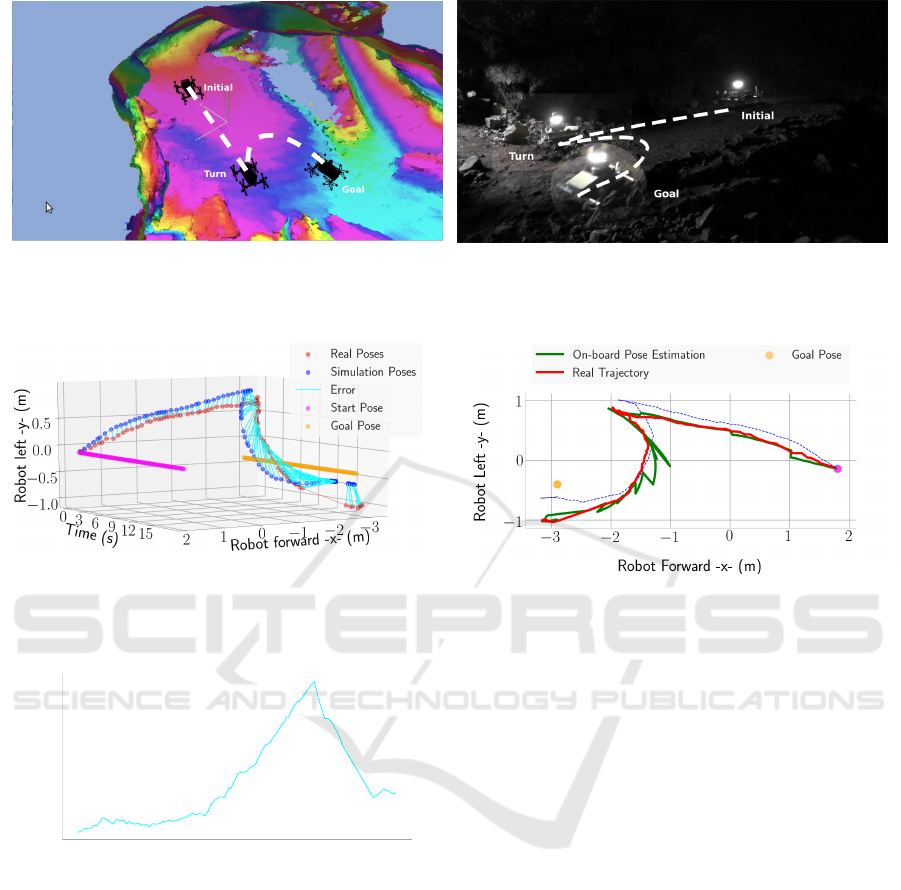

Figure 13: The internal simulation (a) is produced from sensor data taken by the real robot. It can run on-board the system

and has been used for path execution validation before real execution (b) is done.

Figure 14: Measurement of the error between the two path

executions, points from the simulation path are sub-sampled

according to the time stamps at which the poses of the real

execution are available.

0 5 10 15

Time (s)

0.0

0.2

0.4

0.6

0.8

RMSE (m)

Figure 15: Error between real position estimation and sim-

ulated position during internal simulation and posterior ex-

ecution of the trajectory. Error increases during a turn and

because the ﬁnal position is reached faster in the simulation.

3.4 Exploration

In Fig. 17 we show an example how the cave gets

explored successively. Targets near the current robot

pose are preferred, as long as they are expected to re-

sult in newly observed areas. We did not put much

effort into reﬁning or optimizing the exploration be-

havior, as our ad-hoc implementation gave sufﬁcient

results for our purposes.

Figure 16: The poses of the executed trajectory in simula-

tion and real execution are displayed together. In this case,

the simulation predicts a successful path execution.

4 CONCLUSIONS

A novel approach for safe autonomous exploration of

lava tubes in a space scenario composed of SLAM,

Internal Simulation, Path Planning and Exploration

modules has been described. This methodology is

based on a graph-SLAM. Models with associated un-

certainty for both planning (the MLS map) and Inter-

nal Simulation (an accurate polygon mesh) are gener-

ated on demand.

The experiment performed in the lava tube shows

an accuracy of position in average of 0.6 m. The

ground truth was calculated by identifying geo-

referenced markers and performing bundle adjust-

ment of the collected sensor data with the correct po-

sition of the markers.

The proposed Path Planning uses speciﬁc robot

motion primitives to efﬁciently search in the space

of solutions offered by the graph of connected

traversable patches which was generated from the

MLS map. The planner is different from previous

approaches since it only uses one path for the com-

plete traverse achieving successful results and it is

able to ﬁnd solutions in environments with multi-

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

153

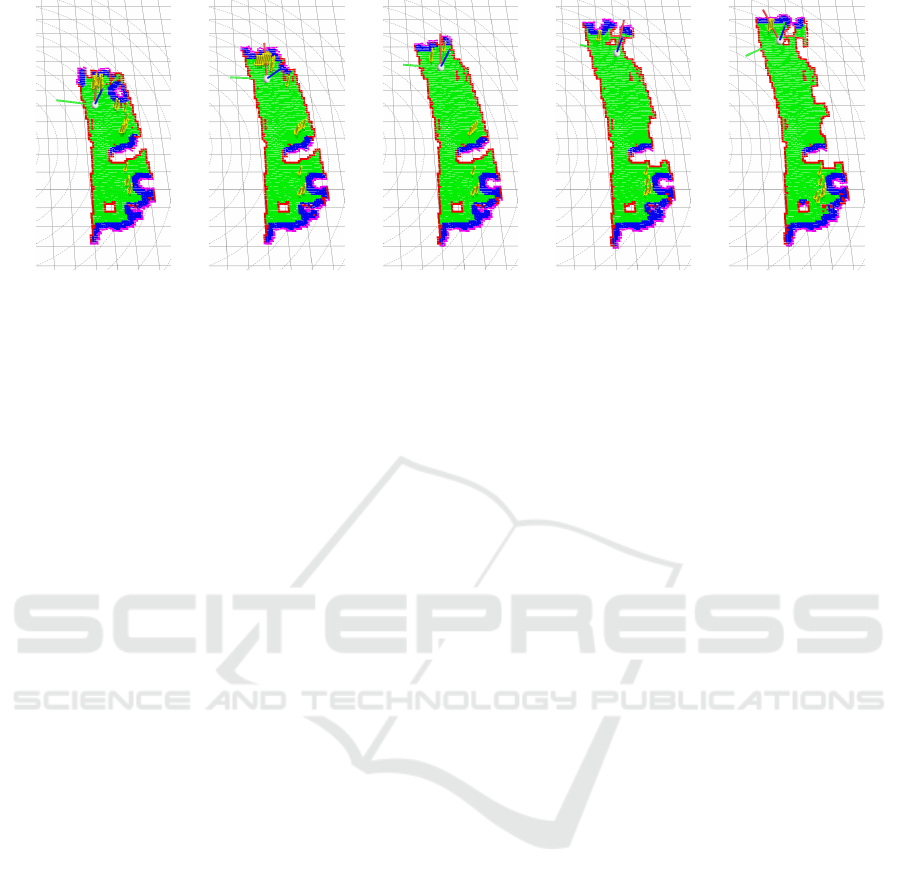

Figure 17: Sequence of traversability maps, showing the exploration behavior

ple unstructured traversable surfaces. In the cave

experiments our path planning was able to provide

traversable paths of 12.12 m in highly unstructured

areas in 27.365 s. In areas of the tube with less ob-

stacles, planning of a long trajectory is achieved in

65.88 s for 43.48 m.

The ﬁrst on-board robotic simulator which relies

on the environment representation of the robot to up-

date the simulated environment was presented. It is

used to accurately replicate the path planning and exe-

cution modules of the robot for validation of potential

goal poses. In the experimental section, a procedure

to analyze the error in the trajectory execution was

presented. The methodology is useful to better esti-

mate the prediction horizon in which the simulation

can be considered realistic. While error in the pre-

diction of straight trajectories is low, turns are more

difﬁcult to predict accurately. Further executions of

the simulated and the real path executions are envi-

sioned to provide more statistical signiﬁcant results

in the future. It has as well been identiﬁed that the

results of the simulated executions could be useful as

a correcting vector for the pose estimation.

The exploration behavior allows for the mapping

of unknown regions. It selects traversable goal poses

for which navigation from the current pose has been

predicted as successful by the internal simulator.

ACKNOWLEDGMENT

The presented work was developed in the Entern

project (grant No. 50RA1406, 50RA1407) which is

funded by the German Federal Ministry of Economics

and Technology (BMWi).

We greatly acknowledge Museos de Tenerife and

Cueva del Viento for giving us access to the lava tube

and for providing us with local support in many ways.

REFERENCES

Amanatides, J., Woo, A., et al. (1987). A fast voxel traversal

algorithm for ray tracing. In Eurographics, volume 87,

pages 3–10.

B. Rusu, R., Sundaresan, A., Morisset, B., Hauser,

K., Agrawal, M., Latombe, J., and Beetz, M.

(2009). Leaving ﬂatland: Efﬁcient real-time three-

dimensional perception and motion planning. J. Field

Robot., 26(10):841–862.

Chella, A. and Macaluso, I. (2009). The perception loop in

CiceRobot, a museum guide robot. Neurocomputing,

72(4-6):760–766.

Cohen, B. J., Chitta, S., and Likhachev, M. (2010). Search-

based planning for manipulation with motion prim-

itives. In 2010 IEEE International Conference on

Robotics and Automation, pages 2902–2908.

Curless, B. and Levoy, M. (1996). A volumetric method for

building complex models from range images. In Pro-

ceedings of the 23rd annual conference on Computer

graphics and interactive techniques, pages 303–312.

ACM.

Daga, A. W., Allen, C., Battler, M. M., Burke, J. D., Craw-

ford, I. A., L

eveill

e, R. J., Simon, S. B., and Tan, L. T.

(2009). Lunar and martian lava tube exploration as

part of an overall scientiﬁc survey. In Annual Meet-

ing of the Lunar Exploration Analysis Group, volume

1515, page 15.

Daily, M., Harris, J., Keirsey, D., Olin, D., Payton, D.,

Reiser, K., Rosenblatt, J., Tseng, D., and Wong, V.

(1988). Autonomous cross-country navigation with

the ALV. In [No source information available], vol-

ume 2, pages 718 – 726.

Dom

ınguez, R., Schwendner, J., and Kirchner, F. (2015).

On-board simulator for autonomy enhancement in

robotic space missions. In In Symposium on Advanced

Space Technologies in Robotics and Automation (AS-

TRA).

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: A paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Commun. ACM, 24(6):381–395.

Hertzberg, C., Wagner, R., Frese, U., and Schr

oder, L.

(2013). Integrating generic sensor fusion algorithms

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

154

with sound state representations through encapsula-

tion of manifolds. Information Fusion, 14(1):57–77.

Hesslow, G. (2012). The current status of the simulation

theory of cognition. Brain research, 1428:71–9.

Hidalgo Carri

o, J., Arnold, S., B

ockmann, A., Born, A.,

Dom

ınguez, R., Hennes, D., Hertzberg, C., Ma-

chowinski, J., Schwendner, J., Yoo, Y., and Kirchner,

F. (2016). EnviRe - environment representation for

long-term autonomy.

Howard, T. M. and Kelly, A. (2007). Optimal rough ter-

rain trajectory generation for wheeled mobile robots.

The International Journal of Robotics Research,

26(2):141–166.

ummerle, R., Grisetti, G., Strasdat, H., Konolige, K.,

and Burgard, W. (2011). g

o: A general framework

for graph optimization. In Robotics and Automa-

tion (ICRA), 2011 IEEE International Conference on,

pages 3607–3613. IEEE.

ummerle, R., Hahnel, D., Dolgov, D., Thrun, S., and Bur-

gard, W. (2009). Autonomous driving in a multi-level

parking structure. In 2009 IEEE International Confer-

ence on Robotics and Automation, pages 3395–3400.

Lacroix, S., Mallet, A., Bonnafous, D., Bauzil, G., Fleury,

S., Herrb, M., and Chatila, R. (2002). Autonomous

rover navigation on unknown terrains: Functions and

integration. The International Journal of Robotics Re-

search, 21(10-11):917–942.

Lee, J. et al. (2017). Flexible collision library.

https://github.com/ﬂexible-collision-library/fcl.

Likhachev, M. et al. Search-based planning lab.

http://www.sbpl.net.

Likhachev, M., Gordon, G. J., and T., S. (2004). ARA*:

Anytime A* with provable bounds on sub-optimality.

In Thrun, S., Saul, L. K., and Sch

olkopf, B., editors,

Advances in Neural Information Processing Systems

16, pages 767–774. MIT Press.

Lorensen, W. E. and Cline, H. E. (1987). Marching cubes:

A high resolution 3d surface construction algorithm.

In ACM siggraph computer graphics, volume 21,

pages 163–169. ACM.

Marques, H. G. and Holland, O. (2009). Architectures

for functional imagination. Neurocomputing, 72(4-

6):743–759.

Nesnas, I. A. D., Matthews, J. B., Abad-Manterola, P., Bur-

dick, J. W., Edlund, J. A., Morrison, J. C., Peters,

R. D., Tanner, M. M., Miyake, R. N., Solish, B. S., and

Anderson, R. C. (2012). Axel and duaxel rovers for

the sustainable exploration of extreme terrains. Jour-

nal of Field Robotics, 29(4):663–685.

Newcombe, R. A., Izadi, S., Hilliges, O., Molyneaux, D.,

Kim, D., Davison, A. J., Kohi, P., Shotton, J., Hodges,

S., and Fitzgibbon, A. (2011). KinectFusion: Real-

time dense surface mapping and tracking. In Mixed

and augmented reality (ISMAR), 2011 10th IEEE in-

ternational symposium on, pages 127–136. IEEE.

Preston, L., Barber, S., and Grady, M. (2012). Concepts for

activities in the ﬁeld of exploration (cafe). tn2: The

cataloge of planetary analogues.

Rekleitis, I., Bedwani, J., Dupuis, E., Lamarche, T., and Al-

lard, P. (2013). Autonomous over-the-horizon naviga-

tion using LIDAR data. Autonomous Robots, 34(1):1–

18.

Rockel, S., Klimentjew, D., Zhang, L., and Zhang, J.

(2014). An hyperreality imagination based reasoning

and evaluation system (HIRES). In 2014 IEEE In-

ternational Conference on Robotics and Automation

(ICRA), pages 5705–5711.

Rockel, S., Kone

S.and Stock, S., Hertzberg, J., Pecora,

F., and Zhang, J. (2015). Integrating physics-based

prediction with semantic plan execution monitoring.

In 2015 IEEE/RSJ International Conference on Intel-

ligent Robots and Systems (IROS), pages 2883–2888.

Roßmann, J., Guiffo Kaigom, E., Atorf, L., Rast, M., Grin-

shpun, G., and Schlette, C. (2014). Mental models

for intelligent systems: eRobotics enables new ap-

proaches to simulation-based AI. KI - K

unstliche In-

telligenz, 28(2):101–110.

Segal, A., Haehnel, D., and Thrun, S. (2009). Generalized-

ICP. In Robotics: Science and Systems, volume 2,

page 435.

Triebel, R., Pfaff, P., and Burgard, W. (2006). Multi-

level surface maps for outdoor terrain mapping and

loop closing. In Intelligent Robots and Systems, 2006

IEEE/RSJ International Conference on, pages 2276–

2282. IEEE.

Wynne, J. J. (2016). The scientiﬁc importance of caves in

our solar system: Highlights of the 2nd international

planetary caves conference, Flagstaff, Arizona. NSS

NewS, page 5.

Internal Simulation for Autonomous Robot Exploration of Lava Tubes

155
