Multi-Objective Approach for Support Vector Machine Parameter

Optimization and Variable Selection in Cardiovascular Predictive

Modeling

Christina Brester

1,3

, Ivan Ryzhikov

1,3

, Tomi-Pekka Tuomainen

, Ari Voutilainen

Eugene Semenkin

and Mikko Kolehmainen

Department of Environmental and Biological Sciences, University of Eastern Finland, Kuopio, Finland

Institute of Public Health and Clinical Nutrition, University of Eastern Finland, Kuopio, Finland

Institute of Computer Sciences and Telecommunication, Reshetnev Siberian State University of Science and Technology,

Krasnoyarsk, Russia

Keywords: Support Vector Machine, Cardiovascular Predictive Modeling, Multi-objective Evolutionary Algorithm,

Parameter Optimization, Variable Selection.

Abstract: We present a heuristic-based approach for Support Vector Machine (SVM) parameter optimization and

variable selection using a real-valued cooperative Multi-Objective Evolutionary Algorithm (MOEA). Due to

the possibility to optimize several criteria simultaneously, we aim to maximize the SVM performance as

well as minimize the number of input variables. The second criterion is important especially if obtaining

new observations for the training data is expensive. In the field of epidemiology, additional model inputs

mean more clinical tests and higher costs. Moreover, variable selection should lead to performance

improvement of the model used. Therefore, to train an accurate model predicting cardiovascular diseases,

we decided to take a SVM model, optimize its meta and kernel function parameters on a true population

cohort variable set. The proposed approach was tested on the Kuopio Ischemic Heart Disease database,

which is one of the most extensively characterized epidemiological databases. In our experiment, we made

predictions on incidents of cardiovascular diseases with the prediction horizon of 7–9 years and found that

use of MOEA improved model performance from 66.8% to 70.5% and reduced the number of inputs from

81 to about 58, as compared to the SVM model with default parameter values on the full set of variables.

1 INTRODUCTION

Cardiovascular diseases (CVDs) are one of the most

frequent causes of people’s deaths around the world

for today. Stress, unhealthy diet, physical inactivity,

harmful use of tobacco and alcohol increase the risk

of CVDs significantly. Nowadays, even young

people suffer from CVDs. According to the report of

the World Health Organization, in 2015 about 17.7

million people died from CVDs (it was 31% of all

global deaths) (World Health Organization, 2017).

Early detection of a high CVD risk for a patient is

considered to be the main issue for doctors to

undertake appropriate measures in time and prevent

non-fatal or fatal incidents of CVDs.

In this paper, we develop a predictive system

based on a Support Vector Machine (SVM) and a

Multi-Objective Evolutionary Algorithm (MOEA),

which is applied to tune SVM meta and kernel

function parameters and select a proper set of input

variables. There are many comparative studies in

which SVMs outperform other predictive models on

different problems, including medical diagnostics

(Bellazzi and Zupan, 2008; Yu et al., 2005).

Moreover, this model copes successfully with a

high-dimensional set of input variables (Ghaddar

and Naoum-Sawaya, 2018), which is important for

our study because the data used contains 81

variables.

A number of successful studies are devoted to

optimizing SVM parameters by various heuristic

approaches. In most cases, however, only one-

criterion optimization algorithms are used (Ren and

Bai, 2010; Liao et al., 2015). In our study, we

Brester, C., Ryzhikov, I., Tuomainen, T-P., Voutilainen, A., Semenkin, E. and Kolehmainen, M.

Multi-Objective Approach for Support Vector Machine Parameter Optimization and Variable Selection in Cardiovascular Predictive Modeling.

DOI: 10.5220/0006866001990205

In Proceedings of the 15th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2018) - Volume 1, pages 199-205

ISBN: 978-989-758-321-6

199

employ a real-valued cooperative MOEA to

optimize two criteria at once: the model predictive

ability and the number of input variables (Cho and

Hoang, 2017; Zhao et al., 2011). In epidemiology,

reducing the number of input variables is quite

important because it leads to fewer clinical tests and

lower costs for patients.

In medical data mining studies, researches often

compare their proposals with conventional models

on several test problems from repositories (Brameier

and Banzhaf, 2001; Cheng et al., 2006; Tu et al.,

2009). However, our goal is not to compare different

models but to take the first step in building a

predictive model based on real “raw” high-

dimensional data. The presented model has been

trained and tested on the Kuopio Ischemic Heart

Disease (KIHD) dataset, which is one of the most

properly characterized epidemiological study

populations with a huge variety of variables:

biomedical, psychosocial, behavioral, clinical and

other. Previously, some of these variables have been

pre-selected and used in risk factor analysis. In our

approach, we do not involve experts to pre-select

explanatory variables but perform variable selection

algorithmically.

The next sections describe the approach

proposed in detail, experimental results, conclusions,

and future plans.

2 PREDICTIVE MODELING

SVM models are widely used in machine learning to

solve classification and regression problems from

various practical areas (Boser et al., 1992).

Generally, training SVM models is performed by

minimizing the error function (1):

min,

→



⋅+⋅

ξCww

(1)

which is subject to the constraints:

by ξ−≥+⋅ 1)( xw

and

,0≥

Ni ,...,1=

where C is an adjustable parameter of regularization,

ξ expresses an error

,0max( ))(1 b

y +⋅⋅− xw

on training examples

),,(

yx ,1±∈

Ni ,...,1=

N is the number of training examples.

These models are more complex in comparison

with a linear regression and allow reflecting non-

linear dependencies due to the ‘kernel trick’, i.e.

kernel functions map points into a higher

dimensional space, where a linear separation is

applicable. In this work, we use a Radial Basis

Function as a kernel (2):

)exp(),(

i2i1i2i1

K xxxx −⋅σ−= . (2)

SVMs have a strong theoretical background and,

in general, training these models is reduced to

solving a dual quadratic programming problem with

one global optimum.

By this time, a number of effective approaches to

solve this quadratic programming problem have

been proposed, for example, Sequential Minimal

Optimization (SMO) (Platt, 1998). However, there

are still some parameters which require proper

tuning. They are meta (C) and kernel function

parameters ( σ ) and, as can be found in other studies

(Liao et al., 2015; Syarif et al., 2016), an arbitrary

choice of their values may lead to a significant

deterioration in the solution quality. The easiest way

to tune these parameters is to use a grid search, but it

requires quite a lot of computational time to check a

good amount of values. As an alternative, heuristic

optimization methods might be applied to find a

pseudo-optimal combination of parameter values.

Evolutionary Algorithms (EA) operate with a set

of candidate-solutions, which allows investigating a

search space in a parallel way. One of important

benefits of using EAs in optimizing SVM

parameters is a possibility to incorporate variable

selection into parameter tuning. This leads not only

to finding proper values of SVM meta and kernel

function parameters but also to determination of an

effective input variable set corresponding to these

particular SVM parameters. In our study, we

propose to apply a MOEA to optimize two criteria

simultaneously (3). The first criterion reflects the

model predictive ability and the second one

expresses the number of selected variables

selected

N :

.min

min;_1

→=

→−=

selected

scoreFf

(3)

In the first criterion, we estimate the F-score

metric (Goutte and Gaussier, 2005), specifically the

-measure with equally weighted precision and

recall.

To solve this two-criterion optimization problem

(3), we have developed a real-valued cooperative

modification of the Strength Pareto Evolutionary

Algorithm 2 (SPEA2) (Zitzler et al., 2002). In this

algorithm, a chromosome consists of real-valued

genes which code SVM parameters C, σ , and input

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

200

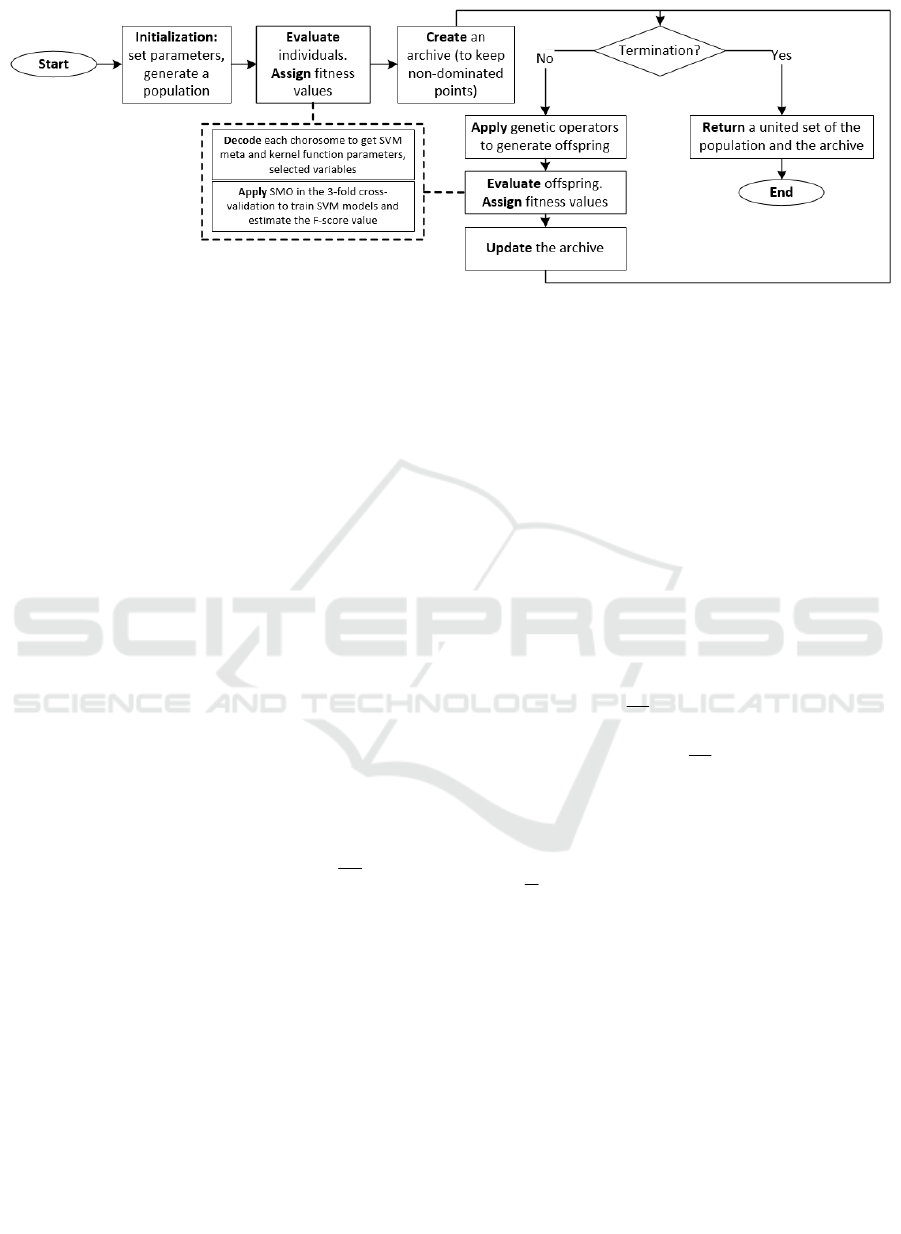

Figure 1: SVM training with a cooperative SPEA2.

variables. To evaluate criteria f

and f

for each

chromosome, it should be decoded in the following

way:

;

geneC = ;

gene=σ







≥

5.0if,selectednot

,5.0ifselected,

gene

. (4)

Then, for each pair (C,

) with a certain set of

selected variables, the SVM model is trained using

the SMO algorithm. The F-score metric is estimated

in the 3-fold cross-validation procedure on the

training data.

The modified SPEA2 is based on an island

model cooperation (Whitley et al., 1997), which

allows us to reduce computational time because a

number of populations evolve in a parallel way. In

addition to that, cooperative modifications of EAs

demonstrate higher performance in comparison with

their original versions (Brester et al., 2018).

Available resources are divided among

subpopulations (islands) equally:

isl

= , where

is the total number of individuals,

is the

number of subpopulations. One crucial concern in

the island cooperation is a migration process, which

implies that in some

m iterations (generations)

islands exchange the best

m individuals. In the

proposed modification, the migration set replaces

individuals with the worst fitness values in each

island population. Thus, we have implemented a

fully connected topology: each island sends its best

solutions to all the other ones and, as a response, it

receives solutions from other islands. The final

solution is obtained by merging all the populations

and archives, and, then, selecting the best solution

based on the f

criterion (Figure 1).

Originally, SPEA2 operates with binary strings,

however, for real-valued optimization problems a

number of genetic operators have been developed.

To select effective solutions for the offspring

generation, we apply binary tournament selection.

As a crossover operator, we use intermediate

recombination. In a mutation operator, we

implement the next scheme (Liu et al., 2009):

1yprobabilitwith,

yprobabilitwith),(







−

−⋅γ+

mjjjj

pabx

(5)

with











+η

⋅−−

<−⋅

otherwise,)22(1

5.0if,1)2(

rand

randrand

, (6)

where rand is a uniformly random number [0, 1].

There are two control parameters: the mutation rate

, where n is the chromosome length, and the

distribution index

is equal to 1.0 (6).

a and

are the lower and the upper bounds of the

j-th

variable in the chromosome (5).

3 DATABASE DESCRIPTION

The epidemiologic ongoing cohort study, KIHD

(Kuopio Ischemic Heart Disease), was started in

1984 to investigate risk factors of CVDs and some

other diseases in the population of Eastern Finland,

where one of the highest rate of coronary heart

disease (CHD) was recorded (Salonen, 1988).

Multi-Objective Approach for Support Vector Machine Parameter Optimization and Variable Selection in Cardiovascular Predictive

Modeling

201

Table 1: The KIHD data description.

Examinations Period Participants Variables

Baseline 1984-1989 Men 8000

4-year 1991-1993 Men 5000

11-year 1998-1999 Men, women 3000

20-year 2006-2008 Men, women 750

In Table 1, we present a timeline of the KIHD

study, which currently consists of four examination

periods. At the baseline time point (1984–1989),

2,682 middle aged (42, 48, 54, 60 years) recruited

men from the city of Kuopio and its surrounding

communities of Eastern Finland were randomly

chosen for participation in the KIHD study. Later, in

1998-2001, 920 ageing recruited women joined this

follow-up study.

This dataset is one of the most thoroughly

characterized epidemiologic study populations in the

world, with thousands of biomedical, psychosocial,

behavioural, clinical, and other variables in its

dataset. The KIHD study, as a valuable source for

epidemiologic research, has attracted many

scientists, which has yielded in more than 500

original peer reviewed articles in international

scientific journals over the past 30 years. However,

there are no studies yet that would try to use this

unique database for predicting the appearance of

CVDs without any variable pre-selection.

In spite of the fact that, originally, the main focus

in the KIHD study was on CVDs, and especially on

ischemic heart disease, other health outcomes such

as cancer, diabetes, and dementia, have been also

investigated (Kurl

et al., 2015; Tolmunen et al.,

2014, Virtanen

et al., 2016; Brester et al., 2016).

In our predictive modeling, we engage the 20-

year examination data with a representative subset of

variables preselected by an experienced

epidemiologist. This data contains information about

incidents and fatal events of various diseases by

2015. In this work, we consider only CVD-related

outcomes (stroke, CHD, acute myocardial infarction

(AMI), etc.) All the subjects were labelled as

‘healthy’ (none of CVDs occurred) and ‘unhealthy’

(any incident of CVDs or fatal CVD event

occurred).

Moreover, we applied the following pre-

processing:

1) Subjects who had any CVD in their

anamnesis at the 20-year examination were

excluded so that we got state vectors (vectors

of variables) for people who were healthy at

the beginning of the observation period;

2) Subjects with more than 50% of missing

values in the state vector and, then, variables

with more than 30% of gaps were removed.

The rest of missing values were filled with a

nearest neighbour method (Beretta and

Santaniello, 2016).

Thus, all these pre-processing steps led to the

dataset with 778 subjects and 81 variables: 360 sick

subjects and 418 healthy subjects. In the next

section, we present the experimental results of our

modeling aimed at making accurate predictions for

the subjects about CVDs by 2015 bases on their state

vectors recorded in 2006–2008.

4 EXPERIMENTS AND RESULTS

Before training predictive models on the KIHD data,

we checked if there were outliers or not. Data was

collected from different sources, some variables

were measured, others were recorded from

questionnaires. It is clear that there might be

mistakes. Moreover, there might be even wrong

labels because people do not always go to the

hospital if they have some CVD symptoms.

Therefore, firstly, we decided to estimate Cook’s

distance, which is used in Regression Analysis to

find the most influential points in the sample (Cook,

1977). Cook’s distance for the

i-th sample point is

calculated based on the difference between a linear

regression trained on the whole dataset and a

regression model trained on the dataset after

removing the

i-th sample point. The higher Cook’s

distance is, the more influential point we have.

In Figure 2 and 3, we demonstrate Cook’s

distance values for KIHD subjects and Cook’s

distance distribution in a form of a histogram.

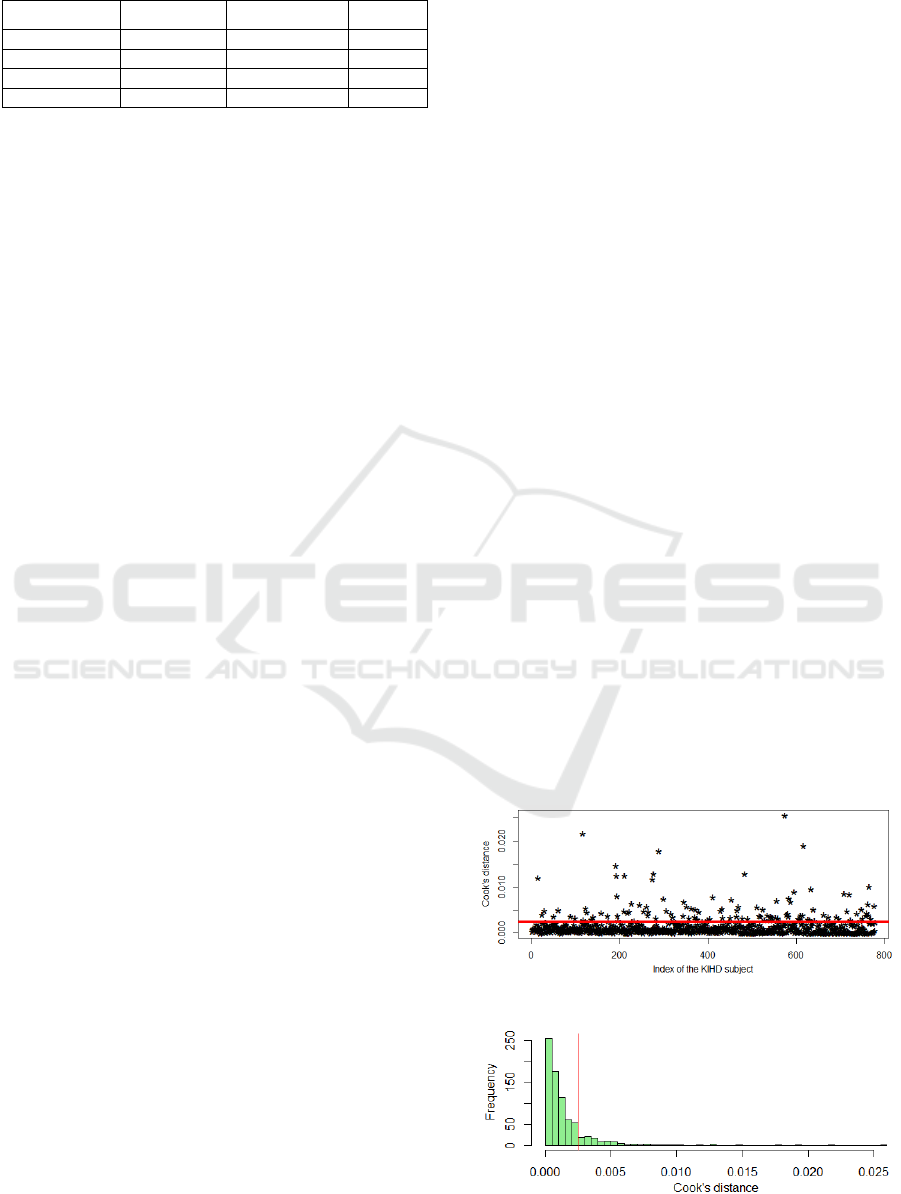

Figure 2: Cook’s distances for KIHD subjects.

Figure 3: Cook’s distance distribution estimation.

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

202

In theory, there is no strict rule how to choose a

threshold to determine outliers. After a number of

experiments, we decided to remove KIHD subjects

with Cook’s distance which is higher than 0.0025, so

that to keep 85% of the sample.

The SVM model performance was assessed in

the 5-fold cross-validation procedure. In Figure 4,

we compare F-score values before and after

removing the most influential points. In this

experiment, default values of

C and σ were 1.0 and

0.01, correspondingly (these values are used in

WEKA package (Hall

et al., 2009)).

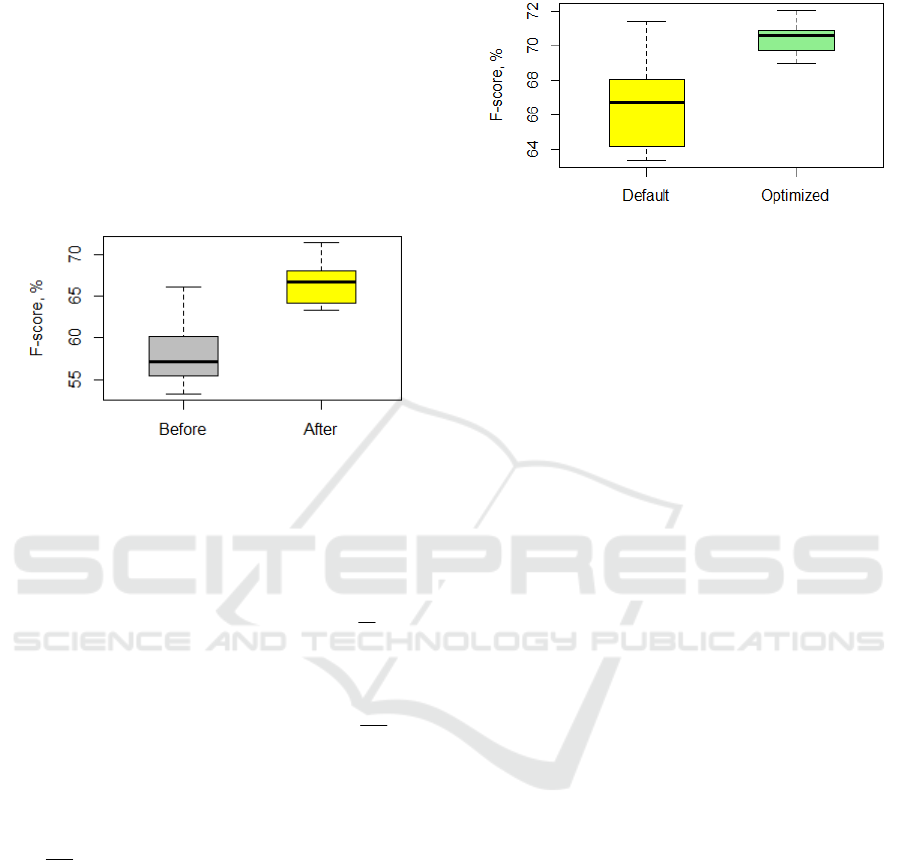

Figure 4: SVM performance with default parameters

before and after removing outliers.

In the next experiment, we applied the modified

SPEA2 to optimize SVM parameters and perform

variable selection. The algorithm parameters were

assigned as follows:

18=

isl

M , 20=T (the number

of generations),

,3=L

m , 2=

m , 5=

isl

(the archive size),

1.0

=a , 10

=b (bounds of

possible C values),

001.0

=a , 1.0

=b (bounds of

possible σ values),

nj ,3=

. To

start the search from larger variable sets and prevent

the algorithm from premature convergence to

solutions with very few selected variables, in the

initial population we generated the

j-th gene

( nj ,3= ) based on the rule (7):







8.0ofyprobabilitwith),1;5.0(

2.0ofyprobabilitwith),5.0;0(

rand

gene

(7)

For each fold in the cross-validation procedure,

we obtained the following optimized parameter

(

C, σ ) values: 1 – (5.6876, 0.0541), 2 – (6.0277,

0.0536), 3 – (7.5469, 0.0387), 4 – (6.2696, 0.0380),

5 – (4.8698, 0.0771). The number of selected

variables was equal to 57.8 averaged over 5 folds. In

Figure 5, we compare F-score values achieved by

SVM models with default and optimized parameters,

on the full and reduced variable sets.

Figure 5: SVM performance with default parameters on

the full dataset and optimized parameters on the selected

variable set.

Thus, in this experiment we increased the

average F-score value from 66.8 % up to 70.5% with

the MOEA use.

At this point, we chose one best solution from all

variants returned by MOEA islands. Indeed, we

offer to return populations and archives with non-

dominated individuals, as can be seen in Figure 1,

because this allows us to choose not only one but

also a number of good solutions which might be

included in the ensemble of SVM models. This idea

should be taken into account as a possible way to

improve the achieved performance.

5 CONCLUSION

In this study, we introduced the effective approach

aimed at training SVM models with optimized

parameters and performing variable selection at

once. Simultaneous optimization of two criteria

became possible owing to the MOEA use, namely

the real-valued cooperative SPEA2. The island

model cooperation allowed us not only to reduce

computational time but also to increase the

performance of the original SPEA2.

Practically, our proposal was applied to

cardiovascular predictive modeling: we investigated

its effectiveness on the thoroughly characterized

epidemiological data containing many different

subjects and variables. Typically, CVDs are

predicted by using a few pre-selected, already

known, explanatory variables. Our approach

diminishes the need for pre-selection and,

simultaneously, may reveal novel previously

unknown explanatory variables. On average, we

managed to achieve 70.5% of F-score, which,

definitely, should be improved later. However,

applying the MOEA we could obtain 5.5% of the

Multi-Objective Approach for Support Vector Machine Parameter Optimization and Variable Selection in Cardiovascular Predictive

Modeling

203

relative improvement in F-score and accomplish

variable selection. All in all, this study combines for

the first time the real world epidemiological data, the

advanced EA-based optimization and database pre-

processing using Cook’s distance.

Currently, we have predicted CVDs for the next

7-9 years with one time point predictors, whereas, in

the future we plan to test the presented approach in

multiple time point predictor data (baseline, 4-year,

11-year examinations) and make predictions for

longer periods.

Moreover, at the next step, we should take

advantage of the MOEA distinctive feature to return

a number of non-dominated points, which might be

involved in the ensemble of SVM models.

REFERENCES

Bellazzi, R., Zupan, B., 2008. Predictive data mining in

clinical medicine: Current issues and guidelines.

International Journal of Medical Informatics, vol. 77,

issue 2, pp. 81-97.

Beretta, L., Santaniello, A., 2016. Nearest neighbour

imputation algorithms: a critical evaluation. BMC Med

Inform Decis Mak, 16 Suppl 3: 74. doi:

10.1186/s12911-016-0318-z.

Boser, B.E., Guyon, I.M., Vapnik, V.N, 1992. A training

algorithm for optimal margin classifiers. Proceedings

of the fifth annual workshop on Computational

learning theory – COLT '92, pp. 144-52.

Brameier, M., Banzhaf, W., 2001. A Comparison of

Linear Genetic Programming and Neural Networks in

Medical Data Mining. IEEE Transactions on Evolu-

tionary Computation IEEE, vol. 5, no. 1, pp. 1-10.

Brester, Ch., Kauhanen, J., Tuomainen, T. P., Semenkin,

E., Kolehmainen, M., 2016. Comparison of Two-

Criterion Evolutionary Filtering Techniques in

Cardiovascular Predictive Modelling. Proceedings of

the 13th International Conference on Informatics in

Control, Automation and Robotics (ICINCO), vol. 1,

pp. 140-145.

Brester, Ch., Ryzhikov, I., Semenkin, E., Kolehmainen,

M., 2018. On Island Model Performance for

Cooperative Real-Valued Multi-Objective Genetic

Algorithms. Advances in Swarm and Computational

Intelligence. In press

Cheng, T-H., Wei, Ch-P., Tseng V.S., 2006. Feature

Selection for Medical Data Mining: Comparisons of

Expert Judgment and Automatic Approaches. IEEE

proc of 19th IEEE Symposium on Computer-Based

Medical Systems (CBMS‘06), pp. 165-170.

Cho, M. Y., Hoang,

T. T., 2017. Feature Selection and

Parameters Optimization of SVM Using Particle

Swarm Optimization for Fault Classification in Power

Distribution Systems. Comput Intell Neurosci.

DOI: 10.1155/2017/4135465.

Cook, R.D., 1977. Deletion of influential observation in

linear regression. Techno-metrics, 19, pp. 15-18.

Ghaddar, B., Naoum-Sawaya, J., 2018. High dimensional

data classification and feature selection using support

vector machines. European Journal of Operational

Research, vol. 265, issue 3, pp. 993-1004.

Goutte, C., Gaussier, E., 2005. A probabilistic

interpretation of precision, recall and F-score, with

implication for evaluation. ECIR'05 Proceedings of

the 27th European conference on Advances in

Information Retrieval Research, pp. 345–359.

Hall, M., Frank, E., Holmes, G., Pfahringer, B.,

Reutemann, P., Witten, I. H., 2009. The WEKA Data

Mining Software: An Update. SIGKDD Explorations,

Volume 11, Issue 1.

Kurl, S, Jae, SY, Kauhanen, J, Ronkainen, K, Laukkanen,

JA, 2015. Impaired pulmonary function is a risk

predictor for sudden cardiac death in men. Ann Med,

47(5), pp. 381–385.

Liao P., Zhang X., Li, K., 2015. Parameter Optimization

for Support Vector Machine Based on Nested Genetic

Algorithms. Journal of Automation and Control

Engineering, vol. 3, no. 6, pp. 507-511.

Liu, M., Zou, X., Chen, Y., Wu, Z., 2009. Performance

assessment of DMOEA-DD with CEC 2009 MOEA

competition test instances. 2009 IEEE Congress on

Evolutionary Computation. DOI: 10.1109/CEC.2009.

4983309.

Platt, J., 1999. Fast Training of Support Vector Machines

using Sequential Minimal Optimization. Advances in

Kernel Methods, pp. 185-208.

Ren, Y., Bai, G., 2010. Determination of Optimal SVM

Parameters by Using GA/PSO. Journal of computers,

vol. 5, no. 8, pp. 1160-1168.

Salonen, J. T., 1988. Is there a continuing need for

longitudinal epidemiologic research? The Kuopio

Ischaemic Heart Disease Risk Factor Study. Ann Clin

Res, 20(1-2), pp. 46-50.

Syarif, I., Prugel-Bennett, A., Wills, G., 2016. SVM

Parameter Optimization Using Grid Search and

Genetic Algorithm to Improve Classification Perfor-

mance. Telkomnika, vol. 14, no. 4, pp. 1502- 1509.

Tolmunen, T, Lehto, S. M., Julkunen, J., Hintikka, J.,

Kauhanen, J., 2014. Trait anxiety and somatic

concerns associate with increased mortality risk: a 23-

year follow-up in aging men. Ann Epidemiol, 24(6),

pp. 463-468.

Tu, M. C., Shin, D., Shin, D. K., 2009. A Comparative

Study of Medical Data Classification Methods Based

on Decision Tree and Bagging Algorithms. IEEE proc

of Eighth International Conference on Dependable

Autonomic and Secure Computing, pp. 183-187.

Virtanen, J. K, Mursu, J, Virtanen, H. E., Fogelholm, M.,

Salonen, J. T., Koskinen, T. T., Voutilainen, S.,

Tuomainen, T. P., 2016. Associations of egg and

cholesterol intakes with carotid intima-media

thickness and risk of incident coronary artery disease

according to apolipoprotein E phenotype in men: the

Kuopio Ischemic Heart Disease Risk Factor Study. Am

J Clin Nutr, 103(3), pp. 895-901.

World Health Organization: fact sheet ‘Cardiovascular

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

204

diseases (CVDs)’, 2017. URL: http://www.

who.int/mediacentre/factsheets/fs317/en/. Accessed

30.03.2018.

Whitley, D., Rana, S., and Heckendorn, R., 1997. Island

model genetic algorithms and linearly separable

problems. Proceedings of AISB Workshop on Evolu-

tionary Computation, vol.1305 of LNCS: pp. 109-125.

Yu, J. S., Ongarello, S., Fiedler, R., Chen, X. W., Toffolo,

G., Cobelli, C., Trajanoski, Z., 2005. Ovarian

cancer identification based on dimensionality

reduction for high-throughput mass spectrometry data.

Bioinformatics, 21, pp. 2200-2209

Zhao, M., Fu, Ch., Ji, L., Tang, K., Zhou. M., 2011.

Feature selection and parameter optimization for

support vector machines: A new approach based on

genetic algorithm with feature chromosomes. Expert

Systems with Applications, 38(5): pp. 5197-5204.

Zitzler, E., Laumanns, M., Thiele, L., 2002. SPEA2:

Improving the Strength Pareto Evolutionary Algorithm

for Multiobjective Optimization. Evolutionary

Methods for Design Optimisation and Control with

Application to Industrial Problems EUROGEN 2001

3242 (103): pp. 95-100.

Multi-Objective Approach for Support Vector Machine Parameter Optimization and Variable Selection in Cardiovascular Predictive

Modeling

205
