AVISPA versus AVANTSSAR in the Model Checking of Secure

Communication Protocols

Iulian Aciobanitei

, Roxana-Ioana Guinea

and Mihai-Lica Pura

Cyber Security Advanced Technologies Center of Excellence, Military Technical Academy, Bucharest, Romania

Department of Computers and Mathematics, Military Technical Academy, Bucharest, Romania

Keywords:

Model Checking, Communication Protocols, AVISPA, AVANTSSAR.

Abstract:

The rapid development of Internet technologies has triggered a tremendous growth in the number of new

communication protocols. The scientiﬁc community has started to involve formal techniques in their design,

like formal veriﬁcation. To this purpose a series of model checking tools has been developed, some mature

enough to be used with conﬁdence in industry. Such tools are AVISPA and AVANTSSAR, the latter one being

an upgraded version of AVISPA and targeting the automated validation of distributed services. This paper

presents a quantitative comparison between these two tools, from the point of view of secure communication

protocols. As expected, the back-ends of the new AVANTSSAR are faster than the ones from AVISPA, but

several exceptions have been identiﬁed, thus suggesting that there are situations in which AVISPA should be

preferred.

1 INTRODUCTION

During the last decades computer networks have

known a rapid growth in the advance of their tech-

nology, but also in their use, as today they are spread

all over the world, in all industry domains and in each

and every house. This has triggered a tremendous de-

velopment of Internet services which use a large set

of communication protocols. This set of protocols is

so extensive and complex, that it surpasses the human

ability to manually analyze and validate their security

properties. To assure the needed conﬁdence in the se-

curity of Internet communication through these pro-

tocols, formal veriﬁcation tools were needed. They

ought to be fully automated, robust and easy to use

and ought to provide expressive formal speciﬁcation

languages for security aspects such that they could be

easily integrated in the process of development and

standardization of a protocol (Vigano, 2006).

Such formal veriﬁcation tools specially designed

for verifying security protocols are (in a chronological

enumeration) Casper (used in conjunction with FDR

model checker) (Lowe, 1998), ProVerif (Blanchet,

2001), AVISPA - Automated Validation of Internet

Security Protocols and Applications (Alessandro Ar-

mando, 2005), AVANTSSAR - Automated VAlida-

tioN of Trust and Security of Service-oriented AR-

chitectures (Alessandro Armando, 2012), and Scyther

(Cremers, 2008). From these, the scientiﬁc com-

munity has determined AVISPA and its follow-up,

AVANTSSAR, to be the needed tools, as they display

higher level of scope and robustness with equivalent

performance and scalability (Alessandro Armando,

2005). Both AVISPA and AVANTSSAR were an-

alyzed from a qualitative and quantitative point of

view by their developers and the benchmarks data are

given in the corresponding articles: (Vigano, 2006)

for AVISPA and (Alessandro Armando, 2012) for

AVANTSSAR, but from the best of our knowledge

there were no reports of a comparison between the

two.

This paper presents the results of a qualitative

and quantitative comparison between AVISPA and

AVANTSSAR, using a sample set of representative

models for security protocols as well as an analy-

sis of the obtained information. The motivation of

such a comparison is the following. AVANTSSAR

is a follow-up project of AVISPA. It is based on the

same back-end model checking engines that were up-

graded and improved. The main difference of the

new platform is the fact that while AVISPA was built

with the purpose of specifying and verifying secu-

rity protocols, AVANTSSAR targets the speciﬁca-

tion and the validation of trust and service-oriented

architectures and applications within the Internet of

Services paradigm - applications built by compos-

520

Aciobanitei, I., Guinea, R-I. and Pura, M-L.

AVISPA versus AVANTSSAR in the Model Checking of Secure Communication Protocols.

DOI: 10.5220/0006887905200525

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 520-525

ISBN: 978-989-758-319-3

ing distributed services, conﬁgured and consume in

a demand-driven manner (Vigano, 2012). To ad-

dress the more complex systems that needed to be

modeled, the developers of AVANTSSAR have in-

troduced new speciﬁcation languages, more expres-

sive and powerful than the input language of AVISPA.

But AVANTSSAR can still be used to validate sim-

ple security protocols, just like AVISPA. So the fol-

lowing question can arise: is the new platform more

efﬁcient than the old one when it comes to validate

simple security protocols? Or, with other words, the

improvements made in AVANTSSAR in order to ad-

dress the service-oriented architectures have also in-

ﬂuenced the efﬁciency of the tool when it comes to

the simple protocols? The answer to this question can

help researchers choose one tool or the other when

they need to validate a speciﬁc type of protocol.

The rest of the paper is organized as follows. The

second section brieﬂy presents the two tools. Section

number three describes the comparison by presenting

the comparison methodology, its results and the cor-

responding interpretation. The ﬁnal section contains

some conclusions and future work directions.

2 PRESENTATION OF THE

TOOLS

2.1 AVISPA

AVISPA (Vigano, 2006),(Alessandro Armando,

2005) is a push-button tool for automated validation

of Internet security protocols and applications.

Protocols to be veriﬁed are modeled in HLPSL

(High-Level Protocol Speciﬁcation Language),

presented in (Yannick Chevalier, 2004). AVISPA

is equipped with web-based GUI and the actual

veriﬁcation process is performed by four different

back-ends. AVISPA is working under the assumption

of perfect cryptography and the attacker model is the

Dolev-Yao intruder, described in (Dolev and Yao,

1983).

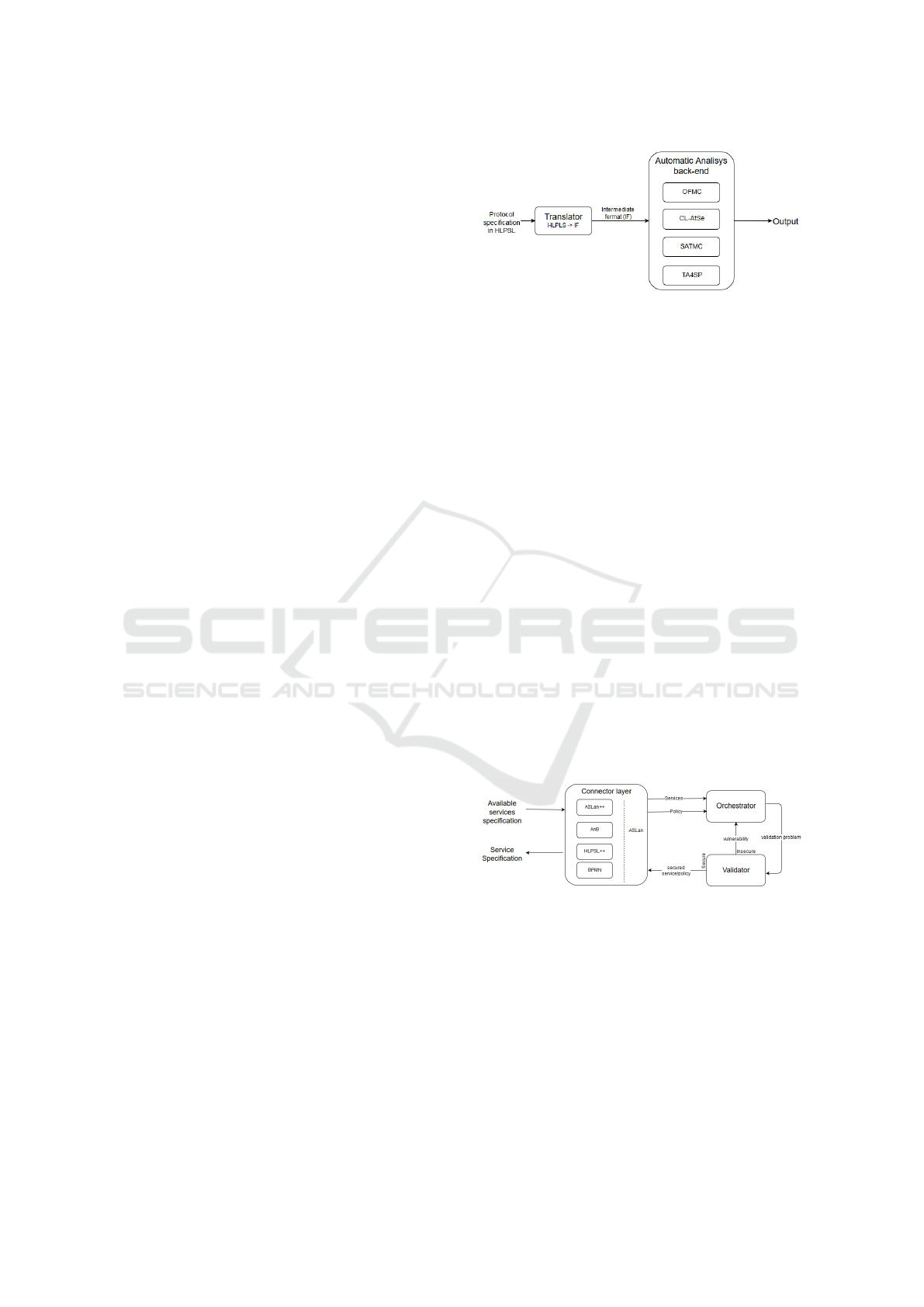

As presented in Figure 1, the main components of

the AVISPA tool are: (1) the translator which is re-

sponsible for the translation from HLPSL to Interme-

diate Format for protocol speciﬁcation and (2) the au-

tomated validation back-end. AVISPA integrates four

different back-ends, as follows:

1. OFMC (On-the-ﬂy Model Checker) is able to per-

form protocol falsiﬁcation and bounded veriﬁca-

tion.

2. CL-AtSe (Constraint-Logic-based Attack

Searcher) applies constraint solving and imple-

Figure 1: AVISPA Architecture.

ments redundancy elimination techniques and

simpliﬁcation heuristics.

3. SATMC (SAT-based Model-Checker) feeds a

SAT solver with a propositional formula repre-

senting a violation of the security properties of the

protocol. Any model found by the SAT solver this

way is translated back into an attack.

4. TA4SP (Tree-Automata-based Protocol Analyzer)

uses under-aproximation to show if a protocol is

ﬂawed and over-aproximation to show if a proto-

col is safe for any number of sessions. TA4SP

uses regular tree languages and rewriting.

The output of speciﬁes if the protocol is safe, the

security properties were violated or the problem could

not be solved. In case of ﬁnding a security ﬂaw in the

protocol, AVISPA gives the related attack trace.

2.2 AVANTSSAR

AVANTSSAR is a state of the art tool for security pro-

tocols/services validation. As presented in Figure 2

the platform is split into 3 layers: (1) the connectors,

(2) the orchestrator, and (3) the validator.

Figure 2: AVANTSSAR Architecture.

The back-end validator uses ASLan

(AVANTSSAR Speciﬁcation Language) as input

language. ASLan is a low-level speciﬁcation lan-

guage designed for sequential systems. As mentioned

in (Alessandro Armando, 2012), it is fully dedicated

to specifying trust and security aspects of services,

and goes beyond the structure of the static service.

Since ASLan is a low-level language, it is difﬁcult to

be used by non-experts.

The connector layer expands the usability of

AVANTSSAR by assuring the translation from high

AVISPA versus AVANTSSAR in the Model Checking of Secure Communication Protocols

521

level speciﬁcation languages into ASLan and from

ASLan back to the high-level speciﬁcation language

used for the new service speciﬁed. The following con-

nectors are available:

1. ASLan++ connector - provides translation be-

tween ASLan and ASLan++, which has been

designed specifying dynamically composed

security-sensitive web services and service-

oriented architectures (Oheimb and Modersheim,

2011).

2. AnB connector is used in case one prefers ex-

tended Alice-and-Bob notation or message se-

quence charts.

3. HLPLS++ connector translates the HLPSL mod-

els (Yannick Chevalier, 2004) and can easily be

used by protocol engineers/designers.

4. BPMN + Annotations connector is responsible for

the translation of business process standard lan-

guages used by practitioners in the ﬁeld. This

avoid forcing the business process practitioners to

model the protocol twice.

The Orchestrator receives the input from the con-

nector layer and uses automated reasoning techniques

to produce a speciﬁcation of the target service that is

guaranteed to satisfy the speciﬁed goals. If the output

speciﬁcation does not meet the security requirements,

the validator returns a counter-example to the orches-

trator, which generates another target service speciﬁ-

cation.

The Validator is responsible checking the Orches-

trator output. If the orchestration meets the security

requirements, the Validator outputs the service spec-

iﬁcation to the Connectors layer. Otherwise, it pro-

vides to the Orchestrator a counter-example which is

used to generate another orchestration.

Using AVANTSSAR as presented in (Alessan-

dro Armando, 2008), Alessandro Armando et al. were

able to model SAML-based SSO (Single Sign On)

protocol used by Google Applications. They discov-

ered a severe security ﬂaw that was unknown at that

time and that allowed a dishonest service provider to

impersonate a user at another service provider. The

attack was reproduced in the actual deployment of

Google Application.

3 AVISPA VS. AVANTSSAR

For the comparison, the AVISPA and AVANTSSAR

platform validators were run for 29 of the most known

security protocols to analyze the performance of the

veriﬁcation. The following data was considered: the

running time of the validators for each security pro-

tocol and the number of attacks found. All valida-

tors provide statistics on the states and transitions an-

alyzed, as well as the running time. When comparing

the performance, the criteria has been the total time

taken by each validator to check all the 29 protocols

(the sum of the times for each protocol).

Table 1: CL-Atse Run Time.

Protocol CL-Atse - AVISPA CL-Atse AVANTSSAR

A T1 T2 T3 Tm A T1 T2 T3 Tm

AAAMobileIP NO 0.0 0.0 0.0 0.0 NO 0.1 0.08 0.09 0.09

CHAPv2 NO 0.0 0.0 0.0 0.0 NO 0.04 0.04 0.05 0.043

CRAM-MD5 NO 0.02 0.02 0.02 0.02 NO 0.31 0.33 0.32 0.32

DHCP-delayed-auth NO 0.0 0.0 0.0 0.0 NO 0.01 0.007 0.008 0.0083

EKE YES 0.0 0.0 0.0 0.0 YES 0.06 0.067 0.075 0.0673

EKE2 NO 0.0 0.0 0.0 0.0 NO 0.02 0.022 0.024 0.022

h.530 OUT OF MEMORY NO 0.08 0.11 0.091 0.093

h.530-ﬁx OUT OF MEMORY NO 0.11 0.1 0.14 0.116

IKEv2-CHILD NO 0.02 0.02 0.02 0.02 NO 6.2 6.1 7.7 6.6

IKEv2-DS YES 0.0 0.0 0.0 0.0 YES 0.03 0.045 0.046 0.04

IKEv2-DSx NO 5.16 5.14 5.2 5.16 NO 112 117 122 117

IKEv2-MAC NO 0.0 0.0 0.2 0.06 NO 1.45 1.46 1.16 1.356

IKEv2-MACx NO 3.36 3.4 3.32 3.36 NO 61 73 71 68.3

ISO1 YES 0.0 0.0 0.0 0.0 YES 0.005 0.006 0.005 0.0053

ISO2 NO 0.0 0.0 0.0 0.0 NO 0.011 0.01 0.01 0.0103

ISO3 YES 0.0 0.0 0.0 0.0 YES 0.016 0.016 0.016 0.016

ISO4 NO 0.0 0.0 0.0 0.0 NO 0.32 0.31 0.3 0.31

Kerb-basic NO 0.02 0.02 0.0 0.013 NO 6.58 6.42 6.52 6.506

Kerb-Cross-Realm NO 0.04 0.06 0.04 0.046 NO 755 721 695 723.6

Kerb-Forwardable NO 0.06 0.04 0.02 0.04 NO 23.2 22.8 22.6 22.8

LPD-IMSR NO 0.0 0.0 0.0 0.0 NO 0.012 0.012 0.011 0.0116

LPD-MSR YES 0.0 0.0 0.0 0.0 YES 0.007 0.006 0.007 0.006

PBK YES 0.0 0.0 0.0 0.0 YES 0.016 0.015 0.014 0.014

PBK-ﬁx YES 0.0 0.0 0.0 0.0 YES 0.016 0.017 0.018 0.017

PBK-ﬁx-weak-auth NO 0.06 0.04 0.06 0.053 NO 26.15 26.09 26.18 26.14

SPEKE NO 0.02 0.02 0.02 0.02 NO 0.157 0.161 0.159 0.159

SRP NO 0.0 0.0 0.0 0.0 NO 0.036 0.035 0.028 0.033

TLS NO 0.0 0.02 0.0 0.006 NO 0.11 0.105 0.108 0.107

UMTS AKA NO 0.0 0.0 0.0 0.0 - - - - -

Total time (s) 8.798 8827.929

The tests were performed on a computer with In-

tel Core i7-4510U processor, 4 GB of RAM, and an

Ubuntu 14.04 operating system.

Each tool was used to check the following secu-

rity properties of the selected protocols: secrecy and

authentication. Secrecy can be modeled in each of

the considered instruments. Authentication cannot be

modeled by TA4SP. For the analysis of the obtained

results, it is worth to take into consideration the fol-

lowing point: SATMC provides a number of features

(e.g. model checking of LTL properties (Armando

and Compagna, 2016)) that are not supported by CL-

AtSe and OFMC and that are not used in the consid-

ered benchmark protocols.

The results obtained are found in Tables 1, 2 and

3, where column A speciﬁes whether a protocol at-

tack has been found, columns T1, T2, T3 represent 3

validator runtimes, and the Tm column represents the

average running time. The result of the veriﬁcation

of certain protocols was declared inconclusive by the

validator, not specifying whether or not an attack was

found. The last line for each table highlights the total

running time of the back-ends for the veriﬁcation of

all 29 protocols. Thus is simple to see which one has

the best overall performance.

Validators versions used by AVISPA are as fol-

lows: CL-Atse - version 2.2-5, OFMC - version

of 2006/02/13 (version number is not available),

SATMC - version 2.1, TA4SP - version of AVISPA-

1.1 (version number is not available).

The same protocols have been veriﬁed with the

SECRYPT 2018 - International Conference on Security and Cryptography

522

Table 2: OFMC Run time.

Protocol OFMC - AVISPA OFMC AVANTSSAR

A T1 T2 T3 Tm A T1 T2 T3 Tm

AAAMobileIP NO 0.09 0.1 0.1 0.096 NO 0.031 0.035 0.037 0.034

CHAPv2 NO 0.12 0.13 0.13 0.126 YES 0.011 0.013 0.014 0.012

CRAM-MD5 NO 0.11 0.11 0.11 0.11 NO 0.017 0.02 0.021 0.019

DHCP-delayed-auth NO 0.02 0.02 0.02 0.02 NO 0.008 0.007 0.01 0.008

EKE YES 0.02 0.02 0.02 0.02 YES 0.026 0.025 0.027 0.025

EKE2 NO 0.02 0.02 0.02 0.02 NO 0.014 0.012 0.015 0.013

h.530 YES 0.23 0.24 0.23 0.23 NO 0.035 0.034 0.036 0.034

h.530-ﬁx NO 6.77 6.79 7.07 6.87 NO 0.075 0.068 0.072 0.071

IKEv2-CHILD NO 0.32 0.31 0.31 0.313 YES 0.012 0.011 0.013 0.011

IKEv2-DS YES 0.07 0.06 0.07 0.06 NO 0.28 0.27 0.3 0.28

IKEv2-DSx NO 9.57 9.73 9.71 9.67 NO 0.3 0.31 0.33 0.313

IKEv2-MAC NO 1.84 1.86 1.81 1.83 NO 0.189 0.186 0.185 0.186

IKEv2-MACx NO 8.61 8.76 8.69 8.68 NO 0.226 0.203 0.284 0.237

ISO1 YES 0.0 0.0 0.0 0.0 NO 0.005 0.007 0.006 0.006

ISO2 NO 0.03 0.02 0.02 0.023 NO 0.011 0.013 0.012 0.012

ISO3 YES 0.01 0.01 0.0 0.006 NO 0.013 0.014 0.011 0.012

ISO4 NO 0.22 0.3 0.31 0.27 NO 0.021 0.019 0.021 0.020

Kerb-basic NO 1 1.02 0.94 0.98 NO 0.024 0.023 0.024 0.023

Kerb-Cross-Realm NO 3.07 2.96 2.92 2.98 NO 0.043 0.041 0.042 0.042

Kerb-Forwardable NO 9.1 6.35 6.31 7.25 YES 0.031 0.029 0.03 0.03

LPD-IMSR NO 0.03 0.02 0.03 0.026 NO 0.008 0.007 0.01 0.008

LPD-MSR YES 0.0 0.0 0.0 0.0 NO 0.006 0.007 0.005 0.006

PBK YES 0.21 0.2 0.2 0.203 YES 0.005 0.009 0.008 0.007

PBK-ﬁx YES 0.09 0.08 0.09 0.08 YES 0.017 0.019 0.014 0.016

PBK-ﬁx-weak-auth NO 2.02 2.29 2.21 2.17 YES 0.025 0.033 0.028 0.018

SPEKE NO 1.68 1.48 1.36 1.5 YES 0.016 0.014 0.013 0.014

SRP NO 0.06 0.04 0.04 0.046 NO 0.025 0.022 0.021 0.022

TLS NO 0.14 0.17 0.2 0.143 NO 0.018 0.016 0.017 0.016

UMTS

AKA NO 0.0 0.0 0.1 0.033 NO 0.008 0.007 0.009 0.008

Total time (s) 43.755 1.503

AVANTSSAR platform validators. Validators ver-

sions used by AVANTSSAR are as follows: CL-Atse

- version 2.5-21, OFMC - 2012c version, SATMC -

version 3.4.

In the depicted tables, the execution time of the

validators of the two platforms are compared.

The results obtained after running the veriﬁcation

with CL-Atse validator from Table 1 will be summa-

rized next. The CL-Atse Validator from AVISPA de-

clared 20 out of 29 protocols as safe, 7 as unsafe, and

2 could not be veriﬁed. The CL-Atse Validator from

AVANTSSAR found 21 out of 29 protocols to be safe

(including the two protocols that could not be veriﬁed

with AVISPA’s CL-Atse), 7 to be unsafe (the same

as the ones found unsafe by AVISPA’s CL-Atse), and

one could not be veriﬁed.

The result of the validation obtained with OFMC

validator from Table 2 are the following: the OFMC

Validator from AVISPA has found 21 protocols to be

secure and 8 to be not secure. And the OFMC Valida-

tor from AVANTSSAR has found 21 protocols to be

secure and 8 to be not secure.

Table 3: SATMC Run time.

Protocol OFMC - AVISPA OFMC AVANTSSAR

A T1 T2 T3 Tm A T1 T2 T3 Tm

AAAMobileIP NO 0.46 0.48 0.5 0.48 NO 0.24 0.32 0.18 0.24

CHAPv2 NO 0.06 0.08 0.04 0.06 NO 0.18 0.19 0.22 0.19

CRAM-MD5 NO 0.26 0.24 0.28 0.26 NO 0.08 0.0 0.0 0.02

DHCP-delayed-auth NO 0.04 0.02 0.08 0.046 NO 0.0 0.02 0.02 0.013

EKE YES 0.04 0.02 0.06 0.04 YES 0.13 0.18 0.12 0.143

EKE2 - - - - - - - - - -

h.530 - - - - - - - - - -

h.530-ﬁx - - - - - - - - - -

IKEv2-CHILD - - - - - - - - - -

IKEv2-DS - - - - - - - - - -

IKEv2-DSx - - - - - - - - - -

IKEv2-MAC - - - - - - - - - -

IKEv2-MACx - - - - - - - - - -

ISO1 YES 0.02 0.02 0.0 0.013 YES 0.06 0.02 0.04 0.04

ISO2 NO 0.67 0.64 0.65 0.653 NO 0.96 0.84 0.82 0.87

ISO3 YES 0.1 0.12 0.1 0.106 YES 0.42 0.4 0.44 0.42

ISO4 NO 1678.9 2158 2318.2 2051.7 NO 109.1 117.4 114.5 113.6

Kerb-basic Inconclusive 173921 175862 160898 170227 NO 10.86 10.7 10.9 10.82

Kerb-Cross-Realm Inconclusive 45127 48492 45077 46232 NO 9.28 9.7 9.12 9.36

Kerb-Forwardable Inconclusive 60296 62824 61311 61477 Inconclusive 71823 53246 84106 69725

LPD-IMSR NO 0.06 0.08 0.1 0.08 NO 0.14 0.13 0.1 0.12

LPD-MSR YES 0.0 0.02 0.04 0.02 YES 0.04 0.04 0.02 0.03

PBK YES 0.24 0.28 0.22 0.246 YES 0.33 0.34 0.44 0.37

PBK-ﬁx YES 0.1 0.04 0.06 0.06 YES 0.12 0.12 0.12 0.12

PBK-ﬁx-weak-auth NO 0.3 0.32 0.26 0.29 NO 0.45 0.54 0.44 0.47

SPEKE - - - - - - - - - -

SRP - - - - - - - - - -

TLS NO 1011.1 1128.1 1198.2 1112.4 NO 0.06 0.08 0.04 0.06

UMTS

AKA NO 0.04 0.02 0.0 0.02 NO 0.04 0.04 0.06 0.04

Total time (s) 281102.474 69861.93

When running SATMC validator for the consid-

ered protocols the obtained results were the ones from

Table 3. The SATMC Validator from AVISPA could

only verify 16 out of the 29 protocols, because it is

not supporting some of the functions used in their

speciﬁcations; from these 16 veriﬁed models, 10 were

declared safe and 6 unsafe. The SATMC Validator

from AVANTSSAR could only verify 18 out of the

29 protocols, not supporting some functions used in

their speciﬁcations; from these 18 models, 12 were

declared safe and 6 unsafe (the same found unsafe by

AVISPA’s SATMC version).

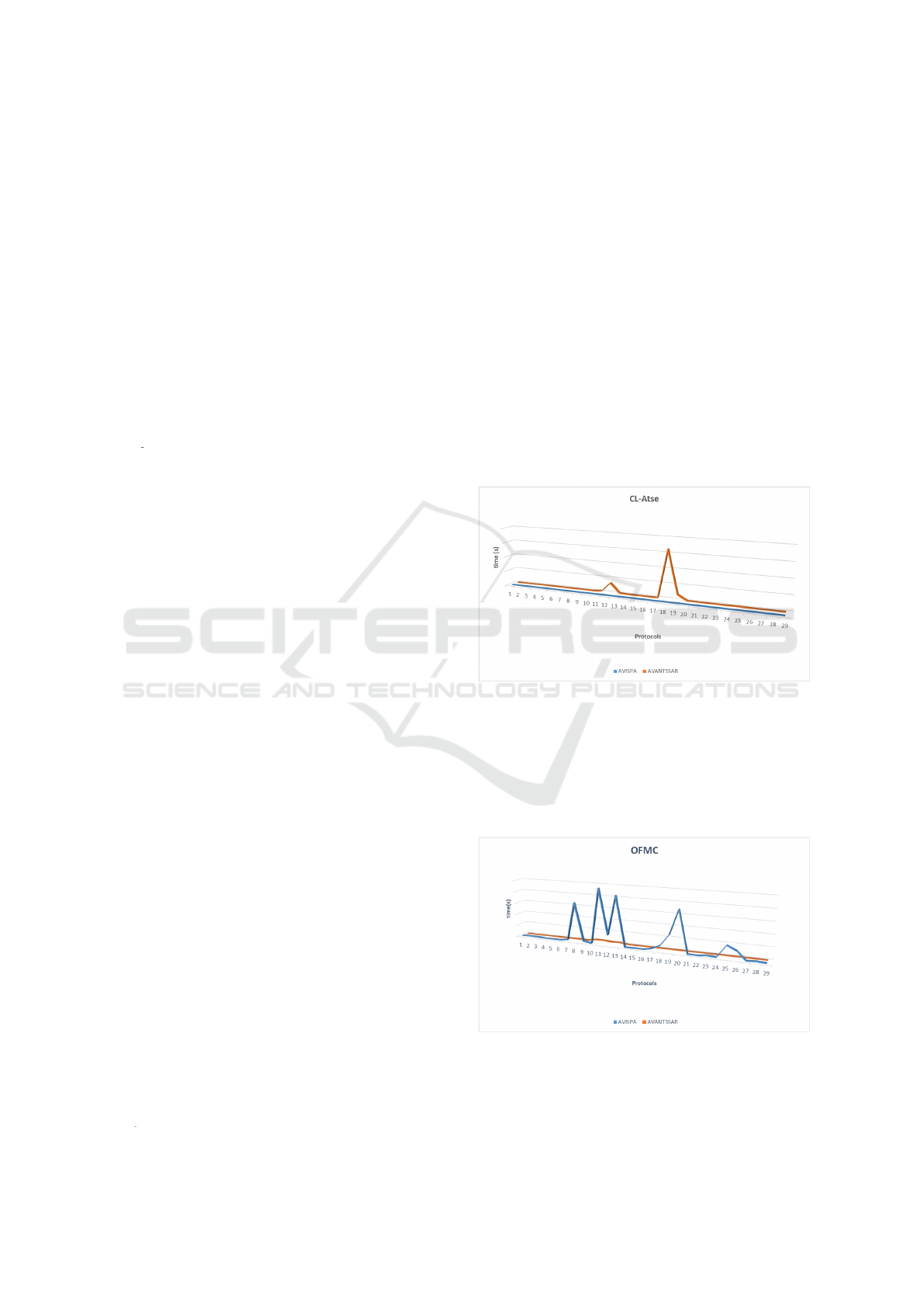

The following ﬁgures provide a graphical compar-

ison between the validators of the two platforms. Fig-

ure 3 depicts the fact that AVISPA’s CL-Atse validator

has achieved better results than AVANTSSAR’s CL-

Atse, being faster. Both versions have found the same

7 protocols to be unreliable.

Figure 3: Comparison of CL-Atse back-ends.

Figure 4 compares the OFMC. It can be seen that

this time the AVANTSSAR’s OFMC was faster in an-

alyzing the protocols than AVISPA’s OFMC. Regard-

ing ﬁnding an attack on the protocols, both versions

had the same results: 21 secure protocols, and 8 not

secure.

Figure 4: Comparison of OFMC back-ends.

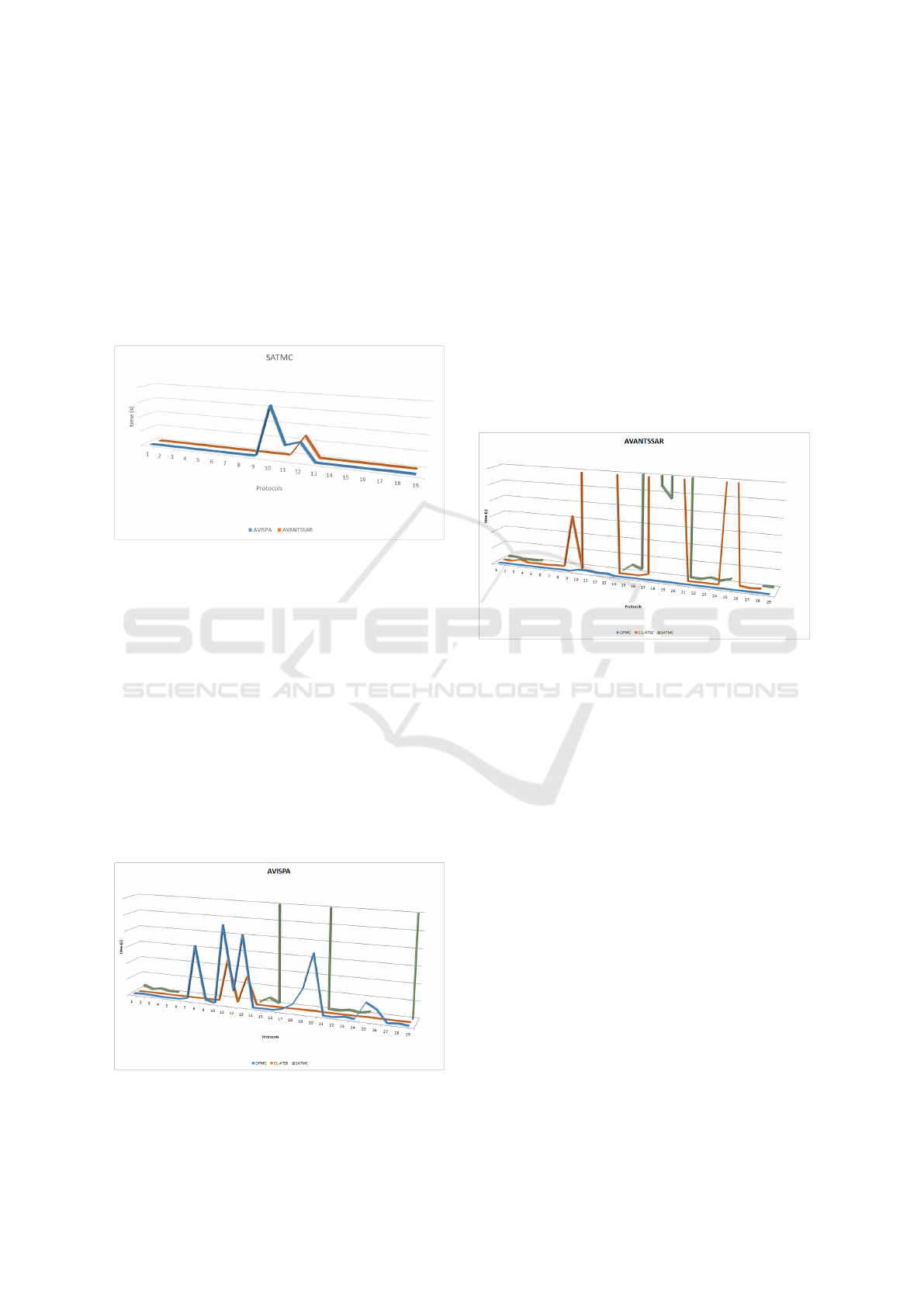

For the SATMC validators, the graphical compar-

ison is depicted in Figure 5. Again, SATMC from

AVANTSSAR has a better performance that SATMC

AVISPA versus AVANTSSAR in the Model Checking of Secure Communication Protocols

523

version in AVISPA. One can immediately observe that

it is the slowest in terms of execution time (by com-

parison with the other two back-ends, CL-Atse and

OFMC) for both platforms, as it has been running a

protocol veriﬁcation for 47 hours within the AVISPA

platform. This validator had not supported certain

functions deﬁned in the models of the protocols, thus

not being able to verify the corresponding models.

The same 6 protocols have been declared safe by both

validators from the two platforms.

Figure 5: Comparison of SATMC back-ends.

Following the study, OFMC from the

AVANTSSAR platform managed to run the veriﬁca-

tion for all protocols in 1.503 seconds, followed by

AVISPA’s CL-ATSE with 8.798 seconds, AVISPA’s

OFMC with 43.755 seconds, AVANTSSAR’s CL-

Atse with 8827.93 seconds, AVANTSSAR’s SATMC

with 19.41 hours, and lastly AVISPA’s SATMC

with 78.08 hours. TA4SP was discontinued in

AVANTSSAR and in AVISPA it had the poorest re-

sults. The running time was quite small for CL-AtSe

and OFMC, and considerably higher for SATMC, for

both tools.

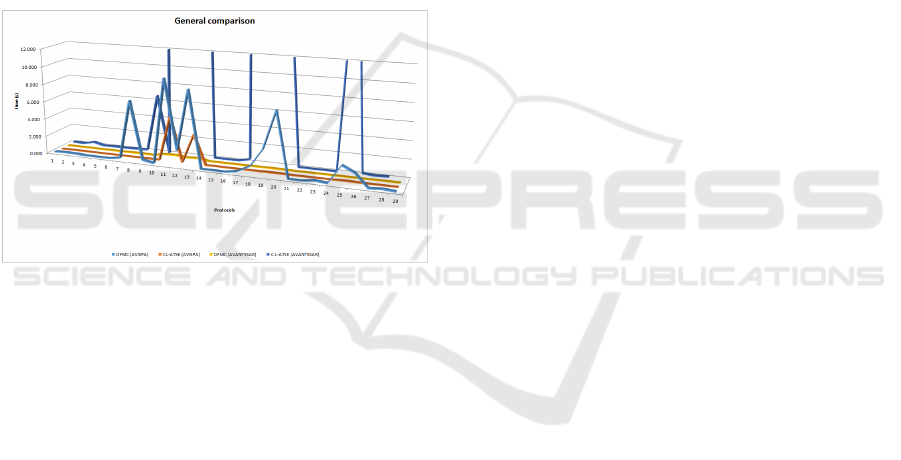

At the end of this section, a graphical representa-

tion illustrating the relative performance of the differ-

ent back-ends for each tool is presented.

Figure 6: AVISPA’s back-ends comparison.

Figure 6 depicts the comparison between the three

considered back-ends of AVISPA. The missing seg-

ments from the line corresponding to SATMC run

times represent the protocols for which SATMC could

not be run. In general AVISPA’s CL-Atse has the

best performance, followed by OFMC, and then by

SATMC.

Figure 7 depicts the comparison between the

versions of these back-ends that are part of

AVANTSSAR. Again, the missing segments from the

line corresponding to SATMC run times represent the

protocols for which SATMC could not be run. One

can see that these are the same as for AVISPA’s ver-

sion of SATMC. In AVANTSSAR, the fastest back-

end is OFMC, followed by CL-Atse, and then by

SATMC.

Figure 7: AVANTSSAR’s back-ends comparison.

4 CONCLUSIONS AND FUTURE

WORK

This paper had presented the results of a quanti-

tative comparison between the validation back-ends

from AVISPA and AVANTSSAR, the most mature

model checking platforms designed for security pro-

tocols/services. AVANTSSAR, being a follow-up of

the AVISPA project, the work was motivated by the

necessity to identify the fastest of the two tools. Over-

all, of the three validators common to the two plat-

forms, the AVANTSSAR’s OFMC was the fastest, if

the total time each validator had ﬁnished checking

all 29 protocols is considered. The slowest has been

AVISPA’s SATMC.

But it is interesting to observe that if particular

protocols of the 29 analyzed protocols are consid-

ered, AVISPA version of CL-Atse had better results

that all back-ends of AVANTSSAR: AVISPA’s CL-

Atse is only surpassed by AVANTSSAR’s OFMC for

CRAM-MD5, IKEv2-CHILD, IKEv2-DSx, IKEv2-

MACx, Kerb-Cross-Realm, Kerb-Forwardable, PBK-

ﬁx-weak-auth, and SPEKE. For the other 21 proto-

SECRYPT 2018 - International Conference on Security and Cryptography

524

cols considered, AVISPA’s CL-Atse has the best per-

formance.

Likewise, AVISPA’s OFMC is faster than

AVANTSSAR’s OFMC for IKEv2-DS, ISO1, ISO3,

and LPD-MSR. The reason is the fact that AVISPA’s

OFMC had found these protocols to be unsafe, which

means that when an attack was found, the computa-

tion of the state space was interrupted. On the other

hand, AVANTSSAR’s OFMC computed the entire

state space, as it could not found any attack.

This indicates that there are situations in which us-

ing the old AVISPA platform is a better choice than

using the new AVANTSSAR, at least for simple, non-

distributed communication protocols.

Figure 8 contains a graphical view of the pre-

sented conclusions. To not overload the graphics, the

data for the two versions of SATMC was not shown

(being the slowest back-ends for both tools).

Figure 8: General comparison of back-ends.

It remains to conduct an in depth study of the

back-ends and to identify the cause of the observed

exceptions. On one hand this will be helpful to

identify on which type of security protocols AVISPA

should be preferred, and, on the other hand, it would

suggest new improvements to the AVANTSSAR plat-

form to surpass AVISPA in all cases.

ACKNOWLEDGEMENTS

This work was supported by a grant of the Roma-

nian Ministry of Research and Innovation, CCCDI

UEFISCDI, project number PN-III-P1-1.2-PCCDI-

2017-0272 / Avant-garde Technology Hub for Ad-

vanced Security (ATLAS), within PNCDI III.

REFERENCES

Alessandro Armando, e. a. (2008). Formal analysis of saml

2.0 web browser single sign-on: breaking the saml-

based single sign-on for google apps. In 6th ACM

workshop on Formal methods in security engineering.

ACM.

Alessandro Armando, Wihem Arsac, T. A. e. a. (2012).

The avantssar platform for the automated validation

of trust and security of service-oriented architectures.

In 18th International Conference on Tools and Algo-

rithms for the Construction and Analysis of Systems,

pages 267–282. Springer-Verlag Berlin Heidelberg.

Alessandro Armando, D. Basin, Y. B. e. a. (2005). The

avispa tool for the automated validation of internet

security protocols and applications. In 17th Interna-

tional Conference on Computer Aided Veriﬁcation.

Armando, Alessandro, R. C. and Compagna, L. (2016).

Satmc: a sat-based model checker for security pro-

tocols, business processes, and security apis. Inter-

national Journal on Software Tools for Technology

Transfer, 18(2):187–204.

Blanchet, B. (2001). An efﬁcient cryptographic protocol

veriﬁer based on prolog rules. In 14th IEEE Computer

Security Foundations Workshop (CSFW), pages 82–

96. IEEE.

Cremers, C. J. F. (2008). The scyther tool: Veriﬁcation, fal-

siﬁcation, and analysis of security protocols. In 20th

International Conference on Computer Aided Veriﬁ-

cation.

Dolev, D. and Yao, A. (1983). On the security of public key

protocols. IEEE Transactions on information theory,

29(2):198–208.

Lowe, G. (1998). Casper: a compiler for the analysis of se-

curity protocols. Journal of Computer Security, 6(1–

2):53–84.

Oheimb, D. V. and Modersheim, S. (2011). Aslan++ - a

formal security speciﬁcation language for distributed

systems. In Formal Methods for Components and Ob-

jects. Springer Berlin Heidelberg.

Vigano, L. (2006). Automated security protocol analysis

with the avispa tool. Electronic Notes in Theoretical

Computer Science, 155:61–86.

Vigano, L. (2012). Automated validation of trust and

security of service-oriented architectures with the

avantssar platform. In International Conference

on High Performance Computing and Simulation

(HPCS).

Yannick Chevalier, e. a. (2004). A high level protocol speci-

ﬁcation language for industrial security-sensitive pro-

tocols. In Workshop on Speciﬁcation and Automated

Processing of Security Requirements (SAPS). Austrian

Computer Society.

AVISPA versus AVANTSSAR in the Model Checking of Secure Communication Protocols

525
