Revisiting the Notion of GUI Testing

Abdulaziz Alkhalid, Yvan Labiche and Sashank Nekkanti

Department of Systems and Computer Engineering, Carleton University, Ottawa, Canada

Keywords: System Testing, GUI Testing.

Abstract: The practitioner interested in reducing software verification effort may found herself lost in the many

alternative definitions of Graphical User Interface (GUI) testing that exist and their relation to the notion of

system testing. One result of these many definitions is that one may end up testing twice the same parts of

the Software Under Test (SUT), specifically the application logic code. We revisit the notion of GUI testing

and introduce a taxonomy of activities pertaining to testing GUI-based software. We use the taxonomy to

map a representative sample of research works and tools, showing several aspects of testing GUI-software

may be overlooked.

1 INTRODUCTION

Advances in technology used as platforms for

Graphical User Interface (GUI) software lead to

more complex, platform-independent GUI-based

software. Current GUI software are capable of

serving different types of users with different levels

of abilities (e.g. ordinary user, user with disability,

Web user, or Mobile user). These advances in

technology produce challenges for software testers

who are responsible for software verification of those

GUI-based software. One of them is that software

testers find themselves in front of several testing

types to choose and use, such as GUI testing and

system testing.

A well accepted definition of software system

testing is that it is a phase of software testing

conducted on the complete software to evaluate its

compliance with its requirements, be they functional

or non-functional (Desikan and Ramesh 2006).

However, there is a confusion about alternative

definitions of GUI testing one can find in the

literature. For example, Ammann and Offutt

classified GUI testing into usability testing and

functional testing and further classified the latter into

GUI system testing, regression testing, input

validation testing and GUI testing (Ammann and

Offutt 2008). They argue that GUI system testing is

system testing of the entire software through its GUI

while GUI testing is verifying that the GUI works

correctly without verifying the underlying

application code. Memon et al. defined GUI testing

as system testing for software that has a graphical

user interface (Banerjee, Nguyen et al. 2013). We

conclude that Memon’s notion of GUI testing

encompasses both notions of GUI testing and GUI

system testing of Ammann and Offutt. One could

argue that these are only two authors and that they

may not be representative. We conclude that there is

no agreement about the notion of “GUI testing”,

about what it is means and what it entails.

As further shown by our study of literature on the

topic, we conclude that the reader interested in

testing a GUI-based software may found herself lost

in the many alternative definitions of GUI testing that

exist and their relation to the notion of system

testing. For instance, using Memon’s definition of

GUI testing, one can use a tool like GUITAR

(Memon 2015) to trigger both the GUI and the

underlying functionalities whereas when using

Ammann and Offutt’s definitions one can use JUnit

to directly test the application code, bypassing the

GUI, and verify the GUI separately. One risk of

using incompatible definitions for GUI testing and

system testing is to duplicate testing effort: One

conducts system testing of the application logic by

bypassing the GUI and conducts GUI testing of the

software with GUITAR (Nguyen, Robbins et al.

2014), thereby testing the application logic twice.

This paper therefore attempts to answer the following

research question: What are available definitions of

system and GUI testing and how they relate to each

other?

640

Alkhalid, A., Labiche, Y. and Nekkanti, S.

Revisiting the Notion of GUI Testing.

DOI: 10.5220/0006901606400647

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 640-647

ISBN: 978-989-758-320-9

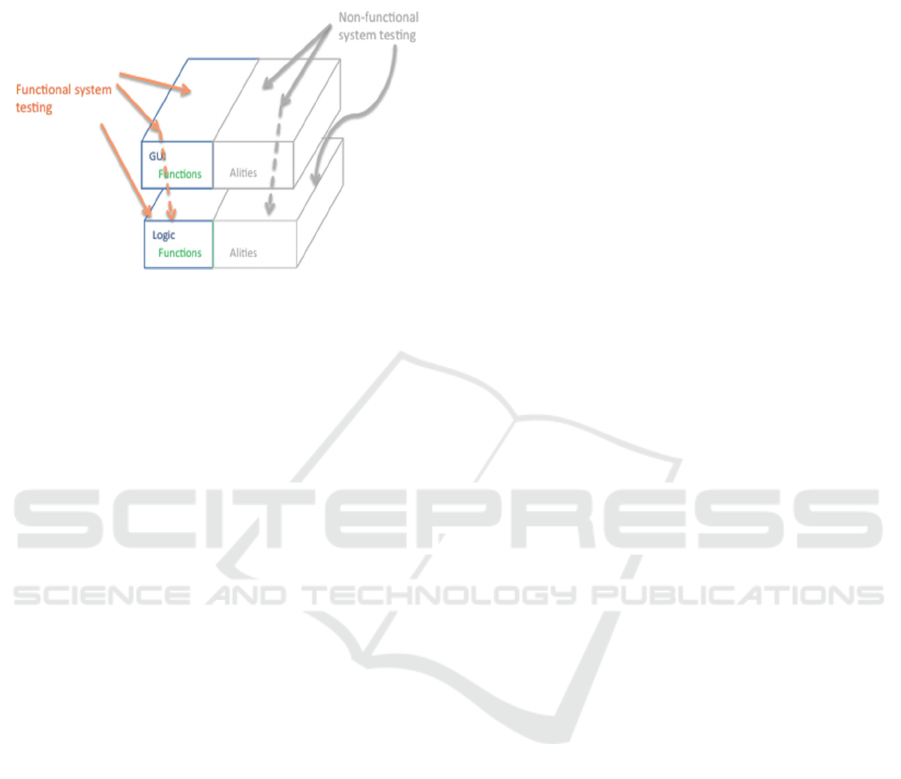

Figure 1 illustrates the focus of this paper. It

illustrates several software testing definitions by

showing the software divided in its GUI layer and its

application logic layer.

Figure 1: Functional and non-functional system testing

It illustrates that system testing can focus on the

functional aspects of the System Under Test (SUT),

referred to as functional system testing, or the non-

functional aspects of the SUT also sometimes

referred to as the “alities”, referred to as non-

functional system testing. Both can trigger only the

GUI (an arrow stops at the GUI layer, meaning that

the application logic is being stubbed/mocked), the

GUI and the underlying application logic layer

(arrow to the GUI layer, going through the GUI as

dashed line and triggering the application logic layer)

or only the application logic layer. It also shows that

our scope, non-greyed-out part, is limited to

functional system testing and does not deal with the

alities of the SUT. Although our contribution

includes some discussion of the notion of testing the

alities of a GUI-based software, we decided to focus

on functional aspects rather than non-functional ones.

Additionally, the majority of related work and

available tools also focus on functional aspects rather

than non-functional ones. As justified later in the

paper and illustrated in the figure, when functional

system testing is applied through the GUI, we call it

GUI system testing in order to distinguish it from

functional system testing applied to the application

logic directly. We focus on GUI applications since

such applications typically require robust UIs

(Forrester and Miller 2000; Ganov, Killmar et al.

2008). Another motivation is the difficulty, to the

point of impracticality, of GUI system testing for any

SUT with non-trivial UI: for instance, using

GUITAR (Memon 2015) on Microsoft WordPad in

Windows 7 (Nguyen, Robbins et al. 2014), which

contains over 50 GUI events, is extremely expensive

(in terms of number of tests).

The rest of this paper is structured as follows.

Section 2 describes our search method. Section 3

describes definitions of system testing and GUI

testing. Section 4 presents our definitions and

taxonomy. Section 5 uses the taxonomy to map a

representative sample of existing research activities

and tools on testing of GUI-based software. Section 6

presents conclusions.

2 OUR SEARCH METHOD

We present some definitions of system testing, GUI

testing, and other testing activities. As discussed

below, these definitions warrant the study of

differences (if any) between system testing and GUI

testing. The intent of this paper is not to report on a

systematic mapping study on GUI testing definitions

and other testing definitions. We simply report on

representative definitions of main software testing

terms to answer research question: What are

available definitions of system and GUI testing and

how they relate to each other?

We used a systematic method, though not a

systematic literature review or systematic mapping

study, to identify relevant definitions. The method

started by identifying textbooks in our possession or

at the University Library in the area of software

engineering and software testing. In the case of

library books, this meant using the Library search

engine to identify books using the following

keywords: testing, software GUI testing, software

verification, GUI testing. Then, we identified

chapters of those books which discuss software

testing and in particular GUI testing by browsing

through the tables of contents and skimming through

pages, looking for keywords like “GUI testing” or

“system testing”. We identified a total of 52

textbooks (Alkhalid and Labiche 2016). We believe

that, for our search for definitions, looking into

textbooks is an adequate procedure, rather than for

instance searching in academic paper databases. We

nevertheless surveyed by searching online resources

too, i.e., Google Scholar, IEEE Xplore, Science

Direct, ACM, Engineering Village and Scopus using

the following search strings: Graphical User Interface

Testing, GUI testing, GUI testing "AND" system

testing, definition of GUI testing, Oracle for GUI

testing, GUI testing tools, automated GUI testing,

survey of GUI testing, GUI testing taxonomy. This

step was necessary to find recent surveys or

taxonomies in the area of GUI testing. This allowed

us to identify a recent (2013) systematic mapping

study on GUI testing (Banerjee, Nguyen et al. 2013)

Revisiting the Notion of GUI Testing

641

which we later use when mapping existing work with

our taxonomy. We used the dblp Computer Science

Bibliography (Ley 1993) to look for publications on

GUI testing when needed for a specific author.

3 SYSTEM AND GUI TESTING

System testing is defined as a “testing phase

conducted on the complete integrated system to

evaluate the system compliance with its specified

requirements on functional and non-functional

aspects” (Desikan and Ramesh 2006). GUI testing

can be defined as system testing for software that has

a GUI (Banerjee, Nguyen et al. 2013; Nguyen,

Robbins et al. 2014), that is system testing of the

entire software performed through its GUI.

Assuming the standard, IEEE definition of system

testing we already discussed, we argue that GUI

testing as defined by Memon creates tests that do not

(necessarily or specifically) address “alities”.

According to Ammann and Offutt, determining

whether the GUI and the logic of a GUI-based

software behave as expected 1 includes usability

testing and functional testing (Ammann and Offutt

2008). The former refers to the assessment of how

usable the interface is according to principles of user

interface design. The latter refers to whether the user

interface works as intended. They further classified

functional testing in this context into four categories:

GUI system testing, regression testing, input

validation testing and GUI testing. GUI system

testing refers to “the process of conducting system

testing through the GUI”. Regression testing is about

“testing of GUI after changes are made” (Ammann

and Offutt 2008). Input validation testing aims to

verify whether the GUI “recognize[s] the user input

and respond[s] correctly to invalid input” (Ammann

and Offutt 2008).

We first notice that Ammann and Offutt’s

definitions do not account for alternative non-

functional requirements of the UI to usability and

robustness (input validation), which also need to be

verified. Contrasting Amman and Offutt’s definition

to Memon’s definition, we see that Memon’s notion

Ammann and Offutt discuss that usability testing and

functional testing are the two activities of GUI testing. They

then split functional testing into four categories, including

GUI testing, which results in a circular definition of the

notion of GUI testing. We believe this circular definition was

not intentional. To avoid this circular definition, we write

that usability testing and functional testing are the two

activities involved in determining whether the GUI and the

logic of a GUI-based software behave as expected.

of GUI testing is identical to the notion of GUI

system testing by Ammann and Offutt, except with

regards to some non-functional requirements. The

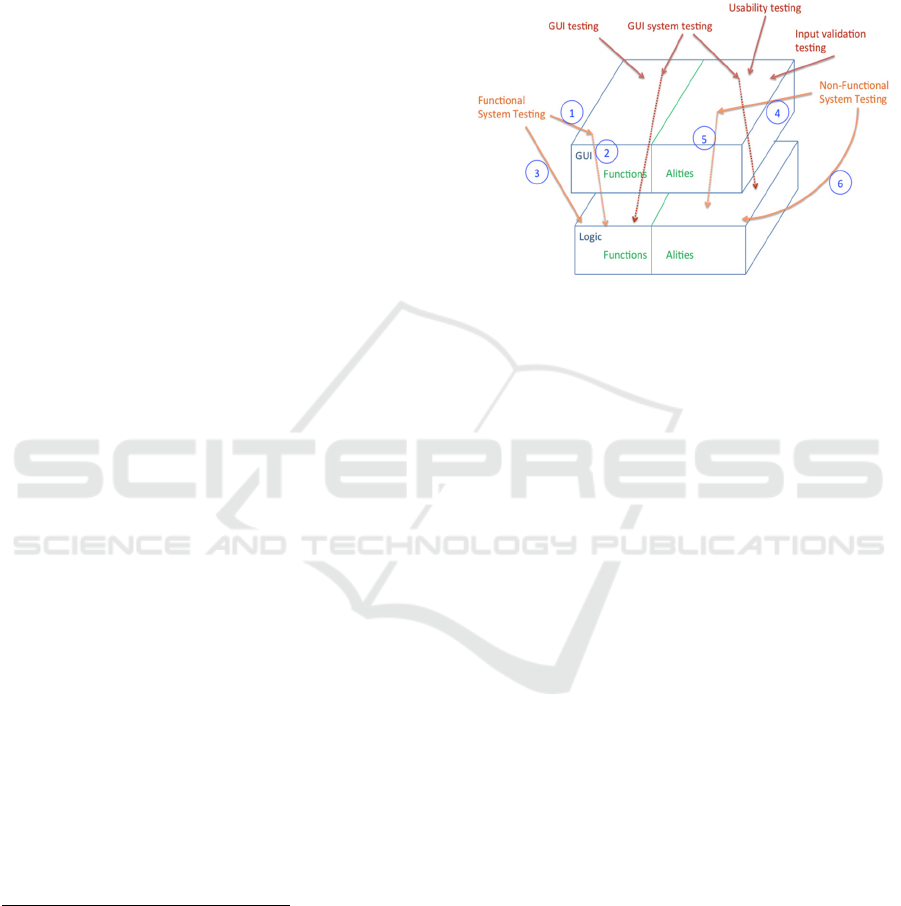

top part of Figure 2 illustrates the main definitions

we have encountered in our survey and that we just

discussed (the “orange” arrows are discussed next).

Figure 2: Relationship between different testing types.

In red the figure illustrates Ammann & Offutt's

definitions. GUI testing is about the functional

aspects of the GUI, focusing only on the UI layer, so

the arrow goes to the functional part of the GUI and

stops there.

From their definitions, we do not have evidence

that GUI testing also focuses on non-functional

characteristics, especially since usability testing is a

separate activity in their discussion. Usability testing

is about an "ality" so the arrow goes to the "alities"

part of the GUI and stops there. GUI system testing

is system testing through the UI so arrows go to the

UI (both functional and non-functional) and go

through to the application logic.

4 A TAXONOMY OF TERMS

PERTAINING TO TESTING OF

GUI-BASED SOFTWARE

In this section, we present an initial, therefore likely

incomplete, taxonomy of terms that pertain to testing

of a GUI-based software. In line with the majority of

the references on the topic, including the IEEE

definition, we abide by the definition that states that

system testing is about evaluating compliance of an

entire software system with its specified functional

and non-functional requirements. It follows that,

although prominent definitions of system testing

(Abbott 1986; Lewis 2004; Desikan and Ramesh

2006; Homes 2012) do not explicitly mention the

GUI, in case the software system has a GUI, system

ICSOFT 2018 - 13th International Conference on Software Technologies

642

testing encompasses the evaluation of the GUI

against (GUI-specific) functional and non-functional

requirements because system testing works on the

entire product. This confirms that system testing

includes GUI testing, which is very much like,

though slightly different to, Ammann & Offutt

definition, as discussed earlier. A direct consequence

of this statement is that system testing and GUI

testing are two different things and that GUI testing

cannot be system testing applied on the GUI.

Figure 2 is slightly different from Figure 1 and

illustrates the general definitions of system testing

we abide to (orange arrows): directly exercising the

UI or the application logic layers (direct, plain

arrows), possibly exercising the latter through the

former (dotted arrows). Those tests focus on either

functional or non-functional characteristics, which

we refer to as functional system testing and non-

functional system testing, respectively.

We define functional system testing as checking

conformance of the entire GUI-based software

against its functional requirements, either by directly

interacting with the application logic (arrow 3 in

Figure 2), by isolating (stubbing/mocking the

application logic) and focusing only on the UI (arrow

1), by focusing on the UI in combination with the

application logic (arrows 1 and 2), or a combination

of those.

We also define non-functional system testing as

checking conformance of the entire GUI-based

software against its non-functional requirements,

either by directly interacting with the application

logic (arrow 6), by isolating and focusing only on the

UI (arrow 4), by focusing on the UI in combination

with the application logic (arrows 4 and 5), or a

combination of those.

GUI system testing can be either functional or

non-functional, thus we use the terms GUI functional

system testing for arrows 1+2 and GUI non-

functional system testing for arrows 4+5. GUI

functional system testing therefore encompasses

system level tests exercising the entire software, that

is through its UI, and checking conformance with

both GUI-specific functional requirements and

application logic-specific functional requirements.

GUI non-functional system testing encompasses

system level tests exercising the entire software, that

is through its UI, and checking conformance with

both GUI-specific and application logic-specific non-

functional requirements.

We also refer to system testing of the application

logic code, whereby the UI is bypassed, to as

functional system logic testing (arrow 3) and non-

functional system logic testing (arrow 6). Functional

system logic testing therefore encompasses system

level tests that specifically check conformance of the

application logic code with application logic-specific

functional requirements.

Non-functional system logic testing encompasses

system level tests that specifically check

conformance of the application logic code with

application logic-specific non-functional

requirements.

We also call GUI functional testing the testing of

the functional aspects of the UI that does not require

the application logic (arrow 1 only), and GUI non-

functional testing the testing of the non-functional

aspects of the UI that does not require the application

logic (arrow 4 only). In both cases the application

logic is stubbed/mocked. Therefore, GUI functional

testing encompasses system level tests that

specifically check the conformance of the UI part of

the software (and only the UI) against UI-specific

functional requirements. And GUI non-functional

testing encompasses system level tests that

specifically check the conformance of the UI part of

the software (and only the UI) against UI-specific

non-functional requirements. These are specific,

focused version of the notions of functional system

testing and non-functional system testing discussed

earlier.

One general issue with software testing is how to

provide the right values to the software. Software

controllability describes how easy it is to provide a

program with the needed inputs, in terms of values,

operations, and behaviours (Ammann and Offutt

2008). For example, it is easy to control a piece of

software for which all inputs are values entered from

a keyboard (Freedman 1991; Gao 2000; Ammann

and Offutt 2008). On the other hand, when the

software gets its input values from sensors, it may be

difficult to control. Typically, a tester has less control

with component/system testing than with unit testing.

Therefore, controllability can also mean the ease to

reach some predefined level of coverage, i.e., to

exercise specific behaviour or pieces of code: it is

more difficult to reach coverage of units with system

testing than with unit testing. In general, with a

higher level of testing (e.g., system testing) it is

harder to trigger specific elements of the

code/functionality provided by lower levels of the

code than with a lower level of testing (e.g., unit

testing). When doing integration testing, it is harder

to trigger specific statements of the code than with

testing those units of the code directly. Similarly,

when doing GUI functional system testing (arrows 1

plus 2 of Figure 2), it is harder to trigger code

elements or behaviour of the application logic than

Revisiting the Notion of GUI Testing

643

Table 1: Classification Results.

Ref Primary Secondary Ref Primary Secondary

(Kepple 1992) 1+2 1 +2 (Derezinska and Malek 2007) 1+2 1+2

(Li, Huynh et al. 2007) 1+2, 3 1+2, 3 (Yuan and Memon 2010) 1+2 1+2, 4+5

(Mateo Navarro, Sevilla Ruiz et al. 2009) 1+2 1+2 (Yuan, Cohen et al. 2011) 1+2 1+2

(Tsujino 2000) 1+2 1+ 2 (Yang, Chen et al. 2014) 1+2 1+2

(Takahashi 2001) 1 1 (Memon, Pollack et al. 2001) 1+2 1+2

(Memon 2007) 1+2 1+2 (Mao, Boqin et al. 2006) 1+2 1+2

(Ye, Feng et al. 2007) 1+2 1+2 (Chen, Tsai et al. 2005) 1+2 1+2

(Memon 2008) 1+2 1+2, 4+5 (Yuan and Memon 2010) 1+2 1+2

(Memon, Nagarajan et al. 2005) 1+2 1+2, 4+5 (Chen and Subramaniam 2002) 1+2 1+2

(McMaster and Memon 2008) 1+2 1+2 (Memon and Xie 2005) 1+2 1+2

(Karam, Dascalu et al. 2006) 1+2 1+2 (Pham, Holzmann et al. 2014) 1+2 1+2

(Xie and Memon 2007) 1+2 1+2 (Xie and Memon 2008) 1+2 1+2

(Memon 2006) 1+2 1+2 (Alsmadi 2013) 1+2 1+2

(Alsmadi, Samarah et al. 2011) 1+2 1+2

when doing functional system logic testing while

bypassing the UI (arrow 3 in Figure 2), and even

more so than when doing unit testing. This is another

reason that helps justify the distinctions we make

between the different testing activities mentioned

earlier and illustrated in Figure 2.

5 MAPPING EXISTING WORK

WITH OUR TAXONOMY

In this section, we use the new terms we introduced

to map existing research. To do that, we look for

primary studies in literature. We found a recent

(published in 2013) systematic mapping study of

GUI testing techniques (Banerjee, Nguyen et al.

2013). As an initial study we sampled the list of

references Banerjee et al. classified and selected the

29 journal papers they identified. Two of them,

references (Rubel and Quitslund 2007) and (Janicki,

Katara et al. 2012), are surveys and cannot be

mapped with our taxonomy, resulting in 27 studies to

map. We selected journal papers since they

admittedly represent the most developed research

activities in the field. To classify a paper, we follow a

set of steps: (1) We study the testing technique

presented in the paper; (2) We identify the testing

objective of that technique and classify it as one or

more of the testing types we introduced earlier

(arrows 1, 2, 3, 4, 5, 6 in Figure 2); (3) We analyze,

based on our own judgment, whether the technique

potentially (though this is not the primary purpose)

covers other elements of our taxonomy. Table 1

shows the results of our classification (short

justifications available in our technical report

(Alkhalid, Labiche et al. 2018)). For each referenced

journal paper (1

column), the table indicates the

primary purpose of the work in terms of arrows in

Figure 2 (2

columns) and potential purposes

columns). We do not use the terminology in

the table for space reasons. Results show that the vast

majority of works (25, 93%) do GUI functional

system testing (arrows 1+2). Only one study does

GUI functional system testing and functional system

logic testing (arrows 1+2, and 3), and only one study

does GUI functional testing (arrow 1).

We did not find any work that specifically focuses

on non-functional aspects (Primary objective). Only

Memon and colleagues, with GUITAR, incidentally

achieve more than their Primary objective, which is

GUI functional system testing (Memon, Nagarajan et

al. 2005; Memon 2008; Yuan and Memon 2010). This

is due to the fact that their tool, GUITAR, can be used

to provide erroneous inputs to the GUI under test:

there is some GUI non-functional system testing.

In addition to published academic papers, we

briefly characterize a number of GUI testing tools

according to our taxonomy of testing activities

(Alkhalid, Labiche et al. 2018). Our main focus is

tools that support Java: in an initial use of our

taxonomy, we wanted to scope the search for tools

and Java is a popular programming language for tool

development. Characterizing a specific tool accord-

ing to our taxonomy involve either one or more of

the following activities: (1) reading available, online

documentation about the tool; (2) downloading

(possibly a trial, time-limited) version of the tool and

reading documentation that comes with it; (3) trying

the downloaded tool on a case study.

ICSOFT 2018 - 13th International Conference on Software Technologies

644

Whenever possible we performed the

classification based on evidence, which is either

documentation that can be referenced, or

experimental results obtained by using a tool on a

case study. We selected 18 tools out of a set of 39

documented GUI testing tools (Desyatnikov 2016),

making sure we have variety: freeware, open source,

commercial. The procedure we used to select the

tools was the following: We scanned the

documentation or downloaded the tools; we excluded

the ones with unavailable download (e.g. the

download link was broken); we excluded commercial

ones for which we cannot get a student or a limited

license as well as the ones which do not support Java.

The results Table 2 shows our results of

classification of tools. All the tools do GUI

functional system testing except Fitnesse and LoadUI

as both of them are dedicated to non-functional

aspect of software.

Table 2: Classification of Gui Testing Tools.

Tool 1 4 1+2 4+5 3 6

Abbot

(Java apps only)

Yes No Yes Yes Yes No

Fitnesse No No No No Yes No

Sikuli Yes Yes Yes Yes No No

SWTBot

(SWT apps only)

Yes No Yes Yes Yes No

Jubula Yes No Yes No Yes No

GTT

(Java Swing apps only)

Yes No Yes Yes Yes No

PowerShell Extensions

(Windows apps only)

Yes No Yes Yes No No

AutoIt

(Windows platform only)

Yes No Yes Yes No No

Maveryx

(Java&Android only)

Yes No Yes Yes Yes No

Selenium Yes No Yes Yes No No

Sahi Yes No Yes Yes No No

Cucumber# Yes No Yes Yes Yes No

Cubic test Yes No Yes Yes No No

EggPlant Yes Yes Yes Yes No No

Ranorex# Yes No Yes Yes Yes No

LoadUI No No No No Yes Yes

Squish# Yes No Yes Yes Yes No

SilkTest# Yes No Yes Yes Yes No

6 CONCLUSION

Recognizing there exist ambiguities around

definitions of GUI testing, we presented a taxonomy

of terms that distinguishes testing of a GUI-based

software along two dimensions: whether functional

or non-functional aspects are specifically targeted;

whether tests exercise the UI only, the UI and the

application logic together, or only the application

logic.

We evaluated a select number of most developed

related works and tools against this taxonomy and

reported that the vast majority of works look alike in

light of the taxonomy: they conduct what we coined

GUI functional system testing, which is system

testing through the UI of functional aspects of the

entire application, that is functional aspects of the UI

as well as functional aspects of the application logic.

We first note that our definitions help distinguish

functional aspects of the UI from functional aspects

of the application logic. It appears from our mapping

that existing works and tools primarily focus on

functional aspects of the application logic, through

the UI, and not necessarily on functional aspects of

the UI.

We also note that controllability issues are not

discussed in these works and tools. Specifically,

controllability issues may arise and prevent achieving

all objectives in terms of functional testing of the

application logic code through the UI, which calls for

additional system level testing of the application

logic which we coined functional system logic

testing.

Our results also show that very few works and

tools consider non-functional aspects of a GUI-based

software, i.e. both non-functional characteristics of

the UI as well as non-functional characteristics of the

application logic. Very few of them distinguish the

(testing) verification of the UI from the (testing)

verification of the application logic, despite the fact

that, according to our discussion and according to

standard software design principles, the two might be

different. For instance, it is conceivable to observe a

GUI-based software that passes verification

conditions (functional and non-functional)

established for the application logic but fails to pass

verification conditions (functional or non-functional)

established for the UI.

Acknowledging our taxonomy may be debated,

we believe it is nevertheless a good starting point to

continue the discussion as to what we should call

“GUI testing”. We argue the taxonomy is useful to

have an overview of the field and pave the way to

future work: e.g., do GUI functional system testing

(arrows 1+2) and functional system logic testing

(arrow 3) exercise functionalities differently? How is

this related to controllability, if ever? What GUI

functional testing, the testing of the functional

aspects of the UI without the application logic (arrow

1) look like? What about specifically focusing on

non-functional aspects?

Revisiting the Notion of GUI Testing

645

REFERENCES

Abbott, J. (1986). Software testing techniques, NCC.

Alkhalid, A. and Y. Labiche (2016). Comparing GUI

System Testing with Functional System Testing-An

Experiment. Technical Report TR-SCE-16-01. Ottawa,

Carleton University.

Alkhalid, A., Y. Labiche, et al. (2018). Revisiting the

notion of GUI testing. Technical Report TR-SCE-18-

02. Ottawa, Carleton University.

Alsmadi, I., S. Samarah, et al. (2011). Evaluate and

Improve GUI Testing Coverage Automatically, IJSE.

Alsmadi, I. M. (2013). "Using Mutation to Enhance GUI

Testing Coverage." IEEE software 30(1): 67-73.

Ammann, P. and J. Offutt (2008). Introduction to Software

Testing. New York, Cambridge University Press.

Banerjee, I., B. Nguyen, et al. (2013). "Graphical user

interface (gui) testing: Systematic mapping and

repository." Information and Software Technology

55(10): 1679-1694.

Chen, J. and S. Subramaniam (2002). "Specification-based

testing for GUI-based applications." Software Quality

Journal 10(3): 205-224.

Chen, W.-K., T.-H. Tsai, et al. (2005). Integration of

specification-based and CR-based approaches for GUI

testing. Advanced Information Networking and

Applications, 2005. AINA 2005. 19th International

Conference on, IEEE.

Derezinska, A. and T. Malek (2007). "Experiences in

Testing Automation of a Family of Functional-and

GUI-similar Programs." IJCSA 4(1): 13-26.

Desikan, S. and G. Ramesh (2006). Software testing:

principles and practice. India, Pearson Education

Desyatnikov, R. (2016). "Top 39 GUI Testing Tools List."

Retrieved 2016, from http://www.softwaretestinghelp.

com/best-gui-testing-tools/.

Forrester, J. E. and B. P. Miller (2000). An empirical study

of the robustness of Windows NT applications using

random testing. Proceedings of the USENIX Windows

System Symposium.

Freedman, R. S. (1991). "Testability of software

components." IEEE Transactions on Software

Engineering 17(6): 553-564.

Ganov, S. R., C. Killmar, et al. (2008). Test generation for

graphical user interfaces based on symbolic execution.

Proceedings of the 3rd international workshop on

Automation of software test, ACM.

Gao, J. (2000). Component testability and component

testing challenges. Proceedings of International

Workshop on CBSE, held in conjunction with the

ICSE.

Homes, B. (2012). Fundamentals of software testing, John

Wiley & Sons.

Janicki, M., M. Katara, et al. (2012). "Obstacles and

opportunities in deploying model-based GUI testing of

mobile software: a survey." Software Testing,

Verification and Reliability 22(5): 313-341.

Karam, M. R., S. M. Dascalu, et al. (2006). "Challenges

and opportunities for improving code-based testing of

graphical user interfaces." Journal of Computational

Methods in Sciences and Engineering 6(5, 6

Supplement 2): 379-388.

Kepple, L. R. (1992). "A new paradigm for cross-platform

automated GUI testing." The X Resource 3(1): 155-

178.

Lewis, W. E. (2004). "Software testing and continuous

quality improvement." CRC press.

Ley, M. (1993). "Digital Bibliographic Library Browser

(DBLP) Computer Science Bibliography." Retrieved

2014, from http://dblp.uni-trier.de/.

Li, P., T. Huynh, et al. (2007). "A practical approach to

testing GUI systems." Empirical Software Engineering

12(4): 331-357.

Mao, Y., F. Boqin, et al. (2006). "Important usage paths

selection for GUI software testing." Information and

Technology Journal 5(4): 648-654.

Mateo Navarro, P. L., D. Sevilla Ruiz, et al. (2009). "A

proposal for automatic testing of GUIs based on

annotated use cases." Advances in Software

Engineering vol. 2010.

McMaster, S. and A. Memon (2008). "Call-stack coverage

for gui test suite reduction." IEEE Transactions on

Software Engineering 34(1): 99-115.

Memon, A. (2015). "GUITAR." Retrieved 2015, from

http://sourceforge.net/projects/guitar/.

Memon, A., A. Nagarajan, et al. (2005). "Automating

regression testing for evolving GUI software." Journal

of Software Maintenance and Evolution: Research and

Practice 17(1): 27-64.

Memon, A. M. (2006). "Employing user profiles to test a

new version of a GUI component in its context of use."

Software Quality Journal 14(4): 359-377.

Memon, A. M. (2007). "An event-flow model of GUI-

based applications for testing." Software Testing

Verification and Reliability 17(3): 137-158.

Memon, A. M. (2008). "Automatically repairing event

sequence-based GUI test suites for regression testing."

ACM TOSEM 18(2): 4.

Memon, A. M., M. E. Pollack, et al. (2001). "Hierarchical

GUI test case generation using automated planning."

IEEE Transactions on Software Engineering 27(2):

144-155.

Memon, A. M. and Q. Xie (2005). "Studying the fault-

detection effectiveness of GUI test cases for rapidly

evolving software." IEEE Transactions on Software

Engineering 31(10): 884-896.

Nguyen, B. N., B. Robbins, et al. (2014). "GUITAR: an

innovative tool for automated testing of gui-driven

software." Automated Software Engineering 21(1): 65-

105.

Pham, R., H. Holzmann, et al. (2014). "Tailoring video

recording to support efficient GUI testing and

debugging." Software Quality Journal 22(2): 273-292.

Rubel, D. and P. Quitslund (2007). Automating GUI

testing for Eclipse RCP applications, Software Test and

Performance.

Takahashi, J. (2001). "An automated oracle for verifying

GUI objects." ACM SIGSOFT Software Engineering

Notes 26(4): 83-88.

Tsujino, Y. (2000). "A verification method for some GUI

ICSOFT 2018 - 13th International Conference on Software Technologies

646

dialogue properties." Systems and Computers in Japan

31(14): 38-46.

Xie, Q. and A. M. Memon (2007). "Designing and

comparing automated test oracles for GUI-based

software applications." ACM TOSEM 16(1): 4.

Xie, Q. and A. M. Memon (2008). "Using a pilot study to

derive a GUI model for automated testing." ACM

TOSEM 18(2): 7.

Yang, W., Z. Chen, et al. (2014). "GUI testing assisted by

human knowledge: Random vs. functional." Journal of

Systems and Software 89: 76-86.

Ye, M., B. Feng, et al. (2007). "Automated oracle based on

multi-weighted neural networks for gui testing."

Information Technology Journal 6(3): 370-375.

Yuan, X., M. B. Cohen, et al. (2011). "GUI interaction

testing: Incorporating event context." IEEE

Transactions on Software Engineering 37(4): 559-574.

Yuan, X. and A. M. Memon (2010). "Generating event

sequence-based test cases using GUI runtime state

feedback." IEEE Transactions on Software

Engineering 36(1): 81-95.

Yuan, X. and A. M. Memon (2010). "Iterative execution-

feedback model-directed GUI testing." Information and

Software Technology 52(5): 559-575.

Revisiting the Notion of GUI Testing

647
