The Dynamic Sensor Data Description and

Data Format Conversion Language

Gergely Mezei

, Ferenc A. Somogyi

and Károly Farkas

2,3

Department of Automation and Applied Informatics, Budapest Univ. of Technology and Economics, Budapest, Hungary

Department of Networked Systems and Services, Budapest Univ. of Technology and Economics, Budapest, Hungary

NETvisor Ltd., Budapest, Hungary

Keywords: Sensors, IoT, Compiler, Syntactic Interoperability, Data Transformation, Data Conversion.

Abstract: Nowadays the proliferation of IoT (Internet of Things) devices results in heterogeneous and proprietary sensor

data formats which makes challenging the processing and interpretation of sensor data across IoT domains.

To achieve syntactic interoperability (the ability to exchange uniformly structured data) is still an issue under

research. In this paper, we introduce our purpose developed new script language called Language for Sensor

Data Description (L4SDD) to achieve cross-domain syntactic interoperability. L4SDD defines a unified

output data format and specifies how the data is to be converted into this format from the various sensor

inputs. Besides the language itself, we also present the main features of the workbench created to edit and

maintain the scripts and introduce the IoT framework around the solution. The approach provides a high

performant, secure and easy-to-use solution to transform their data to an easily processed, self-describing,

universal data structure. Although the paper contains implementation details, the solution can be used in other,

similar projects as well. As a practical validation, we also illustrate our solution via a real-life case study.

1 INTRODUCTION

We have been a witness today to the proliferation of

IoT (Internet of Things) devices, solutions and use

case scenarios in a myriad of domains ranging from

smart home to production digitalization/industry 4.0.

However, these are usually proprietary systems and

solutions struggling with issues and challenges when

interoperability is required. A traditional field where

the ability of systems to exchange information, plays

an important role is data network communication.

Nevertheless, for using IoT data across domains and

scenarios, a broader, cross-domain definition of

interoperability is now required (Berrios et al., 2017).

The Virginia Modeling Analysis and Simulation

Center’s Levels of Conceptual Interoperability Model

(LCIM) (Andreas et al., 2013) defines three

categories of interoperability: technical, syntactic and

semantic (Joshi et al., 2017): (i) Technical

interoperability is the fundamental ability of a

network to exchange raw information. (ii) Syntactic

interoperability is the ability to exchange structured

data between two or more machines. Here, data

normalization is carried out. For instance, standard

data formats such as XML provide syntax that allows

systems to recognize the type of data being

transmitted or received. (iii) Semantic

interoperability enables systems to interpret meaning

from structured data in a contextual manner.

Although there is an urge to solve all three levels

of interoperability, but only the technical part is

solved in general.

We are currently working on an IoT framework

collecting data from sensors, transformation the data

to a universal format, storing the data in a database

and providing data analytics for the data collected.

The framework has many components, one of them is

responsible for the syntactic interoperability. In this

paper, we focus our attention on this topic and

introduce our solution to the well-known issues of

processing heterogeneous data uniformly.

To achieve syntactic interoperability, we have

defined a new script language for dynamic sensor

data description and data format conversion called

Language for Sensor Data Description (L4SDD). We

have built a compiler and a workbench for the

language, thus, now it acts as a complete framework

to define data transformations for IoT sensors.

338

Mezei, G., Somogyi, F. and Farkas, K.

The Dynamic Sensor Data Description and Data Format Conversion Language.

DOI: 10.5220/0006912203380346

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 338-346

ISBN: 978-989-758-320-9

2 THE BACKGROUND

2.1 The Framework

We have been developing a framework called the

Heterogeneus IoT Sensor DAta Management

and Integration Framework (HISDAMIF). The

framework implements functions to register and

manage sensors, handle sensor data collection,

conversion, interpretation, management, and storage.

The features are divided into two logical groups:

sensor management and message handling. Both

feature groups are supported by modules.

If a new sensor is introduced, the following

modules are used: (i) The device is registered via the

Sensor Registration module, which handles the

registration, the configuration, and monitoring of the

device. (ii) We create a message conversion

algorithm that transforms the sensor data into our

universal, self-describing data format. The algorithm

is created by using the Data Transformation

module, which is also responsible for registering the

data transformation algorithms in the system. (iii) The

Ontology module (based on our oneM2M Base

Ontology (OneM2M: Base Ontology, 2018)

implementation) is used to interpret the collected data

unambiguously. (iv) The sensor description

consisting of the three aforementioned part is stored

by the Inventory module that acts as a catalog of

sensors and data processing algorithms.

The second scenario is when a previously

registered sensor sends data. (i) The data is received

by the Sensor Data Management (SDM) module,

which queries the registered data transformation

algorithms (using the Inventory module). SDM

selects the algorithms applicable (based on a filtering

method as discussed later) and applies them. (ii) As

the result of data transformation, the heterogeneous

sensor data is converted to our universal format. We

store this data in a Hadoop-based database by using

the Data Storage module. IoT applications can be

built on top of this central data store.

In this paper, we focus mainly on the Data

Transformation module. We present the key to

flexible data transformation, and introduce our new,

purpose developed script language capable of

describing sensor data independently of its domain,

and also capable of defining the transformation logic.

The paper also presents the main aspects of the

workbench built around the language.

2.2 Syntactic Interoperability

It is rather challenging to support different formats of

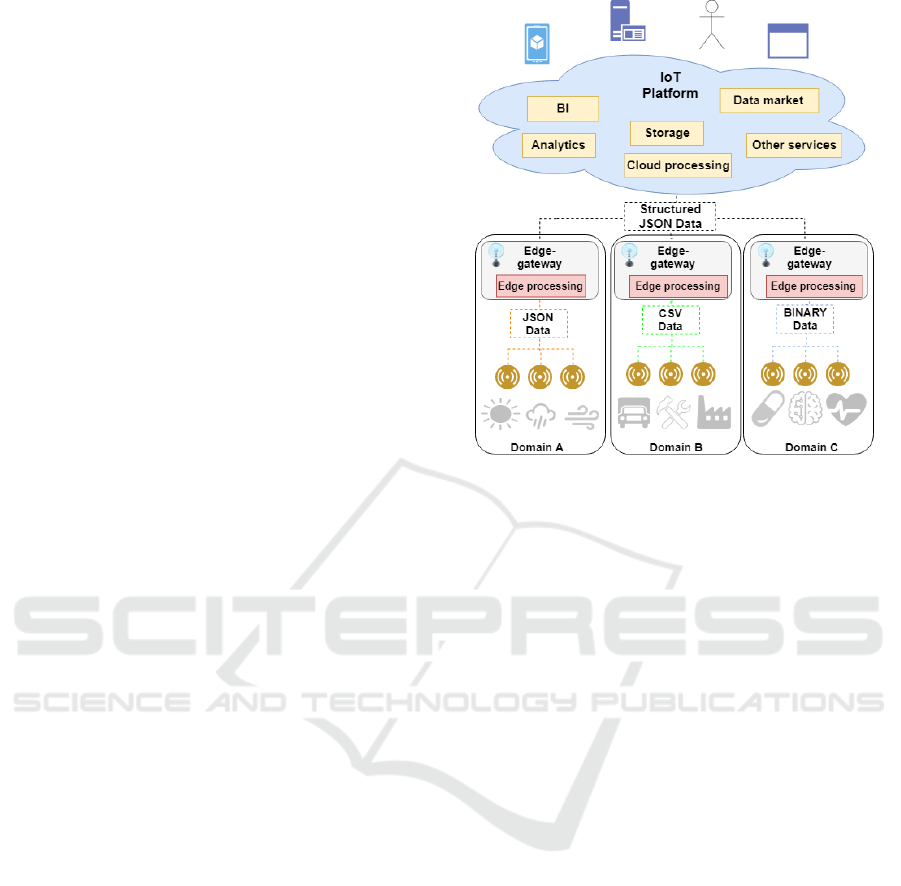

Figure 1: Handling heterogeneous data sources.

data stemming from various IoT devices. In this case,

the data should be normalized or converted to a

common form, which can be read by all elements of

the system or even by different systems leading to

syntactic interoperability (Figure 1).

To achieve syntactic interoperability, first, we

tried to create a static description, namely a data

format definition to describe all variants of all sensor

messages. It is worth mentioning that most of these

sensors are capable of sending the data only in their

native format, i.e., they cannot convert the data to

XML or JSON. Although the static format description

seemed to be a good solution at first glance, we had

to realize that it fails when we want to apply it to

previously known industrial case studies borrowed

from real-life systems. The source of the problem was

that we had many cases, where the format was

dependent on a particular fragment of the data, or the

data had (pre)processing instructions for itself. For

example, we had to support five different encoding

based on the first two bytes of the data processed.

Another example is when the first field contained the

number of key-value pairs stored in the rest of the

message to process. We have realized that describing

complex dependencies between the fragments and

using dozens of alternative paths would result in a

highly verbose, overcomplicated static format

definition. Therefore, we have decided to create a

dynamic scheme that is easier to customize and more

expressive. This dynamic scheme, in this context,

refers to our purpose developed script language called

the Language for Sensor Data Description (L4SDD).

The Dynamic Sensor Data Description and Data Format Conversion Language

339

L4SDD not only defines an output data format but

also specifies how the data is to be calculated from

the various sensor inputs. The converted data can later

be directly stored in databases and processed by data

analysis techniques. The main goal of this paper is to

present this language and the workbench around the

language in detail. Although the discussion is based

on our concrete approach and implementation, the

ideas and solutions are generic, thus they are also

useful in other environments.

2.3 Related Approaches

In order to achieve syntactic interoperability in cross-

industry projects, we need a common data format

understandable, readable and writable by all

participants. In order to reach this goal, some of the

existing approaches focus on defining a universal

format applicable in all scenarios and domains. In our

case, this is not enough, since even if we succeed in

identifying such a format, the capabilities of the

sensor devices are strongly limited, and they cannot

convert the data to the desired format by themselves.

Thus, our goal was twofold: (i) a format that can

describe the format of all data independently of its

domain, and (ii) a solution to transform the original

data to this standard form.

The Data Distribution Service (DDS) (OMG: Data

Distribution Service, 2015) is a popular data-centric

publish-subscribe protocol defined by OMG. It is

created to handle communication between the

participants, but it would need to create adapters for

IoT devices. DDS offers a standard to describe the

data format, but data transformation is not considered.

The OPC-Unified Architecture (OPC-UA) (OPC-

Unified Architecture, 2015) is a popular machine-to-

machine protocol for industrial automation. Its basic

idea is promising, however, at the current stage, it is

rather a pre-release standard than a working, platform

independent solution. Most of the issues come from

various, incomplete implementations.

The Sensor Markup Language (SenML) (Network

Working Group: Sensor Markup Language, 2013) is

created to describe sensor measurements and devices,

which could fit into our scenario, but SenML allows

to use XML, JSON, Concise Binary Object

Representation (CBOR) and Efficient XML

Interchange (EXI) formats only. This is not suitable

in our case because of the limitation of the sensors.

The Data Format Description Language (DFDL)

(Open Grid Forum: Data Format Description

Language, 2014) (McGrath et al., 2009) is perhaps the

nearest to provide a solution to our challenges. It is a

modeling language for describing general text and

binary data in a standard way. The schemas in DFDL

allow any text or binary data to be read from its native

format and written into a destination language. The

standard has several implementations available, and

it can be integrated with several system technologies.

Even by understanding its promising capabilities, we

could not use DFDL. The most important reason for

this is that DFDL implementations have a concrete

platform to apply the conversion on. In contrast, the

implementation platform of our data conversion

framework must be modifiable (e.g., instead of Java,

we should be able to switch to a JavaScript platform).

Moreover, we wanted to optimize the conversion and

to ensure its safety. By defining a new script language

with limited, but efficient features and creating an

environment around it (e.g., compiler, execution

framework), we could achieve these goals easier.

3 THE LANGUAGE FOR SENSOR

DATA DESCRIPTION

By creating L4SDD, a new, purpose developed script

language, our primary aim was to devise a dynamic

data description solution. Before discussing the

language, it is useful to introduce, how the data

processing algorithm is applied in our framework.

When the script is created, it is compiled to source

code to the target platform, currently to JavaScript,

but it is configurable. The generated data processor

function is then registered by the framework. Later, if

the framework receives a sensor data message, the

registered data processors are queried. All processors

have a filter that decides, whether the processor is

applicable for the data, or not. If the answer of the

filter is positive, the data transformation is applied.

L4SDD scripts consist of several sections: (i) an

Output definition that describes the format of the

output data; (ii) a Filter definition that is used, when

the framework tries to find scripts applicable to the

specific data; (iii) a Mapping definition that defines

the conversion itself, namely how the output data is

produced from the input data; (iv) the script may also

contain a Params definition, where additional

parameters can be passed (e.g., the current location),

which can affect the result of Mapping. These

parameters are not sent by the sensor to the

framework, instead, the framework appends the

information as an additional input parameter for the

script when it is executed.

The Output and Params sections use the same

language elements and syntax (they are static format

descriptions), while the Filter and Mapping sections

ICSOFT 2018 - 13th International Conference on Software Technologies

340

also share their syntax (they are transformation logic

descriptors). The four sections together allow us to

specify the interpretation of all kinds of sensor data to

our universal, self-describing data format used in later

steps of data processing.

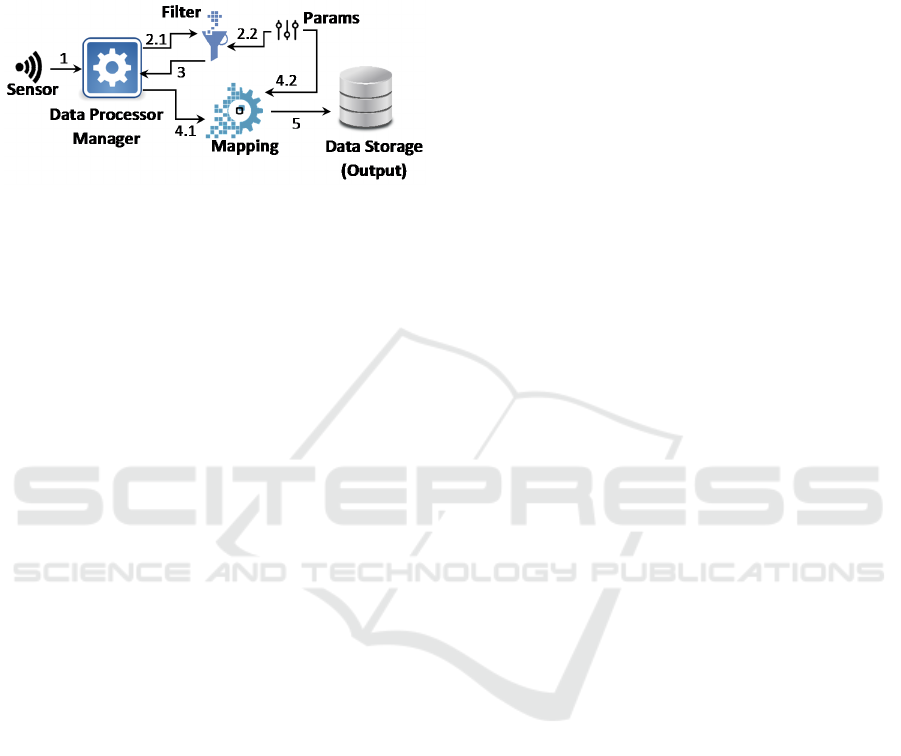

Figure 2: Steps of sensor data processing.

Figure 2 shows the typical steps of processing the

sensor data. First, the data is received by the Data

Processor Manager (DPM) inside the Sensor Data

Management module. DPM forwards the data to the

Filter algorithm (Step 2.1), which also receives

additional parameters (Step 2.2). It should be noted

that the section Params describes only the structure of

additional parameter data, the concrete values are

calculated by the Data Processor Manager. This later

relation is not shown in the figure for the sake of

simplicity. When the filter is processed, it sends back

its result (Step 3) to DPM. If the result is positive, the

data is forwarded to the Mapping algorithm (Step 4.1)

accompanied by parameters (Step 4.2). Finally, the

result of Mapping is sent to the Data Storage module.

It is worth noting that the format in Step 5 fits the

Output definition provided in the script.

The Output and Params sections describe the data

structure produced as the result/accepted as a

parametrization at the beginning respectively. The

syntax of these sections is relatively simple: we

define data tags with names and types. The type can

be one of the built-in types (e.g., integer, string or

DateTime), or a complex type composed from other

types hierarchically. A complex type is similar to a

struct in the C language. The multiplicity of the tags

can be altered by allowing optional multiplicity (the

tag can be omitted), and arrays. Fixed-length and

variable length arrays are both supported.

There are a few restrictions to follow as well: the

multiplicity of the outermost element of the hierarchy

must be exactly one, namely, it must not be optional

or an array, and it must have a name. This seems to

be a limitation, however, we can always create a

nesting (outermost) type and use an arbitrary

multiplicity within. Another restriction is that we do

not support empty hierarchies (hierarchies without

any data tag). These restrictions do not limit the

expressivity of the solution, however, they do

simplify the processing of the data.

3.1 The Data Transformation Logic

The dynamic part, i.e., the data transformation

description of L4SDD is a Java-like imperative

language with several restrictions (compared to Java),

but, on the other hand, supporting custom functions

in order to simplify the transformation.

3.1.1 The Type System

The language of L4SDD is strongly typed. It supports

many types known from programming languages,

such as integer, double, string or DateTime. We will

refer to these types like primitive types from now on

in order to distinguish them from complex types

composed of several fields. The users cannot define

new primitive types, but they are allowed to combine

existing types to create new complex types.

Moreover, we can also create arrays from any known

type. These arrays can be of fixed or variable length.

All types (primitive and complex) are able to serialize

and deserialize themselves to/from string format. The

conversion between the type and string is implicitly

supported thus simplifying value assignments.

3.1.2 Va ria bles

The scripts have built-in variables accessible from the

Filter/Mapping sections of the script: (i) INPUT: Can

be accessed from both Filter and Mapping. The input

data of the script (the data to process) represented as

a variable. The type of the variable is byte array. (ii)

SOURCE: Can be accessed from both Filter and

Mapping. The source of the input data (i.e., the

identifier of the sensor sending the data) as a string.

(iii) OUTPUT: Can be accessed from Mapping only.

The structure of the output variable is specified by the

Output section. (iv) PARAMS: Can be accessed from

both Filter and Mapping. Parameters passed to the

script. The structure of the variable follows the

definition of the Params section.

Note that in Filter, we do not have an explicit

output variable, since Filter definitions consist of

assert statements. The result of Filter is true if none

of the assertions fails.

Besides these global variables, it is also possible to

define and use local variables. The scope of local

variables are handled as usual: they end at the end of

their defining block. The type of the local variables

can be any valid type according to the aforementioned

type system.

The Dynamic Sensor Data Description and Data Format Conversion Language

341

3.1.3 Language Statements

The language borrows several concepts and solutions

from modern programming languages such as Java.

These concepts include arithmetic, relational, bit and

logical operations, assignment, conditional branches

and loops (for, while). The language also supports a

foreach statement providing an easy to use way to

iterate through a collection. Specifying the type of the

iterator variable is not necessary in case of foreach,

since it can be resolved from the collection.

Compared to classic programming languages,

L4SDD is limited to several extents since it does not

support (i) user-defined functions in the scripts, (ii)

visibility settings of data tags in complex types, (iii)

reference types, (iv) custom primitive types (as

mentioned before) and custom error types.

The language also contains several special

constructs to simplify data processing. Since

processing of sensor data often requires working with

byte and bit arrays, the feature is supported by various

built-in functions. For example, the expression

Bit(x, 3, 4) returns the third to sixth bit of

variable x. For the sake of simplicity, this can also be

expressed by array indexers, such as

x[3..6].

Besides byte arrays, the input data tend to contain

JSON or CSV (comma separated value) data

fragments. To support JSON, the language has a

function that produces a hierarchy of key-value pairs

based on a string representation of JSON-encoded

data. Similarly, there is a function that produces a

two-dimensional array from CSV data, where the

item/row separating characters can be specified. It is

also a common case that we encode key-value pairs

as CSV data. For example the string

"ack":false,

"port":4, "cls":0

describes three pairs (the keys

are “ack”, ”port” and “cls”). Moreover, the two CSV

styles can also be mixed (some of the values have a

key, others have only an index).

Finally, it is a common task to extend an array

with a new element and to initialize it just before it is

added to the collection. In order to support this, we

have an Add function, which is somewhat

unconventional, since it also has a statement block

after the function call. When calling the function, we

can pass a variable that will point to the newly created

item. This variable can be an existing one (defined

previously somewhere earlier), or a new one (the

variable is then freed when the execution of the block

is ended). If an unhandled error occurs inside the

block, the new element is not added to the array.

3.1.4 Error Handling

Safety plays an important role in our project, thus

having a stable and safe error handling solution is also

important. The error handling follows the well-known

try-catch pattern. If an error occurs inside a try block,

the execution is stopped, and the appropriate catch

blocks are executed. However, L4SDD handles each

block automatically as a try block: the users can

attach error handling (catch) blocks to them matching

a specific type of error or specifying that all errors

must be caught. It is also possible to specify multiple

error types for a specific catch block.

If there is no matching catch block for the error,

then it is forwarded to the container block and so on,

until the outermost block is reached. The outermost

block automatically handles all unhandled errors and

creates a log message about them. If there is an

unhandled error in the Filter section, it returns false,

which means the automatic rejection of the message

(the script is not meant to process the data). Besides

the implicit “try” statement behavior of blocks,

assignments also act as try blocks. If the assignment

cannot be applied, the value of the destination

variable remains untouched, and no errors are thrown.

If the user wants to change this behavior, it is possible

by explicitly overriding it.

4 THE WORKBENCH

We have built a compiler for L4SDD based on Xtext

(Eysholdt and Behrens, 2010) (The Xtext

Framework, 2018). In order to make the definition of

L4SDD scripts as user-friendly as possible, we

provide a feature rich integrated development

environment (IDE) based on Xtext. Originally, we

were working with the standard, Eclipse-based

version of Xtext, but later we decided to switch to a

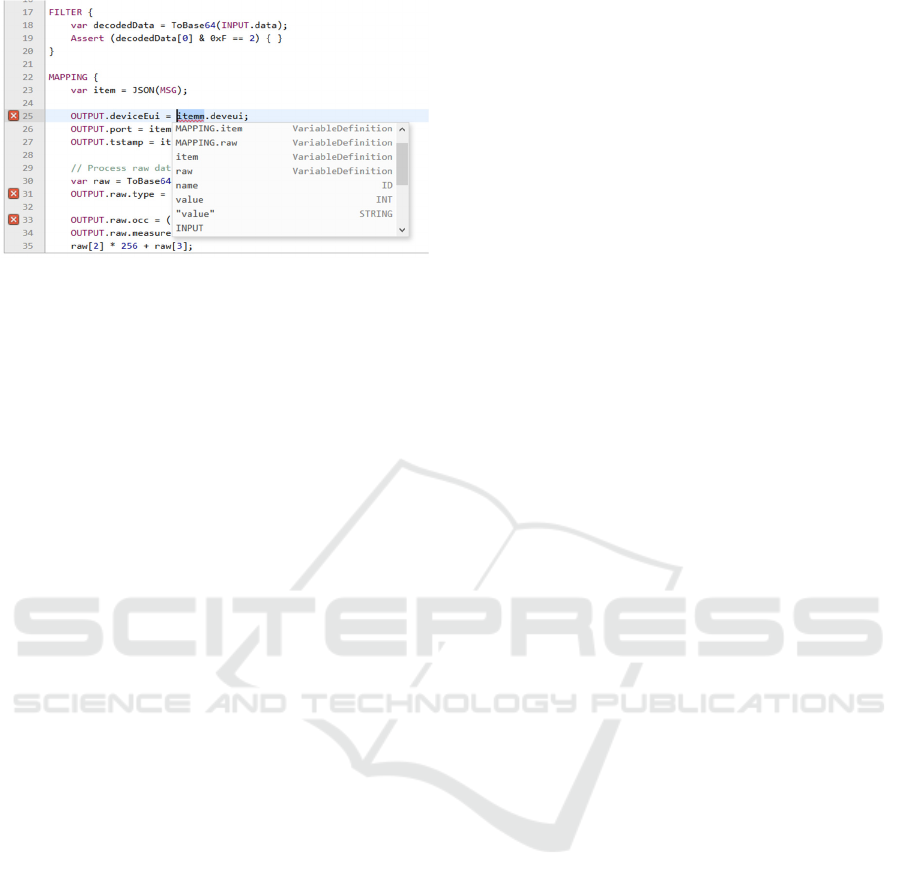

JavaScript-based web editor also based on Xtext. The

web-based editor (Figure 3) is reachable from

anywhere, and it is easier to integrate into our system.

The editor communicates with an Xtext servlet,

which contains the compiler, and does the parsing.

From the viewpoint of the user, there is no functional

difference compared to using a standard IDE. The

editor provided by Xtext supports many features that

make the editing process of the L4SDD scripts as

user-friendly as possible, e.g., syntax highlight,

semantic highlight, content assist, validation

(semantic analysis).

During the compilation process, we generate the

source code for the target language, which is currently

JavaScript. It is worth mentioning that we can also

ICSOFT 2018 - 13th International Conference on Software Technologies

342

Figure 3: L4SDD Web Editor.

simultaneously support code generation for

multiple target languages if needed. The types we

defined in L4SDD are all mapped to types in the

target language. This is done by a configurable type

system. Hierarchical types can also be mapped

(usually to classes or structures), if the target

language is object-oriented. In the cases of weakly-

typed target languages like JavaScript, there is no

need for the type conversion. L4SDD also supports

the mapping of commonly-used functions to the

target language. The functions of L4SDD are mapped

to custom functions in the target language with the aid

of our function mapping system similarly to type

mapping. Note that in this case, the implementation

of the functions must exist in the target language,

thus, a function library is required for each language

supported. The function library is written by hand by

the framework provider when the new target language

is added. For example, the Base64 function (the

purpose of which is to encode a binary array to

Base64) in L4SDD is mapped to the toBase64

function written in JavaScript as part of the

framework. The generated code then calls toBase64

everywhere Base64 is called in the script.

5 ANALYZING THE SOLUTION

Our original goal was to create a language that

supports the conversion of sensor data given in any

format to a common data format that is easily

processed in later steps. An additional goal was to

create a user-friendly workbench around the language

that allows the users to benefit from the advantages of

the language in a comfortable way. While these goals

are clearly reached by L4SDD and its workbench, the

solution has additional advantages as well.

Possibly the most important benefit is that the

scripts are not bound to a specific programming

library or even to an execution platform. While

L4SDD is similar to general purpose programming

languages and thus, easy to learn by programmers, the

scripts can be compiled into any modern

programming language. Currently, we produce

JavaScript code from the scripts, but if we would need

to use another language, we only need to replace the

code generator of our compiler. This means that we

can change the target platform without touching the

scripts. By taking into account how fast the evolution

of programming libraries are especially in web-based

areas, this advantage can efficiently simplify the

maintenance of the data transformation logic.

As the direct consequence of the previous benefit,

it is also possible to generate code for different

platforms from the same script. For example, we can

generate code for a JavaScript and a Java

environment simultaneously, thus, supporting several

environments at the same time. The key is the

separation of data processing logic and its

implementation.

The fact that we have full control over the

scripting language makes it possible to add efficient

features to the language. Currently, this is mainly

limited to bit, byte, JSON and CSV processing

functions, but later, we can extend the language based

on user feedback. Obviously, this would also be

possible in a general programming language by

creating utility functions, but in a purpose developed

script language, we have more flexibility (e.g., the

function Add) and more options to customize and

adapt to the user requests.

The usage of a purpose developed script language

not only simplifies the code generation, but it also

helps in avoiding dangerous, malicious codes. By

restricting the available functionality, we can

guarantee the safety of the scripts much easier. As

mentioned in the language description, safety is also

supported by custom error handling.

Safety is supported not only by the language itself

but also with the script management lifecycle. The

scripts must be editable by the users, but this does not

necessarily mean that the generated code must also be

shared with them. The users edit the scripts, then the

scripts are uploaded to the server. They are compiled

there, and the data transformation algorithm

(described by the script) is registered and later used

by the framework and not by the user. By hiding the

generated source code from the users, it is much

easier to avoid security issues, since the users do not

know how their script is implemented. They do not

even know to which programming language we

compile their scripts. Moreover, this also allows us to

replace the target platform any time, transparently.

The Dynamic Sensor Data Description and Data Format Conversion Language

343

By completely controlling the compiling process

and hiding the generated source code from the user,

we can also add debugging and logging instructions

to the code if it is required, for example, while testing.

This solution also makes it possible to map usual

function calls, create statistics from them and

optimize the generated code based on the results.

To sum it up, by following our approach, the users

obtain a high performant, secure and easy-to-use

solution to transform their data to an easily processed,

self-describing, universal data structure.

6 CASE STUDY

In the following, we illustrate our approach on a

simple, smart parking scenario. In this scenario, we

use the Libelium Smart Parking sensor solution

(Libelium Smart Parking, 2018). We apply the

sensors to detect available parking slots in a parking

area based on the measured values.

Our goal is to convert the data sent by the parking

sensors to a common data format. The raw sensor data

of our example can be seen in Code 1. For the sake

of understandability, we omit some details

{"ack":false,freq":"868.1",snr":"8.5",

"deveui":"00-00-00-00-00-1a-fb-1d",

"data":"ArEDwQAAAAsAAAA=", ... }

Code 1: Raw sensor data.

The data in the frame are described in JSON,

because our system appends extra information

(metadata) to the raw data sent by the sensor. The raw

data can be found in the highlighted data field. The

sensor does not maintain a strict ordering between the

fields, their order may change between messages.

Most of the data (e.g., ID, frequency) can be

converted without further processing. However, the

raw data parts are sent in a hexadecimal format that

needs to be processed. Moreover, it can happen that

different sensors (or the same sensor at different

intervals) send the data in different structures. We can

solve this problem by writing multiple scripts, or by

processing the data dynamically, based on the

markers in it (not used in the presented example).

The first step of data conversion is the format

description, namely, how we describe the input data

in our universal schema. This is accomplished in the

Output section. The schema description for the

parking sensor example can be seen in

Code 2. The

type definitions in the description (e.g., byte, int) are

specific to L4SDD, and they can be mapped to types

in the target language that we generate the code for.

OUTPUT {

deviceEui : byte[32];

raw:

{

type : int;

occ : int;

meas : float;

};

freq : float;

snr : int; }

Code 2: The Output definition.

The second step is to define the processing logic

in the script. The purpose of the Filter section (Code

3) is to check if the data can be processed by the

script. Here, we check the first byte of the raw data,

which identifies the message type sent by the sensor.

FILTER {

var decData = Base64(INPUT.data);

Assert (decData [0] & 0xF == 2){…} }

Code 3: The Filter definition.

Then, the Mapping section (

Code 4) contains the

processing logic for the script. In the example, we

process the raw data by using standard instructions in

the L4SDD language. The rest of the data can be

directly copied to the output without processing.

MAPPING {

var item = JSON(INPUT);

OUTPUT.deviceEui = item.deveui;

var raw = Base64(item.data);

OUTPUT.raw.type = Int(SStr(…));

OUTPUT.raw.occ = (Int(SStr(…) === 1);

OUTPUT.raw.meas = raw[2]*256+raw[3];

OUTPUT.freq = item.freq;

OUTPUT.snr = item.lsnr; }

Code 4: The Mapping definition.

The third step of the data conversion is the code

generation for the target language(s). Later, the

system will execute this generated code on the data

accepted by the Filter. Currently, we generate

JavaScript code (referred to as L4JS), but the code

generation can easily be extended to other languages,

e.g. to Java.

A snippet of the generated code of our example

can be seen in

Code . Filter and Mapping are both

mapped to a JavaScript function (isAccepted and

processData). The system calls these functions with

the specific sensor data.

ICSOFT 2018 - 13th International Conference on Software Technologies

344

function isAccepted(input) {

let decData = Base64(input.data);

if ((decData [0] & 0xF) != 2)

{ return false; }

return true; }

function processData(input, params,

message) {

let item = JSON(message);

let raw = Base64(item.data);

strOutput.deviceEui = item.deveui;

strOutput.raw.type = Int(…);

strOutput.raw.occ = ((Int(…))===1);

strOutput.raw.meas =

raw[2]* 256 + raw[3];

strOutput.freq = item.freq;

strOutput.snr = item.lsnr;

return structuredOutput; }

Code 5: The generated source code.

Finally, Code 6 depicts the structured JSON

output for the parking sensor example, containing the

value information. The type information (which

contains the structure of the output) is omitted. We

can use this information later, durint the storage of the

data.

{"deviceEui":"00-00-00-00-00-1a-fb-1d",

"raw": {

"type": 2,

"occ": false,

"meas": 961},

"freq":"868.1",

"snr":"8.5" }

Code 6: The structured output.

In the example, the structure and syntax of the

generated L4JS code are very similar to that of the

L4SDD script, since the example is simple. However,

in case of more sophisticated, real-life scenarios,

L4SDD can also simplify the syntax of the script.

7 CONCLUSIONS

With the steeply growing popularity of IoT devices,

there is an increasing need to simplify interoperability

between these devices. Defining a universal data

format is not enough since most of the sensors do not

support adapting to a specified format. Our research

aims to create a new method that includes a universal

self-describing data format and a transformation

language able to convert data of all kinds to this

format. Our solution is based on a new language

referred to as the Language for Sensor Data

Description. The paper elaborated on the main

properties of the language and also discussed its

environment, the workbench and showed how the

language fits into the ecosystem of our generic IoT

framework.

Our current results are promising, but we have

many plans for the future. Currently we are working

on a debugging system for the script to simplify

finding and correcting the errors in the script. We also

plan to add semantic interpretation of the input data

(supporting semantic interoperability) and to apply

more case studies in real, industrial environments.

Moreover we plan to give access for a wider audience

to use and therefore test our solution.

ACKNOWLEDGEMENTS

The work presented in this paper has been carried out

in the frame of project no. 2017-1.3.1-VKE-2017-

00042 and performed in the frame of the FIEK_16-1-

2016-0007 project, both implemented with the

support provided from the National Research,

Development and Innovation Fund of Hungary,

financed under the 2017-1.3 and the FIEK_16

funding scheme respectively.

REFERENCES

Andreas, T., Diallo, S. Y. & Turnitsa, C. D., 2013. Apply-

ing the Levels of Conceptual Interoperability Model in

Support of Integratability, Interoperability, and Compo-

sability for System-of-Systems Engineering. System-

ics, Cybernetics And Informatics , 5(5), pp. 65-74.

Berrios, V. et al., 2017. Cross-industry semantic

interoperability, part one. [Online] http://www.

embedded-computing.com/embedded-computing-

design/cross-industry-semantic-interoperability-part-

one [Accessed 20 04 2018].

Eysholdt, M. & Behrens, H., 2010. Xtext: Implement Your

Language Faster Than the Quick and Dirty Way.

Proceedings of the ACM International Conference

Companion on Object Oriented Programming Systems

Languages and Applications Companion, pp. 307-309.

Joshi, R., Mellor, S. & Didier, P., 2017. The Industrial

Internet of Things Volume G5: Connectivity

Framework. s.l.: Industrial Internet Consortium.

Libelium Smart Parking, 2018. [Online] http://www.

libelium.com/downloads/documentation/plug_and_sen

se_smart_parking_technical_guide.pdf [Accessed 20

04 2018].

McGrath, R. E., Kastner, J. & Myers, J. F. M., 2009.

Experiments in Data Format Interoperation Using

Defuddle, Illinois: University of Illinois.

The Dynamic Sensor Data Description and Data Format Conversion Language

345

Network Working Group: Sensor Markup Language, 2013.

SENML. [Online] https://tools.ietf.org/html/draft-

jennings-senml-10

OMG: Data Distribution Service, 2015. DDS. [Online]

https://www.omg.org/spec/DDS/1.4/PDF [Accessed 20

04 2018].

OneM2M: Base Ontology, 2018. [Online] www.

onem2m.org [Accessed 20 04 2018].

OPC-Unified Architecture, 2015. OPC-UA. [Online]

https://opcfoundation.org/developer-tools/specification

s-unified-architecture [Accessed 20 04 2018].

Open Grid Forum: Data Format Description Language,

2014. DFDL. [Online] https://www.ogf.org/ogf/

doku.php/standards/dfdl/dfdl [Accessed 20 04 2018].

The Xtext Framework, 2018. http://www.eclipse.org/Xtext/.

[Online] www.eclipse.org/Xtext/ [Accessed 20 04

2018].

ICSOFT 2018 - 13th International Conference on Software Technologies

346
