Expansion: A Novel Mutation Operator for Genetic Programming

Mohiul Islam

, Nawwaf Kharma

and Peter Grogono

Department of Electrical & Computer Engineering, Concordia University, Montreal, Canada

Department of Computer Science & Software Engineering, Concordia University, Montreal, Canada

Keywords:

Evolutionary Computation, Computational Intelligence, Program Synthesis, Genetic Programming, Monte

Carlo Simulation, Monte Carlo Tree Search, Symbolic Regression.

Abstract:

Expansion is a novel mutation operator for Genetic Programming (GP). It uses Monte Carlo simulation to

repeatedly expand and evaluate programs using unit instructions, taking advantage of the granular search space

of evolutionary program synthesis. Monte Carlo simulation and its heuristic search method, Monte Carlo Tree

Search has been applied to Koza-style tree-based representation to compare results with different variation

operations such as sub-tree crossover and point mutation. Using a set of benchmark symbolic regression

problems, we prove that expansion have better ﬁtness performance than point mutation, when included with

crossover. It also provides signiﬁcant boost in ﬁtness when compared with GP using only crossover on a

diverse problem set. We conclude that the best ﬁtness can be achieved by including all three operators in GP,

crossover, point mutation and expansion.

1 INTRODUCTION

Genetic Programming (GP) is a stochastic generate-

and-test approach to inductive program synthesis

(Krawiec, 2016). Monte Carlo Tree Search (MCTS),

also being a stochastic search method is yet to be ef-

fectively applied to evolutionary program synthesis

(White et al., 2015) (Lim and Yoo, 2016). GP search

space is extremely granular while the ﬁtness lands-

cape is exceptionally multi-modal. MCTS could take

advantage of this granularity if every level of this se-

arch tree expands a unit instruction set. Traversing a

tree made of programs using Monte Carlo Simulation

can provide interesting advantages to program expan-

sion with increased ﬁtness.

2 PROGRAM SYNTHESIS

The earliest and the most commonly used method of

program synthesis is the evolution of a tree struc-

ture of programs. Here representation is made using

variable-length expressions from a functional pro-

gramming language, like symbolic expressions (S-

expr.) in LISP (Koza, 1992). Tree-based genetic pro-

gramming (TGP) is the classic approach to GP where

inner nodes of program trees hold functions (instructi-

ons) while leaves hold terminals which are input vari-

able or constants.

When evolving programs are represented using

computational nodes in a Cartesian coordinate sy-

stem, the method can aptly be named Cartesian Ge-

netic Programming (CGP) (Miller, 2011). It was ﬁrst

used by Miller for evolving digital circuits (Miller

et al., 1997), but later became a general form of pro-

gram evolution (Miller and Thomson, 2000). This

representation can also be considered as a directed

acyclic graph. Its genotypes are integers containing a

node’s input data source, operation and output desti-

nation. The genotype passes through a decoding pro-

cess to result in an evolved program, which is its phe-

notype.

In Linear Genetic Programming (LGP) (Brameier

and Banzhaf, 2010) the term linear refers to the struc-

ture of the program representation. Here programs

in a population are represented as a sequence of in-

structions from an imperative programming language

or machine language (Nordin et al., 1999). The main

motivation of using a linear structure in LGP is the li-

near representation of the DNA molecule. Just as the

DNA is divided into gene codes, a linear represen-

tation of a program can be divided into instructions,

where each line of a single instruction is analogous to

a gene.

The most obvious challenges to robust and sca-

lable program synthesis, identiﬁed by Krawiec, is

Islam, M., Kharma, N. and Grogono, P.

Expansion: A Novel Mutation Operator for Genetic Programming.

DOI: 10.5220/0006927800550066

In Proceedings of the 10th International Joint Conference on Computational Intelligence (IJCCI 2018), pages 55-66

ISBN: 978-989-758-327-8

the size of the search space, its multimodal ﬁtness

landscape, externalized semantics of instructions and

their complex interactions (Krawiec, 2016). In his re-

cent study he identiﬁes scalar evaluation of programs,

which is the normalized count of successfully passing

test cases, as a bottle neck. To solve this problem,

he deﬁnes program semantics as a vector of program

outputs for particular tests, providing more informa-

tion about program behaviour than conventional sca-

lar evaluation. The origin of Semantic Genetic Pro-

gramming (SGP) comes from the belief that to scale

evolutionary program synthesis, the algorithm needs

to take program semantics into account (Krawiec and

Lichocki, 2010). Also if we can exploit the geometry

of its semantic space, it is possible to come up with

more efﬁcient search methods. The key intuition for

Geometric Semantic Programming (GSGP) (Morag-

lio et al., 2012) focuses speciﬁcally on the geome-

tric (metric-related) properties of program semantics.

With this in mind different crossover operators such

as Approximate Geometric Crossover (KLX) (Kra-

wiec and Lichocki, 2009) and exact geometric cros-

sover (GSGX) are deﬁned (Krawiec, 2016).

Despite all the different methods using varied re-

presentations and variation operators, evolutionary

program synthesis is still not efﬁcient enough for

practical software development. GP can only solve

elementary small problems using enormous computa-

tional effort. Most of this effort is spent on the multi-

tude of evaluations required on all different combina-

tions of programs. It is imperative for GP to be more

efﬁcient in ﬁnding the optimum program with fewer

evaluations.

3 MONTE CARLO TREE

Monte-Carlo simulation is a highly effective method

which depends on repeated random sampling. Monte

Carlo Tree Search (MCTS) is a heuristic search algo-

rithm which uses Monte-Carlo simulation to evaluate

the nodes of a search tree. As a new paradigm for se-

arch, MCTS (Coulom, 2007b), has revolutionised not

only computer Go (Gelly and Silver, 2011) (Coulom,

2007a), but also General Game Playing (Finnsson and

Björnsson, 2008), Amazons (Lorentz, 2008), Line of

Action (Winands and Björnsson, 2010), multi-player

card games (Sturtevant, 2008) and real time strategy

games (Balla and Fern, 2009). Replacing other tra-

ditional search methods, MCTS uses self-play, by si-

mulating thousands of random games from its current

position in the tree. Ideally an MCTS algorithm for

game playing will contain the following four steps

(Chaslot et al., 2008).

Selection. Selection is the process of selecting

children of any node of the tree. Selection of the

children provides for balance between exploration

and exploitation of the search tree. Any method which

can be applied for sampling can also be used for node

child selection, depending on the problem being sol-

ved.

Expansion. This is the decision process of whether

a node’s children will be expanded for evaluation or

not. For game playing the simplest strategy is to ex-

pand one node per simulated game (Coulom, 2007b).

This step can be performed before or after simulation.

Simulation. For Go players this is the step where

players play pseudo random moves of self play until

the end of the game. Interesting moves and patterns

are applied, to come up with game strategies. It is dif-

ﬁcult to come up with an efﬁcient strategy, to balance

between exploration and exploitation. Having a stra-

tegy too stochastic results in weak moves where the

level of Monte-Carlo program decreases. In contrast,

having a deterministic strategy increases exploitation,

which also decreases the level of Monte-Carlo pro-

gram (Chaslot et al., 2008).

Figure 1: Monte Carlo Tree of Programs.

Backpropagation. This is the step in which results

are propagated backwards from the leaf node. For the

game of Go it could be the penalty of losing the game,

or reward of winning it. A ratio of this win/loss va-

lue will be propagated backwards, to update its parent

nodes about the outcome of this path.

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence

3.1 Monte Carlo Tree of Programs

The Monte Carlo Tree (MCT) of programs can be de-

ﬁned using the deﬁnition of a unit instruction.

Unit Instruction. A unit instruction consists of a

single operator (+, -, /, cos, log, etc.) and its operands

(x, y, z, etc.). Here the number of operands depends

on whether the instruction is unary or binary. The list

of possible unit instructions consist of all combina-

tion of operators with all possible operands that can

be attached to that operator.

We deﬁne an MCT of programs consisting of no-

des similar to that of MCTS, where each node is a

program (Figure 1). For MCT the root node is the ini-

tial program. Expansion is a mutation operator where

the parent program that is selected for mutation is the

root node of the MCT. The ﬁrst level of this tree, right

after the root node consists of the possible ways the

root node can be expanded using a unit instruction.

So each node of this level is a program expanded from

the initial program by one unit instruction. The next

level of MCT of programs consist of all possible ways

the programs of the ﬁrst level can be expanded using

one unit instruction. Deﬁned in the following section,

the Expansion mutation operator simply traverses this

MCT to ﬁnd the best possible extension for the parent

program.

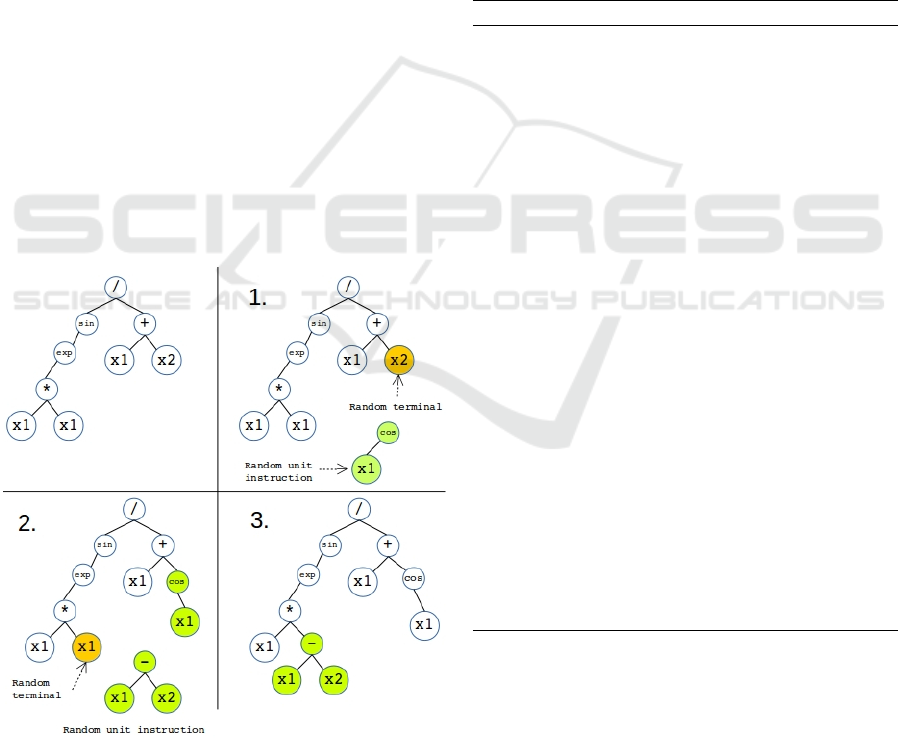

Figure 2: Program expanded with Monte Carlo Tree using

a single simulation with a depth of 2.

3.2 Expansion: The Mutation Operator

Expansion, the mutation operator can be deﬁned

using the following terms.

Single Step Expansion. A single step expansion

starts by selecting a random terminal from the s-

expression of the initial program. Then a unit in-

struction is randomly selected from the list of possi-

ble unit instructions (Figure 2 step 1). Both of these

processes perform uniform random selection. The se-

lected terminal is then replaced by the unit instruction

expanding the s-expression (Figure 2 step 2). For the

next single step expansion this new expanded pro-

gram is passed as the initial program (Figure 2 step

3).

Algorithm 1: Expansion using Monte Carlo simulation.

1: procedure SIMULATE(currentIndividual, bestIndividual)

2: for 1 to noO f Simulation do

3: randomDistance ← random no. between 1 and maxDistance

4: Create rootNode using currentIndividual

5: simulateRecursive(rootNode, randomDistance)

6: end for

return list of betterNewIndividuals

7: end procedure

8: procedure SIMULATERECURSIVE(node,depth)

9: if depth = 0 then

10: evaluate(node.program)

11: else

12: Create childNode

13: childNode.program ← clone of node.program

14: terminalList ← f indTerminals(childNode.program)

15: randomTerminal ← select random terminal from terminalList

16: Grow/Create random unit newGPnode

17: newGPnode.parent ← randomTerminal.parent

18: childrenList ← children of randomTerminal.parent

19: Replace randomTerminal with newGPnode in childrenList

20: evaluate(childNode.program)

21: simulateRecursive(childNode,depth − 1)

22: end if

23: end procedure

24: procedure EVALUATE(node)

25: node. f itness ← Evaluate ﬁtness by executing test cases

26: if node. f itness > bestIndividual. f itness then

27: Add node to list of betterNewIndividuals

28: end if

29: end procedure

Single Simulation. A single simulation consists of

one or more single step expansions to the parent pro-

gram. Maximum depth of expansion is a constant

deﬁned as a parameter for the algorithm. Initially a

random depth is generated between one and the max-

imum depth. For one simulation, starting from the pa-

rent program, the algorithm recursively keeps execu-

ting single step expansions up to that depth constraint.

Expansion: A Novel Mutation Operator for Genetic Programming

In this way the algorithm performs a constraint num-

ber of simulation, also deﬁned as a constant parameter

at the beginning of the execution (Algorithm 1, Table

1).

The parent selection process for the expansion

mutation operator is made using tournament se-

lection. Once a parent is selected using a tournament,

the algorithm also sorts the current population of pro-

grams by ﬁtness, selecting the current best program

in the population. Two constraints are passed to the

algorithm as constant parameters. One is the maxi-

mum depth of expansion, while the other is the num-

ber of simulations. Using the parent program the al-

gorithm starts performing simulations (Algorithm 1).

At each single step expansion of each simulation the

newly expanded program is evaluated for ﬁtness. If

the ﬁtness for the new program is better than the best

program in the population then it is added to a list of

better programs. Once the algorithm completes all the

simulation, the list of better new programs are sorted

by ﬁtness from which the best new program replaces

the parent (Algorithm 2).

It is worth mentioning that the new programs ge-

nerated by expansion, are compared with the current

best in the population, instead of their own parent as

this method maintains diversity in the entire GP po-

pulation. If we compare with the current parent, there

will be more individuals added by expansion to the

population in each generation, reducing diversity.

Thus we can observe that MCTS can effectively

be applied to program expansion. Expansion, the new

mutation operator, is inspired by MCTS. Each step of

MCTS is reﬂected in this algorithm. It uses uniform

random for selection of (MCT) nodes to expand. Af-

ter selection simulations are performed using a series

of expansions. Once all the simulation is complete,

the algorithm backpropagates to the initial program

only to attach the extension from all the simulation

which provided the best ﬁtness.

4 ECJ: EVOLUTIONARY

COMPUTATION LIBRARY

The Evolutionary Computation Library in Java (ECJ)

(Luke, 1998) is one of the oldest open source, uni-

ﬁed metaheuristic toolkits, with strength in the im-

plementation of Genetic Programming (GP) (Luke,

2017). The evolving architecture and support of ECJ

has played a pivotal role in making it a widely used li-

brary for experimenting almost any algorithm in evo-

lutionary computation. Its ﬂexible object oriented de-

sign is very easy to extend and customize. Also it is

written in the most widely used object oriented lan-

guage, Java. ECJ’s GP implementation is inﬂuenced

by John Koza’s Genetic Programming (Koza, 1992)

and succeeding texts. Also Koza’s "Simple Lisp" has

been used as the programming language for GP evo-

lution in ECJ. That is why ECJ’s Koza-style imple-

mentation of Genetic Programming has been used for

evaluating the performance of the Expansion muta-

tion operator.

Algorithm 2: Expansion pipeline.

1: procedure PRODUCE

2: individual ← Grab random individual from Reproduction Pipeline

3: bestIndividual ← Find current best individual from the population

4: betterNewIndividuals ← simulate(individual, bestIndividual)

5: bestNewIndividual ← best from list of betterNewIndividuals

6: replace individual with bestNewIndividual

7: end procedure

ECJ’s top level evolutionary loops are designed

for execution of any evolving algorithm. It is a sim-

ple loop over individuals in a population with steps of

initialization, evaluation, breeding, exchanging and

ﬁnally terminating, when the algorithm reaches the

maximum number of generations or best ﬁtness eva-

luation.

In ECJ, the structure and operation of an experi-

ment is deﬁned using a set of parameter ﬁles, where

the Problem is written by the researcher. Using sim-

ple scripting with the parameter ﬁles, it is possible to

make major architecture change in the execution of

the evolving algorithm. In this library the population

contains a set of sub-populations, which can be evol-

ved independently and also asynchronously. This can

be helpful for algorithms involving co-evolution or is-

land models.

Each individual in ECJ contains a representation

and ﬁtness both of which can have many variations.

For generational breeding, the experimenter is suppo-

sed to specify one or more Breeding Pipelines, which

is a combination of selection, mutation and recom-

bination procedures. These processes deﬁne an indi-

vidual’s method of selection, copy, modiﬁcation and

addition into a new population.

Genetic Programming in ECJ. Originally desig-

ned for GP, ECJ implements the Koza-style GP using

trees of nodes. Each GPIndividual object contains fo-

rests of GPTree, which in turn holds a tree of GPNo-

des. Using a set-based Strongly-Typed Genetic Pro-

gramming, each node’s parent and child slots are aug-

mented with a set of types. Similar is the case for the

tree’s root slot. Parent slots may attach to other node’s

child slots, or to the tree’s root slot, given their two

set’s intersection is nonempty.

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence

4.1 Crossover Pipeline

Being a subclass of GPBreedingPipeline, Crossover-

Pipeline performs strongly-typed version of Koza-

style "Subtree Crossover". After selecting two

random individuals (Figure 3), a single tree is cho-

sen from each individual having similar GPTreeCon-

straints, meaning their tree type, builder and function

set are the same. The selection of random nodes in

each tree is done making sure that each node’s return

type is compatible with the argument type of the pa-

rent’s slot which contains the other node. Also if this

swap exceeds the maximum depth constraint, the en-

tire operation is discarded and repeatedly tried again

to a constrained number of times. If a successful cros-

sover fails to occur, within that limited number then

the two individuals are ’reproduced’ to the new sub-

population without any change. For the work presen-

ted in the paper, no change was made to the default

ECJ implementation and parameters of crossover.

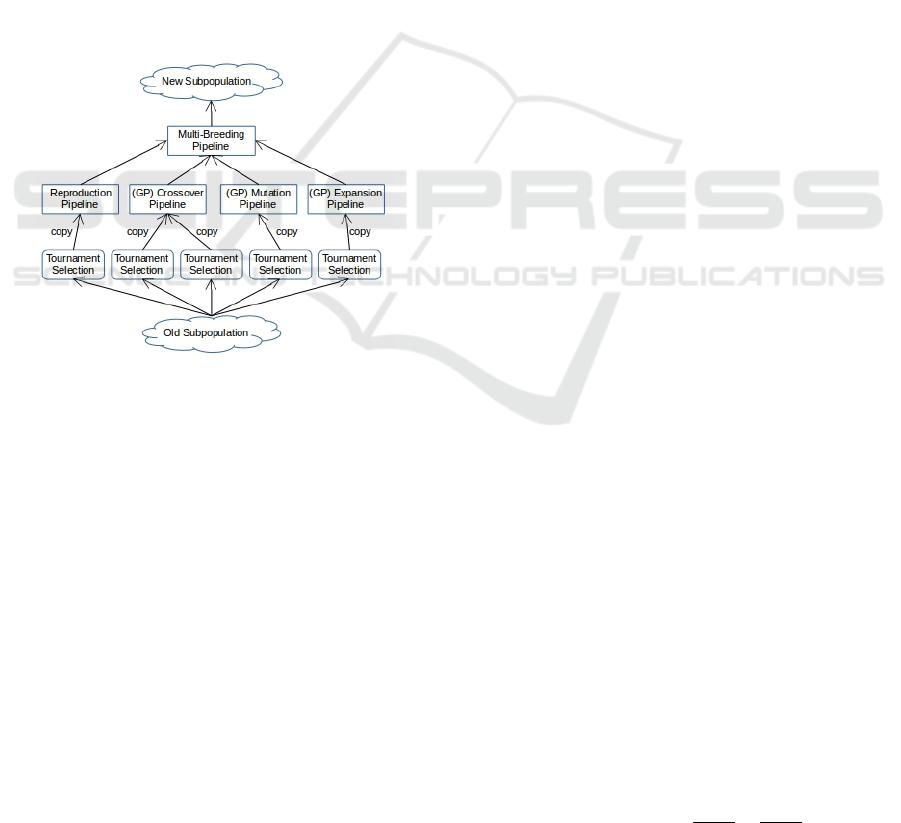

Figure 3: GP Pipelines including expansion. Diagram ex-

tended from (Luke, 2017)

4.2 Mutation Pipeline

Koza’s deﬁnition of Point Mutation (Koza, 1992) be-

gins by selecting a point at random within the tree

which could be a terminal or a non-terminal. A rand-

omly generated subtree is inserted at that point af-

ter removing whatever is currently there at that point.

In ECJ, MutationPipeline is another type of GPBree-

dingPipeline which implements a strongly-typed ver-

sion of the point mutation. In addition it provides a

depth restriction where if the tree becomes larger than

a maximum depth, it is discarded, while the process

is repeated until satisfying this constraint. Similar to

crossover (Section 4.1), if the number of repeat con-

straints is violated, then the individual is reproduced

to the new population as it is. The default ECJ im-

plementation and parameters of this process were not

changed for any experiments for the research presen-

ted in the paper.

4.3 Expansion Pipeline

The ExpansionPipeline is also an extension of the

GPBreedingPipeline, and is the primary contribution

of this paper. The process is described in Algorithm

2. An individual is selected using ECJ’s default Tou-

rnament Selection, which is also used for both the

crossover (Section 4.1) and mutation (Section 4.2) pi-

pelines. After sorting the current sub-population, the

current best individual is also picked. Using the se-

lected individual a simulation is performed with MCT

(Section 3.1), which executes randomized single step

expansion and evaluation on randomly selected ter-

minals of the tree. Each simulation is performed up

to a maximum depth for a certain number of times

(max depth and no. of simulation in table 1). This si-

mulation and expansion process is explained in detail

using algorithms 1 and 2 (Section 3.2). As each unit

expansion is evaluated, the new individual’s ﬁtness is

compared with the ﬁtness of the best individual in the

sub-population. If better, it is added to a list of better

individuals. Once simulations are complete the list of

better individuals are again sorted to come up with the

best from that list, which replaces the original indivi-

dual picked from the population.

5 EXPERIMENTS AND RESULTS

Before our discussion on the experimental procedure

we describe the problem set that was used to ﬁnd best

possible comparison for expansion (Section 5.1).

5.1 Benchmark

To avoid the simplicity of historically used GP pro-

blems and to tackle real world complexities, (McDer-

mott et al., 2012) and (White et al., 2013) suggested a

set of benchmark problems which is currently consi-

dered a standard for evaluating any version of GP al-

gorithms. The benchmark problem set has the charac-

teristics of being difﬁcult to choose, varied, relevant

to the ﬁeld, fast to execute, easy to interpret and com-

pare while being precisely deﬁned. From the diffe-

rent type of problems (regression, classiﬁcation, pre-

dictive modeling, etc) that received consensus of the

research community, a variety of symbolic regression

problems have been used in this research to evalu-

ate performance of expansion, as a mutation operator.

Out of the 53 symbolic regression problems (McDer-

mott et al., 2012), Pagie-1 (

1+x

−4

1+y

−4

) has the re-

Expansion: A Novel Mutation Operator for Genetic Programming

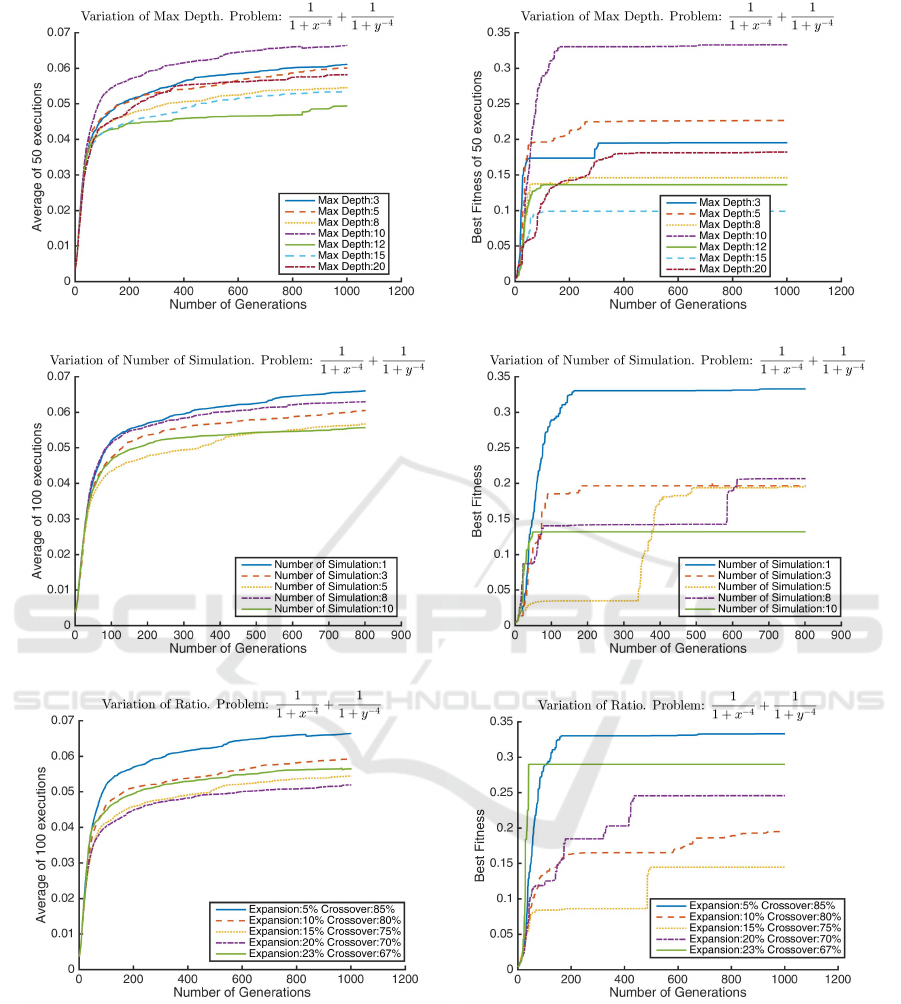

(a) Variation of max depth - avg. of 50 executions (b) Variation of max depth - best of 50 executions

(e) Varying ratio of expansion - avg. of 50 executions (f) Varying ratio of expansion- best of 50 executions

Figure 4: Comparison of different parameters and ratio of Expansion. In the above graphs the horizontal axis contain number

of generation, while the vertical axis is the Koza ﬁtness of the best individual in the population in that generation. (a, c, e)

contain average of 50 executions, while (b, d, f) contain the best run of 50 executions. (a, b) compare the Maximum Depth

parameter varying from 3 to 20. Without any apparent pattern we can observe Maximum depth 10 has the best overall ﬁtness.

In (c, d) we compare the Number of Simulation parameter varying from 1 to 10, where the value of 1 seem to provide the

best result. (e, f) tell us the best ratio of Expansion with Crossover, where we ﬁnd only 5% expansion provides the optimum

output. These graphs also did not following any obvious pattern. Problem source: (Pagie and Hogeweg, 1997).

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence

(a) Variation of Mutation ratio - avg. of 50 executions (b) Variation of Mutation ratio - best of 50 executions

Figure 5: Comparison of different Point Mutation (Section 4.2) and Crossover (Section 4.1) Ratio. In the above graphs the

horizontal axis contain number of generation, while the vertical axis is the Koza ﬁtness of the best individual in the population

in that generation. (a) contains average of 50 executions, while (b) contains the best run of 50 executions. We can observe

without any apparent pattern 10% of Point Mutation performs best with 80% of Crossover.

putation of being particularly challenging (Pagie and

Hogeweg, 1997), as it has a rugged ﬁtness landscape

and limited number of possible solutions. That is why

Pagie-1 has been used for the comparison study of

different parameter variation for expansion (Section

5.3, 5.4). After selecting reasonably best parameters,

a comparison study has been done on other diverse

problems from the benchmark (Section 5.6). ECJ has

a complete implementation of all the Benchmark pro-

blems, optimized using the Reproduction, Crossover

(Section 4.1) and Mutation (Section 4.2) pipelines.

For this study ExpansionPipeline was added to ECJ

and its best ratio was compared with crossover and

mutation.

Koza Fitness. Described in (Koza, 1992), Koza ﬁt-

ness is a ﬁtness measure used in ECJ to normalize

the error rate of the benchmark symbolic regression

problems. Here ﬁtness f = 1/(1 + e), where e is the

summation of the errors from all the tests. All results

presented in this paper use this measure of ﬁtness.

5.2 Experimental Procedure

Program expansion using MCT is most effective

when it is used along with the crossover (Section 4.1)

and mutation (Section 4.2) pipeline in ECJ. Executing

GP using only expansion did not provide a competi-

tive result. All experiments in the following sections

were done up to 1000 generations. The average ﬁt-

ness curves were generated from 50 consecutive exe-

cutions. For comparison (Section 5.6) problems from

(Keijzer, 2003) and (Vladislavleva et al., 2009) were

selected as they were difﬁcult enough not to reach

their best ﬁtness within 1000 generations. ECJ Repro-

ductionPipeline which is a type of breeding pipeline

that simply makes a copy of the individuals it recei-

ves from its source (Figure 3) maintains a constant

ratio of 10% in all the experiments (Table 1). Com-

plete source code of the ExpansionPipeline, parame-

ters and results associated to experiments presented in

this paper can be found at (Islam, 2018).

5.3 Expansion Parameters

To evaluate performance of the ExpansionPipeline,

the initial experiments were designed to ﬁnd the rela-

tively optimum point of its two signiﬁcantly important

parameters maximum depth and number of simulation

(Figure 4 a,b,c,d).

Using one of the most difﬁcult problems from

benchmark, Pagie-1 (Pagie and Hogeweg, 1997) dif-

ferent depth variations were applied for the simula-

tions performed (Figure 4 a,b). The other parame-

ters for this experiment remained constant (ratio of

expansion: 5%, crossover: 85%, no. of simulation:

1). Maximum depth was varied from 3 to 20 with

different intervals where the best ﬁtness performance

was found at 10, for both the average and the best ﬁt-

ness of all 50 executions. These results are explained

as follows: if the maximum depth of each simulation

is too high, the search space of the programs in the

population is larger, resulting in bad ﬁtness. Also if

the depth is too small then expansion has very little

impact.

Similarly, number of simulation was varied bet-

ween 1 to 10 in ﬁgure 4(c,d), were a single simula-

tion seemed to have the optimum impact for incre-

asing overall ﬁtness in both average and best of 50

experiments.

Expansion: A Novel Mutation Operator for Genetic Programming

5.4 Expansion Ratio

Once a reasonable parameter choice was found, the

next step is to ﬁnd the best ratio between expansion

and crossover (Section 5.4). As compared in ﬁgure

4(e,f), the best ﬁtness impact comes from very little

expansion, only 5%. This can be explained as increa-

sing the program size too quickly has negative impact

on ﬁtness performance. Because it also increases the

size of the search space, it is harder for GP to ﬁnd the

optimum program.

5.5 Mutation Ratio

Expansion being a mutation operator, it is important

that we compare it with other mutation operators, na-

mely the most widely used Point Mutation by Koza

(Koza, 1992) (Section 4.2). Before this comparison

study, an experiment was done to ﬁnd the best ra-

tio between point mutation and crossover pipelines in

ECJ. Figure 5 contains the average and best results of

50 executions where 10% point mutation rate along

with 80% crossover seems to have the best impact in

ﬁtness.

5.6 Comparison

ECJ’s default Koza-style GP implementation uses

only crossover. So when we have the best ratio be-

tween expansion-crossover and mutation-crossover,

the ﬁnal comparison is done between only-crossover,

expansion-mutation-crossover and the two above.

Four GP variations (Table: 1) are executed 50 times

on a variety of symbolic regression problems from the

benchmark list (Section 5.1). These results are pre-

sented in ﬁgures 6, 7, 8. The problems were selected

avoiding the ones which are too simple to reach their

optimum ﬁtness within 1000 generations. Algorithms

with version 3 and 4 from Table 1 contain the best ra-

tio of expansion with its reasonably optimum parame-

ters (depth, no of simulation). They both start with a

population of 1024, but due to the additional evaluati-

Table 1: Parameters for compared versions.

Version

Population

Reproduction

Crossover

Mutation

Expansion

Max Depth

Number of Simulation

Average number of

Evaluations/Generation

1 1120 10% 90% 0 0 - - 1120

2 1120 10% 80% 10% 0 - - 1120

3 1024 10% 85% 0 5% 10 1 1120

4 1024 10% 75% 10% 5% 10 1 1120

ons of every step of expansion, the average number of

evaluations per generation increases to 1120. Version

1 and 2 is for only-crossover and mutation-crossover,

where the population has been purposefully increased

to 1120 so that the average number of evaluations per

generation remains the same for all three versions of

the algorithms. ECJ’s implementation of a single exe-

cution of the CrossoverPipeline start with two rand-

omly selected individuals, and ends in evaluating two

new ones. MutationPipeline evaluates only one newly

mutated individual. So without making any changes

to the existing ECJ implementation, the only way to

increase the number of evaluations for version 1 and

2 was to increase the population. Increasing the po-

pulation also provides an added advantage to version

1 and 2 of the algorithms as it provides a larger search

space for GP combinatorial search. This advantage

is slightly less (population 1024) for version 3 and 4,

were expansion is applied.

6 ANALYSIS

Analysing the comparison results of ﬁgures 6, 7, 8, we

can observe that version 4 with expansion-mutation-

crossover almost always provided the best ﬁtness

over 1000 generations of 50 executions. Version 3

with expansion-crossover is competitive with Version

2 which is mutation-crossover, where both of them

have performed better than version 1, only-crossover.

Overall Version 2 performs worse than version 3 and

4 (in most cases). This result was obtained after pro-

viding added advantage of an increased population to

version 1 and 2, and having the same number of eva-

luations per generation for all four. A small ratio of

expanding with unit instructions and ﬁtness evalua-

tion of each step of this process has a large impact in

overall GP performance. In GP, crossover has always

provided the highest impact as a variation operator

(Koza, 1992). But we can observe from the compa-

rison study that a little expansion can boost this per-

formance signiﬁcantly.

Expansion also performs better than point muta-

tion. With number of simulation as 1 for expansion,

their algorithmic difference is the step by step evalu-

ation of each unit expansion, which does not happen

to programs when point mutation is applied. Expan-

sion as a mutation operator takes into consideration

the granularity of programs at the level of unit in-

structions, which is lacking in point mutation, where

sub-trees are added, replaced or removed.

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence

(a) keijzer2 (b) keijzer4

(e) keijzer10 (f) keijzer11

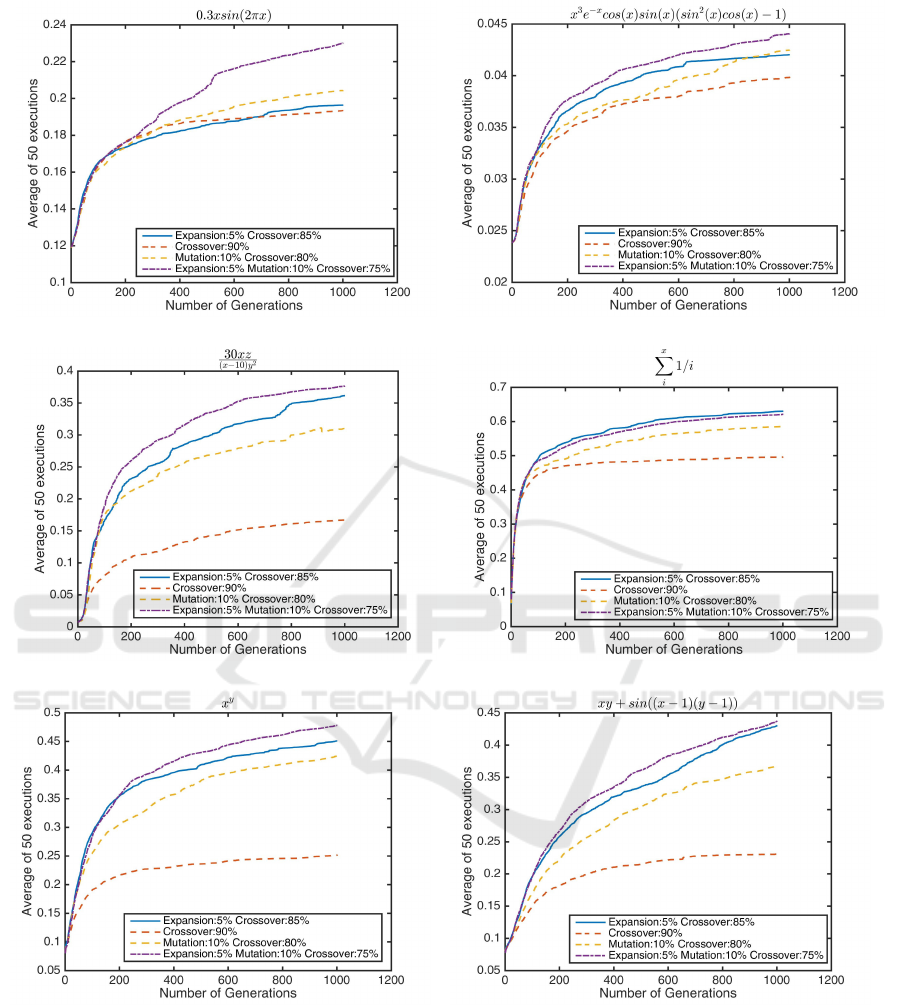

Figure 6: Comparison between Crossover, Mutation and Expansion Ratio. In the above graphs the horizontal axis contain

number of generation, while the vertical axis is the Koza ﬁtness of the best individual in the population in that generation.

All these problems were picked from the benchmark list (McDermott et al., 2012), from which their names originate (keijzer

2,4,5, etc.). For all ﬁgures 5% expansion has provided a boost in performance. For (a, b, c, e and f) version 4 (5% expansion,

10% mutation and 75% crossover) was able to reach the best ﬁtness. For (d) version 3 (5% expansion and 85% crossover)

seems to be doing slightly better than version 4 (Keijzer, 2003).

Expansion: A Novel Mutation Operator for Genetic Programming

(a) keijzer12 (b) keijzer13

Figure 7: Comparison between Crossover, Mutation and Expansion Ratio. In the above graphs the horizontal axis contain

number of generation, while the vertical axis is the Koza ﬁtness of the best individual in the population in that generation. The

problem set is from the same source as ﬁgure 6 (Keijzer, 2003). Version 4 (5% expansion, 10% mutation and 75% crossover)

has provided the best ﬁtness is all cases.

7 CONCLUSION

Monte Carlo simulation has been an effective met-

hod in diverse ﬁelds (Eckhardt, 1987) (Benov, 2016).

MCTS has created impact for problems involving

large search space (Section 3). Combinatorial opti-

mization techniques such as genetic programming is

a search over an inﬁnitely large space of combinations

of programs. That is why we can apply MCTS in vari-

ous new and effective ways to program synthesis. The

mutation operator expansion, presented in this paper

is only one of these ways. Using a comparison study

with crossover and point mutation the effectiveness of

the Monte Carlo method can be observed in program

synthesis. The benchmark symbolic regression pro-

blems used in this study are considered as the com-

munity standard, with which we prove that expansion

have a better ﬁtness performance than point mutation

when included with crossover. Also ﬁtness is signiﬁ-

cantly boosted on a variety of problems when a small

ratio of expansion is added to crossover and mutation,

compared to GP using only-crossover and crossover-

mutation. It is worth emphasising that for all cases

the expansion algorithm achieves such improvement

using the same number of ﬁtness evaluations. Also

we reach the conclusion that the best ﬁtness can be

achieved by including all three operators in GP, cros-

sover, point mutation and expansion.

A study of the impact of program bloating is re-

quired on expansion, which is currently being done

by the authors.

REFERENCES

Balla, R.-K. and Fern, A. (2009). Uct for tactical assault

planning in real-time strategy games. In Proceedings

of the 21st International Jont Conference on Artiﬁcal

Intelligence, IJCAI’09, pages 40–45, San Francisco,

CA, USA. Morgan Kaufmann Publishers Inc.

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence

(a) vladislavleva1 (b) vladislavleva2

(e) vladislavleva5 (f) vladislavleva7

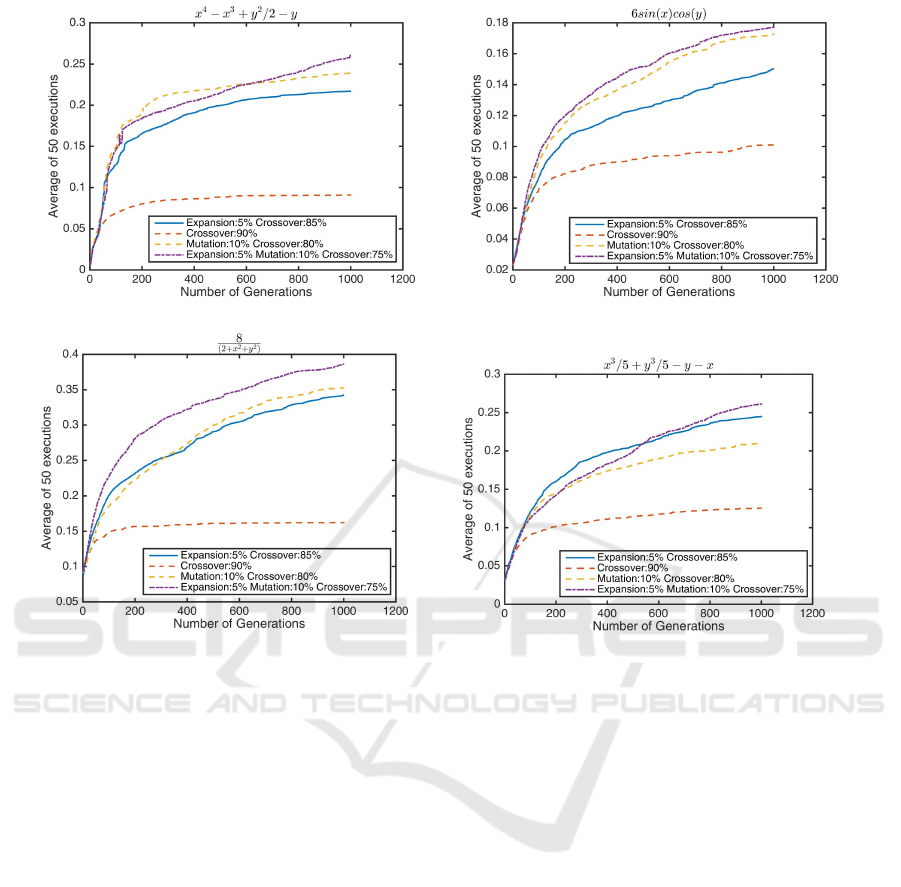

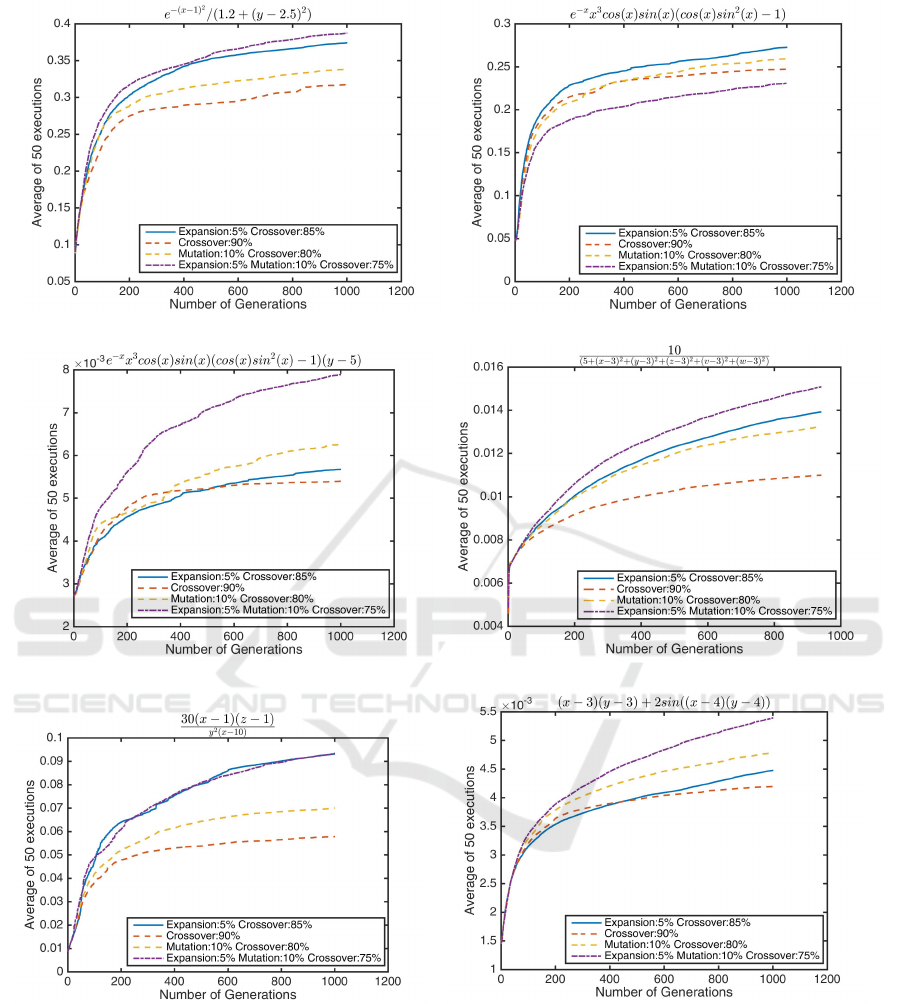

Figure 8: Comparison between Crossover, Mutation and Expansion Ratio. In the above graphs the horizontal axis contain

number of generation, while the vertical axis is the Koza ﬁtness of the best individual in the population in that generation. All

these problems were picked from the benchmark list (McDermott et al., 2012), from which their names originate (vladislavleva

1,2,3, etc.). For all ﬁgures 5% expansion has provided a boost in performance. For (a, c, d, e and f) version 4 (5% expansion,

10% mutation and 75% crossover) was able to reach the best ﬁtness. For (b) version 3 (5% expansion and 85% crossover)

seems to be doing better than version 4 (Vladislavleva et al., 2009).

Expansion: A Novel Mutation Operator for Genetic Programming

Benov, D. M. (2016). The manhattan project, the ﬁrst elec-

tronic computer and the monte carlo method. Monte

Carlo Methods and Applications, 22(1):73–79.

Brameier, M. F. and Banzhaf, W. (2010). Linear Genetic

Programming. Springer Publishing Company, Incor-

porated, 1st edition.

Chaslot, G. M. J.-B., Winands, M. H. M., van Den Herik,

H. J., Uiterwijk, J. W. H. M., and Bouzy, B. (2008).

Progressive strategies for monte-carlo tree search.

New Mathematics and Natural Computation (NMNC),

04(03):343–357.

Coulom, R. (2007a). Computing Elo Ratings of Move Pat-

terns in the Game of Go. In van den Herik, H. J.,

Winands, M., Uiterwijk, J., and Schadd, M., edi-

tors, Computer Games Workshop, Amsterdam, Net-

herlands.

Coulom, R. (2007b). Efﬁcient selectivity and backup ope-

rators in monte-carlo tree search. In Proceedings

of the 5th International Conference on Computers

and Games, CG’06, pages 72–83, Berlin, Heidelberg.

Springer-Verlag.

Eckhardt, R. (1987). Stan Ulam, John von Neumann, and

the Monte Carlo Method. Los Alamos Science, pages

131–143.

Finnsson, H. and Björnsson, Y. (2008). Simulation-based

approach to general game playing. In Proceedings

of the 23rd National Conference on Artiﬁcial Intelli-

gence - Volume 1, AAAI’08, pages 259–264. AAAI

Press.

Gelly, S. and Silver, D. (2011). Monte-carlo tree search and

rapid action value estimation in computer go. Artif.

Intell., 175(11):1856–1875.

Islam, M. (2018). ECJ evolutionary computation library v25

with expansion pipeline. https://github.com/mohiul/

ecj-v25-expansion/ releases. Accessed: 2018-05-23.

Keijzer, M. (2003). Improving symbolic regression with in-

terval arithmetic and linear scaling. In Proceedings

of the 6th European Conference on Genetic Program-

ming, EuroGP’03, pages 70–82, Berlin, Heidelberg.

Springer-Verlag.

Koza, J. R. (1992). Genetic Programming: On the Pro-

gramming of Computers by Means of Natural Se-

lection. MIT Press, Cambridge, MA, USA.

Krawiec, K. (2016). Behavioral Program Synthesis with

Genetic Programming, volume 618 of Studies in Com-

putational Intelligence. Springer International Publis-

hing. http://www.cs.put.poznan.pl/kkrawiec/bps.

Krawiec, K. and Lichocki, P. (2009). Approximating geo-

metric crossover in semantic space. In Proceedings of

the 11th Annual Conference on Genetic and Evolutio-

nary Computation, GECCO ’09, pages 987–994, New

York, NY, USA. ACM.

Krawiec, K. and Lichocki, P. (2010). Using Co-solvability

to Model and Exploit Synergetic Effects in Evolution,

pages 492–501. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Lim, J. and Yoo, S. (2016). Field report: Applying monte

carlo tree search for program synthesis. In Sarro, F.

and Deb, K., editors, Search Based Software Engi-

neering, pages 304–310, Cham. Springer Internatio-

nal Publishing.

Lorentz, R. J. (2008). Amazons discover monte-carlo. In

Proceedings of the 6th International Conference on

Computers and Games, CG ’08, pages 13–24, Berlin,

Heidelberg. Springer-Verlag.

Luke, S. (1998). ECJ evolutionary computation li-

brary. Available for free at http://cs.gmu.edu/∼eclab/

projects/ecj/.

Luke, S. (2017). Ecj then and now. In Proceedings

of the Genetic and Evolutionary Computation Con-

ference Companion, GECCO ’17, pages 1223–1230,

New York, NY, USA. ACM.

McDermott, J., White, D. R., Luke, S., Manzoni, L., Cas-

telli, M., Vanneschi, L., Jaskowski, W., Krawiec, K.,

Harper, R., De Jong, K., and O’Reilly, U.-M. (2012).

Genetic programming needs better benchmarks. In

Proceedings of the 14th Annual Conference on Gene-

tic and Evolutionary Computation, GECCO ’12, pa-

ges 791–798, New York, NY, USA. ACM.

Miller, J., editor (2011). Cartesian Genetic Programming.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Miller, J. F. and Thomson, P. (2000). Cartesian Genetic

Programming, pages 121–132. Springer Berlin Hei-

delberg, Berlin, Heidelberg.

Miller, J. F., Thomson, P., Fogarty, T., and Ntroduction, I.

(1997). Designing electronic circuits using evolutio-

nary algorithms. arithmetic circuits: A case study.

Moraglio, A., Krawiec, K., and Johnson, C. G. (2012). Geo-

metric Semantic Genetic Programming, pages 21–31.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Nordin, P., Banzhaf, W., and Francone, F. (1999). Efﬁcient

evolution of machine code for cisc architectures using

instruction blocks and homologous crossover. In Ad-

vances in Genetic Programming 3, chapter 12, pages

275–299. MIT Press.

Pagie, L. and Hogeweg, P. (1997). Evolutionary consequen-

ces of coevolving targets. Evol. Comput., 5(4):401–

418.

Sturtevant, N. R. (2008). An analysis of uct in multi-player

games. In Proceedings of the 6th International Con-

ference on Computers and Games, CG ’08, pages 37–

49, Berlin, Heidelberg. Springer-Verlag.

Vladislavleva, E. J., Smits, G. F., and Den Hertog, D.

(2009). Order of nonlinearity as a complexity me-

asure for models generated by symbolic regression

via pareto genetic programming. Trans. Evol. Comp,

13(2):333–349.

White, D. R., McDermott, J., Castelli, M., Manzoni, L.,

Goldman, B. W., Kronberger, G., Ja

skowski, W.,

O’Reilly, U.-M., and Luke, S. (2013). Better gp

benchmarks: community survey results and propo-

sals. Genetic Programming and Evolvable Machines,

14(1):3–29.

White, D. R., Yoo, S., and Singer, J. (2015). The program-

ming game: Evaluating mcts as an alternative to gp

for symbolic regression. In Proceedings of the Com-

panion Publication of the 2015 Annual Conference

on Genetic and Evolutionary Computation, GECCO

Companion ’15, pages 1521–1522, New York, NY,

USA. ACM.

Winands, M. H. M. and Björnsson, Y. (2010). Evaluation

function based monte-carlo loa. In Proceedings of the

12th International Conference on Advances in Com-

puter Games, ACG’09, pages 33–44, Berlin, Heidel-

berg. Springer-Verlag.

IJCCI 2018 - 10th International Joint Conference on Computational Intelligence
