Automation of Integration Testing of RESTful Hypermedia Systems:

A Model-driven Approach

Henry Vu, Tobias Fertig and Peter Braun

Faculty of Computer Science and Business Information Systems, University of Applied Sciences Würzburg-Schweinfurt,

Sanderheinrichsleitenweg 20, 97074 Würzburg, Germany

Keywords:

REST, Integration Testing, RESTful API, Hypermedia Testing, MDSD, MDE, MDT, Model-driven Testing.

Abstract:

The proper design of Representational State Transfer (REST) APIs is not trivial because developers have to

deal with a ﬂood of recommendations and best practices, especially the proper application of the hypermedia

constraint requires some decent experience. Furthermore, testing RESTful APIs is a missing topic within lit-

erature. Especially hypermedia testing is not mentioned at all. Manual hypermedia testing is time-consuming

and hard to maintain. Testing a hypermedia API requires many test cases that have similar structure, espe-

cially when different user roles and error cases are considered. In order to tackle this problem, we proposed

a Model-driven Testing (MDT) approach for hypermedia systems using the metamodel within our existing

Model Driven Software Development (MDSD) approach. This work discusses challenges and results of hy-

permedia testing for RESTful APIs using MDT techniques that were discovered within our research. MDT

allows white-box testing, hence covering complete program structure and behavior of the generated applica-

tion. By doing this, we are able to achieve a high automated test coverage. Moreover, any runtime behavior

deviated from the metamodel reveals bugs within the generators.

1 INTRODUCTION

The Web has become the deployment environment for

software systems and applications. Ofﬁce productiv-

ity applications and corporate tools such as invoicing,

purchasing and expense reporting systems have mi-

grated to the Web (Taivalsaari and Mikkonen, 2017).

Web APIs have become the vital backbones for these

applications and services. While the number of Web

APIs is increasing, the need for good API design has

become more crucial than ever before. Good APIs

can be among a company’s greatest assets, as cus-

tomers invest heavily in buying, writing and learn-

ing them. However, bad APIs can also be among a

company’s greatest liabilities as they result in never-

ending streams of maintenance and support (Bloch,

2014).

In 2000 Fielding (Fielding, 2000) presented an ar-

chitectural design for building network-based appli-

cations that resemble the Web called REST. REST

style requires that an application server must adhere

to a set of constraints, such as client-server, state-

less, cache, uniform interface, layered system and

hypermedia. An API can be described as RESTful

when making use of every Fielding’s constraint in-

cluding hypermedia (Richardson, 2009). Hyperme-

dia constraint has tree jobs according to (Richardson

et al., 2013): 1) It tells the client how to construct

an HTTP request, what method to use, what URL to

use, what HTTP headers and/or entity-body to send.

2) It makes promises about the HTTP response, sug-

gesting the status code, the HTTP headers, and/or the

data the server is likely to send. 3) It guides the client

through the application workﬂow given by the server.

Non-hypermedia servers have several problems: a)

If a server does not dynamically generate hyperlinks,

clients are forced to construct these hyperlinks piece

by piece which would require prior knowledge about

the implementation details of the server, b) since there

are no hyperlinks for clients to follow, there is no ap-

plication workﬂow, thus it is rather a static API and c)

this client-server architecture is tightly coupled and is

likely to break due to changes on either side: If the

server changes the URIs, the clients will break and if

any client is to be modiﬁed, the server must remain

the same.

We decided to tackle the challenges of RESTful

API development with a MDSD approach. In 2015

we proposed Generating Mobile Applications with

RESTful Architecture (GeMARA) (Schreibmann and

404

Vu, H., Fertig, T. and Braun, P.

Automation of Integration Testing of RESTful Hypermedia Systems: A Model-driven Approach.

DOI: 10.5220/0006932004040411

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 404-411

ISBN: 978-989-758-324-7

Braun, 2015). Instead of a data-ﬁrst approach which

uses data models for creating an API, we went for

an API-ﬁrst approach which aims at a proper API

design ﬁrst which then automatically creates the un-

derlaying database. The main idea of this project is

to take RESTful API development to a higher level

of abstraction by using a metamodel as input. We

use our own Domain Speciﬁc Language (DSL) to de-

scribe a metamodel which is then to be translated into

a RESTful API. This way, we can force consistency

and achieve a higher standard of quality by encapsu-

lating reliable and well-known libraries, frameworks

and RESTful best practices behind our DSL.

We also explored the possibility of MDT (Fertig

and Braun, 2015) and realized the lack of information

about MDT. In general, MDSD processes are very

sensitive to the introduction of defects. Any defect

in a model or a model transformation can be easily

propagated to the subsequent stages, thus causing the

production of faulty software (González and Cabot,

2014). However, MDT is a possible way to achieve

correctness within the generators. Test cases can be

generated from the underlying model. Any deviat-

ing behavior of the application on a runtime environ-

ment could reveal possible bugs within the generators.

Moreover, even third-party frameworks and libraries

can be updated or replaced over time, these generated

test cases can also be used to verify our platform code.

Facing the need for better RESTful API design and

deﬁcits in its quality assurance, we are focusing on

answering the following research questions (RQ):

RQ 1) How to generate appropriate test cases from an

existing metamodel to test role-based behavior

for every application state within a RESTful

API?

RQ 2) How can test cases derived from RQ 1 be ver-

iﬁed automatically on runtime?

RQ 3) Can the proposed approach completely relieve

API developers from integration testing?

2 RELATED WORK

According to Fielding (Fielding, 2008) RESTful sys-

tems must be hypertext-driven, in other words these

systems are to be designed as ε-NFAs. In (Zuzak

et al., 2011) and (Hernández and García, 2010) the

authors also present their ε-NFA formal models for

specifying RESTful APIs based on their understand-

ing. It is important to present a formal model in oder

to assign formal semantics because of the beneﬁts for

formal validation and testing.

The established literature concerning REST such

as (Richardson et al., 2013), (Amundsen, 2017) and

(Webber et al., 2010) reveal little to no information

about its quality assurance. Moreover, hypermedia

testing is not mentioned at all. They explain the pur-

poses of hypermedia, but do not present any approach

to test it. REST API integration testing by sending

HTTP-requests and verifying the received responses

was mentioned in (Webber et al., 2010).

In (Frankel, 2015), the author suggests three dif-

ferent "entry levels" for integration testing: 1) At

HTML level using a WebDriver tool such as Selenium

(Project, 2018) to interact with HTML/CSS elements

such as ﬁlling a form or clicking on a button. 2) At

HTTP level by sending HTTP requests and checking

HTTP responses. 3) At controller level by directly

testing the methods. The main idea of this book is

testing must be efﬁcient and economic, thus recom-

mending against a high test coverage and complex

logic. However, our MDT approach enables automa-

tion of integration testing with a high test coverage

with minimum manual effort, hence generating great

economic return. Nevertheless, the author also ne-

glects hypermedia testing by suggesting to manually

craft each HTTP request with a ﬁxed URL.

In (Chakrabarti and Kumar, 2009), the authors

present their own framework Test-the-Rest to test

HTTP based web services. The test cases are writ-

ten in a test speciﬁcation language based on XML to

give the tester a structured approach. Other than that,

response validation only depends on checking media

type and status code. This approach does not fully

address the challenges of testing RESTful APIs.

To the best of our knowledge, there is a lack of in-

formation about generating and testing RESTful sys-

tems, particular hypermedia testing.

3 CHALLENGES

The most important component in our metamodel to

describe a RESTful API is the application state. An

application state is a pair of a HTTP method and a

resource. It represents a valid REST request to ac-

cess a resource. Another central key element in a

RESTful system is the resource. It is important to

note that resource is not a storage object, but it is

instead a conceptual entity. A resource represents a

single object or a collection of objects. The inten-

tion of HTTP methods should be ﬁxed, and devel-

opers should not be free to choose wrong methods.

The four basic operations to create, retrieve, update

and delete (CRUD) resources are mapped to the four

HTTP methods POST, GET, PUT and DELETE. A

Automation of Integration Testing of RESTful Hypermedia Systems: A Model-driven Approach

405

transition is our formal way of modeling relationships

between application states. A client can navigate from

one application state to another via transitions.

In 2017 we proposed several approaches to deal

with MDT for RESTful systems which include

server-side testing and client-side testing (Vu et al.,

2017). MDSD is a software engineering paradigm

that promotes the utilization of models as primary ar-

tifacts in all software engineering activities (González

and Cabot, 2014), therefore, we have to ensure that

there are no defects in our model in the ﬁrst place. Our

MDSD approach has two distinct artifacts that need to

be tested on the server-side: the model and the gen-

erated code from the model. These artifacts are to be

tested in a bottom up manner because they are built on

top of each other. Errors within the model can prop-

agate subsequent bugs in the generated source code

which lead to undesired system behavior at runtime

or production. Therefore, our model-driven hyper-

media testing on the server-side is divided into two

sequential steps: static and dynamic analysis. Our

ﬁndings within the static analysis were presented in

(Vu et al., 2018) covering up an automatic veriﬁca-

tion process for the input-model, thus ensuring its hy-

permedia characteristic as a ε-NFA before triggering

code transformation. This paper is a follow-up contri-

bution within our research regarding testing RESTful

APIs using MDT techniques.

The challenges of the dynamic analysis are ad-

dressed withing the scope of this work. Dynamic

analysis, as opposed to static analysis, always requires

the execution of the software. The simplest form of

dynamic testing is the execution of the software by a

test person, thereby the tester can enter any input to

operate the software. This is an unsystematic ad-hoc

approach and thus inaccurate and usually not repro-

ducible (Liggesmeyer, 2009). However, using MDT

techniques allows us to follow a more novel approach.

Once the model is veriﬁed by the static analysis, our

tool will generate a functional server. This generated

server should work correctly and include all the fea-

tures described by its model. But since the generators

are manually implemented, we cannot guarantee this.

The aim of this procedure is to test the correct func-

tionality of the transformation process by testing the

generated code, thus detecting bugs within the gener-

ators. The dynamic analysis can be used to test sev-

eral aspects of a RESTful API: 1) It checks whether a

ε-NFA-compliant model correctly produces a ε-NFA-

compliant RESTful API 2) We also have to consider

the authorization concept of the application. 3) Ad-

ditionally, we can also provoke negative tests to see

how the server handles error cases on runtime.

The dynamic analysis is divided into three phases:

First, model crawling phase, second, building an

HTTP crawler, and third, generation of test classes.

To simplify understanding, it is necessary to present

an application example which will be the basis to

demonstrate our further approaches. Our application

example represents an online shop. There are two

user roles: customer and admin. A customer can view

items whereas a shop admin can also create, update or

delete items. For the sake of clarity, we omitted tran-

sitions back to the dispatcher state and self-pointing

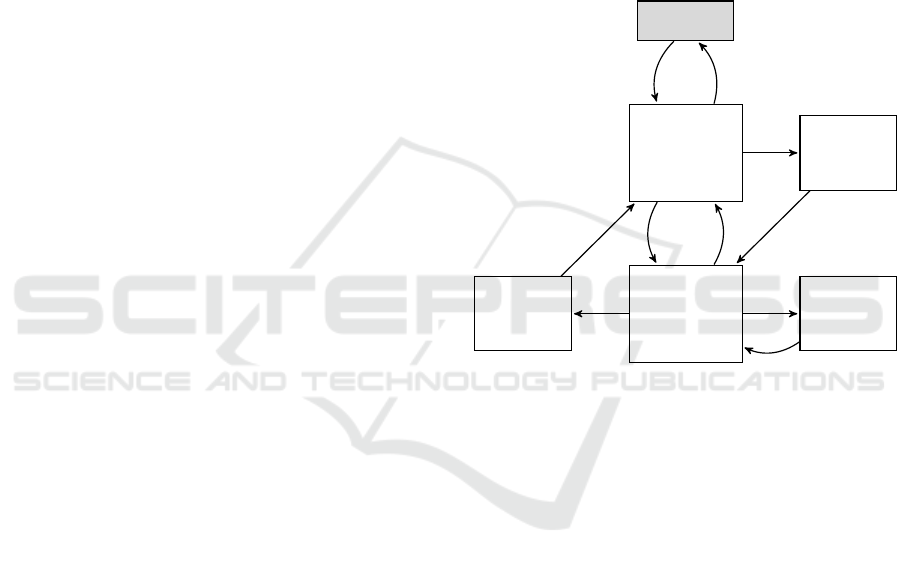

transitions. The entire application workﬂow with all

application states and possible transitions is described

as an ε-NFA in the Figure 1.

Start

GET

Items

[admin]

[customer]

POST

Item

[admin]

GET

Item

[admin]

[customer]

PUT

Item

[admin]

DELETE

Item

[admin]

Figure 1: Workﬂow of the application example.

The concept of ε-NFAs revolves around a ﬁnite set

of states with an initial state, a set of possible inputs

and rules to map each state to another state, or to it-

self (Wright, 2005). Speaking in REST terms, a client

can enter the application workﬂow through the ini-

tial state and only be in exactly one state at any given

time and it can only change its current state by navi-

gating through a directed transition with a valid input.

ε-NFA compliance means that every state within an

application is accessible. The client should be able

to start from the entry point of the RESTful API, and

it should be able to visit every application state and

go back to the start state without getting stuck in a

dead-end. We argue that within a RESTful applica-

tion there are no accepting states. An accepting state

assumes that a client has ﬁnished a task within the

application workﬂow after a sequence of inputs. The

question arises "When is a task ﬁnished?". Taking

Twitter for example: Entering the Twitter app gives

us our newsfeed. This could be argued as a task done

or an accepting state, but navigate to a friend’s page

could also be a task and so is creating, modifying or

deleting a post. It does not matter if the client wants to

APMDWE 2018 - 3rd International Special Session on Advanced practices in Model-Driven Web Engineering

406

stay in the loop of the application workﬂow or leave

it at any given state. Due to these argumentations, we

can perform this simpliﬁcation that our ε-NFA model

of a RESTful API does not have accepting states.

Another challenge of hypermedia testing is to

check whether the generated API delivers appropri-

ate hyperlinks based on the client’s user role. Each

user role sees a different representation of the API

depending on its access rights. In other words, the

API must guide the client through the workﬂow based

on its user role, otherwise the authorization concept

would be corrupt.

Until now, we have looked at several challenges

to check correct hypermedia-driven behavior. This

falls under the category of positive testing because

our model allows white-box testing, hence revealing

complete program structure and behavior. Therefore,

we can perform a sequence of valid inputs and check

for expected outcomes. But what if the client makes

invalid requests? We must also test the robustness

of the system by checking its ability of handling er-

ror cases. The correct response for an invalid request

within a hypermedia-driven system should contain at

least a self-descriptive message (Fielding, 2000) to

tell a client what to do next. The dynamic analysis can

also be used to provoke negative tests. Instead of veri-

fying hypermedia behavior, we can test how the server

reacts to a client’s non-hypermedia behavior. Since

dynamic testing allows runtime execution of the to-

be-tested system, a client can intentionally send false

requests to test the robustness of the server: Whether

it remains functional or breaks, or whether an appro-

priate response is given in the event of an unautho-

rized request. Each state-to-state transition requires

speciﬁc inputs in order to perform. For instance, if a

client wants to enter the POST Item state its request

header must include authorization with credentials of

an admin and its request body must include a proper

Item resource representation (e.g. JSON) as payload.

The server has to validate two input types and handle

several error cases:

1) Authorization header: If the client is not au-

thenticated to the server, the server must response

with a proper HTTP code such as 401 Unauthorized,

indicating that the request lacks valid authentication

credentials for the target resource. Or if the client is

authenticated to the server but does not have permis-

sion to access an application state, the HTTP response

code has to be 403 Forbidden, indicating that the

server understood the request but refuses to authorize

it due to the application logic.

2) Entity-body: If the request body is empty or

not in the correct format, the server has to return a

400 Bad Request, indicating the request could not

be understood by the server due to malformed syntax.

The client should not repeat the request without mod-

iﬁcations. If the request body is in the correct format

but contains invalid data e.g. price of an item should

not be smaller than 0, the server has to respond with

a 422 Unprocessable Entity, meaning the server

understands the content type of the request entity but

was unable to process the contained instructions due

to the application logic.

In addition to self-descriptive messages, we also

have to ensure that the client will be redirected to its

previous application state or at least to the dispatcher

state.

4 APPROACH

In order to carry out a dynamic analysis, it is neces-

sary to perform two crawling processes: ﬁrst model

crawling and then HTTP crawling. The model crawl-

ing process is intended to derive information from the

underlying model to build appropriate test cases. Af-

terwards, an HTTP client will test against these test

cases when the generated code is deployed on a run-

time environment. It is also necessary to generate test

data based on the model to prevent a client from per-

forming tests on an empty server. At last, a genera-

tor will combine test cases constructed by the model

crawler and functionalities of the HTTP client to pro-

duce runnable test classes.

4.1 Model Crawling

The model crawling process is divided into three parts

to retrieve crucial information for our test case gener-

ation: 1) Verifying hypermedia response, 2) deriving

test paths to visit every state based on the application

workﬂow and 3) negative testing.

A client expects to only see its permitted hyper-

links at any given state. If a request is valid because

the client is authorized to enter an application state,

response of this application state must contain the

same hyperlinks as given by the model to this role.

If a request goes wrong, the client must be provided

with an appropriate response code or redirected to the

dispatcher state. To accomplish this task, we have to

map every incoming transition of an application state

with its outgoing transitions with respect to a speciﬁc

user role. This is necessary, because the client only

knows the URI to the entry state. Every other URI

is dynamically generated by the server. So, in order

to determine whether a hypermedia response is cor-

rect we have to map every relation type to permitted

following relation types while considering the client’s

Automation of Integration Testing of RESTful Hypermedia Systems: A Model-driven Approach

407

user role. This way, an HTTP client is able to make a

request to a relation type and expects to see the corre-

sponding set of following relation types to its request

by checking these mappings. In order to accomplish

this, the model crawler loops through every state and

check if a state can be accessed by a speciﬁc user role.

From any given state: A user role is permitted to ac-

cess a set of following states. So we can map a state’s

incoming transition as a key to a set of permitted out-

going transitions.

In the previous step we know what hypermedia re-

sponse to expect after making a request to a particu-

lar application state through our mappings. Neverthe-

less, once the server is deployed on a runtime environ-

ment, the HTTP client cannot verify these responses

by making direct requests to the URI endpoints but

it rather must start from the entry state and navigate

through the application workﬂow. This way, we can

make sure that responses of every application state

have been tested at least once. This step is to derive

all possible test paths within a role-based workﬂow

from the existing model to generate test cases for the

crawler.

We decided to develop a depth-ﬁrst search algo-

rithm that derives all possible paths for every user role

from the model. This algorithm spans a role-based

speciﬁc workﬂow from a directed graph into a tree.

The tree represents every possible path within a work-

ﬂow. Each path represents a task. For instance, a task

could be update an item. To manage this task, a client

with admin role must sequentially visit these applica-

tion states: Start, GetItems, GetItem, PutItem. The

root element is the Start state, it represents the entry

point of the API. A valid path ends when the client is

directed back to one of the previous states in the cur-

rent path. For example, after changing the price of an

item from a PutItem state, the server will redirect the

client to GetItem state which the client has visited be-

fore. When a valid path ends, it is marked as visited

and the HTTP client starts at the Start state again to

crawl through the next path.

A task is considered successfully tested when an

HTTP client is able to visit all edges of the role-based

application workﬂow. Any occurring error can be

tracked down by looking at the path where the client

fails to walk through. According to REST style, ev-

ery task within the workﬂow must be reachable from

the entry point, so this is the best way to approve this

premise. Once the client manages to walk through

every path of the tree and to verify every obtained re-

sponse on its way, then we can make a deﬁnite state-

ment about the correct hypermedia behavior of the

RESTful API.

This step is to derive role-based positive test paths

from the model for an HTTP client to test against later

on runtime. To achieve this, we have to span the role-

based representation of the application workﬂow into

a tree with the start state as root. By deﬁnition, every

hypermedia API represents a ε-NFA or it can also be

deﬁned as an complete unweighted directed graph G

= (V,E) with V is the set of possible application states

and E is the set of possible state-to-state transitions.

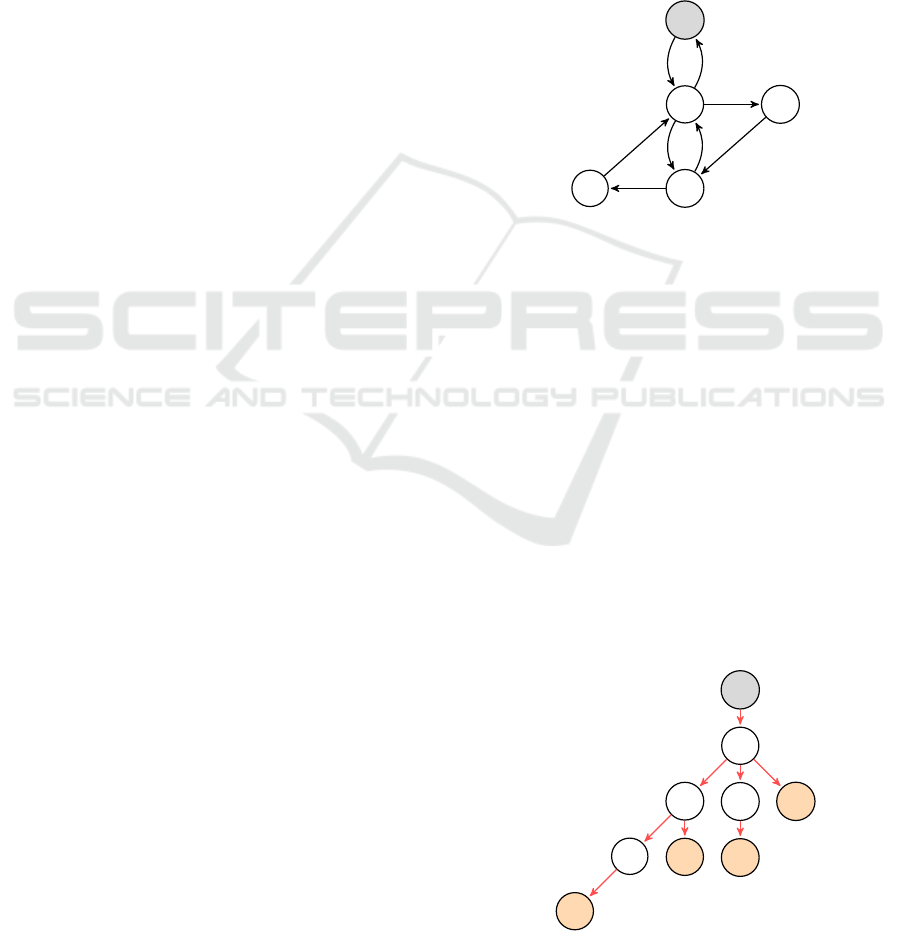

Assuming our ε-NFA is a directed graph

G = (V, E) with V = {A, B, C, D, E} and E =

{(A, B), (B, A), (B, C), (C, B), (B, D), (D, C), (C, E),

(E, B)} shown in Figure 2.

Figure 2: Graph representation of the application workﬂow.

At the beginning we have not walked down any

path yet, hence the Visited edges set and the List of

paths are empty and the Unvisited edges set contains

all available edges. A path is deﬁned as a sequential

list of edges and an edge is equivalent to a transition

in our RESTful context.

• Unvisited edges = {(A, B), (B, A), (B, C), (C, B),

(B, D), (D, C), (C, E), (E, B)}

• Visited edges = {}

• List of paths = {}

The algorithm terminates when the last edge has

been visited at (B,A), it walks backwards and ﬁnds

no further unvisited outgoing edge from every node

along the path, subsequently it marks all edges left as

visited.

Figure 3: Deriving last path.

APMDWE 2018 - 3rd International Special Session on Advanced practices in Model-Driven Web Engineering

408

Our ﬁnal list of paths now contains all possible

paths from the start node A and there is no unvisited

edge left.

• Unvisited edges = {}

• Visited edges = {(A, B), (B, A), (B, D), (D, C),

(E, B), (C, E), (C, B), (B, C)}

• List of paths = {{(A,B), (B,C), (C,E), (E,B)},

{(A,B), (B,C), (C,B)},

{(A,B), (B,A)}}

To explain this process in further detail, we

take a look at the pseudo code in Algorithm 4.1.

Our algorithm converts a directed graph into a tree,

similar to block-cut trees (Hopcroft and Tarjan,

1973). The difference to block-cut trees is that we

use paths instead of biconnected components.

Algorithm 1: Transformation of a directed graph into a tree

for deriving role-based test paths. The resulting tree is sim-

ilar to the block-cut trees (Hopcroft and Tarjan, 1973).

Input: s as entry state

Output: allPaths as list of unique paths for a

speciﬁc user role

1 initialize role as speciﬁc user role;

2 initialize allPaths as list;

3 initialize path as list;

4 initialize root ← s;

5 while s has unvisited transition for role do

6 add s to path;

7 initialize next ← next unvisited state;

8 if path contains next or next has no

unvisited transition for role then

9 mark transition between s and next as

visited;

10 foreach state in reversed path do

11 if state has no unvisited transition

for role then

12 mark transition between state

and state

s parent node as

visited;

13 end

14 end

15 add next to path;

16 add path to allPaths;

17 path ← empty;

18 s ← root;

19 end

20 else

21 s ← next;

22 end

23 end

4.2 Generation of Test Data

Our generated server has to be populated it with test

data. Otherwise a client would not be able to obtain

or modify any resource while navigating through the

application workﬂow. Our MDSD approach allows

automated test data generation based on our existing

metamodel. This means, once written, this process

will start to generate adequate test data by looking for

available resources within the input model.

4.3 Building HTTP Client

For our hypermedia testing purpose, we need to build

our own hypermedia-driven HTTP client. First, the

client represents a speciﬁc user role while testing, so

it makes sense to save this authentication information.

Then, it must be able to send request to relation types

instead of sending request directly to URIs. By deﬁni-

tion, a hyperlink can be returned within the response

header or body or both. For the sake of simplicity,

this approach only addresses hyperlinks within the re-

sponse header. A header response link of our REST-

ful API consists of four parts: resource URI, rel as

relation type, type for media type and method for

HTTP verb as listed in Listing 1. These elements need

to be extracted and parsed, so the HTTP client can un-

derstand and send request to it. This is necessary be-

cause technically speaking an HTTP client requires

merely a URI to send request to, but it is not rec-

ommended to hard code these so called "REST end-

points" into clients (Fielding, 2013), because they can

change, e.g, to resource renaming. So our hyperme-

dia response is always provided with a ﬁxed relation

type serving as a method call to guide action and of

which the client has knowledge.

< http :// api / item >; rel =" cre ate Ite m ";

typ e =" a ppl ica tio n / json ", me th od =" po st ">

Listing 1: Hypermedia link in HTTP response header.

4.4 Generation of Test Classes

The actual model is encapsulated behind the gener-

ation process, and therefore in order to run these test

cases out of the box, we have to combine the retrieved

data from the model crawling process with the func-

tionalities of the HTTP client and embed them in gen-

erated test classes. This can be done by a generator

producing test class ﬁles as shown in Figure 4. There

are three crucial elements that must be persisted in

a test class for an HTTP client to be able to run the

test cases: 1) List of paths that represents given pos-

itive test cases, 2) mappings between relation type

Automation of Integration Testing of RESTful Hypermedia Systems: A Model-driven Approach

409

and correct outgoing relation types which allow the

HTTP client to verify response after each request and

3) mappings between relation type and unpermitted

relation types which allow the HTTP client to per-

form negative testing. This information will be gener-

ated and initialized as hard-coded objects in each test

class.

Model Crawler

HTTP Client

Test Class

Generator

Test

Classes

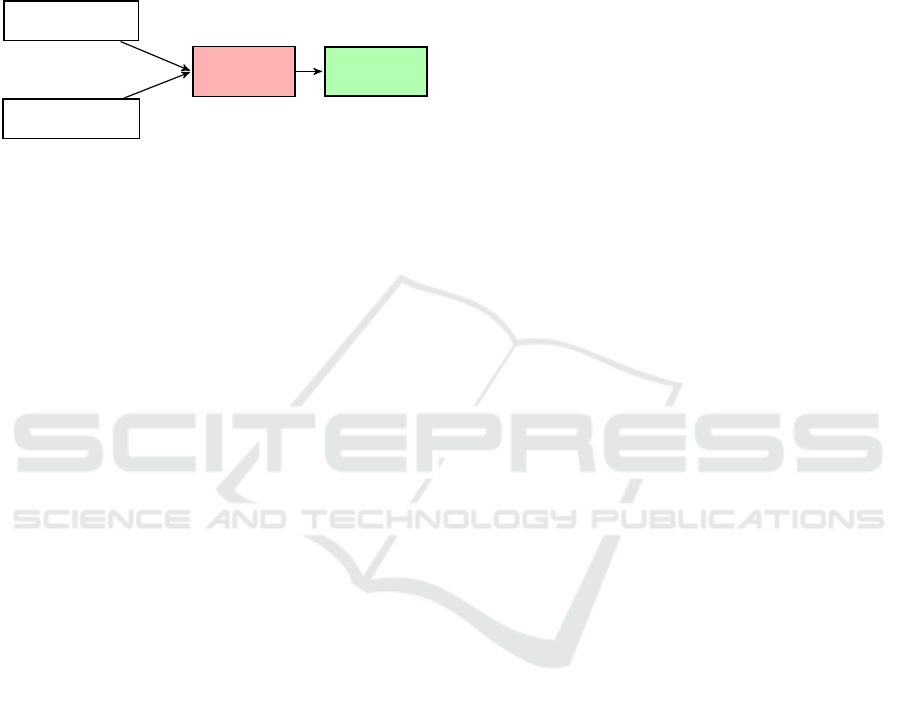

Figure 4: The model crawler and the HTTP client are re-

quired by the test class generator to create test classes.

5 CONCLUSION

The main goal of this paper is to automate integra-

tion testing with the focus on hypermedia testing us-

ing MDT.

To address RQ 1, we propose a model crawling

process to extract information from the model to build

appropriate test cases. These test cases must consider

role-based access of application states, hypermedia

response validation and negative testing. In order to

retrieve information for role-based access of applica-

tion states, we have developed an algorithm to derive

all possible test paths for each user role. According to

our assumption every task within a hypermedia sys-

tem must be reachable from the entry state, and there-

fore, a path must represent a distinct task. Our al-

gorithm is able to embody an user role to navigate

through the application workﬂow, visiting every tran-

sition and application state. As a result, it delivers a

set of distinct test paths for each user role. Validation

of application state responses requires mapping infor-

mation between relation type and role-based follow-

up relation types. We have achieved these mappings

by letting the model crawler loop through every ap-

plication state and map all incoming transitions of an

application state with permitted outgoing transitions

for each user role. Our model crawler also managed

to retrieve information for negative testing by map-

ping relation type to unpermitted relation types. Our

model also allows a straightforward approach towards

test data generation. This was achieved by generating

test data based on meta information of the resources

given by the input model.

Approaching RQ 2, we ﬁrst build an HTTP client

to verify hypermedia test cases. This HTTP client

must be able to authenticate as a pre-deﬁned user role,

send request to relation types and understand hyper-

media responses. We made use of an open source

Java HTTP client named OkHttp (Square, 2017b)

and added necessary features. These objectives were

accomplished with no further complication. After-

wards, we combine both information of role-based

test cases retrieved by the model crawler and func-

tionalities of the HTTP client to generate ready-to-run

test classes. For this purpose, we used an open source

library named JavaPoet (Square, 2017a) to handle

source code generation. As a result, we successfully

generated role-based test classes, including test paths,

validation mappings, negative testing, HTTP crawler

and all required imports.

In order to answer RQ 3, we must take several as-

pects of integration testing into consideration: By us-

ing the underlying model, we were able to generate

test classes to cover all possible tasks within the ex-

ample application workﬂow, assuring white-box hy-

permedia testing of the overall system. This would

be a time consuming task if implemented manually

because a) deriving all distinct role-based test paths

without an algorithm would be inconceivable, b) role-

based hypermedia testing is a repetitive task because

a developer has to write many similar test cases and

c) negative testing also requires enormous amount of

time when unpermitted actions have to be veriﬁed for

every application state. So far, we managed to gener-

ate positive test cases, by making valid requests with

valid data as inputs and checking whether the appli-

cation response as expected. These results are quite

satisfactory as our generated test cases could cover

all possible tasks within a application and verify role-

based responses of every application state. Never-

theless, the type of negative testing we were able to

accomplish within the scope of this work was send-

ing unauthorized requests by the HTTP client to the

server. There are many other possibilities to generate

different types of negative testing, such as applying

not allowed methods, trying to access a (sub-)resource

after deleting it or forcing the HTTP client to send

wrong resource representations. We can extend the

model crawler to extract more possible test cases to

achieve larger test coverage. These features only need

to be implemented once and test cases will be gener-

ated for free. We can strive to reveal more bugs or

as Dijkstra states in his article (Dijkstra, 1972): Test-

ing can only reveal the presence of bugs, but not their

absence.

Additionally, we should discuss more about how

the application should behave in case of invalid re-

quests. As for the scope of this work, we only ex-

pect to see an appropriate response code. We have

also discussed a bit about whether the server should

APMDWE 2018 - 3rd International Special Session on Advanced practices in Model-Driven Web Engineering

410

send a client back to its previous state. However, this

approach would violate the stateless constraint. Al-

ways sending a client back to the start state would,

on the other hand, reduce the usability of the ap-

plication, forcing the user to repeat many unneces-

sary steps again, especially when the intended task is

nested deep within the application workﬂow. Further

research would be needed to clarify this matter.

REFERENCES

Amundsen, M. (2017). RESTful Web Clients - Enabling

Reuse Through Hypermedia. O’Reilly Media, Se-

bastopol.

Bloch, J. (2014). How to design a good API and why it mat-

ters. http://static.googleusercontent.com/media/ re-

search.google.com/en//pubs/archive/32713.pdf. Last

accessed on May 23, 2018.

Chakrabarti, S. and Kumar, P. (2009). Test-the-REST:

An approach to Testing RESTful web-services. In

Future Computing, Service Computation, Cognitive,

Adaptive, Content, Patterns, 2009. COMPUTATION-

WORLD ’09. Computation World:, pages 302–308.

Dijkstra, E. W. (1972). The humble programmer. Commun.

ACM, 15(10):859–866.

Fertig, T. and Braun, P. (2015). Model-driven Testing of

RESTful APIs. In Proceedings of the 24th Interna-

tional Conference on World Wide Web Companion,

WWW ’15 Companion, pages 1497–1502, Repub-

lic and Canton of Geneva, Switzerland. International

World Wide Web Conferences Steering Committee.

Fielding, R. (2000). REST: Architectural Styles and the De-

sign of Network-based Software Architectures. Doc-

toral dissertation, University of California, Irvine.

Fielding, R. (2008). REST APIs must be hyper-text

driven. http://roy.gbiv.com/untangled/2008/rest-apis-

must-be-hypertext-driven. Last accessed on May 23,

2018.

Fielding, R. T. (2013). WTF is a "REST endpoint". https://

twitter.com/ﬁelding/status/324448353180061696.

Last accessed on May 22, 2018.

Frankel, N. (2015). Integration Testing from the Trenches.

Leanpub.

González, C. A. and Cabot, J. (2014). Test data gener-

ation for model transformations combining partition

and constraint analysis. In Di Ruscio, D. and Varró,

D., editors, Theory and Practice of Model Transfor-

mations, pages 25–41, Cham. Springer International

Publishing.

Hernández, A. G. and García, M. N. M. (2010). A For-

mal Deﬁnition of RESTful Semantic Web Services.

In Proceedings of the First International Workshop on

RESTful Design, WS-REST ’10, pages 39–45, New

York, NY, USA. ACM.

Hopcroft, J. and Tarjan, R. (1973). Algorithm 447: Efﬁcient

algorithms for graph manipulation. Commun. ACM,

16(6):372–378.

Liggesmeyer, P. (2009). Software-Qualität - Testen,

Analysieren und Veriﬁzieren von Software. Springer

Science & Business Media, Berlin Heidelberg, 2. auﬂ.

edition.

Project, T. S. (2018). Selenium. https://www.selenium

hq.org/. Last accessed on May 24, 2018.

Richardson, L. (2009). The Maturity Heuristic.

https:// www.crummy.com/writing/speaking/2008-

QCon/act3.html. Last accessed on May 16, 2018.

Richardson, L., Amundsen, M., and Ruby, S. (2013). REST-

ful Web APIs. O’Reilly Media.

Schreibmann, V. and Braun, P. (2015). Model-Driven

Development of RESTful APIs. In Proceedings of

the 11th International Conference of Web Information

Systems and Technologies. INSTICC, SciTePress.

Square, I. (2017a). JavaPoet. https://github.com/square/

javapoet. Last accessed on May 23, 2018.

Square, I. (2017b). OkHttp. http://square.github.io/okhttp/.

Last accessed on May 23, 2018.

Taivalsaari, A. and Mikkonen, T. (2017). The Web as a

Software Platform: Ten Years Later. In Proceedings of

the 13th International Conference of Web Information

Systems and Technologies. INSTICC, SciTePress.

Vu, H., Fertig, T., and Braun, P. (2017). Towards model-

driven hypermedia testing for RESTful systems. In

WEBIST 2017 - Proceedings of the 13th International

Conference on Web Information Systems and Tech-

nologies.

Vu, H., Fertig, T., and Braun, P. (2018). Veriﬁcation of

hypermedia characteristic of restful ﬁnite-state ma-

chines. In Companion Proceedings of the The Web

Conference 2018, WWW ’18, pages 1881–1886, Re-

public and Canton of Geneva, Switzerland. Interna-

tional World Wide Web Conferences Steering Com-

mittee.

Webber, J., Parastatidis, S., and Robinson, I. (2010). REST

in Practice - Hypermedia and Systems Architecture.

"O’Reilly Media, Inc.", Sebastopol.

Wright, D. (2005). Finite State Machines. http://www4.

ncsu.edu/drwrigh3/docs/courses/csc216/fsm-

notes.pdf. Last accessed on May 16, 2018.

Zuzak, I., Budiselic, I., and Delac, G. (2011). Web Engi-

neering: 11th International Conference, ICWE 2011,

Paphos, Cyprus, June 20-24, 2011, chapter Formal

Modeling of RESTful Systems Using Finite-State Ma-

chines, pages 346–360. Springer Berlin Heidelberg.

Automation of Integration Testing of RESTful Hypermedia Systems: A Model-driven Approach

411
