Cracking KD-Tree: The First Multidimensional Adaptive Indexing

(Position Paper)

Pedro Holanda

, Matheus Nerone

, Eduardo C. de Almeida

and Stefan Manegold

CWI, Amsterdam, The Netherlands

UFPR, Curitiba, Brazil

Keywords:

Multidimensional Range Queries, Database Cracking, Adaptive Indexing, KD-Tree.

Abstract:

Workload-aware physical data access structures are crucial to achieve short response time with (exploratory)

data analysis tasks as commonly required for Big Data and Data Science applications. Recently proposed

techniques such as automatic index advisers (for a priori known static workloads) and query-driven adaptive

incremental indexing (for a priori unknown dynamic workloads) form the state-of-the-art to build single-

dimensional indexes for single-attribute query predicates. However, similar techniques for more demanding

multi-attribute query predicates, which are vital for any data analysis task, have not been proposed, yet. In

this paper, we present our on-going work on a new set of workload-adaptive indexing techniques that focus

on creating multidimensional indexes. We present our proof-of-concept, the Cracking KD-Tree, an adaptive

indexing approach that generates a KD-Tree based on multidimensional range query predicates. It works by

incrementally creating partial multidimensional indexes as a by-product of query processing. The indexes are

produced only on those parts of the data that are accessed, and their creation cost is effectively distributed

across a stream of queries. Experimental results show that the Cracking KD-Tree is three times faster than

creating a full KD-Tree, one order of magnitude faster than executing full scans and two orders of magnitude

faster than using uni-dimensional full or adaptive indexes on multiple columns.

1 INTRODUCTION

Multidimensional range queries (MDRQ) are queries

that select intervals in two or more dimensions of a

multidimensional search space (e.g., a query that se-

arches every person between thirty and ﬁfty years old

and that earns between 100 and 200 thousand dollars

per year). They are very common in OLAP environ-

ments (Ho et al., 1997) and have many exploratory

applications, like: sensor data (Li et al., 2003), ge-

ographic information systems (Alvanaki et al., 2015)

and genomics (Li, 2011). Many benchmarks are com-

posed of at least one MDRQ. For instance, out of

the 22 TPC-H (Poess and Stephens, 2004) benchmark

queries, 6 are MDRQ.

In order to boost MDRQ, many multidimensional

index (MDI) structures have been proposed. For in-

stance: the KD-Tree (Bentley, 1975), R-Tree (Gutt-

man, 1984) and the vector approximation ﬁle (Weber

et al., 1998). They index multiple dimensions in a sin-

gle data structure, avoiding the need of scanning the

whole searched dimensional space. However, these

structures have a high up-front creation and mainte-

nance cost, in terms of both computation time and

storage space. Selecting which MDI to create is one

difﬁcult decision that a database administrator (DBA)

must take since the trade-off between the speed-up

of subsequent queries and creation/maintenance costs

must be carefully analyzed (Comer, 1978).

Self-tuning tools (Bruno, 2011) try to alleviate

this problem by automatically selecting the indexes

through a what-if architecture that tricks the query

optimizer into guessing the indexes costs. However,

they only consider uni-dimensional indexes in order

to prune the subset of indexes to be created. They are

also not a good ﬁt for exploratory data analysis where

the workload is unpredictable and where there is no

idle time to invest in a priori index creation.

Adaptive indexing techniques, such as database

cracking (Idreos et al., 2007), attempt to solve the in-

dex selection problem for exploratory data analysis

workloads by presenting an adaptive partial indexing

approach for relational databases. It works by buil-

ding a partial index as a co-product of query proces-

sing. An index is initiated the ﬁrst time an attribute is

queried, and then continuously reﬁned as subsequent

Holanda, P., Nerone, M., Almeida, E. and Manegold, S.

Cracking KD-Tree: The First Multidimensional Adaptive Indexing (Position Paper).

DOI: 10.5220/0006944203930399

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 393-399

ISBN: 978-989-758-318-6

393

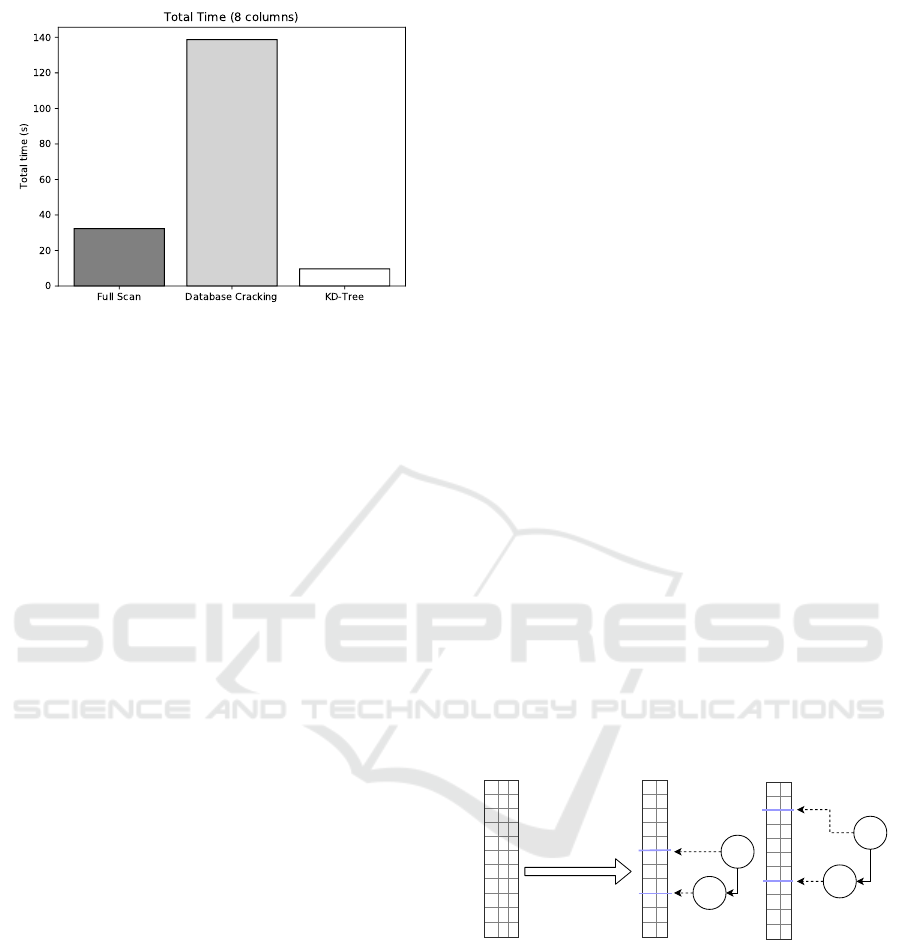

Figure 1: Total Time for multidimensional range queries in

8 Columns.

queries are executed. In this way, the cost of creating

an index is distributed over a stream of queries. Ho-

wever, database cracking and its variations are desig-

ned to generate uni-dimensional indexes, only. Since

each attribute is indexed separately from the others, to

execute an MDRQ it is necessary to look up the indi-

vidual indexes for each dimension and intersect their

results. The latter can be an expensive task, given that

the individual intermediate results can be much larger

than the ﬁnal result, and because index lookups yield

the matching tuple IDs (or bit-vectors) in different or-

der.

Figure 1 depicts the total cost for a query stream of

1000 MDRQs, with 20% selectivity per attribute, over

an 8-dimensional data set of 10

elements. We use

eight instances of database cracking, one per each co-

lumn. The high costs of intersecting the individual in-

termediate results of different columns turn the unidi-

mensional indexing solutions unﬁt for querying mul-

tidimensional data. Database cracking costs’ surpass

the cost of a full scan and is one order of magnitude

slower than a full multidimensional index.

Covering indexes (Zhang, 2009) or side-ways

cracking (Idreos et al., 2009) avoid the intersection

of per-column intermediate results by keeping all re-

maining dimensions aligned with the leading index

dimension. However, this comes at the expense of

having index-support only for one leading dimension,

while the remaining dimensions need to be scanned.

In case the selectivity per dimension varies strongly

across queries, multiple ”wide” indexes would need

to be built and maintained to suit all queries optimally.

To address these needs we propose a novel appro-

ach for indexing multidimensional data: Multidimen-

sional Adaptive Indexing (MDAI). It works by exten-

ding adaptive indexing in order to produce an MDI as

a side-effect of query processing. In this paper, we

describe our ongoing work on MDAI and present the

Cracking KD-Tree as the ﬁrst MDAI that generates a

KD-Tree in an adaptive fashion.

Paper Structure. The rest of this paper is structu-

red as follows. Section 2 provides an overview of re-

lated work. Then, Section 3, describes multidimen-

sional adaptive indexing. Section 4 presents a brief

proof of concept and experimental analysis. Finally,

in Section 5, we present our conclusions and discuss

future steps.

2 RELATED WORK

In this section, we present the state of the art on auto-

matic physical database design and MDI structures.

2.1 Automatic Physical Tuning

Self-Tuning Tools (Chaudhuri and Narasayya, 1997;

Agrawal et al., 2000; Valentin et al., 2000) attempt

to solve the index selection problem by automatically

recommending a set of indexes to optimize a known

workload of the system. They work by selecting a

relevant workload, generating a set of indexes that

might be beneﬁcial for it and running them through

the What-If architecture (Chaudhuri and Narasayya,

1998) in order to check if the indexes should be crea-

ted. However, these systems depend on previous wor-

kload knowledge, are only able to create full indexes

and only consider uni-dimensional indexes in order to

prune the index search space. Therefore, they are not

suitable for exploratory systems with MDRQ.

ID X Y

1 4 5

2 3 6

3 2 7

4 1 8

5 0 9

6 9 0

7 8 1

8 7 2

9 6 3

10 5 4

Index on X

ID X

5 0

2 3

3 2

4 1

1 4

10 5

9 6

8 7

7 8

6 9

ID Y

6 0

7 1

8 2

9 3

10 4

1 5

2 6

3 7

4 8

5 9

4 <= X < 7 AND

1 <= Y < 6

Index on Y

Figure 2: Database cracking with two dimensional range

query.

Adaptive Indexing (Schuhknecht et al., 2013) is an

alternative to the self-tuning tools. It is especially

useful in scenarios where the workload is unpredic-

table and there is no idle time to invest in index

creation. It tackles these problems by creating in-

dexes that are workload dependent in an incremen-

tal fashion. Figure 2 depicts an example of database

cracking (Idreos et al., 2007) answering a multidi-

mensional range query. The query starts by trigge-

ring the creation of the cracker column (i.e., initially

a copy of column X) where the tuples are clustered

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

394

in three pieces reﬂecting the range predicate on co-

lumn X. The result is then retrieved as a view on the

piece between 4 and 7. Column Y is treated in a simi-

lar way, using predicate boundaries 1 and 6. Finally,

both views need to be intersected by their id column

in order to retrieve the overall result.

Multiple issues with database cracking have been

identiﬁed and resulted in different research paths,

such as poor convergence towards a full index (Gra-

efe and Kuno, 2010; Idreos et al., 2011), inefﬁcient

tuple reconstruction (Idreos et al., 2009), unpredicta-

ble performance (Halim et al., 2012), inefﬁcient upda-

tes (Holanda and de Almeida, 2017). More recently a

generic algorithm for adaptive indexing, the adaptive

adaptive indexing (Schuhknecht et al., 2018) was pro-

posed to unify all algorithms in one, where previous

data access paths can be mimicked by setting different

properties.

To the best of our knowledge, all existing adaptive

indexing techniques focus on creating only single-

dimensional indexes, and are thus not suited to efﬁ-

ciently and effectively deal with MDRQs.

2.2 Multidimensional Index Structures

MDI structures can be exploited to accelerate

MDRQs by avoiding the intersection cost necessary

with uni-dimensional indexes and scans. Sprenger et

al. (Sprenger et al., 2018) select three different mul-

tidimensional index structures considered to be the

state-of-the-art for querying multidimensional data.

In the following, we present a brief description of

these three techniques.

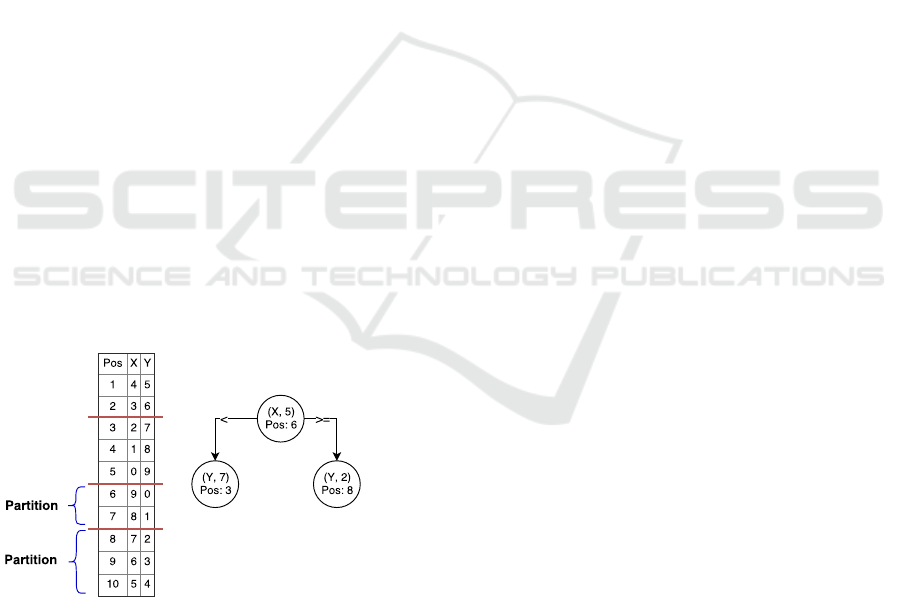

Figure 3: KD-Tree indexing two dimensions.

KD-Tree (Bentley, 1975). It is a generalization of

a binary search tree to multidimensional data. Every

node of a KD-Tree holds a key, a discriminator co-

lumn and, at most, two pointers for its children. The

traditional method is using the median of each column

to split the data horizontally. Every level of the tree is

focused in one speciﬁc dimension chosen in a round-

robin fashion. Figure 3 depicts a KD-Tree that in-

dexes the dimensions X and Y. The root indexes the

dimension X in its median value 5. The next level in-

dexes the next dimension Y in the medians of the new

pieces deﬁned by X. 7 when X < 5 and 2 otherwise. A

query that requests the ranges X > 5 and 2 < Y < 10

would transverse the tree until reaching node (Y, 2)

and would scan the column partition from position 8

until its end.

R-Tree (Guttman, 1984). Similar to B+-Trees, they

store data in the leaves. However, they use the inner

nodes to hold information in minimum bounding rec-

tangles. Lookup starts at the root and traverses the

tree to the leaves intersecting the query with the mi-

nimum bounding rectangles to determine which sub-

trees may have the searched data, and pruning the re-

maining subtrees.

VA File (Weber et al., 1998). It partitions the

data space into rectangular cells that generate a bit-

encoded approximation of points. Dividing a k di-

mensional space into 2

rectangular cells. Where b is

the number of bits used for approximation.

3 MULTIDIMENSIONAL

ADAPTIVE INDEXING

The previous section gave us the necessary motivation

for MDAI. (1) Selecting which MDI to create in an

unpredictable environment is a hard task, (2) a priori

index creation requires idle time that is not available

in exploratory scenarios, (3) although adaptive index-

ing techniques aim to alleviate problems (1) and (2)

they only produce uni-dimensional indexes. Hence,

they are not suited to boost MDRQ.

We propose MDAI as a new technique that brings

adaptivity to multidimensional indexes. MDAI is de-

signed to produce an MDI while taking advantage of

the lightweight adaptive properties from adaptive in-

dexing. We believe that the following modiﬁcations

from adaptive indexing must be taken: (1) We group

all columns that are queried with range predicates

together, maintaining the tuple alignment, and copy

them to a table, that we call cracker table, (2) when

swapping elements based on a pivot, we swap the en-

tire row of our cracker table, instead of column ele-

ments and (3) we use an MDI structure to keep track

of the cracker table pieces.

Figure 4 depicts how MDAI works. Consider an

unindexed table, a query Q

that queries ranges from

columns C

to C

, where 1 < n ≤ d, d being the max-

imum number of dimensions of the multidimensional

space. Q

triggers the ﬁrst phase of MDAI, by cre-

ating a cracker table with all the columns aligned by

an explicit id. After the cracker table is created the

Cracking KD-Tree: The First Multidimensional Adaptive Indexing (Position Paper)

395

Id …C

SELECT *

FROM …

WHERE

AND … AND

< C

< H

Id … C

…

Create

Tabl e

…

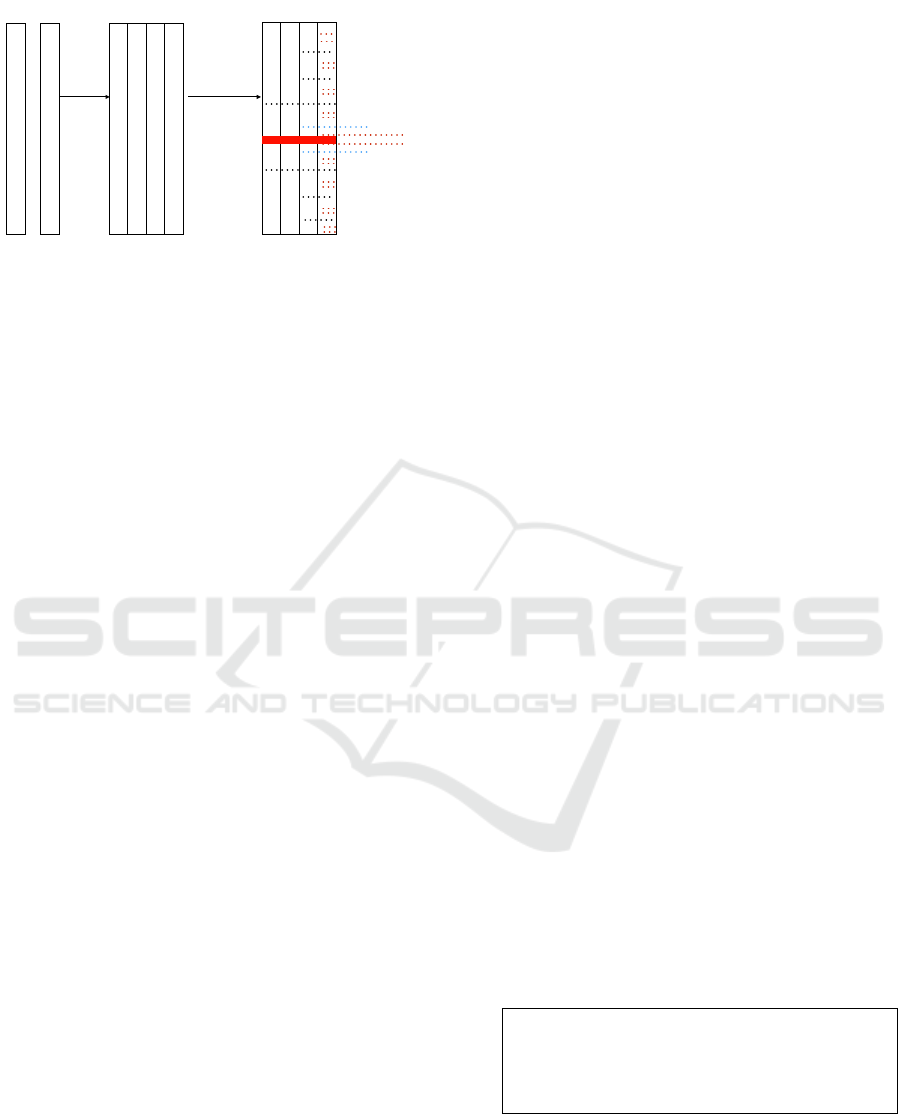

Figure 4: Multidimensional Adaptive Indexing.

cracking phase starts. Each range predicate will be

executed sequentially from their order in the query

(i.e., in this case from C

to C

). At the end of the

cracking phase, we simply need to do a lookup in our

cracking index and retrieve a view, marked in red, that

answers our query.

3.1 Cracking KD-Tree

In this section we describe the Cracking KD-Tree, the

ﬁrst MDAI algorithm. It implements all the modiﬁca-

tions of an MDAI and produces a KD-Tree as index.

Cracking. The major difference between the

Cracking KD-Tree and a regular KD-Tree is how

they are built. The regular KD-Tree is constructed

based on the medians of each column, whereas the

Cracking KD-Tree is constructed based on incoming

MDRQs. Given an MDRQ, for example x

≤ X <

AND y

≤ Y < y

, we iterate over the (column,key)

pairs that represent the individual predicate terms,

e.g. (X, x

), (X,x

), (Y, y

), and use them to

successively grow and reﬁne the index. It is impor-

tant to notice that one pair can be inserted in multi-

ple locations and that the levels in the Cracking KD-

Tree are not dimension speciﬁc as opposed to the re-

gular KD-Tree. We also implemented a minimal par-

tition size (i.e., L2 cache size) in order to avoid non-

proportionally increased index maintenance overhead

and unnecessary random access that would result

from too many too small partitions.

Lookup. A lookup in the Cracking KD-Tree con-

sists of comparing the current node key with the gi-

ven range. For example, given a key x and a range

≤ X < x

, there are three possible outcomes:

1. x ≤ x

: the result of the query is on the right of the

key.

2. x

≤ x: the result of the query is on the left of the

key.

3. x ∈ [x

, x

]:the result of the query is on both sides.

Figure 5 depicts a bi-dimensional example of the

Cracking KD-Tree. In this example, Figure 5(a) re-

presents the uncracked cracker table. Query Q

starts

by triggering the ﬁrst cracking iteration on column X

using its lower predicate boundary 4. After swap-

ping the elements of X around 4 the Cracking KD-

Tree root node is inserted. It holds the information

regarding the cracked column, the pivot value and the

table position, depicted in Figure 5(b). The second

cracking iteration is then started and we continue to

crack the column X. However, we now crack it using

its upper predicate boundary 7, creating a child node

to the root, depicted in Figure 2(c). Finally, the last

cracking iteration starts, now on column Y. Since the

root node and its child do not give us any informa-

tion about Y we must follow all possible paths, and

crack Y on 1 in all existing pieces, resulting in Fi-

gure 5(d). After the cracking phase is ﬁnished, we

perform a lookup operation at the index. Starting

from the root of the tree, we can see that its key 4

is equal to the inclusive lower predicate boundary of

4 ≤ R.X < 7. This means that need to descend to the

right child of the root node. There, we see that its key

7 is equal to the exclusive upper predicate boundary of

4 ≤ R.X < 6, which leads us to its left child. Finally,

the leaf with key 1 is equal to the inclusive lower pre-

dicate boundary of 1 ≤ R.Y . Hence, we can return the

tuples in positions 6 and 7 of the cracker table, shaded

in red in Figure 5(d), as the query answer.

4 EXPERIMENTS

In this section, we present a brief experimental ana-

lysis to demonstrate the strong potential beneﬁts of

MDAI.

Setup. We implemented the Cracking KD-Tree in a

single-threaded stand-alone program written in C++

and compiled with GNU g++ version 7.3.1 using op-

timization level -O3. All experiments were conducted

on a machine equipped with 256 GB of main memory

and two 2.6 GHz Intel Xeon E5-2650 v2 CPUs, each

with 20 MB L3 cache, 8 cores and hyper-threading

enabled, running Fedora 26.

1 SELECT COUNT(R.C1)

2 FROM R

3 WHERE LowC1 < R.C1 < HighC1 AND ...

4 AND LowCn < R.Cn < HighCn

Listing 1: Query form used on experiments.

Our data set consists of a table with 8 8-byte inte-

ger attributes holding 10

tuples. The values per attri-

bute are independently uniformly distributed.

All queries are of the form depicted in Listing 1.

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

396

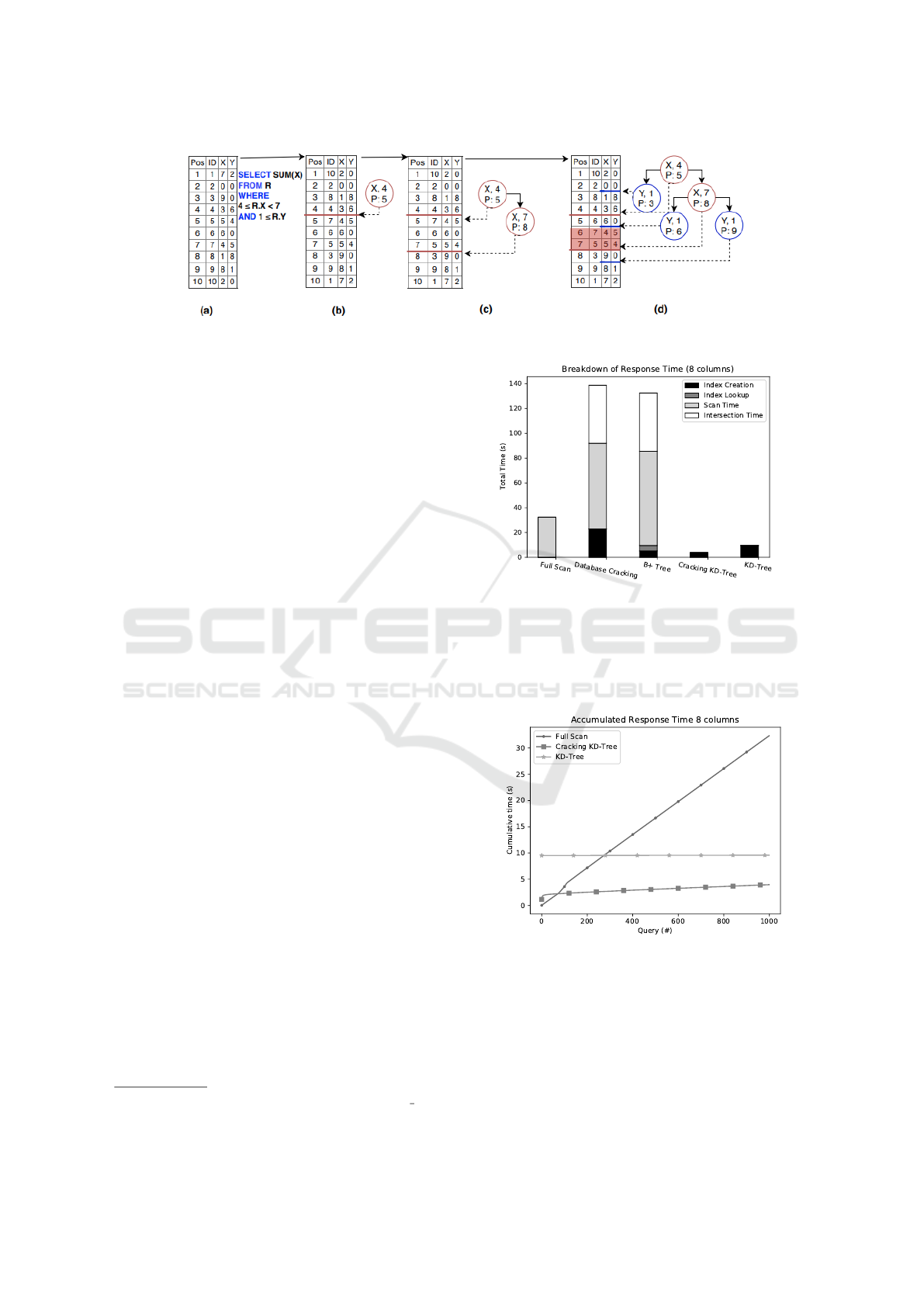

Figure 5: Cracking KD-Tree.

Where n is the number of dimensions queried. All the

queries have selectivity equal to 0.2 per column, one

might notice that the total selectivity of the queries in

the query stream will vary since the query predicates

are selected in a random pattern. We repeat the entire

workload 10 times and take the average runtime of

each query as the reported time.

We implemented four different algorithms to com-

pare with our Cracking KD-Tree.

Full Scan. We use a vectorized, predicated scan ap-

proach (Boncz et al., 2005) that produces a candidate

list per scanned vector of a column. The vector size is

in accordance to the L2 cache size.

Standard Cracking AVL. Each column goes through

the process of database cracking separately. After-

wards, the results are intersected by the creation of

bit-vectors

Full Index B+ Tree. Each column is indexed using

a B+ Tree created before running the workload. To

answer the queries, we do a lookup in each column

and intersect the results with bit-vectors.

Full Index KD-Tree. All columns are indexed using

a KD-Tree pivoting by median values and choosing

the dimensions in a round robin fashion. In order

to ﬁnd the medians, we use a quick-sort variant that

instead of ordering a column, stops execution when

ﬁnding its median value. The query result is then gi-

ven by a lookup in the KD-Tree.

Figure 6 depict the breakdown of accumulated re-

sponse time for all algorithms. We can see that both

uni-dimensional indexes have a similar cost, around

140 seconds in total, mainly due to the time spent

in scanning, creating and intersecting the interme-

diate results with the bit-vectors. The full scan is

four times cheaper than building, traversing and in-

tersecting multiple uni-dimensional indexes to answer

the query. The KD-Tree achieves a three times better

response time than the full scan, with index creation

being its highest cost. This issue is mitigated by the

Cracking KD-Tree that efﬁciently spreads it throug-

We use the standard c++ library: boost::dynamic bitset

to generate the bit-vectors

Figure 6: Total response time breakdown of workload with

8 columns.

hout the query stream. However, the index creation

cost still takes a considerable chunk of time on the

Cracking KD-Tree mainly due to the relaxation of the

one dimension per level restriction of the KD-Tree.

Figure 7: Cumulative response time for 8 columns.

Figure 7 depict the cumulative response time for

the full scan and both KD-Trees. The full scan has a

linear cost, presenting about the same cost for every

scan. The Full KD-Tree has the highest initial cost

due to its a priori creation, costing two orders of

magnitude more than a full scan, but all subsequent

queries have low additional costs, taking around 280

queries for this initial investment to pay off. The

Cracking KD-Tree: The First Multidimensional Adaptive Indexing (Position Paper)

397

Cracking KD-Tree’s ﬁrst query cost is one order of

magnitude higher than a full scan, and it quickly con-

verges towards a full index speed, presenting a lower

response time than a full scan around query 7, and

only needing 70 queries for its creation investment to

pay off.

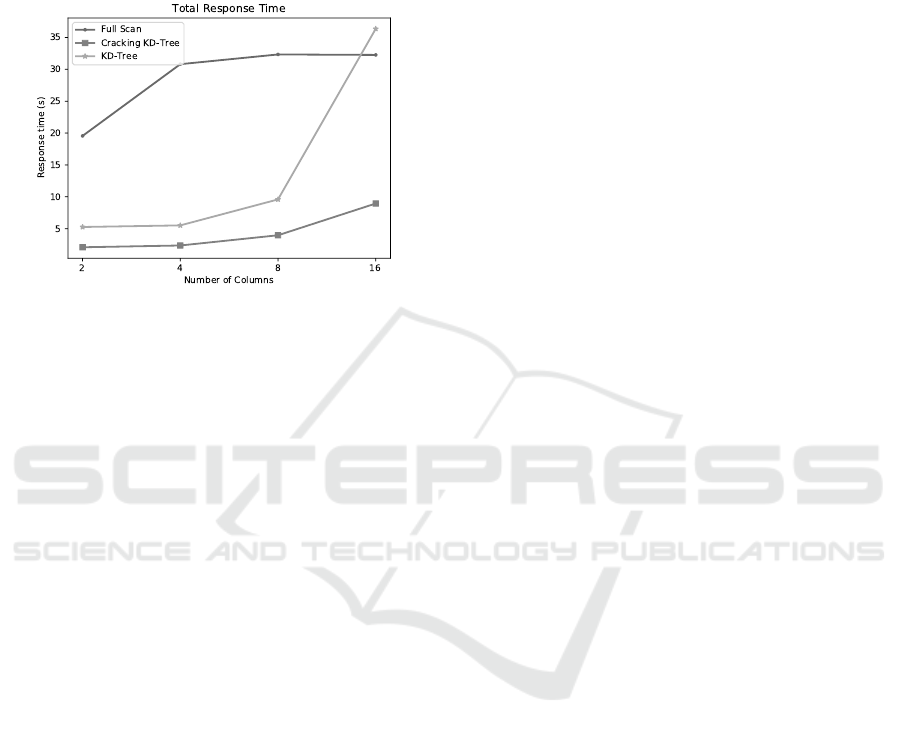

Figure 8: Total time for multiple columns.

Figure 8 depicts the total time for running our

query stream under a different number of dimensi-

ons. Since we maintain the same selectivity per co-

lumn (i.e., 0,2%), for 16 columns our query results

are all empty. We can see that the full scan increa-

ses its total time dependent on the intermediate result

size due to the use of candidate lists. Since the overall

selectivity of the queries decreases when we increase

the number of dimensions the full scan can maintain

good scalability after four dimensions. The Full KD-

Tree depends mostly on time spent creating the index,

so its cost grows exponentially when we increase the

number of columns. The Cracking KD-Tree presents

better scalability when compared to a Full KD-tree

due to its lazy nature.

5 CONCLUSION & FUTURE

WORK

MDAI introduces new aspects that were unexplored

by adaptive indexing and that require further investi-

gation. We describe the following as the aspects that

shall be explored as our next steps in this research:

• Related Work Optimizations. In our proof-of-

concept, we always use one uni-dimensional in-

dex per column and later intersect their interme-

diate results using bit-vectors. However, we can

also use a covering index which might be more

competitive than the current approach. Anot-

her possibility would be to map the n-dimensions

to one dimension by using Z-Ordering (Ramsak

et al., 2000) and indexing it.

• Cracking KD-Tree. The Cracking KD-Tree pre-

sented in this work produces multiple dimensions

in the same level by constructing it using the order

of range predicates presented in the query. Other

design choices can be made, as ignoring parts of

the predicates to preserve the dimensions per le-

vel, or completely ignoring the query predicates

and select the pivot points by calculating the me-

dians, one for each predicate.

• Adapting other MDI. Other data structures are

also good candidates to MDAI when increasing

the number of dimensions. For instance, Vantage-

point Tree, Ball-trees and M-Tree (Liu et al.,

2006), and Locality Sensitive Hashing (Andoni,

2009) present similar searching properties to KD-

Trees, although their structure demand heavier

storage space compared to the KD-Tree increa-

sing the runtime for maintenance.

• Benchmarks: Our experimental evaluation is li-

mited by only using uniformly random distributi-

ons for the data and a ﬁxed selectivity for the que-

ries. Other distributions and selectivities must be

explored. Real-world multidimensional data and

workloads should also be tested (e.g., the genomic

multidimensional range query benchmark (Spren-

ger et al., 2018)).

• Machine Learning. In-database Machine Lear-

ning is a trend and KD-Trees are broadly used for

approximate nearest neighbor (k-NN) search: gi-

ven a labeled object, ﬁnd the most similar labe-

led object. Applications of the k-NN search, in-

clude, text categorization, searching image data-

bases, ﬁnding duplicate records. Our agenda in-

cludes studying the impact of our Cracking KD-

Tree to save search time at little cost in quality of

the nearest neighbor in some of these applications.

ACKNOWLEDGMENTS

This work was funded by the Netherlands Organi-

sation for Scientiﬁc Research (NWO), project “Data

Mining on High-Volume Simulation Output” (Ho-

landa) and by CAPES Brazil.

REFERENCES

Agrawal, S., Chaudhuri, S., and Narasayya, V. R. (2000).

Automated Selection of Materialized Views and In-

dexes in SQL Databases. In VLDB, pages 496–505.

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

398

Alvanaki, F., Goncalves, R., Ivanova, M., Kersten, M., and

Kyzirakos, K. (2015). Gis navigation boosted by co-

lumn stores. PVLDB, 8(12):1956–1959.

Andoni, A. (2009). NN search : the old, the new, and

the impossible. PhD thesis, Massachusetts Institute

of Technology, Cambridge, MA, USA.

Bentley, J. L. (1975). Multidimensional binary search trees

used for associative searching. Communications of the

ACM, 18(9):509–517.

Boncz, P. A., Zukowski, M., and Nes, N. (2005). Monetd-

b/x100: Hyper-pipelining query execution. In CIDR,

volume 5, pages 225–237.

Bruno, N. (2011). Automated Physical Database Design

and Tunning. CRC-Press.

Chaudhuri, S. and Narasayya, V. (1998). AutoAdmin

“What-if” Index Analysis Utility. SIGMOD Record,

27(2):367–378.

Chaudhuri, S. and Narasayya, V. R. (1997). An Efﬁcient,

Cost-Driven Index Selection Tool for Microsoft SQL

Server. In VLDB, volume 97, pages 146–155.

Comer, D. (1978). The Difﬁculty of Optimum Index Se-

lection. TODS, 3(4):440–445.

Graefe, G. and Kuno, H. (2010). Self-selecting, self-tuning,

incrementally optimized indexes. In EDBT, pages

371–381. ACM.

Guttman, A. (1984). R-trees: A dynamic index structure for

spatial searching. In SIGMOD, pages 47–57.

Halim, F., Idreos, S., Karras, P., and Yap, R. H. (2012). Sto-

chastic Database Cracking: Towards Robust Adaptive

Indexing in Main-Memory Column-Stores. VLDB,

5(6):502–513.

Ho, C.-T., Agrawal, R., Megiddo, N., and Srikant, R.

(1997). Range queries in OLAP data cubes. In SIG-

MOD, volume 26, pages 73–88.

Holanda, P. and de Almeida, E. C. (2017). SPST-Index: A

Self-Pruning Splay Tree Index for Caching Database

Cracking. In EDBT, pages 458–461.

Idreos, S., Kersten, M. L., and Manegold, S. (2009). Self-

organizing Tuple Reconstruction in Column-stores.

SIGMOD, pages 297–308.

Idreos, S., Kersten, M. L., Manegold, S., et al. (2007). Da-

tabase Cracking. In CIDR, volume 3, pages 1–8.

Idreos, S., Manegold, S., Kuno, H., and Graefe, G. (2011).

Merging What’s Cracked, Cracking What’s Merged:

Adaptive Indexing in Main-Memory Column-Stores.

VLDB, 4(9):586–597.

Li, H. (2011). Tabix: fast retrieval of sequence featu-

res from generic tab-delimited ﬁles. Bioinformatics,

27(5):718–719.

Li, X., Kim, Y. J., Govindan, R., and Hong, W. (2003).

Multi-dimensional range queries in sensor networks.

In SenSys, pages 63–75.

Liu, T., Moore, A. W., and Gray, A. G. (2006). New algo-

rithms for efﬁcient high-dimensional nonparametric

classiﬁcation. Journal of Machine Learning Research,

7:1135–1158.

Poess, M. and Stephens, Jr., J. M. (2004). Generating thou-

sand benchmark queries in seconds. In VLDB, pages

1045–1053.

Ramsak, F., Markl, V., Fenk, R., Zirkel, M., Elhardt, K.,

and Bayer, R. (2000). Integrating the ub-tree into a

database system kernel. In VLDB, volume 2000, pages

263–272.

Schuhknecht, F. M., Dittrich, J., and Linden, L. (2018).

Adaptive adaptive indexing. ICDE.

Schuhknecht, F. M., Jindal, A., and Dittrich, J. (2013).

The Uncracked Pieces in Database Cracking. PVLDB,

7(2):97–108.

Sprenger, S., Sch

afer, P., and Leser, U. (2018). Multidi-

mensional range queries on modern hardware. arXiv

preprint arXiv:1801.03644.

Valentin, G., Zuliani, M., Zilio, D. C., Lohman, G., and

Skelley, A. (2000). DB2 Advisor: An Optimizer

Smart Enough to Recommend Its Own Indexes. In

ICDE, pages 101–110.

Weber, R., Schek, H.-J., and Blott, S. (1998). A quantitative

analysis and performance study for similarity-search

methods in high-dimensional spaces. In VLDB, vo-

lume 98, pages 194–205.

Zhang, D. (2009). Covering index. In Liu, L. and

Ozsu,

M. T., editors, Encyclopedia of Database Systems, pa-

ges 516–517. Springer US.

Cracking KD-Tree: The First Multidimensional Adaptive Indexing (Position Paper)

399
