Dynamic Key Distribution for Secure Group Communications

in Constrained Environments

Tobias Guggemos

MNM-Team, Ludwig-Maximilians-Universit

at M

unchen, Munich, Germany

Abstract

Group communication – especially in form of multi-

cast – is a famous communication pattern in constrai-

ned networks, e.g. in the Internet of Things (IoT), Wi-

reless Sensor Networks (WSN) or Device to Device

(D2D) communication. However, it comes with man-

datory management overhead during the life-cycle of

a group, which is usually favored due to the potential

energy savings ones the connection is set up. The ma-

nagement paradigm worsens, if the connection within

and the management of the group has to be secure and

in turn requires security management. Security and

cryptography, however, need special attention when

used in constrained environments. The proposed the-

sis will connect group management, group commu-

nication and security management and apply them to

constrained environments.

INTRODUCTION MOTIVATION

Group communication has been discussed for deca-

des, mostly within computer networking and social

messengers. Nowadays, most smartphone messen-

gers offer the formation of groups in order to achieve

discussion of several people on a certain topic or in-

terest. Groups have members and administrators, the

communication itself is a 1:n communication pattern,

where one device is sending data to a group of recei-

vers, the so called multicast. In classical computer

networks, multicast is mostly used for streaming ap-

plications. Clients subscribe to and the server sends

data to a speciﬁc multicast address while the network

takes care of the distribution.

Other forms of group communication are the n:1

communication pattern, where a group of people

sends data to single receiver(s) outside the group.

A common example for this pattern are receiver

initiated MAC protocols (Sun et al., 2008). The

speciﬁcation of n:m communication pattern is self-

explanatory, however, please note that 1:1 communi-

cation might be a valid form of group communication

as well.

Scenarios with networks of constrained devices

(like embedded systems) and network technologies

(like Internet of Things) can beneﬁt from dynamic

formation of communication groups. First, this form

of communication often saves bandwidth and in turn

energy, increasing the life time of battery driven devi-

ces. Second, the existence of a communication group

eases distribution of data as the interested receiver re-

gisters beforehand and does not have to be discovered

ad-hoc, examples being the distribution of control in-

formation (e.g. in Smart Homes/Cities), but also ﬁrm-

ware updates for a certain group of devices.

The goal of this PhD thesis is to beneﬁt from the

advantages of group communications in constrained

systems while preserving security. Thus, it will deve-

lop a system to evaluate the efﬁciency of secure group

communication and the inherent key management so-

lutions, covering the life-cycle of a communication

group. The methodology being used will present mo-

dels covering the key management during the diffe-

rent group management actions. The system will be

developed according to these models in order to ens-

ure its completeness and to produce reproducible re-

sults for the research community. Evaluated solutions

will either be optimized to achieve better efﬁciency

or shown impracticable for speciﬁc system or scena-

rio classiﬁcations. With this results at hand, recom-

mendation on scenario speciﬁc conﬁguration for key

management can be developed.

1 RESEARCH PROBLEM

A major difﬁculty of securing communication in con-

strained environments is the distribution of keys,

which is the main aspect of this thesis and mainly

touches the research areas of Security Management

(Section 1.4) and Cryptography (Section 1.5). In or-

der to understand the additional challenges for con-

strained group communication, there are three other

related research areas, which leads to the problem

Guggemos, T.

Dynamic Key Distribution for Secure Group Communications in Constrained Environments.

In Doctoral Consortium (DCETE 2018), pages 12-21

PhD

Thesis

1.2 Group

Communication

1.1 Constraints

1.5 Cryptography

1.4 Security

Management

1.3 Group

Management

Figure 1: Connected research areas and their relation

to the presented PhD thesis.

space in Figure 1. The ﬁgure highlights the expected

inﬂuence of each of the areas to this PhD thesis and

the following subsections will brieﬂy introduce each

of them.

1.1 Constrained Environments

The constraints considered are system limitation, in-

cluding device limitations (CPU, RAM, ROM) of the

used microcontroller and its attached hardware limita-

tions for power, and networking. Scenario limitation,

such as maximum execution time and minimum de-

vice lifetime are also considered.

1.1.1 System Limitations

System limitations are part of ongoing research

and standardization, resulting in the description of

RFC 7228 (Bormann et al., 2014) and its proposed

successor RFC 7228bis (Bormann et al., 2017). Both

documents deﬁne classes for the different aspects:

Device Classes currently range from Class 0 to

Class 19, although only up to Class 13 is of inte-

rest for this thesis (Class 14 - 19 classify smartp-

hones, desktop PCs and servers). The classiﬁca-

tion ranges from < 10KiB up to 1MiB of RAM

and < 100KiB up to 2MiB of Flash (Class 0-

Class 2) and increases toward Class 10 with about

4 − 8MiB of RAM up to Class 13 with 0.5 − 1GiB

of RAM without signiﬁcant limitation for Flash

memory.

Power Classes differentiate between the maximum

average power available during the lifetime (in

Watt) and the total electricity available until the

device runs out of energy (in Joule). Both require

different strategies in order to exploit the provided

power to the fullest.

For the available power, the RFCs deﬁne three

classes of devices, which are usually powered off

(Class P0), always on low power (Class P1) and

always on and connected (Class P9).

For the available energy, the RFCs deﬁne de-

vices being limited in the energy for a sin-

gle event (Class E0), limited for a speciﬁc pe-

riod (Class E1), limited for the whole lifetime

(Class E3) and not limited at all (Class E9).

Network classes mainly distinguish between the

available MTU size and the bit rate of the phy-

sical layer. Both factors are typical for but not

limited to wireless communication. Even though

the bit rate is important for choosing a suitable

network technology in a given scenario, the MTU

size turns out to be the major source of limitation.

It is the relevant factor for packet fragmentation,

which is avoided wherever possible. In constrai-

ned environments, where sending frames on the

physical layer is very expensive, packet compres-

sion turns out to be the weapon of choice (Kus-

halnagar et al., 2007). Sending an extra bit is as

energy consuming as 10-100 CPU cycles and sen-

ding an extra radio frame is even worse. In un-

constrained environments, fragmentation is usu-

ally tried to be avoided in order to preserve inter-

operability.

The network classes for MTU start from as low

as 3 − 12bytes (Class S0) and 12 − 127bytes

(Class S1), where compression is almost unavoi-

dable in order to prevent fragmentation. The clas-

ses continue from 128 − 1279bytes (Class S2) up

to >= 1280 (Class S3) where fragmentation turns

out to be negligible.

1.1.2 Scenario Limitations

Scenario limitations describe a set of systems with

a given set of system constraints having to meet mi-

nimum lifetime of a system or a maximum execution

time of one single task within the scenario.

minimum device lifetime. A scenario with a mini-

mum device lifetime, will highly affect the choice

of battery and the chosen energy strategy. This

may as well lead to a speciﬁc choice of net-

work technology, which on the other side could

be driven by the physical setting of the device

where only a certain low-power network techno-

logy might be available.

maximum execution time. A famous scenario

where maximum execution time applies, is the

Dynamic Key Distribution for Secure Group Communications in Constrained Environments

one of an industrial lightening system, where

thousands of light bulbs need to be turned on

within a certain time (e.g. 200 ms). In an extreme

case, this may change during the life-time of the

device which leads to an update of the energy

strategy.

Summary of Challenges:

I. device strategies for energy / time optimization

II. scenario strategies for energy / time optimization

III. network overhead needs to be reduced

IV. network technologies with very low MTU

1.2 Group Communication

Most of the examples for group communication have

in common that they favor some management ef-

fort in order to simplify the actual communica-

tion/distribution of data. This is, however, controver-

sial for typical trafﬁc in the internet, where manage-

ment tends to be more expensive, than data distribu-

tion. It happens that this makes group communication

a minority within today’s internet trafﬁc.

This cost paradigm changes in scenarios with con-

strained resources, where managing a communication

channel might cost much less money than sending

a technician to replace a device because it ran out

of battery, caused by too much trafﬁc. It is shown

in (Silva et al., 2008) that group communication in

form of multicast saves energy but also allows the mi-

nimization of the execution time as in the example for

an industrial lightening system. In that case, multicast

allows to send only one packet instead of thousands

and, thus, signiﬁcantly reduces the execution time of

the system.

With the arrival of IoT, these scenarios may

even distribute over different administrative domains

(e.g. connecting devices of two independent smart ho-

mes), further worsen the management overhead.

Summary of Challenges:

I. minimizing management of multicast

II. group communication within different adminis-

trative domains

1.3 Group Communication

Management

Misapplied, the management of a group channel

can pervert the advantages of group communication

and may even lead to higher energy consumption as

shown in (Djamaa et al., 2014). When connecting dif-

ferent administrative domains over a public network –

which is a common use case for IoT – this worsens as

it is impossible to ensure that every router in the pu-

blic network is capable or willing to forward multicast

packets. Several approaches, such as path discovery,

exist in order to overcome this issue but it leads to

bare acceptance of multicast in typical internet trafﬁc.

In wireless sensor networks (WSN) it is easier to

solve the routing issue, mainly because ad-hoc rou-

ting was a very widely discussed topic 10 years ago.

The movement resulted in several quasi-standard rou-

ting protocols for different scenarios, of which some

include MAC layer multicasting. However, when le-

aving the local domain of WSN, the management is-

sues demand the necessity of efﬁcient management

channels remains.

There are additional management issues, when

considering not only the communication, but also the

other phases of the life cycle of the group. Most com-

monly a group has four group relevant actions, being

create / delete group, member joining or leaving the

group, which needs to be performed and managed as

efﬁcient as possible in order not to overburden devices

or networks.

Summary of Challenges:

I. cover the whole group life cycle

II. efﬁcient management channels

1.4 Security Management

During the actual communication, the three security

properties of conﬁdentiality, integrity and authenticity

turn out to be most valuable. Although, all of them

can be solved by applying cryptographic functions,

there are many issues to be solved in order to apply

them in a secure and trustful manner. This is especi-

ally true for the management of cryptographic (group)

keys.

1.4.1 Group Key Management

Group Key Management (GKM) is highly driven by

the security aspects during the actual group commu-

nication:

I. Conﬁdentiality requires the parties to agree on a

symmetric encryption key, which is often done

with the Difﬁe-Hellman key exchange. Conﬁden-

tiality can also be ensured with asymmetric cryp-

tography, a technique which is often applied in e-

mail and mobile messenger communication. Ho-

wever, for group communication the distribution

DCETE 2018 - DCETE

of keys – let it be symmetric or asymmetric – is

a difﬁcult task to be solved. The most common

symmetric approach has a central key server (so-

metimes called trusted third party), which distri-

butes a key to the participants of the group. There

has been and there is still various research, in-

vestigating in more efﬁcient key distribution sche-

mes, such as logical key hierarchies (LKH). Ad-

ditionally, there are decentralized and distributed

key distribution approaches available, a recent one

has been proposed for mobile messaging (Omara

et al., 2018).

II. Integrity of messages is usually achieved by a

combination of a shared key and a message au-

thentication code (MAC), which is called Key-

Hashed MAC (HMAC). It comes with the same

challenges as conﬁdentiality for key distribution.

If an integrity key is shared by all members in

the group, a message can be altered by any group

member. This allows integrity within the group,

meaning that a receiver can ensure that the mes-

sage was not altered outside the group. Additio-

nal security can be applied by individual sender

keys, so that the message cannot be altered, even

by valid group members, and thus enabling sender

integrity.

III. Authenticity is achieved by asymmetric crypto-

graphic keys, as it offers the necessary fusion with

the sender’s identity – usually in form of certiﬁca-

tes. The difﬁculties lie in the longer size of asym-

metric keys and a trustful mapping between the

identity and public key.

1.4.2 Trust Management

Trust Management is a highly controversial topic, es-

pecially in the world of IoT where objects, which are

physically vulnerable are interconnected, and need to

be considered violated at any time. Yan et al. surveyed

trust management in this speciﬁc area and laid one

focus on the trust of the physical system (Yan et al.,

2014). Multiple ideas exist to enhance physical secu-

rity (e.g. Trusted Platform Modules), but the trust pro-

blem remains. However, this could be overcome with

techniques of trust management and dynamic access

control for a communication group. If trust can be

built before any of the mentioned group actions is per-

formed (join, leave, etc.), it can also be revoked within

the group if a member is compromised. This in turn

requires key management (see above), enabling revo-

cation of identities and their corresponding keys.

Additionally, trust requires access control to the

communication group, allowing restricting, granting

and revoking rights to speciﬁc members.

Summary of Challenges:

I. efﬁcient symmetric key distribution protocols

II. efﬁcient key hierarchies (symmetric and asymme-

tric)

III. efﬁcient public key infrastructure

IV. efﬁcient public key revocation

V. access management

VI. identity management

1.5 Constrained Device Cryptography

All constraints in Section 1.1 can have signiﬁcant and

independent impact to the maximum achievable level

of security. In combination they can even worsen the

security. The available RAM can signiﬁcantly reduce

the maximum length of keys for conﬁdentiality, inte-

grity and authenticity.

The choice of network technology or the form

of energy supply might be driven by the scenario

and cannot be altered signiﬁcantly. Imagine a sce-

nario with a minimum device lifetime of many ye-

ars and a very low-powered network link (e.g. LoRa

(see RFC 8376 (Farrell, 2018)) with 50 bytes MTU).

Applying strong authentication algorithm (e.g. RSA

on top of X.509 certiﬁcates) with unoptimized secure

protocols will result in high packet fragmentation ra-

tes and many frames on the physical link. As this is

usually the most energy-expensive task, it directly in-

ﬂuences the lifetime of the battery for energy supply

and, thus, the lifetime of the device.

Many encryption and integrity algorithms are sup-

ported by hardware acceleration (e.g. AES), but efﬁ-

cient authentication algorithms remain a difﬁcult task

on constrained devices. They not only require more

computation time, they also result in higher network

and management overhead (see previous subsection)

and tend to be more affected by the challenges rai-

sed by the potential arrival of quantum computers. A

very famous example for these challenges is the al-

gorithm of Shor (Shor, 1994), which will brake RSA

and ECDSA, the latter being very famous in constrai-

ned devices because of its efﬁciency and shorter key

lengths compared to RSA.

Summary of Challenges:

I. efﬁcient asymmetric cryptographic algorithms

II. minimized security protocols

III. Post Quantum Security

Dynamic Key Distribution for Secure Group Communications in Constrained Environments

2 OUTLINE OF OBJECTIVES

In order to achieve better efﬁciency when distributing

group keys in constrained environments, this thesis

will investigate 1.) efﬁcient security solutions for con-

strained devices, 2.) improving the key management

for group communication and ﬁnally 3.) building a

scalable and interoperable framework for distributing

group keys. Each of these goals will be brieﬂy discus-

sed in the following.

2.1 Evaluating Efﬁcient Security

Solutions

There is a variety of research for efﬁcient security so-

lutions, in particular in form of new asymmetric cryp-

tographic algorithms, network protocols and certiﬁ-

cate formats (including certiﬁcate revocation). This

work will not design yet another solution, but evalu-

ate the most promising solutions within the context

of constrained devices and group communication in

particular. This is of special importance, as many of

the solutions are not evaluated on current hardware

and state of the art network technologies, or not even

available as open source. The goal is a framework,

which can be used to evaluate existing and new solu-

tions with a special focus on their suitability in highly

dynamic environments.

An additional task will include the speciﬁc eva-

luation of algorithms proposed in the NIST call for

Post-Quantum Cryptography Standardization

2.2 Security Management

With the framework mentioned above, the work will

investigate in how to use existing security solutions

for efﬁcient distribution of symmetric or asymme-

tric keys, but also their revocation. Identities neces-

sary for authenticity, tend to be (asymmetric) crypto-

graphic keys, making this similar to certiﬁcate revo-

cation. However, instead of being used for frequent

communication within the group, it is used to achieve

trust within the group, leading to stronger require-

ments on its (physical) security.

The goal is to develop a metric for comparing dis-

tribution schemes for given scenarios.

2.3 Scalability and Interoperability

The last goal is to design and implement an architec-

ture, which is able to dynamically establish commu-

nication groups, ﬁtting deﬁned security requirements

https://csrc.nist.gov/projects/post-quantum-

cryptography

destroy

leave

communicate

join

create

availability

accountability

reliability

condentiality

integrity

authenticity

non-repudiation

static

stream

central GM

ad-hoc

static

dynamic

Group

Creation

life-cycle Security Properties

Membership

Behaviour

Security

Level

System / Scenario Properties

RAM

CPU

ROM

NET

Energy

Time

restrictions

requirements

Figure 2: Requirements for security management and

restriction, which are incorporated in the PhD thesis.

and evaluate the above goals. A special interest will

point on the scalability and interoperability, but also

on the level of distribution between different adminis-

trative domains. The solution should not be limited

to local or broadcast domains but should dynamically

scale over globally distributed domains.

2.4 Summary

The key aspects of this thesis, Security Management

and Cryptography, are inﬂuenced by certain require-

ments and restriction, as outlined in Figure 2. The red

line in the diagram marks the differentiation between

these two aspects.

Requirements. Above the red line, the diagram is

used to describe the requirements for a certain

scenario in order ﬁnd a viable solution for the as-

pects of security management. As already menti-

oned, groups underlay certain actions during their

life-cycle. The management of each of these pha-

ses depend on 1.) Group Creation and 2.) Mem-

bership Behavior, directly inﬂuencing the secu-

rity management. Additionally, the Security Pro-

perties describe which aspects of security need to

be considered during a certain phase of the group

management.

Restrictions. Below the red line the diagram is used

to describe the conditions, under which the re-

quirements have to be met. They mainly con-

sist of 1.) constraints of a certain scenario (see

Section 1.1) and 2.) the desired Security Level.

Constraints and Security are directly inﬂuencing

one another and describe which cryptographic

functions and keys can be used. Th constraints

and the required security level inﬂuence the pos-

sible / necessary options for key management pro-

tocols.

DCETE 2018 - DCETE

3 STATE OF THE ART

The work at hand proposes an infrastructure, allo-

wing for dynamic key management of communication

group. Especially in the area of IoT, this is a widely

discussed topic, but dynamic approaches are rare.

3.1 Group Management

Named Data Networks (NDN) (Shang et al., 2017)

is one such approach, abstracting the typical proto-

col stack (IP, TCP/UDP, DNS) and naming the data

instead of the systems generating or consuming the

data. It can be seen as a follow-up of the idea of In-

formation Centric Networking (ICN) (Ahlgren et al.,

2012) making the communication infrastructure more

robust against mobility of devices, changes of ad-

dresses (e.g. IP-address) or names (e.g. DNS-names).

Both offer dynamic formation of groups being inte-

rested in certain data / information, but the security

management behaves static during the setup of the de-

vices. Device-to-device (D2D) is another approach,

where the data is not routed over central services, but

through a decentralized network (e.g. border routers,

mobile access points, etc.). D2D offers a solution for

dynamic communication groups and efﬁcient networ-

king, but as outlined by (Haus et al., 2017) we have

yet to see suitable solutions for security management,

especially when talking about the constraints of some

of the devices.

3.2 Security Management

Group key distribution itself is an extensively studied

area and resulted in a couple of standardization acti-

vities. (Rafaeli and Hutchison, 2003) survey a set of

approaches for secure group key distribution (GKD).

According to their analysis, there are three different

types of GKDs: centralized, decentralized and distri-

buted GKD protocols. Most of them are rather Cryp-

tographic Key Schemes than networking protocols,

some of which are distributed within Group Key Ma-

nagement Protocols. Besides a practical evaluation

of G-IKEv2 for group key management, the work in

(gentschen Felde et al., 2017) gives a comparison of

the most recent proposals for distributing keys in con-

strained environments, however, the solutions are still

experimental and require further evaluation. There is

different work establishing group keys on different

layers of the OSI model (Singh et al., 2015; Tiloca

et al., 2017), but an analysis and solution covering the

whole life cycle is still missing.

There is recent research activity in group key ma-

nagement protocols for mobile messengers (Omara

et al., 2018). In contrast to the work of this thesis, it

is more focused on usability but offers strong security

proofs, which will need to be adapted to constrained

scenarios.

3.3 Cryptography

Cryptography in general and for embedded devices

in particular is widely discussed among different re-

search communities. There are studies on 1.) lig-

htweight cryptographic schemes (often based on el-

liptic curve cryptography), 2.) optimizations for se-

curity protocols (such as TLS or IPsec), 3.) accele-

rating cryptographic functions or secure storage and

generation of key material and 4.) new mathemati-

cal primitives. The latter recently gained attention

due to the previously mentioned NIST call for Post-

Quantum Cryptography Standardization.

All of these topics offer solutions for some parts of

the described problem space, but an integrated solu-

tion is missing. Especially the rapid progress in quan-

tum computing requires attention, as some constrai-

ned devices with life-time of 10+ years may still be

deployed when the ﬁrst quantum computers appear.

The contributions of the work at hand can help

to overcome this issue, as it will provide solutions

how any compromised key of a compromised algo-

rithm can be replaced, even on devices where physical

accessibility may not be given.

4 METHODOLOGY

Any given action in the group can require the distri-

bution of keys, especially when members join or le-

ave the group and security goals such as forward or

backward secrecy need to be met. This work will

ﬁrst establish role, communication and information

models for the different parts of the life-cycle. With

these models at hand, a system instantiating the mo-

dels is developed and used to evaluate existing and

new group key distribution solutions in constrained

environments.

4.1 Role-, Communication- and

Information Model

The models were built by analyzing the group acti-

ons create, destroy, join and leave. Additionally, the

actions of sending a message within the group was

analyzed and it was found that in order to achieve

trust within the system (and in turn in the group) ad-

ditional action called registration is necessary. This

Dynamic Key Distribution for Secure Group Communications in Constrained Environments

action registers a member in the system and registers

its cryptographic material at a trust anchor.

Please note, that the author is fully aware that this

additional action does not solve the issue of trust in

general and results in a chicken-egg-problem in the

system. However, this is true for any other system

such as PKI or DNSSEC, which often combine simi-

lar actions and roles for registration. In fact, the follo-

wing models and actions were identiﬁed by analyzing

state-of-the-art systems, such as X.509, DNSSEC and

PGP when performed within a group keying manage-

ment system such as GKMP, GDOI or Kerberos.

In the following, the identiﬁed models are brieﬂy

discussed and shown in Figure 3. However, the entire

model will be part of the PhD thesis itself.

4.1.1 Role Model

The analysis showed the following roles are necessary

during the different group actions:

•

Group Admin is registered to the system, perfor-

ming group actions create and destroy.

•

Client / Sender is registered to the system, perfor-

ming join and leave requests and sends messages.

•

Group is the role for all members of the group.

•

Identity Manager (IM) for assigning identities

and ensuring their reliability and uniqueness.

•

Key Manager (KM) for generating cryptographic

material for authentication, usually in form of

asymmetric key pairs. The instance of this role

can either be part of or attached to the client

(e.g. a TPM), or an external service. The genera-

ted key(s) are generated for the Identity. The same

or another instance of this role is in charge of ge-

nerating communication keys, distributing them

to the group and re-key on certain actions if re-

quired.

•

Trust Anchor (TA) connects the Identity (genera-

ted by the IM) with the (public) key (generated

by the KM). Analyzing the currently used systems

for trust management (e.g. X.509) showed that the

group life-cycle should start with a so-called re-

gistration phase, which leads to an entry of the

new client within the TA. Once registered, the TA

can be consulted by any role within the system to

proof authenticity (AuthN).

•

Group Manager (GM) is in charge of managing

groups with corresponding group ids/addresses

and their members. It also offers a service for ex-

ploring existing groups.

•

Access Manager (AM) is in charge of managing if

a client is authorized (AuthZ) for speciﬁc group

actions.

4.1.2 Information Model

The cryptographic information being exchanged prior

and during the group communication is as follows:

•

Identity the identity of the role initiating an action,

therefore either the User or the client performing

a group action or the sender sending a message.

Valid Ids are managed by the IM.

•

Private Key the cryptographic private key of the Id

generated.

•

Public Key the cryptographic public key of the Id

generated.

•

System Certiﬁcate the combination of Id and Pu-

blic Key, which is registered at the TA.

•

Cryptographic Primitives the information about

the algorithm being used for the different crypto-

graphic keys (e.g. RSA for authentication or AES

for conﬁdentiality).

•

Current Communication Keys the cryptographic

keys used for securing the communication.

•

New Communication Keys keys used by the

group after join or leave

•

Old Communication Keys keys used by the group

before join or leave

•

Group Id the identity or address of the group.

•

Group Members mapping of Ids to group id, sto-

red at the GM

•

Access Control List mapping of identities to a se-

curity policy for a speciﬁc group action, stored at

the AM.

4.1.3 Communication Model

With the roles identiﬁed in the previous subsection,

the following communication paths are necessary

within the system.

•

Identity Request client/admin requests an Identity

from the IM, who returns a system unique Id.

•

Key Generation Request client requests an au-

thentication key-pair with its Id to the KM.

•

System Certiﬁcate Registration after generating

the key-pair, the KM requests the registration of

the corresponding Id and public key at the TA.

•

Verify Id KM or TA requests the IM to verify a gi-

ven Id.

•

Verify AuthN any member of the system can verify

a signature signed with a system certiﬁcate by re-

questing the TA.

DCETE 2018 - DCETE

Key

Manager

III. verify

IV. group_action

Access

Manager

V. authorize

II. generate_key

VI. message

I. register

Trust

Anchor

Group

Manager

Identity

Manager

III. register

III. verify

II. key

I. Id

VI. communication_keys

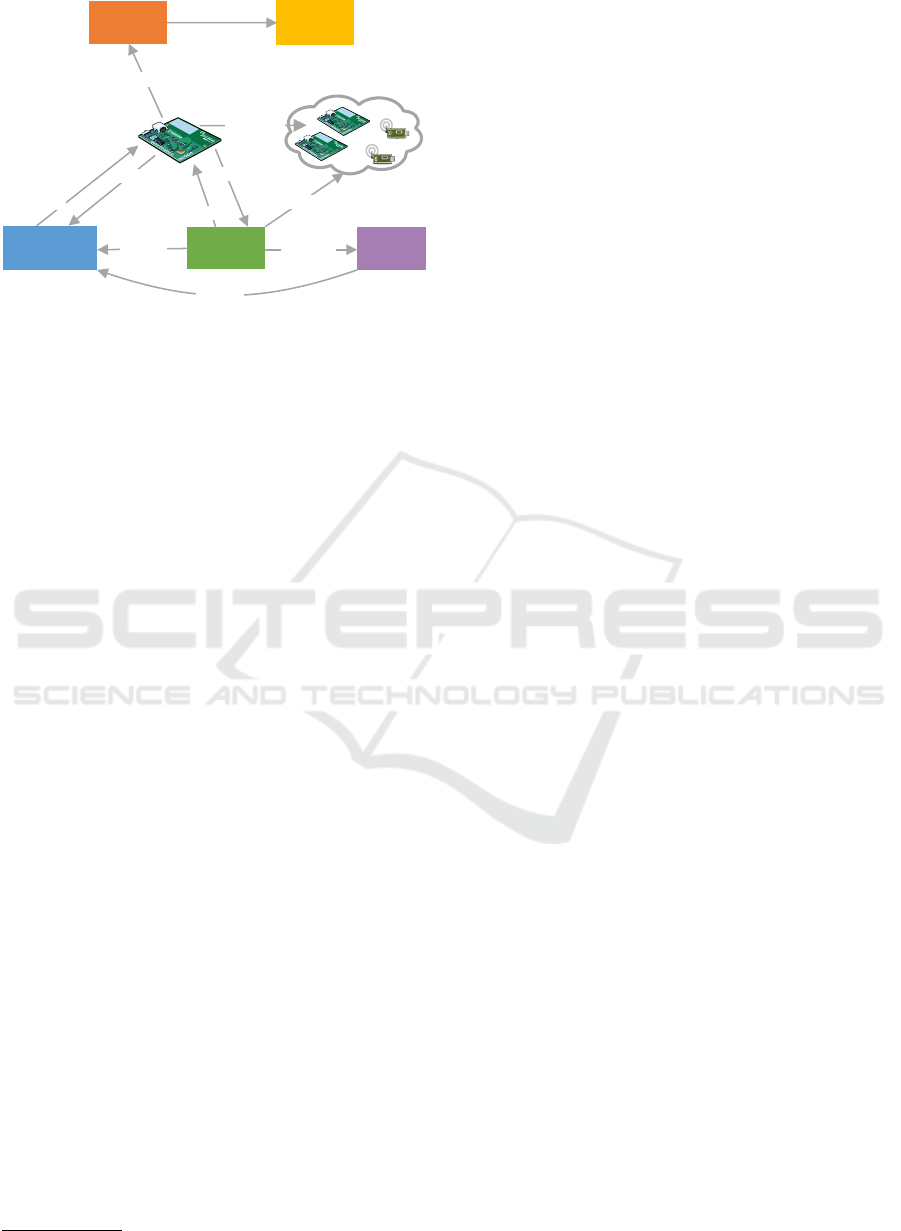

Figure 3: Roles and basic communication paths.

•

Verify AuthZ GM requests from the AM if an Id is

authorized to perform a given group action.

•

Group Action client/admin triggers a group action

including a signature signed with its private key

and Id.

•

Re-key GM triggers the KM to perform a re-key of

the communication keys of the group.

4.2 Evaluation

In order to provide a valuable evaluation for constrai-

ned systems, ﬁrst a test infrastructure will be descri-

bed and set up, which will be used for practical mea-

surements. The security mechanism will additionally

be evaluated with formal security proofs.

4.2.1 Infrastructure

The infrastructure, which will be set up, is very clo-

sely related to the well-known evaluation platform

called IoT-Lab

. The major difference to the IoT-Lab

lies in the usage of different microcontrollers in com-

bination with different networking technologies.

The IoT-Lab currently supports three different mi-

crocontrollers based on ATMEGA MSP430, ARM

Cortex M3 and ARM Cortex-A8. Additionally, it

supports two networking technologies, one being ba-

sed on the IEEE 802.15.4 standard and the other one

being LoRa. The platform proposed in this paper will

supplement the platform with ARM Cortex M0 mi-

crocontrollers and the additional networking techno-

logies IEEE 802.3 (Ethernet), IEEE 802.11 (WiFi)

and IEEE 802.15.1 (Bluetooth). Furthermore, it will

be supplemented with an additional conﬁguration

software, allowing the easy setup of communication

groups within the infrastructure. The communication

https://www.iot-lab.info

groups will support Broad- and Multicast on the Mac-

and IP-Layer. The hardware is selected to support a

multitude of state-of-the-art embedded operating sy-

stem, but a special focus will be put on the develop-

ment with RIOT-OS (Baccelli et al., 2013).

First and foremost, the evaluation will provide me-

asurements for execution time, memory footprint and

energy consumption. Additionally, the scalability will

be evaluated by increasing the testbed.

4.2.2 Formal Proof of Security

Formal correctness of security protocols is common

practice nowadays. However, these proofs usually

only consider the protocol itself and not the systems

implementing them. The main reasons for missing

formal deﬁnitions are the variety of systems using

such protocols and the potential complexity of the de-

ﬁnition itself.

With constrained systems, the device classiﬁca-

tion could be used for a high-level formal description

of systems. Embedded ﬁrmware is less complex than

regular operating systems, making a formal deﬁnition

more valuable. The thesis at hand is going to evaluate

security of different networking protocols using the

aforementioned terminology for constrained systems

under a certain security goal with formal models.

5 EXPECTED OUTCOME

The thesis is going to instantiate the necessary key

management actions during a group’s life cycle with

different networking protocols securing the process.

This allows the evaluation of different protocols /

technologies in each of the steps by formal and practi-

cal analysis. With this analysis at hand, optimizations

on the different aspect are expected to provide valu-

able results for research, especially in the following

aspects:

I. Communication Protocols are numerous in IoT-

scenarios, but many of them lack security features be-

cause of restriction in packet sizes, etc.

Outcome: Optimizing state-of-the-art protocols of-

fering conﬁdentiality, integrity and authenticity

during the communication, so that they can be

used by application developers without having to

deal with the security details. Special focus will

be put on the protocols IPsec/ESP, TLS and DTLS.

II. Group Key Management Protocols are often

inefﬁcient, as the Key Manager is a very critical role

Dynamic Key Distribution for Secure Group Communications in Constrained Environments

for the security of the system. In order to provide se-

cure, but efﬁcient solutions for constrained environ-

ments the key management protocols should not ge-

nerate unnecessary overhead. Additionally, it needs

to allow efﬁcient key distribution, e.g. in form of key

hierarchies for all security aspects of the communica-

tion.

Outcome: Embedding efﬁcient key distribution in

low-overhead key management protocols.

III. Trust needs to be built before the actual com-

munication happens. However, once established, the

trust should not come with high requirements for net-

working and storage capabilities of the devices, e.g. in

form of difﬁcult key infrastructures (such as X.509).

Identity Based Signatures (IBS) is a technique, which

offers the minimization of overhead during the com-

munication if strong trust relationships are built be-

fore the communication.

Outcome: A solution how pre-build trust can be used

to improve the efﬁciency of the system, e.g. by

using and optimizing IBS schemes. Additio-

nally, these solutions are going to be embedded

in the previously evaluated Communication Pro-

tocols and Group Key Management Protocols.

IV. Provable Security the constraints of the consi-

dered system may allow to prove security by using the

terminology provided by (Bormann et al., 2017).

Outcome: A methodology to evaluate constrained

system security on a ,,per-scenario bases”.

6 STAGE OF RESEARCH

Based on the expected outcome shown in Section 5,

the current state of research and the next steps are as

follows:

I. Communication Protocols: Work has been pu-

blished regarding the efﬁciency of cryptographic al-

gorithm combined with TLS and IPsec for constrai-

ned devices (Migault et al., 2015). Based on that,

recommendations and a new compression mode for

IPsec (called ,,Diet-ESP” or ,,ESP Header Compres-

sion, EHC”) was published in the research commu-

nity(Migault et al., 2017) and the latter was proposed

to the standardization body of the IETF. This goes to-

gether with another optimization called Implicit IV.

The IETF WG in charge for IPsec recently adopted

Implicit IV– which will be published as an RFC this

year – and accepted ESP Header compression as a

working item for the charter. Additionally, an eva-

luation of secure group communication protocols has

been published (Guggemos et al., 2017) different au-

thentication protocol are currently being implemented

for publication in the open-source community.

Next Steps are to include new authentication mecha-

nism into the existing protocols and evaluate their

efﬁciency.

II. Group Key Management Protocols (GKMP):

There are three active research tasks regarding this

aspect. First, a survey on key management protocols

has been started and a minimization for one of such

protocols (namely Group-IKEv2) has been publis-

hed (gentschen Felde et al., 2017). This effort is con-

sidered as part of the standardization of a new, IKEv2-

based, GKMP currently being proposed within the

IETF. Second, efforts on a key distribution scheme

being more efﬁcient than the widely used Logical Key

Hierarchy (LKH) are about to be ﬁnished and will be

published soon (the corresponding paper is work in

progress). At last, a laboratory for researching efﬁ-

cient group management is going to be ﬁnished soon

Next Steps are about the efﬁciency of the protocols

for the potential use case of updating ﬁrmware on

constrained devices.

III. Trust: Work evaluating IBS has started and ﬁrst

results will be published soon. The ﬁrst focus was on

practical advantages and disadvantages compared to

classical solutions such as X.509. With this at hand,

there is ongoing effort in researching hierarchical IBS

schemes in constrained group scenarios, focusing on

its efﬁciency for constrained networks.

Next Steps are a practical solution on how the key

hierarchy has to be managed and distributed.

REFERENCES

Ahlgren, B., Dannewitz, C., Imbrenda, C., Kutscher, D.,

and Ohlman, B. (2012). A survey of information-

centric networking.

Baccelli, E., Hahm, O., Gunes, M., Wahlisch, M., and

Schmidt, T. (2013). Riot os: Towards an os for

the internet of things. In 2013 IEEE Conference on

Computer Communications Workshops (INFOCOM

WKSHPS), pages 79–80, Piscataway, NJ. IEEE.

Bormann, C., Ersue, M., and Keranen, A. (2014). Termino-

logy for constrained-node networks. RFC7228.

http://mnm-team.org/projects/embedded

DCETE 2018 - DCETE

Bormann, C., Ersue, M., Kernen, A., and Gomez, C.

(2017). Terminology for Constrained-Node Net-

works. Internet-Draft draft-bormann-lwig-7228bis-

02, Internet Engineering Task Force. Work in Pro-

gress.

Djamaa, B., Richardson, M., Aouf, N., and Walters, B.

(2014). Unicast/multicast performance in single-hop

duty-cycled 6LoWPAN networks. In 9th Internatio-

nal Symposium on Communication Systems, Networks

& Digital Signal Processing (CSNDSP), 2014, pages

140–145, Piscataway, NJ. IEEE.

Farrell, S. (2018). Low-Power Wide Area Network (LP-

WAN) Overview. RFC 8376.

gentschen Felde, N., Guggemos, T., Heider, T., and Kran-

zlm

uller, D. (2017). Secure group key distribution in

constrained environments with ikev2: (under review).

In 2017 IEEE Conference on Dependable and Secure

Computing, Taipei, Taiwan. IEEE.

Guggemos, T., Felde, N. g., and Kranzlm

uller, D. (2017).

Secure Group Communication in Constrained Net-

works - A Gap Analysis. In The 1st 2017 GLOBAL IoT

SUMMIT (GIoTS’17), Geneva, Switzerland. IEEE.

Haus, M., Waqas, M., Ding, A. Y., Li, Y., Tarkoma, S.,

and Ott, J. (2017). Security and privacy in device-

to-device (d2d) communication: A review.

Kushalnagar, N., Montenegro, G., and Schumacher, C.

(2007). Ipv6 over low-power wireless personal area

networks (6lowpans): Overview, assumptions, pro-

blem statement, and goals. RFC4919.

Migault, D., Guggemos, T., Killian, S., Laurent, M., Pu-

jolle, G., and Wary, J. P. (2017). Diet-ESP: IP layer

security for IoT.

Migault, D., Palomares, D., Guggemos, T., Wally, A., Lau-

rent, M., and Wary, J. P. (2015). Recommendations

for IPsec Conﬁguration on Homenet and M2M De-

vices. In Proceedings of the 11th ACM Symposium

on QoS and Security for Wireless and Mobile Net-

works, Q2SWinet ’15, pages 9–17, New York, NY,

USA. ACM.

Omara, E., benjamin.beurdouche@inria.fr, Rescorla, E., In-

guva, S., Kwon, A., and Duric, A. (2018). Messa-

ging Layer Security Architecture. Internet-Draft draft-

omara-mls-architecture-01, Internet Engineering Task

Force. Work in Progress.

Rafaeli, S. and Hutchison, D. (2003). A survey of key ma-

nagement for secure group communication.

Shang, W., Wang, Z., Afanasyev, A., Burke, J., and Zhang,

L. (2017). Breaking out of the cloud. In IEEE/ACM,

editor, 2017 IEEE/ACM Second International Confe-

rence on Internet-of-Things Design and Implementa-

tion, pages 3–13, Piscataway, NJ. IEEE.

Shor, P. W. (1994). Algorithms for quantum computa-

tion: Discrete logarithms and factoring. In Goldwas-

ser, S., editor, Foundations of Computer Science, 35th

Symposium on (FOCS ’94, pages 124–134, [Place of

publication not identiﬁed]. IEEE Computer Society

Press.

Silva, R., Silva, J. S., Simek, M., and Boavida, F. (2008).

Why should multicast be used in WSNs. In Qu,

G., editor, IEEE International Symposium on Wireless

Communication Systems 2008, pages 598–602, Pisca-

taway, NJ. IEEE.

Singh, M., Rajan, M. A., Shivraj, V. L., and Balamura-

lidhar, P. (2015). Secure mqtt for internet of things

(iot). In Tomar, G. S., editor, 2015 Fifth International

Conference on Communication Systems and Network

Technologies (CSNT), pages 746–751, Piscataway, NJ

and Piscataway, NJ. IEEE.

Sun, Y., Gurewitz, O., and Johnson, D. B. (2008). RI-

MAC: a receiver-initiated asynchronous duty cycle

MAC protocol for dynamic trafﬁc loads in wireless

sensor networks. In Abdelzaher, T., Martonosi, M.,

and Wolisz, A., editors, SenSys ’08, page 1, New York

(NY). A.C.M.

Tiloca, M., Nikitin, K., and Raza, S. (2017). Axiom.

Yan, Z., Zhang, P., and Vasilakos, A. V. (2014). A survey

on trust management for Internet of Things.

Dynamic Key Distribution for Secure Group Communications in Constrained Environments
