Detection Accuracy of Soccer Players in Aerial Images Captured from

Several View Points

Takuro Oki

, Ryusuke Miyamoto

, Hiroyuki Yomo

and Shinsuke Hara

Department of Computer Science, Graduate School of Science and Technology, Japan

Department of Computer Science, School of Science and Technology,

Meiji University, 1-1-1 Higashimita, Tama-ku, Kawasaki-shi, Japan

Department of Electrical and Electronic Engineering, Faculty of Engineering Science,

Kansai University, 3-3-35 Yamate-cho, Suita-shi, Japan

Graduate School of Engineering,

Osaka City University, 3-3-138 Sugimoto Sumiyoshi-ku, Osaka-shi, Japan

Keywords:

Player Detection, Aerial Images, Informed-Filters.

Abstract:

To realize real-time vital sensing during exercise using wearable sensors attached to players, a novel multi-

hop routing scheme is required. To solve t his problem, image assisted routing t hat estimates the locations of

sensor nodes based on images captured from cameras on UAVs is proposed. However, it is not clear where

is the best view points for player detection i n aerial images. In this paper, the authors have investigated the

detection accuracy according to several view points using aerial images with annotations generated from the

CG-based dataset. Experimental results show that the detection accuracy became best when the view points

were slightly distant from just above the center of the ﬁeld. In the best case, the detection accuracy became

very good: 0.005524 miss rate at 0.01 FPPI.

1 INTRODUCTION

A real-time vital sensing system using wearable sen-

sors with the wireless communication function atta-

ched to play ers is under development to enhance the

efﬁciency of training or to manage player’s condi-

tion during exercise(Hara et al., 2017). In several

kinds of sports scenes, bo th the moving speed and

the density of vital sensors attached to players may

become high; therefore, widely used RSSI-based or

GPS-based schem es for multi-hop routing cannot be

adopted to this application. To solve this problem,

Image-Assisted Routing (shortly IAR) that estimates

the locations of sensors from the locations of play-

ers wearing them based in image processing is pro-

posed(Miyamoto and Oki, 2016). To obtain image

informa tion necessary for the IAR, several cameras

mounted on UAVs or ﬁxed tripods are used.

To achieve such localization, player’s location

must be accurately estimated in sports movies by vi-

sual object detection that is one of the most chal-

lenging task s in the ﬁeld of computer vision. To

solve this task, several kinds of schemes have been

proposed(Zhang et al., 2017; Doll´ar et a l., 2012;

Liu et al. , 2016; Zhang et al., 20 15; Zhang et al.,

2014). Recently, deep convolutional networks that

showed good accuracy for the imag e classiﬁcation

task has begun to show go od accuracy for also vi-

sual the object detection task. The most pop ular one

showing good accura cy for visual object detection is

R-CNN(Girshick et al., 2014), and some derivatives

from it such as Fast R-CNN and Faster R-CNN are

proposed to improve the computational speed and de-

tection accuracy. In 2017, YOLOv2 (Redmon and

Farhadi, 2017) won the best paper award at the CVPR

confere nce, which showed good accu racy in several

datasets such as COCO(Everingham et a l., 2010),

PASCAL(Everingham et al., 2010), etc. with good

processing speed.

These object detection schemes showed good

accuracy for human detection in urban scenes. Es-

pecially, detection accuracy by R-CNN can be im-

proved if appropriate training and tuning are app-

lied(Zhang et al., 2017). However, it is shown that

detection accuracy of an objec t detection constructed

with informed-ﬁlters using only color features is bet-

ter than YOLOv2 and Faster R-CNN for player de-

tection in soccer scene s(N akamura et al., 2017). The

Oki T., Miyamoto R., Yomo H. and Hara S.

Detection Accuracy of Soccer Players in Aerial Images Captured from Several View Points.

DOI: 10.5220/0006960500710076

In Proceedings of the 6th International Congress on Sport Sciences Research and Technology Support (icSPORTS 2018), pages 71-76

ISBN: 978-989-758-325-4

computation speed of the scheme based on informed-

ﬁlters can be improved by parallel processing on a

GPU(Oki and Miyamoto, 2017) without degradation

of detection accuracy; therefore, this scheme is more

suitable for embedd ed systems than schemes based on

deep learning that require huge computational r esour-

ces for real-time processing.

The accuracy of the detection scheme based on

informe d-ﬁlters using only color featu res was eva-

luated using top-down view image s generated from

a CG-based dataset where the locations of players

determined from an actual soccer scene. However,

in the previous researches(Manaﬁfard et al., 2017;

Gerke et al., 2013), the relation between camera lo-

cations and detection accuracy was no t investigated

even though it seems important for player detection

using aerial images. To ﬁnd the optimal camera loca-

tions to detect players in aerial images obtained from

UAVs this paper evaluates the detection accuracy of

players when view points are changed.

The rest of this paper is organize d as follows.

Section 2 explains the dataset used in the experi-

ment. Section 3 shows how to construct a detector

with informed-ﬁlters and datasets corresponding to

several view points. Th e heat map representing de-

tection accuracy is shown in section 4 and section 5

conclud es this paper.

2 DATASETS USED IN THE

EVALUATION

This section details a dataset u sed in our experiment.

2.1 True Locations Obtained from

Actual Motion of Players

Motions of players in a dataset used in our experiment

is identical to them in the dataset created in the previ-

ous re search(Miyam oto et al., 2017). Th e dataset was

created using actual motions of players in a soccer

game that were obtained from severa l image sequen-

ces captured by cameras located as Fig.1. To deter-

mine actual locations o f players in a frame, rectang-

les that rep resents player locations in captured image

sequences were mar ked manually. After mark-up of

all players in frames included in the d ataset, a two

dimensional location in the two dimensional image

plane is determined by the center of the bottom edge

of a rectangle and then a location on the soccer ﬁeld

is obtained by coordinate transform. Fig. 3 shows the

overview of the coordinate transform from an image

plane to a soccer ﬁeld.

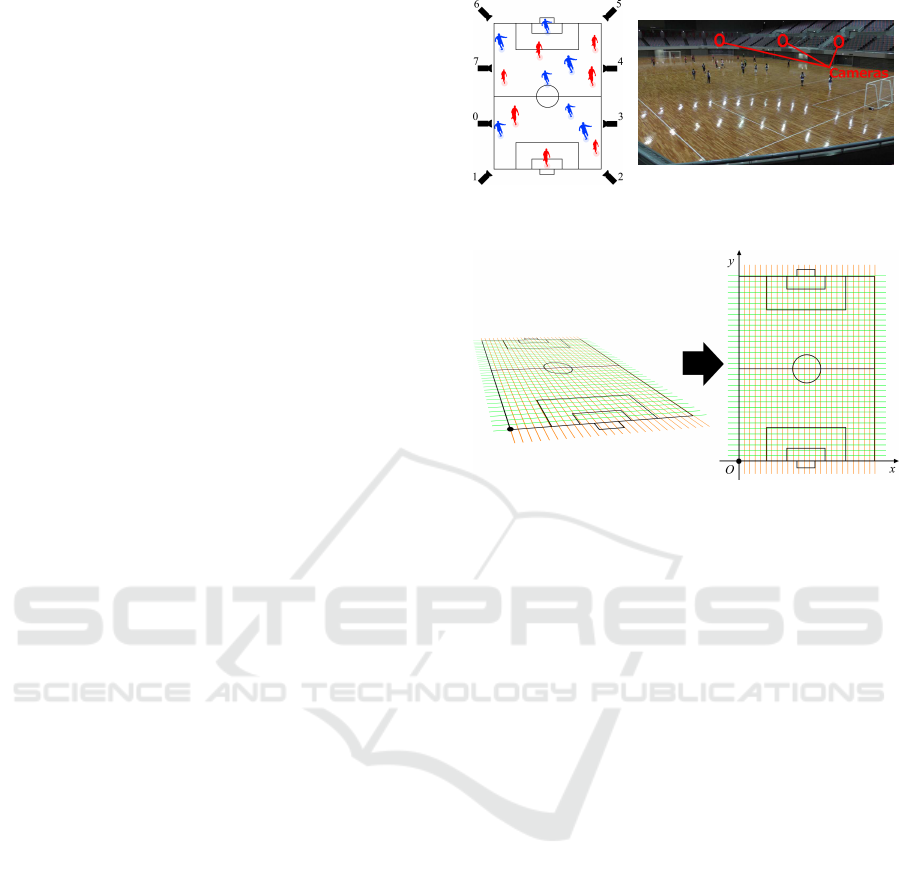

Figure 1: Camera lo-

cations.

Figure 2: An example of obtained

image.

Figure 3: The overview of the coordinate transform of ca-

mera1.

After th e creation of the ground truth about player

locations, a three dimensional virtual space represen-

ting p layer’s motions of the soccer game was crea-

ted using Unity engine, where Unity-chan, a virtual

character having a 3D model, is adopted to repre-

sent players o n the soccer ﬁeld. By using the data-

set c reated on virtual dataset represented by the 3 D

CG technology, we can ea sily obtain images captured

from arbitrary v iew points for a soccer scene.

2.2 Datasets Generated from the

CG-based Dataset for Several View

Points

The purpose of this paper is evaluation of detection

accuracy according to several view points for aerial

images obta ined from a camera mounted on a UAV.

Therefore, several kinds of datasets are created from

the CG-based dataset (Miyamoto et al., 2017) chan-

ging locations and orientations of a camera in the vir-

tual space. In addition to the images, loc a tions of

players in the generated images are also generated au-

tomatically.

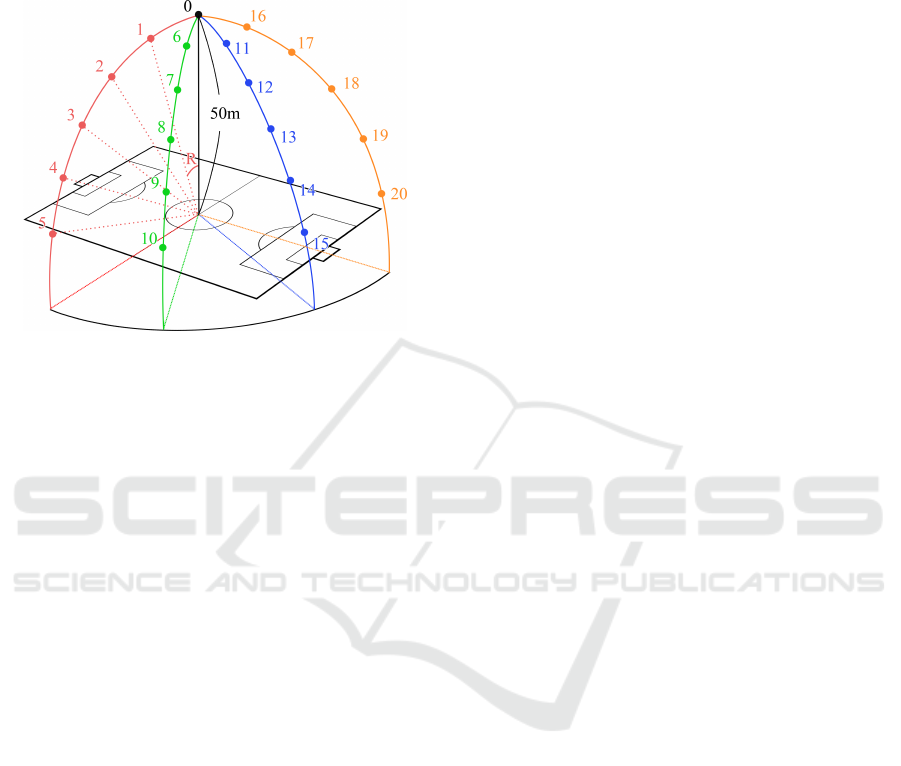

Fig 4 shows the view points used to generate two

dimensional images fr om the CG-based dataset. The

height of th e camera when it is located at just above

the center of the soccer ﬁeld was set to 50m in the vir-

tual spac e. This location was indicated by “0”. Th e

camera locatio n moved on the four circumferences:

red, green, blue, and ora nge ones. H e re, the angle be-

icSPORTS 2018 - 6th International Congress on Sport Sciences Research and Technology Support

tween nearest radiuses was set to 15

◦

and the camera

orientation was set to the opposite of radial direction.

Fig. 5 shows examples of the generated images as

the datasets for the evaluation in this paper.

Figure 4: Camera locations.

3 HOW TO CONSTRUCT A

DETECTOR BASED ON

INFORMED FILTERS

This section d e ta ils how to construct a soccer player

detector using only color features with informed ﬁl-

ters to evaluate the detection accuracy according to

several kind s of view points. The rest of this section

describes how to select training samples, how to de-

sign a template pool required for learning based o n

informe d ﬁlters, and how to construct a ﬁnal strong

classiﬁer.

3.1 Training Samples

Datasets used for the evaluation in this paper is com-

posed of two dim ensional image sequences according

to several view points generated from the CG-based

dataset as shown in the previous section. To train

a classiﬁer used as a detec tor, positive and negative

samples must be extra cted from the images generated

from the CG-based dataset. Figs. 6 show examples

of positive training samples where players are loca -

ted in the center of cropped sub-images. On the other

hand, negative samples do not include any play ers in

croppe d sub-images as shown in Figs. 7.

At the generation process of positive samples from

image sequences using the actual location of targets

obtained from the CG-based dataset, occlusio ns so-

metimes occur when view points m oves drastically.

Such occluded samples are not included in the trai-

ning and evaluation samples because they are not suit-

able for appropriate evaluation.

3.2 Template Design for Informed

Filters

The training proc e ss of a detector by a informed ﬁlters

can be summarized as Figs. 8, and Figs. 9. Here , an

average edgemap is generated from positive train ing

samples. Then, the obtained ed gemap is divided into

rectangu la r regions called cells and labels are assig-

ned to these cells conside ring their locations. Finally

a template pool is designed using assigned labels.

It is obvious that positive train ing samples is ne-

cessary for the template design de scribed as above.

However, a good template pool may not be obtained

if inappr opriate samples are used f or edge map gene-

ration. Espe cially, the selection of positive samples

for template design becomes important because ap-

pearance of players become q uite different when v iew

points change drastically.

To avoid this problem , a template pool for infor-

med ﬁlters are generated as follows:

1. Divide all view points into ﬁve groups according

to shooting orientations.

2. Generate edge maps for each group.

3. Create template pools according to generated

edge maps.

4. Merge all template pools obtained in the previous

proced ure to generate a large tem plate pool.

This procedure tries to maintain unique characteris-

tics according to shooting or ie ntations in the genera-

tion of a template pool.

After the generation of the large template pool, a

strong classiﬁer is constructed. I n the training pro-

cess, the Boosting algorithm selects effective weak

classiﬁers from the large template pool.

4 DETECTION ACCURACY

ACCORDING TO CAMERA

LOCATIONS

This section evaluates the detection accuracy for se-

veral view points and ﬁnd good one for player de-

tection from a camera mounted on a UAV.

4.1 Test Images

In the evaluatio n, not to use the same target for both

training and testing on the same frame, 1800 frames

Detection Accuracy of Soccer Players in Aerial Images Captured from Several View Points

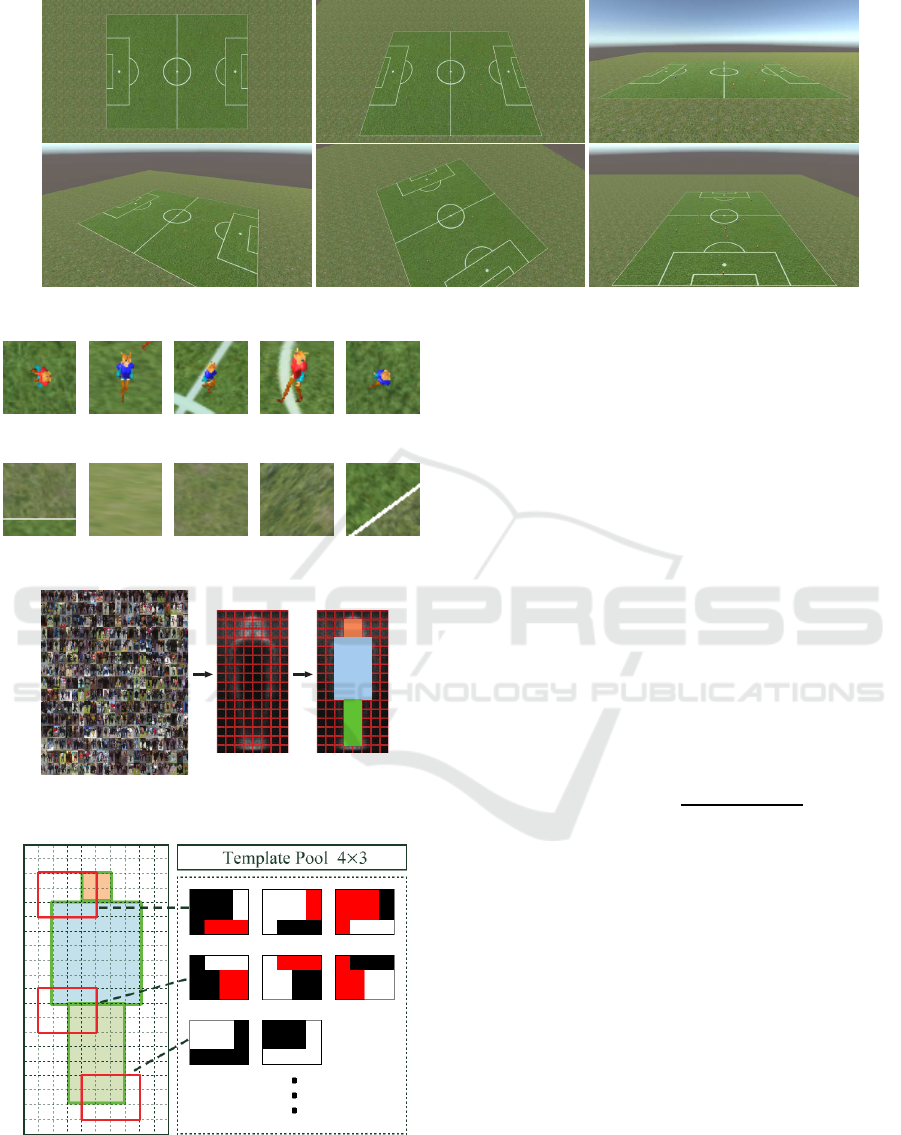

Figure 5: Examples of dataset.

Figure 6: P ositive samples.

Figure 7: Negative samples.

Positive Samples

Average

Edgemap

Labeled

Edgemap

Figure 8: Generate edgemap.

Figure 9: Template generation.

for each view point that were generated from the same

1800 f rames in the CG-based dataset were kept for

only testing. For the training o f the detector, other

7200 frames for each view point were used.

4.2 Detection Procedure

Detection is performed by the exhaustive search with

sliding windows that extracts huge numbers of sub-

images from an input image to determine whether an

extracted sub-image includes a detection target o r not.

In this process, scaled images are generated to ﬁnd

targets whose resolution is different from the size of

detection window. Because the size o f detection tar-

gets do not change drastically in a e rial images, this

evaluation uses only three scales: ×1.0, ×1.05, and

×1.1. The size of stride to move sliding windows was

one, which me a ns all locations of an input image were

evaluated.

For th e evaluation, a detected sub-window was

accepted as true positive if Score

overlap

computed by

the following equation was greater than 0.65 :

Score

overlap

∩ BB

DET

, (1)

where BB

and BB

DET

mean a sub-window deﬁned

in ground truth and a detected sub-window, respecti-

vely.

4.3 Accuracy

Tables 1,2,3,4, and 5 show the evaluation results of

detection accuracy. In these table s, miss rates at some

false positive per images (FPPIs) are shown. The

“nan” in the table means that there was no false po-

sitive in the evaluation process.

These r esults show that very accurate detection

can be achieved at all view points. The best accuracy

was obtained a t cam17. The primary reason to im-

prove detection accuracy must be the visual cues in-

creases according to the incre ase of the proje cted area

of detection targets that becomes the smalls at cam00.

However, the detection accuracy become worse when

icSPORTS 2018 - 6th International Congress on Sport Sciences Research and Technology Support

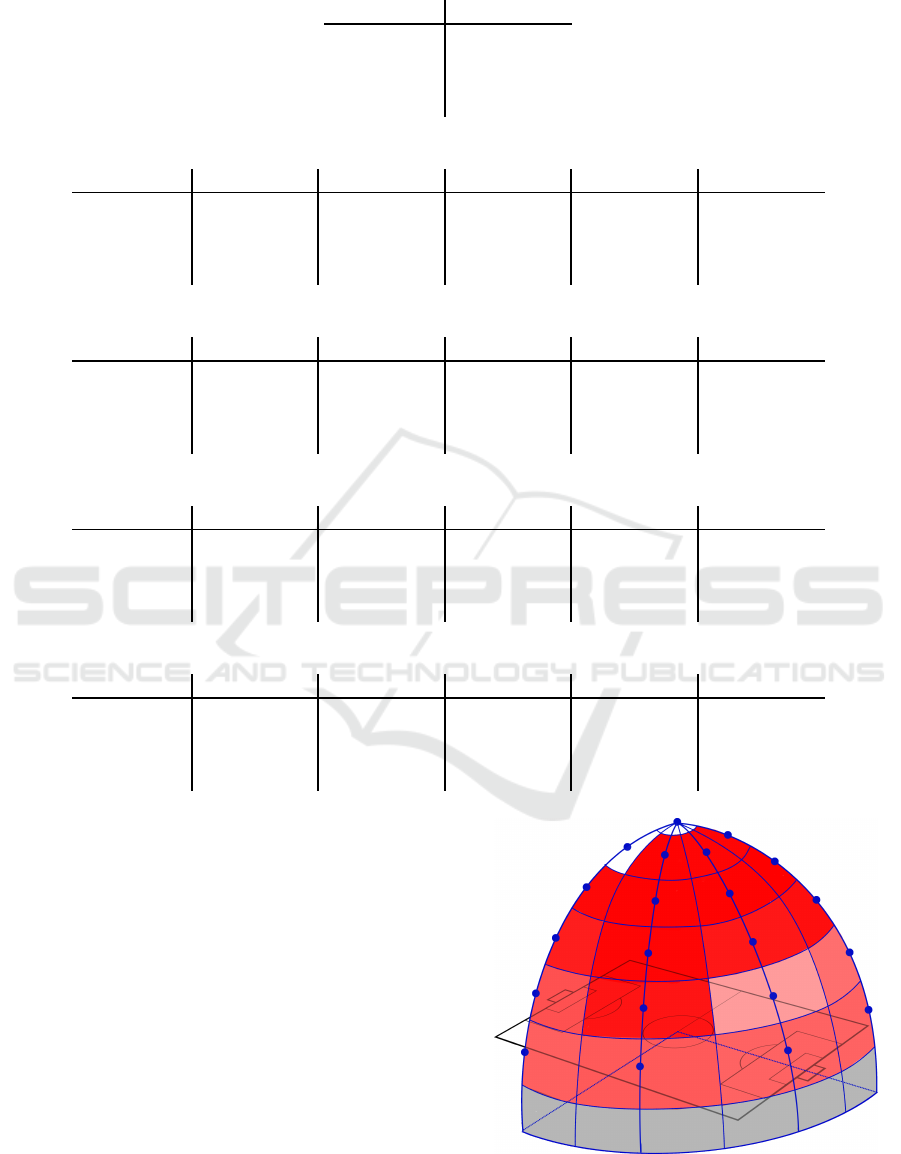

Table 1: Accuracy table, cam00.

MR@cam00

FPPI=1.0 nan

FPPI=0.1

nan

FPPI=0.01 0.006490

FPPI=0.001 0.812667

Table 2: Accuracy table, cam01-05.

MR@cam01 MR@cam02 MR@cam03 MR@cam04 MR@cam05

FPPI=1.0 nan nan nan nan nan

FPPI=0.1 nan nan nan nan nan

FPPI=0.01

0.006414 nan 0.008468 0.015025 0.031540

FPPI=0.001 0.558980 0.007738 0.014591 0.033021 0.037637

Table 3: Accuracy table, cam06-10.

MR@cam06 MR@cam07 MR@cam08 MR@cam09 MR@cam10

FPPI=1.0 nan 0.005433 nan nan nan

FPPI=0.1 nan 0.005479 nan nan 0.021780

FPPI=0.01

nan 0.005484 0.006148 0.009432 0.027652

FPPI=0.001 0.005678 0.005683 0.007467 0.012366 0.036157

Table 4: Accuracy table, cam11-15.

MR@cam11 MR@cam12 MR@cam13 MR@cam14 MR@cam15

FPPI=1.0 nan nan nan nan nan

FPPI=0.1 nan nan nan 0.006938 0.017012

FPPI=0.01

0.006399 0.005524 0.006243 0.012166 0.024646

FPPI=0.001 0.007465 0.006269 0.012894 0.059582 0.039167

Table 5: Accuracy table, cam16-20.

MR@cam16 MR@cam17 MR@cam18 MR@cam19 MR@cam20

FPPI=1.0 nan nan nan 0.006879 nan

FPPI=0.1 nan nan nan 0.006982 0.015134

FPPI=0.01

nan nan 0.005956 0.008233 0.020135

FPPI=0.001 0.006808 0.005627 0.009709 0.043803 0.039258

the height of view points be too lower be c ause heavy

occlusions may be caused at su ch view points.

4.4 Heat Map

Fig. 10 shows the heat map that represents the de-

tection accuracy at all view points deﬁned in Fig. 4. In

this ﬁgure, the deep red color means lower m iss rate

(higher accuracy) and the miss rate becomes greater if

the red components becomes lower. Regions colored

with gray are not used in the evaluation because de-

tection accuracy becomes worse if the height of view

points becomes too low due to occlusion caused by

other targets. Some regions near the top is white; the

detection accuracy is quite bad in these regions.

Figure 10: Heatmap.

Detection Accuracy of Soccer Players in Aerial Images Captured from Several View Points

5 CONCLUSION

This p a per evaluated the dete c tion accura cy of play-

ers for many view points to ﬁnd the best UAV locati-

ons to capture aerial images. For th e evaluation, se-

veral kinds of two dimensional images with annotati-

ons ab out player locations were generated from the

CG-based dataset ab out a soccer game considering

orientations and locations of a camera mounted on a

UAV. To tra in a strong classiﬁer, a large template pool

was created from several tem plate pools on e of which

was generated from some view points whose shooting

orientation was the same. Experimental results using

the generated two d imensional images show that the

detection accuracy become best when a camera is lo-

cated at a view point slightly distant from just above

the center of the ﬁeld.

ACKNOWLEDGEMENTS

The r esearch results have been par tly achieved by

Research and development of Innovative Network

Technologies to Create the Future, the Commissio-

ned Research of National Institute of Information and

Communica tions Technology (NICT), JAPAN.

REFERENCES

Doll´ar, P., Wojek, C., Schiele, B., and Perona, P. (2012).

Pedestrian detection: An evaluation of the state of

the art. IEEE Trans. Pattern Anal. Mach. Intell.,

34(4):743–761.

Everingham, M., Van Gool, L., Williams, C. K. I., Winn,

J., and Zisserman, A. (2010). The pascal visual ob-

ject classes (voc) challenge. International Journal of

Computer Vision, 88(2):303–338.

Gerke, S., Singh, S., Linnemann, A., and Ndjiki-Nya, P.

(2013). Unsupervised color classiﬁer training for

soccer player detection. In Visual Communications

and Image Processing, pages 1–5.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. Proc. IEEE Conf. Com-

put. Vis. Pattern Recognit., pages 580–587.

Hara, S. , Yomo, H., Miyamoto, R., Kawamoto, Y., Okuhata,

H., Kawabata, T., and Nakamura, H. (2017). Challen-

ges in Real-Time Vital Signs Monitoring for Persons

during Exercises. International Journal of Wireless

Information Networks, 24:91–108.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S. E .,

Fu, C., and Berg, A. C. (2016). SSD: Single shot

multibox detector. In Proc. European Conference on

Computer Vision, pages 21–37.

Redmon, J. and Farhadi, A. (2017). YOLO9000: better, fas-

ter, stronger. In Proc. IEEE Conf. Comput. Vis. Pattern

Recognit., pages 65176525.

Manaﬁfard, M., Ebadi, H., and Moghaddam, H. A. (2017).

A survey on player tracking i n soccer videos. Compu-

ter Vision and Image Understanding, 159:19–46.

Miyamoto, R. and Oki, T. (2016). Soccer Player Detection

with Only Color Features Selected Using Informed

Haar-like Features. In Advanced Concepts for Intel-

ligent Vision Systems, volume 10016 of Lecture Notes

in Computer Science, pages 238–249.

Miyamoto, R., Yokokawa, H., Oki, T., Yomo, H., and Hara,

S. (2017). Human detection in top-view images using

only color features. The Journal of the Institute of

Image Electronics Engineers of Japan(in Japanese),

46(4):559–567.

Nakamura, Y., Nakamura, T., Oki, T., and Miyamoto, R.

(2017). Comparison of various approaches for object

detection. In Fall Meeting of Federation of Imaging

Societies, pages 94–98.

Oki, T. and Miyamoto, R. (2017). Efﬁcient GPU imple-

mentation of informed-ﬁlters for fast computation. In

Image and Video Technology, pages 302–313.

Zhang, S. , Bauckhage, C., and Cremers, A. (2014). Infor-

med haar-like features improve pedestrian detection.

In Proc. IEEE Conf. Comput. Vis. Pattern Recognit.,

pages 947–954.

Zhang, S. , Benenson, R., and Schiele, B. (2015). Fil-

tered channel features for pedestrian detection. In

Proc. IEEE Conf. Comput. Vis. Pattern Recognit., pa-

ges 1751–1760.

Zhang, S. , Benenson, R., and Schiele, B. (2017). Cityper-

sons: A diverse dataset for pedestrian detection. In

Proc. IEEE Conf. Comput. Vis. Pattern Recognit., pa-

ges 4457–4465.

icSPORTS 2018 - 6th International Congress on Sport Sciences Research and Technology Support
