An Orm-Based Method and Platform to Uniformly Access

Heterogeneous Data in China National Earthquake Precursor

Network

Chen Wang, Yuntian Teng

,Xiaomei Wang, Xiaoyong Fan and Jiemei Ma

Institute of Geophysics, China Earthquake Administration, Beijing100081, China.

Email: xiaomei7978@163.com

Keywords: Object relation map, heterogeneity, access data uniformly, national earthquake precursor network

Abstract: The distribution and heterogeneity of data sources in a national earthquake precursor network make uniform

data access difficult. To resolve this problem, we propose a uniform data access method based on object

relation mapping, and then design a uniform data access platform. The proposed uniform data access

method adopts a view of the data in three layers with two layers of mapping. The former includes the

application subject view (ASV), a uniform access view (UAV) and a local data view (LDV), and the latter

includes mapping between the application subject view (ASV) and the uniform data access view (UDAV),

and mapping between the uniform data access view (UDAV) and the original data view (ODV). This design

has potential practical applications which validate that a platform based on the proposed method effectively

serving the China National Earthquake Precursor Network.

1 INTRODUCTION

In China National Earthquake Precursor Network,

regionally distributed stations are responsible for the

collection and the storage of basic precursor data,

which enables the current data source distribution

situation, in which the data have diversity,

heterogeneity and autonomy properties. These

properties make it difficult to manage the data

uniformly, as well as share the data concurrently.

Consequently, this situation impedes further

development of businesses carrying out earthquake

precursors such as earthquake observing, earthquake

broadcasting and epicenter analysis(Wang et al.,

2011). Therefore, intensive investigations of

uniform access to earthquake data are needed.

Based on the above reasons, we propose a

UDAM based on ORM, and design a uniform data

access platform. Our proposed method realizes

uniform access based on the creation of three layer

views and mapping between pairs of layers. The

three layer views include the ASV, the UAV and

the LDV. The two-layer mapping consists of

mapping between the ASV and the UDAV, also the

UDAV and the ODV.The practical applications

validate that the platform based on the proposed

method can effectively serve national earthquake

precursor network in China.

2 RELATED WORK

With the ongoing development of computer and

wireless transmission technologies, characteristics of

data distribution and heterogeneity are becoming

increasingly significant. Accordingly, data

integration issues have aroused increasing research

interest because they facilitate the application-to-

application exchange of standard business

documents between different subjects(Andrea et al.,

2013; Len et al., 2013).

Traditional data integration studies mainly focus

on how to eliminate data distributed effects and

heterogeneity; they usually accomplish this by using

a certain persistent integration method (Lnmon,

1996; Guo et al., 2008). Recently, the view-based

data integration method (VBDIM) has become

increasingly popular. In this method, each data

source creates a uniform model based on local

information integration rules; a local information

434

Wang, C., Teng, Y., Wang, X., Fan, X. and Ma, J.

An Orm-Based Method and Platform to Uniformly Access Heterogeneous Data in China National Earthquake Precursor Network.

In Proceedings of the International Workshop on Environment and Geoscience (IWEG 2018), pages 434-439

ISBN: 978-989-758-342-1

view (LIV) is then developed. Finally a global

information view (GIV) is constructed based on this

view. The entire application program conducts

information access operations based on this global

view. Compared with other methods, the view-based

method (VBM) has advantages that include good

extendibility and dynamic properties.

It has been a common belief that creating XML

vocabularies was sufficient to achieve data

interoperability, yet this assumption goes far beyond

reality. XML by itself does not guarantee that XML

expressed business information exchanged in the

span of business processes across different

enterprises will be understood equally well by all

systems. This is because the XML syntax only

creating markup languages used as metadata, it does

not address how the underlying business information

must be modeled, named and structured. Semantics

come to cover this gap by attaching meaning to data

in a structured and technical way that both humans

and machines can understand and

process(Lampathaki et al., 2009; Nurmilaakso et al.,

2004).

Object relational mapping (ORM) is a popular

uniform data method, which provides a method and

mechanism for object-oriented systems to hold their

long-term data safely in a database, while

maintaining transactional control over it, and having

it expressed in program objects when

needed(Elizabeth , 2008).

3 ORM-BASED METHOD USING

THREE LAYER VIEWS AND

TWO-LAYER MAPPING

3.1 Layers

To provide a simple method for accessing certain

business data, screening for heterogeneity, and

decreasing the coupling between the database

structure and the application program, we identify

three data layers, which include the ASV, a UAV

and a LDV (Figure 1).

The functions of the each view are as follows.

(1) Application Subject View. This view is a

kind of virtual view for various kinds of application

demands, including the data collection, data

exchange and data application views. The

application subject view screens for difference in the

underlying database, which makes database access

more effective.

Figure 1: Diagram of the three layer views.

(2) Uniform Access View. This refers to the

virtual table used to represent the data structure in

the database. A uniform access view acclimatizes

changes in database products and structure. The

uniform access view includes original views of the

national center, the subject center, and the regional

center. It is represented by a virtual table and virtual

fields; and, in this case, the application program

does not need to be concerned with the actual

storage manner. As a result, this view can increase

integration and extension abilities as well as

flexibility.

(3) Local Data View.This view is a kind of

lowest level view for various kinds of database,

which could access measuring instruments easily.

3.2 Rules for the Two-Layer Mapping

The two-layer mapping undertaken involves

mapping between the ASV and the UDAV, the

UDAV and the ODV(Figure 2). We have designed

and implemented two mapping rules for the two-

layer mapping: an application subject view mapping

rule and a local data source mapping rule.

Figure 2: Two-layer mapping.

An Orm-Based Method and Platform to Uniformly Access Heterogeneous Data in China National Earthquake Precursor Network

435

3.2.1 Application Subject View Mapping

Rule

The application subject view mapping rule is used to

map from the application subject view to the

uniform access view; i.e., to mapping the object and

property in the application subject view to a virtual

table and field in the uniform access view.

When mapping the application subject view to

the uniform access view, the application subject

view maps the table to the corresponding view by

creating a database view. Additionally, the

application subject view accesses the information by

reading the corresponding field in the uniform

access view. Accessing the uniform view is different

from accessing the ordinary table because it is not a

major feature in the view. For example, there is an

object (O) that has three properties: x, y, and z, i.e.,

O(x, y, z). There are two virtual tables A and B in the

uniform access view, where A has N fields: a

……a

, and B has M fields: b

, b

……b

. Then we

will have the following mapping results: O.x→A.a

;

O.y→A.a

; O.z→B.b

From the above mapping results, we can see that

an object could correspond to several tables. So once

the application design corrects an object, it can

operate several tables through this object; the data

access then will be more convenient and effective.

3.2.2 Local Data Source Mapping Rule

The local data source mapping rule is used for

mapping from the uniform access view to the local

original data view; i.e., to mapping a virtual table

and field from the uniform access view to the actual

table and field in the local origin data view. For

example, for a virtual table A that has N fields: A

, … AN, there is an actual table a that has M

fields: a

, a

, … am. We then will get the following

mapping results: A.A

→a.a

; A.A

→a.a

;

A.A

→a.a

From the above mapping results, we can see that

the mapping relationship between the tables in the

uniform access view and the tables in the original

data view is a one-to-one relationship. However, the

fields in the two views do not have a one-to-one

relationship. The uniform access view can hide

some protected fields in the original data from the

users.

3.3 Information Description Methods

we consider the information description methods,

which include descriptions of the data source, the

application view mapping rules and the local data

source mapping rules.

3.3.1 Data Source Description Method

In this paper, we adopt a five-fold description of the

data source.

DataSource= {DBName, URL, Username,

Password, Driver},

where DBName is the name of the data source,

which is the unique identifier for the underlying data

source; URL is the universal resource locator access

address of the data source; Username and Password

are the name and the password used to access the

data source, respectively; Driver is the name of the

driver program that needs to be loaded to access the

data source. An example description is shown in

Figure 3.

Figure 3: Example description of the data source

3.3.2 Application View Mapping Rules

Description Method

For the application view mapping rules, we adopt a

three-fold description.

AppObject={ObjectName, ReferView,

PropertyList}

where ObjectName is the name of the unique

application object; ReferView is the name of the

virtual table referred to by the application object in

the middle logic view; PropertyList contains the

names of the fields included in the application

< DBSource name=”ORACLE”>

<URL value="

jdbc:oracle:thin:@localhost:1521:PDBQZ

“></URL>

<DRIVER value="

oracle.jdbc.driver.OracleDriver”></

DRIVER >

</ DBSource >

</DataSourceInfoList>

IWEG 2018 - International Workshop on Environment and Geoscience

436

object, and each field is represented by another

three-fold definition:

Property= {PropertyName, ReferViewName,

ViewFieldName}

where PropertyName is the name of the property

of the application object; ReferViewName is the

name of the virtual table according to the object

property; ViewFieldName is the property name in

the virtual name according to the property.Figure 4

gives an example of this description method.

Figure 4: Example description of the application view

mapping rule.

3.3.3 Local Data Source Mapping Rule

Description Method.

We adopt a three-fold description of the local data

source mapping rule:

View={ ViewName，ReferTable，FieldList}

where ViewName is the name of the virtual table

in the logical view, which is unique in the logical

view; ReferTable is the name of the underlying table

referred to in the virtual table; FieldList is a set of

the table fields included in the virtual table, with

each table field being expressed by a three fold

description:

Field ={ FieldName, ReferTableName ，

TableColumnName}

where, FieldName is the name of the field in the

virtual table; ReferTableName is the corresponding

name of the field in the underlying data table;

TableColumnName is the corresponding property

name of this field in the underlying data table.

Figure 5 gives an example of this description

method.

Figure 5: Example description of local data source

mapping.

4 PLATFORM FOR UNIFORM

ACCESS TO DATA

Based on the above analysis, we designed a uniform

data access platform based on the three layer views

and two-layer mapping. The main idea of this

platform is to create a globally logical view for all

heterogeneous data coming from different data

sources and to screen the heterogeneity of the data.

Then, based on this uniform logical view, each

application program can design a different

application object according to its demand; this can

result in the addition, deletion and revised operation

of a certain data object. The architecture of our

platform is shown in Figure 6.

The data access platform consists of four discrete

parts: mapping management, execution engine,

application program interface, and database access.

The function of the platform is the encapsulation of

the underlying database and files, which provides

data access service for all kinds of application

programs.

<ReferView

ViewName="V_TEST1" />

<Property name="SID"

ViewName="V_TEST1" FieldName="V_SID" />

<Property

name="SNAME" ViewName="V_TEST1"

FieldName="V_SNAME" />

<Property name="AGE"

ViewName="V_TEST1" FieldName="V_AGE"

<Property name="AA"

ViewName="V_TEST1" FieldName="V_AA" />

<Property name="BB"

ViewName="V_TEST1" FieldName="V_BB" />

</Object>

</mappingList>

<ReferTable

TableName="TEST" DBname=”ORACLE”/>

<Field name="V_SNAME"

TableName="TEST" ColumnName="SNAME"

<Field name="V_AGE"

TableName="TEST" ColumnName="AGE" />

<Field name="V_AA"

TableName="TEST" ColumnName="AA" />

<Field name="V_BB"

TableName="TEST" ColumnName="BB" />

</View>

</mappingList>

An Orm-Based Method and Platform to Uniformly Access Heterogeneous Data in China National Earthquake Precursor Network

437

Error management

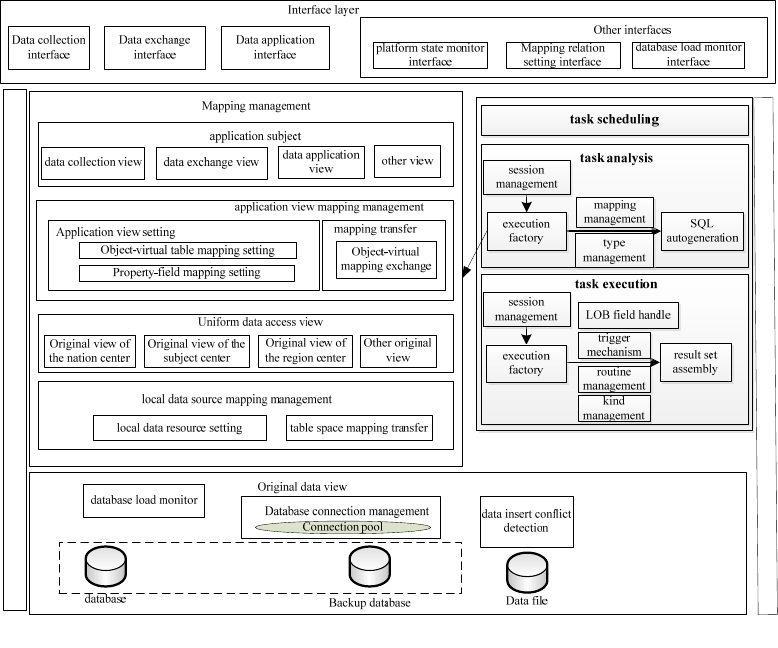

Figure 6: Platform architecture.

4.1 Task Execution Engine

Based on the mapping view structure, the main

functions of the task execution engine are to analyze

and execute the submitted tasks.

When the engine receives a task, the scheduling

module first schedules the task to be executed, and

then inserts the task into the task list.

The task analysis module first analyzes the

submitted task by assessing related information,

including the task type and the operation object.

Based on the uniform view generated by the

mapping and type management, the task analysis

module then translates this task into structured query

language (SQL) commands that can be recognized

by the database. Finally, these commands are

submitted to the task execution module.

When the task execution module receives the

information, the execution factory first creates a

corresponding execution class based on the different

task types; then, it executes the SQL commands.

During execution, it is responsible for managing

exceptions, logs, sessions and big objects (CLOB

fields), and so on. Finally, the module encapsulates

all the execution results into a uniform result set and

returns.

4.2 Application Programming

Interfaces

The application programming interfaces can be

divided into three categories: exchange application

interfaces, collection application interfaces and the

data application interfaces. The main functions of

these interfaces are as follows.

4.2.1 Exchange Application Interface

This interface is responsible for the following work:

data and information exchange between national,

regional and local centers; consistency checking and

issuing the error warning during the exchange; and

managing the parameters used in the exchange

IWEG 2018 - International Workshop on Environment and Geoscience

438

strategy. In the exchange module, the regional center

forwards the data to the national center, and the

national center distributes the data to the subject

center, which means that the data will generally

have multiple copies. Therefore, the exchange

method must maintain the consistency of the data

and be responsible for checking data versions. The

data must be unique for the whole platform;

therefore, the exchange module must be responsible

for change management.

4.2.2 Collection Application Interface

The data collection module is responsible for the

following work: collecting original observational

data coming from non-IP instruments, IP

instruments and the artificial observation

instruments, collecting data sourced from instrument

logs and the event; checking the data validation and

data storage; collecting and managing the metadata

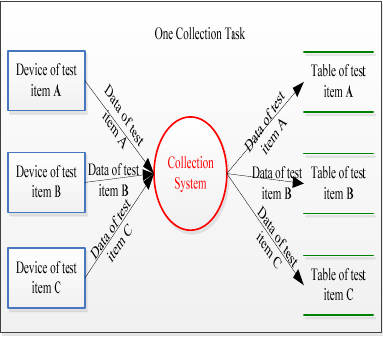

and the basic data. Figure 7 shows the functions of

the collection application interface.

Figure 7: Functions of the collection application interface.

4.2.3 Data Application Interface

This interface is responsible for observing the state

of the platform, and managing information on the

nodes, stations and system basics. The database is

responsible for the management of the data version

and the user authority, and can provide different

users with different versions and authorities with

different functions. This interface is also responsible

for recording user operations, such as user login.

5 CONCLUSIONS

To deal with the difficulties in uniformly accessing

data under circumstances affected by the data

distribution and heterogeneity properties of the data

source, we propose a uniform data access method

based on object relation mapping(ORM), and have

designed a platform based on this method. We give

the detail of the platform architecture and function

implementation method, and also talk about the task

execution engine and application programming

interfaces.This design has potential practical

applications serving the China National Earthquake

Precursor Network and play a role in the future.

ACKNOWLEDGMENTS

This work is supported by the National Natural

Science Foundation of China (Grant No. 41404141)

and the National Key Scientific Instrument and

Equipment Development Project of China (Grant

No. 2014YQ100817-2).

REFERENCES

Andrea C, et al. 2013 Data Integration under Integrity

Constraints. Seminal Contributions to Information

Systems Engineering 335-352

Elizabeth (Betty) O’Neil. 2008 Object/Relational Mapping

2008: Hibernate and the Entity Data Model (EDM).

Proceedings of SIGMOD 08 1351-1356

Guo H M, et al. 2008 Heterogeneous data integration and

coordination in national geology grid. Journal of

Beijing University of Aeronautics and Astronautics

34(2) 179-182

Lampathaki F , et al. 2009 Business to business

interoperability: A current review of XML data

integration standards. Computer Standards &

Interfaces 31 1045-1055

Len W , et al. 2013 Incorporating Recovery from Failures

into a Data Integration Benchmark. Lecture Notes in

Computer Science 7755 21-33

Lnmon W H 1996 Building the Data warehouse, Second

Edition. John Wiley & Sons Ine 27-55

Nurmilaakso J M, et al. 2004 A review of XML-based

supply-chain integration, Producti on Planning and

Control 15 608–621

Wang C ,et al. 2011 Research on Coordinative Fusion and

Uniform Integration for Earthquake Precursor Hybrid

Data. Computer & Digital Engineering 39(12) 44-46

An Orm-Based Method and Platform to Uniformly Access Heterogeneous Data in China National Earthquake Precursor Network

439
