Metric Learning in Codebook Generation of Bag-of-Words for Person
Re-identification
Lu Tian, Ranran Huang and Yu Wang
Department of Electronic Engineering, Tsinghua University, Beijing, China
Keywords:
Person Re-identification, Bag-of-Words, Metric Learning.
Abstract:
Person re-identification is generally divided into two part: the first is how to represent a pedestrian by discrim-
inative visual descriptors and the second is how to compare them by suitable distance metrics. Conventional
methods isolate these into two parts, the first part usually unsupervised and the second part supervised. The
Bag-of-Words (BoW) model is a widely used image representing descriptor in part one. Its codebook is simply
generated by clustering visual features in Euclidean space, however, it is not optimal. In this paper, we propose
to use a metric learning techniques of part two in the codebook generation phase of BoW. In particular, the
proposed codebook is clustered under Mahalanobis distance which is learned supervised. Then local feature
is compared with the codewords in the codebook by the trained Mahalanobis distance metric. Extensive ex-
periments prove that our proposed method is effective. With several low level features extracted on superpixel
and fused together, our method outperforms state-of-the-art on person re-identification benchmarks including
VIPeR, PRID 450S, and Market-1501.
1 INTRODUCTION
Person re-identification (Gong et al., 2014) is an im-
portant task in video surveillance systems. The key
challenge is the large intra-class appearance varia-
tions, usually caused by various human body poses,
illuminations, and different camera views. Further-
more, the poor quality of video sequences makes it
difficult to develop robust and efficient features.
Generally speaking, person re-identification can
be divided into two parts: first how to represent a
pedestrian by discriminative visual descriptors and
second how to compare them by suitable distance
metrics. Bag of words (BoW) model and its vari-
ants is one of the most widely used part one image
descriptor technology in person re-id systems with
significant performance (Lu and Shengjin, 2015). In
the traditional BoW approaches, images are divided
into patches and local features are first extracted to
represent these patches. Then a codebook of visual
words is generated by unsupervised clustering. Af-
ter that, the image is represented by histogram vectors
obtained by mapping and quantizing the local features
into the visual words in the codebook.
However, it is not optimal to cluster visual words
by k-means in Euclidian space, which implicitly as-
sumes that local features of the same person usually
have closer Euclidian distance, which does not always
stand in practical.
Part two metric learning methods learn suitable
distance metrics of image descriptors to distinguish
correct and wrong matching pairs. However, conven-
tional methods always isolate part one and part two,
the first part usually unsupervised and the second part
supervised.
To this end, this paper proposes to borrow some
part two metric learning techniques to learn a suitable
distance for local features in part one BoW model.
In particular, a Mahalanobis distance is trained on lo-
cal features extracted from pedestrian images. Then
codebook of visual words is clustered under this Ma-
halanobis distance. We formulate the codebook gen-
eration task as a distance metric learning problem and
propose to use KISSME (K
¨
ostinger et al., 2012) to
solve it efficiently. When integrated with conven-
tional part two metric learning methods, our proposed
method also achieves good performance. The over-
all framework of our proposed method is shown in
Fig 1. Finally, we outperform state-of-the-art result
by applying KISSME (K
¨
ostinger et al., 2012) metric
learning for local features in the BoW model and Null
Space (Zhang et al., 2016a) metric learning for image
descriptors after the BoW model.
In summary, our contributions are three-fold: 1),
298
Tian, L., Huang, R. and Wang, Y.
Metric Learning in Codebook Generation of Bag-of-Words for Person Re-identification.
DOI: 10.5220/0007251102980306
In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 298-306
ISBN: 978-989-758-351-3
Copyright
c
 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

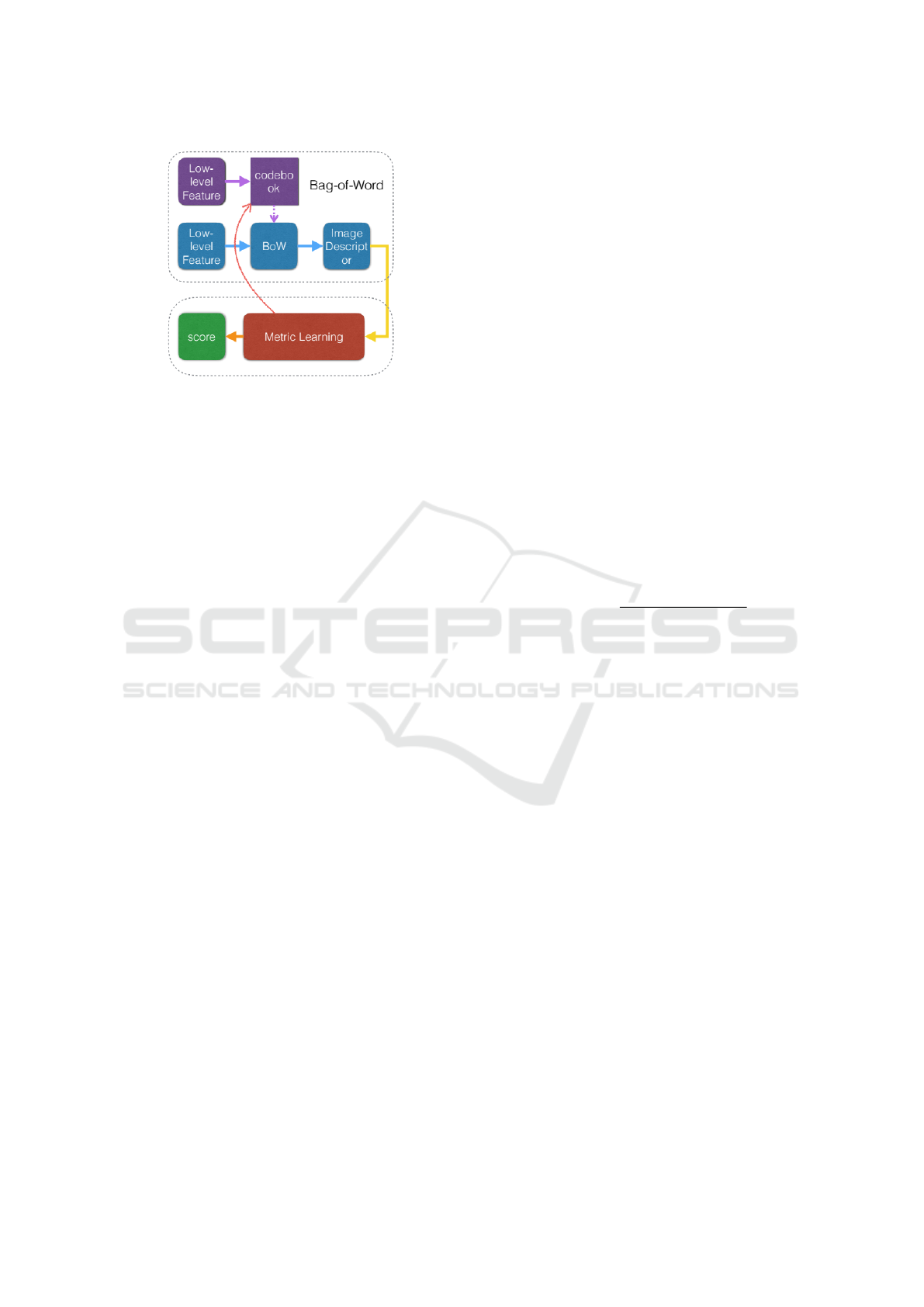

Figure 1: The framework of metric learning in codebook
generation of Bag-of-Words.
to the best of our knowledge, we are the first to pro-
pose metric learning for BoW low level features; 2),
we propose KISSME (K
¨
ostinger et al., 2012) to learn
a suitable metric for low level features; 3) we inte-
grate the proposed local feature level metric learning
method with conventional part two image descriptor
level metric learning methods and achieve state-of-
the-art results.
The rest of this paper is organized as follows. In
Section 2, a brief discussion of several related works
on person re-identification is made. In Section 3 we
introduce our method. The experimental results are
shown and examined in Section 4. Finally, we draw
our conclusions in Section 5.
2 RELATED WORK
Generally speaking, person re-id include two basic
parts: how to represent a pedestrian and how to com-
pare them, and most efforts on person re-id could
be roughly divided into these two categories (Zheng
et al., 2016b).
The first category focuses on discriminative vi-
sual descriptor extraction. Gray and Tao (Gray and
Tao, 2008) use RGB, HS, and YCbCr color chan-
nels and 21 texture filters on luminance V channel,
and partition pedestrian images into horizontal strips.
Farenzena et al. (Farenzena et al., 2010) compute a
symmetrical axis for each body part to handle view-
point variations, based on which the weighted color
histogram, the maximally stable color regions, and
the recurrent high-structured patches are calculated.
Zhao et al. (Zhao et al., 2013) propose to extract 32-
dim LAB color histogram and 128-dim SIFT descrip-
tor from each 10*10 patch. Das et al. (Das et al.,
2014) use HSV histograms on the head, torso and
legs. Li et al. (Li et al., 2013) aggregate local color
features by hierarchical Gaussianization (Zhou et al.,
2009; Chen et al., 2015) to capture spatial informa-
tion. Pedagadi et al. (Pedagadi et al., 2013) extract
color histograms from HSV and YUV spaces and then
apply PCA dimension reduction. Liu et al. (Liu et al.,
2014) extract HSV histogram, gradient histogram,
and the LBP histogram from each patch. Yang et al.
(Yang et al., 2014) propose the salient color names
based color descriptor (SCNCD) and different color
spaces are analyzed. In (Liao et al., 2015), LOMO
is proposed to maximize the occurrence of each local
pattern among all horizontal sub-windows to tackle
viewpoint changes and the Retinex transform and a
scale invariant texture operator are applied to handle
illumination variations. In (Lu and Shengjin, 2015),
Bag-of-Words (BoW) model is proposed to aggregate
the 11-dim color names feature (Van de Weijer et al.,
2007) from each local patch.
The second category learns suitable distance met-
rics to distinguish correct and wrong match pairs.
Specifically, most metric learning methods focus on
Mahalanobis form metrics, which generalizes Eu-
clidean distance using linear scaling and rotation of
the feature space, and the distance between two fea-
ture vectors x
i
and x
j
could be written as
s(x
i
, x
j
) =
q
(x
i
− x
j
)
T
M(x
i
− x
j
), (1)
where M is the positive semi-definite Mahalanobis
matrix. Weinberger and Saul (Weinberger and Saul,
2009) propose the large margin nearest neighbor
learning (LMNN) which sets up a perimeter for cor-
rect match pairs and punishes those wrong match
pairs. In (K
¨
ostinger et al., 2012), KIEEME is pro-
posed under the assumption that x
i
− x
j
is a Gaus-
sian distribution with zero mean. Hirzer et al. (Hirzer
et al., 2012) obtained a simplified formulation and a
promising performance by relaxing the positivity con-
straint required in Mahalanobis metric learning. Li et
al. (Li et al., 2013) propose locally-adaptive decision
functions (LADF) combining a global distance metric
and a locally adapted threshold rule in person verifi-
cation. Chen et al. (Chen et al., 2015) add a bilin-
ear similarity in addition to the Mahalanobis distance
to model cross-patch similarities. Liao and Li (Liao
and Li, 2015) propose weighting the positive and
negative samples differently. In (Liao et al., 2015),
XQDA is proposed as an extension of Bayesian face
and KISSME, in that a discriminant subspace is fur-
ther learned together with a distance metric. It learns
a projection w to the low-dimensional subspace in
a similar way as linear discriminant analysis (LDA)
(Scholkopft and Mullert, 1999) with
Metric Learning in Codebook Generation of Bag-of-Words for Person Re-identification
299

J (w) =
w
T
S
b
w
w
T
S
w
w
(2)
maximized, where S
b
is the between-class scatter ma-
trix and S
w
is the within-class scatter matrix. Zhang
et al. (Zhang et al., 2016a) propose Null Space to
further employ the null Foley-Sammon transform to
learn a discriminative null space with the projection
w where the within-class scatter is zero and between-
class scatter is positive, thus maximizing J (w) to pos-
itive infinite.
Recently some works based on deep learning are
also used to tackle person re-id problem. Filter pair-
ing neural network (FPNN) (Li et al., 2014) is pro-
posed to jointly handle misalignment, photometric
and geometric transforms, occlusions and background
clutter with the ability of automatically learning fea-
tures optimal for the re-identification task. Ahmed et
al. (Ahmed et al., 2015) present a deep convolutional
architecture and propose a method for simultaneously
learning features and a corresponding similarity met-
ric for person re-identification. Compared to hand-
crafted features and metric learning methods, Yi et al.
(Yi et al., 2014) proposes a more general way that can
learn a similarity metric from image pixels directly by
using a ”siamese” deep neural network. A scalable
distance driven feature learning framework based on
the deep neural network is presented in (Ding et al.,
2015). Zheng et al. (Zheng et al., 2016c) propose
a new siamese network that simultaneously computes
identification loss and verification loss, which learns
a discriminative embedding and a similarity measure-
ment at the same time. Pose invariant embedding
(PIE) is proposed as a pedestrian descriptor in (Zheng
et al., 2017), which aims at aligning pedestrians to a
standard pose to help re-id accuracy.
3 THE APPROACH
3.1 Review of Bog-of-Words in Person
Re-identification
The BoW model represents an image as a collection
of visual words. We briefly review the BoW model
in person re-identification in previous approaches (Lu
and Shengjin, 2015; Zheng et al., 2015). First, an
pedestrian image i is segmented as superpixels by
SLIC method (Achanta et al., 2012). Superpixel al-
gorithms cluster pixels into perceptually meaningful
atomic regions according to the pixel similarity of
color and texture, which capture image redundancy
and provide a convenient primitive to compute robust
image features. To enhance geometric constraints,
the pedestrian image is usually partitioned into hor-
izontal strips with equal width. Then in superpixel k
of strip j, the low level high-dimensional appearance
features are extracted as f
i, j,k
∈ R
d
and d is the fea-
ture vector length. These low level features may con-
tain much noise and redundancy, and are often diffi-
cult to use directly. Hence, a codebook C = {c(l)}
of visual words is generated by clustering (usually
standard k-means) on these features and each word
c corresponds to a cluster center with l in a finite in-
dex set. The mapping, termed as a quantizer, is de-
noted by: f → c(l(f)). The function l(·) is called an
encoder, and function c(·) is called a decoder (Gray,
1984). The encoder l(f) maps any f to the index of its
nearest codeword in the codebook C . Here multiple
assignment (MA) (Jegou et al., 2008) is employed,
where the local feature f
i, j,k
is assigned to some of
the most similar visual words by measuring the dis-
tance between them. Thus the histogram of the visual
words representing strip j is obtained by encoding the
local features into the codebook, which is denoted
as d
i, j
= histogram{l(f
i, j,k
)|k ∈ strip
j
}. Each vi-
sual word is generally weighted using the TF scheme
[2], [3]. We also use pedestrian parsing and back-
ground extraction techniques (Luo et al., 2013) and
only the superpixels which contain pedestrian parts
are considered and counted in our BoW model. The
BoW descriptor of image i is the concatenation of
d
i
= [d
i,1
, ··· , d
i, j
, ··· , d
i,J
]. Finally, the distance of
two images i1 and i2 can be directly calculated as the
Euclidean distance between d
i1
and d
i2
, that is,
s(i1, i2) =
q
(d
i1
− d
i2
)
T
· (d
i1
− d
i2
). (3)
Or conventional part two metric learning methods can
be applied to improve re-id performance by super-
vised labels. Most of them focus on Mahalanobis
based metrics, which generalizes Euclidean distance
using linear scalings and rotations of the feature space
and can be written as
s(i1, i2) =
q
(d
i1
− d
i2
)
T
M(d
i1
− d
i2
), (4)
where M is the positive semi-definite Mahalanobis
matrix.
Fusing different low level features together could
provide more rich information. We consider four dif-
ferent appearance based features: color histograms
(CH or namely HSV) (Lu and Shengjin, 2015), color
names (CN) (Berlin and Kay, 1991; Van de Weijer
et al., 2007), HOG (Dalal and Triggs, 2005), and
SILTP (Liao et al., 2010) to cover both color and tex-
ture characteristics. They are all l
1
normalized fol-
lowed by
p
(·) operator before BoW quantization, as
the Euclidean distance on root feature space is equiv-
alent to the Hellinger distance on original feature
ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods
300

space, and Hellinger kernel performs better consid-
ering histogram similarity (Arandjelovi
´
c and Zisser-
man, 2012). The fusion is applied at image descriptor
level, which has been demonstrated effective. Dif-
ferent codebooks C
HSV
, C
CN
, C
HOG
, and C
SILT P
are
generated for each low level feature separately, thus
the BoW image descriptor of each feature is calcu-
lated respectively. Then the final descriptor of image
i is concatenated as d
i
= [d
HSV
i
, d
CN
i
, d
HOG
i
, d
SILT P
i
].
3.1.1 Color Histograms
HSV is typically used to describe color characteristics
within one region. First, the image is transferred to
the HSV color space. Then the statistical distribution
of hue (H) and saturation (S) channels is calculated
respectively with each channel quantized to 10 bins.
Luminance (V) channel is excluded because of huge
illumination changes in person re-identification tasks.
3.1.2 Color Names
CN are semantic attributes obtained through assigning
linguistic color labels to image pixels. Here, we use
the descriptors learned from real-world images like
Google Images to map RGB values of a pixel to 11
color terms (Van de Weijer et al., 2007). The CN de-
scriptor assigns each pixel an 11-D vector, each di-
mension corresponding to one of the 11 basic colors.
Afterward, the CN descriptor of a superpixel region is
computed as the average value of each pixel.
3.1.3 HOG
HOG is a classical texture descriptor which counts oc-
currences of gradient orientation in localized portions
of an image. We separate gradient orientation into 9
bins and calculate on the gray image.
3.1.4 Scale Invariant Local Ternary Pattern
SILTP (Liao et al., 2010) descriptor is an improved
operator over the well-known Local Binary Pattern
(LBP) (Ojala et al., 1996). LBP has a nice invari-
ant property under monotonic gray-scale transforms,
however, it is not robust to image noises. SILTP
improves LBP by introducing a scale invariant local
comparison tolerance, achieving invariance to inten-
sity scale changes and robustness to image noises.
Within each superpixel, we extract 2 scales of SILTP
histograms (SILT P
0.3
4,3
and SILT P
0.3
4,5
) as suggested in
(Liao et al., 2015).
3.2 Bag-of-Words Framework and
Codebook Generation
Codebook generation is a critical step of building the
BoW model. Conventional approach simply clus-
ters low level appearance features by unsupervised
k-means in Euclidean space. In this paper, we sug-
gest applying supervised metric learning methods and
cluster features in Mahalanobis space with its trained
distance metrics.
We denote the feature vector of superpixel k in the
strip j of image i as f
i, j,k
, whereas f
i, j,k
∈ R
d
and d
is the feature vector length. And (f
i1, j,k1
, f
i2, j,k2
) is a
pairwise feature instance where they belong to two su-
perpixels in the same horizontal strip j of two differ-
ent images. Here, only features belonging to the same
horizontal strip are collected as pairwise instance,
which is quite reasonable because of the geometric
constraints of pedestrian images, thus dramatically re-
duce the amount of pairwise feature instances as well
as the computational complexity. We further denote P
as the positive set of pairwise feature instances where
the first feature and the second feature belong to same
person, i.e, (f
i1, j,k1
, f
i2, j,k2
) ∈ P , id(i1) = id(i2). And
we denote N as the negative set of pairwise feature
instances, i.e, (f
i1, j,k1
, f
i2, j,k2
) ∈ N , id(i1) 6= id(i2).
The goal of our task is to learn a distance metric
M
0
(to be distinguished with M in conventional part
two metric learning methods) to effectively measure
distance between any two visual features f
i1, j,k1
and
f
i2, j,k2
, which is often represented as
d(f
i1, j,k1
, f
i2, j,k2
) =
q
(f
i1, j,k1
− f
i2, j,k2
)
T
M
0
(f
i1, j,k1
− f
i2, j,k2
),
(5)
where matrix M
0
is the d ×d Mahalanobis matrix that
must be positive and semi-definite.
Many metric learning methods are proposed to
learn an optimized M
0
. In this paper, we use KISSME
(K
¨
ostinger et al., 2012) and apply it in our BoW code-
book generation. KISSME is a bayesian method and
only assumes (f
i1, j,k1
− f
i2, j,k2
) is gaussian distribu-
tion, which is quite reasonable in our case. The com-
putation is simple yet the algorithm is effective:
∆
P
=
∑
(f
i1, j,k1
,f
i2, j,k2
)∈P
(f
i1, j,k1
− f
i2, j,k2
) · (f
i1, j,k1
− f
i2, j,k2
)
T
(6)
∆
N
=
∑
(f
i1, j,k1
,f
i2, j,k2
)∈N
(f
i1, j,k1
− f
i2, j,k2
) · (f
i1, j,k1
− f
i2, j,k2
)
T
(7)
Metric Learning in Codebook Generation of Bag-of-Words for Person Re-identification
301

M
0
= ∆
−1
P
− ∆
−1
N
. (8)
Our codebook can be generated by clustering low-
level features under the learned distance metric as
above. We collect all the features with background re-
moved. Then k-means clustering is applied based on
the optimized Mahalanobis distance metric M
0
. Fi-
nally, we build our codebook on the clustering cen-
ters.
Applying our codebook in test phase is straight-
forward. We first extract low-level features from a
novel test image. Then the feature is compared with
visual words in the codebook by the trained Maha-
lanobis distance M
0
. Finally, the visual word his-
togram of a pedestrian image strip is calculated and
the image descriptor is the concatenation of all stripes
in one image.
The image descriptor generated above can be
compared directly under Euclidean distance or con-
ventional part two metric learning methods. These
part two metric learning methods operate on image
descriptor level, while our proposed method operates
on low level visual features in part one. We will
demonstrate in section 4 that our proposed method
can be directly integrated with these conventional
methods with a significant performance boost.
4 EXPERIMENTS
To evaluate the effectiveness of our method, we con-
ducted experiments on 3 public benchmark datasets:
the VIPeR (Gray et al., 2007), the PRID 450S (Roth
et al., 2014), and the Market-1501 (Zheng et al., 2015;
Zheng et al., 2016a) datasets. The conventional eval-
uation protocol split the dataset into training and test
part. For unsupervised methods evaluation, only test
samples are used. The BoW codebook size is set to
350 for each feature. An average of 500 superpix-
els per image are generated by SLIC method and its
compactness parameter is set to 20. Considering re-
identification as a ranking problem, the performance
is measured in Cumulative Matching Characteristics
(CMC).
4.1 Datasets
4.1.1 VIPeR
The 1264 images which are normalized to 128x48
pixels in the VIPeR dataset are captured from 2 dif-
ferent cameras in outdoor environment, including 632
individuals and 2 images for each person. It is the
large variances in viewpoint, pose, resolution, and il-
lumination that makes VIPeR very challenging. In
conventional evaluations, the dataset is randomly di-
vided into 2 equal parts, one for training, and the other
for testing. In one trial, images are taken as probe se-
quentially and matched against the opposite camera.
10 trials are repeated and the average result is calcu-
lated.
4.1.2 PRID 450S
450 single-shot image pairs depicting walking hu-
mans are captured from 2 disjoint surveillance cam-
eras. Pedestrian bounding boxes are manually la-
beled with a vertical resolution of 100-150 pixels,
while the resolution of original images is 720*576
pixels. Moreover, part-level segmentation is provided
describing the following regions: head, torso, legs,
carried object at torso level (if any) and carried object
below torso (if any). Like VIPeR, we randomly parti-
tion the dataset into two equal parts, one for training,
and the other for testing. 10 trials are repeated.
4.1.3 Market-1501
Market-1501 consists of 32668 detected person
bounding boxes of 1501 individuals captured by 6
cameras (5 high-resolution and 1 low-resolution) with
overlaps. Each identity is captured by 2 cameras at
least, and may have multiple images in one camera.
For each identity in test, one query image in each
camera is selected, therefore multiple queries are used
for each identity. Note that, the selected 3368 queries
are hand-drawn, instead of DPM-detected as in the
gallery. The provided fixed training and test set are
used under both single-query and multi-query evalua-
tion settings.
4.2 Exploration of Metric Learning in
BoW Codebook Generation
We first compare the performance of our pro-
posed method against conventional baseline BoW ap-
proaches on VIPeR dataset. The performance is eval-
uated on 3 different part two metric learning methods
(KISSME (K
¨
ostinger et al., 2012), XQDA (Liao et al.,
2015), Null Space (Zhang et al., 2016a)) on image de-
scriptor level respectively as well as directly applying
Euclidean distance on image descriptors without part
two metric learning methods. The baseline method
applies BoW descriptor simply on Euclidean space
without any pedestrian labels, which is totally unsu-
pervised. As shown in Figure 2, our proposed method
performs better than baseline method with 1.7% rank
1 recognition rate gain. When part two metric learn-
ing methods are integrated, the performance gain on
ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods
302

Table 1: Comparison to the State-of-the-Art Results on VIPeR.
method r1 (%) r5 (%) r10 (%) r20 (%) r30 (%)
SCSP (Chen et al., 2016a) 53.5 82.6 91.5 96.6 -
Kernel X-CRC (Prates and Schwartz, 2016) 51.6 80.8 89.4 95.3 97.4
FFN (Wu et al., 2016b) 51.1 81.0 91.4 96.9 -
Triplet Loss (Cheng et al., 2016) 47.8 74.7 84.8 91.1 94.3
LSSL (Yang et al., 2016) 47.8 77.9 87.6 94.2 -
Metric Ensembles (Paisitkriangkrai et al., 2015) 44.9 76.3 88.2 94.9 -
LSSCDL (Zhang et al., 2016b) 42.7 - 84.3 91.9 -
LOMO + Null Space (Zhang et al., 2016a) 42.3 71.5 82.9 92.1 -
NLML (Huang et al., 2015) 42.3 71.0 85.2 94.2 -
Semantic Representation (Shi et al., 2015) 41.6 71.9 86.2 95.1 -
WARCA (Jose and Fleuret, 2016) 40.2 68.2 80.7 91.1 -
LOMO + XQDA (Liao et al., 2015) 40.0 68.0 80.5 91.1 95.5
Deep Ranking (Chen et al., 2016b) 38.4 69.2 81.3 90.4 94.1
SCNCD (Yang et al., 2014) 37.8 68.5 81.2 90.4 94.2
Correspondence Structure Learning (Shen et al., 2015) 34.8 68.7 82.3 91.8 94.9
Baseline BoW 48.7 77.5 87.0 93.9 -
Proposed + Null Space 50.0 79.0 88.1 94.5 97.0
Table 2: Comparison to the State-of-the-Art Results on PRID 450S.
method r1 (%) r5 (%) r10 (%) r20 (%) r30 (%)
Kernel X-CRC (Prates and Schwartz, 2016) 68.8 91.2 95.9 98.4 99.0
FFN (Wu et al., 2016b) 66.6 86.8 92.8 96.9 -
LSSCDL (Zhang et al., 2016b) 60.5 - 88.6 93.6 -
Semantic Representation (Shi et al., 2015) 44.9 71.7 77.5 86.7 -
Correspondence Structure Learning (Shen et al., 2015) 44.4 71.6 82.2 89.8 93.3
SCNCD (Yang et al., 2014) 41.6 68.9 79.4 87.8 95.4
Baseline BoW 68.0 88.0 93.8 97.2 -
Proposed + Null Space 70.7 90.7 94.8 97.8 99.2
rank 1 recognition rate reaches 1.8% with KISSME
metric learning, 0.7% with XQDA metric learning,
and 1.3% with Null Space metric learning.
Rank
5 10 15 20 25 30 35 40 45 50
Cumulative Matching Score
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
baseline
baseline+kissme
baseline+xqda
baseline+nullspace
proposed
proposed+kissme
proposed+xqda
proposed+nullspace
Figure 2: CMC curves on the VIPeR dataset, by comparing
the proposed approach to conventional baseline methods.
Euclidean distance, KISSME, XQDA, and Null Space are
employed on image descriptor level respectively.
The improvement of our proposed method against
baseline BoW method is most notable, because the
baseline method is totally unsupervised, while the
proposed method applies supervised label data on
BoW low level feature level. The baseline method
with KISSME metric learning outperforms our pro-
posed method without any part two metric learning
methods, which suggests that our proposed local fea-
ture level metric learning method is an improvement
but not replacement of conventional image descriptor
level metric learning methods.
4.3 Comparison to the State-of-the-Art
Results
In this section, we compare our proposed method with
the state-of-the-art approaches. Specifically, we adopt
Null Space as the part two image descriptor level met-
ric learning method.
We first compare our approach with the state-of-
the-art results on VIPeR in Table 1. We obtain a rank
1 re-identification rate of 50.0% on VIPeR, which is
comparable to the best result.
Table 2 compares our results to the state-of-the-
art approaches on PRID 450S. We yields rank 1 re-
Metric Learning in Codebook Generation of Bag-of-Words for Person Re-identification
303

Table 3: Comparison to the State-of-the-Art Results on Market-1501.
methods r1 (%) mAP (%)
Metric learning
WARCA (Jose and Fleuret, 2016) 45.16 -
TMA (Martinel et al., 2016) 47.92 22.31
SCSP (Chen et al., 2016a) 51.90 26.35
LOMO+Null Space (Zhang et al., 2016a) 55.43 29.87
Baseline BoW 63.87 36.04
Proposed+Null Space 64.13 36.21
Deep learning
PersonNet (Wu et al., 2016a) 37.21 18.57
CAN (Liu et al., 2016a) 48.24 24.43
SSDAL (Su et al., 2016) 39.4 19.6
Triplet CNN (Liu et al., 2016b) 45.1 -
Histogram Loss (Ustinova and Lempitsky, 2016) 59.47 -
Gated Siamese CNN (Varior et al., 2016) 65.88 39.55
identification rate of 70.7% with Null Space metric
learning, which is superior to the best result (Prates
and Schwartz, 2016) by 1.9%.
As for the large scale datasets like Market-1501,
we roughly classify supervised learning methods into
two categories, the first conventional metric learning
based approaches, and the second deep learning based
approaches. Our method yields rank 1 recognition of
64.13% and mAP of 36.21% under the single query
mode with Null Space (Zhang et al., 2016a) metric
learning, which outperforms the best metric learning
approaches by 8.7% on rank 1 and 6.3% on mAP, as
shown in Table 3. Our result even outperforms many
other deep learning based approaches and is com-
parable to the recent state-of-the-art method Gated
Siamese CNN (Varior et al., 2016), which is quite
outstanding because Market-1501 is generally consid-
ered more suitable for deep learning based methods
with its large image volume.
5 CONCLUSIONS
In this paper, we propose an improved BoW method
that learns a suitable metric distance of low level
features in codebook generation for person re-
identification. The approach uses KISSME metric
learning for local features, and can be effectively inte-
grated with conventional image descriptor level met-
ric learning algorithms. Experiments demonstrate the
effectiveness and robustness of our method. The pro-
posed method outperforms state-of-the-art results on
VIPeR, PRID 450S, and Market-1501 integrated with
part two Null Space metric learning method.
ACKNOWLEDGEMENTS
The work was supported by the National Natu-
ral Science Foundation of China under Grant Nos.
61071135 and the National Science and Technology
Support Program under Grant No. 2013BAK02B04.
REFERENCES
Achanta, R., Shaji, A., Smith, K., Lucchi, A., Fua, P., and
S
¨
usstrunk, S. (2012). Slic superpixels compared to
state-of-the-art superpixel methods. IEEE transac-
tions on pattern analysis and machine intelligence,
34(11):2274–2282.
Ahmed, E., Jones, M., and Marks, T. K. (2015). An
improved deep learning architecture for person re-
identification. In Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition, pages
3908–3916.
Arandjelovi
´
c, R. and Zisserman, A. (2012). Three things
everyone should know to improve object retrieval. In
Computer Vision and Pattern Recognition (CVPR),
2012 IEEE Conference on, pages 2911–2918. IEEE.
Berlin, B. and Kay, P. (1991). Basic color terms: Their
universality and evolution. Univ of California Press.
Chen, D., Yuan, Z., Chen, B., and Zheng, N. (2016a). Sim-
ilarity learning with spatial constraints for person re-
identification. In Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition, pages
1268–1277.
Chen, D., Yuan, Z., Hua, G., Zheng, N., and Wang, J.
(2015). Similarity learning on an explicit polynomial
kernel feature map for person re-identification. In Pro-
ceedings of the IEEE Conference on Computer Vision
and Pattern Recognition, pages 1565–1573.
Chen, S.-Z., Guo, C.-C., and Lai, J.-H. (2016b). Deep rank-
ing for person re-identification via joint representation
learning. IEEE Transactions on Image Processing,
25(5):2353–2367.
ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods
304

Cheng, D., Gong, Y., Zhou, S., Wang, J., and Zheng,
N. (2016). Person re-identification by multi-channel
parts-based cnn with improved triplet loss function.
In Proceedings of the IEEE Conference on Computer
Vision and Pattern Recognition, pages 1335–1344.
Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-
dients for human detection. In 2005 IEEE Computer
Society Conference on Computer Vision and Pattern
Recognition (CVPR’05), volume 1, pages 886–893.
IEEE.
Das, A., Chakraborty, A., and Roy-Chowdhury, A. K.
(2014). Consistent re-identification in a camera net-
work. In European Conference on Computer Vision,
pages 330–345. Springer.
Ding, S., Lin, L., Wang, G., and Chao, H. (2015). Deep
feature learning with relative distance comparison
for person re-identification. Pattern Recognition,
48(10):2993–3003.
Farenzena, M., Bazzani, L., Perina, A., Murino, V., and
Cristani, M. (2010). Person re-identification by
symmetry-driven accumulation of local features. In
Computer Vision and Pattern Recognition (CVPR),
2010 IEEE Conference on, pages 2360–2367. IEEE.
Gong, S., Cristani, M., Yan, S., and Loy, C. C. (2014). Per-
son re-identification, volume 1. Springer.
Gray, D., Brennan, S., and Tao, H. (2007). Evaluat-
ing appearance models for recognition, reacquisition,
and tracking. In Proc. IEEE International Workshop
on Performance Evaluation for Tracking and Surveil-
lance (PETS), volume 3. Citeseer.
Gray, D. and Tao, H. (2008). Viewpoint invariant pedestrian
recognition with an ensemble of localized features. In
European conference on computer vision, pages 262–
275. Springer.
Gray, R. (1984). Vector quantization. IEEE Assp Magazine,
1(2):4–29.
Hirzer, M., Roth, P. M., K
¨
ostinger, M., and Bischof, H.
(2012). Relaxed pairwise learned metric for person re-
identification. In European Conference on Computer
Vision, pages 780–793. Springer.
Huang, S., Lu, J., Zhou, J., and Jain, A. K. (2015). Nonlin-
ear local metric learning for person re-identification.
arXiv preprint arXiv:1511.05169.
Jegou, H., Douze, M., and Schmid, C. (2008). Hamming
embedding and weak geometric consistency for large
scale image search. In European conference on com-
puter vision, pages 304–317. Springer.
Jose, C. and Fleuret, F. (2016). Scalable metric learning
via weighted approximate rank component analysis.
arXiv preprint arXiv:1603.00370.
K
¨
ostinger, M., Hirzer, M., Wohlhart, P., Roth, P. M., and
Bischof, H. (2012). Large scale metric learning from
equivalence constraints. In Computer Vision and Pat-
tern Recognition (CVPR), 2012 IEEE Conference on,
pages 2288–2295. IEEE.
Li, W., Zhao, R., Xiao, T., and Wang, X. (2014). Deep-
reid: Deep filter pairing neural network for person re-
identification. In Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition, pages
152–159.
Li, Z., Chang, S., Liang, F., Huang, T. S., Cao, L., and
Smith, J. R. (2013). Learning locally-adaptive deci-
sion functions for person verification. In Proceedings
of the IEEE Conference on Computer Vision and Pat-
tern Recognition, pages 3610–3617.
Liao, S., Hu, Y., Zhu, X., and Li, S. Z. (2015). Person re-
identification by local maximal occurrence represen-
tation and metric learning. In Proceedings of the IEEE
Conference on Computer Vision and Pattern Recogni-
tion, pages 2197–2206.
Liao, S. and Li, S. Z. (2015). Efficient psd con-
strained asymmetric metric learning for person re-
identification. In Proceedings of the IEEE Interna-
tional Conference on Computer Vision, pages 3685–
3693.
Liao, S., Zhao, G., Kellokumpu, V., Pietik
¨
ainen, M., and Li,
S. Z. (2010). Modeling pixel process with scale invari-
ant local patterns for background subtraction in com-
plex scenes. In Computer Vision and Pattern Recogni-
tion (CVPR), 2010 IEEE Conference on, pages 1301–
1306. IEEE.
Liu, H., Feng, J., Qi, M., Jiang, J., and Yan, S. (2016a).
End-to-end comparative attention networks for person
re-identification. arXiv preprint arXiv:1606.04404.
Liu, J., Zha, Z.-J., Tian, Q., Liu, D., Yao, T., Ling, Q., and
Mei, T. (2016b). Multi-scale triplet cnn for person re-
identification. In Proceedings of the 2016 ACM on
Multimedia Conference, pages 192–196. ACM.
Liu, X., Song, M., Tao, D., Zhou, X., Chen, C., and Bu,
J. (2014). Semi-supervised coupled dictionary learn-
ing for person re-identification. In Proceedings of
the IEEE Conference on Computer Vision and Pattern
Recognition, pages 3550–3557.
Lu, T. and Shengjin, W. (2015). Person re-identification
as image retrieval using bag of ensemble colors. IE-
ICE TRANSACTIONS on Information and Systems,
98(1):180–188.
Luo, P., Wang, X., and Tang, X. (2013). Pedestrian parsing
via deep decompositional network. In Proceedings of
the IEEE International Conference on Computer Vi-
sion, pages 2648–2655.
Martinel, N., Das, A., Micheloni, C., and Roy-Chowdhury,
A. K. (2016). Temporal model adaptation for person
re-identification. In European Conference on Com-
puter Vision, pages 858–877. Springer.
Ojala, T., Pietik
¨
ainen, M., and Harwood, D. (1996). A com-
parative study of texture measures with classification
based on featured distributions. Pattern recognition,
29(1):51–59.
Paisitkriangkrai, S., Shen, C., and van den Hengel, A.
(2015). Learning to rank in person re-identification
with metric ensembles. In Proceedings of the IEEE
Conference on Computer Vision and Pattern Recogni-
tion, pages 1846–1855.
Pedagadi, S., Orwell, J., Velastin, S., and Boghossian, B.
(2013). Local fisher discriminant analysis for pedes-
trian re-identification. In Proceedings of the IEEE
Conference on Computer Vision and Pattern Recog-
nition, pages 3318–3325.
Metric Learning in Codebook Generation of Bag-of-Words for Person Re-identification
305

Prates, R. and Schwartz, W. R. (2016). Kernel cross-
view collaborative representation based classifica-
tion for person re-identification. arXiv preprint
arXiv:1611.06969.
Roth, P. M., Hirzer, M., Koestinger, M., Beleznai, C., and
Bischof, H. (2014). Mahalanobis distance learning
for person re-identification. In Gong, S., Cristani,
M., Yan, S., and Loy, C. C., editors, Person Re-
Identification, Advances in Computer Vision and Pat-
tern Recognition, pages 247–267. Springer, London,
United Kingdom.
Scholkopft, B. and Mullert, K.-R. (1999). Fisher discrimi-
nant analysis with kernels. Neural networks for signal
processing IX, 1(1):1.
Shen, Y., Lin, W., Yan, J., Xu, M., Wu, J., and Wang,
J. (2015). Person re-identification with correspon-
dence structure learning. In Proceedings of the IEEE
International Conference on Computer Vision, pages
3200–3208.
Shi, Z., Hospedales, T. M., and Xiang, T. (2015). Trans-
ferring a semantic representation for person re-
identification and search. In Proceedings of the IEEE
Conference on Computer Vision and Pattern Recogni-
tion, pages 4184–4193.
Su, C., Zhang, S., Xing, J., Gao, W., and Tian, Q.
(2016). Deep attributes driven multi-camera person
re-identification. arXiv preprint arXiv:1605.03259.
Ustinova, E. and Lempitsky, V. (2016). Learning deep em-
beddings with histogram loss. In Advances In Neural
Information Processing Systems, pages 4170–4178.
Van de Weijer, J., Schmid, C., and Verbeek, J. (2007).
Learning color names from real-world images. In
2007 IEEE Conference on Computer Vision and Pat-
tern Recognition, pages 1–8. IEEE.
Varior, R. R., Haloi, M., and Wang, G. (2016). Gated
siamese convolutional neural network architecture for
human re-identification. In European Conference on
Computer Vision, pages 791–808. Springer.
Weinberger, K. Q. and Saul, L. K. (2009). Distance met-
ric learning for large margin nearest neighbor clas-
sification. Journal of Machine Learning Research,
10(Feb):207–244.
Wu, L., Shen, C., and Hengel, A. v. d. (2016a). Person-
net: Person re-identification with deep convolutional
neural networks. arXiv preprint arXiv:1601.07255.
Wu, S., Chen, Y.-C., Li, X., Wu, A.-C., You, J.-J., and
Zheng, W.-S. (2016b). An enhanced deep feature rep-
resentation for person re-identification. In 2016 IEEE
Winter Conference on Applications of Computer Vi-
sion (WACV), pages 1–8. IEEE.
Yang, Y., Liao, S., Lei, Z., and Li, S. Z. (2016). Large scale
similarity learning using similar pairs for person ver-
ification. In Thirtieth AAAI Conference on Artificial
Intelligence.
Yang, Y., Yang, J., Yan, J., Liao, S., Yi, D., and Li,
S. Z. (2014). Salient color names for person re-
identification. In European Conference on Computer
Vision, pages 536–551. Springer.
Yi, D., Lei, Z., Liao, S., and Li, S. Z. (2014). Deep met-
ric learning for person re-identification. In Pattern
Recognition (ICPR), 2014 22nd International Confer-
ence on, pages 34–39. IEEE.
Zhang, L., Xiang, T., and Gong, S. (2016a). Learning a
discriminative null space for person re-identification.
arXiv preprint arXiv:1603.02139.
Zhang, Y., Li, B., Lu, H., Irie, A., and Ruan, X.
(2016b). Sample-specific svm learning for person re-
identification. In Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition.
Zhao, R., Ouyang, W., and Wang, X. (2013). Unsupervised
salience learning for person re-identification. In Pro-
ceedings of the IEEE Conference on Computer Vision
and Pattern Recognition, pages 3586–3593.
Zheng, L., Bie, Z., Sun, Y., Wang, J., Su, C., Wang, S.,
and Tian, Q. (2016a). Mars: A video benchmark for
large-scale person re-identification. In European Con-
ference on Computer Vision, pages 868–884. Springer.
Zheng, L., Huang, Y., Lu, H., and Yang, Y. (2017). Pose
invariant embedding for deep person re-identification.
arXiv preprint arXiv:1701.07732.
Zheng, L., Shen, L., Tian, L., Wang, S., Wang, J., and Tian,
Q. (2015). Scalable person re-identification: A bench-
mark. In Computer Vision, IEEE International Con-
ference on.
Zheng, L., Yang, Y., and Hauptmann, A. G. (2016b). Per-
son re-identification: Past, present and future. arXiv
preprint arXiv:1610.02984.
Zheng, Z., Zheng, L., and Yang, Y. (2016c). A dis-
criminatively learned cnn embedding for person re-
identification. arXiv preprint arXiv:1611.05666.
Zhou, X., Cui, N., Li, Z., Liang, F., and Huang, T. S. (2009).
Hierarchical gaussianization for image classification.
In 2009 IEEE 12th International Conference on Com-
puter Vision, pages 1971–1977. IEEE.
ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods
306
