Showing Different Images Simultaneously by using

Chromatic Temporal Response in Human Vision

Hiroki Yamada, Fumihiko Sakaue and Jun Sato

Nagoya Institute of Technology, Nagoya 466-8555, Japan

{yamada@cv., sakaue@, junsato@}nitech.ac.jp

Keywords:

Multiplex Image, Chromatic Response, Temporal Response, Human Retina.

Abstract:

In t his paper, we propose a novel method for showing different images to multiple observers simultaneously

by using the difference in their chromatic and temporal retinal response. The chromatic and temporal response

characteristics of human retina have individuality, and thus each observer observes slightly different image,

even if the same image is presented to these observers. In this paper, we formalize the chromatic and temporal

relationship between the input stimulus and the response in human vision, and propose a method for showing

arbitrary different images to individual observers simultaneously by using the difference in chromatic temporal

response characteristics. We also show a method for obtaining chromatic and temporal response of human

vision. Experimental results from a special camera which reproduces the impulse response of human retina

show that our proposed method can represent different and arbitrary images to multiple observers.

1 INTRODUCTION

In this paper, we consider multiplex image presenta-

tion, which enables us to show different images to

multiple observers simultaneously by using a single

display. If the multiplex image p resentation is reali-

zed with a TV in a living room, multiple observers

can watch d ifferent T V programs simultaneously by

using a single TV set as sh own in Fig.1. Also, if we

use the multiplex image presentation on a vehicle dis-

play, the passengers can enjoy amusement programs

on the display, while the driver uses the navigation

system on the same display.

Recently Nonoyama et al. (Nonoyama et al.,

2013) p roposed a method fo r presenting different

images to multiple observers by using the difference

in spectral sensitivity characteristics of individual hu-

man vision. They showed that it is possible to encode

multiple images into a single multi-band image, and

decode these multiple image s by using the spectral

sensitivity char a cteristics of individual h uman vision.

The method does not require any special glasses and

does not have limitation in viewpoints and hence very

efﬁcient. However, since it encodes multiple image s

using small difference in spectral sensitivity of human

vision, the images observed by multiple observers are

not separated clearly if the color variations of multiple

images are similar to each other or the spectral sensi-

tivities of multiple observers are close to each other.

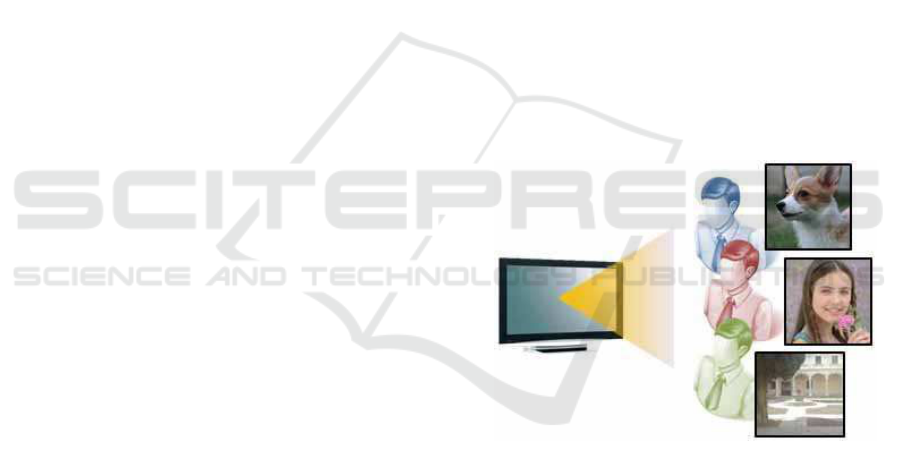

Figure 1: Multiplex image presentation. Multiple observers

can enjoy different TV programs simultaneously by using a

single display.

More recently, Ikeba et al (Ikeb a e t al., 2017) used

the difference of the temporal response characteristics

of individual human vision for solving the problem of

chromatic similarity in multiple imag es and mu ltiple

observers. Although their method works well even if

the objective images have similar color variations, ob-

served images are not separated clearly if the temp o-

ral response characteristics of mu ltiple observers are

close to e ach other.

For solving these problems, we in this paper pro-

pose a multiplex image presentation method based on

multiple response characteristics of human vision. In

particular, we combine chromatic response characte-

Yamada, H., Sakaue, F. and Sato, J.

Showing Different Images Simultaneously by using Chromatic Temporal Response in Human Vision.

DOI: 10.5220/0007256700670074

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 67-74

ISBN: 978-989-758-354-4

ristics with temporal response characteristics in hu-

man vision for separating observed images more cle-

arly. By combining multiple characteristics in human

vision, we show that different images can be obser ved

by multiple observers, even if the co lor variations of

objective images are similar to each oth er, and even if

one characteristic in human vision is identical among

multiple observers.

2 RELATED WORK

The multiplex imag e presentation enables us to show

multiple different images to individual observers (Ha-

mada et al., 2 010; Kakehi et al., 2005; Nonoyama

et al., 2013; Muramatsu et al., 2 016; Ikeba et al.,

2017). It is often used for displaying 3D im a ges to

human observers, in which left and right eyes of the

observer observe different images.

Unfortu nately, the existing multiplex image pre-

sentation methods requ ire special equipments, suc h as

stereo glasses f or separating a single multiplex image

into multiple images. The para llax barriers (Berthier,

1896; Ives, 1902) and lenticular lenses (Lippmann,

1908) are also used for separating multiplex images

accordin g to the viewpoint of observers. However, the

position of the viewpoint is ﬁxed in these methods,

and thus observers cannot observe objective images

at arbitrary viewpoints. For moving observers, Perlin

et al. (Perlin et al., 2000) prop osed a method, which

controls light rays of the display according to the vie-

wpoint of the observer, so that the observer can see

appropriate images at any viewpoint. More rece ntly,

complex light ﬁeld displays were developed a nd used

for showing dense light ﬁelds toward multiple obser-

vers simultaneously (Masia et al., 2013; Wetzstein

et al., 2011; Wetzstein et al., 2012; Hirsch et al.,

2014; Lanma n and Luebke, 2013; Huan g et al., 2015).

These meth ods are very useful when we want to dis-

play same 3D in formation to all the observers. Ho-

wever, if we want to display different images to indi-

vidual observers regardless of their viewpoints, these

existing methods fail, since all these m ethods are ba-

sed on the geometric difference of viewpoints.

Recently, Nonoyama et al.(Nonoyama et al.,

2013) proposed a new method for disp la ying multi-

plex images without using the geometric properties

of ligh t ﬁelds. In their me thod, they used not th e

characteristics of equipments, but the characteristics

of human observers for displaying different images

to individual observers. In particular, they u sed the

difference of spectral sensitivity of human vision for

displaying different images to individual observers.

Their method does not req uire special glasses nor the

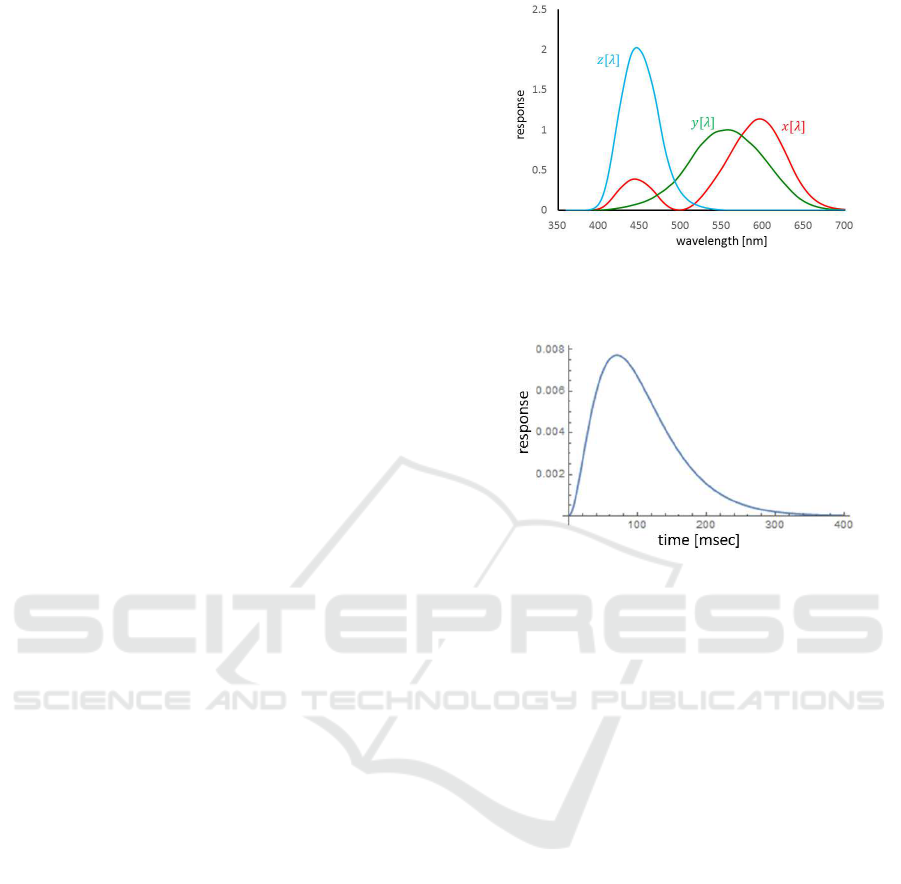

Figure 2: Color matching functions deﬁned by CIE ( CIE,

1931), which describe the spectral sensitivity of a standard

human observer.

Figure 3: I mpulse response of human vision.

ﬁxation of viewpoints. However, it cannot be used

when the spectral sensitivities of observers are simi-

lar to each other o r objective images of multiple ob-

servers have similar co lor variation.

In order to overcome these problems, Ikeba et

al. (Ikeba et al., 2017) proposed a method for dis-

playing multiplex images by using the temporal re-

sponse ch a racteristics of human vision. In their met-

hod, the difference in the reaction time of human re-

tina was used for pre senting different images to mul-

tiple observers.

Unfortu nately, these methods fail to present cle-

arly separate d images to individual observers. Thus,

we in this pa per combine multiple response charac-

teristics of human observers. In particular, we com-

bine chromatic response characteristics and temporal

response c haracteristics of human vision, a nd realize

better separation of observed images.

3 CHROMATIC TEMPORAL

RESPONSE OF VISION

We ﬁrst consider the ch romatic and temporal response

characteristics of human vision. The chromatic re-

sponse of human vision can be c haracterized by the

spectral sensitivity of 3 different photoreceptor cells

in human retina, that is L-cone , M-cone and S-cone.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

(a) H

(λ, t)

(b) H

(λ, t)

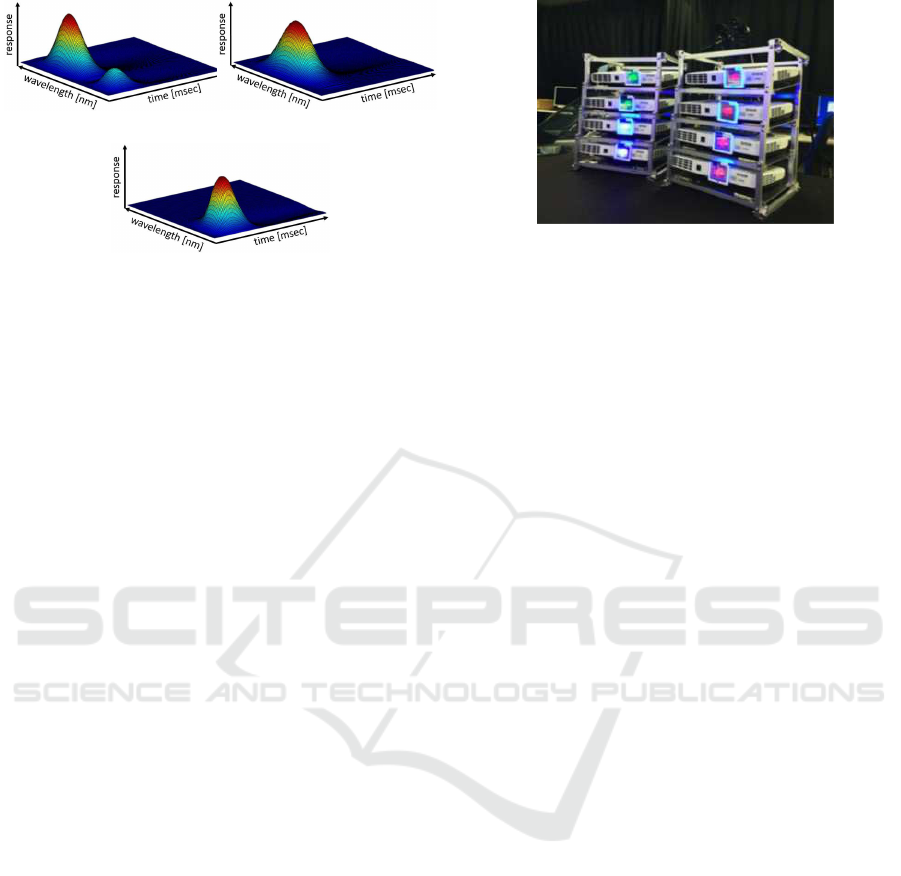

Figure 4: Chromatic temporal response function of human

vision.

These three co ne cells are sensitive to long wave-

length light, medium wavelength light and short wa-

velength light respectively.

The c olor perc eption caused by these 3 cone cells

can be associated with physical light spectra by using

the c olor matching functions, x(λ), y(λ) and z(λ),

whose spectral d istributions are as shown in Fig. 2.

These 3 color matc hing functions can be considered

as the spectra l sensitivity of a stand ard human obser-

ver in 3 channels. Thus, we in this paper consider the

individuality in chroma tic response o f human vision

as the individuality in color matching functions, x(λ),

y(λ) and z(λ).

On the other hand, the temporal response of hu-

man vision is described by the temporal impulse re-

sponse of photoreceptor cells, that is the change in

response in time when the light impulse is incident

on a photoreceptor cell. It is known that the imp ulse

response S(t) of a typical photoreceptor cell can be

described as sh own in Fig. 3 (Cao et al., 2007).

It is known that the spectral sensitivity an d the

impulse response are different for every person (Cao

et al., 2007). Th us, we consider a chromatic temporal

response function H(λ, t), wh ich describes th e chro-

matic and temp oral response characteristics, for every

person.

Since the chromatic tempo ral response function

includes the spectral sensitivity characteristics an d

the temporal response cha racteristics, it is a two-

dimensional f unction having r e sponse in two d irecti-

ons, i.e. wavelength direction and time direction, as

shown in Fig. 4. A lso , since it is considered that the

spectral sensitivity characteristics and the tem poral

response characteristic are different for every chan-

nel, the chromatic temporal response function is de-

ﬁned for each channel H

(λ, t), j ∈ {x, y, z} as shown

in Fig. 4.

We next consider the observation model based on

the chromatic temporal response function H

(λ, t). If

Figure 5: Multi-band projector.

we h ave an in put light E(λ, t) at time t, the observed

intensity y

of j-th channel at time t can be described

as follows:

t−T

(λ, t − t

′

)E(λ, t

′

)dλdt

′

(1)

where, T is the observation period. We use the obser-

vation model in Eq.(1) f or multiplex image presenta-

tion in the following part of this paper.

4 MULTIPLEX IMAGE

PRESENTATION

4.1 Temporal Super-resolution of

Multi-band Projector

In order to realize the multiplex image presentation,

we in this paper control the spectral distribution and

temporal change of incident light by using a high-

speed multi-band projector.

Fig. 5 shows a multi-band projector composed of

multiple p rojectors and narr ow ban d-pass ﬁlters, and

it can control the spectr al distribution of p rojected

light at each point on a screen. The incide nt light

E(λ, t) of the multi-band projector can be described

by the spectral distribution E

(λ) of i-th band in the

multi-ban d projector and its intensity p

at time t as

follows:

E(λ, t) =

∑

i=1

(λ)p

(2)

where, N is the number of bands in the multi-band

projector.

By using such a multi-band projector, the obser-

vation mo del in Eq.( 1) can be rewritten as follows:

∑

k=1

∑

i=1

t−k+1

(3)

where, h

is the response of j-th channel ( j ∈ {x, y, z})

at discrete time k when the light impulse of i-th b and

Showing Different Images Simultaneously by using Chromatic Temporal Response in Human Vision

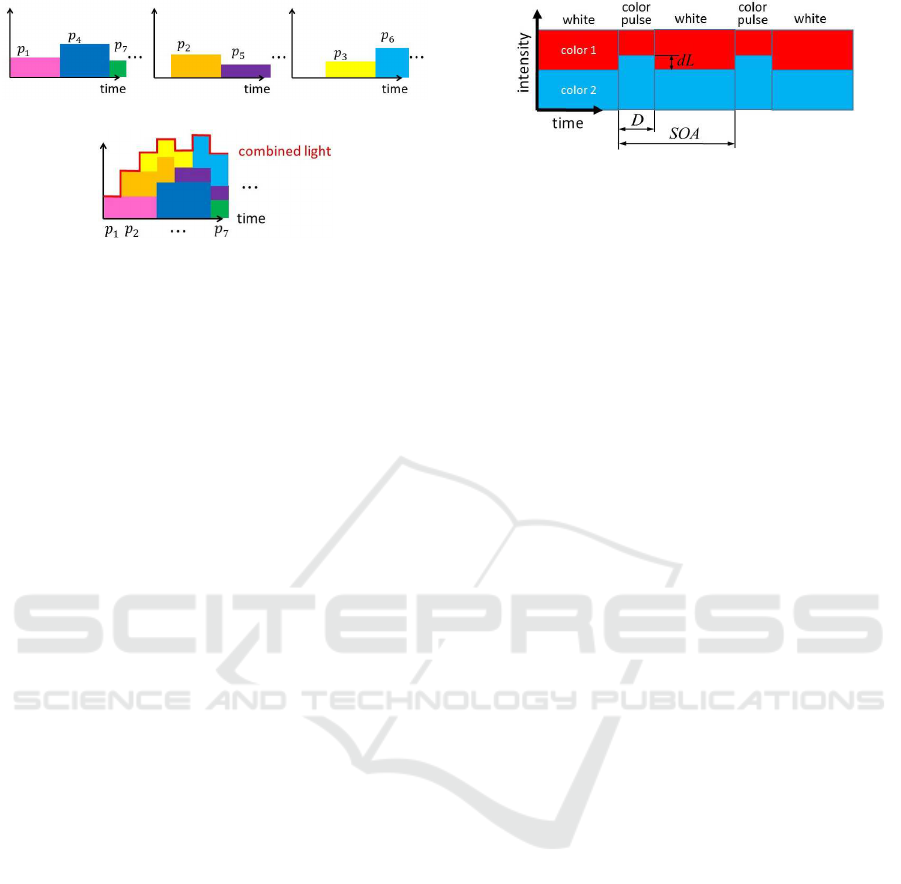

(a) switch timing is shifted in 3 projecto rs

(b) temporal super resolution from 3 projectors

Figure 6: Temporal super resolution of projector.

is incident o n th e photoreceptor cell at time 0, and it

is described by using the ch romatic temporal response

function H

(λ, t) and the spectral distribution E

(λ) of

i-th band of the multi-band projector as follows:

t−k+1

t−k

(λ, t − t

′

(λ)dλdt

′

(4)

Furthermore, in order to control temporal re-

sponse of human vision, a very fast light projection

system is required. However, there is no high speed

projector or display with high frame rate. Therefor e ,

we consider temporal super resolution of projection

systems by using multiple projectors whose timing of

switching images is shifted to each other.

For example, if we have three projectors whose

image switch timing is shifted with one third of the

projection cycle as shown in Fig. 6 (a), then the in-

tensity of image projected from these three projectors

changes as shown in 6 (b). As a result, we can chang e

images three times faster than the original projectors,

and c an achieve temporal super resolution of image

projection. If we have K projectors for eac h band in

the multi-band projec tor, the observation model of the

high-speed multi-ba nd projector can be described as

follows:

∑

k=1

∑

i=1

∑

l=1

t−k−l+2

(5)

In this way, a high-speed multi-band projector can be

realized.

4.2 Computing Projection Images for

Multiplex Image Presentation

We next compute projection images for showing dif-

ferent images to different observers simultaneously

using the high-speed multi-band projector.

Suppose we have M observers, and the chroma-

tic temporal response functions {H

(λ, t), H

(λ, t),

(λ, t)} (l = 1, ··· , M) of these M observers are

Figure 7: Temporal double-pulse method.

known. Then, the response function h

of l-th obser-

ver can be computed from Eq.(4). Thus, given a set

of sequential projection images p

of the high-speed

multi-ban d projector, the observation y

) in j-th

channel of the l-th observer at time t can b e c omputed

from Eq.(5).

Now, what we want to do is to show M different

objective images ˆy

(l = 1, ·· · , M) to M observers.

Thus, we estimate a set of sequential projection ima-

ges p

of the high-speed m ulti-band projector by sol-

ving the following minimization p roblem:

{ ˆp

} = argmin

∑

l=1

∑

t=1

{x,y,z}

∑

( ˆy

− y

))

(6)

However, since the p rojectors can only project

images with a ﬁxed range of inte nsity, the projection

images p

must h old the following inequality.

0 ≤ p

≤ I

max

(7)

where, I

max

is the maximum inten sity of projecto r

light. Thus, we estimate the projection images p

solving Eq.(6) subject to Eq.(7). Then, the multiplex

image presentation can be realized by presenting the

image p

from th e high-spee d multi-band projector to-

ward these M observers.

5 MEASURING CHROMATIC

TEMPORAL RESPONSE OF

HUMAN VISION

We next consider a m e thod for measuring chroma-

tic temp oral respo nse function of human vision. For

measuring the chromatic respo nse characteristics, we

use the existing method proposed by Muramatsu et

al. (Muramatsu et al., 20 16), which uses the meta-

merism in human color p e rception an d estimate the

spectral sensitivity of human v isio n efﬁciently.

For measuring th e tempor al response cha racteris-

tics, we use the temporal double-pulse method pro-

posed in the ﬁeld of exper imental p sychology (Uchi-

kawa and Yoshizawa, 1993). Since the temporal

double-pulse method is not familiar in the computer

vision ﬁeld, we brieﬂy explain the meth od.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

x y z

(a) summa tion index

(b) imp ulse re sponse

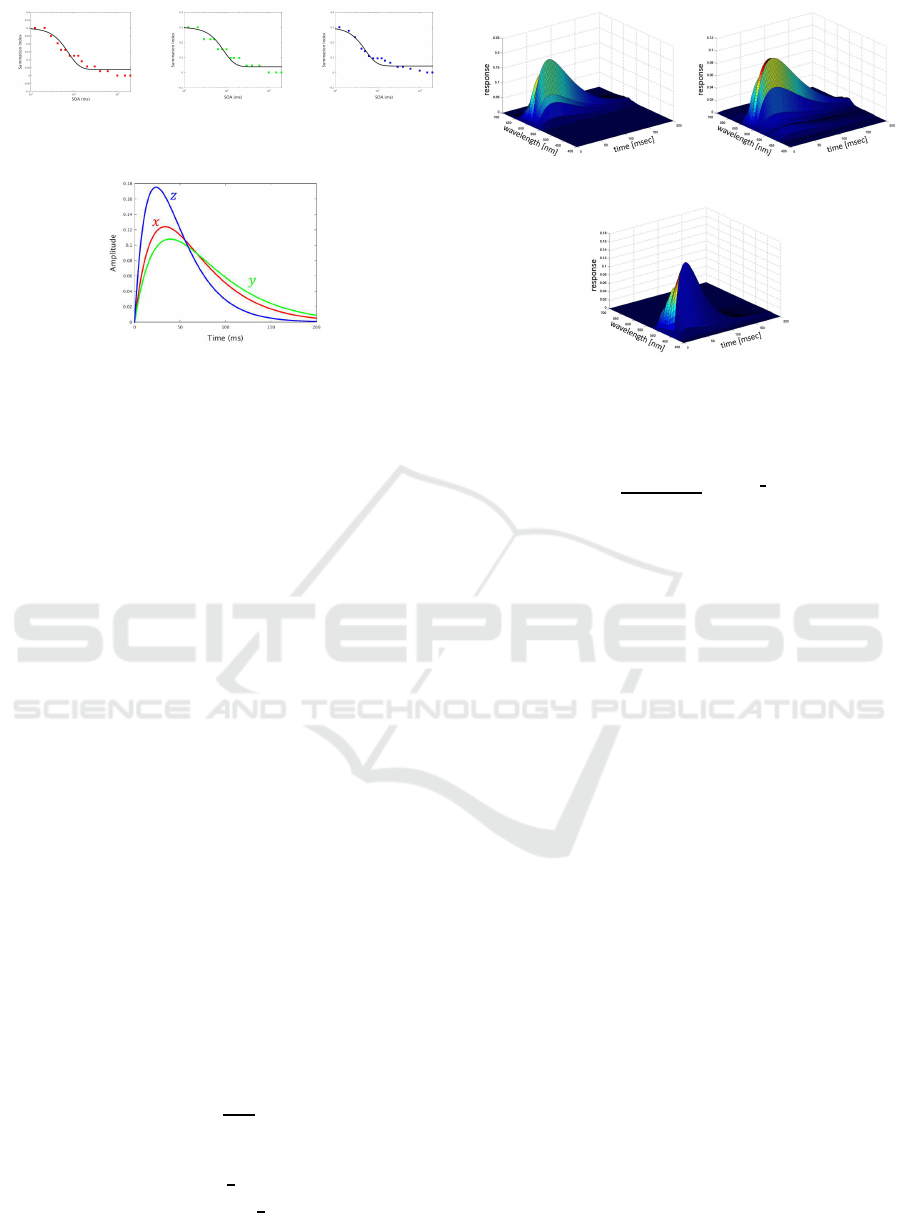

Figure 8: Summation index and estimated impulse response

of human vision.

In th is method, we show a white reference light

and a sequential test light in the same ﬁeld of view.

The test light changes its color without changing its

brightn ess by p roviding two c olor pulses as shown in

Fig. 7, wher e dL is the amount of color in color pulse.

If dL is small, th e human vision cannot distinguish

the test light from the white reference light, but if dL

becomes large, the hu man vision ca n distinguish these

two lights. So, we measure the thre shold value of dL

changin g the test light.

In the test light, the length D of each pulse is

ﬁxed, but the interval of two color pulses is changed

as shown in Fig. 7. The interval is called a stimulus-

onset asynchrony (SOA). If SOA is large enough, two

pulses are observed independently in the human vi-

sion, and double pulses and a single pulse dose n ot

cause any d ifference in the observation. Therefore,

the threshold value dL

of the double pulse is same

as the threshold value dL

of the single pulse. Howe-

ver, when SOA become s small, the imp ulse responses

of double pulse overlap, and the photoreceptor has

more excitation than that of the single pulse. As a

result, dL

becomes smaller than dL

. Since the ra-

tio of dL

and dL

changes according to the shape of

the impulse response function, the im pulse response

function can be estimated from the ratio obtained by

changin g SOA. The ratio is called a summation index

and is deﬁned as follows:

SI = − log





(8)

If two imp ulse responses of the double pulse do not

overlap, SI is equal to − log

= 0, and if they overlap

completely, SI is e qual to − log

= 0.3.

For estimating the impulse respo nse function S(t)

efﬁciently, it is modeled by using two para meters, τ

(a) x cha nnel (b) y channel

Figure 9: Estimated chromatic temporal response functions.

and n, as follows:

S(t) =

(n − 1)!

n−1

−

(9)

Thus, the estimation of S(t) is considered as the esti-

mation of τ and n.

Now, if we give some τ and n, then the impulse

response S(t) is ﬁxed from Eq.(9) and the summation

index

SI(τ, n) can be computed from Eq .(8). There-

fore, we estimate τ a nd n, so that the computed sum-

mation index

SI(τ, n) becomes identical to the o bser-

ved summation index SI. Thus, we estimate τ and n

by solvin g the following minimization problem:

{

τ, ˆn} = arg min

{τ,n}

||SI −

SI(τ, n)||

(10)

In this way, we can estimate the impulse response of

an observer.

Then, by c ombining the spectral sensitivity and

the impulse response, the chromatic temporal re-

sponse function can be computed. In this research,

it is assum e d that the two characteristics are indepen-

dent, and the chromatic temporal response f unction

is described as the product of the spectral sensitivity

characteristic X (λ) ∈ {x(λ), y(λ), z(λ)} and the im-

pulse response S(t) as follows:

H(λ, t) = S(t)X (λ) (11)

The estimated chr omatic temporal response

function can be used for rea lizing the multiplex image

presentation descr ibed in section 4.

Showing Different Images Simultaneously by using Chromatic Temporal Response in Human Vision

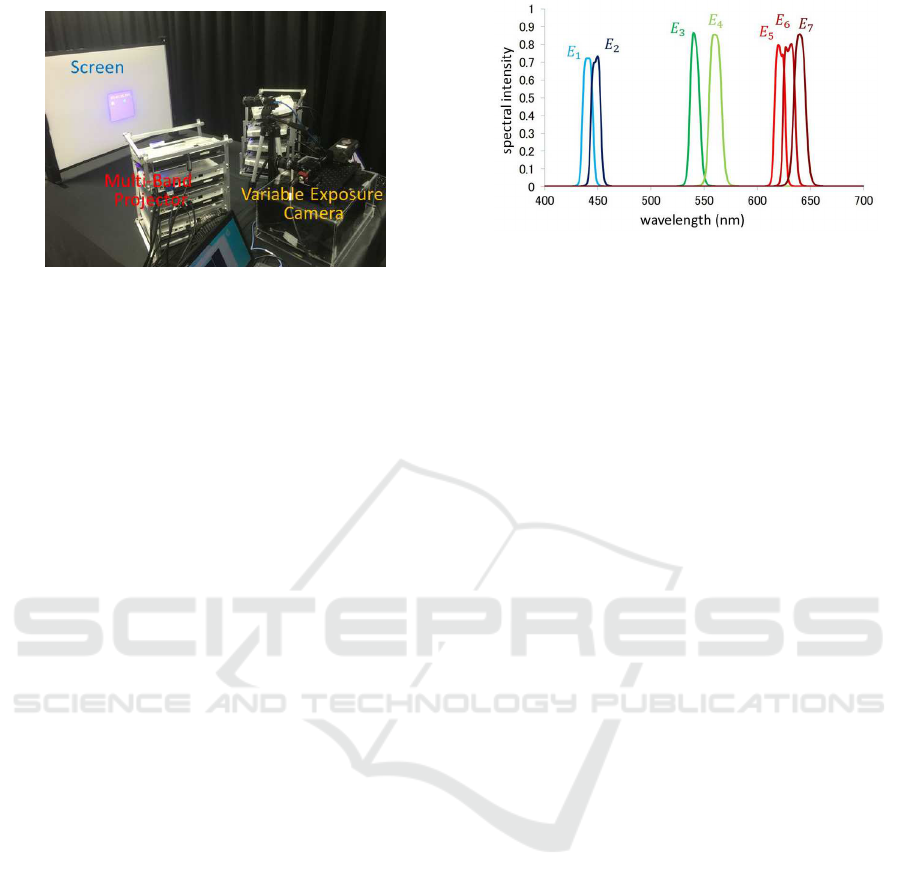

Figure 10: Experimental setup.

6 EXPERIMENTS

6.1 Estimation of Chromatic Temporal

Response Function

We ﬁrst show the results of c hromatic temporal re-

sponse estimation .

For measuring the summation index from the tem-

poral do uble-pulse method, we used a hig h-speed dis-

play whose refresh rate is 240 fps. We changed the

SOA of double pulse in the test light from 0 msec to

3000 msec, and measured the magnitude of color dL

when the observer perceived the chang e in color.

Fig. 8 (a ) shows the summation index of x, y and

z channels estimated from the tempor a l double-pulse

method. The points in the graph represent the sum-

mation index obtained from actual m easurement, and

the solid lines show the summation index computed

from the parameters estimated by usin g these points.

Fig. 8 (b) shows impulse response of x, y and

z channels estimated from the summation index in

Fig. 8 (a).

By combining the spectral sensitivity estimated

from the metamerism (Muramatsu et al., 2016), the

chromatic temporal response functions wer e obtained

as shown in Fig. 9.

6.2 Multiplex Image Presentation

We next show results of the proposed multiplex image

presentation.

Since it is impossible to extract and show ima-

ges observed by real human vision, we evaluated our

multiplex image presentation by usin g a camera as an

observer. Since the temporal response function of a

standard camera cannot be controlled, we reproduced

the chromatic temporal response function of human

vision by using a variable exposure time camera pro-

posed by Uda et al. (Uda et al., 2016), which can con-

Figure 11: Spectral distribution of the multi-band (7-band)

projector used in our experiments.

trol the temporal exposure patter n freely in a single

exposure time.

Our experimental setup is as shown in Fig. 10.

The images are projected to the screen from the multi-

band projector, and they are observed by the variable

exposure time camera. The spectral distribution of the

multi-ban d projector is as shown in Fig. 11. We re-

produced two different chromatic temporal response

functions, “observer A” and “observer B”, by usin g

the variable exp osure time camera.

Fig. 12 (a) shows objective images for these two

observers, which we want to show them. As we can

see in these images, the objective images for these

two observers are completely different. Fr om these

objective image, we computed sequential projection

images of the multi-band projector. The derived ima-

ges were projected from the multi-band projector and

observed by the variable exposure time camera. For

compariso n, we also implemented and tested two ex-

isting methods. T he ﬁrst one is a method proposed by

Nonoyama (Nonoyama et al., 201 3) wh ich only uses

the difference in spectral sensitivity, and the second

one is a method proposed by Ikeba (Ikeba et al., 2017)

which only uses the difference in temporal re sponse.

Fig. 12 (b) shows images obser ved by observer A

and B when we used the proposed me thod, and (c)

and (d) show observed images in Nonoyama’s met-

hod and I keb a’s method respectively. As we can see in

these images, the proposed method enables us to show

more clear and more independent images to these ob-

servers. The RMSE values also sh ow that the propo-

sed method provides us mo re accu rate observation in

multiplex image presentation.

Fig. 13 shows results f rom different ob je ctive ima-

ges. As we can see in these resu lts, our method works

under various objective images.

We next evaluate the e fﬁciency o f the temporal

super-resolution of projector in th e multiplex image

presentation. Fig. 14 sh ows the comparison of multi-

plex image presentation implem ented by using high-

speed projectors, temporal super-resolution of pro-

jectors and standard projectors. From these resu lts,

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

(a) objec tive image (b) prop osed method (spectral) (tempor al)

observer Aobserver B

RMSE 16.17 19.93 18.78

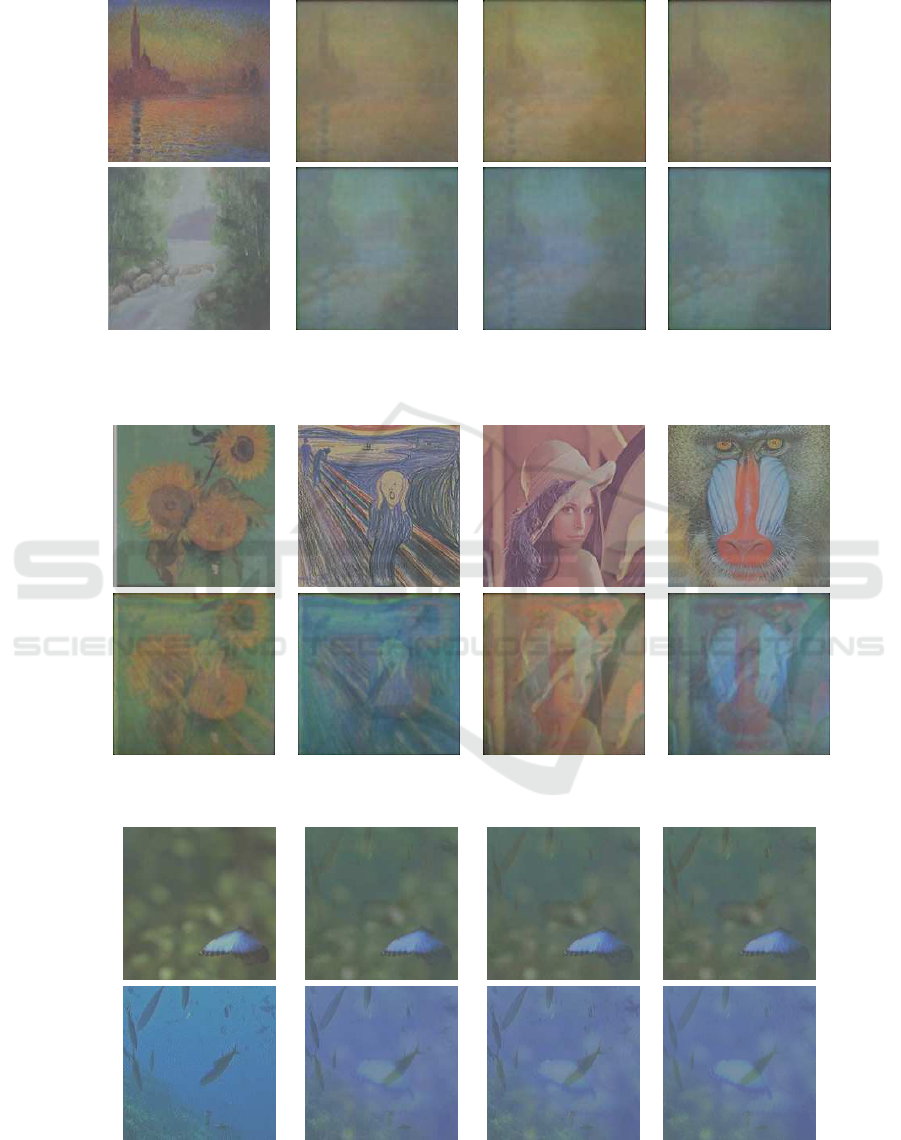

Figure 12: The results of multiplex image presentation.

observer A observer B observer A observer B

objective imageobserved image

Figure 13: The results of multiplex image presentation (other results).

objective image high-speed projector super-resolution standard pro je ctor

observer Aobserver B

RMSE 11.06 12.37 12.48

Figure 14: Comparison of multiplex image presentation f r om high speed projectors, temporal super-resolution of projectors

and standard projectors.

Showing Different Images Simultaneously by using Chromatic Temporal Response in Human Vision

we ﬁnd that the temporal super-resolution provides us

better quality in mu ltiplex image presentation than the

standard pro je ctors.

7 CONCLUSION

In th is paper, we proposed a novel method for sho-

wing different images to multiple observers simulta-

neously by using the difference in their chromatic and

temporal retinal response.

We ﬁrst formalized the chromatic and tempo ral

relationship between the incident light and the re-

sponse in human vision. Then, w e proposed a met-

hod for showing arbitrary different images to indivi-

dual observers simultaneously by using the difference

in chr omatic temporal response function in human vi-

sion. We also showed a method for obta ining the

chromatic and temp oral response function of human

vision.

The experimental results show that the use of mul-

tiple visu a l response character istics is efﬁcient for re-

alizing more ac curate multiple image presentation.

REFERENCES

T. Hamada, K. Nagano and T. Scritters. A multiplexed

image system for a public screen. In Proc. Virtual

Reality International Conference. 321–323, 2010.

Y. Kakehi, M. Iida, T. Naemura, Y. Shirai, M. Matsushita

and A. Ohguro. Lumisight table: An interactive view-

dependent tabletop display. Computer Graphics and

Applications, 25, 48–53, 2005.

M. Nonoyama, F. Sakaue and J. Sato. Multiplex image pro-

jection using multi-band projectors. In Proc. IEEE

Workshop on Color and Photometry in Computer Vi-

sion, 2013.

K. Muramatsu, F. Sakaue and J. Sato. Estimating spectral

sensitivity of human observer for multiplex image

projection. In Proc. International Conference on

Computer Vision Theory and Applications, 183–191,

2016.

D. Ikeba, F. Sakaue and J. Sato. Showing Different Ima-

ges to Observers by using Difference in Retinal Im-

pulse Response. In Proc. International Conference on

Image Analysis and Processing, 718–729, 2017.

CIE. Commission internationale de l’Eclairage procee-

dings. Cambridge University Press, 1931.

D. Cao, A. Zele and J. Pokorny. L inking impulse response

functions to reaction time. Vision Research, 47, 1060–

1077, 2007.

A. Berthier. Images stereoscopiques de grand format. Cos-

mos, 34:205–210, 227–233, 1896.

F. Ives. A novel stereogram. Journal of the Franklin Insti-

tute, 153:51–52, 1902.

G. Lippmann. E preuves reversibles donnant la sensation du

relief. Journal of Physics, 7(4):821–825, 1908.

K. Perlin, S. Paxia and J.S. Kollin. An Autostereoscopic

Display. In ACM SIGGRAPH, 2000.

B. Masiaa, G. Wetzsteinb, P. Didykc and D. Guti errez. A

survey on computational displays: Pushing the boun-

daries of optics, computation, and perception. Com-

puter & Graphics, 37(8), 2012–1038, 2013.

G. Wetzstein, D. Lanman, W. Heidrich, and R. Raskar. Lay-

ered 3d: tomographic image synthesis for attenuation-

based light ﬁeld and high dynamic range displays. In

ACM Transactions on Graphics, 30(4), 2011.

G. Wetzstein, D. Lanman, M. Hirsch, and R. Rasker. Ten-

sor displays: Compressive light ﬁeld synthesis using

multilayer displays with directional backlighting. In

ACM Transactions on Graphics, 2012.

M. Hirsch, G. Wetzstein, and R. Rasker. A compressive

light ﬁeld projection system. In ACM Transactions on

Graphics, 2014.

D. Lanman and D. Luebke. Near-eye light ﬁeld displays. In

ACM SIGGRAPH Asia, 2013.

F. Huang, K. Chen, and G. Wetzstein. The light ﬁeld stereo-

scope immersive computer graphics via factored near-

eye light ﬁeld displays with focus cues. In ACM SIG-

GRAPH, 2015.

Uchikawa, K., and Yoshizawa, T. Temporal Response to

Chromatic and Achromatic Change Inferred from

Temporal Double-Pulse Integration. Journal of the

Optical Society of America, A, 1697–1705, 1993.

S. Uda, F. Sakaue and J. Sato. Variable exposure time ima-

ging for obtaining hdr images. In Proc. International

Conference on Computer Vision Theory and Applica-

tions, 118–124, 2016.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
