Indoor Scenes Understanding for Visual Prosthesis

with Fully Convolutional Networks

Melani Sanchez-Garcia

, Ruben Martinez-Cantin

1,2

and Jose J. Guerrero

I3A, Universidad de Zaragoza, Spain

Centro Universitario de la Defensa, Zaragoza, Spain

Keywords:

Image Understanding, Fully Convolutional Network, Visual Prosthesis, Simulated Prosthetic Vision.

Abstract:

One of the biggest problems for blind people is to recognize environments. Prosthetic Vision is a promising

new technology to provide visual perception to people with some kind of blindness, transforming an image to

a phosphenes pattern to be sent to the implant. However, current prosthetic implants have limited ability to

generate images with detail required for understanding an environment. Computer vision play a key role in

providing prosthetic vision to alleviate key restrictions of blindness. In this work, we propose a new approach

to build a schematic representation of indoor environments for phosphene images. We combine computer

vision and deep learning techniques to extract structural features in a scene and recognize different indoor

environments designed to prosthetic vision. Our method uses the extraction of structural informative edges

which can underpin many computer vision tasks such as recognition and scene understanding, being key for

conveying the scene structure. We also apply an object detection algorithm by using an accurate machine

learning model capable of localizing and identifying multiple objects in a single image. Further, we represent

the extracted information using a phosphenes pattern. The effectiveness of this approach is tested with real

data from indoor environments with eleven volunteers.

1 INTRODUCTION

According to the World Health Organization (WHO)

the estimated number of people with moderate to se-

vere visual impairment is 285 million (Pascolini and

Mariotti, 2012). Implantable prosthetic vision has

become a way to stimulate the surviving neurons

in the retina providing a very low visual resolution.

These devices aim to create visual sensations known

as phosphenes through processing the input from a ca-

mera by a computer. As a result, blindness people can

perceive simple patterns in the form of a set of phos-

phenes (Guo et al., 2010). Current commercial im-

plants range from 60 to 1500 electrode arrays, which

corresponds to pseudo-images of less than 40 by 40

pixels. Furthermore, the stimulation of those elec-

trodes is limited in the sense that only few intensity

levels can be identiﬁed by the user with slow stimula-

tion and recovery times (Luo and Da Cruz, 2014).

Although progress has been made with these

prostheses, there are currently some restrictions such

as limited visual acuity due to biological challenges,

manufacturing constraints and physical restraints (Ei-

ber et al., 2013). The low bandwidth of these prost-

heses causes the loss of visual information perceived

like color, texture, brightness and edges, which is es-

sential for blind people to carry out daily tasks such

as navigate and walk safely (Vergnieux et al., 2014)

or object recognition and localization (Mac

e et al.,

2015). Thus, it becomes of paramount importance to

encode the input information of the environment pro-

perly in a way that it can be transmitted efﬁciently to

the subject through the phosphene array.

Following the standard practice in the literature,

we use Simulated Prosthetic Vision (SPV) to evaluate

the efﬁcacy of visual perceptions in visual prostheses.

We also assume that the device includes an external

sensor, i.e. a camera, to perceive the scene. Most

of the current approaches of SPV use image proces-

sing techniques to enhance the perceptions preserving

the relevant content of the image (Ayton et al., 2013).

This may help to identify regions of interest and high-

light the location of objects in the scene. Since only

hundreds of pixels are available, both the contrast dif-

ference and the edges become very important in terms

of the details to be represented in the image.

For image understanding and computer vision,

deep learning has recently revolutionized the ﬁeld

218

Sanchez-Garcia, M., Martinez-Cantin, R. and Guerrero, J.

Indoor Scenes Understanding for Visual Prosthesis with Fully Convolutional Networks.

DOI: 10.5220/0007257602180225

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 218-225

ISBN: 978-989-758-354-4

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

Input


Structural Informative

Edges (SIE)

Object Mask

Segmentation (OM)

Schematic

representation

(SIE-OM)

Phosphenic image

(SIE-OM)

Phosphenic image

(OM)

R-CNN

FCN-EI

Object label

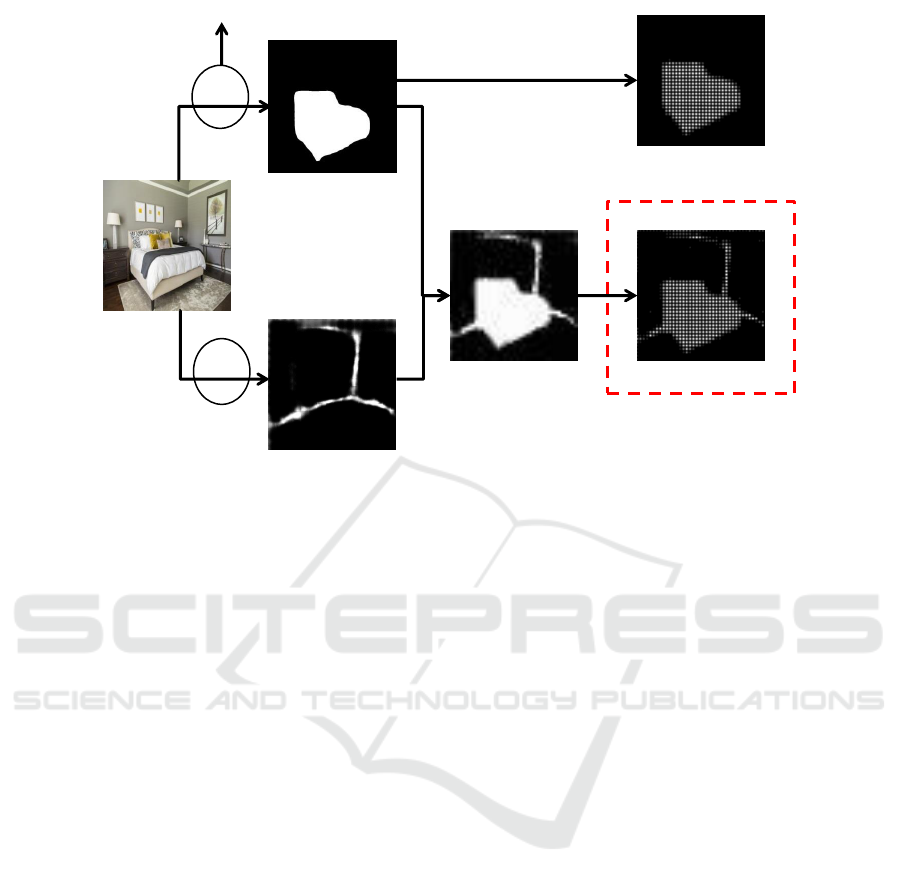

Figure 1: An overview of our approach. We present a new approach of image processing for Simulated Prosthetic Vision.

From an input image we used Deep Learning algorithms to enhance relevant features in a scene. Structural Informative Edges

(SIE) are generated from (Mallya and Lazebnik, 2015) and Objects Masks Segmentation (OM) are generated from (He et al.,

2017). The extracted information is superimposed (SIE-OM) to subsequently create the phosphenic image.

from the seminal work of (LeCun et al., 1989) to the

groundbreaking results of (Krizhevsky et al., 2012).

Concretely, convolutional neural networks (CNNs)

have achieved state of the art results in different tasks

such as object detection (Anisimov and Khanova,

2017), layout estimation (Dasgupta et al., 2016) and

semantic segmentation (Gu et al., 2017). The use

of deep networks could suppose an advance in SPV

since they can be used to carry out representations

of environments, leading to large improvements in

visual perceptions restored by current low-resolution

implants (Sanchez-Garcia et al., 2018).

The contribution of this paper is twofold. First,

we present a new approach of phosphenic image ge-

neration based on the combination of relevant object

detection and segmentation and the detection of struc-

tural edges in indoor scenes. Our image processing

pipeline is shown in Figure 1. Second, we performed

an experiment with multiple subjects to validate the

performance of our proposal for indoor scene recog-

nition. We also compared the performance of the sub-

jects with a classical method to obtain low bandwidth

information such as edge detection (see Figure 2).

2 PHOSPHENE GENERATION

USING DEEP LEARNING

2.1 Phosphene Generation Strategies

In this work, we focused on the schematic represen-

tation of indoor environments through deep networks.

The goal is to improve the ability to understand unfa-

miliar environments for simulated prosthetic vision.

However, the limitation of the low resolution presen-

ted by the visual prosthesis means that we have to

focus on extracting the most signiﬁcant information

such as structural edges or simple objects.

We opted to extract the structural informative ed-

ges of indoor scenes that are informative about the

layout of a room. These structural edges are those

formed by the intersections of room faces (two walls,

wall and ceiling, wall and ﬂoor). To accomplish this,

we choose a fully convolutional network proposed in

(Mallya and Lazebnik, 2015) for pixel-wise labeling

that learn to predict ’structural informative edges’ for

different structures of indoor scenes. We also used a

new convolutional network approach proposed in (He

et al., 2017) focused on the segmentation of object

instances in order to extract more information from

Indoor Scenes Understanding for Visual Prosthesis with Fully Convolutional Networks

219

Figure 2: Steps of image processing by using classical Canny method. a) Input image, b) contrast and brightness enhancement

c) grayscale histogram equalization, d) canny edge detection, e) image expansion, f) phosphenic image.

the scene through segmentation and later the masks

generation of relevant objects. After structural infor-

mative edges and object segmentation masks are ex-

tracted, we further propose two image enhancement

strategies: - Object mask (OM), and a schematic re-

presentation formed by - Structural Informative Edges

combined with Object mask (SIE-OM) to enhance the

limited visual perception under SPV (Figure 1).

2.2 Structural Informative Edges

In the literature exist different approaches for recove-

ring and predicting the layout of an indoor scene (He-

dau et al., 2012; Schwing et al., 2012). Our idea was

centered on ﬁnding edges that are very informative

about the structure of a room. Unfortunately, most of

these edges are not always visible since the presence

of objects in the room occlude them. The neural net-

work proposed in (Mallya and Lazebnik, 2015) is ba-

sed on a Fully Convolutional Network (FCN) where

given an image, it determines the informative edge

map of the image. The idea of using this CNN to

predict informative edges motivates us to extract di-

rectly structural edges of rooms as relevant informa-

tion to understand the layout of the room in a sche-

matic way. For training this FCN, they use the data-

set from (Hedau et al., 2009) which achieve state-of-

the-art results on the LSUN dataset (Mallya and La-

zebnik, 2015). This network has the particularity that

it is trained for two joint tasks. The ﬁrst task is based

on the prediction of the informative edge map gene-

rating a binary mask of each of the three types of ed-

ges (wall/wall, wall/ceiling, wall/ﬂoor) in the layout.

The second trained task is based on the prediction of

geometric contexts labels. This labels correspond to

different room faces plus an object or cluster label. In

this FCN, the total loss is considered as the sum of

the two cross-entropy classiﬁcation losses: for the in-

formative edge label prediction and for the geometric

context label prediction. Figure 3 (left center) shows

examples of structural informative edges detected on

different indoor scenes.

2.3 Object Mask Segmentation

We also use the Mask R-CNN method (He et al.,

2017) to extract a segmentation mask of objects.

Mask R-CNN goes beyond with the novelty of pro-

viding an object mask after its segmentation, which is

interesting to select and extract objects from the ima-

ges to later represent it under simulated prosthetic vi-

sion. Its approach is summarized in two parts; the

ﬁrst is centered on a convolutional network used for

the extraction of features on an entire image, and the

second corresponding to the network head for the re-

cognition of bounding box (classiﬁcation and regres-

sion) and mask prediction. This is illustrated in Figure

3 (center).

For this work, we developed two image processing

strategies for the input scenes.

2.3.1 Object Mask (OM)

For this strategy, we started making a selection of ob-

jects that we considered most relevant in each type

of room to subsequently segment and extract a mask

for each of them by using the framework of (He et al.,

2017). The rest of the information present in the scene

were removed. Figure 3 (center) shows examples of

the extracted masks from the segmentation of the dif-

ferent objects selected for each type of room. The

objects masks extracted from the original images are

used to create a schematic representation of the ind-

oor scene. Then, the pixels were reduce to 40x40 and

they were represented by simple phosphenes pattern

using the approach considered in (Bermudez-Cameo

et al., 2017) (see Figure 4).

2.3.2 Structural Informative Edges and Object

Mask (SIE-OM)

Here, we proposed a new image processing method

based on two neural networks (Mallya and Lazebnik,

2015; He et al., 2017). This method is derived from

OM method but we added the structural informative

edges extracted with (Mallya and Lazebnik, 2015). In

the same way as in the previous method, the pixels

were reduce to 40x40 and they were represented by

the phosphenes pattern. Figure 3 (right center) shows

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

220

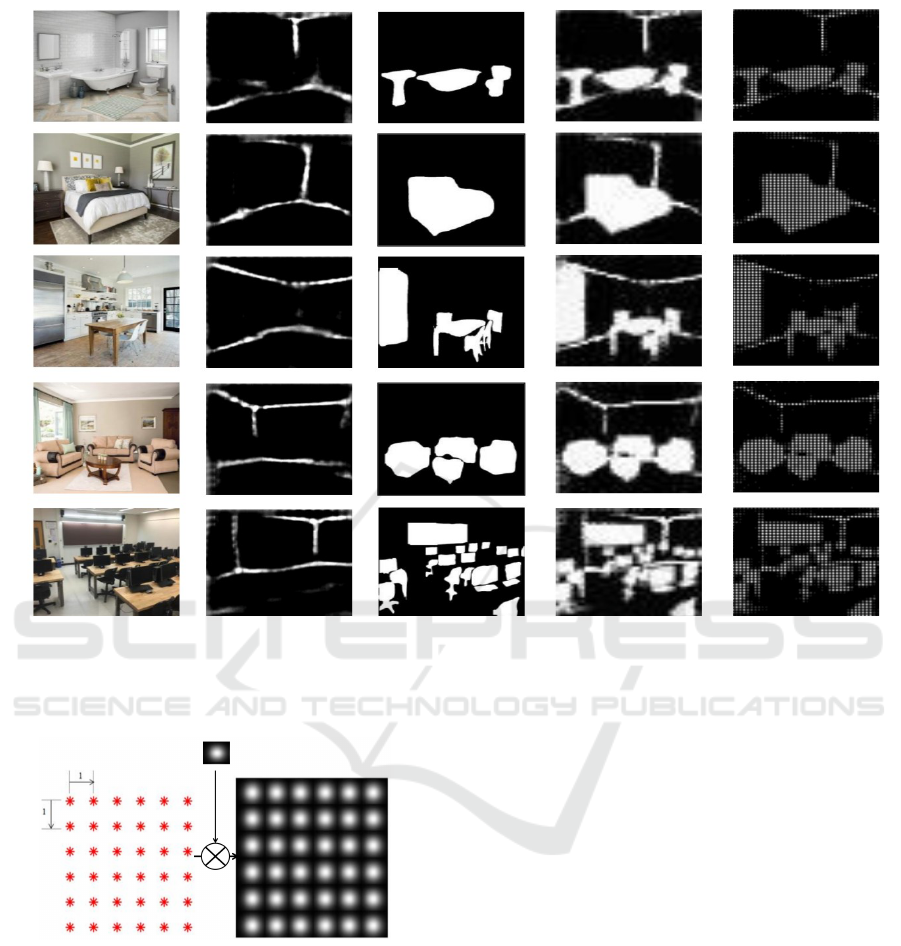

Figure 3: Each row shows an example of indoor scene. The ﬁrst column shows the input image. The next column shows the

structural informative edges of the room. Column three shows the objects masks (OM) and in the fourth column the results

of the two convolutional neural networks are represented in the same image (SIE-OM). In the last column, the images are

represented by a phosphenes pattern.

Gaussian profile

Figure 4: Simulation of phosphene map. Left: Phosp-

hene conﬁguration to create a square grid. Right: Gaussian

smoothing applied to the square grid.

examples of schematic representation (SIE-OM) of

indoor scenes.

3 EXPERIMENTAL SETUP

3.1 Participants

Eleven subjects (two women and nine men) were vo-

lunteered in the experiment. The subjects were bet-

ween 20 and 36 years old and they were not familiar

with the setup and the SPV.

3.2 Ethics Statement

All of the experimental process were conducted ac-

cording to the ethical recommendations of the Decla-

ration of Helsinki. All subjects were informed about

the purpose of the experiment. They could leave the

study at any time.

3.3 Phosphene Images

Ten indoor images were collected and were cropped

to a size which covered a visual angle of 20

◦

(dia-

gonally) to correspond to epiretinal prostheses (Zhou

et al., 2013). Then, the resolution of the images were

adjusted to 40x40 pixels. We processed ﬁve different

types of indoor scenes using the image processing

strategies from Section 2.1. Similarly to many SPV

studies such as in (Chen et al., 2009), phosphenes are

approximated as grayscale circular dots with a Gaus-

sian luminance proﬁle (Figure 4). The representation

Indoor Scenes Understanding for Visual Prosthesis with Fully Convolutional Networks

221

Figure 5: Eight examples of indoor environments represented with 1600 phosphenes. We wanted to show the difference of

using a classic method of image processing and a new approaches based on deep learning techniques. Each column show

original images, images processed by using OM method, images processed by using Canny method and images processed by

our method SIE-OM, respectively.

of the scenes includes six intensity levels of phosp-

henes, to present the structural informative edges and

objects masks in white and gray. Figure 5 gives ex-

amples of phosphenic images processed by some of

the methods described above (OM and SIE-OM).

3.4 Procedure

Subjects had to perform two different tasks based on

object identiﬁcation and room type recognition with

a sequence of images presented on a monitor. A

brief introduction of different tasks procedures was

given verbally to all the subjects before the experi-

ment. Besides, subjects were informed about the dif-

ferent types of rooms and objects that they were going

to see. But they were not informed about the num-

ber of objects in each image. The global task of the

experiments was to recognize an indoor environment

among ﬁve types of rooms and the possible objects

presents in each scene. Our selection of images inclu-

ded bathrooms, bedrooms, kitchens, living rooms and

ofﬁces, and the selection of objects was composed by

toilets, sinks, baths, refrigerators, ovens/microwaves,

tables, chairs, TV’s/laptops, beds and couches.

There were two different tasks in the formal tests.

The ﬁrst task was composed by sixteen images of dif-

ferent indoor environments, each one processed in the

methods presents in this document. The image pre-

sentation sequence was randomized for each subject.

Their task were to recognize different objects in the

phosphenic images. For this, they had to mark with

a cross the boxes in a quiz of the objects identiﬁed

in each image. The second task was to identify the

type of room to which each image corresponds, i.e.

they had to determine room types based on what they

were seeing on each phosphenic image. Moreover,

they had to mark with a cross the certainty with which

they were able to recognized it according to the Likert

ranking explained later. After each test image, the

next image was conﬁgured consecutively. The time

allotted for each image is limited to 30 seconds. The

whole experiment had an average duration of 15 mi-

nutes per subject.

4 RESULTS

We compared the two methods present in Section 2.1

with a baseline method using classical image proces-

sing tools. This baseline, which we called Canny, is

focused on the Canny Edge Detection algorithm that

it is typically used for image processing in SPV (Do-

wling et al., 2004). The performance of this method

is based on detecting the edges in an image. Here,

the amount of data is signiﬁcantly reduced, while the

important structural properties of the image are pre-

served. To improve the perception of the information

present in the image, we perform six steps for this

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

222

Table 1: Comparison of responses of the three different methods (Canny, OM and SIE-OM) on object identiﬁcation and room

type recognition tasks. The assurance of the three methods was evaluated with the Likert ranking.

Method

Object

Identiﬁed

Object Not

Identiﬁed

% Correct Object

Identiﬁcation

% Room

Recognized

% Level of Conﬁdence

%C %I %C %I DY PY M PN DN

Canny 7 2 72 17 79 32 0 14 9 23 55

OM 13 5 74 10 87 41 9 32 23 23 14

SIE-OM 13 1 75 10 88 55 27 18 27 5 23

Table 2: Summary of responses of ten images of different indoor environments processed by using SIE-OM method. The

performance is evaluated with the percentage of objects and room types correctly and incorrectly identiﬁed. For most of the

images a high percentage of successes was obtained in the identiﬁcation of objects. In the case of the room type recognition,

the average success result was 58%. The majority of responses were identiﬁed with ‘DY’ and ‘PY’, which indicates that the

subjects understood the visualized scenes.

Image Type

Object

Identiﬁed

Object Not

Identiﬁed

% Correct Object

Identiﬁcation

% Room

Recognized

% Level of Conﬁdence

%C %I %C %I DY PY M PN DN

Bathroom 1 23 2 68 7 91 64 64 9 18 0 9

Kitchen 2 13 5 67 15 80 55 0 27 36 18 18

Bedroom 3 10 0 90 0 100 82 55 36 0 0 9

Living room 4 7 0 90 3 97 55 9 45 9 27 9

Ofﬁce 5 20 1 69 10 89 64 0 55 27 9 9

Bathroom 6 28 0 70 2 98 82 82 18 0 0 0

Kitchen 7 17 2 70 11 87 9 18 45 27 9 0

Bedroom 8 4 6 84 6 87 36 45 36 9 9 0

Living room 9 17 1 79 3 96 82 27 55 9 9 0

Ofﬁce 10 23 2 70 5 93 55 0 36 36 18 9

Total 16 2 76 6 92 58 30 36 17 10 6

method (see Figure 2). To extract the contours with

Canny method we carefully selected the the thres-

holds for each type of room (from 0.25 to 0.4) to pro-

vide optimal performance for each image. In the same

way, we selected each line size for image expansion.

Note that our approach from Section 2.1 is fully auto-

mated requiring no parameter.

The results fall into two main sections: object

identiﬁcation and room type recognition tasks. To

obtain the results we collected the percentage of ‘Cor-

rect’ (C) and ‘Incorrect’ (I) responses in both tasks.

We also analyzed the responses with the Likert ran-

king; the responses marked as ‘Deﬁnitely yes’ (DY),

‘Probably yes’ (PY), ‘Maybe’ (M) and ‘Probably no’

(PN) were assumed as the subject had thought that

they had recognized the type of room related to the

visualized image. It was assumed that the responses

selected as ‘Deﬁnitely no’ (DN) meant that subjects

did not understand the type of room witnessed (see

Table 1 and Table 2).

4.1 Object Identiﬁcation

Canny method had the less percentage of objects iden-

tiﬁed correctly, compared to OM and SIE-OM met-

hods. Besides, Canny images had a 55% of ‘DN’ re-

sponses, which suggests that most of the images were

not understood by the subjects. The main reason was

perhaps the Canny method extracts too much infor-

mation that is difﬁcult to understand when the images

have low resolution. This conﬁrmed that this method

is not very useful at low resolutions. In contrast, there

was no signiﬁcant difference between OM and SIE-

OM. This is due to the way to represent the objects

in the scene was the same for both methods. Furt-

hermore, this suggests that the representation of the

structural informative edges in SIE-OM do not pro-

vide much information in the identiﬁcation of objects.

Looking at the results obtained only for the SIE-

OM method, the total percentage of correct object

identiﬁcation task was very high, of 88%. Moreover,

the highest percentage of conﬁdence with which they

had performed the task is distributed among the re-

sponse of ‘DY’ and ‘PY’, which means that subjects

could identify the objects easily.

4.2 Room Type Recognition

SIE-OM method had a higher percentage of correct

responses for the room type recognition (55%) than

the OM (41%) and the Canny method (32%). We also

observed that SIE-OM method had a slightly better

performance than the OM method. This suggest that

given information of structural edges, scenes provide

Indoor Scenes Understanding for Visual Prosthesis with Fully Convolutional Networks

223

Table 3: Confusion matrix results of room type recognition by using SIE-OM method. The results show that some subjects

confused room types due to the similarity of the objects present in them. Even so, high precision was obtained for our

proposed method.

Actual\Predicted Bathroom Kitchen Bedroom Living room Ofﬁce Total Recall

Bathroom 0.91 0.00 0.00 0.09 0.00 1.00 90.91

Kitchen 0.05 0.45 0.10 0.30 0.10 1.00 45.00

Bedroom 0.00 0.00 0.67 0.33 0.00 1.00 66.67

Living room 0.00 0.00 0.00 0.95 0.05 1.00 95.24

Ofﬁce 0.00 0.00 0.00 0.20 0.80 1.00 80.00

Total 0.96 0.45 0.77 1.88 0.95 5.00

Precision 94.79 100.00 86.96 50.75 84.42

Figure 6: Correct results of room type recognition task

obtained by the three methods, with responses of ‘DN’ and

without responses of ‘DN’. This suppose an increase in the

results of our approach (SIE-OM).

more information when it comes to recognizing the

type of room. Figure 6 shows the results on Table 1

compared to the results obtained in the same way but

counting as null the responses marked in the Likert

ranking as ‘DN’. This supposed a signiﬁcant increase

in the successes of the room recognition for SIE-OM

method.

Looking at the results of our method, the average

percentage obtained of correct responses was 58%.

The responses of ‘DY’ comprised 30% of responses

to all images. Instead, responses selected as ‘DN’

comprised only 6%. This means that subjects could

recognize the type of room with a very high certainty

with this method (Table 2). In Table 3 is shown the

confusion matrix to evaluate the accuracy of our mo-

del in the room type recognition. According to the

results obtained for the room classiﬁcation, many sub-

jects confused kitchen with living room. This was due

to the presence of tables and chairs in both images.

For the same reason, they also confused ofﬁce with

living room. On the other hand, bedroom was confu-

sed with living room because the similarity of shape

between some beds and couches. Even so, the recall

and precision of our model were very high, reaching

in some cases 100%.

5 CONCLUSION

We introduced a new approach for simulated visual

prosthesis based on computer vision and deep lear-

ning algorithms to understand and recognize ﬁve ty-

pes of indoor environments representing the informa-

tion by simple phosphenes pattern. To address this

issue, we used two deep learning techniques propo-

sed by (Mallya and Lazebnik, 2015) and (He et al.,

2017) to extract different relevant information from

the scenes. To verify this method, we compared it to a

classical method of image processing and we studied

the effectiveness of the simulated prosthetic vision.

Our overall research has demonstrated that deep

learning algorithms can make better use of the limi-

ted resolution by highlighting salient features such as

structural edges and object segmentation for simula-

ted prosthetic vision. The results show that the new

approach proposed has a good performance in the re-

cognition of indoor environments even taking it to a

low resolution. As future work we consider enlarge

the number of images to evaluate our method with

subjects.

ACKNOWLEDGEMENTS

This work was supported by project DPI2015-65962-

R (MINECO/FEDER, UE) and BES-2016-078426

(MINECO).

REFERENCES

Anisimov, D. and Khanova, T. (2017). Towards light-

weight convolutional neural networks for object de-

tection. In Advanced Video and Signal Based Surveil-

lance (AVSS), 2017 14th IEEE International Confe-

rence on, pages 1–8. IEEE.

Ayton, L. N., Luu, C. D., Bentley, S. A., Allen, P. J., and

Guymer, R. H. (2013). Image processing for visual

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

224

prostheses: a clinical perspective. In Image Proces-

sing (ICIP), 2013 20th IEEE International Conference

on, pages 1540–1544. IEEE.

Bermudez-Cameo, J., Badias-Herbera, A., Guerrero-Viu,

M., Lopez-Nicolas, G., and Guerrero, J. J. (2017).

Rgb-d computer vision techniques for simulated

prosthetic vision. In LNCS 10255, Pattern Recogni-

tion and Image Analysis, pages 427–436. Springer.

Chen, S. C., Suaning, G. J., Morley, J. W., and Lovell, N. H.

(2009). Simulating prosthetic vision: I. visual models

of phosphenes. Vision research, 49(12):1493–1506.

Dasgupta, S., Fang, K., Chen, K., and Savarese, S. (2016).

Delay: Robust spatial layout estimation for cluttered

indoor scenes. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

616–624.

Dowling, J. A., Maeder, A., and Boles, W. (2004). Mobility

enhancement and assessment for a visual prosthesis.

In Medical Imaging 2004: Physiology, Function, and

Structure from Medical Images, volume 5369, pages

780–792. International Society for Optics and Photo-

nics.

Eiber, C. D., Lovell, N. H., and Suaning, G. J. (2013). At-

taining higher resolution visual prosthetics: a review

of the factors and limitations. Journal of neural engi-

neering, 10(1):011002.

Gu, J., Wang, Z., Kuen, J., Ma, L., Shahroudy, A., Shuai, B.,

Liu, T., Wang, X., Wang, G., Cai, J., et al. (2017). Re-

cent advances in convolutional neural networks. Pat-

tern Recognition.

Guo, H., Qin, R., Qiu, Y., Zhu, Y., and Tong, S. (2010).

Conﬁguration-based processing of phosphene pattern

recognition for simulated prosthetic vision. Artiﬁcial

organs, 34(4):324–330.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In Computer Vision (ICCV), 2017

IEEE International Conference on, pages 2980–2988.

IEEE.

Hedau, V., Hoiem, D., and Forsyth, D. (2009). Recovering

the spatial layout of cluttered rooms. In Computer

vision, 2009 IEEE 12th international conference on,

pages 1849–1856. IEEE.

Hedau, V., Hoiem, D., and Forsyth, D. (2012). Recove-

ring free space of indoor scenes from a single image.

In Computer Vision and Pattern Recognition (CVPR),

2012 IEEE Conference on, pages 2807–2814. IEEE.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in Neural Information Pro-

cessing Systems (NIPS).

LeCun, Y., Boser, B., Denker, J. S., Henderson, D., Ho-

ward, R. E., Hubbard, W., and Jackel, L. D. (1989).

Backpropagation applied to handwritten zip code re-

cognition. Neural computation, 1(4):541–551.

Luo, Y. H.-L. and Da Cruz, L. (2014). A review and update

on the current status of retinal prostheses (bionic eye).

British medical bulletin, 109(1):31–44.

Mac

e, M. J.-M., Guivarch, V., Denis, G., and Jouffrais, C.

(2015). Simulated prosthetic vision: The beneﬁts of

computer-based object recognition and localization.

Artiﬁcial organs, 39(7).

Mallya, A. and Lazebnik, S. (2015). Learning informa-

tive edge maps for indoor scene layout prediction. In

Proceedings of the IEEE International Conference on

Computer Vision, pages 936–944.

Pascolini, D. and Mariotti, S. P. (2012). Global estimates of

visual impairment: 2010. British Journal of Ophthal-

mology, 96(5):614–618.

Sanchez-Garcia, M., Martinez-Cantin, R., and Guerrero,

J. J. (2018). Structural and object detection for phos-

phene images. arXiv preprint arXiv:1809.09607.

Schwing, A. G., Hazan, T., Pollefeys, M., and Urtasun, R.

(2012). Efﬁcient structured prediction for 3d indoor

scene understanding. In Computer Vision and Pattern

Recognition (CVPR), 2012 IEEE Conference on, pa-

ges 2815–2822. IEEE.

Vergnieux, V., Mac

e, M. J.-M., and Jouffrais, C. (2014).

Wayﬁnding with simulated prosthetic vision: Per-

formance comparison with regular and structure-

enhanced renderings. In Engineering in Medicine

and Biology Society (EMBC), 2014 36th Annual Inter-

national Conference of the IEEE, pages 2585–2588.

IEEE.

Zhou, D. D., Dorn, J. D., and Greenberg, R. J. (2013). The

argus

 ii retinal prosthesis system: An overview. In

2013 IEEE International Conference on Multimedia

and Expo Workshops (ICMEW), pages 1–6. IEEE.

Indoor Scenes Understanding for Visual Prosthesis with Fully Convolutional Networks

225
