Case Studies in Model-Driven Reverse Engineering

André Pascal

LS2N CNRS UMR 6004 - University of Nantes, France

Keywords:

Model-Driven Reverse Engineering, Re-engineering, Legacy Systems, Model, Abstraction, Process.

Abstract:

Without abstraction, third party maintenance can hardly make evolve (even documented) software applica-

tions. In this paper we address the problem of re-engineering software applications to add abstraction in order

to improve their continuous evolution. In three different case studies, we make use of Model-Driven Reverse

Engineering for extracting component software architecture, for aligning business and application logic in in-

formation systems and for re-engineering a holonic software manufacturing process. We report lessons learnt

for future developments.

1 INTRODUCTION

The maintenance process of software applications

represents more than 70% of the total of software cost

and this percentage is still growing up when main-

taining old legacy applications (Dehaghani and Ha-

jrahimi, 2013). Abstraction is a key factor to maintain

complex software applications because the concepts

are more resilient than their implementations. With-

out abstraction, third party can hardly make evolve

software applications due to numerous implementa-

tion details, tricky programming, hard-coded param-

eters, deprecated frameworks, etc. The business ap-

plication concepts are merged with implementation

issues to build an intricate software. The reference

manuals are rarely sufﬁcient to get easily into the

source code: implementation details are given but the

design decisions are not easy to trace. Moreover the

speciﬁcations are often deprecated against the pro-

grams. Due to lack of information, maintenance de-

velopers may reinvent the wheel or redo errors. Let

call this phenomenon the abstraction debt.

We are convinced that Model-Driven Engineer-

ing (MDE) is a gainful approach to develop long-

term software systems. According to (Selic, 2008),

the different MDE paradigms can be reduced to two

main ideas: raising the level of abstraction and raising

the degree of computer automation. MDE techniques

have proven useful not only for developing new soft-

ware applications but for re-engineering legacy sys-

tems (Cuadrado et al., 2014). This paper deals with

Model-Driven Reverse Engineering as a means to

produce software abstractions.

Reverse engineering is the process of comprehending

software and producing a model of it at a high abstrac-

tion level, suitable for documentation, maintenance,

or re-engineering (Rugaber and Stirewalt, 2004). The

goal is to re-introduce abstractions in the legacy ap-

plications in order to gain advantage later when mak-

ing the software evolve. We need techniques and tools

for reverse engineering (RE) that take into account the

domain speciﬁc features. In this paper we relate RE

cases. This is not a systematic study but lessons from

our experience.

This paper highlights the complex use of reverse

engineering in the context of re-engineering. We

experimented different approaches on different case

studies that belong to different application domains:

extracting software component architecture for better

design, software modernisation of information sys-

tems and rethinking a manufacturing control appli-

cation. The lessons learnt from these experimental

works open tracks for future vision and future work.

The paper is structured as follows. Section 2

overviews Model-Driven Reverse Engineering and

open issues. Three case studies are then presented.

Section 3 reports experimentations on software ar-

chitecture extraction. Section 4 reports an experi-

mentation in the information systems domain with

pre-deﬁned target models and large-scale case stud-

ies. Section 5 presents an on-going experimentation

in the manufacturing domain with pre-deﬁned target

models and a medium size case study. Lessons learnt

and related works are discussed in Section 6. Finally,

Section 7 summarises the contribution and draws per-

spectives.

256

Pascal, A.

Case Studies in Model-Driven Reverse Engineering.

DOI: 10.5220/0007312502560263

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 256-263

ISBN: 978-989-758-358-2

2 BACKGROUND

Abstraction hides implementation details. During

the development of software systems, high level ab-

straction models refer to system analysis and design

while low level ones refer to implementation and de-

ployment. The Object Management Groupe (OMG)

identiﬁed four types of models in the Model-Driven

Approach (MDA): Computation Independent Model

(CIM), Platform Independent Model (PIM), Platform

Speciﬁc Model (PSM) and an Implementation Speciﬁc

Model (ISM) (Brown, 2004). The relations between

model elements of different layers are reﬁnement or

traceability. Sometimes inheritance is used to mate-

rialize the abstraction between comparable model el-

ements. People also use abstraction layers to repre-

sent the organisation of complex architectures. Typi-

cal examples are the ISO stack of protocols and ser-

vices for telecommunications or the service architec-

ture approach (SOA). In MDA, an engineering pro-

cess can be seen as a sequence of model transforma-

tion where each transformation reﬁnes an (abstract)

model to a more concrete one by the means of in-

formation (cf. Figure 1). In this paper, the term In-

formation denotes any piece of knowledge (source

code, documentation artefacts, conﬁguration, proce-

dures, models, etc.) about a software application.

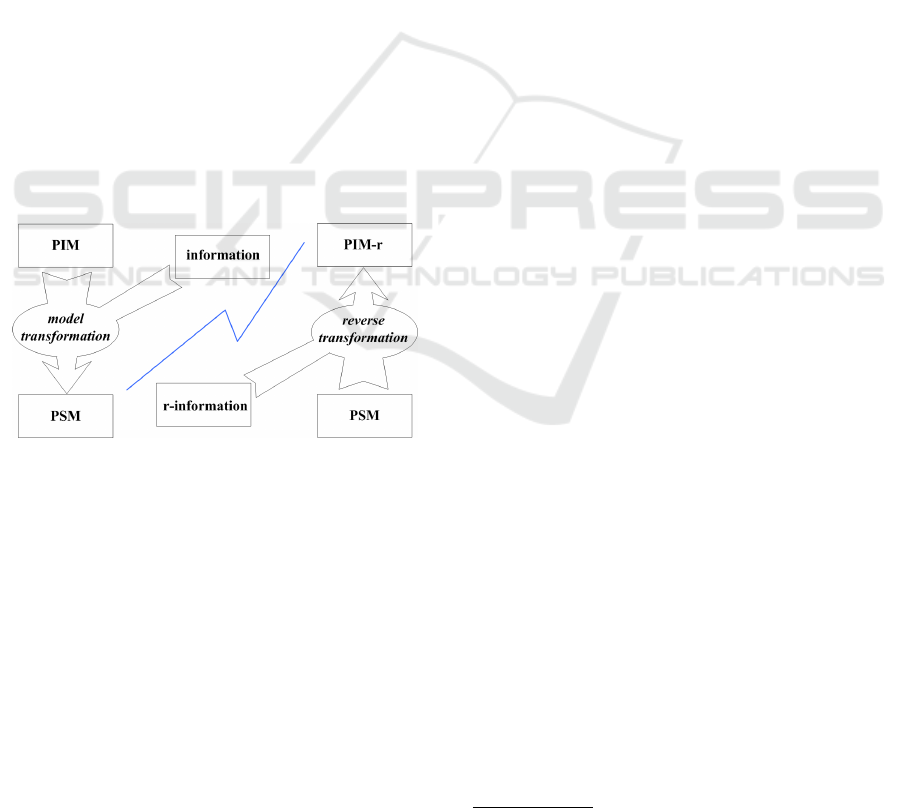

Figure 1: Reverse Model Transformation.

Model-Driven Reverse Engineering aims at pro-

ducing high (abstraction) level models from software

systems. Various objects can lead to use MDRE in

software maintenance:

• Extract information of lost or deprecated design

documentation.

• Understand an existing software solution with

missing documents.

• Re-factor application to improve the quality or

follow new coding standards.

• Align business processes with legacy applica-

tions.

• Upgrade technical framework releases or updat-

ing technical components.

• Extract software components to put on the shelf.

• Improve genericity by replacing hard coded infor-

mation by conﬁguration ﬁles.

• Modify the presentation layer or the persistence

layer in n-tier web applications.

• Change the programming languages (e.g. from

Cobol to Java).

Abstraction can raise at different abstraction levels,

from program representation to the application archi-

tectures or business processes. Consequently, differ-

ent kinds of models are expected with various no-

tations like de facto MDE standards such as UML,

OCL, MOF, EMF, SysML, AADL, BPMN or cus-

tomised models deﬁned with domain speciﬁc lan-

guages (DSL). The source information also differs

and may include binary code, source code, conﬁg-

uration ﬁles, tests programs but also textual docu-

mentation or user scenarios. Conversely to engineer-

ing, MDRE can be made of transformations but usu-

ally transformations are not reversible as illustrated

by Figure 1.

In the sections 3 to 5, we overview three dif-

ferent cases of reverse engineering practice for re-

engineering: For each case we present the objectives,

the proposed approach and the results.

3 SOFTWARE ARCHITECTURE

EXTRACTION

The ﬁrst case focus on reverse-engineering software

architecture to reduce software architecture erosion,

a common problem in legacy applications. Because

they do not know or do not understand the original ar-

chitectural intent, maintainers introduce changes that

may violate the intended architecture and properties.

The objective of this research project

was to estab-

lish a link between component implementations and

component models in order to statically check prop-

erties such as safety and liveness. In reverse engi-

neering, one cannot expect a “random” application to

follow strict development patterns, for example with

clear separation of communications, data types, com-

ponents types, etc. In this work we suppose that an

application was developed with componentisation in

mind, but not necessarily with the required rigour.

This would be the case for example, when one de-

signs an architectural model, with proper speciﬁca-

tion of components and allowed communications, but

implement the application with typical industrial ap-

proaches such as Corba, .NET, J2EE, or OSGI that

focus on the runtime infrastructure, but provide little

https://tinyurl.com/y7fjujgh

Case Studies in Model-Driven Reverse Engineering

257

support for automatic veriﬁcation of properties.

Figure 2 depicts the abstraction processes. Both

processes are different but the Structural Abstraction

(SA) stands ﬁrst because the Behavioural Abstraction

(BA) takes beneﬁt from the result of SA. We deﬁned a

common component meta-model (CCMM) as a stan-

dard for component based modelling languages such

as Kmelia

or Sofa

. These languages have tool sup-

port to verify models and check properties.

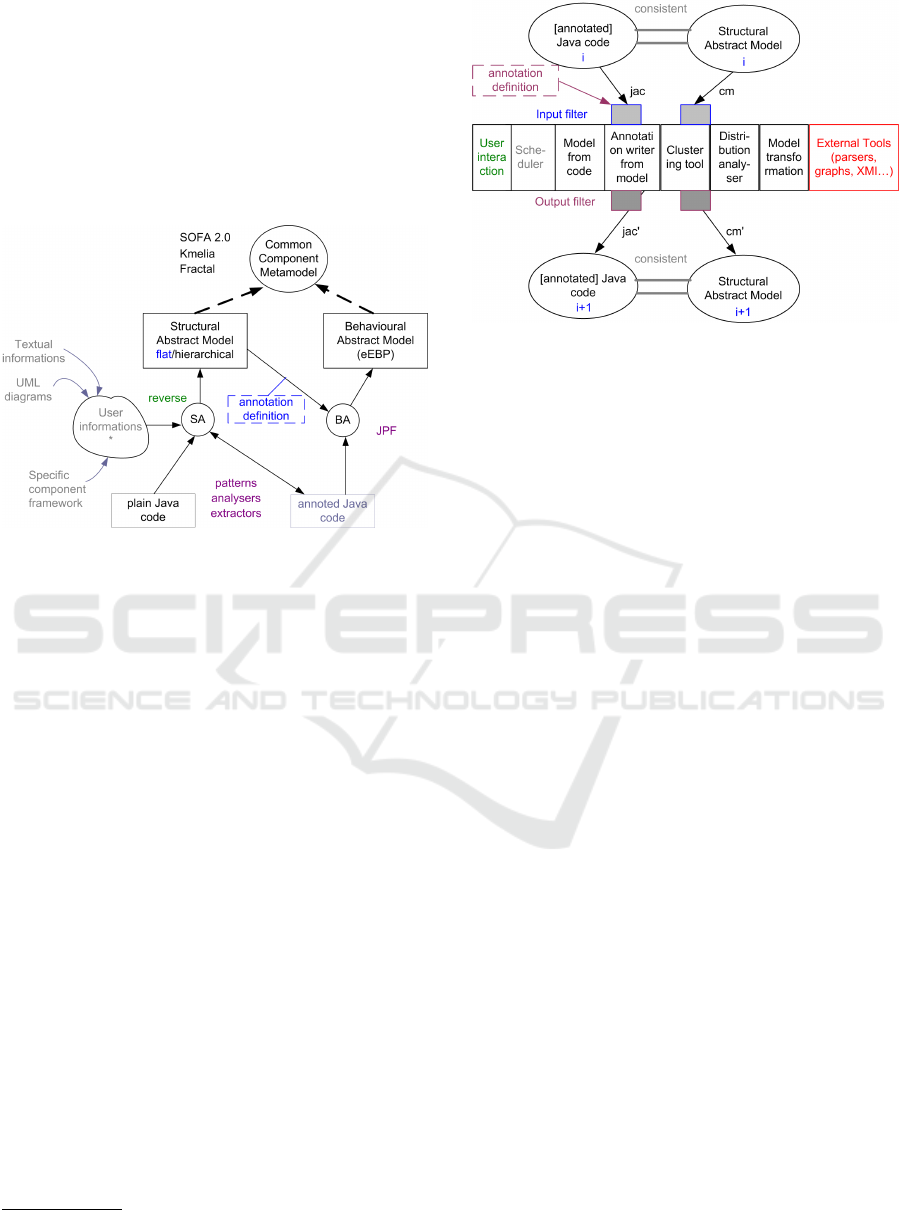

Figure 2: Component Abstraction Process.

The input data of processes SA and BA is a col-

lection of source code (e.g. plain Java code here). Ad-

ditional user informationcan help to deﬁne heuristics.

For example, if the implementation is based on a spe-

ciﬁc framework like Corba or Sprint, one can look

for speciﬁc patterns to detect components, services or

communication protocols. If there exists a deprecated

abstract model, one can try to match with the current

implementation. The process can also take beneﬁt of

code annotations written manually by users or auto-

matically by some code generator.

The abstraction processes are designed as itérative

transformation processes where each step consists in

applying one transformation of a tool box, as depicted

by Figure 3. Each iteration applies one transformation

(one tool of the toolbox) to the (possibly annotated)

source code and produce the same code with new an-

notations. The idea is to combine transformations in a

customized human driven process. As an example, let

detail the "Model from code" transformation of Fig-

ure 3. We developed the tool, called Javacompext,

for structure abstraction: recovering components and

communications from a plain Java application. The

input is a (possibly annotated) Java source code, and

the output is a set of components with several kind of

relations between them (communications, links, in-

heritance) and a set of data types. Details are given

https://costo.univ-nantes.fr/

https://sofa.ow2.org/

Figure 3: Iterative Abstraction Process Toolbox.

in (Anquetil et al., 2009).

We experimented Javacompext on various imple-

mentations of the Common Component Modelling

Example (Rausch et al., 2008). CoCoME is a con-

test to evaluate and compare the practical appliance

of existing component models and the corresponding

speciﬁcation techniques using a common component-

based system as modelling example. Based on a

UML-based description of CoCoME, a provided sam-

ple implementation, and test cases, the participating

teams had to elaborate their own modeling of Co-

CoME, applying their own component model and de-

scription techniques. The example describes a Trad-

ing System as it can be observed in a supermarket

handling sales. This includes the processes at a sin-

gle Cash Desk like scanning products using a Bar

Code Scanner or paying by credit card or cash as well

as administrative tasks like ordering of running out

products or generating reports. a deployment model,

or test cases. The CoCoME speciﬁcations (abstract

model) is relatively detailed with components, se-

quence, or communication diagrams. However it does

not explicitly identify all the services, and only a few

appear in sequence diagrams.

We used three instances of CoCoME, composed

of a meta-model and its implementation. For ex-

ample, the reference sample implementation is writ-

ten in plain Java with some (undocumented) conven-

tions. It includes 5078 LOC, 40 packages, 95 classes,

20 interfaces and 375 methods. The results were

quite encouraging. Although the rules to recognize

component types may seem very strict, in the cho-

sen context (application developed with components

in mind), they worked quite well. We could very

quickly discover mappings between the concrete code

and the abstract model which was one of our goals.

Javacompext also highlighted big mismatches be-

tween the designed application (abstract model) and

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

258

the implemented one.

4 INFORMATION SYSTEM

ALIGNMENT

The second case focus on reverse-engineering soft-

ware architecture of Information System legacy ap-

plications. Maintaining legacy systems, i.e. the cur-

rent state of the IT, besides new architectures or new

business rules, remains an ongoing but costly con-

cern (Clark et al., 2012). The problem is to re-

duce Business-IT misalignment between the Informa-

tion Technology (IT) and Business viewpoints, which

evolve separately. Our motivation is to help deci-

sion makers to capture the alignment of legacy sys-

tems with the related business models in order to un-

derline the cross effects of IT or business evolutions.

In (Pepin et al., 2016) we proposed a method to touch

on the alignment of legacy systems by a pragmatic

way. Different meta-models are deﬁned at different

abstraction levels (application, functional and busi-

ness process). They are inspired by Enterprise Archi-

tecture frameworks (e.g. TOGAF). We deﬁned meta-

model inter-relationships in order to support align-

ment. The method consists in gradually (i) building

models from the business side, (ii) extracting models

from the IT side and (iii) relating the models consis-

tently.

Reverse-engineering contributes to step (ii) in pro-

viding a way to feed the models by mining the exist-

ing information sources (code, models, documents).

We implemented techniques to feed the correspond-

ing models from legacy information (source code,

data and models when they exist). Figure 4 shows

the involved models and transformations performed

during step (ii).

Source Code Java Model

Mia-Studio

Modisco

JDT

Parsing

Transformation

rules Java to KDM

KDM Model

App Model

Transformation

rules KDM to App

Mia-Studio

S1.1 S1.2

S1.3

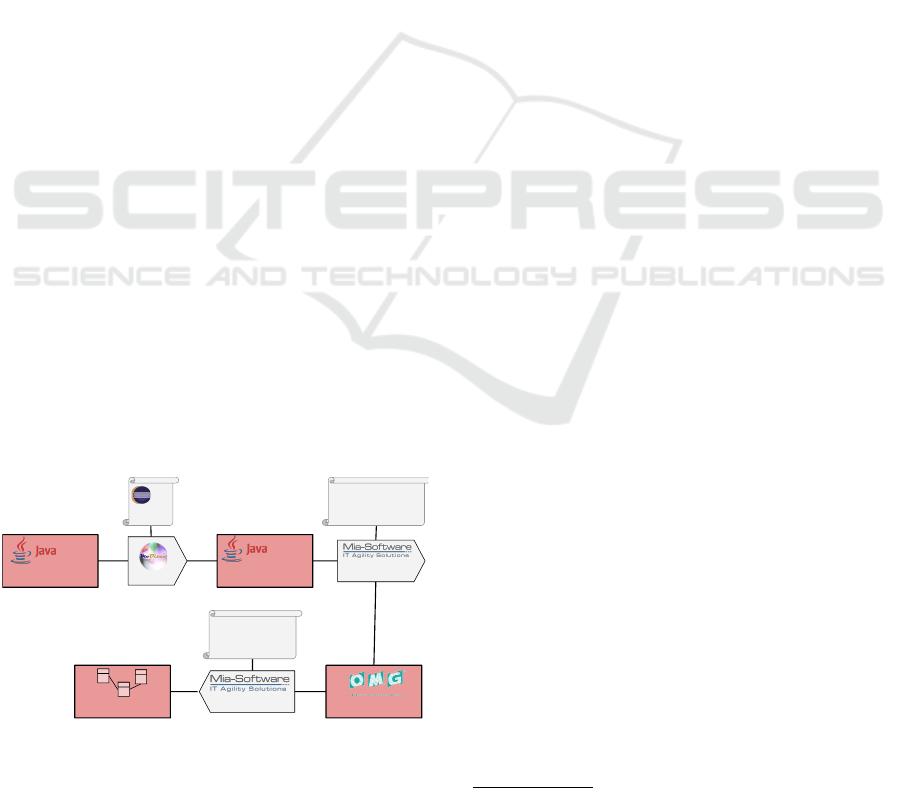

Figure 4: Transformation steps.

The goal is to retrieve an application model from

the source code. The distance between the program-

ming language level and the application architecture

level is too wide to be processed in a single transfor-

mation step. Therefore the application model is pro-

duced by a stepwise abstraction where three transfor-

mations are necessary as depicted in Figure 4.

1. The Source Code Reverse Engineering (S1.1) con-

sists in analysing the source code ﬁles of a set of

programs in order to get a representation of the

code in a model (PSM). This assumes a meta-

model for each target programming language e.g.

Java, C++, etc. We implemented Java Reverse En-

gineering using Modisco (Brunelière et al., 2014).

This tool discovers the Java model with the as-

sistance of the Java Development Tools (JDT)

which parses the source code and computes an

Abstract Syntax Tree (AST) according to a Java

meta-model.

2. The Intermediate Transformation (S1.2) produces

an instance of the Knowledge Discovery Meta-

model (KDM)

intermediate model (PIM). KDM

includes many layers to save different aspects of

common programming languages and more gen-

erally it deﬁnes common concepts for software

assets and their operational environments. We

used only a part of KDM, mainly the code pack-

age which contains all the features of the current

programming language. We faced the problem

of scaling the model size because Modisco is not

dedicated to store much information. So, we had

to write our own transformation using the Mia-

transformation tool.

3. The Transformation to a High-level Abstraction

(S1.3) is to transform the KDM model into our

App model which captures only the architectural

information to be aligned later with the business.

The abstraction distance between input and output

is really larger than those of step S1.1 and S1.2.

The existing tools suffer from limitations here.

Finer algorithms are required such as the trans-

formations exhibited for case 1 in Section 3. As a

matter of fact, we exploited speciﬁc information,

related to our case studies (see below) to build an

algorithm and a set of rules to detect the different

concepts from the application meta-model. This

algorithm is more or less complex depending on

the architecture used in the source code. Making

such an abstraction exploits the inter-relationships

described between the models to align. For exam-

ple, we wrote a Mia-transformation to obtain an

application model containing the links between

components, interfaces, services, functions and

data objects. The source code of the cases stud-

ies used a speciﬁc ﬁle naming based on name pre-

Used by the modernization community in mining tools.

http://www.omg.org/technology/kdm/

Case Studies in Model-Driven Reverse Engineering

259

ﬁxing. This naming policy identiﬁes the software

architecture role of different Java interfaces and

classes. This unusual feature helps us to create an

convenient transformation in a short time.

The experimentation was led on real case studies pro-

vided by French Mutual Insurance companies. The

inputs include heterogeneous data such as java source

ﬁles, enterprise architecture repositories (MEGA),

databases. For example, one case study was a com-

plete source code written in Java. The input source

code was large: 33,400 classes, about 3,400,000 code

lines. A side-effect of the study was to evaluate the

capability to handle large-scale systems. The experi-

ments showed that big mappings are hardly manage-

able by humans and tool assistance is mandatory. The

reader will ﬁnd more details in (Pepin et al., 2016).

5 MANUFACTURING CONTROL

SYSTEMS RE-ENGINEERING

The third case focus on reverse-engineering a man-

ufacturing application in order to re-engineer it ac-

cording to MDE. The context of this case study is

manufacturing control in Industry 4.0 where software

systems become of prime importance. The starting

point is a double ﬁnding, from literature review and

current practice. Related works mention that service

engineering in the context of Cyber-Physical Produc-

tion Systems is still a craft activity, usually at the im-

plementation level (Rodrigues et al., 2015; Morariu

et al., 2013). In practice, we started from the ap-

plication of Gamboa Quintanilla et al. that imple-

ments a Service-oriented Holonic Manufacturing Sys-

tems (SoHMS) (Quintanilla et al., 2016). A HMS is

an agent-based systems that acts as a digital twin of

the real manufacturing workshop ; it enables to con-

trol or simulate the workshop. Gamboa implemented

a manufacturing workshop, called SOFAL. Its cur-

rent implementation is depicted in Figure 5. It con-

sists of two Java applications that exchange informa-

tions through sockets. Both applications are tightly

coupled to the SOFAL workshop and reconﬁguring

it implies to compile the software. The programs in-

cludes 160 classes, 1240 methods and 14802 lines of

code. The documentation is a PhD report including

UML diagrams. Products and manufacturing orders

are described with a human-machine interface (HMI).

SoHMS, the running control system, can be bound to

a simulator (Arena tool) or to the real workshop.

The objective is to switch from classical develop-

ment to MDE. Instead of coding, the idea is to in-

troduce automation and generate the code from mod-

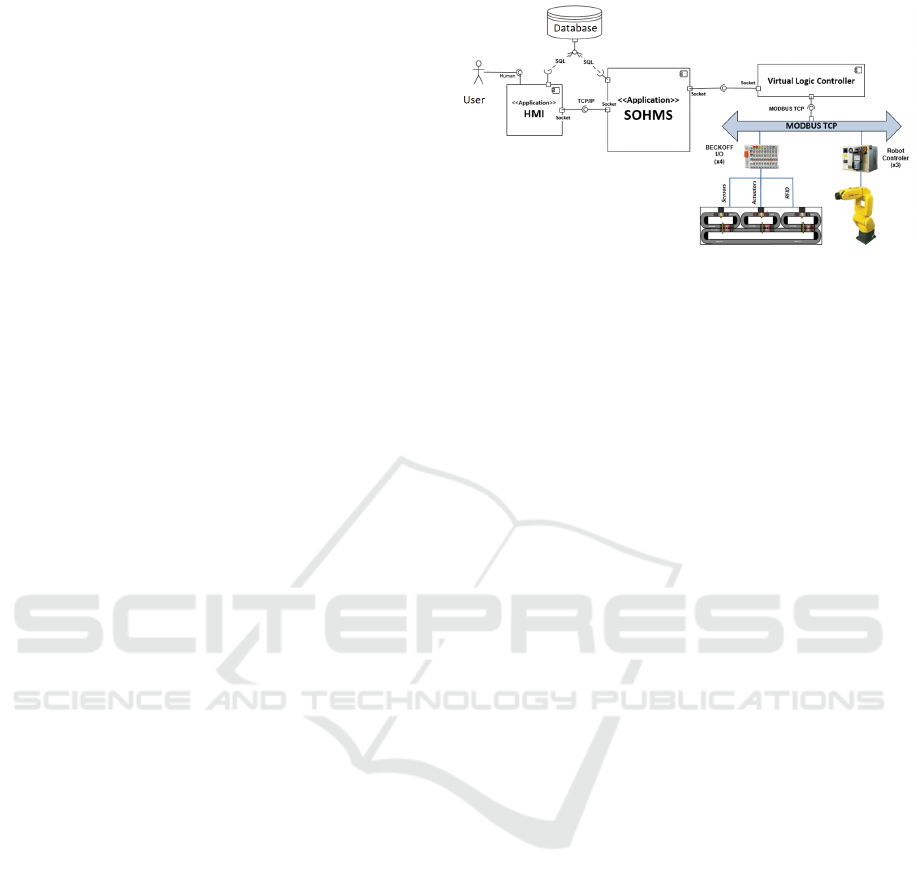

Figure 5: SOFAL manufacturing software.

els in order to be more reactive when reconﬁguring

the workshop. Moreover, handling models enables to

reason with abstract concepts and to verify expected

properties without taking into account useless imple-

mentation details. The motivations and new organisa-

tion are explained in (Tebib et al., 2019).

The role of reverse-engineering is to mine the

source code to capture model elements that can be

compared with the available UML diagrams. It helps

to discover and understand the application. Behind

discovering we also want to separate the concepts that

are speciﬁc to SOFAL from those which are common

to different workshop. Factoring concepts will help

to get higher abstraction and promote reuse. This ab-

stract part of the application constitute the SOHMS

framework, a Java library we will shared by the fu-

ture manufacturing projects. The speciﬁc layer in-

cludes those features which depend on one speciﬁc

workshop (products, ressources, orders, ﬂows). We

also separate the workshop elements (resources and

ﬂows) from the manufacturing ones (orders and prod-

ucts). The primer are rather static (even for recon-

ﬁgurable manufacturing systems) while the latter are

merely dynamic, time dependent and subject to qual-

ity of service constraints.

The reverse-engineering process extracts abstrac-

tions to be sorted in the above categories (com-

mon/speciﬁc, workshop/manufacturing). We choose

UML as modelling language due to its widespread use

in the development community but also because var-

ious MDE tools accept UML models (or EMF mod-

els in the Eclipse world). We tried different tools for

reverse-engineering UML models from Java source

code such as Modelio, Papyrus, Modisco, Eclipse

UML, Enterprise Architect or ObjectAid. Few of

them enable visual facilities for exploring the result-

ing diagrams, ObjectAid was helpful for this.

Finally, even if this is not a deﬁnitive opinion,

the existing tools mainly propose a static represen-

tation of the code (system structure and system be-

haviour). We already made similar ﬁndings in the ex-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

260

perimentations of Section 3 and Section 4. The auto-

matic extraction of communication scenarios (UML

sequence diagrams) or object life cycles (UML stat-

echarts) from plain Java are, as far as we explored,

almost limited in the tested tools. ObjectAid

pro-

vides visual representations to be included manually

in class diagrams. Sequences diagrams were available

in the licensed version. Other tools usually provide

internal representation or XMI format ﬁles.

In practice, the automatic extraction provided too

much useless details to prevent us to understand

how the two applications were designed. The gap

between code models and design model is really

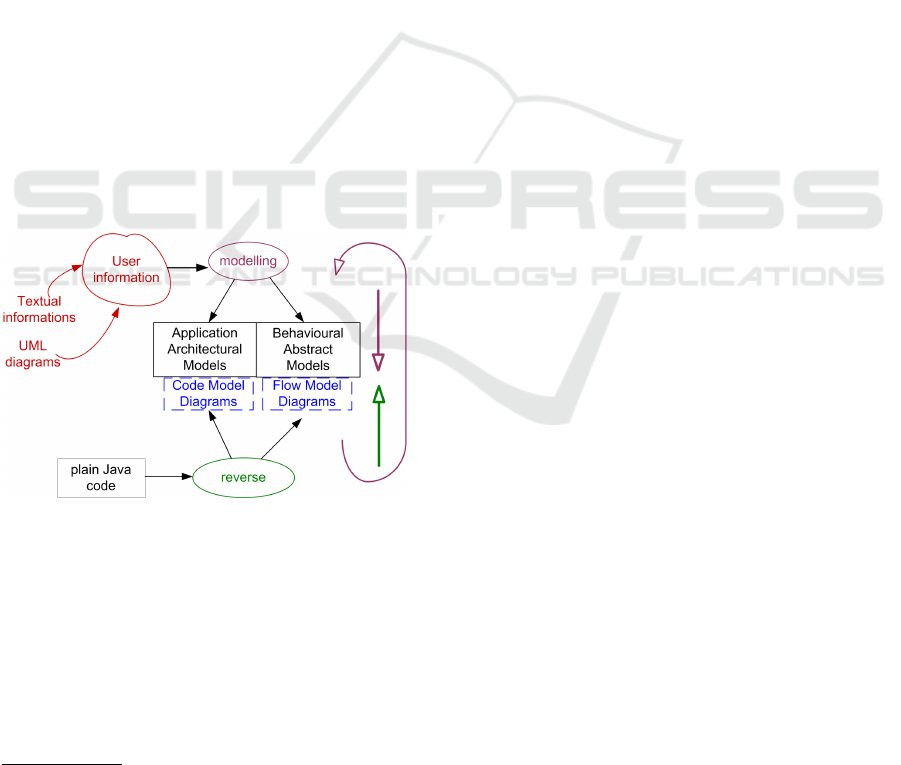

big. Consequently we adopted a two-way approach,

where reverse-engineering activities interleave and

modelling activities in an iterative process (Figure 6).

1. Reverse engineering (bottom-up) discovers the

implemented structures (for both structural and

behavioural aspects) with code model extraction,

code reading.

2. Model engineering (top-down) writes UML mod-

els (class diagrams, sequence diagrams, activity

diagrams...) from research reports, interviews, as-

sumptions and of course the results of the previous

reverse engineering iterations.

The idea is to iterate and converge until a sufﬁcient

level of agreement is reached.

Figure 6: Two-way reverse engineering.

The result of the two-way reverse engineering is

a collection of UML diagrams that helps to build the

SoHMS framework which contains the core execution

of the holonic system. It serves as documentation of

the SoHMS framework which is currently designed

as a Java library. We are working on a modelling sup-

port (a Domain Speciﬁc Language and a visual editor

implemented with Sirius

and on model transforma-

tions to Java and to FlexSim

, a simulation system.

http://www.objectaid.com/

http://www.eclipse.org/sirius/

https://www.ﬂexsim.com/

This part is still under construction in the process but

details are available in (Tebib et al., 2019).

6 DISCUSSIONS

We present lessons learnt from the above case studies

and related works.

When model-driven reverse engineering legacy

systems, it is a primary requirement to have tech-

niques to build new models. We observed that the

existing tools mainly propose a static representation

of the code (system structure and system behaviour),

similarly as described in the experimentations of Sec-

tion 3 and Section 4. The behavioural abstraction is

more complex to establish because investigating the

computation ﬂows is a kind of evaluation. MDRE

tools provide convenient abstract views of the code

but more intelligent algorithms are required to raise

in abstraction. In the three above presented cases, we

experimented various strategies.

1. In the case presented in Section 3, heuristics en-

able to classify candidate classes into components

or data types.

2. In case studies of Section 4, we use engineering

methods and rules including naming conventions

and package organization.

3. In the case presented in Section 5, we compared

the (manual) top-down models from the bottom-

up abstractions at each iteration step.

During these experiences, we note the following

ﬁndings about MDRE.

1. The process is guided by the objectives (what you

look for) and the results will depend on them. It

can be used to prove properties or estimate the

quality (e.g. case 1), to evaluate the impact of

evolution (e.g. case 2) or to re-engineer a new ap-

plication (e.g. case 3). Other scenarios are given

in (Raibulet et al., 2017), including comprehen-

sion, documentation, software quality assessment.

2. Automatic high-level reverse-engineering for gen-

eral purpose object languages such as Java or C++

stay a myth. Efﬁcient generic tools exist, such as

Modisco, which provide an abstract view of the

program but can hardly raise in abstraction to ar-

chitecture levels. Having information or expertise

knowledge is mandatory to compute abstractions,

e.g. heuristics or design choices, naming or struc-

turing conventions, traceability links, best prac-

tices, patterns, etc. In Section 3, we added anno-

tations in the source code to assist the tool in de-

tecting the abstractions. In the best case one may

have an incomplete model designed during the en-

Case Studies in Model-Driven Reverse Engineering

261

gineering process. Also the process must be inter-

active or user guided because the (reverse-)design

decisions depend on experts. Having third party

MDRE is an additional drag. The result would be

better with speciﬁc-purpose languages.

3. One step reverse-engineering is impossible to

raise in abstraction. We are convinced that the

intelligence is in the transformation process not

in the individual transformations. Only small

steps can be easily implemented by developers

with simple transformation rule sets. For ex-

ample, coding UML models (including classes,

state-transitions and activity diagrams) directly

into Java is harder and less reusable than trans-

forming (i) to a UML proﬁle without aggregation,

and bidirectional association, (ii) to a UML proﬁle

without multiple inheritance, etc.

4. There are no universal process. Each of our case

study was different in terms of source information

and MDRE objectives. Consequently the reverse

engineering must be able to accept customizations

(or local knowledge) as input parameter. As men-

tioned in (Raibulet et al., 2017), domain speciﬁc

approaches provide better results e.g. for web ser-

vices, Cobol programs or relational databases, etc.

5. Similarly to machine learning, a reverse engineer-

ing technique, designed for a given goal (lesson

1) in a given context (lesson 4), will be improved

by applying it in new case studies. In the case of

Section 3, the tool provides different results for

the different implementations we tested. An open

track is to improve the heuristics of the RE trans-

formations by learning.

6. Discovering a model is much harder than compar-

ing a model with an implementation. As experi-

mented in the case of Section 5 and in some ex-

amples of Section 4, it is more easy to ﬁnd some-

thing expected than something unknown. Having

a reference provides not only potential abstrac-

tions but also the way abstractions were designed.

In a MDE approach, the knowledge of the engi-

neering transformation process impacts the way to

drive the reverse-engineering transformation pro-

cess. In particular, if the transformation process

is made of small steps, it is simpler to write the

reverse-transformations because the semantic dis-

tance is small between an implementation (a set of

elements of the source code) and its abstraction.

However reverse-engineering is never a symmet-

ric transformation of engineering.

7. MDE helps in MDRE. If the engineering process

is made of model transformations, it should be

easier to get back to models. For example one can

set traceability links in the code (e.g. by the means

of code annotation). Model round-trip engineer-

ing goes further and involves synchronizing mod-

els and keeping them consistent. As a means for

round-trip, Bork et al. propose an approach for re-

verse engineering of code generated by a template

based code generator (Bork et al., 2008).

In coherence with MDA and lesson 3, we con-

sider a reverse-engineering process to be a composi-

tion of reverse model transformations as depicted by

Figure 1. The cost to pay is to manage intermediate

meta-models. To avoid the multiplicity of modelling

languages, one can deﬁne operators to reduce or to

augment the features of one base language, similarly

to UML proﬁles. Another problem is to manage meta-

model evolution ; solutions with graph transformation

are provided in (Mantz et al., 2015).

MDRE has been an active research ﬁeld since a

more than a decade. We already point out compar-

isons with related approaches on component based

reverse-engineering (case 1) in (Anquetil et al., 2009)

and legacy reverse engineering for application models

(case 2) in (Pepin et al., 2016).

Reis and Da Silva propose a MDRE approach to

produce high-level speciﬁcations of legacy informa-

tion systems in a human-controlled way taht are re-

injected in forward engineering (Reis and da Silva,

2017). A family of UML-based modelling language,

called XIS*, enable to express the speciﬁcations.This

approach could be complementary to ours since it fo-

cus on databases while we work on programs.

Considering MDRE in general, we refer to the

recent synthesis of Raibulet et al. (Raibulet et al.,

2017). Fifteen approaches are referenced and eleven

partial approaches are discussed. The referenced

approaches are classiﬁed into general purpose (or

generic) approaches and domain speciﬁc ones (e.g.

for cobol, web-services, web applications or rela-

tional databases). These approaches use a wide range

of meta-models (e.g. OMG standards but mùany

DSLs) but merely few tools (the most cited are

MoDisco and ATL). Various case study are used but

no benchmark emerged.

The most advanced approaches for MDRE is the

one of Brunelièere et al. (Brunelière et al., 2014),

based on Modisco, an open source MDRE frame-

work. We are convinced Modisco is very helpful for

model discovery ; we used it in case 2. However com-

plementary approaches are necessary to raise in ab-

straction, as shown in case 2.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

262

7 CONCLUSION

In the context of software maintenance, the well-

known technical debt is almost always accompanied

by an abstraction debt. Even in the good case were

the speciﬁcations include software architecture and

design models they are usually not up-to-date and

not consistent with the current implementation and

runtime conﬁgurations. Model-Driven Reverse En-

gineering of a legacy system provides means to get

abstract models from the source code (or from the

binary code). However a standard extraction from

code, usually do not reach the goal because the tool

support is more efﬁcient on the static parts than the

behavioural part. Experiments show us that MDRE

is a complex activity that requires expert assistance,

customization to ﬁt the MDRE goals and progres-

sive abstraction raising. MDRE is not symmetric to

MDE ; the traceability links that bind (abstract) de-

sign concepts to (concrete) implementation concepts

are many-to-many. Things can change if MDRE is an-

ticipated during engineering by using small step trans-

formations and by putting explicit traceability infor-

mation in the source code i.e. preparing round-trip.

The next step will provide more assistance to

MDRE user. For example we target the implemen-

tation of heuristics to propose a list of possible model

abstraction mappings to the modeller, she can then

choose the desired ones. These heuristics will de-

pend on the nature and the semantics of the mappings.

For example, when mapping two releases of the same

model, it is usually easier to detect equality mapping.

In speciﬁc cases, one can detect patterns or naming

conventions.

REFERENCES

Anquetil, N., Royer, J., Andre, P., Ardourel, G., Hnetynka,

P., Poch, T., Petrascu, D., and Petrascu, V. (2009).

Javacompext: Extracting architectural elements from

java source code. In 2009 16th Working Conference

on Reverse Engineering, pages 317–318.

Bork, M., Geiger, L., Schneider, C., and Zündorf, A. (2008).

Towards roundtrip engineering - a template-based re-

verse engineering approach. In Schieferdecker, I. and

Hartman, A., editors, Model Driven Architecture –

Foundations and Applications, pages 33–47, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Brown, W. A. (2004). Model driven architecture: Princi-

ples and practice. Software and Systems Modeling,

3(4):314–327.

Brunelière, H., Cabot, J., Dupé, G., and Madiot, F.

(2014). Modisco: A model driven reverse engineer-

ing framework. Information and Software Technology,

56(8):1012 – 1032.

Clark, T., Barn, B. S., and Oussena, S. (2012). A method

for enterprise architecture alignment. In Proceedings

of PRET, volume 120, pages 48–76. Springer.

Cuadrado, J. S., Izquierdo, J. L. C., and Molina, J. G.

(2014). Applying model-driven engineering in small

software enterprises. Sci. Comput. Program.

Dehaghani, S. M. H. and Hajrahimi, N. (2013). Which fac-

tors affect software projects maintenance cost more?

Acta Informatica Medica, 21(1):63–66.

Mantz, F., Taentzer, G., Lamo, Y., and Wolter, U. (2015).

Co-evolving meta-models and their instance models:

A formal approach based on graph transformation.

Science of Computer Programming, 104:2 – 43. Spe-

cial Issue on Graph Transformation and Visual Mod-

eling Techniques (GT-VMT 2013).

Morariu, C., Morariu, O., and Borangiu, T. (2013). Cus-

tomer order management in service oriented holonic

manufacturing. Computers in Industry, 64(8):1061 –

1072.

Pepin, J., André, P., Attiogbé, C., and Breton, E. (2016).

An improved model facet method to support EA align-

ment. CSIMQ, 9:1–27.

Quintanilla, F. G., Cardin, O., L’anton, A., and Castagna, P.

(2016). A modeling framework for manufacturing ser-

vices in service-oriented holonic manufacturing sys-

tems. Engineering Applications of Artiﬁcial Intelli-

gence, 55:26–36.

Raibulet, C., Fontana, F. A., and Zanoni, M. (2017). Model-

driven reverse engineering approaches: A systematic

literature review. IEEE Access, 5:14516–14542.

Rausch, A., Reussner, R., Mirandola, R., and Plasil, F., ed-

itors (2008). The Common Component Modeling Ex-

ample: Comparing Software Component Models, vol-

ume 5153 of LNCS. Springer, Heidelberg.

Reis, A. and da Silva, A. R. (2017). Xis-reverse: A model-

driven reverse engineering approach for legacy infor-

mation systems. In Proceedings of the 5th Interna-

tional Conference on Model-Driven Engineering and

Software Development,, pages 196–207. INSTICC,

SciTePress.

Rodrigues, N., Leitão, P., and Oliveira, E. C. (2015). Self-

interested service-oriented agents based on trust and

qos for dynamic reconﬁguration. In Borangiu, T.,

Thomas, A., and Trentesaux, D., editors, Service Ori-

entation in Holonic and Multi-agent Manufacturing,

volume 594 of Studies in Computational Intelligence,

pages 209–218. Springer.

Rugaber, S. and Stirewalt, K. (2004). Model-driven reverse

engineering. IEEE Software, 21(4):45–53.

Selic, B. (2008). Personal reﬂections on automa-

tion, programming culture, and model-based soft-

ware engineering. Automated Software Engineering,

15(3):379–391.

Tebib, M. E. A., André, P., and Cardin, O. (2019). A model

driven approach for automated generation of service-

oriented holonic manufacturing systems. In Service

Orientation in Holonic and Multi-Agent Manufactur-

ing - Proceedings of SOHOMA 2018, Bergamo, Italy,

June 11-12, 2018, volume 803 of Studies in Computa-

tional Intelligence, pages –. Springer. To appear.

Case Studies in Model-Driven Reverse Engineering

263
